Next Article in Journal
A New Broadband and Strong Absorption Performance FeCO3/RGO Microwave Absorption Nanocomposites
Previous Article in Journal
Methanol Dehydration to Dimethyl Ether on Zr-Loaded P-Containing Mesoporous Activated Carbon Catalysts
Previous Article in Special Issue
Investigation of Electroplastic Effect on Four Grades of Duplex Stainless Steels
Article Menu
Issue 13 (July-1) cover image

Export Article

Open AccessFeature PaperArticle

Complex Study of Eutectoidal Phase Transformation of 2507-Type Super-Duplex Stainless Steel

Department of Materials Science and Engineering, Budapest University of Technology and Economics, Bertalan Lajos utca 7, 1111 Budapest, Hungary
*
Author to whom correspondence should be addressed.
Materials 2019, 12(13), 2205; https://doi.org/10.3390/ma12132205
Received: 3 June 2019 / Revised: 21 June 2019 / Accepted: 4 July 2019 / Published: 9 July 2019
(This article belongs to the Special Issue Advances in Duplex Stainless Steels)
  |
PDF [6823 KB, uploaded 9 July 2019]
  |     |

Abstract

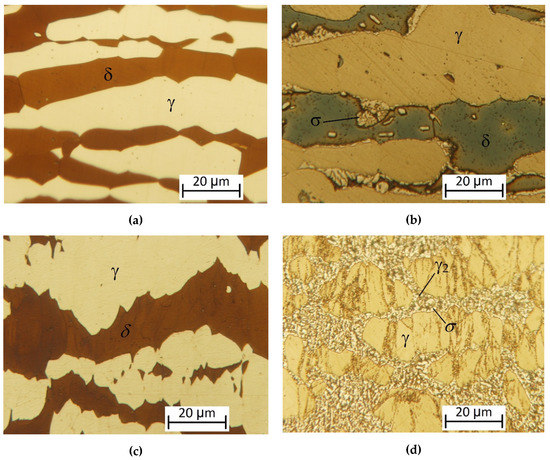

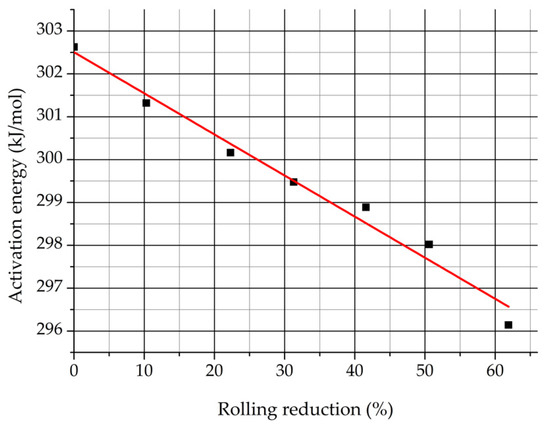

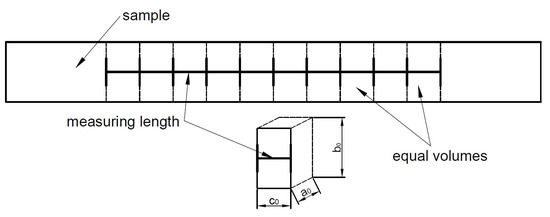

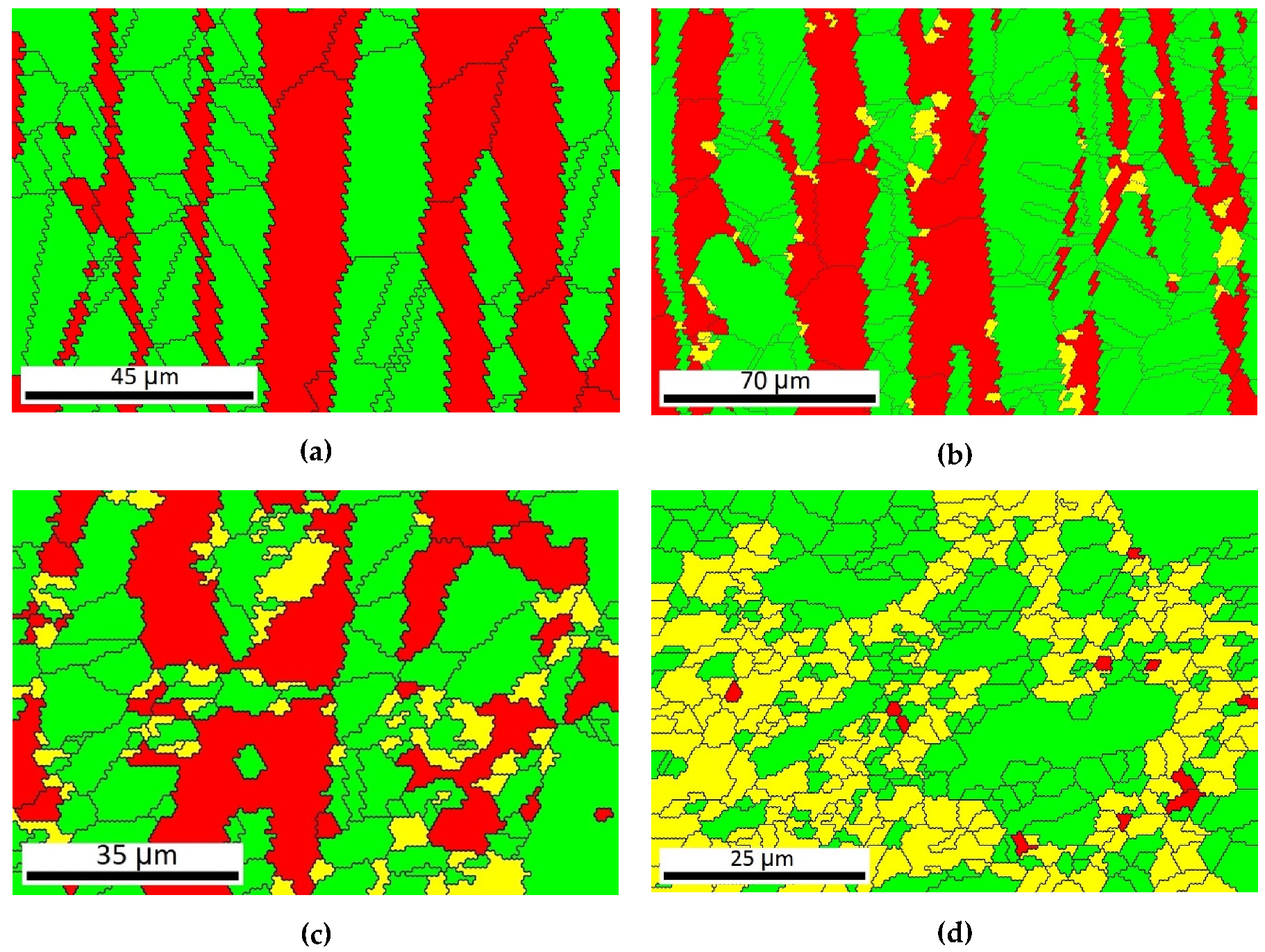

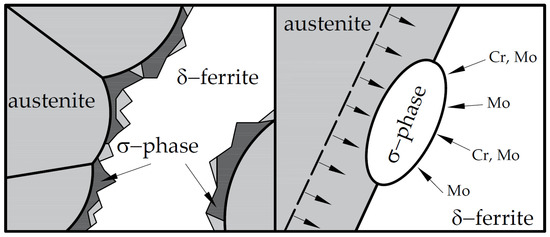

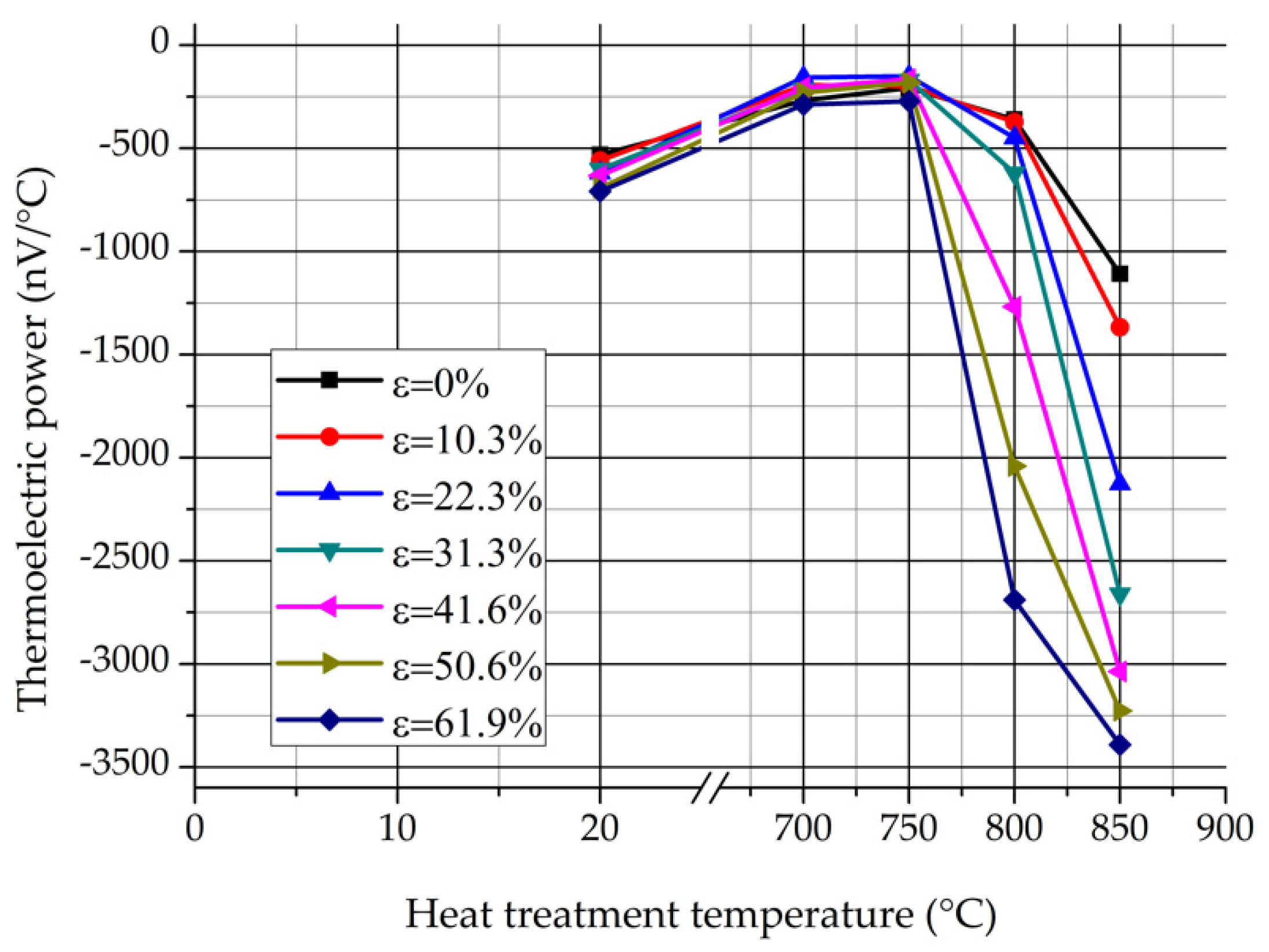

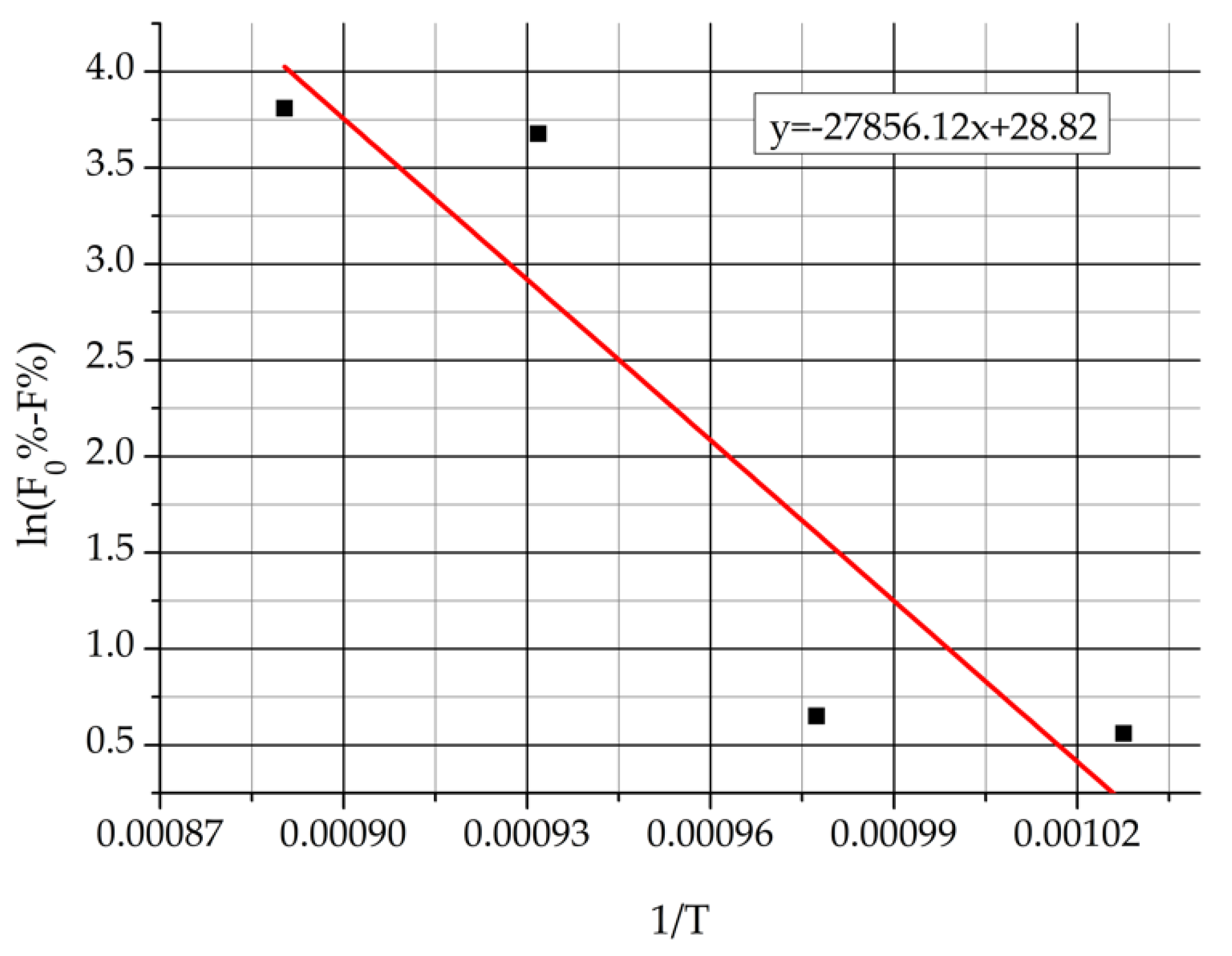

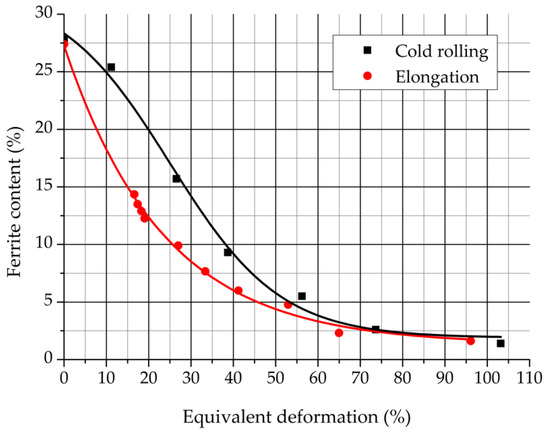

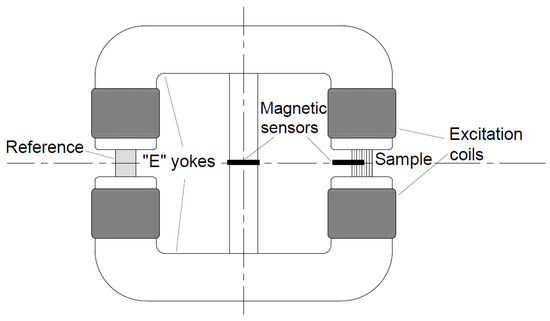

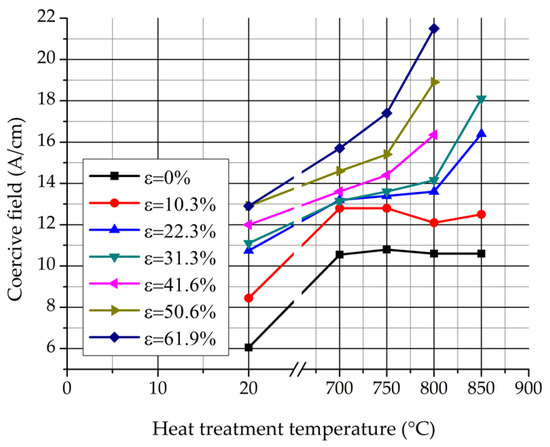

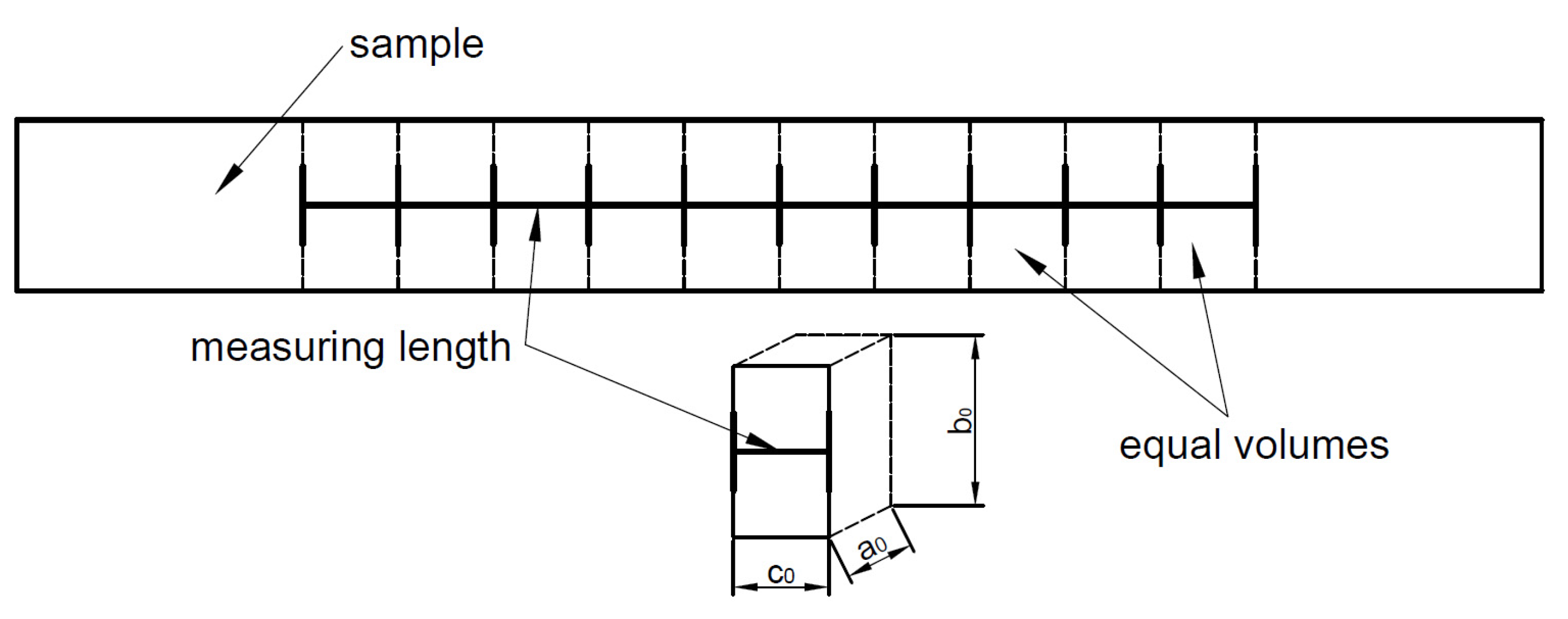

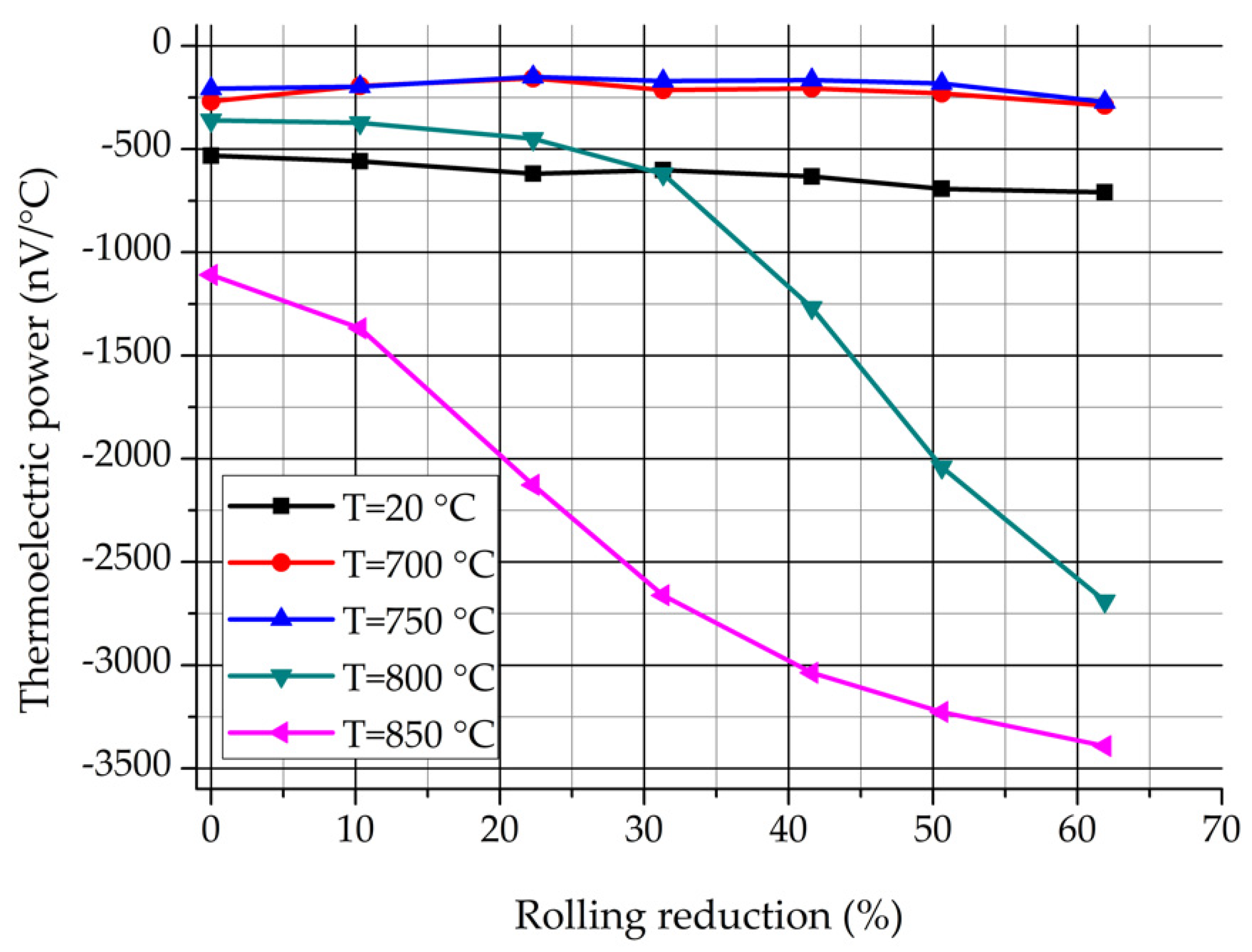

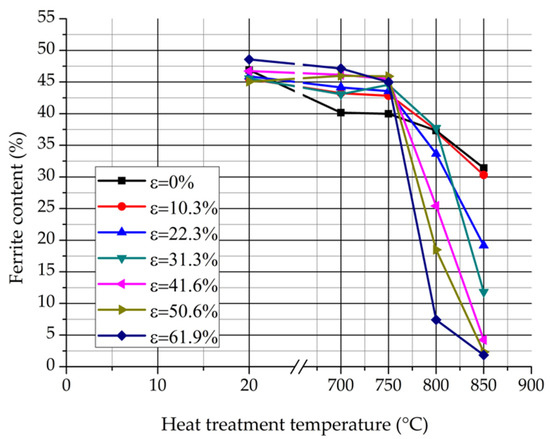

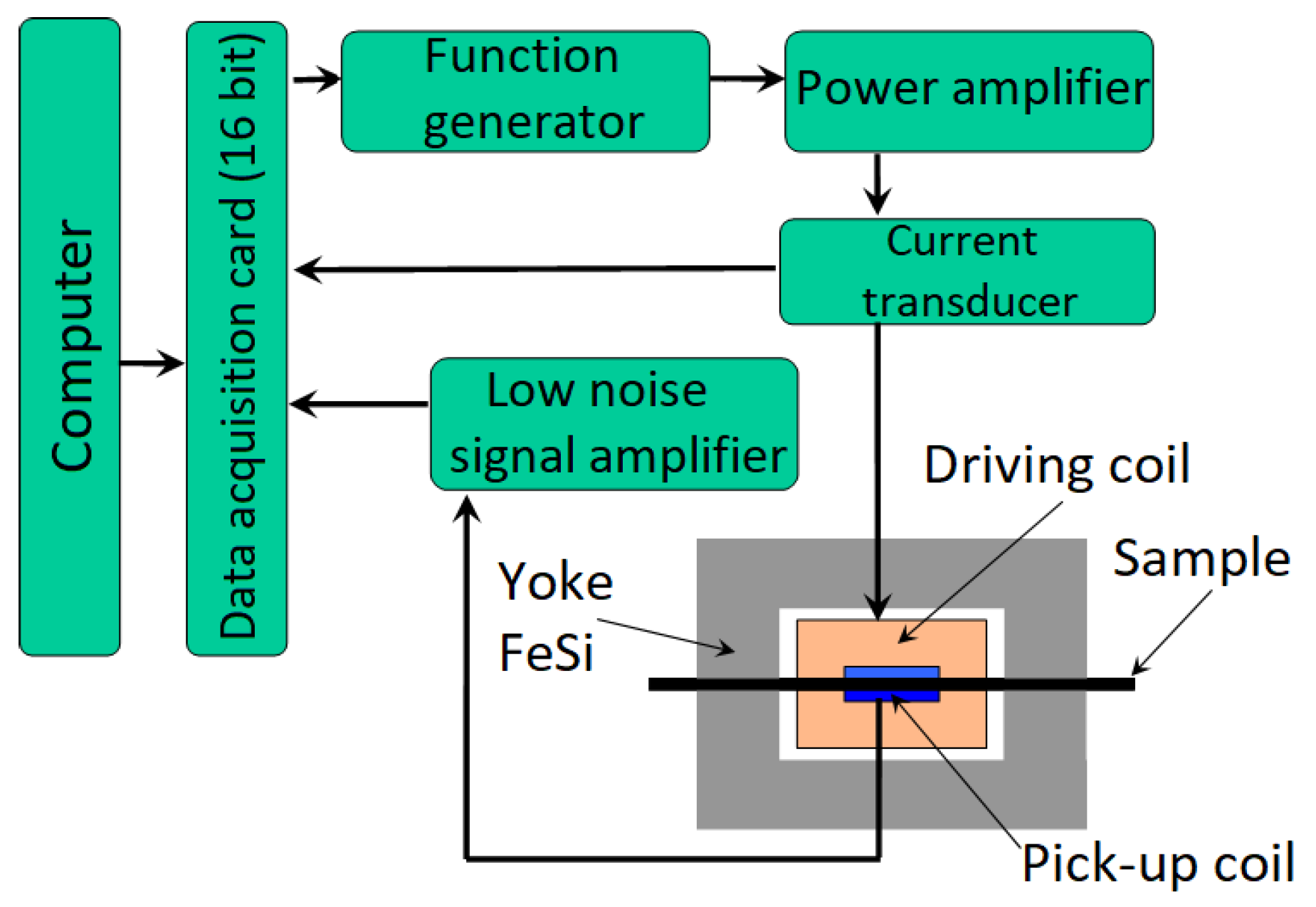

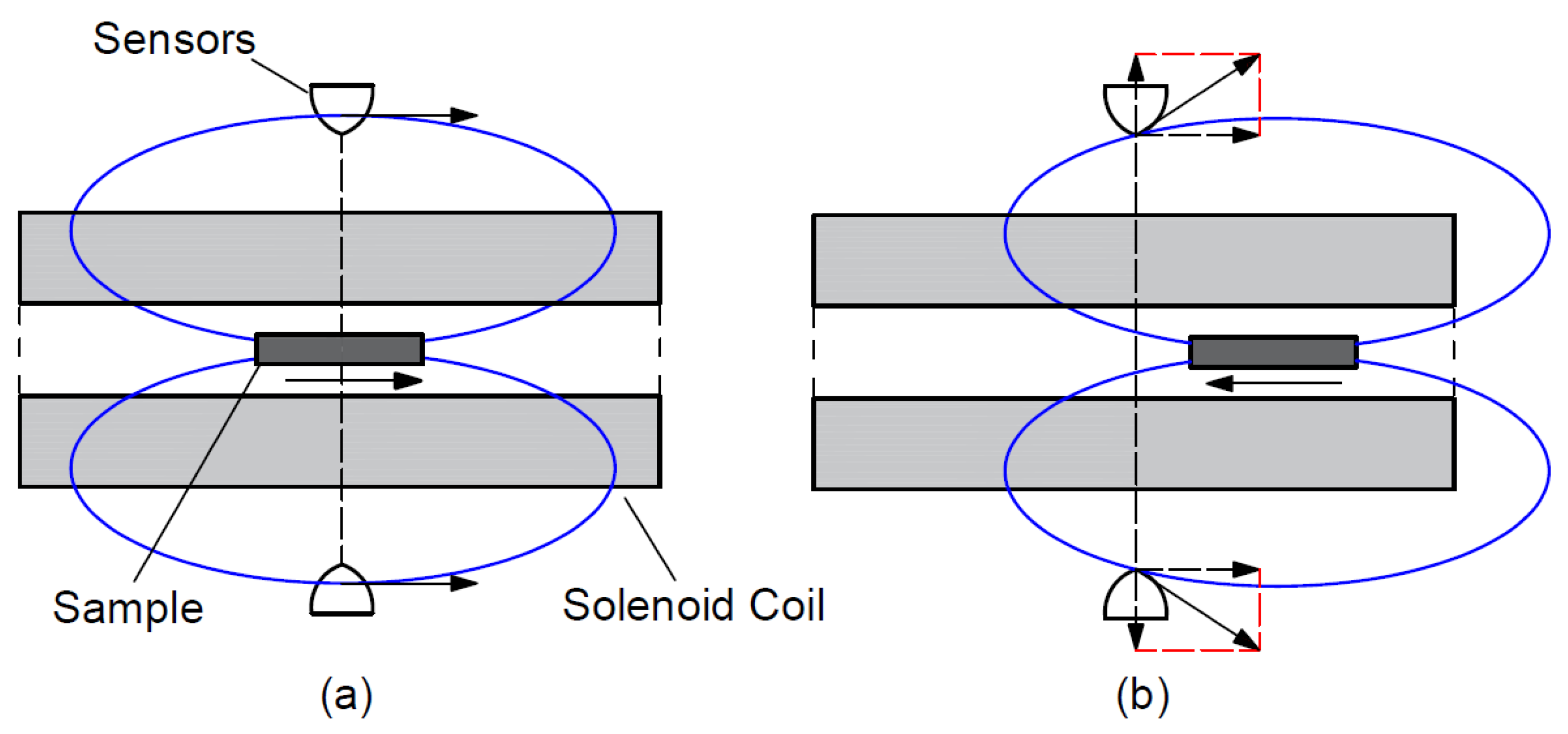

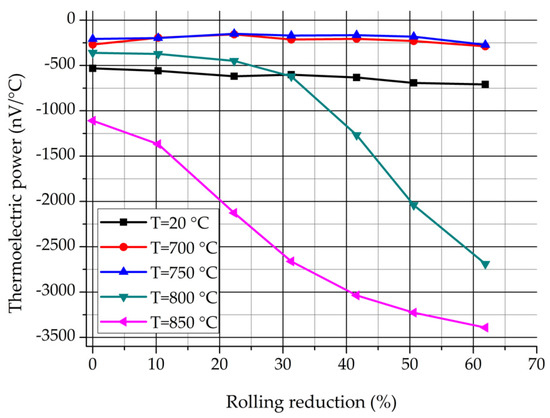

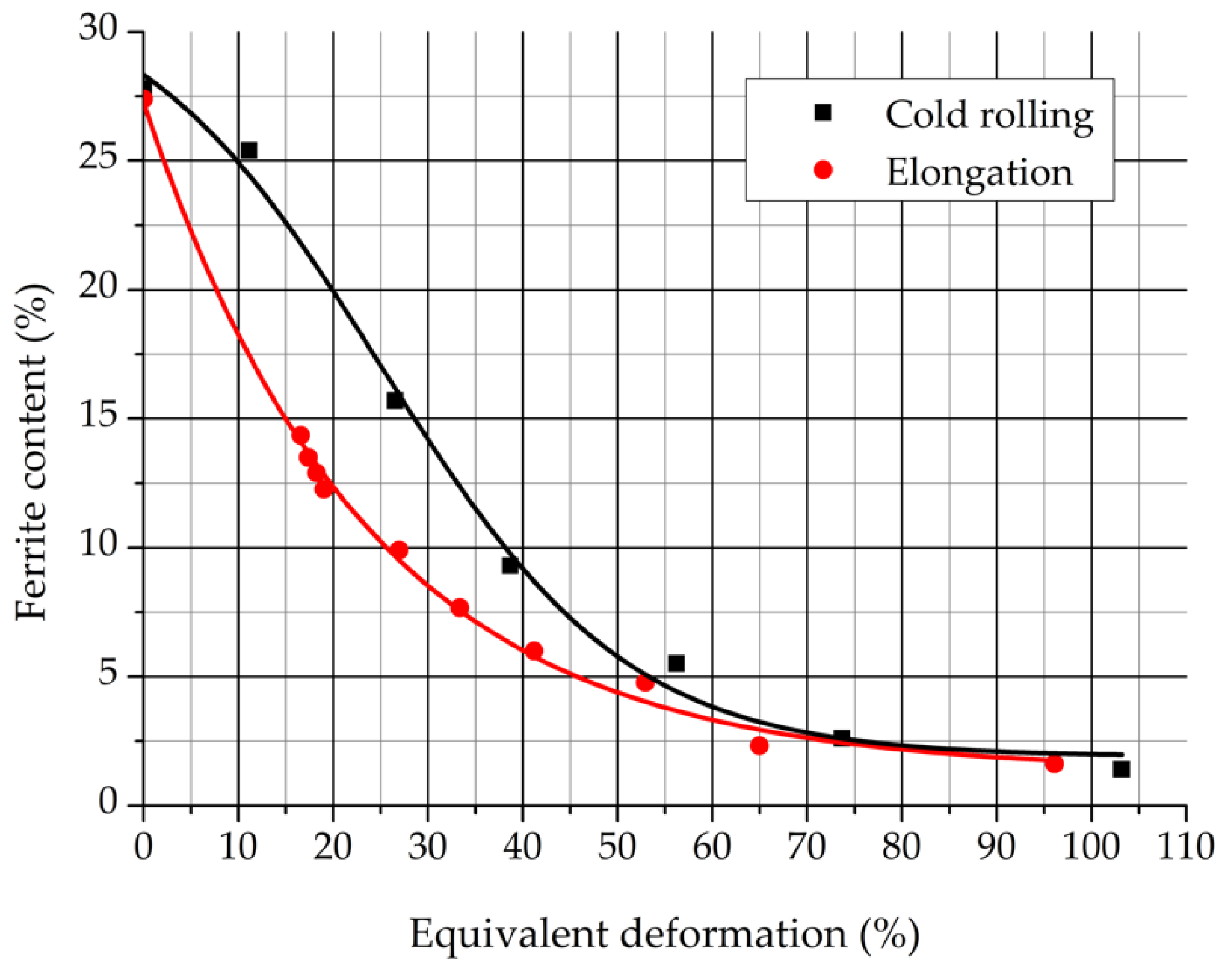

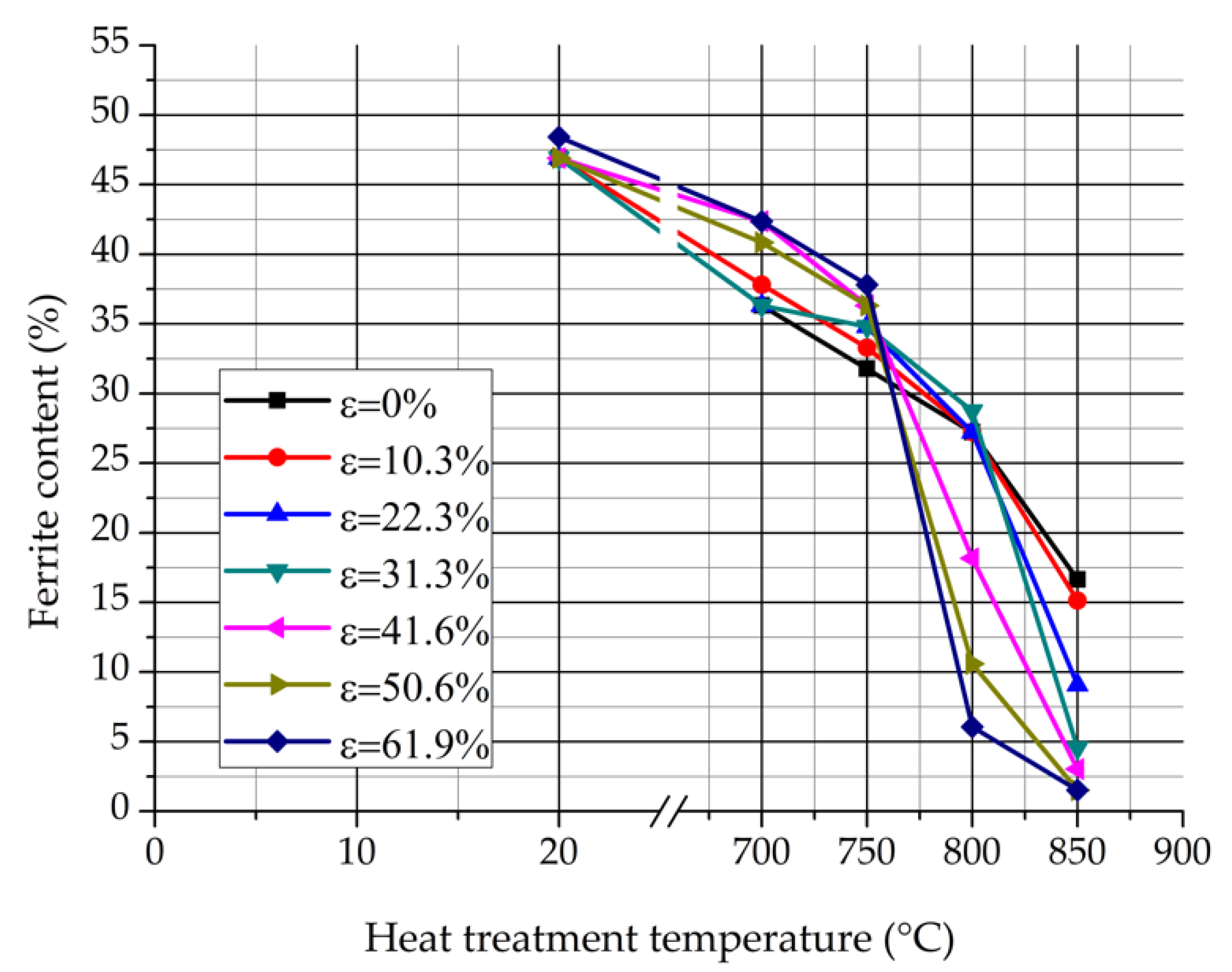

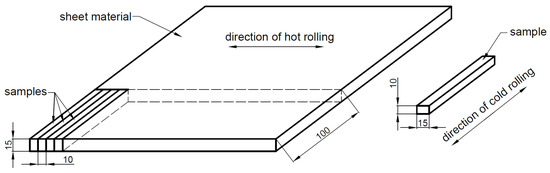

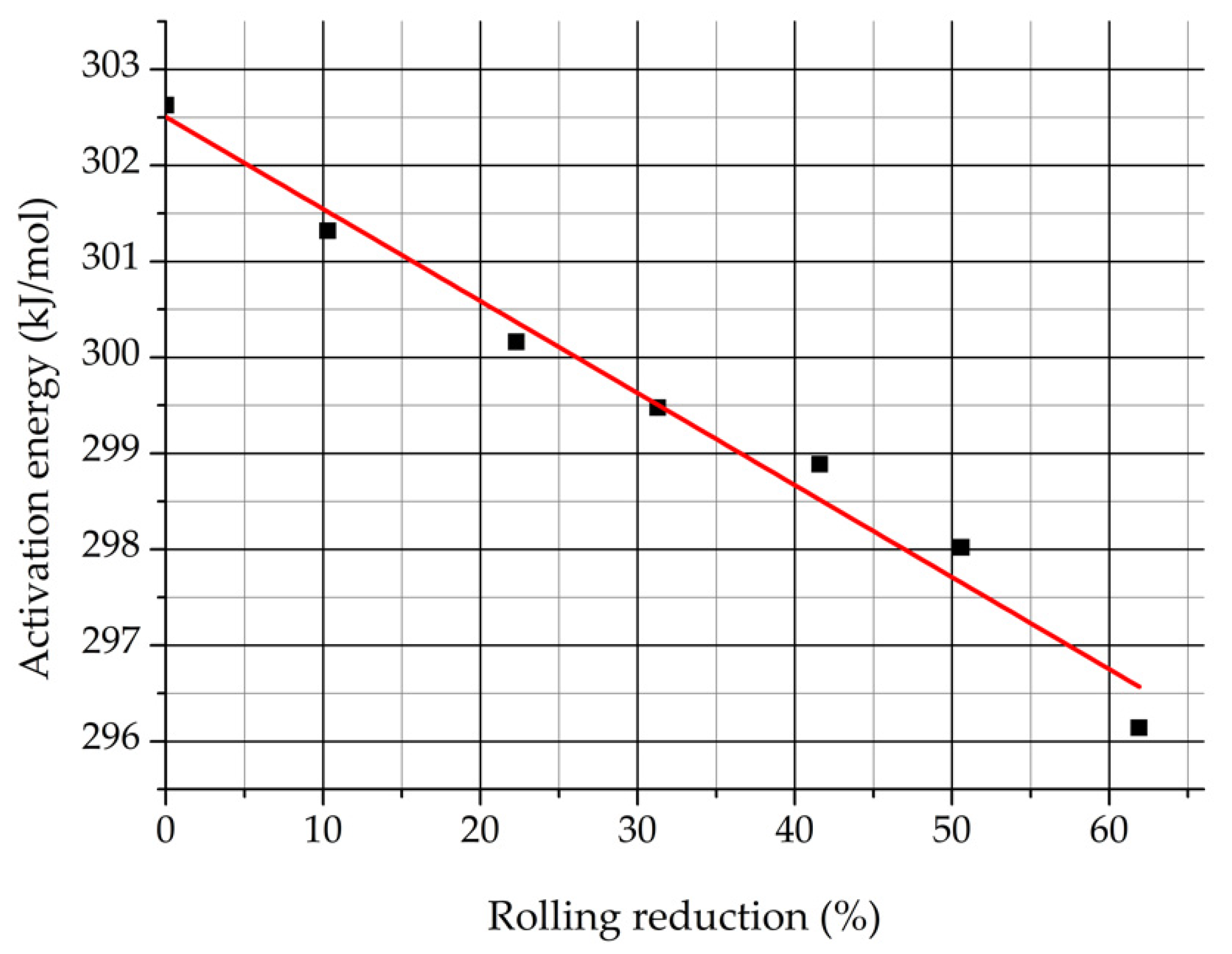

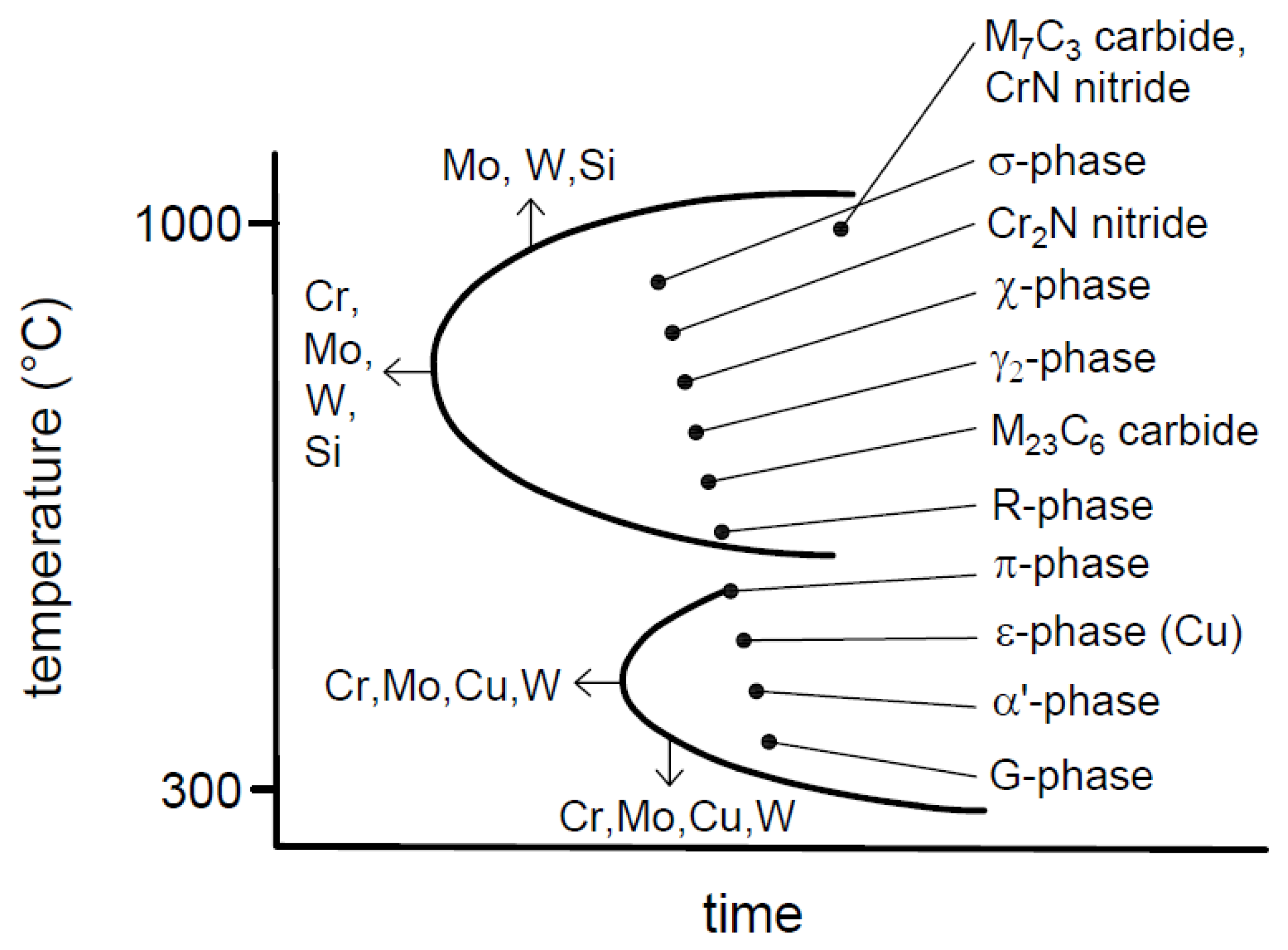

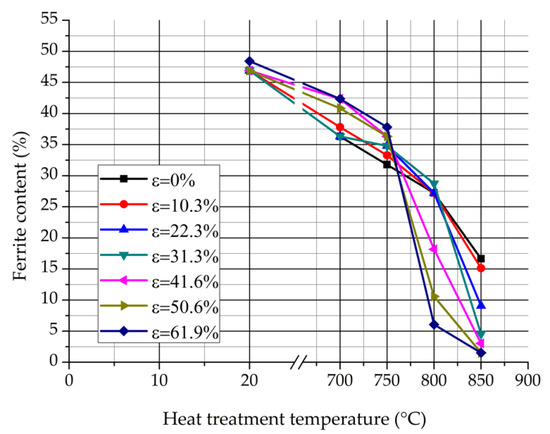

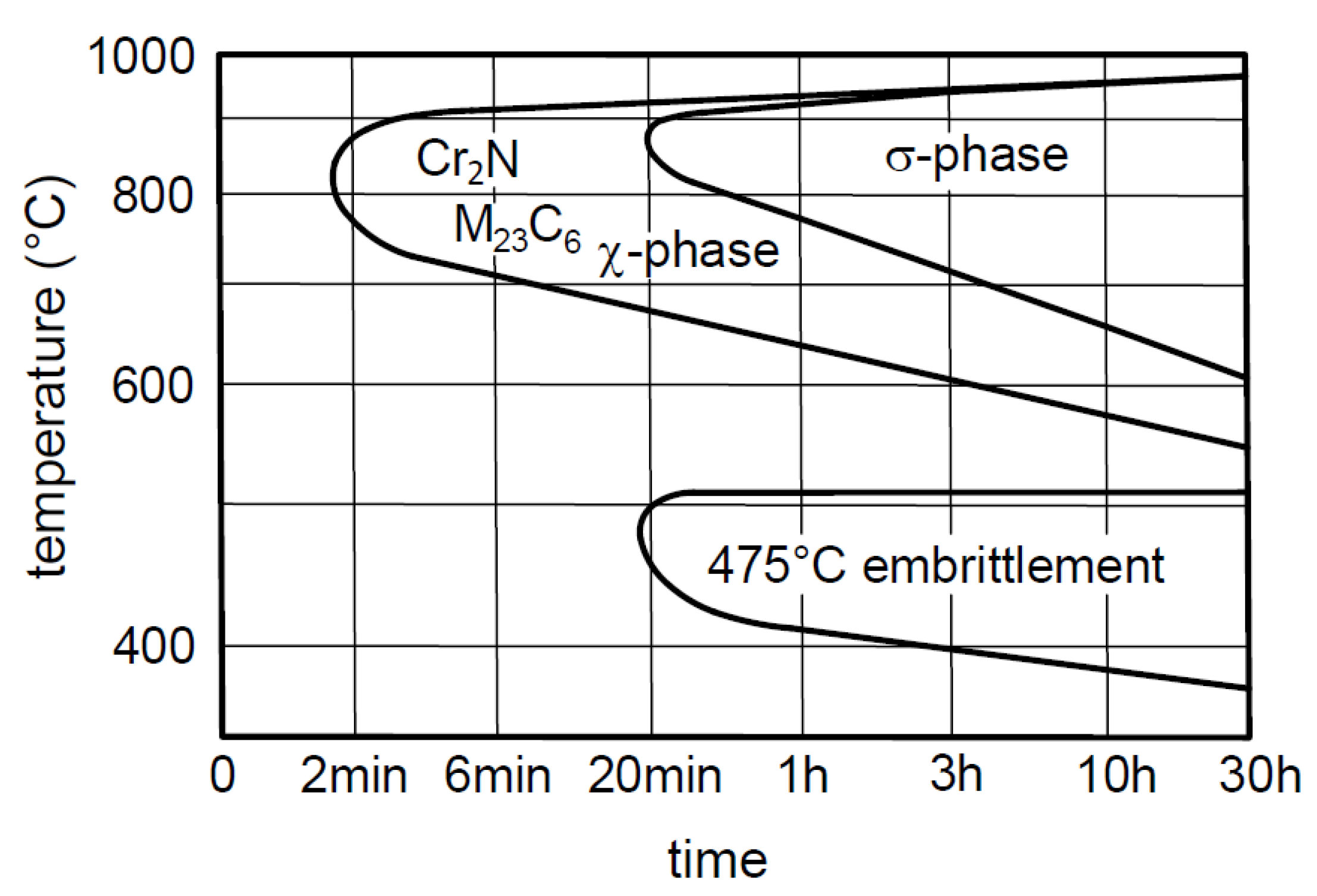

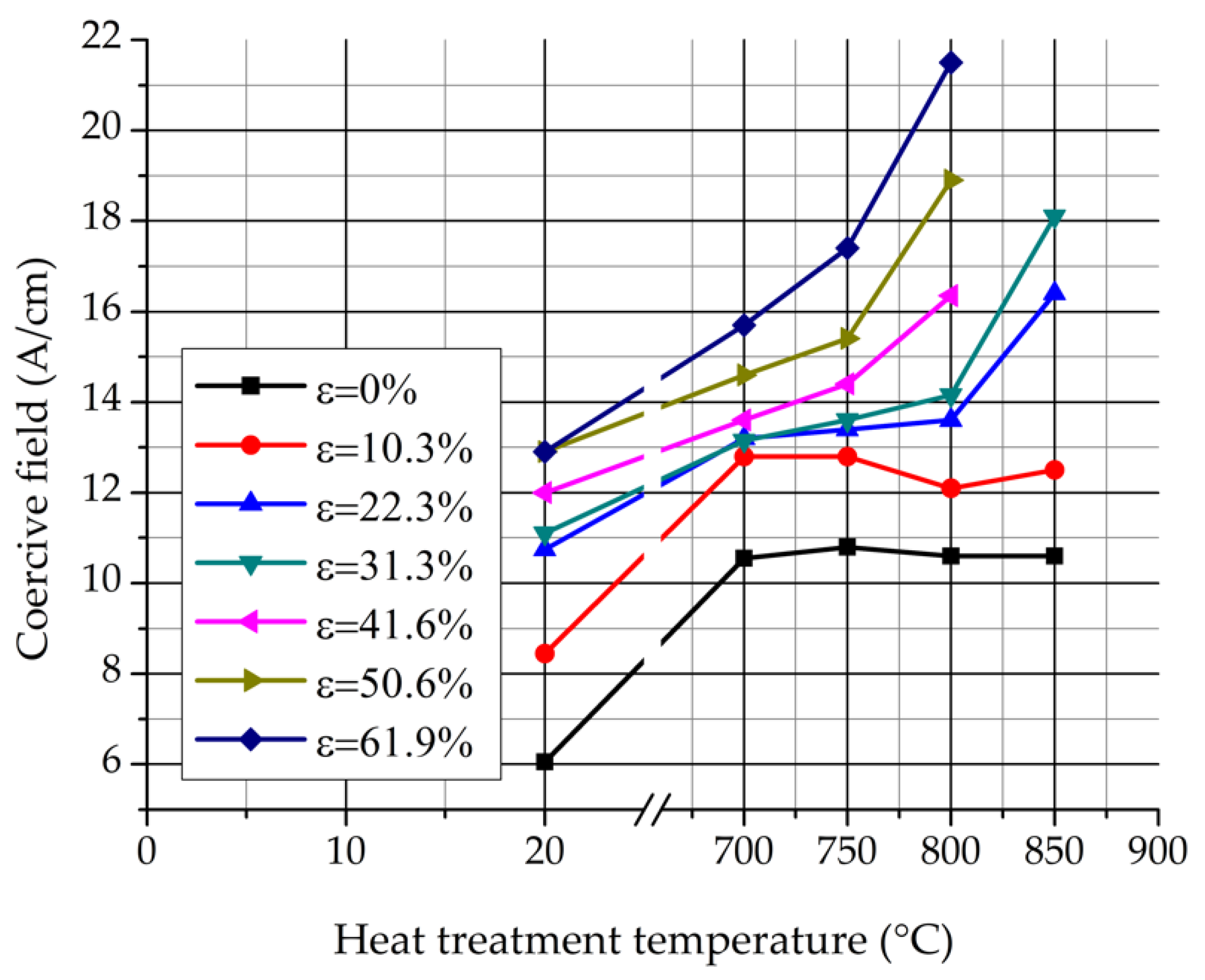

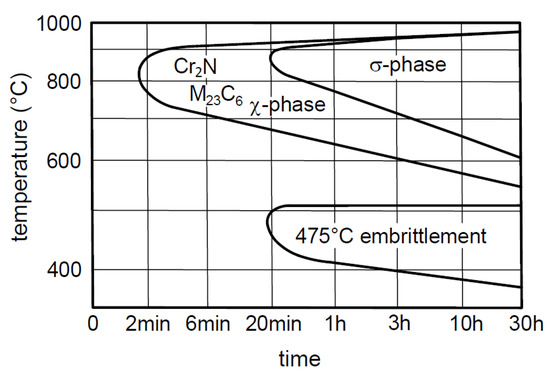

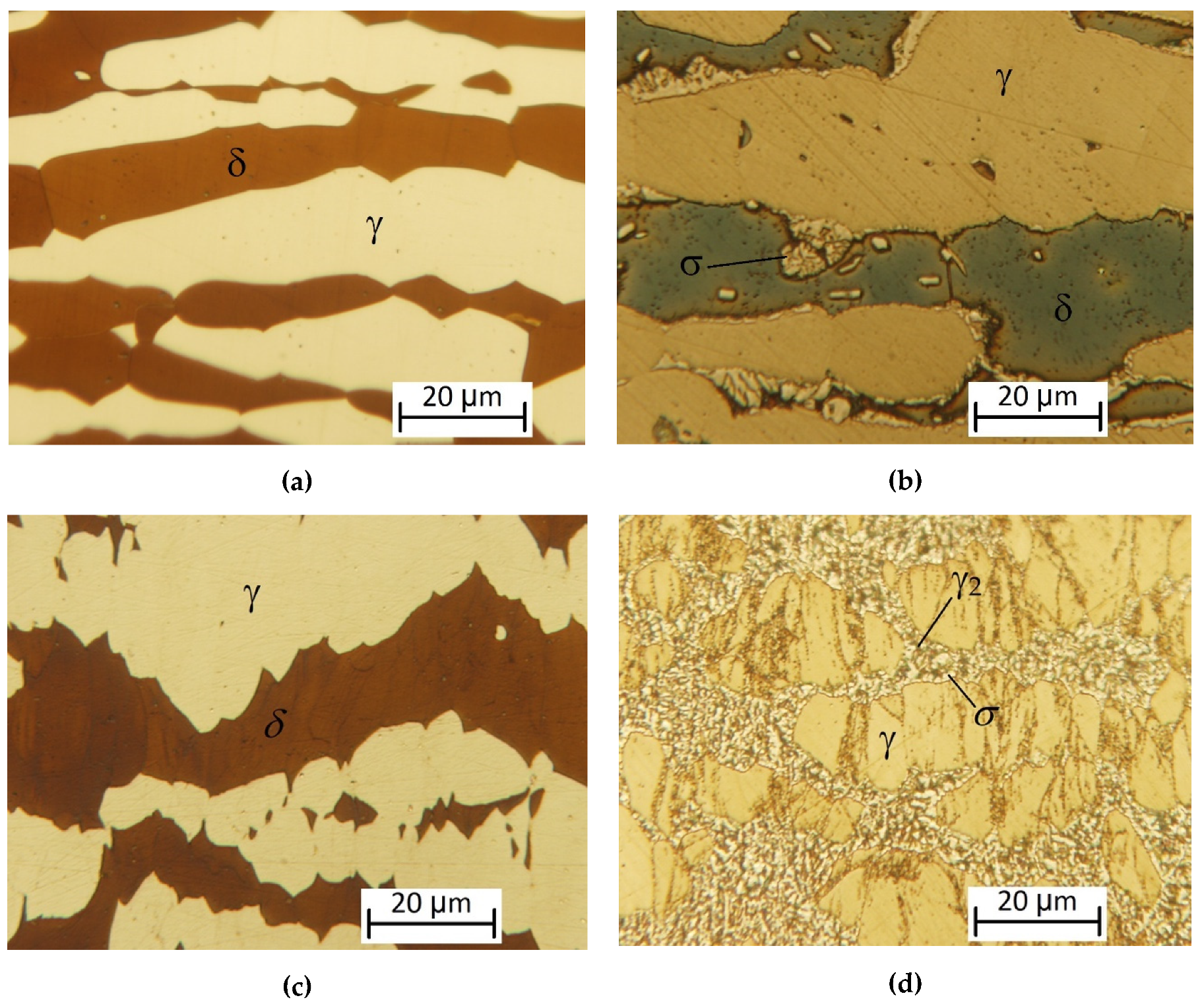

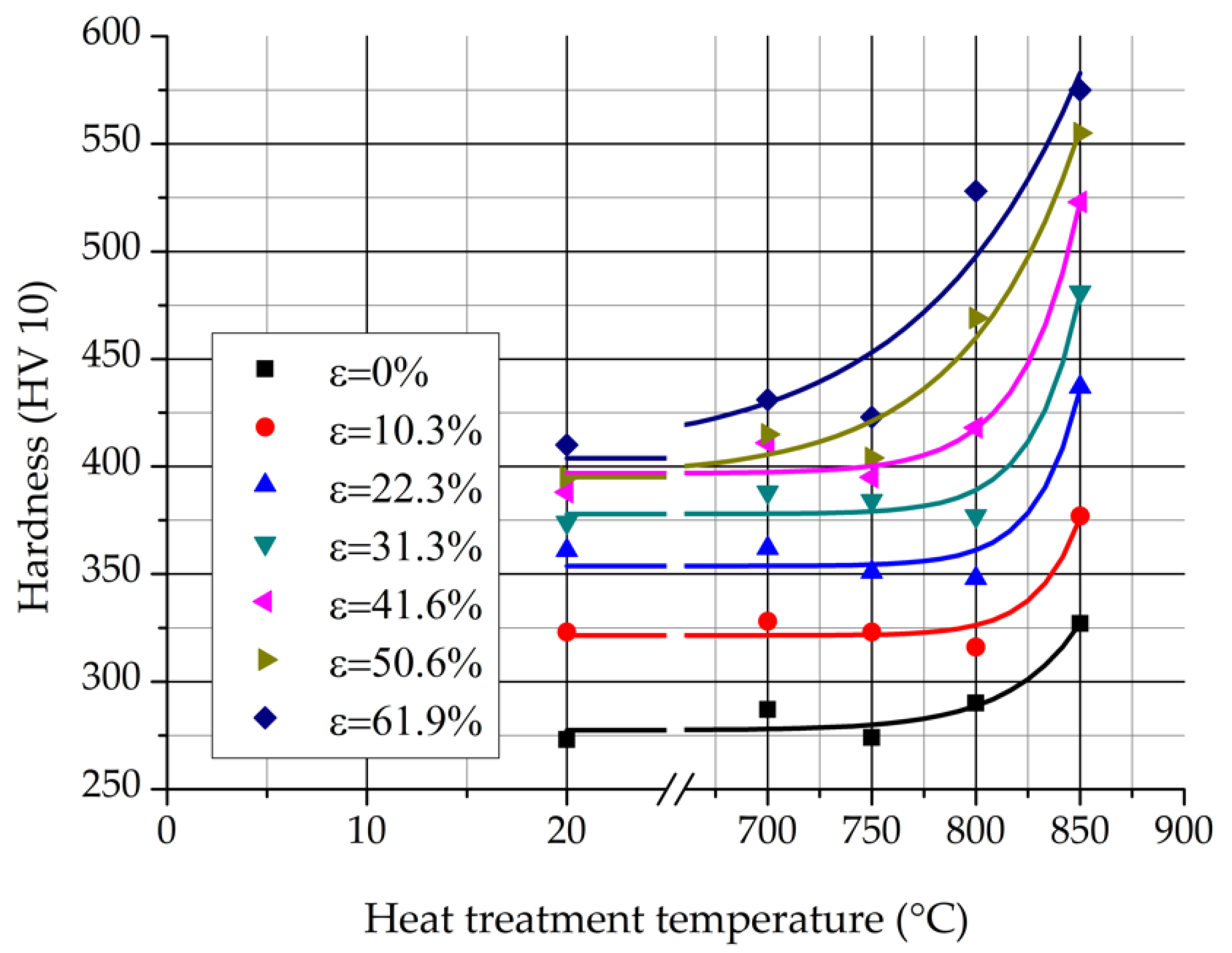

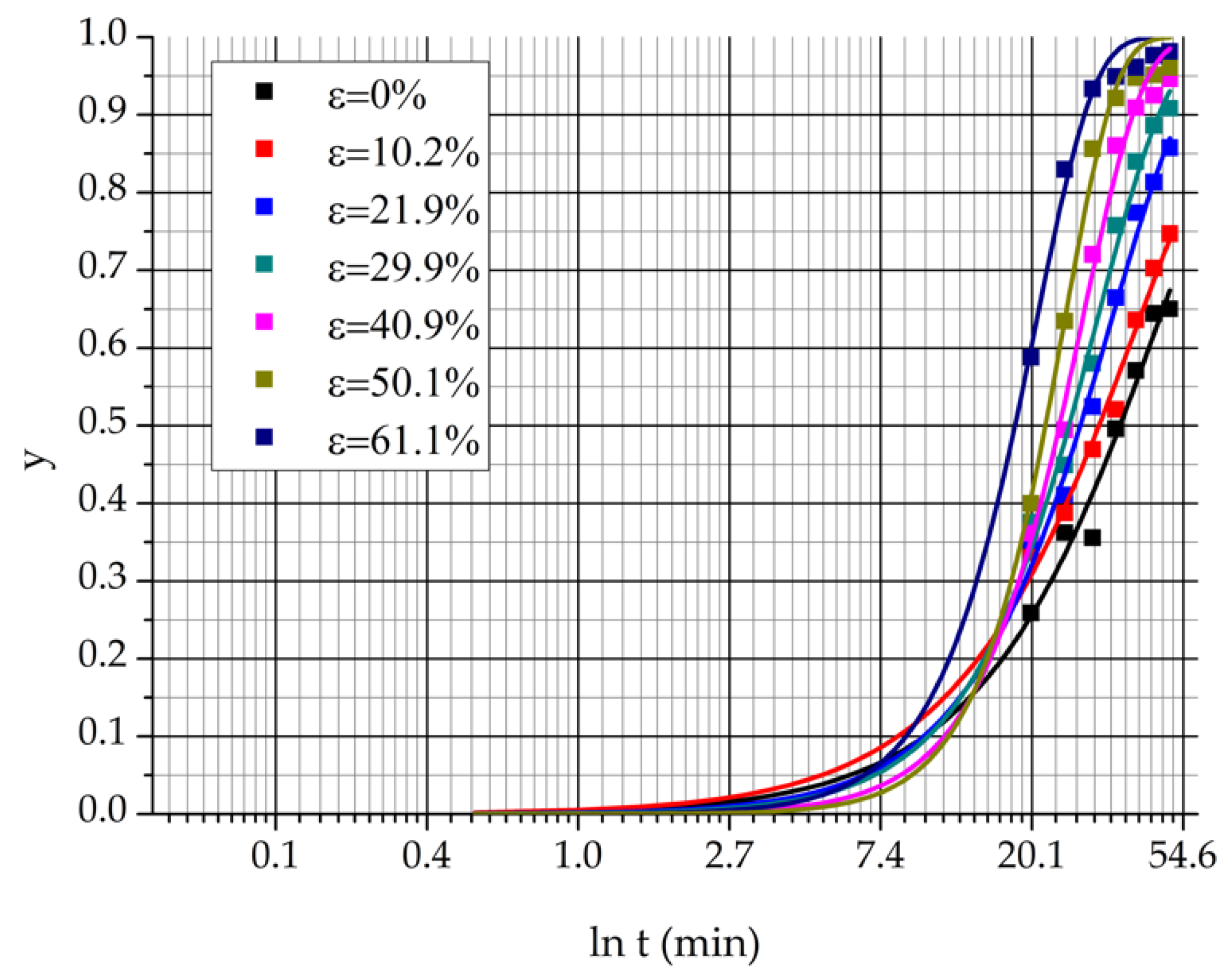

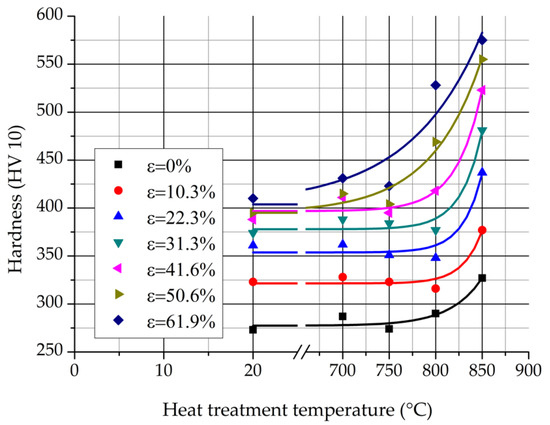

The aim of this work was to study expansively the process of the eutectoidal phase transformation of 2507-type super-duplex stainless steel. Three sample sets were prepared. The first sample set was made to investigate the effect of the previous cold rolling and heat treatment for the eutectoidal phase transformation. Samples were cold rolled at seven different rolling reductions which was followed by heat treatment at five different temperatures. The second sample set was prepared to determine the activation energy of the eutectoidal decomposition process using the Arrhenius equation. Samples were cold rolled at seven different rolling reductions and were heat treated at the same temperature during eight different terms. A third sample set was made to study how another plastic-forming technology, beside the cold rolling, can influence the eutectoidal decomposition. Samples were elongated by single axis tensile stress and were heat treated at the same temperature. The results of the first and the third sample sets were compared. The rest δ-ferrite contents were calculated using the results of AC and DC magnetometer measurements. DC magnetometer was used as a feritscope device in this work. Light microscope and electron back scattering diffraction (EBSD) images demonstrated the process of the eutectoidal decomposition. The thermoelectric power and the hardness of the samples were measured. The results of the thermoelectric power measurement were compared with the results of the δ-ferrite content measurement. The accurate value of the coercive field was determined by a Foerster-type DC coercimeter device. View Full-Text

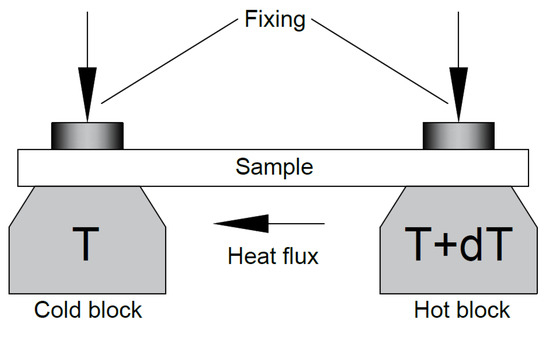

Keywords: duplex stainless steel; eutectoidal decomposition; cold rolling; heat treatment; magnetic testing; thermoelectric power; EBSD; activation energy duplex stainless steel; eutectoidal decomposition; cold rolling; heat treatment; magnetic testing; thermoelectric power; EBSD; activation energy
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Mészáros, I.; Bögre, B. Complex Study of Eutectoidal Phase Transformation of 2507-Type Super-Duplex Stainless Steel. Materials 2019, 12, 2205.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
