Synthesis and Physical Property Characterisation of Spheroidal and Cuboidal Nuclear Waste Simulant Dispersions
Abstract
1. Introduction
2. Results and Discussion

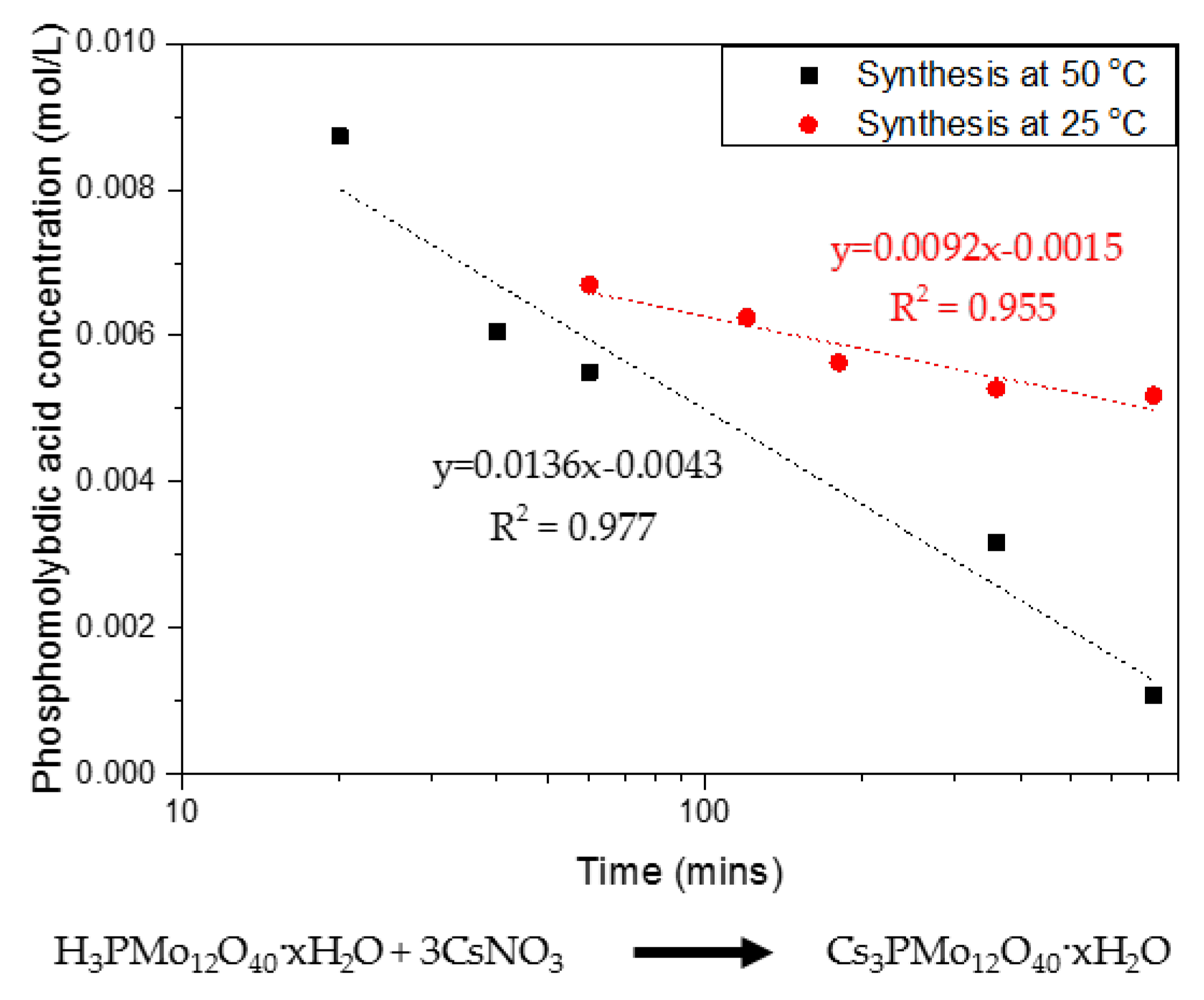

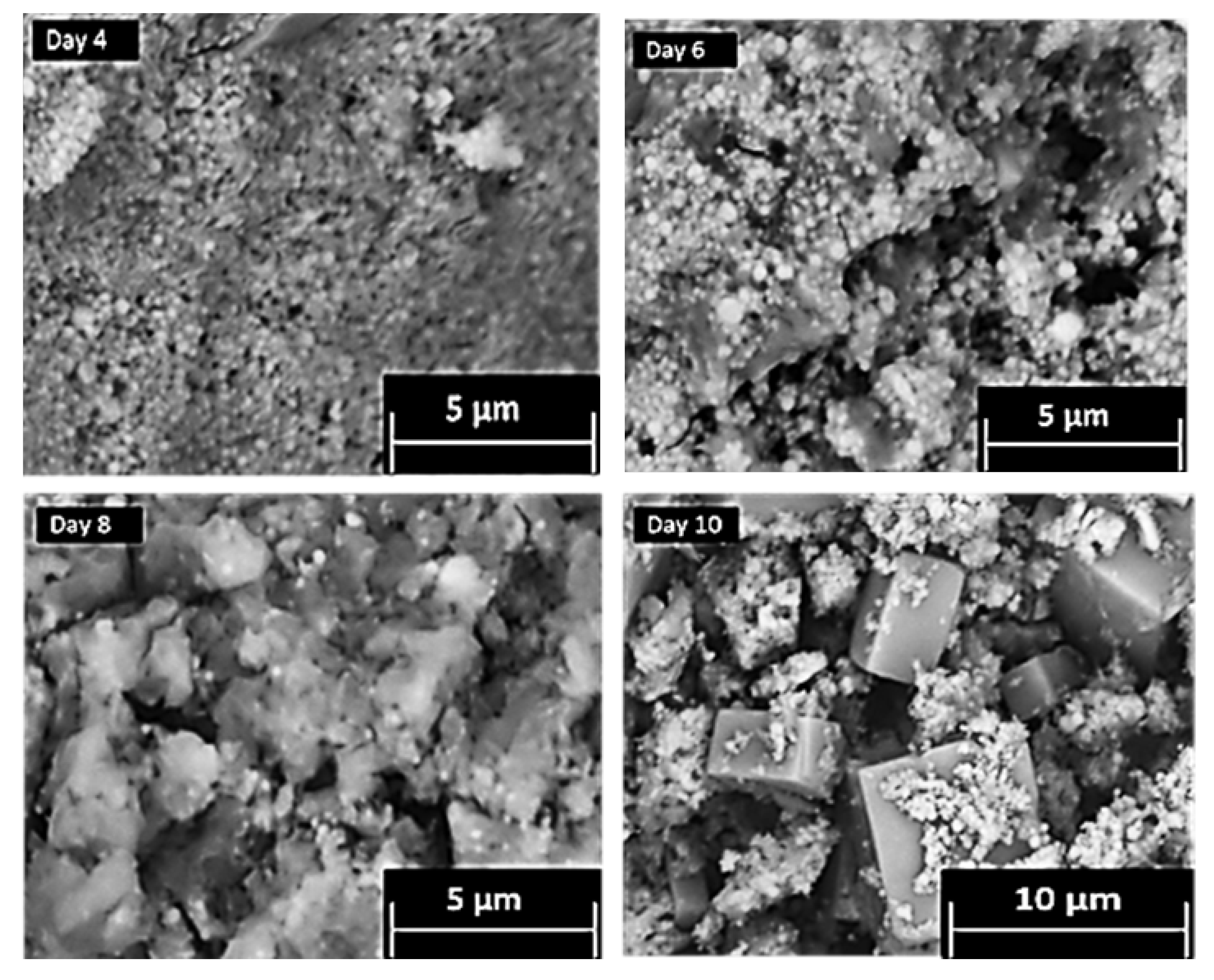

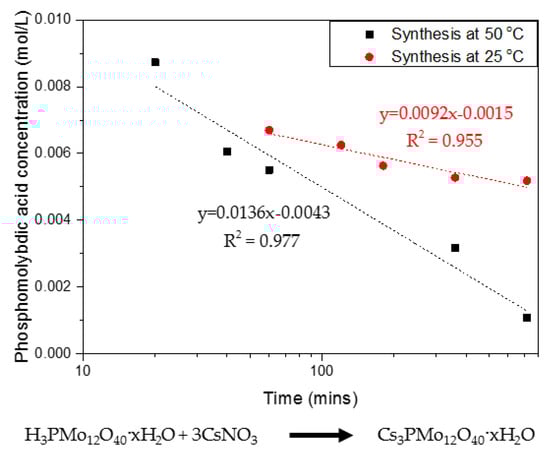

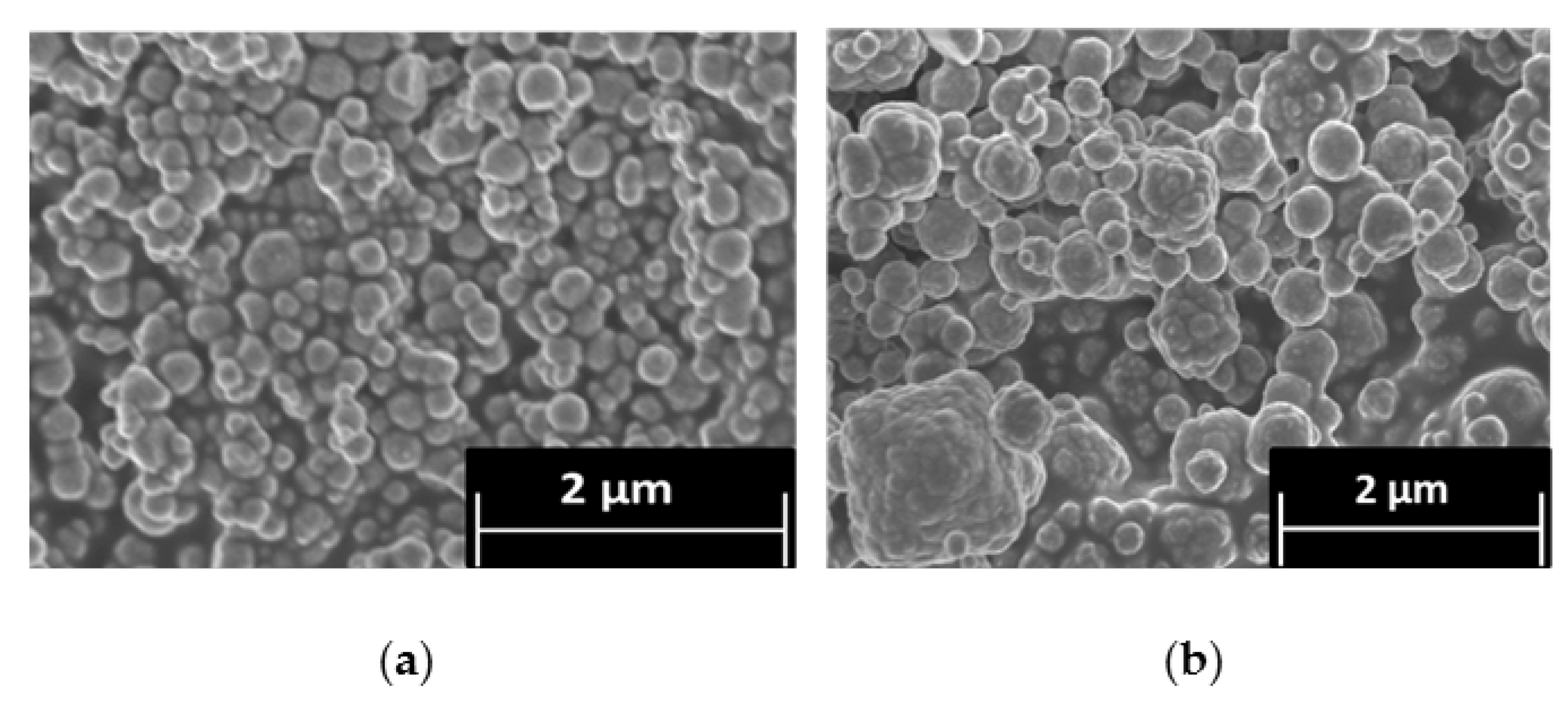

2.1. Synthesis and Formation Tracking

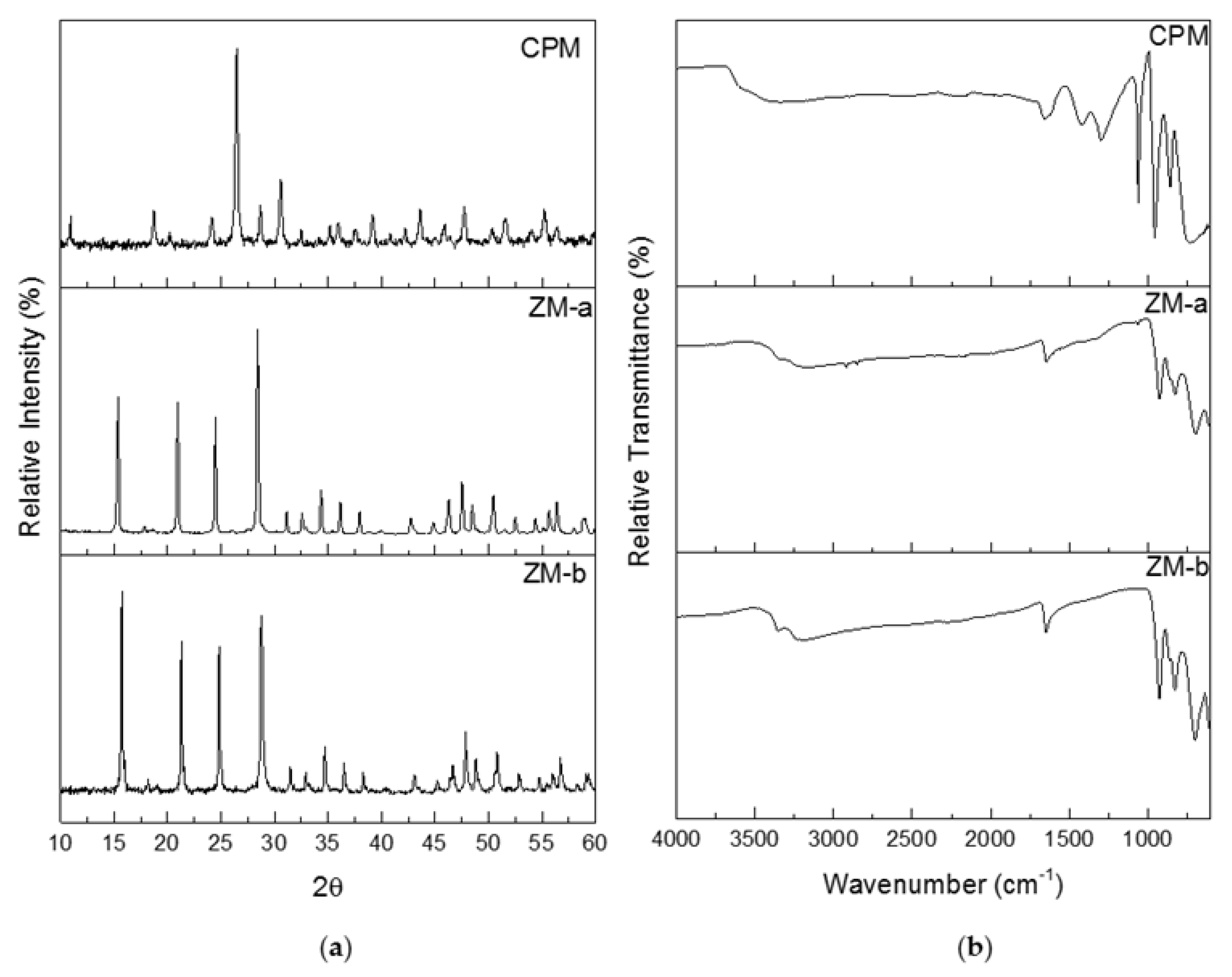

2.2. Chemical Composition

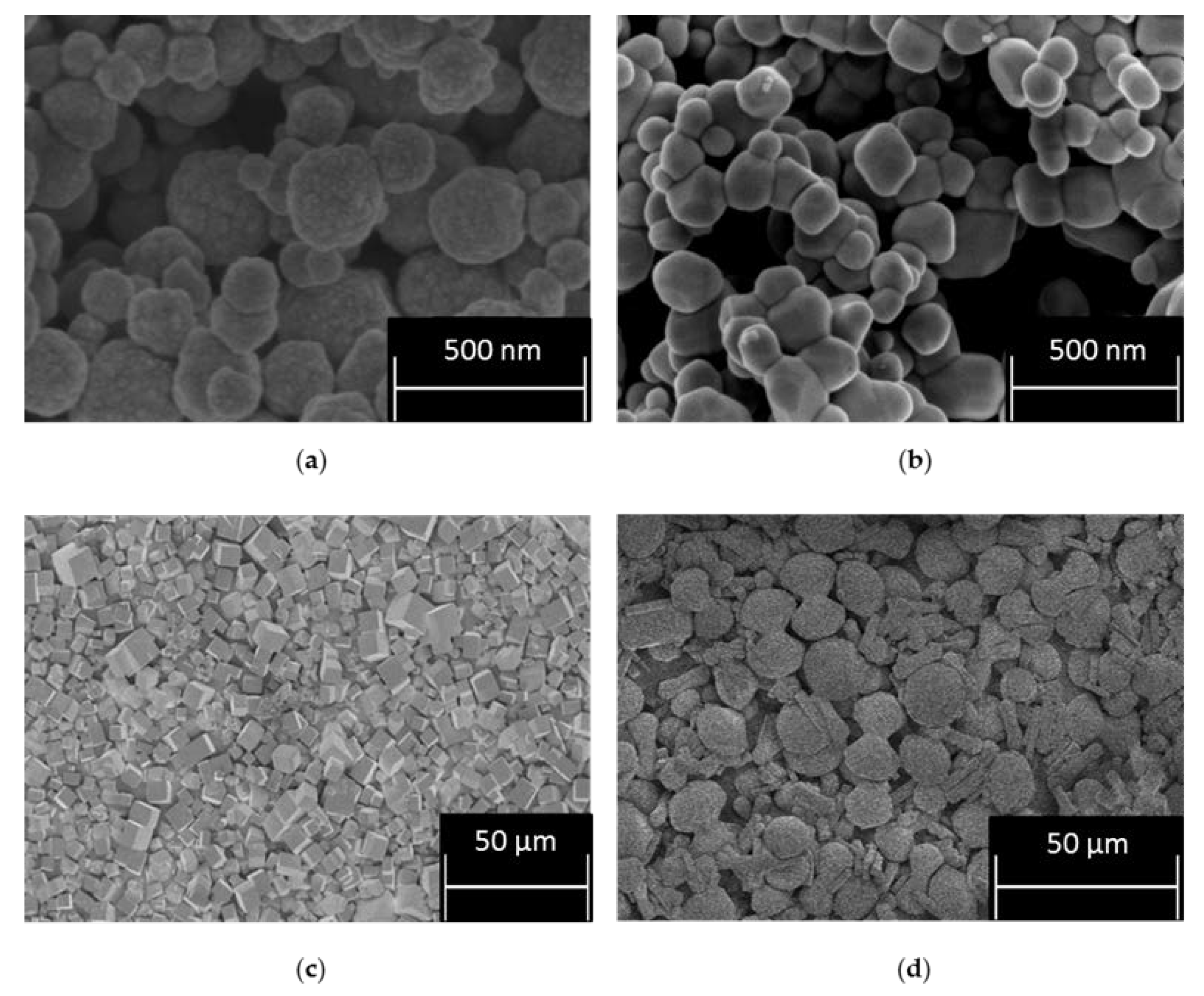

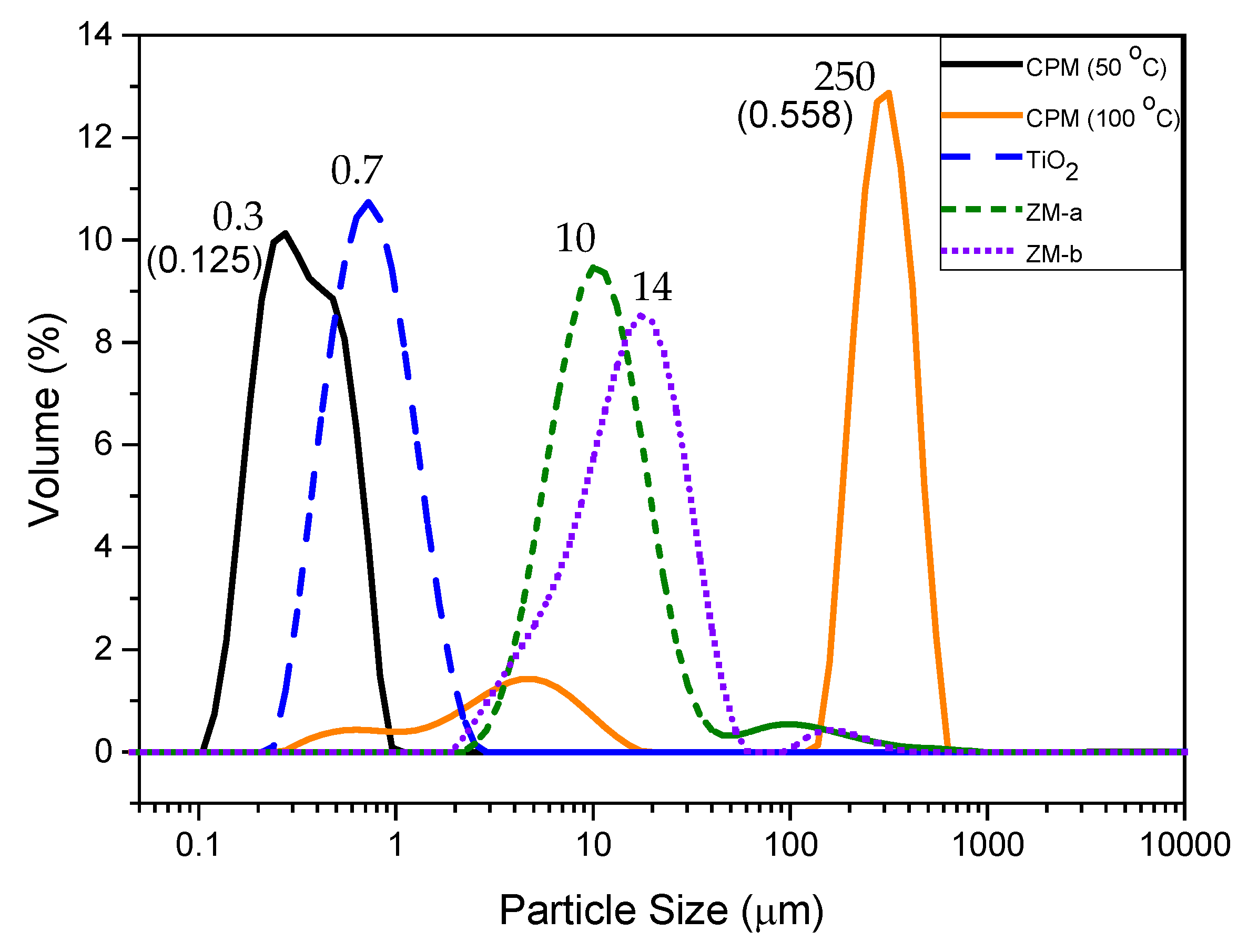

2.3. Size, Stability and Settling Behaviour
3. Materials and Methods
3.1. Synthesis and Materials
3.2. Ultraviolet-Visible Spectroscopy
3.3. Particle Shape, Density and Size Characterisation

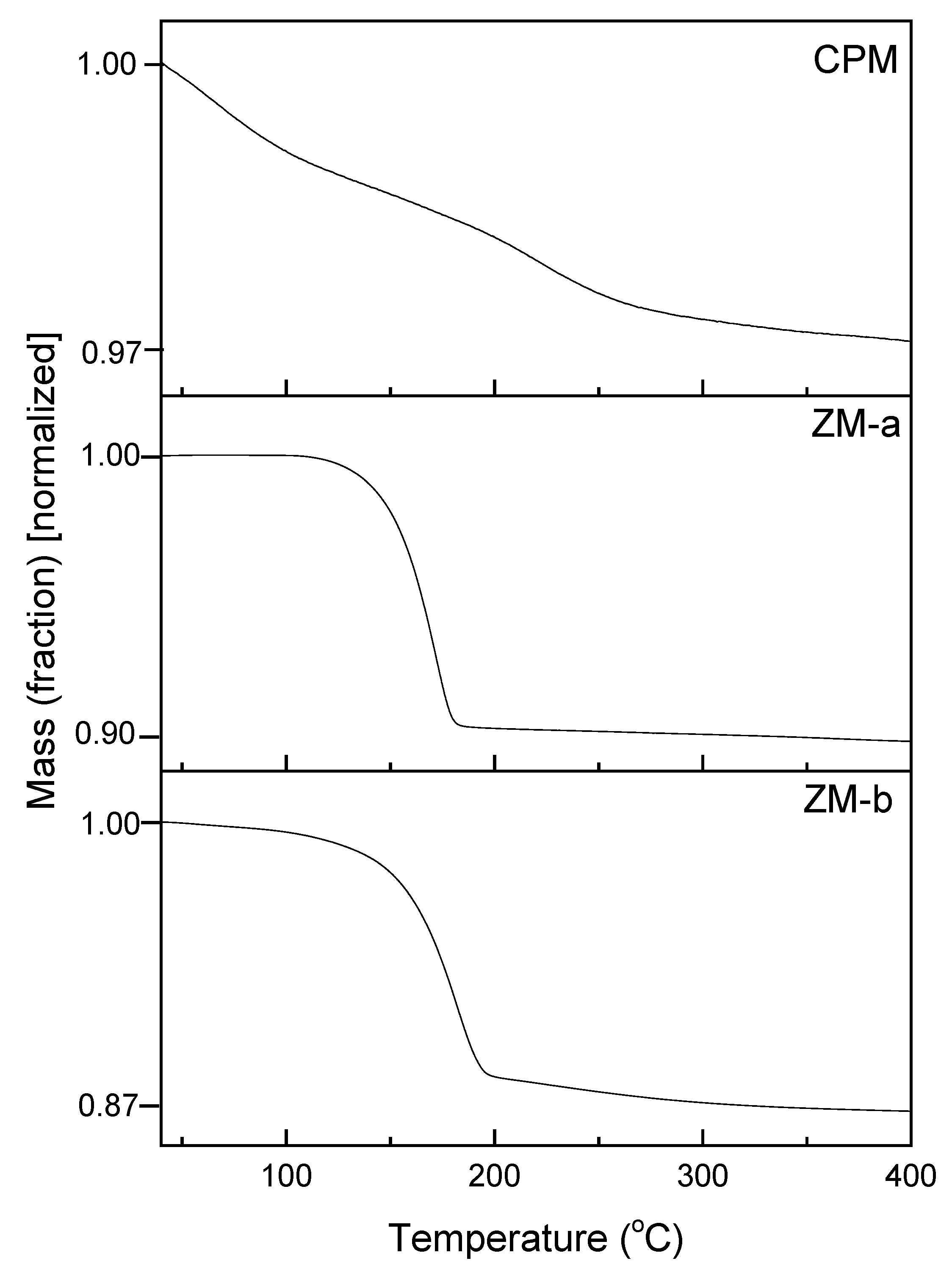

3.4. Power X-ray Diffraction, Infrared Spectroscopy and Thermogravimetric Analysis

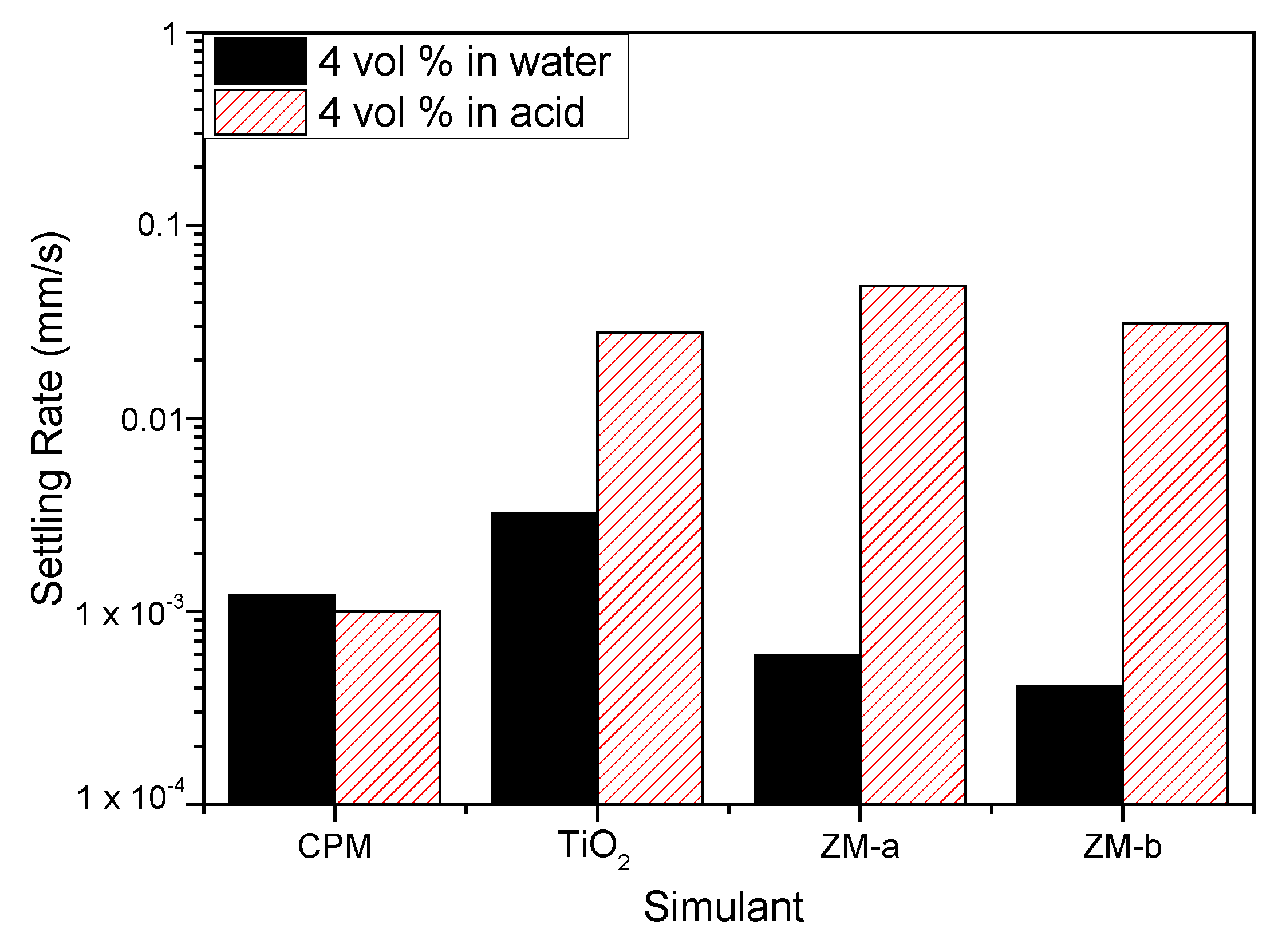

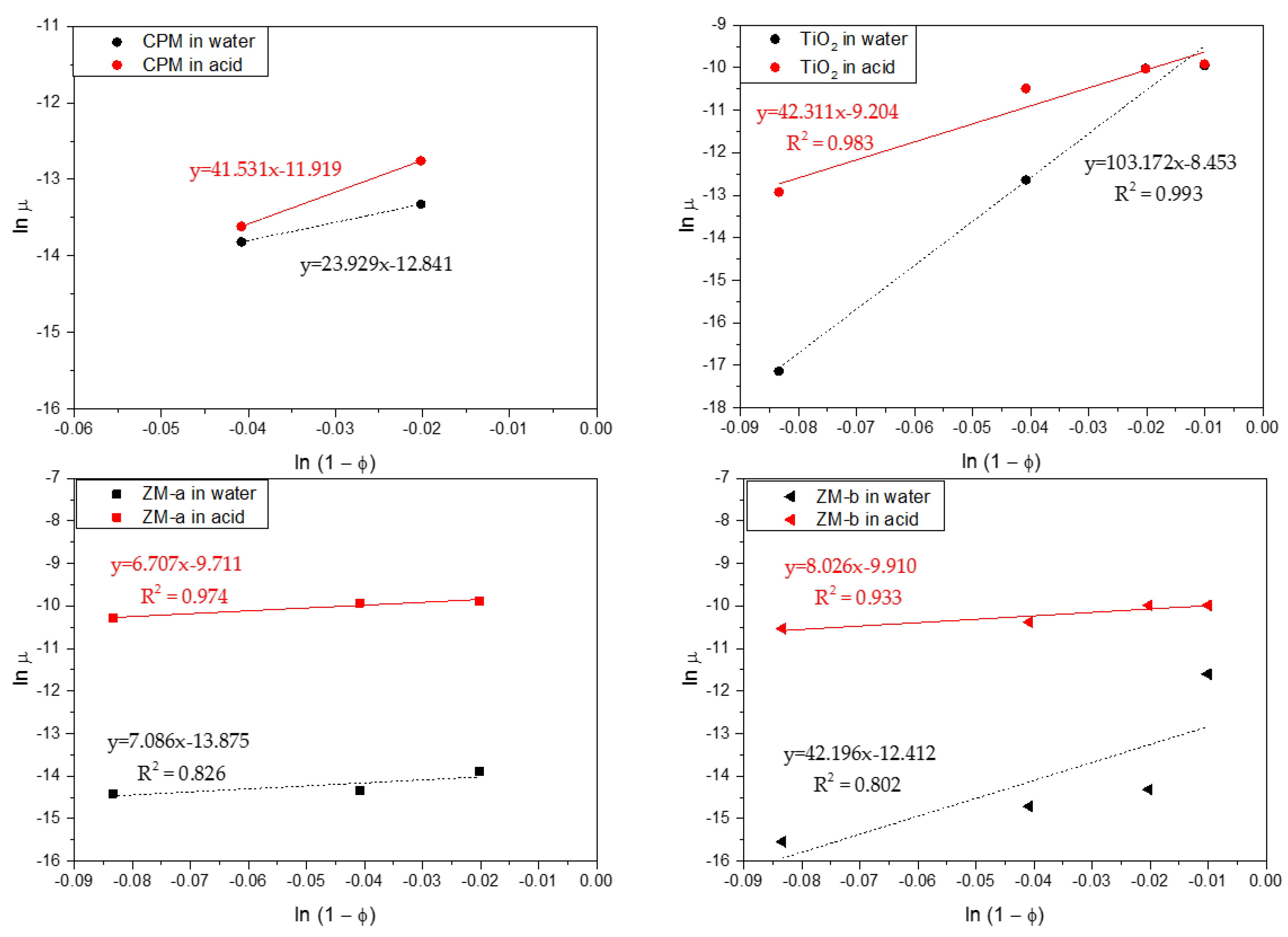

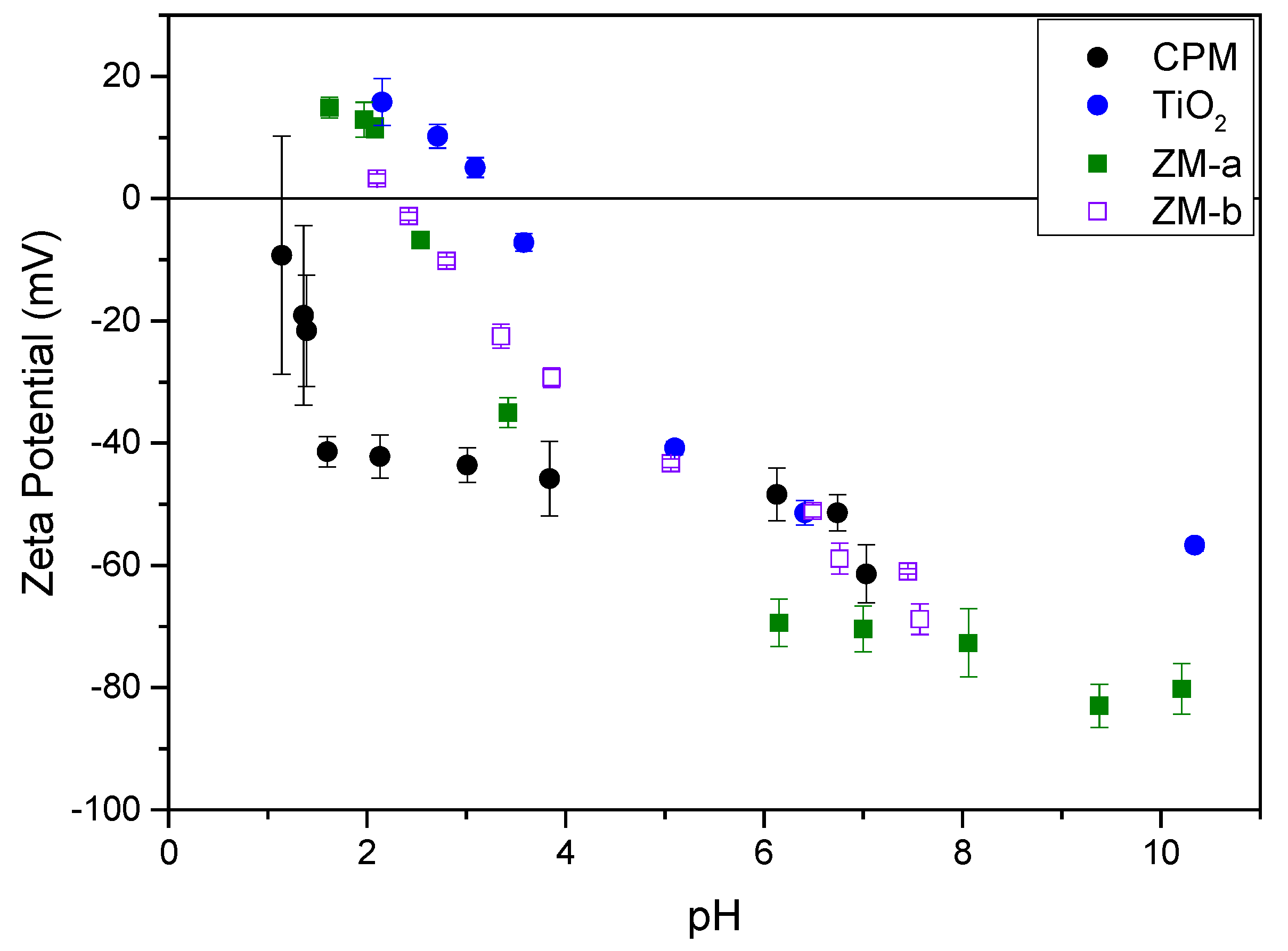

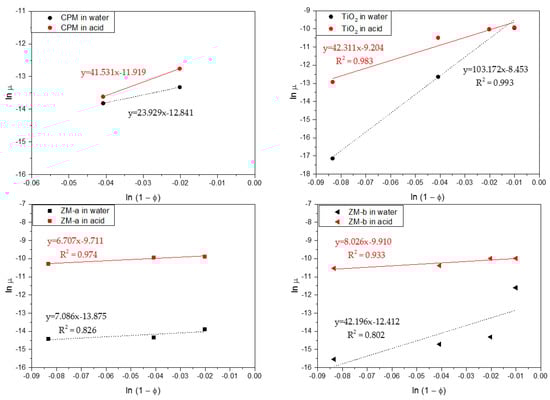

3.5. Zeta Potential Measurements and Sedimentation Experiments
4. Conclusions
