Next Article in Journal
Calcium Phosphate Bioceramics: A Review of Their History, Structure, Properties, Coating Technologies and Biomedical Applications
Previous Article in Journal
The Mechanical Strength of Si Foams in the Mushy Zone during Solidification of Al–Si Alloys
Open AccessArticle

Effect of Immobilized Antithrombin III on the Thromboresistance of Polycarbonate Urethane

1
IMHR, Institute for Medical Microbiology and Hygiene, University of Regensburg, Franz-Josef-Strauss-Allee 11, 93042 Regensburg, Germany
2
Dualis Medtech GmbH, Am Technologiepark 8+10, 82229 Seefeld, Germany
3
Department of Thoracic, Cardiac, and Vascular Surgery, University Hospital Tübingen, Hoppe-Seyler-Str. 3, 72076 Tübingen, Germany
4
Department of Cardiothoracic Surgery, University Medical Center Regensburg, Josef-Strauss-Allee 11, 93042 Regensburg, Germany
*
Author to whom correspondence should be addressed.
Academic Editor: Aldo R. Boccaccini
Materials 2017, 10(4), 335; https://doi.org/10.3390/ma10040335
Received: 17 January 2017 / Revised: 28 February 2017 / Accepted: 21 March 2017 / Published: 24 March 2017
(This article belongs to the Section Biomaterials)

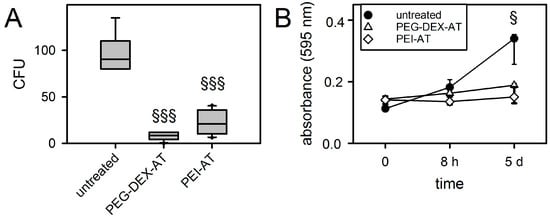

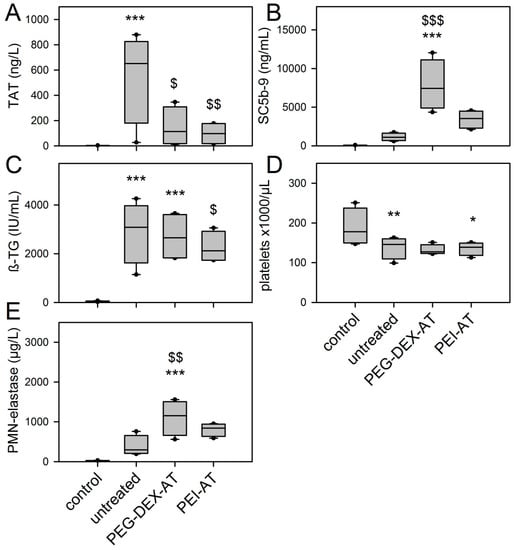

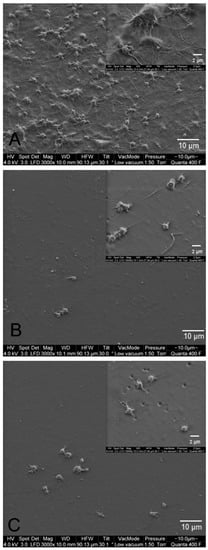

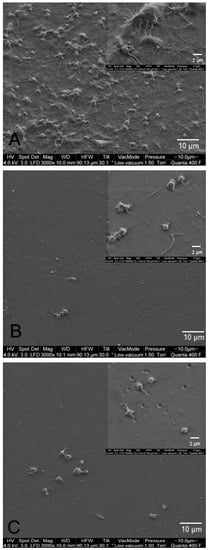

The surface of foils and vascular grafts made from a thermoplastic polycarbonate urethanes (PCU) (Chronoflex AR) were chemically modified using gas plasma treatment, binding of hydrogels—(1) polyethylene glycol bisdiamine and carboxymethyl dextran (PEG-DEX) and (2) polyethyleneimine (PEI)—and immobilization of human antithrombin III (AT). Their biological impact was tested in vitro under static and dynamic conditions. Static test methods showed a significantly reduced adhesion of endothelial cells, platelets, and bacteria, compared to untreated PCU. Modified PCU grafts were circulated in a Chandler-Loop model for 90 min at 37 °C with human blood. Before and after circulation, parameters of the hemostatic system (coagulation, platelets, complement, and leukocyte activation) were analyzed. PEI-AT significantly inhibited the activation of both coagulation and platelets and prevented the activation of leukocytes and complement. In conclusion, both modifications significantly reduce coagulation activation, but only PEI-AT creates anti-bacterial and anti-thrombogenic functionality. View Full-Text
Keywords: polycarbonate urethane; thromboresistance; antithrombin III; anti-bacterial; hemocomaptibility polycarbonate urethane; thromboresistance; antithrombin III; anti-bacterial; hemocomaptibility
Show Figures

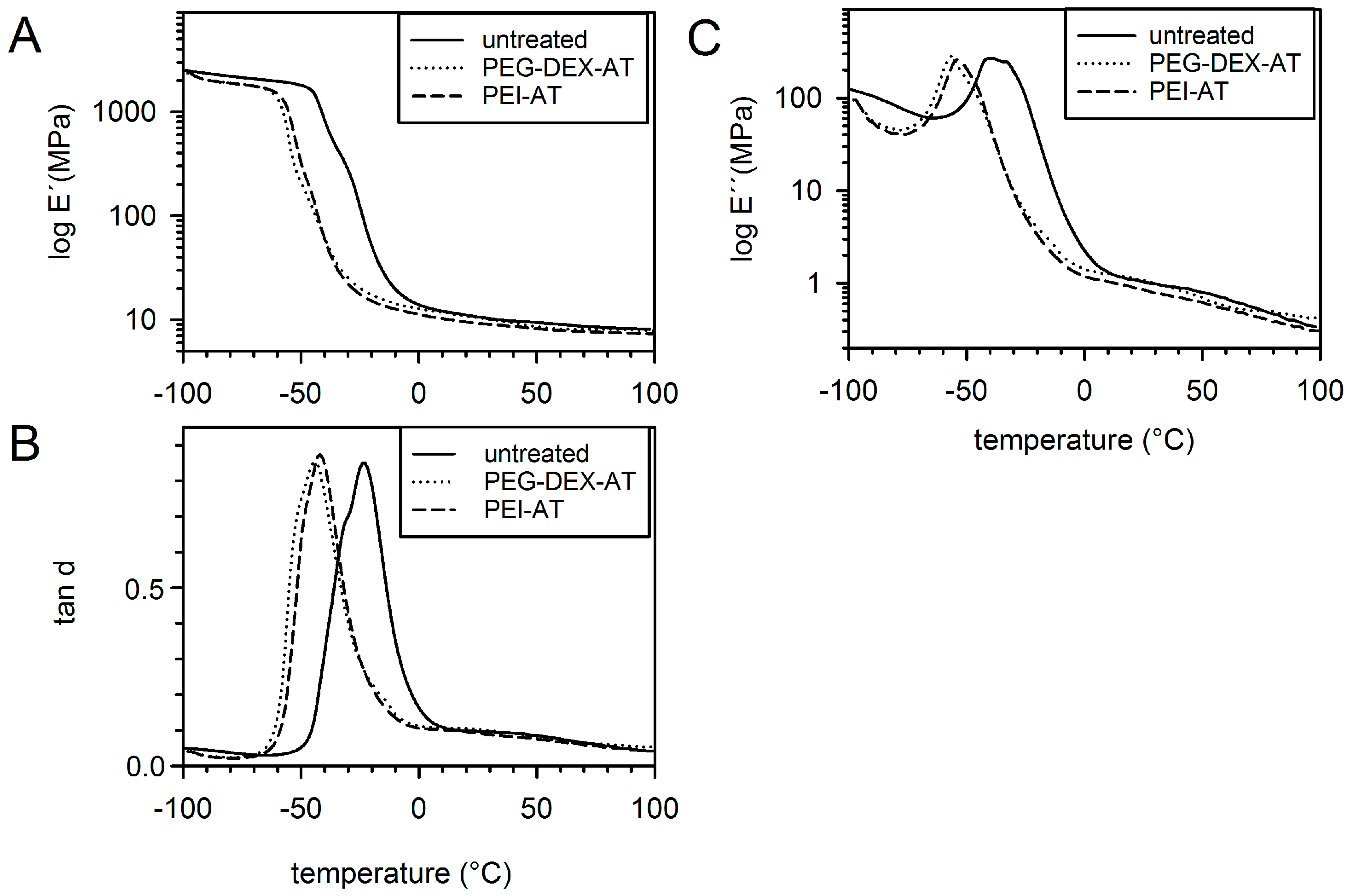

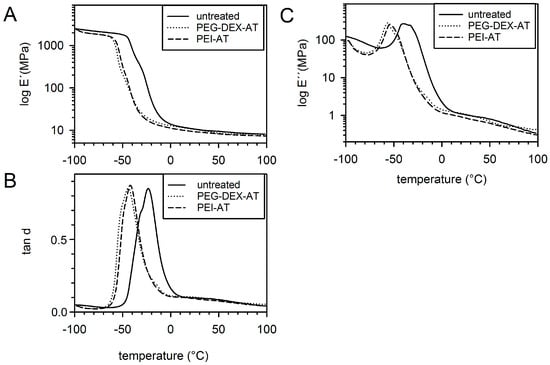

Figure 1

MDPI and ACS Style

Lukas, K.; Stadtherr, K.; Gessner, A.; Wehner, D.; Schmid, T.; Wendel, H.P.; Schmid, C.; Lehle, K. Effect of Immobilized Antithrombin III on the Thromboresistance of Polycarbonate Urethane. Materials 2017, 10, 335.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
