Numerical Analysis of the Magnetic Field of High-Current Busducts and GIL Systems
Previous Article in Journal
A Novel Cogging Torque Simulation Method for Permanent-Magnet Synchronous Machines
Article Menu

Export Article

Open AccessArticle
Energies 2011, 4(12), 2180-2195;

Comparison of Extremum-Seeking Control Techniques for Maximum Power Point Tracking in Photovoltaic Systems

Department of Electrical Engineering, National Chin-Yi University of Technology, Taichung 41170, Taiwan
Author to whom correspondence should be addressed.
Received: 8 October 2011 / Revised: 22 November 2011 / Accepted: 6 December 2011 / Published: 8 December 2011
Full-Text   |   PDF [473 KB, uploaded 17 March 2015]   |

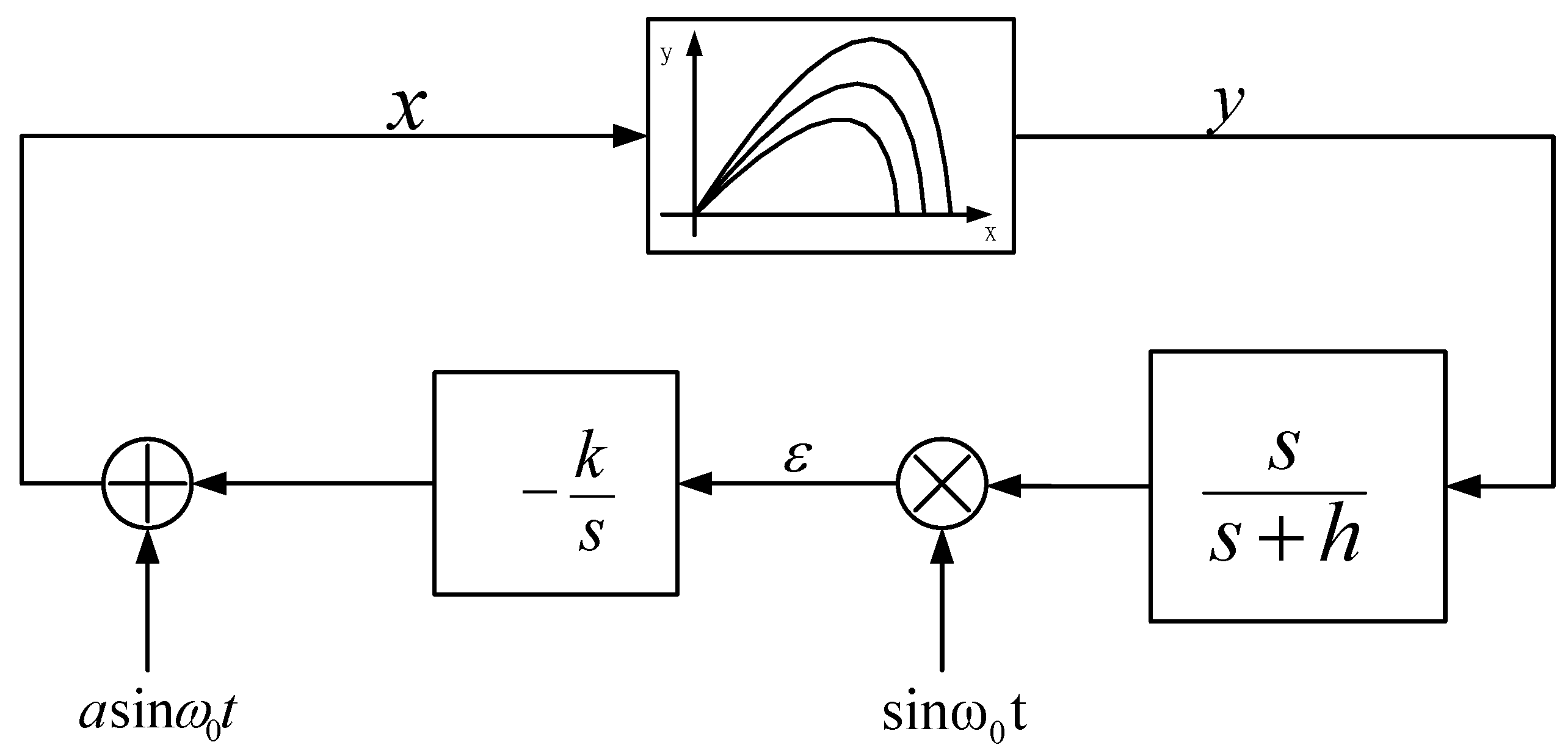

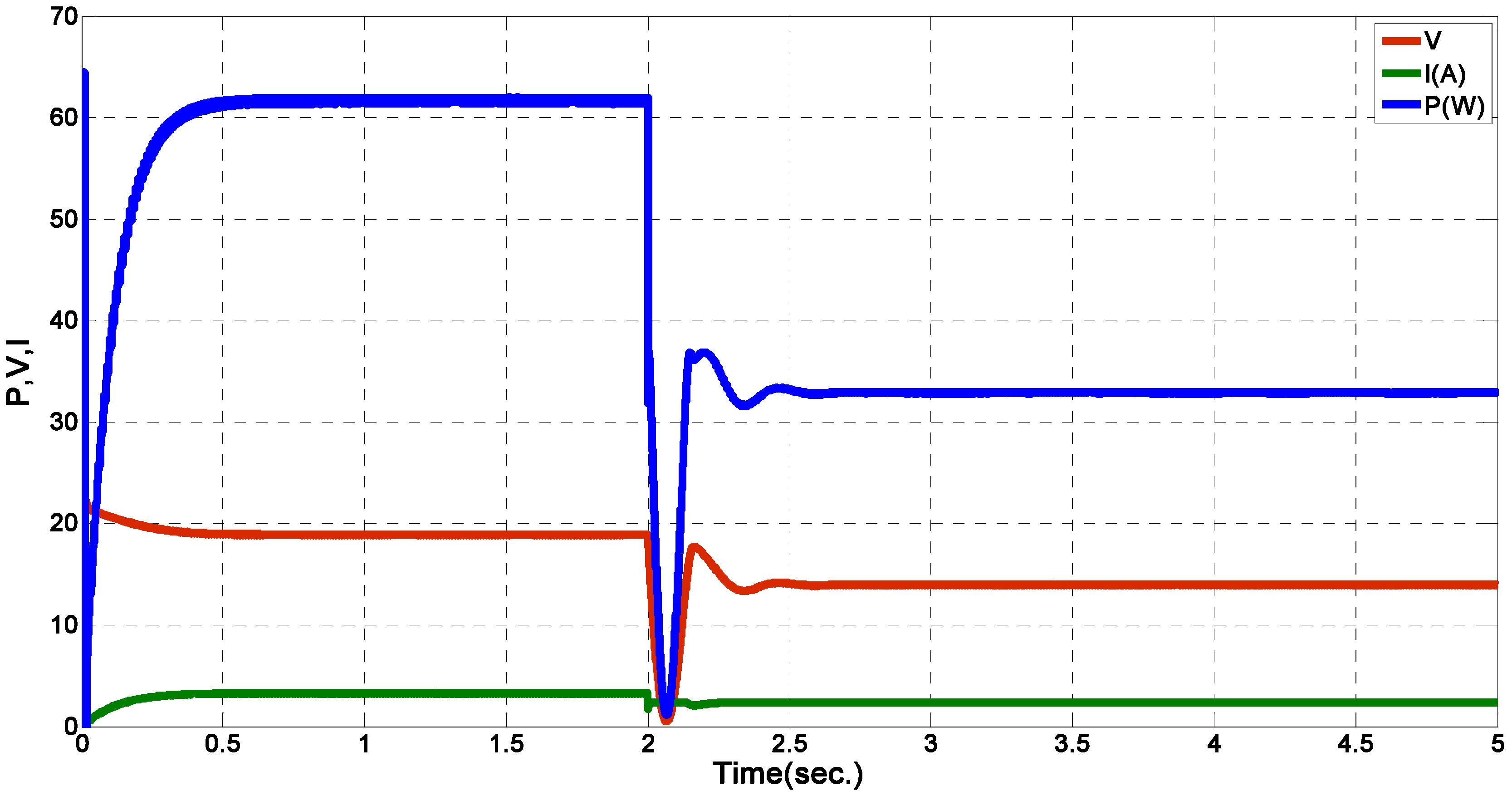

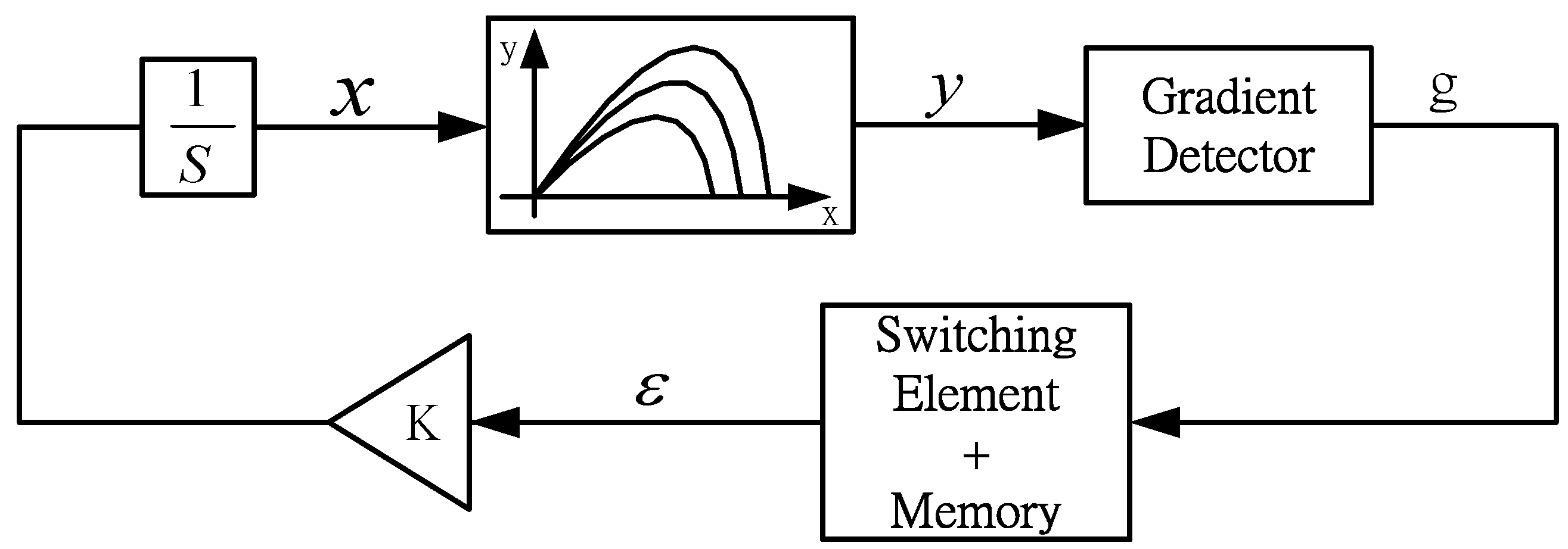

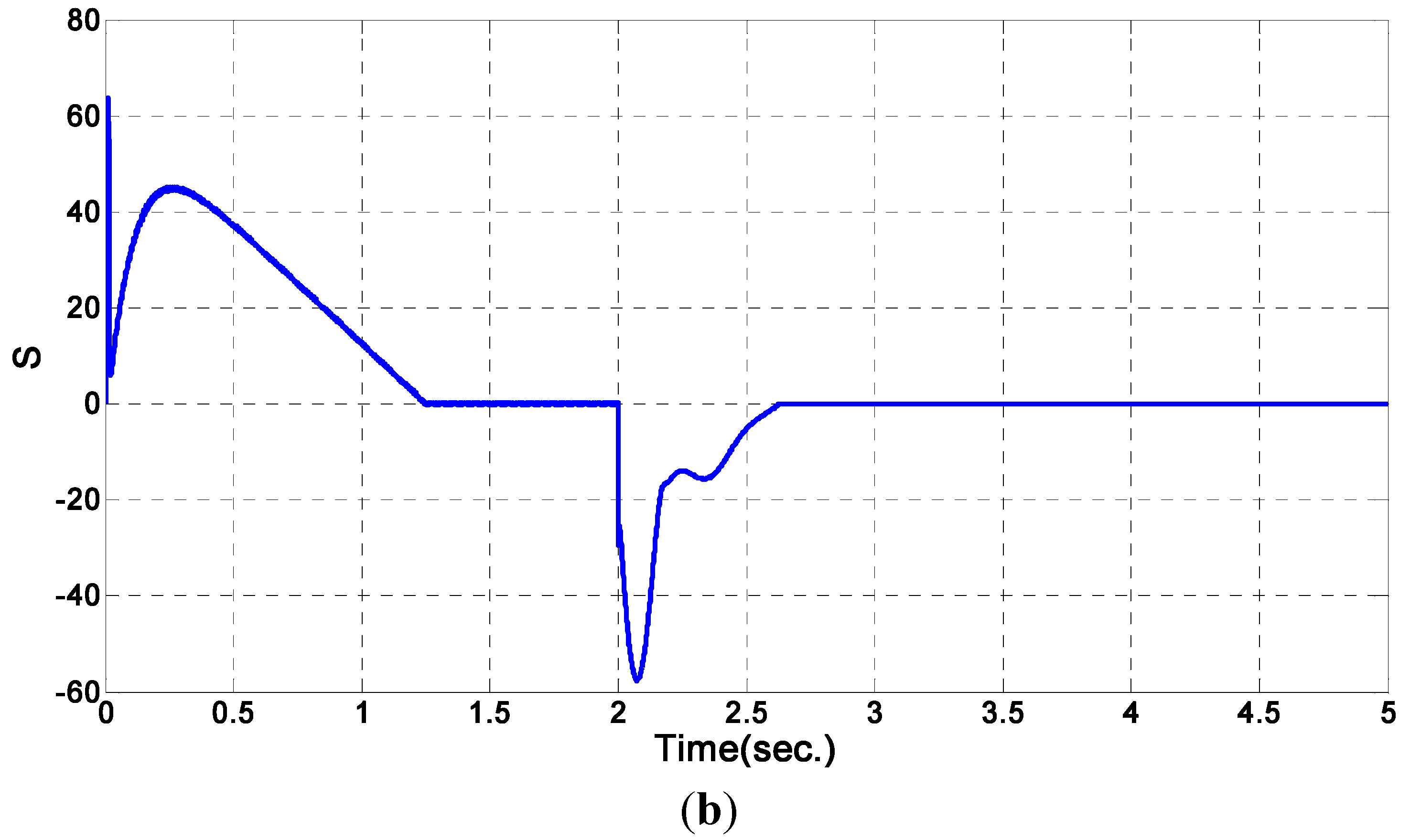

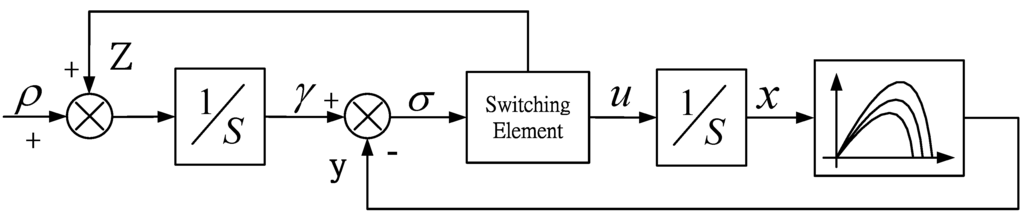

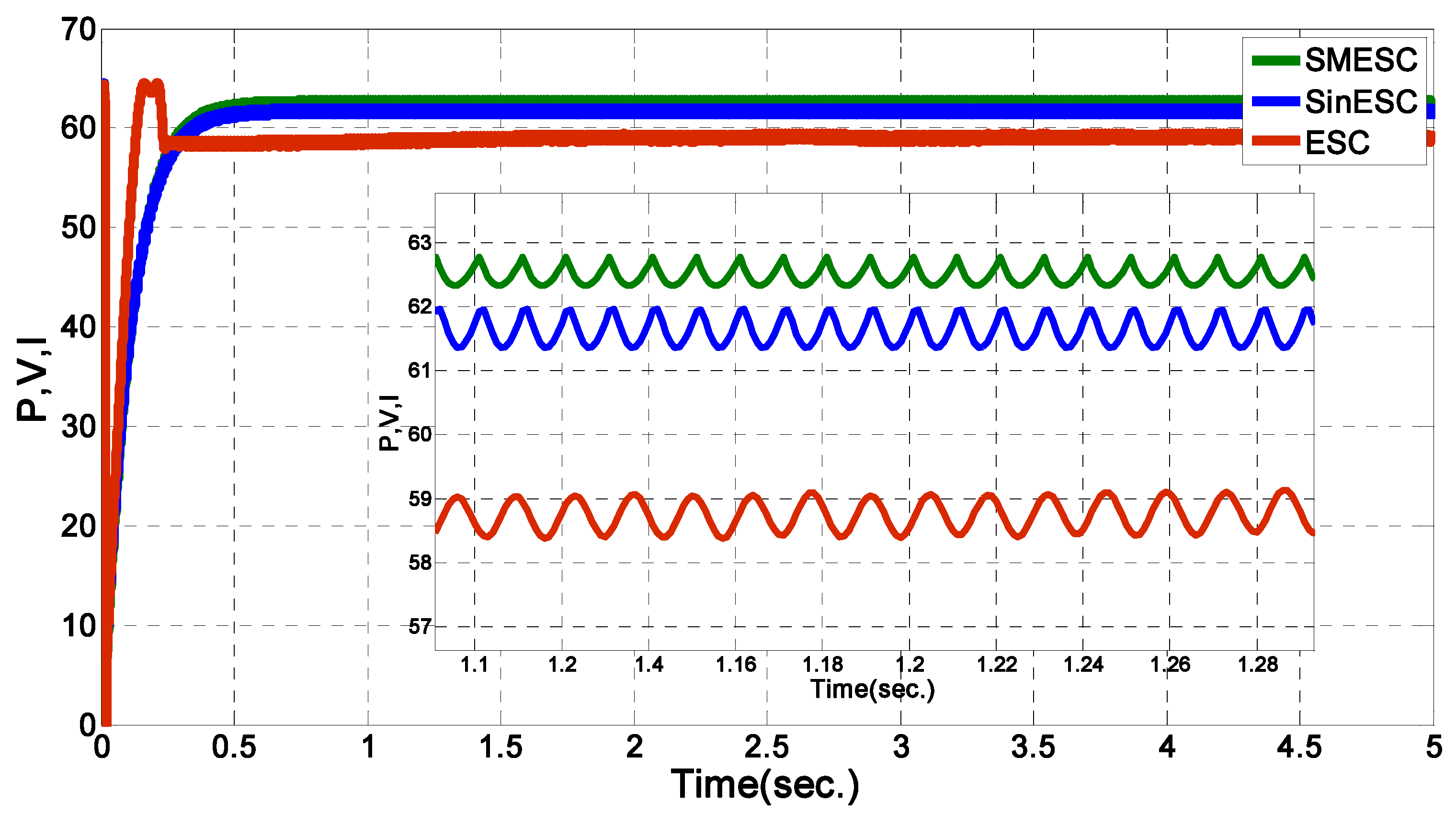

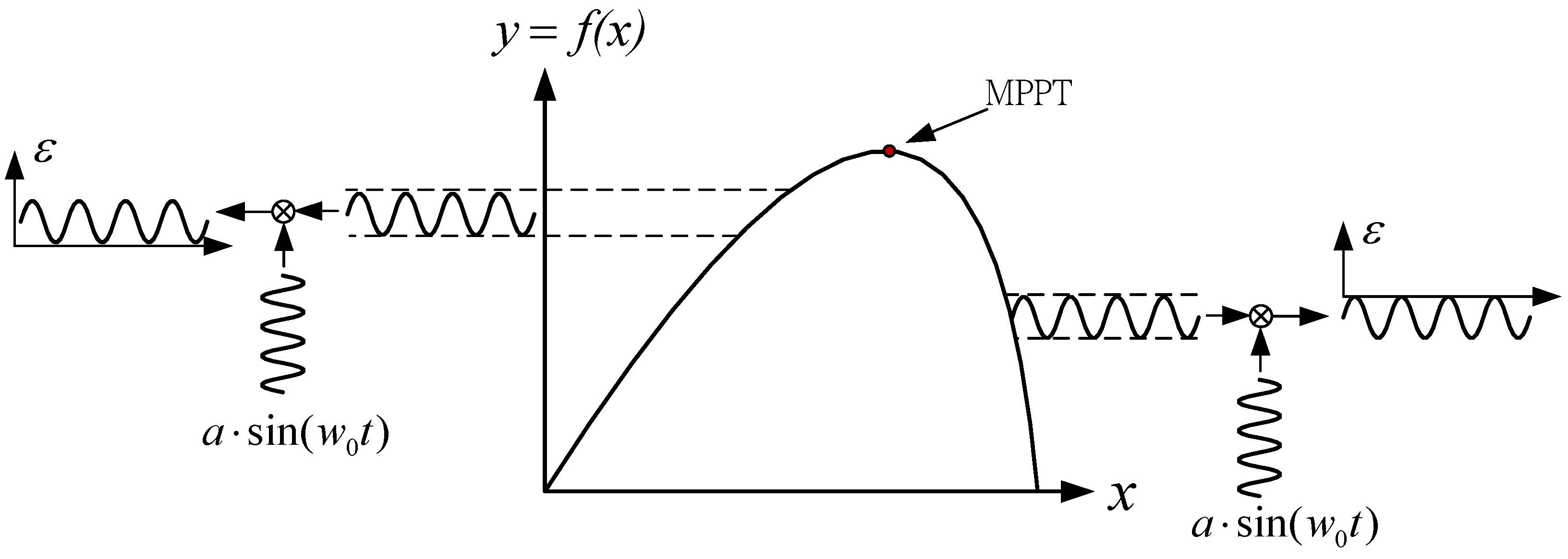

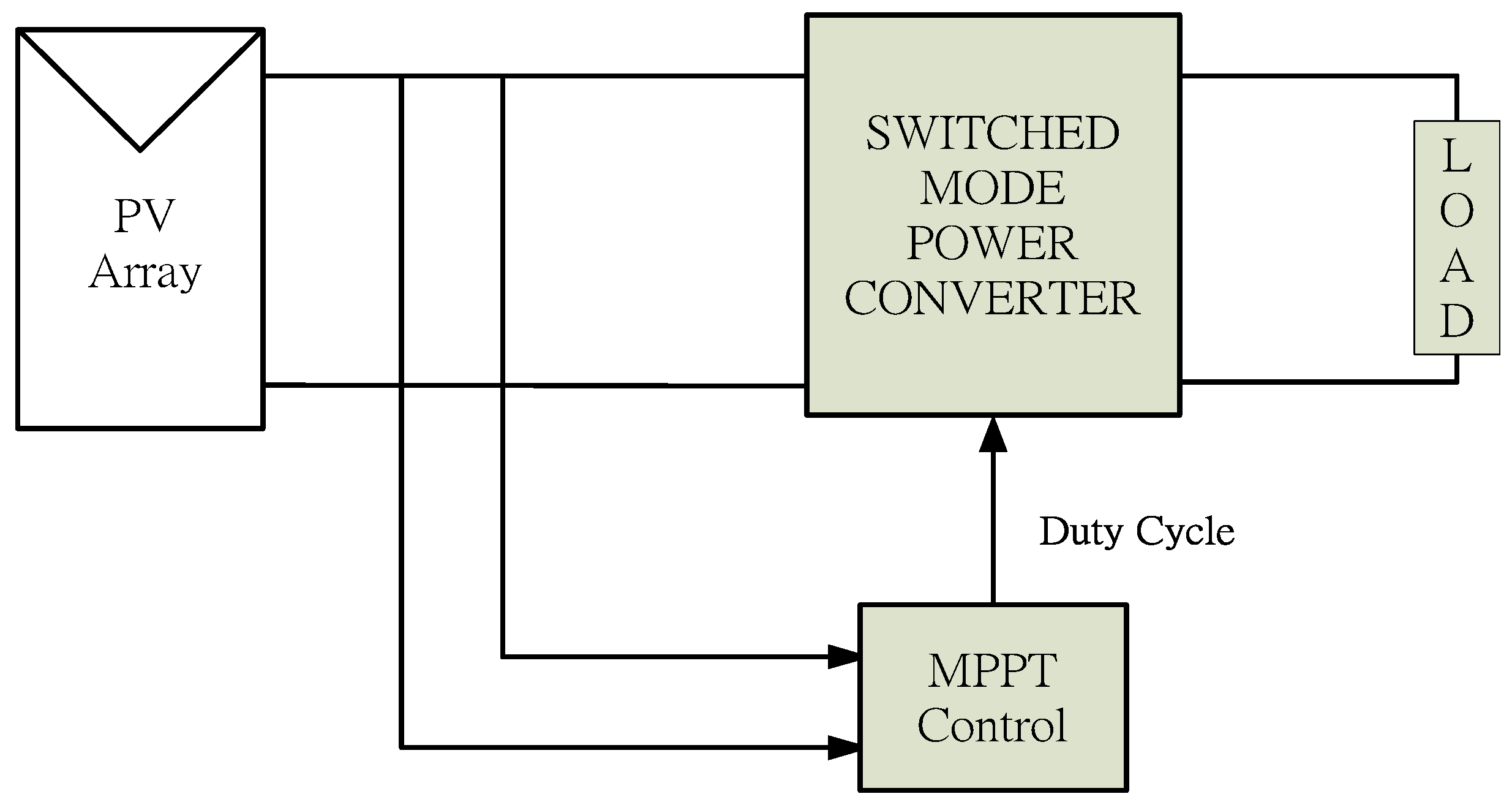

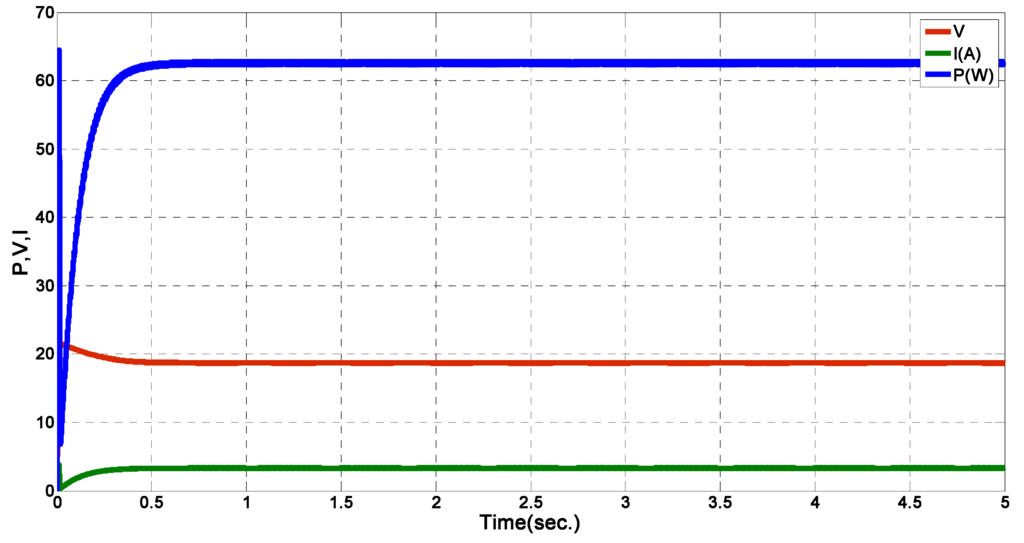

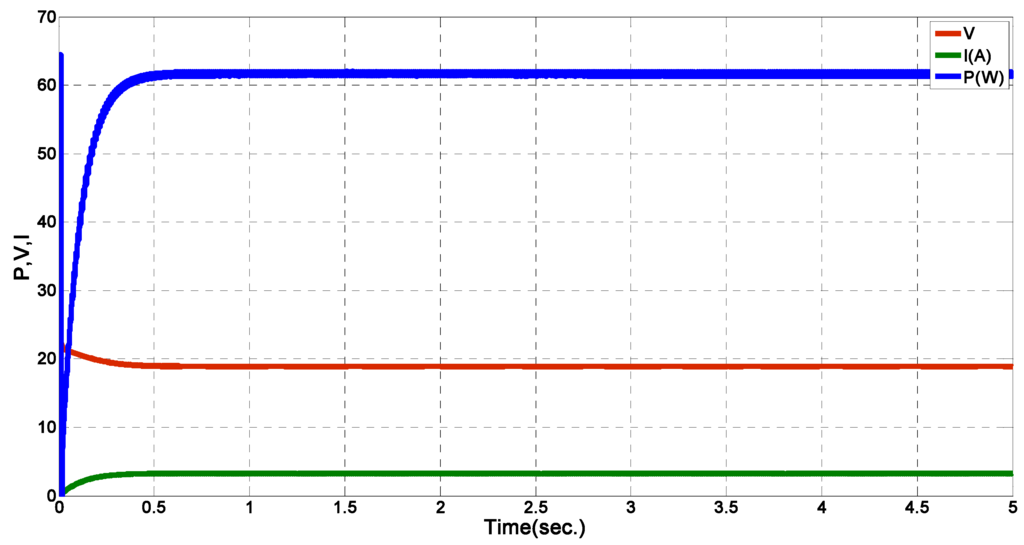

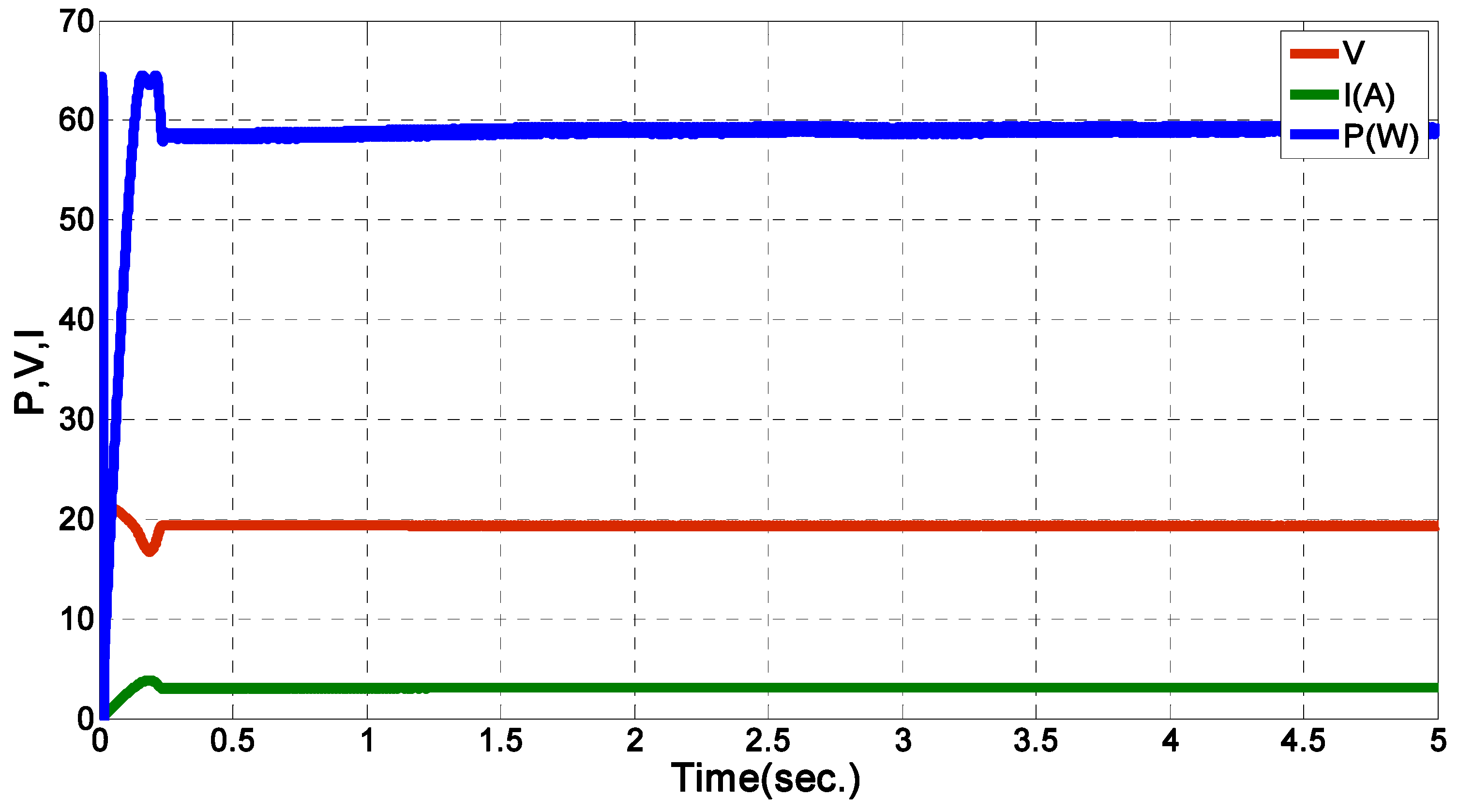

Due to Japan’s recent nuclear crisis and petroleum price hikes, the search for renewable energy sources has become an issue of immediate concern. A promising candidate attracting much global attention is solar energy, as it is green and also inexhaustible. A maximum power point tracking (MPPT) controller is employed in such a way that the output power provided by a photovoltaic (PV) system is boosted to its maximum level. However, in the context of abrupt changes in irradiance, conventional MPPT controller approaches suffer from insufficient robustness against ambient variation, inferior transient response and a loss of output power as a consequence of the long duration required of tracking procedures. Accordingly, in this work the maximum power point tracking is carried out successfully using a sliding mode extremum-seeking control (SMESC) method, and the tracking performances of three controllers are compared by simulations, that is, an extremum-seeking controller, a sinusoidal extremum-seeking controller and a sliding mode extremum-seeking controller. Being able to track the maximum power point promptly in the case of an abrupt change in irradiance, the SMESC approach is proven by simulations to be superior in terms of system dynamic and steady state responses, and an excellent robustness along with system stability is demonstrated as well. View Full-Text
Keywords: photovoltaic; MPPT; extremum-seeking control; sliding mode control photovoltaic; MPPT; extremum-seeking control; sliding mode control

Figure 1

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Share & Cite This Article

MDPI and ACS Style

Yau, H.-T.; Wu, C.-H. Comparison of Extremum-Seeking Control Techniques for Maximum Power Point Tracking in Photovoltaic Systems. Energies 2011, 4, 2180-2195.
