Abstract

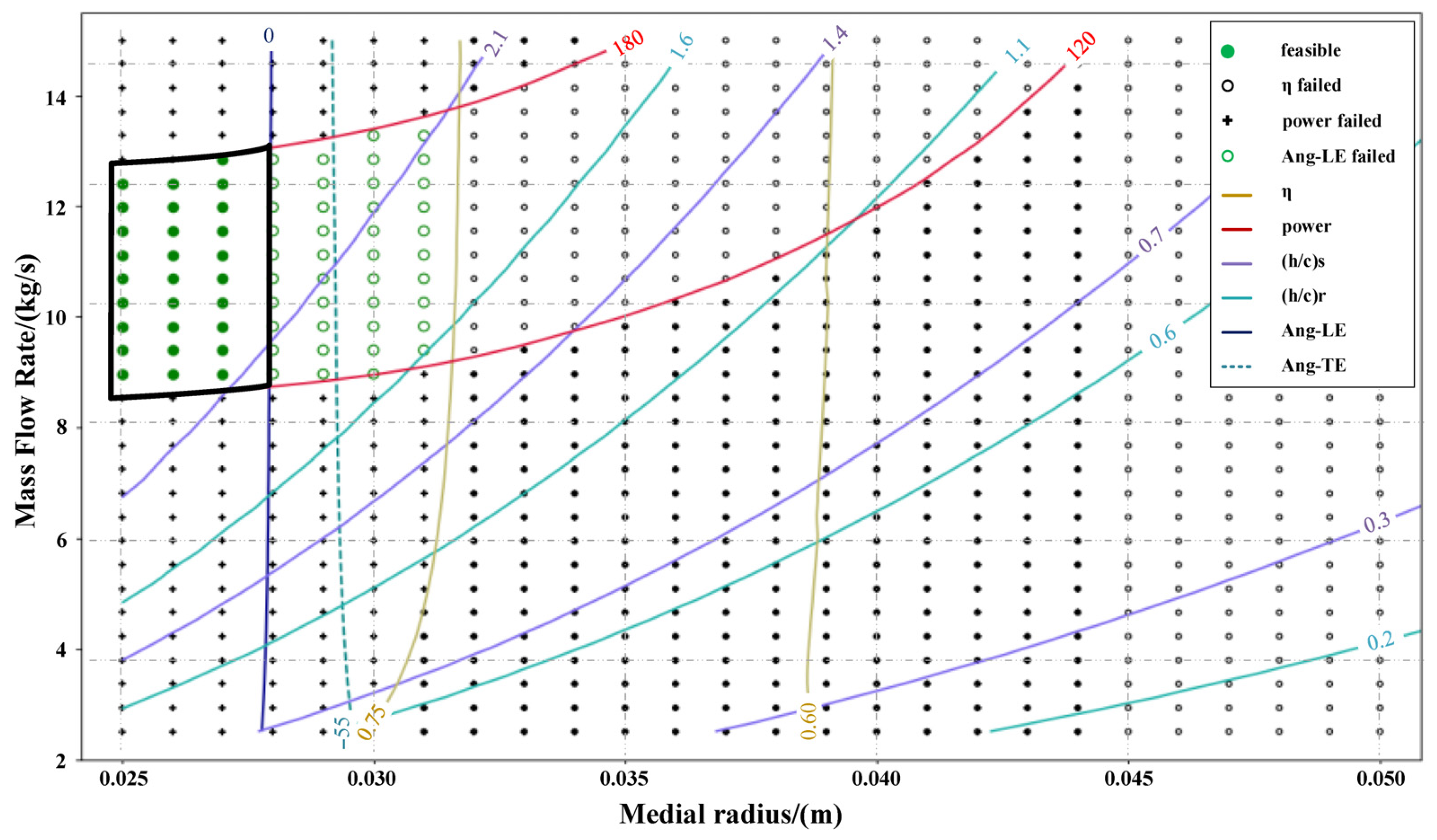

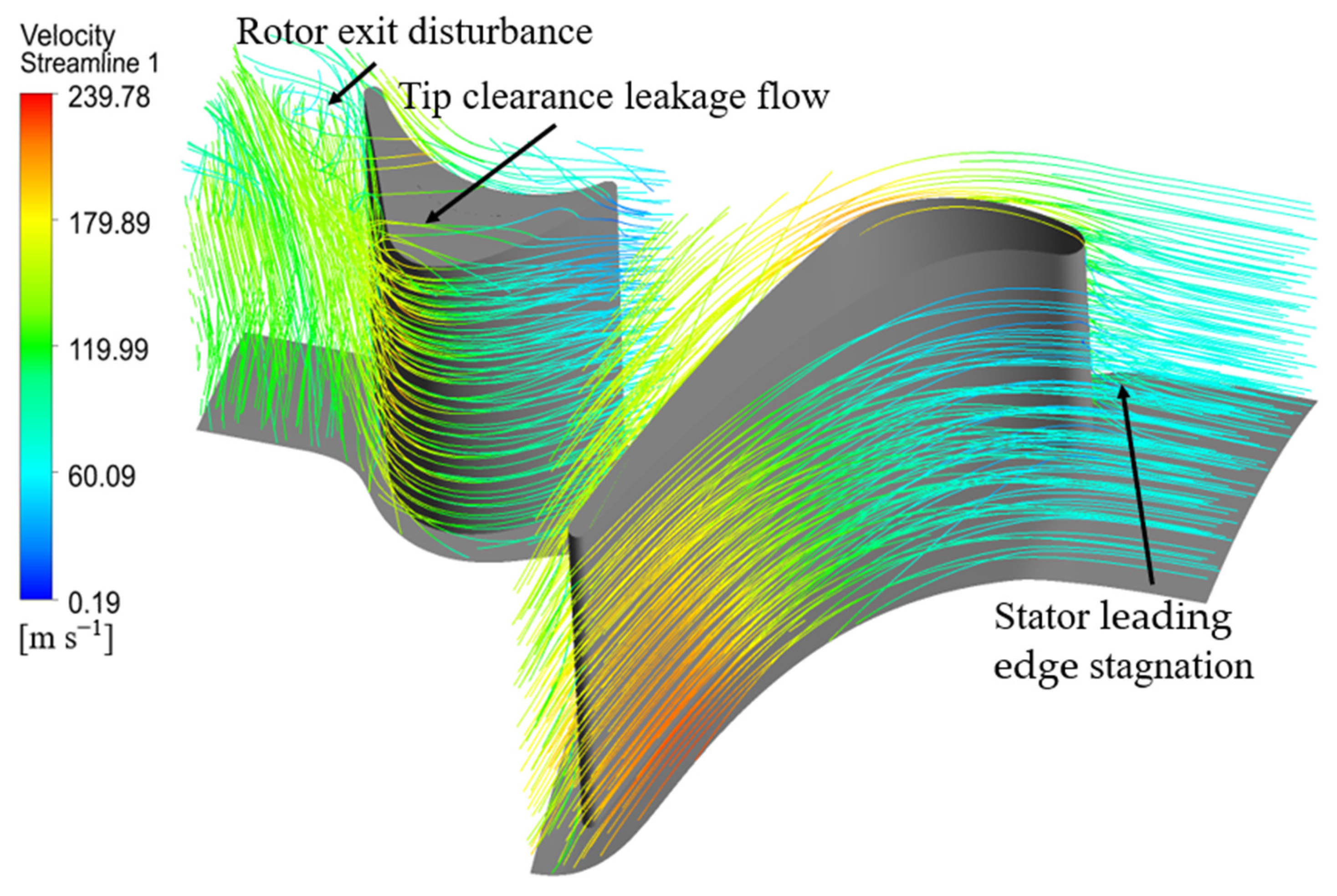

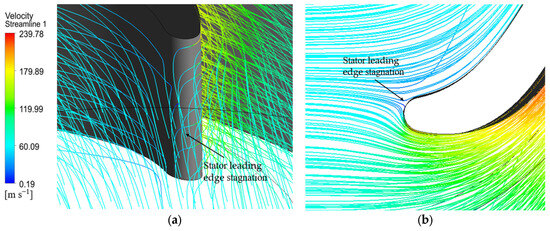

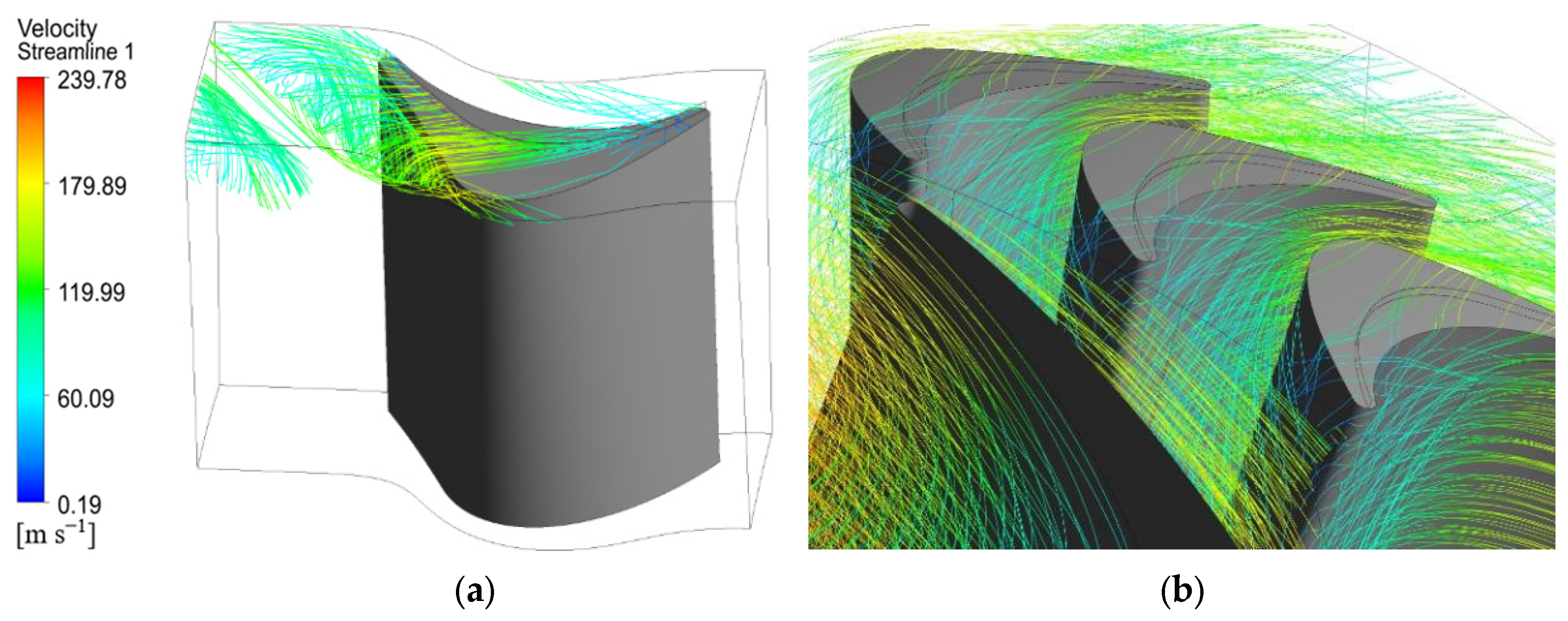

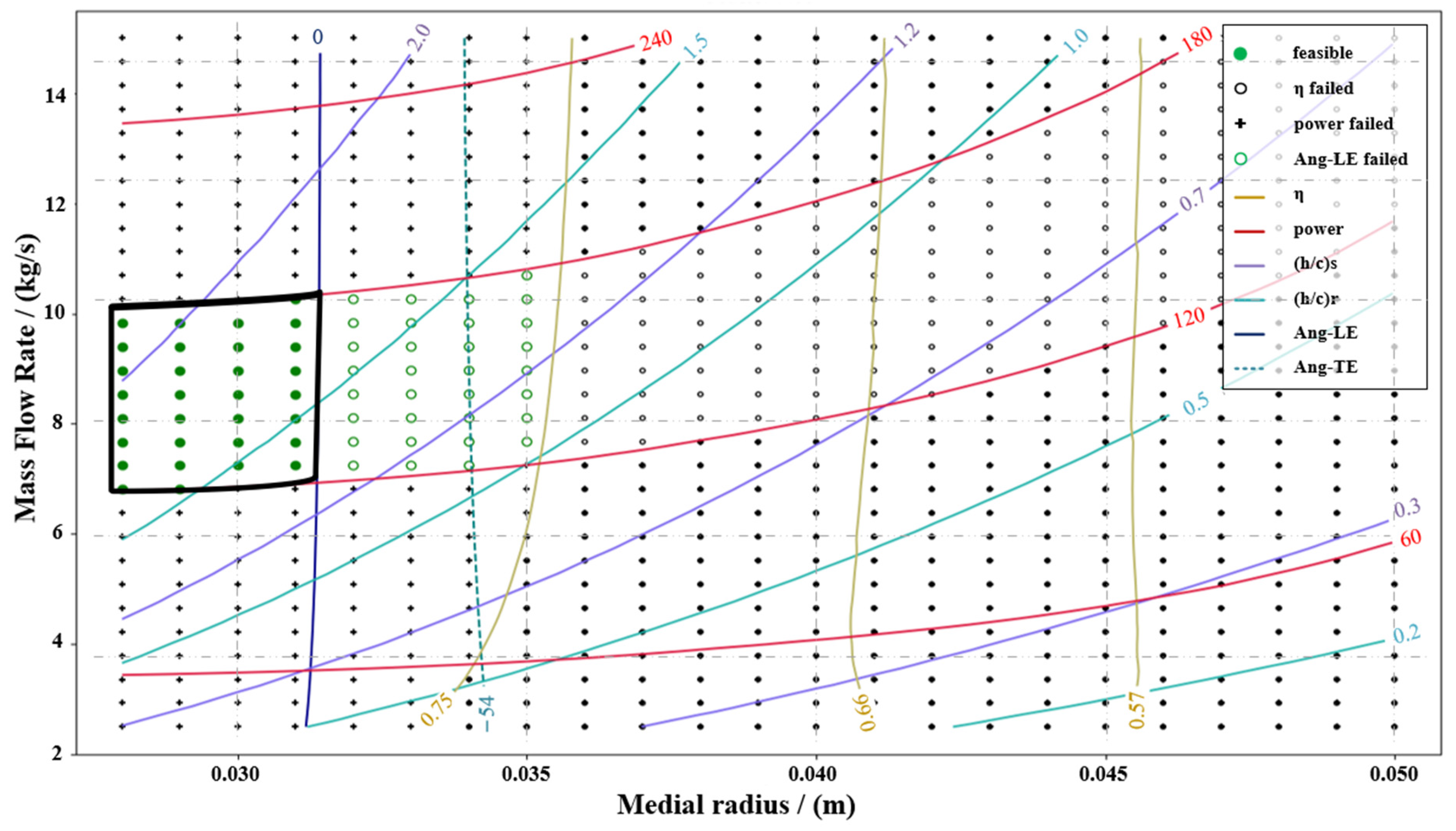

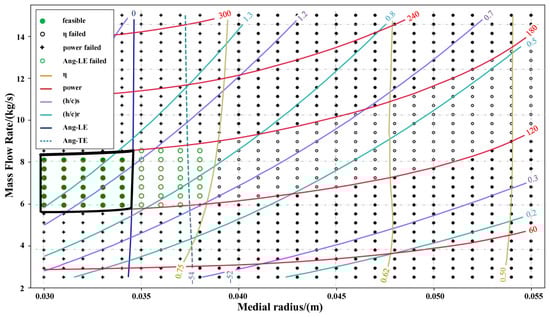

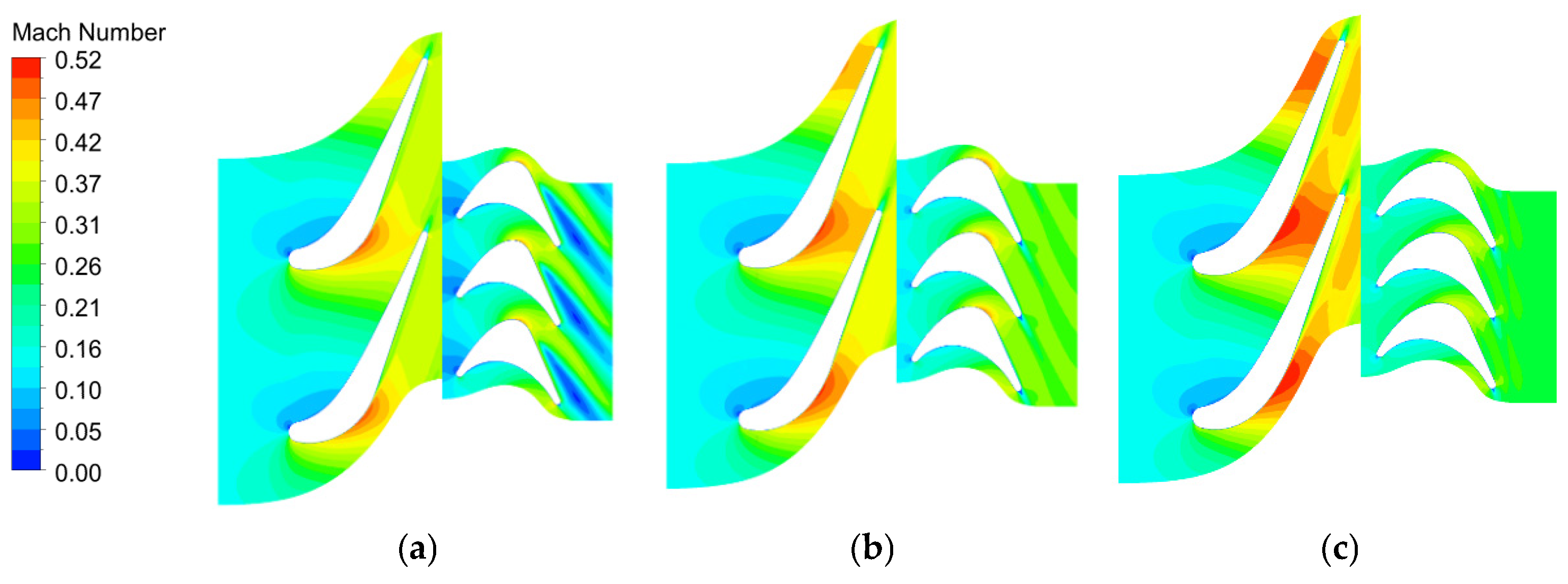

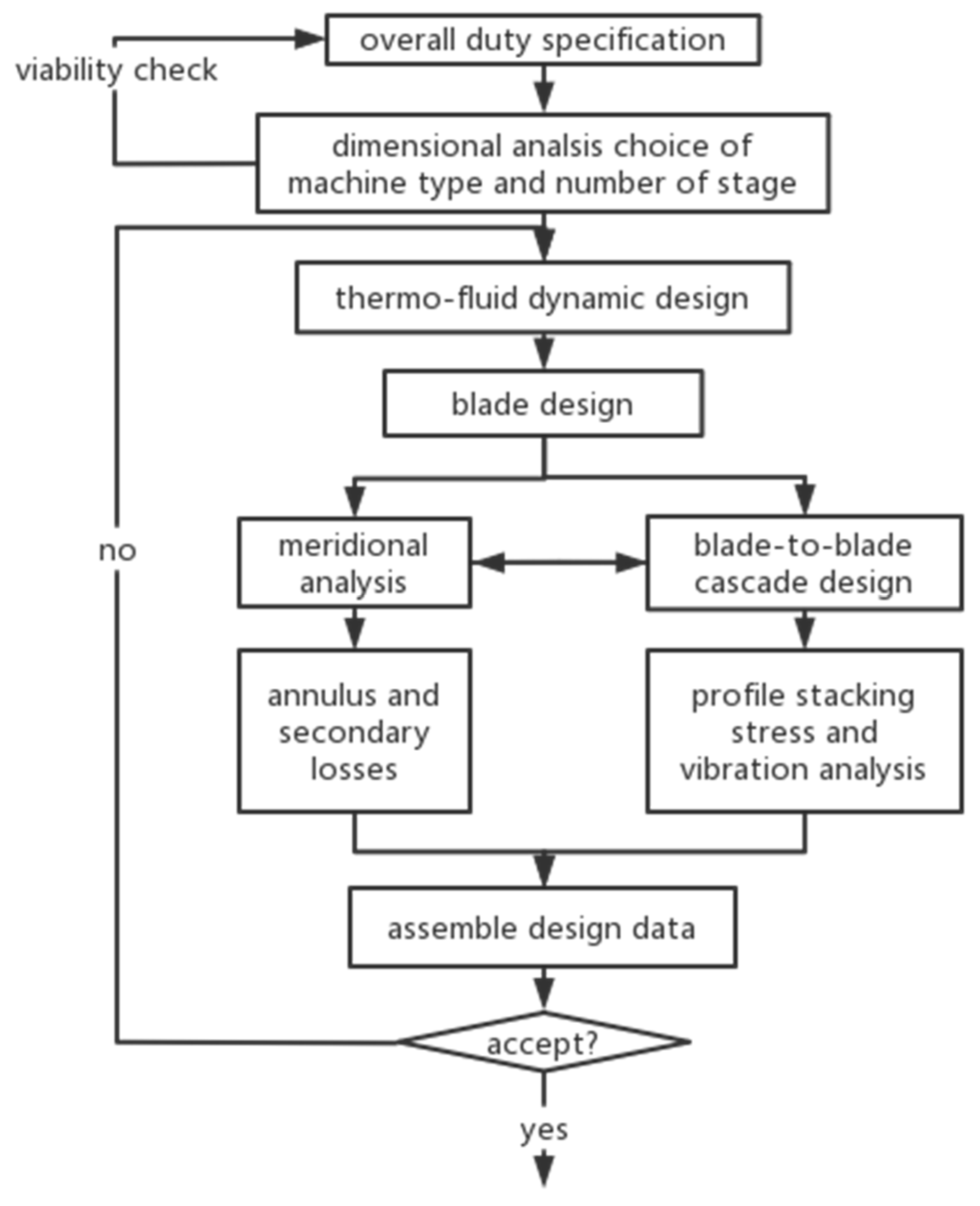

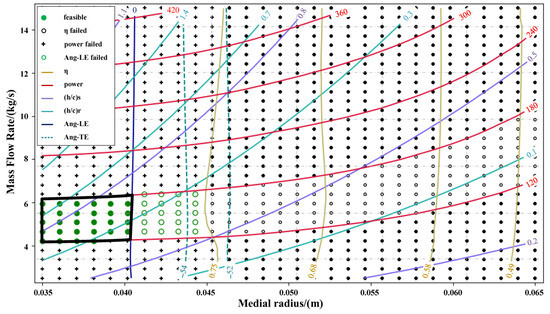

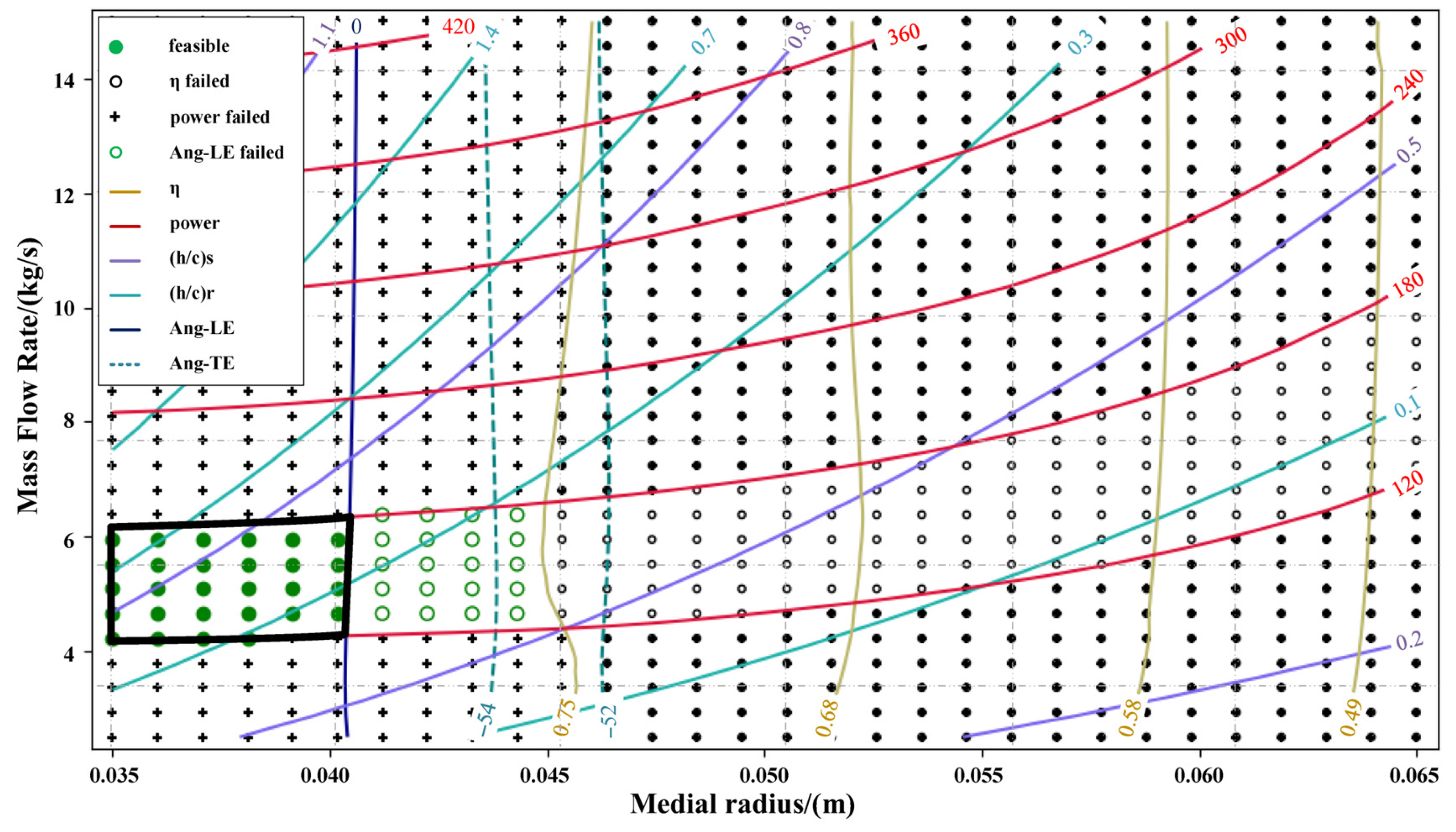

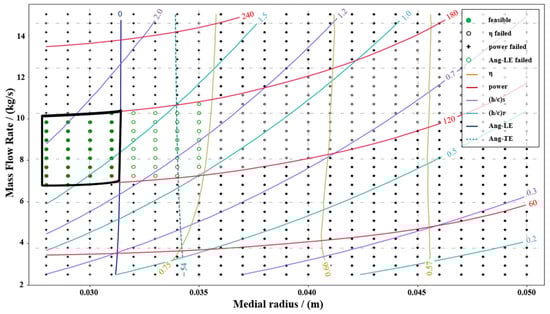

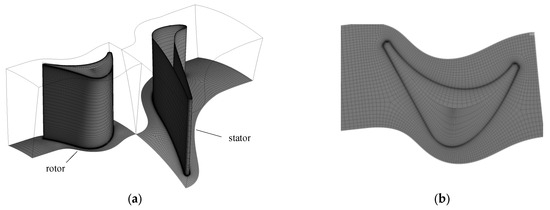

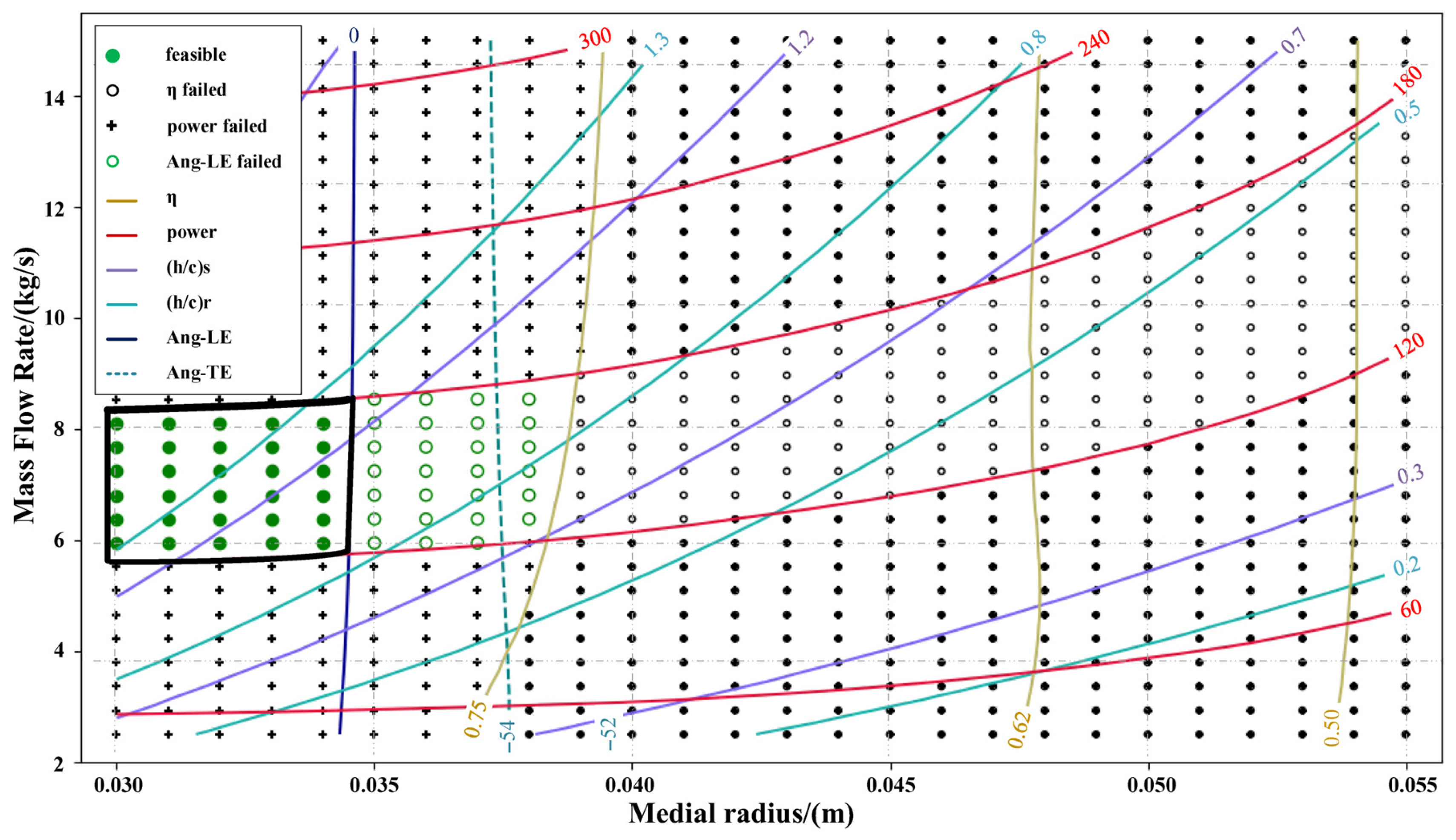

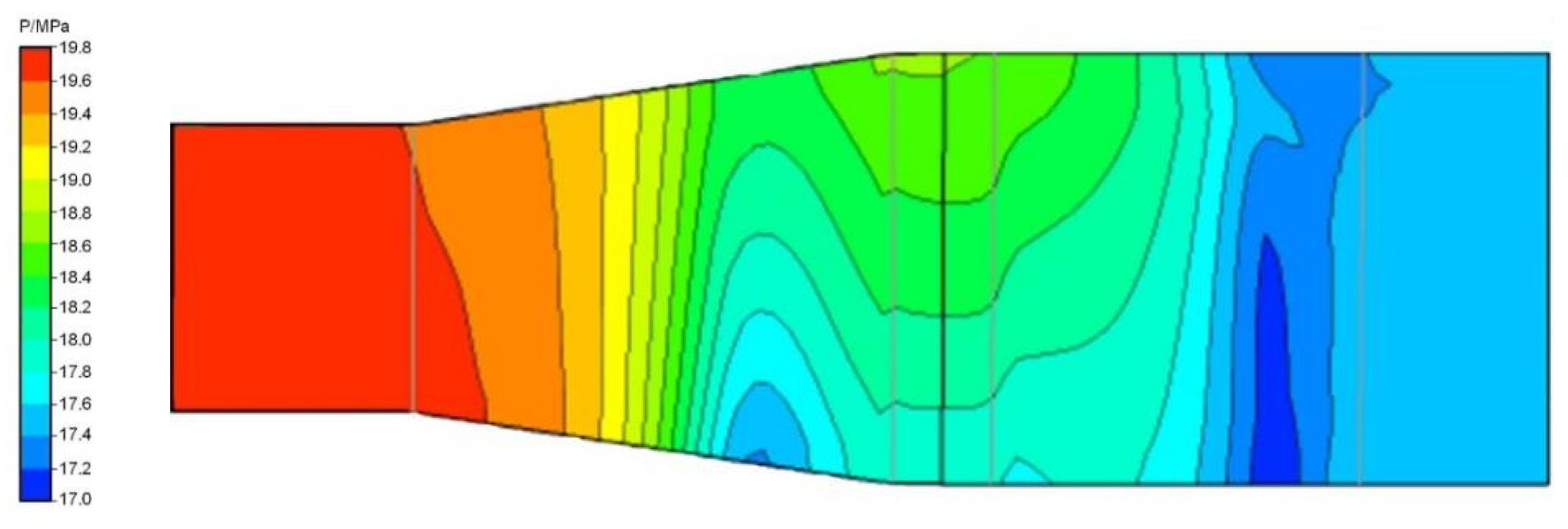

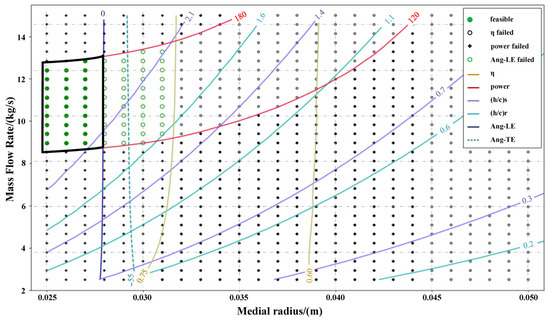

The supercritical carbon dioxide (sCO2) Brayton cycle has advantages such as a compact system and high energy density. Axial turbines, the key component of the cycle, have lower rotational speeds, pressure ratios and engineering difficulties compared to radial turbines. This study focuses on the initial design parameters and the complete design process of a small-scale axial turbine based on nuclear power and utilizing supercritical carbon dioxide. The design objective of this study is a 150 kW single-stage axial turbine. AXIAL software is used for batch calculations in the preliminary turbine design to determine the most reasonable initial design parameters, including back pressure, rotational speed, average radius, and mass flow rate. These initial parameters serve as the starting point for the overall turbine design process. The one-dimensional design results of the turbine show an isentropic efficiency of 77.15%, and numerical simulations validate the accuracy of this efficiency.
