Large-Eddy vs. Reynolds-Averaged Navier–Stokes Simulations of Flow and Heat Transfer in a U-Duct with Unsteady Flow Separation ^†

Abstract

Large-eddy simulation (LES) and Reynolds-Averaged Navier–Stokes (RANS) equations were used to study incompressible flow and heat transfer in a U-duct with a high-aspect-ratio trapezoidal cross section. For the LES, the WALE subgrid-scale model was employed, and its inflow boundary condition was provided by a concurrent LES of incompressible fully-developed flow in a straight duct with the same cross section and flow conditions as the U-duct. LES results are presented for turbulent kinetic energy, Reynolds stresses, pressure–strain rate, turbulent diffusion, turbulent transport, and velocity–temperature correlations, with a focus on how they are affected by the U-turn region of the U-duct. The LES results were also used to assess three commonly used RANS models: the realizable k-ε with the two-layer model in the near-wall region, the two-equation shear-stress transport model, and the seven-equation stress-omega Reynolds stress model. Results obtained show steady and unsteady RANS to incorrectly predict the effects of unsteady flow separation. The results obtained also identified the terms in the RANS models that need to be modified and suggested how turbulent diffusion should be modeled when there is unsteady flow separation.

1. Introduction

The turbine component of advanced gas turbines operates at high temperatures for increased thermal efficiency. Thus, it must be cooled to maintain its material’s structural integrity for reliable operation. Tremendous advances have been made in developing efficient and effective cooling methods; see, e.g., [1,2,3,4,5,6,7,8]. Further advances require a deeper understanding of the cooling processes.

High fidelity physics-based design tools such as computational fluid dynamics (CFD) could provide the understanding needed. Though direct numerical simulation (DNS) and large-eddy simulation (LES) have the potential to provide the accuracy needed, they are computationally intensive and not yet practical for use in the design and analysis of the very high Reynolds-number flows involved in turbine cooling [2,6,9]. CFD based on the Reynolds-Averaged Navier–Stokes (RANS) equations—albeit less accurate—is the most widely used because it is computationally much less demanding [1,2,3,4,5,6,7].

Considerable research has been conducted to improve the accuracy of RANS models [10,11,12,13,14,15,16,17]. The inaccuracy of RANS arises because RANS averages all length scales from the largest to the smallest, and the large scales depend on the geometry and the operating conditions of the problem studied. Since different problems have different geometries and operating conditions, no RANS model can be universal (i.e., applicable to every geometry and operating condition). As a result, benchmark-quality data generated by DNS that resolves all scales from integral to Kolmogorov and those by LES from integral to Taylor are useful to guide the development of RANS models for flows with similar geometries and operating conditions. Thus, Parneix et al. [18] showed terms in RANS models could be substituted with LES or DNS data to improve accuracy. Zhang and Shih [19,20] showed how upstream LES data could be used to adaptively modify the downstream RANS model so that RANS could be nearly as accurate as LES for the problem being studied. Basically, different sets of benchmark data are needed for different classes of geometries and flow conditions.

One geometry of interest in turbine cooling is the U-duct [1,2,3,4,5,6,7,8,9]. Most CFD studies of flow and heat transfer in U-ducts are based on RANS (see, e.g., [21,22,23,24,25,26,27,28,29,30,31,32,33] and the references cited there). Relatively few have performed LES on U-ducts. Métais and Salinas-Vázquez [34] used LES to analyze the turbulent flow through a heated straight square duct. Hebrard et al. [35] and Munch [36] used LES to study a heated curved-square duct. Guleren and Turan [37] and Acharya and Tyagi [38] performed an LES study of a rotating duct. Laskowski and Durbin [39] performed DNS of flow and heat transfer in a stationary and rotating U-duct. Hu and Shih [40] performed an LES study of a U-duct with a trapezoidal cross section that matched well with experimental data and showed RANS to provide reasonably accurate results in the U-duct’s up-leg but not in the down-leg. Though that study performed a very detailed verification and validation study, it did not provide the turbulent statistics from the LES study. Those statistics are needed to guide the development of RANS models for U-ducts.

The objective of this study is twofold. The first is to provide benchmark LES data that can be used to guide the development of RANS models for predicting flow and heat transfer in U-ducts that include results for the mean flow and the Reynolds stresses as well as the pressure–strain rate, turbulent diffusion, turbulent transport, and velocity–temperature correlations. Second, use the data generated to assess the performance of the following three widely used RANS models: (1) the realizable k-ε model [41]; (2) the shear-stress transport model (SST) [15,42,43,44]; and (3) the stress-omega Reynolds stress model (RSM) [15].

The organization of this paper is as follows: First, the U-duct problem studied is described. Next, the governing equations used for RANS and LES are given. Afterwards, the numerical methods used to generate solutions, the grid-sensitivity study, and the validation study are presented. This is followed by the results generated and a summary of key findings.

2. Problem Description

The U-duct with a high-aspect-ratio trapezoidal cross section selected for study is shown in Figure 1. This configuration was chosen for the following three reasons: The first is that there is experimental data that can be used to validate the LES [32]. Second, U-ducts with trapezoidal cross sections induce more complicated turbulent flows than those with circular, square, or rectangular cross sections, so that the turbulent statistics generated could guide the development of RANS models for a more general class of U-ducts. Third, U-ducts with trapezoidal cross sections are relevant to turbine cooling.

The U-duct with a trapezoidal cross-section studied experimentally and reported in Ref. [32] is shown in Figure 1. Its dimensions are H₁ = 11.72 mm, H₂ = 28.48 mm, W₁ = 54.24 mm, W₂ = 114.83 mm, L₁ = 246 mm, L₂ = 192 mm, and d = 6.35 mm, with a hydraulic diameter of D_h = 29.04 mm. In the experimental study [32], the flow entering the U-duct was “fully” developed.

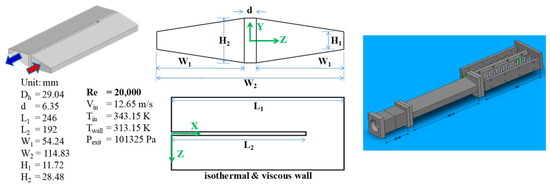

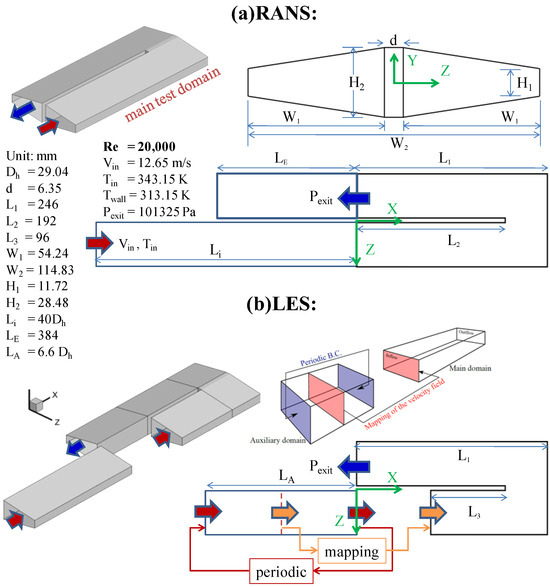

To simulate the experimental study for the U-duct shown in Figure 1, two configurations were used as shown in Figure 2, one for RANS and one for LES. The configuration used for RANS (Figure 2a) has a duct of length L_i = 40D_h with the same cross section as the U-duct appended to the up-leg of the U-duct to ensure that the flow entering the U-duct is “fully” developed. To ensure that there is no reverse flow at the exit of the U-duct, another straight duct of length L_E = 384 mm with the same cross section as the U-duct was appended to the down-leg of the U-duct. For this U-duct with its appended ducts, air enters with uniform velocity V_in = 12.65 m/s and uniform temperature T_in = 343.15 K. All wall temperatures were maintained at T_wall = 313.15 K, and the static pressure at the duct’s exit was maintained at P_b = 1 atm.

For the configuration used for LES (Figure 2b), the up-leg portion of the U-duct shown in Figure 1 was shortened by 96 mm to reduce computational cost. The inlet of the resulting U-duct is still sufficiently upstream of the bend and unaffected by the turn region. To obtain a fully-developed flow at the inlet of the “shortened” U-duct, the boundary conditions imposed there were provided by a concurrent LES of incompressible fully-developed flow in a straight duct, where the temperature at its inlet is adjusted so that the bulk temperature is the same as the RANS simulations at that same location. All other boundary conditions used for LES are the same as those described for the RANS configuration. Additional details of the problem studied are given in Refs. [32,40].

3. Formulation

For the two configurations of the U-duct studied (shown in Figure 2), the flow is assumed to be incompressible. The incompressible-flow assumption is reasonable because the Mach number is much less than 0.3 throughout the U-duct, so density changes due to speed changes are small. Also, T_wall − T_in and the pressure drop along the U-duct from its inlet to its outlet are small, so the density change due to changes in temperature and pressure is small as well. In addition, since T_wall − T_in is small, all thermodynamics and transport properties were taken to be constants and evaluated at T = (T_in + T_wall)/2. Viscous dissipation was neglected as well, since the Eckert number for this problem is small.

3.1. Governing Equations for RANS

The governing equations used for the RANS simulations are the Reynold-averaged continuity, momentum (Navier–Stokes), and thermal-energy equations for incompressible flow, and they are as follows [15,16]:

$$\frac{\partial \overline{u_j}}{\partial x_j}=0$$

(1)

$$\frac{\partial \overline{u_i}}{\partial t}+\frac{\partial \overline{u_j}\overline{u_i}}{\partial x_j}=\nu \frac{{\partial }^2\overline{u_i}}{\partial x_j^2}-\frac{1}{\rho }\frac{\partial \overline{p}}{\partial x_i}-\frac{\partial {\tau }_{ij}}{\partial x_j}$$

(2)

$$\frac{\partial \overline{T}}{\partial t}+\frac{\partial \overline{u_i}\overline{T}}{\partial x_i}=\frac{\partial }{\partial x_i}\left(\frac{k}{\rho C_p}\frac{\partial \overline{T}}{\partial x_i}-\overline{u_i^{\prime }{T}^{\prime }}\right)$$

(3)

In the above equations, an overbar denotes an ensemble-averaged quantity; ${\tau }_{ij}=-\overline{u_i^{\prime }{u}_j^{\prime }}$ are the Reynolds stresses; $u_i^{\prime }=u_i-\overline{u_i}$ is the fluctuating component of the instantaneous velocity in the $x_i$ direction; and $T\prime =T-\overline{T}$ is the temperature fluctuation about the mean temperature. For statistical stationary turbulent flows, ensemble to close Equations (1) to (3), models are needed for $\overline{u_i^{\prime }{u}_j^{\prime }}$ and $\overline{u_i^{\prime }{T}^{\prime }}$. In this study, three RANS models were examined. Two are eddy-viscosity models: the realizable k-ε model [41] and the shear-stress transport (SST) [15,42,43,44]. The third model is the stress-omega Reynolds stress model (RSM) [15].

3.1.1. Eddy-Viscosity Model

For the two eddy-viscosity models examined, the Reynolds stresses are given by the following equation:

$$-\overline{u_i^{\prime }{u}_j^{\prime }}=2{\nu }_T\left(S_{ij}-\frac{1}{3}{\delta }_{ij}{S}_{kk}\right)-\frac{2}{3}k{\delta }_{ij}$$

(4)

where $k=\overline{u_k^{\prime }{u}_k^{\prime }}/2$, $S_{ij}=\frac{1}{2}(\partial \overline{u_i}/\partial x_j+\partial \overline{u_j}/\partial x_i)$, and ${\nu }_T$ are the turbulent kinetic energy, mean strain-rate tensor, and eddy viscosity, respectively. The realizable k-ε and the SST models differ in how ${\nu }_T$ is modeled.

For the realizable k-ε model, ${\nu }_T$ is modeled by the following [41]:

$${\nu }_t=C_{\mu }\frac{k^2}{\epsilon }$$

(5)

where

$$C_{\mu }=\frac{1}{A_0+A_s\frac{k{U}^{\ast }}{\epsilon }}$$

(6)

$$U^{\ast }\equiv \sqrt{S_{ij}{S}_{ij}}$$

(7)

$$A_s=\sqrt{6}\cos \varphi$$

(8)

In the above equations, $A_0=4.04$, $\varphi =\frac{1}{3}{\cos }^{-1}\left(\sqrt{6}W\right)$, $W=\frac{S_{ij}{S}_{jk}{S}_{ki}}{\widetilde{S^3}}$, $\tilde{S}=\sqrt{S_{ij}{S}_{ij}}$, and $S_{ij}=\frac{1}{2}\left(\frac{\partial u_j}{\partial x_i}+\frac{\partial u_i}{\partial x_j}\right)$ with $C_{\mu }$ recovering the standard value of 0.09 in the fully turbulent region of the flow. Since the realizable k-ε is not valid in the near-wall region, where the turbulent number based on turbulent kinetic energy is small, the one-equation model of.

The turbulent kinetic energy, k, and its dissipation rate, $\epsilon$, in Equation (5) are obtained by the following transport equations:

$$\frac{\partial }{\partial t}\left(\rho k\right)+\frac{\partial }{\partial x_j}\left(\rho k{u}_j\right)=\frac{\partial }{\partial x_j}\left[\left(\mu +\frac{{\mu }_t}{{\sigma }_k}\right)\frac{\partial k}{\partial x_j}\right]+G_k-\rho \epsilon$$

(9)

$$\frac{\partial }{\partial t}\left(\rho \epsilon \right)+\frac{\partial }{\partial x_j}\left(\rho \epsilon u_j\right)=\frac{\partial }{\partial x_j}\left[\left(\mu +\frac{{\mu }_t}{{\sigma }_{\epsilon }}\right)\frac{\partial \epsilon }{\partial x_j}\right]-\rho C_1\frac{{\epsilon }^2}{k+\sqrt{\nu \epsilon }}$$

(10)

where $G_k$ represents the generation of turbulent kinetic energy due to the mean velocity gradients; $C_1$ = 1.9; and ${\sigma }_k$ and ${\sigma }_{ϵ}$ are the turbulent Prandtl numbers for $k$ and $\epsilon$, respectively.

Since the realizeable k-ε model given by Equations (9) and (10) is not valid in the near-wall region, the one-equation, two-layer model of Chen–Patel was used there [45]. Thus, though the realizeable k-ε model is a two-equation model, the turbulence model used in the near-wall region is a one-equation model.

Though the realizeable k-ε model is not valid in the near-wall region, the k-ω model is. Thus, the k-ω model offers the benefit of a two-equation model for the entire turbulent flowfield. However, the k-ω model is sensitive to freestream turbulence. The SST model overcomes the challenges of the k-ε and k-ω models by using the k-ε model away from the walls where the flow is fully turbulent and the k-ω model in the near-wall region. The switch between these two equations is carried out by a smooth interpolation [9].

For the SST model, ${\nu }_T$ in Equation (4) is modeled by the following [15,42,43,44]:

$${\nu }_t=\frac{k}{\omega }\frac{1}{\max \left[\frac{1}{{\alpha }^{\ast }},\frac{\tilde{S}{F}_2}{a_1\omega }\right]}$$

(11)

where $\tilde{S}$ is the magnitude of the strain rate and

$$F_2=\tanh \left({\mathsf{\Phi }}_2^2\right),\hspace{1em}{\mathsf{\Phi }}_2=\max \left[2\frac{\sqrt{k}}{0.09\omega y},\frac{500\mu }{\rho y^2\omega }\right]$$

(12)

$${\alpha }^{\ast }={\alpha }_{\infty }^{\ast }\left(\frac{{\alpha }_0^{\ast }+{Re}_t/R_k}{1+{Re}_t/R_k}\right),\hspace{1em}{Re}_t=\frac{\rho k}{\mu \omega }$$

(13)

The model constants in the above equations are as follows: $a_1=0.31$, $R_k=6$, ${\alpha }_0^{\ast }=0.024$. For the SST model, the turbulent kinetic energy, k, and its specific dissipation rate, $\omega$, are obtained by the following:

$$\frac{\partial }{\partial t}\left(\rho k\right)+\frac{\partial }{\partial x_i}\left(\rho k{u}_i\right)=\frac{\partial }{\partial x_j}\left[\left(\mu +\frac{{\mu }_t}{{\sigma }_k}\right)\frac{\partial k}{\partial x_j}\right]+\widetilde{G_k}-Y_k$$

(14)

$$\frac{\partial }{\partial t}\left(\rho \omega \right)+\frac{\partial }{\partial x_i}\left(\rho \omega u_i\right)=\frac{\partial }{\partial x_j}\left[\left(\mu +\frac{{\mu }_t}{{\sigma }_{\omega }}\right)\frac{\partial \omega }{\partial x_j}\right]+G_{\omega }-Y_{\omega }+D_{\omega }$$

(15)

In Equations (14) and (15), $\widetilde{G_k}$ represents the generation of turbulence kinetic energy, and $G_{\omega }$ represents the generation of $\omega$. ${\sigma }_k$ and ${\sigma }_{\omega }$ are the turbulent Prandtl numbers for $k$ and $\omega$, respectively.

3.1.2. Reynolds Stress Model

For the stress-omega Reynolds stress model, there is a transport equation for each of the six Reynolds stresses, ${\tau }_{ij}$. These transport equations are given by the following [15,46]:

$$\begin{gathered} \frac{\partial {\tau }_{ij}}{\partial t}+\underset{Convection\left(C_{ij}\right)}{\underbrace{{\overline{u}}_k\frac{\partial {\tau }_{ij}}{\partial x_k}}}=\underset{Production\left(P_{ij}\right)}{\underbrace{-{\tau }_{ik}\frac{\partial {\overline{u}}_j}{\partial x_k}-{\tau }_{jk}\frac{\partial {\overline{u}}_i}{\partial x_k}}}+\underset{Dissipation \left({ϵ}_{ij}\right)}{\underbrace{2\nu \overline{\frac{\partial u_i^{\prime }}{\partial x_k}\frac{\partial u_j^{\prime }}{\partial x_k}}}} \\ +\underset{Pressure-Strain \left({\mathrm{\Pi }}_{ij}\right)}{\underbrace{\overline{\frac{p^{\prime }}{\rho }\left(\frac{\partial u_i^{\prime }}{\partial x_j}+\frac{\partial u_j^{\prime }}{\partial x_i}\right)}}}+\underset{Transport by Diffusion}{\underbrace{\frac{\partial }{\partial x_k}\left(\underset{Viscous}{\underbrace{\nu \frac{\partial {\tau }_{ij}}{\partial x_k}}}+\underset{turbulent \left(D_{T,ij}\right)}{\underbrace{\overline{u_i^{\prime }{u}_j^{\prime }{u}_k^{\prime }}+\frac{\overline{p^{\prime }{u}_i^{\prime }}}{\rho }{\delta }_{jk}+\frac{\overline{p^{\prime }{u}_j^{\prime }}}{\rho }}}{\delta }_{ik}\right)}} \end{gathered}$$

(16)

Of the terms in the above six equations, convection, production, and viscous diffusion do not require modeling. Turbulent diffusion, pressure strain, and dissipation tensors, however, do need to be modeled. The turbulent-diffusion term in Equation (16) is modeled by generalizing gradient-diffusion as shown below.

$$D_{T,ij}=\frac{\partial }{\partial x_k}\left(\frac{{\nu }_t}{{\sigma }_k}\frac{\partial \overline{u_i^{\prime }{u}_j^{\prime }}}{\partial x_k}\right)$$

(17)

where the eddy viscosity, ${\mathrm{\nu }}_{\mathrm{t}}$, is given by the following:

$${\nu }_t=\frac{k}{\omega }$$

(18)

with $\omega$ being computed by using Equation (15).

The dissipation tensor in Equation (16) is modeled by the following:

$${\epsilon }_{ij}=\frac{2}{3}{\delta }_{ij}\rho \epsilon$$

(19)

where $\epsilon$ is computed by using Equation (10).

For the pressure–strain rate in Equation (16), the classical approach uses the following decomposition:

$${\mathrm{\Pi }}_{ij}={\mathrm{\Pi }}_{ij,1}+{\mathrm{\Pi }}_{ij,2}+{\mathrm{\Pi }}_{ij,\omega }$$

(20)

where ${\mathrm{\Pi }}_{\mathrm{i}\mathrm{j},1}$ is the slow pressure–strain term; ${\mathrm{\Pi }}_{\mathrm{i}\mathrm{j},2}$ is the rapid pressure–strain term; and ${\mathrm{\Pi }}_{\mathrm{i}\mathrm{j},\mathrm{\omega }}$ is the wall reflection term. In the stress-omega Reynolds stress model, the wall-reflection term is neglected, and the other two terms are approximated by the LRR model [15] as shown below.

$${\mathrm{\Pi }}_{\mathrm{i}\mathrm{j},1}\equiv -{\beta }_0^{\ast }{f}_{{\beta }^{\ast }}{C}_3\omega \left[\overline{u_i^{\prime }{u}_j^{\prime }}-\frac{2}{3}{\delta }_{ij}k\right]$$

(21)

$${\mathrm{\Pi }}_{ij,2}\equiv -\hat{\alpha }\left(P_{ij}-\frac{2}{3}{{\delta }_{ij}P}_{kk}\right)-\hat{\beta }\left(D_{ij}-\frac{2}{3}{{\delta }_{ij}P}_{kk}\right)-\hat{\gamma }k\left(S_{ij}-\frac{1}{3}{{\delta }_{ij}S}_{kk}\right)$$

(22)

where ${\beta }_0^{\ast }=0.09$, $C_3=1.8$, $\hat{\alpha }=0.7745$, $\hat{\beta }=0.1964$, $\hat{\gamma }=0.4945$, and

$$f_{{\beta }^{\ast }}=\left\{\begin{array}{c} 1\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}{\chi }_k\le 0\\ \frac{1+640{\chi }_k^2}{1+400{\chi }_k^2}\hspace{1em}\hspace{1em} {\chi }_k>0\end{array}\right.$$

$$P_{ij}={\tau }_{im}\frac{\partial \overline{u_j}}{\partial x_m}+{\tau }_{jm}\frac{\partial \overline{u_i}}{\partial x_m}$$

$$D_{ij}={\tau }_{im}\frac{\partial \overline{u_m}}{\partial x_j}+{\tau }_{jm}\frac{\partial \overline{u_m}}{\partial x_i}$$

$$S_{ij}=\frac{1}{2}\left(\frac{\partial \overline{u_i}}{\partial x_j}+\frac{\partial \overline{u_j}}{\partial x_i}\right)$$

The stress-omega Reynolds stress model given by Equations (6) to (22) is valid in the near-wall region as well as the fully turbulent region of the flowfield.

3.2. Governing Equations for Large-Eddy Simulation

In LES, large scales of the turbulent flow—which depend strongly on the geometry and boundary conditions—are simulated, and the smaller scales—which have more universal properties because the cascading process diminishes the effects of the flow’s history—are modeled in terms of the simulated larger scales. The governing equations used in LES are obtained by applying a spatial filter to the unsteady, three-dimensional form of continuity, momentum (Navier–Stokes), and thermal energy equations, yielding the following [15]:

$$\frac{\partial \widehat{u_j}}{\partial x_j}=0$$

(23)

$$\frac{\partial {\hat{u}}_i}{\partial t}+\frac{\partial }{\partial x_j}\left({{\hat{u}}_i\hat{u}}_j\right)=-\frac{1}{\rho }\frac{\partial \hat{p}}{\partial x_i}-\frac{\partial {\tilde{\tau }}_{ij}}{\partial x_j}+\nu \frac{{\partial }^2{\hat{u}}_i}{\partial x_j\partial x_j}$$

(24)

$$\frac{\partial \hat{T}}{\partial t}+\frac{\partial \hat{T}}{\partial x_i}=\frac{k}{\rho C_p}\frac{{\partial }^2\hat{T}}{\partial x_i^2}-\frac{\partial \widehat{u_i^{\prime }{T}^{\prime }}}{\partial x_i}$$

(25)

In the above equations, the hat above a variable indicates a filtered variable, and ${\tilde{\mathrm{\tau }}}_{\mathrm{i}\mathrm{j}}$ is the subgrid-scale stresses. To close the filtered equations, ${\tilde{\mathrm{\tau }}}_{\mathrm{i}\mathrm{j}}$ must be modeled, and one approach is to employ an eddy viscosity model such as

$${\tilde{\tau }}_{ij}=-2{\nu }_{sgs}{\hat{S}}_{ij}+\frac{1}{3}{\tilde{\tau }}_{kk}{\delta }_{ij}$$

(26)

where ${\mathrm{\nu }}_{\mathrm{s}\mathrm{g}\mathrm{s}}$ is the sub-grid scale turbulent viscosity. Many models have been proposed for ${\nu }_{sgs}$. In this study, the wall-adapting Local eddy viscosity model (WALE) formulated by Nicoud and Ducros [47] was used, and it is given by the following:

$${\nu }_{sgs}={\left(C_w\Delta \right)}^2\frac{{\left(S_{ij}^d{S}_{ij}^d\right)}^{3/2}}{{\left({\hat{S}}_{ij}{\hat{S}}_{ij}\right)}^{5/2}-{\left(S_{ij}^d{S}_{ij}^d\right)}^{5/4}}$$

(27)

where ${\mathrm{C}}_{\mathrm{w}}$ = 0.325; $\Delta$ is the cutoff width (which is connected to the grid spacing employed in the numerical solution); and

$$S_{ij}^d={\hat{S}}_{ik}{\hat{S}}_{kj}+{\hat{\Omega }}_{ik}{\hat{\Omega }}_{kj}-\frac{1}{3}\left({\hat{S}}_{mn}{\hat{S}}_{mn}-{\hat{\Omega }}_{mn}{\hat{\Omega }}_{mn}\right){\delta }_{ij}$$

(28)

One advantage of the WALE model is that damping is not needed near the wall. It naturally goes to zero at the wall and reproduces the proper scaling of ${\mathrm{\nu }}_{\mathrm{s}\mathrm{g}\mathrm{s}}~{\mathrm{y}}^3$. Also, it is sensitive to both the strain and rotation rate of the small structures.

3.3. Eddy Diffusivity Hypothesis (EDH)

Thus far, only the models for the Reynolds stresses in RANS and the subgrid-scale stresses in LES are given. In the energy equation given by Equation (3) for RANS and Equation (25) for LES, the correlation between velocity and temperature fluctuations also needs to be modeled. In this study, the eddy-diffusivity concept was invoked as follows:

$$\overline{u_i^{\prime }{T}^{\prime }}=-{\Gamma }_t\frac{\partial T}{\partial x_i}$$

(29)

In Equation (29), the bar denotes Reynolds averaging if RANS and spatially filtering if LES, and ${\Gamma }_t$ is the eddy-diffusivity of thermal energy. The Reynolds analogy between heat and momentum transport suggests that ${\Gamma }_t$ is closely related to the eddy or subgrid-scale viscosity ${\mu }_t$ so that

$${\Gamma }_t=\frac{{\nu }_t}{{Pr}_t}$$

(30)

where ${Pr}_t$ is the turbulent Prandtl number. In this study, ${Pr}_t$ is taken to be 0.85 for both RANS and LES.

4. Numerical Method of Solution

GAMBIT was used to generate the grids used in this study, and version 16.2.0 of the Fluent UNS code [48] was used to generate all of the solutions.

For RANS, the SIMPLE algorithm was used [49]. The advection terms in the momentum, energy, and turbulent transport equations were approximated by second-order upwind formulas, and terms in the pressure equation were approximated by second-order central formulas. Since the SIMPLE algorithm is an iterative method and only steady-state solutions were of interest, iterations were continued until residuals for all equations plateaued to ensure convergence to steady state. At convergence, the scaled residual is always less than 10⁻⁵ for the three components of the velocity, less than 10⁻⁷ for the energy equation, less than 10⁻⁴ for turbulent quantities, and less than 10⁻³ for the continuity equation.

For LES, the SIMPLE algorithm was also used. The time derivatives were approximated by the bounded second-order implicit scheme. The time-step size used ensured the maximum CFL number to be less than 0.6, which was small enough to resolve the Taylor time scale, and ten sub-iterations were found to be sufficient for the solution to converge at each time step. On spatial derivatives, second-order central differencing was used. Note that when the filter width used is variable because the grid spacing used is what determines the filter width, assuming the LES spatial filter and the differential operators are commutative as implied in Equations (23) to (25) limits the order of time and spatial accuracy to two. When solving the pressure equation, the PRESTO scheme was employed, as suggested by Lampitella [50].

Figure 3 shows the grid employed for RANS and LES. It is a multi-block structured grid with a wrap-around O-H grid about the walls of the U-duct and an H-H grid in the duct’s core. As can be seen in Figure 3, the grid points were clustered on all solid surfaces, and a wrap-around grid was employed. Also, the $y^{+}$ of the first grid point next to all walls is less than unity, so the integration of turbulence models extends all the way to the wall. Also, there were 4 to 5 cells within a $y^{+}$ of 5. For RANS, the grid used had 4,129,920 cells. The grid employed was obtained via a grid-sensitivity study, and the details are given in Ref. [32].

The grid used for LES has 16,110,000 cells. In addition to $y^{+}<1$ for the first grid point next to all walls, the spacing between grid points for the O-H grid was $∆{\mathrm{X}}^{+}=18$ in the streamwise direction, $∆{\mathrm{Y}}^{+}=0.6$ normal to the wall, and $1<∆{\mathrm{Z}}^{+}<15$ in the spanwise direction. For the H-H grid, $∆{\mathrm{X}}^{+}=18$ in the streamwise direction and $∆{\mathrm{Y}}^{+}$ and $∆{\mathrm{Z}}^{+}$ between 1 and 10. The grid used was obtained by examining the following criteria: clustering of the cell’s growth ratio normal to the wall, spanwise cell aspect ratio, streamwise cell aspect ratio, and enough cells to resolve the energy-cascade process in the inertial subrange everywhere in the duct (i.e., capture the Kolmogorov −5/3 law). In addition, the Celik criterion is given by the following equation:

$$LES\_IQ=\frac{1}{1+0.05{\left(\frac{{\upsilon }_{t,eff}}{\upsilon }\right)}^{0.53}}$$

where $v_{t,eff}$ denotes the effective subgrid viscosity and $v$ denotes the laminar kinematic viscosity [51], where LES_IQ should be greater than 0.8 for good LES predictions. The grid used had LES quality indexes greater than 0.9 everywhere. Details of the grid-sensitivity study performed for LES are given in Ref. [40].

5. Results

In this section, the results obtained by RANS and LES for the U-duct problem studied are presented. First, the heat-transfer coefficient obtained is compared with experimentally measured values, which serves as a validation of the RANS and LES results. Afterwards, the turbulent kinetic energy and Reynolds stresses predicted by the RANS models and LES are compared. Next, the pressure–strain rate, pressure diffusion, and turbulent transport obtained by the Reynolds stress model are compared with those from LES. This is followed by an assessment of the predictive capability of models for velocity–temperature correlations.

5.1. Heat-Transfer Coefficient

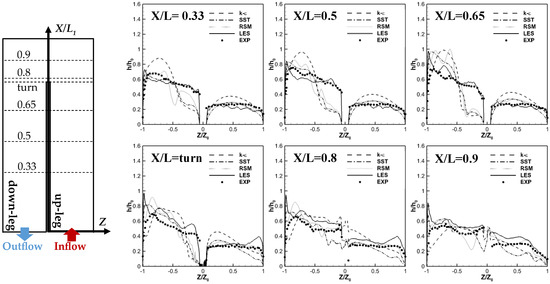

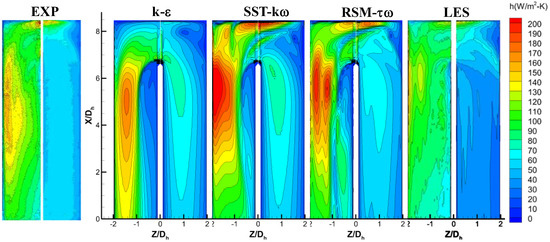

Figure 4 and Figure 5 show the heat-transfer coefficient (HTC) obtained by RANS, LES, and experimental measurements (EXP), where the experimental data are from Ref. [32] and where the procedure used to obtain the bulk temperature to compute the HTC for RANS and LES is the same as that used in the experimental study described in Ref. [32]. Figure 4 shows contours of the HTC, and Figure 5 shows a more quantitative comparison of the HTC distribution about the turn region, which starts at X/L₁ = 7.4 in the up-leg and ends at X/L₁ = 7.4 on the down-leg.

In the up-leg, though only RSM and LES could account for the effects of the corner vortices, Figure 4 and Figure 5 show all models except k-ε to match EXP well. Though k-ε could not accurately predict the distribution of the HTC in the up-leg (see X/L₁ = 0.33, 0.5, and 0.65 in Figure 5), all models including k-ε predicted regionally averaged HTCs well, where the maximum errors relative to EXP were less than 2.5% for all models. In the turn region, the HTC is increased because of the impingement of the cooling flow on the wall at X/L₁ = 1 and Dean-type secondary flow that brings cooler fluid from the duct’s core to the wall. In this region, only LES could predict the flow features and their effects on heat transfer correctly. The maximum relative errors in the predicted regionally averaged HTCs were 14.5% for RSM, 29% for SST, and 50% for k-ε. The biggest and most important difference between RANS and LES occurs in the down-leg, where all RANS models predicted a region of low HTC about the bend. This is because all RANS models predicted a large, separated region about the bend that starts at the tip of the wall that separates the up-leg and the down-leg of the U-duct. Such a low region of HTC was not observed in the experimental measurements (EXP). LES, however, was able to predict the experimentally measured HTC correctly. It did so because the separation at the tip of the separator at X/L₁ = 7.4 was found to be unsteady, with the separation bubble shedding periodically. By predicting a large, separated region about the bend, all RANS models overpredicted the HTC next to the outer wall in the down-leg of the U-duct, whereas LES slightly underpredicted the HTC in that region. Though none of the RANS models were able to predict the HTC distributions, Hu et al. [40] showed the SST and RSM models to predict average HTC reasonably well. In the down-leg part after the turn region, the maximum relative error in the averaged HTC was 10%. Thus, if only averages are needed, then SST and RSM may be adequate.

Once it was recognized that the separation that takes place at the leading edge of the separator is unsteady, unsteady RANS (URANS) was performed, where perturbations were introduced at and about the separator tip to induce unsteadiness. In all cases, once the perturbations were no longer applied, unsteady separation could not be sustained by URANS, and the flow became steady and identical to that predicted by steady RANS. Thus, the unsteady separations that occur at the tip of the separator are induced by unsteadiness in the turbulent flow field and not by asymmetry in geometry or boundary conditions, such as the unsteady separations that take place for flows past blunt objects such as cylinders and cubes.

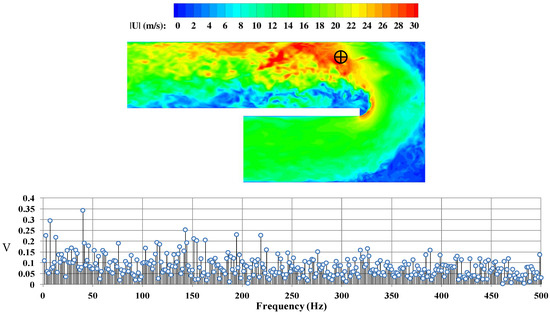

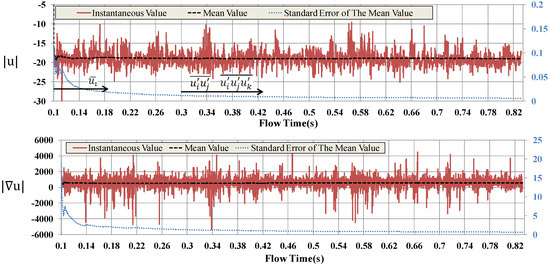

On the flow field predicted by LES, the magnitude of the instantaneous velocity in the “geometric” symmetry plane at Y = 0 is shown at the top of Figure 6. To examine the frequencies of the shedding in the LES solution, a probe marked as ⊕ is inserted to record the x-velocity as a function of time. The discrete Fourier transform was then used to convert the data to the frequency domain, which is shown at the bottom of Figure 6. In this figure, the peak values—2.86 Hz, 7.14 Hz, and 12.86 Hz—are the frequencies created by the unsteady separation. The peak value of 40 Hz corresponds to the frequency of the dominant energy-carrying turbulent structures. Based on the frequency of 40 Hz and the total averaging time of the calculation, about 28 vortices are passed by during the simulation (Appendix A).

5.2. Turbulent Kinetic Energy and Reynolds Stresses

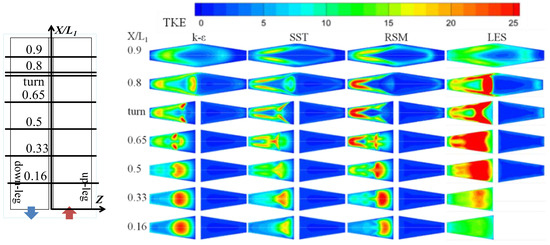

Figure 7 shows the turbulent kinetic energy (TKE) predicted by RANS and LES in planes located at X/L₁ = 0.16, 0.33, 0.5, 0.65, turn, 0.8, and 0.9. From this figure, it can be seen that all RANS models are able to predict TKE in the up-leg but significantly underpredict TKE in the turn region and in the down-leg. RANS predicted a large, separated region in the down-leg; RANS underpredicted TKE in the separated region and overpredicted TKE for the flow that was constricted and hence accelerated by the separated region. LES showed a high TKE next to the separator because of the unsteady separation at its tip and the passage of separated vortices over its surface.

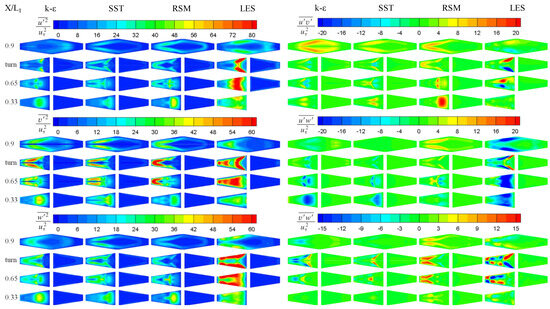

Figure 8 shows the six components of the Reynolds stresses, normalized by the mean friction velocity in several planes. Since the domain in the RANS simulations only included a symmetric half of the U-duct, the other half plotted in Figure 8 is mirrored without any correction to the sign of the values. For the normal components of the Reynolds stresses, predictions by RANS models show that $\overline{v^{\prime }{v}^{\prime }}$ has about 50% higher than the other two normal components when the peak values of all three normal components are all at similar locations in each plane. For LES, the peak values of the three normal components are comparable. In the down-leg, $\overline{u^{\prime }{u}^{\prime }}$ dominates the shear layer between the main flow and the separation bubble, while $\overline{v^{\prime }{v}^{\prime }}$ dominates the core of the main flow and $\overline{w^{\prime }{w}^{\prime }}$ dominates the near wall region.

For the shear components of the Reynolds stresses, $\overline{w^{\prime }{v}^{\prime }}$ dominates in the turn region (X/L₁ = 0.9) for k-e and SST, while three shear components have similar values for RSM and $\overline{u^{\prime }{w}^{\prime }}$ dominates for LES. In the sharp corner near the separator tip (X/L₁ = turn), similar to the normal components, high values are obtained by LES, while lower peak values and a shifted location far away from the separator tip are obtained by RANS models. The contours of X/L₁ = 0.65 can be considered the continuation of the contours of X/L₁ = turn. At X/L₁ = 0.33, a high-value area of $\overline{u^{\prime }{v}^{\prime }}$ near the inner wall is obtained by RSM, which does not exist in LES prediction. On the other hand, RSM is the only RANS model that is not able to predict LES results.

5.3. Pressure Strain Rate, Pressure Diffusion, and Turbulent Transport

For the RSM model, the terms that are the most challenging to model are the pressure–strain rate, pressure diffusion, and turbulent transport. Thus, it is of interest to understand if LES could provide guidance in modeling those terms for this U-duct problem. In this section, pressure–strain rate, pressure diffusion, and turbulent transport based on the exact equations and their models are compared by using data from RSM and from LES at locations shown on the left of Figure 7 to understand where model improvements are needed. This section also compares pressure diffusion with turbulent transport and pressure diffusion with pressure–strain rate based on their exact equations by using LES data to understand their relative importance.

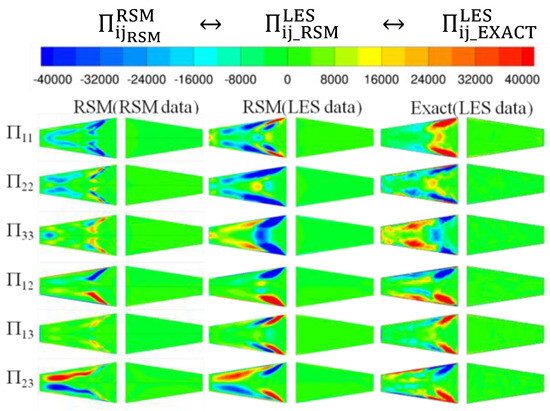

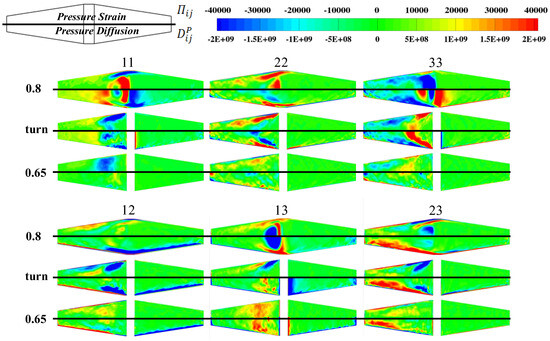

Figure 9 shows the six components of the pressure–strain rate in the turn region at X/L₁ = turn, where the flow is the most complicated. For each of the six components, three values are given. One is based on the RSM model using RSM data (denoted as RSM (RSM data)); the second is based on the RSM model using LES data (denoted as RSM (LES data)); and the third is based on the exact definitions of the pressure–strain rate with LES data (denoted as Exact (LES data)).

Comparing RSM (LES data) and Exact (LES data) shows the model for pressure–strain rate used in RANS is reasonable, with the maximum relative error less than 20%. However, when RSM (RSM data) is compared with RSM (LES data), the relative error is quite large. This indicates that there are errors in the RSM data but not in modeling the pressure–strain rate.

From Figure 9, the following observations can be made: The pressure–strain rate is significantly under-predicted by using the data from RSM. If LES data are used, then the modeled pressure–strain tensors are higher near the sharp corners and near the top and bottom walls. By comparing RSM (LES data) with Exact (LES data), the shear components can be seen to compare well except Π₂₃ in the region near the top and bottom walls but away from the inner wall. However, the normal components are less accurately predicted. This is because the normal components involve TKE, which was underpredicted, which in turn causes incorrect prediction of the pressure strain in a circuitous manner.

Comparing RSM (RSM data), RSM (LES data), and Exact (LES data) shows the pressure–strain model proposed by Launder [52] and Wilcox [15] to be quite reasonable qualitatively. Quantitatively, some adjustments are still needed, especially for the normal components in connection with TKE.

The pressure–diffusion term (D_p) is usually modeled together with the turbulent transport term (T_T), and those two terms are collectively called turbulent diffusion (D_T) [53]. The turbulent diffusion is typically modeled via gradient diffusion—a very simple model for a very complex process. Figure 10 shows the RSM model for turbulent diffusion tensors calculated by RSM and LES data in the middle of three planes located at X/L₁ = 0.65, 0.8, and 0.9. From this figure, RSM data can be seen to follow the trend of LES data in most of the domain, except around the second corner of the separator (Z/W₁ ~ 0 at X/L₁ = 0.8). Only the trend of D_T,12 is well predicted by RSM data at that location. Nevertheless, the value of turbulent diffusion predicted by the RSM data is about 0.5% of the LES data. If the RSM model of turbulent diffusion with LES data is compared with the turbulent diffusion calculated by LES data with its exact definition, then Figure 11 shows that the error is quite large. The RSM model of turbulent diffusion with RSM data is 10⁵, which is smaller than the value that it should be.

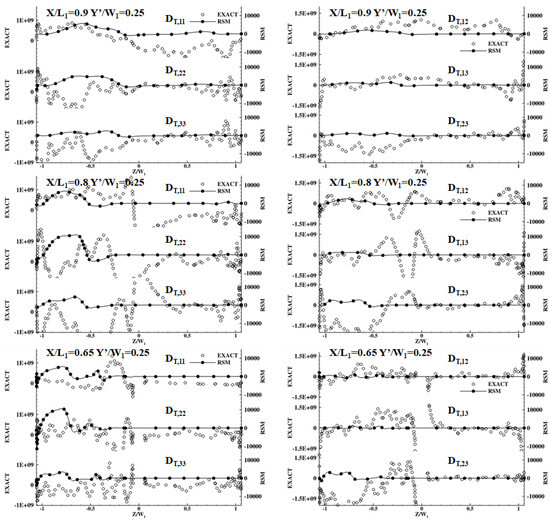

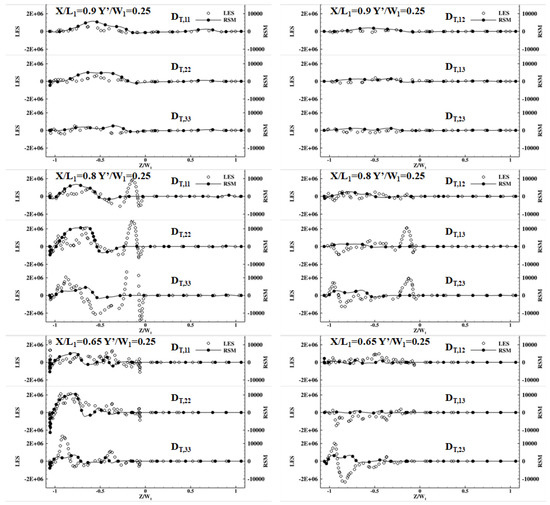

To understand the contribution of pressure diffusion (D_p) and turbulent transport (T_T) in turbulent diffusion (D_T), D_p and T_T were calculated by using the exact definition with LES data and compared with each other at different locations as shown in Figure 12, Figure 13 and Figure 14. The validation and verification of the pressure–diffusion calculations are given in Appendix B. From these figures, it can be seen that D_p and T_T differ in sign, magnitude, and trend. On magnitude, pressure diffusion is at least 10⁴ times higher than turbulent transport at all the locations examined. This indicates pressure diffusion dominates in the modeling of turbulent diffusion. Thus, when modeling turbulent diffusion, one only needs to model pressure diffusion. By comparing Figure 10 and Figure 11 with Figure 12, Figure 13 and Figure 14, it can be seen that existing models for turbulent diffusion are orders of magnitude smaller than what they should be. This is because existing models only model turbulent transport when they should have been modeling pressure diffusion.

Mansour et al. [53] proposed pressure–strain rate (Π) and pressure diffusion (D_P) given by Equations (16) to (20) to be modeled together because the two terms presented below have opposite signs and tend to cancel each other near wall boundaries.

$${\mathrm{\Pi }}_{ij}=\overline{\frac{p^{\prime }}{\rho }\left(\frac{\partial u_i^{\prime }}{\partial x_j}+\frac{\partial u_j^{\prime }}{\partial x_i}\right)}$$

$$D_{p,ij}=\frac{\partial }{\partial x_k}\left(\frac{\overline{p^{\prime }{u}_i^{\prime }}}{\rho }{\delta }_{jk}+\frac{\overline{p^{\prime }{u}_j^{\prime }}}{\rho }{\delta }_{ik}\right)$$

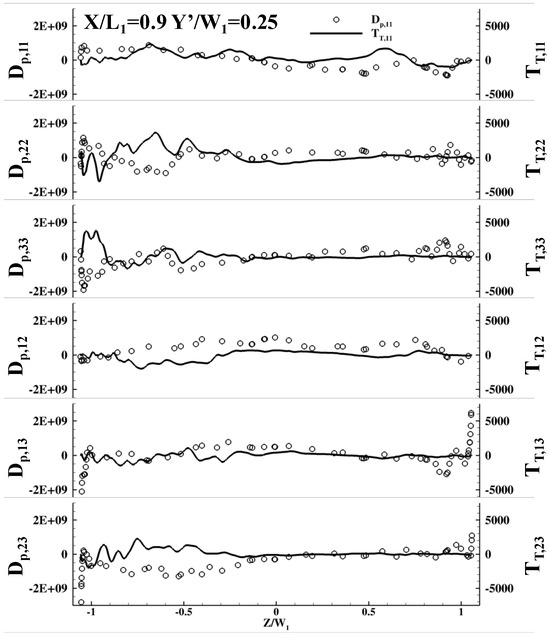

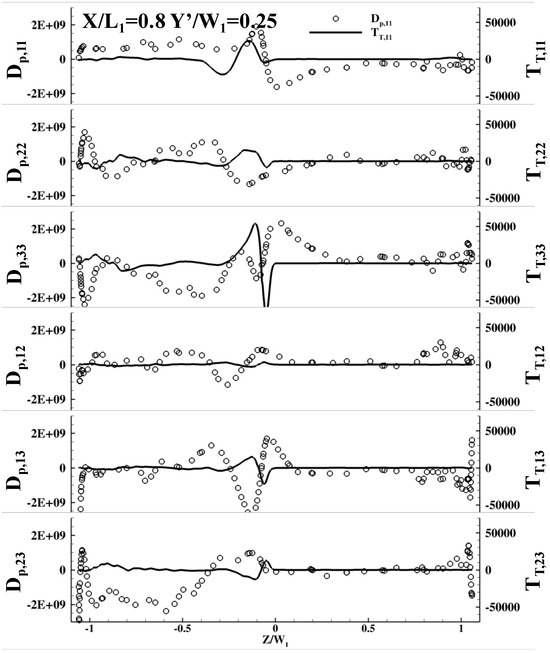

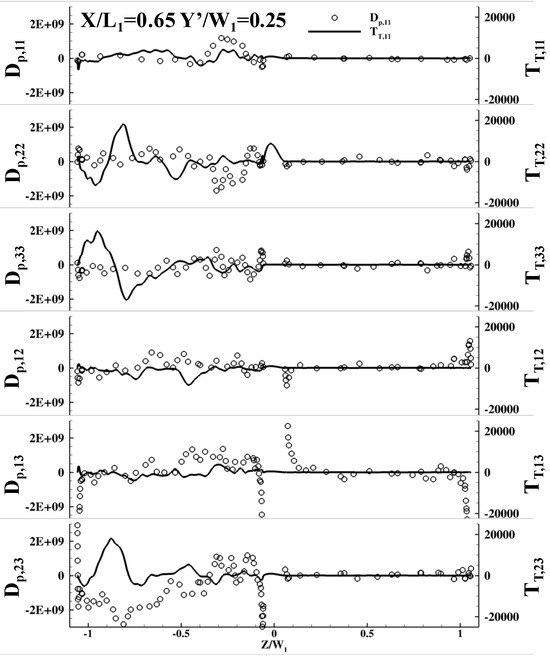

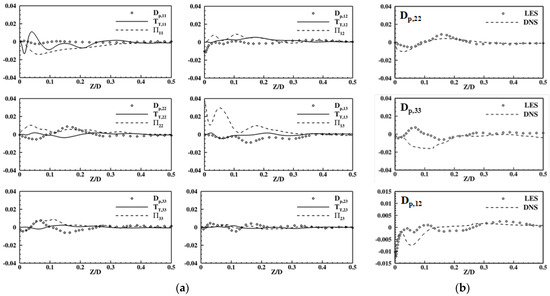

To examine this assertion, Figure 15 compares each of the six components of Π_ij and D_P,ij based on their exact definitions given above by using LES data. In Figure 15, pressure–strain rates are shown on the top half of each of the trapezoidal cross sections and pressure diffusion on the bottom half. The legends are similarly arranged. From this figure, it can be seen that for the problem studied, the difference between Π_ij and D_P,ij can be as high as 10⁵. At the tip of the separator, where unsteady separation starts, D_ij can be from 10,000 to 100,000 times larger than Π_ij. In the down-leg, where separated flows move downstream, D_P,ij is about 50,000 times larger than Π_ij. Though the magnitudes differ considerably, Π_ij and D_P,ij have similar qualitative features, including their signs, especially in the down-leg. The enormous difference between Π_ij and D_P,ij in the down-leg shows that Mansour et al.’s assertion is not always true.

The questions now are as follows: What does D_P,ij >> Π_ij mean? When D_P,ij >> Π_ij, which occurs in the down-leg of the U-duct, Reynolds stresses will diffuse at a much higher rate from the outer wall, where it is high, toward the inner wall, where it is lower. This diffusion is so large that it causes the local flow to behave as if its Reynolds number is near unity. Flows with such low Reynolds numbers can turn corners without separation, which is why unsteady separation appears after time averaging. Thus, when there are unsteady separations, modeling pressure diffusion is as important as modeling pressure–strain rate. As shown in Figure 10 and Figure 11, the RSM model developed by Wilcox does have the potential to predict larger values of the pressure–diffusion tensor, albeit not yet implemented to sense and account for unsteady separation. Basically, when there is unsteady flow separation, turbulent diffusion must be made high enough to enable the mean flow to turn a corner with a minimal-sized separation bubble.

5.4. Eddy Diffusivity Hypothesis

The models for the velocity–temperature correlations—$\overline{u^{\prime }{T}^{\prime }}$, $\overline{v^{\prime }{T}^{\prime }}$, and $\overline{w^{\prime }{T}^{\prime }}$—in the thermal energy equation computed by k-ε, SST, and RSM are compared with those from the time-averaged LES solution in Figure 16 at several locations. From this figure, it can be seen that $\overline{v^{\prime }{T}^{\prime }}$ and $\overline{w^{\prime }{T}^{\prime }}$ are predicted fairly accurately in the up-leg (X/L₁ = 0.65 and 0.8 and Z/W₁ > 0), but not $\overline{u^{\prime }{T}^{\prime }}$, where all RANS models studied predicted almost identical results that differ considerably from those from LES. In the turn region (X/L₁ = 0.9), the trends for $\overline{u^{\prime }{T}^{\prime }}$, $\overline{v^{\prime }{T}^{\prime }}$, and $\overline{w^{\prime }{T}^{\prime }}$ are roughly captured by the RANS models, but the magnitudes are off by a factor up to five. In the down-leg (X/L₁ = 0.8 and 0.65 and Z/W₁ < 0), k-ε predicted trends most similar to LES. For SST and RSM, not only are the trends predicted incorrectly when compared to LES, but even the signs of the values are different. Though the comparison with LES improves at X/L₁ = 0.65, SST and RSM predict two peaks, while only one is predicted by k-ε and LES.

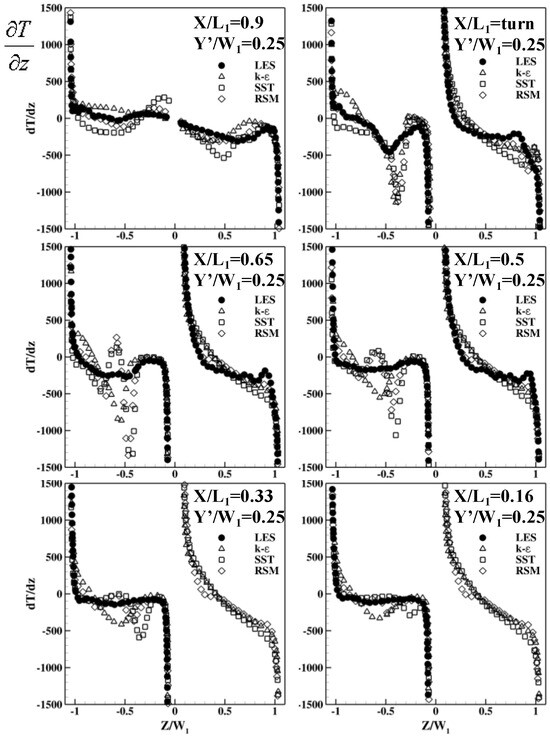

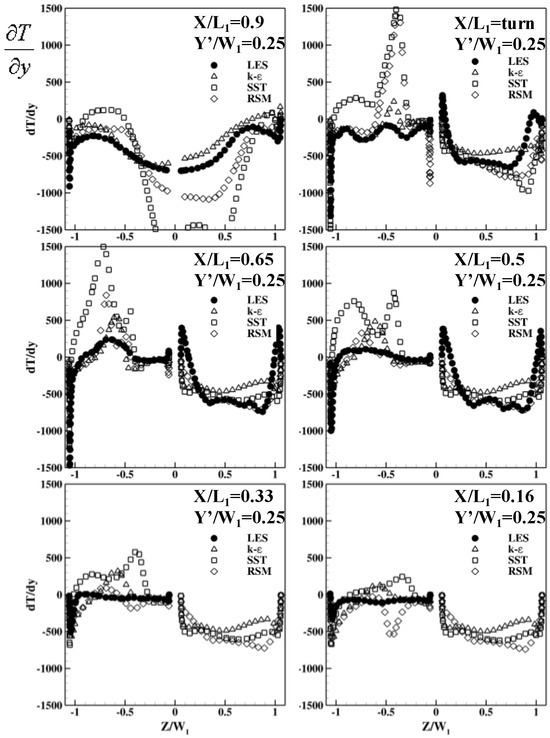

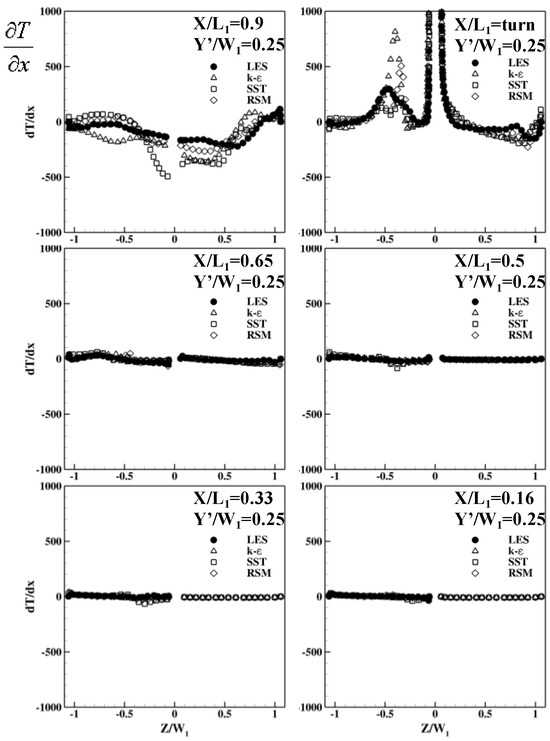

Figure 17, Figure 18 and Figure 19 show the temperature gradients predicted by RANS and LES. In the up-leg, all RANS models and LES yielded similar results for $\partial T/\partial x$. However, the inability of k-ε and SST to predict secondary flows in the four corners of the trapezoidal duct creates noticeable errors for both $\partial T/\partial y$ and $\partial T/\partial z$. RSM, on the other hand, is able to predict those secondary flows, so better matches $\partial T/\partial z$ are predicted by LES near the inner wall; they nearly perfectly match at the center of the duct, but are still less accurate near the outer wall. A common error made by all RANS models is the prediction of $\partial T/\partial y$ in the near wall region, where LES data show a small area of positive value while no RANS model is able to capture that.

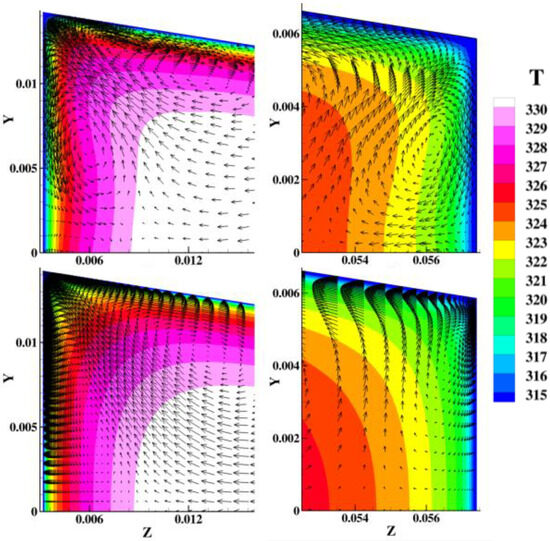

Since secondary flows cannot be predicted by RANS models with scalar eddy viscosity, this is one source of the errors for the k-ε and SST models. Though RSM could predict corner secondary flows, Figure 20 shows LES to predict more turbulent mixing about the corners by the secondary flows than by RSM. In the corners of both the inner and outer walls, smaller and weaker corner vortices are predicted by RSM closer to the corners, so that the convex contour lines of low temperature as shown by LES do not appear in the prediction of RSM, resulting in an error of $\partial T/\partial y$ near the walls in the straight duct. To improve that, more efforts to accurately approach $\overline{ v\prime v\prime }$,$\overline{w\prime w\prime }$, and $\overline{v\prime w\prime }$ via RSM have to be made.

Temperature gradients predicted are also affected by how turbulent thermal diffusivity, ${\Gamma }_{t,RANS}$, is modeled. In this study, ${\Gamma }_{t,RANS}$ is modeled by the turbulent Prandtl number, ${Pr}_{t,RANS}$, namely,

$${\Gamma }_{t,RANS}=\frac{{\nu }_{t,RANS}}{{Pr}_{t,RANS}}$$

(31)

where ${\Gamma }_{t,RANS}$ is connected to turbulent eddy viscosity, ${\nu }_{t,RANS}$, and computed by the k-ε, SST, and RSM models. Although ${Pr}_{t,RANS}$ varies somewhat, it is taken to be a constant with a value of 0.85, i.e.,

$${Pr}_{t,RANS}={\sigma }_t=0.85$$

(32)

To evaluate Equations (31) and (32), LES data are used to calculate the turbulent thermal diffusivity. Since there are three velocity–temperature fluctuation correlations and three mean temperature gradients but only one turbulent thermal diffusivity in the RANS models, the least squares method is applied to the following equation:

$${\Gamma }_{t,LES}=\frac{-\overline{u_i^{\prime }{T}^{\prime }}\frac{\partial \overline{T}}{\partial x_i}}{\frac{\partial \overline{T}}{\partial x_j}\frac{\partial \overline{T}}{\partial x_j}}=\frac{{\nu }_{t,LES}}{{\Gamma }_{t,LES}}$$

(33)

The comparison of the turbulent Prandtl number between Equations (32) and (33) is plotted in Figure 21. The RANS models used are fairly accurate in the up-leg, where the maximum relative error in the averaged heat-transfer coefficient is 2.5%. In the turn region, the maximum relative error is 14.5% for RSM-τω, 29% for SST, and 50% for k-ε and RSM-LPS.

But LES data shows some extreme values around the tip of the separator, where strong shear force occurs, and near the inner wall of the down-leg, both before and after the reattachment of the separation flow. The calculated turbulent Prandtl number ranged from −15 to 15 in the shear layer between the separation flow and the main flow, from −3 to 15 near the inner wall before the reattachment, and from −20 to 3 near the inner wall after the reattachment.

6. Conclusions

Large-eddy simulations (LES) show k-ε, SST, and RSM models to be inadequate in predicting the flow and heat transfer in the turn and down-leg regions of the U-duct because they were unable to predict the unsteady flow separation about the separator that was induced and sustained by turbulent fluctuations and not by geometry or asymmetry. Also, k-ε and SST could not predict any of the Reynolds stresses correctly in the turn region and in the down-leg of the U-duct. For RSM, the modeling of the pressure–strain rate was found to match LES data well, both qualitatively and quantitatively. On turbulent diffusion, the exact correlations based on LES data can be up to five orders of magnitude higher than those predicted by RSM. This huge error indicates that the two terms in turbulent diffusion—turbulent transport and pressure diffusion—should be modeled separately. LES data show turbulent transport to be ignorable throughout the entire domain. Thus, the focus should be on modeling pressure diffusion. In particular, when there is unsteady separation, turbulent diffusion should be orders of magnitude higher so that the mean flow can turn a corner with a minimum-sized separation bubble. On the velocity–temperature correlations, only $\overline{v^{\prime }{T}^{\prime }}$ is reasonably well-predicted, but not $\overline{u^{\prime }{T}^{\prime }}$ and $\overline{w^{\prime }{T}^{\prime }}$, not even qualitatively. The eddy-diffusivity model for the velocity–temperature correlations was found to be an extreme simplification because the turbulent Prandtl number is clearly not a constant and varies appreciably. The LES data could be used to guide the development of a better model for these terms.
