Study of Induction Motor Inter-Turn Fault Part I: Development of Fault Models with Distorted Flux Representation
Article

Numerical Study of Thermochemistry and Trace Element Behavior during the Co-Combustion of Coal and Sludge in Boiler

School of Low-carbon Energy and Power Engineering, China University of Mining and Technology, Xuzhou 221116, China
*
Author to whom correspondence should be addressed.
Academic Editor: Adam Smoliński
Energies 2022, 15(3), 888; https://doi.org/10.3390/en15030888
Received: 28 December 2021 / Revised: 21 January 2022 / Accepted: 24 January 2022 / Published: 26 January 2022

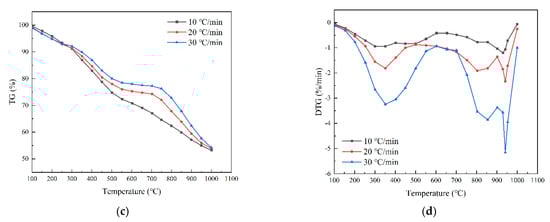

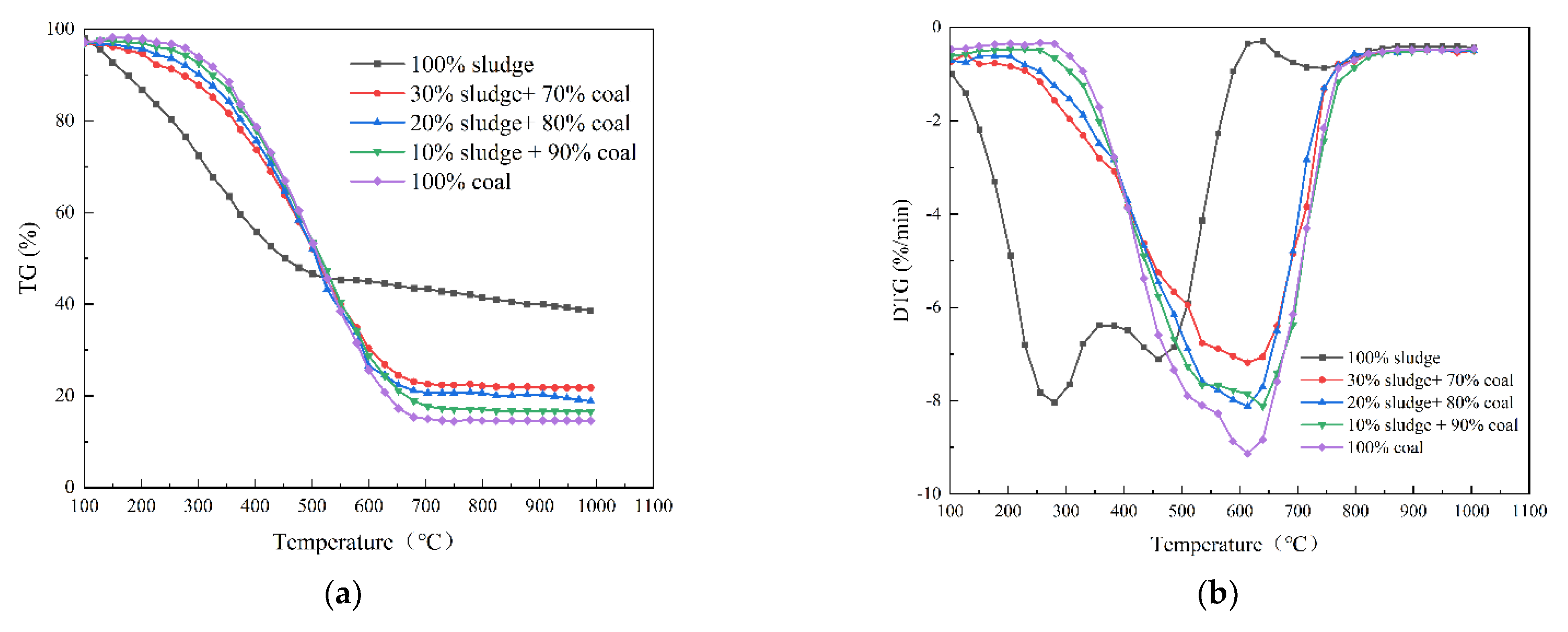

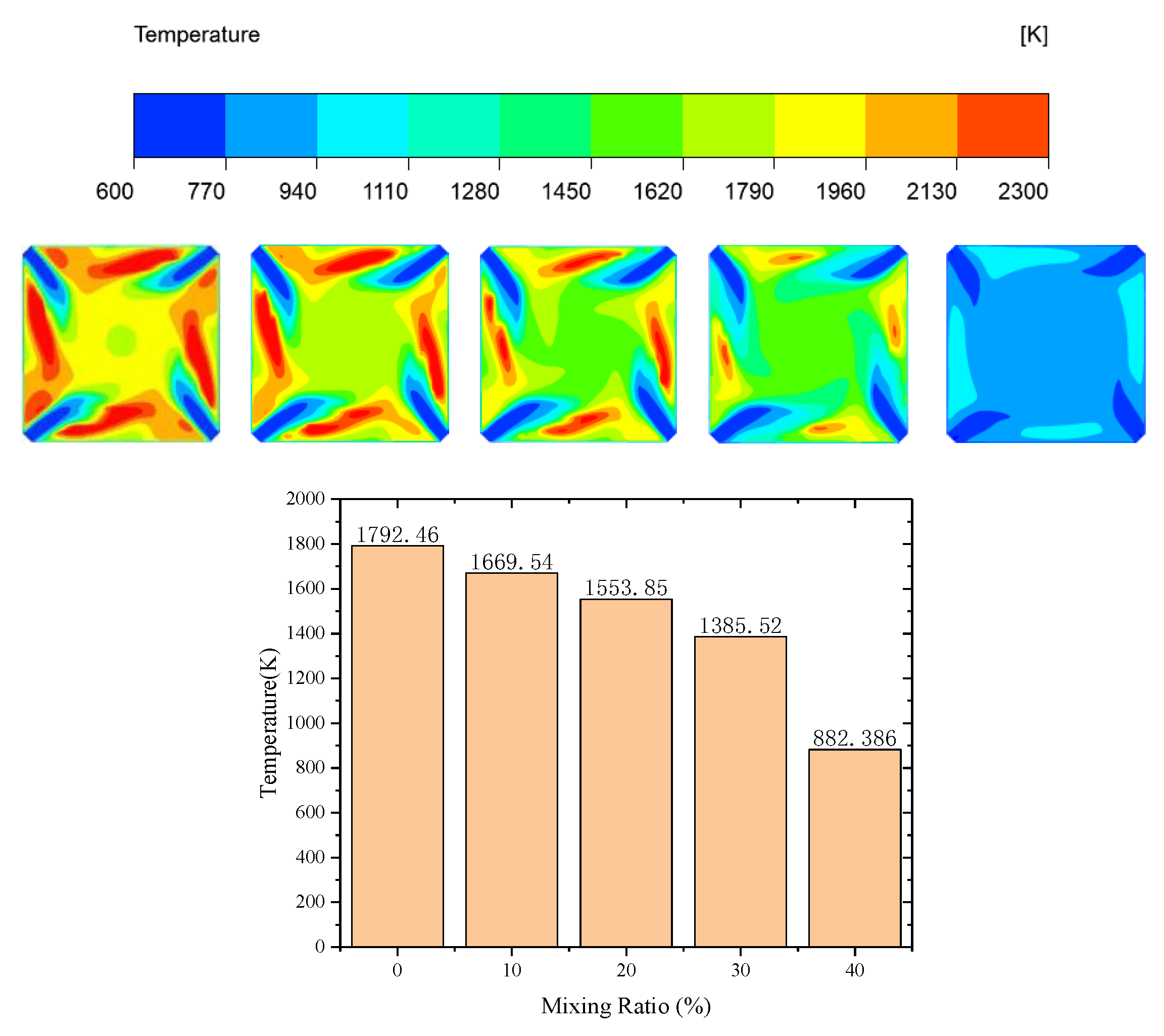

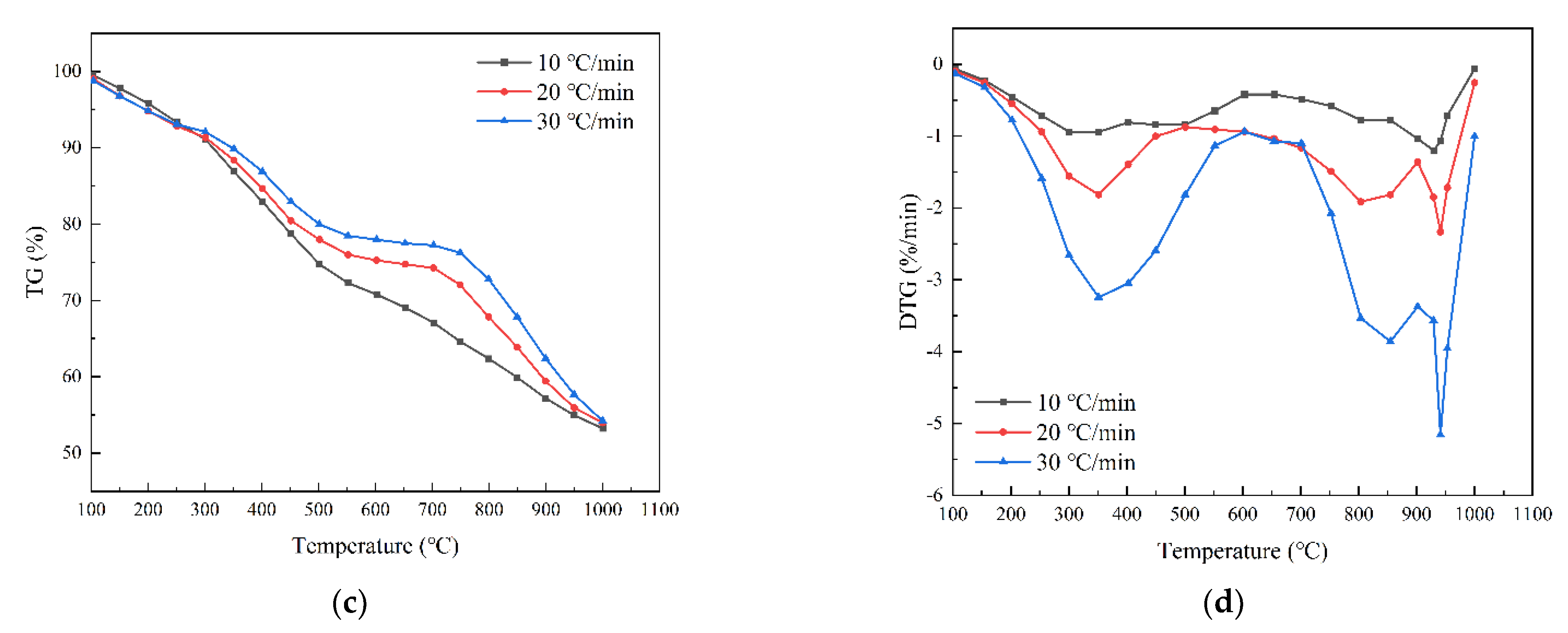

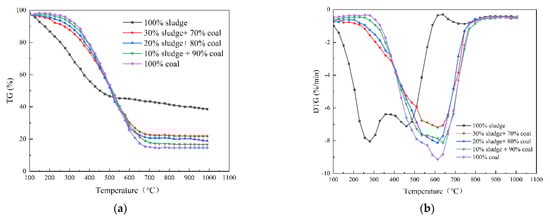

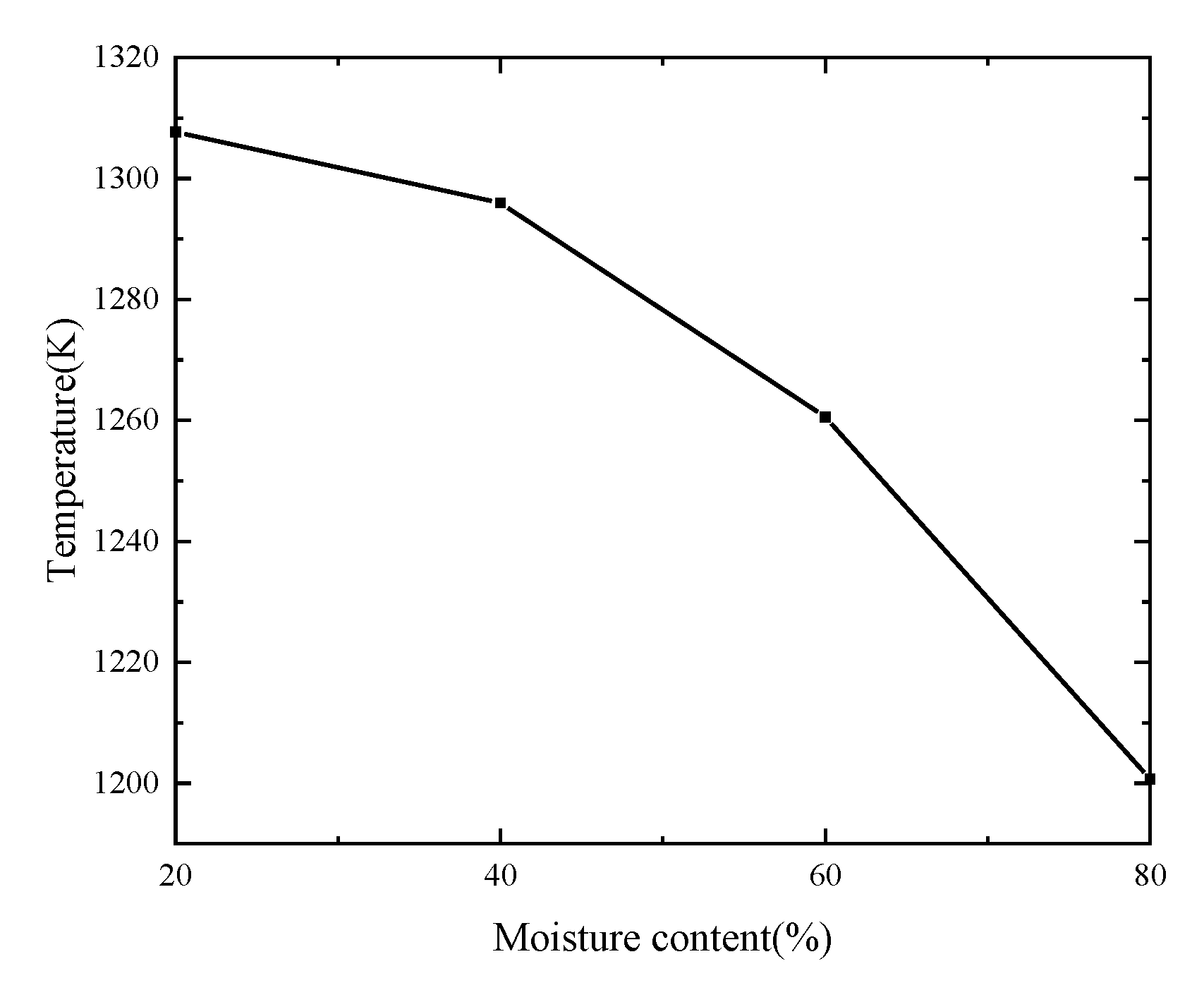

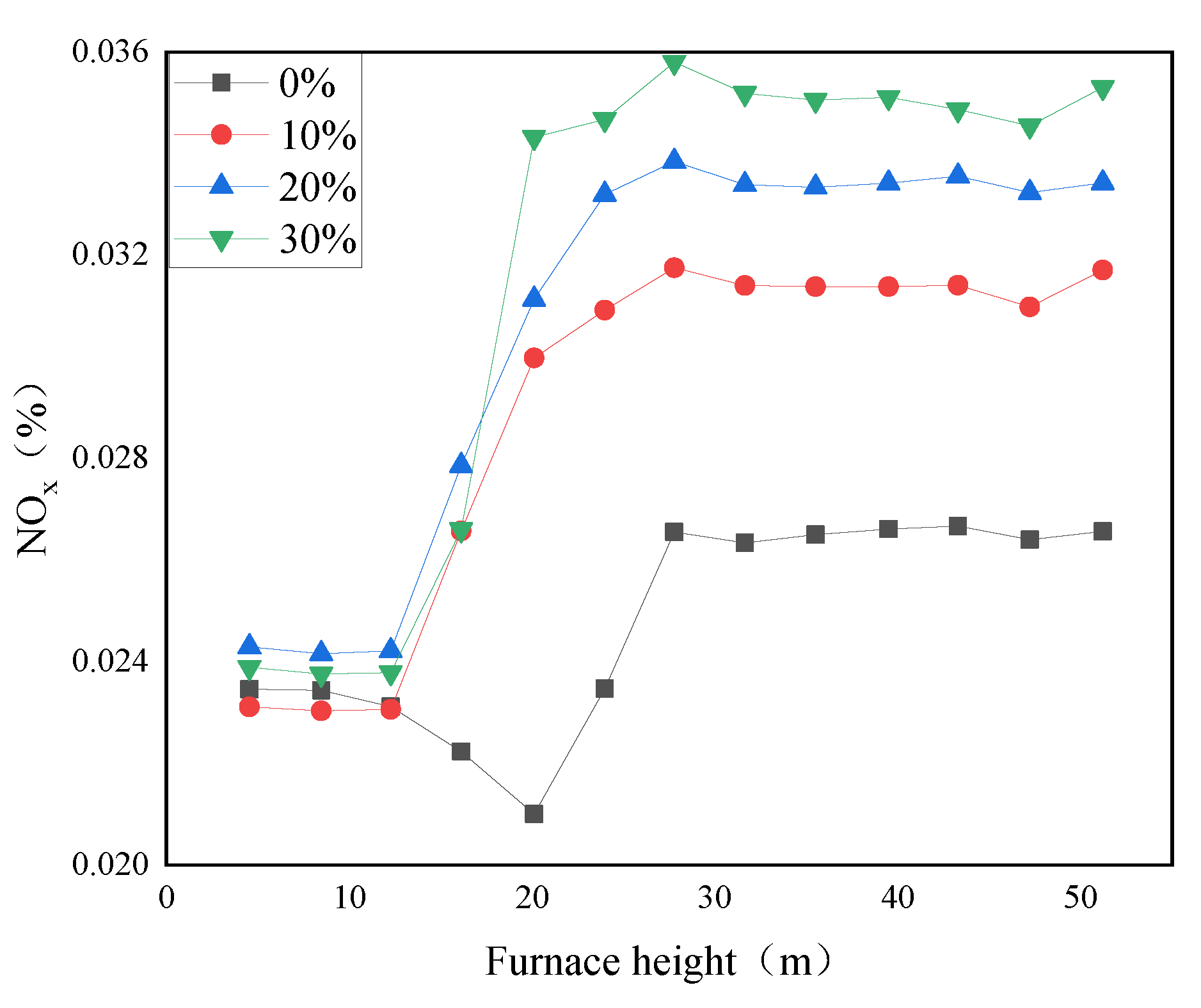

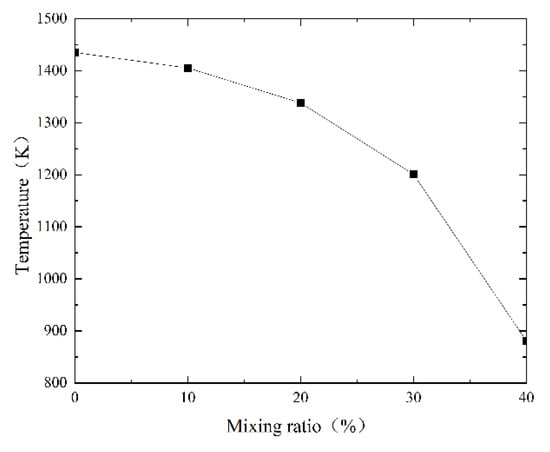

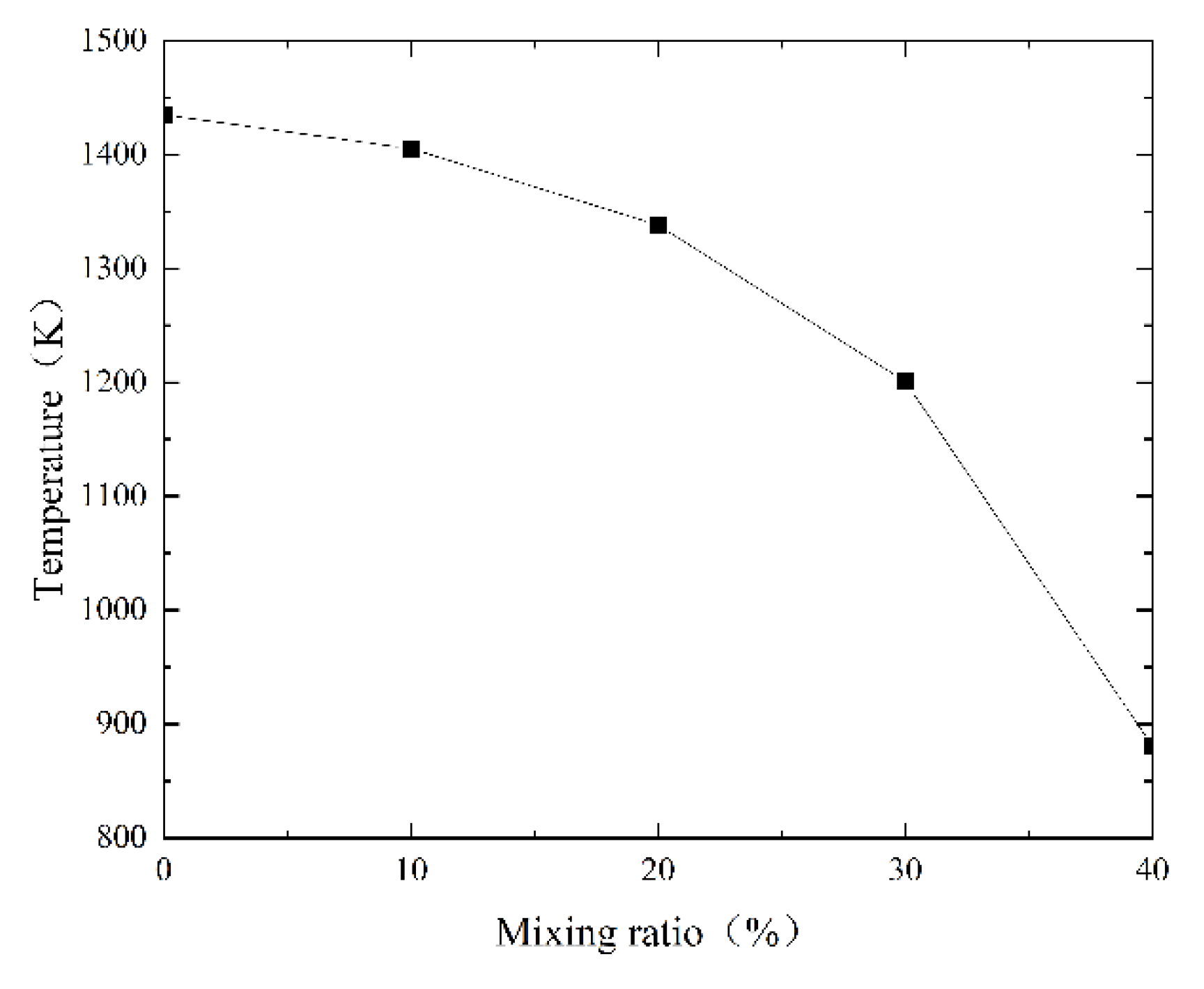

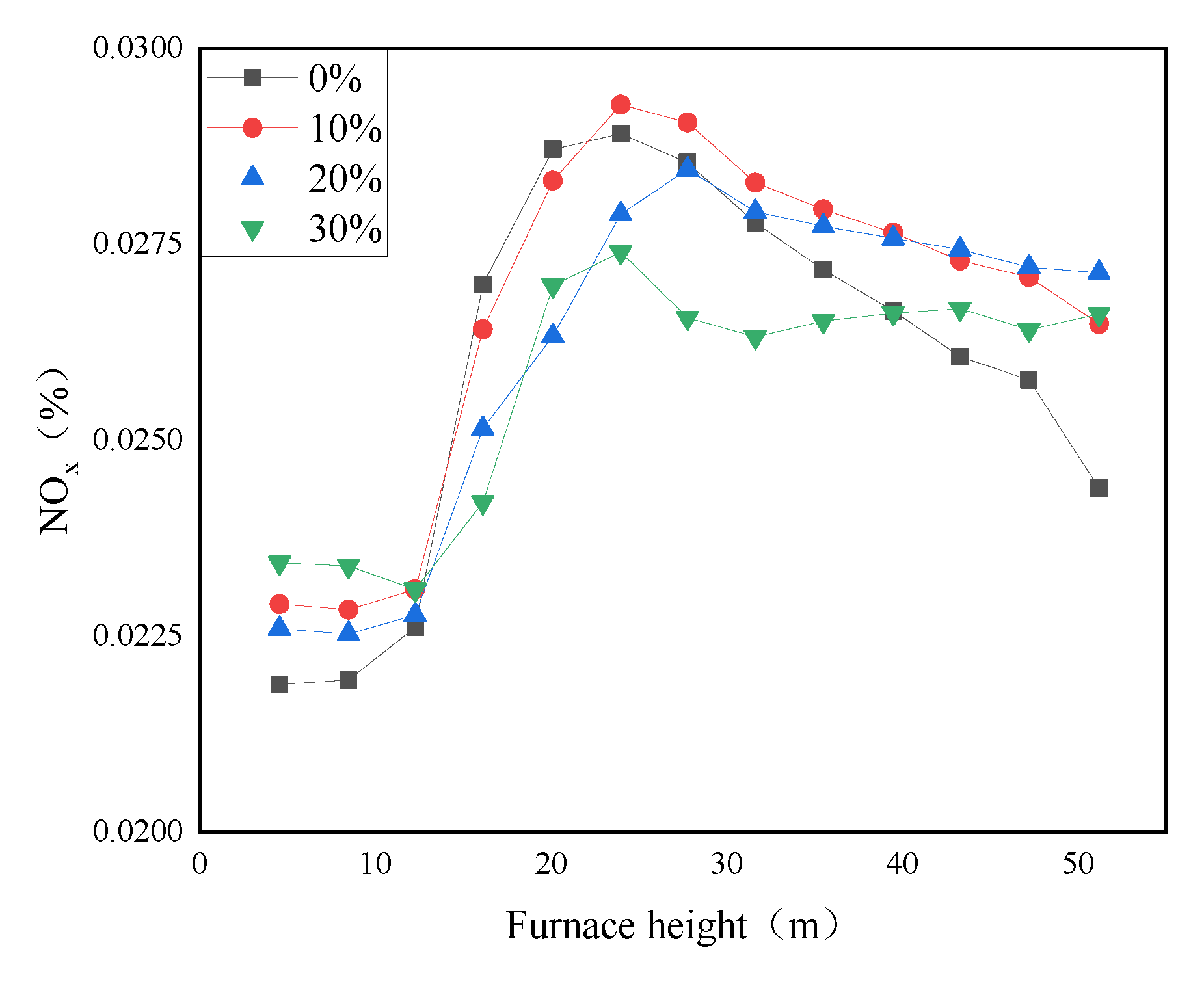

Sludge is one of the main pollutants from sewage treatment and contains a high content of water and organic matter. The co-combustion of sludge and coal can bring about the energy conversion of sludge. However, the high moisture content in sludge and the inorganic pollutants generated by co-combustion have adverse effects on combustion and the environment. In this work, through experimentation, it was demonstrated that co-combustion does not release obvious toxic elements or create an environmental hazard. On the basis of the TG/DTG curves, the ignition points of sludge and coal and the temperature of each group were obtained, which provided boundary conditions for a numerical simulation. Co-combustion with various mixing ratios and moisture contents was studied via the numerical simulation of a 330 MW boiler. The numerical results show that a high mixing ratio reduced the boiler temperature and created more moisture and fuel NOx. When the mixing ratio reached 40%, the boiler temperature became less than the combustion temperature. Sludge drying improved the internal temperature of the boiler, but it created thermal NOx. When the moisture content decreased to 40%, the temperature in the boiler rose, which improved combustion. View Full-Text
Keywords: sludge; co-combustion; toxic element; numerical simulation; moisture content sludge; co-combustion; toxic element; numerical simulation; moisture content
