# Application of Digitalization in Real-Time Analysis of Drilling Dynamics Using Along-String Measurement (ASM) Data along Wired Pipes

^{*}

## Abstract

**:**

## 1. Introduction

References | Rock Name | Bulk Density | Porosity | $\mathit{UCS}$ | Poisson’s Ratio | Young Modulus |
---|---|---|---|---|---|---|

(gr/cc) | (%) | (kpsi) | (Mpsi) | |||

Rajabov et al. [7] | Carthage Marble | 2.63 | 1–2 | 9–12 | 0.27 | 4–5 |

Torrey Buff Sandstone | 2.54 | 7.9 | 9–11 | 0.22 | 1.5–1.6 | |

Mancos Shale | 2.47 | 16 | 5–7 | 0.2 | 4.6 | |

Glowka [2,3] | Berea Sandsone | - | - | 7.1 | - | - |

Sierra White Granite | - | - | 21.5 | - | - | |

Tennessee Marble | - | - | 17.8 | - | - | |

(Holton Limestone) | ||||||

Akbari et al. [11,12] | Carthage Marble | - | - | 14.48 | - | - |

Richard et al. [44] | Fontenoille Sandstone | - | - | 13.775 | - | - |

Moka Limestone | - | - | 9.425 | - | - | |

Lens Limestone | - | - | 4.35 | - | - | |

Voges Sandstone | - | 20 | 2.32 | - | - | |

Nurabup Sandstone | - | 41 | 1.16 | - | ||

MC Field Sandstone | - | 24.5 | 1.015 | - | - | |

Majidi et al. [45] | Indiana Limestone | - | 11–16 | 7 | - | - |

Carthage Marble | - | 1–2 | 9–11.7 | - | - | |

Tensile Strength (kpsi) | ||||||

Wang et al. [16] | Shale | - | - | 9.764 | 0.81 | |

Marble | - | - | 12.294 | 0.90 | ||

Granite | - | - | 13.656 | 1.017 | ||

Limestone | - | - | 15.013 | 1.141 |

## 2. Cutter–Rock Interaction Modeling

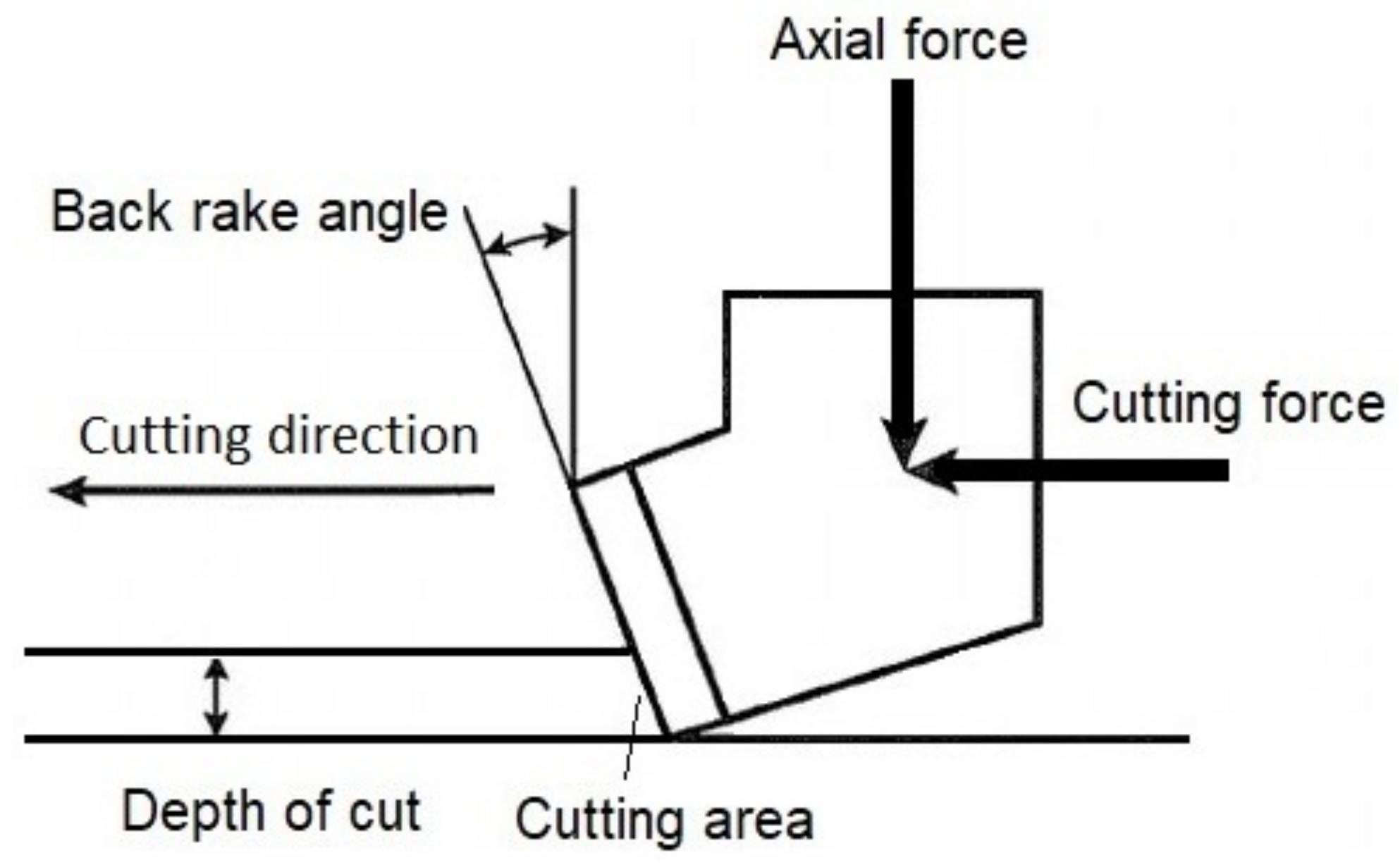

#### 2.1. Experimental Data

#### 2.2. Methodology and Calculations

#### 2.2.1. Regression Analysis

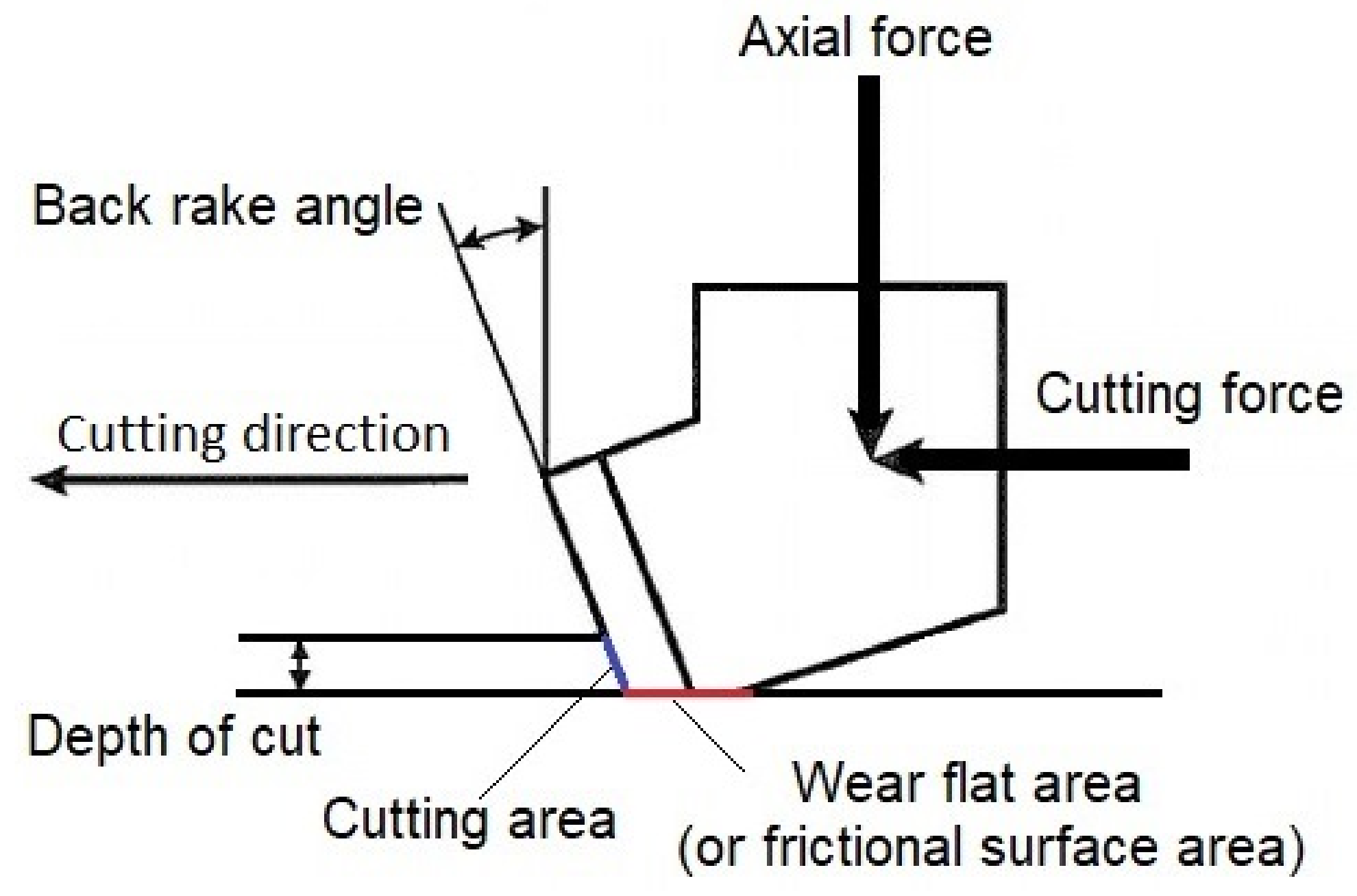

**Table 5.**Proposed basis regression functions based on experimental observations for ${F}_{a}$ and ${F}_{c}$.

Parameter | Basis Function | Multiplier Bounds | Related References |
---|---|---|---|

Back-Rake Angle $\left(\theta \right)$ | ${e}^{{\lambda}_{1}sin\left(\theta \right)}$ | ${\lambda}_{1}\ge 0.5$ | [7,15,16,47] |

Cutting Area $\left({A}_{cut}\right)$ | ${A}_{cut}^{{\lambda}_{2}}$ | $0.4\le {\lambda}_{2}\le 0.9$ | [2,3,7,11,15,16,45,46] |

Wear Flat Area $\left({A}_{wear}\right)$ | ${e}^{{\lambda}_{3}{\left({A}_{wear}\right)}^{{\lambda}_{4}}}$ | $0.1\le {\lambda}_{3}\le 0.3$ | [2,3,48] |

$0.1\le {\lambda}_{4}\le 1.0$ | |||

Rock Drillability $\left(K\right)$ | ${K}^{{\lambda}_{5}}$ | $1.0\le {\lambda}_{5}\le 4.0$ | [16] |

Differential Pressure $(\Delta P)$ | ${e}^{{\lambda}_{6}{(\Delta P)}^{{\lambda}_{7}}}$ | $0.2\le {\lambda}_{6}\le 1.4$ | [1,7,8,11,12,46] |

$0.1\le {\lambda}_{7}\le 0.4$ | |||

Cutter Wear Height $\left({h}_{w}\right)$ | ${e}^{{\lambda}_{8}\left(\right)open="("\; close=")">\frac{{h}_{w}}{OD\phantom{\rule{0.166667em}{0ex}}cos\left(\theta \right)}}$ | $1.0\le {\lambda}_{6}\le 2.0$ | [2,3,48] |

#### 2.2.2. Regression Techniques

## 3. Drilling Dynamics Modeling

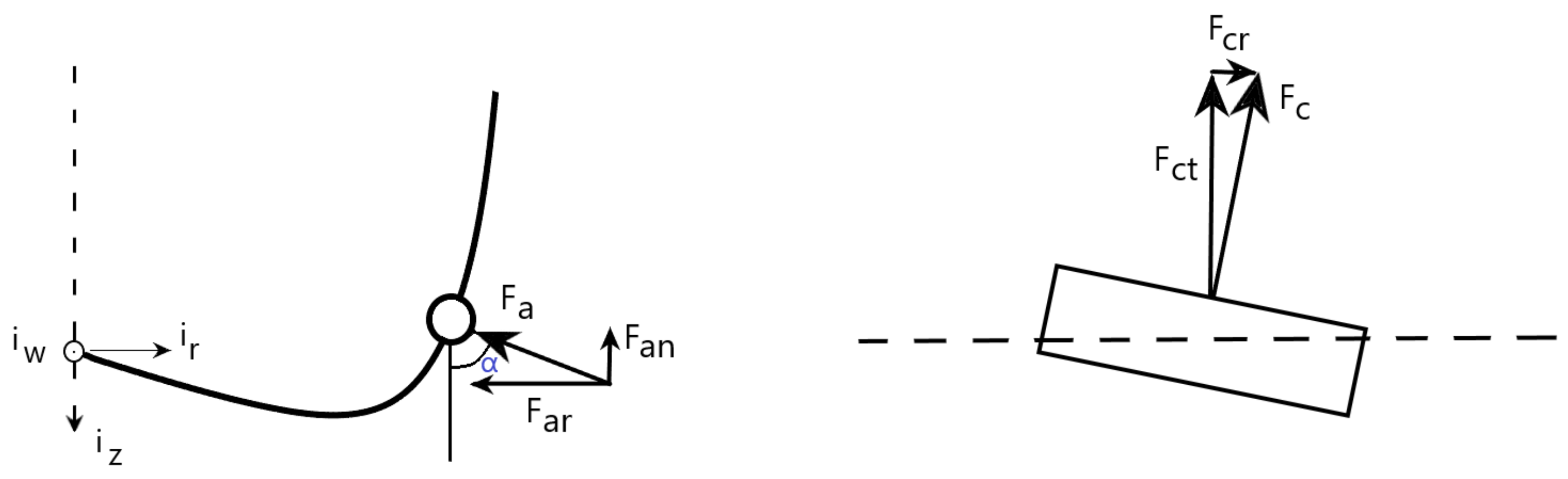

#### 3.1. Bit Models

#### 3.2. Specific Energy Analysis

#### 3.3. Data Analytic Approach

- Since all cutters that are located at the same radial distance (from the axis of the bit) have the same design characteristics, their traces can be summed up into a single cutter equivalent.
- The cleaning action of the hydraulic system is efficient enough to remove all cuttings ahead of cutters and cuttings do not adversely affecting drilling performance.
- Assuming homogeneity of the rock all over the bottom of the hole; therefore, the drillability value would be constant and would apply to all equivalent cutters.

- Geometrical modeling of the PDC bit as equivalent cutter and blade.
- Recording of drilling parameters mainly the torque and the weight on the bit, rate of penetration (ROP) using along-string measurement system.
- Updating cutter status and calculate normal and cutting forces, specific energy and the torque at the cutters.
- Estimate torque at the bit and comparing it to the torque delivered to the drill string at the surface to monitor drill string dynamics for possible drilling problems.

## 4. Results and Discussion

#### 4.1. Mathematical Modeling

#### 4.2. Drill Bit and String Dynamics

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Abbreviations

PDC | Polycrystalline diamond compact |

ASM | Along-string measurement |

EMS | Enhanced measurement system |

TDS | Top drive system |

SE | Specific energy |

MSE | Mechanical specific energy |

DS | Drilling strength |

GA | Genetic algorithm |

RLS | Recursive least square |

ROP | Rate of penetration |

NCS | Norwegian continental shelf |

## References

- Zijsling, D.H. Single Cutter Testing—A Key for PDC Bit Development. In Proceedings of the SPE Offshore Europe, Aberdeen, UK, 8–11 September 1987; p. SPE-16529-MS. [Google Scholar] [CrossRef]
- Glowka, D.A. Use of Single-Cutter Data in the Analysis of PDC Bit Designs: Part 1—Development of a PDC Cutting Force Model. J. Pet. Technol.
**1989**, 41, 797–849. [Google Scholar] [CrossRef] - Glowka, D.A. Use of Single-Cutter Data in the Analysis of PDC Bit Designs: Part 2—Development and Use of the PDC Wear Computer Code. J. Pet. Technol.
**1989**, 41, 850–859. [Google Scholar] [CrossRef] - Detournay, E.; Defournay, P. A Phenomenological Model for the Drilling Action of Drag Bits. Int. J. Rock Mech. Sci. Geomech. Abstr.
**1992**, 29, 13–23. [Google Scholar] [CrossRef] - Dagrain, F.; Detournay, E.; Richard, T. Influence of Cutter Geometry in Rock Cutting. In Proceedings of the DC Rocks 2001, The 38th U.S. Symposium on Rock Mechanics (USRMS), Washington, DC, USA, 7–10 July 2001; pp. 927–933. [Google Scholar]
- Detournay, E.; Richard, T.; Shepherd, M. Drilling Response of Drag Bits: Theory and Experiment. Int. J. Rock Mech. Min. Sci.
**2008**, 45, 1347–1360. [Google Scholar] [CrossRef] - Rajabov, V.; Miska, S.; Mortimer, L.; Yu, M.; Ozbayoglu, E. The Effects of Back Rake and Side Rake Angles on Mechanical Specific Energy of Single PDC Cutters with Selected Rocks at Varying Depth of Cuts and Confining Pressures. In Proceedings of the IADC/SPE Drilling Conference and Exhibition, San Diego, CA, USA, 6–8 March 2012; p. SPE-151406-MS. [Google Scholar] [CrossRef]
- Rafatian, N.; Miska, S.; Ledgerwood, L.W.; Ahmed, R.; Yu, M.; Takach, N. Experimental Study of MSE of a Single PDC Cutter Interacting with Rock Under Simulated Pressurized Conditions. SPE Drill. Compl.
**2009**, 25, 10–18. [Google Scholar] [CrossRef] - Chen, P.; Miska, S.; Ren, R.; Yu, M.; Ozbayoglu, E.; Takach, N. Poroelastic Modeling of Cutting Rock in Pressurized Condition. J. Pet. Sci. Eng.
**2012**, 169, 623–635. [Google Scholar] [CrossRef] - Ledgerwood, L.W. PFC Modeling of Rock Cutting Under High Pressure Conditions. In Proceedings of the 1st Canada–U.S. Rock Mechanics Symposium, Vancouver, BC, Canada, 27–31 May 2007; p. ARMA-07-063. [Google Scholar]
- Akbari, B.; Miska, S.; Yu, M.; Rahmani, R. The Effects of Size, Chamfer Geometry, and Back Rake Angle on Frictional Response of PDC Cutters. In Proceedings of the 48th U.S. Rock Mechanics/Geomechanics Symposium, Minneapolis, MN, USA, 1–4 June 2014; p. ARMA-2014-7458. [Google Scholar]
- Akbari, B.; Miska, S.; Yu, M.; Ozbayoglu, M. Experimental Investigations of the Effect of the Pore Pressure on the MSE and Drilling Strength of a PDC Bit. In Proceedings of the SPE Western North American and Rocky Mountain Joint Meeting, Denver, CO, USA, 17–18 April 2014; p. SPE-169488-MS. [Google Scholar] [CrossRef]
- Grima, M.A.; Miedema, S.A.; Van de Ketterij, R.G.; Yenigül, N.B.; Van Rhee, C. Effect of High Hyperbaric Pressure on Rock Cutting Process. Eng. Geol.
**2015**, 196, 24–36. [Google Scholar] [CrossRef] - Detournay, E.; Atkinson, C. Influence of Pore Pressure on the Drilling Response in Low Permeability Shear Dilatant Rocks. Int. J. Rock Mech. Min. Sci.
**2000**, 37, 1091–1101. [Google Scholar] [CrossRef] - Erguo, L.; Wang, J.; Zhou, L.; Wang, L. The Analysis of Force on PDC Cutter. In Energy Materials 2014; Springer: Cham, Switzerland, 2014; pp. 781–787. [Google Scholar]
- Wang, J.W.; Deyonga, Z.; Renqinga, H. Experimental Study on Force of PDC Cutter Breaking Rock. Procedia Eng.
**2014**, 73, 258–263. [Google Scholar] [CrossRef] - Coudyzer, C.; Richard, T. Influence of the Back and Side Rake Angles in Rock Cutting. In Proceedings of the AADE 2005 National Technical Conference and Exhibition, Houston, TX, USA, 5–7 April 2005; p. AADE-05NTCE-75. [Google Scholar]
- Liu, J.; Zheng, H.; Kuang, Y.; Xie, H.; Qin, C. 3D Numerical Simulation of Rock Cutting of an Innovative Non-Planar Face PDC Cutter and Experimental Verification. Appl. Sci.
**2019**, 9, 4372. [Google Scholar] [CrossRef] [Green Version] - Goshouni, M.; Richard, T. Effect of Back Rake Angle and Groove Geometry in Rock Cutting. In Proceedings of the ISRM International Symposium—5th Asian Rock Mechanics Symposium, Tehran, Iran, 24–26 November 2008; p. ISRM-ARMS5-2008-027. [Google Scholar]
- Huang, Z.; Ma, Y.; Li, Q.; Xie, D. Geometry and Force Modeling, and Mechanical Properties Study of Polycrystalline Diamond Compact Bit Under Wearing Condition Based on Numerical Analysis. Adv. Mech. Eng.
**2017**, 9, 1–15. [Google Scholar] [CrossRef] [Green Version] - Chen, P.; Meng, M.; Miska, S.; Yu, M.; Ozbayoglu, E.; Takach, N. Study on Integrated Effect of PDC Double Cutters. J. Pet. Sci. Eng.
**2019**, 178, 1128–1142. [Google Scholar] [CrossRef] - Zhu, X.; Deng, Z.; Liu, W. Experimental Study on Energy Consumption of Rock Cutting Under Different Groove Geometry. Geotech. Test. J.
**2020**, 43, 151–170. [Google Scholar] [CrossRef] - Pryhorovska, T.O. Study on Rock Reaction Force Depending on PDC Cutter Placement. Mach. Sci. Tech.
**2017**, 21, 37–66. [Google Scholar] [CrossRef] - Ai, Z.; Han, Y.; Kuang, Y.; Wang, Y.; Zhang, M. Optimization Model for Polycrystalline Diamond Compact Bits Based on Reverse Design. Adv. Mech. Eng.
**2018**, 10, 1–12. [Google Scholar] [CrossRef] - Zhou, Y.; Detournay, E. Analysis of The Contact Forces on a Blunt PDC Bit. In Proceedings of the 48th U.S. Rock Mechanics/Geomechanics Symposium, Minneapolis, MN, USA, 1–4 June 2014; p. ARMA-2014-7351. [Google Scholar]
- Rostamsowlat, I.; Richard, T.; Evans, B. Experimental Investigation on the Effect of Wear Flat Inclination on The Cutting Response of a Blunt Tool in Rock Cutting. Acta Geotech.
**2019**, 14, 519–534. [Google Scholar] [CrossRef] - Dagrain, F.; Richard, T. On The Influence of PDC Wear and Rock Type on Friction Coefficient and Cutting Efficiency. In Eurock 2006: Multiphysics Coupling and Long Term Behaviour in Rock Mechanics; CRC Press: Boca Raton, FL, USA, 2006. [Google Scholar] [CrossRef]
- Sinor, A.; Warren, T.M. Drag Bit Wear Model. SPE Drill. Eng.
**1989**, 4, 128–136. [Google Scholar] [CrossRef] - Chandong, C.; Zoback, M.D.; Khaksar, A. Empirical Relations between Rock Strength and Physical Properties in Sedimentary Rocks. J. Pet. Sci. Eng.
**2006**, 51, 223–237. [Google Scholar] [CrossRef] - Andrews, R.; Hareland, G.; Nygaard, R.; Engler, T.; Munro, H.; Virginillo, B. Methods of Using Logs to Quantify Drillability. In Proceedings of the Rocky Mountain Oil & Gas Technology Symposium, Denver, CO, USA, 16–18 April 2007; p. SPE-106571. [Google Scholar] [CrossRef]
- Yari, M.; Bagherpour, R. Investigating an Innovative Model for Dimensional Sedimentary Rocks Characterization Using Acoustic Frequencies Analysis during Drilling. Rud.-GeološKo-Naft. Zb.
**2018**, 33, 17–25. [Google Scholar] [CrossRef] [Green Version] - Che, D.; Zhang, W.; Ehmann, K.F. Rock-cutter Interactions in Linear Rock Cutting. In Proceedings of the ASME 2016 11th International Manufacturing Science and Engineering Conference, Blacksburg, VA, USA, 27 June–1 July 2016. [Google Scholar]
- Bourgoyne, A.T.; Young, F.S. A Multiple Regression Approach to Optimal Drilling and Abnormal Pressure Detection. SPE J.
**1974**, 14, 371–384. [Google Scholar] [CrossRef] - Warren, T.M. Penetration Rate Performance of Roller Cone Bits. SPE Drill. Eng.
**1987**, 2, 9–18. [Google Scholar] [CrossRef] - Rashidi, B.; Hareland, G.; Tahmeen, M.; Anisimov, M.; Abdorazakov, S. Real Time Bit Wear Optimization Using the Intelligent Drilling Advisory System. In Proceedings of the SPE Russian Oil and Gas Conference and Exhibition, Moscow, Russia, 26–28 October 2010; p. SPE-136006. [Google Scholar] [CrossRef]
- Hussain, R. Specific Energy as a Criterion for Bit Selection. J. Pet. Technol.
**1985**, 37, 1225–1229. [Google Scholar] [CrossRef] - Dupriest, F.E.; Koederitz, L.W. Maximizing Drill Rates with Real-Time Surveillance of Mechanical Specific Energy. In Proceedings of the SPE/IADC Drilling Conference, Amsterdam, The Netherlands, 23–25 February 2005; p. SPE-92194-MS. [Google Scholar] [CrossRef]
- Mohan, K.; Adil, F.; Samuel, R. Comprehensive Hydromechanical Specific Energy Calculation for Drilling Efficiency. J. Energy Resour. Technol.
**2015**, 137, 012904. [Google Scholar] [CrossRef] - Waughman, R.J.; Kenner, J.V.; Moore, R.A. Real-Time Specific Energy Monitoring Enhances the Understanding of When to Pull Worn PDC Bits. SPE Drill. Compl.
**2002**, 18, 59–67. [Google Scholar] [CrossRef] - Bjornsson, E.; Hucik, B.; Szutiak, G.; Brown, L.A.; Evans, H.; Curry, D.; Perry, P. Drilling Optimization Using Bit Selection Expert System and ROP Prediction Algorithm Improves Drilling Performance and Enhances Operational Decision Making by Reduction Performance Uncertainties. In Proceedings of the SPE Annual Technical Conference and Exhibition, Houston, TX, USA, 26–29 September 2004; p. SPE-90752. [Google Scholar] [CrossRef]
- Caicedo, H.U.; Calhoun, W.M.; Ewy, R.T. Unique ROP Predictor Using Bit-Specific Coefficient of Sliding Friction and Mechanical Efficiency as a Function of Confined Compressive Strength Impacts Drilling Performance. In Proceedings of the SPE/IADC Drilling Conference, Amsterdam, The Netherlands, 23–25 February 2005; p. SPE/IADC92576. [Google Scholar] [CrossRef]
- Teale, R. The Concept of Specific Energy in Rock Drilling. Int. J. Rock Mech. Min. Sci.
**1965**, 2, 57–73. [Google Scholar] [CrossRef] - Liang, E.G.; Li, Z.F.; Zou, D.Y. Experimental Research on Integrated Mechanical Model of PDC Bit. Rock Soil. Mech.
**2009**, 18, 938–942. [Google Scholar] - Richard, T.; Coudyzer, C.; Desmette, S. Influence of Groove Geometry and Cutter Inclination in Rock Cutting. In Proceedings of the 44th U.S. Rock Mechanics Symposium and 5th U.S.–Canada Rock Mechanics Symposium, Salt Lake City, UT, USA, 27–30 June 2010; p. ARMA-10-429. [Google Scholar]
- Majidi, R.; Miska, S.; Tammineni, T. PDC single Cutter: The Effects of Depth of Cut and RPM Under Simulated Borehole Conditions. Wiert. Naft. Gaz
**2011**, 1, 283–295. [Google Scholar] - Akbari, B.; Miska, S. Relative Significance of Multiple Parameters on the Mechanical Specific Energy and Frictional Responses of Polycrystalline Diamond Compact Cutters. ASME J. Energy Resour. Technol.
**2017**, 139, 022904. [Google Scholar] [CrossRef] - Akbari, B.; Miska, S. The Effects of Chamfer and Back Rake Angle on PDC Cutters Friction. J. Nat. Gas Sci. Eng.
**2016**, 35, 347–353. [Google Scholar] [CrossRef] - Appl, F.C.; Wilson, C.; Lakshman, I. Measurement of Forces, Temperatures and Wear of PDC Cutters in Rock Cutting. Wear
**1993**, 169, 9–24. [Google Scholar] [CrossRef] - Chollet, F. Deep Learning with Python, 2nd ed.; Manning Publications Co.: New York, NY, USA, 2018. [Google Scholar]
- Simon, R. Energy Balance in Rock Drilling. SPE J.
**1963**, 3, 298–306. [Google Scholar] [CrossRef] - Gerbaud, L.; Menand, S.; Sellami, H. PDC Bits: All Comes from the Cutter-Rock Interaction. In Proceedings of the IADC/SPE Drilling Conference, Miami, FL, USA, 21–23 February 2006; p. IADC/SPE-98988. [Google Scholar] [CrossRef]
- Simon, D. Optimal State Estimation, Kalman Filter, H Infinity and Nonlinear Approaches; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2006. [Google Scholar]
- Ma, Y.; Lian, Z.; Huang, Z.; Zhang, W.; Xie, D. Optimal Design of a Dlobal Force-Balanced Polycrystalline Diamond Compact Bit Considering Wear Condition. Adv. Mech. Eng.
**2019**, 11, 1–20. [Google Scholar] [CrossRef]

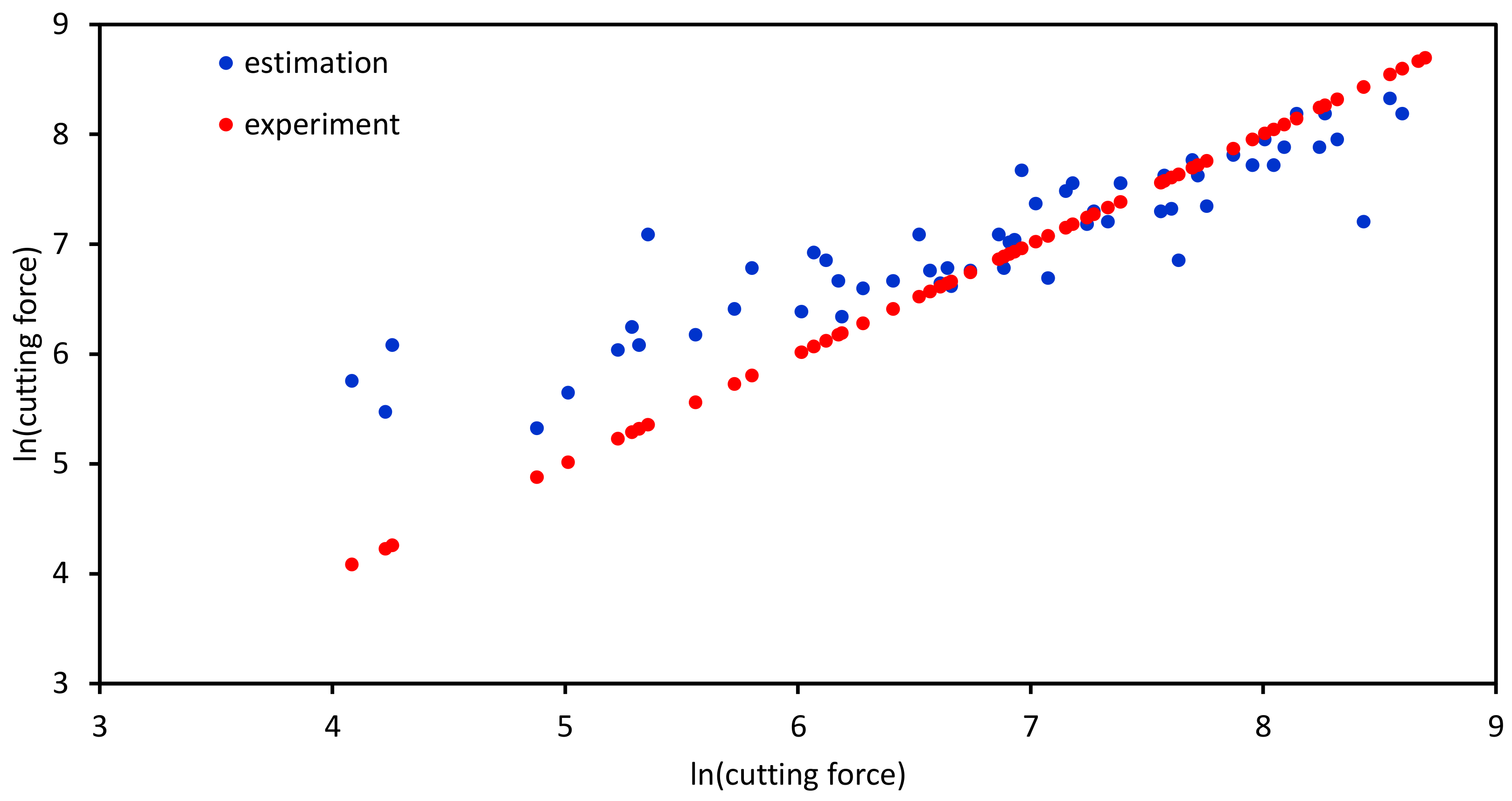

**Figure 3.**Scatter plot of experimental and estimated values by K-fold cross validation during training of the deep learning network.

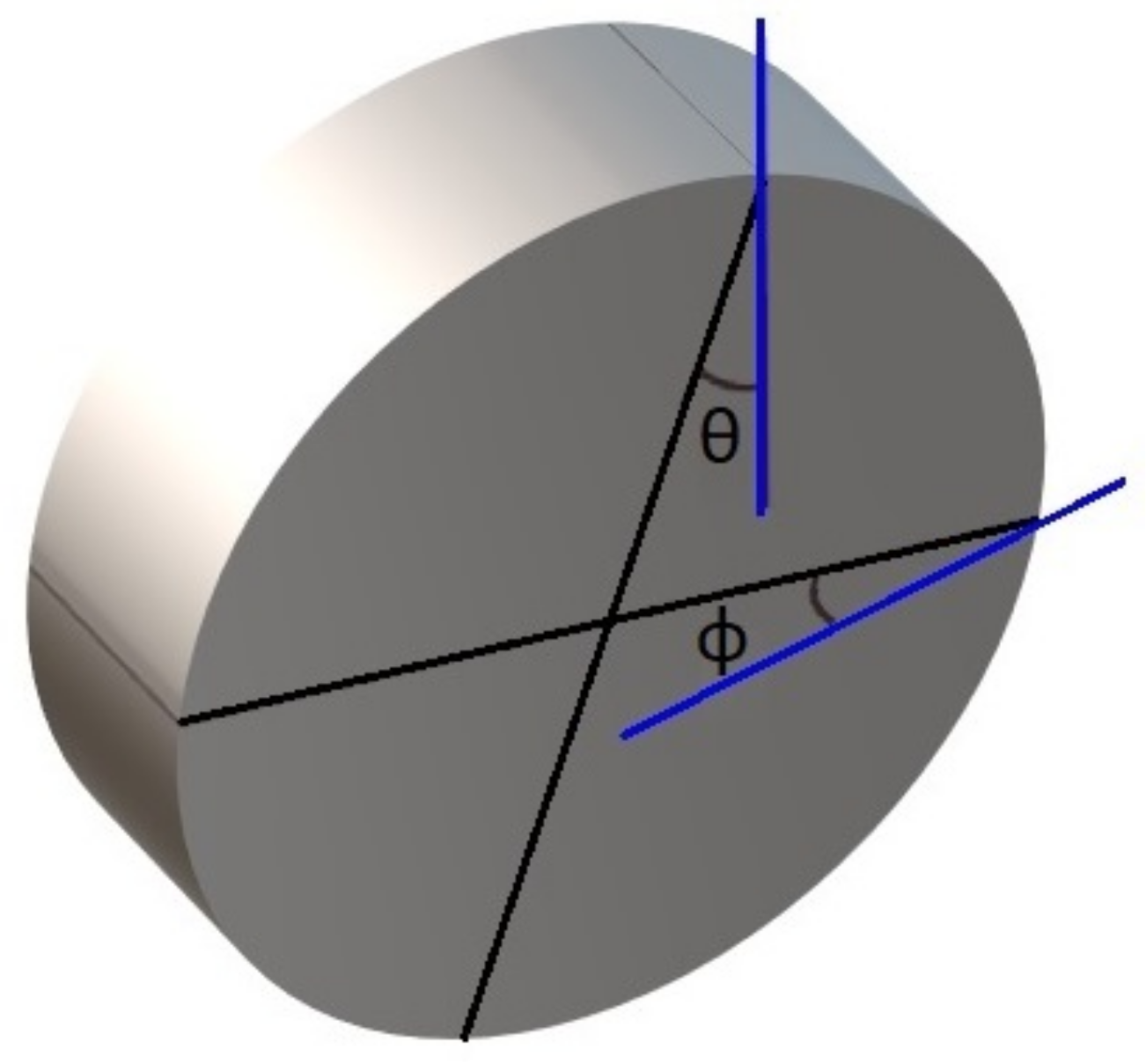

**Figure 4.**Geometrical parameters of a single cutter defined as back-rake ($\theta $) and side-rake ($\varphi $) angles.

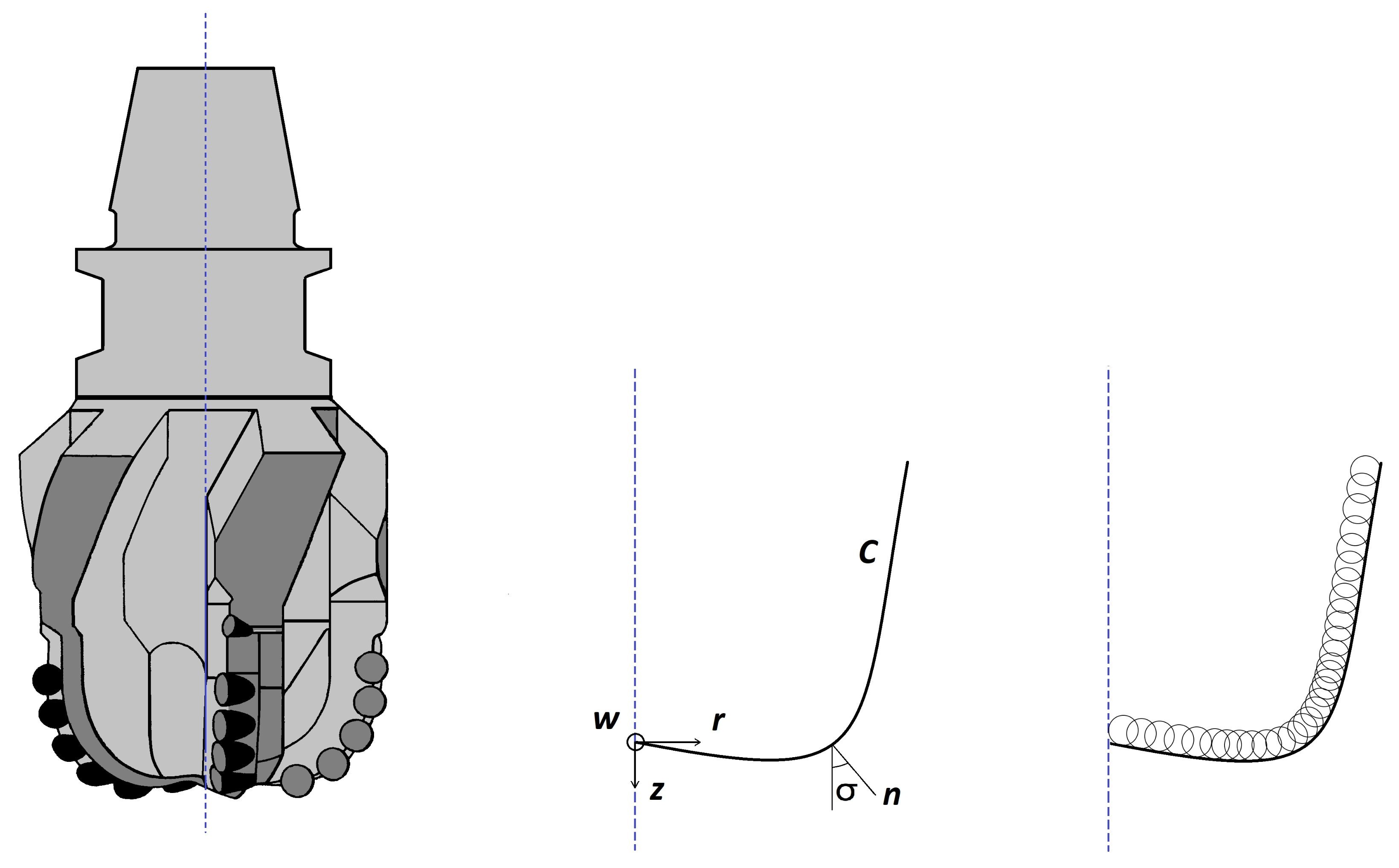

**Figure 5.**Sample PDC bit and the equivalent blade representation of the cutters; r, z, and w indicate the coordinate axis in radial, normal, and tangential directions, respectively; C is the bit profile curve; n is the normal direction to the bit profile and $\sigma $ is the angle between normal to the bit profile and bit axis.

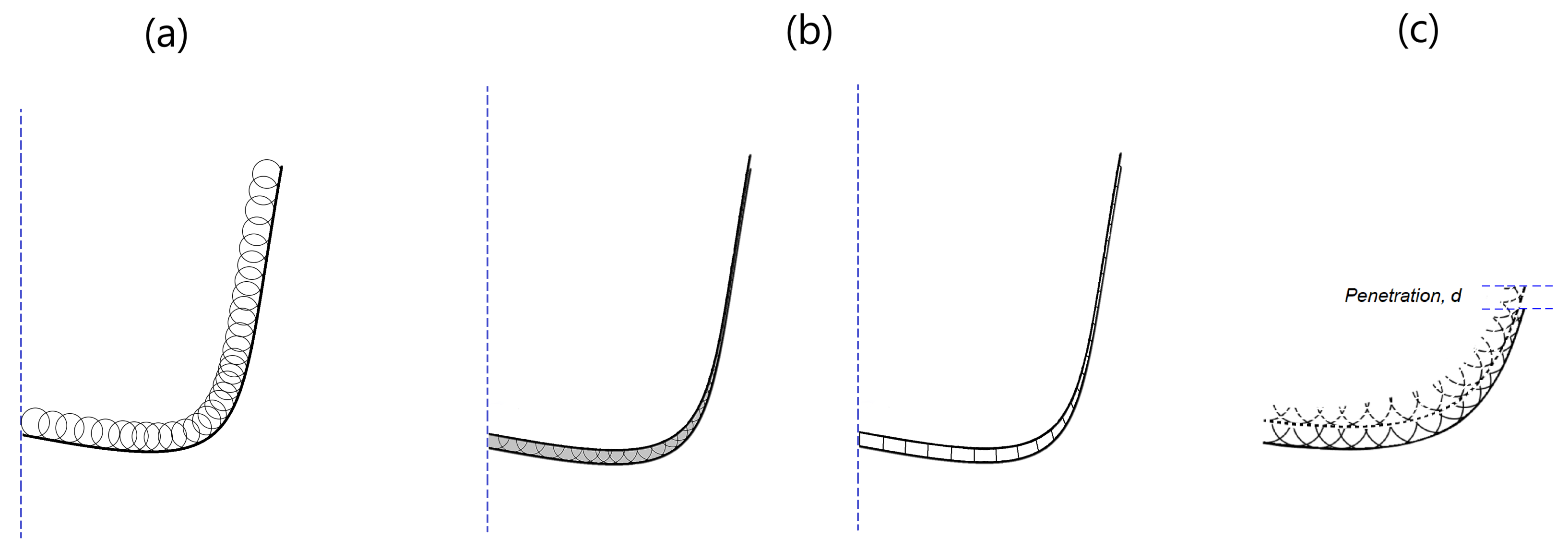

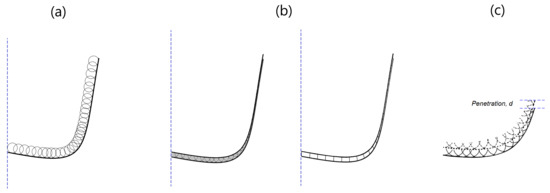

**Figure 6.**(

**a**) Traces of all cutters on a vertical plane. (

**b**) Equivalent blade produced by traces of cutters involved in drilling depth, d, in one revolution and discretization of equivalent blade into equivalent rectangular cutters. (

**c**) Spatial position of cutters in two successive revolutions.

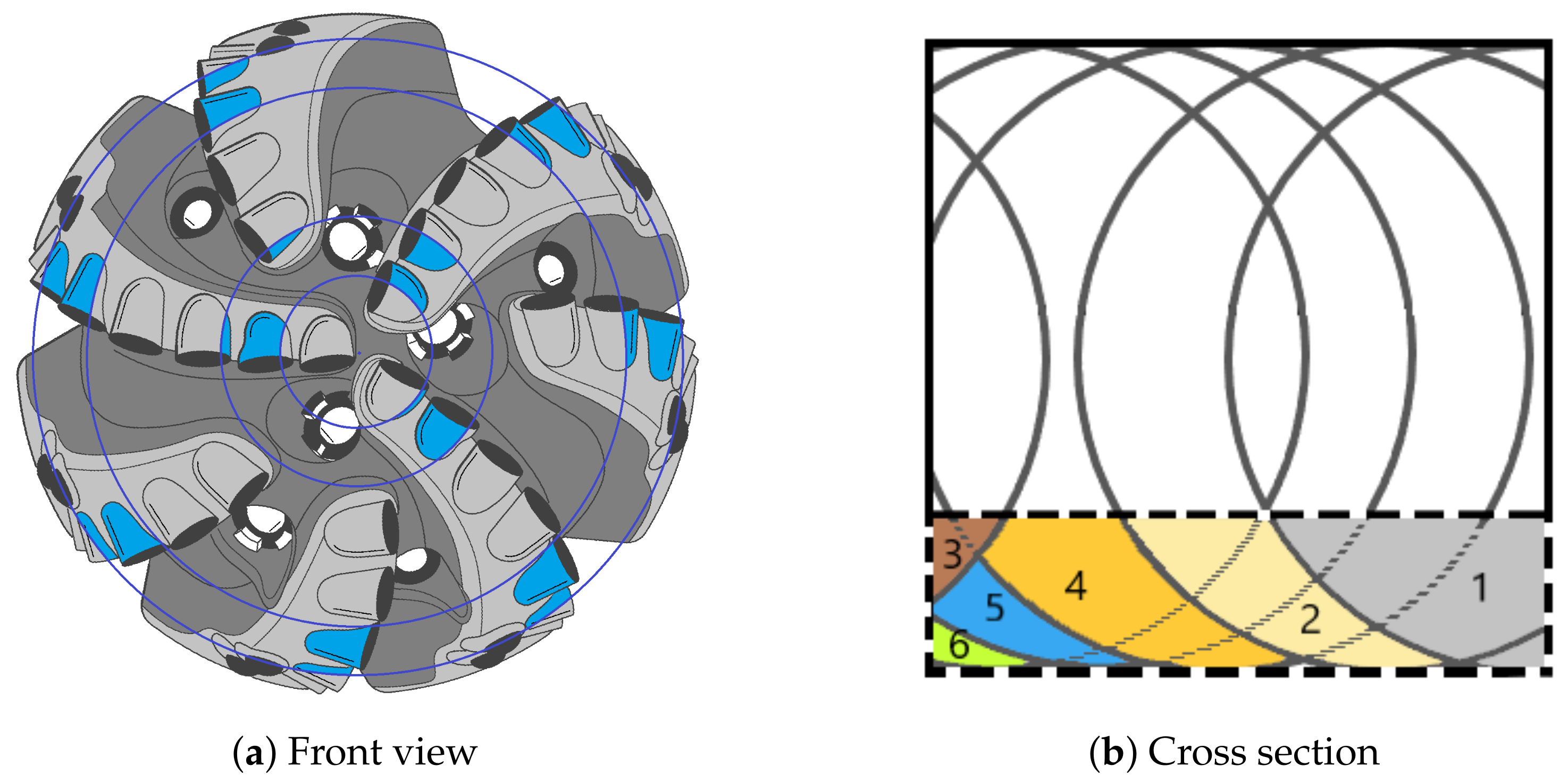

**Figure 7.**(

**a**) The framework of equivalent rectangular cutters formed by the overlapping of complete or partial circular cutters and (

**b**) schematic of an equivalent cutter composed of several partial cutters.

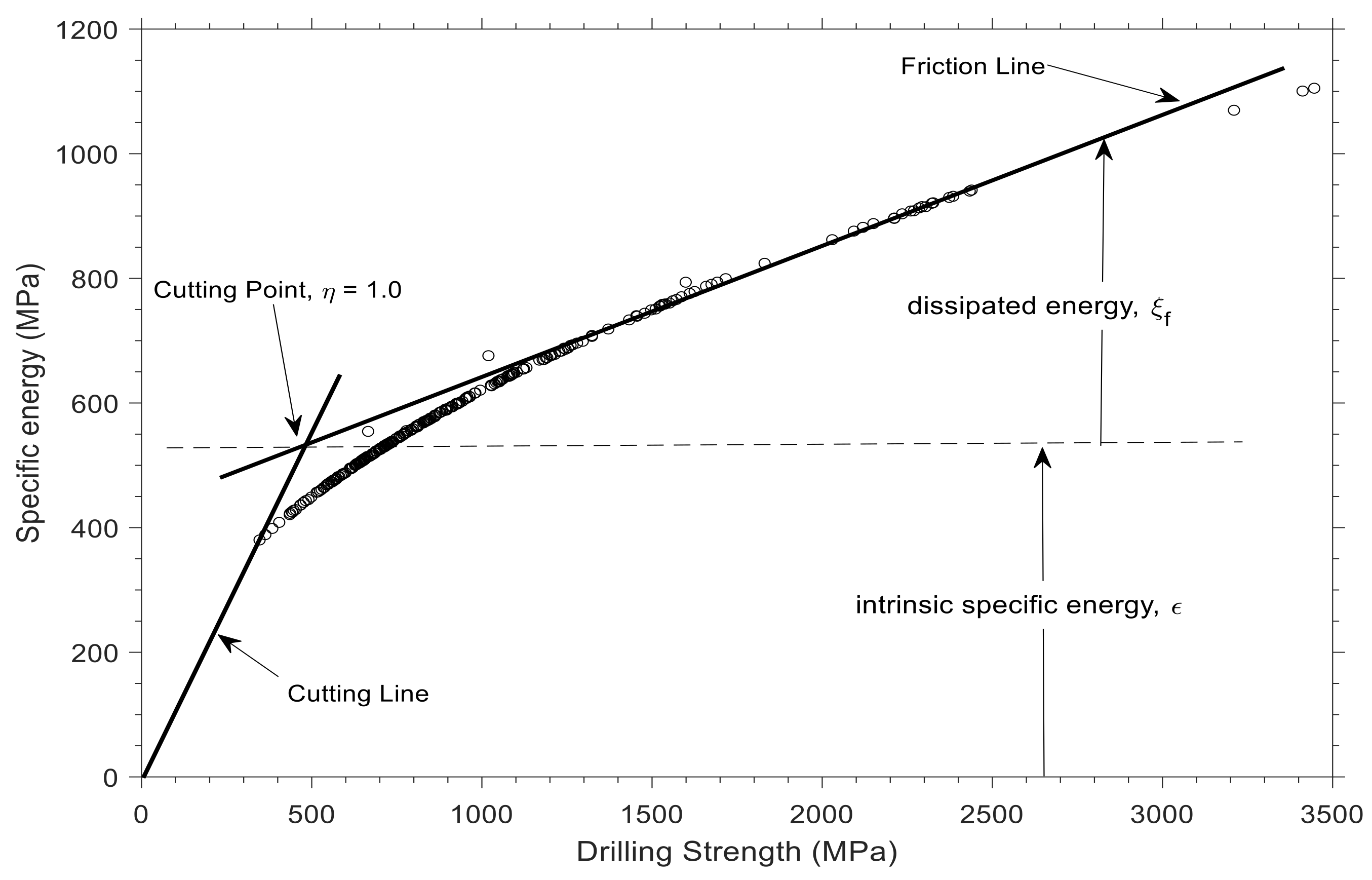

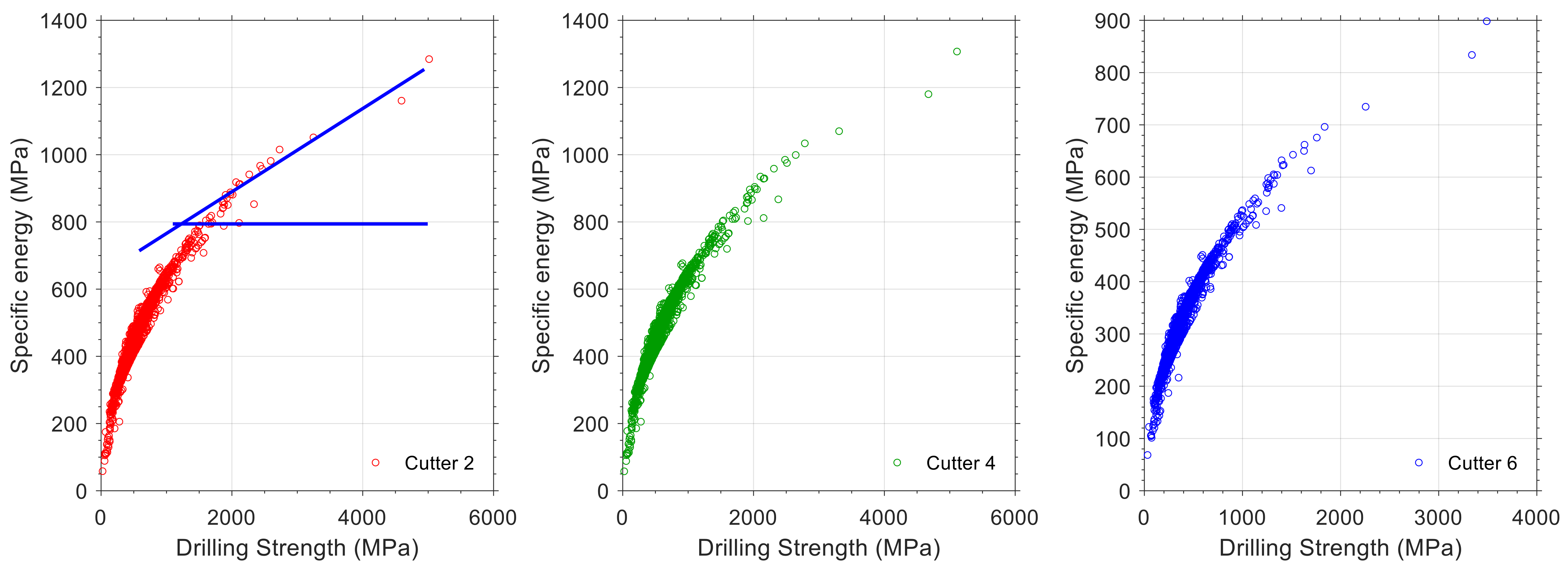

**Figure 8.**Graphical representation of specific energy and drilling strength. Marker data are calculated based on drilling measurement data utilized in this study, and solid lines are tangent to these data to build cutting and friction lines.

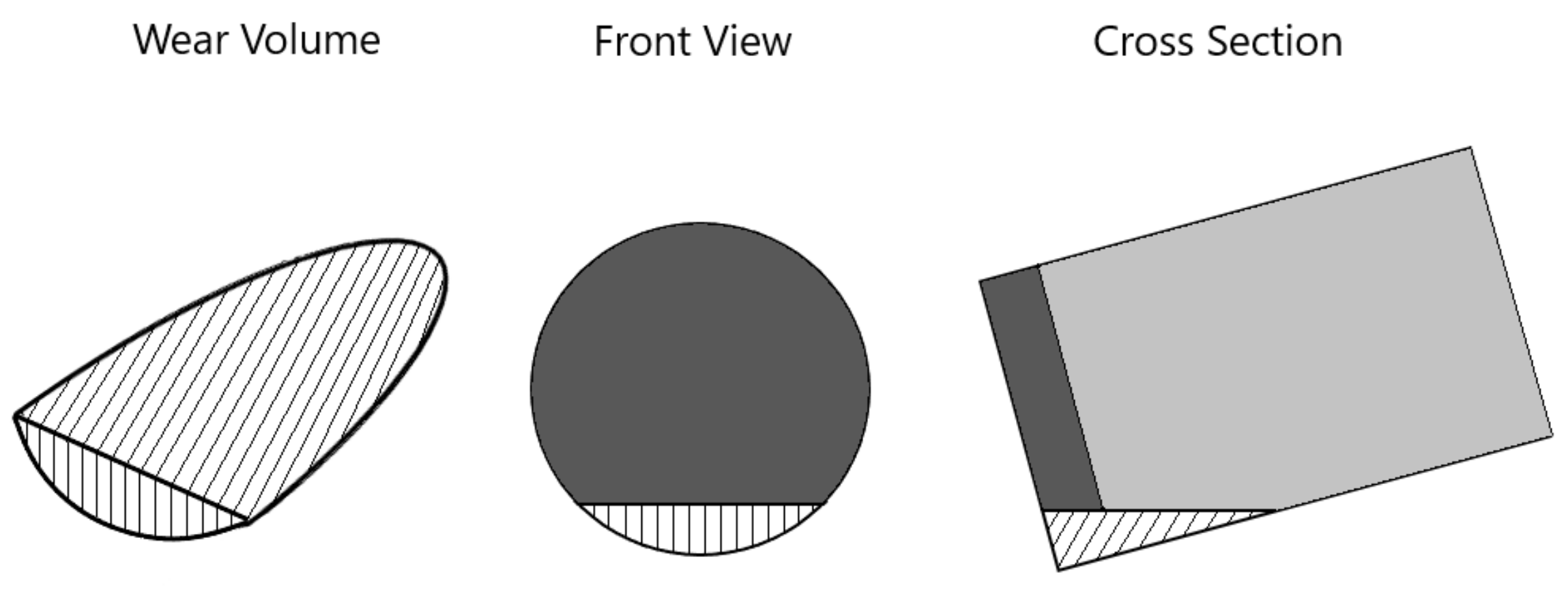

**Figure 10.**Schematic of wear height and wear flat area of a blunt cutter. The hatched area indicates the worn section of the cutter.

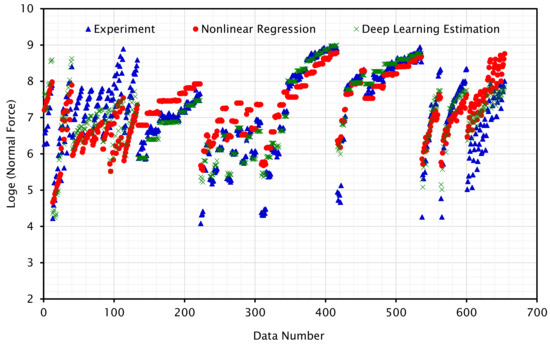

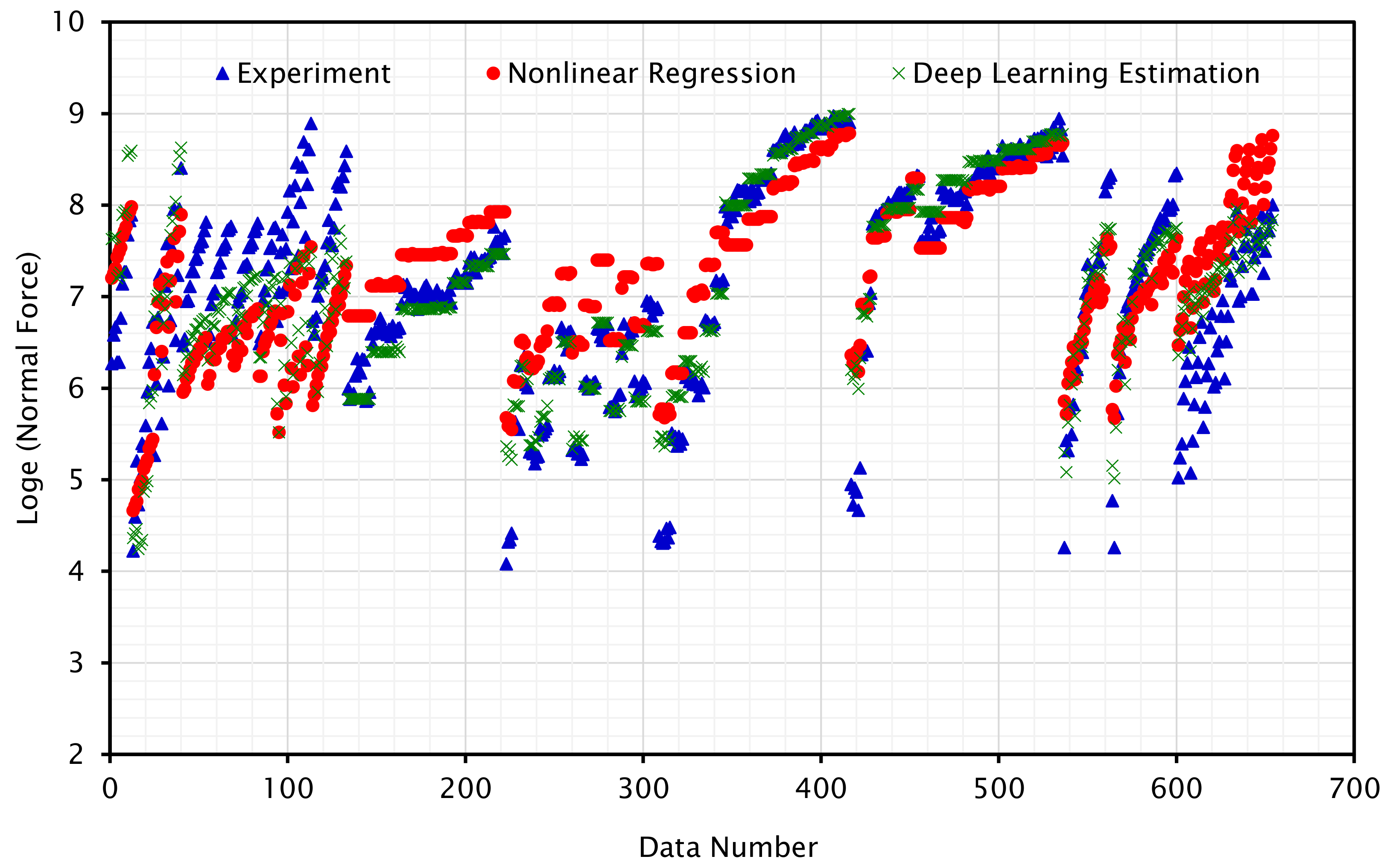

**Figure 11.**Scatter plot of experimental data and the calculated values by the regression methods for normal force.

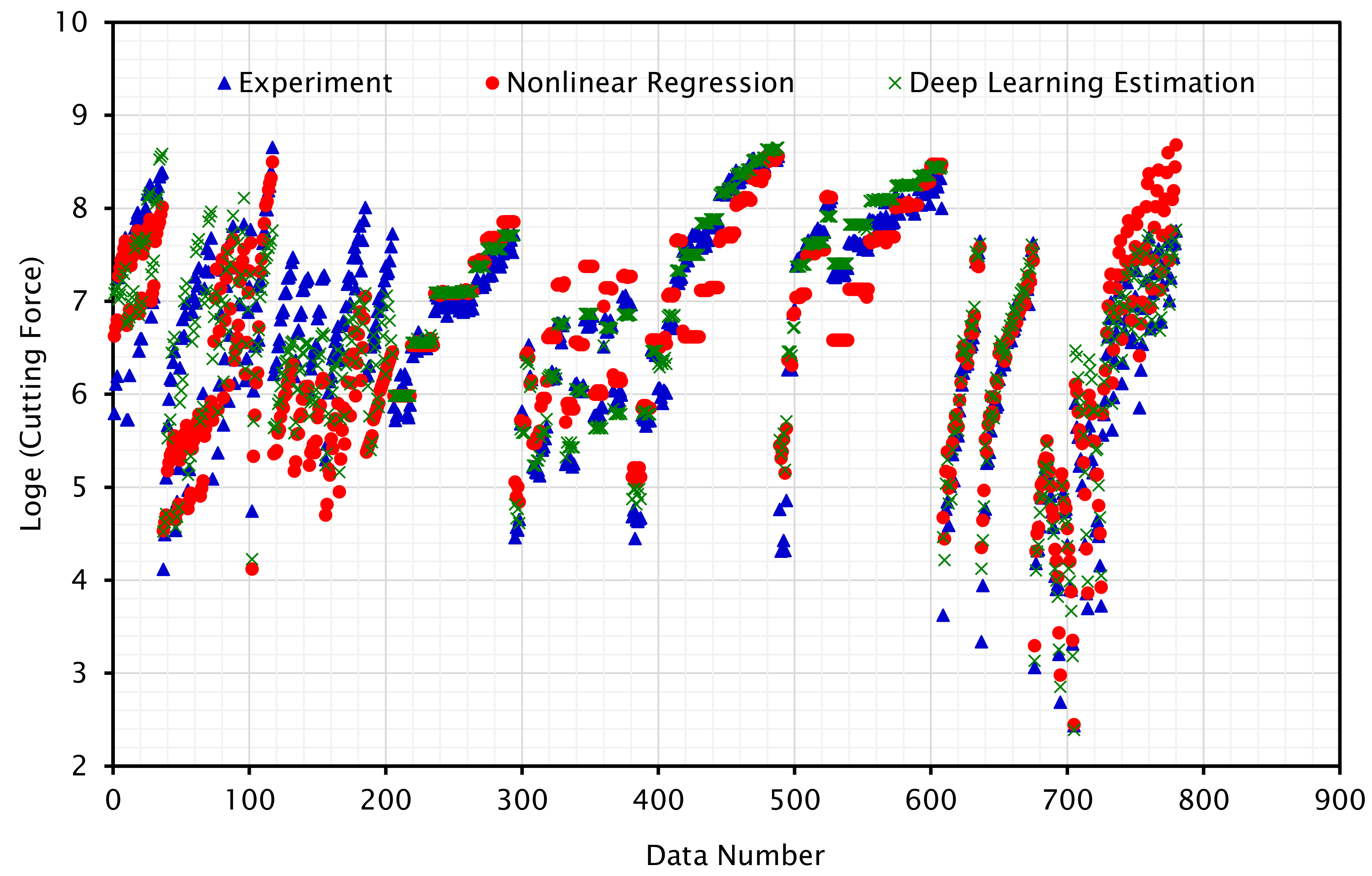

**Figure 12.**Scatter plot of experimental data and the calculated values by the regression methods for cutting force.

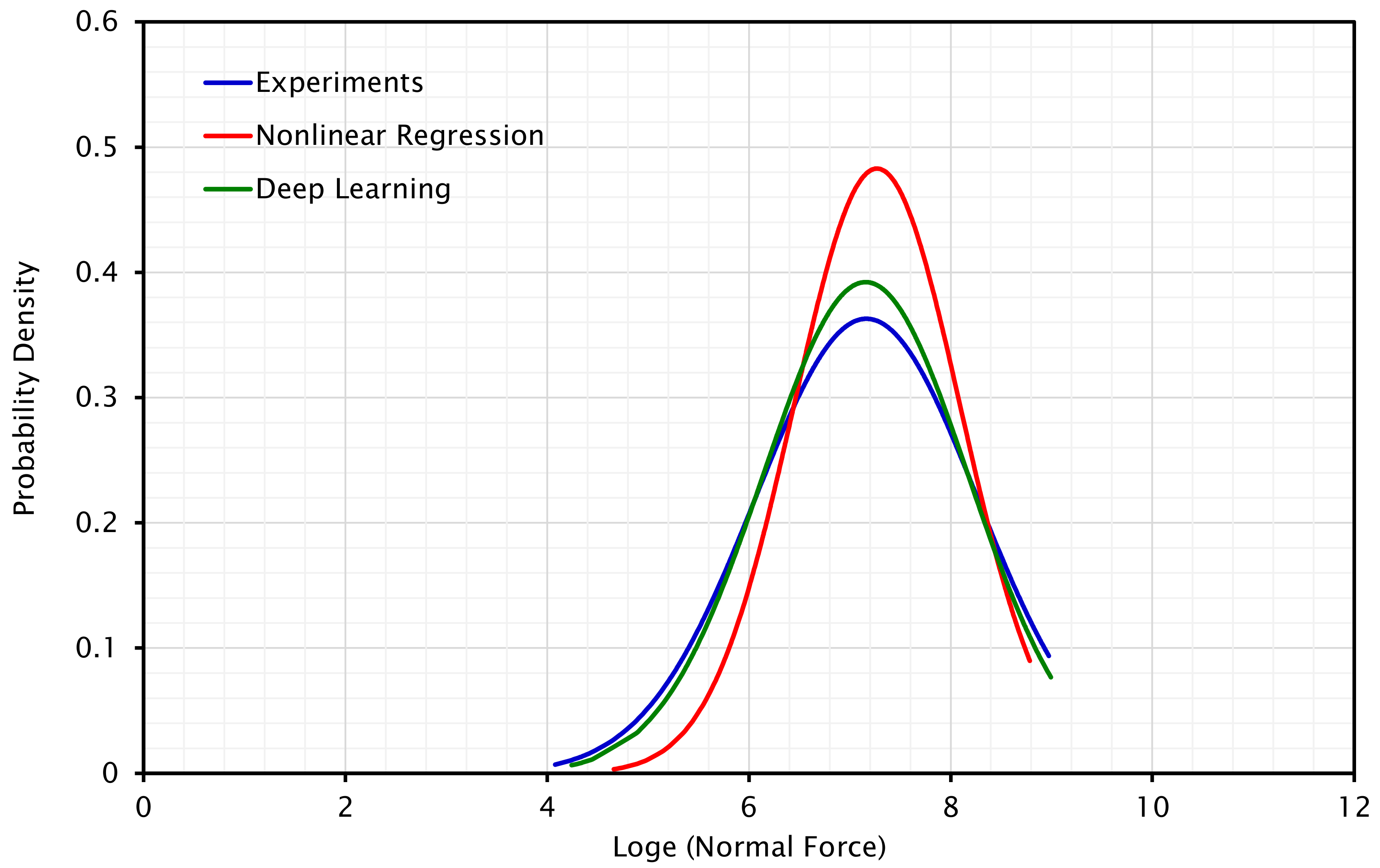

**Figure 13.**Normal distribution of normal force concluded from experimental data and the results of regression by non-linear regression and deep learning methods.

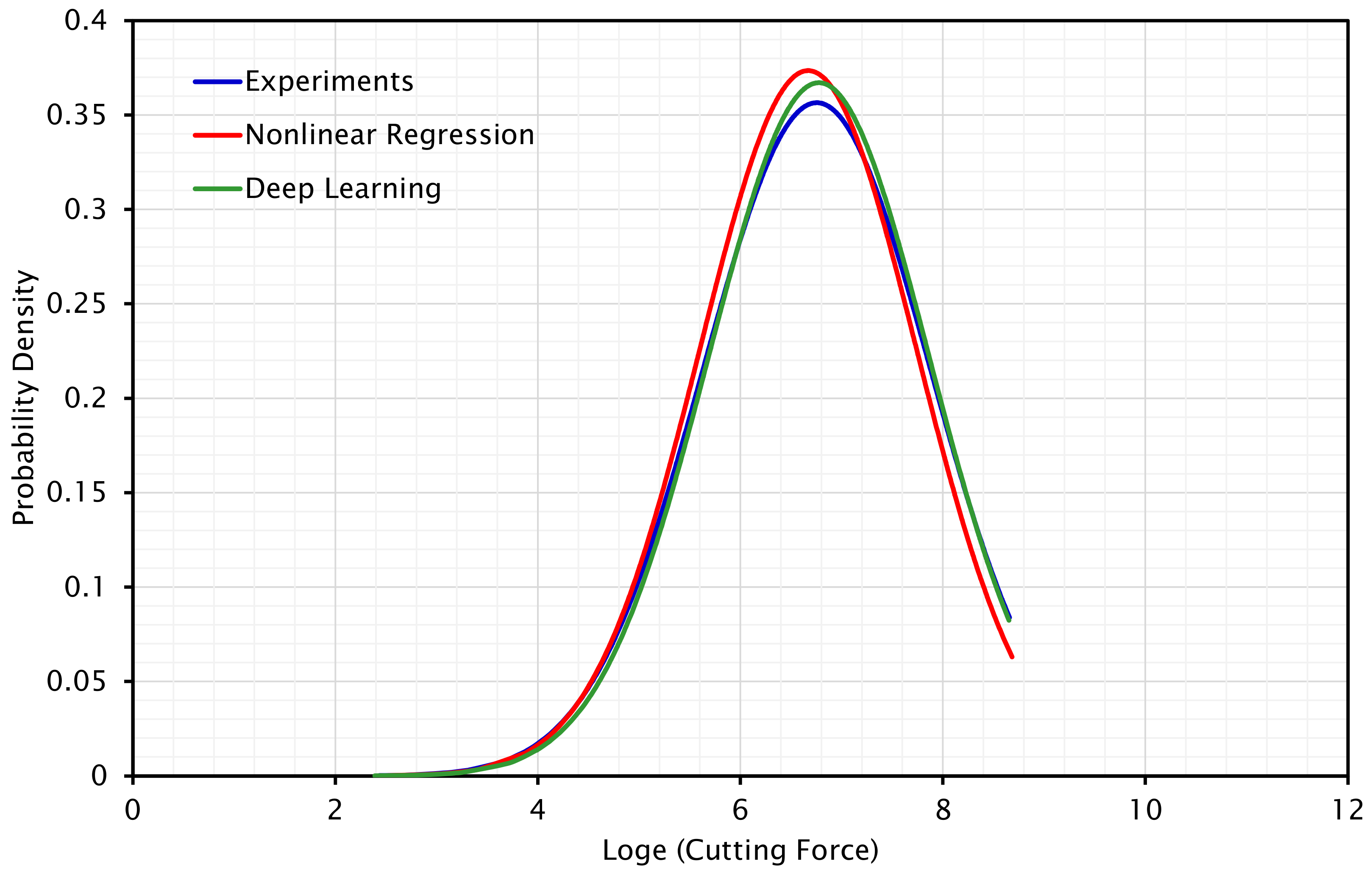

**Figure 14.**Normal distribution of cutting force concluded from experimental data and the results of regression by non-linear regression and deep learning methods.

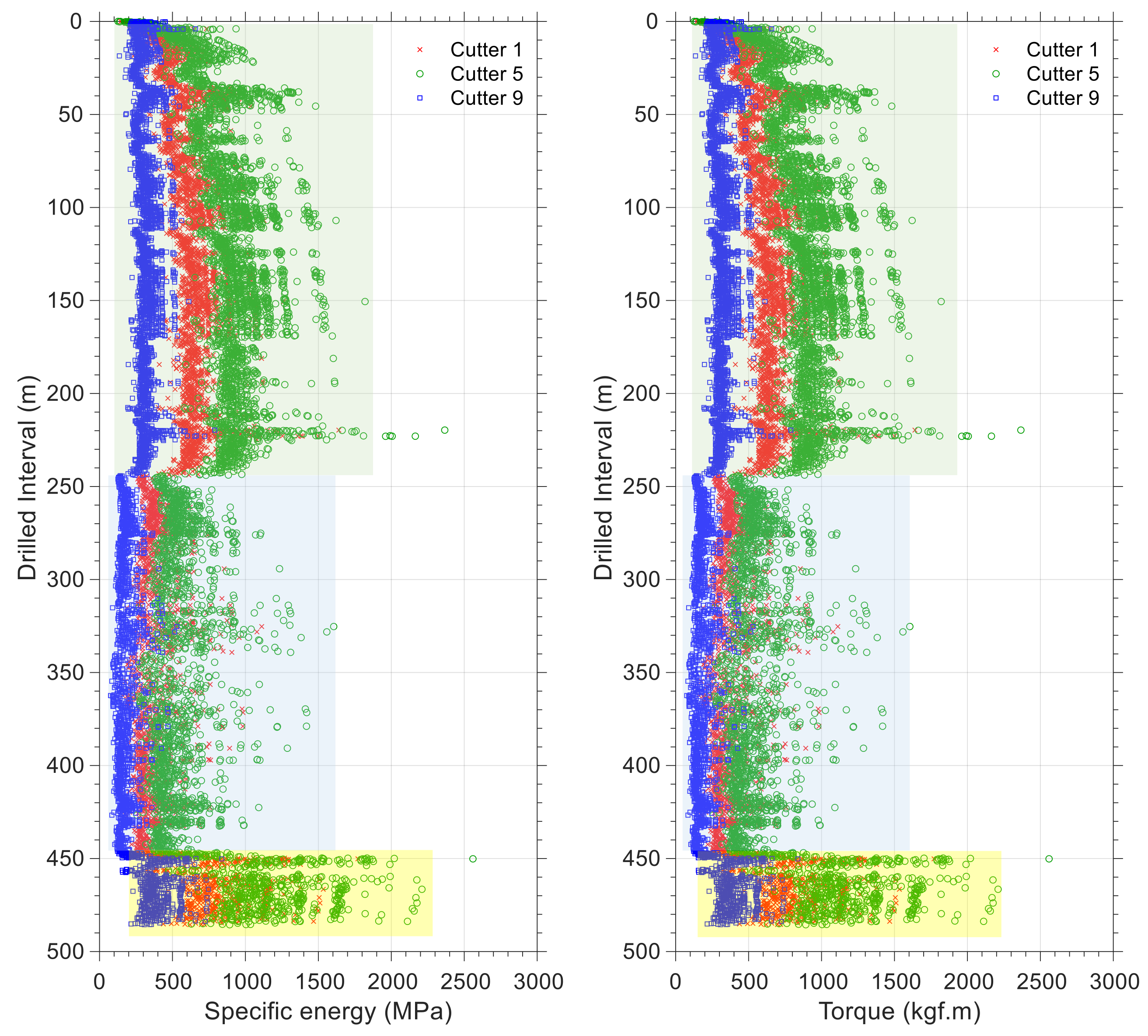

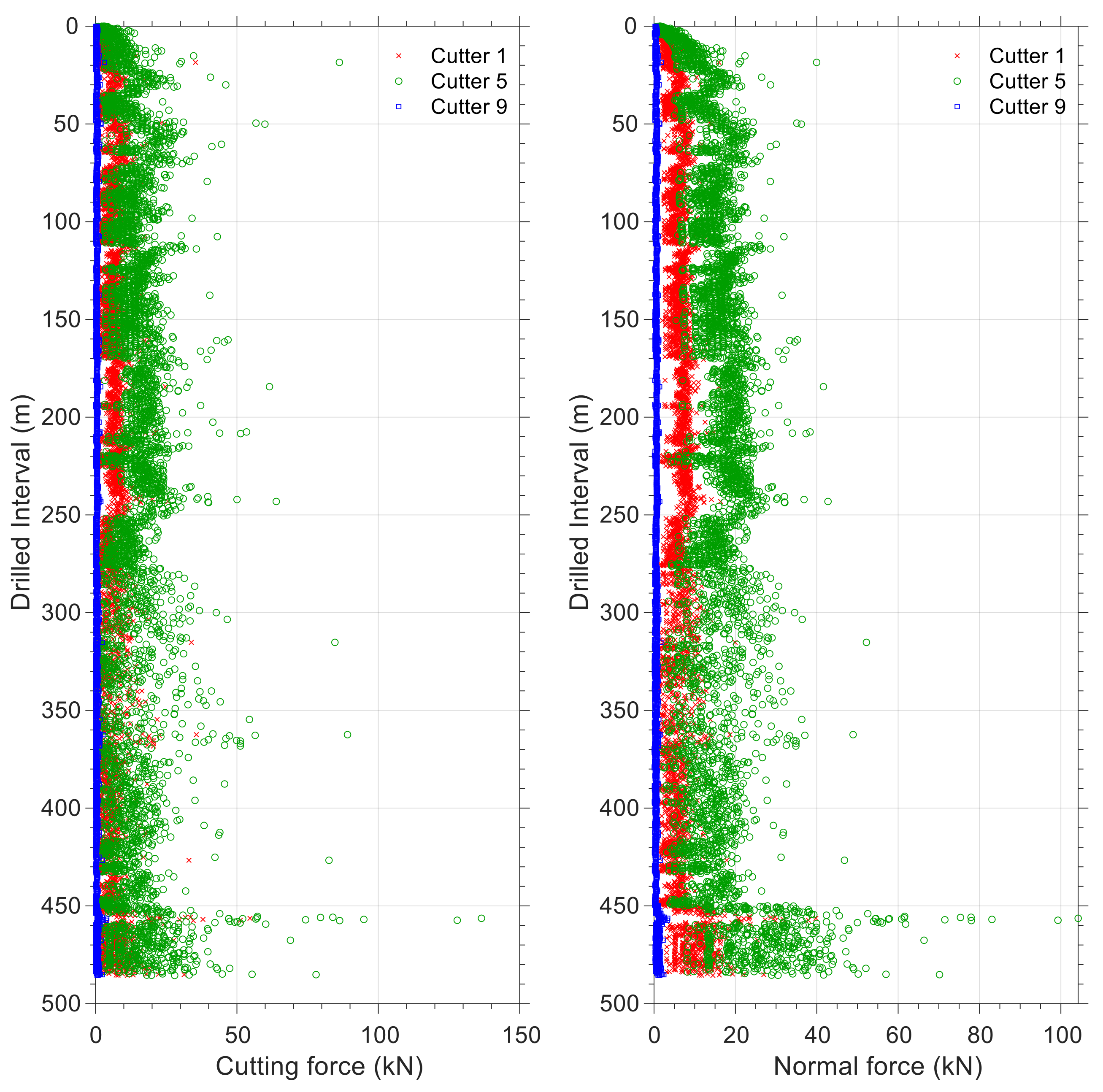

**Figure 15.**Specific energy (

**left**) and torque (

**right**) plots for bit run number 1 for three equivalent cutters; i.e., 1, 5, and 9.

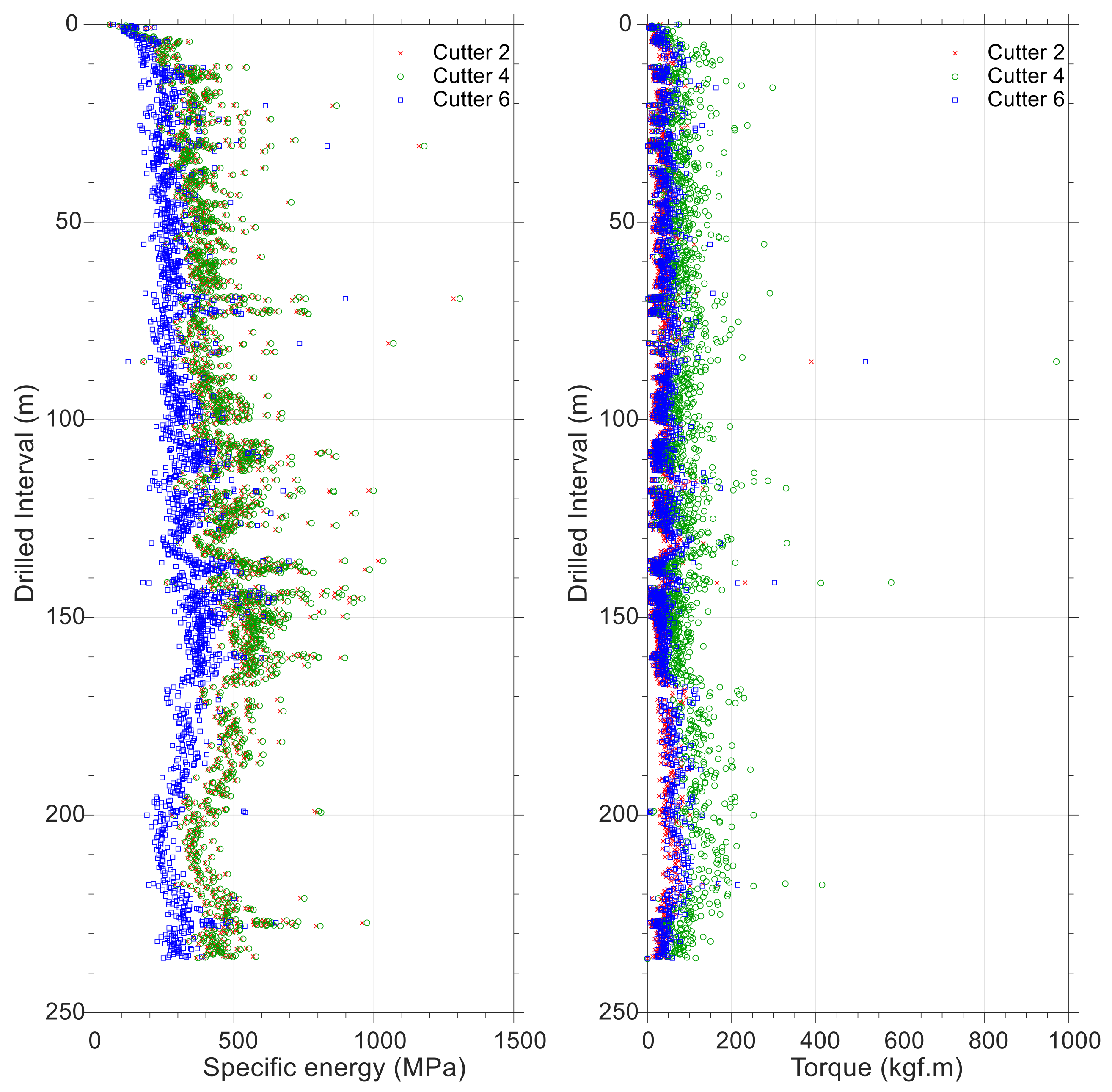

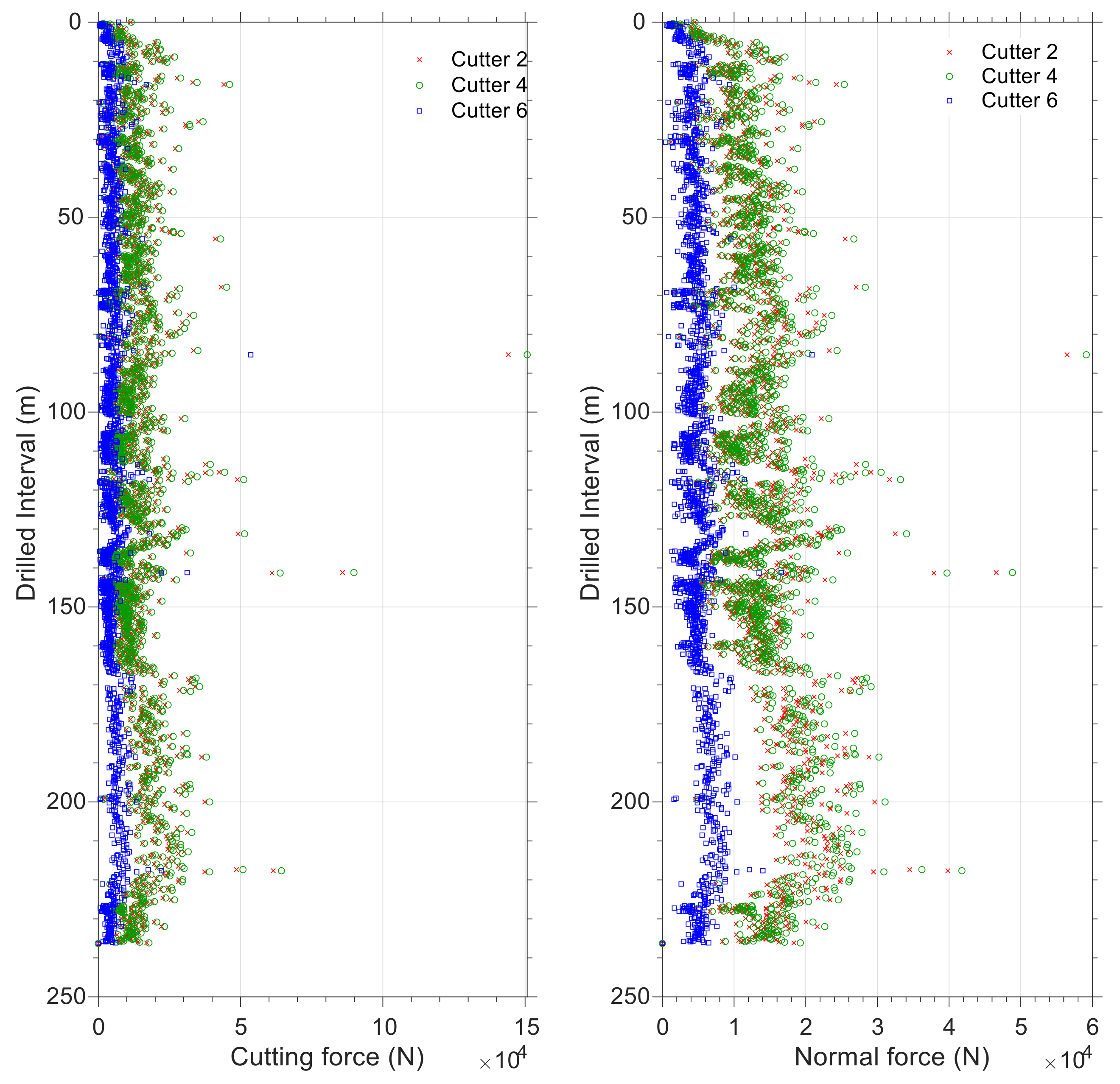

**Figure 16.**Specific energy (

**left**) and torque (

**right**) plots for the bit run number 2 for three equivalent cutters; i.e., 1, 5, and 9.

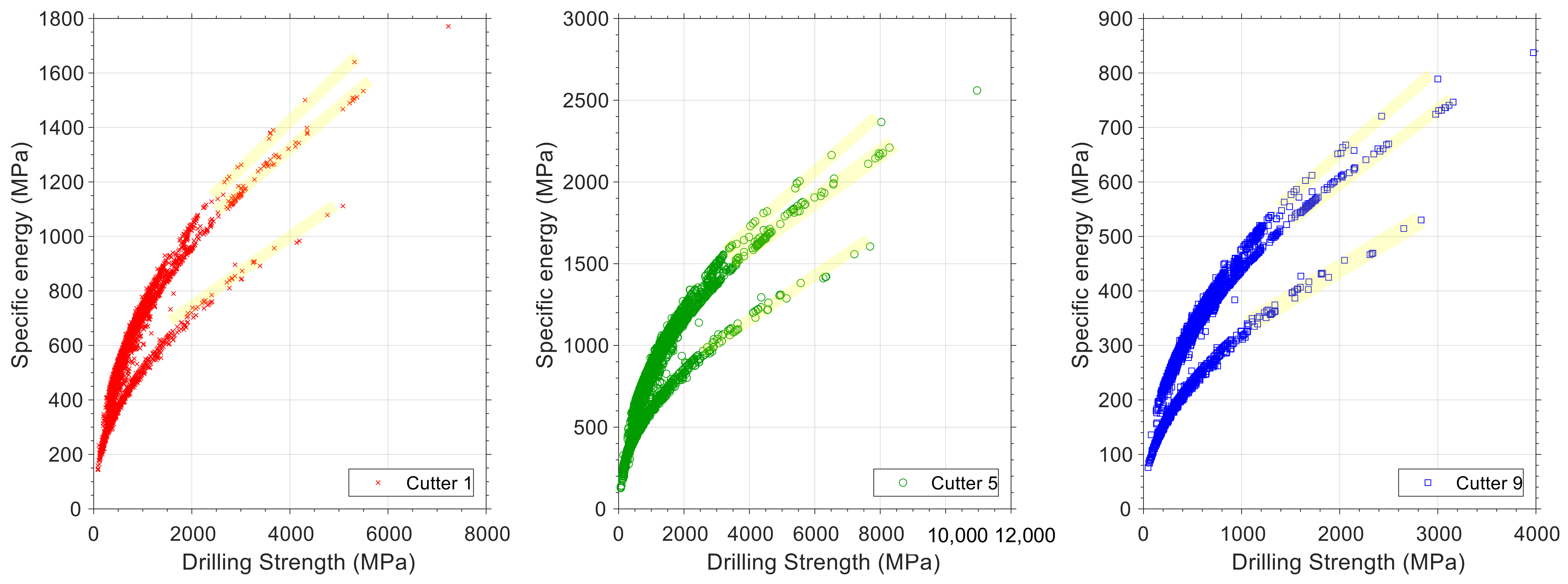

**Figure 19.**Specific energy for the drilled interval in bit run number 1. Each plot is for a specific equivalent cutter which is written as legend.

**Figure 20.**Specific energy for the drilled interval in bit run number 2. Each plot is for a specific equivalent cutter which is written as legend.

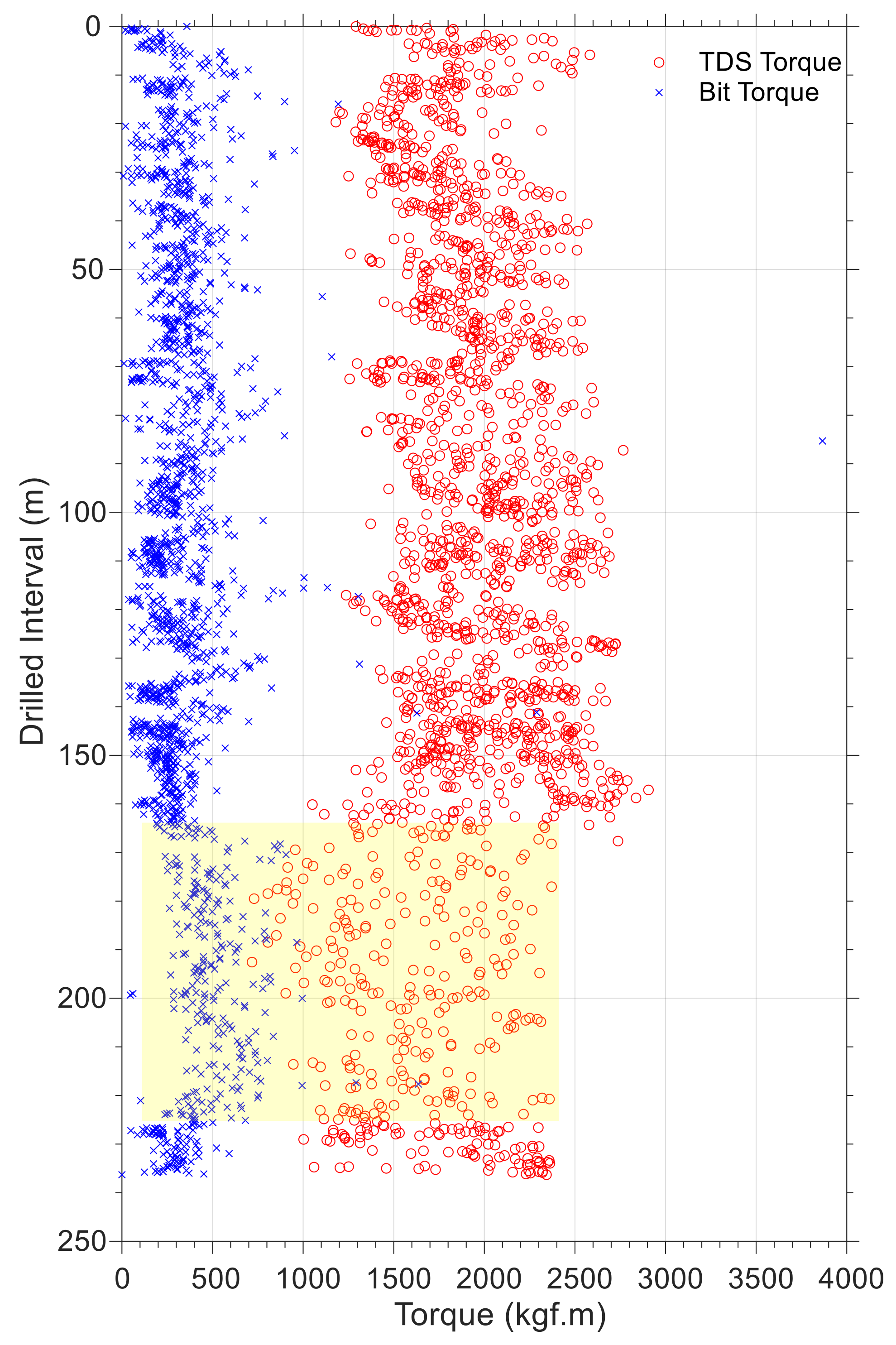

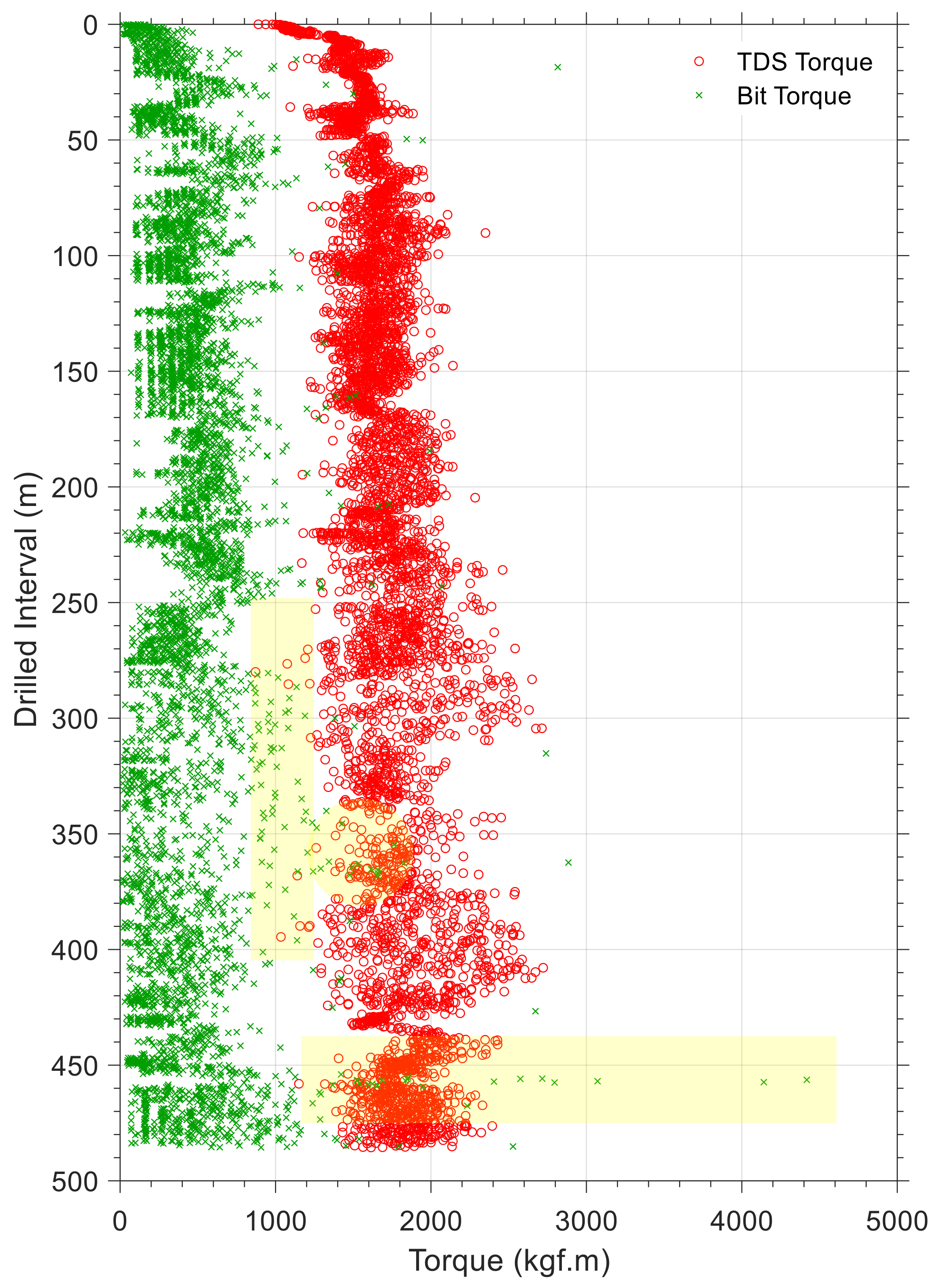

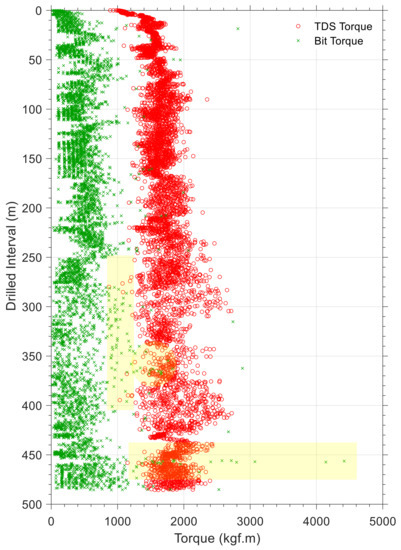

**Figure 21.**Torque at bit and torque delivered to the drill string at the surface for bit run number 1.

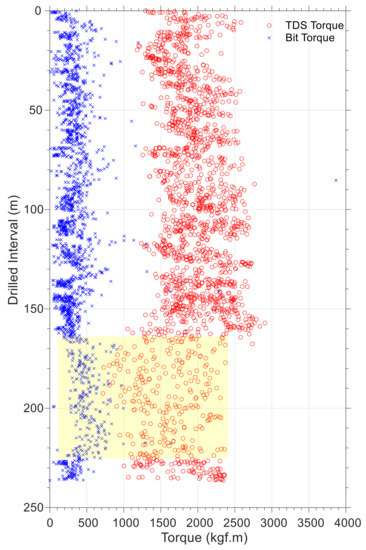

**Figure 22.**Torque at bit and toque delivered to the drill string at the surface for bit run number 2.

**Table 2.**Summary of experimental data implemented in regression: ${F}_{a}$, normal force, ${F}_{c}$, cutting force.

References | No. of Data in | Cutter | Cutter Size | Back-Rake | $\mathbf{\Delta}\mathit{P}$ |
---|---|---|---|---|---|

${\mathit{F}}_{\mathit{n}},\phantom{\rule{0.166667em}{0ex}}{\mathit{F}}_{\mathit{c}}$ | Condition | (mm) | Angle (°) | (psi) | |

Rajabov et al. [7] | 40, 117 | New | 13 | 10, 20, 30, 40 | 0, 250, 500 |

Glowka [2,3] | 403, 403 | New, Dull | 12.7, 19 | 20 | 0 |

Akbari et. al. [11,12] | 64, 67 | New | 13, 16 | 20 | 450 |

Richard et al. [44] | 0, 50 | New | 13, 19 | 15 | 0 |

Majidi et al. [45] | 54, 54 | New | 13 | 15 | 0, 50, 150, 250 |

Wang et al. [16] | 93, 88 | New | 13 | 5, 10, 15, 20, 25 | 0 |

**Table 3.**Statistical summary of experimental data employed in regression of ${F}_{a}$ (Number of observations 654).

Variable | Mean | Standard Deviation | Minimum | Maximum |
---|---|---|---|---|

Normal Force (N) | 2124.7 | 1957.33 | 59.16 | 7893.36 |

Cutter Diameter (mm) | - | - | 12.7 | 19.05 |

Cutting Area (mm^{2}) | 9.19 | 8.08 | 0.1 | 49.5 |

Wear Flat Area (mm^{2}) | 10.78 | 10.58 | 0 | 25.8 |

Back-Rake Angle (deg) | - | - | 5 | 40 |

Cutter Wear Height (mm) | 0.68 | 0.65 | 0 | 1.69 |

Rock Drillability, K | 5.46 | 0.94 | 3.2 | 7.78 |

(dimensionless) | ||||

Differential Pressure (psi) | 52.67 | 136.81 | 0 | 450 |

**Table 4.**Statistical summary of experimental data employed in regression of ${F}_{c}$ (Number of observations 779).

Variable | Mean | Standard Deviation | Minimum | Maximum |
---|---|---|---|---|

Cutting Force (N) | 1382.48 | 1224.54 | 11.41 | 5747.19 |

Cutter Diameter (mm) | - | - | 12.7 | 19.05 |

Cutting Area (mm^{2}) | 8.53 | 7.56 | 0.11 | 37.92 |

Wear Flat Area (mm^{2}) | 9.05 | 10.47 | 0 | 25.8 |

Back-Rake Angle (deg) | - | - | 5 | 40 |

Cutter Wear Height (mm) | 0.57 | 0.65 | 0 | 1.69 |

Rock Drillability, K | 5.36 | 1.07 | 3.2 | 7.78 |

(dimensionless) | ||||

Differential Pressure (psi) | 78.32 | 156.88 | 0 | 500 |

Source | SS | df | MS | F–Factor |
---|---|---|---|---|

Regression (${F}_{c}$) | 745.727 | 6 | 149.145 | 505.576 |

Residual | 228.083 | 772 | 0.295 | |

Total | 973.810 | 778 | 1.251 |

Source | SS | df | MS | F–Factor |
---|---|---|---|---|

Regression (${F}_{a}$) | 4736.6 | 6 | 789.434 | 1652.53 |

Residual | 309.08 | 647 | 0.4771 | |

Total | 5045.68 | 653 | 7.7269 |

Cutting Force (${\mathit{F}}_{\mathit{c}}$) | Coef. | Std. Err. | t-Stat | p-Value | 95% Confidence Interval | |
---|---|---|---|---|---|---|

${\beta}_{0}$ | 0.2469 | 0.1821 | 1.3558 | 0.004 | 0.1632 | 0.8782 |

${\beta}_{1}$ | 0.5237 | 0.0216 | 24.2453 | 0.001 | 0.5 | 0.7370 |

${\beta}_{2}$ | 0.7454 | 0.0562 | 13.2633 | 0.0 | 0.6013 | 0.8347 |

${\beta}_{3}*$ | 0.1 | — | — | — | — | — |

${\beta}_{4}**$ | 0.6432 | — | — | — | — | — |

${\beta}_{5}$ | 2.6821 | 0.0947 | 28.3220 | 0.0 | 2.4564 | 2.8283 |

${\beta}_{6}$ | 0.5173 | 0.0387 | 13.3669 | 0.0 | 0.3789 | 0.5310 |

${\beta}_{7}***$ | 0.4 | — | — | — | — | — |

${\beta}_{8}*$ | 1.0 | — | — | — | — | — |

Cutting Force (${\mathit{F}}_{\mathit{a}}$) | Coef. | Std. Err. | t-Stat | p-Value | 95% Confidence Interval | |
---|---|---|---|---|---|---|

${\alpha}_{0}$ | 0.0 | — | — | — | — | — |

${\alpha}_{1}$ | 1.2826 | 0.3836 | 3.34 | 0.001 | 0.5294 | 2.0358 |

${\alpha}_{2}$ | 0.4524 | 0.0288 | 15.7083 | 0.0 | 0.4308 | 0.4776 |

${\alpha}_{3}*$ | 0.1 | — | — | — | — | — |

${\alpha}_{4}**$ | 0.7055 | — | — | — | — | — |

${\alpha}_{5}$ | 3.2531 | 0.0714 | 45.5616 | 0.0 | 3.0342 | 3.5148 |

${\alpha}_{6}$ | 0.2958 | 0.0603 | 4.9054 | 0.002 | 0.2 | 0.3044 |

${\alpha}_{7}***$ | 0.4 | — | — | — | — | — |

${\alpha}_{8}*$ | 1.0 | — | — | — | — | — |
