# Multi-Objective Optimization of a Multilayer Wire-on-Tube Condenser: Case Study R134a, R600a, and R513A

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. General Aspects and Optimization

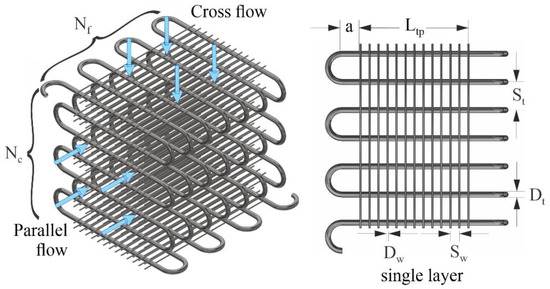

#### 2.1. Multilayer Wire-on-Tube Condenser

^{2}and a mass of 1.216 kg. The range selection in the variation of the eight geometric parameters was defined taking into consideration the commercial dimensions of both the tube and the wire, as well as the limitations in the space where the multilayer wire-on-tube condenser is located, and the typical values found in the literature.

#### 2.2. Operating Conditions

#### 2.3. Proposed Objective Functions

_{T}, is provided by the wire area and the tube area:

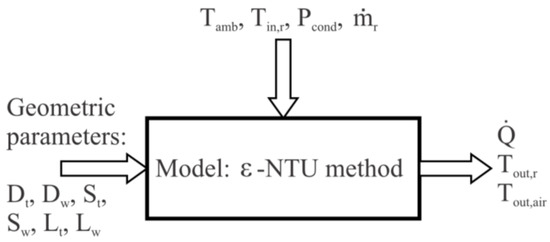

#### 2.4. Algorithms

#### 2.5. Case Study

_{c}, and the number of rows, N

_{f}, were kept fixed, and the other geometric parameters were varied considering the two objective functions, the minimization of the area and the maximization of the heat transfer. These three cases were defined as follows: case 1: N

_{c}= N

_{f}= 6; case 2: N

_{c}= N

_{f}= 7; and case 3: N

_{c}= N

_{f}= 8. Notice that a square (N

_{c}= N

_{f}) condenser section (exchanger side) was maintained, mainly considering the limitations in the space of the refrigerator where the multilayer wire-on-tube condenser was installed.

## 3. Results and Discussion

#### 3.1. Analysis of the Optimization Algorithm

#### 3.2. Optimization Results

^{2}) of the condenser. This was also reflected in a decrease in the mass of the heat exchanger, where the reference mass was 1.216 kg.

_{c}= N

_{f}), there was a decrease in the length of the tube without a wire, a, as well as a decrease in the tube with a wire, L

_{tp}. While in the case of R513A a different situation was presented, for the three study cases the length without a wire was kept constant and practically the length with a wire remained unchanged. In fact, for this refrigerant, the largest designs of the condenser were presented, being reflected in a greater surface and a greater mass of the heat exchanger. Finally, it was noted that the results returned a wires number, N

_{w}, that did not correspond to integer values, so rounding to the nearest value could be assumed.

^{2}, which was considered 100%. In each case, the condenser optimization was conducted using each of the refrigerants and starting from the current surface. Thus, in Figure 7, it can be seen that for the geometric arrangement of case 1, there was practically no reduction of the area in the heat exchange equipment for any refrigerant. However, for cases 2 and 3, a reduction in area can be seen, thus showing a more compact wire-on-tube condenser. In fact, the use of R134 showed the greatest area reduction, in the order of 15% compared to the current heat exchanger design.

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Nomenclature

a | length without wires (mm) |

A | area (m^{2}) |

CFD | computational fluid dynamics |

D | diameter (mm) |

FOA | Falcon Optimization Algorithm |

GWP | Global Warming Potential |

L | length (mm) |

L_{tp} | length with wire (mm) |

$\dot{m}$ | mass flow rate (kg/s) |

MOEAD | Multi-objective Evolutionary Algorithm based on Decomposition |

MOGA | Multi-objective Genetic Algorithm |

MOHTS | Multi-objective Heat Transfer Search |

MOWO | Multi-objective Wale Optimization |

N_{c} | layers number (-) |

N_{f} | rows number (-) |

N_{w} | wires number (-) |

NSGAII | Non-dominated Sorting Genetic Algorithm-II |

NTU | number of transfer units (-) |

OMOPSO | Optimized Multi-objective Particle Swarm Optimization |

P | pressure (bar) |

$\dot{Q}$ | heat transfer rate (W) |

S | pitch (mm) |

T | temperature (K) |

Subscripts | |

amb | ambient |

air | air |

cond | Condensation and condenser |

dsh | desuperheating |

in | inlet |

out | outlet |

r | refrigerant |

sub | subcooling |

T | total |

t | tube |

w | wire |

## References

- Xie, G.N.; Sundén, B.; Wang, Q.W. Optimization of compact heat exchangers by a genetic algorithm. Appl. Therm. Eng.
**2008**, 28, 895–906. [Google Scholar] [CrossRef] - Lv, J.; Jiang, X.; He, G.; Xiao, W.; Li, S.; Sengupta, D.; El-Halwagi, M.M. Economic and system reliability optimization of heat exchanger networks using NSGA-II algorithm. Appl. Therm. Eng.
**2017**, 124, 716–724. [Google Scholar] [CrossRef] - Bansal, P.K.; Chin, T.C. Modelling and optimisation of wire-and-tube condenser. Int. J. Refrig.
**2003**, 26, 601–613. [Google Scholar] [CrossRef] - Zhang, Z.; Huang, D.; Zhao, R.; Leng, Y. Effect of airflow field optimization around spiral wire-on-tube condenser on a frost-free refrigerator performance. Appl. Therm. Eng.
**2017**, 114, 785–792. [Google Scholar] [CrossRef] - Raja, B.D.; Jhala, R.L.; Patel, V. Thermal-hydraulic optimization of plate heat exchanger: A multi-objective approach. Int. J. Therm. Sci.
**2018**, 124, 522–535. [Google Scholar] [CrossRef] - Imran, M.; Pambudi, N.A.; Farooq, M. Thermal and hydraulic optimization of plate heat exchanger using multi objective genetic algorithm. Case Stud. Therm. Eng.
**2017**, 10, 570–578. [Google Scholar] [CrossRef] - Kumar, S.D.; Chandramohan, D.; Purushothaman, K.; Sathish, T. Optimal hydraulic and thermal constrain for plate heat exchanger using multi objective wale optimization. Mater. Today Proc.
**2020**, 21, 876–881. [Google Scholar] [CrossRef] - Sodagar-Abardeh, J.; Ebrahimi-Moghadam, A.; Farzaneh-Gord, M.; Norouzi, A. Optimizing chevron plate heat exchangers based on the second law of thermodynamics and genetic algorithm. J. Therm. Anal. Calorim.
**2020**, 139, 3563–3576. [Google Scholar] [CrossRef] - Tharakeshwar, T.K.; Seetharamu, K.N.; Prasad, B.D. Multi-objective optimization using bat algorithm for shell and tube heat exchangers. Appl. Therm. Eng.
**2017**, 110, 1029–1038. [Google Scholar] [CrossRef] - Wang, S.; Xiao, J.; Wang, J.; Jian, G.; Wen, J.; Zhang, Z. Configuration optimization of shell-and-tube heat exchangers with helical baffles using multi-objective genetic algorithm based on fluid-structure interaction. Int. Commun. Heat Mass Transf.
**2017**, 85, 62–69. [Google Scholar] [CrossRef] - Zarea, H.; Kashkooli, F.M.; Mehryan, A.M.; Saffarian, M.R.; Beherghani, E.N. Optimal design of plate-fin heat exchangers by a Bees Algorithm. Appl. Therm. Eng.
**2014**, 69, 267–277. [Google Scholar] [CrossRef] - Rao, R.V.; Saroj, A. Constrained economic optimization of shell-and-tube heat exchangers using elitist-Jaya algorithm. Energy
**2017**, 128, 785–800. [Google Scholar] [CrossRef] - Mirzaei, M.; Hajabdollahi, H.; Fadakar, H. Multi-objective optimization of shell-and-tube heat exchanger by constructal theory. Appl. Therm. Eng.
**2017**, 125, 9–19. [Google Scholar] [CrossRef] - Raja, B.D.; Jhala, R.L.; Patel, V. Many-objective optimization of shell and tube heat exchanger. Therm. Sci. Eng. Prog.
**2017**, 2, 87–101. [Google Scholar] [CrossRef] - Dhavle, S.V.; Kulkarni, A.J.; Shastri, A.; Kale, I.R. Design and economic optimization of shell-and-tube heat exchanger using cohort intelligence algorithm. Neural Comput. Appl.
**2018**, 30, 111–125. [Google Scholar] [CrossRef] - de Vasconcelos Segundo, E.H.; Mariani, V.C.; dos Santos Coelho, L. Design of heat exchangers using Falcon Optimization Algorithm. Appl. Therm. Eng.
**2019**, 156, 119–144. [Google Scholar] [CrossRef] - Deb, K.; Agrawal, S.; Pratap, A.; Meyarivan, T. A fast elitist non-dominated sorting genetic algorithm for multi-objective optimization: NSGA-II. In Proceedings of the International Conference on Parallel Problem Solving from Nature, Paris, France, 18–20 September 2000; Springer: Berlin/Heidelberg, Germany, 2000; pp. 849–858. [Google Scholar]
- Sanaye, S.; Hajabdollahi, H. Thermal-economic multi-objective optimization of plate fin heat exchanger using genetic algorithm. Appl. Energy
**2010**, 87, 1893–1902. [Google Scholar] [CrossRef] - Rodríguez, M.B.R.; Rodríguez, J.L.M.; Fontes, C.H.D.O. Thermo ecological optimization of shell and tube heat exchangers using NSGA II. Appl. Therm. Eng.
**2019**, 156, 91–98. [Google Scholar] [CrossRef] - Liu, C.; Bu, W.; Xu, D. Multi-objective shape optimization of a plate-fin heat exchanger using CFD and multi-objective genetic algorithm. Int. J. Heat Mass Transf.
**2017**, 111, 65–82. [Google Scholar] [CrossRef] - Sierra, M.R.; Coello, C.A.C. Improving PSO-based multi-objective optimization using crowding, mutation and ∈-dominance. In Proceedings of the International Conference on Evolutionary Multi-Criterion Optimization, Guanajuato, Mexico, 9–11 March 2005; Springer: Berlin/Heidelberg, Germany, 2005; pp. 505–519. [Google Scholar]
- Godínez, A.C.; Espinosa, L.E.M.; Montes, E.M. An experimental comparison of multiobjective algorithms: NSGA-II and OMOPSO. In Proceedings of the 2010 IEEE Electronics, Robotics and Automotive Mechanics Conference, Cuernavaca, Mexico, 28 September–1 October 2010; pp. 28–33. [Google Scholar]
- Hadka, D.; Reed, P. Diagnostic assessment of search controls and failure modes in many-objective evolutionary optimization. Evol. Comput.
**2012**, 20, 423–452. [Google Scholar] [CrossRef] - Espindola, R.S.; Boeng, J.; Knabben, F.T.; Hermes, C.J. A new heat transfer correlation for natural draft wire-on-tube condensers for a broad geometry span. Int. J. Refrig.
**2020**, 114, 10–18. [Google Scholar] [CrossRef] - Belman-Flores, J.M.; Heredia-Aricapa, Y.; García-Pabón, J.J.; Gallegos-Muñoz, A.; Serrano-Arellano, J.; Pérez-Reguera, C.G. An approximate model of a multilayer wire-on-tube condenser operating with R134a and R600a: Experimental validation and parametric analysis. Case Stud. Therm. Eng.
**2021**, 25, 100927. [Google Scholar] [CrossRef] - Deb, K.; Pratap, A.; Agarwal, S.; Meyarivan, T.A.M.T. A fast and elitist multiobjective genetic algorithm: NSGA-II. IEEE Trans. Evol. Comput.
**2002**, 6, 182–197. [Google Scholar] [CrossRef] [Green Version] - Reyes-Sierra, M.; Coello, C.A.C. On-line adaptation in multi-objective particle swarm optimization. In Proceedings of the IEEE Swarm Intelligence Symposium 2006, Indianapolis, IN, USA, 12–14 May 2006; pp. 12–14. [Google Scholar]
- Zhang, Q.; Li, H. MOEA/D: A multiobjective evolutionary algorithm based on decomposition. IEEE Trans. Evol. Comput.
**2007**, 11, 712–731. [Google Scholar] [CrossRef] - Benítez, A.; Nebro, A.; García-Nieto, J.; Oregi, I.; Ser, J.D. jMetalPy: A Python framework for multi-objective optimization with metaheuristics. Swarm Evol. Comput.
**2019**, 51, 100598. [Google Scholar] [CrossRef] [Green Version] - Python Software Foundation. 2020. Available online: http://www.python.org (accessed on 15 April 2022).

**Figure 3.**Statistical comparison between NSGAII, OMOPSO, and MOEAD algorithms. (

**a**,

**c**,

**e**) heat transfer area; (

**b**,

**d**,

**f**) heat transfer.

Variable | Nomenclature | Type of Variable | Reference | Lower Limit | Upper Limit |
---|---|---|---|---|---|

Tube diameter (mm) | D_{t} | Continuous | 4.76 | 4 | 6 |

Wire diameter (mm) | D_{w} | Continuous | 1.30 | 1 | 2 |

Tube pitch (mm) | S_{t} | Continuous | 25.4 | 20 | 30 |

Wire pitch (mm) | S_{w} | Continuous | 4.06 | 4 | 5 |

Length with a wire (mm) | L_{tp} | Continuous | 101.6 | 80 | 120 |

Length without a wire (mm) | a | Continuous | 16.72 | 12 | 18 |

Number of layers | N_{c} | Discrete | 7 | 6 | 8 |

Number of rows | N_{f} | Discrete | 7 | 6 | 8 |

R134a | R600a | R513A | |
---|---|---|---|

P_{cond} (bar) | 9.2 | 5.3 | 11.4 |

T_{in,r} (°C) | 44.5 | 45.1 | 50.2 |

T_{amb} (°C) | 30 | 30 | 30 |

${\dot{\mathrm{m}}}_{r}$ (kg/s) | 0.0013 | 0.0006 | 0.0013 |

Refrigerant | Algorithm | Diff | lwr | upr | p adj |
---|---|---|---|---|---|

R134a | NSGAII-MOEAD | 0.000000466 | −0.000000902 | 0.000001833 | 0.6976122 |

OMOPSO-MOEAD | −0.000001939 | −0.000003307 | −0.000000572 | 0.0029952 | |

OMOPSO-NSGAII | −0.000002405 | −0.000003773 | −0.000001038 | 0.0001789 | |

R600a | NSGAII-MOEAD | 0.001188397 | 0.000970156 | 0.001406639 | 0.0000000 |

OMOPSO-MOEAD | 0.000159179 | −0.000059061 | 0.000377421 | 0.1973007 | |

OMOPSO-NSGAII | −0.001029218 | −0.001247459 | −0.000810977 | 0.0000000 | |

R513A | NSGAII-MOEAD | −0.006567517 | −0.007110653 | −0.006024381 | 0.0000000 |

OMOPSO-MOEAD | 0.000395047 | −0.000148089 | 0.000938183 | 0.1990515 | |

OMOPSO-NSGAII | 0.006962564 | 0.006419428 | 0.007505700 | 0.0000000 |

Refrigerant | R134a | R600a | R513A | ||||||
---|---|---|---|---|---|---|---|---|---|

Case 1 | Case 2 | Case 3 | Case 1 | Case 2 | Case 3 | Case 1 | Case 2 | Case 3 | |

$\dot{Q}$ (W) | 240.53 | 240.72 | 240.72 | 218.80 | 221.10 | 222.25 | 238.58 | 242.92 | 243.14 |

A (m^{2}) | 0.36723 | 0.31415 | 0.31268 | 0.36570 | 0.32961 | 0.36189 | 0.36512 | 0.36334 | 0.35886 |

D_{w} (mm) | 1.3 | 1.0 | 1.0 | 1.3 | 1.0 | 1.0 | 1.2 | 1.0 | 1.0 |

S_{w} (mm) | 4.0 | 5.0 | 5.0 | 4.0 | 5.0 | 5.0 | 4.0 | 5.0 | 5.0 |

D_{t} (mm) | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 4.8 |

S_{t} (mm) | 21.5 | 20.0 | 20.0 | 21.7 | 20.0 | 20.0 | 27.1 | 22.2 | 20.0 |

L_{tp} (mm) | 120.0 | 105.1 | 80.0 | 120.0 | 111.3 | 80.0 | 120.0 | 120.0 | 116.0 |

N_{c} (-) | 6 | 7 | 8 | 6 | 7 | 8 | 6 | 7 | 8 |

N_{f} (-) | 6 | 7 | 8 | 6 | 7 | 8 | 6 | 7 | 8 |

a (mm) | 18.0 | 15.4 | 10.0 | 18.0 | 16.0 | 14.1 | 18.0 | 18.0 | 18.0 |

L_{t} (mm) | 6716.0 | 8070.0 | 8269.0 | 6721.0 | 8437.0 | 8787.0 | 6998.0 | 9211.0 | 11,597.0 |

N_{w} (-) | 361.0 | 295.2 | 257.0 | 361.0 | 312.6 | 257.0 | 361.0 | 338.7 | 372.2 |

L_{w} (mm) | 118.5 | 130.0 | 150.0 | 119.1 | 130.0 | 150.0 | 148.9 | 144.1 | 150.0 |

Volume (m^{3}) | 0.000144 | 0.000130 | 0.000132 | 0.000142 | 0.000136 | 0.000139 | 0.000146 | 0.000152 | 0.000154 |

Mass (kg) | 1.1205 | 1.0202 | 1.0376 | 1.1184 | 1.0698 | 1.0910 | 1.1449 | 1.1951 | 1.2094 |
