Feasibility of Hybrid Desalination Plants Coupled with Small Gas Turbine CHP Systems

1
Department of Atomic and Heat- and -Power Engineering, Peter the Great St. Petersburg Polytechnic University, 195251 Saint Petersburg, Russia
2
Department of Mechanical, Energy, Management and Transport Engineering, University of Genova, I-16145 Genova, Italy
*
Author to whom correspondence should be addressed.
Academic Editor: Dimitrios Katsaprakakis
Energies 2022, 15(10), 3618; https://doi.org/10.3390/en15103618
Received: 12 April 2022 / Revised: 9 May 2022 / Accepted: 13 May 2022 / Published: 15 May 2022
(This article belongs to the Special Issue Water Desalination Plants Driven by Hybrid Energy Conversion Systems)

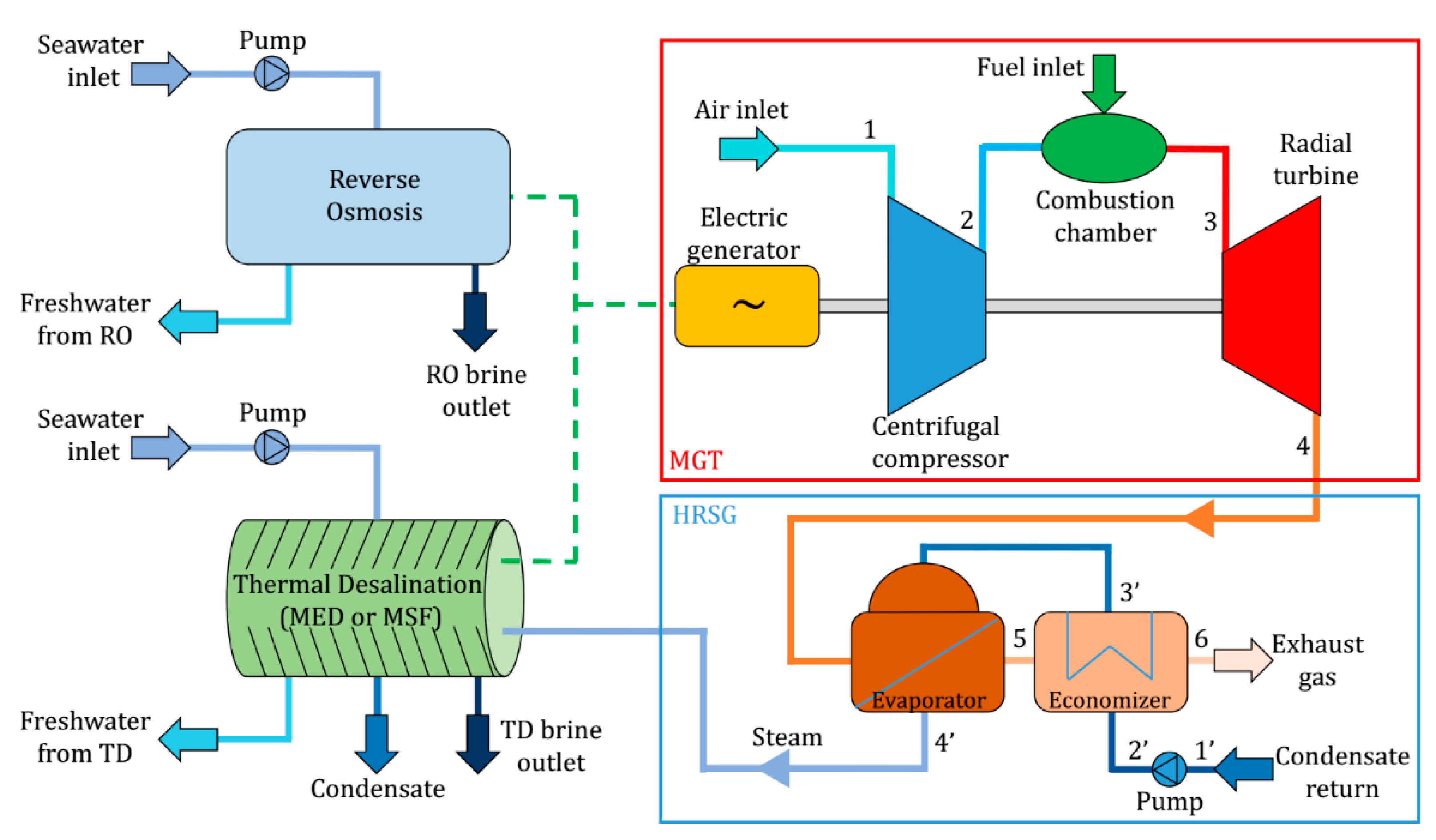

Nowadays, several technologies for desalination processes are available and widely employed. However, they consume a considerable amount of energy and involve high capital and operating costs. Therefore, the techno-economic analysis of a system coupling different energy sources with the desalination processes is of value. The possibility of coupling a small gas turbine combined heat and power system (GT CHP) with hybrid desalination plants (HDPs) has been assessed in this study. The proposed gas turbine power generation system, based on a single-stage centrifugal compressor and an uncooled centripetal turbine, provides design simplicity and reasonable installation costs for the power generating plant. The hybrid desalination technique, based on the use of two different desalination technologies, i.e., Reverse Osmosis (RO) and a thermal desalination process, has been chosen to better exploit the electrical and thermal energy produced by the mini CHP plant. The proposed solution is numerically investigated from both thermodynamic and economic points of view, and the results of the thermodynamic analysis of the cycle are used as input for the evaluation of the amount of freshwater produced and of costs. The economic assessment of standalone desalination systems is also shown for the comparison with the hybrid solutions here proposed. Results show that the total cost of the water produced by MED + RO was less than the total cost of the water obtained by MSF + RO, and that the energy cost of MED + RO hybrid desalination system was about 15% less than that for stand-alone RO desalination technology. Thus, the MED + RO hybrid desalination system can be considered a promising solution for the coupling with the proposed mini GT CHP plant, which, due to the small size and cost, as well as the easy installation, can be easily applied in off-grid or remote areas. View Full-Text
Keywords: hybrid water desalination; gas turbine CHP system; thermal and membrane desalination; cost estimation; cogeneration system; mini gas turbine hybrid water desalination; gas turbine CHP system; thermal and membrane desalination; cost estimation; cogeneration system; mini gas turbine
Show Figures

Figure 1

MDPI and ACS Style

Sokolova, E.; Sadeghi, K.; Ghazaie, S.H.; Barsi, D.; Satta, F.; Zunino, P. Feasibility of Hybrid Desalination Plants Coupled with Small Gas Turbine CHP Systems. Energies 2022, 15, 3618. https://doi.org/10.3390/en15103618

AMA Style

Sokolova E, Sadeghi K, Ghazaie SH, Barsi D, Satta F, Zunino P. Feasibility of Hybrid Desalination Plants Coupled with Small Gas Turbine CHP Systems. Energies. 2022; 15(10):3618. https://doi.org/10.3390/en15103618

Chicago/Turabian Style

Sokolova, Ekaterina, Khashayar Sadeghi, Seyed Hadi Ghazaie, Dario Barsi, Francesca Satta, and Pietro Zunino. 2022. "Feasibility of Hybrid Desalination Plants Coupled with Small Gas Turbine CHP Systems" Energies 15, no. 10: 3618. https://doi.org/10.3390/en15103618
