Enhanced Electrochemical Performances of Hollow-Structured N-Doped Carbon Derived from a Zeolitic Imidazole Framework (ZIF-8) Coated by Polydopamine as an Anode for Lithium-Ion Batteries

Abstract

Doping heteroatoms such as nitrogen (N) and boron (B) into the framework of carbon materials is one of the most efficient methods to improve the electrical performance of carbon-based electrodes. In this study, N-doped carbon has been facilely synthesized using a ZIF-8/polydopamine precursor. The polyhedral structure of ZIF-8 and the effective surface-coating capability of dopamine enabled the formation of N-doped carbon with a hollow structure. The ZIF-8 polyhedron served as a sacrificial template for hollow structures, and dopamine participated as a donor of the nitrogen element. When compared to ZIF-8-derived carbon, the HSNC electrode showed an improved reversible capacity of approximately 1398 mAh·g⁻¹ after 100 cycles, with excellent cycling retention at a voltage range of 0.01 to 3.0 V using a current density of 0.1 A·g⁻¹.

1. Introduction

The development of lithium-ion batteries (LIBs) is one of the most important achievements over the past three decades [1]. The success story of LIBs is reflected in their many applications in portable electronic devices and electric vehicles [2]. Since commercialization of LIBs, carbon materials have gained much attention [3]. At present, graphite has been used as a commercial anode material in LIBs due to its high stability and safety [4,5]. However, graphite cannot meet the demands required for high-performance LIBs, with a limited low storage capacity of about 372 mAh·g⁻¹ [6]. Therefore, numerous studies on carbon materials such as carbon nanotubes, nanospheres, hollow carbon structures, and graphene have been reported that focused mainly on the improvement of the energy density for LIBs by improving the conductivity and surface area of materials [7,8,9,10]. Among these studies, hollow carbon structures have received much attention due to their unique morphologies, which provide a shortened Li-ion diffusion length during cycling processes, and high reversible capacity and improved cycling stability with a discharge capacity of 421 mAh·g⁻¹ after 170 cycles at a current density of 1 A·g⁻¹ [9]. Furthermore, hollow carbon structures also can show remarkable properties in metallic lithium batteries due to the suppressed growth of dendrite [11].

Recently, carbon doped with various heteroatoms such as nitrogen (N), phosphorous (P), and boron (B) have been studied as anode materials to increase the electrochemical properties of carbon [12,13,14]. Among the carbon anodes, N-doped carbon (NC) showed to be the most promising candidate due to the existence of two lone pair electrons on the nitrogen, which implied an improvement in its electronegativity and attractive interaction with charge carriers such as lithium ions. This would result in an enhanced storage capacity of LIBs [15]. The study of Ou et al. developed a nitrogen-rich porous carbon, which displayed a large discharge capacity of 1178 mAh·g⁻¹ at the 100th cycle with a current density of 0.1 A·g^-1 [16]. However, an additional synthetic step for incorporating nitrogen into the carbon matrix and an etching step with strong bases were required. Tian et al. also reported that the ratio of graphitic N to pyridinic N or pyrrolic N can be optimized on nitrogen-doped graphene sheets and would result in an increasing trend of the discharge capacity [17]. Nevertheless, the morphology of carbon particles (e.g., porosities) was not controlled. On the basis of these works, it is still very challenging to prepare N-doped carbon materials with high macro- and mesoporosities through a facile and mild synthetic method. Therefore, it will be meaningful to develop carbon-based anode materials with hollow morphologies and optimal composition of N-doped carbon species as an anode with high energy density in LIBs.

Metal–organic frameworks (MOFs) are the preferred precursors used to fabricate porous carbons because of their high thermal stability, low density, and high surface area [18,19,20,21]. Zeolitic imidazole frameworks (ZIF-8) have gained substantial attention in the development of NC materials [22,23]. However, NC derived from ZIF-8 exhibits a low degree of graphitization and numerous defects in the NC structure, which can cause poor electrical conductivity and limited electron transfer [24]. To solve this problem, several reports investigated the mixture of ZIF-8 precursors and secondary carbon sources such as carbon nanotubes and reduced graphene oxide (r-GO), and results showed an improvement in the electrical conductivity of NC [24,25]. Therefore, it is necessary to develop more appropriate strategies for the controllable synthesis of NC with a unique form, high surface area, and electrical conductivity.

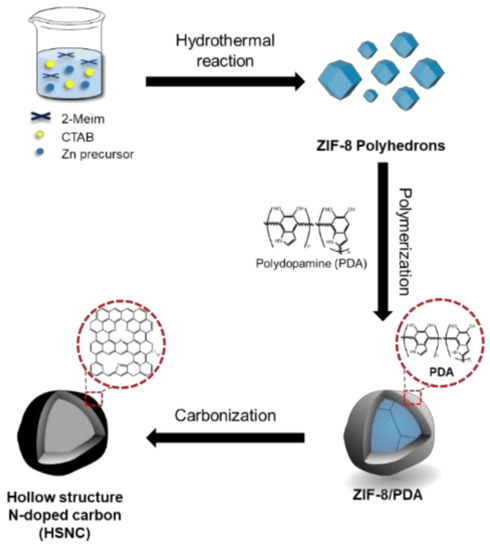

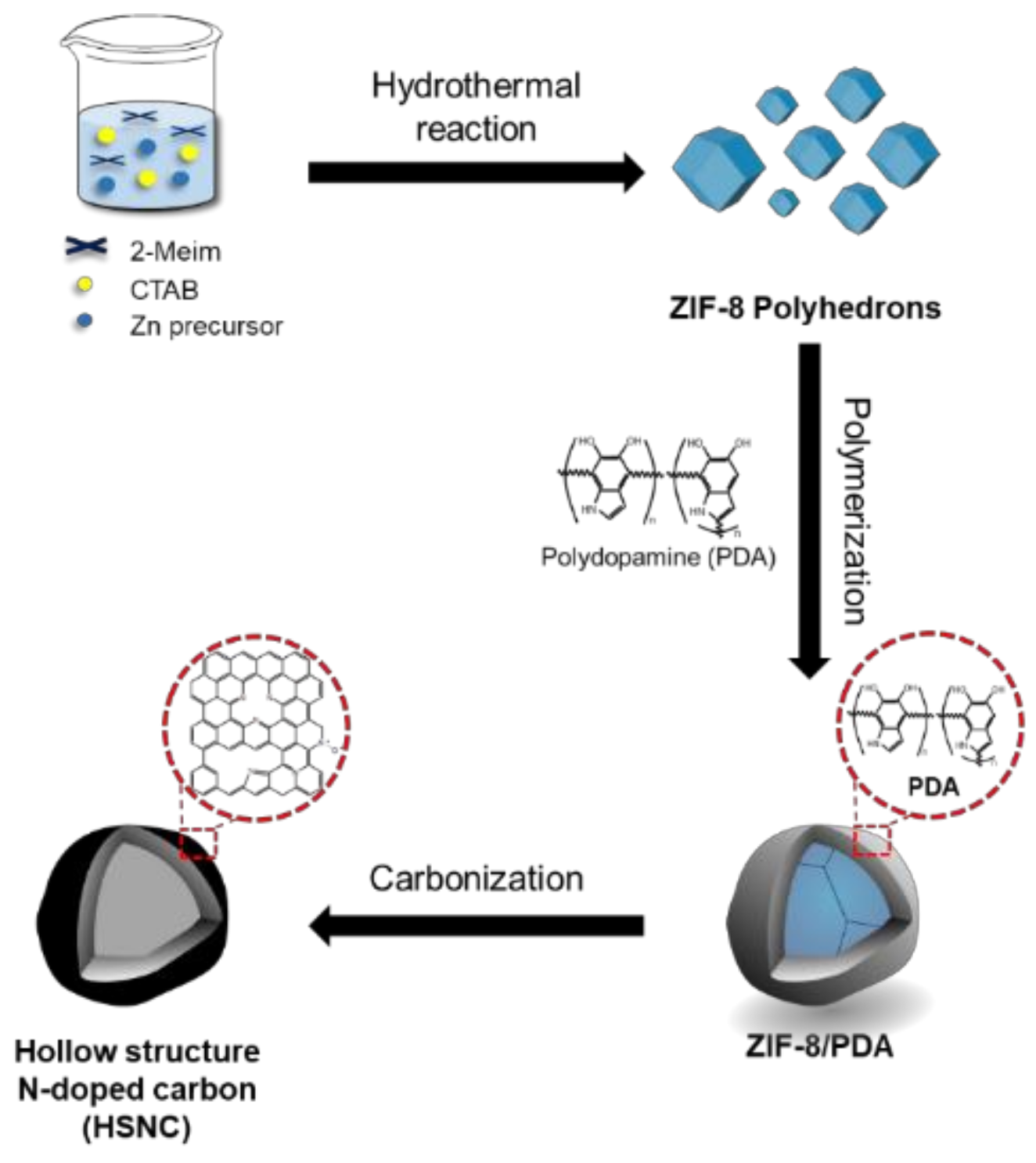

In the present work, NC with a hollow structure was successfully synthesized by mixing ZIF-8 and dopamine. During this process, catechol and amine groups in dopamine would undergo self-polymerization to become polydopamine (PDA) under alkaline conditions and coat the ZIF-8 template (ZIF-8/PDA). After that, the mixture was carbonized using a tube furnace under argon (Ar) atmosphere. During the high-temperature carbonization process, ZIF-8 becomes a sacrifice template to form hollow-structured N-doped carbon (HSNC). A schematic of the HSNC synthesis route is illustrated in Figure 1. Based on the unique structure, the HSNC sample displayed a remarkable reversible capacity and high rate capability in LIB systems.

2. Materials and Methods

2.1. Sample Preparation

2.1.1. Preparation of ZIF-8 polyhedrons

About 0.1428 g of Zn(NO₃)₂∙6H₂O and 2.1674 g of 2-methylimidazole were dissolved in 10 mL of deionized water in separate containers. Then, 2-methyl imidazole solution was mixed with 1.44 mL of 0.01 M CTAB. Subsequently, the mixture was added to a Zn(NO₃)₂∙6H₂O solution and stirred for 10 min until the color changed from clear to milky. The ZIF-8 polyhedron was produced by transferring that milky-colored solution into a 50 mL Teflon-lined autoclave to undergo hydrothermal reaction in an electric oven at 120 °C for 6 h. Lastly, samples were collected after drying in an oven at 80 °C overnight.

2.1.2. Synthesis of NC

The ZIF-8 polyhedron powder obtained after drying overnight was carbonized in a tube furnace at 900 °C for 3 h with a ramping rate of 5 °C min⁻¹ under Ar gas flow (0.5 L min⁻¹).

2.1.3. Synthesis of HSNC

After the hydrothermal reaction, the ZIF-8 polyhedron solution was added in a dropwise manner to 0.01 g of dopamine hydrochloride, which had been dissolved in 10 mL of distilled water. Then, the mixture was stirred for 6 h at room temperature to initiate the polymerization of dopamine on the surface of the ZIF-8 particles. The black precipitate was collected after filtration and washed several times with distilled water and ethanol. The ZIF-8/PDA powder was obtained after drying the precipitate in an oven at 80 °C overnight. Afterward, the ZIF-8/PDA powder was carbonized using similar conditions with the NC sample to produce the HSNC sample.

2.2. Characterization

2.2.1. Material Characterization

X-ray diffraction (XRD) patterns were recorded with a Rigaku model Miniflex 600 (Rigaku Co., Tokyo, Japan) X-ray diffractometer using Cu K^α radiation at a wavelength of 1.5418 Å. The Raman spectra were measured using a He-Ne laser at a wavelength of 532 nm on an alpha300R (WITec, Ulm, Germany). The surface-element composition was measured by X-ray photoelectron spectroscopy (XPS, Theta Probe AR-XPS, Waltham, MA, USA). The pore volume and surface area of the samples were measured in a nitrogen environment using a gas adsorption analyzer (Micromeritics ASAP 2010, Unterschleissheim, Germany). The pore-size distribution was confirmed by the Barrett–Joyner–Halenda (BJH) method. The morphology and particle size were determined by transmission electron microscopy (TEM, JEOL JEM-2011, Tokyo, Japan) and scanning electron microscopy (SEM, JEOL JSM-6700F, Tokyo, Japan). Elemental mapping images were acquired with an energy dispersive X-ray spectrometer (EDX, JEOL JEM-2011, Tokyo, Japan).

2.2.2. Electrochemical Characterization

The electrodes were prepared by mixing the active material and PVDF binder with the solvent mixture of NMP (Aldrich; St. Louise, MO, USA) at a weight ratio of 9:1. The slurry was coated with a doctor-blade on Cu foil and dried at 80 °C for 30 min in a vacuum oven. The dried electrodes were obtained and cut into a circular shape with a diameter of 14 mm using a puncher with a loading density of 1.8 mg·cm⁻². Then, samples were dried using a vacuum chamber at 80 °C for 2 h. Coin cells (2032) were assembled in an Ar-filled glove box using Celgard 2400 polypropylene membrane as a separation membrane and lithium metal as a reference electrode. In addition, 1 M LiPF₆ solution dissolved in an ethylene carbonate (EC): dimethyl carbonate (DMC) mixture was applied as electrolyte 1:1 v/v. Coin-cell performances were measured using a battery cycler (WonATech WBCS3000, Seoul, Korea) in the range of 0.01–3.0 V. The electrochemical impedance spectra (EIS) was measured using a ZIVE SP2 impedance analyzer (WonATech, Seoul, Korea). Electrochemical impedance measurements were obtained after charging at 3.0 V in the first cycle within the frequency range of 10⁻²–10⁵ Hz and amplitude of 10 mV AC signal. All electrochemical experiments were performed at 30 °C.

3. Results and Discussion

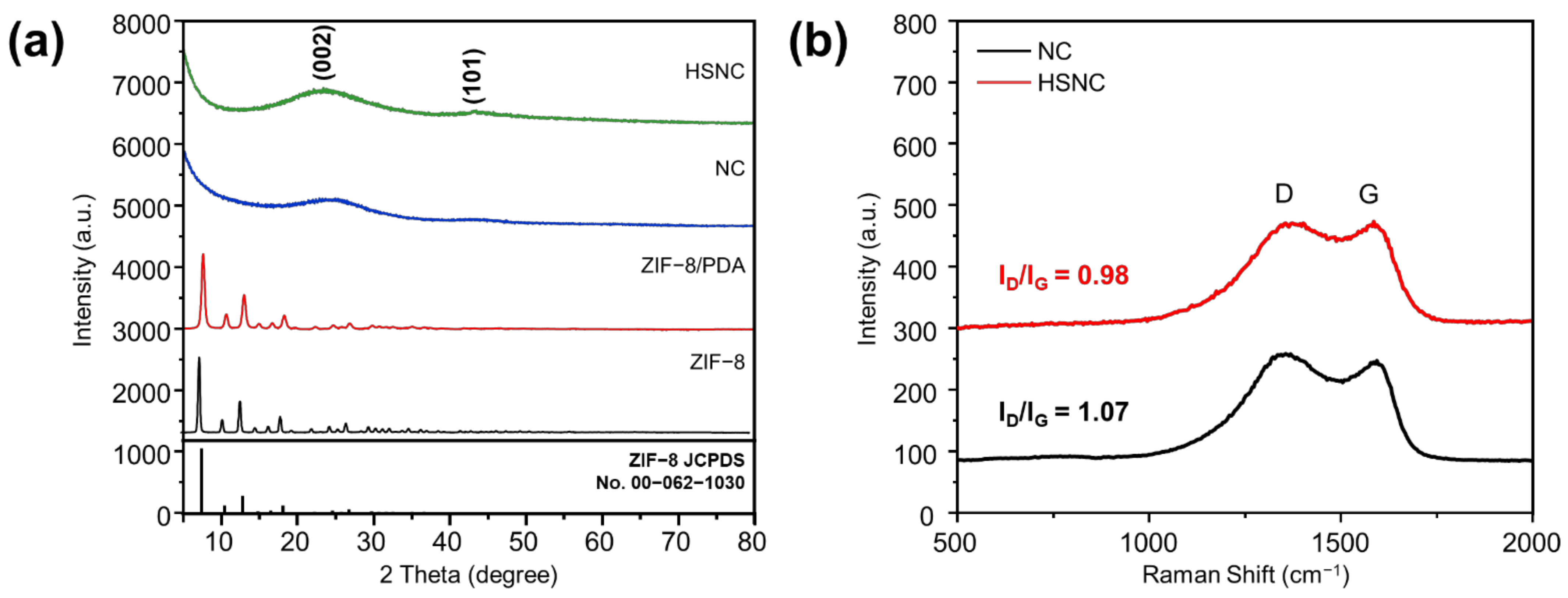

Figure 2a shows the XRD results of NC, HSNC, and their intermediate samples. The ZIF-8 polyhedron and ZIF-8/PDA samples showed a similar pattern to the simulated XRD of ZIF-8 and were indexed as a cubic structure with the I$\overline{4}$3 m space group (JCPDS No. 62-1030) [26]. Results indicated that ZIF-8 was successfully synthesized, and PDA coating on the ZIF-8 particles did not change the structure of the ZIF-8 itself. Both the NC and HSNC samples also displayed two broad peaks at 23° and 43° that can be correlated to the (002) and (101) planes in the amorphous carbon structure [27]. From this, ZIF-8 served as a sacrifice template to produce polyhedron amorphous carbon and hollow amorphous carbon, respectively, during the carbonization process at high temperature. The lower angle of (002) peak of HSNC (23.3°) compared to NC (24.6°) and the broader peak of HSNC can be attributed to the increasing interlayer distance of d₀₀₂ and more disordered carbon structure [28]. Using the Bragg equation, the interlayer of d₀₀₂ for HSNC and NC samples was determined to be about 0.38 nm and 0.36 nm, respectively.

Raman spectra shown in Figure 2b were carried out to understand the graphitization degree of the NC and HSNC samples. Both the NC and HSNC samples exhibited two broad peaks at 1350 and 1587 cm⁻¹ that corresponded to the D and G bands, respectively [29]. The D band refers to the presence of defects and disorder in the carbon structure (sp³), while the G band is identified as graphitic carbon structures (sp²) [30]. A high I_D/I_G ratio generally indicates the generation of an increasing amount of defects and disorder in the carbon structure. The I_D/I_G values of the NC and HSNC samples were calculated to be 0.98 and 1.07, respectively. The higher amount of defects and disorder in the carbon structure of HSNC would imply easier transportation of charge carriers and electrolyte inside the structures, which is a favoring factor as an anode material in LIBs [15].

The value of I_D/I_G ratio can also be used to calculate the crystalline size (L_a) of carbon using the Tuinstra–Koenig relation (Equation (1)) [31]:

L_a (in nm) = (2.4 × 10⁻¹⁰) λ⁴ (I_D/I_G)⁻¹

(1)

where λ is the wavelength of the Raman light source (532 nm). The crystalline sizes of NC and HSNC were calculated to be 17.9 and 19.6 nm, respectively. Results showed that an increase in defects of the HSNC sample could lead to the swelling of the carbon structure.

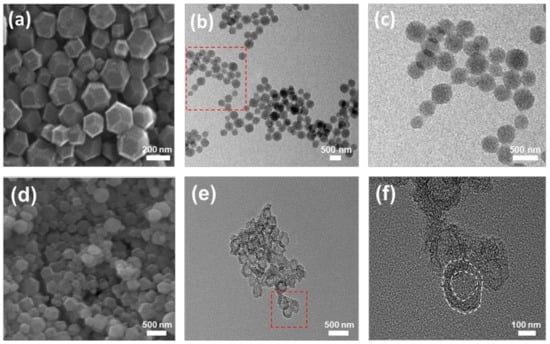

The SEM and TEM images in Figure 3 were used to measure the morphologies and particle sizes of the NC and HSNC samples. The SEM image of NC in Figure 3a shows a polyhedron morphology with a particle size of 180–320 nm width and 170–380 nm length, indicating that the morphology of ZIF-8 was well maintained during the calcination process. The TEM images of the NC sample (Figure 3c) also show the solid structure of particles with sizes of 200–420 nm width and 220–400 nm length, which are well matched with SEM images. On the other hand, the HSNC sample (Figure 3d) was mainly composed of spherical and hollow-shaped nanoparticles with particle size of 160–370 nm width and 250–310 nm length. The morphological change to spherical shapes indicated that the PDA coating layers were homogeneously formed on the surface of the ZIF-8 polyhedron. The TEM images in Figure 3e,f show that the carbon particles of the HSNC sample had a unique hollow structure with a diameter of 120 nm and thickness of the outer carbon layers of about 20–40 nm. From the results, it is clear that the ZIF-8 was successfully decomposed as a sacrificial template. The hollow structure will be favorable for the effective diffusion of the electrolyte and a charge carrier such as lithium ions [32].

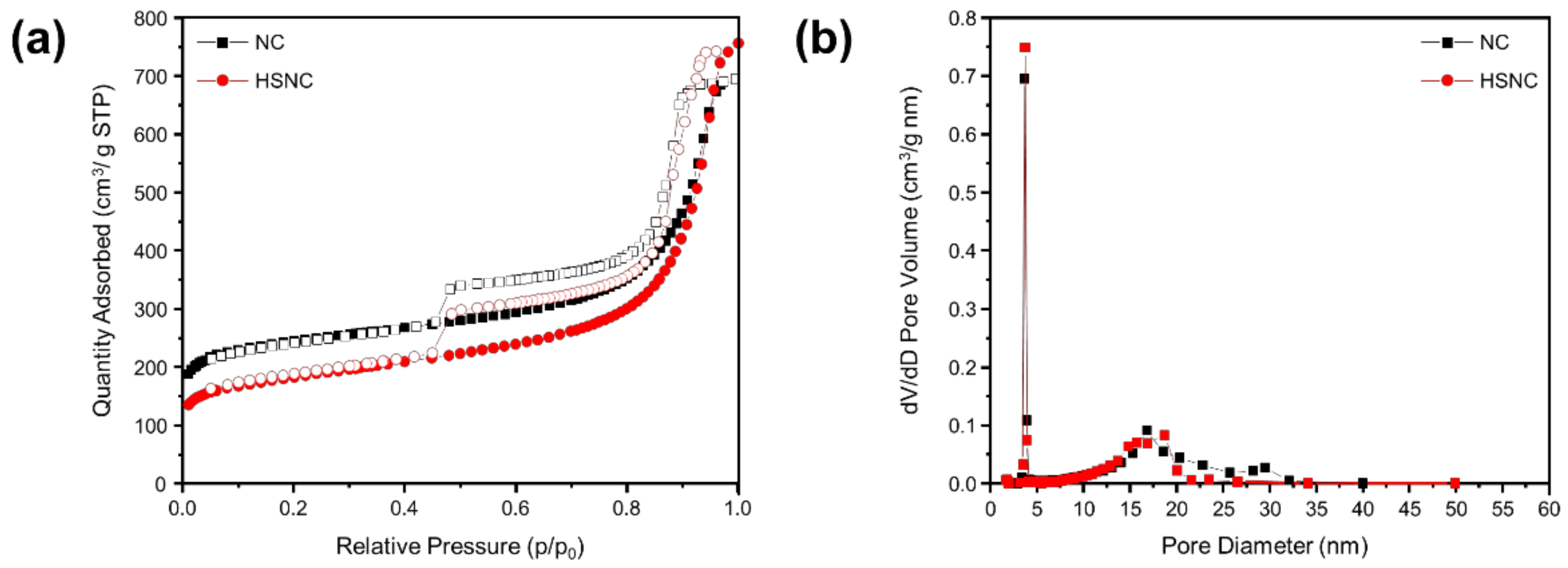

The surface areas of the HSNC and NC samples were analyzed by BET analysis (Figure 4). The shape of the N₂ adsorption/desorption isotherm of both samples in Figure 4a clearly illustrates the IUPAC type IV curves, which can be correlated to the presence of a mesoporous structure [33]. Results were supported by the graph of the distribution of the pore sizes (Figure 4b), in which the presence of pore sizes within the range of 3.61–3.83 nm was observed. A higher pore volume of HSNC (0.28 cm³·g⁻¹) compared to NC (0.16 cm³·g⁻¹) was obtained, which could prove that there was a change in the morphology of the NC to the hollow structure. In consequence of these changes, the specific surface area of the HSNC sample was improved to about 437.96 m²·g⁻¹, which was larger than the NC sample with a specific surface area of 394.65 m²·g⁻¹. The improved surface area and pore volume of the HSNC compared to the NC sample corresponded to an increase in the active site of Li⁺ ions. This resulted in an easier electrolyte penetration, which can significantly improve the electrochemical properties. In addition, Table S1 also shows that the HSNC sample had a competitive specific surface area compared to the other N-doped carbon-based anode materials, due to its unique morphologies.

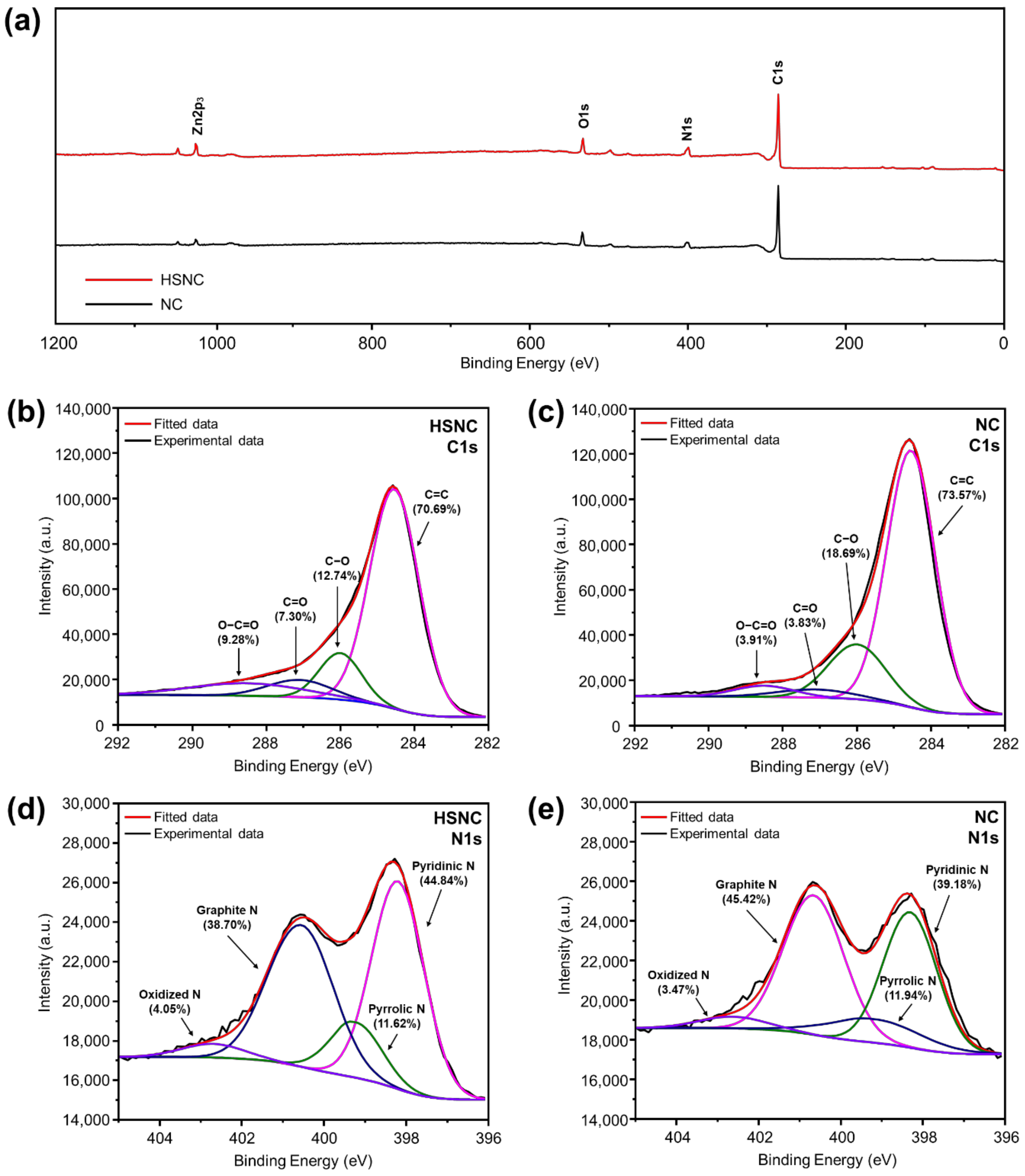

The surface chemical compositions of the HSNC and NC samples were analyzed using XPS experiments (Figure 5). The XPS spectra showed that HSNC and NC samples had similar patterns, which consisted of C, N, O, and Zn elements, as shown in Figure 5a. However, the HSNC sample showed slightly higher C and N peaks as a result of the presence of a PDA coating. In both samples, Zn2p peaks were observed, which indicated that a small amount of Zn still remained. However, considering that Zn is much more sensitive to X-ray sources than light atoms (C, N, O), the Zn content was traceable. In addition, many studies have reported that Zn doping can also be a conductivity-enhancing agent for anode materials, which might have helped to improve the electrochemical performance of the NC and HNSC samples [34]. Furthermore, the C1s region of the HSNC and NC samples in Figure 5b,c can be deconvoluted into four peaks that are specified as C=C (284.54 eV), C-O (286 eV), C=O (287.1 eV), and O-C=O (288.5 eV) [35,36]. The increasing ratio of C-O, C=O, and O-C=O bonds (29.24%) in the HSNC compared to that of the NC (26.43%) indicated more defects in the structure of the HSNC, which was attributable to the use of dopamine.

The N1s region of the HSNC and NC samples was fitted into four peaks at 398.2, 399.1, 400.6, and 403 eV, which corresponded to pyridinic N, pyrrolic N, graphitic N, and oxidized N, respectively (Figure 5d,e) [36,37]. The HSNC sample had a higher ratio of pyridinic and pyrrolic species (56.46%) than that of NC (51.12%). The pyridinic and pyrrolic N structures can be associated with the defects in the carbon structure. The presence of lone pairs of electrons in the pyridinic and pyrrolic N signified an improvement of the attractive interactions with Li ions [38]. From this, the superior electrochemical performances of HSNC due to the facilitated transportation of Li ions during cycling processes was predicted in LIBs.

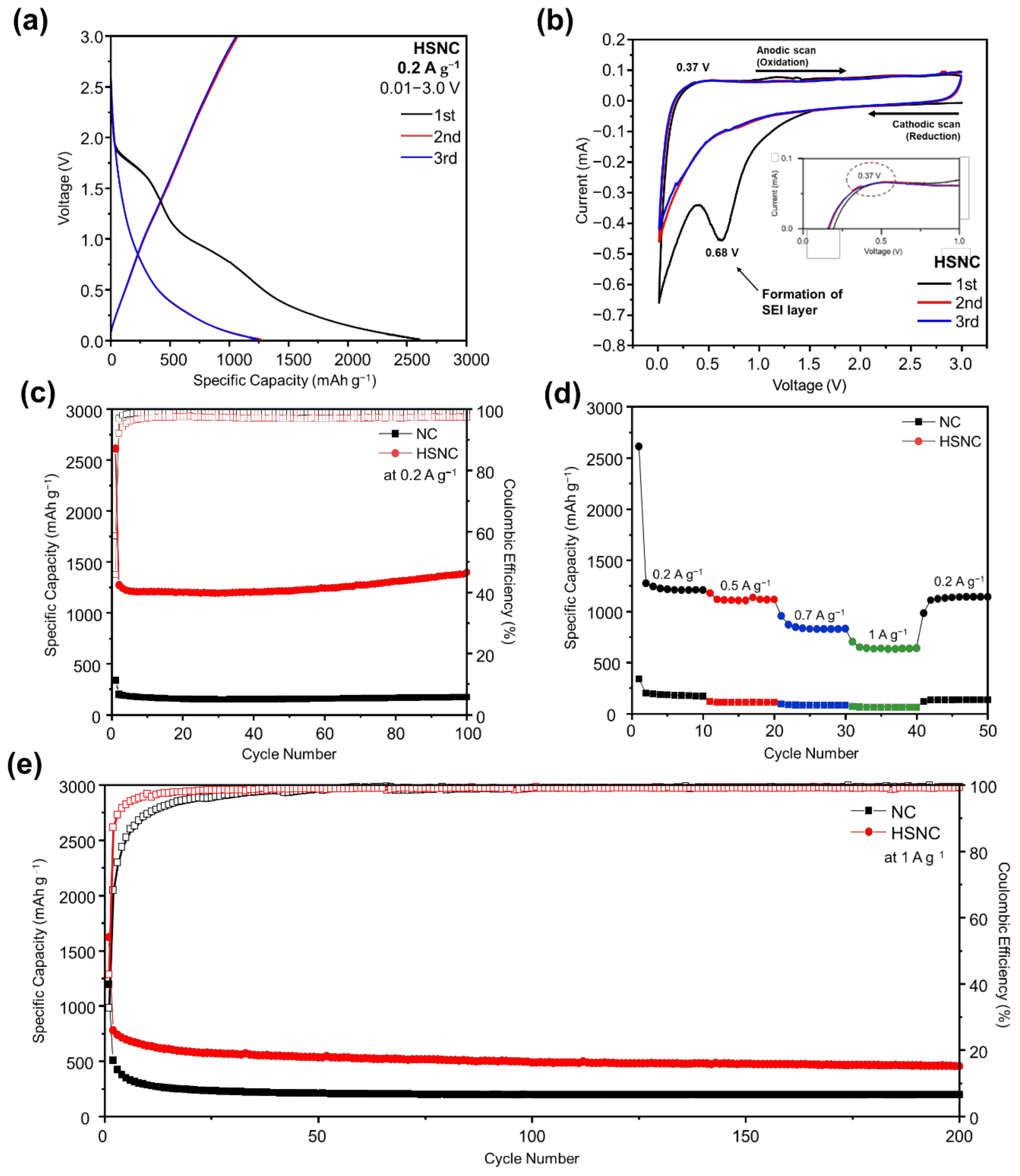

The electrochemical performance of the HSNC and NC samples as anode materials for LIBs were investigated (Figure 6). The HSNC and NC samples displayed a similar galvanostatic discharge–charge graph (Figure 6a and Figure S1a). The first discharge cycle showed two plateaus at around 1.4–0.70 V and 0.5–0.01 V that were attributed to the formation of SEI layers and a lithiation reaction on the HSNC surface. These were consistent with the CV results shown in Figure 6b [39]. Notably, the CV curve during the first cycle showed two cathodic peaks. The cathodic peak at 0.68 V referred to the formation of SEI layer, while the cathodic peak at 0.01 V was correlated with the lithiation reaction [9]. In the subsequent cycles, the cathodic peak at 0.68 V disappeared, which indicated the presence of irreversible reactions during SEI layer formation in the first cycle. Meanwhile, the cathodic peak at 0.01 V and anodic peak at 0.37 V remained, which was related to the lithiation and delithiation reactions, respectively [9]. As mentioned above, the formation of an SEI layer is caused by side reactions between carbonate electrolyte and electrolyte salt [40]. The CV curve of the NC sample (Figure S1b) showed a similar pattern to that of the HSNC sample. However, a larger CV area of HSNC was observed when compared to the NC sample. This implies the HSNC sample had a superior cycling performance over the NC sample.

Figure 6c shows the cycling performances of the NC and HSNC samples at a voltage range of 0.01–3.0 V and a current density of 0.2 A·g⁻¹. The HSNC sample showed a high initial capacity of 2613.3 mAh·g⁻¹, and the capacity decreased to 1273.5 mAh·g⁻¹ in the second cycle. This reduction of capacity often occurs in anode materials because of the irreversible reaction of the SEI layer formation [41]. After the second cycle, the HSNC sample showed a stable retention that increased to 1398.3 mAh·g^-1 at 100 cycles, which was almost four times higher than the theoretical capacity of graphite (372 mAh·g⁻¹). In comparison, the first discharge capacity of the NC sample only showed 337.6 mAh·g⁻¹, and it decreased to 199.2 mAh·g⁻¹ at the second cycle without increasing capacity. Finally, after 100 cycles, the discharge capacity of the NC sample only remained at 99.1 mAh·g⁻¹. The coulombic efficiencies (CEs) of the HSNC sample remained above 92% after the second cycle. The superior performance of the HSNC over the NC sample was mainly due to their higher defective carbon structure and hollow structures for the accessibility of more electrolytes, which improved the cyclability of the sample. The HSNC sample also presented the competitive cycling performance when compared to previous reports on N-doped carbon as anode materials in LIBs (Table S2).

The rate performance of the HSNC and NC samples at varying current densities that ranged from 0.2 A·g⁻¹ to 1 A·g⁻¹ were observed in Figure 6d. It can be clearly seen that the rate performance of the HSNC sample was better than that of the NC sample. In detail, the rate performance of the HSNC sample was determined to be 1404.1, 1179.0, 954.4, 702.9 mAh·g⁻¹ at 0.2, 0.5, 0.7, and 1 A·g⁻¹, respectively. When the current rate returned to 0.1 A·g⁻¹, the HSNC sample still displayed an outstanding recovery rate of 87.5% when compared to the NC sample (80.1%). Moreover, the high rate performance of the HSNC sample at 1 A·g⁻¹ showed a high reversible capacity of 455.7 mAh·g⁻¹ after 200 cycles, with an outstanding fading rate of 0.002% when compared to NC sample (Figure 6e).

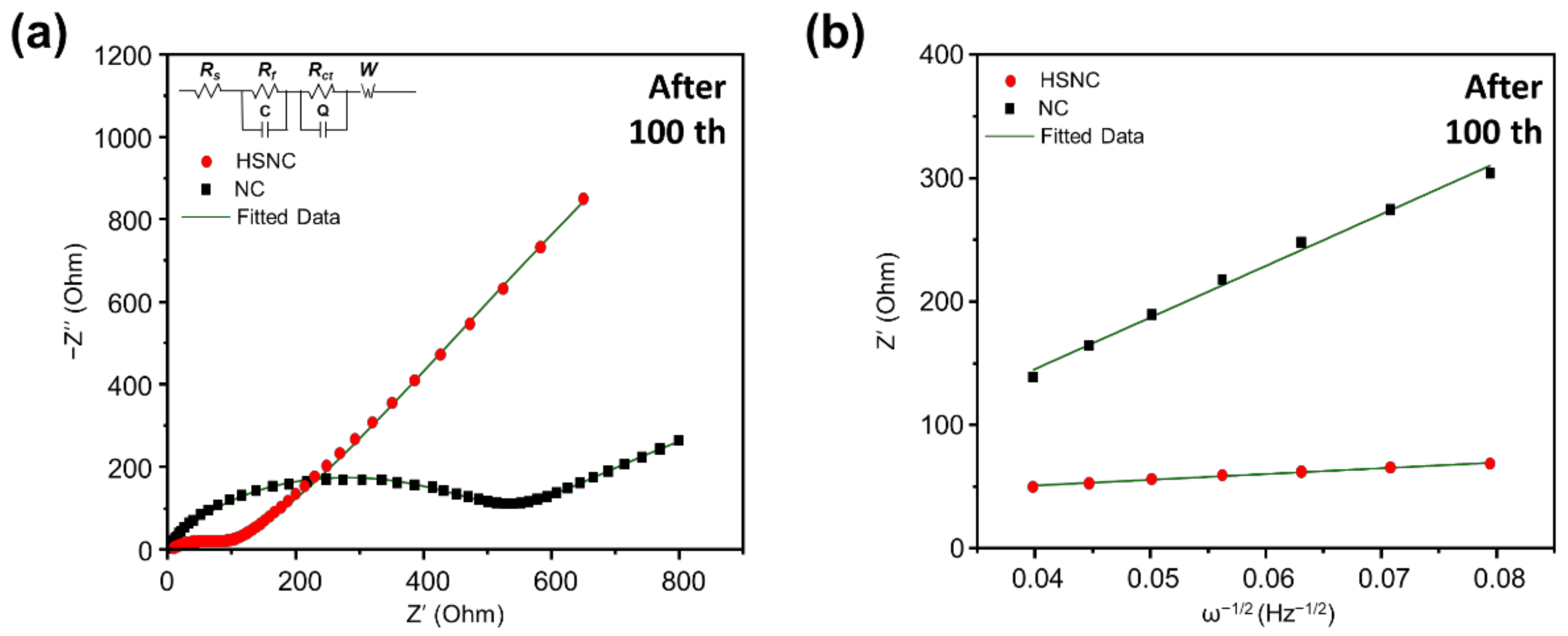

Figure 7 shows the EIS measurement of the HSNC and NC samples after 100 cycles with a current density of 0.2 A·g⁻¹. The Nyquist plots of the HSNC and NC samples in Figure 7a are composed of a semicircle and sloped line, which were associated with the charge-transfer resistance (R_ct) and Warburg resistance (W_o) for the diffusion of Li⁺ ions, respectively [42]. After fitting with an equivalent circuit, the simulated data were obtained (Table S3). Results showed that the R_ct values of the HSNC (115.54 Ω) were smaller than those of the NC (505.81 Ω), which indicated the good charge-transfer ability of HSNC.

Moreover, the plot of the W_o sloped region as Z’_real vs ω^−1/2 in Figure 7b can be used to estimate the diffusion coefficient of Li⁺ ions (D_Li+) using the equations shown below:

Z’_real = R_s + R_ct + σ_ωω^−1/2

(2)

$${{\mathrm{D}}_{\mathrm{Li}}}_{+}=0.5{\left(\frac{\mathrm{RT}}{{\mathrm{An}}^2{\mathrm{F}}^2{}_{}\mathrm{C}}\right)}^2$$

(3)

where R is the gas constant, T is the absolute temperature (K), A is the surface area of the electrode, n is the number of electrons related to the redox reaction, F is the Faraday constant, σ_ω is the Warburg coefficient, and C is the concentration of lithium ions.

The diffusion coefficient of lithium ions (D_Li+) of the HSNC and NC samples were calculated to be 3.15 × 10⁻¹⁷ and 4 × 10⁻¹⁹ cm s⁻¹, respectively. Overall, results showed that the unique hollow morphologies and the presence of defects in the HSNC structure led to the enhancement of the electrode kinetics reaction and resistance for the redox reactions with lithium ions when compared to NC sample.

4. Conclusions

In this study, hollow N-doped carbon was designed and fabricated through facile carbonization of ZIF-8 coated by PDA. The ZIF-8 polyhedron successfully acted as a sacrificial template during the carbonization step to form the hollow structure in the HSNC sample. In addition, 2-methylimidazole and dopamine served as carbon and nitrogen sources. The hollow structure of the HSNC sample resulted in higher surface area and pore volume compared to the NC sample, enabling the accelerated transportation of charge carriers and electrolyte inside the electrode structure. This unique hollow structure might be a key factor for the improved electrochemical performance of the HSNC sample. Moreover, the HSNC had the higher contents of pyridine and pyrrolic functional groups compared to NC sample, which was favorable to attract Li ions during cycling processes due to their lone pair electrons and defect configurations in the carbon structure. Because of these features, the HSNC sample exhibited an outstanding reversible capacities and excellent cycling stability as an anode material for LIBs compared to the NC sample. Furthermore, HSNC with a high surface area and nitrogen content, macro- and mesoporous pores, and a hollow structure can be utilized in various applications beyond batteries; for example, in adsorbents, catalysis, fuel cells, and supercapacitors.
