Low-Cost Organic Adsorbents for Elemental Mercury Removal from Lignite Flue Gas

Abstract

The research presented by the authors in this paper focused on understanding the behavior of mercury during coal combustion and flue gas purification operations. The goal was to determine the flue gas temperature on the mercury emissions limits for the combustion of lignites in the energy sector. The authors examined the process of sorption of mercury from flue gases using fine-grained organic materials. The main objectives of this study were to recommend a low-cost organic adsorbent such as coke dust (CD), corn straw char (CS-400), brominated corn straw char (CS-400-Br), rubber char (RC-600) or granulated rubber char (GRC-600) to efficiently substitute expensive dust-sized activated carbon. The study covered combustion of lignite from a Polish field. The experiment was conducted at temperatures reflecting conditions inside a flue gas purification installation. One of the tested sorbents—tire-derived rubber char that was obtained by pyrolysis—exhibited good potential for Hg⁰ into Hg²⁺ oxidation, resulting in enhanced mercury removal from the flue. The char characterization increased elevated bromine content (mercury oxidizing agent) in comparison to the other selected adsorbents. This paper presents the results of laboratory tests of mercury sorption from the flue gases at temperatures of 95, 125, 155 and 185 °C. The average mercury content in Polish lignite was 465 μg·kg⁻¹. The concentration of mercury in flue gases emitted into the atmosphere was 17.8 µg·m⁻³. The study analyzed five low-cost sorbents with the average achieved efficiency of mercury removal from 18.3% to 96.1% for lignite combustion depending on the flue gas temperature.

1. Introduction

Ecotoxic elements, especially mercury, are particularly hazardous substances among pollutants with no physiological relevance for living organisms. It is generally known that mercury exposure can inflict various health issues, especially neurological, immunological, behavioral and sensory issues [1,2]. The mentioned afflictions were diagnosed in consumers of contaminated fish (Minamata Disease in Japan) and crops (Iraq, Guatemala and Russia). Mercury has an adverse impact on health, as well as long atmospheric lifetime and propensity for deposition in the aquatic environment and in living tissue. Due to the global distribution of mercury, the US Environmental Protection Agency [3] has classified it and its compounds as an air quality threat. Coal combustion release, which has constantly increased following growing worldwide energy demand, is considered as one of the most significant anthropogenic origins of mercury [3,4,5]. Therefore, due to the element’s (wide) exposition, to avoid adverse harmful effects to the respiratory, nervous and immune systems, it is crucial to decrease atmospheric mercury emissions. Conducted research confirms the severe influence on the environment and warrants worldwide actions for the reduction of emissions [6,7,8].

In Poland, solid fuel combustion, mainly coal, constitutes the dominating source of mercury emission, exceeding 80% of the country’s share [9,10]. Under the adoption of 2010/75/UE Directive (IED—Industrial Emissions Directive) that includes the permitted industrial emissions, the Polish energy sector has introduced the Best Available Technologies (BAT) methods with a permissible emission limit of 1–10 µg·Nm⁻³, depending on the fuel used and plant size [10,11]. At present, the vast majority of units in Polish power plants do not meet the BAT-defined standards for mercury, which imposes the need for technological progress. As new emerging technologies such as clean coal technologies or deep desulfurization and denitrogenation do not meet the European standards for mercury emission, auxiliary means of mercury removal are needed to prevent power plant closures due to non-compliance with regulations. Among the techniques of standalone mercury removal systems, injection of powdered activated carbon (PAC) to flue gasses due to the high specific surface of the material is commonly utilized in the United States of America [12,13].

The efficiency of mercury removal using powdered sorbent injection depends on both physical and chemical properties of the material, flue gas temperature (inversely proportional, i.e. increases in temperature result in sorption decreases) and flue gas constituents (presence of halogen compounds and sulfur trioxide (SO₃)). Furthermore, mercury speciation plays a vital role as the Hg²⁺ form of mercury has good affinity for sorbents capture, whereas Hg⁰ is practically not adsorbed. Therefore, oxidation of the mercury in order to increase the share of Hg²⁺ is an established practice [14,15,16,17].

The main disadvantage of activated carbon sorbent usage is the material price, which results in global research [18,19,20,21] aimed at the search for new low-cost adsorbents with comparable sorptive properties that can be used as a replacement (low-cost adsorbents). The authors suggest that the use of waste materials with no industrial application can be the most beneficial in both economic and environmental terms [22]. For example, Guangqian L. et al. [23] developed waste-derived sorbents from biomass and brominated flame retarded plastic for mercury removal from coal-fired flue gas. Charpenteau C. et al. [24] proposed coal fly ash as low-cost material. The authors of [25,26] analyzed six low-cost sorbents with the average achieved efficiency of mercury removal of 30.6–92.9% for sub-bituminous coal and 22.8–80.3% for lignite combustion. One of the main objectives of this study was to recommend a low-cost organic sorbent such as coke dust to efficiently substitute expensive activated carbon for mercury removal from flue gas. Other researchers have attempted to develop alternative low-cost yet efficient adsorbents utilizing agricultural and industrial wastes [27,28,29]. Biochars play a significant role in addressing the current demands of adsorbents for various applications [30,31]. Initial research on specially prepared chars from rubber wastes has proven beneficial for the capture of both mercury [32] and other heavy metals [33]. Considering the amount of mercury released by the energy sector [34,35,36,37,38,39,40], the research was organized to determine the potential of rubber char as a sorbent for capturing mercury from flue gas at different temperatures and compare it to other possible adsorbents as an alternative for expensive activated carbons.

The purpose of this study was the application of dust-sized sorbents for reduction of mercury emissions from flue gas. The main objective of this study was to recommend a low-cost organic adsorbent such as coke dust (CD), corn straw char (CS-400), brominated corn straw char (CS-400-Br), rubber char (RC-600) or granulated rubber char (GRC-600) to efficiently substitute expensive dust-sized activated carbon. The study covered combustion of lignite from a Polish field. The experiment was conducted at temperatures reflecting conditions inside a flue gas purification installation.

2. Materials and Methods

2.1. Sorbents Origins

To compare the efficiency of sorbents, studies consisted of five types of low-cost organic sorbents in three different forms: coke-derived char dust (CD), biomass chars (CS, CS-Br) and rubber-derived chars (RC and GRC). Commercially available activated carbon (AC) was included as industrial flue gas mercury sorbent of choice for comparative reasons. The sorbents used are described in

Table 1. Description of low-cost organic adsorbent.

LCOA	Sign	Description of Origin
Activated carbon	AC	Commercial activated carbon, dedicated, e.g., for gas-phase mercury removal. It was formed in the process of coal carbonization and subsequent thermal activation of the obtained structure.
Coke dust	CD	Byproduct of large-scale coke production. The dust is obtained during coke dry-cooling process, hauling and sorting.
Corn straw char	CS-400	Solid product (char) of corn straw torrefaction process using superheated steam at 400 °C.
Brominated Corn straw char	CS-400-Br	Solid product (char) of corn straw torrefaction process with the addition of bromine; blend char/Br2 was prepared at ratio 5:1.
Rubber Char	RC-600	Solid product (char) of car tire pyrolysis at 600 °C. The material was derived from industrial installations in which intact tires are subjected to high temperatures.

LCOA, Low-Cost Organic Adsorbent.

.

2.2. Sorbents Analysis

The scope of the sorbent analysis listed in Section 2.1 includes:

(i)

Proximate and ultimate analyses were performed in accordance with the ISO standard [41,42].

(ii)

Determination of chlorine content was evaluated as chlorine anion content in water solution using a direct reading spectrophotometer (DR/2000 HACH). A sample was combusted in AC-350 bomb calorimeter (LECO) with Eschka mixture—in accordance with the ISO standard [43].

(iii)

Mercury content was analyzed by thermal decomposition, amalgamation and atomic absorption spectrophotometry (DMA-80 Direct mercury analyser).

(iv)

The particle size of LCOA was analyzed by ISO standard [44].

(v)

The porous texture of all samples was analyzed using nitrogen adsorption–desorption at 77 K using Autosorb^®-1-C (Quantachrome Instruments, USA) according to the standards [45,46,47,48].

(vi)

Bromine content was analyzed with X-ray spectrometry with wavelength dispersion in PROMUS II sequential spectrometer (Rigaku).

(vii)

ED-XRF analyses of samples in a powder form were conducted with use of PANalytical EmpyreanXLE diffractometer with copper anode (Cu Kα) in the 2θ angle range of 10–110°. The type and amount of crystalline phase were evaluated with PANalytical HighScore Plus software.

Values of these parameters were determined for the air-dried basis of the sample.

2.3. Mercury Adsorption System

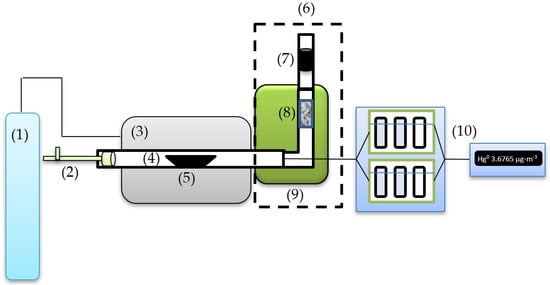

The stand for measuring mercury sorption from flue gases generated by the combustion of solid fuels is shown in Figure 1. The bench-scale measurement setup consists of tube furnace (3) along with temperature and gas flow regulation with quartz tube (4) as the combustion chamber, gas source (1) and sorbent holder (8). The utilized equipment allows for controllable gas heating at specified points (9). The measurement procedure involves air-fueled coal sample (5) combustion and analysis of flue-gas mercury captured by the sorbent.

The experiment was conducted with predetermined temperature conditions for sample combustion and sorbent temperature with similar combustion times and airflow. One gram of the sample was positioned in a ceramic boat-shaped crucible and progressively transported to the center of the combustion zone with a metal rod (2). The standardized measurement time after the crucible was introduced to the center of the combustion zone was 20 min. Additionally, LCOA was placed a sorbent trap (7), which measured the concentration of Hg emitted into the atmosphere.

A more detailed description of the experimental conditions is presented in [25]. For the combustion process, lignite was used. It underwent ultimate and proximate analysis, with the additional steps of mercury and chlorine determination in accordance with the methodology described in Section 2.2.

The lignite sample was prepared in accordance with the ISO standards [49]. The characteristic of the used lignite is shown in Section 3.2.

Mercury Speciation Testing

To determine mercury speciation in flue gas samples, two sets of impingers (three impingers in each set) and a mercury survey meter EMP-3 (continuous mercury analyzer) were used. For the period of mercury speciation ascertainment, the flue mercury adsorption device (Figure 1, Point 6) was disengaged. Flue gases flowed by a series of impingers (Figure 1, Point 10). Raw flue gas was channeled into two flow streams. In the first vessel out of the first gas washing bottle setup, the Hg²⁺ mercury from the first stream was reduced to Hg⁰ with 10% SnCl₂ solution, followed by acidic gas scrubbing with 10% KOH solution and subsequent moisture removal with the third vessel. The purified flue gas stream was then analyzed with an EMP-3 detector for total mercury content determination. The second gas washing bottle setup had an analogous configuration to the first setup, with the difference being the first vessel was used to capture Hg²⁺ mercury out of the second stream with 10% KCl solution. Consequently, the EMP-3 detector analyzed the purified flue gas from the second stream for elementary mercury. The concentration of Hg²⁺ was determined based on the difference between total and elementary mercury.

2.4. Methodology of Mercury Adsorption

To check the reliability of the tests performed, the balance of mercury in the laboratory installation was calculated for each experiment in accordance with the following model:

$$m_c·C_0 - m_{ash}·C_{ash }= m_{sorb}·\left(C_{Hg}^{″}-C_{Hg}^{\prime }\right)+ m_{trap}·\left(C_{trap}^{″}-C_{trap}^{\prime }\right)$$

(1)

where m_c is the mass of combusted coal (kg); C₀ is the mercury content in coal (µg·kg⁻¹); m_ash is the mass of ash from coal combustion (kg); C_ash is the Hg content in the ash (kg); m_sorb is the weight of tested sorbent (kg); $C_{Hg}^{\prime }$ and $C_{Hg}^{″}$ are the mercury concentrations in sorbent before and after sorption (µg·kg⁻¹); m_trap is the mass of sorbent trap [kg]; and $C_{trap}^{\prime }$ and $C_{trap}^{″}$ are the mercury concentrations in the trap before and after the experiment (µg·kg⁻¹).

Based on the obtained data and measurements of flue gas mercury concentration before and after adsorption, the Hg adsorption capacities (q, μg·g⁻¹) of the sorbent samples were calculated using below equation:

$$q=\frac{Q_{fg}}{m_{sorb}}\underset{0}{\overset{t}{{\displaystyle \int }}}(C_{fg}^{″}-C_{fg}^{\prime }) dt$$

(2)

where $Q_{fg}$ is the gas flow rate (m³·min⁻¹) and $C_{fg}^{″}$ and $C_{fg}^{\prime }$ are the inlet and outlet Hg concentrations in flue gases (μg·Nm⁻³) at combustion time t (min).

Additionally, mercury removal efficiency of tested sorbents (MR, %) was calculated as:

$$MR=\frac{C_{Hg}^{″}-C_{Hg}^{\prime }}{C_0- C_{ash}}·100\%$$

(3)

3. Results and Discussion

3.1. Sorbent Characteristics

AC contained 6.1 μg Hg·kg⁻¹ (

Table 2. Properties of the analyzed sorbents.

Sorbent	Proximate Analysis (wt%)			Ultimate Analysis (wt%)			(wt%)		(µg·kg−1)
	Mad	Vad	Aad	Cad	Had	Sad	Brad	Clad	Hgad
AC	9.2	15.09	26.2	59.5	1.45	2.11	0.017	0.021	6.1
CD	0.4	3.19	9.8	85.0	0.16	0.59	0.014	0.023	8.9
CS-400	2.6	23.7	22.1	61.7	3.20	0.15	0.005	0.037	2.7
CS-400-Br	-	-	-	-	-	-	0.033	-	2.9
RC-600	1.3	3.2	19.8	75.4	0.91	2.55	0.068	0.063	158.1
GRC-600	2.3	3.2	19.6	76.3	0.95	2.66	0.073	0.075	73.0

M_ad, moisture in the air-dried basis; V_ad, volatile matter in the air-dried basis; A_ad, ash in an air-dried basis; Cl_ad, chlorine in the air-dried basis; C_ad, carbon in the air-dried basis; H_ad, hydrogen in the air-dried basis; S_ad, sulfur in the air-dried basis; Br_ad, bromine in the air-dried basis; Hg_ad, mercury in the air-dried basis.

). Relatively small quantities of mercury were also found in CD (8.9 μg·kg⁻¹) and CS-400 (2.7 μg·kg⁻¹) CD and AC were obtained in the carbonization process, therefore they contained minimal quantities of volatiles: 3.2 wt% for CD and 15% for AC. RC-600 and GRC-600 had high mercury content, at 158 and 73 μg·kg⁻¹, respectively, as well as ash (19.8% and 19.6%, respectively). Commercial activated carbon (AC) and rubber waste chars (RC-600 and GRC-600) recorded from 3.5 to 18 times higher sulfur content than other examined sorbents. Sorbents had bromine content in the range of 50–730 ppm.

Coke and rubber waste chars are microporous materials with a moderately developed mesoporous and poor microporous structure (

Table 3. Parameters of porous structure for LCOA.

Sample	BET Surface Area (m2∙g−1)	Micropore Surface Area (cm3∙g−1)	Mesopore Volume (cm3∙g−1)	Total Pore (cm3∙g−1)
AC	670.5	0.307	0.055	-
CD	24.3	0.006	0.009	0.018
CS-400	4.8	0.001	0.010	0.023
CS-400-Br	4.6	0.001	0.008	0.018
RC-600	70.3	0.025	0.380	0.396
GRC-600	74.7	0.023	0.171	0.239

). The specific surfaces (S_BET) of CD, RC-600 and GRC-600 have several dozen m²∙g⁻¹, while in AC this parameter reaches 670.5 m²∙g⁻¹. The specific surface area of corn straw char is 4.8 m²∙g⁻¹. However, the mesoporous structure is an essential parameter for mercury adsorption because, due to the particle size of mercury, mesopores are considered to be dominant areas of its deposition. RC-600 and GRC-600 sorbents have the highest mesoporous surface among the analyzed samples: 0.38 and 0.17 cm³∙g⁻¹, respectively. Therefore, these samples underwent further qualitative and quantitative phase analysis.

Qualitative and Quantitative Phase Analysis of Rubber Waste towards as a Sorbent

Based on conducted experimental studies presented in a previous publication [25], sorbents of rubber waste were the most promising material for flue gas mercury capture in lignite combustion processes. Therefore, only this material was selected for Scanning Electron Microscopy (SEM) using Energy Dispersive Spectroscopy (EDS system).

The results of the chemical analysis for selected RC-600 sample points (Figure 2) are shown in

Table 4. Analysis EDS of selected points of RC-600.

Element	Chemical Components (wt%)
	1	2	3
C	78.5	86.8	80.9
O	2.0	5.1	5.9
Mg	0.1	0.2	0.2
Al	0.2	0.2	0.3
Si	3.2	1.3	1.4
S	4.7	2.2	2.0
Ca	1.2	0.2	4.8
Co	0.6	0.2	0.3
Cu	1.0	0.2	0.2
Zn	8.4	3.2	2.4

. The char contains 78.5–80.8% carbon, most of which comes from carbon black used for tire production. Due to the point-based nature of the measurement, this amount does not correspond to the average content of carbon for the representative sample (Table 2). Another probable origin is tire pyrolytic oil that carbonized during rubber processing. The mineral content in the char is assumed to be a result of industry additives present in the tire manufacturing such as fillers, plasticizers, vulcanizing activators and crosslinking additives. The used matter consists of SiO₂, ZnO CaO, Al₂O₃, Na2O and Fe₂O₃ (Table 4).

Figure 3 shows example SEM images of the microstructure of RC-600 and GRC-600 chars. The picture presents small carbon particles aggregated into larger formations as the main constituent of the samples.

3.2. Properties of Lignite

The characteristics of the combusted coal are shown in

Table 5. Characteristic of the coal used in the experiment.

Coal	Proximate Analysis (wt%)			Ultimate Analysis (wt%)			(wt%)	(ppm)		(µg·kg−1)
	Mad	Vad	Aad	Cad	Had	Sad	Caad	Brad	Clad	Hgad
Lignite	12.9	41.20	23.7	43.5	4.90	1.80	2.42	3.9	30	465.0

. Lignite contained an average of 465 µg∙kg⁻¹ of mercury. The average content of halogens such as Cl and Br (supporting factors in the oxidation of mercury from Hg⁰ to Hg²⁺) in lignite was equal to 30 ppm Cl and 3.9 ppm Br. The average sulfur content for the lignite was 1.8 wt%; it also contained 23.7 wt% ash, 41.20 wt% volatiles and 12.9 wt% moisture.

3.3. Determination Mercury Speciation in Flue Gases during Lignite Combustion

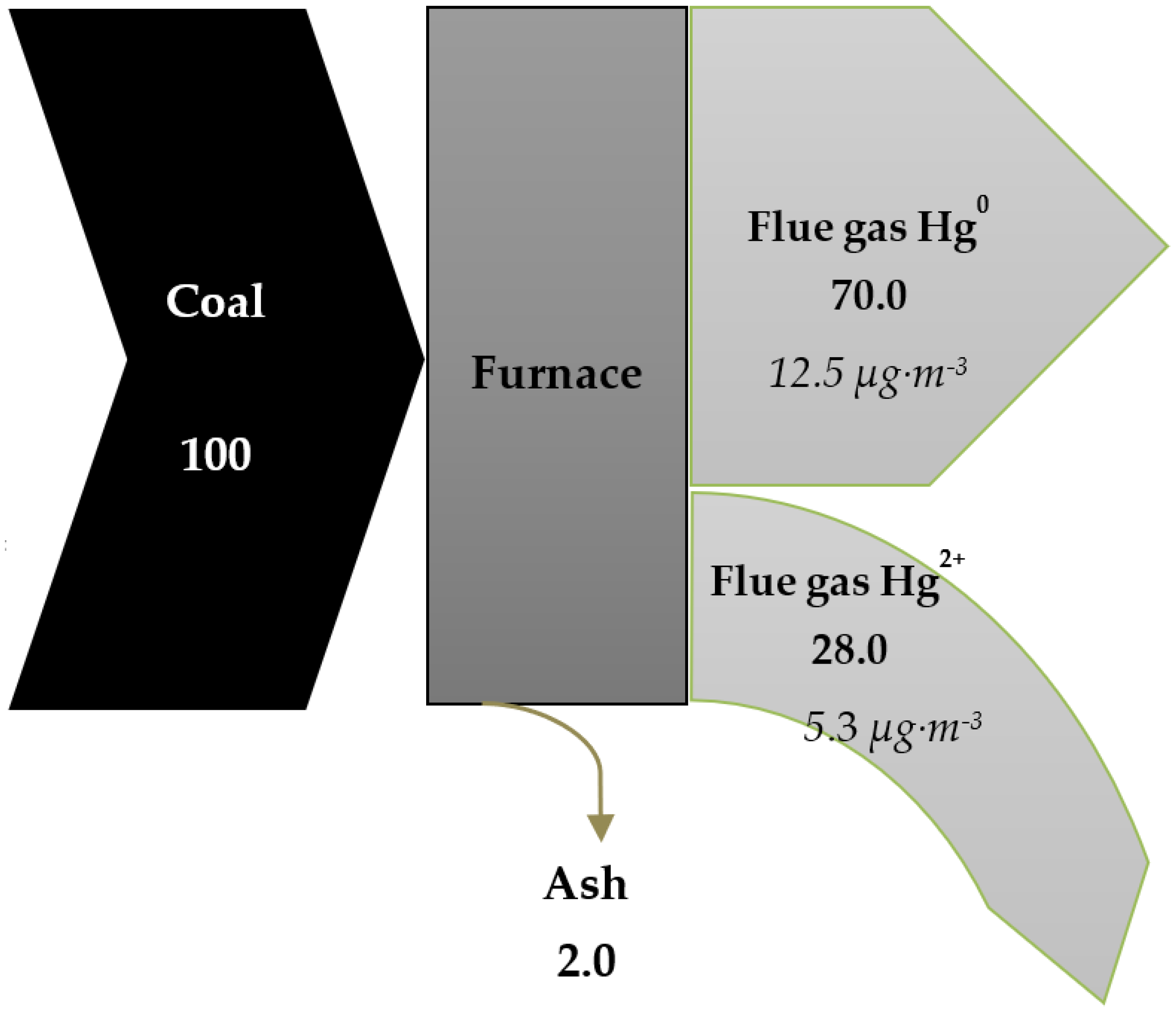

Figure 4 presents a Sankey diagram for mercury released from bench-scale lignite combustion with determination for various species of Hg at the flue gases temperature of 95 °C. Due to the experimental process, ash was a solid residue after coal combustion, and nearly all the mercury contained in the coal changed to the flue gas in gaseous forms (Hg⁰ and Hg²⁺). Only 2% remained in the ashes in the Hgp form. The proportion of Hg⁰ in the analyzed flow was relatively high, reaching 70%. The Hg⁰:Hg²⁺ ratio (5:2) was determined by the chemical composition of the fuel. Lignite is characterized by low content of chlorine and bromine (Table 5), which leads to oxidation of Hg⁰ to Hg²⁺. This effect, however, can be partially slowed down by relatively high presence of calcium (2.42 wt%), which is capable of chemical deactivation of chlorine due to their chemical affinity [50]. The resulting fuel composition determines the share of Hg²⁺ to be 28% or lower. Due to behavioral differences between both forms, Hg⁰ is generally more difficult to remove from flue gas by the adsorption process. Therefore, the determining factor in the selection of sorbent and process conditions for mercury removal should be the chemical composition of the sorbents as well as the sorption temperature.

3.4. Hg Adsorption Performance during Combustion of Lignite

Table 6. Efficacy assessment of LCOA for Hg sorption.

Sorbent	q	MR
	µg·g−1	%
AC	102.6	96.1
CD	100.2	93.8
CS-400	34.3	32.4
CS-400-Br	53.4	50.1
RC-600	87.0	81.5
GRC-600	70.2	65.7

shows the Hg adsorption capacity (q) of the tested sorbents and the efficiency of Hg removal from flue gas (MR) at process temperature of 95 °C. The commercial activated carbon, currently used in active flue gas mercury removal methods, was the most efficient. AC removed the mercury almost entirely. The sorption efficiency of CD was also high at 93.8%. RC-600 and GRC-600 presented mercury removal during combustion of lignite of 81.5% and 65.7%, respectively. The analyses showed corn straw char to be the worst sorptive material during lignite combustion. CS-400 decreased the concentration of mercury in flue gas by only 32.4%. CS-400-Br was more efficient in mercury removal (MR at 50%).

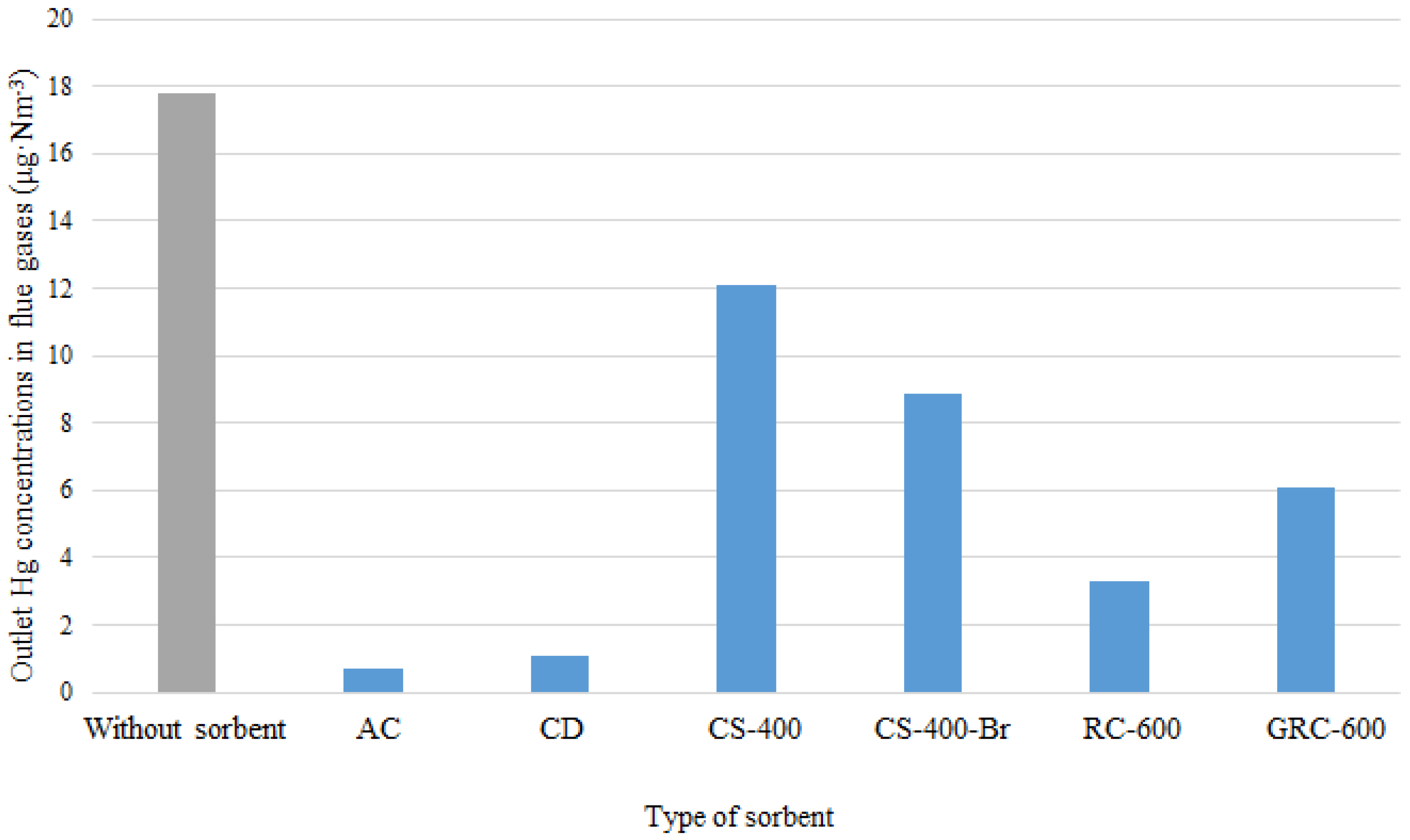

As shown in Figure 5, the Hg concentration in raw flue gas was 17.8 µg∙m⁻³ (in the process of lignite combustion with a Hg content of 465 µg∙kg⁻¹). Most of the mercury from flue gases was removed by AC and CD: their Hg adsorption capacities were 102.6 and 100.2 µg∙g⁻¹, while the concentration of Hg in flue gases was decreased by 17.1 and 6.7 µg∙m⁻³, respectively, for AC and CD (Figure 5). Application of corn straw chars resulted in incomplete mercury removal. Hg adsorption capacity for CS-400 and CS-400-Br reached 34.3 and 53.4 µg∙g⁻¹, respectively, which caused the reduction of mercury emission to 12.1 and 8.9 µg∙m⁻³. The low sorptive capability of CS-400 can be explained by its specific surface of 4.8 m²∙g⁻¹. A higher value of q was obtained for rubber chars; the adsorption capacity was 87.0 µg∙g⁻¹ for RC-600 and 70.2 µg∙g⁻¹ for GRC-600. As a result, Hg concentration in flue gases was reduced to 3.3 and 6.1 µg∙m⁻³, respectively.

3.5. Effect of Flue Gas Temperature on Mercury Sorption Ability

The next stage of the study considered the influence of the adsorption temperature on the effectiveness of LCOA in Hg removal. The average mercury removal effectiveness for AC, CD and CS-400 decreased as the temperature increased, with the highest reading at 95 °C and the lowest at 185 °C (

Table 7. Efficacy assessment of LCOA for Hg sorption at different temperatures.

Sorbent	Temperature	q	MR
	°C	µg·g−1	%
AC	95	100.2	93.8
AC	125	95.4	89.3
AC	155	73.2	68.5
AC	185	72,0	67.4
CD	95	102,6	96.1
CD	125	94,2	88.2
CD	155	91,8	86.0
CD	185	84,0	78.7
CS-400	95	34.3	32.1
CS-400	125	29.4	27.5
CS-400	155	24.2	22.7
CS-400	185	19.5	18.3
CS-400-Br	95	53.4	50.1
CS-400-Br	125	55.2	51.7
CS-400-Br	155	58.8	55.1
CS-400-Br	185	61.2	57.3
RC-600	95	87,0	81.5
RC-600	125	93,6	87.6
RC-600	155	99,0	92.7
RC-600	185	101,7	95.2
GRC-600	95	70,2	65.7
GRC-600	125	84,0	78.7
GRC-600	155	88,8	83.1
GRC-600	185	97,2	91.0

). The change in adsorption temperature had a different effect on RC-600, GRC-600 and CS-400-Br. The average mercury removal efficiency increased as the adsorption temperature increased, with the lowest results at 95 °C and the highest at 185 °C.

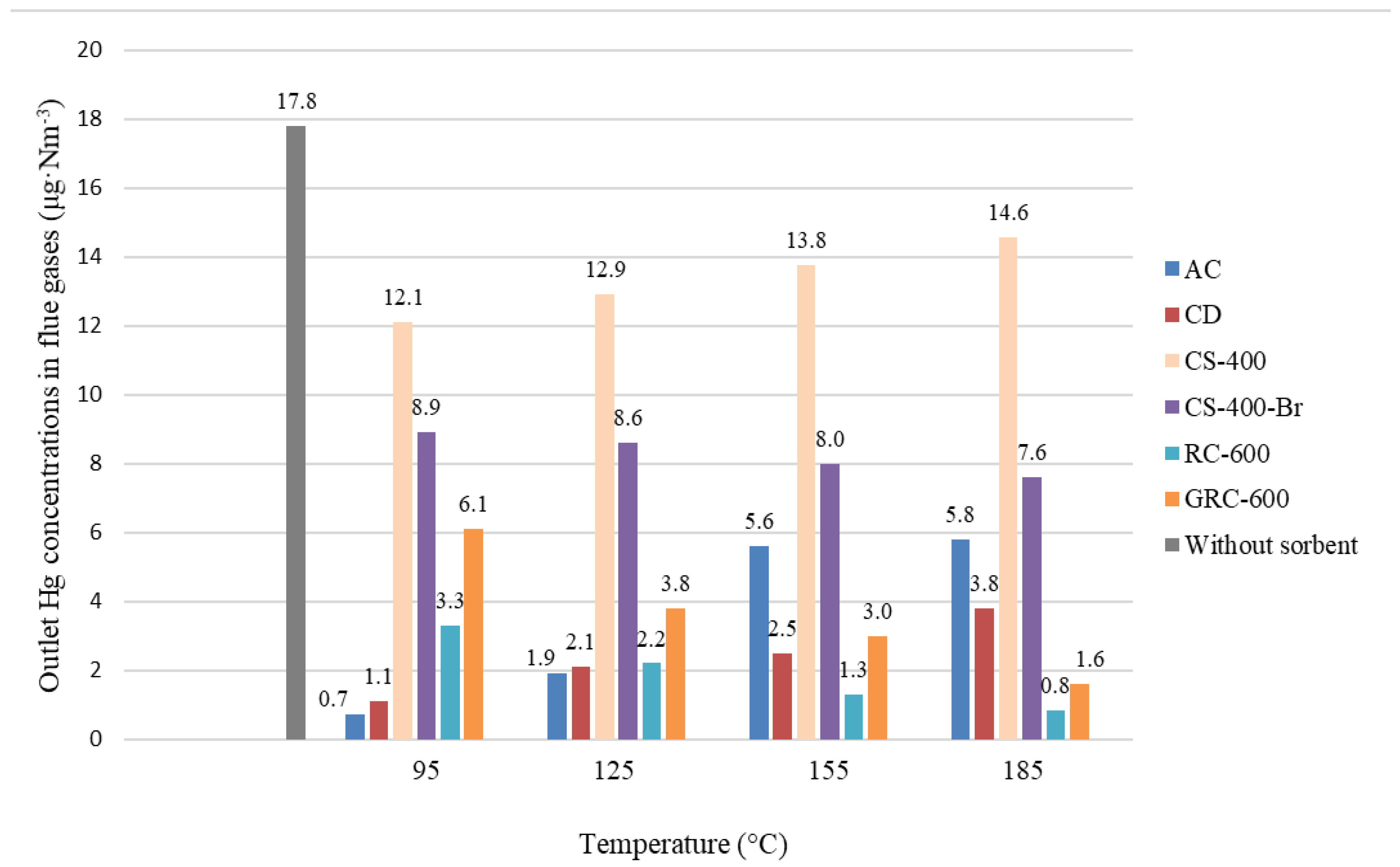

The average mercury concentration in flue gases during lignite combustion was 17.8 µg∙m⁻³ (Figure 6), whereas, after the adsorption process in the temperature range (95–185 °C), the readings showed 1.1–5.8 µg∙m⁻³ for AC, 0.7–3.8 µg∙m⁻³ for CS and 12.1–14.6 µg∙m⁻³ for CS-400. CS-400 presented poor Hg removal performance at all tested temperatures, while the brominated CS-400-Br showed progression in Hg removal efficiency as temperature increased, similarly to RC-600 and GRC-600 (Figure 6).

The deciding factor for Hg removal efficiency can be the share of Hg⁰ in the flue. For AC, CD and CS-400, the Hg removal efficiency decreased with further increase in the adsorption temperature, whereas, for CS-400-Br, RC-600, GRC-600, the efficiency increased.

It was speculated that high adsorption temperature causes Hg desorption from the sorbent surface. However, the experiment showed that sorption temperature increase led to a higher share of Hg⁰ in the flue gas. The higher Hg removal of CS-400-Br, RC-600 and GRC-600 as the temperature raised can be connected to higher Br and Cl intrinsic content.

Effect of Bromine Content in the Sorbent on Hg⁰ Oxidation

Flue gases from lignite combustion are characterized by the high share of unoxidized Hg⁰ mercury. It is a volatile constituent of the flue with its ratio versus Hg²⁺ increasing with sorption temperature. As Hg⁰ content increases, the average Hg removal efficiency for AC, CD and CS was the highest for 95 °C and the lowest for 185 °C.

AC, CD and CS-400 sorbency was determined by low bromine content, which resulted in lesser Hg²⁺ and therefore higher Hg⁰ amounts. The surface of the sorbent allows for Hg²⁺ adsorption, which can explain the pattern of higher sorptive properties of AC, CD and CS-400 at higher sorption temperatures, as the Hg0 content increases.

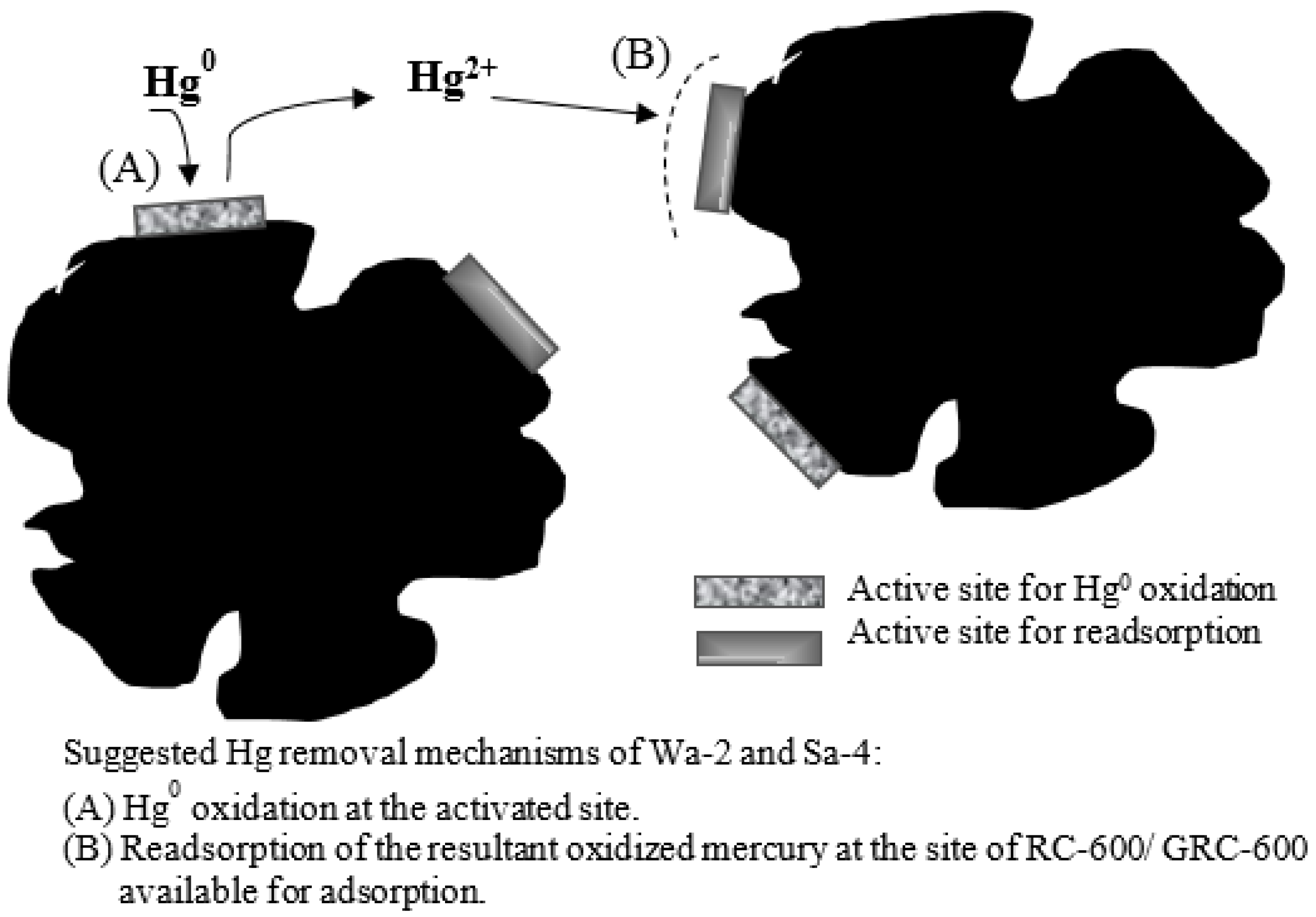

On the other hand, RC-600, GRC-600 and CS-400-Br were characterized by 2–14 times higher bromine content. Sorbent-present Br oxidized Hg0 in the flue to Hg²⁺ form at higher sorption temperatures, which obtained higher Hg²⁺ concentrations, along with higher removal capabilities [50]. The average Hg removal for RC-600, GRC-600 and CS-400-Br followed the ascending order: 95 °C < 125 °C < 155 °C < 185 °C. The proposed Hg⁰ oxidation and Hg²⁺ adsorption mechanism on RC-600, GRC-600 and CS-400-Br surfaces are presented in Figure 7. Hg⁰ was first oxidized at the activated site on the sorbent, followed by Hg²⁺ sorption.

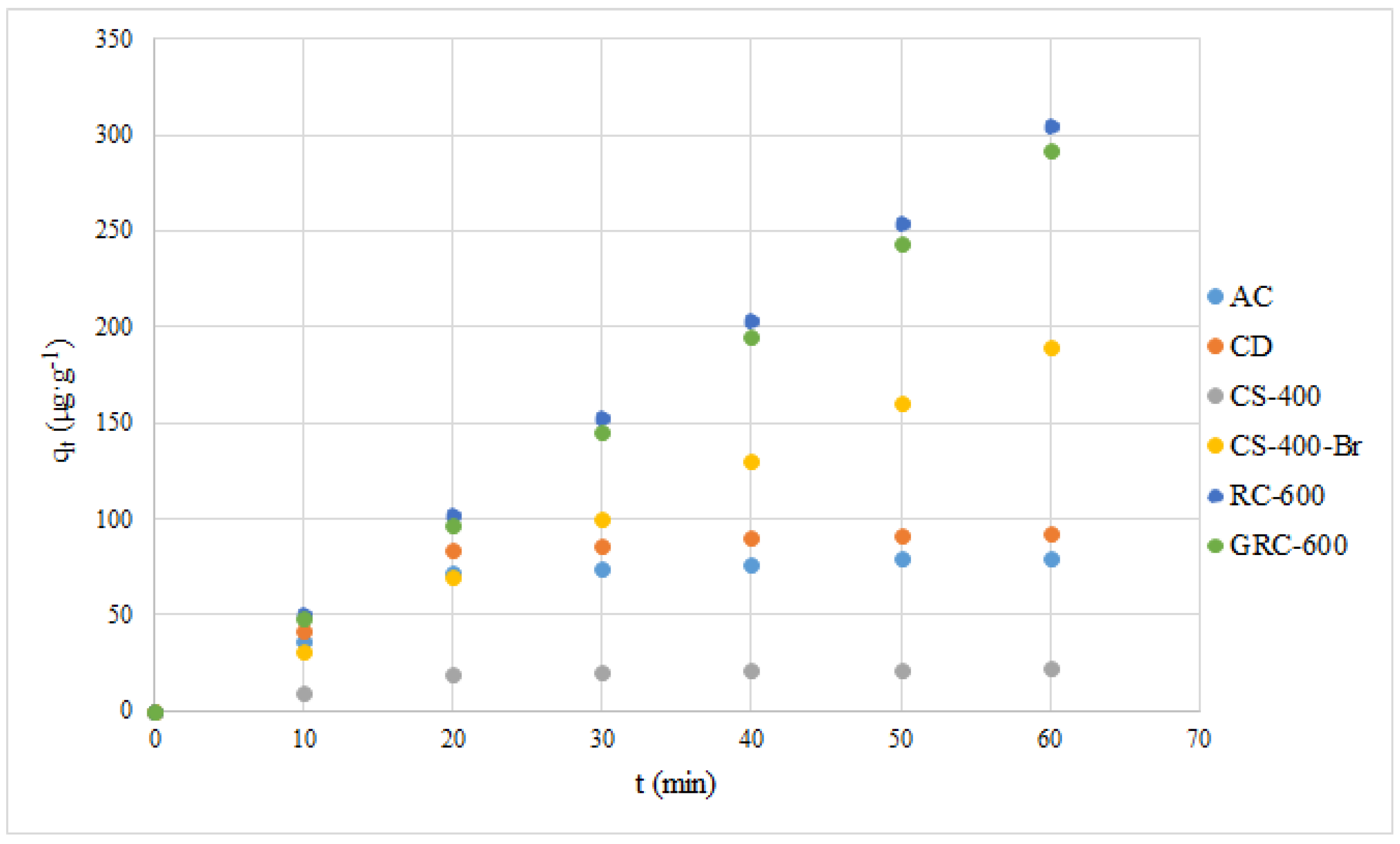

To further assess the application prospect of such rubber waste-derived sorbents, a comparison of the accumulative Hg adsorption capacity of RC-600 and GRC-600 with other sorbents was conducted under similar experimental conditions (Figure 8). It demonstrated that longer sorption times (10–60 min, every 10 min) led to increases in the accumulative properties for bromine-present sorbents. No time influence was observed for bromine-free (AC, CD and CS-400) sorbents.

4. Conclusions

This manuscript presents the results of mercury adsorption from lignite flue gas by the active method. For this purpose, we used six low-cost organic adsorbents (AC, CD, CS-400, CS-400-Br, RC-600 and GRC-600). The presented results allow drawing the following conclusions: the efficiency of sorbents for removal of mercury from flue gases at 95 °C decreased successively: AC (96.1%) and CD (93.8%), followed by RC-600 (81.5%) and GRC-600 (65.7%). The CS-400-Br exhibited better Hg removal performance compared to virgin biochar CS-400. The doping of sorbents with bromine resulted in a higher share of Hg0 oxidation to Hg²⁺ species. Low mercury removal efficiency by CS-400 was caused by its low mesopore volume (0.01 cm³∙g⁻¹). The Hg removal efficiency for AC, CD and biochars (CS-400) decreased with the increase of temperature, caused by a higher amount of sorption inactive Hg⁰ mercury in the flue gas.

CS-400-Br, RC-600 and GRC-600 enhanced their mercury adsorption capacity with an increase in the temperature. These sorbents had a higher bromine content (2–14 times) than other sorbents. Therefore, it can be confirmed that bromine had positive effects on Hg⁰ removal due to its influence on better Hg⁰ oxidation as well as adsorption on the free sites of the surface. In this study, a novel sorbent was created with one-step pyrolysis of tire waste for Hg⁰ removal from lignite flue gas. This method could combine municipal solid waste disposal and mercury sorbent preparation in one process. The Hg adsorption capacities of RC-600 and GRC-600 were close to those of commercial activated carbons.
