# Performance Improvement of a Darrieus Tidal Turbine with Active Variable Pitch

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

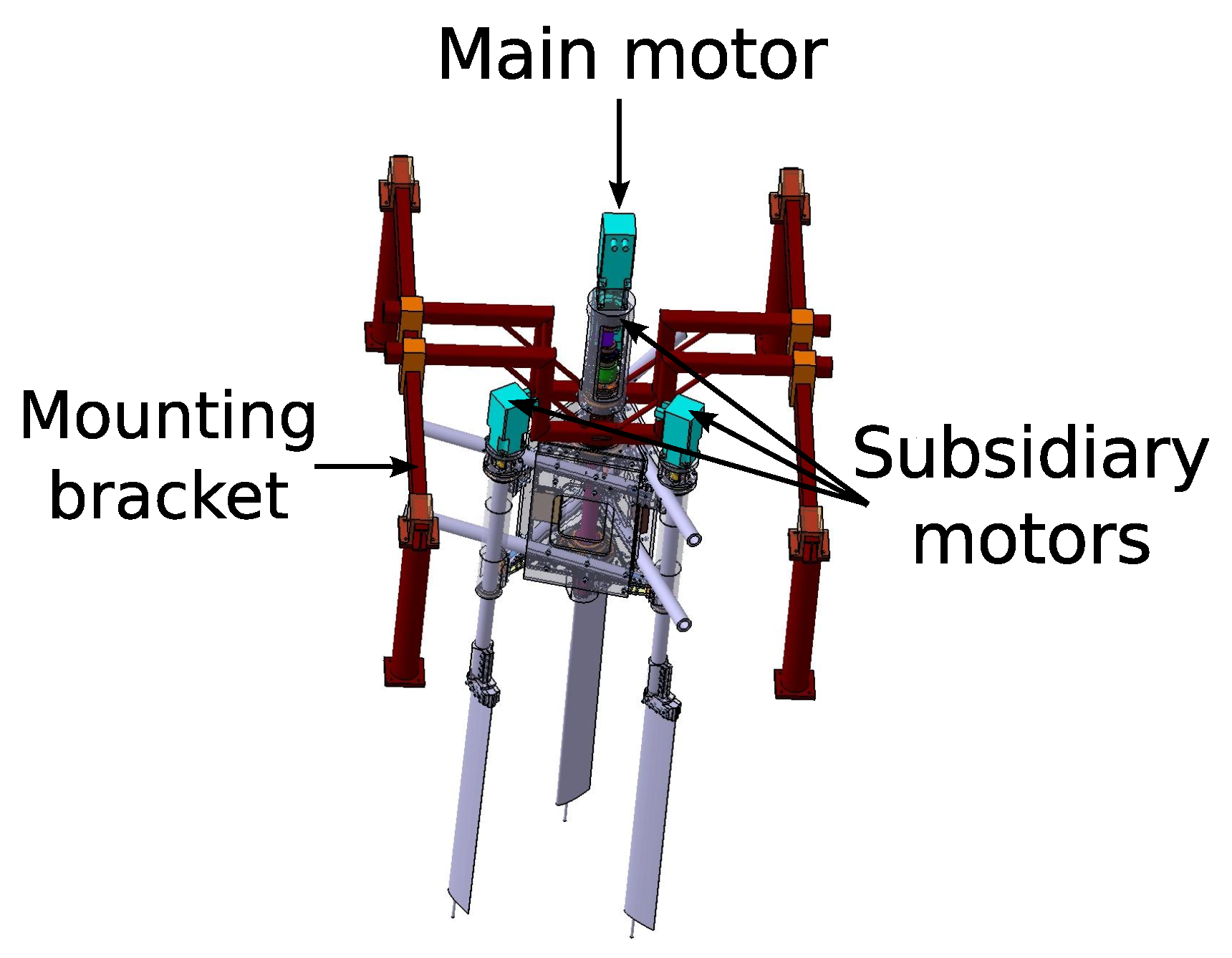

## 2. Turbine

^{2}/s)) varies between $0.6\times {10}^{6}$ and $1.2\times {10}^{6}$ at the tip speed ratio $\lambda =\omega R/{U}_{\infty}=3$ (with $\omega $ the turbine rotational speed). The characteristics of the SHIVA turbine are summarized in Table 1.

## 3. Model and Numerical Methods

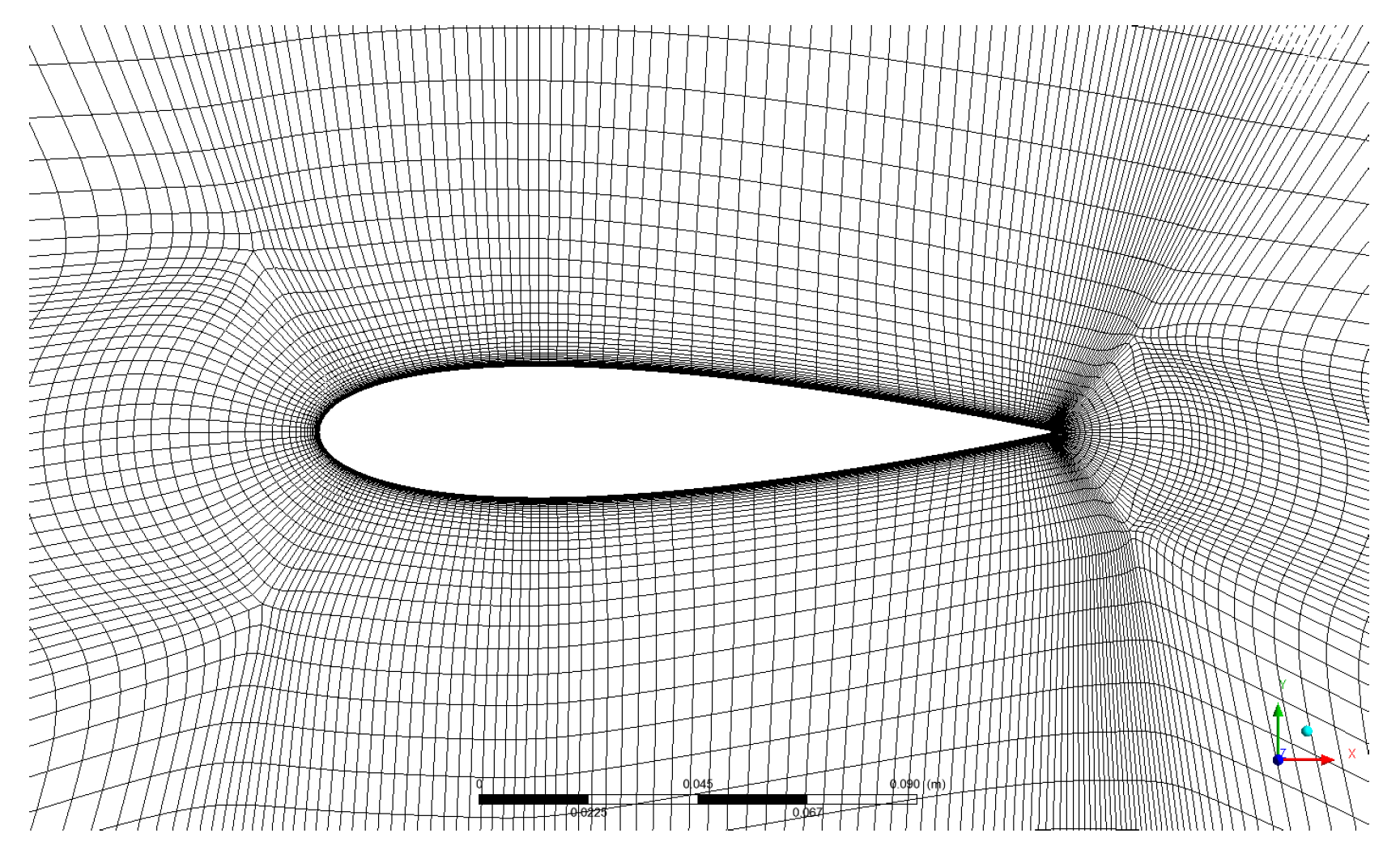

#### 3.1. Computational Domain and Mesh

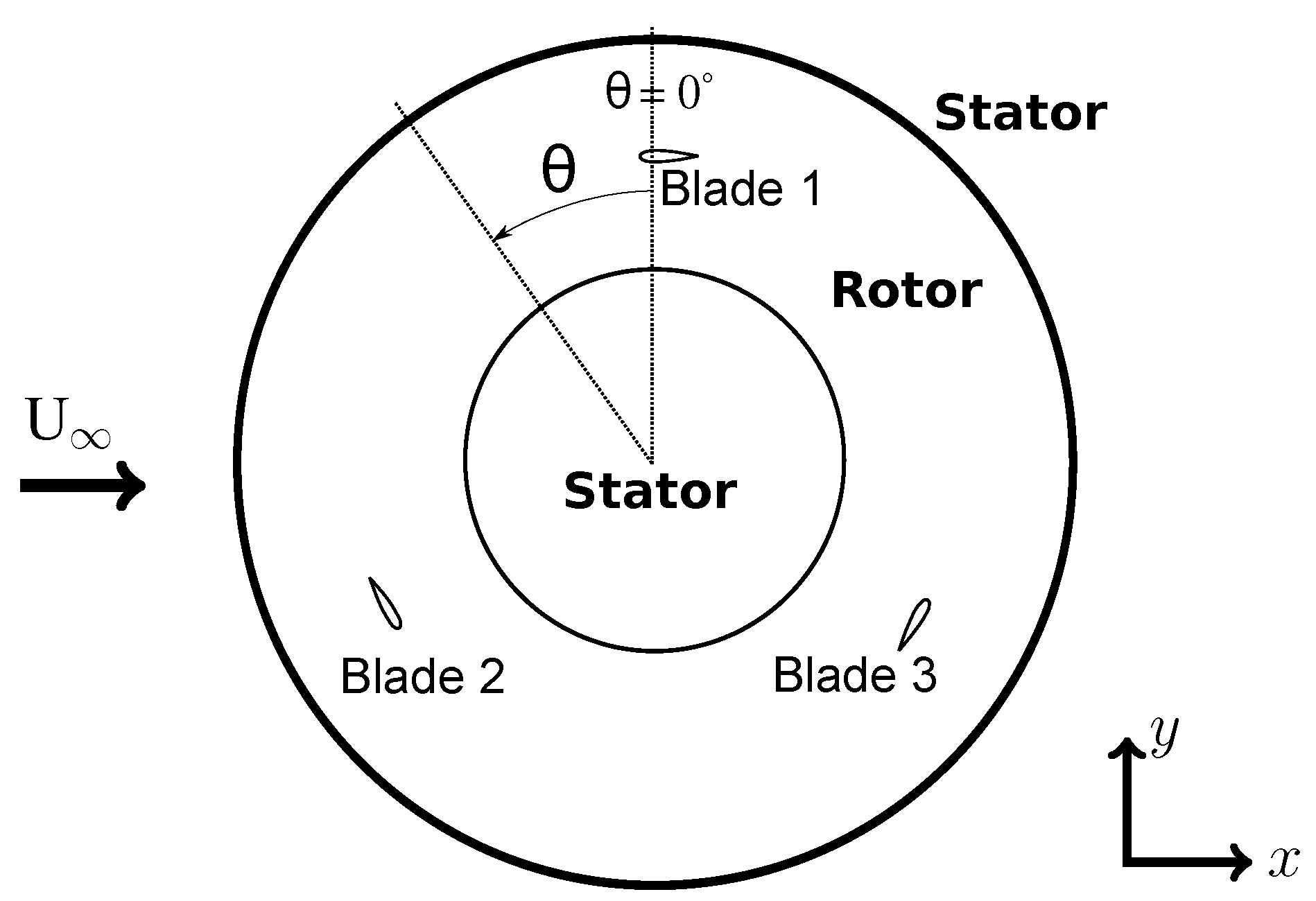

- an outer stator (square of side 60 D, not shown in Figure 3 for clarity);
- a rotating ring containing the 3 blades (rotor), located at the center of the outer stator; and
- an inner stator

#### 3.2. Boundary Conditions and Settings

#### 3.3. Numerical Methods

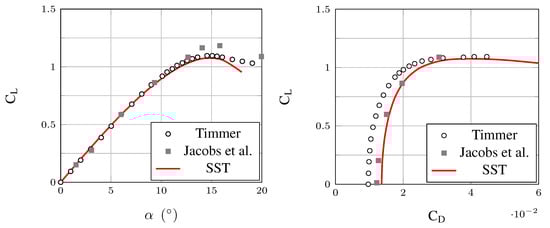

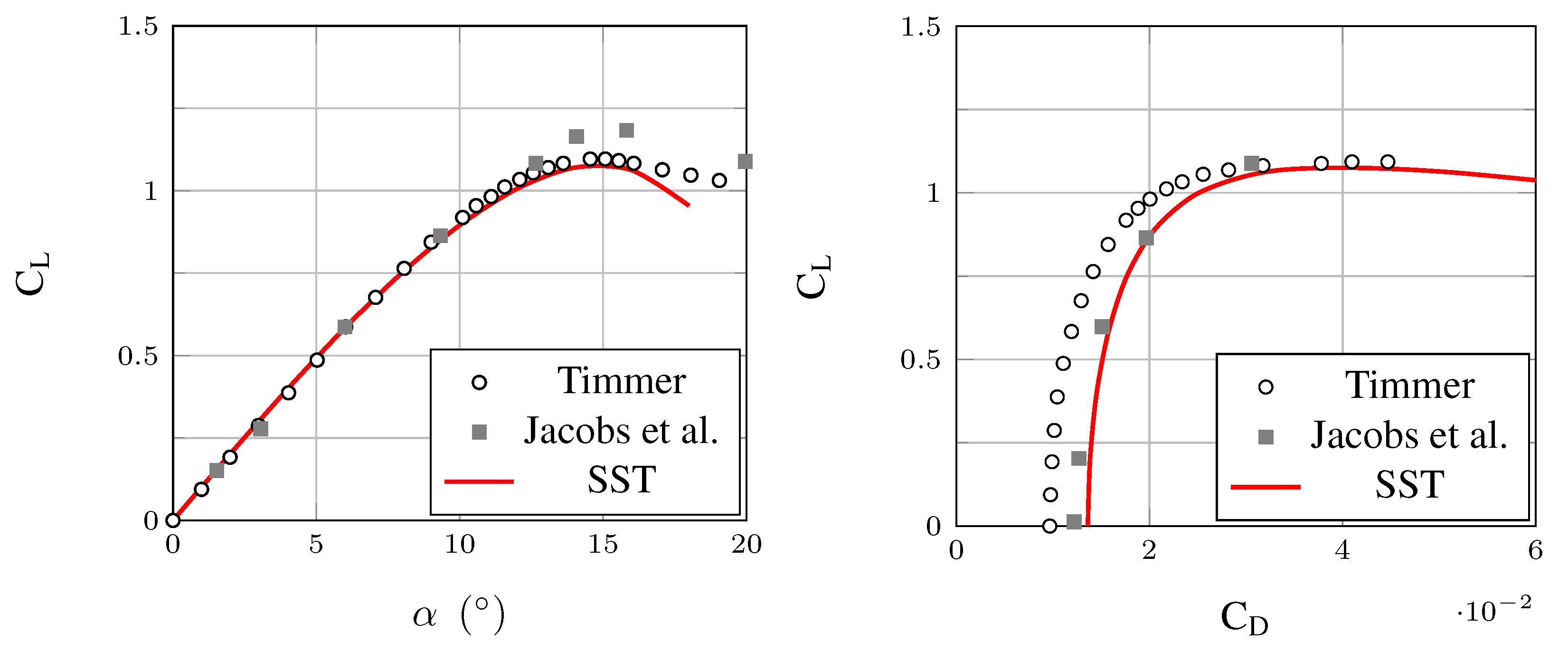

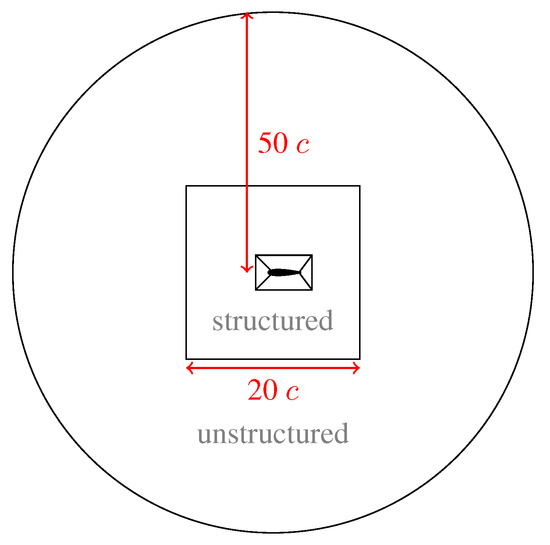

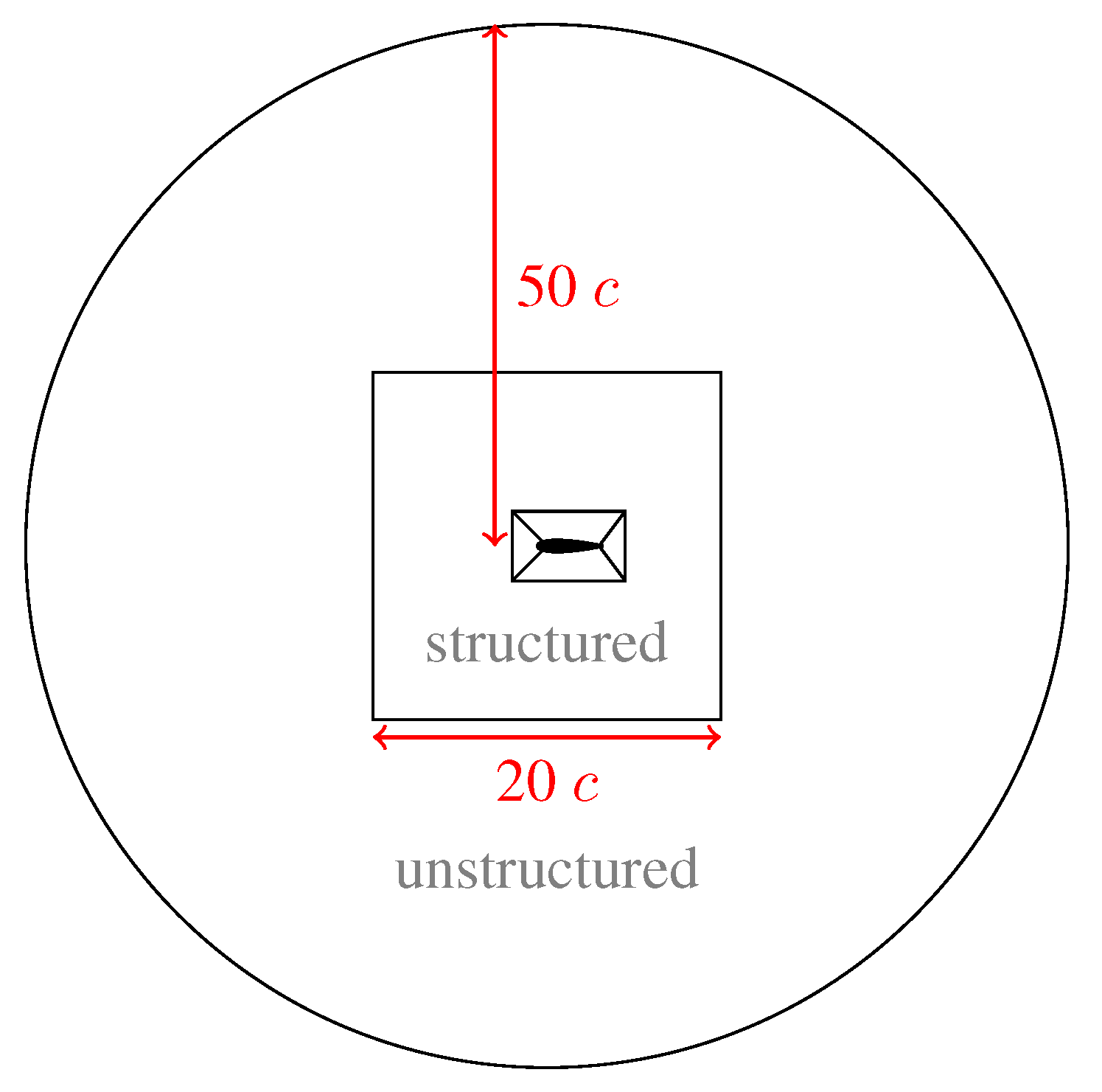

## 4. Validation

## 5. Measurement of the Angle of Attack

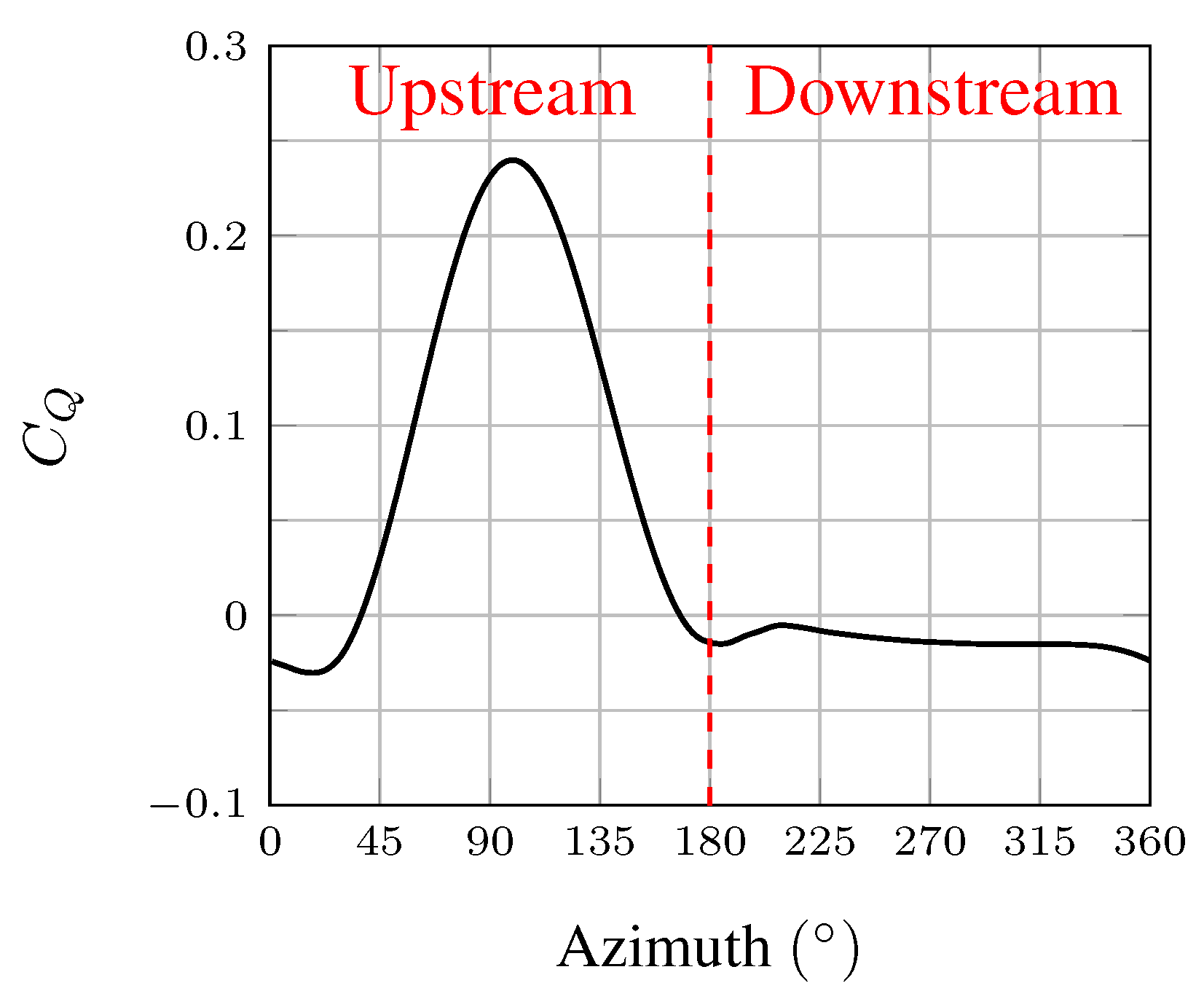

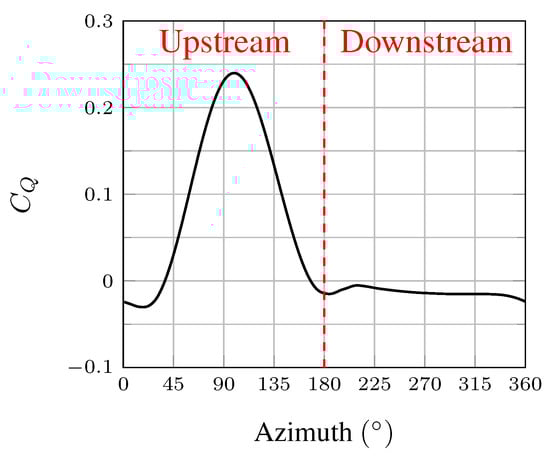

## 6. Fixed Pitch Cases

## 7. Variable Pitch Cases

#### 7.1. Aim, Strategy, and Definition of the Pitching Laws

#### 7.2. Results with Pitch Control

#### 7.2.1. Power Coefficient

#### 7.2.2. Thrust Coefficient

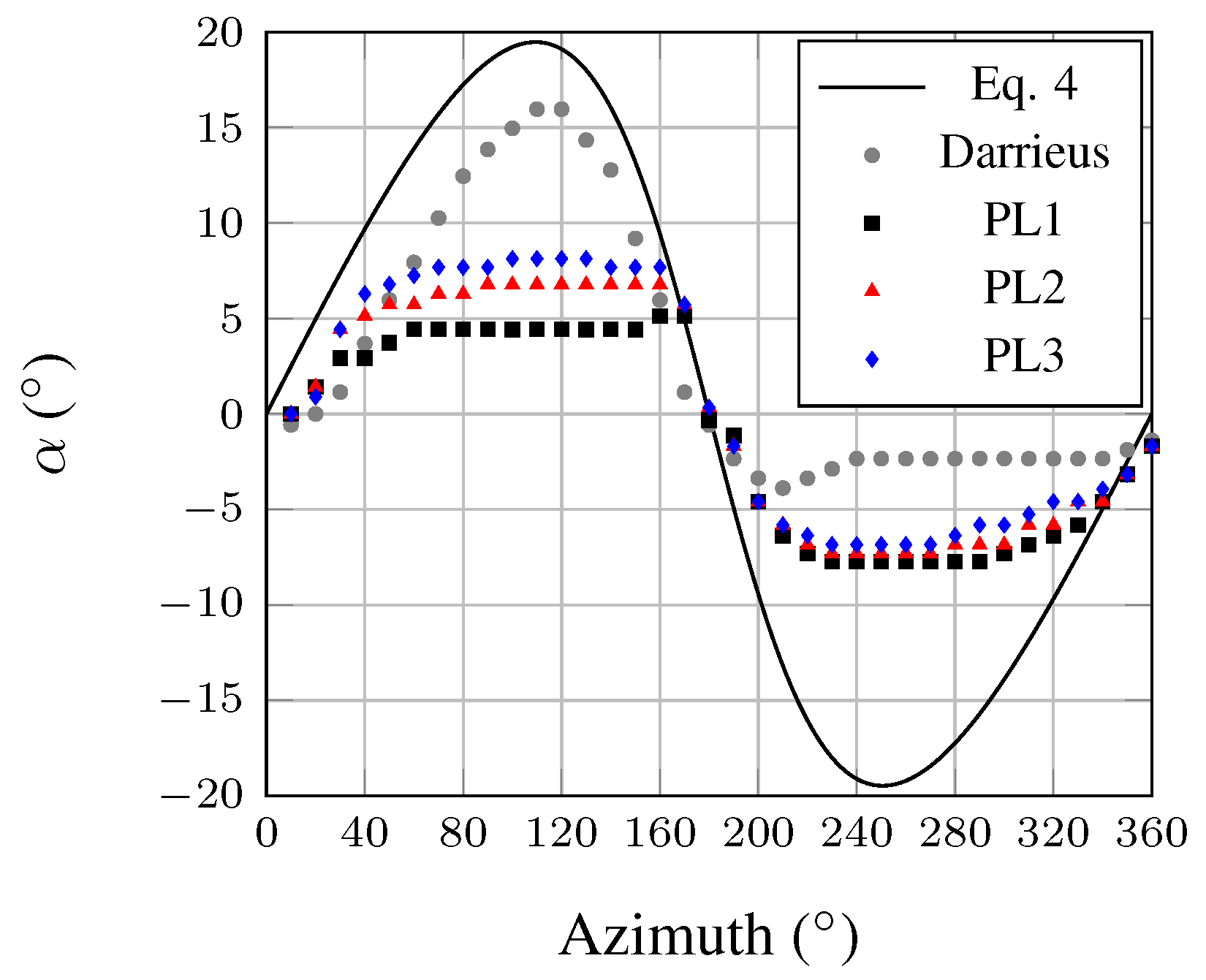

#### 7.2.3. Flow Field

## 8. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Conflicts of Interest

## Appendix A. Details of the Pitching Laws

**Table A1.**Details of pitching law PL1 ($\theta $ is always in degrees (${}^{\circ}$) in the expressions).

${\theta}_{\mathrm{upstream}}^{\mathrm{start}}$ [${}^{\circ}$] | 25 |

Upstream law [${}^{\circ}$] | 6 - $\mathrm{atan}\left(\right)open="("\; close=")">\frac{sin\left(\theta \frac{\pi}{180}\right)}{\lambda +cos\left(\theta \frac{\pi}{180}\right)}$ |

${\theta}_{\mathrm{upstream}}^{\mathrm{end}}$ [${}^{\circ}$] | 167 |

${\theta}_{\mathrm{downstream}}^{\mathrm{start}}$ [${}^{\circ}$] | 193 |

Downstream law [${}^{\circ}$] | $0.1\times sin\left(\theta \frac{\pi}{180}\right)$ |

${\theta}_{\mathrm{downstream}}^{\mathrm{end}}$ [${}^{\circ}$] | 335 |

Int 1 [${}^{\circ}$] | $0+5.5854\times {10}^{-2}\theta +4.3288\times {10}^{-3}{\theta}^{2}-2.7370\times {10}^{-4}{\theta}^{3}$ |

Int 2 [${}^{\circ}$] | $-3.3687\times {10}^{-1}+4.6298\times {10}^{-1}\left(\right)open="("\; close=")">\theta -{\theta}_{\mathrm{upstream}}^{\mathrm{end}}+1.8578\times {10}^{-3}{\left(\right)}^{\theta}3$ |

Int 3 [${}^{\circ}$] | $0-9.7183\times {10}^{-2}\left(\right)open="("\; close=")">\theta -180-5.6463\times {10}^{-4}{\left(\right)}^{\theta}3$ |

Int 4 [${}^{\circ}$] | $-4.2262\times {10}^{-2}+1.5818\times {10}^{-3}\left(\right)open="("\; close=")">\theta -{\theta}_{\mathrm{downstream}}^{\mathrm{end}}+8.6488\times {10}^{-5}{\left(\right)}^{\theta}3$ |

**Table A2.**Details of pitching law PL2 ($\theta $ is always in degrees (${}^{\circ}$) in the expressions).

${\theta}_{\mathrm{upstream}}^{\mathrm{start}}$ [${}^{\circ}$] | 33 |

Upstream law [${}^{\circ}$] | 8 - $\mathrm{atan}\left(\right)open="("\; close=")">\frac{sin\left(\theta \frac{\pi}{180}\right)}{\lambda +cos\left(\theta \frac{\pi}{180}\right)}$ |

${\theta}_{\mathrm{upstream}}^{\mathrm{end}}$ [${}^{\circ}$] | 163 |

${\theta}_{\mathrm{downstream}}^{\mathrm{start}}$ [${}^{\circ}$] | 197 |

Downstream law [${}^{\circ}$] | $0.1\times sin\left(\theta \frac{\pi}{180}\right)$ |

${\theta}_{\mathrm{downstream}}^{\mathrm{end}}$ [${}^{\circ}$] | 327 |

Int 1 [${}^{\circ}$] | $0+5.7635\times {10}^{-2}\theta +3.3873\times {10}^{-3}{\theta}^{2}-1.5767\times {10}^{-4}{\theta}^{3}$ |

Int 2 [${}^{\circ}$] | $-1.4151\times {10}^{-1}+4.3507\times {10}^{-1}\left(\right)open="("\; close=")">\theta -{\theta}_{\mathrm{upstream}}^{\mathrm{end}}+1.0901\times {10}^{-3}{\left(\right)}^{\theta}3$ |

Int 3 [${}^{\circ}$] | $0-1.0340\times {10}^{-1}\left(\right)open="("\; close=")">\theta -180-3.5165\times {10}^{-4}{\left(\right)}^{\theta}3$ |

Int 4 [${}^{\circ}$] | $-5.4464\times {10}^{-2}+1.4638\times {10}^{-3}\left(\right)open="("\; close=")">\theta -{\theta}_{\mathrm{downstream}}^{\mathrm{end}}+5.1237\times {10}^{-5}{\left(\right)}^{\theta}3$ |

**Table A3.**Details of pitching law PL3 ($\theta $ is always in degrees (${}^{\circ}$) in the expressions).

${\theta}_{\mathrm{upstream}}^{\mathrm{start}}$ [${}^{\circ}$] | 42 |

Upstream law [${}^{\circ}$] | 10 - $\mathrm{atan}\left(\frac{sin\left(\theta \frac{\pi}{180}\right)}{\lambda +cos\left(\theta \frac{\pi}{180}\right)}\right)\times \frac{180}{\Pi}$ |

${\theta}_{\mathrm{upstream}}^{\mathrm{end}}$ [${}^{\circ}$] | 158 |

${\theta}_{\mathrm{downstream}}^{\mathrm{start}}$ [${}^{\circ}$] | 202 |

Downstream law [${}^{\circ}$] | $0.1\times sin\left(\theta \frac{\pi}{180}\right)$ |

${\theta}_{\mathrm{downstream}}^{\mathrm{end}}$ [${}^{\circ}$] | 318 |

Int 1 [${}^{\circ}$] | $0+5.4294\times {10}^{-2}\theta +2.5025\times {10}^{-3}{\theta}^{2}-9.2188\times {10}^{-5}{\theta}^{3}$ |

Int 2 [${}^{\circ}$] | $-2.4412\times {10}^{-1}+4.0153\times {10}^{-1}\left(\right)open="("\; close=")">\theta -{\theta}_{\mathrm{upstream}}^{\mathrm{end}}+5.9175\times {10}^{-4}{\left(\right)}^{\theta}3$ |

Int 3 [${}^{\circ}$] | $0-9.2933\times {10}^{-2}\left(\right)open="("\; close=")">\theta -180-1.8832\times {10}^{-4}{\left(\right)}^{\theta}3$ |

Int 4 [${}^{\circ}$] | $-6.6913\times {10}^{-2}+1.2970\times {10}^{-3}\left(\right)open="("\; close=")">\theta -{\theta}_{\mathrm{downstream}}^{\mathrm{end}}+2.9708\times {10}^{-5}{\left(\right)}^{\theta}3$ |

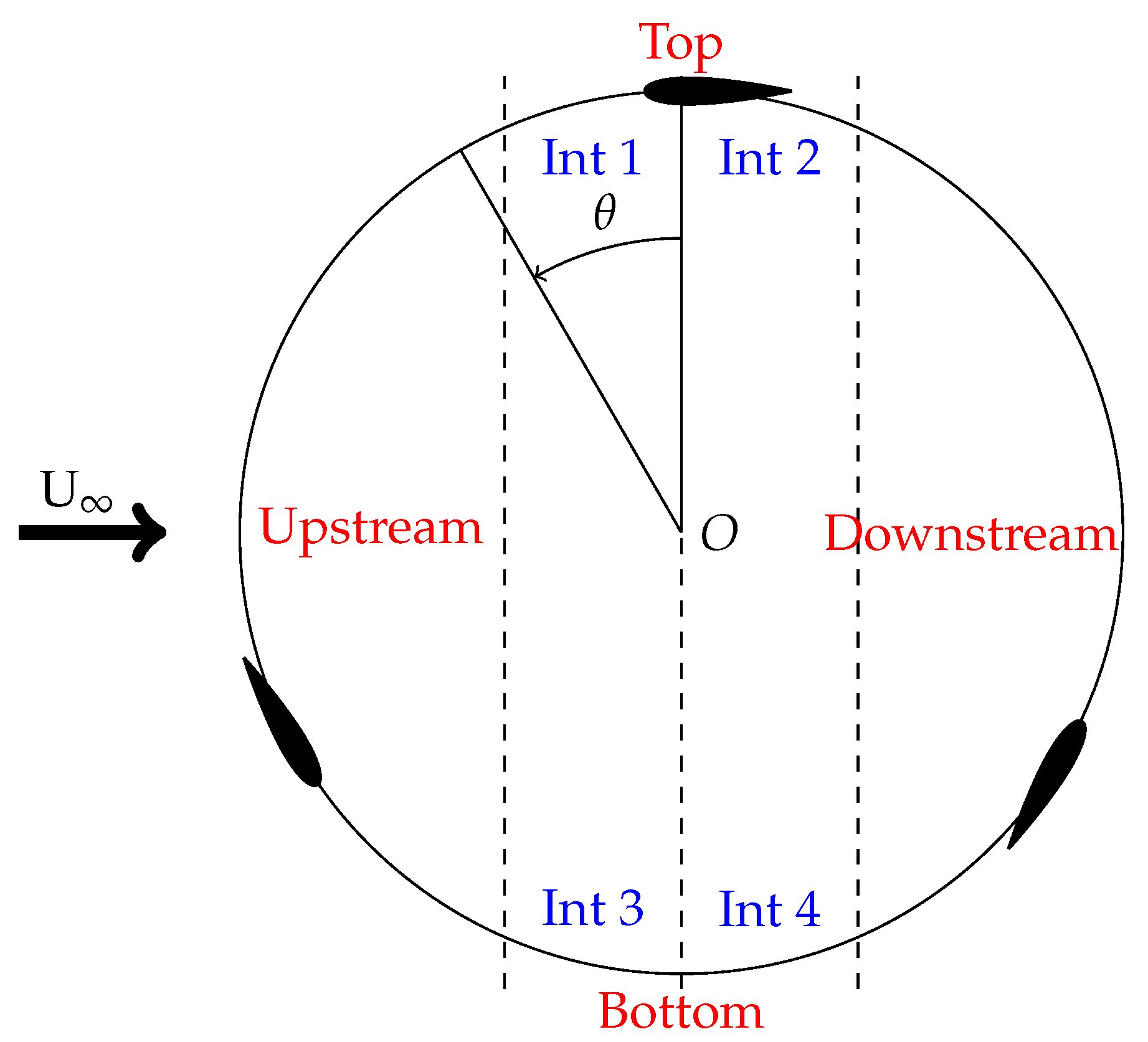

Pitching Law | Range of Validity |
---|---|

Int 1 | $\theta \in [{0}^{\circ},{\theta}_{\mathrm{upstream}}^{\mathrm{start}}]$ |

Upstream law | $\theta \in [{\theta}_{\mathrm{upstream}}^{\mathrm{start}},{\theta}_{\mathrm{upstream}}^{\mathrm{end}}]$ |

Int 2 | $\theta \in [{\theta}_{\mathrm{upstream}}^{\mathrm{end}},{180}^{\circ}]$ |

Int 3 | $\theta \in [{180}^{\circ},{\theta}_{\mathrm{downstream}}^{\mathrm{start}}]$ |

Downstream law | $\theta \in [{\theta}_{\mathrm{downstream}}^{\mathrm{start}},{\theta}_{\mathrm{downstream}}^{\mathrm{end}}]$ |

Int 4 | $\theta \in [{\theta}_{\mathrm{downstream}}^{\mathrm{end}},{360}^{\circ}]$ |

## References

- REN21. Renewables 2020 Global Status Report; Technical Report; REN21: Paris, France, 2020. [Google Scholar]
- International Renewable Energy Agency. Renewable Energy Statistics 2020; Technical Report; International Renewable Energy Agency: Abu Dhabi, UAE, 2020. [Google Scholar]
- International Energy Agency. Renewables 2020—Analysis and Forecast to 2025 (Executive Summary); Technical Report; International Energy Agency: Paris, France, 2020. [Google Scholar]
- Coles, D.; Blunden, L.; Bahaj, A. Assessment of the energy extraction potential at tidal sites around the Channel Islands. Energy
**2017**, 124, 171–186. [Google Scholar] [CrossRef] - Darrieus, G. Turbine Having Its Rotating Shaft Transverse to the Flow of the Current. U.S. Patent 1835018A, 8 December 1931. [Google Scholar]
- Sutherland, H.; Berg, D.; Ashwill, T. A Retrospective of VAWT Technology; Technical Report SAND2012-0304; SANDIA: Albuquerque, NM, USA, 2012. [Google Scholar]
- Templin, R. Aerodynamic Performance Theory for the NRC Vertical-Axis Wind Turbine; Technical Report Rept. LTR-LA-160; NASA: Washington, DC, USA, 1974.
- Dabiri, J.O. Potential order-of-magnitude enhancement of wind farm power density via counter-rotating vertical-axis wind turbine arrays. J. Renew. Sustain. Energy
**2011**, 3, 043104. [Google Scholar] [CrossRef] [Green Version] - Kirke, B.; Lazauskas, L. Limitations of fixed pitch Darrieus hydrokinetic turbines and the challenge of variable pitch. Renew. Energy
**2011**, 36, 893–897. [Google Scholar] [CrossRef] - Kirke, B.; Lazauskas, L. Enhancing the Performance of Vertical Axis Wind Turbine Using a Simple Variable Pitch System. Wind Eng.
**1991**, 15, 187–195. [Google Scholar] - Staelens, Y.; Saeed, F.; Paraschivoiu, I. A straight-bladed variable-pitch VAWT concept for improved power generation. In Proceedings of the 22nd ASME Wind Energy Symposium held in Conjunction with the 41st Aerospace Sciences Meeting & Exhibit, Reno, NV, USA, 6–9 January 2003; pp. 146–154. [Google Scholar]
- Hwang, I.; Lee, Y.; Kim, S. Optimization of cycloidal water turbine and the performance improvement by individual blade control. Appl. Energy
**2009**, 86, 1532–1540. [Google Scholar] [CrossRef] - Lazauskas, L.; Kirke, B. Modeling passive variable pitch cross flow hydrokinetic turbines to maximize performance and smooth operation. Renew. Energy
**2012**, 45, 41–50. [Google Scholar] [CrossRef] - Paillard, B.; Hauville, F.; Astolfi, J. Simulating variable pitch crossflow water turbines: A coupled unsteady ONERA-EDLIN model and streamtube model. Renew. Energy
**2013**, 52, 209–217. [Google Scholar] [CrossRef] [Green Version] - Kirke, B.; Paillard, B. Predicted and measured performance of a vertical axis wind turbine with passive variable pitch compared to fixed pitch. Wind Eng.
**2017**, 41, 74–90. [Google Scholar] [CrossRef] - Chen, B.; Su, S.; Viola, I.; Greated, C. Numerical investigation of vertical-axis tidal turbines with sinusoidal pitching blades. Ocean Eng.
**2018**, 155, 75–87. [Google Scholar] [CrossRef] [Green Version] - De Tavernier, D.; Ferreira, C.; van Bussel, G. Airfoil optimisation for vertical-axis wind turbines with variable pitch. Wind Energy
**2019**, 22, 547–562. [Google Scholar] [CrossRef] - Maître, T.; Amet, E.; Pellone, C. Modeling of the flow in a Darrieus water turbine: Wall grid refinement analysis and comparison with experiments. Renew. Energy
**2013**, 51, 497–512. [Google Scholar] [CrossRef] - McNaughton, J.; Billard, F.; Revell, A. Turbulence modelling of low Reynolds number flow effects around a vertical axis turbine at a range of tip-speed ratios. J. Fluids Struct.
**2014**, 47, 124–138. [Google Scholar] [CrossRef] - Paillard, B.; Astolfi, J.; Hauville, F. URANSE simulation of an active variable-pitch cross-flow Darrieus tidal turbine: Sinusoidal pitch function investigation. Int. J. Mar. Energy
**2015**, 11, 9–26. [Google Scholar] [CrossRef] [Green Version] - Balduzzi, F.; Bianchini, A.; Maleci, R.; Ferrara, G.; Ferrari, L. Critical issues in the CFD simulation of Darrieus wind turbines. Renew. Energy
**2016**, 85, 419–435. [Google Scholar] [CrossRef] - Guilbot, M.; Barre, S.; Balarac, G.; Bonamy, C.; Guillaud, N. A numerical study of Vertical Axis Wind Turbine performances in twin-rotor configurations. J. Physics Conf. Ser.
**2020**, 1618, 052012. [Google Scholar] [CrossRef] - Amet, E. Simulation Numérique D’une Hydrolienne à Axe Vertical de Type Darrieus. Ph.D. Thesis, Institut Polytechnique de Grenoble, Grenoble, France, 2009. [Google Scholar]
- Marsh, P.; Ranmuthugala, D.; Penesis, I.; Thomas, G. Three-dimensional numerical simulations of straight-bladed vertical axis tidal turbines investigating power output, torque ripple and mounting forces. Renew. Energy
**2015**, 83, 67–77. [Google Scholar] [CrossRef] [Green Version] - Orlandi, A.; Collu, M.; Zanforlin, S.; Shires, A. 3D URANS analysis of a vertical axis wind turbine in skewed flows. J. Wind Eng. Ind. Aerodyn.
**2015**, 147, 77–84. [Google Scholar] [CrossRef] [Green Version] - Li, C.; Zhu, S.; Xu, Y.; Xiao, Y. 2.5 D large eddy simulation of vertical axis wind turbine in consideration of high angle of attack flow. Renew. Energy
**2013**, 51, 317–330. [Google Scholar] [CrossRef] [Green Version] - Guillaud, N.; Balarac, G.; Goncalvès, E.; Zanette, J. Large Eddy Simulations on Vertical Axis Hydrokinetic Turbines—Power coefficient analysis for various solidities. Renew. Energy
**2020**, 147, 473–486. [Google Scholar] [CrossRef] [Green Version] - Massie, L.; Ouro, P.; Stoesser, T.; Luo, Q. An Actuator Surface Model to Simulate Vertical Axis Turbines. Energies
**2019**, 12, 4741. [Google Scholar] [CrossRef] [Green Version] - Zhao, R.; Creech, A.; Borthwick, A.; Venugopal, V. Aerodynamic analysis of a two-bladed vertical-axis wind turbine using a coupled unsteady RANS and actuator line model. Energies
**2020**, 13, 776. [Google Scholar] [CrossRef] [Green Version] - Grondeau, M.; Guillou, S.; Mercier, P.; Poizot, E. Wake of a ducted vertical axis tidal turbine in turbulent flows, LBM actuator-line approach. Energies
**2019**, 12, 4273. [Google Scholar] [CrossRef] [Green Version] - Edwards, J.; Danao, L.; Howel, R. Novel Experimental Power Curve Determination and Computational Methods for the Performance Analysis of Vertical Axis Wind Turbines. J. Sol. Energy Eng.
**2012**, 134. [Google Scholar] [CrossRef] - Gosselin, R. Analysis and Optimization of Vertical Axis Turbines. Ph.D. Thesis, Faculté des Sciences et de Génie, Université Laval, Québec, QC, Canada, 2015. [Google Scholar]
- Raciti Castelli, M.; Englaro, A.; Benini, E. The Darrieus wind turbine: Proposal for a new performance prediction model based on {CFD}. Energy
**2011**, 36, 4919–4934. [Google Scholar] [CrossRef] - Elsakka, M.; Ingham, D.; Ma, L.; Pourkashanian, M. CFD analysis of the angle of attack for a vertical axis wind turbine blade. Energy Convers. Manag.
**2019**, 182, 154–165. [Google Scholar] [CrossRef] - Melani, P.F.; Balduzzi, F.; Ferrara, G.; Bianchini, A. How to extract the angle attack on airfoils in cycloidal motion from a flow field solved with computational fluid dynamics? Development and verification of a robust computational procedure. Energy Convers. Manag.
**2020**, 223, 113284. [Google Scholar] [CrossRef] - Jost, E.; Klein, L.; Leipprand, H.; Lutz, T.; Krämer, E. Extracting the angle of attack on rotor blades from CFD simulations. Wind Energy
**2018**, 21, 807–822. [Google Scholar] [CrossRef] - Bianchini, A.; Balduzzi, F.; Ferrara, G.; Ferrari, L. A computational procedure to define the incidence angle on airfoils rotating around an axis orthogonal to flow direction. Energy Convers. Manag.
**2016**, 126, 790–798. [Google Scholar] [CrossRef] - Drela, M. XFOIL: An Analysis and Design System for Low Reynolds Number Airfoils. In Low Reynolds Number Aerodynamics; Mueller, T.J., Ed.; Springer: Berlin/Heidelberg, Germany, 1989; pp. 1–12. [Google Scholar]
- Delafin, P.L. Analyse de L’écoulement Transitionnel Sur un Hydrofoil: Application Aux Hydroliennes à Axe Transverse Avec Contrôle Actif de L’angle de Calage. Ph.D. Thesis, Université de Bretagne Occidentale, Brest, France, 2014. [Google Scholar]
- CFX. ANSYS CFX Solver Theory Guide; ANSYS: Canonsburg, PA, USA, 2011; Volume 14.0. [Google Scholar]
- Menter, F. Two-Equation Eddy-Viscosity Turbulence Models for Engineering Applications. AIAA J.
**1994**, 32, 1598–1604. [Google Scholar] [CrossRef] [Green Version] - Timmer, W. Two-dimensional low-Reynolds number wind tunnel results for airfoil NACA 0018. Wind Eng.
**2008**, 32, 525–537. [Google Scholar] [CrossRef] [Green Version] - Jacobs, E.; Sherman, A. Airfoil Section Characteristics as Affected by Variations of the Reynolds Number; Technical Report, NACA Rept. 586; NACA: Washington, DC, USA, 1937. [Google Scholar]
- Paraschivoiu, I. Wind Turbine Design: With Emphasis on Darrieus Concept; Presses inter Polytechnique: Montréal, QC, Canada, 2002. [Google Scholar]
- Zeiner-Gundersen, D. Turbine design and field development concepts for tidal, ocean, and river applications. Energy Sci. Eng.
**2015**, 3, 27–42. [Google Scholar] [CrossRef]

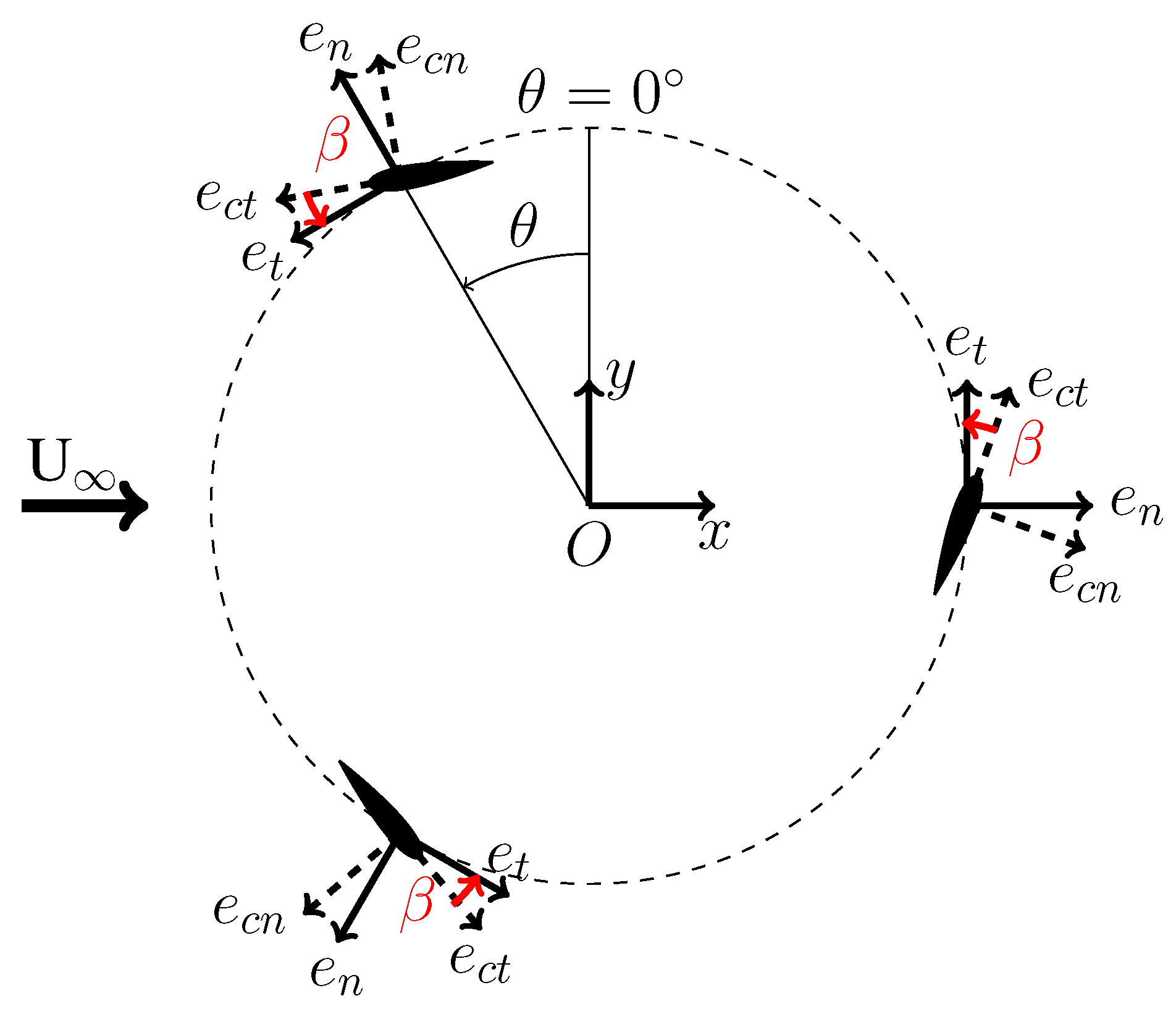

**Figure 2.**Definition of the blade pitch angle $\beta $. (${\overrightarrow{e}}_{ct},{\overrightarrow{e}}_{cn}$): coordinate frame attached to the blade (i.e., ${\overrightarrow{e}}_{ct}$ remains parallel to the blade’s chord at all time). (${\overrightarrow{e}}_{t},{\overrightarrow{e}}_{n}$): coordinate frame that follows the blade path with ${\overrightarrow{e}}_{t}$ parallel to the tangent to the trajectory of the quarter chord at all time. The pitch angle $\beta $ is the angle between ${\overrightarrow{e}}_{ct}$ and ${\overrightarrow{e}}_{t}$.

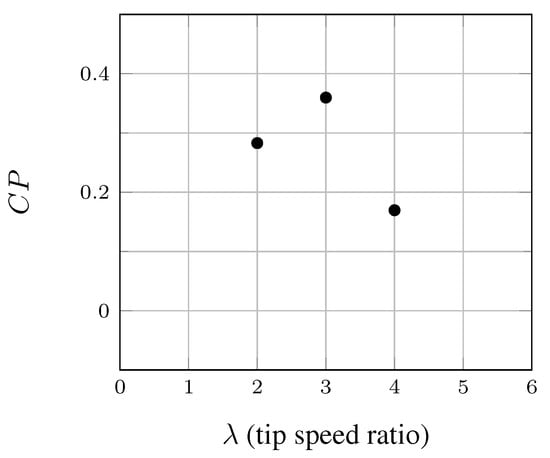

**Figure 7.**Power coefficient of the fixed pitch turbine as a function of the tip speed ratio ($\lambda $), ${\mathrm{U}}_{\infty}=2\mathrm{m}/\mathrm{s}$.

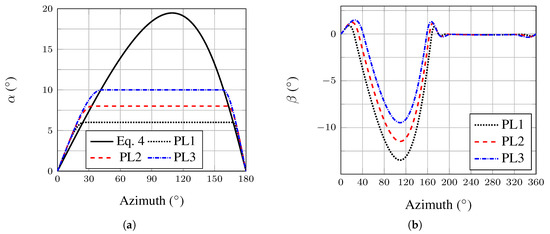

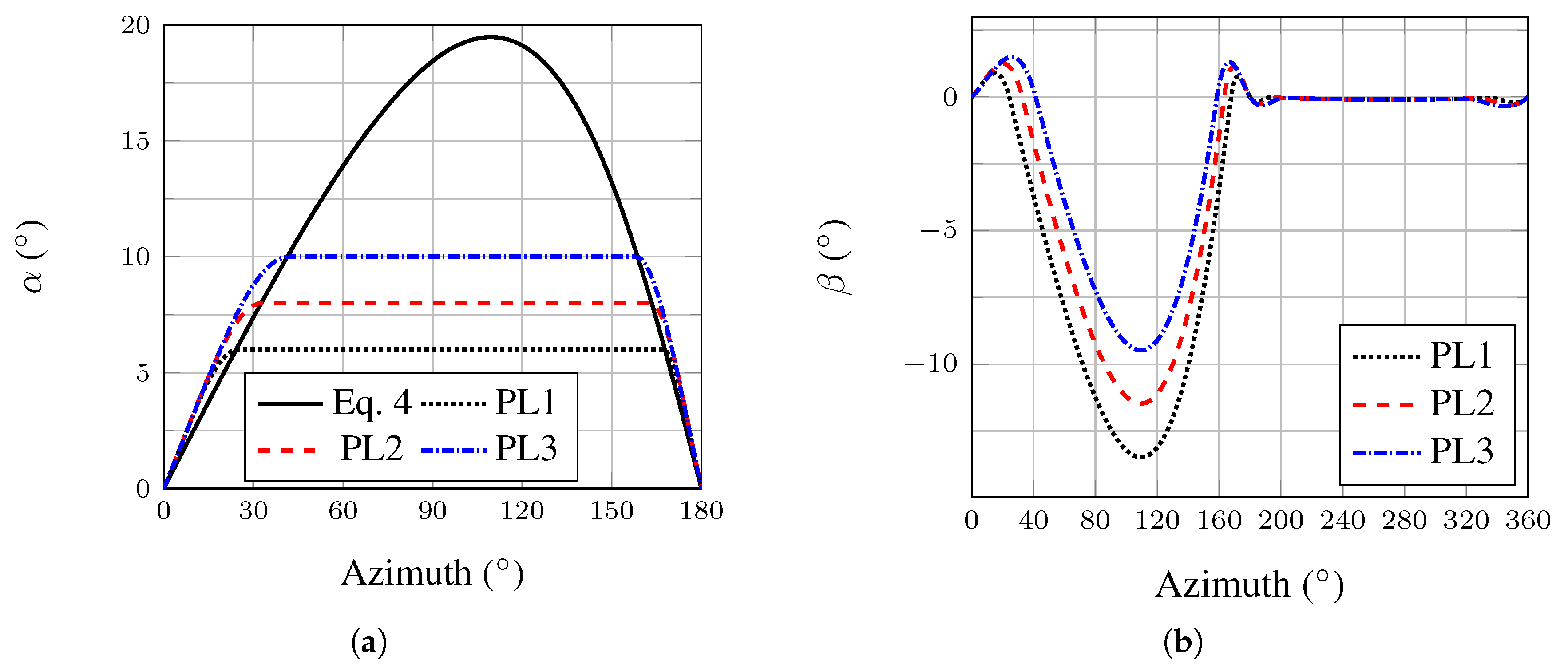

**Figure 10.**(

**a**) Blades’ angle of attack of the Darrieus turbine (from Equation (4)) and of the 3 variable-pitch cases; (

**b**) pitching laws studied, $\lambda =3$.

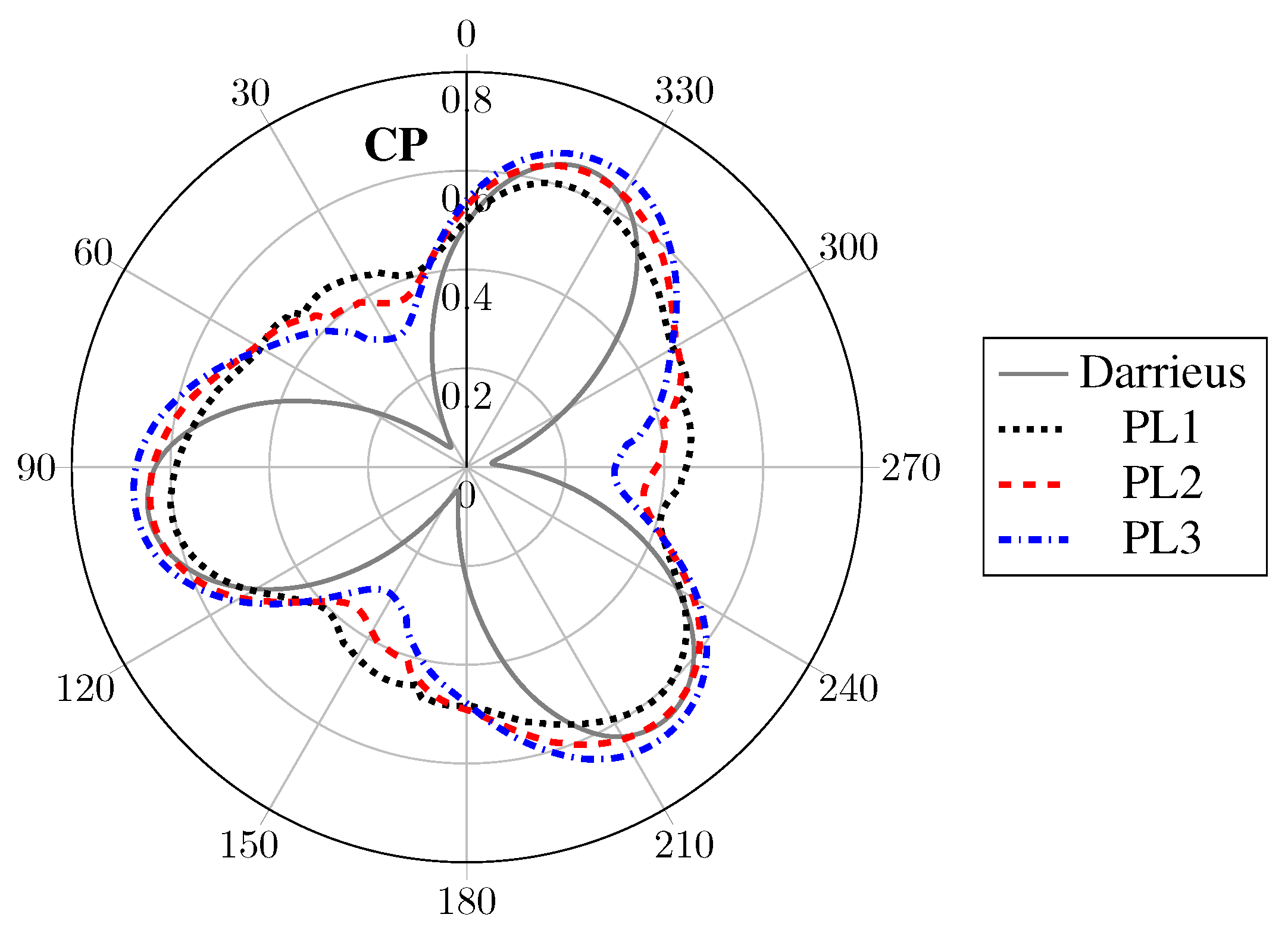

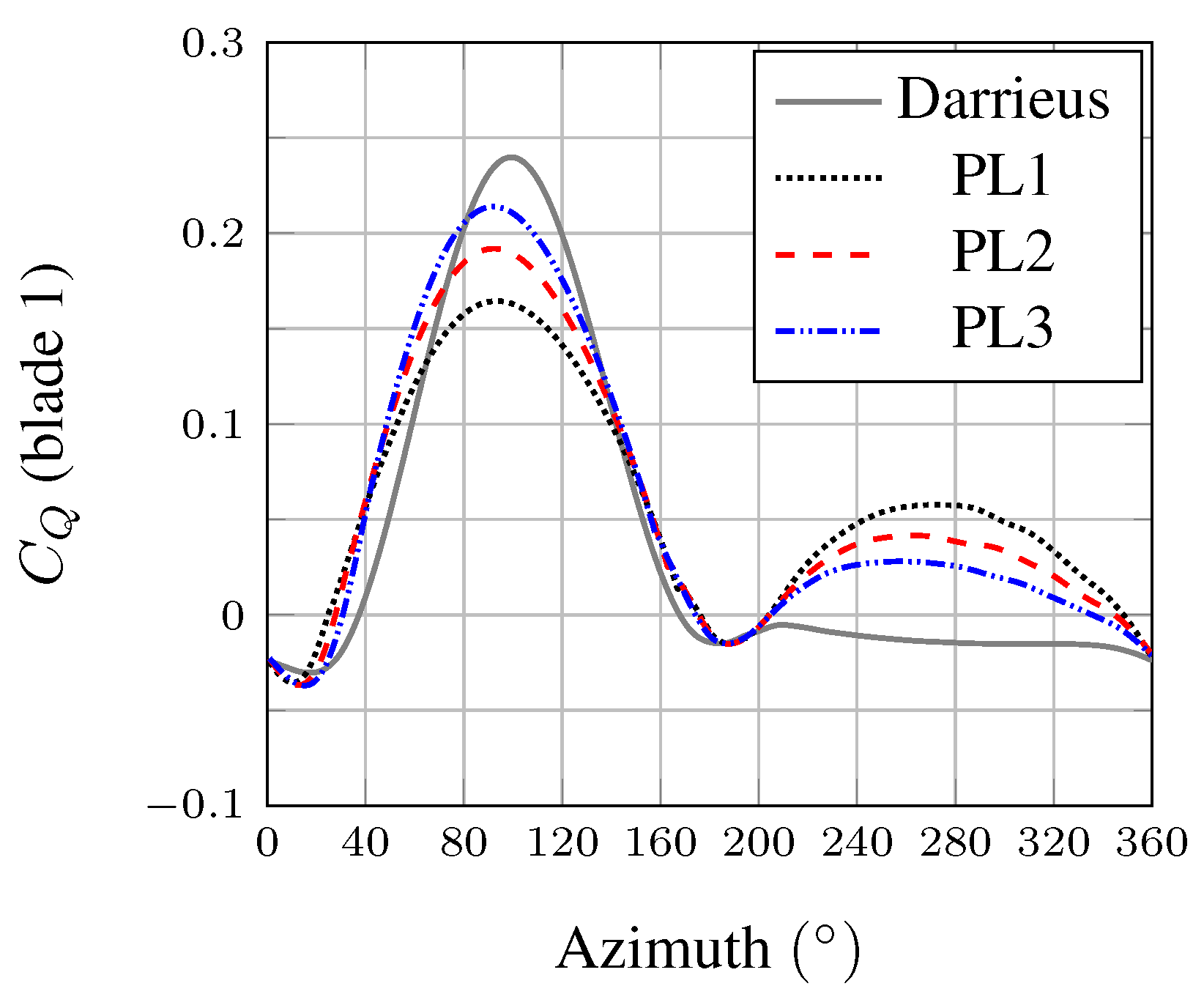

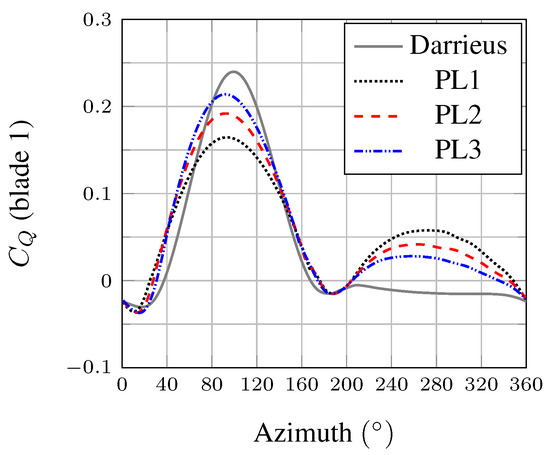

**Figure 12.**Torque coefficient (${C}_{Q}$) of one blade for the Darrieus and the pitching law cases, $\lambda =3$.

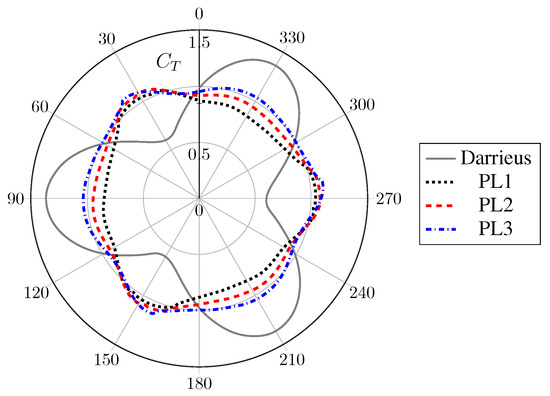

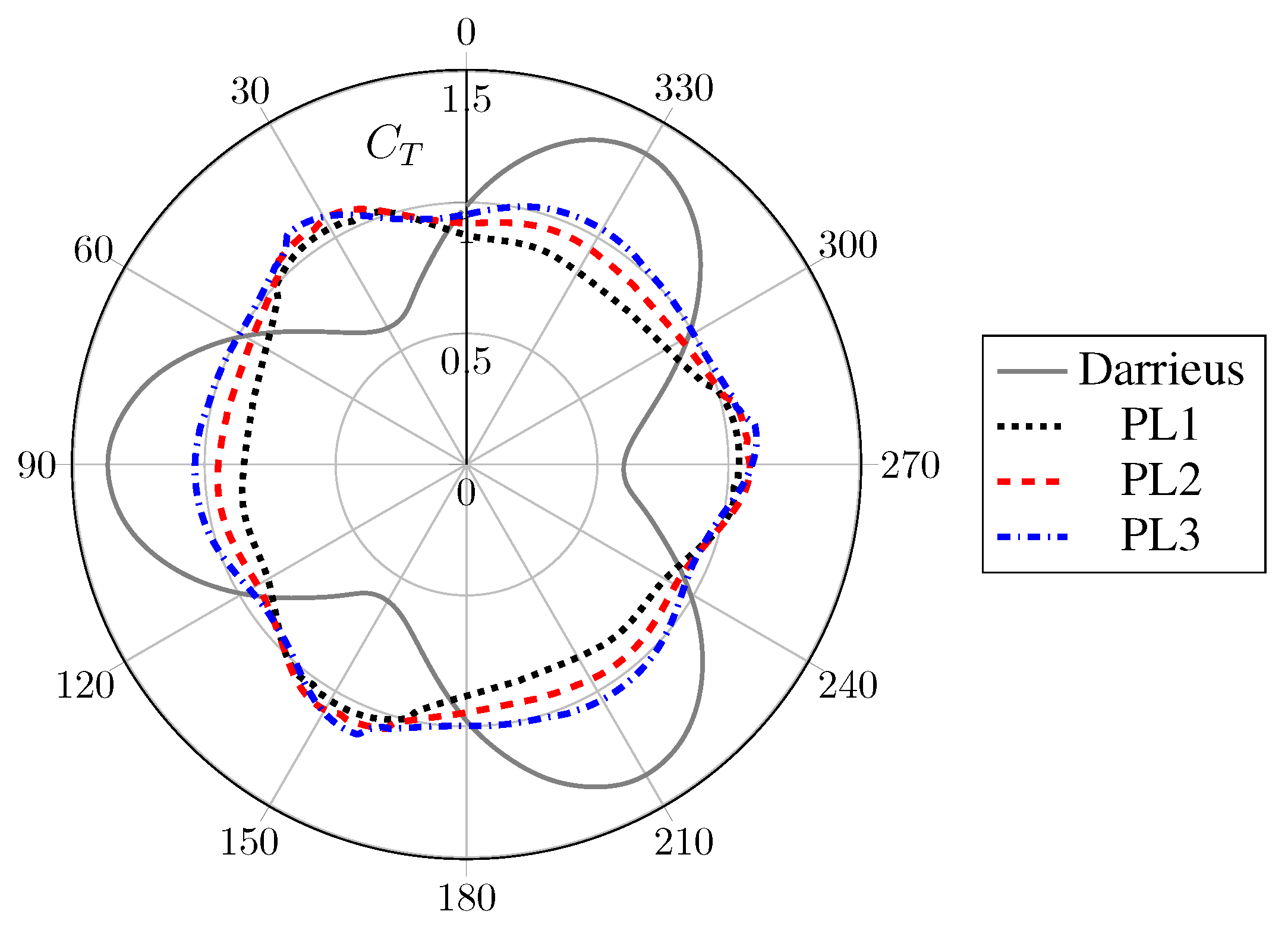

**Figure 13.**Thrust coefficient (${C}_{T}$) for the Darrieus and the pitching law cases, $\lambda =3$.

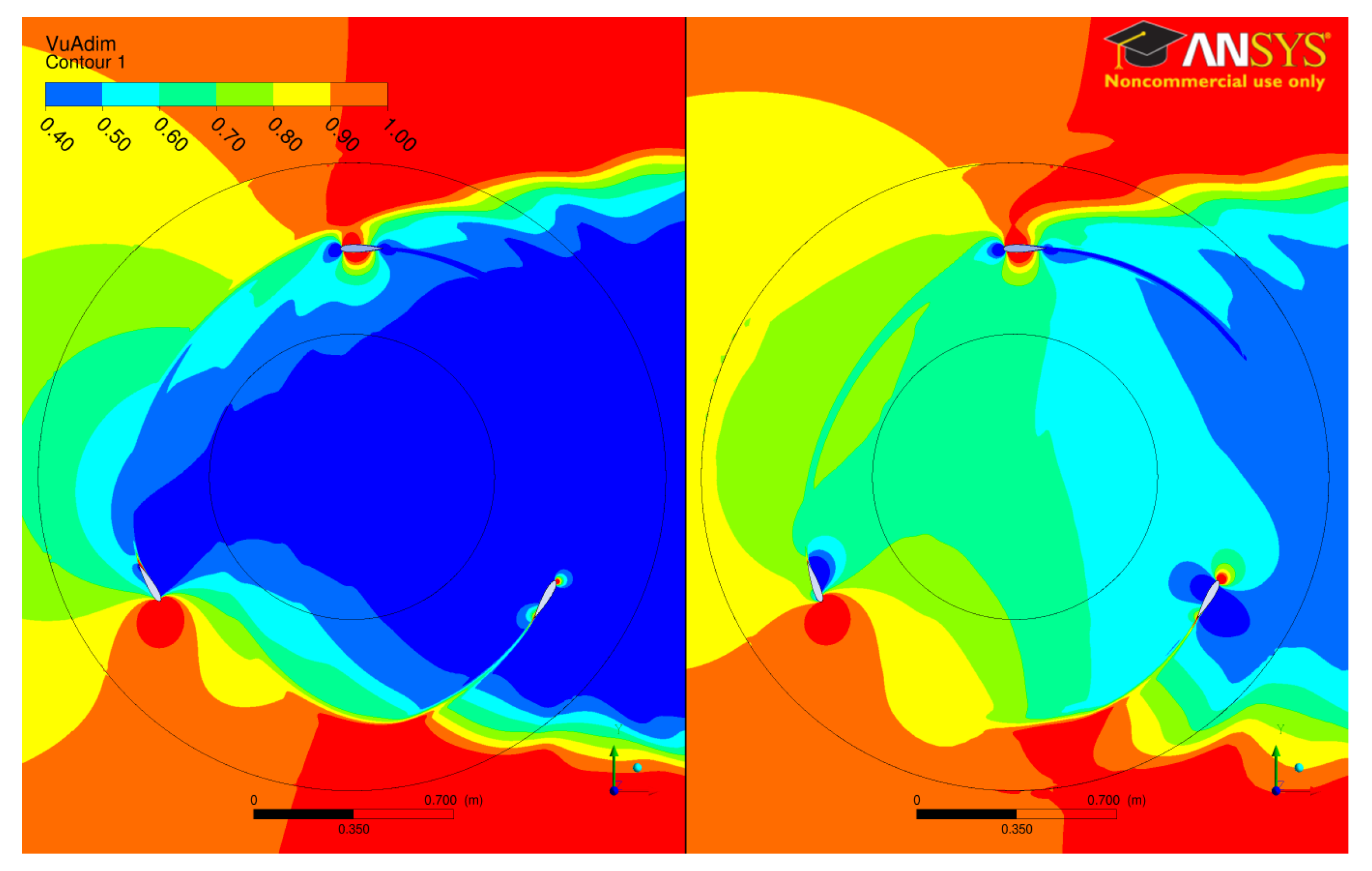

**Figure 14.**Isocontours of non-dimensioned streamwise velocity (${U}_{x}/{U}_{\infty}$) for the Darrieus (

**left**) and the PL2 (

**right**) cases, $\lambda =3$. Instantaneous flow field with blade 1 located at $\theta ={0}^{\circ}$.

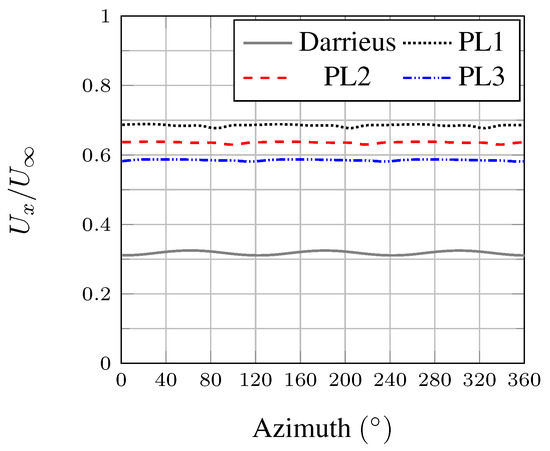

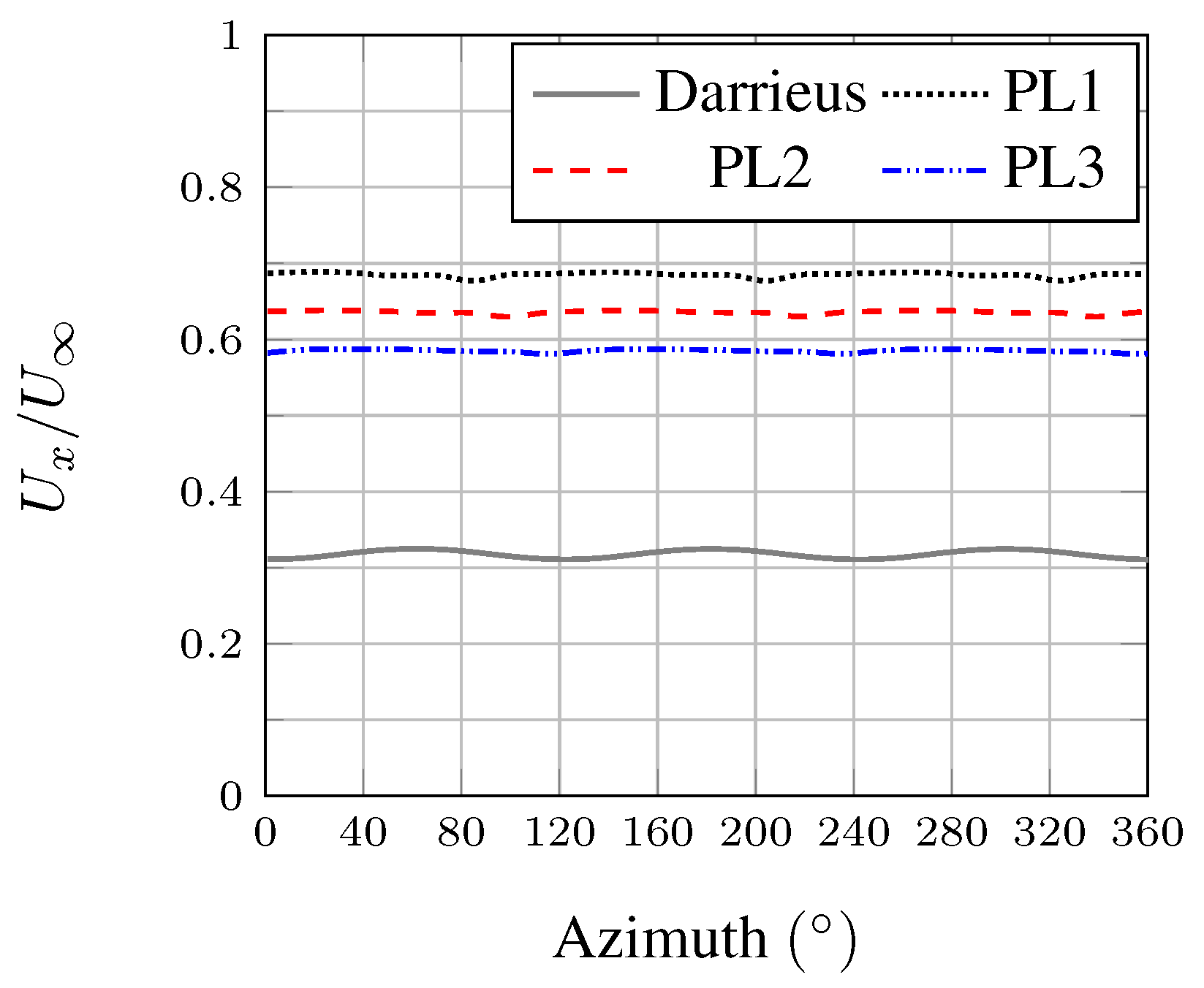

**Figure 15.**Non-dimensioned flow speed (${U}_{x}/{U}_{\infty}$) at the center of the turbine for the Darrieus and the pitching law cases, $\lambda =3$.

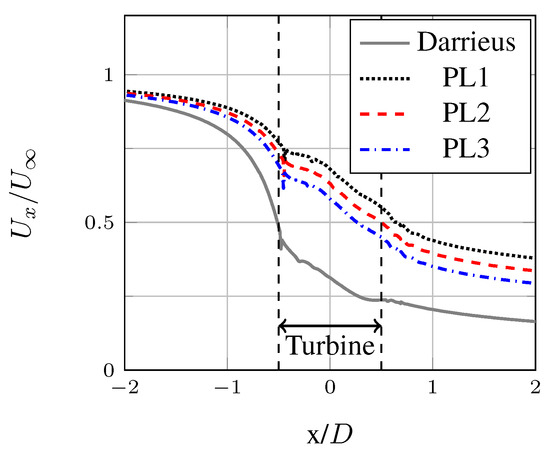

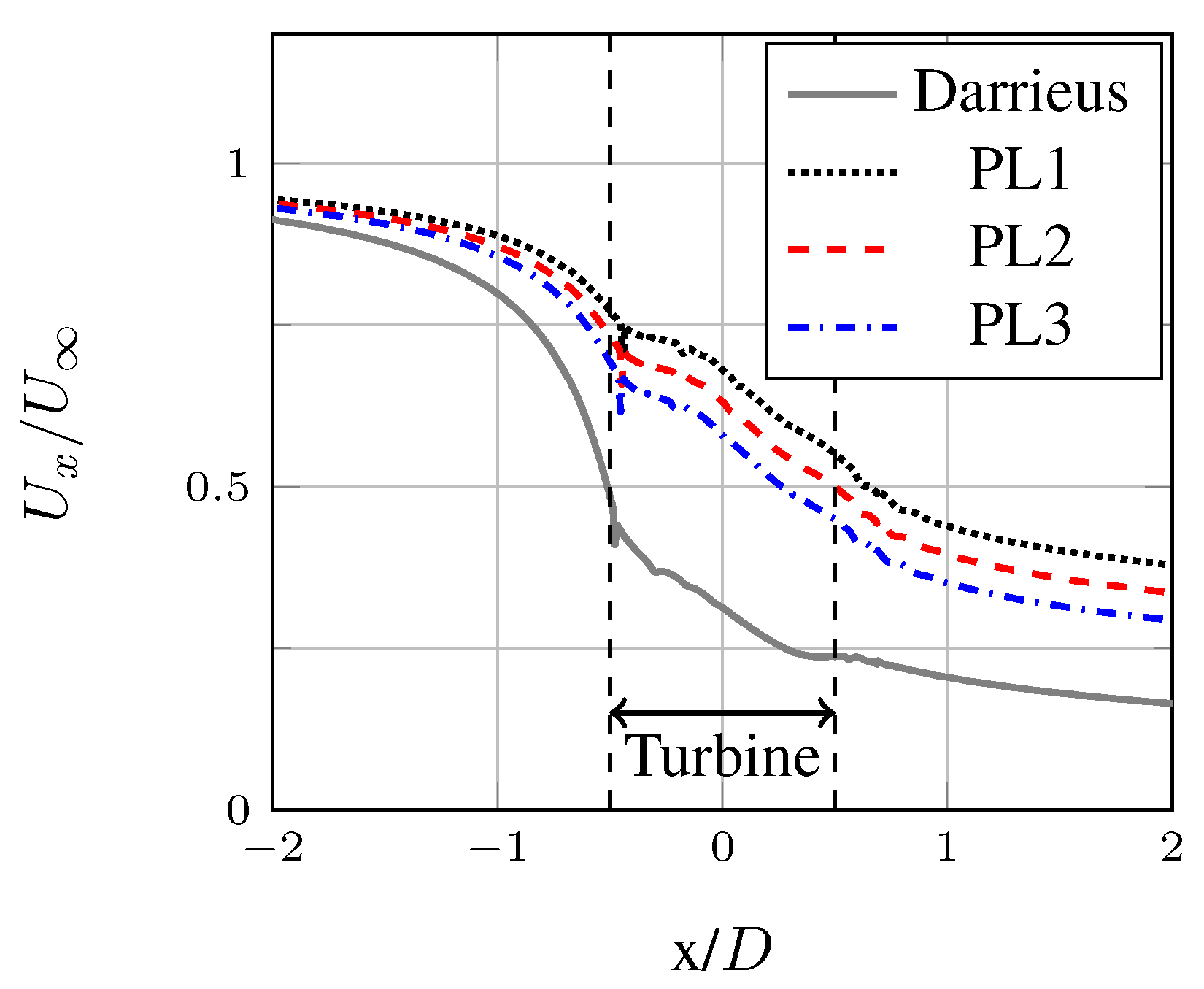

**Figure 17.**Non-dimensioned instantaneous streamwise velocity (${U}_{x}/{U}_{\infty}$) plotted on a line crossing the center of the turbine ($y=0$ m) in the streamwise direction. Data for the Darrieus and the pitching law cases, $\lambda =3$.

The SHIVA Turbine | |
---|---|

Rotor diameter ($D=2R$) | 1.6 [m] |

Number of blades (N) | 3 |

Blade length (l) | 1 [m] |

Blades cross section | NACA 0018 |

Chord length (c) | 0.15 [m] |

Solidity ($\sigma =Nc/R$) | 0.563 |

Blade rotation axis location | $0.25\times c$ |

**Table 2.**Power coefficient: average ($\overline{CP}$) and ripple factor ($C{P}_{F}=C{P}_{max}-C{P}_{min}$) values for the fixed and variable pitch cases.

$\overline{\mathit{CP}}$ | ${\mathit{CP}}_{\mathit{F}}$ | |
---|---|---|

Fixed pitch | 0.360 (ref) | 0.60 (ref) |

PL1 | 0.503 ($+39.8\%$) | 0.20 ($-66.7\%$) |

PL2 | 0.507 ($+40.9\%$) | 0.28 ($-52.8\%$) |

PL3 | 0.499 ($+38.7\%$) | 0.38 ($-37.1\%$) |

**Table 3.**Thrust coefficient: average ($\overline{{C}_{T}}$) and ripple factor (${C}_{{T}_{F}}={C}_{Tmax}-{C}_{Tmin}$) values for the fixed and variable pitch cases.

$\overline{{\mathit{C}}_{\mathit{T}}}$ | ${\mathit{C}}_{{\mathit{T}}_{\mathit{F}}}$ | |
---|---|---|

Darrieus | 0.982 (ref) | 0.77 (ref) |

PL1 | 0.919 ($-6.5\%$) | 0.20 ($-74.0\%$) |

PL2 | 0.974 ($-0.8\%$) | 0.16 ($-79.0\%$) |

PL3 | 1.016 ($+3.4\%$) | 0.17 ($-78.1\%$) |
