# Analysis of Controlling Factors at Separate Imbibition Stages for Ultra-Low-Permeability Reservoirs

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Experimental Study

#### 2.1. Geologic Features of the Study Area

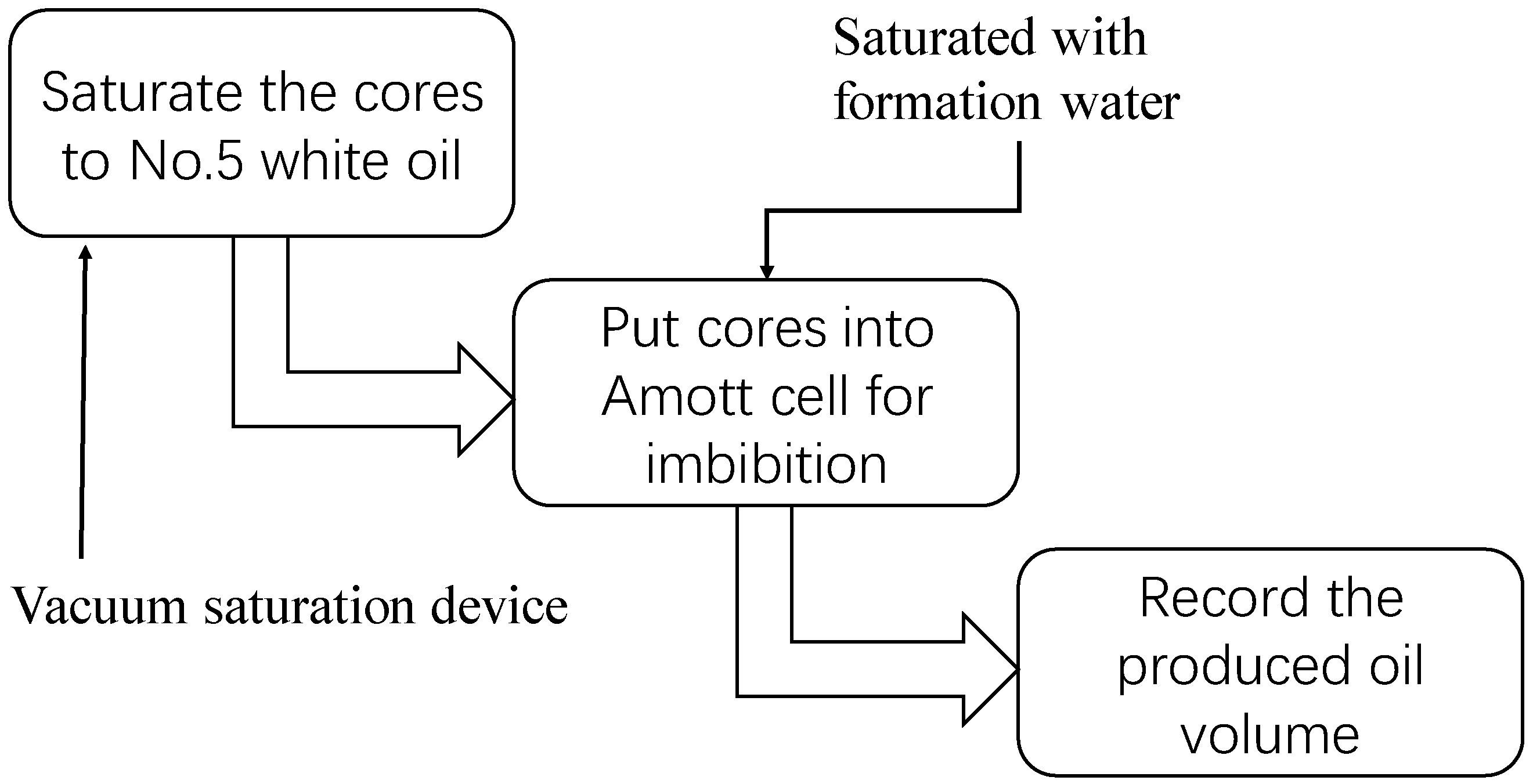

#### 2.2. Experimental Preparation

^{3}. The viscosity of surface crude oil is 4.28~8.89 mPa·s (the average is 5.22 mPa·s), and the freezing point is −6~22 °C (the average is 7.4 °C). Therefore, No. 5 white oil, which has similar properties to crude oil in Chang 6 formation, is selected as the experimental oil. The formation water in the study area is calcium chloride (CaCl

_{2}) water type, with a total salinity of 91.3384 g/L and PH value of 6.53~7.37 (the average is 6.85). Based on the above properties, the formation water is prepared in the laboratory. The salinity is measured as 91 g/L. The core samples are selected from Chang 6 formation in Zichang area. The cores are processed by cutting flat, washing oil, drying, weighing, etc., for experimental use.

#### 2.3. Experimental Cases

#### 2.4. Experimental Results

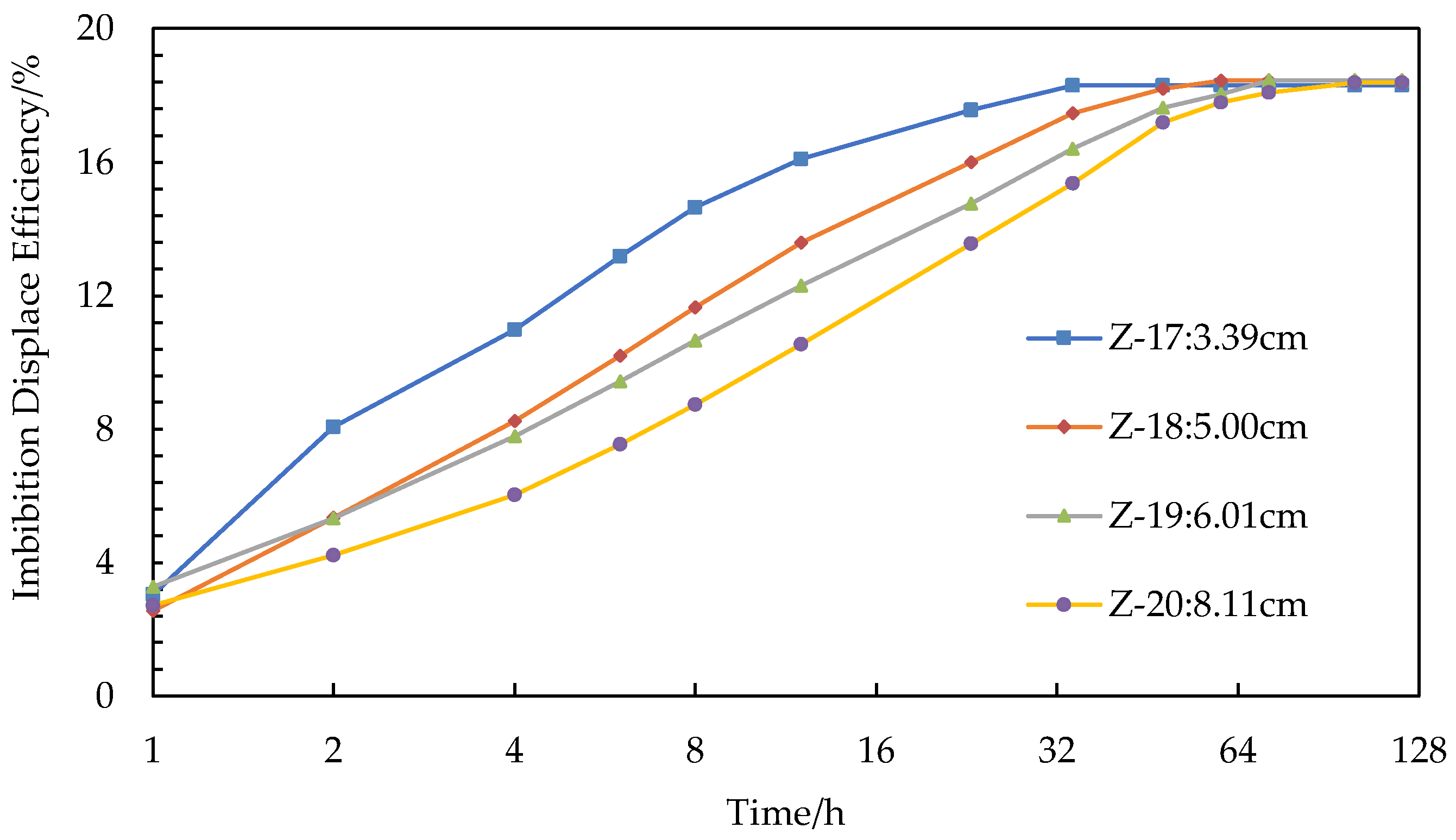

#### 2.4.1. Effects of the Core Length

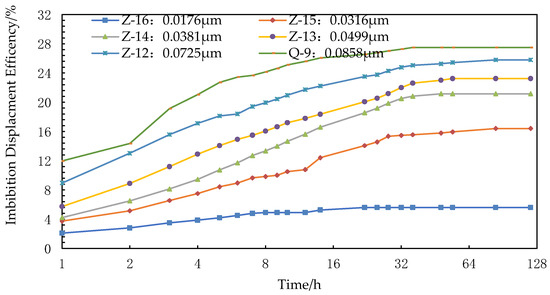

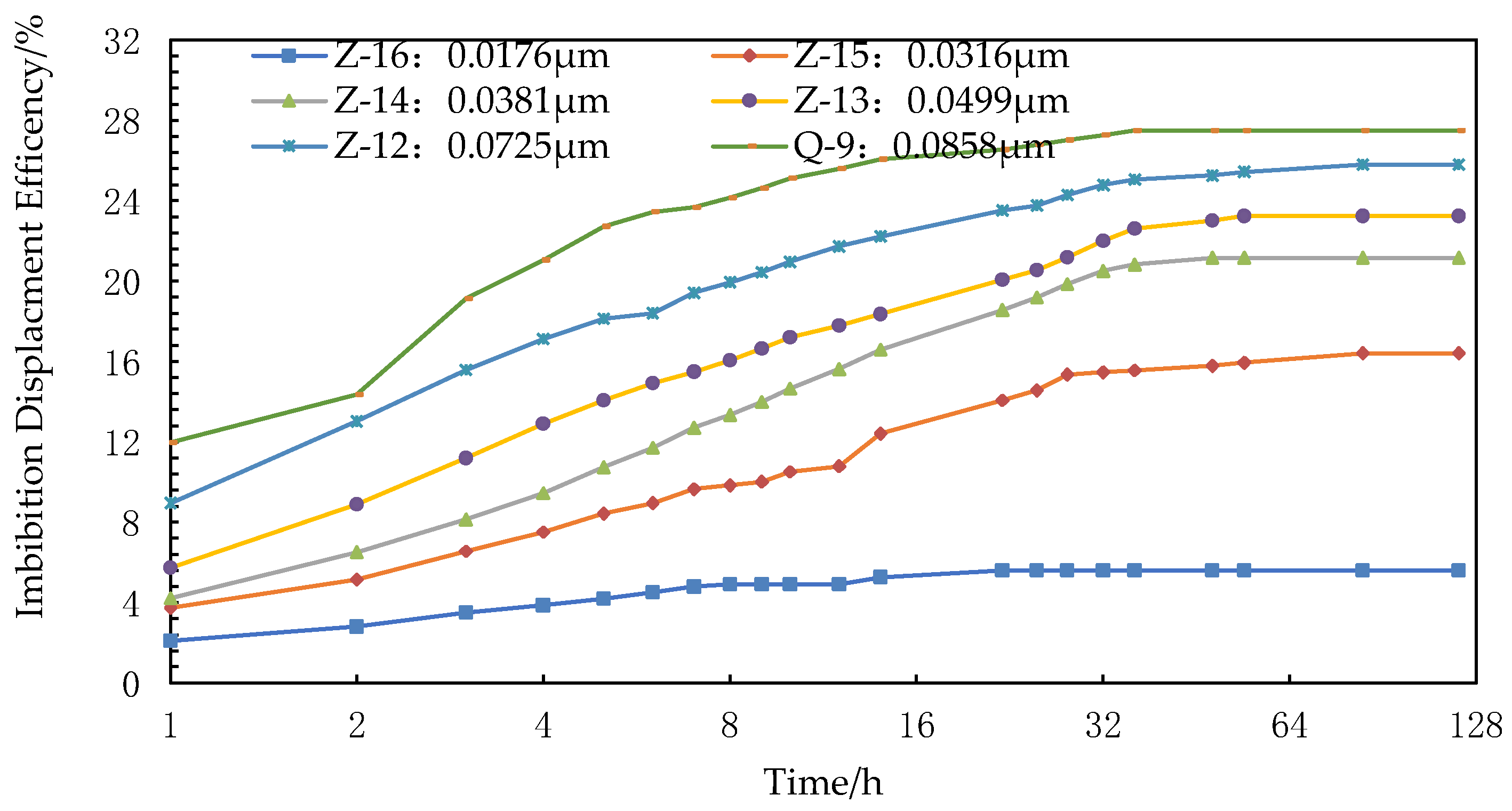

#### 2.4.2. Effects of the RQI (Reservoir Quantity Index)

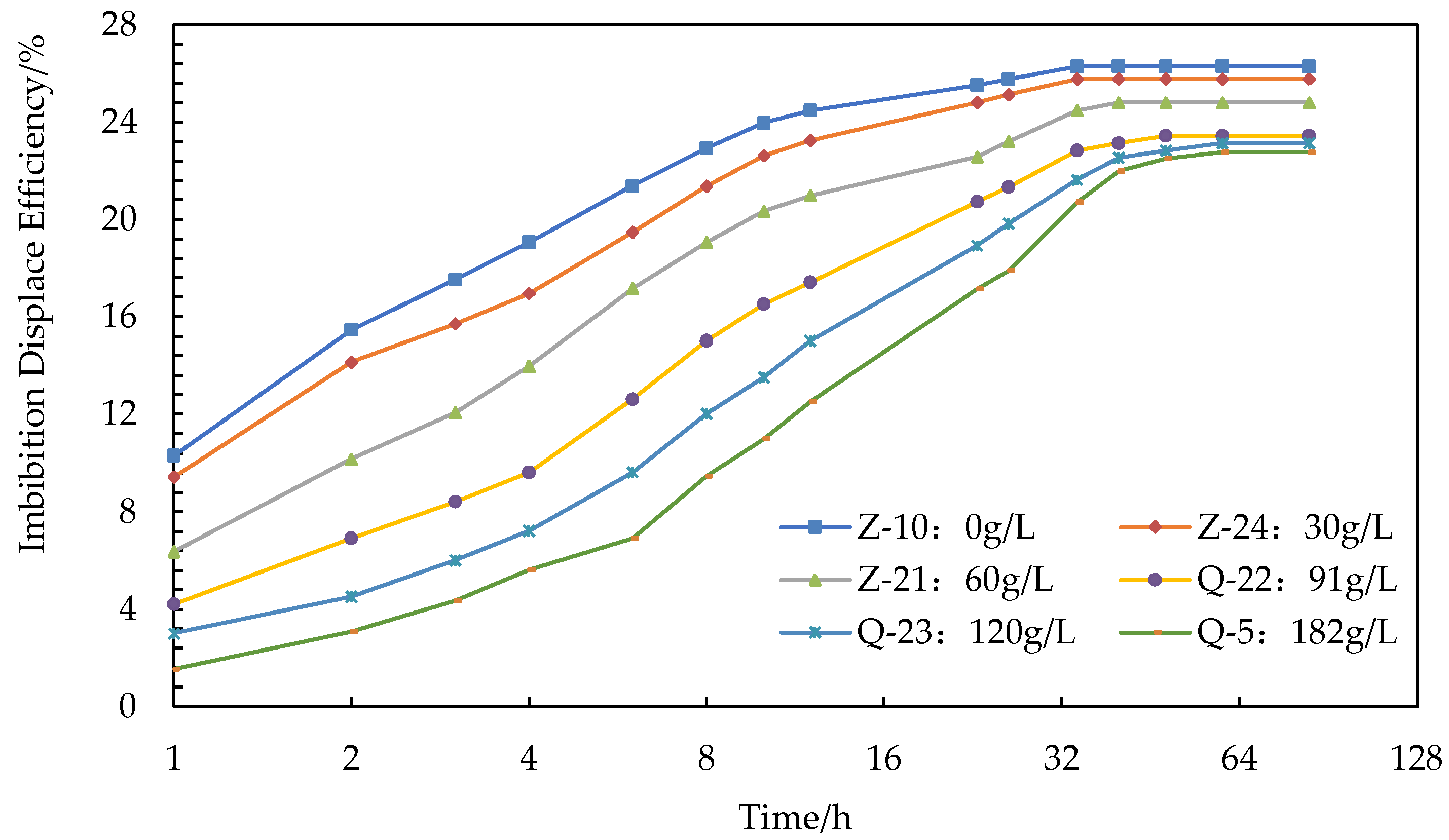

#### 2.4.3. Effects of Salinity

#### 2.4.4. Effects of the Interfacial Tension and Contact Angle

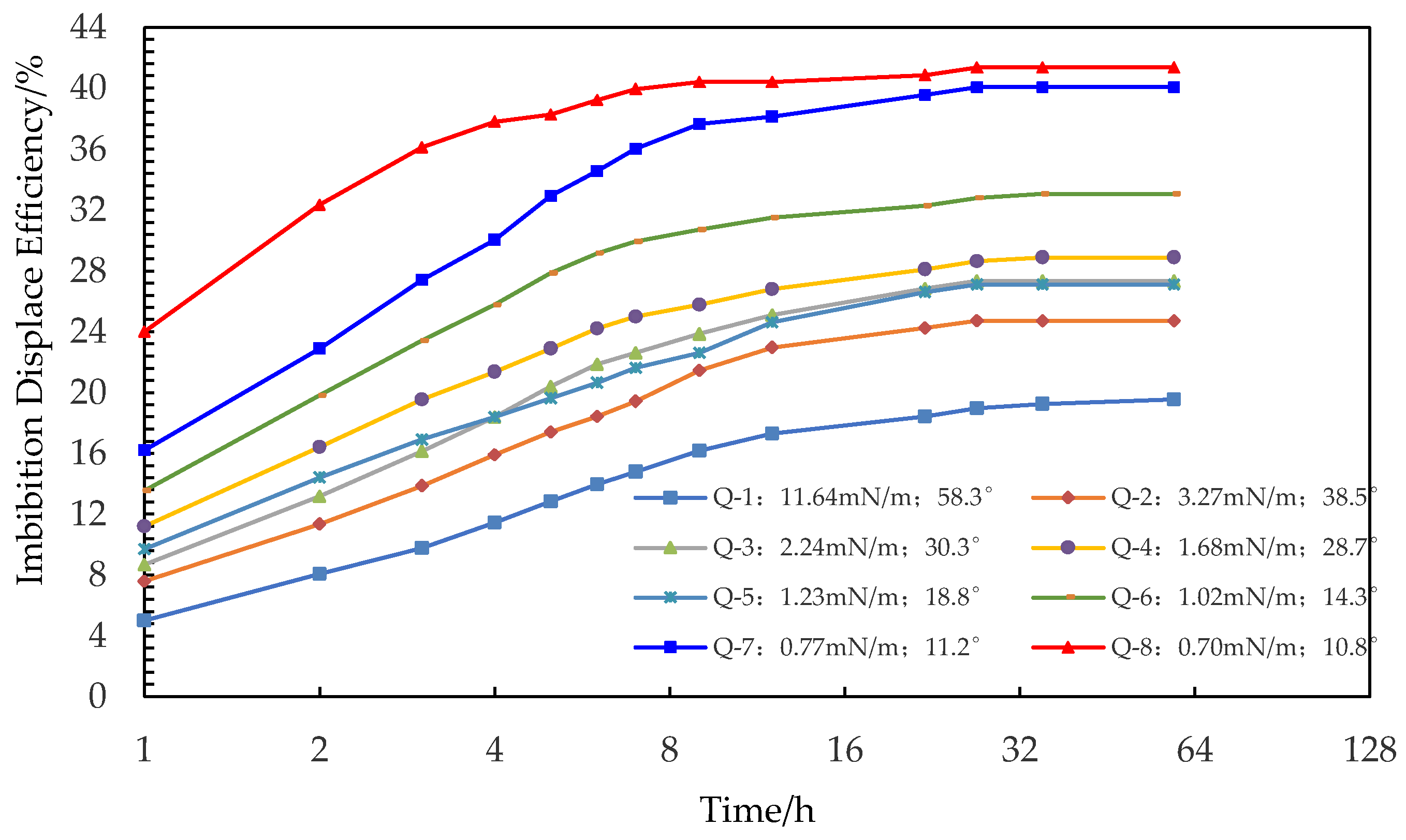

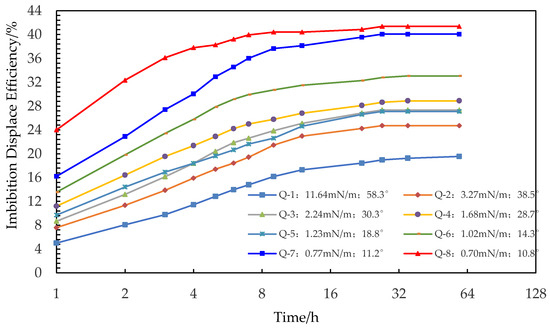

**Figure 6.**Displacement efficiency curve of imbibition for investigating the interface characteristics.

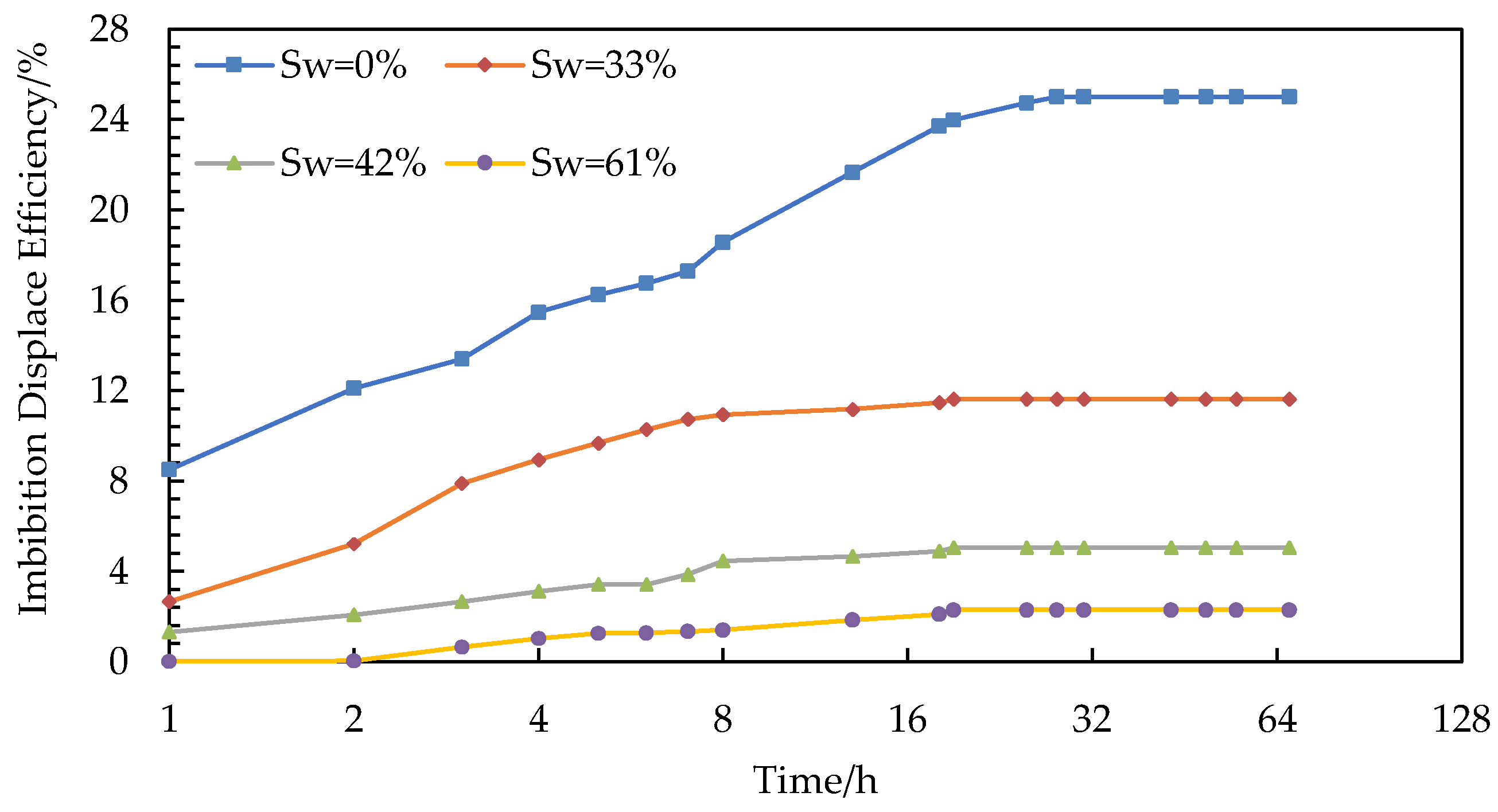

#### 2.4.5. Effects of the Initial Oil Saturation

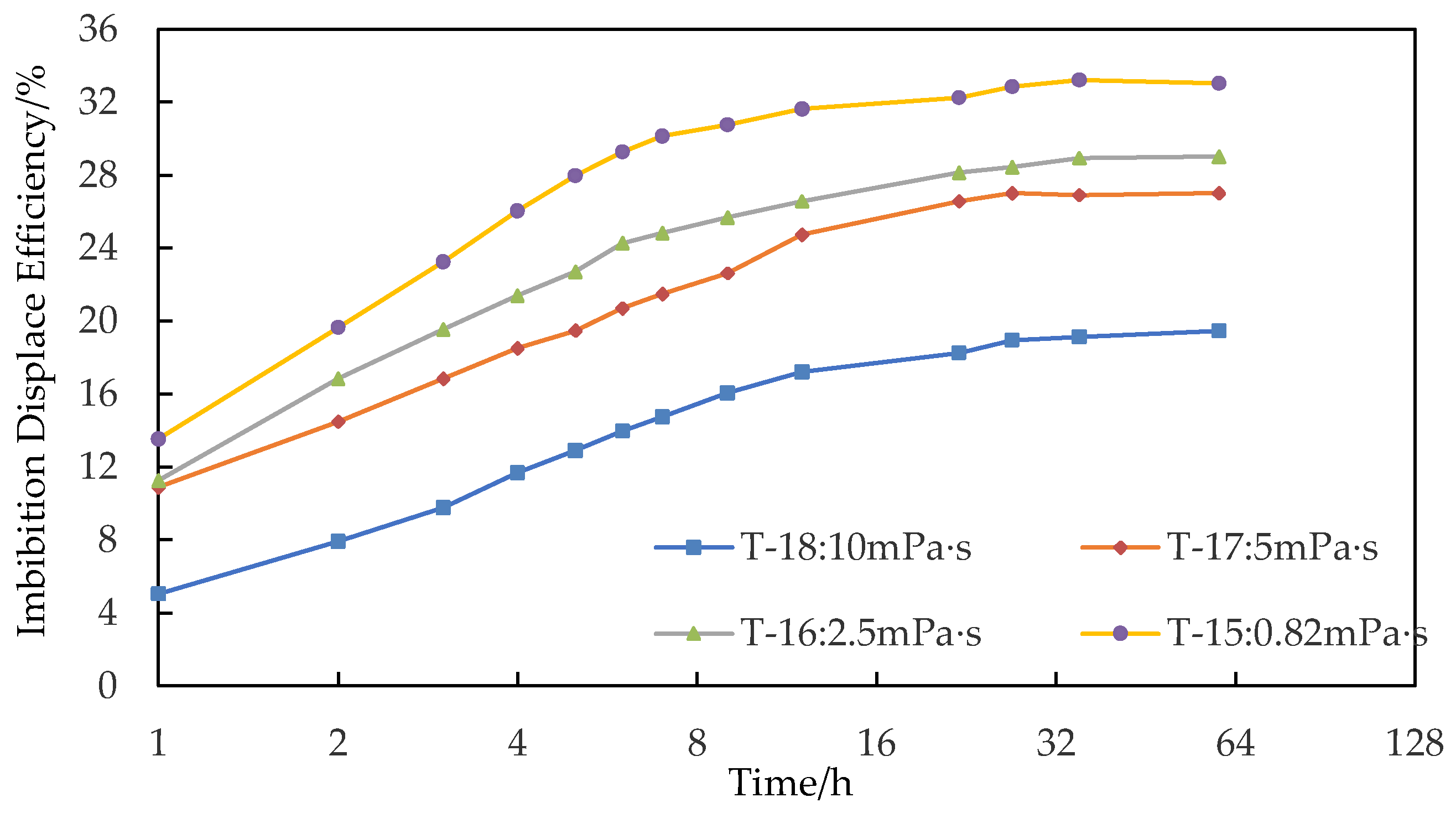

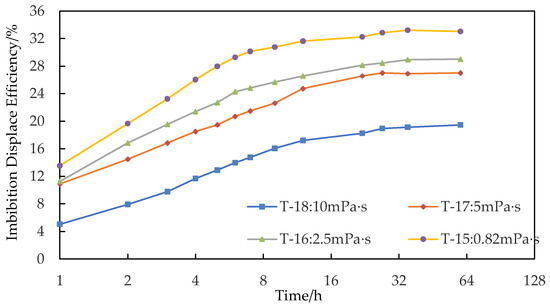

#### 2.4.6. Effects of Oil Viscosity

## 3. Discussion of Controlling Factors at Different Imbibition Stages

#### 3.1. Dimensionless Time Scale Model

^{4}).

_{c}is the characteristic length of core samples. For fully immersed cylindrical cores, the equation of characteristic length is shown below.

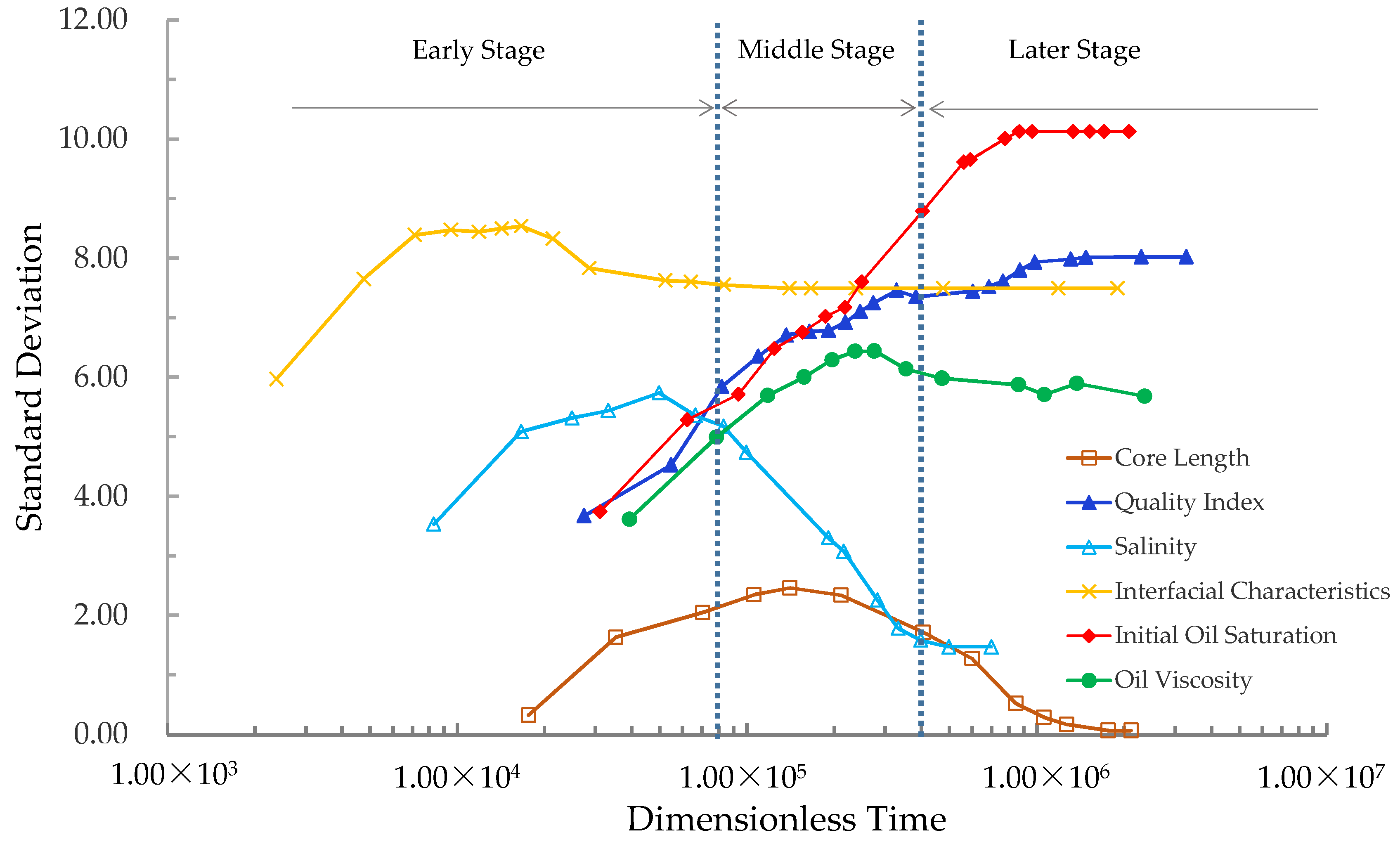

#### 3.2. Analysis of Controlling Factors at Different Imbibition Stages

## 4. Discussion with a Comparative Analysis Model

#### 4.1. Analytic Hierarchy Process

#### 4.1.1. Construction of Judgement Matrix

#### 4.1.2. Calculate the Weight of Each Parameter and Check the Procedure Consistency

#### 4.1.3. Establishment and Discussion of the Comparative Model

#### 4.2. Analysis of the Controlling Factors at Different Stages of Imbibition Processes in a Field

## 5. Conclusions

- By calculating the standard deviation of the dimensionless time and oil displacement efficiency for each controlling factor, the imbibition processes can be divided into three stages (i.e., the early stage, middle stage, and late stage) according to the strength of the main control factors.
- By using the analytic hierarchy process, the importance weights of controlling factors are quantitatively calculated for the three imbibition stages. The most significant controlling factor at the early imbibition stage and middle imbibition are both interfacial characteristics. For the later stage, the most significant controlling factor is initial oil saturation.
- Based on the experiments, the theoretical model is established to evaluate the controlling factors during the imbibition process for dual-porosity formation in the Chang 6 reservoir.
- From the field case study, it can be concluded that at the early imbibition stage of imbibition, the interfacial tension and contact angle play an important role. In consideration of reducing reservoir damage, the salinity of water injection should be reduced. At the middle imbibition stage, the interfacial characteristics should be given priority. At the late imbibition stage, oil displacement with a high initial oil saturation should be selected as the priority for imbibition processes.
- This study provides theoretical support to guide the water injection in ultra-low-permeability reservoirs during different imbibition processes.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Nomenclature

$\sigma $ | interfacial tension between oil and water. |

$\varphi $ | reservoir porosity. |

$k$ | reservoir permeability. |

${\mu}_{w}$ | water viscosity. |

$t$ | time. |

$L$ | length of a core sample. |

$\alpha $ | unit transformation factor (3.16 × 10^{4}). |

${\mu}_{o}$ | oil viscosity. |

${L}_{c}$ | characteristic length of core samples. |

$r$ | radius of a core sample or average value of samples. |

$N$ | degree of freedom. |

${x}_{i}$ | value of the i sample. |

${\overline{W}}_{i}$ | normalization processing. |

$CI$ | consistency index of the judgment matrix. |

$CR$ | random consistency ratio. |

$RI$ | consistency index. |

## References

- Wang, X.; Peng, X.; Zhang, S.; Du, Z.; Zeng, F. Characteristics of oil distributions in forced and spontaneous imbibition of tight oil reservoir. Fuel
**2018**, 224, 280–288. [Google Scholar] [CrossRef] - Wang, J.; Liu, Y.; Chen, M.; Li, L.; Gao, J. Experimental study on dynamic imbibition mechanism of low permeability reservoirs. Pet. Explor. Dev.
**2009**, 36, 86–90. [Google Scholar] - Hua, F.-Q.; Gong, C.-L.; Xiong, W.; Wang, Q.-Y. Low permeability sandstone reservoir imbibition law research. Pet. Geol. Oilfield Dev. Daqing
**2003**, 22, 50–52. [Google Scholar] - Aronofsky, J.; Masse, L.; Natanson, S. A Model for the Mechanism of Oil Recovery from the Porous Matrix Due to Water Invasion in Fractured Reservoirs. Trans. AIME
**1958**, 213, 17–19. [Google Scholar] [CrossRef] - Mattax, C.C.; Kyte, J. Imbibition oil recovery from fractured, water-drive reservoir. Soc. Pet. Eng. J.
**1962**, 2, 177–184. [Google Scholar] [CrossRef] - Warren, J.; Root, P. The Behavior of Naturally Fractured Reservoirs. Soc. Pet. Eng. J.
**1963**, 3, 245–255. [Google Scholar] [CrossRef] [Green Version] - Kazemi, H.; Merrill, L.S. Numerical Simulation of Water Imbibition in Fractured Cores. Soc. Pet. Eng. J.
**1979**, 19, 175–182. [Google Scholar] [CrossRef] - Kazemi, H.; Gilman, J.; Elsharkawy, A. Analytical and Numerical Solution of Oil Recovery From Fractured Reservoirs With Empirical Transfer Functions (includes associated papers 25528 and 25818). SPE Reserv. Eng.
**1992**, 7, 219–227. [Google Scholar] [CrossRef] - Wang, X.; Peng, X.; Zhang, S.; Liu, Y.; Peng, F.; Zeng, F. Guidelines for Economic Design of Multistage Hydraulic Fracturing, Yanchang Tight Formation, Ordos Basin. Nat. Resour. Res.
**2019**, 29, 1413–1426. [Google Scholar] [CrossRef] - Abd, A.S.; Elhafyan, E.; Siddiqui, A.R.; Alnoush, W.; Blunt, M.; Alyafei, N. A review of the phenomenon of counter-current spontaneous imbibition: Analysis and data interpretation. J. Pet. Sci. Eng.
**2019**, 180, 456–470. [Google Scholar] [CrossRef] - Fang, W.; Jiang, H.; Li, J.; Wang, Q.; Killough, J.; Li, L.; Peng, Y.; Yang, H. A numerical simulation model for multi-scale flow in tight oil reservoirs. Pet. Explor. Dev.
**2017**, 44, 446–453. [Google Scholar] [CrossRef] - Xu, R.; Yang, S.; Xiao, Z.; Jin, Y. Quantitatively study on imbibition of fracturing fluid in tight sandstone reservoir under high temperature and high pressure based on NMR technology. J. Pet. Sci. Eng.
**2021**, 109623. [Google Scholar] [CrossRef] - Mason, G.; Fischer, H.; Morrow, N.; Ruth, D. Correlation for the effect of fluid viscosities on counter-current spontaneous imbibition. J. Pet. Sci. Eng.
**2010**, 72, 195–205. [Google Scholar] [CrossRef] - Guo, J.; Li, M.; Chen, C.; Tao, L.; Liu, Z.; Zhou, D. Experimental investigation of spontaneous imbibition in tight sandstone reservoirs. J. Pet. Sci. Eng.
**2020**, 193, 107395. [Google Scholar] [CrossRef] - Tong, K.; Liu, H.; Zhang, Y.; Wang, J.; Ge, L.; Dai, W.; Hong, C.; Meng, Q. Three-Dimensional physical modeling of waterflooding in metamorphic fractured reservoirs. Pet. Explor. Dev.
**2015**, 42, 589–596. [Google Scholar] [CrossRef] - Ghasemi, F.; Ghaedi, M.; Escrochi, M. A new scaling equation for imbibition process in naturally fractured gas reservoirs. Adv. Geo-Energy Res.
**2020**, 4, 99–106. [Google Scholar] [CrossRef] [Green Version] - Wang, X.; Dang, H.; Gao, T. Method of moderate water injection and its application in ultra-low permeability oil reservoirs of Yanchang Oilfield, NW China. Pet. Explor. Dev.
**2018**, 45, 1094–1102. [Google Scholar] [CrossRef] - Li, K.; Horne, R.N. Characterization of Spontaneous Water Imbibition Into Gas-Saturated Rocks. SPE J.
**2001**, 6, 375–384. [Google Scholar] [CrossRef] [Green Version] - Li, K.; Horne, R.N. An Analytical Scaling Method for Spontaneous Imbibition in Gas/Water/Rock Systems. SPE J.
**2004**, 9, 322–329. [Google Scholar] [CrossRef] - Li, K.; Horne, R.N. A General Scaling Method for Spontaneous Imbibition. In Proceedings of the SPE Annual Technical Conference and Exhibition, San Antonio, TX, USA, 29 September–2 October 2002. [Google Scholar] [CrossRef]
- Li, K.; Chow, K.; Horne, R.N. Effect of Initial Water Saturation on Spontaneous Water Imbibition. In Proceedings of the SPE Western Regional/AAPG Pacific Section Joint Meeting, Anchorage, AL, USA, 20–22 May 2002. [Google Scholar] [CrossRef]
- Li, K.; Horne, R.N. Extracting capillary pressure and global mobility from spontaneous imbibition data in oil-water-rock systems. SPE J.
**2005**, 10, 458–465. [Google Scholar] [CrossRef] - Li, S.; Liu, W.; Zhang, H.; Xiao, H. Experimental study of spontaneous imbibitions in low-permeability reservoir. Acta Pet. Sin.
**2007**, 28, 109. [Google Scholar] - Meng, Q.; Cai, J. Recent advances in spontaneous imbibition with different boundary conditions. Capillarity
**2018**, 1, 19–26. [Google Scholar] [CrossRef] [Green Version] - Babadagli, T.; Zeidani, K. Evaluation of Matrix-Fracture Imbibition Transfer Functions for Different Types of Oil, Rock and Aqueous Phase. In Proceedings of the SPE/DOE Symposium on Improved Oil Recovery, Tulsa, OK, USA, 17–21 April 2004. [Google Scholar] [CrossRef]
- Arihara, N. Analysis of spontaneous capillary imbibition for improved Oil Recovery. In Proceedings of the SPE Asia Pacific Oil and Gas Conference and Exhibition, Perth, WA, USA, 18–20 October 2004. [Google Scholar] [CrossRef]
- Hatiboglu, C.; Babadagli, T. Experimental analysis of primary and secondary oil recovery from matrix by counter-current diffusion and spontaneous imbibition. In Proceedings of the SPE Annual Technical Conference and Exhibition, Houston, TX, USA, 26–29 September 2004. [Google Scholar] [CrossRef]
- Cai, J.; Jin, T.; Kou, J.; Zou, S.; Xiao, J.; Meng, Q. Lucas–Washburn Equation-Based Modeling of Capillary-Driven Flow in Porous Systems. Langmuir
**2021**, 37, 1623–1636. [Google Scholar] [CrossRef] [PubMed] - Gao, L.; Yang, Z.; Shi, Y. Experimental study on spontaneous imbibition characteristics of tight rocks. Adv. Geo Energy Res.
**2018**, 2, 292–304. [Google Scholar] [CrossRef] - Wang, R.; Yue, X.; Tan, X.; Liu, X.-Z. Influence of pressure sensitivity on imbibition for low permeability reservoir rocNs. J. Southwest Pet. Univ.
**2008**, 30, 173–175. [Google Scholar] - Cheng, Z.; Ning, Z.; Yu, X.; Wang, Q.; Zhang, W. New insights into spontaneous imbibition in tight oil sandstones with NMR. J. Pet. Sci. Eng.
**2019**, 179, 455–464. [Google Scholar] [CrossRef] - Zhou, H.; Zhang, Q.; Dai, C.L.; Li, Y.; Lv, W.; Wu, Y.; Cheng, R.; Zhao, M. Experimental investigation of spontaneous imbibition process of nanofluid in ultralow permeable reservoir with nuclear magnetic resonance. Chem. Eng. Sci.
**2019**, 201, 212–221. [Google Scholar] [CrossRef] - Cuiec, L.; Bourbiaux, B.; Kalaydjian, F. Oil Recovery by Imbibition in Low-Permeability Chalk. SPE Form. Eval.
**1994**, 9, 200–208. [Google Scholar] [CrossRef] - Liang, Y.; Lai, F.; Dai, Y.; Shi, H.; Shi, G. An experimental study of imbibition process and fluid distribution in tight oil reservoir under different pressures and temperatures. Capillarity
**2021**, 4, 66–75. [Google Scholar] [CrossRef] - Ji, B.; Chen, J.; Zhou, X. Mathematical model of imbibition in fractured low permeability reservoirs. J. Tsinghua Univ.
**2002**, 42, 711–713. [Google Scholar] - Jing, W.; Huiqing, L.; Jing, X.; Yuetian, L.; Cheng, H.; Qingbang, M.; Yang, G. Mechanism simulation of oil displacement by imbibition in fractured reservoirs. Pet. Explor. Dev.
**2017**, 44, 805–814. [Google Scholar] - Karatas, M. Hydrogen energy storage method selection using fuzzy axiomatic design and analytic hierarchy process. Int. J. Hydrog. Energy
**2019**, 45, 16227–16238. [Google Scholar] [CrossRef] - Lu, C.; Jiang, H.; You, C.; Wang, Y.; Ma, K.; Li, J. A novel method to determine the thief zones in heavy oil reservoirs based on convolutional neural network. J. Pet. Sci. Eng.
**2021**, 201, 108471. [Google Scholar] [CrossRef] - Zeng, W.; Li, H. Weighted triangular approximation of fuzzy numbers. Int. J. Approx. Reason.
**2007**, 46, 137–150. [Google Scholar] [CrossRef] [Green Version]

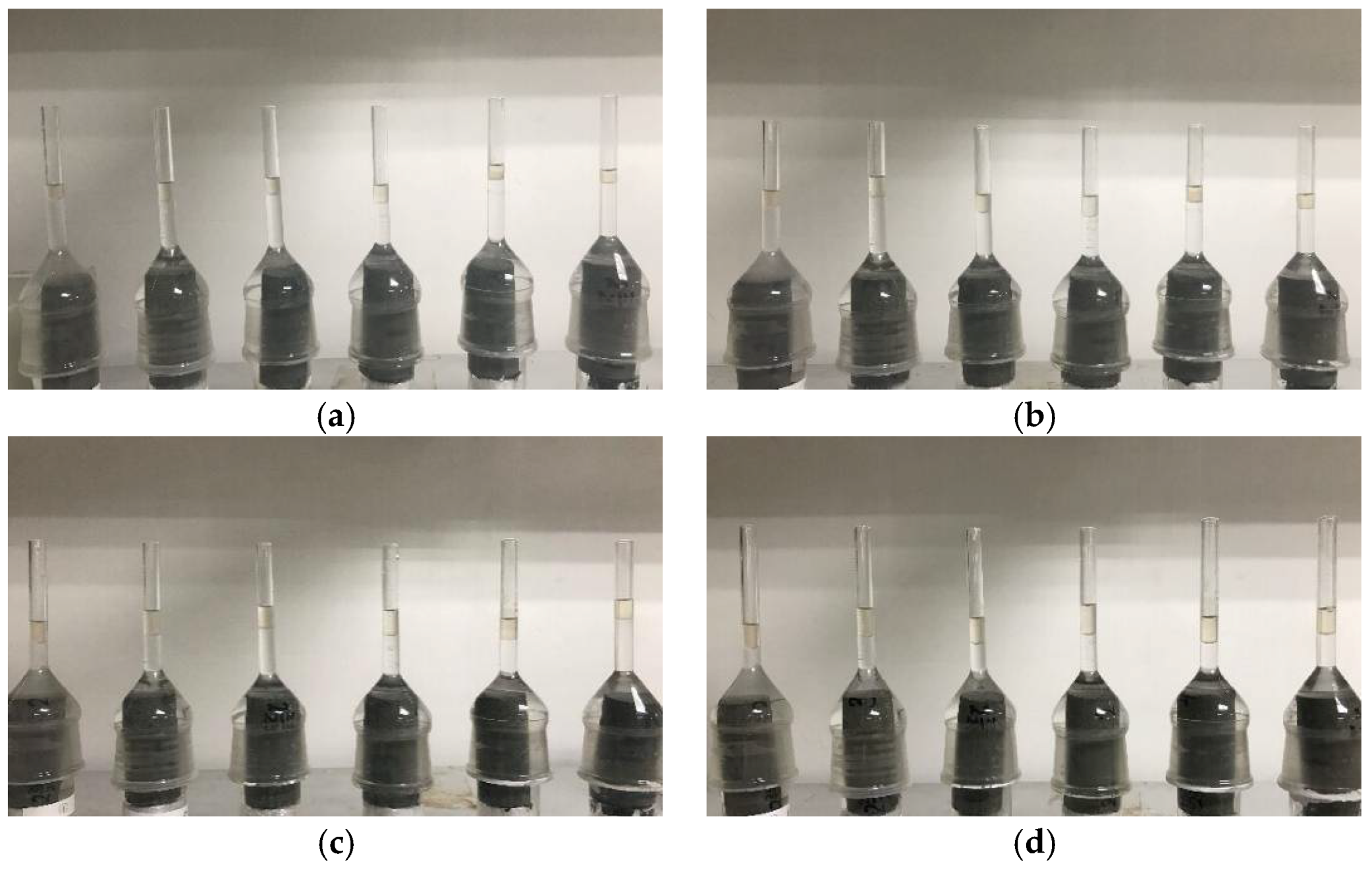

**Figure 2.**The process of spontaneous imbibition in the tests investigating salinity effects after 4 h (

**a**), 8 h (

**b**), 18 h (

**c**) and 28 h (

**d**).

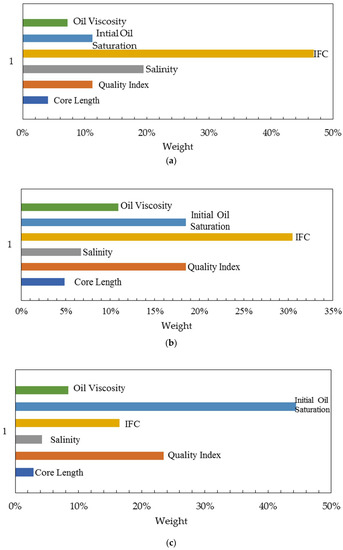

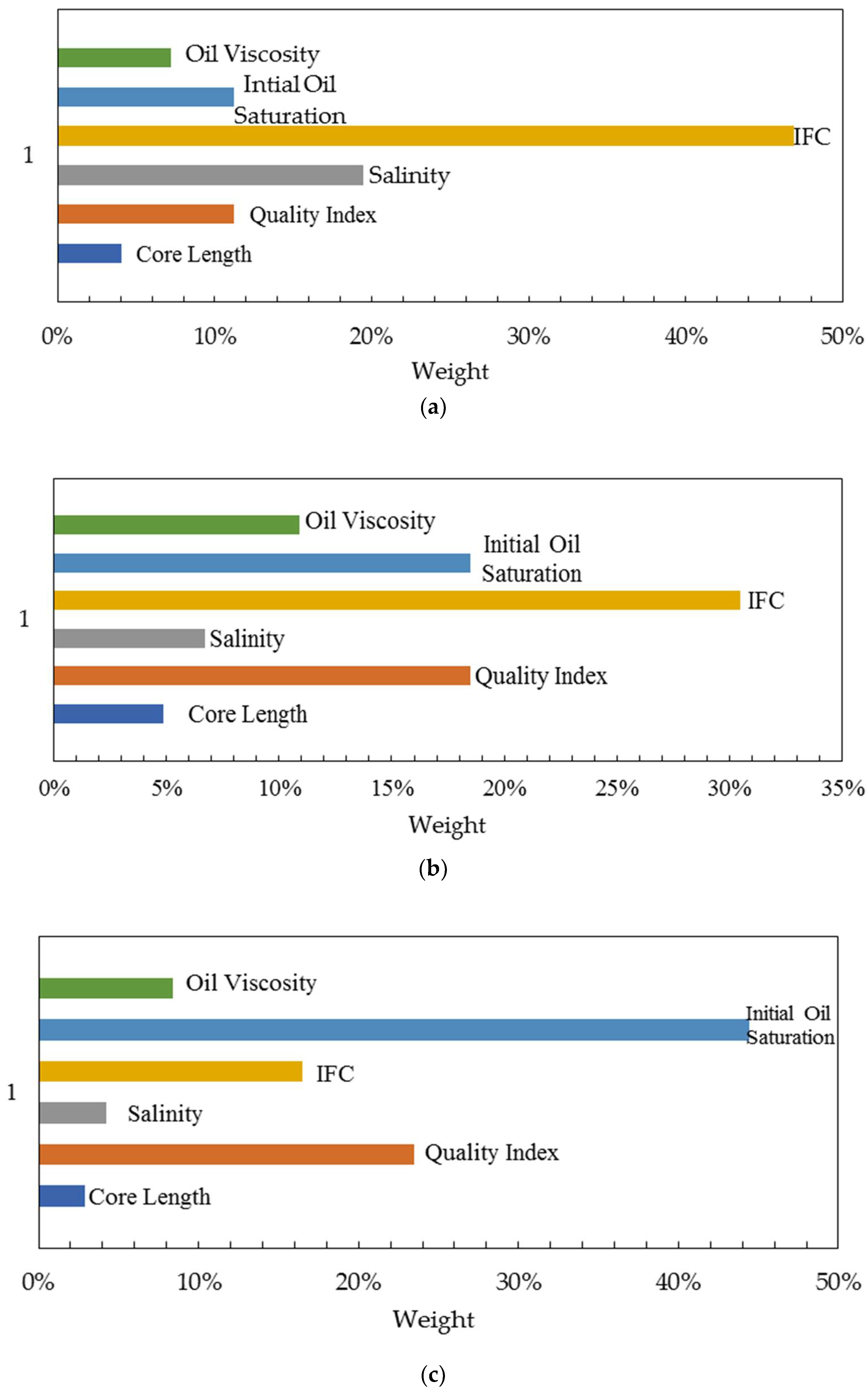

**Figure 10.**Importance weights of the controlling factors at the early stage (

**a**), middle stage (

**b**) and late stage (

**c**).

Core# | Length cm | Diameter cm | Porosity % | Permeability ×10 ^{−3} μm^{2} | Controlling Factors | |
---|---|---|---|---|---|---|

Z-17 | 3.39 | 2.53 | 8.01 | 0.081 | Core length (cm) | 3.39 |

Z-18 | 5.00 | 2.53 | 8.19 | 0.081 | 5.00 | |

Z-19 | 6.01 | 2.53 | 8.04 | 0.084 | 6.01 | |

Z-20 | 8.11 | 2.52 | 8.20 | 0.076 | 8.11 | |

Q-9 | 8.05 | 2.45 | 11.02 | 0.812 | RQI (μm) | 0.0858 |

Z-12 | 8.08 | 2.53 | 9.57 | 0.503 | 0.0725 | |

Z-13 | 8.07 | 2.54 | 8.53 | 0.212 | 0.0499 | |

Z-14 | 8.09 | 2.53 | 7.56 | 0.110 | 0.0381 | |

Z-15 | 8.06 | 2.54 | 5.22 | 0.052 | 0.0316 | |

Z-16 | 7.95 | 2.54 | 3.54 | 0.011 | 0.0176 | |

Z-10 | 7.98 | 2.54 | 9.68 | 0.041 | Salinity (g/L) | 0 |

Z-24 | 8.29 | 2.53 | 7.94 | 0.016 | 30 | |

Z-21 | 8.16 | 2.54 | 8.06 | 0.012 | 60 | |

Q-22 | 8.14 | 2.54 | 7.92 | 0.011 | 91 | |

Q-23 | 8.00 | 2.53 | 7.91 | 0.015 | 120 | |

Q-5 | 7.95 | 2.54 | 9.62 | 0.035 | 182 | |

Q-1 | 8.03 | 2.43 | 10.60 | 0.179 | Interfacial tension (mN/m) and contact angle | 11.64 mN/m; 58.3° |

Q-2 | 8.04 | 2.45 | 10.42 | 0.151 | 3.27 mN/m; 38.5° | |

Q-3 | 8.04 | 2.42 | 11.33 | 0.243 | 2.24 mN/m; 30.3° | |

Q-4 | 8.10 | 2.42 | 11.36 | 0.266 | 1.68 mN/m; 28.7° | |

Q-5 | 8.10 | 2.42 | 11.27 | 0.186 | 1.23 mN/m; 18.8° | |

Q-6 | 8.07 | 2.42 | 10.72 | 0.182 | 1.02 mN/m; 14.3° | |

Q-7 | 8.02 | 2.45 | 10.60 | 0.191 | 0.77 mN/m; 11.2° | |

Q-8 | 8.13 | 2.43 | 10.68 | 0.157 | 0.70 mN/m; 10.8° | |

T-1 | 5.21 | 2.52 | 10.70 | 0.33 | Initial water saturation (%) | 0 |

33.0 | ||||||

42.0 | ||||||

61.0 | ||||||

T-15 | 4.53 | 2.50 | 14.06 | 0.55 | Oil viscosity (mPa·s) | 0.82 |

T-16 | 4.50 | 2.48 | 13.22 | 0.53 | 2.50 | |

T-17 | 4.52 | 2.50 | 13.48 | 0.51 | 5.00 | |

T-18 | 4.50 | 2.51 | 13.29 | 0.58 | 10.00 |

Core# | RQI, µm | Final Imbibition Efficiency |
---|---|---|

Q-9 | 0.0858 | 27.49% |

Z-12 | 0.0725 | 25.80% |

Z-13 | 0.0499 | 23.22% |

Z-14 | 0.0381 | 21.15% |

Z-15 | 0.0316 | 16.40% |

Z-16 | 0.0176 | 5.61% |

Core# | Salinity, g/mL | Final Imbibition Efficiency |
---|---|---|

Z-10 | 0 | 26.29% |

Z-24 | 30 | 25.76% |

Z-21 | 60 | 24.79% |

Z-22 | 91 | 23.43% |

Z-23 | 120 | 23.13% |

Q-5 | 182 | 22.76% |

Controlling Factors (The Corresponding Tests Can Refer to Table 1) | Time Scale Model |
---|---|

Core length | t_{D} = 4.893 t |

RQI | t_{D} = 7.598 t |

Salinity test | t_{D} = 2.305 t |

Interfacial characters | t_{D} = 0.660 t |

Initial oil saturation | t_{D} = 10.919 t |

Oil viscosity | t_{D} = 4.893 t |

Scale | Meaning |
---|---|

1 | The ith factor has the same effect as the jth factor |

3 | The influence of the ith factor is slightly stronger than that of the jth factor |

5 | The influence of the ith factor is stronger than that of the jth factor |

7 | The influence of the ith factor is significantly stronger than that of the jth factor |

9 | The influence of the ith factor is absolutely stronger than that of the jth factor |

2, 4, 6, 8 | Represents the intermediate value of the above adjacent judgment |

a_{ij}: a_{ii} = 1, a_{ij} = 1/a_{ij} |

n | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
---|---|---|---|---|---|---|---|---|---|

RI | 0.00 | 0.00 | 0.58 | 0.90 | 1.12 | 1.24 | 1.32 | 1.41 | 1.45 |

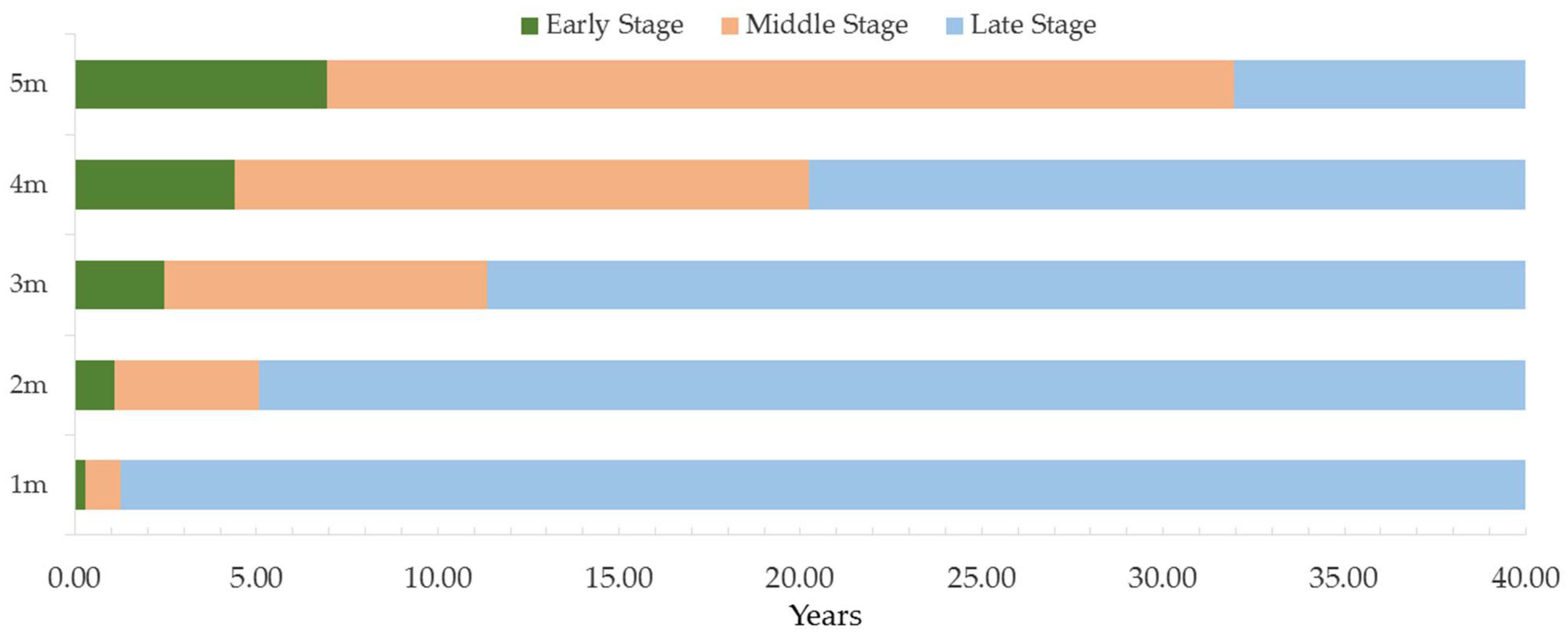

Cube Side Length/m | Early Stage/Years | Middle Stage/Years | Later Stage/Years | |
---|---|---|---|---|

1 | <0.27 | 0.27~0.99 | >0.99 | |

2 | <1.10 | 1.10~5.06 | >5.06 | |

3 | <2.46 | 2.46~11.35 | >11.35 | |

4 | <4.39 | 4.39~20.24 | >20.24 | |

5 | <6.94 | 6.94~31.95 | >31.95 | |

Weight of the controlling factor | Salinity | 20.0% | 12.2% | 8.5% |

Interfacial characteristics | 68.3% | 55.8% | 27.1% | |

Initial oil saturation | 11.7% | 32.0% | 64.4% |
