Fault Diagnosis of PMSG Stator Inter-Turn Fault Using Extended Kalman Filter and Unscented Kalman Filter

1
Electrical and control Department, College of Engineering and Technology, Arab Academy For Science and Technology and Maritime Transport, Abou Keer Campus, P.O. Box 1029, Alexandria 21500, Egypt
2
Institute of Automatics, Electronics and Electrical Engineering, University of Zielona Gora, 65-417 Zielona Gora, Poland
*
Author to whom correspondence should be addressed.
Energies 2020, 13(11), 2972; https://doi.org/10.3390/en13112972
Received: 28 April 2020 / Revised: 2 June 2020 / Accepted: 4 June 2020 / Published: 9 June 2020

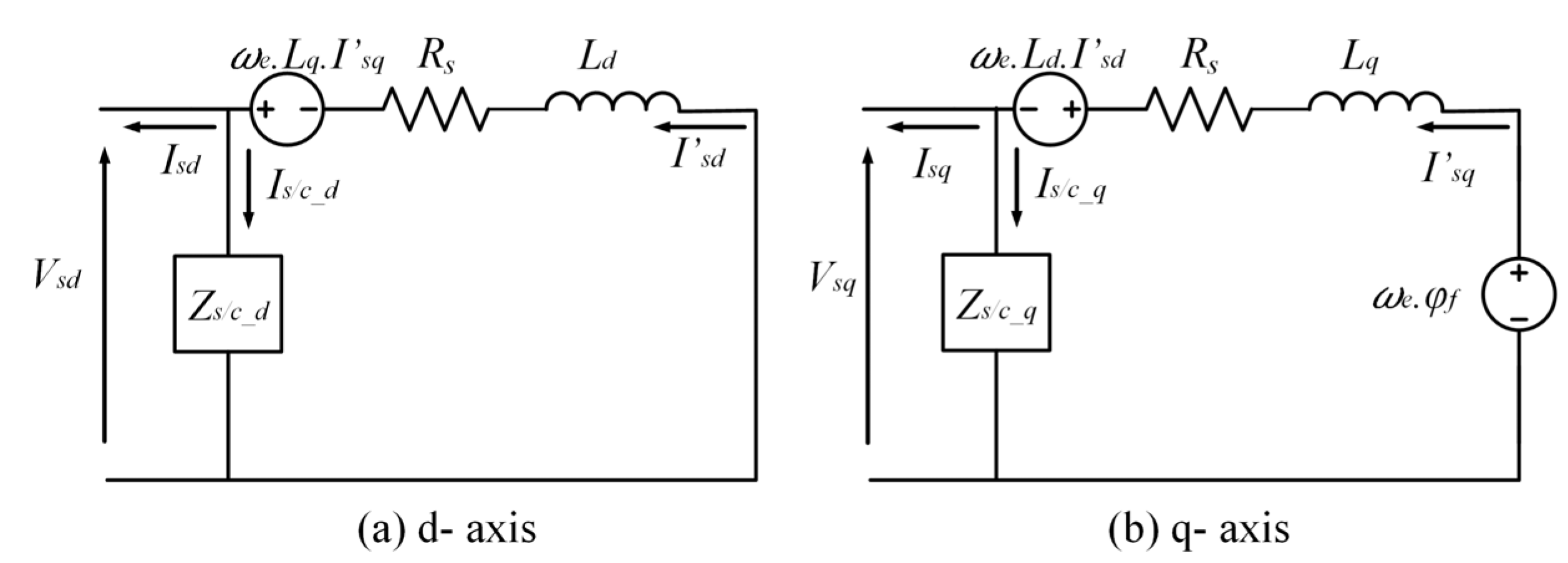

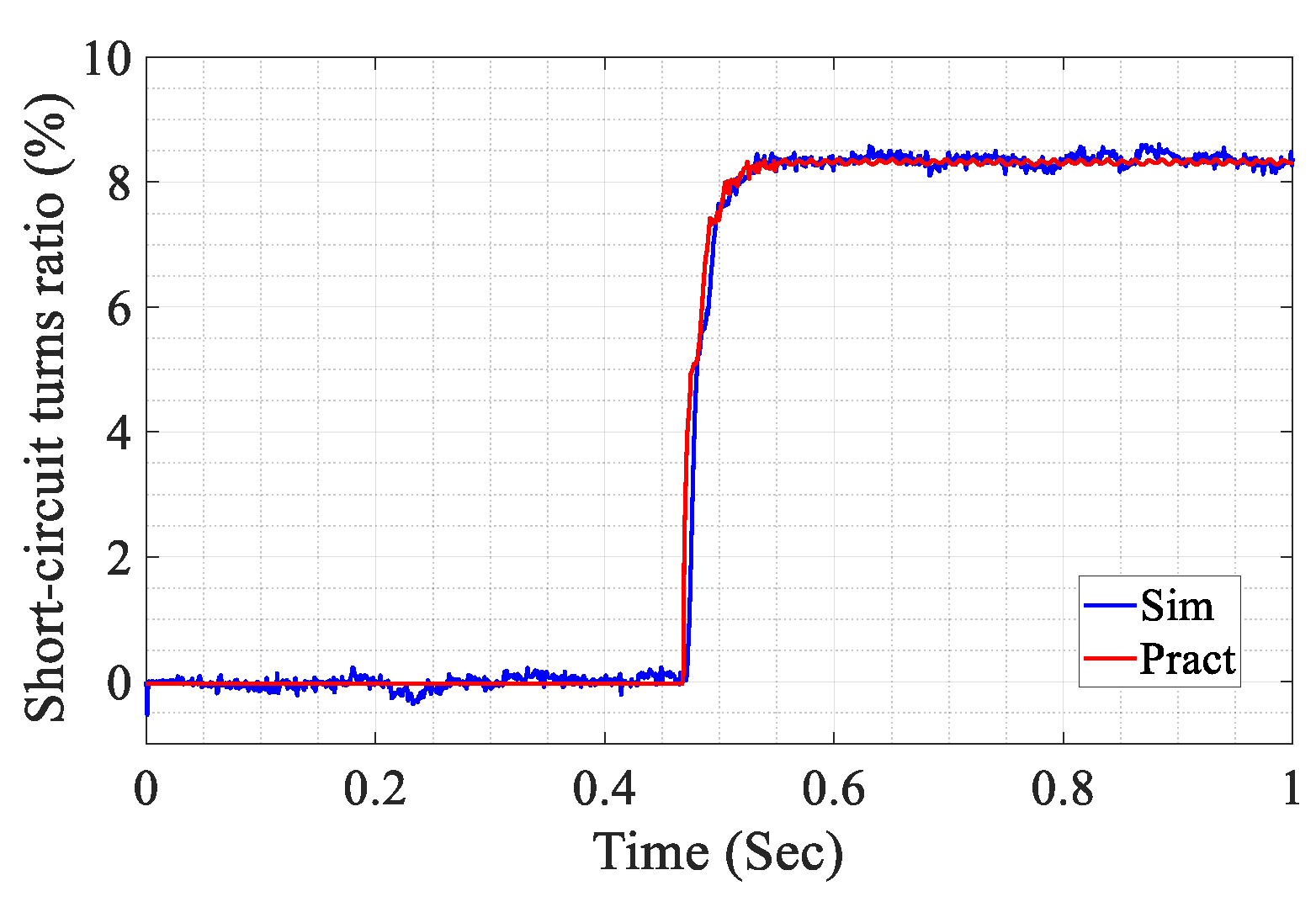

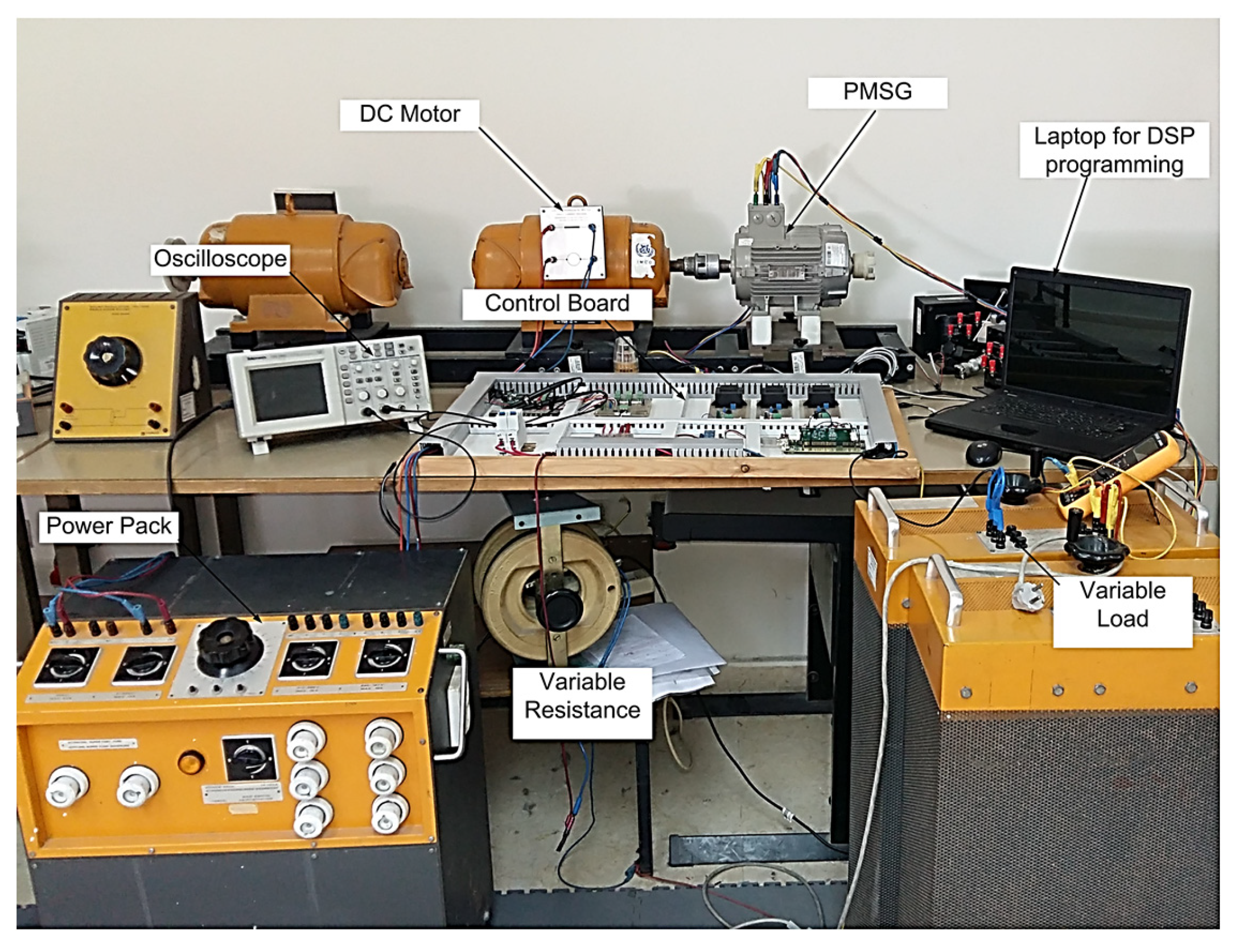

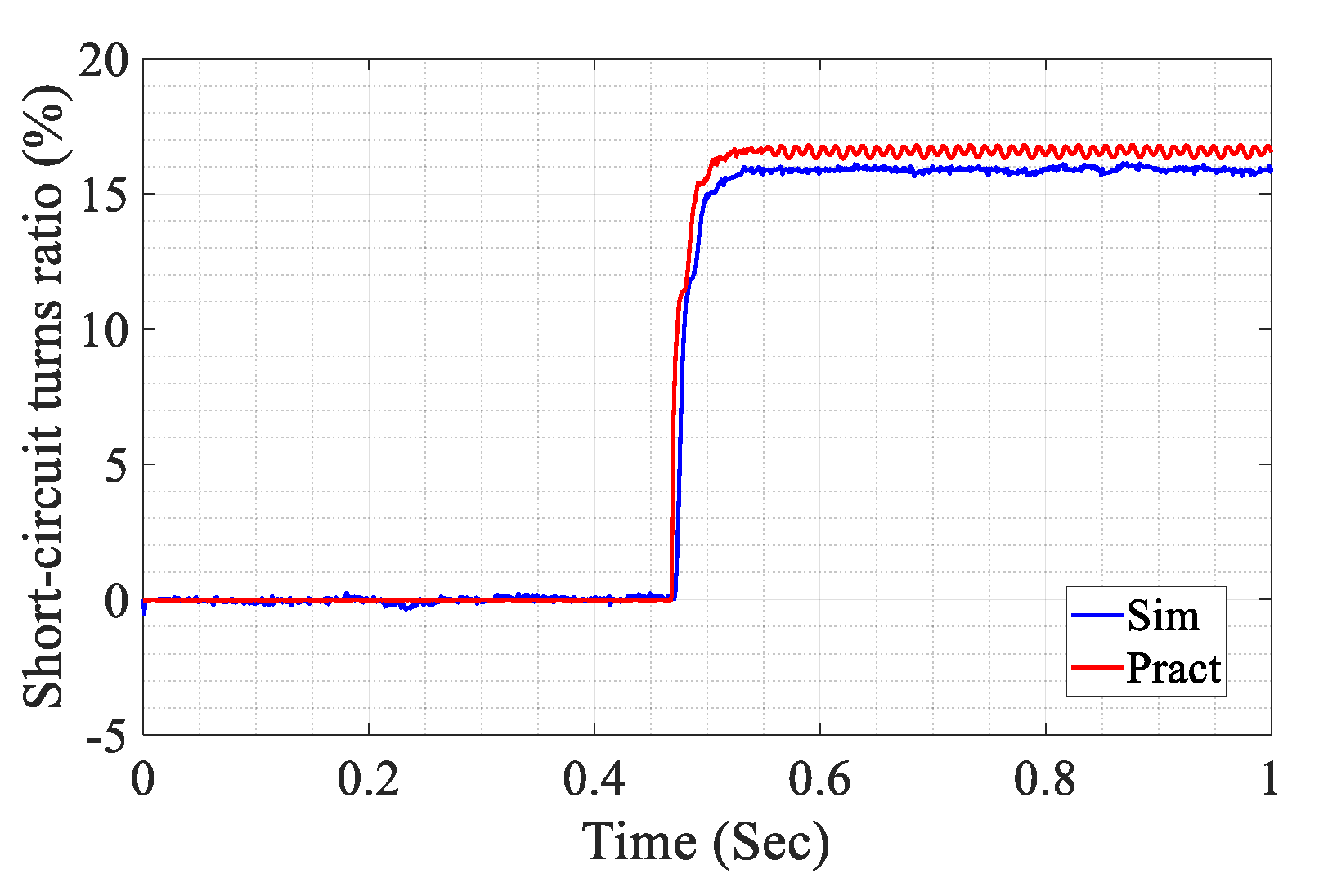

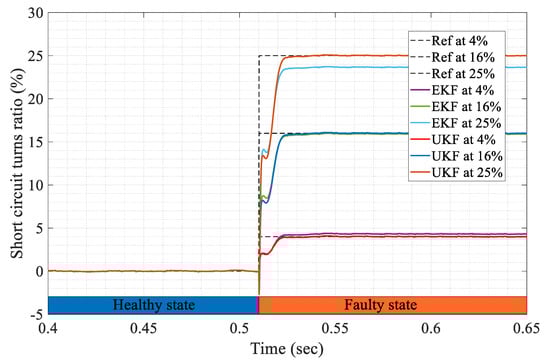

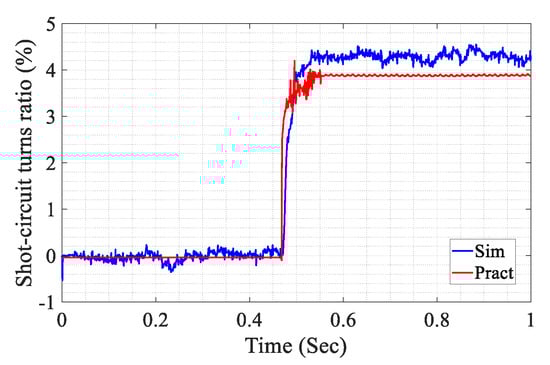

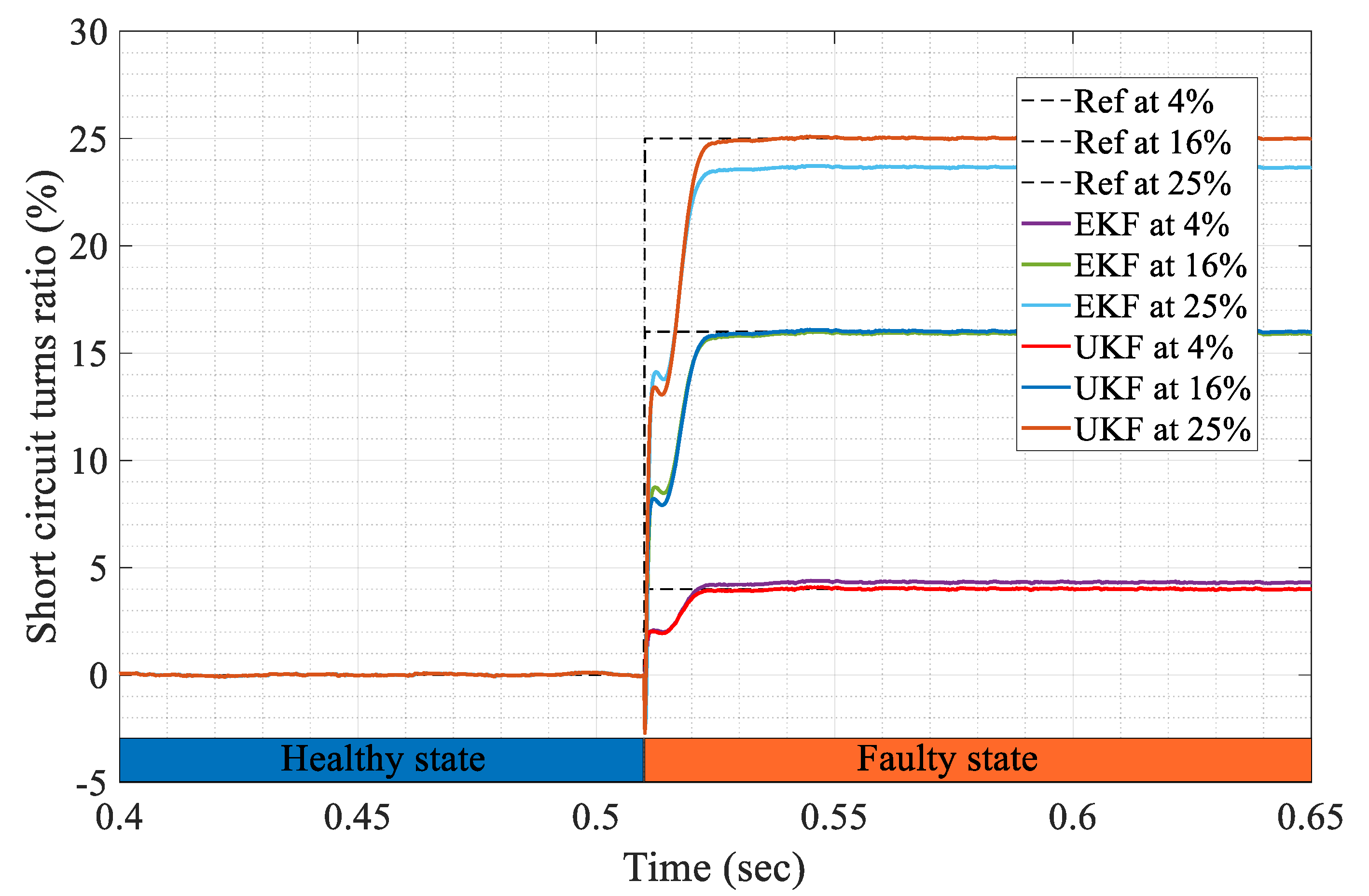

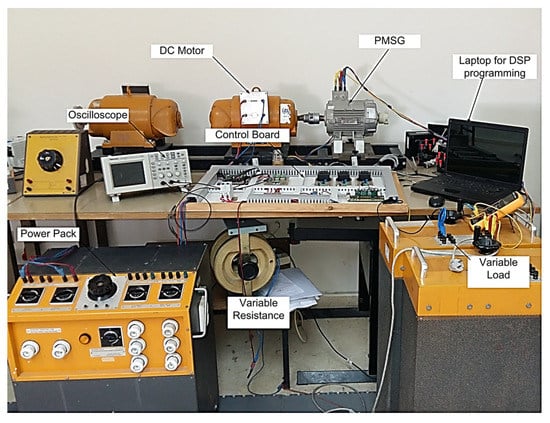

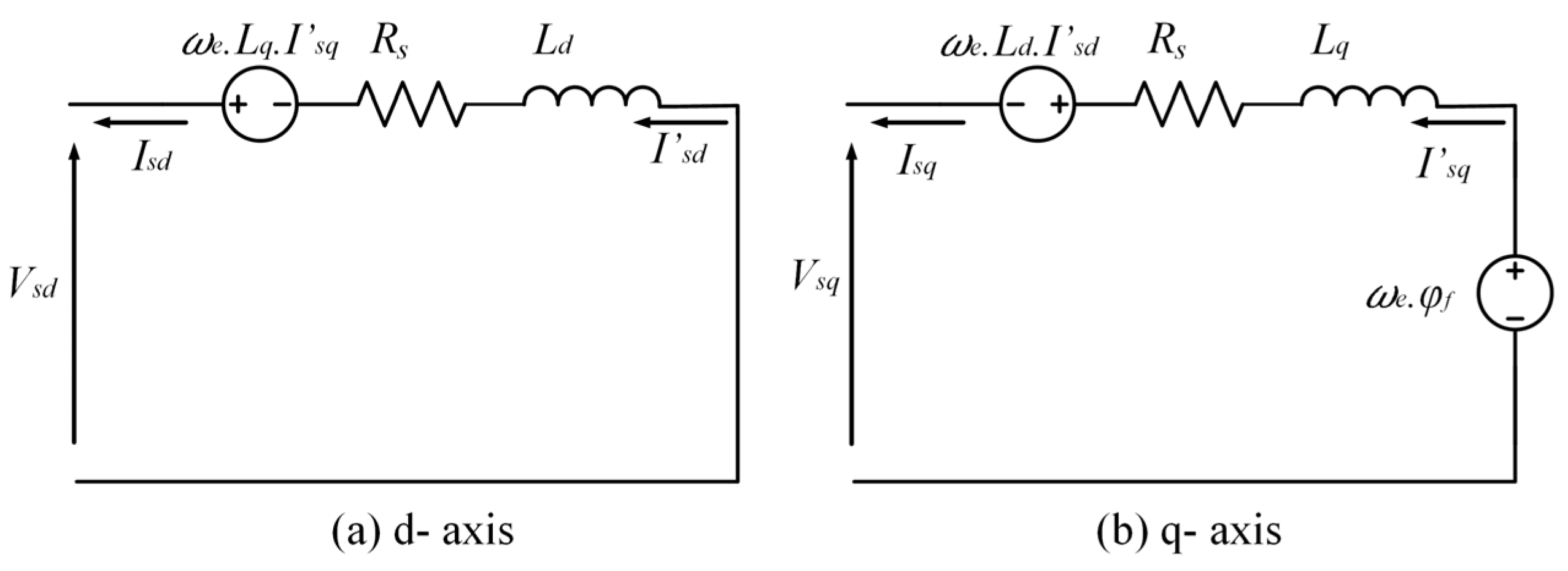

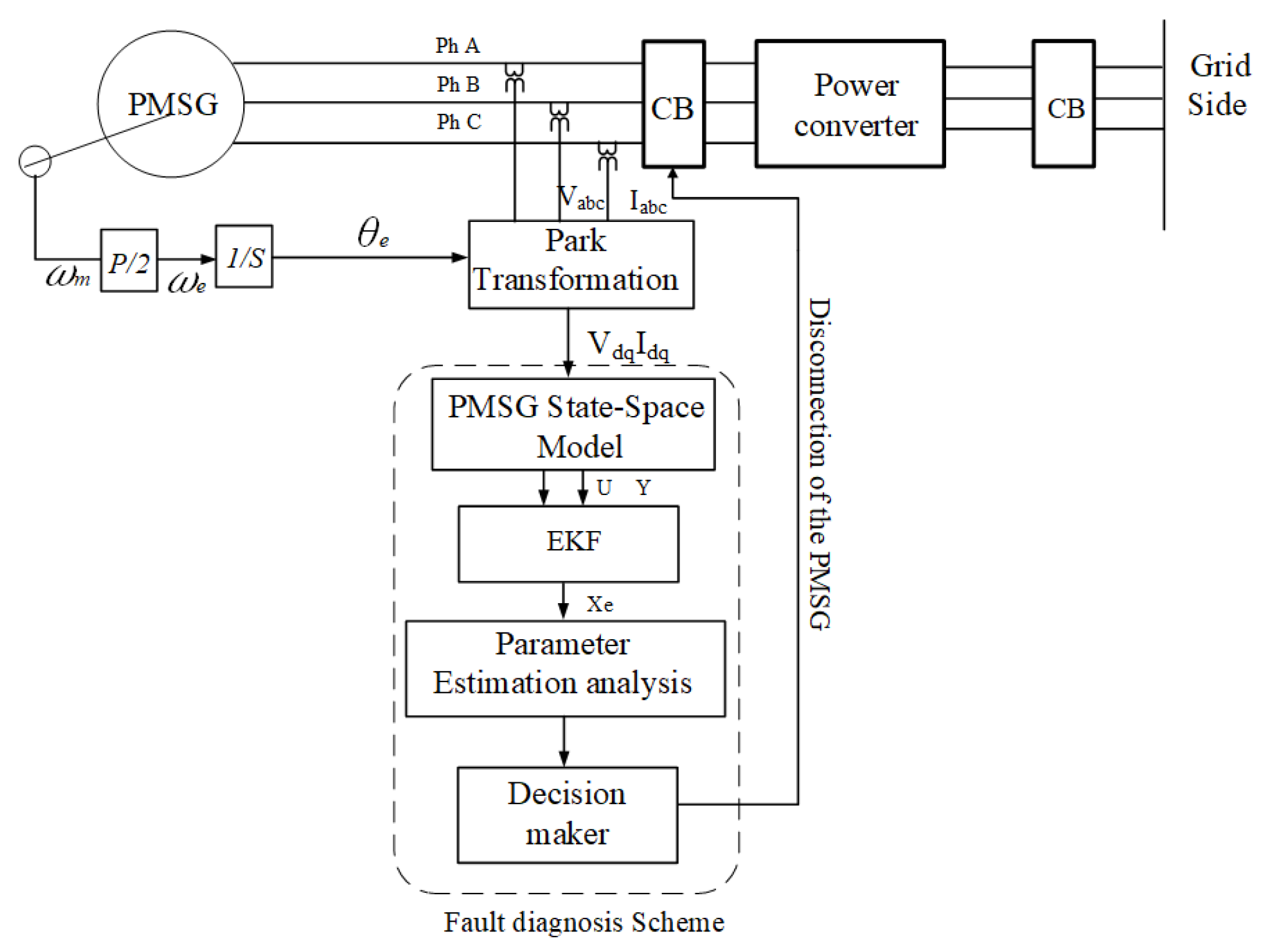

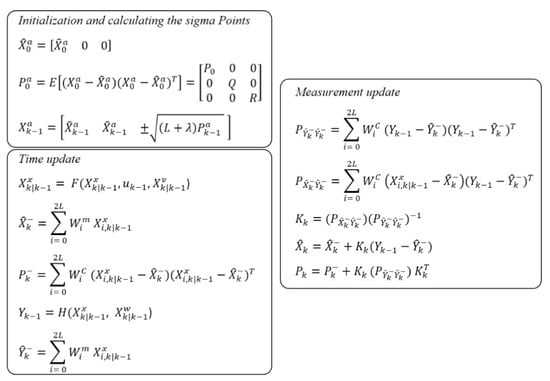

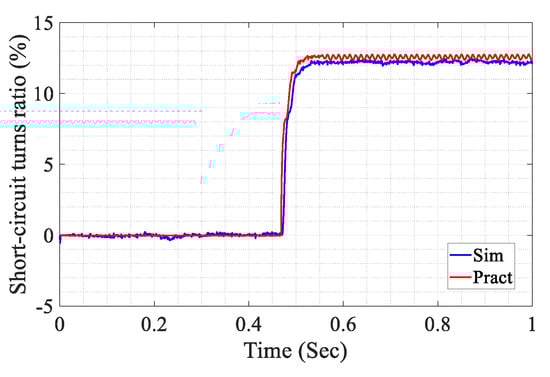

Since the permeant magnet synchronous generator (PMSG) has many applications in particular safety-critical applications, enhancing PMSG availability has become essential. An effective tool for enhancing PMSG availability and reliability is continuous monitoring and diagnosis of the machine. Therefore, designing a robust fault diagnosis (FD) and fault tolerant system (FTS) of PMSG is essential for such applications. This paper describes an FD method that monitors online stator winding partial inter-turn faults in PMSGs. The fault appears in the direct and quadrature (dq)-frame equations of the machine. The extended Kalman filter (EKF) and unscented Kalman filter (UKF) were used to detect the percentage and the place of the fault. The proposed techniques have been simulated for different fault scenarios using Matlab®/Simulink®. The results of the EKF estimation responses simulation were validated with the practical implementation results of tests that were performed with a prototype PMSG used in the Arab Academy For Science and Technology (AAST) machine lab. The results showed impressive responses with different operating conditions when exposed to different fault states to prevent the development of complete failure. View Full-Text
Keywords: extended Kalman filter (EKF); permanent magnet synchronous generator (PMSG); fault diagnosis (FD); stator inter-turn short circuit extended Kalman filter (EKF); permanent magnet synchronous generator (PMSG); fault diagnosis (FD); stator inter-turn short circuit
