# Irregular Wave Validation of a Coupling Methodology for Numerical Modelling of Near and Far Field Effects of Wave Energy Converter Arrays

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Generic Coupling Methodology

## 3. Application of the Coupling Methodology between the Wave Propagation Model, MILDwave, and the Wave–Structure Interaction Solver NEMOH for Irregular Waves

#### 3.1. The Wave Propagation Model, MILDwave and the Wave–Structure Interaction Solver, NEMOH

#### 3.2. Generation of the Incident Wave Field for Irregular Waves

#### 3.3. Generation of the Perturbed Wave Field for Irregular Waves

#### 3.4. Generation of the Total Wave Field for Irregular Waves

## 4. Validation Strategy of the Coupling Methodology between the Wave Propagation Model, MILDwave, and the Wave–Structure Interaction Solver, NEMOH

#### 4.1. Validation Test Cases

#### 4.1.1. WECwakes Experimental Data-Set

#### 4.1.2. “Test Case” Program

#### 4.1.3. Numerical Set-Up in the Used Models

#### 4.2. Criteria Used for the Numerical Model Validation

- ${K}_{d}$ contour plots of the entire numerical domains;
- ${K}_{d}$ cross-sections along the length of the numerical domains (parallel to the wave propagation direction);
- Contour plots of the “Relative Difference” between the obtained ${K}_{d}$ values ($R{D}_{{K}_{d}}$) defined as:$$R{D}_{{K}_{d},D}=\frac{({K}_{d,NEMOH}-{K}_{d,coupled})}{{K}_{d,NEMOH}}\xb7100\phantom{\rule{1.em}{0ex}}\%\phantom{\rule{1.em}{0ex}}(-),$$
- The Root Mean Square Error between ${K}_{d}$ values obtained using the MILDwave-NEMOH coupled model and NEMOH for the entire numerical domain ($RMS{E}_{{K}_{d},D}$):$$RMS{E}_{{K}_{d},D}=\sqrt{\frac{{\sum}_{i=1}^{G}{({K}_{d,NEMOH}-{K}_{d,coupled})}^{2}}{G}}\xb7100\phantom{\rule{1.em}{0ex}}\%\phantom{\rule{1.em}{0ex}}(-),$$

- Spectral density plots comparing the wave spectra between the MILDwave-NEMOH coupled model and the WECwakes experimental data for the 15 WGs.
- The Root Mean Square Error between the ${K}_{d}$ of the MILDwave-NEMOH coupled model and the ${K}_{d,WECwakes}$ of the WECwakes experimental data for the 15 WGs, $RMS{E}_{{K}_{d,WG}}$:$$RMS{E}_{{K}_{d,WG}}=\sqrt{\frac{{\sum}_{i=1}^{T}{({K}_{d,WECwakes}-{K}_{d,coupled})}^{2}}{C}}\xb7100\phantom{\rule{1.em}{0ex}}\%\phantom{\rule{1.em}{0ex}}(-),$$

## 5. Validation Results

#### 5.1. Sensitivity Analysis for Irregular Wave Generation

#### 5.2. Comparison between MILDwave-NEMOH Coupled model and NEMOH

#### 5.2.1. Irregular Waves with Wave Period ${T}_{p}=1.26$ s

#### 5.2.2. Comparison Summary

#### 5.3. Comparison between the MILDwave-NEMOH Coupled Model and the WECwakes Experimental Data-Set

#### 5.3.1. Test Case 6

#### 5.3.2. Comparison Summary

## 6. Discussion

## 7. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Abbreviations

WEC | Wave Energy Converter |

BEM | Boundary Element Method |

CFD | Computer Fluid Dynamics |

SPH | Smoothed Particle Hydrodynamics |

PTO | Power Take-Off |

RAO | Response Amplitude Operator |

DHI | Danish Hydraulic Institute |

WG | Wave Gauge |

RMSE | Root-Mean-Square-Error |

## References

- European Marine Energy Centre (EMEC) Ltd. Wave Developers Database. Available online: http://www.emec.org.uk/marine-energy/wave-developers/ (accessed on 13 November 2018).
- Millar, D.L.; Smith, H.C.M.; Reeve, D.E. Modelling analysis of the sensitivity of shoreline change to a wave farm. Ocean Eng.
**2007**, 34, 884–901. [Google Scholar] [CrossRef] - Venugopal, V.; Smith, G. Wave Climate Investigation for an Array of Wave Power Devices. In Proceedings of the 7th European Wave and Tidal Energy Conference, Porto, Portugal, 11–13 September 2007; p. 10. [Google Scholar]
- Smith, H.C.M.; Millar, D.L.; Reeve, D.E. Generalisation of wave farm impact assessment on inshore wave climate. In Proceedings of the 7th European Wave and Tidal Energy Conference, Porto, Portugal, 11–14 September 2007. [Google Scholar]
- Beels, C. Optimization of the Lay-Out of a Farm of Wave Energy Converters in the North Sea: Analysis of Wave Power Resources, Wake Effects, Production and Cost. Ph.D. Thesis, Ghent University, Ghent, Belgium, 2009. [Google Scholar]
- Carballo, R.; Iglesias, G. Wave farm impact based on realistic wave-WEC interaction. Energy
**2013**, 51, 216–229. [Google Scholar] [CrossRef] - Iglesias, G.; Carballo, R. Wave farm impact: The role of farm-to-coast distance. Renew. Energy
**2014**, 69, 375–385. [Google Scholar] [CrossRef] - Abanades, J.; Greaves, D.; Iglesias, G. Wave farm impact on the beach profile: A case study. Coast. Eng.
**2014**, 86, 36–44. [Google Scholar] [CrossRef] - Stratigaki, V. Experimental Study and Numerical Modelling of Intra-Array Interactions and Extra-Array Effects of Wave Energy Converter Arrays. Ph.D. Thesis, Ghent University, Ghent, Belgium, 2014. [Google Scholar]
- Troch, P.; Stratigaki, V. Phase-Resolving Wave Propagation Array Models. In Numerical Modelling of Wave Energy Converters; Folley, M., Ed.; Elsevier: New York, NY, USA, 2016; Chapter 10; pp. 191–216. [Google Scholar]
- Verbrugghe, T.; Stratigaki, V.; Troch, P.; Rabussier, R.; Kortenhaus, A. A comparison study of a generic coupling methodology for modeling wake effects of wave energy converter arrays. Energies
**2017**, 10, 1697. [Google Scholar] [CrossRef] - Verbrugghe, T.; Domínguez, J.M.; Crespo, A.J.; Altomare, C.; Stratigaki, V.; Troch, P.; Kortenhaus, A. Coupling methodology for smoothed particle hydrodynamics modeling of non-linear wave–structure interactions. Coast. Eng.
**2018**, 138, 184–198. [Google Scholar] [CrossRef] - Balitsky, P.; Fernandez, G.V.; Stratigaki, V.; Troch, P. Coupling methodology for modeling the near-field and far-field effects of a Wave Energy Converter. In Proceedings of the ASME 36th International Conference on Ocean, Offshore and Arctic Engineering (OMAE2017), Trondheim, Norway, 25–30 June 2017. [Google Scholar]
- Verao Fernandez, G.; Balitsky, P.; Stratigaki, V.; Troch, P. Coupling Methodology for Studying the Far Field Effects of Wave Energy Converter Arrays over a Varying Bathymetry. Energies
**2018**, 11, 2899. [Google Scholar] [CrossRef] - Tomey-Bozo, N.; Babarit, A.; Murphy, J.; Stratigaki, V.; Troch, P.; Lewis, T.; Thomas, G. Wake effect assessment of a flap type wave energy converter farm under realistic environmental conditions by using a numerical coupling methodology. Coast. Eng.
**2018**. [Google Scholar] [CrossRef] - Stratigaki, V.; Troch, P.; Stallard, T.; Forehand, D.; Folley, M.; Kofoed, J.P.; Benoit, M.; Babarit, A.; Vantorre, M.; Kirkegaard, J. Sea-state modification and heaving float interaction factors from physical modeling of arrays of wave energy converters. J. Renew. Sustain. Energy
**2015**, 7, 061705. [Google Scholar] [CrossRef] - Child, B.M.F.; Venugopal, V. Optimal Configurations of wave energy devices. Ocean Eng.
**2010**, 37, 1402–1417. [Google Scholar] [CrossRef] - Garcia Rosa, P.B.; Bacelli, G.; Ringwood, J.V. Control-informed optimal layout for wave farms. IEEE Trans. Sustain. Energy
**2015**, 6, 575–582. [Google Scholar] [CrossRef] - Göteman, M.; McNatt, C.; Giassi, M.; Engström, J.; Isberg, J. Arrays of Point-Absorbing Wave Energy Converters in Short-Crested Irregular Waves. Energies
**2018**, 11, 964. [Google Scholar] [CrossRef] - Babarit, A. On the park effect in arrays of oscillating wave energy converters. Renew. Energy
**2013**, 58, 68–78. [Google Scholar] [CrossRef] - Borgarino, B.; Babarit, A.; Ferrant, P. Impact of wave interaction effects on energy absorbtion in large arrays of Wave Energy Converters. Ocean Eng.
**2012**, 41, 79–88. [Google Scholar] [CrossRef] - Sismani, G.; Babarit, A.; Loukogeorgaki, E. Impact of Fixed Bottom Offshore Wind Farms on the Surrounding Wave Field. Int. J. Offshore Polar Eng.
**2017**, 27, 357–365. [Google Scholar] [CrossRef] - Devolder, B.; Stratigaki, V.; Troch, P.; Rauwoens, P. CFD simulations of floating point absorber wave energy converter arrays subjected to regular waves. Energies
**2018**, 11, 641. [Google Scholar] [CrossRef] - Ransley, E.; Greaves, D.; Raby, A.; Simmonds, D.; Hann, M. Survivability of wave energy converters using CFD. Renew. Energy
**2017**, 109, 235–247. [Google Scholar] [CrossRef] - Crespo, A.J.C.; Domínguez, J.M.; Rogers, B.D.; Gómez-Gesteira, M.; Longshaw, S.; Canelas, R.; Vacondio, R.; Barreiro, A.; García-Feal, O. DualSPHysics: Open-source parallel {CFD} solver based on Smoothed Particle Hydrodynamics (SPH). Comput. Phys. Commun.
**2015**, 187, 204–216. [Google Scholar] [CrossRef] - Crespo, A.; Altomare, C.; Domínguez, J.; González-Cao, J.; Gómez-Gesteira, M. Towards simulating floating offshore oscillating water column converters with Smoothed Particle Hydrodynamics. Coast. Eng.
**2017**, 126, 11–26. [Google Scholar] [CrossRef] - Chang, G.; Ruehl, K.; Jones, C.; Roberts, J.; Chartrand, C. Numerical modeling of the effects of wave energy converter characteristics on nearshore wave conditions. Renew. Energy
**2016**, 89, 636–648. [Google Scholar] [CrossRef] - Stokes, C.; Conley, D.C. Modelling Offshore Wave farms for Coastal Process Impact Assessment: Waves, Beach Morphology, and Water Users. Energies
**2018**, 11, 2517. [Google Scholar] [CrossRef] - Rusu, E. Study of the Wave Energy Propagation Patterns in the Western Black Sea. Appl. Sci.
**2018**, 8, 993. [Google Scholar] [CrossRef] - Beels, C.; Troch, P.; De Backer, G.; Vantorre, M.; De Rouck, J. Numerical implementation and sensitivity analysis of a wave energy converter in a time-dependent mild-slope equation model. Coast. Eng.
**2010**, 57, 471–492. [Google Scholar] [CrossRef] - Stratigaki, V.; Vanneste, D.; Troch, P.; Gysens, S.; Willems, M. Numerical modeling of wave penetration in ostend harbour. Coast. Eng. Proc.
**2011**, 1, 42. [Google Scholar] [CrossRef] - Tuba Özkan-Haller, H.; Haller, M.C.; Cameron McNatt, J.; Porter, A.; Lenee-Bluhm, P. Analyses of Wave Scattering and Absorption Produced by WEC Arrays: Physical/Numerical Experiments and Model Assessment. In Marine Renewable Energy: Resource Characterization and Physical Effects; Yang, Z., Copping, A., Eds.; Springer International Publishing: Cham, Switzerland, 2017; pp. 71–97. [Google Scholar]
- Charrayre, F.; Peyrard, C.; Benoit, M.; Babarit, A. A Coupled Methodology for Wave-Body Interactions at the Scale of a Farm of Wave Energy Converters Including Irregular Bathymetry. In Proceedings of the ASME 2014 33rd International Conference on Ocean, Offshore and Arctic Engineering, San Francisco, CA, USA, 8–13 June 2014. [Google Scholar]
- Tomey-Bozo, N.; Murphy, J.; Troch, P.; Lewis, T.; Thomas, G. Modelling of a flap-type wave energy converter farm in a mild-slope equation model for a wake effect assessment. IET Renew. Power Gener.
**2017**, 11, 1142–1152. [Google Scholar] [CrossRef] - Rijnsdorp, D.P.; Hansen, J.E.; Lowe, R.J. Simulating the wave-induced response of a submerged wave-energy converter using a non-hydrostatic wave-flow model. Coast. Eng.
**2018**, 140, 189–204. [Google Scholar] [CrossRef] - Zijlema, M.; Stelling, G.; Smit, P. SWASH: An operational public domain code for simulating wave fields and rapidly varied flows in coastal waters. Coast. Eng.
**2011**, 58, 992–1012. [Google Scholar] [CrossRef] - Balitsky, P.; Verao Fernandez, G.; Stratigaki, V.; Troch, P. Assessment of the power output of a two-array clustered WEC farm using a BEM solver coupling and a Wave-Propagation Model. Energies
**2018**, 11, 2907. [Google Scholar] [CrossRef] - Troch, P. MILDwave—A Numerical Model for Propagation and Transformation of Linear Water Waves; Technical Report; Department of Civil Engineering, Ghent University: Ghent, Belgium, 1998. [Google Scholar]
- Babarit, A.; Delhommeau, G. Theoretical and numerical aspects of the open source BEM solver {NEMOH}. Proceedings of 11th European Wave and Tidal Energy Conference, Nantes, France, 6–11 September 2015. [Google Scholar]
- WAMITInc. User Manual, Versions 6.4, 6.4 PC, 6.3, 6.3S-PC; WAMIT: Boston, MA, USA, 2006. [Google Scholar]
- Stratigaki, V.; Troch, P.; Stallard, T.; Forehand, D.; Kofoed, J.P.; Folley, M.; Benoit, M.; Babarit, A.; Kirkegaard, J. Wave Basin Experiments with Large Wave Energy Converter Arrays to Study Interactions between the Converters and Effects on Other Users. Energies
**2014**, 7, 701–734. [Google Scholar] [CrossRef] - Stratigaki, V.; Vanneste, D.; Troch, P.; Gysens, S.; Willems, M. Numerical modeling of wave penetration in Ostend Harbour. Proceedings of Conference on Coastal Engineering, Shanghai, China, 30 June–5 July 2010; McKee Smith, J., Lynett, P., Eds.; Engineering Foundation, Council onWave Research: New York, NY, USA, 2010; Volume 32, p. 15. [Google Scholar]
- Radder, A.C.; Dingemans, M.W. Canonical equations for almost periodic, weakly non-linear gravity waves. Wave Motion
**1985**, 7, 473–485. [Google Scholar] [CrossRef] - Tomey-Bozo, N.; Babarit, J.M.A.; Troch, P.; Lewis, T.; Thomas, G. Wake Effect Assesment of a flap-type wave energy converter farm using a coupling methodology. In Proceedings of the ASME 36th International Conference on Ocean, Offshore and Arctic Engineering (OMAE2017), Trondheim, Norway, 25–30 June 2017. [Google Scholar]
- Beels, C.; Troch, P.; Kofoed, J.P.; Frigaard, P.; Kringelum, J.V.; Kromann, P.C.; Donovan, M.H.; De Rouck, J.; De Backer, G. A methodology for production and cost assessment of a farm of wave energy converters. Renew. Energy
**2011**, 36, 3402–3416. [Google Scholar] [CrossRef] - Penalba, M.; Touzón, I.; Lopez-Mendia, J.; Nava, V. A numerical study on the hydrodynamic impact of device slenderness and array size in wave energy farms in realistic wave climates. Ocean Eng.
**2017**, 142, 224–232. [Google Scholar] [CrossRef] - Penalba, M.; Kelly, T.; Ringwood, J. Using NEMOH for Modelling Wave Energy Converters: A Comparative Study with WAMIT. In Proceedings of the 12th European Wave and Tidal Energy Conference (EWTEC 2017), Cork, UK, 27 August–1 September 2017. [Google Scholar]
- Alves, M. Wave Energy Converter modeling techniques based on linear hydrodynamic theory. In Numerical Modelling of Wave Energy Converters; Folley, M., Ed.; Elsevier: New York, NY, USA, 2016. [Google Scholar]
- Iglesias, G.; Carballo, R. Wave energy and nearshore hot spots: The case of the SE Bay of Biscay. Renew. Energy
**2010**, 35, 2490–2500. [Google Scholar] [CrossRef] - Child, B.M.F. On the Configuration of Arrays of Floating Wave Energy Converters. Ph.D Thesis, The University of Edinburgh, Edinburgh, UK, 2011. [Google Scholar]

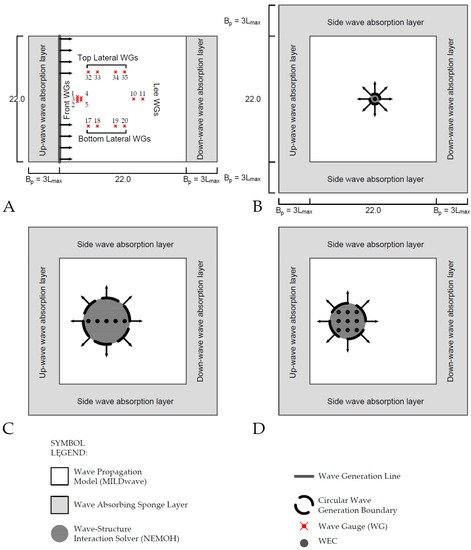

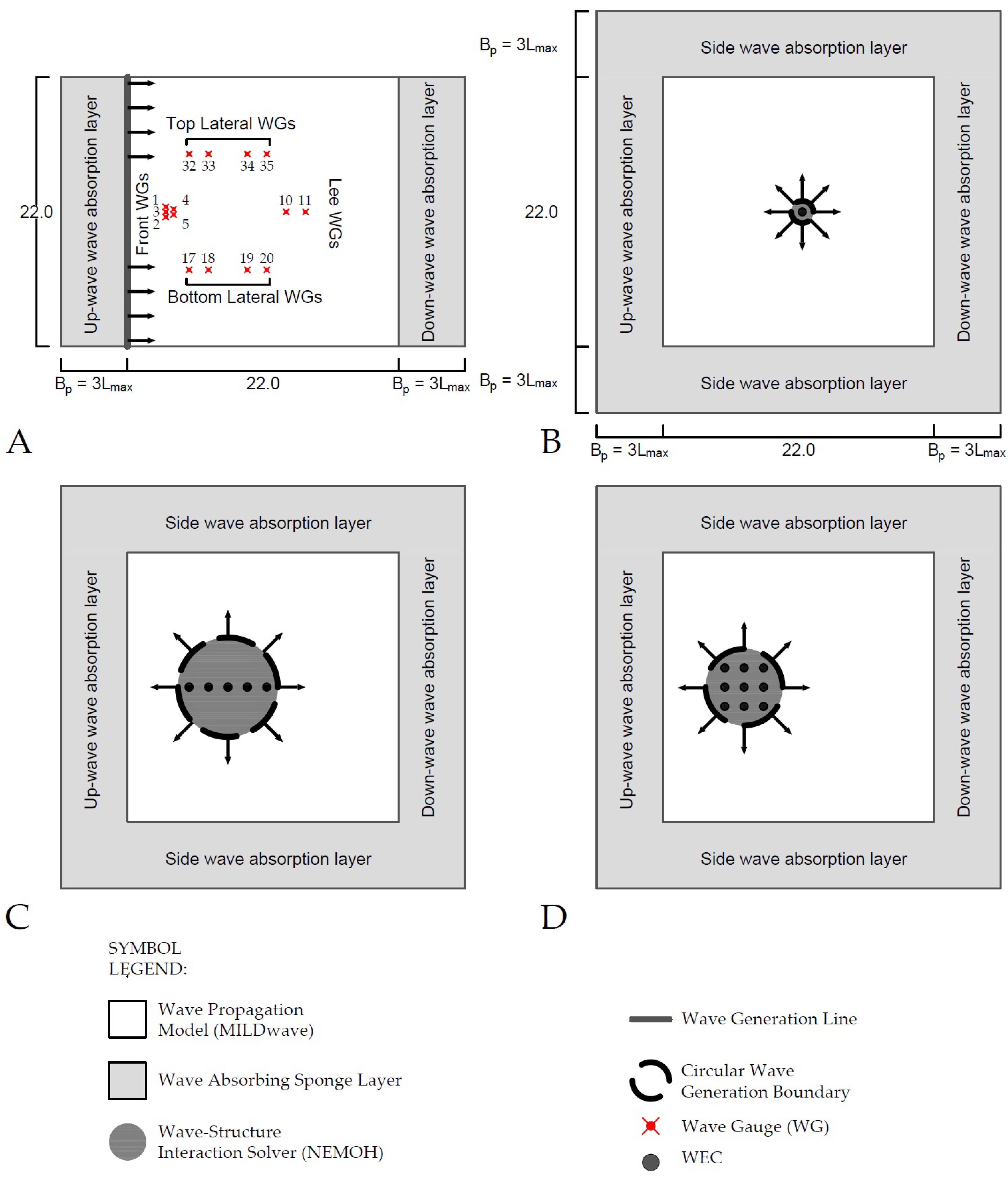

**Figure 1.**Set-up of the different numerical wave basins used in MILDwave. The wave gauges (WGs) are represented by the x symbol and numbered as they appear in the WECwakes experimental data-set. (

**A**) empty numerical wave basin and layout of WGs; (

**B**) numerical wave basing with a single WEC; (

**C**) numerical wave basin with an array of five WECs (1 column, 1 × 5); (

**D**) numerical wave basin with an array of nine WECs (3 columns and 3 rows, 3 × 3).

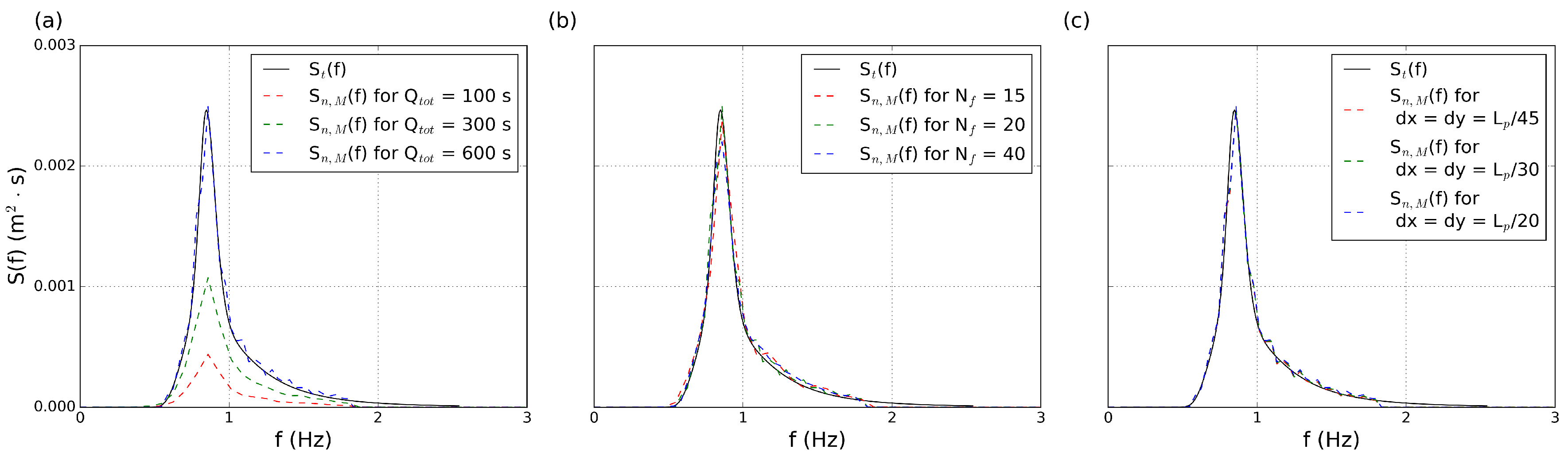

**Figure 2.**Numerical wave spectrum ${S}_{n,M}\left(f\right)$ generated at the centre of the MILDwave numerical domain for an irregular wave with ${T}_{p}$ = 1.26 s and ${H}_{s}$ = 0.104 m and different simulations parameters: (

**a**) total simulation time, ${Q}_{tot}$; (

**b**) number of regular wave components, ${N}_{f}$ and (

**c**) grid cell size, ${d}_{x}(={d}_{y})$. ${S}_{n,M}\left(f\right)$ is compared in (

**a**–

**c**) to the theoretical wave spectrum, ${S}_{t}\left(f\right)$.

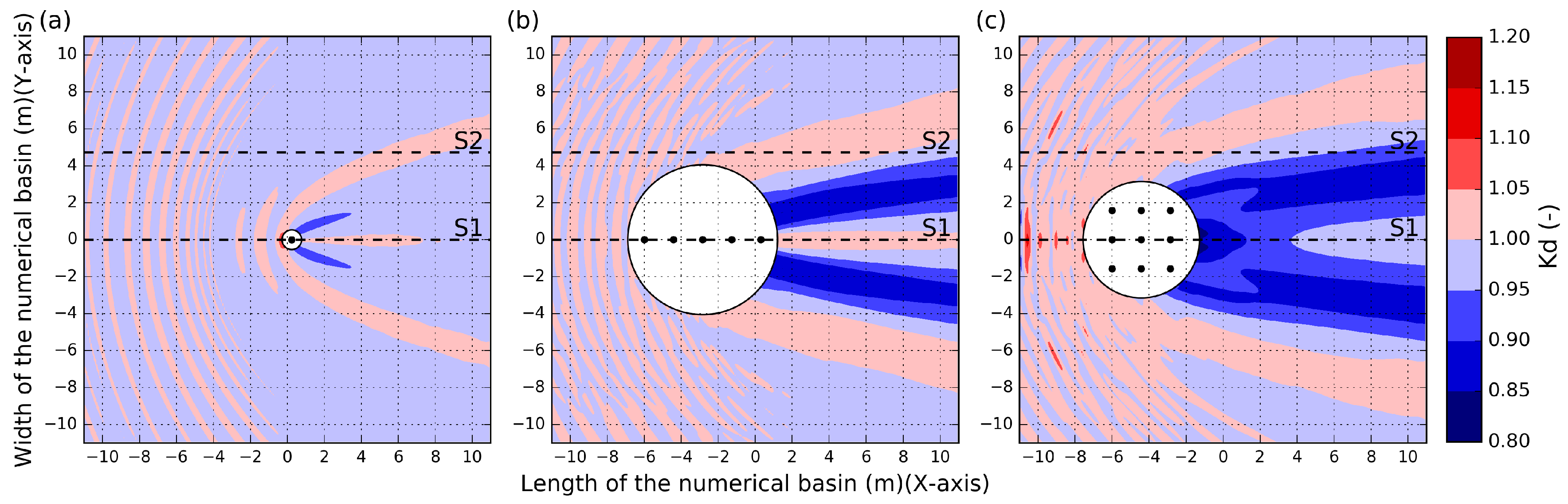

**Figure 3.**${K}_{d}$ results for an irregular wave with ${T}_{p}$ = 1.26 s and ${H}_{s}$ = 0.104 m obtained using the MILDwave-NEMOH coupled model: (

**a**) Test Case 2; (

**b**) Test Case 4 and (

**c**) Test Case 6 of Table 1. Contour levels are set at an interval of 0.05 of ${K}_{d}$ value (-). The coupling region is masked out using a white solid circle which includes the WECs (indicated by using black solid circles). Incident waves are generated from the left to the right. S1 and S2 indicate the location of cross-sections.

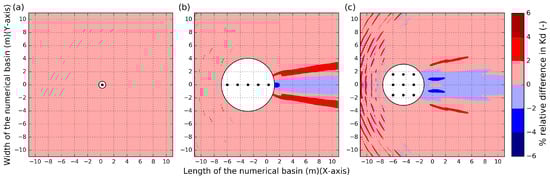

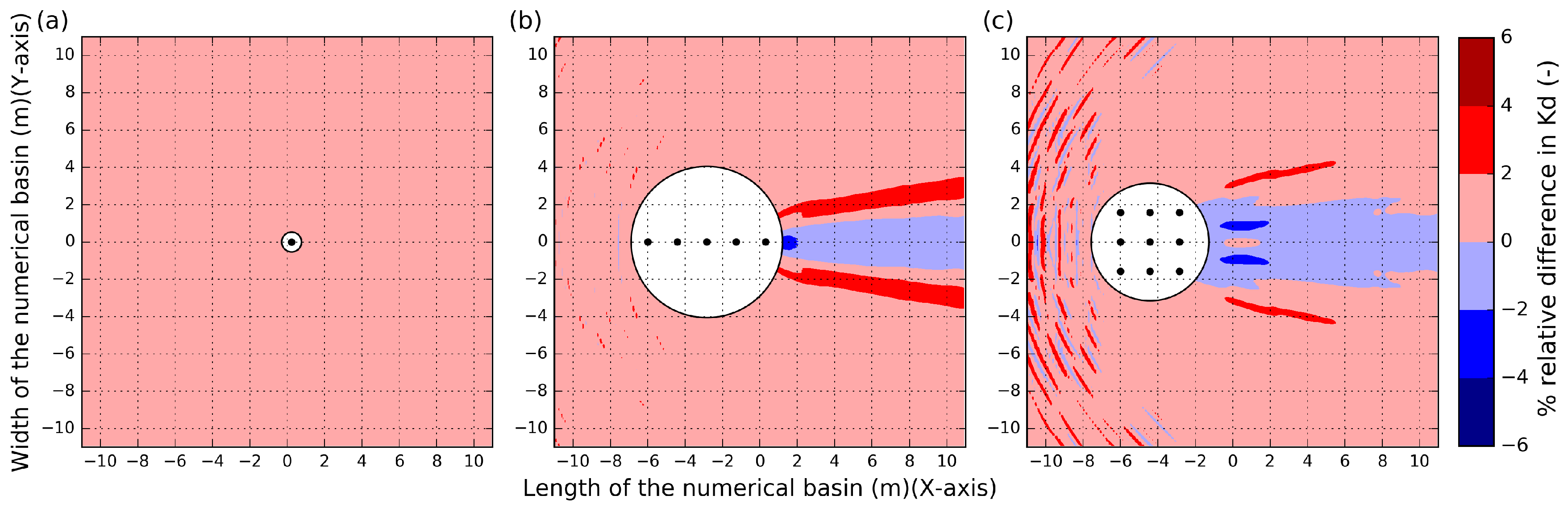

**Figure 4.**Relative difference (%) in ${K}_{d}$, $R{D}_{Kd}$, between the MILDwave-NEMOH coupled model and NEMOH for an irregular wave of ${T}_{p}$ = 1.26 s and ${H}_{s}$ = 0.104 m: (

**a**) Test Case 2; (

**b**) Test Case 4; and (

**c**) Test Case 6 of Table 1. Contour levels are set at an interval of 2 of relative difference in ${K}_{d}$ value (-). The coupling region is masked out using a white solid circle which includes the WECs (indicated by using black solid circles). Incident waves are generated from the left to the right.

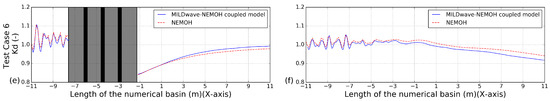

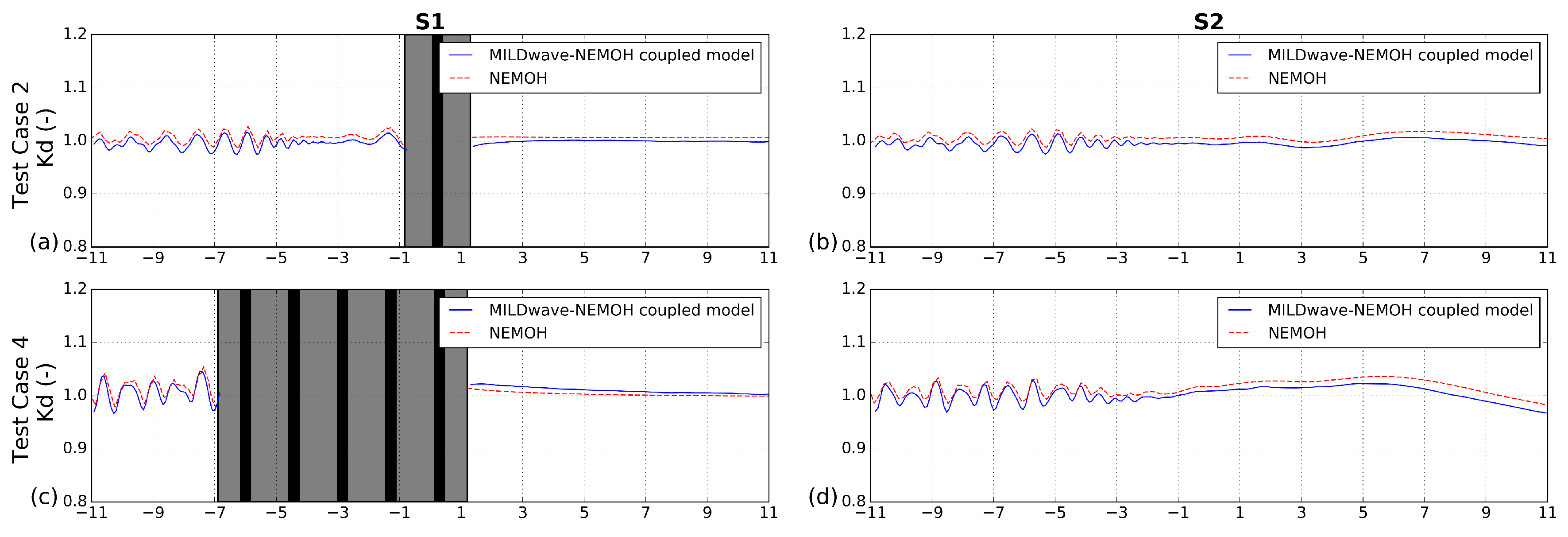

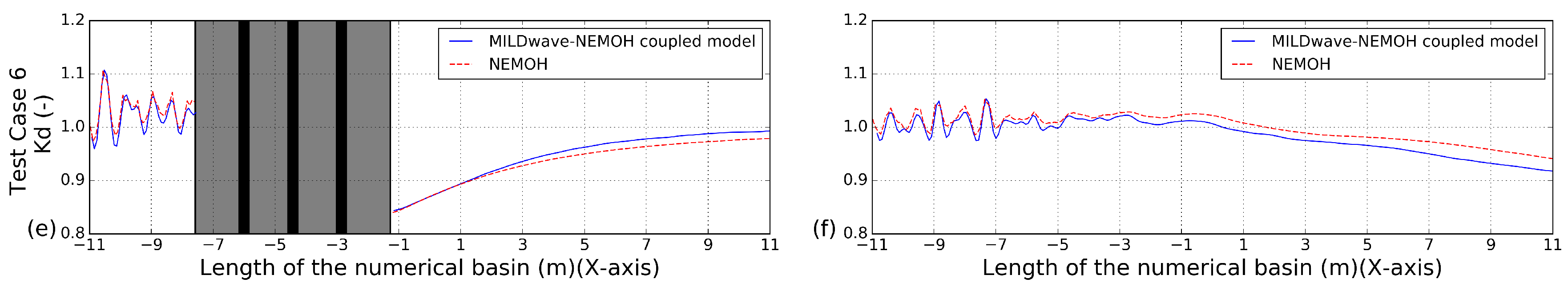

**Figure 5.**${K}_{d}$ results for the MILDwave-NEMOH coupled model and for NEMOH along two longitudinal cross-sections S1 (left) and S2 (right) as indicated in Figure 3 for: (

**a**,

**b**) Test Case 2; (

**c**,

**d**) Test Case 4, and (

**e**,

**f**) Test Case 6. The coupling region is masked out in gray colour and includes the WECs’ cross-sections, which are indicated by black vertical areas.

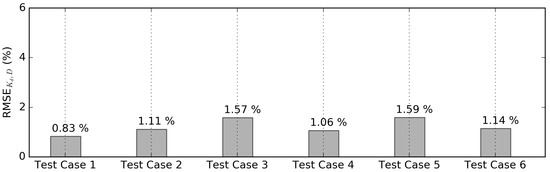

**Figure 6.**Root-Mean-Square-Error (RMSE) for the ${K}_{d}$, $RMS{E}_{{K}_{d},D}$, over the entire numerical domain. Comparison between the MILDwave-NEMOH coupled model and NEMOH for all Test Cases of Table 1.

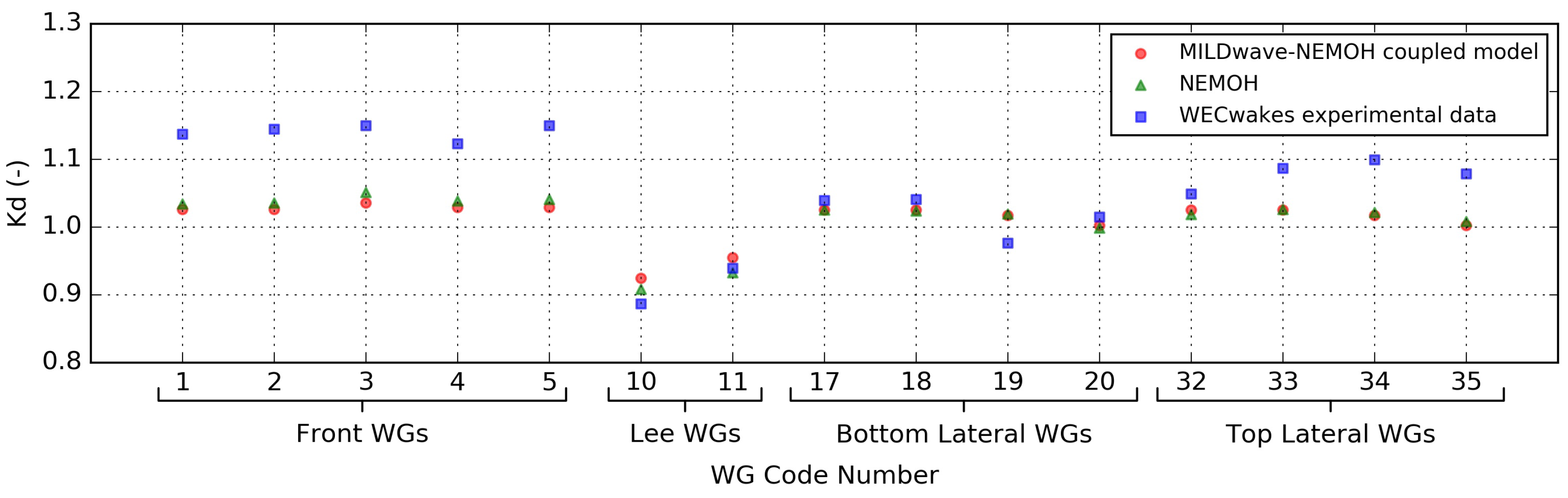

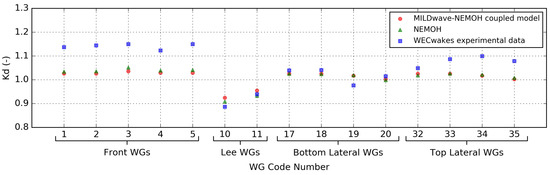

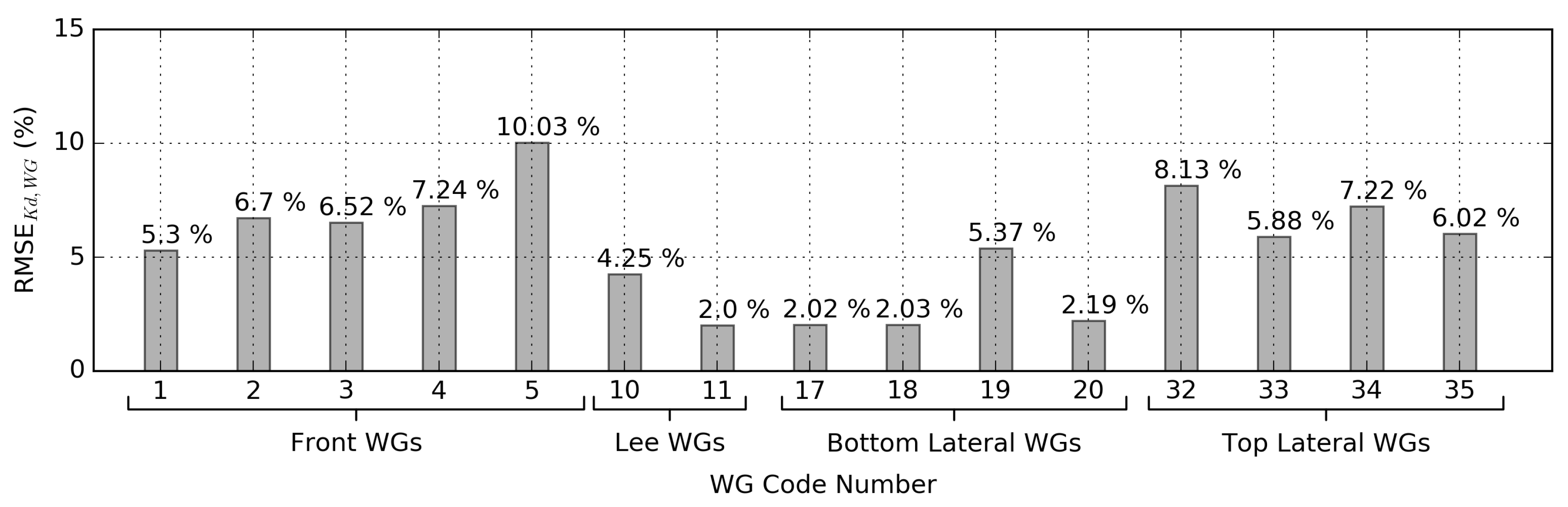

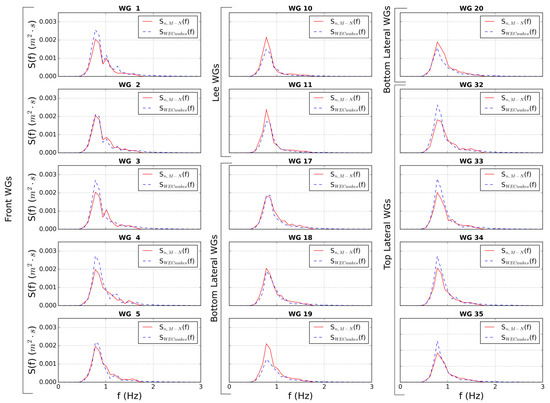

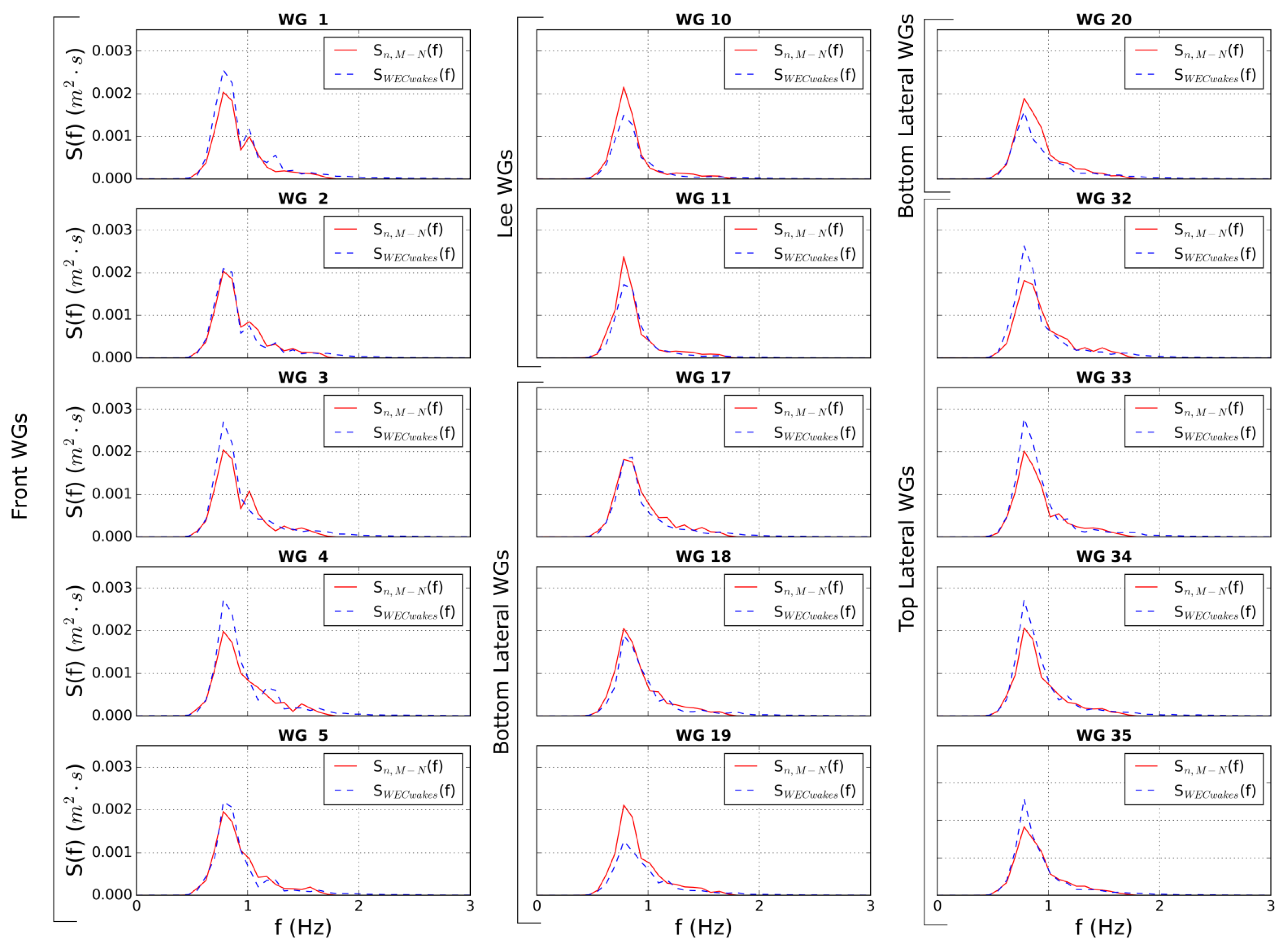

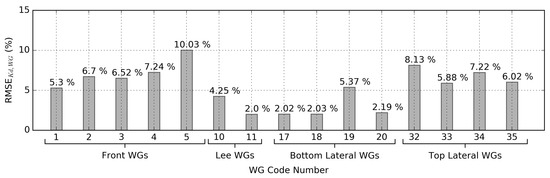

**Figure 9.**Root-Mean-Square-Error for the ${K}_{d}$ for all 15 WGs, $RMS{E}_{{K}_{d,WG}}$, of Figure 1A. Comparison between the MILDwave-NEMOH coupled model and the WECwakes experimental data-set.
