Energies 2019, 12(2), 229; https://doi.org/10.3390/en12020229

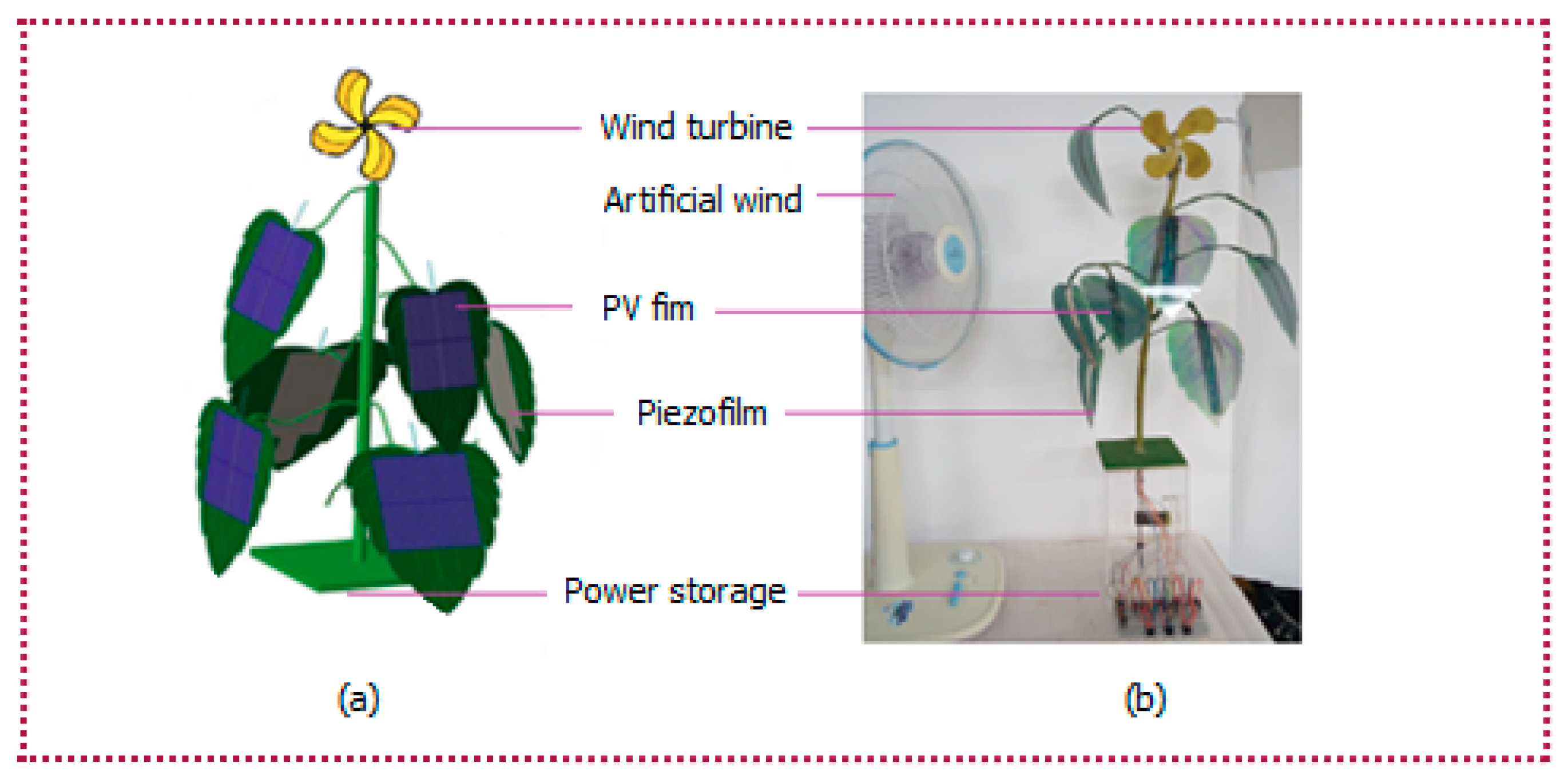

Development of a Tree-Shaped Hybrid Nanogenerator Using Flexible Sheets of Photovoltaic and Piezoelectric Films

Department of Nuclear and Energy Engineering, Jeju National University, Jeju 63243, Korea
*
Author to whom correspondence should be addressed.
Received: 29 October 2018 / Revised: 3 January 2019 / Accepted: 4 January 2019 / Published: 12 January 2019
(This article belongs to the Section Energy Fundamentals and Conversion)
Full-Text   |   PDF [1651 KB, uploaded 12 January 2019]   |

Abstract

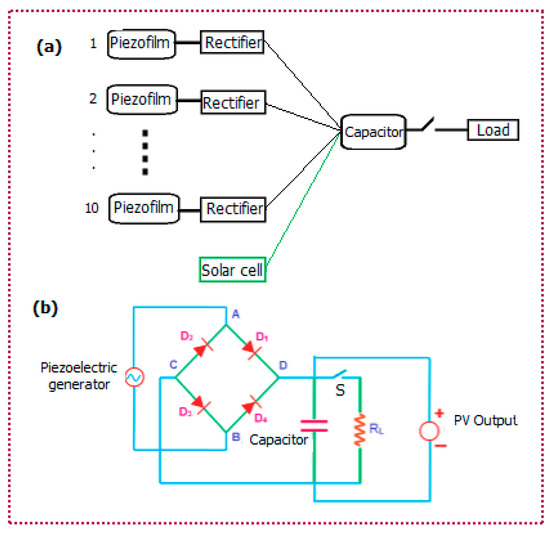

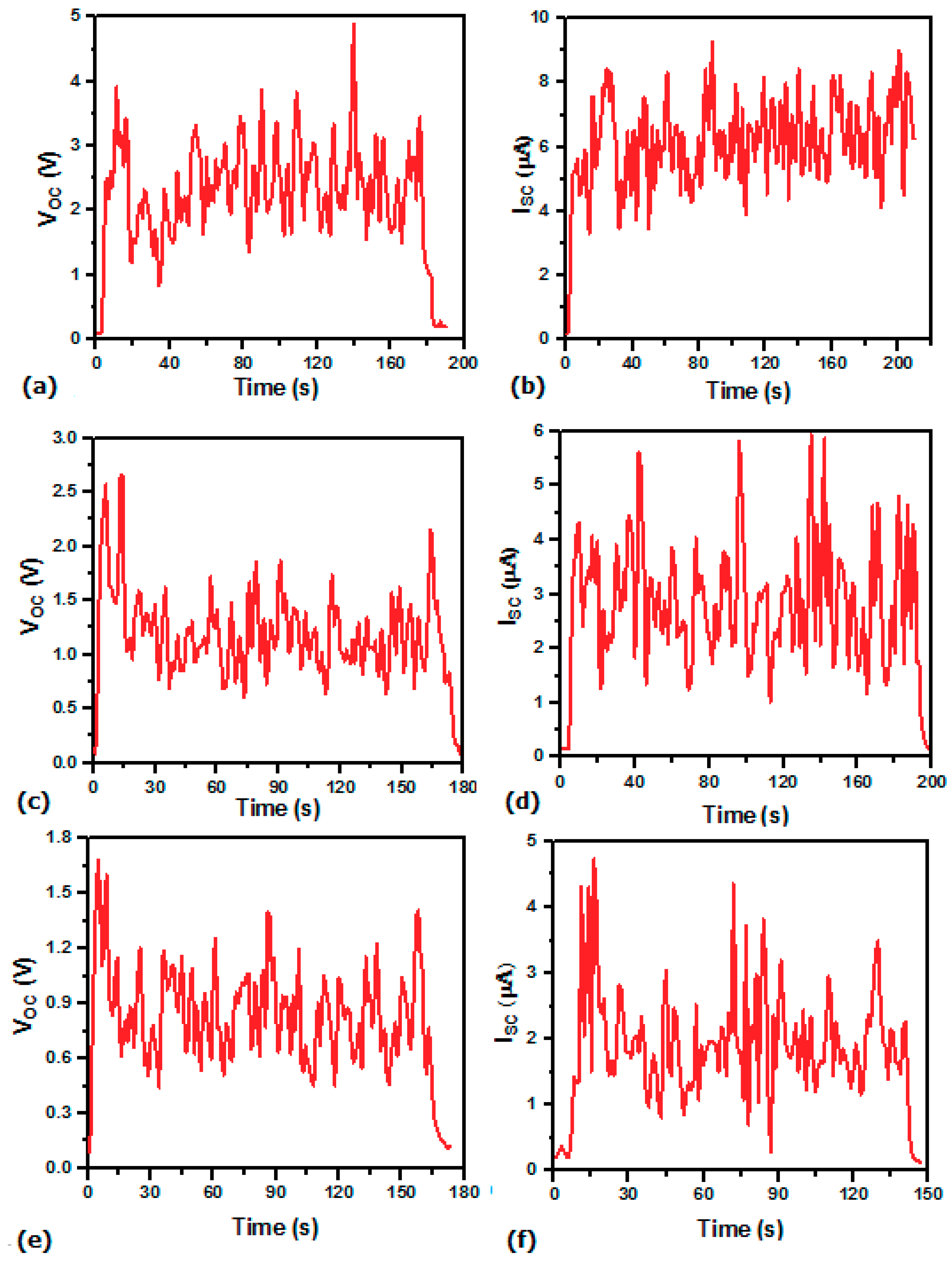

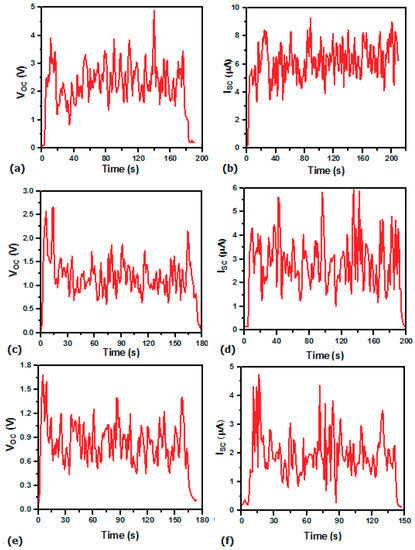

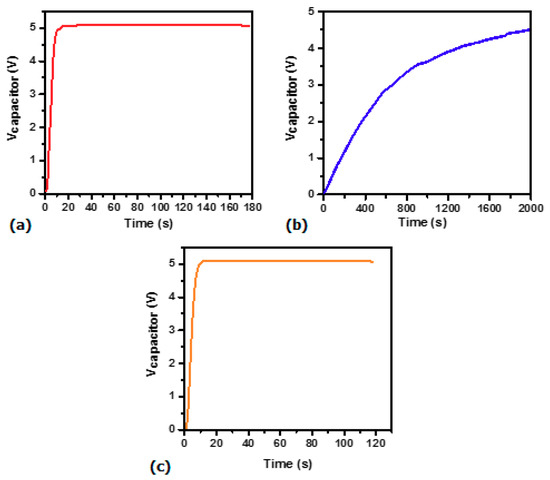

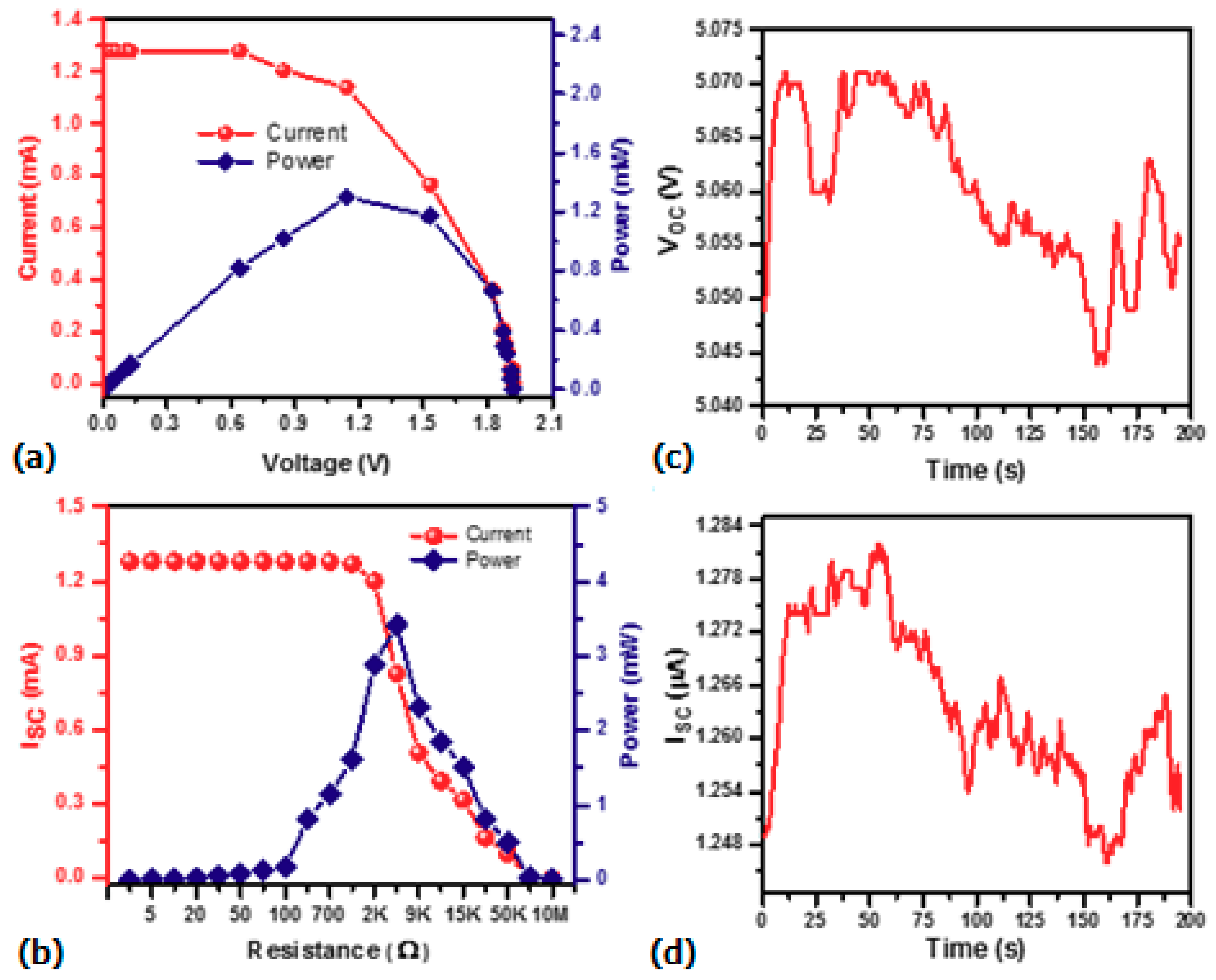

This paper reports on the feasibility of a tree-shaped hybrid nanogenerator (TSHG) made of flexible sheets of photovoltaic (PV) and piezoelectric (piezo) films for harnessing both wind and solar energy. The proposed system has been designed to produce electricity if there is any light, wind or strong rainfall. It shows how the power developed by each piezo film sheet was integrated in conjunction with its limited power output which is produced by the sporadic movement of the sheets. Regardless of its magnitude, the AC power output of each piezo film sheet was converted with a full wave bridge rectifier and then passed to a capacitor. The TSHG has an excellent performance with an open circuit voltage of 5.071 V, a short-circuit current of 1.282 mA, and a maximum power output of 3.42 mW at a loading resistance of 5 kΩ. Moreover, a wind driven TSHG was capable of charging a 1000 µF capacitor, which was subsequently discharged through LED lighting. View Full-Text
Keywords: hybrid nanogenerator; sheets of piezoelectric and photovoltaic films; full wave bridge rectifier; wind energy; solar energy hybrid nanogenerator; sheets of piezoelectric and photovoltaic films; full wave bridge rectifier; wind energy; solar energy
