New Switched-Dual-Source Multilevel Inverter for Symmetrical and Asymmetrical Operation

Electrical & Computer Engineering Department, Tuskegee University, Tuskegee, AL 36088, USA
Author to whom correspondence should be addressed.
Received: 10 March 2018 / Revised: 8 April 2018 / Accepted: 13 April 2018 / Published: 18 April 2018
Full-Text   |   PDF [2647 KB, uploaded 19 April 2018]   |


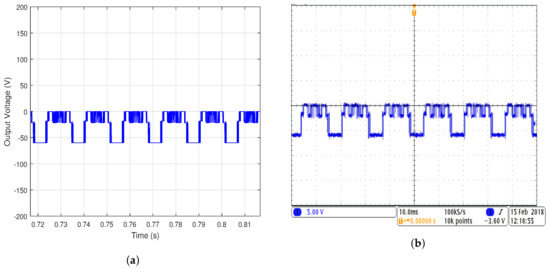

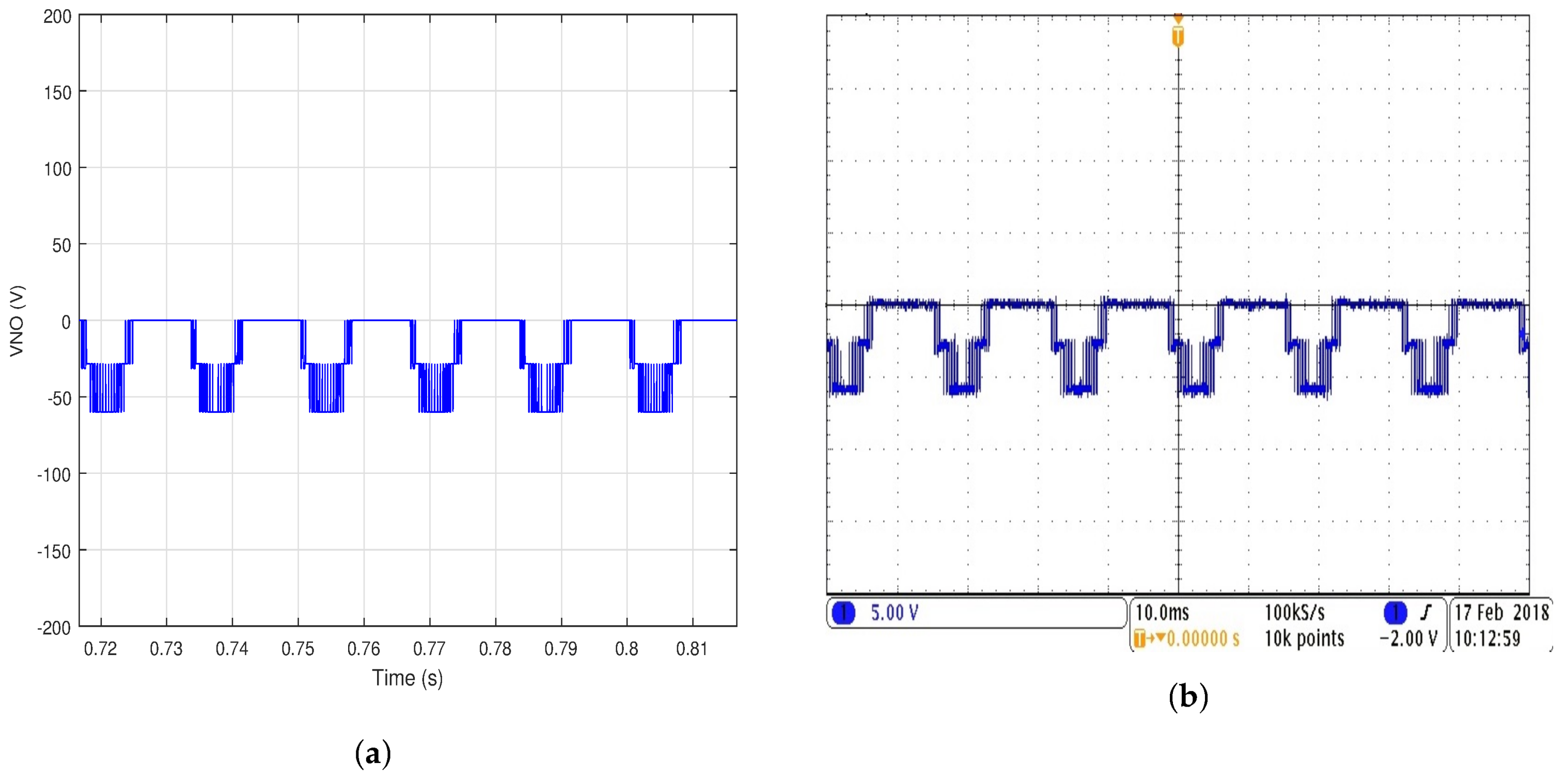

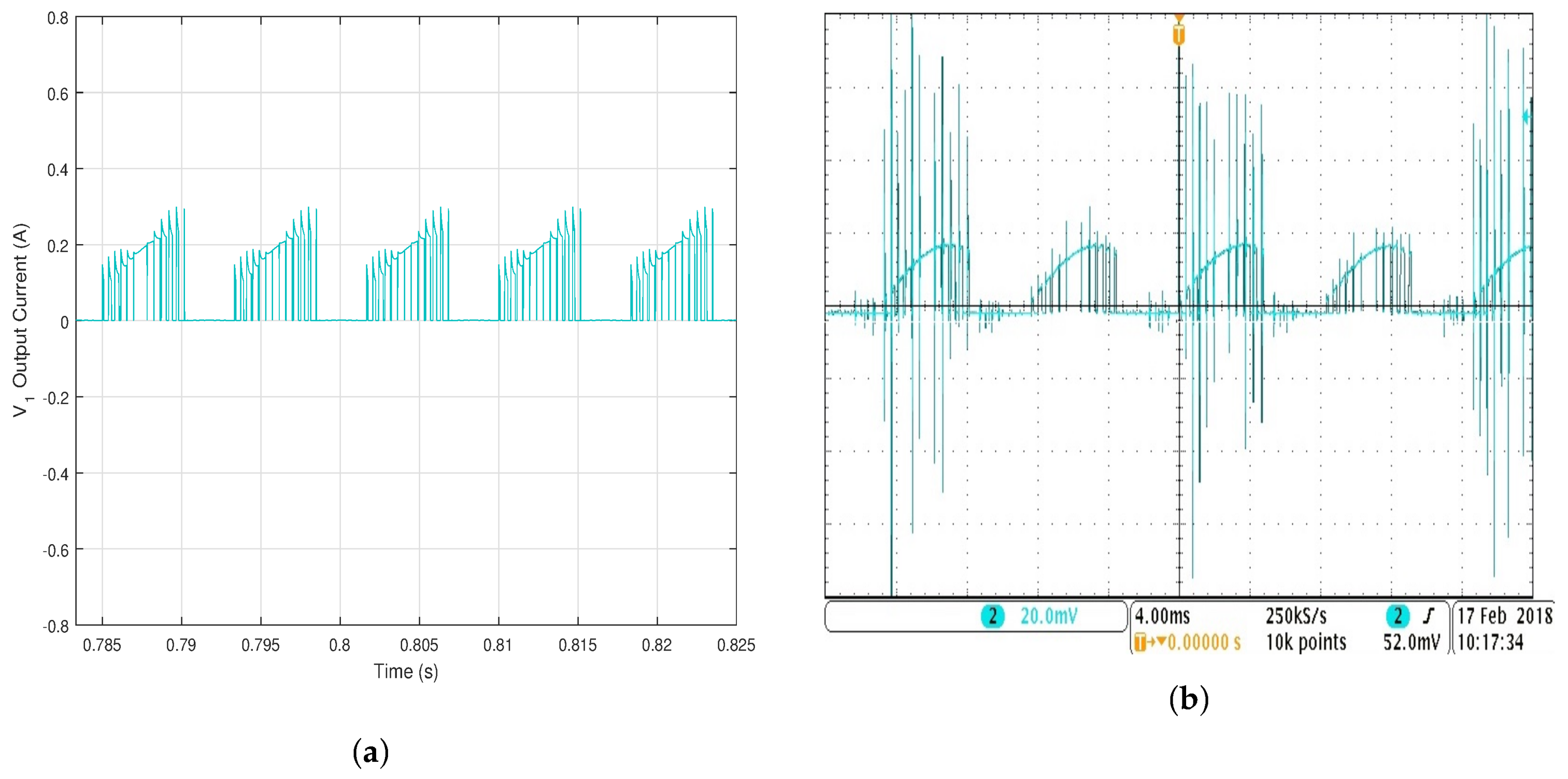

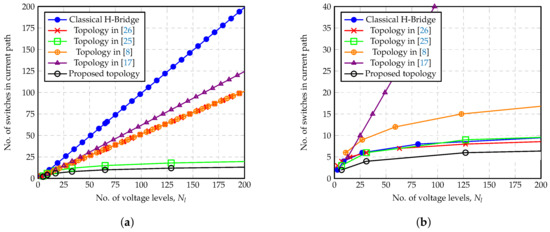

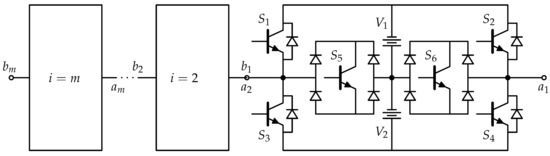

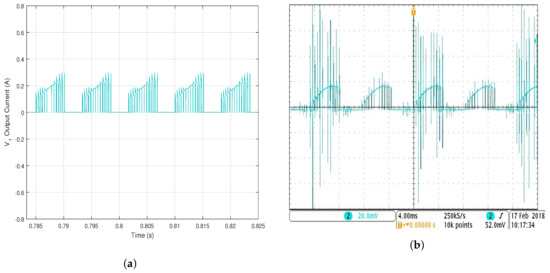

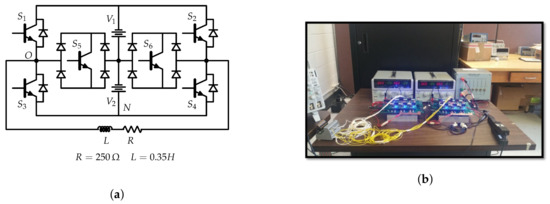

The increasing integration of large solar PV and wind farms into the power grid has fueled, over the past two decades, growing demands for high-power, high-voltage, utility-scale inverters. Multilevel inverters have emerged as the industry’s choice for megawatt-range inverters because of their reduced voltage stress, capability for generating an almost-sinusoidal voltage, built-in redundancy and other benefits. This paper presents a novel switched-source multilevel inverter (SS MLI) architecture. This new inverter shows superior capabilities when compared to existing topologies. It has reduced voltage stress on the semiconductor, uses fewer switches (i.e., reduced size/weight/cost) and exhibits increased efficiency. The proposed SS MLI is comprised of two voltage sources ( V 1 , V 2 ) and six switches. It is capable of generating five-level output voltage in symmetric mode (i.e., V 1 = V 2 ) and seven-level output voltage in asymmetric mode (i.e., V 1 V 2 ). We present simulations results (using MATLAB®/Simulink®) for five- and seven-level output voltages, and they strongly support the validity of the proposed inverter. These positive results are further supported experimentally using a laboratory prototype. View Full-Text
Keywords: multilevel; inverter; single phase; reduced switch-count; H-bridge multilevel; inverter; single phase; reduced switch-count; H-bridge

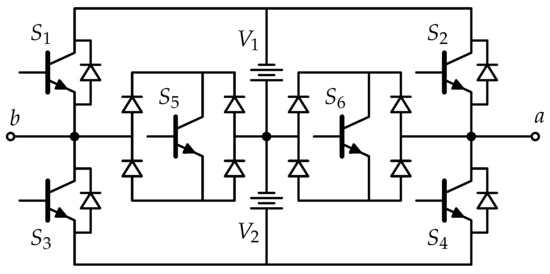

Figure 1
