# Optimal Planning of Charging for Plug-In Electric Vehicles Focusing on Users’ Benefits

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

_{2}emission, and EV users’ cost is proposed in [18]. The decrease in queue time is also treated as a benefit, especially for motivating EV users in specific situations, such as shopping areas and highways [17,18,19]. Nevertheless, few of those took the cost of battery capacity degradation into account, although such a cost is a non-negligible part of EVs’ total operating costs. The battery is one of the most important parts of the EV and the price of the battery is almost half of the EV price. The batteries’ useful life is greatly affected by different methods of charging and discharging. Many experiments and studies have been performed focusing on the Li-ion battery, but these achievements were not applied in the field of charging management. A battery capacity fading model, which can simulate the battery degradation dynamics in various operating conditions was developed in [20]. The authors of [21] proposed a novel fusion prognostic model, in which the time series prediction model is adopted, and implemented a particle filter algorithm for predicting Li-ion battery life. The CALCE (Center for Advanced Life Cycle Engineering) Battery Group from the University of Maryland quantified the effect of partial cycling on lithium-ion battery capacity fade by means of cycling tests operating on graphite/LiCoO

_{2}pouch cells under diverse state of charge (SOC) ranges, and then developed a model of the battery capacity degradation under partial cycling conditions [22]. Plenty of research efforts have been devoted to study the contributing factors to battery capacity fade. The value of used batteries, which is an important factor to derive the cost of battery capacity degradation, is analyzed in [23,24]. Since the operating SOC range is the most controllable factor, it should be incorporated in the charging planning for reducing EV users’ total operating costs. Furthermore, EV users are likely to pay more attention to the waiting time compared to the operating costs in the aforementioned specific situations [17,19,25,26]. An intention-aware routing system was developed to calculate a routing policy that minimizes their expected journey time in [27]. A planning method based on the queuing theory was proposed to determine the capacity of each EV charging station and minimize the sum of the waiting cost and the charger cost in [28].

## 2. Methodology Description

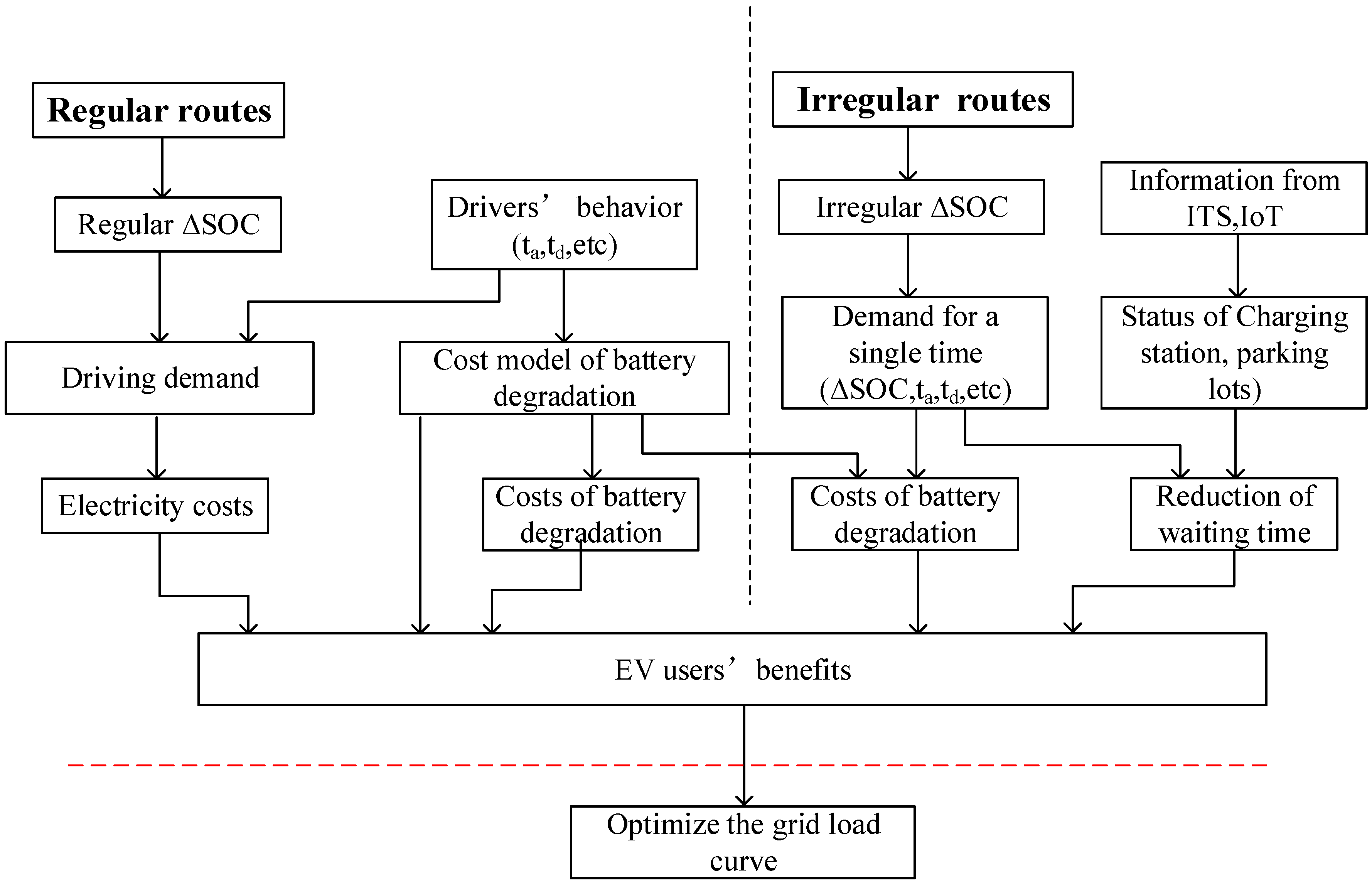

## 3. Problem Formulation and Transformation

#### 3.1. Cost Model of Battery Capacity Fade

#### 3.1.1. Battery Capacity Degradation Analysis

_{2}pouch cells under different SOC ranges and charge/discharge currents, which is experimentalized and collected by the CALCE battery group at the University of Maryland [31], is adopted in our research. We only focus on the data collected when the batteries are cycled at a current rate of 0.5 C corresponding to level 1 charging. The capacity degradation results for different SOC ranges are shown in Figure 2.

#### 3.1.2. Cost of Battery Capacity Degradation Modeling

_{mean}denotes the mean SOC of the operating SOC range, and ΔSOC means the difference between the maximum and the minimum SOC of the operating SOC range. The number of EFC can be easily derived by this model:

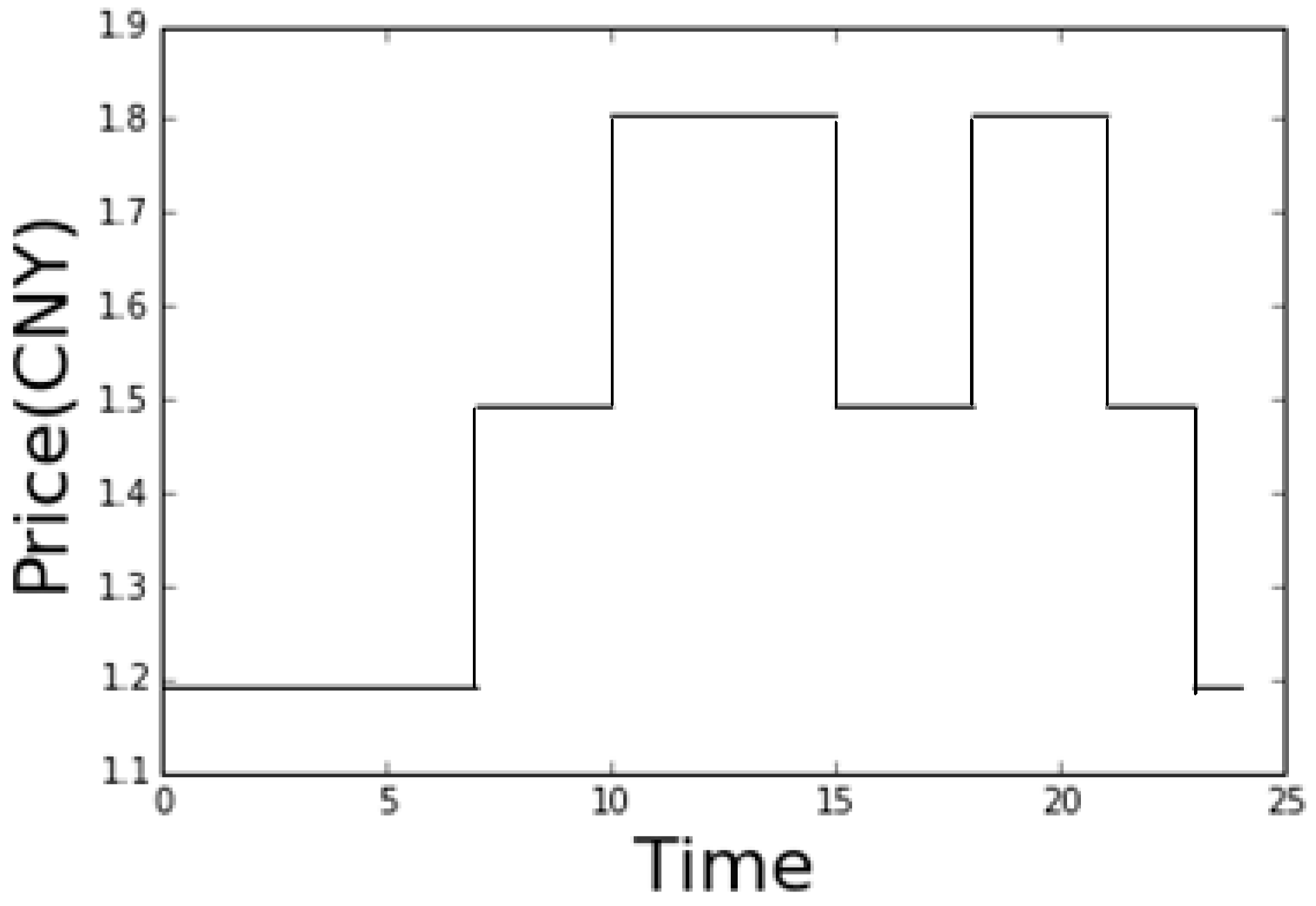

#### 3.2. Electricity Cost

#### 3.3. Grid Load Curve Optimization

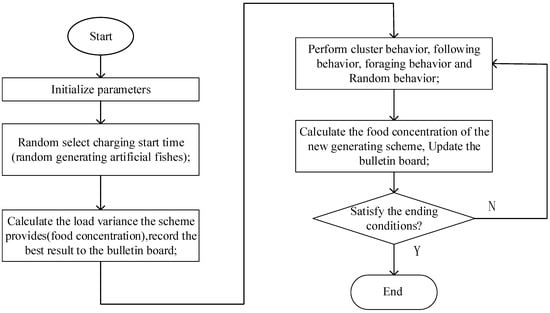

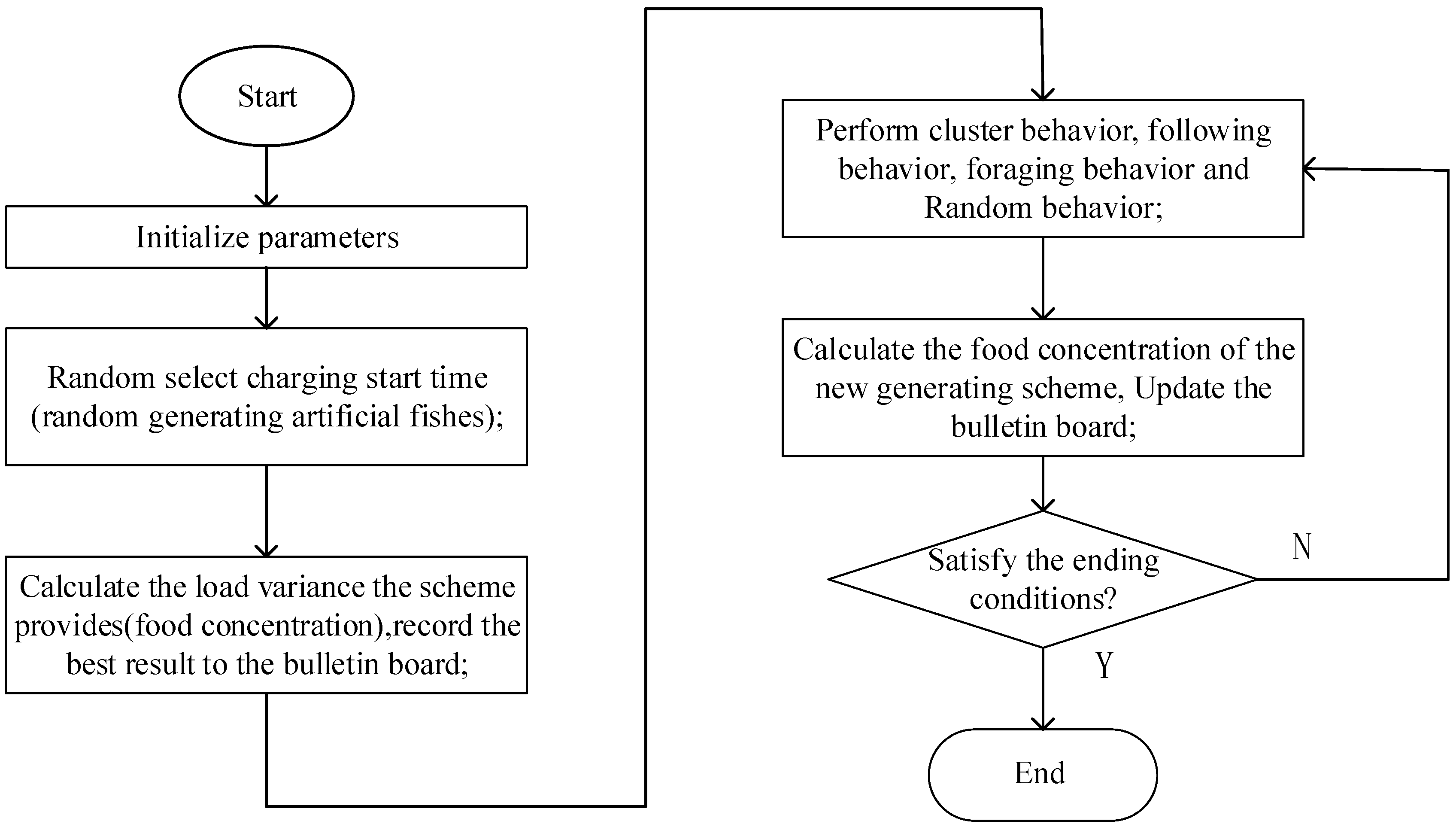

- Step 1.
- Initialize the parameters visual distance, step length, population size, crowded degree, and iteration times. The visual distance and step values will decrease as the number of iterations increases. A group of artificial fish M is generated randomly in the water, and the information contained in each fish is a charging start time matrix U of all EVs. Each artificial fish here represents a charging start time scheme for all EVs.
- Step 2.
- Calculate the food concentration of each fish’s position, record the best result on the bulletin board. The food concentration (i.e., the variance of distribution network) load is calculated based on the objective function.
- Step 3.
- Artificial fishes move one step by performing one of the four kinds of behavior, which are cluster behavior, following behavior, foraging behavior, and random behavior, according to their situation.
- Step 4.
- Calculate the food concentration of each fish’s new position. Record the best result to the bulletin board if it is better than the old one.
- Step 5.
- If the ending condition is met, finish the algorithm. If not, go to step 3.

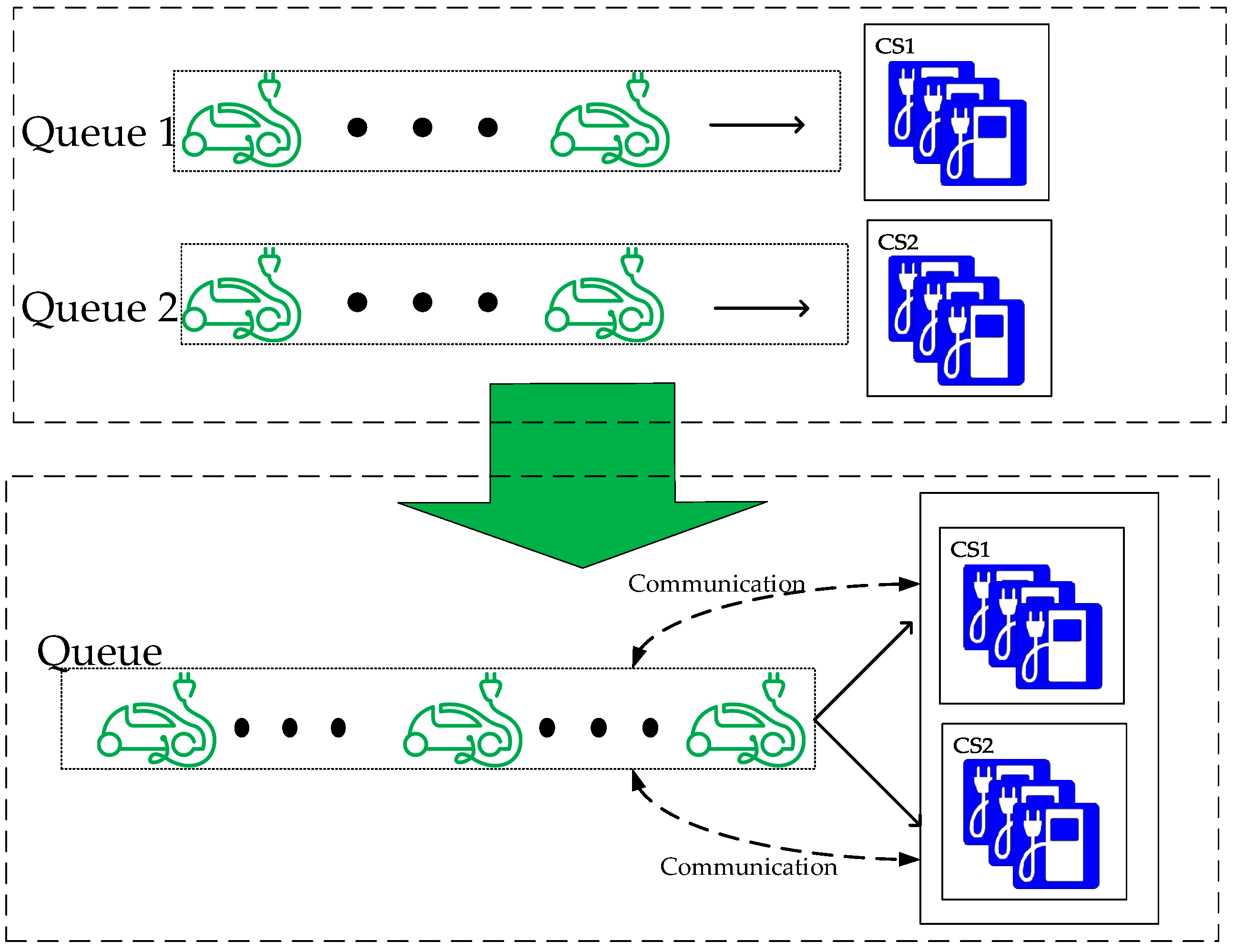

#### 3.4. Queuing Theory for Busy Areas

## 4. Numerical Results

#### 4.1. Regular Routes Planning Simulation

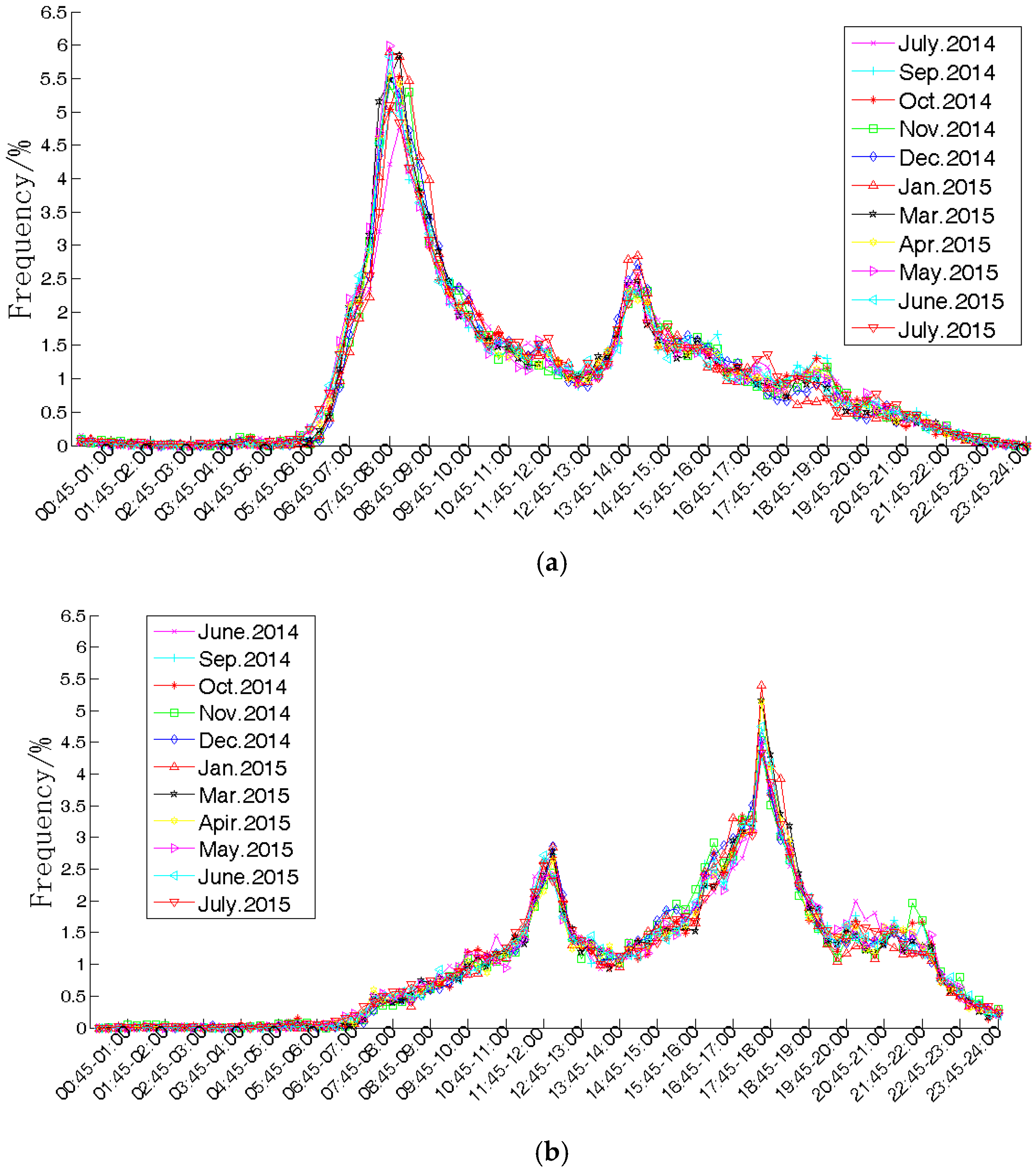

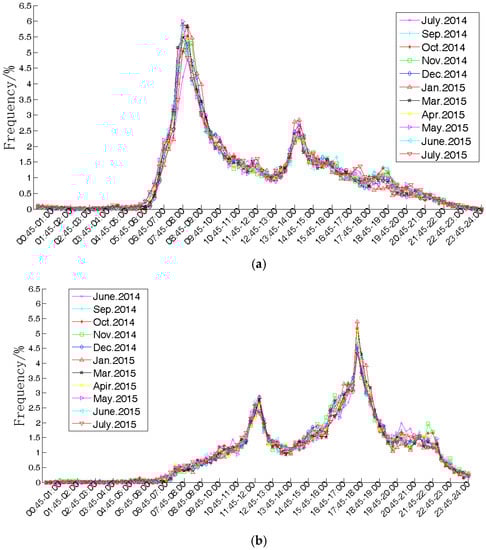

#### 4.1.1. Monte Carlo Method

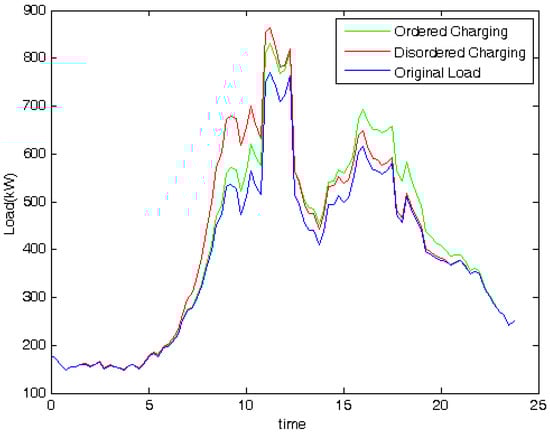

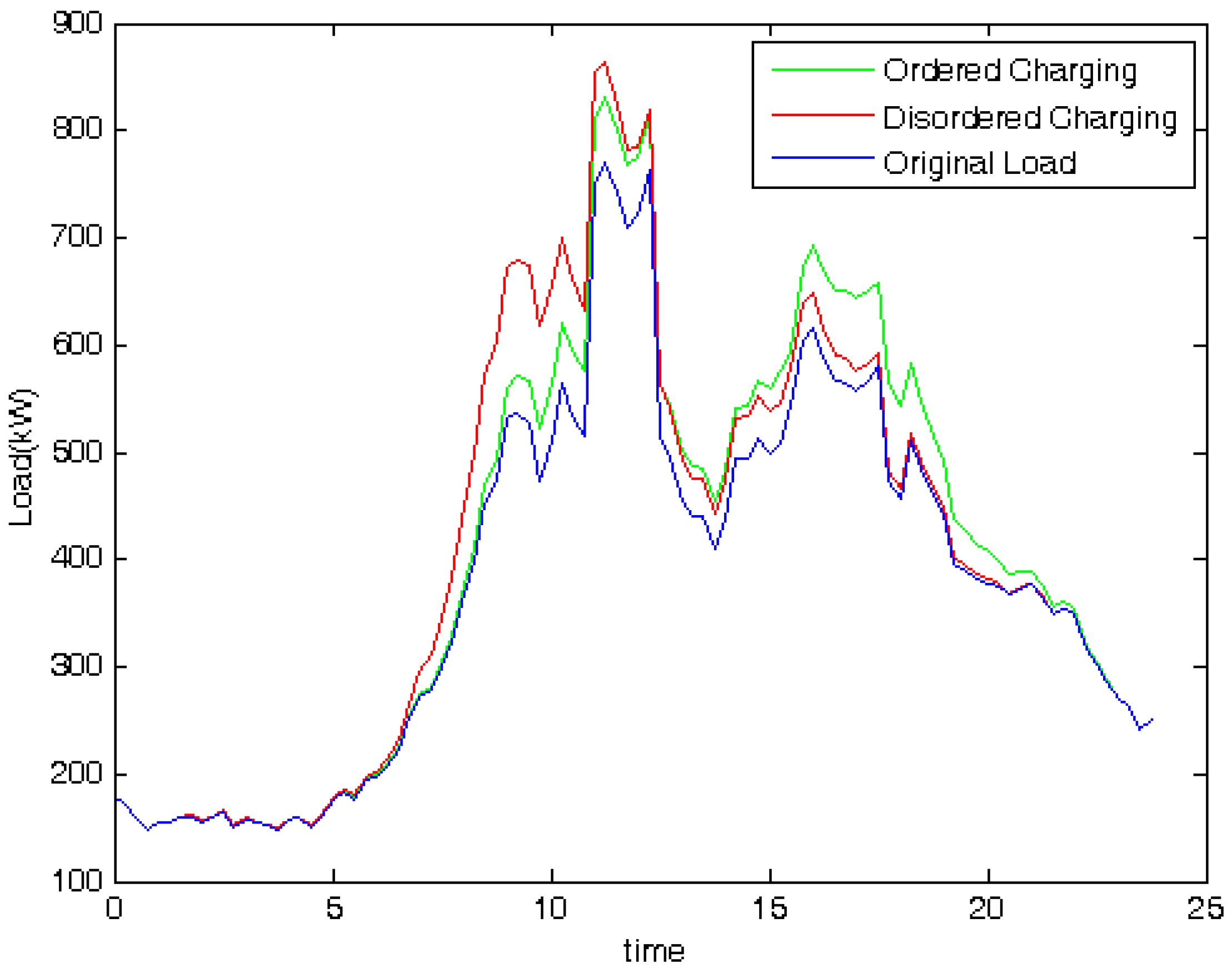

#### 4.1.2. Results of Regular Routes Simulation

#### 4.2. Irregular Routes Planning Simulation

## 5. Conclusions

- A cost model of battery capacity degradation is developed to estimate the cost of battery capacity degradation, which is usually not paid much attention by EV users. The optimal SOC range planning based on this model enables the the cost of battery degradation to be significantly reduced.
- For regular routes, to keep the operating cost low for the routes, such as commuting, charging time is also shifted to achieve the lowest electricity cost.
- For regular routes, the grid operation is optimized by AFSA with constraints which occur in the process of maximizing EV users’ benefit. In the meantime, the daily load curve in the distribution network can still be flattened markedly.
- For irregular routes, the average queue time is greatly decreased due to the application of queuing theory, and the cost of battery degradation is also reduced by the SOC range planning based on the cost model of battery degradation.

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Hannan, M.A.; Azidin, F.A.; Mohamed, A. Hybrid electric vehicles and their challenges: A review. Renew. Sustain. Energy Rev.
**2014**, 29, 135–150. [Google Scholar] [CrossRef] - Hilshey, A.D.; Rezaei, P.; Hines, P.D.H.; Frolik, J. Electric vehicle charging: Transformer impacts and smart, decentralized solutions. In Proceedings of the Power and Energy Society General Meeting, San Diego, CA, USA, 22–26 July 2012; pp. 1–8. [Google Scholar]
- Masoum, A.S.; Deilami, S.; Moses, P.S.; Masoum, M.A.S.; Abu-Siada, A. Smart load management of plug-in electric vehicles in distribution and residential networks with charging stations for peak shaving and loss minimisation considering voltage regulation. IET Gener. Transm. Distrib.
**2011**, 5, 877–888. [Google Scholar] [CrossRef] - Razeghi, G.; Zhang, L.; Brown, T.; Samuelsen, S. Impacts of plug-in hybrid electric vehicles on a residential transformer using stochastic and empirical analysis. J. Power Sources
**2014**, 252, 277–285. [Google Scholar] [CrossRef] - Fernandez, L.P.; Roman, T.G.S.; Cossent, R.; Domingo, C.M.; Frias, P. Assessment of the impact of plug-in electric vehicles on distribution networks. IEEE Trans. Power Syst.
**2011**, 26, 206–213. [Google Scholar] [CrossRef] - Richardson, P.; Flynn, D.; Keane, A. Optimal charging of electric vehicles in low-voltage distribution systems. IEEE Trans. Power Syst.
**2012**, 27, 268–279. [Google Scholar] [CrossRef] - Chis, A.; Lunden, J.; Koivunen, V. Scheduling of plug-in electric vehicle battery charging with price prediction. In Proceedings of the Innovative Smart Grid Technologies Europe, Lyngby, Denmark, 6–9 October 2013; pp. 1–5. [Google Scholar]
- Zheng, J.; Wang, X.; Men, K.; Zhu, C.; Zhu, S. Aggregation model-based optimization for electric vehicle charging strategy. IEEE Trans. Smart Grid
**2013**, 4, 1058–1066. [Google Scholar] [CrossRef] - Aziz, M.; Oda, T.; Mitani, T.; Watanabe, Y.; Kashiwagi, T. Utilization of electric vehicles and their used batteries for peak-load shifting. Energies
**2015**, 8, 3720–3738. [Google Scholar] [CrossRef] - Alam, M.; Mekhilef, S.; Seyedmahmoudian, M.; Horan, B. Dynamic charging of electric vehicle with negligible power transfer fluctuation. Energies
**2017**, 10, 701. [Google Scholar] [CrossRef] - Sortomme, E.; Hindi, M.M.; Macpherson, S.D.J.; Venkata, S.S. Coordinated charging of plug-in hybrid electric vehicles to minimize distribution system losses. IEEE Trans. Smart Grid
**2011**, 2, 198–205. [Google Scholar] [CrossRef] - Hu, Z.; Zhan, K.; Zhang, H.; Song, Y. Pricing mechanisms design for guiding electric vehicle charging to fill load valley. Appl. Energy
**2016**, 178, 155–163. [Google Scholar] [CrossRef] - Yang, J.; Chen, J.; Chen, L.; Wang, F.; Xie, P.; Zeng, C. A regional time-of-use electricity price based optimal charging strategy for electrical vehicles. Energies
**2016**, 9, 670. [Google Scholar] [CrossRef] - Hu, J.; Yang, G.; Kok, K.; Xue, Y.; Bindner, H.W. Transactive control: A framework for operating power systems characterized by high penetration of distributed energy resources. J. Mod. Power Syst. Clean Energy
**2016**, 5, 451–464. [Google Scholar] [CrossRef] - Hao, H.; Corbin, C.D.; Kalsi, K.; Pratt, R.G. Transactive control of commercial buildings for demand response. IEEE Trans. Power Syst.
**2017**, 32, 774–783. [Google Scholar] [CrossRef] - Jin, X.; Meintz, A. Challenges and Opportunities for Transactive Control of Electric Vehicle Supply Equipment. A Reference Guide; NREL/TP--5500-64007; National Renewable Energy Laboratory (NREL): Golden, CO, USA, 2015.
- Yagcitekin, B.; Uzunoglu, M. A double-layer smart charging strategy of electric vehicles taking routing and charge scheduling into account. Appl. Energy
**2016**, 167, 407–419. [Google Scholar] [CrossRef] - Liu, D.; Wang, Y.; Shen, Y. Electric vehicle charging and discharging coordination on distribution network using multi-objective particle swarm optimization and fuzzy decision making. Energies
**2016**, 9, 186. [Google Scholar] [CrossRef] - Chen, L.; Chen, Z.; Huang, X.; Jin, L. A study on price-based charging strategy for electric vehicles on expressways. Energies
**2016**, 9, 385. [Google Scholar] [CrossRef] - Ouyang, M.; Feng, X.; Han, X.; Lu, L.; Li, Z.; He, X. A dynamic capacity degradation model and its applications considering varying load for a large format li-ion battery. Appl. Energy
**2016**, 165, 48–59. [Google Scholar] [CrossRef] - Liu, D.; Luo, Y.; Liu, J.; Peng, Y.; Guo, L.; Pecht, M. Lithium-ion battery remaining useful life estimation based on fusion nonlinear degradation AR model and RPF algorithm. Neural Comput. Appl.
**2014**, 25, 557–572. [Google Scholar] [CrossRef] - Saxena, S.; Hendricks, C.; Pecht, M. Cycle life testing and modeling of graphite/LiCoO
_{2}cells under different state of charge ranges. J. Power Sources**2016**, 327, 394–400. [Google Scholar] [CrossRef] - Diao, Q.; Sun, W.; Yuan, X.; Li, L.; Zheng, Z. Life-cycle private-cost-based competitiveness analysis of electric vehicles in China considering the intangible cost of traffic policies. Appl. Energy
**2016**, 178, 567–578. [Google Scholar] [CrossRef] - Wolfs, P. An economic assessment of “second use” lithium-ion batteries for grid support. In Proceedings of the Universities Power Engineering Conference (AUPEC), Christchurch, New Zealand, 5–8 December 2010; pp. 1–6. [Google Scholar]
- Flores, R.J.; Shaffer, B.P.; Brouwer, J. Electricity costs for an electric vehicle fueling station with level 3 charging. Appl. Energy
**2016**, 169, 813–830. [Google Scholar] [CrossRef] - Chen, L.; Huang, X.; Chen, Z.; Jin, L. Study of a new quick-charging strategy for electric vehicles in highway charging stations. Energies
**2016**, 9, 744. [Google Scholar] [CrossRef] - Weerdt, M.M.D.; Stein, S.; Gerding, E.H.; Robu, V.; Jennings, N.R. Intention-aware routing of electric vehicles. IEEE Trans. Intell. Transp. Syst.
**2016**, 17, 1472–1482. [Google Scholar] [CrossRef] - Dong, X.; Mu, Y.; Jia, H.; Wu, J.; Yu, X. Planning of fast EV charging stations on a round freeway. IEEE Trans. Sustain. Energy
**2016**, 7, 1452–1461. [Google Scholar] [CrossRef] - Lih, W.; Yen, J.; Shieh, F.; Liao, Y. Second-use Applications of lithium-ion batteries retired from electric vehicles: Challenges, repurposing process, cost analysis and optimal business model. Int. J. Adv. Comput. Technol.
**2012**, 4, 518–527. [Google Scholar] - Barré, A.; Deguilhem, B.; Grolleau, S.; Gérard, M.; Suard, F.; Riu, D. A review on lithium-ion battery ageing mechanisms and estimations for automotive applications. J. Power Sources
**2013**, 241, 680–689. [Google Scholar] [CrossRef] - Battery Group of Center for Advanced Life Cycle. Engineering, University of Maryland. Available online: http://www.calce.umd.edu/batteries/index.html (accessed on 4 July 2017).
- City Transportation Analysis Report of China. Available online: http://jiaotong.baidu.com/reports/ (accessed on 4 July 2017).
- China Electric Car Sales Report, CleanTechnica. Available online: https://cleantechnica.com (accessed on 4 July 2017).
- U.S. Department of Transportation, Federal Highway Administration. 2009 National Household Travel Survey. Available online: http://nhts.ornl.gov (accessed on 4 July 2017).

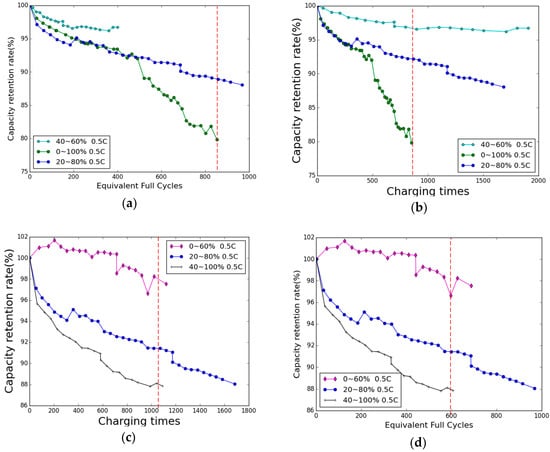

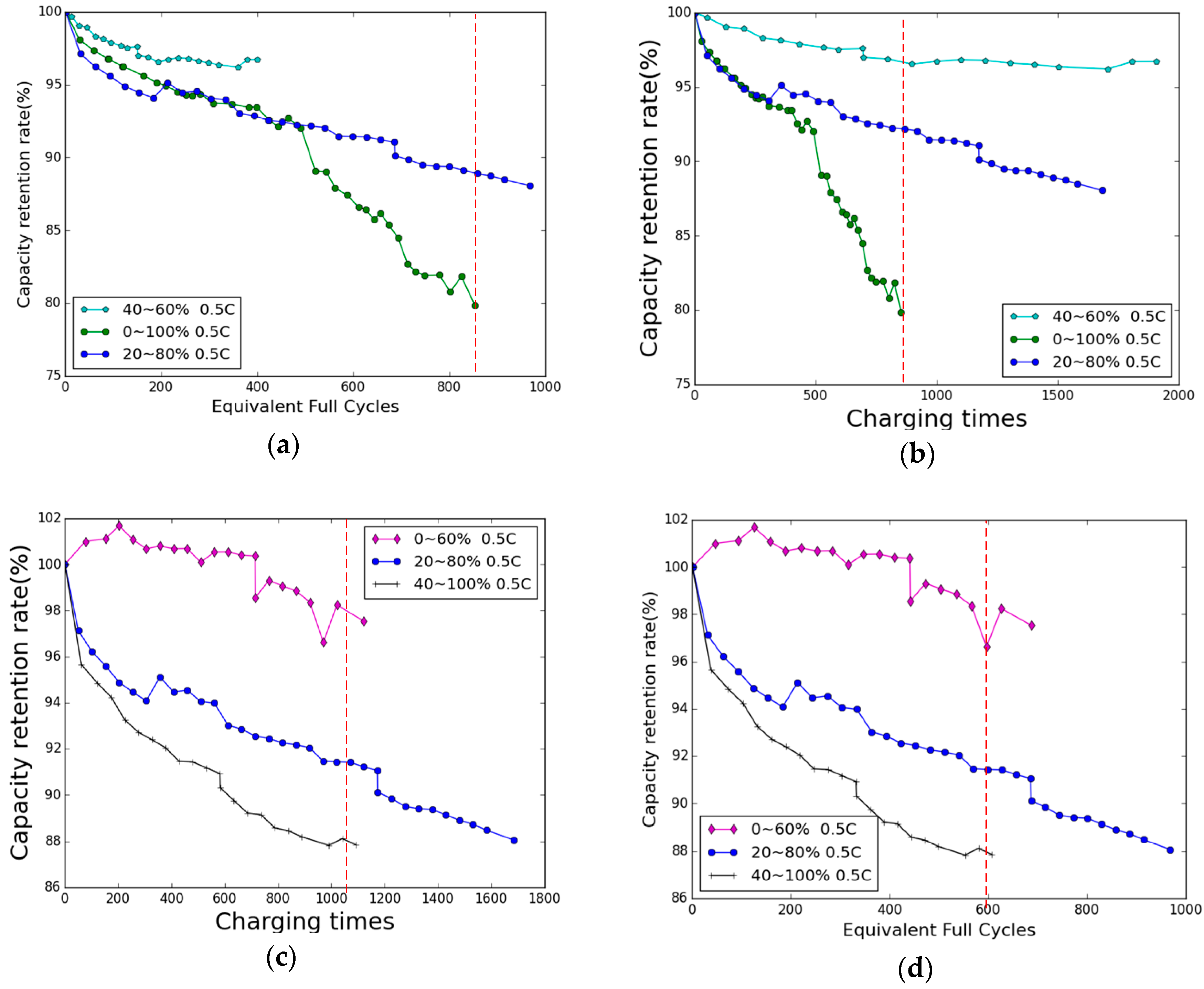

**Figure 2.**(

**a**) Battery capacity retention rate versus equivalent full cycles of batteries cycling at 50% mean SOC; (

**b**) battery capacity retention rate versus charging times of batteries cycling at 50% mean SOC; (

**c**) battery capacity retention rate versus equivalent full cycles of batteries cycling at 60% ΔSOC; and (

**d**) battery capacity retention rate versus number of charging times of batteries cycling at 60% ΔSOC.

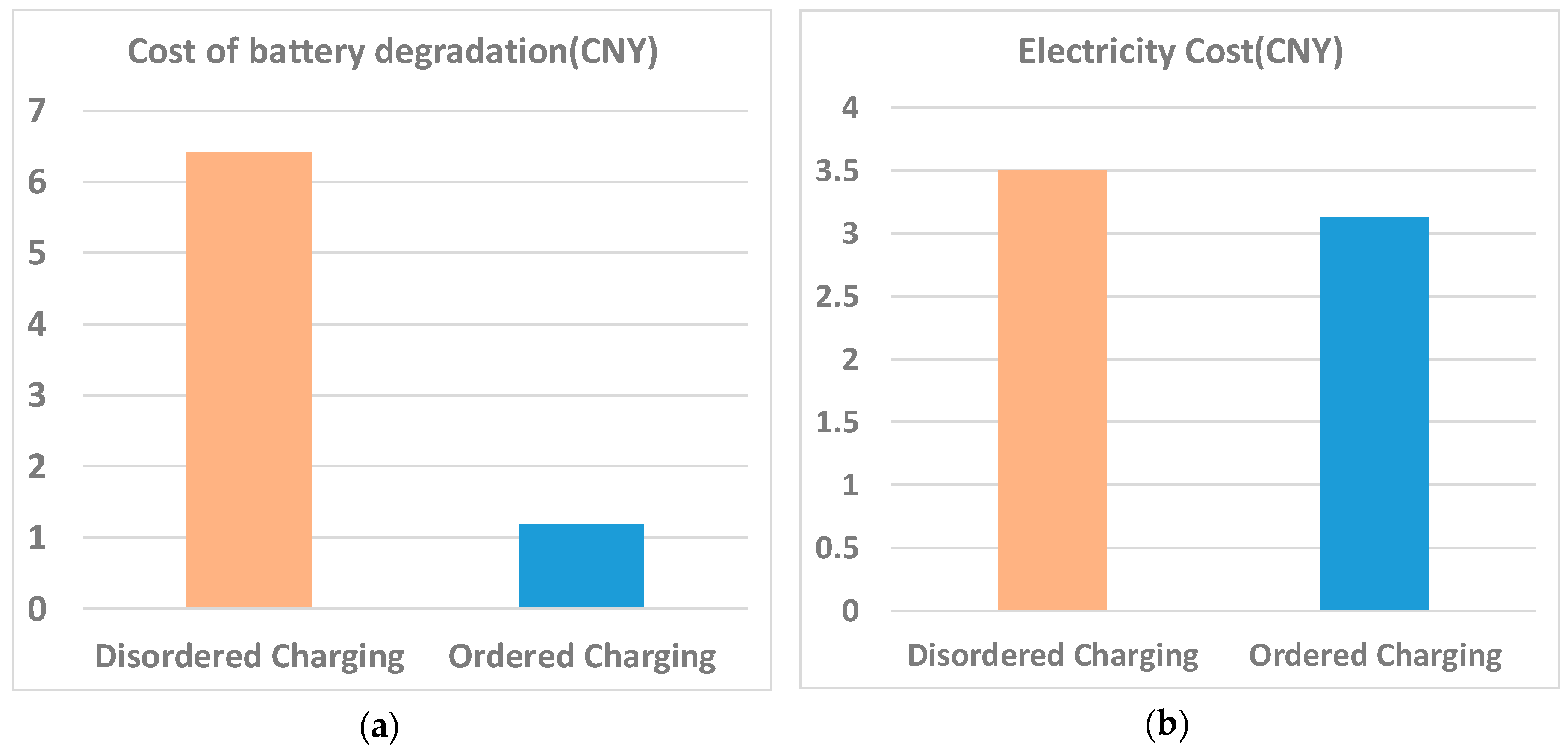

**Figure 7.**Operating cost comparison of one time charging: (

**a**) costs of battery capacity degradation comparison; and (

**b**) electricity costs comparison.

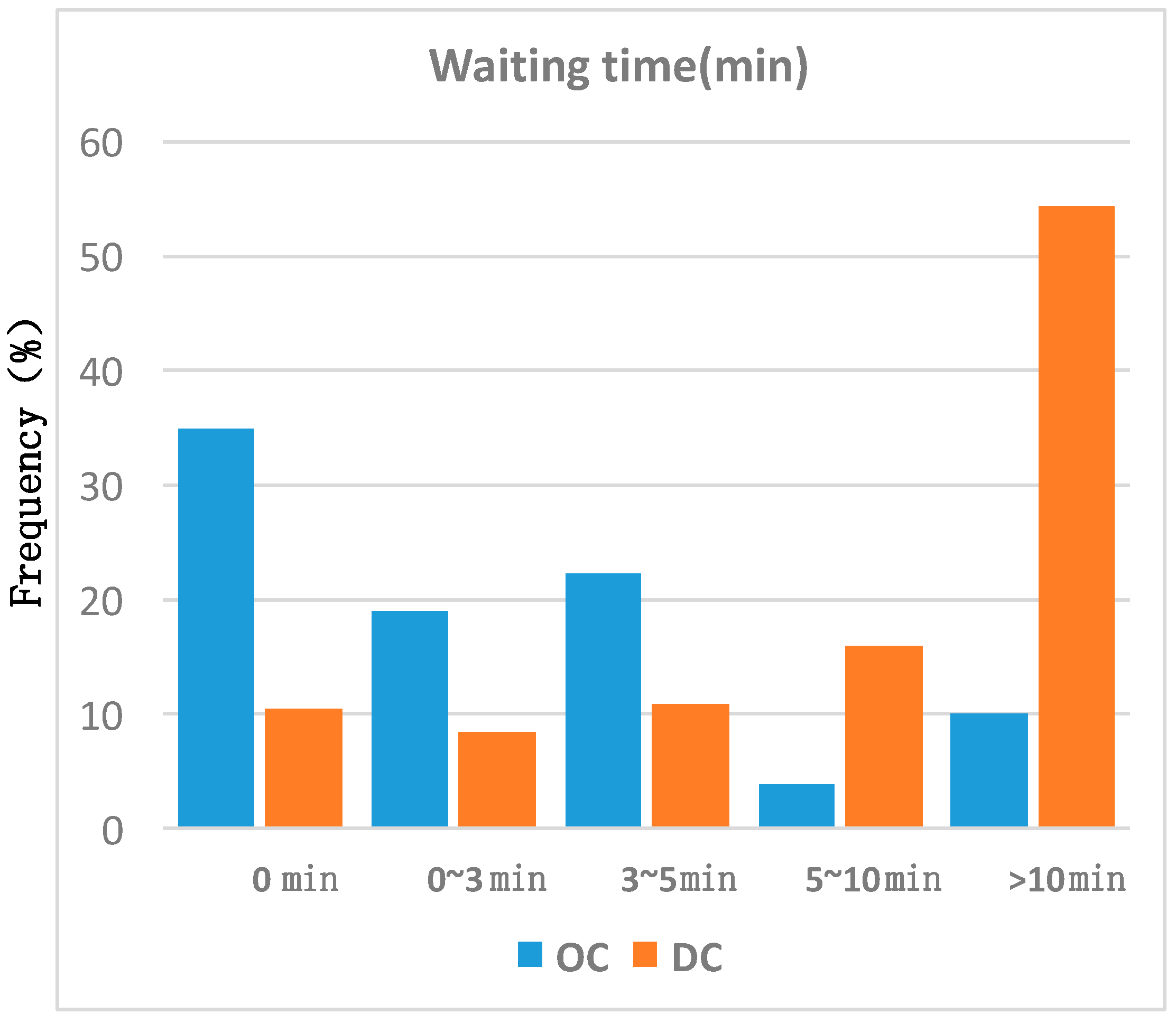

**Figure 10.**Average waiting time distribution comparison of ordered charging and disordered charging.

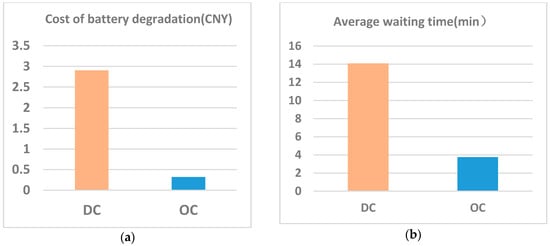

**Figure 11.**Cost of battery degradation and average waiting time comparison of ordered charging and disordered charging: (
