# Research on Stochastic Optimal Operation Strategy of Active Distribution Network Considering Intermittent Energy

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Mathematical Formulation

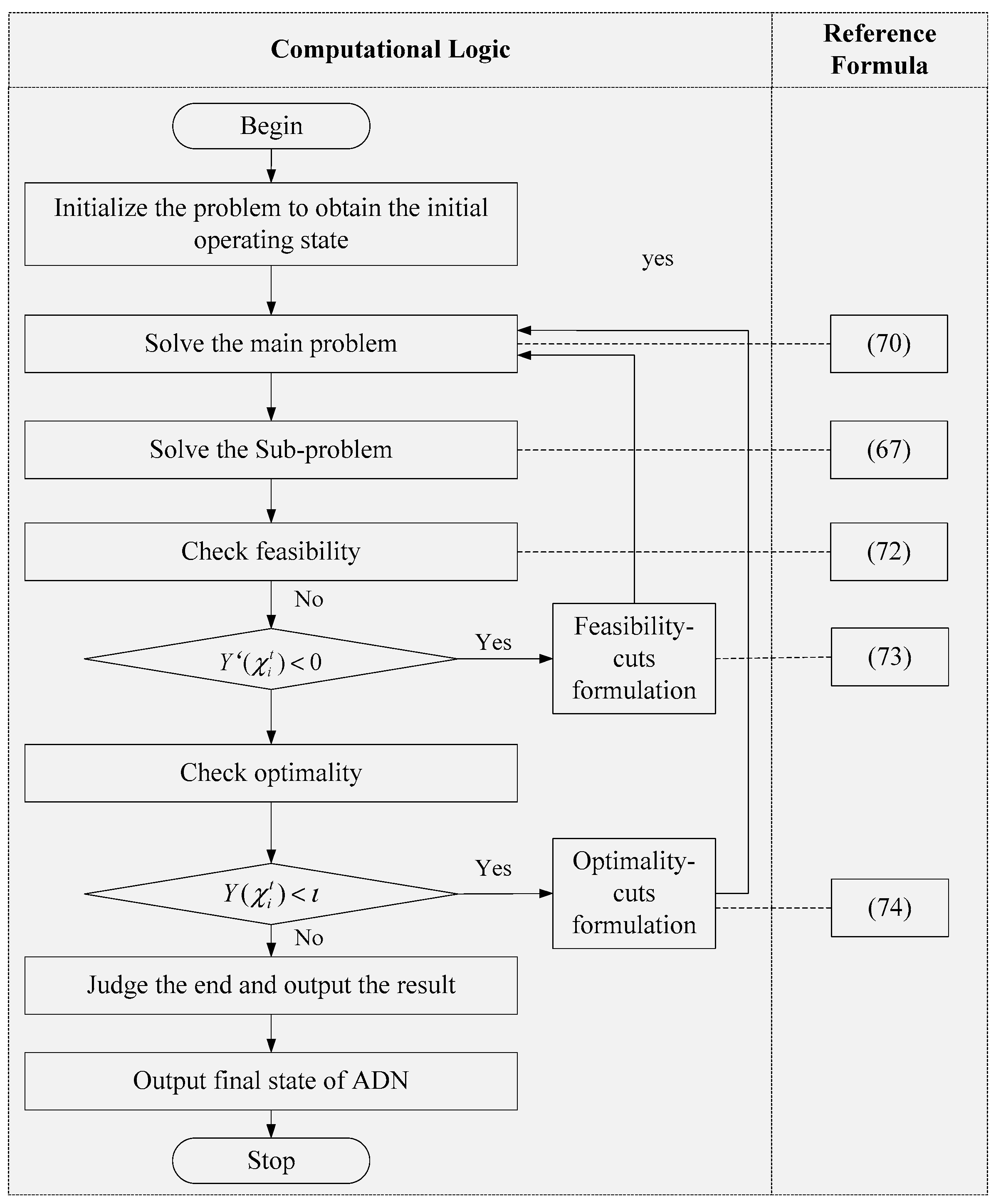

## 3. Solution Methodology

## 4. Demonstration Application for Optimal Operation

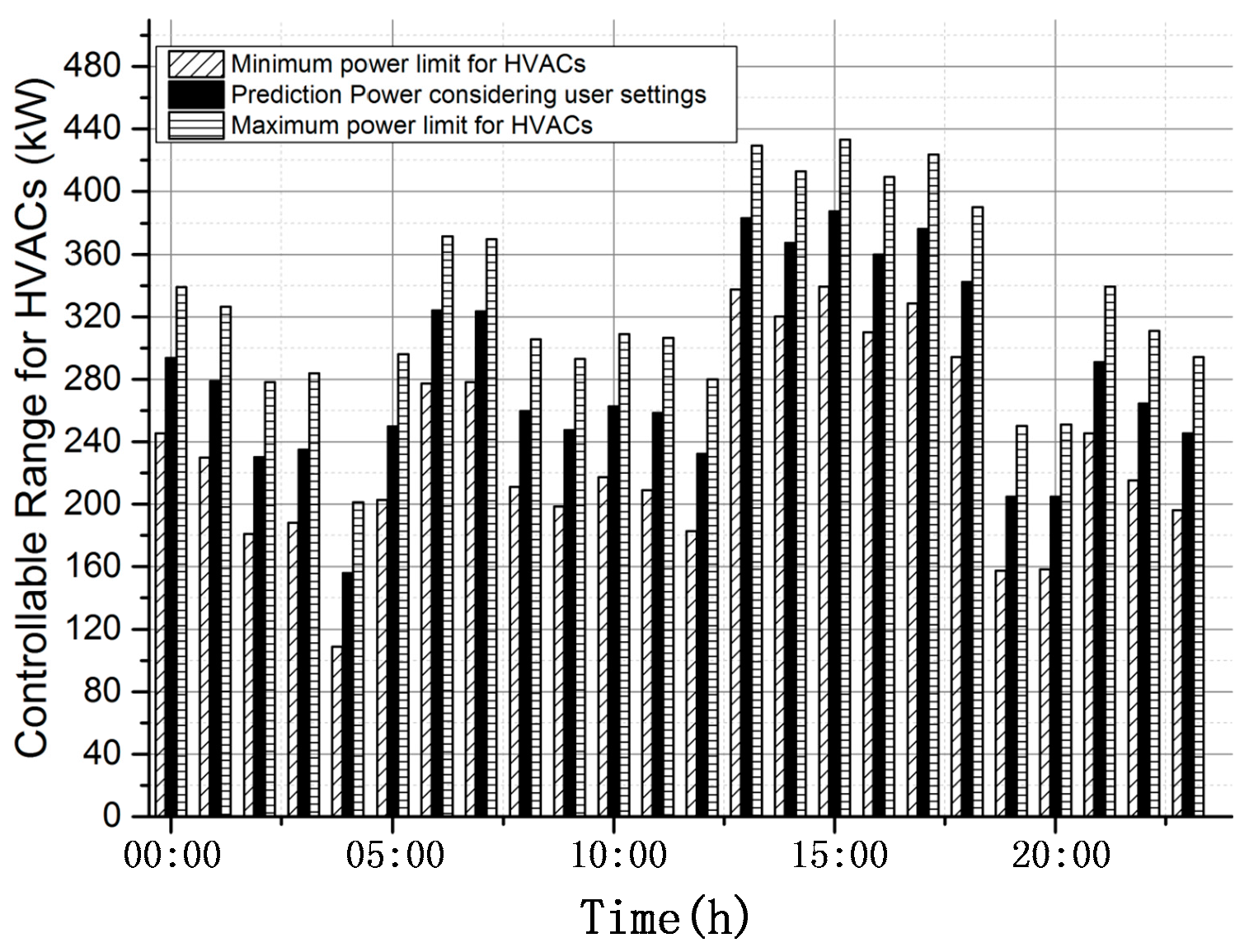

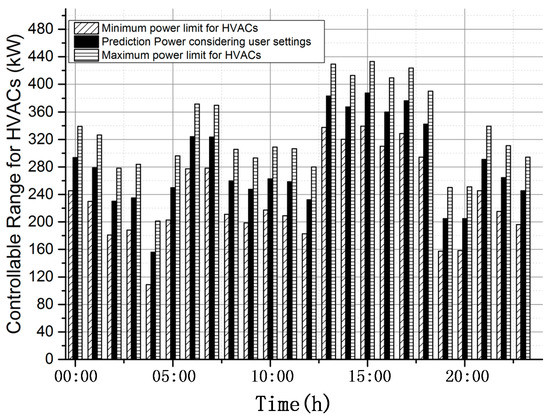

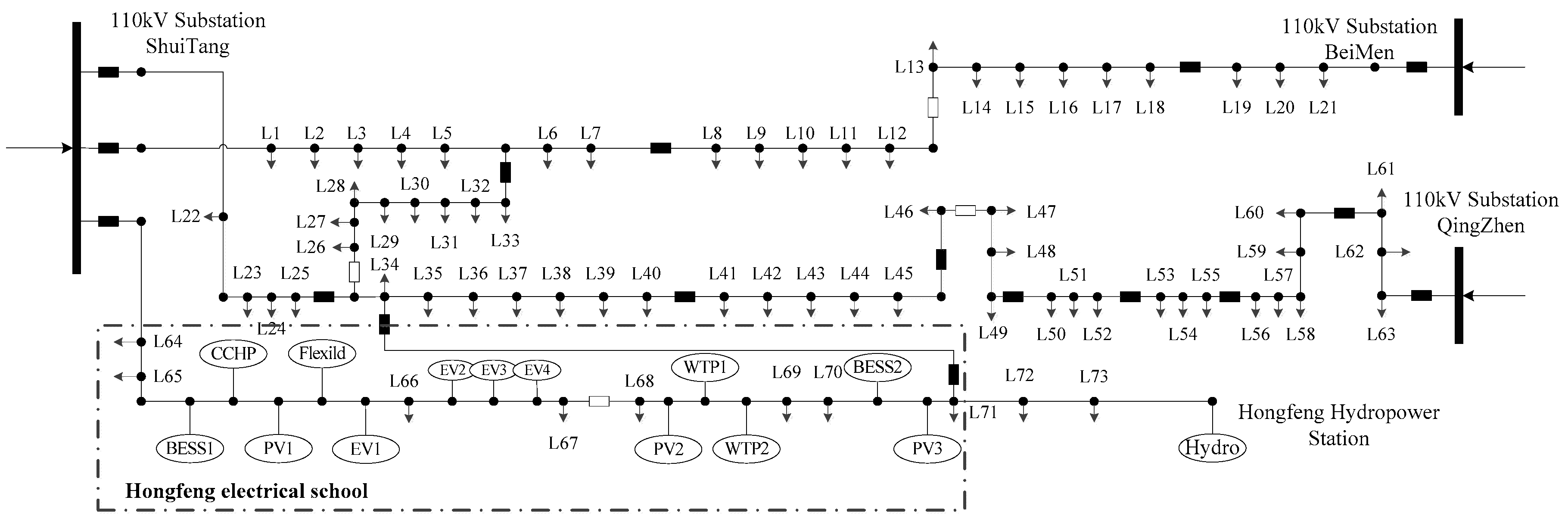

#### 4.1. Basic Optimization Scenario

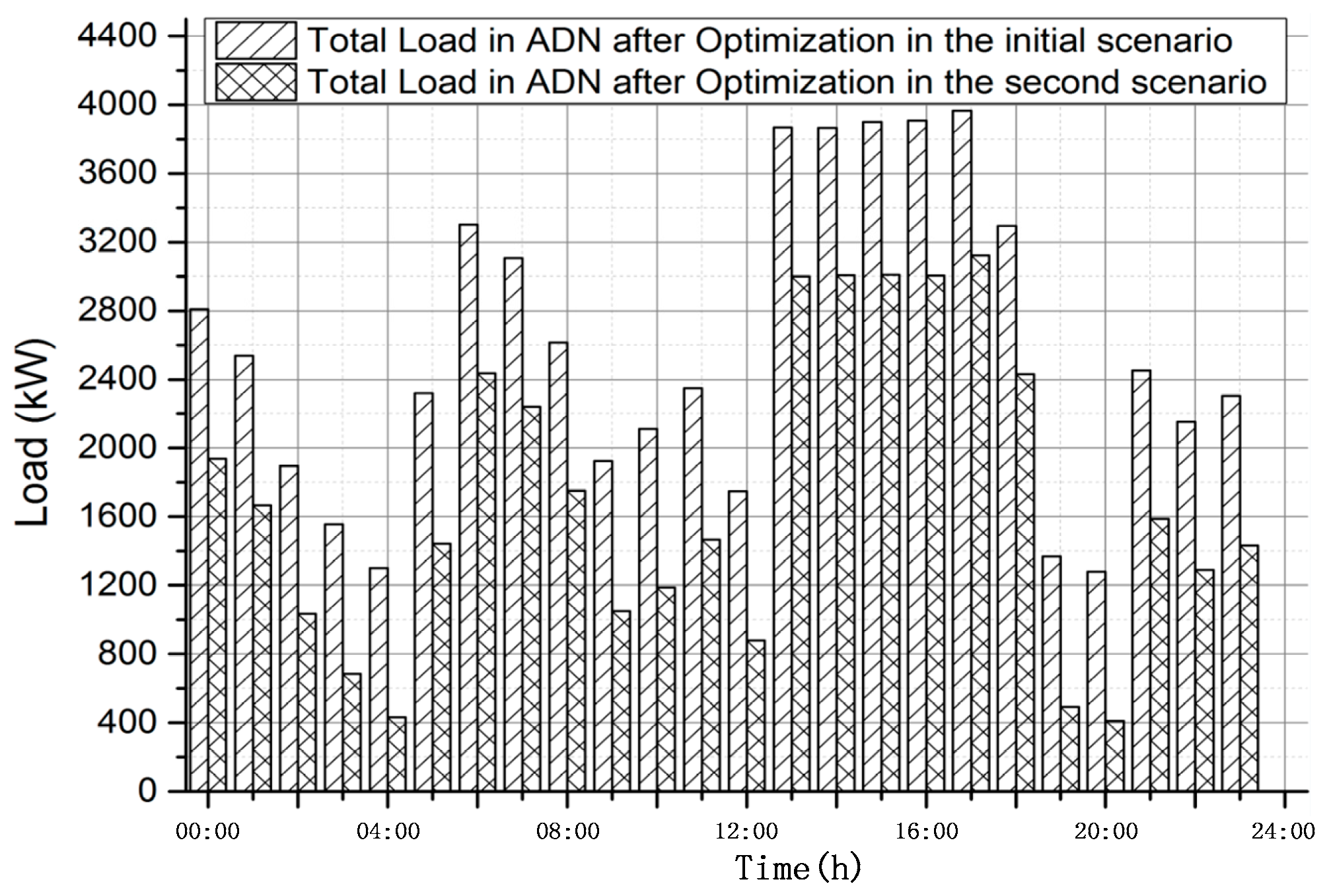

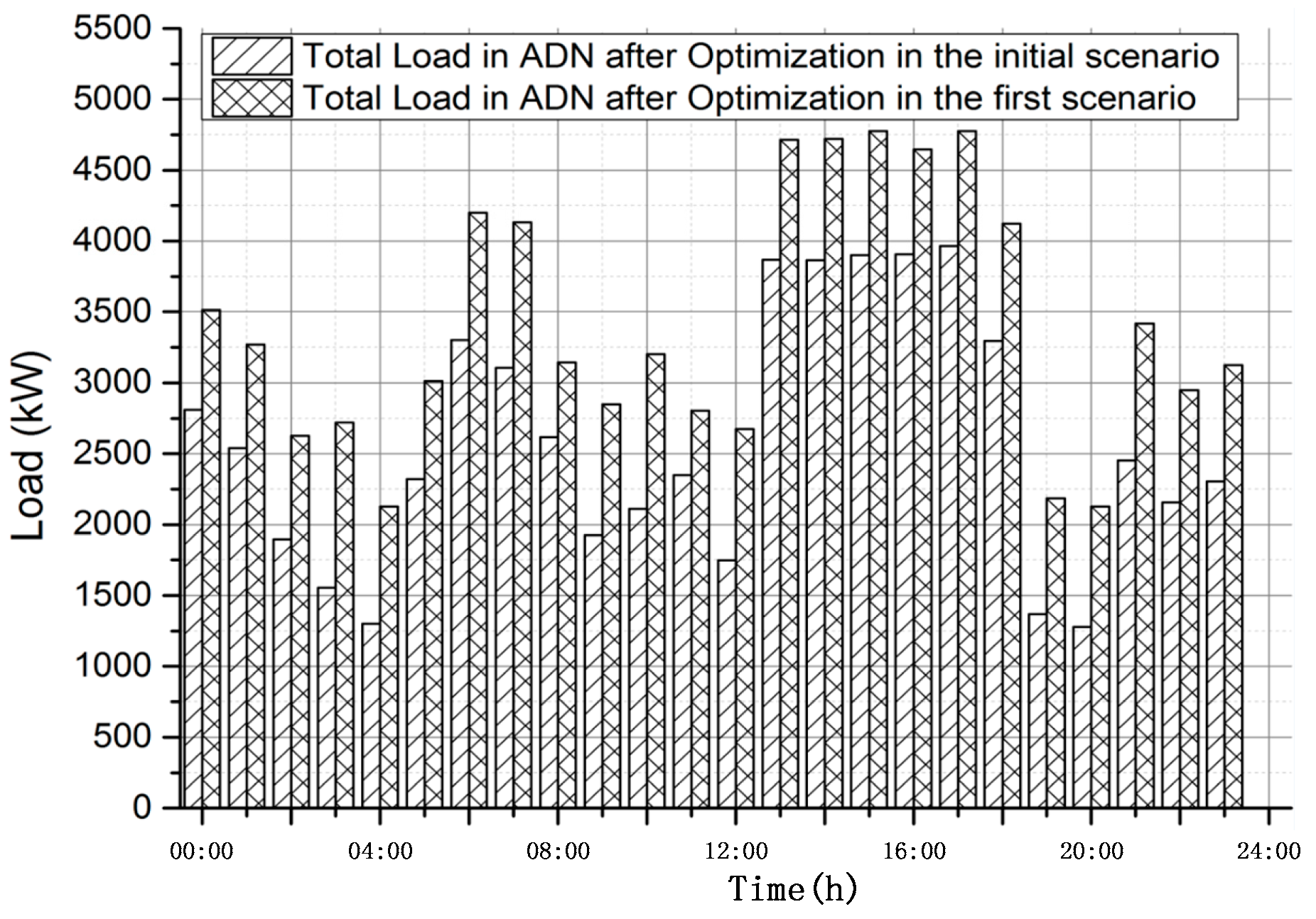

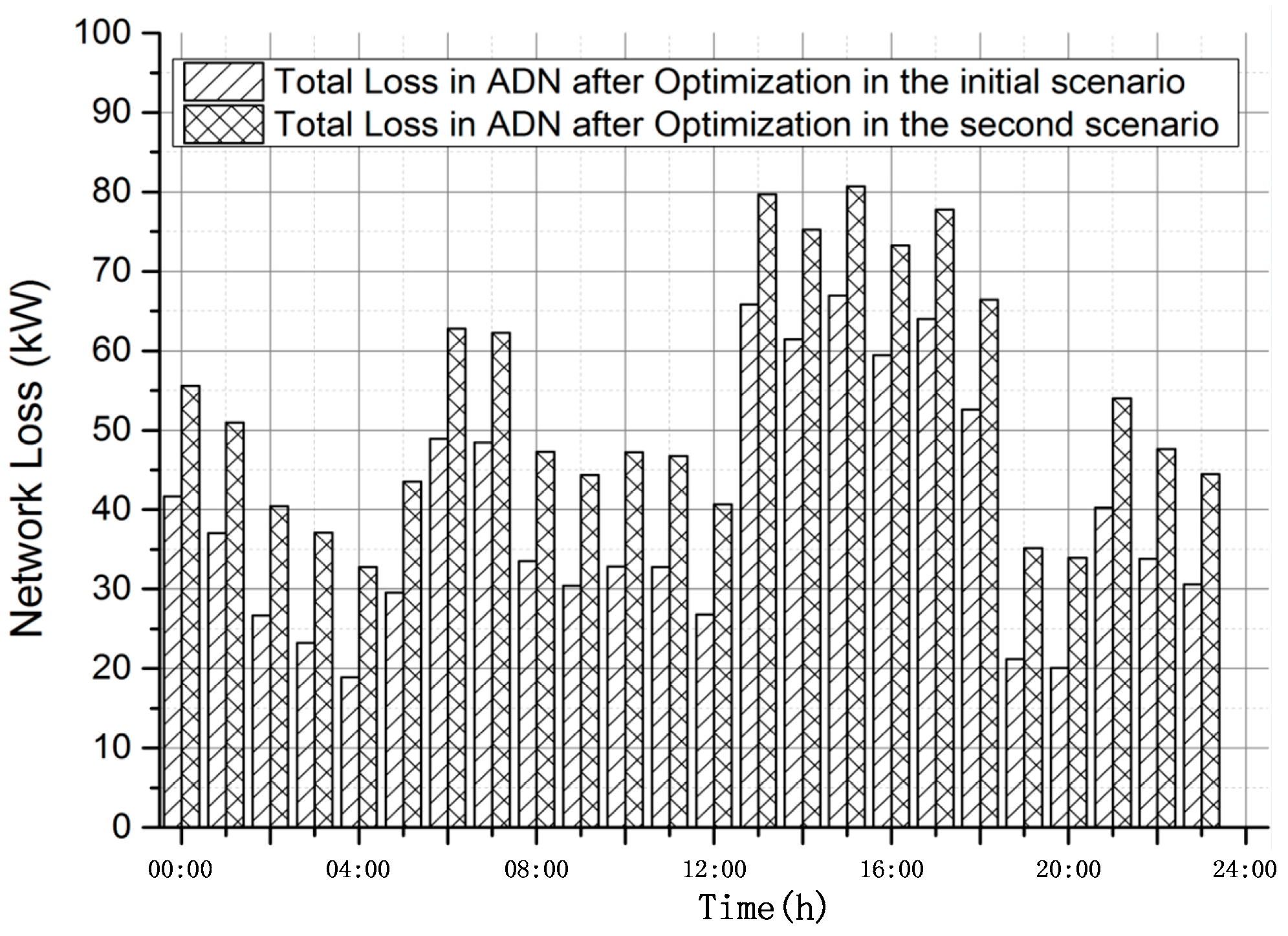

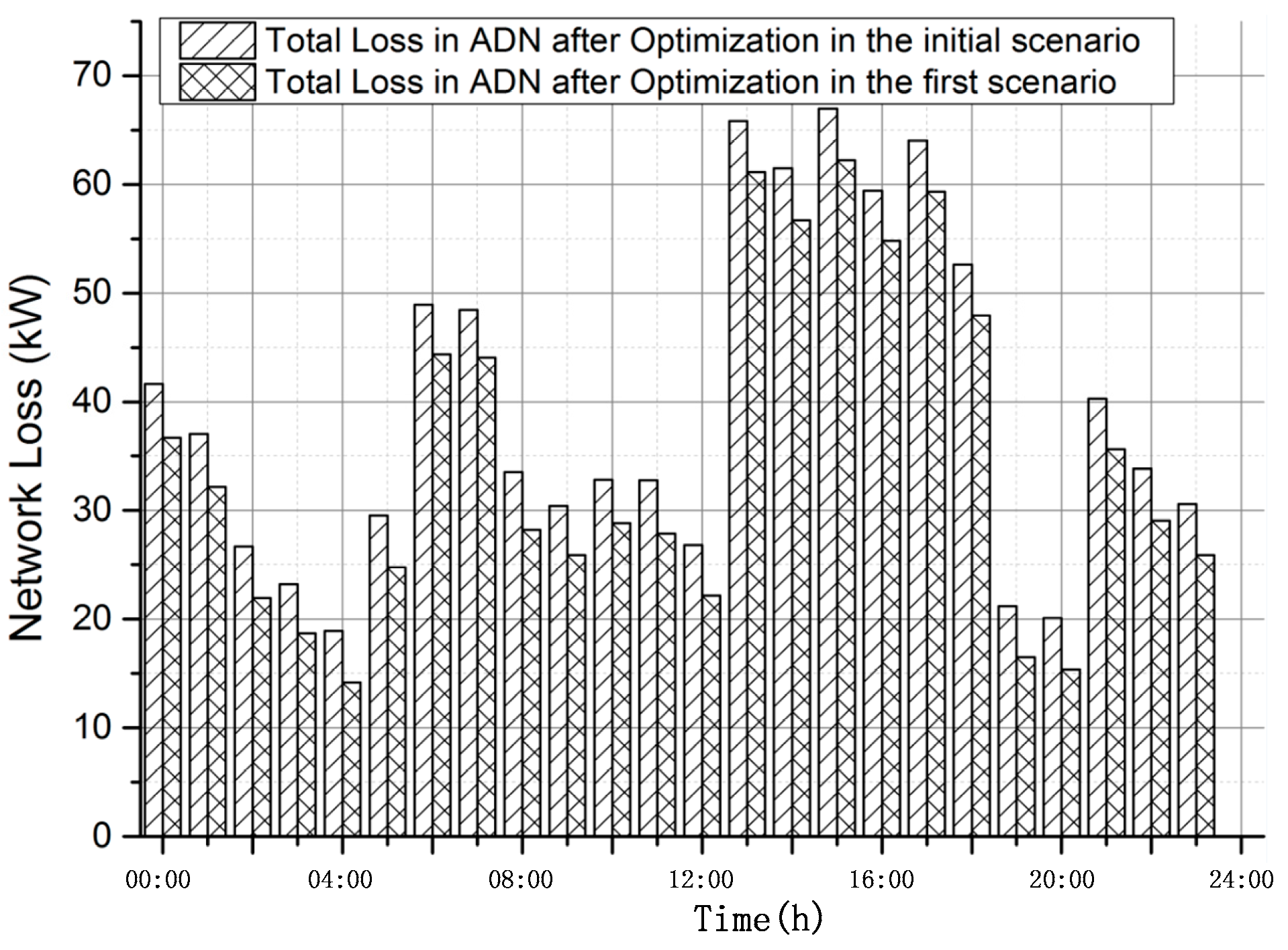

#### 4.2. Different Intermittent Energy Uncertainty

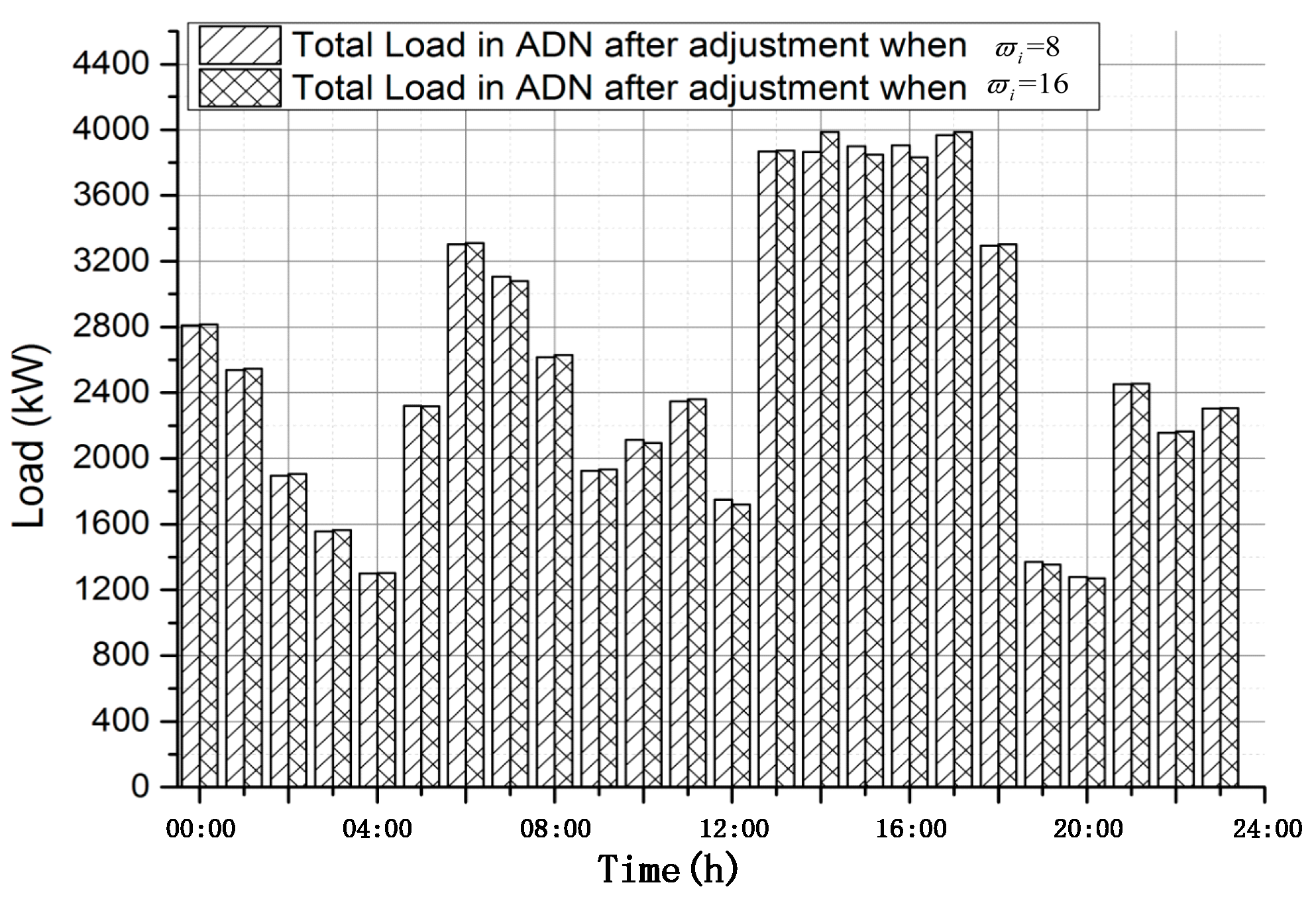

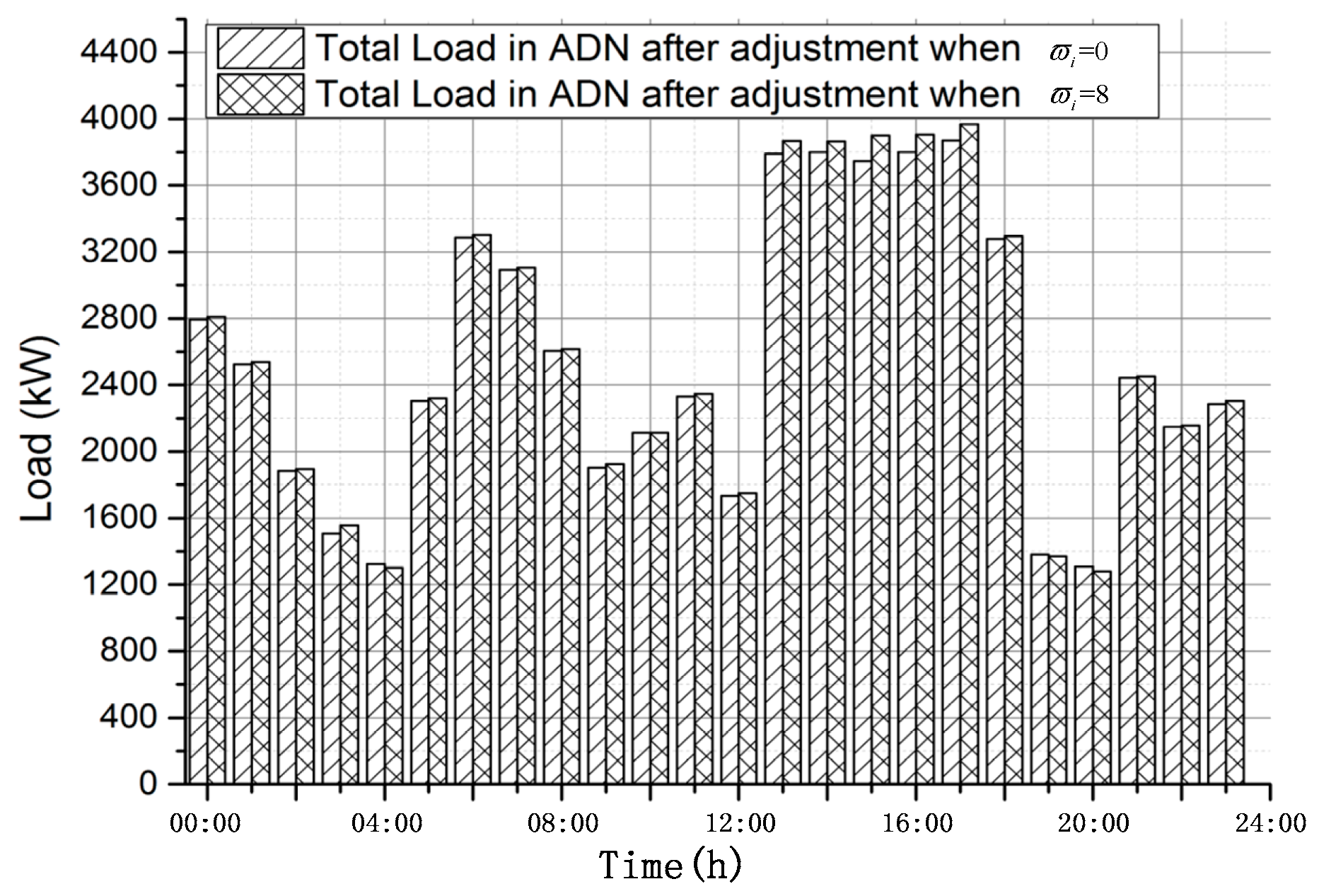

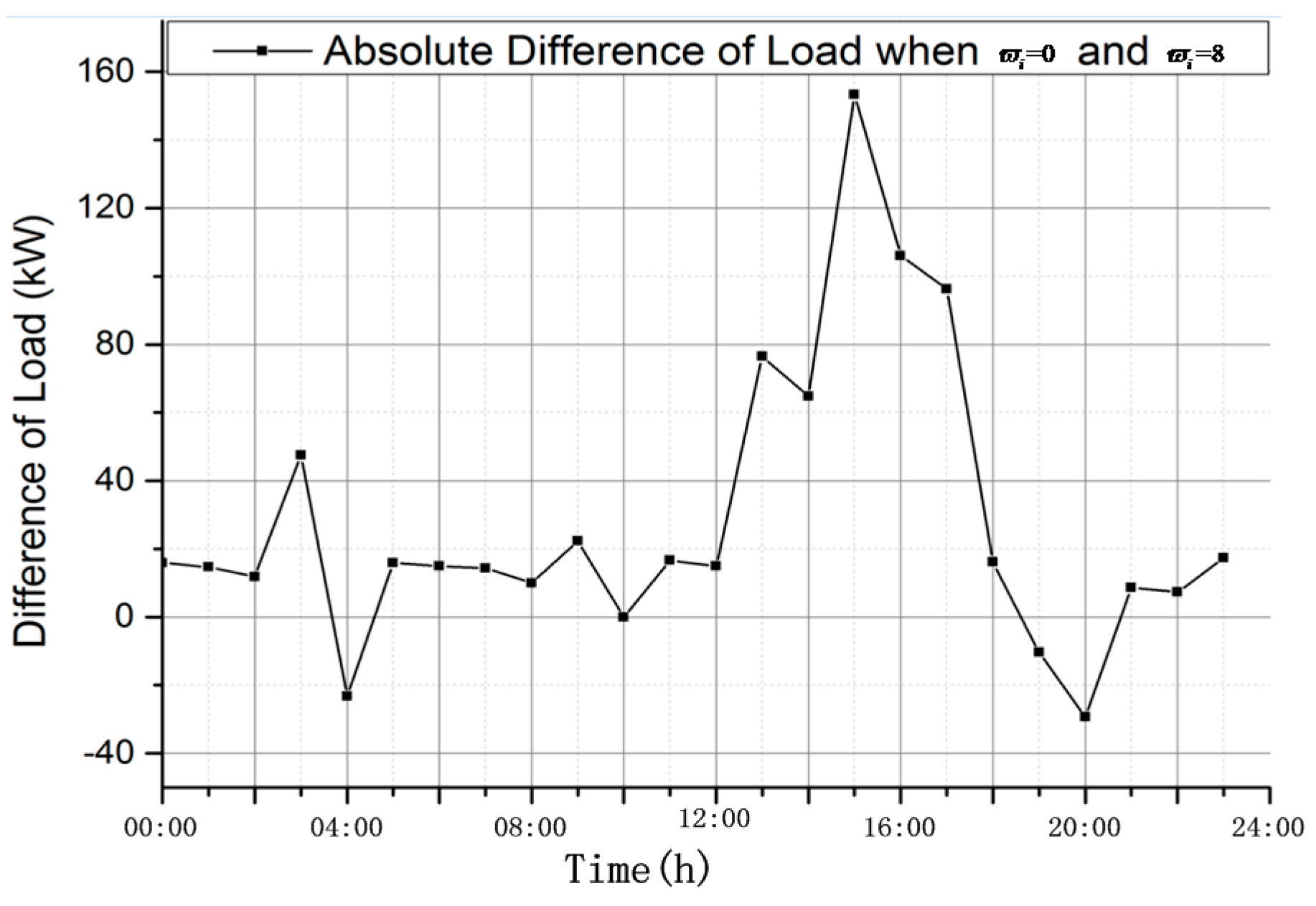

#### 4.3. Different Objective Function Weight Selection

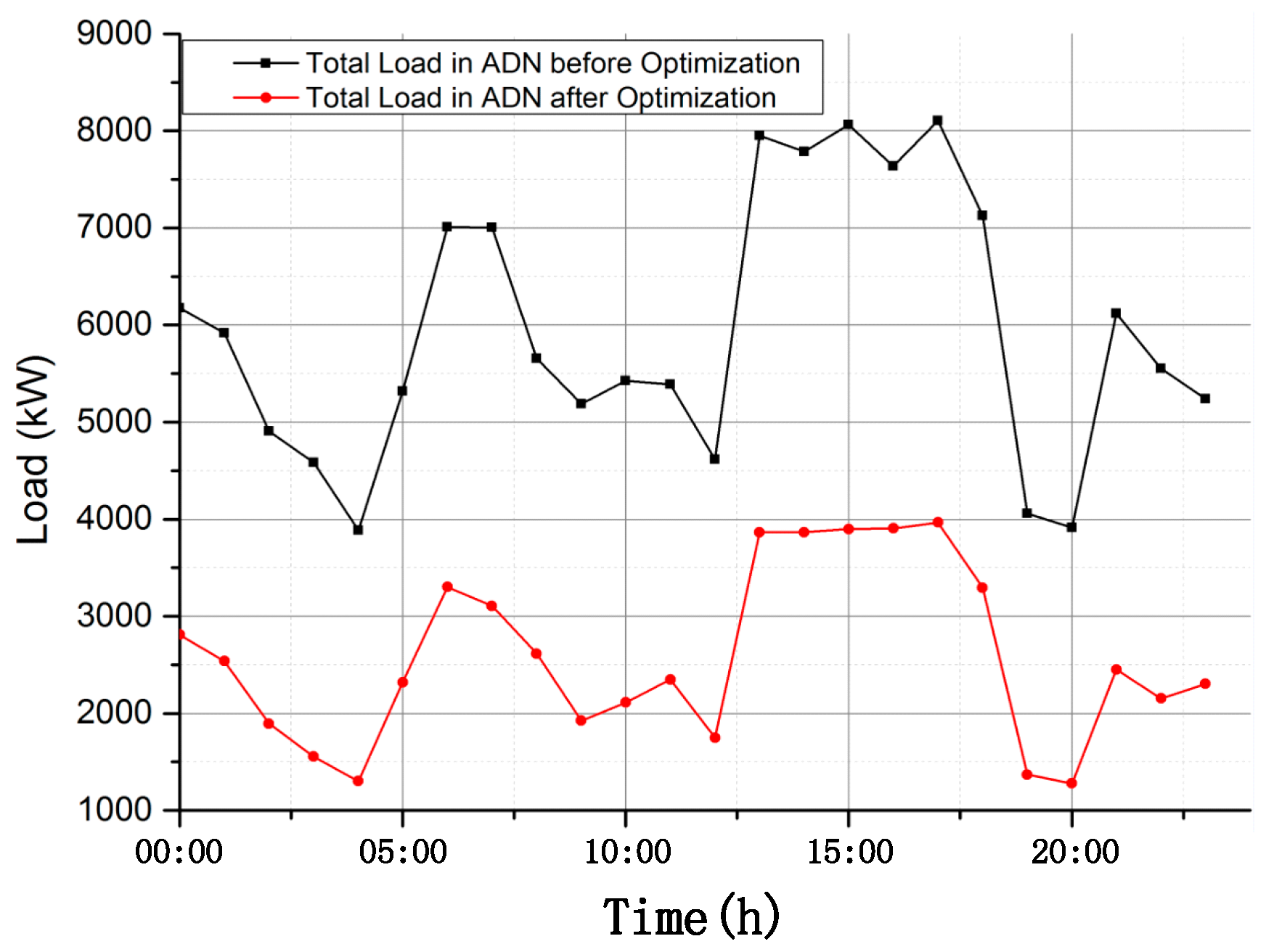

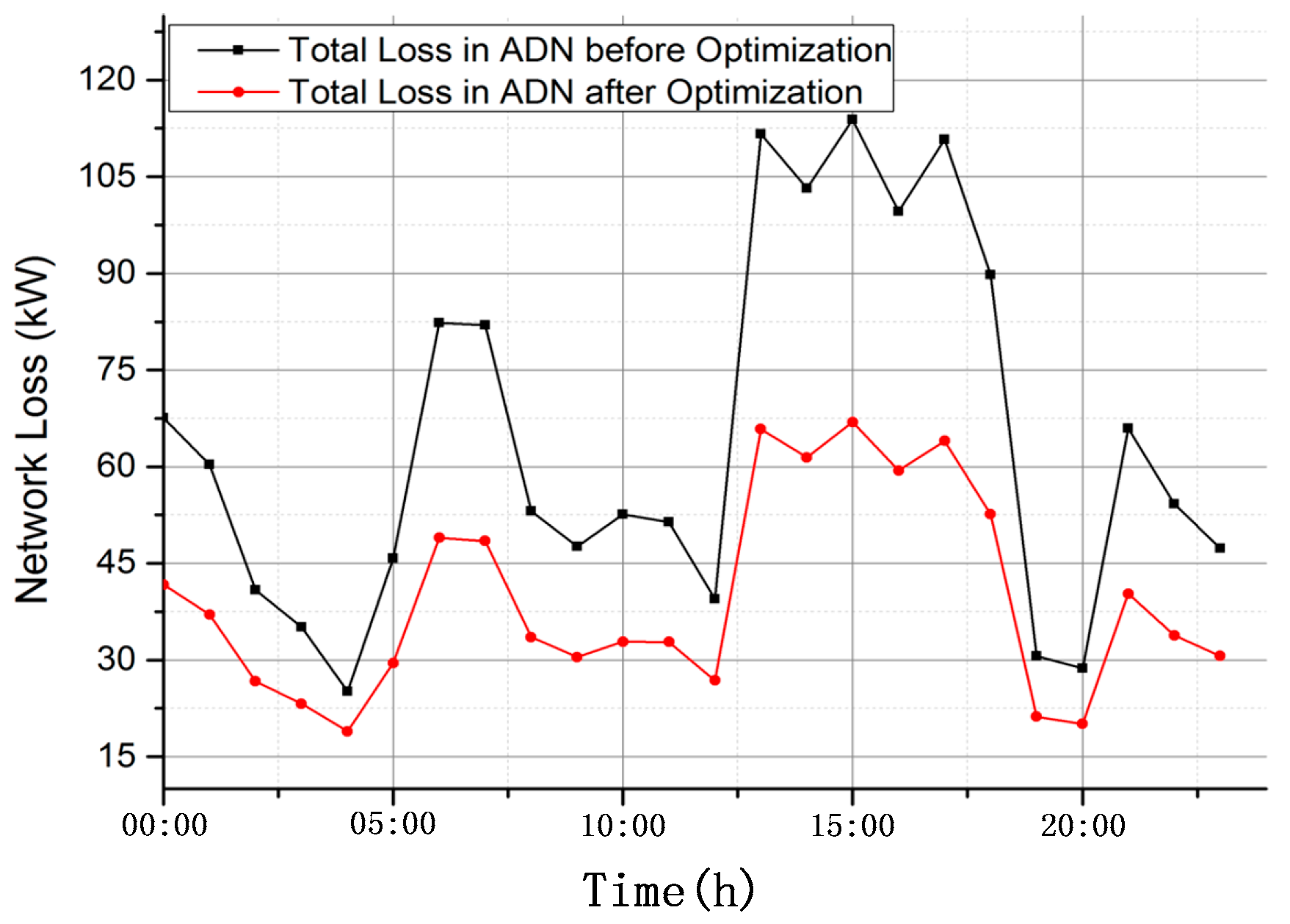

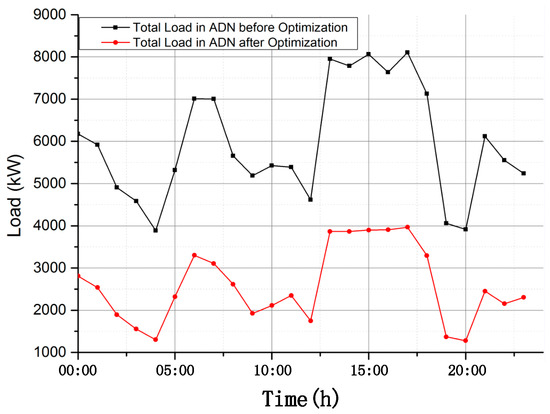

#### 4.4. Optimization Results Analysis

## 5. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## Nomenclature

ADN | Active Distribution Network |

SUC | Stochastic Unit Commitment |

MILP | Mixed-integer Linear Programming |

HVAC | Heating, Ventilation and Air Conditioning |

TCL | Thermostatically Controlled load |

ESS | Energy Storage System |

SOC | Status of Charge |

V2G | Vehicle-to-Grid |

DSO | Distribution System Operator |

Sets | |

$\Phi $ | Set of power regulation devices |

$\Gamma $ | Set of energy storage devices |

$\mathrm{H}$ | Set of intermittent energy |

$B$ | Set of all buses |

$L$ | Set of all feeders |

Parameters | |

$T$ | Time periods in optimization horizon, in this paper the horizon is to be 24 h |

${\kappa}_{step}$ | Time span for optimization, in this paper each time span is to be one hour |

${\chi}_{i}^{t}$ | Output for power regulation device $i$ in time period $t$ |

${\vartheta}_{i}^{t}$ | Output for energy storage device $i$ in time period $t$ |

${\vartheta}_{i,eq}^{t}$ | Equivalent output for energy storage device $i$ in time period $t$ |

${p}_{i}^{t}$ | Output for intermittent energy $i$ in time period $t$ |

${e}_{\vartheta ,i}^{r}$ | Rated capacity for energy storage device $i$ in time period $t$ |

${\vartheta}_{i}^{r}$ | Rated power for energy storage device $i$ in time period $t$ |

${\chi}_{i}^{r}$ | Rated power for power regulation device $i$ in time period $t$ |

${p}_{\psi ,i}^{t}$ | Forecasted output for intermittent energy $i$ in time period $t$ |

${p}_{\psi +,i}^{t}$ | Upper deviation for intermittent energy $i$ in time period $t$ |

${p}_{\psi -,i}^{t}$ | Lower deviation for intermittent energy $i$ in time period $t$ |

${\eta}_{t,i}^{+}$, ${\eta}_{t,i}^{-}$ | Binary decision variables represent the status of deviation for ${p}_{\psi ,i}^{t}$ |

${\alpha}_{up,i}$ | Ramp-up limit for power regulation device $i$ |

${\alpha}_{down,i}$ | Ramp-down limit for power regulation device $i$ |

${L}_{low,i}$ | Minimum power limit for power regulation device $i$ |

${L}_{up,i}$ | Maximum power limit for power regulation device $i$ |

${S}_{soc,i}^{1}$ | Initial state of charge (SOC) for energy storage device $i$ in optimization horizon |

${S}_{soc,i}^{T+}$ | Final state of charge (SOC) for energy storage device $i$ in optimization horizon |

${S}_{soc,i}^{t}$ | State of charge (SOC) for energy storage device $i$ at the start of time period $t$ |

${S}_{soc,i}^{\mathrm{max}}$ | Maximum state of charge for energy storage device $i$ |

${S}_{soc,i}^{\mathrm{min}}$ | Minimum state of charge for energy storage device $i$ |

${\lambda}_{t}$ | Electricity price in time period $t$ |

$\zeta $ | Profit for peak-valley regulation per kWh |

${V}_{\zeta}$ | Peak-valley difference in optimization horizon |

${V}_{\zeta}^{0}$,${V}_{\zeta}^{rslt}$ | Initial state and optimized state for peak-valley difference |

${S}_{\lambda}^{t}$ | Network loss in time period $t$ |

${S}_{\lambda ,t}^{0}$, ${S}_{\lambda ,t}^{rslt}$ | Initial state and optimized state for network loss in time period $t$ |

${D}_{t}$ | Load in time period $t$ |

${V}_{b}^{t}$ | Voltage for bus $b$ in time period $t$ |

${I}_{l}^{t}$ | Transmission current for feeder $l$ in time period $t$ |

${h}_{up}$, ${h}_{low}$ | Extra variables for peak-valley difference calculation |

## References

- Weng, J.; Liu, D.; Luo, N.; Tang, X. Distributed processing based fault location, isolation, and service restoration method for active distribution network. J. Mod. Power Syst. Clean Energy
**2015**, 3, 494–503. [Google Scholar] [CrossRef] - Ling, W.; Liu, D.; Yang, D.; Sun, C. The situation and trends of feeder automation in China. Renew. Sustain. Energy Rev.
**2015**, 50, 1138–1147. [Google Scholar] [CrossRef] - Yu, W.; Liu, D.; Huang, Y. Operation Optimization Based on the Power Supply and Storage Capacity of an Active Distribution Network. Energies
**2013**, 6, 6423–6438. [Google Scholar] [CrossRef] - Siahkali, H.; Vakilian, M. Stochastic unit commitment of wind farms integrated in power system. Electr. Power Sys. Res.
**2010**, 80, 1006–1017. [Google Scholar] [CrossRef] - Zheng, Q.P.; Wang, J.; Liu, A.L. Stochastic Optimization for Unit Commitment—A Review. IEEE Trans. Power Syst.
**2015**, 30, 1913–1924. [Google Scholar] [CrossRef] - Wang, X.; Hu, Z.; Zhang, M.; Hu, M. Two-stage stochastic optimization for unit commitment considering wind power based on scenario analysis. In Proceedings of the 2016 China International Conference on Electricity Distribution (CICED), Xi’an, China, 10–13 August 2016; pp. 1–5. [Google Scholar]
- Hu, B.; Wu, L.; Marwali, M. On the robust solution to SCUC with load and wind uncertainty correlations. IEEE Trans. Power Syst.
**2014**, 29, 2952–2964. [Google Scholar] [CrossRef] - Falsafi, H.; Zakariazadeh, A.; Jadid, S. The role of demand response in single and multi-objective wind-thermal generation scheduling: A stochastic programming. Energy
**2014**, 64, 853–867. [Google Scholar] [CrossRef] - Mogo., J.B.; Kamwa, I.; Cros, J. Multi-area security-constrained unit commitment and reserve allocation with wind generators. In Proceedings of the 2016 IEEE Canadian Conference on Electrical and Computer Engineering (CCECE), Vancouver, BC, Canada, 15–18 May 2016; pp. 1–6. [Google Scholar]
- Zhao, C.; Guan, Y. Data-Driven Stochastic Unit Commitment for Integrating Wind Generation. IEEE Trans. Power Syst.
**2016**, 31, 2587–2596. [Google Scholar] [CrossRef] - Xiang, H.; Ye, S.; Zhao, C.; Wu, M.; Ming, J.; Dai, C. Hierarchical multi-objective unit commitment optimization considering negative peak load regulation ability. In Proceedings of the 2016 China International Conference on Electricity Distribution (CICED), Xi’an, China, 10–13 August 2016; pp. 1–5. [Google Scholar]
- Bavafa, F.; Niknam, T.; Azizipanah-Abarghooee, R.; Terzija, V. A New Bi-Objective Probabilistic Risk Based Wind-Thermal Unit Commitment Using Heuristic Techniques. IEEE Trans. Ind. Inform.
**2016**, 13, 115–124. [Google Scholar] [CrossRef] - Wu, Z.; Zeng, P.; Zhang, X.P.; Zhou, Q. A Solution to the Chance-Constrained Two-Stage Stochastic Program for Unit Commitment with Wind Energy Integration. IEEE Trans. Power Syst.
**2016**, 31, 4185–4196. [Google Scholar] [CrossRef] - Arora, V.; Chanana, S. A modified approach to solution of Unit Commitment problem using Mendel’s GA method. In Proceedings of the 2016 2nd International Conference on Advances in Electrical, Electronics, Information, Communication and Bio-Informatics (AEEICB), Chennai, India, 27–28 February 2016; pp. 287–291. [Google Scholar]
- Datta, D.; Dutta, S. A binary-real-coded differential evolution for unit commitment problem. Int. J. Electr. Power Energy Syst.
**2012**, 42, 517–524. [Google Scholar] [CrossRef] - Yuan, X.; Nie, H.; Su, A.; Wang, L.; Yuan, Y. An improved binary particle swarm optimization for unit commitment problem. Expert Syst. Appl.
**2009**, 36, 8049–8055. [Google Scholar] [CrossRef] - El-Zonkoly, A.M. Multistage expansion planning for distribution networks including unit commitment. IET Gener. Transm. Distrib.
**2013**, 7, 766–778. [Google Scholar] [CrossRef] - Castillo, A.; Laird, C.; Silva-Monroy, C.A.; Watson, J.P.; O’Neill, R.P. The Unit Commitment Problem with AC Optimal Power Flow Constraints. IEEE Trans. Power Syst.
**2016**, 31, 4853–4866. [Google Scholar] [CrossRef] - Han, D.; Jian, J.; Yang, L. Outer approximation and outer-inner approximation approaches for unit commitment problem. IEEE Trans. Power Syst.
**2014**, 29, 505–513. [Google Scholar] [CrossRef] - Zeng, B.; An, Y.; Kuznia, L. Chance constrained mixed integer program: Bilinear and linear formulations, and Benders decomposition. Mathematics
**2014**, 3, 1–30. [Google Scholar] - Nasri, A.; Kazempour, S.J.; Conejo, A.J.; Ghandhari, M. Network-Constrained AC Unit Commitment under Uncertainty: A Benders’ Decomposition Approach. IEEE Trans. Power Syst.
**2016**, 31, 412–422. [Google Scholar] [CrossRef] - Chen, F.; Liu, D.; Li, Q. Active Load Management Strategy Considering Fluctuation Characteristics of Intermittent Energy. In Proceedings of the 23rd International Conference on Electricity Distribution (CIRED’15), Lyon, France, 15–18 June 2015; pp. 1–5. [Google Scholar]
- Zhao, C.; Wang, J.; Watson, J.P.; Guan, Y. Multi-stage robust unit commitment considering wind and demand response uncertainties. IEEE Trans. Power Syst.
**2013**, 28, 2708–2717. [Google Scholar] [CrossRef] - Santos, T.N.; Diniz, A.L. Feasibility and optimality cuts for the multistage Benders decomposition approach: Application to the network constrained hydrothermal scheduling. In Proceedings of the Power & Energy Society General Meeting, 2009 (PES’09), Calgary, AB, Canada, 26–30 July 2009; pp. 1–8. [Google Scholar]
- Zhang, J.; Cheng, H.; Wang, C.; Xia, Y.; Shen, X.; Yu, J. Quantitive assessment of active management of distribution network with distributed generation. In Proceedings of the Third International Conference on Electric Utility Deregulation and Restructuring and Power Technologies (DRPT 2008), Nanjing, China, 6–9 April 2008; pp. 2519–2524. [Google Scholar]

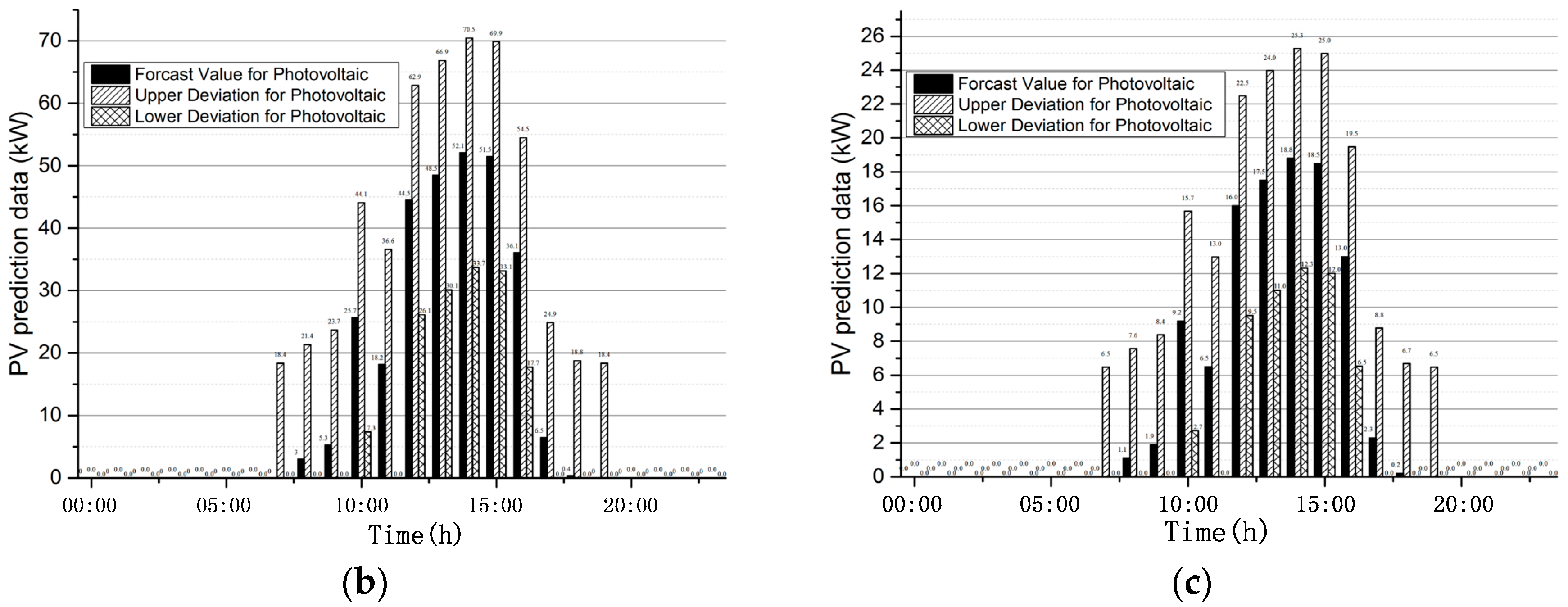

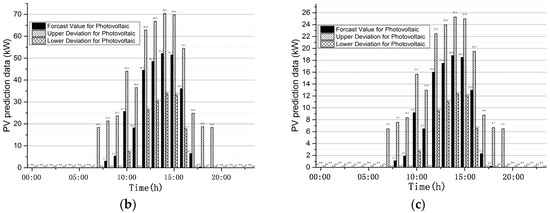

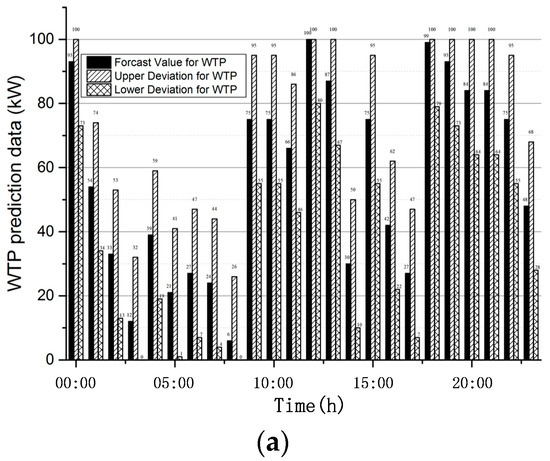

**Figure 4.**Forecast Value Deviation for Intermittent Energies: (

**a**) Power Deviation for WTP1 and WTP2; (

**b**) Power Deviation for PV2&4; (

**c**) Power Deviation for PV1&3.

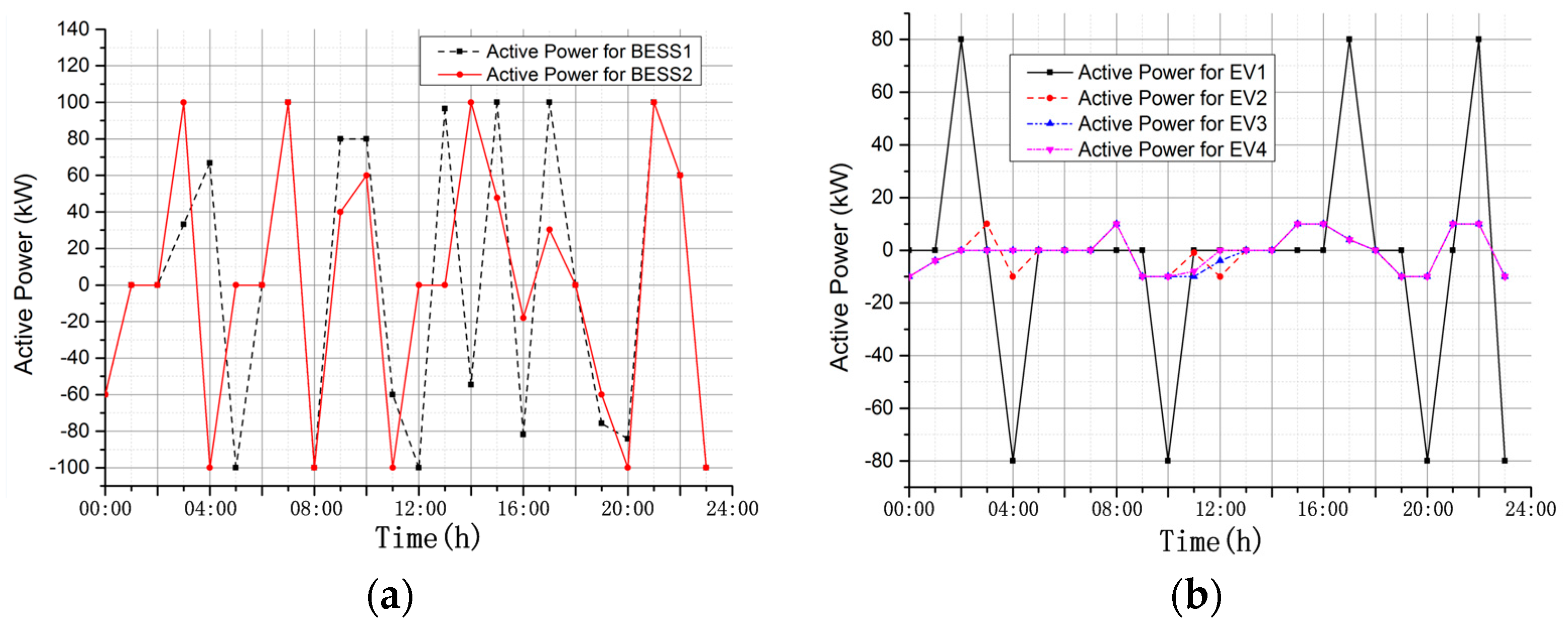

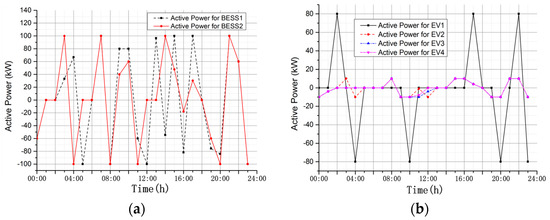

**Figure 5.**Optimization result for energy storage devices: (

**a**) Active Power for BESS; (

**b**) Active Power for EV.

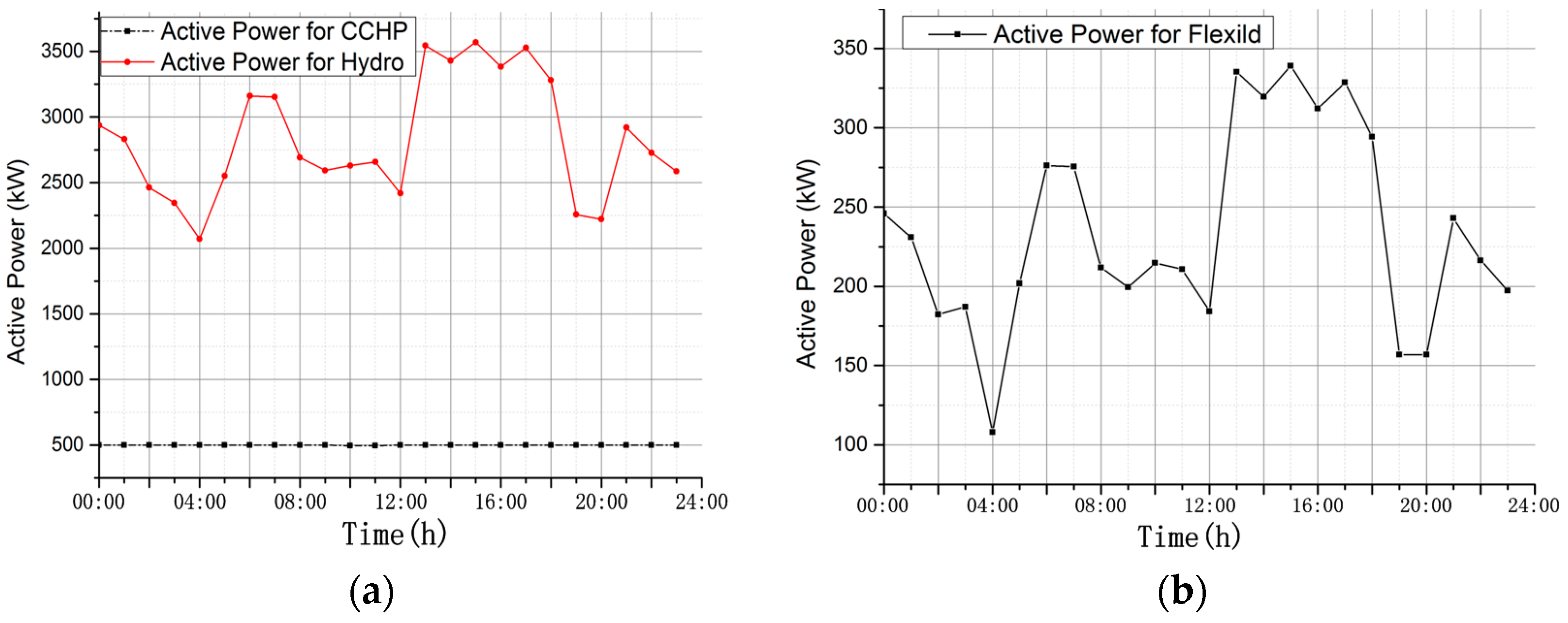

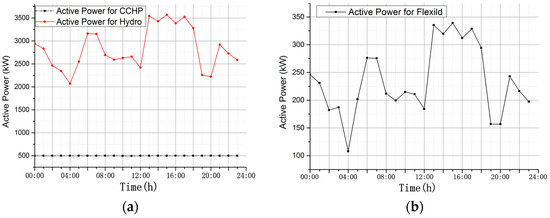

**Figure 6.**Optimization result for power regulation devices: (

**a**) Active Power for CCHP and Hydro; (

**b**) Active Power for Flexild.

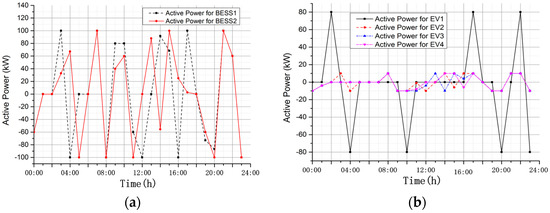

**Figure 16.**Optimization result for energy storage devices in the second scenario: (

**a**) Active Power for BESS; (

**b**) Active Power for EV.

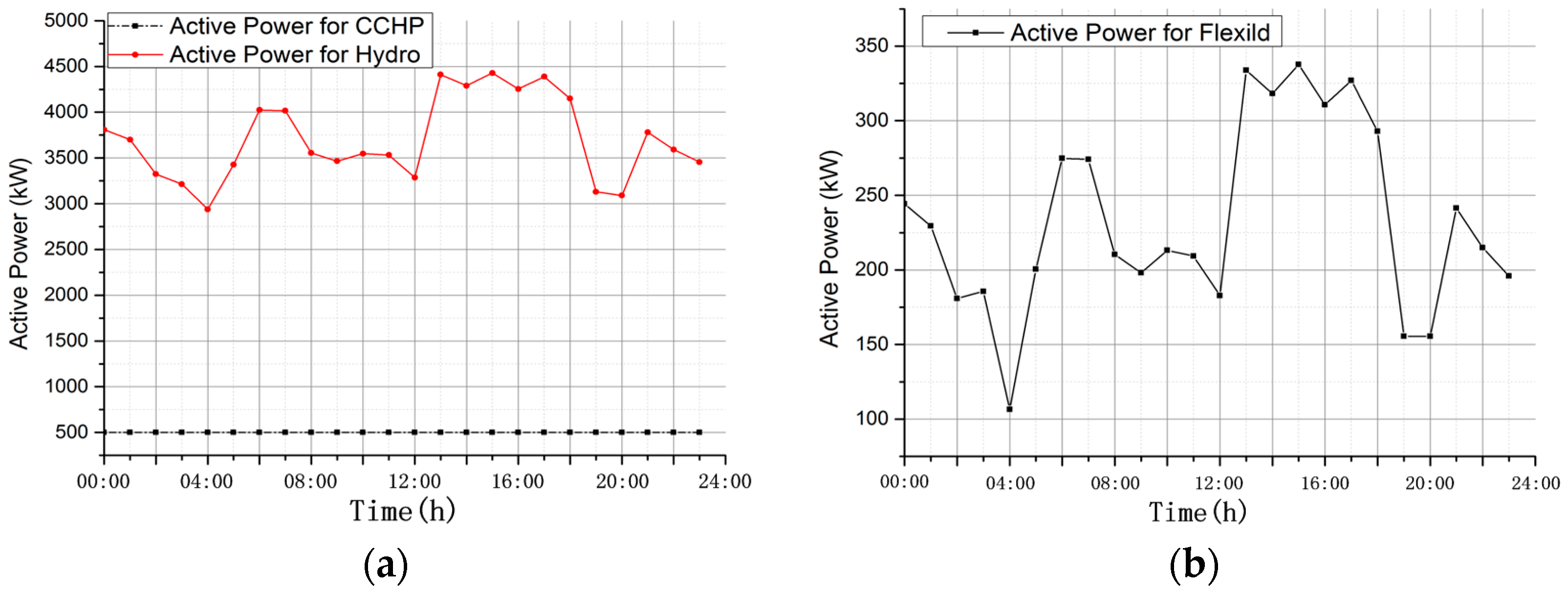

**Figure 17.**Optimization result for power regulation devices in the second scenario: (

**a**) Active Power for CCHP and Hydro; (

**b**) Active Power for Flexild.

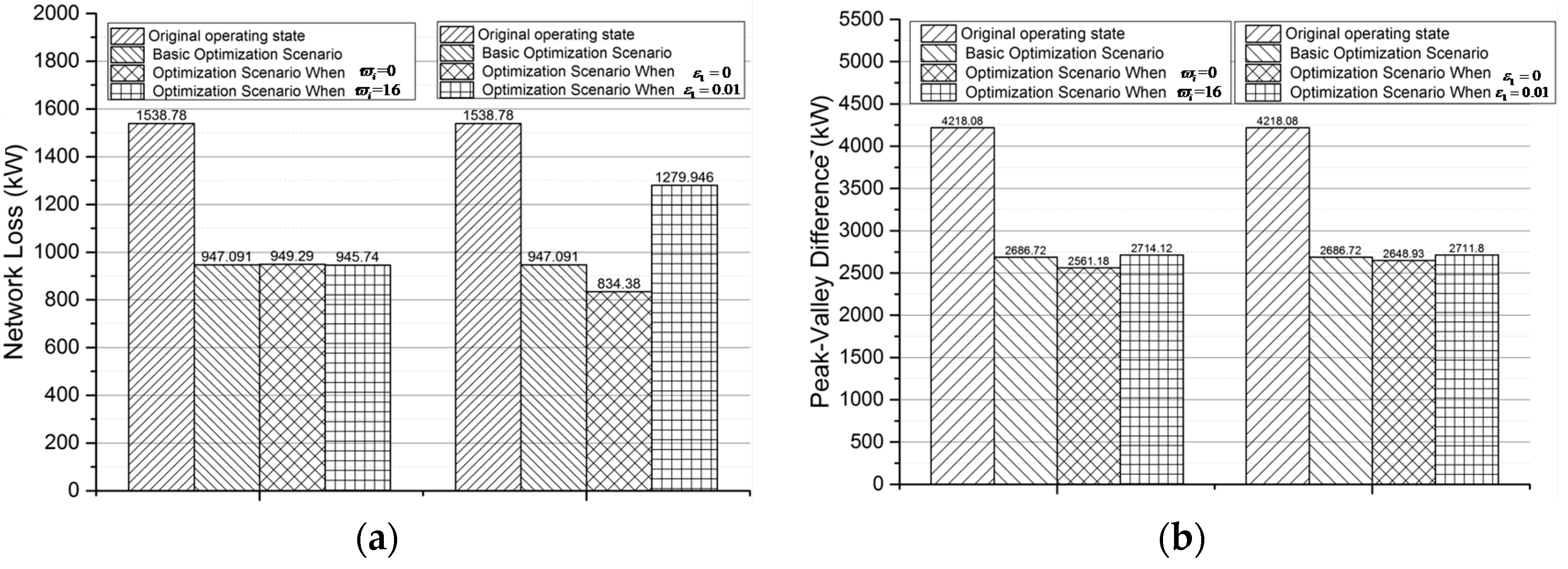

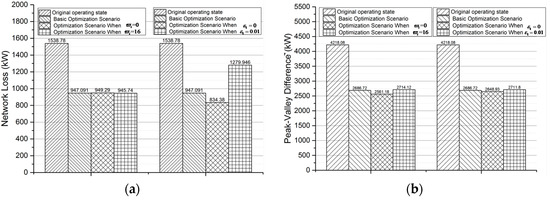

**Figure 18.**Summary of Optimization Results. (
