1. Introduction
Sustainable development is one of the key engineering challenges for future society. To this end, 195 countries agreed in December 2015 to reduce greenhouse gas through the Paris agreement [
1]. According to the agreement, Korea must reduce greenhouse emissions 37% by 2030 compared to that of business-as-usual (BAU). From the perspective of the power system, two of the most vital technologies to reduce greenhouse gas are electric vehicles (EVs) and renewable generation. Note that in this paper, an EV indicates any battery-type plug-in electric vehicle such as a plug-in hybrid electric vehicle (PHEV) or plug-in electric vehicle (PEV).
EVs are receiving attention as a promising alternative to the fossil fuel-based vehicles that are one of the major causes of the greenhouse effect [
2]. However, since EVs consume a very high amount of electricity during the charging period, the power system will be exposed to considerable stress when EVs become widespread [
3]. It has been shown that simple electricity price rates such as time-of-use (TOU) pricing induce a new rebound peak in the off-peak hours because most EVs are mainly charged during that period [
4].
Many studies have been conducted on reducing the stress on the grid by distributing the EV charging demand, i.e., the EV charging scheduling issue [
4,
5,
6,
7,
8,
9,
10,
11]. Distributing methods for EV charging demands can be classified into centralized [
5,
6,
7,
8] or decentralized [
9,
10,
11] schemes. In [
5], a real-time EV charging scheme has been proposed to improve voltage profile through centralized charging control. In addition, the authors of [
6] have proposed various objective functions such as total feeder losses, total cost of energy, and total cost of PEV charging to protect the distribution grid. To reduce computational complexity, a scalable EV charging scheduling scheme has been proposed through Model Predictive Control (MPC) by using statistical information [
7]. In [
8], a semi-centralized scheme has been proposed in which, on behalf of each EV owner, a fleet operator interacts with a distribution system operator to determine the hourly electricity price. Conversely, in [
9,
10,
11], a decentralized scheme has been proposed. The EV scheduling was modeled as a Stackelberg game, in which the players are an electricity retailer and EV customers [
9]. In [
10], an optimal EV charging scheme has been proposed to fill the valleys of electric load curve. Last, with an assumption of predictable EV user’s behavior, an optimal EV scheduling has been proposed with discrete EV charging levels [
11].
The microgrid is a vital technology to promote renewable generation to the power system. It is defined as a group of interconnected loads and distributed energy resources with clearly defined electrical boundaries. The two major advantages of the microgrid are: (i) a number of distributed generations can be adopted in the grid through the microgrid [
12]; and (ii) the microgrid improves the grid resilience against disasters [
13].
Since microgrids include fewer households and consume less electricity than a main grid, the adoption of EVs in a microgrid will have a more serious impact. Therefore, EV charging in microgrids should be precisely controlled to ensure their economy and resilience. To this end, recent studies have investigated the EV charging issue in the microgrid [
14,
15].
The optimal microgrid planning problem has been investigated through simulation tools such as HOMER and WebOpt [
16,
17], or through numerical analysis by considering uncertainties in the future [
18,
19,
20]. In [
18], an optimal microgrid planning problem has been proposed for island-mode microgrids while a similar optimization problem has been proposed for grid-connected microgrids in [
19]. Another optimization problem for microgrid planning has been proposed that minimizes risk rather than cost [
20].
EV charging demands will significantly change the load curve in microgrid, so we should consider EV charging scheduling schemes in the microgrid planning stage. To the best of our knowledge, however, none of the studies consider the load curve changes due to the EVs in the microgrid planning stage.
In this paper, the microgrid planning problem with EV charging demands is investigated. Three main contributions of this work are: (i) we derive load curves from several EV charging scheduling schemes; (ii) optimal microgrid configurations for above charging schemes are investigated using HOMER; and (iii) we propose an algorithm for microgrid planning that maximally uses renewable generators. The proposed algorithm iteratively searches between an optimal EV charging schedule and an optimal microgrid configuration. Through simulations, it is shown that the microgrid constructed by the proposed algorithm reduces the investment cost and CO2 emission by controlling the EV charging demands effectively.
The remainder of the paper is organized as follows. We first describe EV charging scheduling schemes in
Section 2. Then, the optimal microgrid planning problem by using HOMER is shown in
Section 3. Using the renewable generation-following EV charging scheme and HOMER, we propose an algorithm for microgrid planning in
Section 4. After evaluating case studies in
Section 5, we conclude our paper in
Section 6.
2. EV Charging Scheduling Schemes
In this section, the EV charging model is described and the four EV charging scheduling schemes are then shown.
2.1. EV Charging Model
We consider a set of EVs in a microgrid. Each day is divided into time periods. A period set and period index are denoted as and , respectively. Let denote the amount of electricity consumption by customer at time to charge the EV in units of kW. It is assumed that all EVs are charged at home and on campus for the residential microgrid and campus microgrid, respectively.
The charging requirement of each EV
is a full charging of its battery before departure. This can be modeled as
where
,
, and
denote the battery charging efficiency, electricity in kWh required for full charging of EV
, and the maximum charging rate of EV
, respectively. The charging period for EV
starts at
and ends at
. Let
denote the set of time periods in which EV
is at the place of charging, i.e., at home or on campus.
2.2. Min Time Charging Scheduling Scheme
The most naïve charging scheduling scheme is that EVs are charged as soon as possible. That is, when an EV is parked at home or on campus, it is charged with
charging rate until fully charged. In this paper, we call this scheme the “min time charging scheduling scheme” [
21]. It is important to note that this scheme does not require interaction between customers and control entities such as the microgrid energy management system (EMS) and fleet operator, i.e., it is an uncontrolled charging scheme.
2.3. Min Cost Charging Scheduling Scheme
Currently, utility companies provide special electricity price rates for EV charging demand. In general, they provide TOU rates by dividing one day into peak, partial-peak, and off-peak periods.
Table 1 shows two EV charging price rate examples for Pacific Gas and Electric Company (PG&E) in the US [
22] and Korea Electric Power Corporation (KEPCO) in Korea [
23] during the summer season. There is another type of electricity pricing rate named real-time pricing (RTP), which announces hourly price rate for the next day. Southern California Edison (SCE) in the US currently offers RTP in which the hourly price is decided from past daily load data and weather data. Note that a graph of RTP and SMP in one day of summer 2014 in Korea in
Section 5 shows examples of TOU and RTP price rates offered by KEPCO.
The second uncontrolled EV charging scheme is the cost minimization charging scheduling scheme, called the “min cost charging scheduling scheme”. In this charging scheme, customers decide the amount of electricity for the EV charging in each period to minimize the cost of electricity [
24]. Since we consider two price rates, i.e., TOU rate and RTP, they are called “min cost1” and “min cost2”, respectively. The optimization problem can be formulated as
where
is the electricity price rate at time
. It is assumed that the electricity price rate of the day is known to all customers.
The control variable for the problem is only related to each customer and it does not depend on other customers’ charging behaviors. Therefore, each customer decides his/her charging scheduling. That is, this scheme does not require real-time interaction between each customer and the control entity. The only information for customer needed to solve the problem is the electricity price rate of the day.
Generally, the problem can have many solutions. and we choose the one which has the fastest charging end time because it is the most convenient solution for the EV owner.
2.4. Min Var Charging Scheduling Scheme
In the microgrid case, another important metric is the peak electricity demand, since the microgrid should be planned to fulfill the peak demand. Therefore, we choose the objective to be minimizing the maximum demand of one-day load. In general, the problem has more than one solution, so we choose the one that minimizes the variance of one-day load. We call this the “min Var charging scheduling scheme”.
To this end, the amount of base load, denoted by
, as well as EV loads should be considered together. We formulate the optimization problem as
where
and
are the total electricity consumption at
and its variance, respectively. They are defined as
and
.
The problem
is a standard convex optimization problem, so we can get its solution. Detailed procedures and the closed form solution for the problem
are presented in
Appendix A.
The control variable for this optimization problem is the charging rates for all of the EVs in the microgrid. Therefore, the problem requires a central control entity in order to obtain the optimal solution and to distribute power to all customers.
Note that, in [
15], the EV scheduling problem of minimizing the load variance was proposed without showing its closed form solution, while this work derived the closed form solution for
. Also, the target of [
15] is the EV scheduling in the case of one house while the target of this work is microgrid planning.
2.5. Max Renewable Charging Scheme
Since a number of renewable generations will be adopted in a microgrid [
12], one key goal for charging scheduling in a microgrid is a maximum use of the renewable generations. Mathematically, the objective of this scheduling scheme is to minimize the difference between electric load and the renewable generation output by controlling the EV charging demands. We call this “max renewable charging scheduling scheme”.
Since the power output of renewable generation displays randomness, we use an expected value for the output of a renewable generation. Let
denote a random variable defined to be the output of renewable generations at time
, and recall that the total electricity consumption at
is
, which consists of base load and EV charging load. Then, we formulate the optimization problem as
We assume that the type and capacity of renewable generations in the microgrid are given. Like the problem , the problem is a standard convex optimization problem, so we can get the solution. Because of the space limit, we omit the detailed procedure.
4. Max Renewable Microgrid Planning Algorithm
To construct a robust and economical microgrid with EVs, we propose an algorithm for microgrid planning that uses renewable generation as much as possible.

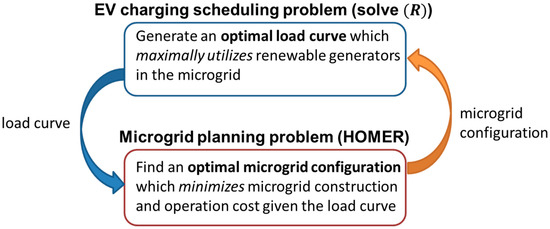

Figure 1 shows the structure of the proposed microgrid planning algorithm. The proposed algorithm iteratively solves between an EV charging scheduling problem and a microgrid planning problem until the solution converges. The EV charging scheduling problem is
because the goal of this algorithm is the maximum use of renewables. To solve the first problem, a microgrid configuration is required as input and its output is the load curve in the microgrid. Conversely, the second problem requires the load curve and it finds an optimal microgrid configuration that minimizes the microgrid construction and operation cost. This solution is obtained using HOMER.

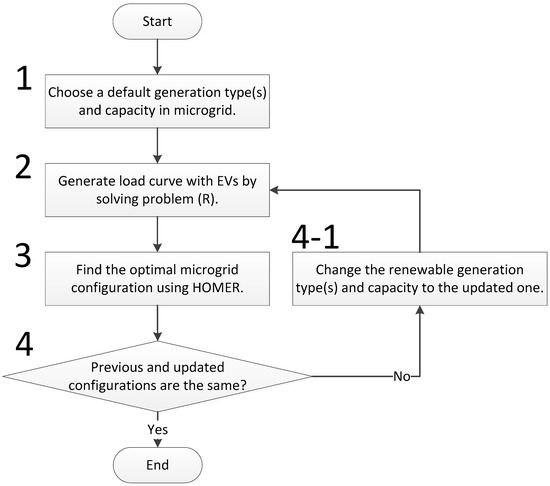

The flowchart of the proposed algorithm is shown in
Figure 2, and its explanation is as follows.
- Step 1:
The proposed algorithm begins by setting a default renewable generation type(s) and their capacity with given load curve and diverse EV scheduling schemes.
- Step 2:
The load curve with EVs using max renewable charging scheme is generated by solving the problem
in
Section 2.5.
- Step 3:
With the updated load curve, the optimal microgrid configuration is investigated using HOMER.
- Step 4:
We compare the previous and updated configurations, i.e., generation type and capacity, in the microgrid. If they are the same, the proposed algorithm ends.
Step 4-1: Otherwise, we change the renewable generation types and capacity with the updated ones and the next step is step 2.
In the case study, we use a default setting as the min var scheme’s microgrid configuration. However, any other microgrid configurations can be used as a default. We confirmed that the same final configuration is obtained even if the microgrid configurations with min time and min cost are used as the default setting.
5. Case Study
In this section, two different microgrid cases, i.e., residential microgrid and campus microgrid, are planned at Seoul, Korea. First, the load curves with various EV charging scheduling schemes are presented. Then, optimal microgrid configurations for each load curve are shown.
5.1. Case Study Settings
In this case study, one day is divided into h with the time interval of 1 h.
For EV battery modeling, we use the default parameters of Nissan Leaf [
32]. That is, the battery capacity is 24 kWh and
for the residential area, i.e., level 2 charging, is 3.3 kW. Average driving efficiency is 5.36 km/kWh and
.
For an EV
, the EV parameters, i.e., arrival time
, departure time
, and battery capacity to charge
, are randomly generated. To obtain the values for these parameters, we use the “2009 National Household Travel Survey” reported by the US Department of Transportation [
33]. According to the survey data, the average daily vehicle kilometers of travel is 46.62 km. From the parameters of the Nissan Leaf [
32], 10.2 kWh is required to drive 46.62 km. It is then assumed that
,
, and
are uniformly distributed in [8 kWh, 12 kWh], [5 p.m. 9 p.m.], and [5 a.m., 7 a.m.], respectively. Note that the considered arrival and departure time ranges cover more than 90% of drivers [
33].
To use the max renewable charging scheme, in the problem is needed. In this case study, no specific distribution for is assumed, but we use real measurement data to get . We have the output data of a 30 kW PV generator in Korea. Then, the output of a PV generator in microgrid is interpolated with the measurement data. For example, if a PV generator has 100 kW capacity, its output is obtained by multiplying the measurement data by 3.33.
The TOU-based EV charging price rate of KEPCO is used for the min cost1 charging scheme. However, the results of this work are not limited to the KEPCO price rate. Any TOU pricing-based EV charging tariff shows a similar result. For the min cost2, i.e., RTP, it is assumed that the system marginal price (SMP) at each hour is the electricity price for the hour.
Figure 3 shows the SMP in summer 2014 obtained by Korea Power Exchange and the TOU-based EV charging price rate. Note that the SMP of a day is announced every day, but the TOU price rate is the same.
5.2. Load Curve with EVs
5.2.1. Residential Area
We first consider a microgrid for a residential area with 100 households. A household load curve is obtained from [
29]. We use the residential load curve during the summer season, which is shown in
Figure 4 as “Base load”. The electricity consumption for one day is 9.85 kWh and the peak demand is 0.54 kW at 10 p.m. With this base load, the EV charging demand is added.
The daily load curve shape changes according to the EV penetration ratio and charging scheduling schemes.

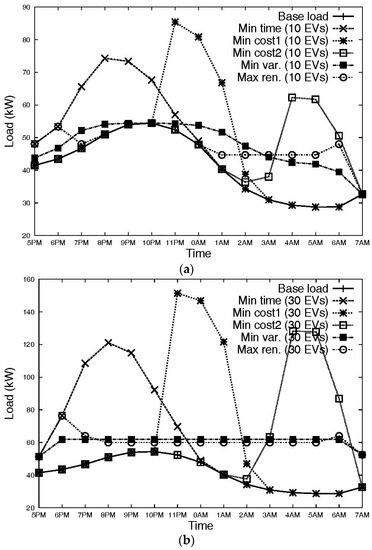

Figure 4 shows the load curve for the residential area with the min time, min cost1, min cost2, min Var, and max renewable charging scheduling schemes. We consider 10 EVs and 30 EVs cases, which refer to the EV penetration ratios of 10% and 30%, respectively. Since we assumed that all EVs return home from 5 p.m. to 9 p.m., and leave home from 5 a.m. to 7 a.m. [
33],
Figure 4 shows only the period when EVs are parked, i.e., from 5 p.m. to 7 a.m. For the uncontrolled charging scheduling schemes, i.e., min time, min cost1, and min cost2 charging schemes, even if a few EVs (2–3 EVs) exist in the residential area, the peak demand and time are changed.
In the case of the min time charging scheme, the charging demands are naturally distributed as the arrival times of EVs are distributed in [5 p.m., 9 p.m.], resulting in less peak demand than that of the min cost schemes. For the min Var charging scheme, the EV charging demand first fills the valley of the off-peak hours. Therefore, the peak demand is not increased to 20 EVs. The max renewable charging scheme shows similar load curve to that of min Var charging scheme, but it reveals two small peak demands at 6 p.m. at 6 a.m. since PV generates power at those times.
Note that in this scenario, only PV generation is considered as the renewable generation since wind speed is insufficient to be competitive.
5.2.2. Campus
The base load curve for the campus is also obtained from the measurement report in [
29]. We use the campus load curve during the summer season, which is shown in
Figure 5 as “Base load”. The total electricity consumption for one day is 1687 kWh and the peak demand of 115.6 kW occurred at 2 p.m.
The same average daily vehicle kilometers of travel,
, and
are used with an offset of driving time to work. That is,
,
, and
are uniformly distributed in [8 kWh, 12 kWh], [7 a.m., 9 a.m.], and [5 p.m., 10 p.m.], respectively. In this case, it is assumed that all EVs are charged on the campus. Therefore,

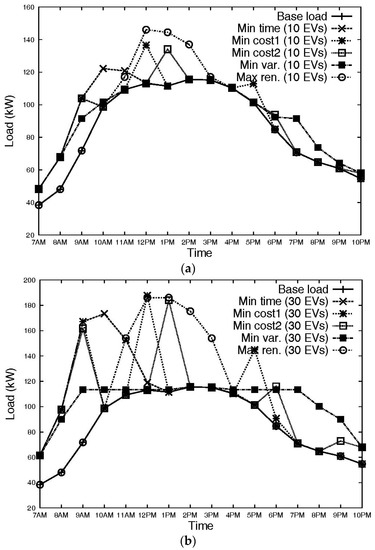

Figure 5, which displays the load curve for the campus, shows only the period when EVs are parked at the campus, i.e., from 7 a.m. to 10 p.m.
The min time and min cost charging schemes increase peak demand while the peak demand for the min Var charging scheme is not changed for the 30 EVs. The min cost1 charging scheme has three spikes at 9 a.m., 12 p.m., and 5 p.m. because of the KEPCO EV charging price rate. The second spike is the peak demand since the base load at 12 p.m. is the highest among the three spike times. Similar tendency is shown in the min cost2 charging scheme. The load curve of the max renewable charging scheme shows the same shape as the general PV generation output, and the peak demand of the scheme is the same as those of the min cost charging schemes.
5.3. Optimal Microgrid Planning
With these load curves, the optimal microgrid configurations are obtained using HOMER. In this section, the microgrid operates as the island mode.
Section 5.3 discusses the case of the microgrid in grid-connected mode.
5.3.1. Residential Area

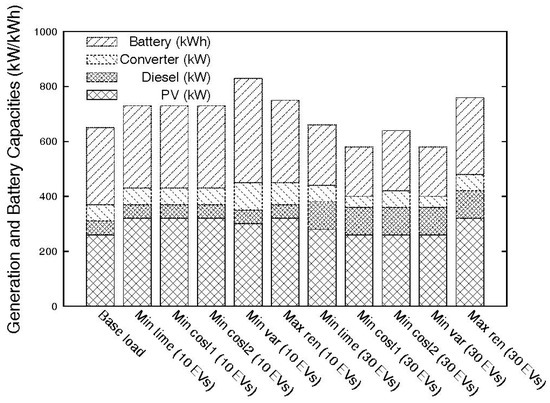

Figure 6 shows the optimal microgrid configurations for the residential area for various EV charging schemes. The microgrid configurations using the min var charging scheme and the proposed algorithm show considerably similar generation and battery capacities (PV and diesel generations) to the base load since load curves show similar shape as shown in
Figure 4. Because they only have 50 kW diesel generation capacity with 30 EVs, more battery capacity is required to make a robust microgrid. On the other hand, the other charging schemes have greater diesel generator capacity to support the peak demand in the 30 EVs scenario.
Table 3 shows the investment costs and CO
2 emission of the optimal microgrid configurations for each case in detail. The configuration with the min cost1 charging scheduling scheme and the proposed max renewable microgrid configuration are the most expensive and the least expensive solutions to construct the residential microgrid, respectively. The total NPC differences between scheduling schemes are small with 10 EVs, but the gap increases with a number of EVs. The total NPC of the proposed microgrid with 30 EVs saves 10.3% of the cost compared with that of the min cost1 scheme with 30 EVs.
Note that the microgrid with min Var scheme and the proposed microgrid show almost the same result because the PV generation has no impact during the night. In case of the campus microgrid, the two schemes show different results.
5.3.2. Campus

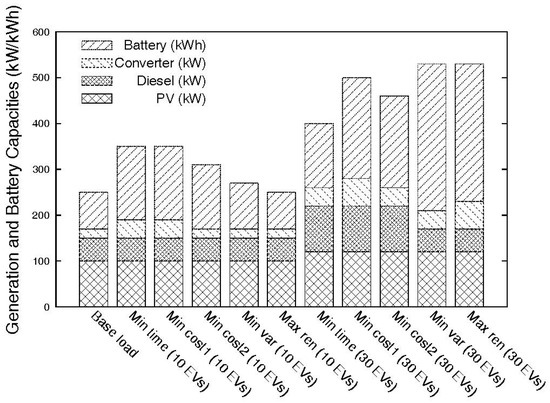

Optimal microgrid configurations for the campus are shown in
Figure 7. Unlike the residential microgrid, the configuration for the min Var charging scheme is different to that of the proposed microgrid configuration. Due to the nature of maximizing renewable generation, the proposed microgrid requires the highest renewable capacity.
Table 4 shows the investment costs and CO
2 emission for various EV charging schemes in the campus microgrid. The configuration with the min Var charging scheme and the proposed microgrid configuration show the maximum and minimum total NPC, respectively. Again, the cost savings increase with a number of EVs. Since the load curve of the min Var charging scheme shows a flat shape, PV generation is not a viable solution. Therefore, it mainly depends on diesel generation resulting in the highest cost and CO
2 emission. On the other hand, the proposed microgrid maximally utilizes the PV generation output, so it shows the lowest CO
2 emission despite the same diesel generation capacity.
5.4. Discussion
The optimal microgrid configuration in the grid-connected mode is also investigated. When the electricity rate of the main grid is set to SMP as shown in
Figure 3, the optimal microgrid configurations for residential and campus are not cost-effective for installing distributed generators. It is because the electricity price of the main grid is lower than installing distributed generators. Therefore, the daily load curve in the grid-connected mode microgrid is “min cost1” or “min cost2” in
Figure 3 and
Figure 4 according to the pricing schemes.
As shown in
Figure 3 and
Figure 4, the current EV pricings (TOU pricing and one day before RTP) fail to distribute EV charging load. Therefore, a more intelligent pricing scheme or EV aggregator, which interacts between retailer and EV customer, is required to distribute the EV charging load [
34].
In general, a flat load curve reduces investment and O & M cost in the power system. However, when there are many deferrable loads and renewable generations, the flat daily load curve increases the cost. If the deferrable loads follow the outputs of the renewable generation, we can construct a more economical microgrid.
If the microgrid only has diesel generators, the CO2 emission for residential and campus microgrids are 459,370 kg/yr and 692,302 kg/yr, respectively, in the 30 EVs scenario. That is, the max renewable charging scheme reduces the CO2 emission as 39.1% and 57.7% in comparison with those of diesel only microgrid. This result achieves the greenhouse gas reduction target of Korea according to the Paris agreement.
The proposed microgrid planning algorithm theoretically provides a configuration that reveals minimum CO2 emission since it maximally uses renewable generators. In practice, the randomness of renewable generators sometimes causes lower CO2 emissions by other configurations than the proposed algorithm. However, the difference is minimal, i.e., less than 1%, and this case occurrs when the renewable generators make small contributions as shown in the residential microgrid result. The proposed algorithm results in a significant reduction of CO2 emissions when renewable generators contribute significantly like in a campus microgrid.
We also considered the wind turbine option, but our configurations do not include wind turbines because wind speed in Seoul, Korea is too low to be a competitive solution [
35].
6. Conclusions
To reduce greenhouse gas in the power industry, harmonizing between the two emerging technologies, i.e., microgrid and electric vehicles (EVs) is critical. Therefore, the microgrid planning problem should consider the number of customers in the area who will purchase EVs and how the EV charging loads will be distributed. In this paper, we investigated several uncontrolled and controlled EV charging scheduling schemes: the min time charging scheme, two cost minimization charging schemes, the minimization of variance (min Var) charging scheme, and the max renewable charging scheme. In addition, the optimal microgrid configurations for those charging schemes and different EV penetration ratios were investigated using HOMER. Finally, we proposed a microgrid planning algorithm for a maximum use of renewable generators. The proposed algorithm iteratively solves the EV charging scheduling and microgrid configuration problems to maximally use the renewable generations. Through residential and campus microgrids case studies, the proposed algorithm constructs an economical microgrid with less CO2 emissions. If the installed renewable generation does not produce output power during EV charging, the proposed algorithm works like the min Var charging scheme. Otherwise, it maximizes the use of renewable generations resulting in the lowest investment cost and CO2 emission.
