The Delay Phenomenon: A Compilation of Knowledge Across Specialties

Abstract

Objective The purpose of this article is to review and integrate the available literature in different fields to gain a better understanding of the basic physiology and optimize vascular delay as a reconstructive surgery technique. Methods A broad search of the literature was performed using the Medline database. Two queries were performed using “vascular delay,” a search expected to yield perspectives from the field of plastic and reconstructive surgery, and “ischemic preconditioning,” (IPC) which was expected to yield research on the same topic in other fields. Results The combined searches yielded a total of 1824 abstracts. The “vascular delay” query yielded 76 articles from 1984 to 2011. The “ischemic preconditioning” query yielded 6534 articles, ranging from 1980 to 2012. The abstracts were screened for those from other specialties in addition to reconstructive surgery, analyzed potential or current uses of vascular delay in practice, or provided developments in understanding the pathophysiology of vascular delay. 70 articles were identified that met inclusion criteria and were applicable to vascular delay or ischemic preconditioning. Conclusion An understanding of IPC’s implementation and mechanisms in other fields has beneficial implications for the field of reconstructive surgery in the context of the delay phenomenon. Despite an incomplete model of IPC’s pathways, the anti-oxidative, anti-apoptotic and anti-inflammatory benefits of IPC are well recognized. The activation of angiogenic genes through IPC could allow for complex flap design, even in poorly vascularized regions. IPC’s promotion of angiogenesis and reduction of endothelial dysfunction remain most applicable to reconstructive surgery in reducing graft-related complications and flap failure.

The delay phenomenon, also referred to as vascular delay or ischemic preconditioning, describes the observation that a tissue rendered partially ischemic will undergo neovascularization and enhance its vascularity. The field of reconstructive surgery uses this phenomenon to facilitate the survival of flaps. When employed, the delay phenomenon has been shown to promote flap survival, increase the length-to-breadth ratio in random pattern flaps, and ensure the reliable transfer of larger volumes in axial pattern flaps [1,2,3].

Though there were earlier reports of attempts at vascular delay in nasal reconstruction [3,4,5], the Renaissance surgeon Gaspar Tagliacozzi is commonly accredited with the discovery as he popularized vascular delay in upper arm flaps in his 1597 work De Curtorum Chirurgia per insitionem [6,7]. S. H. Milton was the first to design experiments to study the delay phenomenon in 1969. He demonstrated in a porcine model that a 2-week delay optimized flap survival, and that survival is dependent on vascular supply instead of the length-to-width ratio as previously thought [8,9]. Simultaneously, M. B. Myers isolated the optimal delay time to 8–10 days in rabbits undergoing bipedicled skin flaps [3].

More recently, the delay phenomenon has become a topic of increasing interest in other medical fields under the term “ischemic preconditioning” (IPC). Heart and vascular-related fields in particular have contributed much of the recent literature devoted to unraveling the pathways involved. Although the mechanism remains unclear, significant research efforts have focused on revealing the underlying basic science at the cellular and metabolic levels. The purpose of this article is to review and integrate the available literature in different fields to gain a better understanding of the basic physiology and optimize vascular delay as a reconstructive surgery technique.

Methods

A broad search of the literature was performed using the MEDLINE database. Searches cutoff date was 4 January 2012. The MEDLINE database was initially searched using the query “vascular delay,” a search expected to yield perspectives from the field of reconstructive surgery. A second query was performed in the Medline database using the keyword “ischemic preconditioning,” which was expected to yield research on the same topic in other fields.

Results

The combined searches yielded a total of 1824 abstracts. The “vascular delay” query yielded 76 articles from 1984 to 2011. The “ischemic preconditioning” query yielded considerably more results. Ultimately, 6534 articles were produced by this search, ranging from 1980 to 2012. The search results were restricted to recent literature to assess for modern applications of the delay phenomenon across disciplines. The first 200 articles from the second query in addition to the 76 yielded from the first were assessed. The abstracts were screened for those written in English which provided perspectives across specialties in addition to reconstructive surgery, analyzed potential or current uses of vascular delay in practice, or provided developments in understanding the pathophysiology of vascular delay. 70 articles were thereby identified that met inclusion criteria. All articles included were applicable to vascular delay or ischemic preconditioning, depending on specialty.

Discussion

Vascular Delay—Reconstructive Surgery Perspective

Vascular delay is a technique widely used to enhance the vascularity of an existing flap. It takes advantage of the tissue’s ability to neovascularize under ischemic conditions, and manipulates the vascular supply to fit the appropriate pattern for flap design. It is especially useful in creating a strong axial blood supply where none previously existed. Clinical research demonstrated that vascular delay increases flap survival significantly and allows for earlier divisions of pedicle [10]. One study demonstrated that vascular delay in flaps improved survival 2.5–3 times over the control [11].

Biomechanics of Vascular Delay

Vascular delay affects the target tissue in two phases—early and late. Early effects derive predominantly from transection of sympathetic fibers leading to dilation and reorientation of choke vessels. The late phase effects lead to enhanced flap vascularity due to new vessel growth.

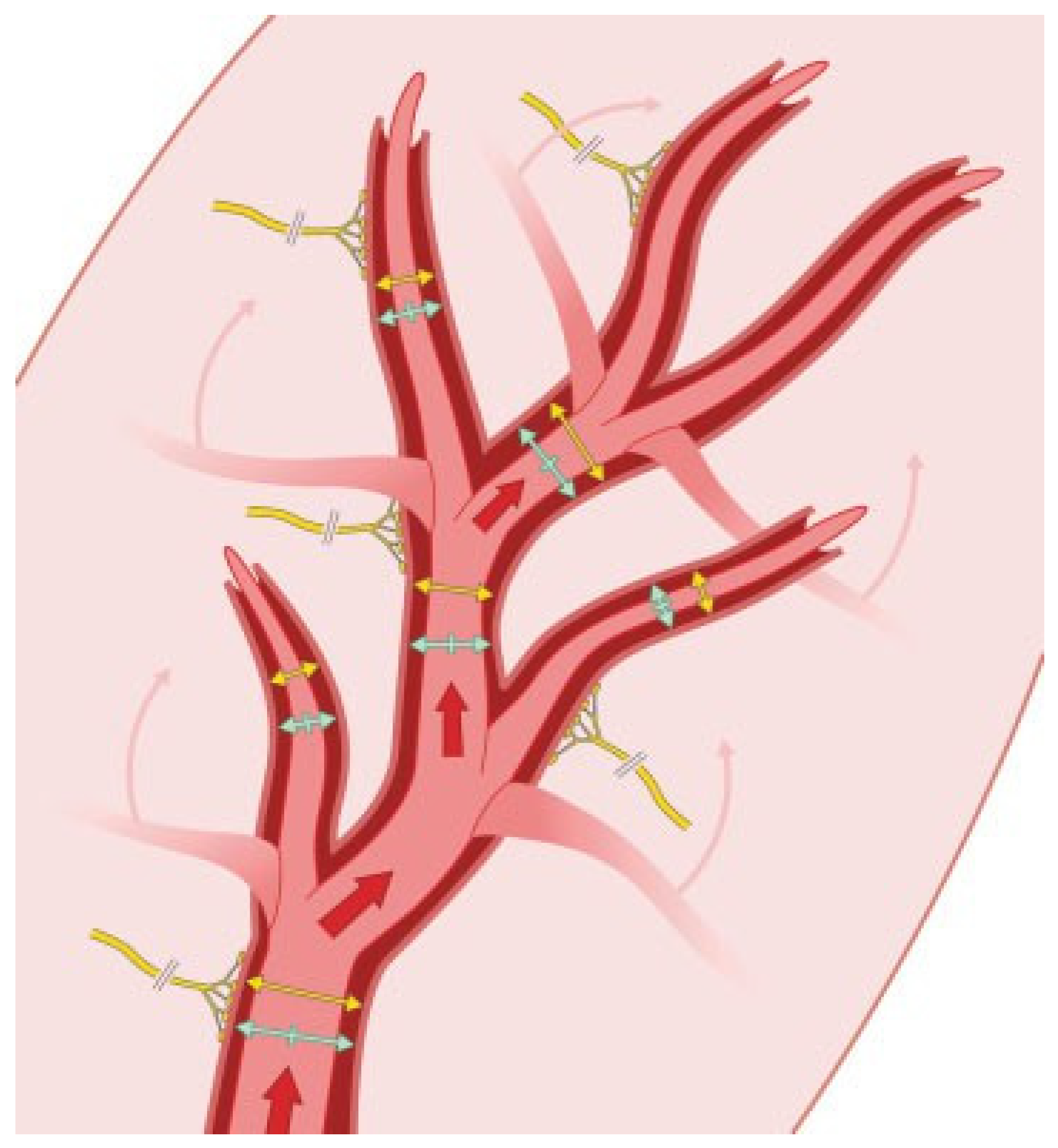

The early phase is characterized by three findings: changes in sympathetic tone, dilatation and reorientation of choke vessels, and alterations of metabolic pathways (Figure 1) [12]. During the initial flap dissection, the transected sympathetic nerves release norepinephrine into the tissue, leading to a hyperadrenergic state. This sudden catecholamine infusion can constrict the blood vessels up to 30 hours, amplifying the early ischemic state [13]. When the severed nerve endings are depleted of these neurotransmitters, the hyperadrenergic state resolves leading to a reactive vasodilation and increased blood flow [14,15]. For unclear reasons, vascular delay also leads to hyperplasia and hypertrophy of cells making up the vessel walls [16]. This enlargement occurs most rapidly within the first 48 to 72 hours of ischemia, and is entirely independent of the vascular tone [17]. Concurrently, the choke vessels reorient along the long axis of the flap, thereby enhancing blood supply to regions of the flap most prone for necrosis [18].

The early metabolic effects of vascular delay were first demonstrated in canine models which showed a 70% reduction of infarcted myocardium in dogs who underwent ischemic preconditioning via temporary clamping of the vascular supply [19]. Later studies revealed that this protective effect is biphasic—a strong protection 2–3 hours after the original ischemic stimulus followed by a weaker protection lasting 48–96 hours [20]. Wan et al.’s murine model demonstrated similar effects in latissimus dorsi flaps [21]. Preconditioned tissues exhibited reduced energy requirements [19], fewer reactive oxygen species [22], improved electrolyte homeostasis [23], and reduced apoptosis [24].

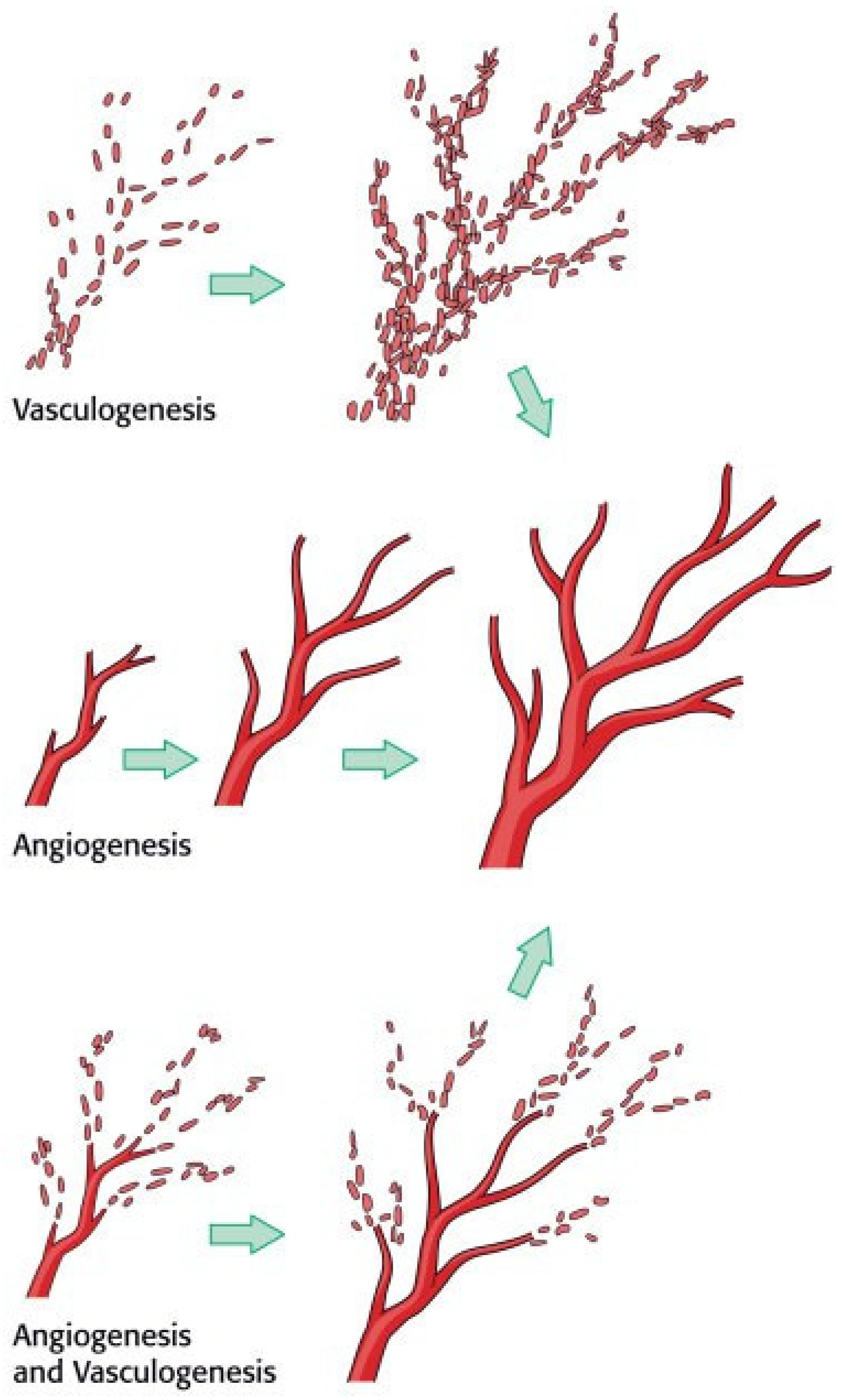

The late phase effects involve prolonged changes in tissue metabolism and neovascularization (Figure 2). Vascular delay creates an imbalance between vasodilating (prostaglandin E2) and vasoconstricting (prostaglandin F2, thromboxane) metabolites [12]. Murry found that subsequent elevation of a delayed flap leads to a blunted vasoconstrictor response, and an elevated vasodilator response, when compared with an undelayed flap. This is thought to minimize ischemic injury and enhance flap survival [19].

Most of the long-term benefits of vascular delay, however, derive from neovascularization of the flap. Although the debate regarding mechanisms of neovascularization is ongoing, most agree that new vessels grow by two methods: angiogenesis and vasculogenesis [12]. Angiogenesis refers to the sprouting of new vessels from a preexisting vascular network. Vasculogenesis refers to in situ formation from bone-marrow-derived endothelial progenitor cells [12]. Vascular delay induces neovascularization by both methods: angiogenesis via increased production of angiogenic growth factors [25], and vasculogenesis via recruitment of bone-marrow derived endothelial stem cells [12]. In addition, vascular delay is found to have anti-inflammatory effects by altering function of neutrophils [26].

Indications and Applications

The benefits of vascular delay are currently achieved with either the surgical or chemical decrease of blood flow to the flap. Surgically, the major vessels supplying the proposed flap are ligated to increase peripheral vascularity or the perimeter of the flap is divided to bolster flow from the pedicle’s base [12]. The transverse rectus abdominis musculocutaneous (TRAM) flap serves as a common example where the delay phenomenon is employed. One surgical technique involves ligation of the superficial and deep inferior epigastric vessels two weeks prior to raising the flap for the proposed reconstruction, resulting in increased arterial pressure and decreased venous congestion in the flap [27]. Blood flow restrictions can also be achieved via the selective embolization of the deep inferior epigastric arteries to similar improve perfusion of the TRAM flap [28]. Chemical delay has also been described. The administration of human VEGF has been demonstrated to similarly induce angiogenesis in TRAM flaps prior to use in reconstruction [29]. Regardless of the method of delay, the delayed flaps experience a decrease in fat necrosis and partial flap loss compared with flaps which were not delayed.

Historically, these tissue transfers have been performed with low rates of flap loss and complications. Vascular delay can further decrease these complications and also increase the number of candidates with vascular co-morbidities which would otherwise be restricted from surgery or be higher-risk patients. Patients with varying degrees of vascular compromise include those with radiated tissue, crush injuries, burns or otherwise traumatized tissues. Similarly, vascular delay benefits smokers, obese patients, and diabetics [30]. Patients who had previously undergone surgery to the proposed flap region with scarred tissue and disrupted vessels are also candidates for vascular delay to increase the vascularity of the tissue.

Beyond addressing vascular insufficiencies, the delay phenomenon has also been used in patients with insufficiently available tissue such as small children or burn patients [31,32]. By delaying and expanding free flaps prior to transfer, the delay phenomenon increases the amount of well-perfused, viable tissue available as well as to improve the tissue’s condition at the donor site to facilitate primary closure.

Ischemic Preconditioning—other Perspectives

The delay phenomenon is commonly known as “ischemic preconditioning” (IPC) in fields outside of plastic and reconstructive surgery. It is a topic of great interest as its protective effect has therapeutic potentials for various organs of the body. Recent research in cardiology and hepatology contributed most of the current knowledge in the metabolic influence of IPC. Major signaling pathways, including MAPK [25], PKC [33], Akt-eNOS [12] and JAK-STAT [34], have been linked to the anti-oxidative, anti-inflammatory and angiogenic effects of IPC, which originate at a molecular level by altering gene transcription. An extensive literature review was conducted aiming to integrate the research findings across medical specialties. This review consistently revealed two major benefits—diminished ischemia/reperfusion injury, and enhanced tissue regeneration.

Diminished Ischemia/Reperfusion Injury

The primary pathogenesis of ischemia/reperfusion injury involves an overactive inflammatory response [35] production of reactive oxygen species [36], and subsequent activation of the apoptotic pathway [37]. Cardiology is one of the earliest specialties to recognize the potentially therapeutic effects of ischemic preconditioning. As early as 1986, Murray demonstrated the cardioprotective effects of IPC in canine models [19]. A later study revealed that IPC preserves mitochondrial structure in cardiac myocytes, thereby minimizing oxidative injury [38]. Specifically, this factor activates signaling pathways that affect the mitochondrial permeability transition pores (mPTP) and the ATP-dependent K channels (mitoKATP) [39]. Research in neurology found that IPC opens mitochondrial ATP-dependent K+ channels thereby inhibiting the formation of the mPTP—a key step leading to cell death. In addition, animals models showed that IPC may directly downregulate apoptotic gene activation [40].

IPC reduces the levels of proliferating cell nuclear antigen labeling index (PCNA-LI) and immunoreactivities to protein kinase B (Akt) and caspase-9, which regulate the mitochondrial apoptosis pathways [41]. This protection may be related to transcription levels of c-fos and c-jun. These two proteins in combination form activator protein-1 which regulates differentiation, proliferation and apoptosis [42].

IPC modulates systemic immune reaction by inhibiting leukocyte activation with suppression of myeloperoxidase levels and nitric oxide-related oxidative-inflammatory pathway [43]. Studies supporting this theory indicate that IPC increases serum concentrations of IL-6, IL-8, IL-10, TNF-α, LDH, CK and TnI, decreases cytokine release and heart enzyme leakage, increases expression of heat shock protein 70, and lowers malondialdehyde (MDA) and superoxide dismutase (SOD) [44]. Lowering MDA accumulation advances the expressive phase of surviving protein in hepatic tissue and improves cellular function, particularly in the liver [45].

Other implicated pathways include phosphorylation of ser727-STAT3 [46], HSP-70 and HDj1 (heat shock proteins), reduction of ubiquitin levels after IPC [47], and TRIF-IRF3 signaling [48]. Indeed, IPC has been shown to downregulate the pro-inflammatory TLR (toll-like receptor) signaling pathway, reducing inflammation that causes brain injury [49]. IPC reduces neutrophil activation through reduced expression of neutrophil CD11b and platelet-neutrophil complexes [50,51] (Figure 3).

Enhanced Tissue Regeneration

IPC is also found to encourage tissue regeneration. In addition to diminishing oxidative injury, stabilization of mitochondria also ensures continuous availability of ATP and sustained aerobic metabolism [52]. IPC doubles the levels of myocardial ATP as compared with controls after aortic clamping procedures [53]. Hepatology studies revealed that IPC increase levels of cyclin D1 during early ischemic reperfusion and may enhance hepatocyte proliferation [54,55]. IPC also appears to be a potent activator of angiogenic genes and promote stem cell survival [56,57]. It induces overexpression of VEGF—crucial for angiogenesis—in cholangiocytes after liver autotransplantation in rats [44]. Remote IPC modulates hepatic microcirculation and endothelial function through heme oxygenase-1 (HO-1) [58,59,60]. On a larger scale, IPC prevents post-ischemic flow reduction of the portal vein and increases arterial perfusion [61]. These findings are consistent with late phase benefits seen in muscle flaps as discussed earlier (Figure 3).

Other Organ Specific Effects

Heart

Shimizu et al. uncovered a <15 kDa hydrophobic circulating factor (or factors) induced by IPC with characteristics of the “cardioprotective factor”[62]. Some implicated factors include cardiac enkephalins [63], p38 MAP-kinase [64,65], and glycogen synthase kinase (GSK-3) [66].

Guo et al. demonstrated the dual role of cytokine-inducible, nitric oxide synthase (iNOS) as a mediator of myocardial ischemia/reperfusion (I/R) injury. It is found to be protective in cardiomyocytes but deleterious in peripheral red blood cells [67]. The implications of this finding in the IPC setting remain to be seen. Similarly, endothelial nitric oxide synthase (eNOS) appears to bind to heat shock protein 9 (Hsp9) to induce the cardioprotective IPC effect [68].

Clinically, Gao et al. showed that the ideal sequence for maximizing the benefits of IPC is one day of remote IPC followed by a one-day interval before surgery [69]. Research from cardiothoracic surgery determined that IPC must last at least two minutes to confer a benefit to the patient [70]. IPC reduces the release of CK-MB following CABG and stimulates left ventricular HSP-72 protein expression [71]. The ischemia must be sustained continuously as intermittent ischemia does not provide cardioprotection nor does it incite changes in cytokine levels [72].

There are conflicting reports regarding IPC’s ability to reduce procedure-related cardiac troponin I release or to protect the lungs [73]. Lin et al. demonstrated that by reducing lipid peroxidation and systemic inflammatory responses, IPC is protective of the lungs [74]. Another study indicated that in children, remote IPC significantly lowered postoperative airway resistance [75].

Gastrointestinal System

Despite its protective effects in the liver, IPC demonstrated inconsistent results in delayed intestinal procedures. One study demonstrated no protective effects in colonic anastomosis [76]. Another study showed a reduced injury risk by mesenteric ischemia through a mechanism involving PKC inhibition [77]. Remote IPC is preferential to local IPC in many cases—remote IPC eliminates the anastomotic instability seen in small bowel surgeries with local IPC [78]. IPC directly prior to performing a small bowel anastomosis has a time-dependent beneficial effect on anastomotic stability [79].

Urinary System

The research on IPC in urology and nephrology mirrors that found in other fields. The proposed key players are adenosine, bradykinin and cannabinoids as potential humoral mediators in IPC’s over anti-inflammatory effects. As in cardiology, the ATP-sensitive K channel appears to be critical [80]. Unlike in the intestine, effects of IPC are not related to heme oxygenase-1 induction or neural transmission in the kidney. Renal IPC is associated with local and systemic protection [81]. Cardiothoracic research notes IPC effect on endothelial function, as in other fields. In rats, IPC reduced fibrosis and α-smooth muscle active expression in kidneys 15 days after reperfusion [82]. However, IPC did not provide endothelial protection in the kidneys of children [33].

Conclusion

The field of reconstructive surgery can benefit greatly from an understanding of the discoveries in ischemic preconditioning in other fields in the context of the delay phenomenon. While the current understanding of ischemic preconditioning leaves many questions unanswered, a model of IPC’s pathways and effects are becoming clearer with the collective knowledge from other medical fields. IPC is well established in its promotion of anti-oxidative, anti-apoptotic and anti-inflammatory effects. Similarly, IPC’s angiogenic potency and humoral mediation of the immune system via biochemical mediators are consistently recognized.

The angiogenic potentiating effect seen across the fields in IPC, of course, remains a hallmark of reconstructive surgery’s interest in this phenomenon. Promoting angiogenesis via IPC is a useful tool to promote flap survival and reduce graft-related complications. IPC’s activation of angiogenic genes has extensive implications for flap design, particularly in poorly vascularized regions. Furthermore, IPC’s ability to reduce endothelial dysfunction is useful in enhancing and protecting the microcirculation of flaps. Interestingly, IPC’s ability to reduce rejection rates in liver grafts may have applications in non-autologous implants and transplants. The implementation of IPC stands to leave a major mark on reconstructive surgery, opening the door for previously unfeasible flap designs secondary to improved vascularity and enhanced clinical outcomes.
