Airborne Survival of Escherichia coli under Different Culture Conditions in Synthetic Wastewater

Abstract

Bioaerosol generated in wastewater treatment plants has potential to harm human health. Survival of bacteria in bioaerosol during suspension is one of the major factors that affect its biological risk. It is hypothesized that bacteria grown in different wastewater have different physiology and lead to variation in airborne survival. This study investigated the relationship between the cultured conditions and the bioaerosol survival. Synthetic wastewater was used as the culture medium to simulate the water quality of wastewater. Escherichia coli BW25113 were cultured in different conditions, including growth salinity, growth temperature, growth pH, and presence of pesticide. The fatty acid composition and the reduction in airborne survival of the E. coli cultured under these conditions were determined and compared. Results showed that increasing growth salinity and temperature led to a lower reduction in airborne survival of E. coli. E. coli cultured at pH 6 had a higher reduction in airborne survival than those cultured at pH 7 and 8. Moreover, a correlation was observed between the membrane fluidity (fluidity index) and the reduction airborne survival for both aerosolization and airborne suspension. A link between culture conditions, bacterial membrane fluidity, and airborne survival was established. Culture conditions (wastewater quality) that lead to a low membrane fluidity of bacteria increase the airborne survival of bioaerosol, and vice versa. This provides a new aspect to evaluate bioaerosol survival and improve assessment on biological risk of bioaerosols.

1. Introduction

Wastewater treatment plants (WWTPs) are a major anthropogenic source of bioaerosol. Different processes in WWTPs, such as bubble bursting, scum, and foam formation lead to bioaerosol generation [1,2]. The generated bioaerosol can be dispersed by the downwind movement [3,4], which causes potential hazards to human health, especially infectious disease, respiratory diseases, and cancer [5,6,7,8,9,10]. For example, there are several bioaerosol transmitted infections, such as influenza, winter stomach, and tuberculosis [5,10]. Moreover, airway inflammation is also caused by inhalation of specific toxins, pro-inflammatory agents, or allergens [5]. Oncogenic viruses and other biological agents such as mold can increase the risk for certain cancers [5,8,9]. Iven et al. [11] reported that high exposure to endotoxins was associated with reports of diarrhea. Moreover, the bioaerosols from WWTPs were able to penetrate the final stages of the Andersen apparatus (size: 0.65–1.1 µm), which indicates that bioaerosol is able to penetrate the human lung [3]. Furthermore, human opportunistic pathogens were always found in the bioaerosol generated from WWTPs [4,12]. Therefore, various studies have been conducted to evaluate the biological risk of the bioaerosol generated from WWTPs [3,4,12].

The properties of the bioaerosol affect its biological risk [10,13,14]; these include number of bioaerosols, size of bioaerosol, survival of bioaerosol during dispersal, and types of microorganisms present in bioaerosol. Smaller bioaerosols have a better ability to penetrate the lung and have a longer suspension time in the air, which results in a higher biological risk [14]. Larger numbers of bioaerosols generated and better survival of the bioaerosol during dispersal also increase the biological risk. These characteristics of bioaerosols can be affected by the water quality. High concentrations of organic surface active material tend to decrease the production of aerosols [15]. High salinity levels tend to limit bubble coalescence and thus increase aerosolization [16]. Moreover, the presence of salt content in the suspension medium leads to an increase in the aerodynamic size of the bioaerosol [17]. With the emergence of pharmaceuticals and personal care products in the aqueous environment [18], antibiotic resistance genes have been detected in the bioaerosol generated from WWTPs [19].

However, the impact of water quality of wastewater on the bioaerosol survival is not clearly understood. Our previous study showed that the airborne survival of Escherichia coli was related to the fluidity of the membrane, and the E. coli cultured in a lower temperature, which had a higher membrane fluidity, had a lower airborne survival compared to those cultured in a higher temperature [20]. This provides insight into the investigation of impact of water quality on airborne survival of bacteria. The water quality in wastewater varies among different WWTPs due to the difference in the sewage influents [21,22]. For example, some coastal cities (e.g., Hong Kong) use seawater for toilet flushing, which results in a higher salinity and pH of wastewater [23]. Therefore, it would be interesting to know if the change in membrane fluidity (fatty acid composition) caused by the variation in water quality of wastewater affects the airborne survival of bacteria after aerosolization.

This study aimed to investigate the impact of culture conditions on E. coli airborne survival. We hypothesized that an increase in membrane fluidity induced by the culture conditions would lead to a decrease in E. coli airborne survival and vice versa. E. coli was cultured in different conditions, including growth pH, temperature, salinity, and the presence of Dieldrin. Then, the fatty acid profile and the reduction in airborne survival of the E. coli were compared. The correlation between the membrane fluidity and the reduction in airborne survival was evaluated as well.

2. Materials and Methods

2.1. Bacteria Strains

E. coli was selected as a model bacterium due to its extensive use in bioaerosol studies and its common occurrence in bioaerosol generated from WWTPs [3,4,12,24]. E. coli BW25113 were purchased from Coli Genetic Stock Center (CGSC, Yale University, New Haven, CT, USA) [25].

2.2. Growth Conditions

The experimental procedures were similar to our previous study [20]. Briefly, fresh cultures of E. coli were grown at 30 °C at 150 rpm to the stationary phase. The stationary phase was determined by using growth curves. To simulate the wastewater quality in Hong Kong, a synthetic wastewater medium was prepared according to Wang et al. [26] with modification. A stock solution was prepared with the main components of glucose (19.57 g/L), sodium acetate (26.1 g/L), yeast extract (9.786 g/L), NH₄Cl (18.37 g/L), K₂HPO₄ (1.92 g/L), and KH₂PO₄ (0.72 g/L). Then, the stock solution was mixed with tap water proportionally (1:4.4 in volume). Then, different substances were added to the medium according to the need (

Table 1. Details of the tested culture conditions in this study.

Tested Conditions	Tested Range	Procedures	Justification
Salinity	0, 6, and 12 g/L NaCl	Addition of NaCl into the synthetic wastewater medium.	Salinity of wastewater was usually <10 g/L. Salinity of Hong Kong wastewater ranged from 7–12 g/L Cl− due to the use of seawater for toilet flushing [23].
pH	pH 6, 7, and 8	Addition of appropriate amounts of K2HPO4 and KH2PO4 into the synthetic wastewater medium according to the phosphate buffer formulation to achieve desired pH (ionic strength 50 mM).	Normal wastewater ranged from 6–8. The pH of Hong Kong wastewater ranged from 7–8 [23].
Temperature	20 and 30 °C	Cultured the bacteria in synthetic wastewater medium with 12 g/L NaCl at different temperatures.	Culture the bacteria in synthetic wastewater medium with 12 g/L NaCl at different temperatures. The average air temperatures in Hong Kong are 20 and 30 °C
Presence of organic pollutants	10 μM Dieldrin	Addition of Dieldrin into the synthetic wastewater medium with 12 g/L NaCl.	Addition of 8.6 μM Dieldrin significantly decreased the fluidity of E. coli cell membrane [27].

). Next, the bacterial cells were washed with phosphate buffered saline (PBS, pH 7.4) twice and then transferred to a six-jet Collison nebulizer (BGI Inc., Houston, Texas, TX, USA) for nebulization.

2.3. Experimental Setup on Airborne Survival

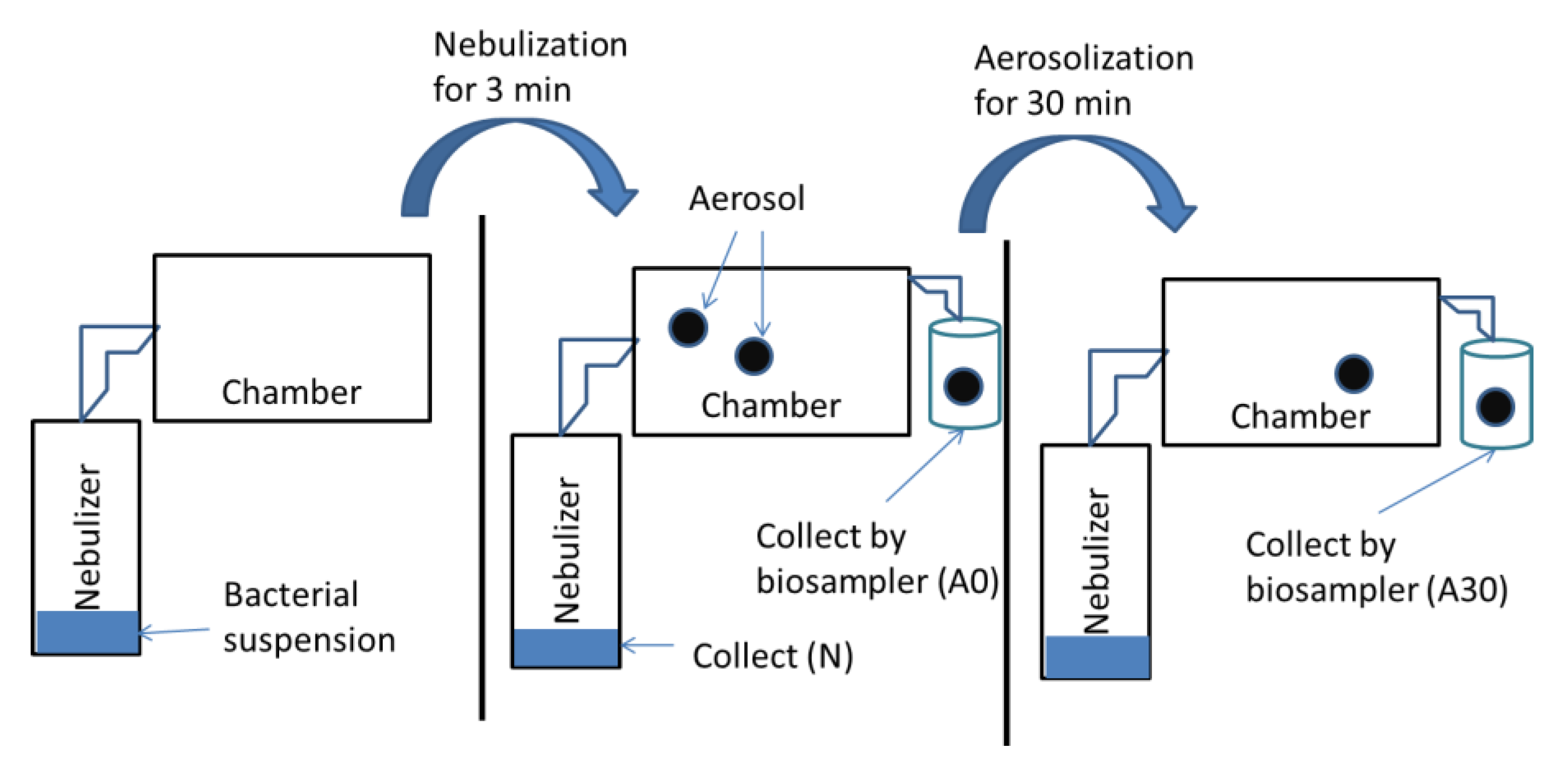

The reduction of bioaerosol survival of the bacteria was analyzed with procedures in our previous study with modification [20]. Each bacterial suspension was nebulized for 3 min in a nebulizer, and the aerosols generated were suspended in a cylindrical chamber (diameter × height: 50.8 cm × 58 cm, volume: 87 L) for 30 min. The air temperature and the relative humidity (RH) of 60% in the chamber were set based on Hong Kong climate conditions. The air temperature in the chamber was set at 30 ± 2 °C (average air temperature in a Hong Kong summer), and relative humidity was adjusted by either spraying sterile water or purging dehumidified air into the chamber to reach RH 60% (average lowest relative humidity in a Hong Kong summer). The temperature and the RH of the chamber were measured by a digital hygrometer (Lutron HT-3017, Taiwan). The experimental setup and the details are shown in a schematic diagram (Figure 1).

Bacteria in the nebulizer (N) and in the air (A0, A30) were sampled at different sampling points, as stated in our previous study [20]. Bacteria at A0 and A30 were collected by a biosampler (SKC, Inc., Eighty Four, PA, USA) at a flow rate of 12.5 L/min for 2 min. The biosampler was used to collect the bacteria, as the stress on bacteria induced by the biosampler was minimal due to less particle bounce [28,29]. The reduction in bacterial survival was calculated between different sampling points: (1) aerosolization (N to A0)—interface between bacteria in liquid suspension to the air; and (2) airborne suspension (A0 to A30)—before and after 30 min of airborne suspension. One sample was collected at each sampling point, and all the experiments were repeated in triplicate under well controlled laboratory conditions.

2.4. Determination of Bacterial Survival

To determine the bacterial survival, both culturable and DNA counts of the collected bacteria were measured. The plate-count method and the DNA counts by quantitative polymerase chain reaction (qPCR) were used for determination of the culturability of the bacterial cells [30]. In brief, bacterial DNA was extracted using a QIAamp DNA Mini Kit (Qiagen, Hilden, Germany) following the manufacturer’s protocol. The concentration of the extracted DNA samples was determined by qPCR using a QuantiNova^TM SYBR^® Green PCR Kit (Qiagen, Hilden, Germany) with the forward primer 784 (5′-GTGTGATATCTACCCGCTTCGC-3′) and the reverse primer 866 (5′-AGAACGGTTTGTGGTTAATCAGGA-3′), which bind to the uidA gene that is specific for E. coli determination [31].

To account for the potential physical loss of bioaerosols during aerosolization and suspension, survival was calculated as shown in Equation (1).

$$\mathrm{The}\mathrm{survivial}=\frac{\mathrm{number}\mathrm{of}\mathrm{culturable}\mathrm{bacterial}\mathrm{cells}\left(\mathrm{plate}-\mathrm{count}\mathrm{data}\right)}{\mathrm{total}\mathrm{number}\mathrm{of}\mathrm{bacterial}\mathrm{cells}\left(\mathrm{qPCR}\mathrm{data}\right)}.$$

(1)

To assess the change in the airborne bacterial survival during aerosolization, the log reduction between the normalized culturable bacterial count before (N) and after 0 min (A0) of aerosolization was calculated as shown in Equation (2):

$$Logreduction={\log }_{10}N-{\log }_{10}A0.$$

(2)

Similar to aerosolization, to assess the change in the airborne bacterial survival during suspension, the log reduction between after 0 min (A0) and 30 min (A30) of aerosolization was calculated as shown in Equation (3):

$$Logreduction={\log }_{10}A0-{\log }_{10}A30.$$

(3)

It is possible there was no airborne bacterial survival after suspension; therefore, the actual value of log reduction could not be detected.

2.5. Fatty Acid Analysis

The fatty acid composition of the bacteria in culture medium was determined by MIDI Sherlock^® microbial identification system (MIDI, Inc., Newark, NJ, USA), as stated in our previous study [20]. The fatty acids were extracted and methylated according to the protocol recommended by the company (MIDI, Inc., Newark, NJ, USA). The extracted fatty acids were analyzed by an Agilent HP 6890 Series II gas chromatograph (Hewlett Packard, Avondale, AZ, USA) coupled with a flame ionization detector (FID). The fluidity index (FI) of the membrane was calculated according to Equation (4) [32]. All the results were the mean of duplicates.

$$FI=\frac{UFAs+CFAs}{SFAs}$$

(4)

where UFAs are unsaturated fatty acids (16:1 and 18:1), CFAs are cyclopropane fatty acids (17:0 cyclo and 19:0 cyclo), and SFAs are saturated fatty acids (16:0 and 18:0)

2.6. Statistical Analysis

One-way analysis of variance (ANOVA) with Duncan’s post-hoc test (SPSS v. 23, IBM, Chicago, IL, USA) were used for determining and comparing the log reduction of the survival between different sampling points. Our data in this study proved not to violate the assumption of ANOVA, including normally distributed, independence of cases, and homogeneity of variance. The correlation between FI and log reduction of the survival was analyzed with Pearson correlation analysis (SPSS v. 23, IBM, Chicago, IL, USA). Differences between means with p-values lower than 0.05 (p < 0.05) were regarded as statistically significant. Otherwise, p-values lower than 0.05 (p < 0.05) were regarded as statistically correlated.

3. Results and Discussion

3.1. Impact of Culture Conditions on the Airborne Survival of E. coli

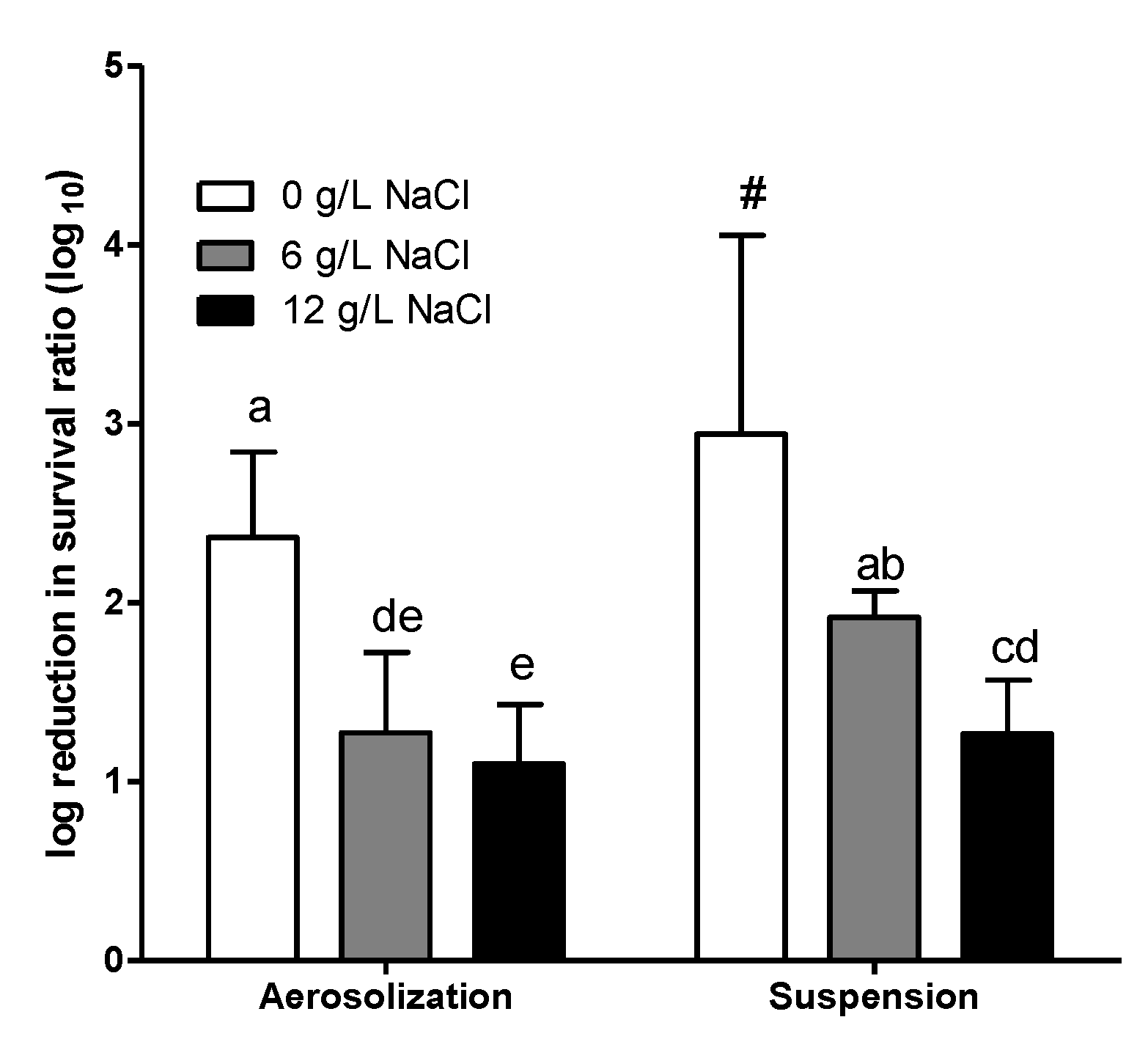

Increase in NaCl concentration in the synthetic wastewater medium reduced the log reduction of survival for both aerosolization and airborne suspension (Figure 2). The log reduction of survival during aerosolization reduced from 2.37 (0 g/L) to 1.27 (6 g/L) and 1.10 (12 g/L). The effect was more remarkable for airborne suspension. The log reduction of survival of E. coli at 0 g/L growth salinity during airborne suspension was high (>2.94, and the acute value may have been even higher, as no airborne bacterial survival could be detected at A30). Then, the log reduction decreased significantly to 1.92 and 1.27 when the growth salinity increased to 6 and 12 g/L, respectively.

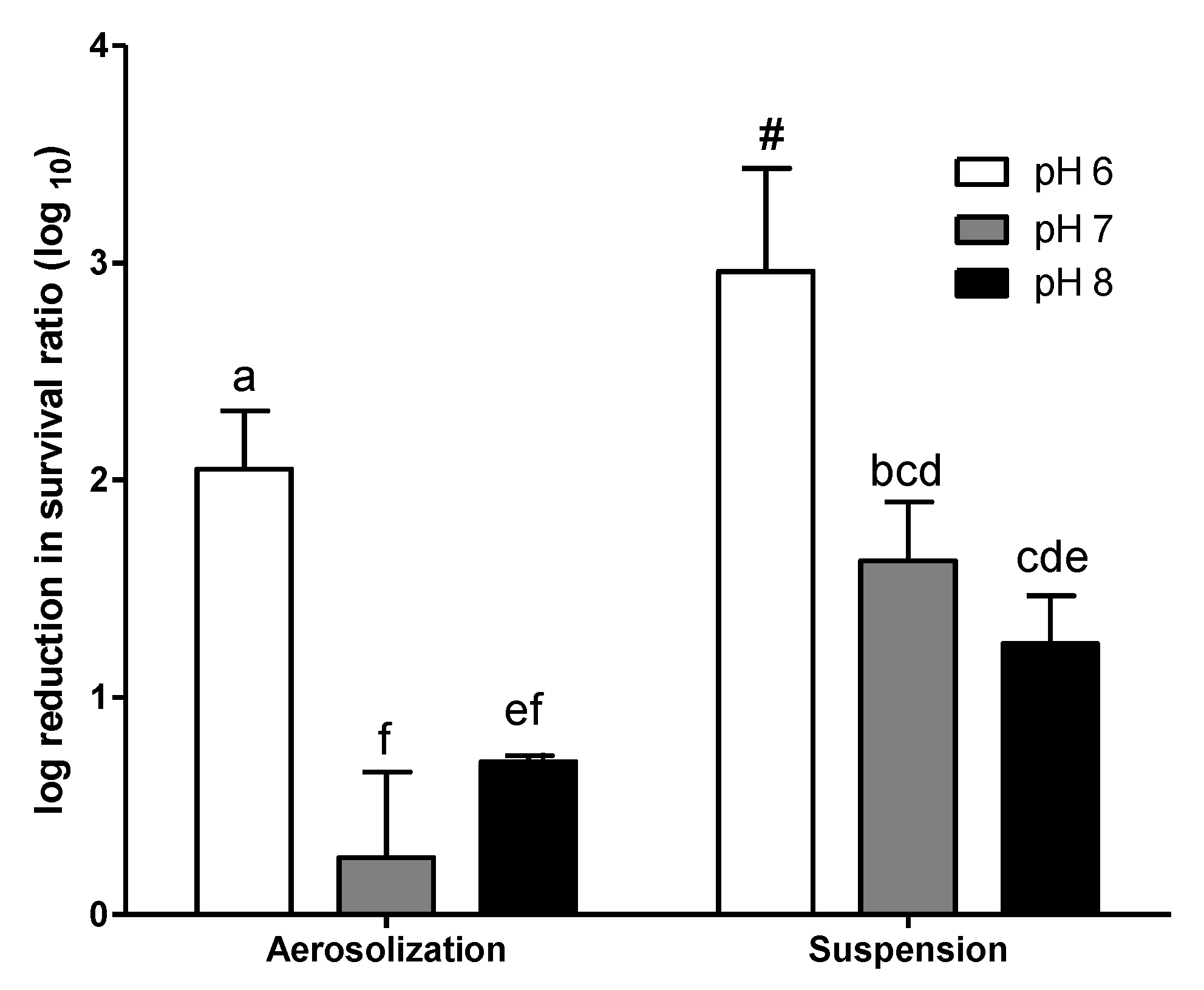

The E. coli showed a higher reduction in survival when it grew at pH 6 (Figure 3). No significant difference in log survival was observed for E. coli grown at pH 7 and pH 8 for either aerosolization or airborne suspension. The log reduction of survival during aerosolization (2.05) and suspension (>2.97, and the acute value may have been even higher, as no airborne bacterial survival could be detected at A30) for E. coli grown at pH 6 was remarkably higher that those grown at pH 7 and pH 8.

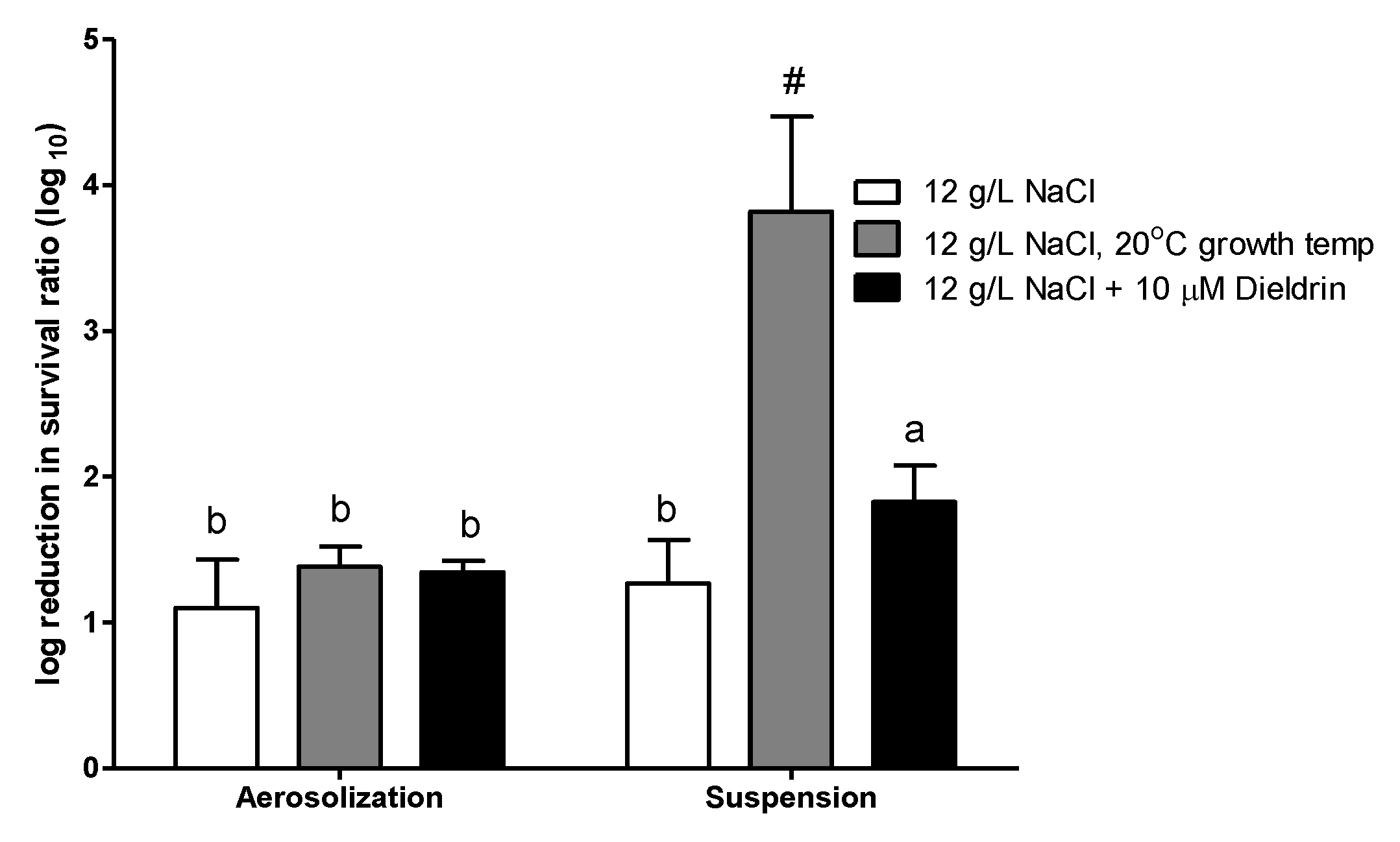

The effect of growth temperature and the addition of pesticide on airborne survival is shown in Figure 4. Addition of 10 μM Dieldrin in the synthetic wastewater medium did not affect the airborne survival of E. coli during aerosolization, but the log reduction of the survival was higher during suspension. The log reduction of the survival slightly increased to 1.83. For E. coli cultured at a lower temperature (20 °C), no significant effect was observed on the airborne survival of E. coli during aerosolization. However, the log reduction in survival during suspension was much higher (>3.81, and the acute value may have been even higher, as the survival at A30 was 0) than the E. coli grown at 30 °C.

3.2. Relation between Culture Conditions, Membrane Fluidity, and Airborne Survival

The percentage of different types of fatty acid profiles of E. coli cultured under different conditions is shown in

Table 2. Percentage of unsaturated fatty acids (UFAs), saturated fatty acids (SFAs), cyclopropane fatty acid (CFA), and fluidity index (FI) of the E. coli cultured at different conditions.

	0 g/L NaCl	6 g/L NaCl	12 g/L NaCl	12 g/L NaCl + 10 uM Dieldrin	12 g/L NaCl (Grown at 20 °C)	pH 6	pH 7	pH 8
UFAs a	37.0	16.2	14.0	13.9	30.9	40.7	19.6	32.1
SFAs b	26.8	32.8	34.6	32.7	31.2	32.0	32.3	32.4
CFAs c	19.2	31.4	33.4	28.0	20.5	15.0	24.8	12.6
FI d	2.10	1.45	1.37	1.28	1.65	1.74	1.37	1.38

^a UFAs = 16:1 + 18:1; ^b SFAs = 16:0 + 18:0; ^c CFAs = 17:0 cyclo + 19:0 cyclo; ^d FI = (UFAs + CFAs)/SFAs, All values were mean of duplicates.

. The details of each fatty acid can be found in Table S1 in Supporting Information. The culture conditions influenced the fatty acid profile differently. Increasing NaCl concentration in the synthetic wastewater medium led to a decrease in FI from 2.1 (0 g/L) to 1.45 (6 g/L) and 1.37 (12 g/L). The FIs of E. coli cultured in pH 7 (1.37) and pH 8 (1.38) were similar but increased remarkably when the pH decreased to 6 (1.74). The addition of 10 μM Dieldrin slightly decreased the FI (1.28). E. coli cultured at 20 °C resulted in an increase in FI (1.64). The changes in the fatty acid profile of E. coli cultured in different culture conditions agreed with the results of previous studies. For example, Casadei et al. [32] reported that an increase in growth temperature led to a decrease in E. coli membrane fluidity. The ratio of saturated fatty acid increased with increasing growth salinity, as stated by James and Armstrong [33]. Increase in growth pH resulted in an increase in unsaturated fatty acid and a decrease in cyclopropane fatty acid [34]. Rosas et al. [27] reported that the addition of 10 μM Dieldrin in the medium resulted in a higher membrane saturation of E. coli.

Our previous study reported a significant correlation between the FI of E. coli and the log reduction of survival during airborne suspension at 20 °C and RH 60% [20]. This correlation was also observed in this study in both aerosolization and suspension. A significant correlation was observed between the FI and the log reduction in survival during aerosolization and suspension (

Table 3. Pearson correlation between membrane FI and bacterial survival during aerosolization and airborne suspension for E. coli cultured in different conditions. p < 0.05 is regarded as significantly correlated.

	Aerosolization	Suspension
Number of sample	24	24
Pearson correlation	0.8025	0.5606
p value (two-tailed)	p < 0.0001	0.0044

). The results agreed with our previous study and further confirmed the importance of membrane fluidity in regard to the airborne survival of E. coli. Reduction in FI resulted in a tightly packed membrane and could protect the bacteria to deal with the dehydration process during aerosolization and airborne suspension [20]. As the higher air temperature (30 °C) imposed a higher stress to the E. coli (bacteria airborne survival is usually higher with temperature >24 °C) [35], the protective effect of membrane fluidity became more significant, and thus the correlation was also observed for the aerosolization process.

Moreover, for E. coli cultured in conditions that had a FI > 1.6 (e.g., 20 °C, pH 6, and 0 g/L), the reduction in survival was significantly higher (all the E. coli died at A30 and survival dropped to zero). In our previous study, the fabR mutant (FI = 0.61) showed a high resistance (almost no reduction in survival) when the E. coli was suspended at air temperature 20 °C and RH 60% [20]. These results suggested that there was a critical fluidity (FI) value for the E. coli that led to hypersensitivity (for high FI) and hyper resistance (for low FI) of E. coli to airborne suspension.

Although bacterial membrane fluidity is a major factor in regard to airborne survival, the results suggested that other physiological changes of E. coli may also have affected the airborne survival. For example, E. coli cultured in the presence of Dieldrin had a lower FI but also had a slightly higher reduction in survival during suspension. E. coli cultured at pH 7 and pH 8 and 12 g/L NaCl had similar FIs but showed a difference in reduction of survival during aerosolization and suspension. Other factors such as oxidative stress protection may also have affected the survival, which requires more research.

3.3. Environmental Implication

Airborne survival of bacteria is determined by many factors. The impact of meteorological factors, especially RH and air temperature, is well known [35]. The effect of suspension medium on the airborne survival of bacteria has been reported as well [17]. This study provides a new aspect for assessment of bioaerosol survival in different wastewaters. A link between the culture conditions, the bacterial physiology, and the airborne survival was established. Besides meteorological factors, water quality of wastewater can also be used to evaluate the airborne survival of bacteria. Water quality of wastewater (culture conditions) that leads to low membrane fluidity of bacteria increases the airborne survival of bioaerosol and vice versa.

The impacts of culture conditions such as growth temperature, pH, and salinity on bacterial membrane fatty acid were well studied. For example, bacteria cultured in a low temperature and a high osmotic pressure (e.g., salinity) generally had high membrane fluidity [36]. Now, the information can be used to predict the airborne survival of the bacteria. For example, bacteria in bioaerosols generated from wastewater with a higher salinity (e.g., Hong Kong, ranging from 7–12 g/L Cl⁻) is very likely to have low membrane fluidity and thus a higher survival than those generated in a WWTP with a low salinity (e.g., <1 g/L Cl⁻). This concept can be incorporated into the current assessment based on the meteorological factors to improve the prediction of bioaerosol survival.

This study was conducted in laboratory conditions with a limited number of experiments, which limited the extrapolation of the results to the real situation. More factors that may have affected the FI of bacteria should be investigated. Moreover, bacterial strains and wastewater should be collected from real environments in a future study to further validate the findings of this study.

4. Conclusions

This study reveals the relationship between culture conditions, bacterial membrane fluidity, and bio-airborne survival. E. coli were cultured under different conditions, including growth pH, temperature, salinity, and the presence of Dieldrin, and then the fatty acid profile of the E. coli cultures was determined.

In brief, an increase in NaCl concentration in the synthetic wastewater medium reduced the log reduction of survival for both aerosolization and airborne suspension. On the other hand, the E. coli showed a higher reduction in survival when it grew at pH 6.

E. coli cultured at a lower temperature (20 °C) or with the addition of 10 μM Dieldrin in the synthetic wastewater medium showed no significant effects on the airborne survival of E. coli during aerosolization. However, the log reduction in survival was higher during suspension.

The fatty acid profile and the reduction in airborne survival of the E. coli were investigated and compared. The results showed that the culture conditions that led to low membrane fluidity resulted in a lower reduction in the airborne survival of E. coli. and vice versa. This provides new insight into the evaluation of bioaerosol survival and the assessment of the biological risks of bioaerosols.
