# Urban Metabolic Analysis of a Food-Water-Energy System for Sustainable Resources Management

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

_{2}in Beijing and Shanghai [26]. Zhang et al. (2018) utilized statistics, equilibrium, econometric, ecological, life cycle, system dynamics, agent-based, and integrated index methods to explore the water-energy-food nexus [27].

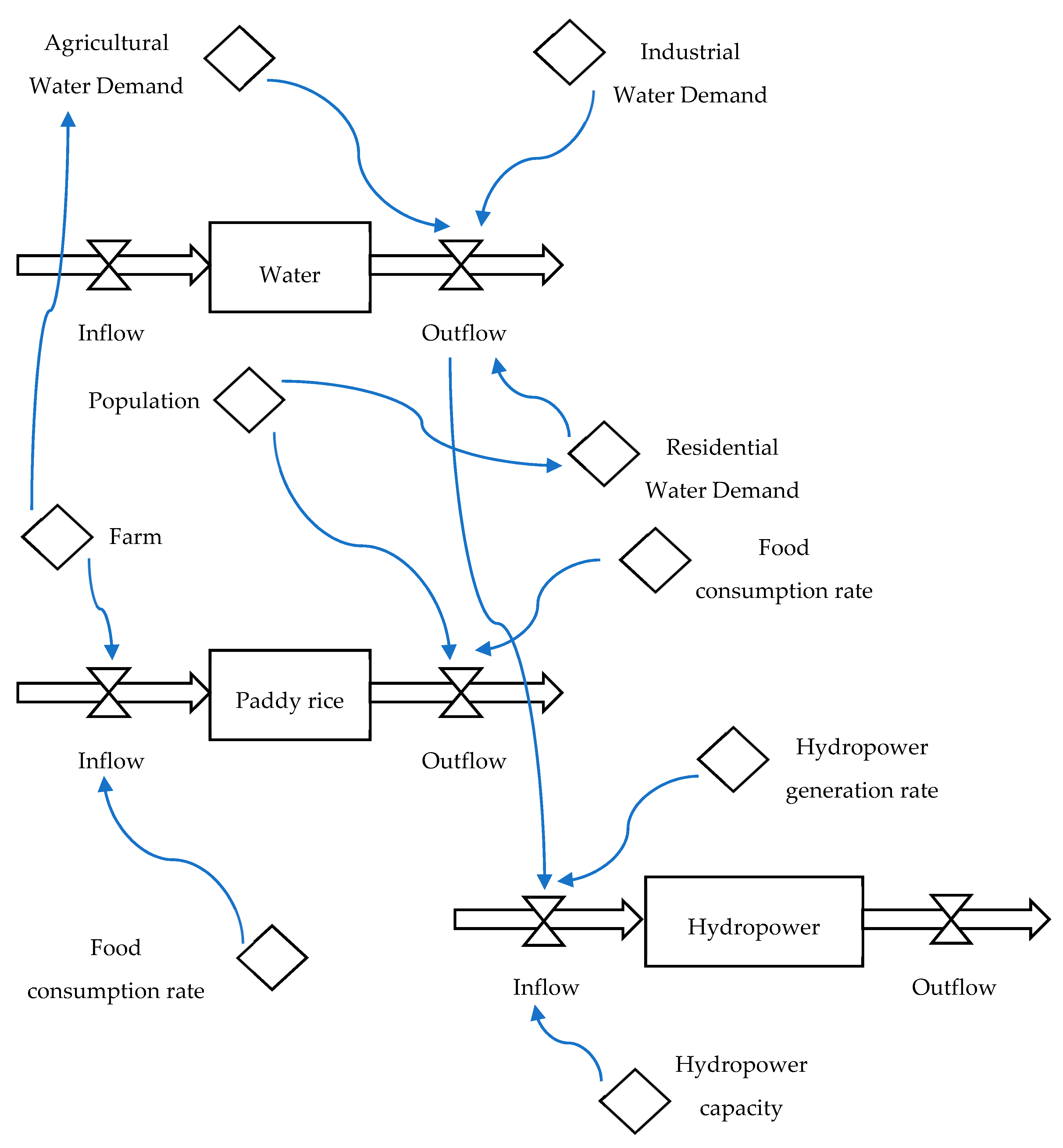

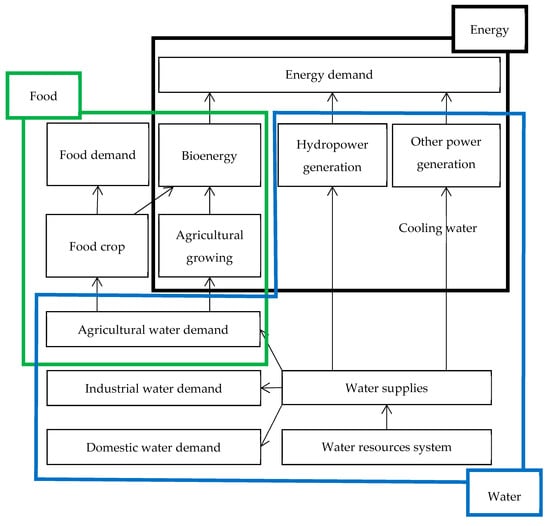

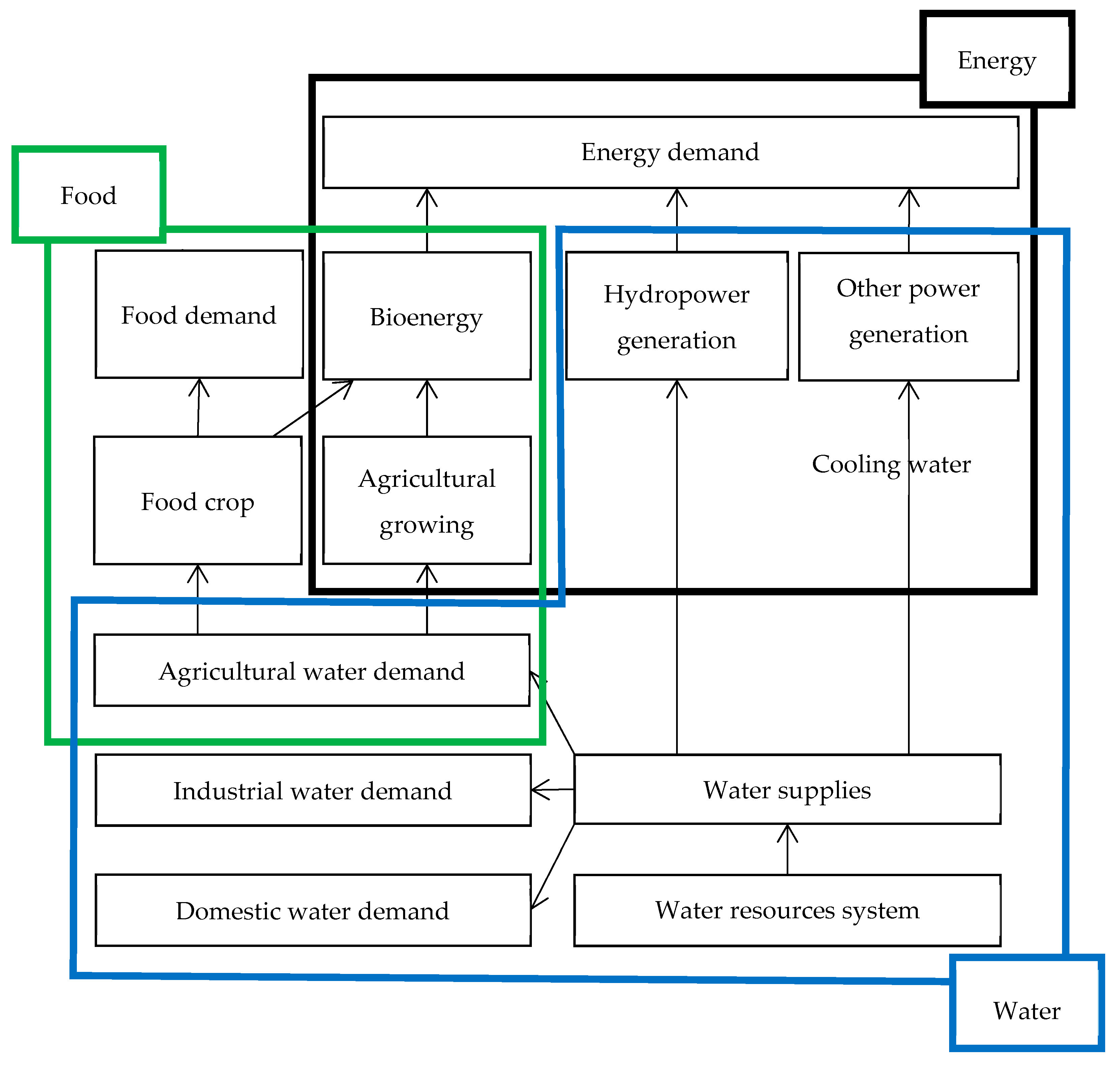

## 2. Materials and Methods

## 3. Results and Discussion of Urban Metabolic Food-Water-Energy System

^{3}and a catchment area of 760 km

^{2}. The reservoir is confronted with a serious sediment accumulation problem. One-third of the active storage capacity has been taken over by sediments.

^{3}/s and total installed capacity of 90 MW. The average annual hydropower generation is about 230,000 MWh. The maximal rice production is estimated at 180,000 tons per season for 36,000 hectares of paddy rice land of the Taoyuan Irrigation Association and the Shihmen Irrigation Association. The average water consumption of paddy rice irrigation is approximately 350 million m

^{3}.

## 4. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Nomenclature

Indices | |

$\mathrm{i},\text{}\mathrm{j}$ | node of water network, $\mathrm{i},\text{}\mathrm{j}=1,\text{}2,\text{}3,\text{}\dots ,\text{}\mathrm{I}$ |

$\mathrm{k}$ | residential, industrial, and agricultural water demand, $\mathrm{i}=\mathrm{RES},\text{}\mathrm{IND},\text{}\mathrm{AG}$ |

$\mathrm{p}$ | crop, $\mathrm{p}=1,\text{}2,\text{}3,\text{}\dots ,\text{}\mathrm{P}$ |

$\mathrm{t}$ | time, $\mathrm{t}=1,\text{}2,\text{}3,\text{}\dots ,\text{}\mathrm{T}$ |

Parameters | |

${\mathrm{FARM}}_{\mathrm{i}}^{}$ | farm size with water supply from node $\mathrm{i}$ |

${\mathrm{IN}}_{\mathrm{i}}^{}$ | water inflow at node $\mathrm{i}$ |

${\mathrm{LOSS}}_{\mathrm{i}}^{}$ | water loss at node $\mathrm{i}$ |

$\mathrm{R}{1}_{\mathrm{p}}^{}$ | production rate of crop $\mathrm{p}$ |

$\mathrm{R}{2}_{\mathrm{p}}^{}$ | biofuel production rate of crop $\mathrm{p}$ |

$\mathrm{R}{3}_{\mathrm{j},\mathrm{i}}^{}$ | water loss rate from node $\mathrm{j}$ to node $\mathrm{i}$ |

$\mathrm{R}{4}_{\mathrm{p}}^{}$ | water demand rate of crop $\mathrm{p}$ |

$\mathrm{R}{5}_{\mathrm{i}}^{}$ | hydropower production rate of node $\mathrm{i}$ |

${\mathrm{STORAGE}}_{\mathrm{i}}^{}$ | water storage capacity at node $\mathrm{i}$ |

Variables | |

$\mathrm{biofuel}$ | biofuel production |

${\mathrm{flow}}_{\mathrm{i},\mathrm{j}}^{}$ | water flow from node $\mathrm{i}$ to node $\mathrm{j}$ |

${\mathrm{food}}_{\mathrm{p}}^{}$ | food production of crop $\mathrm{p}$ |

${\mathrm{hydropower}}_{\mathrm{i}}^{}$ | hydropower generation at node $\mathrm{i}$ |

${\mathrm{s}}_{\mathrm{i}}^{}$ | water storage at node $\mathrm{i}$ |

${\mathrm{spill}}_{\mathrm{i}}^{}$ | water spillage at node $\mathrm{i}$ |

${\mathrm{supply}}_{\mathrm{i},\mathrm{k}}^{}$ | water supply of $\mathrm{i}$ to demand $\mathrm{k}$ |

${\mathrm{waterdmd}}_{\mathrm{i},\mathrm{k}}^{}$ | water demand $\mathrm{k}$ supplied from node $\mathrm{i}$ |

${\mathrm{x}}_{\mathrm{i},\mathrm{p}}^{}$ | tillage size of crop $\mathrm{p}$ with water supply from node $\mathrm{i}$ |

## References

- Lei, K.; Liu, L.; Lou, I. An evaluation of the urban metabolism of Macao from 2003 to 2013. Resour. Conserv. Recycl.
**2018**, 128, 479–488. [Google Scholar] [CrossRef] - Ramaswami, A.; Boyer, D.; Nagpure, A.S.; Fang, A.; Bogra, S.; Bakshi, B.; Cohen, E.; Rao-Ghorpade, A. An urban systems framework to assess the trans-boundary food-energy-water nexus: Implementation in Delhi, India. Environ. Res. Lett.
**2017**, 12, 025008. [Google Scholar] [CrossRef] - Newman, P.W. Sustainability and cities: Extending the metabolism model. Landsc. Urban Plan.
**1999**, 44, 219–226. [Google Scholar] [CrossRef] - Kennedy, C.; Pincetl, S.; Bunje, P. The study of urban metabolism and its applications to urban planning and design. Environ. Pollut.
**2011**, 159, 1965–1973. [Google Scholar] [CrossRef] [PubMed] - Pincetl, S.; Bunje, P.; Holmes, T. An expanded urban metabolism method: Toward a systems approach for assessing urban energy processes and causes. Landsc. Urban Plan.
**2012**, 107, 193–202. [Google Scholar] [CrossRef] - Feng, Y.Y.; Chen, S.Q.; Zhang, L.X. System dynamics modeling for urban energy consumption and CO
_{2}emissions: A case study of Beijing, China. Ecol. Model.**2013**, 252, 44–52. [Google Scholar] [CrossRef] - Zhang, Y. Urban metabolism: A review of research methodologies. Environ. Pollut.
**2013**, 178, 463–473. [Google Scholar] [CrossRef] [PubMed] - Rosado, L.; Niza, S.; Ferrão, P. A material flow accounting case study of the Lisbon metropolitan area using the urban metabolism analyst model. J. Ind. Ecol.
**2014**, 18, 84–101. [Google Scholar] [CrossRef] - Bekchanov, M.; Lamers, J.P.A. The Effect of Energy Constraints on Water Allocation Decisions: The Elaboration and Application of a System-Wide Economic-Water-Energy Model (SEWEM). Water
**2016**, 8, 253. [Google Scholar] [CrossRef] - Chang, Y.; Li, G.; Yao, Y.; Zhang, L.; Yu, C. Quantifying the Water-Energy-Food Nexus: Current Status and Trends. Energies
**2016**, 9, 65. [Google Scholar] [CrossRef] - Russo, T.; Alfredo, K.; Fisher, J. Sustainable Water Management in Urban, Agricultural, and Natural Systems. Water
**2014**, 6, 3934–3956. [Google Scholar] [CrossRef] [Green Version] - Blekking, J.; Tuholske, C.; Evans, T. Adaptive Governance and Market Heterogeneity: An Institutional Analysis of an Urban Food System in Sub-Saharan Africa. Sustainability
**2017**, 9, 2191. [Google Scholar] [CrossRef] - Liu, L.; Feng, C.; Zhang, H.; Zhang, X. Game Analysis and Simulation of the River Basin Sustainable Development Strategy Integrating Water Emission Trading. Sustainability
**2015**, 7, 4952–4972. [Google Scholar] [CrossRef] [Green Version] - Tracy, C.R. A model of the dynamic exchanges of water and energy between a terrestrial amphibian and its environment. Ecol. Monogr.
**1976**, 46, 293–326. [Google Scholar] [CrossRef] - Lee, C.L.; Huang, S.L.; Chan, S.L. Synthesis and spatial dynamics of socio-economic metabolism and land use change of Taipei Metropolitan Region. Ecol. Model.
**2009**, 220, 2940–2959. [Google Scholar] [CrossRef] - Bazilian, M.; Rogner, H.; Howells, M.; Hermann, S.; Arent, D.; Gielen, D.; Steduto, P.; Mueller, A.; Kmoor, P.; Tol, R.S.J.; et al. Considering the energy, water and food nexus: Towards an integrated modelling approach. Energy Policy
**2011**, 39, 7896–7906. [Google Scholar] [CrossRef] - Calise, F.; Cipollina, A.; d’Accadia, M.D.; Piacentino, A. A novel renewable polygeneration system for a small Mediterranean volcanic island for the combined production of energy and water: Dynamic simulation and economic assessment. Appl. Energy
**2014**, 135, 675–693. [Google Scholar] [CrossRef] - Chen, S.; Chen, B. Coupling of carbon and energy flows in cities: A meta-analysis and nexus Modelling. Appl. Energy
**2017**, 194, 774–783. [Google Scholar] [CrossRef] - Chen, P.-C.; Alvarado, V.; Hsu, S.-C. Water energy nexus in city and hinterlands: Multi-regional physical input-output analysis for Hong Kong and South China. Appl. Energy
**2008**, 225, 986–997. [Google Scholar] [CrossRef] - De Stercke, S.; Mijic, A.; Buytaert, W.; Chaturvedi, V. Modelling the dynamic interactions between London’s water and energy systems from an end-use perspective. Appl. Energy
**2018**, 230, 615–626. [Google Scholar] [CrossRef] - Facchini, A.; Kennedy, C.; Stewart, I.; Mele, R. The energy metabolism of megacities. Appl. Energy
**2017**, 186, 86–95. [Google Scholar] [CrossRef] - Martinez-Hernandez, E.; Leach, M.; Yang, A. Understanding water-energy-food and ecosystem interactions using the nexus simulation tool NexSym. Appl. Energy
**2017**, 206, 1009–1021. [Google Scholar] [CrossRef] - Ravalde, T.; Keirstead, J. Comparing performance metrics for multi-resource systems: The case of urban metabolism. J. Clean. Prod.
**2017**, 163, S241–S253. [Google Scholar] [CrossRef] - Schlör, H.; Venghaus, S.; Zapp, P.; Marx, J.; Schreiber, A.; Hake, J.-F. The energy-mineral-society nexus—A social LCA model. Appl. Energy
**2018**, 228, 999–1008. [Google Scholar] [CrossRef] - Wang, S.; Chen, B. Energy–water nexus of urban agglomeration based on multiregional input–output tables and ecological network analysis: A case study of the Beijing–Tianjin–Hebei region. Appl. Energy
**2016**, 178, 773–783. [Google Scholar] [CrossRef] - Yang, X.; Wang, Y.; Sun, M.; Wang, R.; Zheng, P. Exploring the environmental pressures in urban sectors: An energy-watercarbon nexus perspective. Appl. Energy
**2018**, 228, 2298–2307. [Google Scholar] [CrossRef] - Zhang, C.; Chen, X.; Li, Y.; Ding, W.; Fu, G. Water-energy-food nexus: Concepts, questions and methodologies. J. Clean. Prod.
**2018**, 195, 625–639. [Google Scholar] [CrossRef] - Carbonell, G.; Ramos, C.; Pablos, M.V.; Ortiz, J.A.; Tarazona, J.V. A system dynamic model for the assessment of different exposure routes in aquatic ecosystems. Sci. Total Environ.
**2000**, 247, 107–118. [Google Scholar] [CrossRef] - Badescu, V. Dynamic model of a complex system including PV cells, electric battery, electrical motor and water pump. Energy
**2003**, 28, 1165–1181. [Google Scholar] [CrossRef] - Kato, T. Simulation of water quality with the application of system dynamics model for population and land-use changes. Paddy Water Environ.
**2005**, 3, 103–109. [Google Scholar] [CrossRef] - Churkina, G. Modeling the carbon cycle of urban systems. Ecol. Model.
**2008**, 216, 107–113. [Google Scholar] [CrossRef] - Jin, W.; Xu, L.; Yang, Z. Modeling a policy making framework for urban sustainability: Incorporating system dynamics into the Ecological Footprint. Ecol. Econ.
**2009**, 68, 2938–2949. [Google Scholar] [CrossRef] - Liu, T.M.; Tung, C.P.; Ke, K.Y.; Chuang, L.H.; Lin, C.Y. Application and development of a decision-support system for assessing water shortage and allocation with climate change. Paddy Water Environ.
**2009**, 7, 301–311. [Google Scholar] [CrossRef] - Luo, G.; Yin, C.; Chen, X.; Xu, W.; Lu, L. Combining system dynamic model and CLUE-S model to improve land use scenario analyses at regional scale: A case study of Sangong watershed in Xinjiang, China. Ecol. Complex.
**2010**, 7, 198–207. [Google Scholar] [CrossRef] - Chen, S.; Chen, B. Network environ perspective for urban metabolism and carbon emissions: A case study of Vienna, Austria. Environ. Sci. Technol.
**2012**, 46, 4498–4506. [Google Scholar] [CrossRef] - Li, Y.H.; Chen, P.Y.; Lo, W.H.; Tung, C.P. Integrated water resources system dynamics modeling and indicators for sustainable rural community. Paddy Water Environ.
**2015**, 13, 29–41. [Google Scholar] [CrossRef] - Chalabi, Z.S.; Bailey, B.J.; Wilkinson, D.J. A real-time optimal control algorithm for greenhouse heating. Comput. Electron. Agric.
**1996**, 15, 1–13. [Google Scholar] [CrossRef] - Brouwer, D.R.; Jansen, J.D. Dynamic optimization of water flooding with smart wells using optimal control theory. In Proceeding of the European Petroleum Conference, Aberdeen, UK, 29–31 October 2002. [Google Scholar]
- Sohngen, B.; Mendelsohn, R. An optimal control model of forest carbon sequestration. Am. J. Agric. Econ.
**2003**, 85, 448–457. [Google Scholar] [CrossRef] - López-Ibáñez, M.; Prasad, T.D.; Paechter, B. Ant colony optimization for optimal control of pumps in water distribution networks. J. Water Res. Plan. Manag.
**2008**, 134, 337–346. [Google Scholar] [CrossRef] - Zhang, Q.; Maeda, S.; Kawachi, T. Stochastic multiobjective optimization model for allocating irrigation water to paddy fields. Paddy Water Environ.
**2007**, 5, 93–99. [Google Scholar] [CrossRef] - Chono, S.; Maeda, S.; Kawachi, T.; Imagawa, C.; Buma, N.; Takeuchi, J. Optimization model for cropping-plan placement in paddy fields considering agricultural profit and nitrogen load management in Japan. Paddy Water Environ.
**2012**, 10, 113–120. [Google Scholar] [CrossRef]

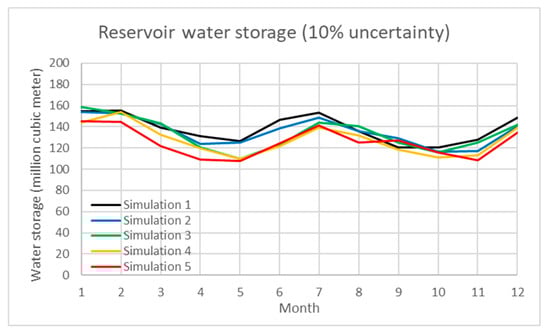

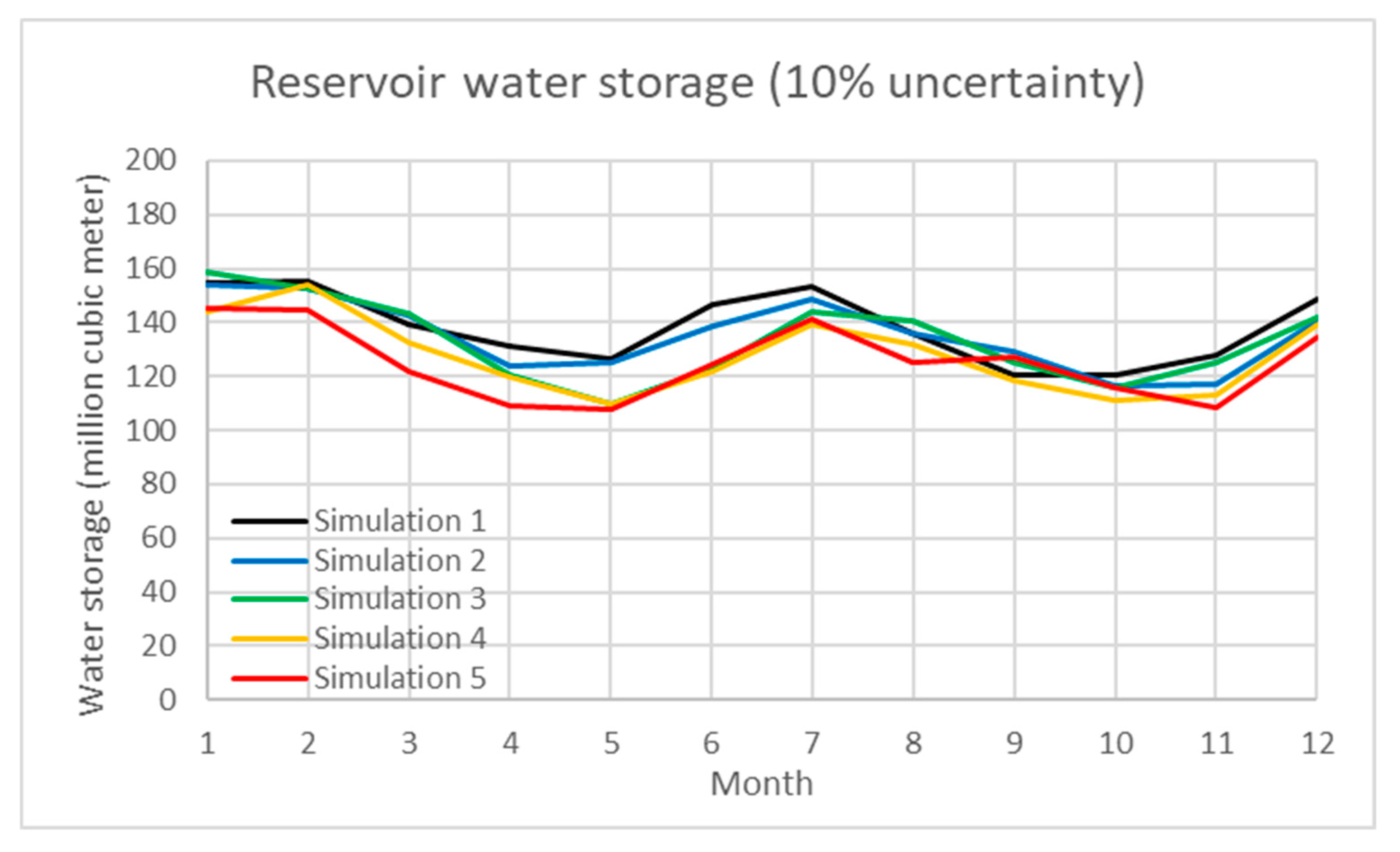

**Figure 4.**Simulation results of water storage in the Shihmen Reservoir under 10% uncertainty of water inflow.

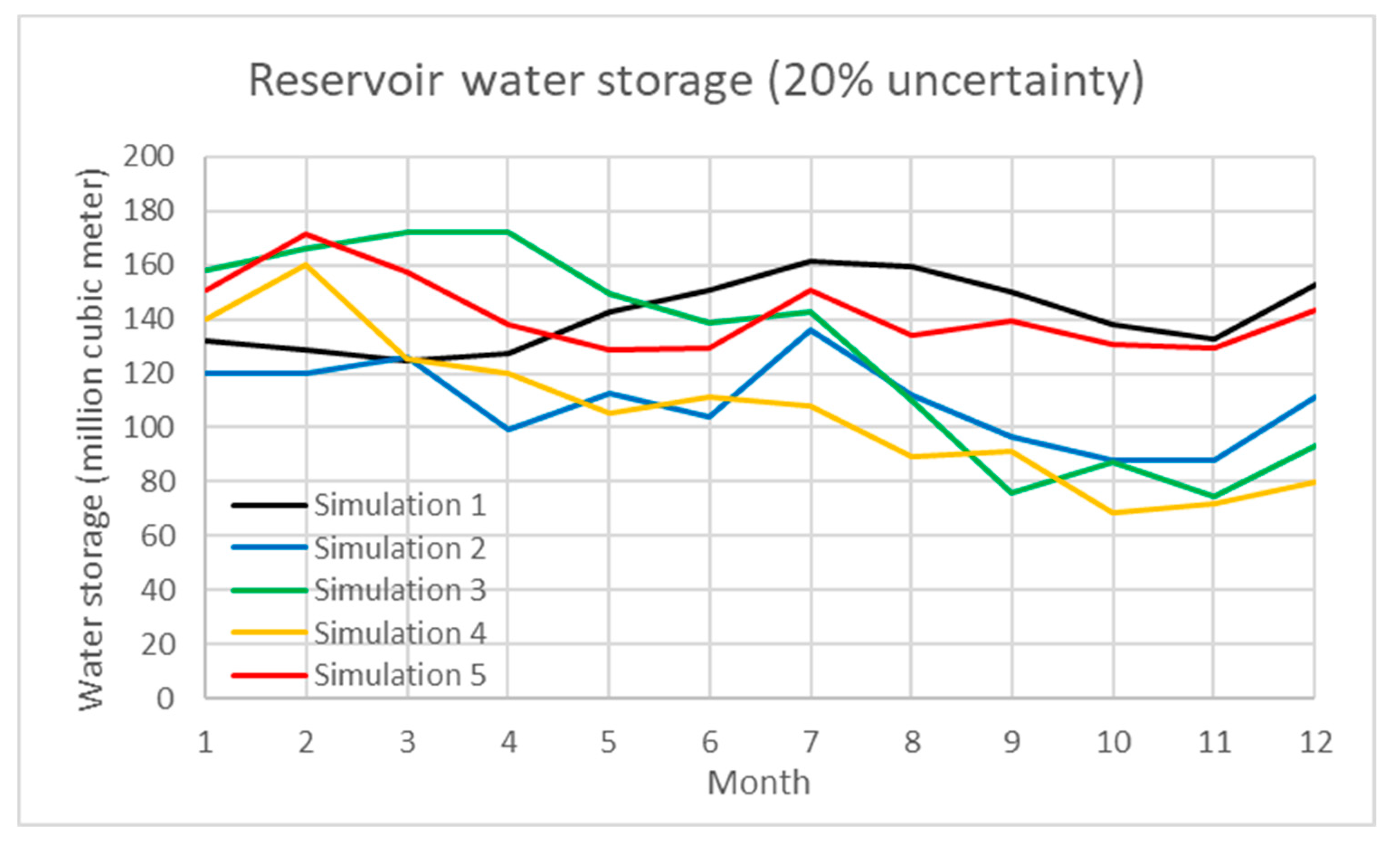

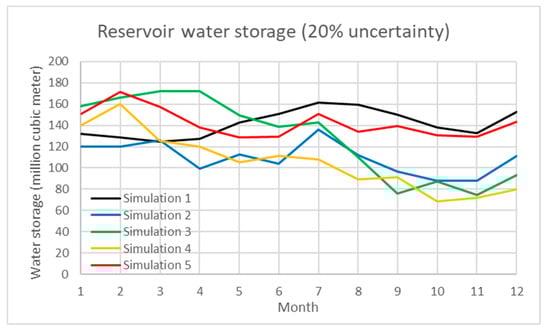

**Figure 5.**Simulation of water storage in the Shihmen Reservoir under 20% uncertainty of water inflow.

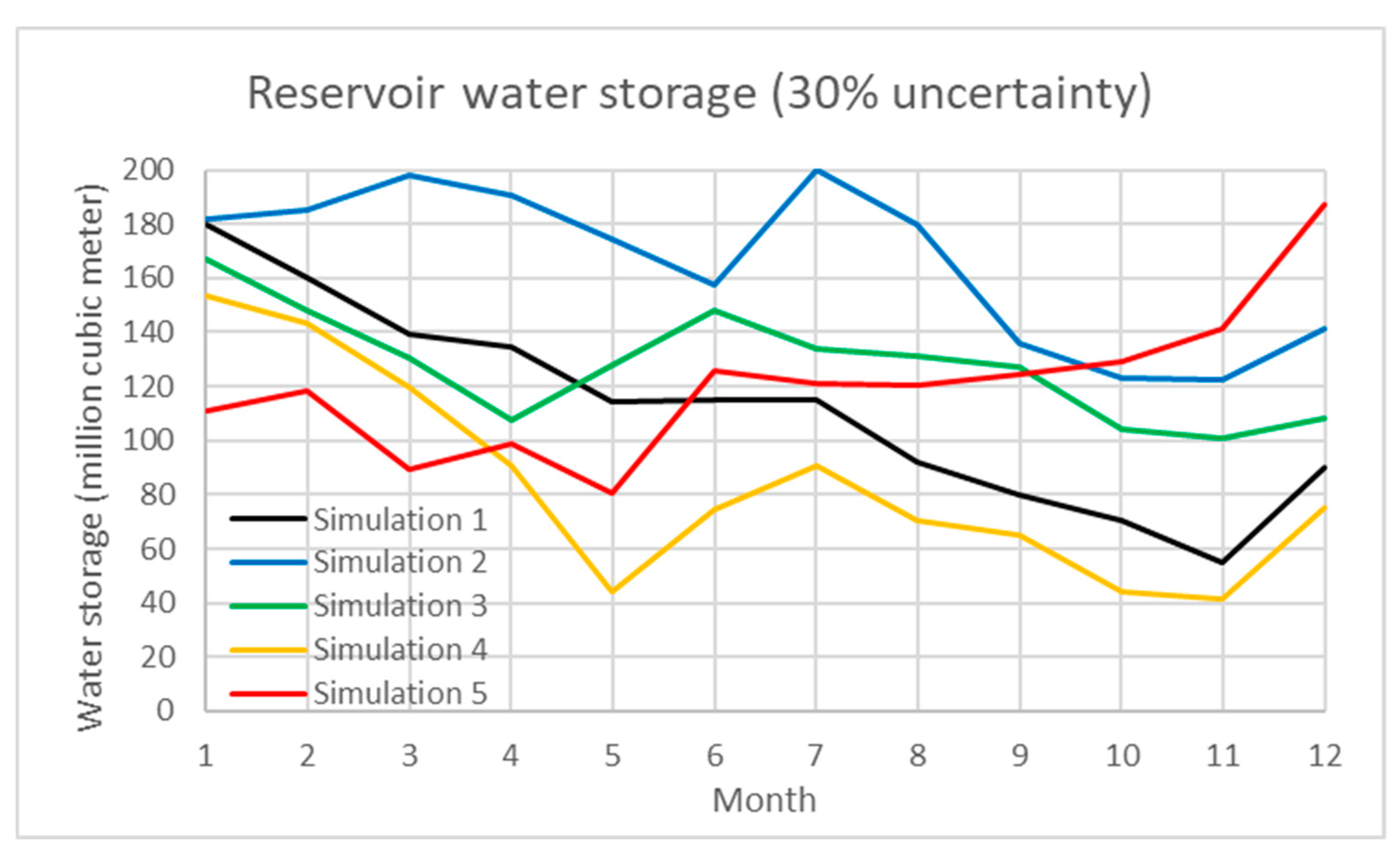

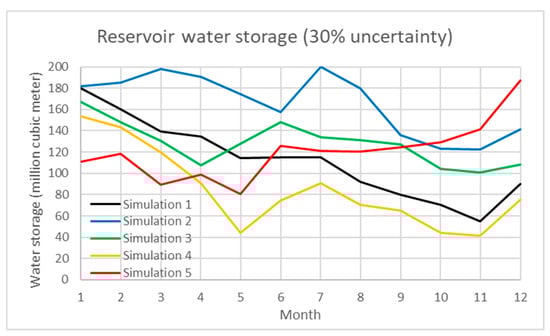

**Figure 6.**Simulation of water storage in the Shihmen Reservoir under 30% uncertainty of water inflow.

**Table 1.**Uncertain simulation of water inflow, outflow, storage, and hydropower of the Shihmen Reservoir.

Uncertainty | Water Inflow | Water Outflow | Water Storage | Hydropower |
---|---|---|---|---|

Total (Standard Deviation) | Total (Standard Deviation) | Mean (Standard Deviation) | Mean (Standard Deviation) | |

million m^{3} | million m^{3} | million m^{3} | MWh | |

5% | 776.13 | 773.61 | 124.82 | 322,338 |

(4.92) | (15.60) | (15.57) | (6499) | |

10% | 785.45 | 789.23 | 133.36 | 328,846 |

(5.35) | (17.72) | (19.81) | (7384) | |

15% | 817.02 | 787.63 | 150.95 | 328,181 |

(7.10) | (19.17) | (15.30) | (7988) | |

20% | 764.54 | 754.18 | 135.54 | 314,241 |

(5.82) | (14.16) | (13.06) | (5900) | |

25% | 759.71 | 820.12 | 59.62 | 341,717 |

(12.27) | (22.75) | (36.85) | (9479) | |

30% | 763.26 | 776.79 | 108.59 | 323,662 |

(12.55) | (16.74) | (21.53) | (6975) | |

35% | 759.14 | 759.88 | 143.83 | 316,616 |

(16.49) | (18.18) | (19.40) | (7576) | |

40% | 834.72 | 754.82 | 121.33 | 314,510 |

(15.68) | (24.33) | (39.35) | (10,136) |
