Next Article in Journal
Sea Cucumber (Isostichopus badionotus): Bioactivity and Wound Healing Capacity In Vitro of Small Peptide Isolates from Digests of Whole-Body Wall or Purified Collagen
Previous Article in Journal
High-Seas Marine Microorganism Delivers an Extract That Dampens LPS-Driven Pro-Inflammatory Signaling: Galbibacter orientalis Strain ROD011


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Marine Drugs
Volume 23
Issue 10
10.3390/md23100410
marinedrugs-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Cellulose and Cellulose Synthase in a Marine Pseudomonas Strain from Antarctica: Characterization, Adaptive Implications, and Biotechnological Potential

by
Maria Chiara Biondini
1,2,
Martina Di Sessa
1,3,
Alberto Vassallo
2,
Federica Chiappori
4,
Marco Zannotti
3,5,*,
Alessio Mancini
2,5,
Rita Giovannetti
3,5 and
Sandra Pucciarelli
2,5
1
School for Advanced Studies, Istituto Universitario di Studi Superiori (IUSS), 27100 Pavia, Italy
2
School of Biosciences and Veterinary Medicine, University of Camerino, 62032 Camerino, Italy
3
School of Science and Technology, Chemistry Division, Chemistry Interdisciplinary Project (ChIP), University of Camerino, 62032 Camerino, Italy
4
Consiglio Nazionale delle Ricerche—Istituto di Tecnologie Biomediche CNR-ITB, 20054 Segrate, Italy
5
IridES S.r.l., Via Via Gentile III da Varano n° 1, 62032 Camerino, Italy
*
Author to whom correspondence should be addressed.
Mar. Drugs 2025, 23(10), 410; https://doi.org/10.3390/md23100410
Submission received: 8 September 2025 / Revised: 15 October 2025 / Accepted: 20 October 2025 / Published: 21 October 2025
(This article belongs to the Section Marine Biotechnology Related to Drug Discovery or Production)
Browse Figures
Versions Notes

Abstract

Antarctic microorganisms have developed extraordinary strategies for adaptation. They have also demonstrated the ability to produce various biopolymers in response to environmental stress. The demand for biopolymers is constantly increasing and is expected to grow further. Among emerging biomaterials, bacterial cellulose (BC) is generating significant interest due to its unique characteristics that distinguish it from plant-based cellulose. BC exhibits higher purity, water-holding capacity, and tensile strength compared to its plant-based counterpart. Furthermore, BC can be obtained through environmentally friendly protocols. Several bacterial strains have already been identified as cellulose producers, including Komagataeibacter xylinus. In this study, a marine bacterial strain named Pseudomonas sp. ef1, isolated from a consortium associated with the Antarctic ciliate Euplotes focardii, was tested for cellulose production. We found that this Antarctic Pseudomonas can produce BC in conditions that appear unique to this bacterial strain. Furthermore, the final BC product is structurally different from that obtained from the well-known BC producer Komagataeibacter xylinus. Additionally, a putative cellulose synthase was identified from the Pseudomonas sp. ef1 genome, exhibiting unique characteristics that may account for the unique BC production capability of this Antarctic marine Pseudomonas. The versatility of BC opens numerous applications, including in papermaking, food, pharmaceutical, and biomedical sectors.

Graphical Abstract

1. Introduction

Antarctica provides a unique natural laboratory to investigate the evolutionary processes behind environmental adaptation. Antarctic microorganisms have developed extraordinary survival strategies, including the ability to resist cold temperatures, oxidative stress, and UV radiation, to scavenge iron present in limited concentrations, and to detoxify hazardous compounds, such as heavy metals and pollutants [1]. They have also shown the ability to produce different pigments and biopolymers in response to environmental stress factors [1]. Cellulose forms the basic structural foundation of the primary cell wall of green plants, algae, and fungi [2] and it is the main constituent of natural fibers such as cotton [3]. It is a polysaccharide consisting of a linear chain of several β (1 → 4) linked D-glucose units and represents the most abundant organic polymer on Earth [3]. Cellulose is also present in bacteria, the so-called nanocellulose [4,5]. The biosynthesis of bacterial cellulose (BC) has been observed many years ago by ancient Chinese growing the Kombucha tea mushroom, a syntrophic colony of acetic acid bacteria and yeast, which metabolizes sugar to produce a slightly acidic tea-colored drink and forms a thick cellulosic mat at its surface [6]. BC was then reported by Brown in 1886, who identified the growth of a non-branched pellicle with a structure chemically equivalent to that of plant cellulose [7].
In recent years, BC has been evaluated as a promising polymer for biotechnological application. For example, it can be used in the food industry, serving as a novel biological material and edible packaging [8]. In the medical field, BC finds use as a wound dressing material, artificial skin, vascular grafts, scaffolds for tissue engineering, artificial blood vessels, wound pads, and dental implants. Furthermore, BC has industrial applications, such as acting as a sponge to collect leaking oil and as a material for absorbing toxins [9]. In both plants and bacteria, cellulose is synthesized by cellulose synthase enzymes (CesAs). This complex varies considerably by kingdom; however, it shares a conserved catalytic subunit termed BcsA (bacterial cellulose synthase subunit A) in prokaryotes and CesA in eukaryotes [10]. Plants’ CesA was derived from bacterial cellulose synthase upon the endosymbiosis event that led to the formation of chloroplasts [11]. Very few bacterial species can synthesize BC, and they include Komagataeibacter xylinus (previously known as Gluconacetobacter xylinus), some Agrobacterium spp., Azotobacter, Rhizobium spp., Sarcina, Alcaligenes, and Pseudomonas genera [4]. K. xylinus is the most studied and the most efficient BC producer [12]. It is an aerobic Gram-negative bacterium with fermentation activity in the pH range of 3–7 and a growth temperature range of 25–30 °C, using saccharides as a carbon source [13]. K. xylinus can use various sugars and produces relatively high yields of cellulose in liquid medium [14,15].
In the present study, we report the biosynthesis of BC from a marine strain isolated from a bacterial consortium associated with the Antarctic ciliate Euplotes focardii [16,17] and named Pseudomonas sp. ef1. E. focardii is a free-swimming ciliate, endemic to the oligotrophic coastal sediments of Terra Nova Bay, and is classified as an obligatory psychrophilic stenothermal organism [18,19,20,21]. Pseudomonas sp. ef1 was previously demonstrated to be able to transform heavy metals such as copper, nickel, and silver into nanoparticles showing antibiotic activity [22,23,24], and to produce unique pyoverdines [25]. This strain can produce BC using synthesis media conditions that are unique. BC materials have been chemically characterized and compared with that obtained from the most efficient BC producer K. xylinus. Pseudomonas BC was synthesized with different shapes and structural characteristics as visualized under SEM analysis. Additionally, a putative Pseudomonas sp. ef1 cellulose synthase was identified and characterized.

2. Results

2.1. BC Production

The capacity of Pseudomonas sp. ef1 to synthesize BC through fermentation was evaluated in standard HS medium containing 1.5% glucose, which is commonly utilized for K. xylinus, the most well-known BC producer. BC production by Pseudomonas sp. ef1 was assessed in static and shaking conditions. Under static conditions, the BC produced by Pseudomonas sp. ef1 exhibited a sheet-like form and was more dispersed in water (Figure 1A), differing from the BC produced by K. xylinus, which had a more gelatinous appearance (Figure 1B). Pseudomonas sp. ef1 can generate BC at a pH 6.5 and temperatures ranging from 22 to 24 °C. In contrast, the optimal conditions for BC production in K. xylinus are at pH 6 and temperatures between 28 and 30 °C. No BC production was detected under shaking conditions.
Since Pseudomonas sp. ef1 is a marine bacterium, BC production was also examined in artificial seawater supplemented with 1.5% glucose at 22–24 °C, both in static and shaking conditions. Cultures were started from those grown in yeast extract (1%) or nutrient broth liquid medium (as described in the Material and Methods). After 5–6 days of incubation under shaking at 100 rpm, the formation of spherical flocculates was observed (Figure 1C,D), with sizes ranging from 3 to 20 mm in diameter. Under these media conditions, BC production under static incubation was not observed. The water content was estimated to be 79%.
To evaluate how cultivation conditions affect BC production, the ratio of starting glucose (in grams) to producing cellulose (in grams) was calculated. The results showed a consistent production efficiency of approximately 30% across all conditions.

2.2. Fourier-Transform Infrared (FTIR) Spectroscopic Characterization of BC

To confirm that the obtained products correspond to BC, Fourier-Transform Infrared Spectroscopy (FTIR) analysis was performed. FTIR spectra were acquired from solid samples after drying both the spherical BC (Figure 2, gray line) and the dispersed sheet-like BC (Figure 2, orange line) and compared to cellulose produced by K. xylinus (Figure 2, blue line). Both cellulose types, spherical and dispersed, exhibited IR spectra comparable to those of K. xylinus and standard plant-derived cellulose, as reported by Abderrahim et al. [26]. The broad adsorption band at 3330 cm cm−1 is attributed to the -OH stretching, the vibrations in the range 2850–2940 cm−1 are relative to the C-H stretching in the bacterial cellulose structure. The peak at around 1600 cm−1 can be attributed to the residual water, present in the cellulose network. Several bands have been detected at 1460, 1390, 1320, and 930 cm−1 attributed to C−H stretching of CH2 and CH3 groups, that could indicate the possibility of a methylated cellulose. Furthermore, a strong band is visible at around 1050 cm−1 that corresponds to C-O-C and C-O-H vibrations [27,28,29].

2.3. Scanning Electron Microscope (SEM) Analysis of Bacterial Cellulose

The morphologies of the BC produced by Pseudomonas sp. ef1 and K. xylinus samples were evaluated by FE-SEM measurements (Figure 3).
SEM images reveal that the spherical BC produced by Pseudomonas sp. ef1 (Figure 3a,b) consists of filamentous structures with diameters below 1 µm, similar to those observed in BC synthesized by K. xylinus (Figure 3d). However, the fibrous network of Pseudomonas sp. ef1 appears less uniform and less distinctly organized compared to the well-defined and homogeneous architecture of K. xylinus-derived BC.
In contrast, the sheet-like BC morphology observed in Pseudomonas sp. ef1 (Figure 3c) presents a disordered and loosely connected structure. This irregular arrangement may contribute to its enhanced dispersibility in aqueous environments, suggesting potential advantages for applications requiring high water solubility or colloidal stability.

2.4. Powder X-Ray Diffraction (XRD) Analysis

XRD was then used to analyze the crystal structure of BC samples. Various polymorphic forms of cellulose are possible; cellulose Iα is typically synthesized by microorganisms, while cellulose Iβ, which is the predominant form, is found in higher plants [30]. Despite both cellulose Iα and Iβ consisting of parallel molecular chains, they exhibit distinct crystal lattice structures: Iα is triclinic, whereas Iβ adopts a monoclinic configuration [31]. Cellulose II can be obtained from either cellulose Iα or Iβ through specific treatments: alkali treatment (mercerization) or dissolution followed by recrystallization (regeneration), respectively (Figure 4).
In some cases, cellulose II has also been found in nature [32,33,34]; unlike cellulose I, which features parallel chains, cellulose II is characterized by an antiparallel chain arrangement and a monoclinic crystal lattice [31].
Figure 5 shows the XRD diffractograms of the different BCs. In the XRD spectra, the standard model of cellulose II, Iα, and Iβ are also reported. The diffraction pattern for dispersed sheet-like cellulose (yellow plot) shows three distinct peaks at 2θ = 14.6°, 16.6°, and 22.6°, in agreement with cellulose I structure, as also reported for cellulose produced by K. xylinus [35]. These peaks are assigned to the (1 0 0), (0 1 0), and (1 1 0) planes of cellulose Iα or the (1 1 0), (1 1 0), and (2 0 0) planes of cellulose Iβ [36,37]. Usually, cellulose produced by microorganisms is Iα, but distinguishing between the two allomorphs based solely on XRD peak positions is challenging due to their close proximity.
Analyzing the spherical BC, the XRD pattern (orange plot) is quite different, showing distinct peaks at 2θ around 9.5°, 19.5°, and 21.5° that could be assigned to (1-1 0), (1 1 0), and (0 2 0) planes of the cellulose II structure, which is more thermodynamically stable but less ordered compared to cellulose I [38,39,40].
The formation of cellulose II mediated by bacteria under agitation may be attributed to localized thermal effects induced by mechanical stirring. This shift confirms a rearrangement in the cellulose crystalline lattice due to agitation-induced structural changes; agitation not only enhances oxygen and nutrient distribution, but also generates mild heat and mechanical stress, which can promote partial rearrangement of glucan chains with the formation of disordered microdomains or transitional phases. These structural irregularities, including the presence of other compounds, such as bacterial metabolites or salts (high concentration in seawater), could be manifested as atypical reflections in the XRD profile, including the signal below 10°.

2.5. Differential Scanning Calorimetry (DSC)

DSC analyses were performed to thermically characterize these bacterial celluloses. As can be seen in Figure S1, during the increase in temperature from 20 to 300 °C, the decrease in the weight takes place in the two samples at about 100 °C, according to reference [41]. This process corresponds to loss of water from the cellulose samples; during the successive temperature increase, further loss of sample mass cannot be observed in the two samples indicating a thermal stability up to 300 °C.

2.6. Identification of the Cellulose Synthase and Structural Prediction

To identify the enzyme(s) involved in Pseudomonas sp. ef1 BC synthesis, a TBLASTN (2.2.28+) search was conducted on the corresponding genome using the BC synthase operon protein sequences from K. xylinus as the query. The accession numbers of the query sequences are listed in Table S1. Only the K. xylinus cellulose synthase catalytic subunit (acc. # AHI24410.1), putative cellulose synthase 2 (acc. # AHI24410.1), and cellulose synthase 2 (AHI26282.1) showed a confident match with a single sequence in the Pseudomonas sp. ef1 genome in TBLASTN result that correspond to the catalytic subunit A. The other sequences from the K. xylinus operon did not show any confident matches. These findings are summarized in Table S1. Therefore, attention was focused on the characterization of this sequence.
Blast search analysis revealed that the identified protein is composed of two different domains: the Scw11 superfamily, which includes the Exo-beta-1,3-glucanase family, and the BcsA superfamily, which includes cellulose synthase catalytic subunit A (Figure S2). The prediction has an E-value of 4 × 10−17, indicating a highly reliable result. Therefore, we named the protein putative cellulose synthase catalytic subunit A (hereafter called pBCSA) from Pseudomonas sp. ef1.
Since the cellulose synthase is known to be a transmembrane (TM) protein, the next step in characterizing the Pseudomonas sp. ef1 pBCSA involved predicting the topology of the TM regions. This prediction was carried out using DeepTMHMM, a deep learning model designed to calculate the likelihood of each residue being part of the extracellular, transmembrane, or intracellular region [42]. According to the prediction, a long extracellular domain spanning the first 300 residues (blue line, Figure 6a), three TM-helixes spanning residues from 300 to 400 (red squares in Figure 6a), a long intracellular domain (pink line in Figure 6a), and an additional four TM-helixes at the C-terminal domain were identified. The prediction of the long extracellular domain in the N-terminus was unexpected. To confirm the presence of this domain, the prediction of the 3D structure was carried out using the RoseTTaFold deep learning tool. The model shows very low error for most residues, with the median error at 1.01 Å, as shown in the Figure S3, Error vs. Residue Plot.
Given the constraints on residue length for the protein 3D modelling capabilities of this tool, the Pseudomonas sp. ef1 pBCSA amino acid sequence was segmented into three distinct overlapping sections based on transmembrane region predictions. These segments are defined as residues 1–350, 300–490, and 420–860, corresponding respectively to the extracellular domain, the initial three transmembrane helices, and the intracellular domain linked to the final four transmembrane helices. The final 3D model is reported in Figure 6b: the modelling confirmed the presence of the additional extracellular domain, not usually present in most of the BCS subunit A. The presence of this additional domain is even more evident in the superposition of the model with cellulose synthase A subunit of Cereibacter sphaeroides [43], which has been used as model template (5EJZ(MMDB) in iCn3D), reported in Figure 6c.
Some strains of K. xylinus possess operons which encode a single long BcsAB fusion protein. By contrast, the extracellular domain of the putative Pseudomonas sp. ef1 pBCSA corresponds to the Exo-beta-1,3-glucanase family. These enzymes are known to play a key role in the degradation of beta-1,3-glucans, which are polysaccharides found in the cell walls of fungi, some bacteria, and plants. However, these proteins have also a role in biofilm formation and modification (see Section 3).

3. Discussion

Cellulose is the key component of plant cell walls and the most abundant biopolymer on Earth [43,44]. While most cellulose is produced by plant cellulose synthase complexes, this enzyme clearly has a bacterial origin: there is no doubt that its genes have been acquired by plants from cyanobacterial ancestors of their chloroplasts [45]. A marine Antarctic Pseudomonas strain capable of producing bacterial cellulose from glucose under energy-safe conditions was isolated. We isolated a marine Antarctic Pseudomonas strain able to produce BC from glucose, in energy-safe conditions. The produced BC possesses different morphology, according to the protocol used. In HS medium, the produced BC appears as a sheet-like product, whereas in medium containing either yeast extract or nutrient broth and sea water under shaking conditions, the product appears as spherical flocculates.
K. xylinus cultures grown in liquid media are remarkably efficient at producing a surface pellicle composed entirely of pure cellulose fibers [4]. The cellulose biosynthesis process in this bacterium is controlled by a four-gene bcsABCD operon. Among the corresponding proteins, BcsA and BcsB are essential for in vitro cellulose-synthesizing (BCS) activity. However, all four proteins—BcsA, BcsB, BcsC, and BcsD—are necessary to achieve optimal cellulose production in vivo. This suggests that BcsC and BcsD play critical roles in exporting glucan chains and organizing them into fibers at the cell surface. Certain strains of K. xylinus also possess a second bcs operon, which encodes a single, elongated BcsAB fusion protein, along with two additional genes, bcsX and bcsY, whose functions remain uncharacterized [46].
Genomic data revealed unexpected diversity of cellulose synthase operons even in closely related bacteria, indicating substantial differences in cellulose secretion mechanisms [45]. A putative cellulose synthase subunit A was identified in Pseudomonas sp. ef1, possessing an extracellular domain represented by a member of the Exo-beta-1,3-glucanase family, differently from some K. xylinus strains that possess a single long BcsAB fusion protein. The Exo-beta-1,3-glucanase family are enzymes that play a key role in the degradation of beta-1,3-glucans, which are polysaccharides found in the cell walls of fungi, some bacteria, and plants. However, these proteins have additional biological roles, including antifungal defense mechanisms by degrading fungal cell walls, or in biofilm formation and modulation. The unusual structure of the putative BCS A subunit may account for the sheet-like and water-soluble cellulose organization that is obtained by incubating Pseudomonas sp. ef1in HS medium at pH 6.5. This BCS A subunit structure is shared also by other cellulose-producing Pseudomonas strains. However, these strains also possess a standard operon organization. By contrast, Pseudomonas sp. ef1 appears to have lost the standard operon organization, likely following its adaptation to the Antarctic host environment. The water-soluble form of the Pseudomonas ef1 BC makes it particularly well-suited for coating applications, especially in food packaging, as it eliminates the need for additional processing steps—such as homogenization—before spreading it onto other materials.
Bacterial synthesis of cellulose is seen as a convenient and effective way to produce stable recyclable fibers for use in wound dressing and in a variety of emerging nanotechnologies. Furthermore, BC has industrial applications, such as acting as sponges to collect leaking oil and as materials for absorbing toxins [9]. Exploring new methods for cellulose synthesis, beyond traditional vegetable sources, will aid in the development of innovative and renewable materials.

4. Materials and Methods

4.1. Strains Culturing and Genome Sequencing

DNA used for sequencing was extracted from a culture of Pseudomonas sp. ef1 grown overnight in 10 mL of LB (10 g/L tryptone, 5 g/L yeast extract, 10 g/L NaCl) at 23 °C under shaking. Cells were harvested by centrifugation and DNA was extracted by using the ‘DNeasy PowerSoil Pro Kit’ (Qiagen, Milan, Italy), following the protocol provided by the manufacturer. Genomic DNA of Pseudomonas sp. ef1 was sequenced with nanopore technology and using a native barcoding approach (since genomic DNA of Pseudomonas sp. ef1 was sequenced with other non-related DNA samples). Sequencing was carried out using a MinION Mk1B and a R9.4 flow cell (Oxford Nanopore Technology, ONTO (Oxford, UK). Basecalling was performed with MinKNOW (v24.02.16) using the super accurate model. Sequencing reads were assembled using EPI2ME (v5.1.14) and the workflow ‘wf-bacterial-genomes’ (v1.2.0) provided by ONT (GenBank acc. N. VAUR00000000). Mash’s (v3.1.3) output results (see complementary Material and Methods) suggest that Pseudomonas ef1 belongs to the same species as Pseudomonas triticicola.

4.2. BC Production and Purification

BC production was conducted in Hestrin–Schramm (HS) medium (20 g/L glucose, 5 g/L yeast extract, 5 g/L peptone, 2.7 g/L disodium hydrogen phosphate, 1.15 g/L citric acid) at pH 6.5, under both static and shaking conditions for 3–5 days, at temperatures of 22–24 °C. Alternatively, Pseudomonas sp. ef1 BC was produced in artificial seawater (22 ‰) supplemented with 1.5% (w/v) glucose at 22–24 °C, both in static and shaking conditions, starting from cultures grown in yeast extract (1% w/v) or nutrient broth liquid medium. K. xylinus BC production was conducted in HS medium at pH 6 and temperatures of 28–30 °C. The inoculum consisted of Pseudomonas sp. ef1 cells obtained from LB agar plates. The resulting biofilm was collected using a filter, washed multiple times with sterile deionized water, and incubated at 80 °C for 4 h while soaked in sterile deionized water to completely clean BC from bacteria. To evaluate how cultivation conditions affect BC production, the ratio of starting glucose (in grams) to producing cellulose (in grams) was calculated.

4.3. BC Characterization

Functional group identification of the bacterial cellulose material was characterized by FT-IR analysis using a Perkin–Elmer System 2000 spectrometer (Waltham, MA, USA) equipped with Pike GladiATR technology. Prior to the analysis, the samples were dried in an oven at 40 °C.
Surface morphology and microstructural features of the dried bacterial cellulose samples, coated with a thin layer of chromium, were examined using a Sigma FE-SEM (Zeiss, Jena, Germany), operated at 5–15 kV.
X-ray diffractometry (XRD) patterns of the samples were recorded using a Bruker D6 powder diffractometer equipped with a Cu source (kα1 = 1.54060 Å) and Lynxeye SSD 160-2 detector (Bruker, Billerica, MA, USA). The bacterial cellulose was dried and ground to a powder before analysis. The samples were scanned over a 2θ range between 5 and 50° and a θ range between 2.5 and 25° for 15 min, with each step recorded at 0.2 s intervals. Generator voltage and filament emission were set to 40 kV and 15 mA, respectively. All the results were compared with the respective models of celluloses I and cellulose II [47,48,49].
The thermal behavior was determined by differential scanning calorimetry (DSC). Samples (2–4 mg in an aluminum concave pan with pierced lid) were analyzed in a DSC 250 TA (TA Instrument DSC 250 TA (TA Instrument, Dover, DE, USA), according to the following thermal program: heating from 25 °C to 300 °C (2 min hold), cooling to −25 °C (2 min hold) and heating to 300 °C, all steps at 10 °C/min.

4.4. Identification of the Cellulose Synthase Enzymes, Transmembrane (TM) Regions Prediction and Homology Modeling

Pseudomonas sp. ef1 putative cellulose synthase was identified by local TBLASTN search in the corresponding genome using the BC synthase operon protein sequences from K. xylinus as the query. The accession numbers of the query sequences are listed in Table S1. The prediction of transmembrane (TM) proteins was conducted using DeepTMHMM, a tool that utilizes deep neural networks [42]. To obtain the structural model of cellulose synthase, the corresponding sequence was divided into three regions corresponding to three structural domains: the extracellular (residues 1 to 350), transmembrane (residues 300 to 490), and the intracellular domain (residues 420 to 860). A model for each domain was obtained using RoseTTaFold, the deep learning tool of Rosetta [50]. The resulting models were manually overlapped using PyMol 3.1 (https://www.pymol.org/, accessed on 10 October 2025).

5. Conclusions

In this study, the production of biocellulose by the Antarctic bacteria Pseudomonas sp. ef1 was investigated. This bacterium, using glucose as carbon source, is capable to produce BC, in different morphologies, depending on the culture protocol: a sheet-like form of BC in Hestrin–Schramm (HS) medium under static conditions, and spherical BC flocculates in media containing yeast extract or nutrient broth with seawater under shaking conditions. The different materials were characterized by FT-IR, XRD, and DSC analysis confirming the presence of bacterial cellulose, and specifically cellulose I for dispersed sheet-like BC and cellulose II for spherical BC, with thermal stability up to 300 °C. Genomic analysis revealed a putative cellulose synthase subunit A with an extracellular domain belonging to the Exo-beta-1,3-glucanase family, which is unusual and likely contributes to the unique organization and water solubility of the BC produced by this strain. This structural peculiarity may be the result of adaptation to the Antarctic environment.

6. Patents

The manuscript is related to patents: no. 102020000031769, 102022000018663, 102021000017333.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/md23100410/s1, Figure S1: DSC curves for dispersed and spherical bacterial cellulose produced by Pseudomonas sp. ef1 in static and agitation condition, respectively; Figure S2: Blast search result using the putative cellulose synthase A from Pseudomonas sp. Ef1.as query; Figure S3: Error vs. Residue Plot. The model shows very low error for most residues, with the median error at 1.01 Å; Table S1: tBlastN results of the Pseudomonas sp. Ef1 genome analysis to search for BC synthesis genes using as query the BC synthesis operon sequence from Komagataeibacter xylinus E25 strain.

Author Contributions

Conceptualization, S.P., M.Z. and R.G.; methodology, M.C.B., M.D.S., M.Z., A.V. and F.C.; validation, S.P., M.Z., A.V. and R.G.; formal analysis, M.C.B., M.D.S., A.M., M.Z. and F.C.; data curation, S.P., M.Z. and R.G.; writing—original draft preparation, S.P.; writing—review and editing, all authors; funding acquisition, S.P. and R.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by S.P. and R.G., by Fondi di Ricerca di Ateneo, (FAR).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Pseudomonas sp. ef1 is available at GCA_007293365.1.

Acknowledgments

This paper and related research have been conducted during and with the support of the Italian national inter-university PhD course in Sustainable Development and Climate change (link: www.phd-sdc.it).

Conflicts of Interest

Marco Zannotti, Alessio Mancini, Rita Giovannetti and Sandra Pucciarelli are employed by IridES S.r.l., All other authors declare that there are no potential conflicts of interest. IridES S.r.l. has no role in the study design, collection, analysis, interpretation of data, the writing of this article or the decision to submit it for publication.

References

  1. Ramasamy, K.P.; Mahawar, L.; Rajasabapathy, R.; Rajeshwari, K.; Miceli, C.; Pucciarelli, S. Comprehensive insights on environmental adaptation strategies in Antarctic bacteria and biotechnological applications of cold adapted molecules. Front. Microbiol. 2023, 14, 1197797. [Google Scholar] [CrossRef] [PubMed]
  2. Brigham, C. Biopolymers: Biodegradable alternatives to traditional plastics. In Green Chemistry: An Inclusive Approach; Török, B., Dransfield, T., Eds.; Elsevier Inc.: Amsterdam, The Netherlands, 2018; pp. 753–770. [Google Scholar] [CrossRef]
  3. Felgueiras, C.; Azoia, N.G.; Gonçalves, C.; Gama, M.; Dourado, F. Trends on the Cellulose-Based Textiles: Raw Materials and Technologies. Front. Bioeng. Biotechnol. 2021, 9, 608826. [Google Scholar] [CrossRef] [PubMed]
  4. Lahiri, D.; Nag, M.; Dutta, B.; Dey, A.; Sarkar, T.; Pati, S.; Edinur, H.A.; Abdul Kari, Z.; Mohd Noor, N.H.; Ray, R.R. Bacterial Cellulose: Production, Characterization, and Application as Antimicrobial Agent. Int. J. Mol. Sci. 2021, 22, 12984. [Google Scholar] [CrossRef]
  5. Krasteva, P.V.; Bernal-Bayard, J.; Travier, L.; Martin, F.A.; Kaminski, P.-A.; Karimova, G.; Fronzes, R.; Ghigo, J.-M. Insights into the structure and assembly of a bacterial cellulose secretion system. Nat. Commun. 2017, 8, 2065. [Google Scholar] [CrossRef]
  6. Marsh, A.J.; O’Sullivan, O.; Hill, C.; Ross, R.P.; Cotter, P.D. Sequence-based analysis of the bacterial and fungal compositions of multiple kombucha (tea fungus) samples. Food Microbiol. 2014, 38, 171–178. [Google Scholar] [CrossRef] [PubMed]
  7. Poddar, M.K.; Dikshit, P.K. Recent development in bacterial cellulose production and synthesis of cellulose based conductive polymer nanocomposites. Nano Select. 2021, 2, 1605–1628. [Google Scholar] [CrossRef]
  8. Sayah, I.; Gervasi, C.; Achour, S.; Gervasi, T. Fermentation Techniques and Biotechnological Applications of Modified Bacterial Cellulose: An Up-to-Date Overview. Fermentation 2024, 10, 100. [Google Scholar] [CrossRef]
  9. Wang, J.; Tavakoli, J.; Tang, Y. Bacterial Cellulose Production, Properties and Applications with Different Culture Methods—A Review. Carbohydr. Polym. 2019, 219, 63–76. [Google Scholar] [CrossRef]
  10. McNamara, J.T.; Morgan, J.L.; Zimmer, J.A. Molecular description of cellulose biosynthesis. Annu. Rev. Biochem. 2015, 84, 895–921. [Google Scholar] [CrossRef]
  11. Little, A.; Schwerdt, J.G.; Shirley, N.J.; Khor, S.F.; Neumann, K.; O’Donovan, L.A.; Lahnstein, J.; Collins, H.M.; Henderson, M.; Fincher, G.B.; et al. Revised Phylogeny of the Cellulose Synthase Gene Superfamily: Insights into Cell Wall Evolution. Plant Physiol. 2018, 177, 1124–1141. [Google Scholar] [CrossRef]
  12. El-Saied, H.; Basta, A.H.; Gobran, R.H. Research Progress in Friendly Environmental Technology for the Production of Cellulose Products (Bacterial Cellulose and Its Application). Polym. Plast. Technol. Eng. 2004, 43, 797–820. [Google Scholar] [CrossRef]
  13. Castro, C.; Zuluaga, R.; Putaux, J.-L.; Caro, G.; Mondragon, I.; Gañán, P. Structural characterization of bacterial cellulose produced by Gluconacetobacter swingsii sp. from Colombian agroindustrial wastes. Carbohydr. Polym. 2011, 84, 96–102. [Google Scholar] [CrossRef]
  14. Ross, P.; Mayer, R.; Benziman, M. Cellulose biosynthesis and function in bacteria. Microbiol. Rev. 1991, 55, 35–58. [Google Scholar] [CrossRef]
  15. Sani, A.; Dahman, Y. Improvements in the production of bacterial synthesized biocellulose nanofibres using different culture methods. J. Chem. Technol. Biot. 2010, 85, 151–164. [Google Scholar] [CrossRef]
  16. Pucciarelli, S.; Devaraj, R.R.; Mancini, A.; Ballarini, P.; Castelli, M.; Schrallhammer, M.; Petroni, G.; Miceli, C. Microbial consortium associated with the Antarctic marine ciliate Euplotes focardii: An investigation from genomic sequences. Microb. Ecol. 2015, 70, 484–497. [Google Scholar] [CrossRef]
  17. Ramasamy, K.P.; Telatin, A.; Mozzicafreddo, M.; Miceli, C.; Pucciarelli, S. Draft genome sequence of a new pseudomonas sp. Strain, ef1, Associated with the psychrophilic Antarctic ciliate Euplotes focardii. Microbiol. Resour. Announ. 2019, 8, e00867-19. [Google Scholar] [CrossRef]
  18. Yang, G.; De Santi, C.; de Pascale, D.; Pucciarelli, S.; Miceli, C. Characterization of the First Eukaryotic Cold-Adapted Patatin-Like Phospholipase from the Psychrophilic Euplotes focardii: Identification of Putative Determinants of Thermal-Adaptation by Comparison with the Homologous Protein from the Mesophilic Euplotes crassus. Biochimie 2013, 95, 1795–1806. [Google Scholar] [CrossRef]
  19. Mozzicafreddo, M.; Pucciarelli, S.; Swart, E.C.; Piersanti, A.; Emmerich, C.; Migliorelli, G.; Ballarini, P.; Miceli, C. The macronuclear genome of the Antarctic psychrophilic marine ciliate Euplotes focardii reveals new insights on molecular cold adaptation. Sci. Rep. 2021, 11, 18782. [Google Scholar] [CrossRef]
  20. Pischedda, A.; Ramasamy, K.P.; Mangiagalli, M.; Chiappori, F.; Milanesi, L.; Miceli, C.; Pucciarelli, S.; Lotti, M. Antarctic marine ciliates under stress: Superoxide dismutases from the psychrophilic Euplotes focardii are cold-active yet heat tolerant enzymes. Sci. Rep. 2018, 8, 14721. [Google Scholar] [CrossRef] [PubMed]
  21. Pucciarelli, S.; La Terza, A.; Ballarini, P.; Barchetta, S.; Yu, T.; Marziale, F.; Passini, V.; Methé, B.; Detrich, H.W., III; Miceli, C. Molecular cold-adaptation of protein function and gene regulation: The case for comparative genomic analyses in marine ciliated protozoa. Mar. Genom. 2009, 2, 57–66. [Google Scholar] [CrossRef]
  22. John, M.S.; Nagoth, J.A.; Zannotti, M.; Giovannetti, R.; Mancini, A.; Ramasamy, K.P.; Miceli, C.; Pucciarelli, S. Biogenic Synthesis of Copper Nanoparticles Using Bacterial Strains Isolated from an Antarctic Consortium Associated to a Psychrophilic Marine Ciliate: Characterization and Potential Application as Antimicrobial Agents. Mar. Drugs 2021, 19, 263. [Google Scholar] [CrossRef]
  23. John, M.S.; Nagoth, J.A.; Ramasamy, K.P.; Mancini, A.; Giuli, G.; Miceli, C.; Pucciarelli, S. Synthesis of Bioactive Silver Nanoparticles Using New Bacterial Strains from an Antarctic Consortium. Mar. Drugs 2022, 20, 558. [Google Scholar] [CrossRef]
  24. Nagoth, J.A.; John, M.S.; Ramasamy, K.P.; Mancini, A.; Zannotti, M.; Piras, S.; Giovannetti, R.; Rathnam, L.; Miceli, C.; Biondini, M.C.; et al. Synthesis of Bioactive Nickel Nanoparticles Using Bacterial Strains from an Antarctic Consortium. Mar. Drugs 2024, 22, 89. [Google Scholar] [CrossRef] [PubMed]
  25. Zannotti, M.; Di Sessa, M.; Biondini, M.C.; Vassallo, A.; Ferraro, S.; Angeloni, S.; Ricciutelli, M.; Pucciarelli, S.; Giovannetti, R. Towards an easy production of novel pyoverdines by an antarctic Pseudomonas strain: A spectroscopic and HPLC-MS/MS characterization study. Dyes Pigm. 2026, 244, 113096. [Google Scholar] [CrossRef]
  26. Abderrahim, B.; Abderrahman, E.; Mohamed, A.; Fatima, T.; Abdesselam, T.; Krim, O. Kinetic Thermal Degradation of Cellulose, Polybutylene Succinate and a Green Composite: Comparative Study. World J. Environm. Eng. 2015, 3, 95–110. [Google Scholar] [CrossRef]
  27. Oliveira, R.L.; Vieira, J.G.; Barud, H.S.; Assunção, R.M.N.; Filho, G.R.; Ribeiro, S.J.L.; Messadeqq, Y. Synthesis and Characterization of Methylcellulose Produced from Bacterial Cellulose under Heterogeneous Condition. J. Braz. Chem. Soc. 2015, 26, 1861–1870. [Google Scholar] [CrossRef]
  28. Yim, S.M.; Song, J.E.; Kim, H.R. Production and characterization of bacterial cellulose fabrics by nitrogen sources of tea and carbon sources of sugar. Process Biochem. 2017, 59, 26–36. [Google Scholar] [CrossRef]
  29. Fatima, A.; Ortiz-Albo, P.; Neves, L.A.; Nascimento, F.X.; Crespo, J.G. Biosynthesis and characterization of bacterial cellulose membranes presenting relevant characteristics for air/gas filtration. J. Membr. Sci. 2023, 674, 121509. [Google Scholar] [CrossRef]
  30. Stanciu, M.-C.; Tanasă, F.; Teacă, C.-A. Crystallinity Changes in Modified Cellulose Substrates Evidenced by Spectral and X-Ray Diffraction Data. Polysaccharides 2025, 6, 30. [Google Scholar] [CrossRef]
  31. Nagarajan, S.; Skillen, N.C.; Irvine, J.T.S.; Lawton, L.A.; Robertson, P.K.J. Cellulose II as bioethanol feedstock and its advantages over native cellulose. Renew. Sustain. Energy Rev. 2017, 77, 182–192. [Google Scholar] [CrossRef]
  32. O’Sullivan, A.C. Cellulose: The structure slowly unravels. Cellulose 1997, 4, 173–207. [Google Scholar] [CrossRef]
  33. Shibazaki, H.; Saito, M.; Kuga, S.; Okano, T. Native Cellulose II Production by Acetobacter Xylinum Under Physical Constraints. Cellulose 1998, 5, 165–173. [Google Scholar] [CrossRef]
  34. Kuga, S.; Takagi, S.; Brown, R.M. Native folded-chain cellulose II. Polymer 1993, 34, 3293–3297. [Google Scholar] [CrossRef]
  35. Vazquez, A.; Foresti, M.L.; Cerrutti, P.; Galvagno, M. Bacterial Cellulose from Simple and Low Cost Production Media by. J. Polym. Environ. 2013, 21, 545–554. [Google Scholar] [CrossRef]
  36. Wada, M.; Okano, T.; Sugiyama, J. Synchrotron-radiated X-ray and neutron diffraction study of native cellulose. Cellulose 1997, 4, 221–232. [Google Scholar] [CrossRef]
  37. Lee, C.M.; Gu, J.; Kafle, K.; Catchmark, J.; Kim, S.H. Cellulose produced by Gluconacetobacter xylinus strains ATCC 53524 and ATCC 23768: Pellicle formation, post-synthesis aggregation and fiber density. Carbohyd. Polym. 2015, 133, 270–276. [Google Scholar] [CrossRef]
  38. Chiriac, A.I.; Pastor, F.I.J.; Popa, V.I.; Aflori, M.; Ciolacu, D. Changes of supramolecular cellulose structure and accessibility induced by the processive endoglucanase Cel9B from Paenibacillus barcinonensis. Cellulose 2014, 21, 203–219. [Google Scholar] [CrossRef]
  39. Gong, J.; Li, J.; Xu, J.; Xiang, Z.; Mo, L. Research on cellulose nanocrystals produced from cellulose sources with various polymorphs. RSC Adv. 2017, 7, 33486–33493. [Google Scholar] [CrossRef]
  40. Nabeela, K.; Thomas, R.T.; Nair, R.V.; Backer, S.N.; Mohan, K.; Chandran, P.R.; Pillai, S. Direct Visualization of Crystalline Domains in Carboxylated Nanocellulose Fibers. ACS Omega 2020, 5, 12136–12143. [Google Scholar] [CrossRef] [PubMed]
  41. Martins, P.H.S.; Barros, M.A.; Silva, C.L.; Ricci, P.; Castilho, L.M.B.; Santos, A.L.R.; Rodrigues, H.S.; Assuncao, R.M.N.; Faria, A.M. A cellulose monolithic stir bar for sorptive extraction of glycerol from biodiesel. RSC Adv. 2024, 14, 17380–17388. [Google Scholar] [CrossRef]
  42. Hallgren, J.; Tsirigos, K.D.; Pedersen, M.D.; Armenteros, J.J.A.; Marcatili, P.; Nielsen, H.; Krogh, A.; Winther, O. DeepTMHMM predicts alpha and beta transmembrane proteins using deep neural networks. bioRxiv 2022. [Google Scholar] [CrossRef]
  43. Morgan, J.; McNamara, J.; Zimmer, J. Mechanism of activation of bacterial cellulose synthase by cyclic di-GMP. Nat. Struct. Mol. Biol. 2014, 21, 489–496. [Google Scholar] [CrossRef] [PubMed]
  44. Baghaei, B.; Skrifvars, M. All-Cellulose Composites: A Review of Recent Studies on Structure, Properties and Applications. Molecules 2020, 25, 2836. [Google Scholar] [CrossRef]
  45. Nobles, D.R.; Brown, R.M. The pivotal role of cyanobacteria in the evolution of cellulose synthases and cellulose synthase-like proteins. Cellulose 2004, 11, 437–448. [Google Scholar] [CrossRef]
  46. Römling, U.; Galperin, M.Y. Bacterial cellulose biosynthesis: Diversity of operons, subunits, products and functions. Environ. Microbiol. 2015, 17, 4107–4121. [Google Scholar] [CrossRef]
  47. Nishiyama, Y.; Langan, P.; Chanzy, H. Crystal Structure and Hydrogen-Bonding System in Cellulose Iβ from Synchrotron X-ray and Neutron Fiber Diffraction. J. Am. Chem. Soc. 2002, 124, 9074–9082. [Google Scholar] [CrossRef]
  48. Nishiyama, Y.; Sugiyama, J.; Chanzy, H.; Langan, P. Crystal Structure and Hydrogen Bonding System in Cellulose Iα from Synchrotron X-ray and Neutron Fiber Diffraction. J. Am. Chem. Soc. 2003, 125, 14300–14306. [Google Scholar] [CrossRef]
  49. Kaduk, J.A.; Blanton, T.N. An improved structural model for cellulose II. Powder Diffr. 2013, 28, 194–199. [Google Scholar] [CrossRef]
  50. Baek, M.; Di Maio, F.; Anishchenko, I.; Dauparas, J.; Ovchinnikov, S.; Lee, G.R.; Wang, J.; Cong, Q.; Kinch, L.N.; Schaeffer, R.D.; et al. Accurate prediction of protein structures and interactions using a 3-track network. Science 2021, 373, 871–876. [Google Scholar] [CrossRef] [PubMed]
Marinedrugs 23 00410 g001

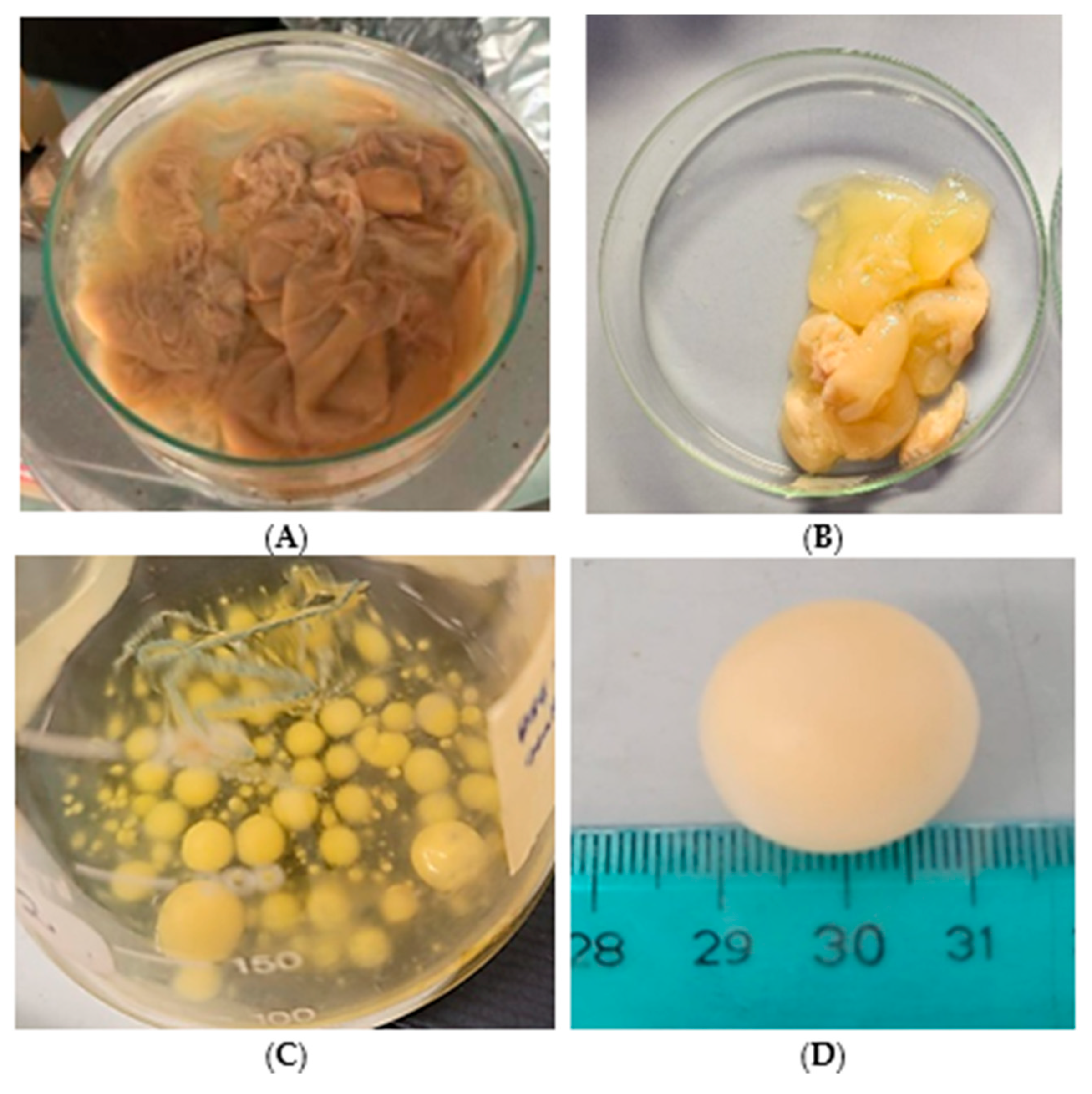

Figure 1. Cellulose produced by Pseudomonas sp. ef1 (A) and K. xylinus (B) in HS medium under static conditions, and cellulose synthesized by Pseudomonas sp. ef1 in artificial marine water under agitation (C,D).
Figure 1. Cellulose produced by Pseudomonas sp. ef1 (A) and K. xylinus (B) in HS medium under static conditions, and cellulose synthesized by Pseudomonas sp. ef1 in artificial marine water under agitation (C,D).
Marinedrugs 23 00410 g001
Marinedrugs 23 00410 g002

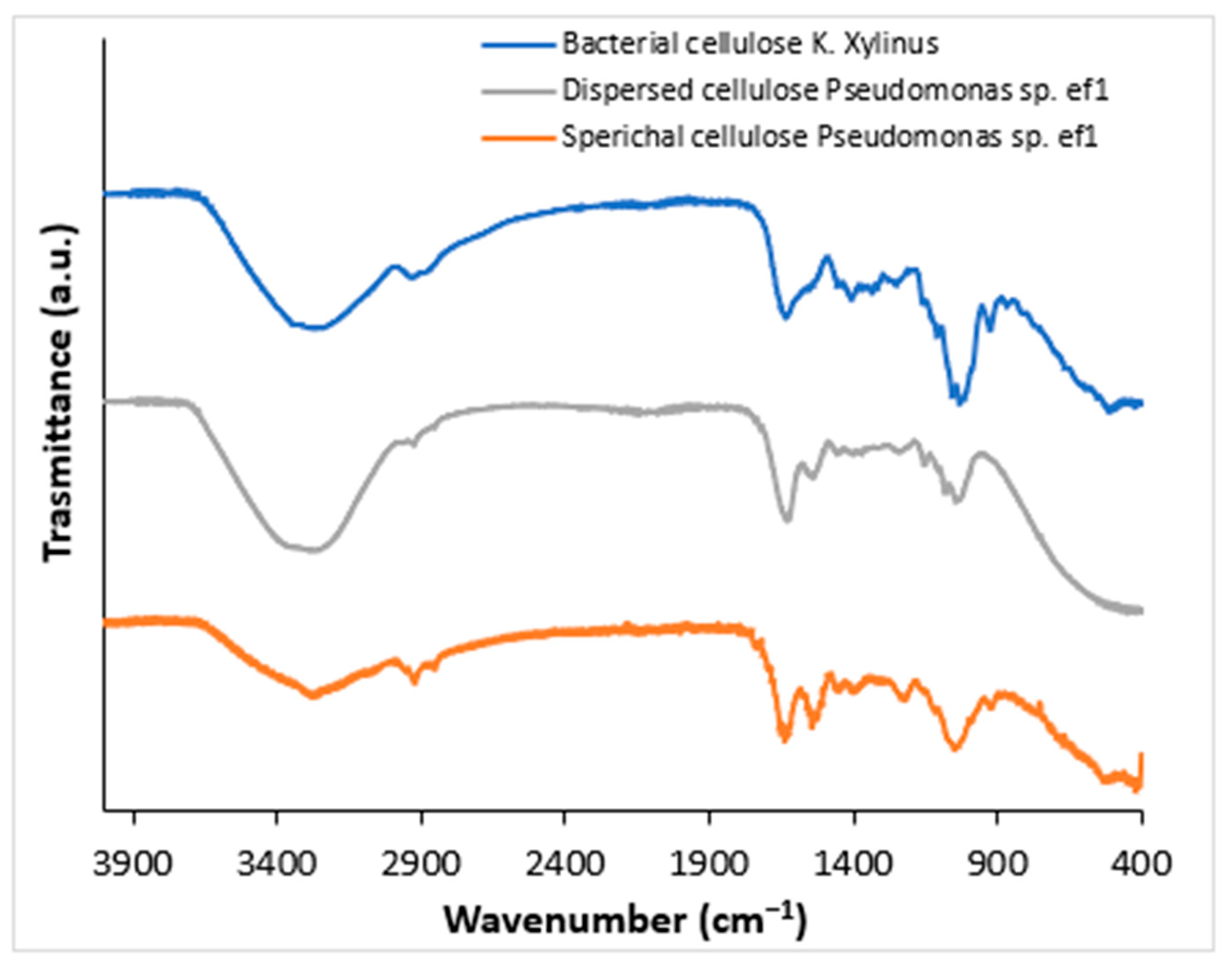

Figure 2. FTIR spectra of bacterial cellulose (BC) produced by K. xylinus (blue line) and Pseudomonas sp. ef1 (gray and orange lines). The gray line represents the spectrum of sheet-like BC, while orange line corresponds to spherical-shaped BC.
Figure 2. FTIR spectra of bacterial cellulose (BC) produced by K. xylinus (blue line) and Pseudomonas sp. ef1 (gray and orange lines). The gray line represents the spectrum of sheet-like BC, while orange line corresponds to spherical-shaped BC.
Marinedrugs 23 00410 g002
Marinedrugs 23 00410 g003

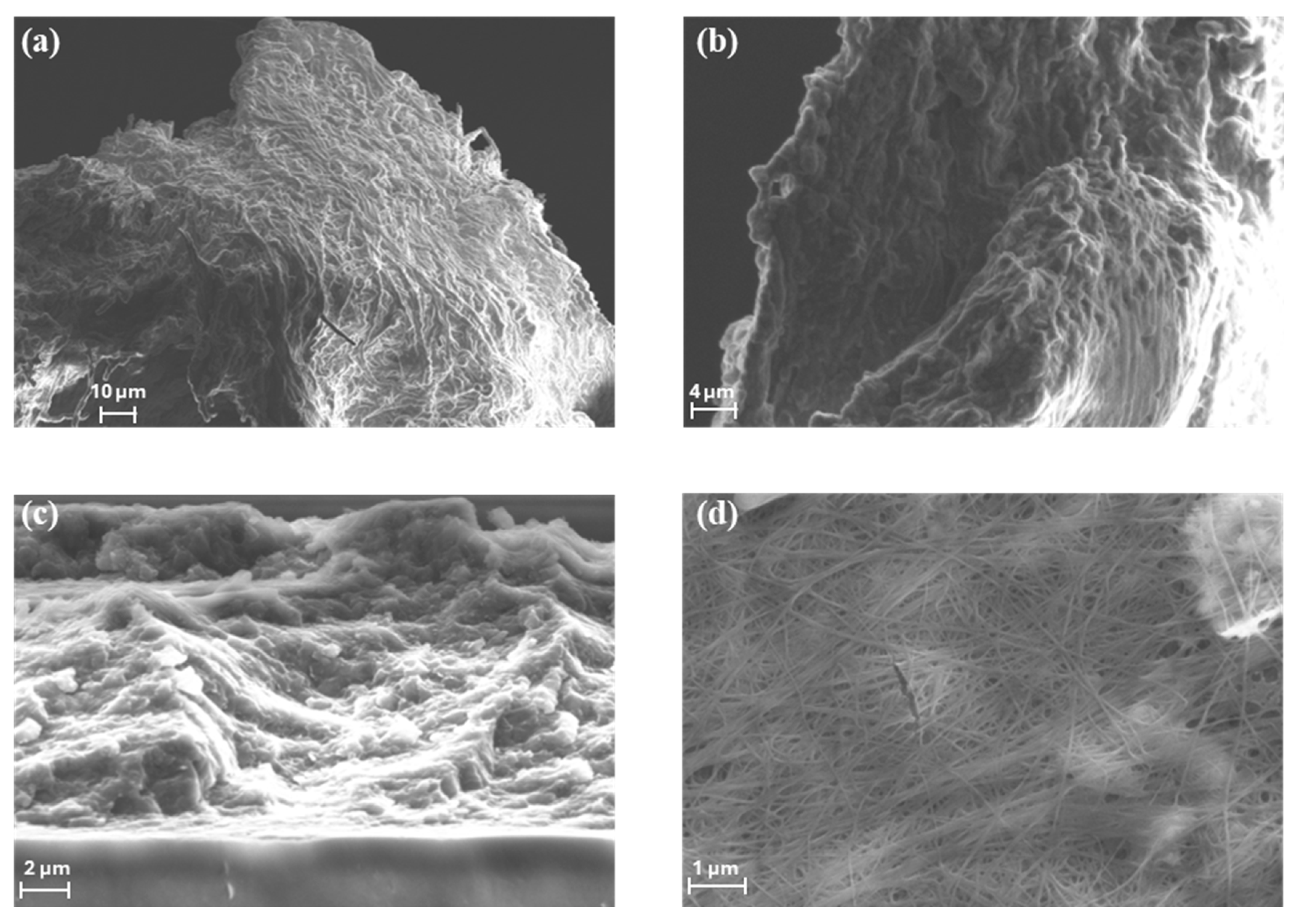

Figure 3. SEM images of (a,b) the spherical shaped BC from Pseudomonas sp. ef1, (c) dispersed sheet-like BC from Pseudomonas sp. ef1. and (d) BC produced by K. xylinus.
Figure 3. SEM images of (a,b) the spherical shaped BC from Pseudomonas sp. ef1, (c) dispersed sheet-like BC from Pseudomonas sp. ef1. and (d) BC produced by K. xylinus.
Marinedrugs 23 00410 g003
Marinedrugs 23 00410 g004

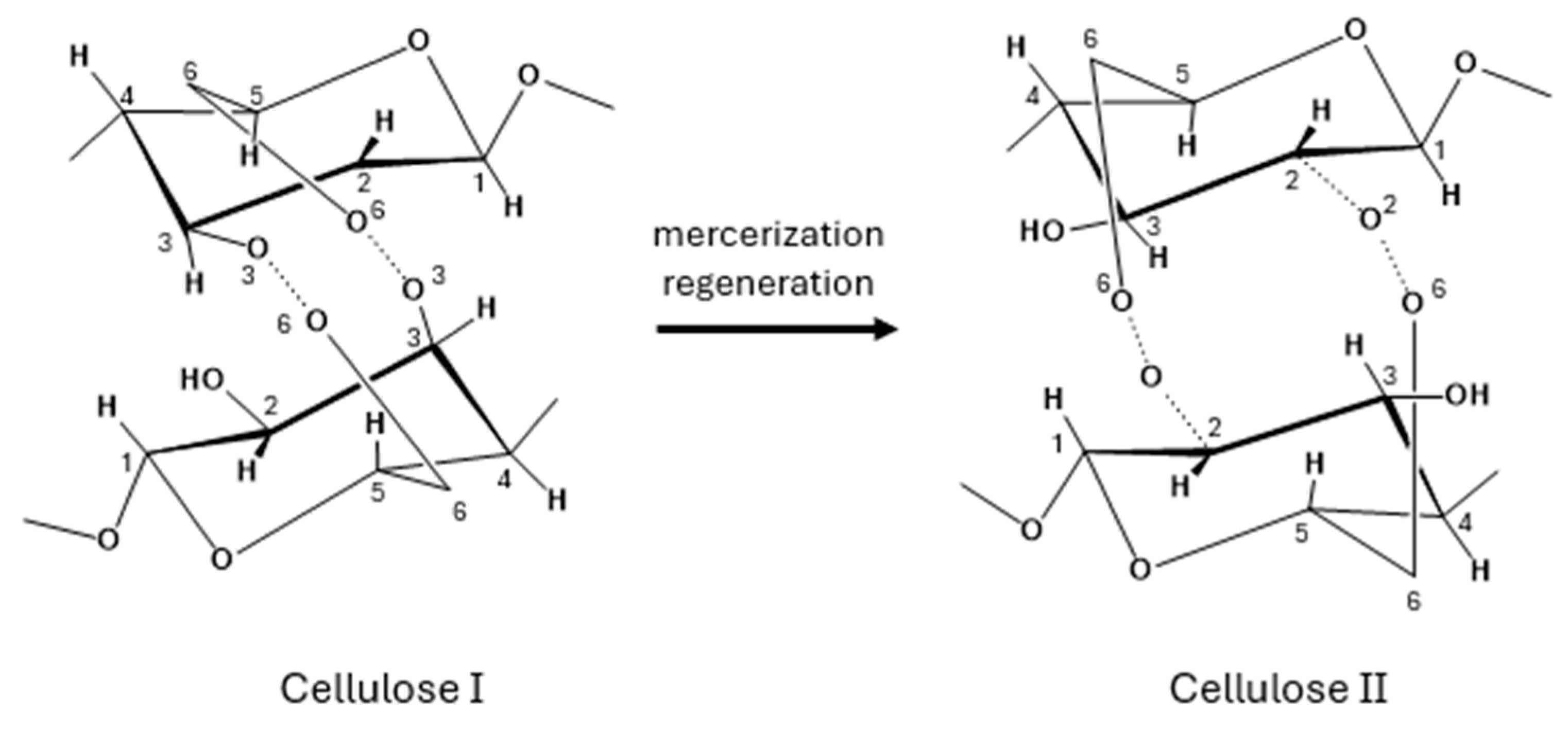

Figure 4. Conversion of Cellulose I to Cellulose II.
Figure 4. Conversion of Cellulose I to Cellulose II.
Marinedrugs 23 00410 g004
Marinedrugs 23 00410 g005

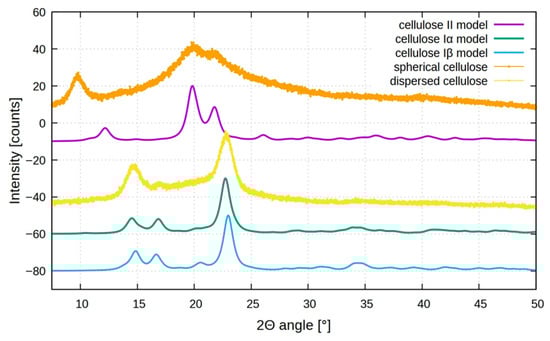

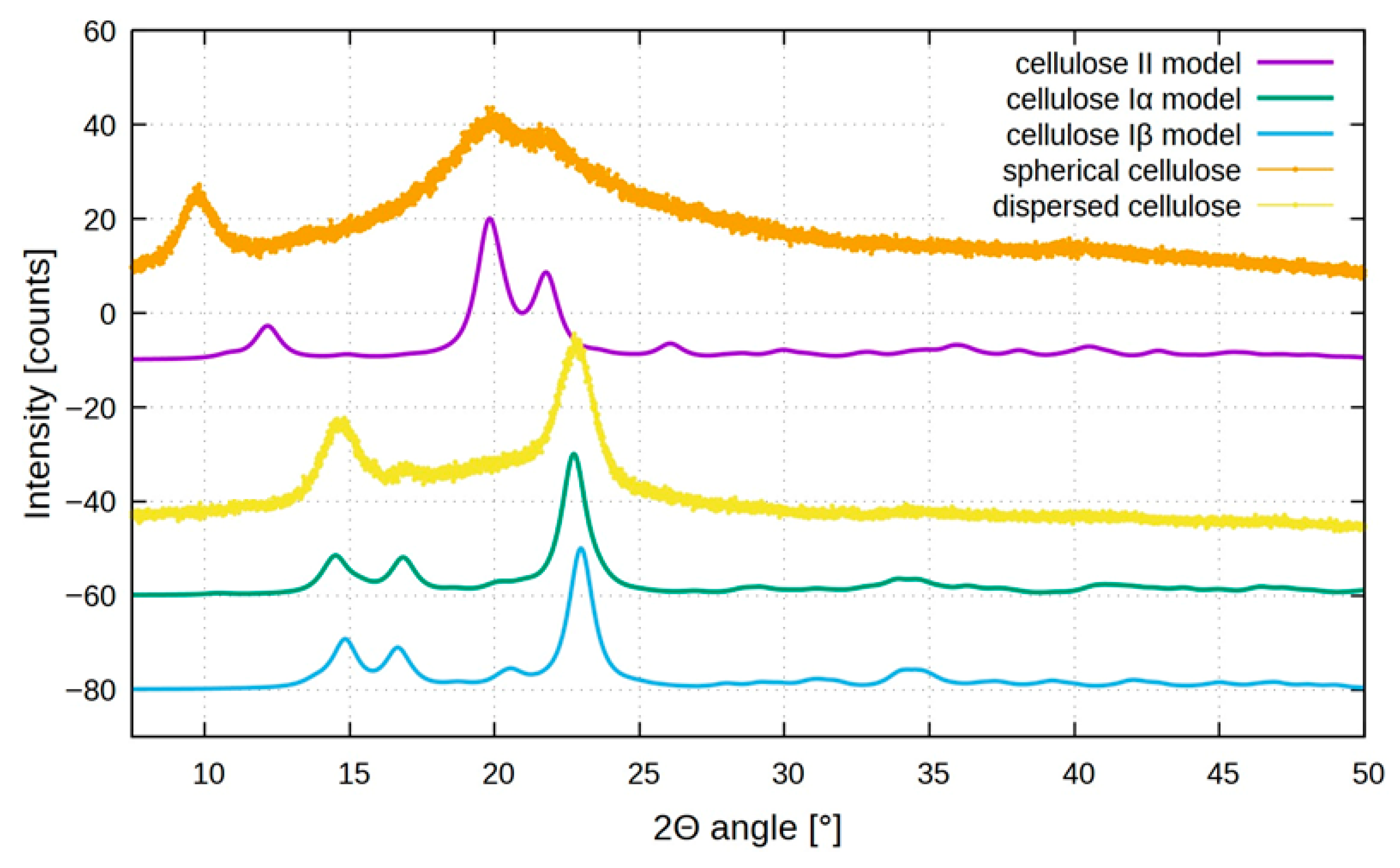

Figure 5. X-ray diffraction patterns of dispersed (yellow) and spherical (orange) bacterial cellulose produced by Pseudomonas sp. ef1 in static and agitation conditions, respectively, compared with cellulose Iα (green), cellulose Iβ (blue light), and cellulose II models (violet).
Figure 5. X-ray diffraction patterns of dispersed (yellow) and spherical (orange) bacterial cellulose produced by Pseudomonas sp. ef1 in static and agitation conditions, respectively, compared with cellulose Iα (green), cellulose Iβ (blue light), and cellulose II models (violet).
Marinedrugs 23 00410 g005
Marinedrugs 23 00410 g006

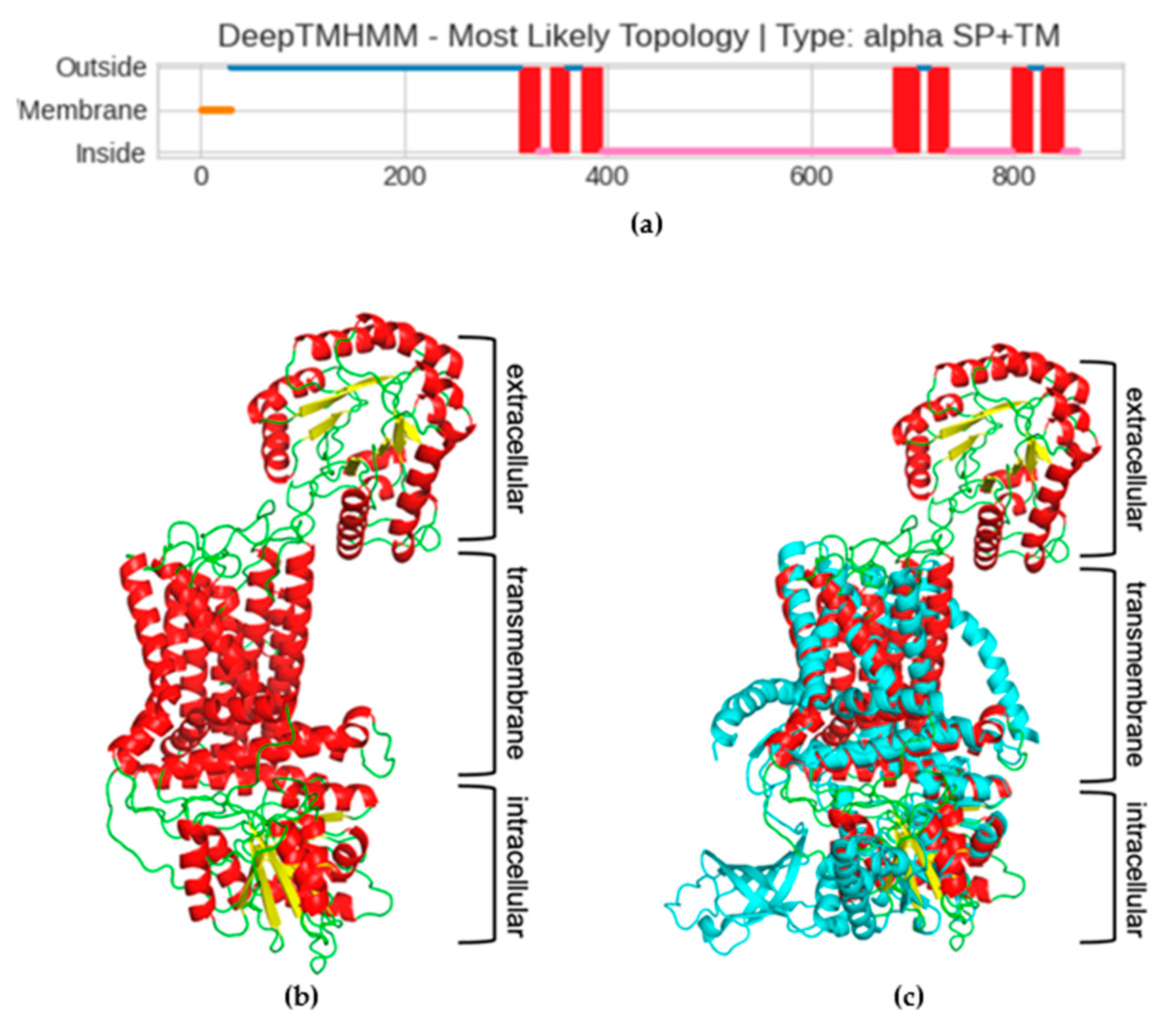

Figure 6. (a) Prediction of transmembrane regions of the putative Pseudomonas sp. ef1 cellulose synthase subunit A (pBCSA). The plot obtained with DeepTMHMM shows a signal peptide in orange, in blue and pink the extra–intracellular portion, respectively, and in red the transmembrane helixes. (b) Pseudomonas sp. ef1 pBCSA three-D model, colored according to the secondary structures: helixes in red, strand in yellow, and loop in green. (c) Superposed Pseudomonas sp. ef1 pBCSA and C. sphaeroides cellulose synthase subunit A model, the latter all colored in cyan.
Figure 6. (a) Prediction of transmembrane regions of the putative Pseudomonas sp. ef1 cellulose synthase subunit A (pBCSA). The plot obtained with DeepTMHMM shows a signal peptide in orange, in blue and pink the extra–intracellular portion, respectively, and in red the transmembrane helixes. (b) Pseudomonas sp. ef1 pBCSA three-D model, colored according to the secondary structures: helixes in red, strand in yellow, and loop in green. (c) Superposed Pseudomonas sp. ef1 pBCSA and C. sphaeroides cellulose synthase subunit A model, the latter all colored in cyan.
Marinedrugs 23 00410 g006
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Biondini, M.C.; Di Sessa, M.; Vassallo, A.; Chiappori, F.; Zannotti, M.; Mancini, A.; Giovannetti, R.; Pucciarelli, S. Cellulose and Cellulose Synthase in a Marine Pseudomonas Strain from Antarctica: Characterization, Adaptive Implications, and Biotechnological Potential. Mar. Drugs 2025, 23, 410. https://doi.org/10.3390/md23100410

AMA Style

Biondini MC, Di Sessa M, Vassallo A, Chiappori F, Zannotti M, Mancini A, Giovannetti R, Pucciarelli S. Cellulose and Cellulose Synthase in a Marine Pseudomonas Strain from Antarctica: Characterization, Adaptive Implications, and Biotechnological Potential. Marine Drugs. 2025; 23(10):410. https://doi.org/10.3390/md23100410

Chicago/Turabian Style

Biondini, Maria Chiara, Martina Di Sessa, Alberto Vassallo, Federica Chiappori, Marco Zannotti, Alessio Mancini, Rita Giovannetti, and Sandra Pucciarelli. 2025. "Cellulose and Cellulose Synthase in a Marine Pseudomonas Strain from Antarctica: Characterization, Adaptive Implications, and Biotechnological Potential" Marine Drugs 23, no. 10: 410. https://doi.org/10.3390/md23100410

APA Style

Biondini, M. C., Di Sessa, M., Vassallo, A., Chiappori, F., Zannotti, M., Mancini, A., Giovannetti, R., & Pucciarelli, S. (2025). Cellulose and Cellulose Synthase in a Marine Pseudomonas Strain from Antarctica: Characterization, Adaptive Implications, and Biotechnological Potential. Marine Drugs, 23(10), 410. https://doi.org/10.3390/md23100410

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
