Review

Recent Modifications of Chitosan for Adsorption Applications: A Critical and Systematic Review

by
George Z. Kyzas
* and
Dimitrios N. Bikiaris
Laboratory of Polymer Chemistry and Technology, Division of Chemical Technology, Department of Chemistry, Aristotle University of Thessaloniki, GR-541 24 Thessaloniki, Greece
*
Author to whom correspondence should be addressed.
Mar. Drugs 2015, 13(1), 312-337; https://doi.org/10.3390/md13010312
Submission received: 9 November 2014 / Accepted: 30 December 2014 / Published: 9 January 2015
(This article belongs to the Special Issue Advances in Marine Chitin and Chitosan)
Browse Figures
Versions Notes

Abstract

:
Chitosan is considered to be one of the most promising and applicable materials in adsorption applications. The existence of amino and hydroxyl groups in its molecules contributes to many possible adsorption interactions between chitosan and pollutants (dyes, metals, ions, phenols, pharmaceuticals/drugs, pesticides, herbicides, etc.). These functional groups can help in establishing positions for modification. Based on the learning from previously published works in literature, researchers have achieved a modification of chitosan with a number of different functional groups. This work summarizes the published works of the last three years (2012–2014) regarding the modification reactions of chitosans (grafting, cross-linking, etc.) and their application to adsorption of different environmental pollutants (in liquid-phase).

1. Introduction

Chitosan (poly-β-(1→4)-2-amino-2-deoxy-d-glucose) is a nitrogenous (amino-based) polysaccharide (Figure 1a), which is produced in large quantities by N-deacetylation of (its origin compound) chitin [1,2,3]. Chitin (poly-β-(1→4)-N-acetyl-d-glucosamine) can be characterized as one of the most abundant natural biopolymers (Figure 1b) [4,5]. Chitin exists in marine media and especially in the exoskeleton of crustaceans, or cartilages of mollusks, cuticles of insects and cell walls of micro-organisms. Chitosan can be easily characterized as a promising material not only due to its physical properties (macromolecular structure, non-toxicity, biocompatibility, biodegradability, low-cost, etc.) [2], and applications to many fields (biotechnology, medicine, membranes, cosmetics, food industry, etc. [6,7,8,9,10,11,12,13,14,15,16,17,18]), but also its adsorption potential.
Marinedrugs 13 00312 g001 1024

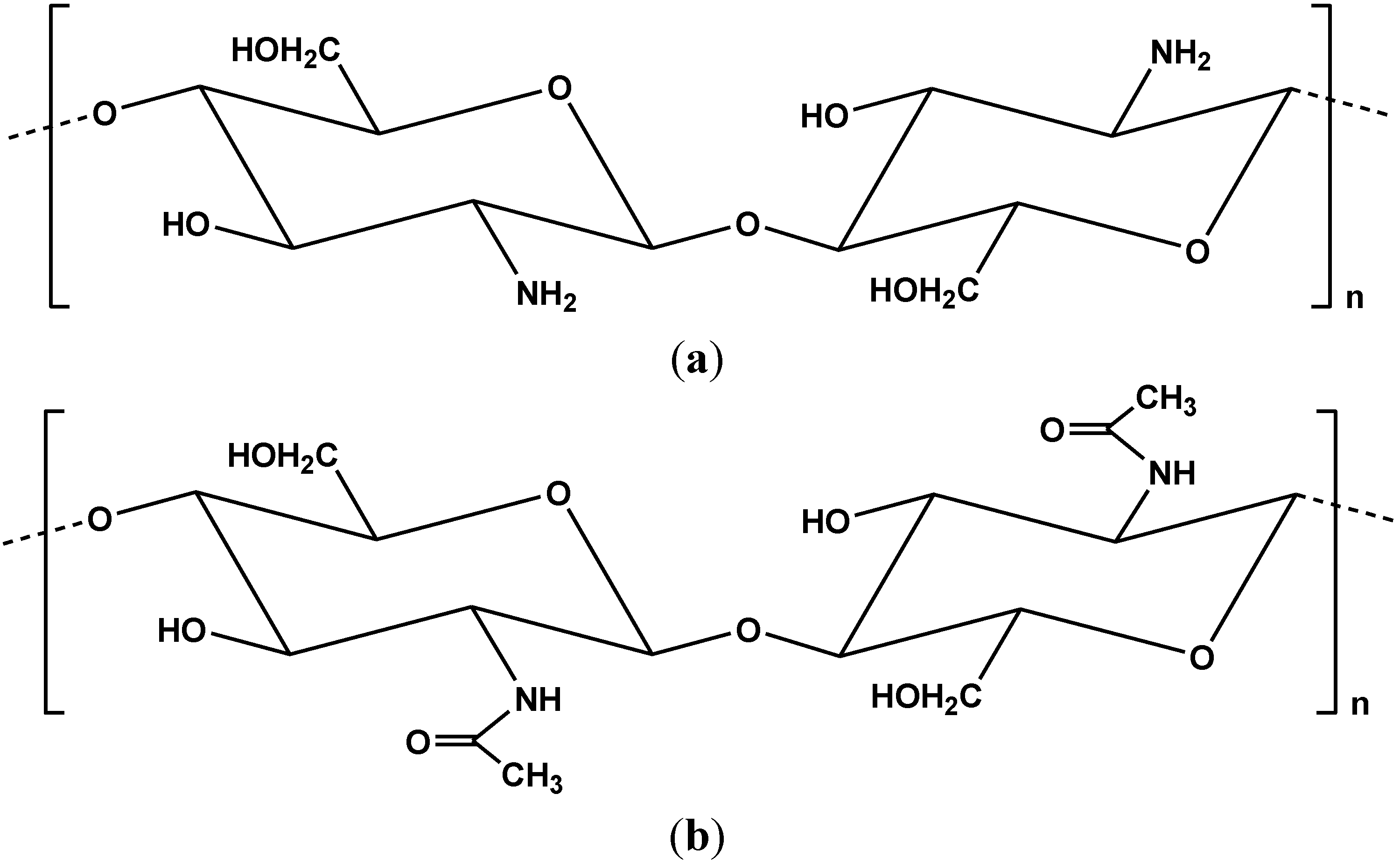

Figure 1. Chemical structure of (a) chitosan and (b) chitin.
Figure 1. Chemical structure of (a) chitosan and (b) chitin.
Marinedrugs 13 00312 g001
Since the primary research work of Muzzarelli in 1969, who described the synthesis and adsorption evaluation of chitosan for the removal of metal ions from organic and sea waters [19], numerous papers have been published regarding the use of chitosan as adsorbent for decontamination of wastewaters (or effluents, sea waters, drinking samples, etc.) from various pollutants, either organic (dyes, phenolic and pharmaceutical compounds, herbicides, pesticides, drugs, etc.) or inorganic species (metals, ions, etc.). In order to obtain a more realistic view of the published works regarding the adsorption use of chitosan during time-periods, the following results were exported after the Scopus database screening (using the terms “chitosan” in combination with “adsorption” or “removal”): (i) 15 papers for 1969–1990; (ii) 116 papers for 1991–2000; (iii) 811 papers for 2001–2010, and (iv) 850 papers for 2011–2014. The results are relative and approximate, because many other papers are not present in the Scopus database or the search is not accurate. However, in any case, the trend is clear.
As it is clearly understood, the major advantage of chitosan is the existence of modifiable positions in its chemical structure. The modification of chitosan molecule with (i) grafting (insert functional groups) or (ii) cross-linking reactions (unite the macromolecular chains each other) leads to the formation of chitosan derivatives with superior properties (enhancement of adsorption capacity and resistance in extreme media conditions, respectively). In the case of grafting reactions, the addition of extra functional groups onto chitosan increases the number of adsorption sites and consequently the adsorption capacity. On the other hand, the cross-linking reactions slightly decrease the adsorption capacity because some functional groups of chitosan (i.e., amino or hydroxyl groups) are bound with the cross-linker and cannot interact with the pollutant. As a general comment, in more recent years (after 1990), researchers have attempted to prepare chitosan-based adsorbent materials modifying the molecules of chitosan.
The scope of this work is to gather and summarize the most recent and updated published works of the last three years (2012–2014) regarding the modification reactions of chitosan derivatives (grafting, cross-linking, etc.). However, the present work is related to only chitosan modified materials synthesized for adsorption application (to different environmental pollutants) and not the sum of modified chitosan materials used for other applications (food science, membrane technologies, etc.). Scopus database exports 368 review articles for the wide term “chitosan”, but only 10 for the combination “chitosan” and “adsorption” or “removal” [20,21,22,23,24,25,26,27,28,29]. Therefore, there is a gap in updating the literature published in the last three years emphasizing the modified chitosan adsorbents.

2. Modified Chitosans for Dye Adsorption

Auta and Hameed prepared a composite of chitosan and clay for both batch and fixed-bed adsorption experiments [30]. Modified Ball clay (MBC) and chitosan composite (MBC-CH) were the adsorbents used for removal of Methylene blue (MB) from aqueous solutions. For the synthesis of MBC-CH, chitosan was dissolved in acetic acid in order to be mixed and then an amount of MBC was added and stirred for 1 day. The resulted mixture was dropped to NaOH solution in order to form beads. After that, a procedure of freeze-drying was carried out (particle size between 0.5 and 2.0 mm). The effect of pH was tested in the range of 4–10, while the optimum value found was at alkaline conditions. The isotherm curves were fitted to the Langmuir, Freundlich and Redlich-Peterson models with their non-linear expressions (Qm = 259.8 mg/g at 30 °C). In the present study, the abbreviation of Qm corresponds to the maximum theoretical adsorption capacity calculated after fitting to the Langmuir (or Langmuir-Freundlich in some cases) equation. The adsorption columns presented equilibrium capacities (for C0 = 200 mg/L; bed depth = 3.6 cm; flow rate = 5 mL/min) equal to 70 mg/g for MBC and 142 mg/g for MBC-CH.
The same dye (MB) was studied by another research group preparing a magnetic nanocomposite of chitosan/β-cyclodextrin (CDCM) [31]. For its preparation, maleoyl-β-CD was prepared following the method of Binello et al. [32]. After SEM (scanning electron microscopy) studies, the shape of the majority of CSCM particles was found to be spherical (~100 nm). The effect-of-pH experiments demonstrated that the highest MB removal was in the range of 4–6 (more protons were available to protonate amino groups to form NH3+ because the pka of chitosan is 6.0–7.0). The Qm after fitting (Langmuir, Freundlich equations) was estimated to be 2.78 g/g (30 °C).
A study of Elwakeel et al. describes the preparation of a resin based on chitosan and glutaraldehyde [33]. The chemical modification was chemically achieved using NH4OH for producing the resin, which was then cross-linked with epichlorohydrine. This reaction took place between hydroxyl groups of chitosan molecules. The resultant resin was further modified with 3-amino-1,2,4 triazole,5-thiol to synthesize the final resin (Figure 2). The resin was prepared for binding/removing a cationic dye (BBR250) from aqueous media.
Marinedrugs 13 00312 g002 1024

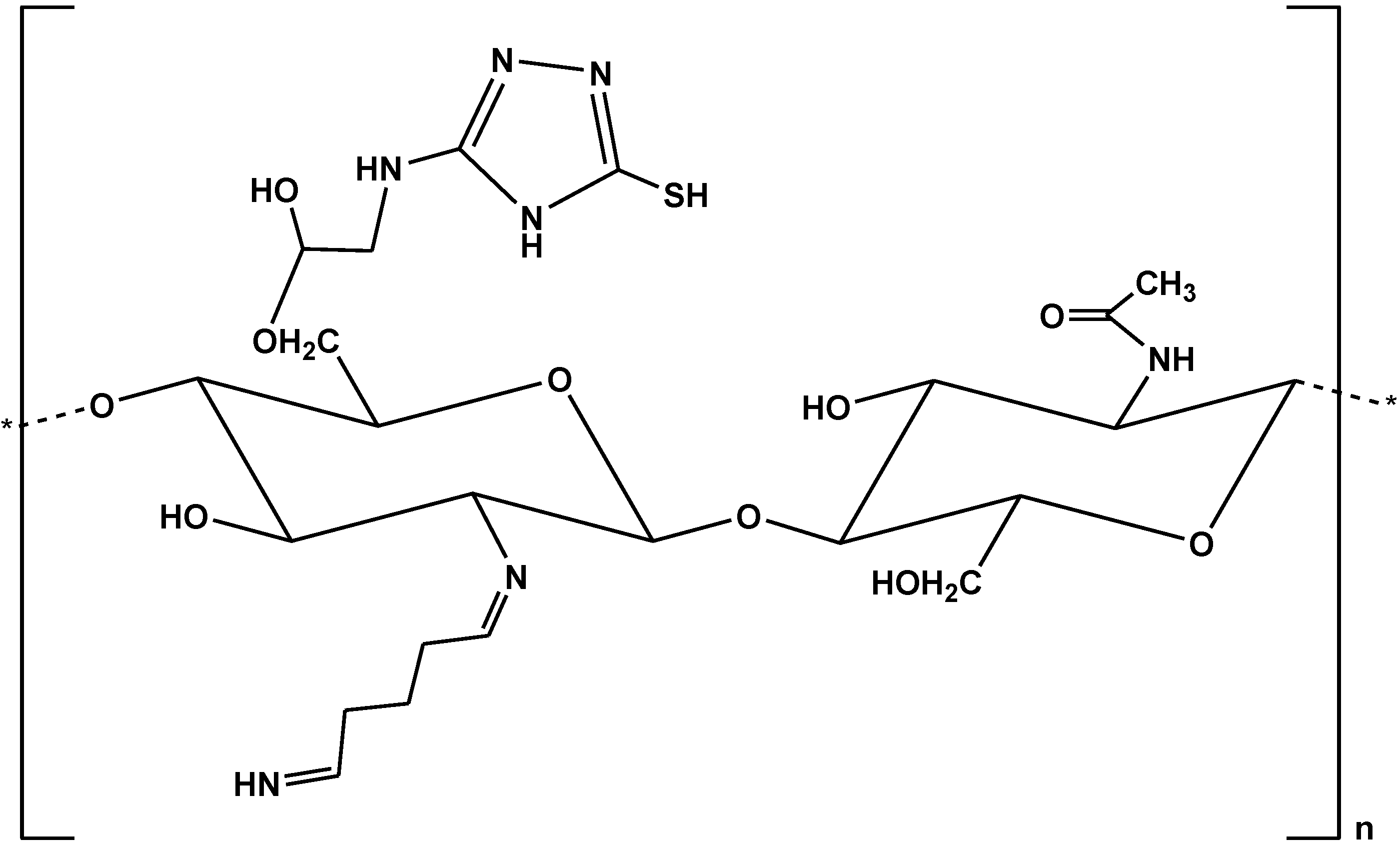

Figure 2. Chemical structure of the modified chitosan resin [33].
Figure 2. Chemical structure of the modified chitosan resin [33].
Marinedrugs 13 00312 g002
The surface area was estimated to be 371.1 m2/g, while the water regain was 17%. The experimental data were fitted to Langmuir and Freundlich model and the adsorption capacity (Qm) was found to be 0.8 mmol/g at 25 °C.
An anionic dye (AR18) was selected to investigate the adsorption properties of chitosan-functionalized with siliceous mesoporous SBA-15 [34]. The final products were SBA-15/CTS(5%), SBA-15/CTS(10%), and SBA-15/CTS(20%). CTS-modified SBA-15 composites were prepared according to rehydrolysis-condensation strategy (Figure 3).
Marinedrugs 13 00312 g003 1024

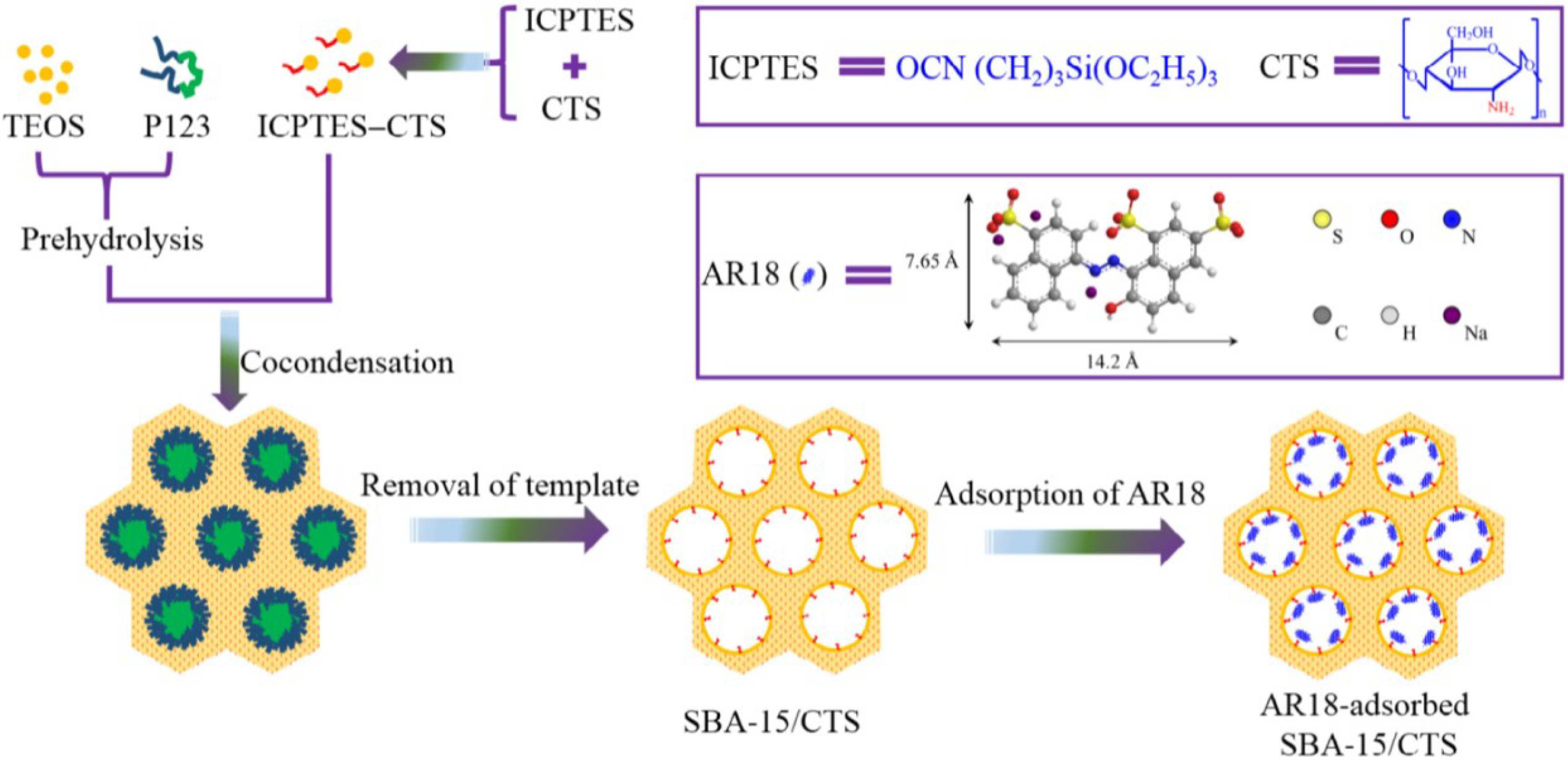

Figure 3. Preparation scheme of SBA-15/CTS and its application for the adsorption of AR18. Reprinted with permission from [34], Copyright © 2014 Elsevier Inc.
Figure 3. Preparation scheme of SBA-15/CTS and its application for the adsorption of AR18. Reprinted with permission from [34], Copyright © 2014 Elsevier Inc.
Marinedrugs 13 00312 g003
After characterization, it was observed that the pore sizes of SBA-15, SBA-15/CTS(5%), SBA-15/CTS(10%), and SBA-15/CTS(20%) are 6.6, 6.5, 6.6, and 6.7 nm, respectively, with narrow distributions. The latter demonstrated that the porosity of those materials was not affected by the incorporation of chitosan due to condensation. CTS-modified SBA-15 composites were hydrophilic and the pH-effect experiments (in the range of 4–7) showed a strong dependence of dye uptake on pH (higher adsorption at low pH values; optimum pH value was 2). After fitting with Langmuir model, the highest Qm was 201.2 mg/g at 30 °C for SBA-15/CTS(20%).
Another anionic dye (RB19) was successfully removed using chitosan grafted with poly(methyl methacrylate) (Figure 4) [35]. The synthesis included two steps: (i) functionalization of chitosan (CTS) with glycidyl methacrylate (GMA) in aqueous solution with pH = 3.8; and (ii) synthesis of the copolymer-(CTS-GMA)-g-PMMA using the mixed solvent of acetic acid and tetrahydrofuran (v/v, 2/1). The molar ratio of CTS/GMA/MMA was 1/1/1. The maximum dye uptake was 1498 mg/g (Langmuir fitting) at 30 °C (pH = 3).
Marinedrugs 13 00312 g004 1024

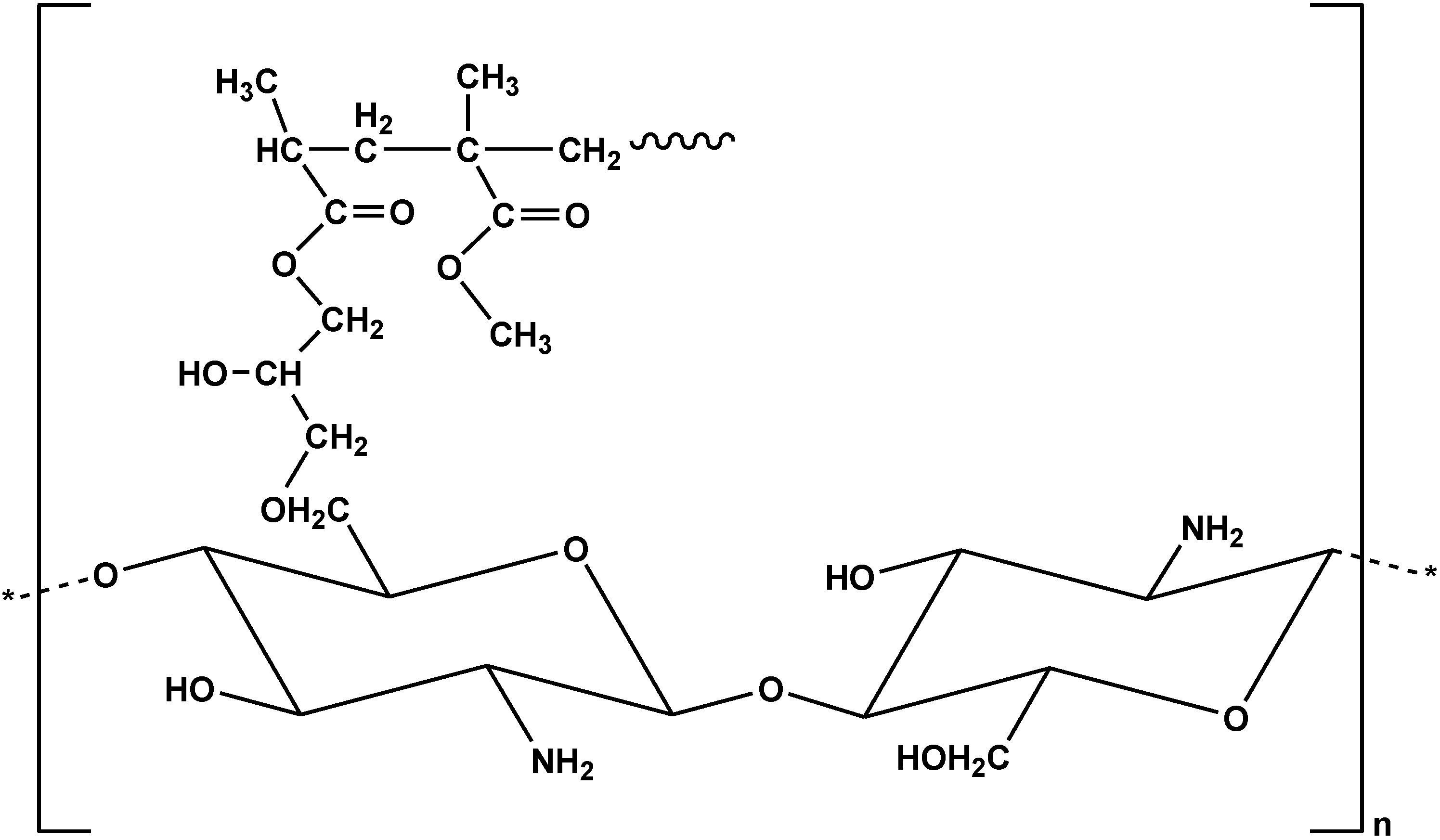

Figure 4. Chemical structure of chitosan grafted with poly(methyl methacrylate).
Figure 4. Chemical structure of chitosan grafted with poly(methyl methacrylate).
Marinedrugs 13 00312 g004
Guo et al. modified the chitosan molecule using bentonite [36]. Chitosan modified bentonite (CTS-Bent) and chitosan-hexadecyl trimethyl ammonium bromide modified bentonite (CTS-CTAB-Bent) were the two final products after modifications and were tested for the removal of WASC dye from aqueous solutions. For the synthesis of the materials, a fixed amount of bentonite was added into deionized water and then quaternary ammonium salt solution was added to the above mixture with strong stirring. Chitosan solution was added step by step at a certain temperature. After stirring and cooling down to room temperature, the sample was filtered and washed with deionized water until no bromide ion detected by silver nitrate solution. From the FTIR spectra, a new band at 1564 cm−1 was related to the NH2 vibration mode of the chitosan, which indicated that the chitosan molecule was inserted into the interlayer space of the bentonite. The optimum synthesis conditions for the adsorption of 100 mg/L WASC solution were 1% chitosan and 10% CTAB at 80 °C and 2.5 h. So, the final removal for 1CTS-10CTAB-Bent was higher than 85% (Qm = 102 mg/g) [36].
A more complex modification was recently published by Li et al. aiming to remove lysozyme using magnetic chitosan, which was previously modified with an affinity dye-ligand (RR120) [37]. The effect of this modification was determined by the increased adsorption amount of lysozyme (116.9 mg/g) on dye-modified microspheres, compared to only absorbing 24.6 mg/g on unmodified magnetic chitosan microspheres. The dye was grafted with covalent bonds onto the surface of magnetic chitosan microspheres via a nucleophilic substitution reaction.
Nezic et al. published a research article which presented data about synthesis of chitosan/zeolite composite [38]. In particular, chitosan/zeolite A films were produced after mixing chitosan solutions and dispersions of zeolite A in water. The zeolite A amount in the films was determined to be 40% of chitosan mass. The final films had no color and their thickness was approximately 0.1. The surface of the films was uniform with many agglomerates which were equally distributed all over the surface. An anionic dye used for adsorption evaluation (BO16); the equilibrium data were fitted to Langmuir and Freundlich models, presenting Qm = 305.8 mg/g. This value was taken at pH = 6, which preliminarily was found to be optimum (after pH-effect experiments in the range of 4.0–7.5).
Chitosan-modified palygorskite (CTS-modified PA) was prepared by Peng et al. in order to remove an anionic dye (RY3RS) from aqueous media [39]. 3-Aminopropyl triethoxysilane (KH-550) was used as coupling reagent for the synthesis of the grafted derivative. The preparation route is simple; KH-550 was used to add aminopropyl groups onto the plygorskite (PA) surface. Briefly, PA (dried at 105 °C) was dispersed in fixed volume of toluene, and then KH-550 was added and dissolved (continuous stirring). The resulted solution was refluxed and PA was separated by filtration. The KH-550-modified PA was dried at room temperature in vacuum overnight. This product was soaked into glutaraldehyde; chitosan powder was dissolved in acetic acid solution. The two solutions were mixed and the reacted PA was separated using centrifugation and Na2CO3. CTS-modified PA was finally isolated by centrifugation, then washed with distilled water, and dried in vacuum [39]. For the adsorption experiments, the optimum pH value was found to be 4 and at this value the Qm was 71.38 mg/g (Langmuir and Freundlich fittings).
Sadeghi-Kiakhani et al. synthesized a chitosan grafted polypropylene imine in dendrimer form [40]. As model dye compounds, two anionic dyes were used (RB5 and RR198). The adsorption capacities of the material for both dyes can be characterized as huge (RB5, 6250 mg/g; RR198, 5852 mg/g). The fitting was done with three models (Langmuir, Freundlich, Temkin).
Yan et al. studied a more complex adsorption phenomenon, in which two model dyes (AO7 and AG25) were competitively adsorbed onto beads of chitosan grafted with diethylenetriamine [41]. Langmuir and Freundlich equations were run for fitting. Qm was calculated as 6.02 and 4.37 mmol/g for AO7 and AG25 in single-component solutions, respectively. For binary mixtures, 4.10 and 3.51 mmol/g were the respective values. From this study, characterization techniques do not exist.
Zhu et al. prepared chitosan-modified magnetic graphitized multi-walled carbon nanotubes (CS-m-GMCNTs) for removing CR from aqueous media [42]. The surface area of the prepared chitosan modified material was measured (BET analysis) as 39.20 m2/g. The maximum dye uptake was shown at pH = 6.3 and at this value the Qm was calculated (Langmuir and Freundlich models) as 263.3 mg/g. Authors also made a direct comparison with other chitosan CR adsorbents of recent literature (not those published in 2012–2014); Qm for CR adsorption on chitosan hydrobeads [43], chitosan [44], and N,O-carboxymethyl-chitosan/montmorillonite nanocomposite [45] were 92.59, 81.23, 74.24 mg/g, respectively.
A recent study of our research team [46] investigated the synthesis of a novel composite material (GO-Ch) consisting of cross-linked chitosan (Ch) and graphite oxide (GO) for the removal of RB5. All prepared products (GO, Ch, and GO-Ch) were ground to fine powders, with a size after sieving of 75–125 μm. The capacities found after fitting demonstrated that the functionalization of chitosan enhanced the Qm (205, 224, and 277 mg/g (pH = 2) for GO, Ch, and GO-Ch).
Travlou et al. reveal the use of magnetic chitosan (Chm) instead of pure (Ch) in the functionalization and synthesis of graphite oxide/magnetic chitosan composite (GO-Chm) [47]. It was found that for GO, the Qm was 221 mg/g (pH = 3) and 391 mg/g for GO-Chm. The possible interactions were illustrated in Figure 5 (found and proposed after characterization techniques).
Marinedrugs 13 00312 g005 1024

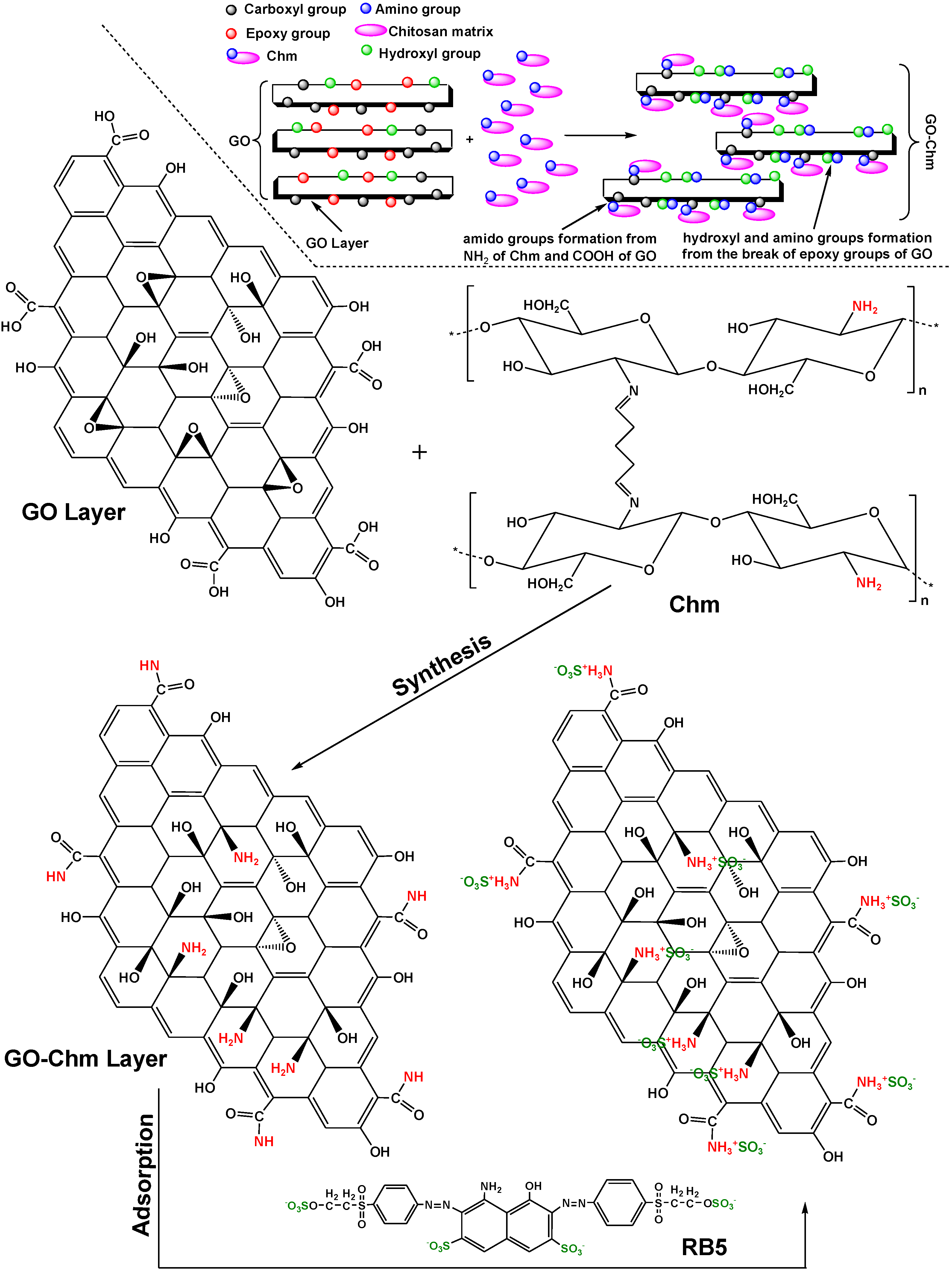

Figure 5. Proposed mechanism of synthesis of graphite oxide/magnetic chitosan composite (GO-Chm) after functionalization of magnetic chitosan (Chm) onto graphite oxide (GO). Proposed interactions of the Reactive black 5 (RB5) adsorption onto the prepared GO-Chm. Reprinted with permission from [47], Copyright © 2013 American Chemical Society.
Figure 5. Proposed mechanism of synthesis of graphite oxide/magnetic chitosan composite (GO-Chm) after functionalization of magnetic chitosan (Chm) onto graphite oxide (GO). Proposed interactions of the Reactive black 5 (RB5) adsorption onto the prepared GO-Chm. Reprinted with permission from [47], Copyright © 2013 American Chemical Society.
Marinedrugs 13 00312 g005
Special note should be made of a selective adsorbent synthesized after modification of chitosan. Kyzas et al. prepared molecularly imprinted polymers of chitosan (CHI-MIPs) in order to selectively remove RR3BS (anionic dye) for aqueous solutions [48]. Qm was approximately 35 mg/g and the selectivity very high (in a dye mixture containing other dyes).
Table 1 summarizes all the aforementioned modified chitosans and their respective adsorption application.
Table
Table 1. Studies of the adsorption of dyes using modified chitosan adsorbents during 2012–2014.
Table 1. Studies of the adsorption of dyes using modified chitosan adsorbents during 2012–2014.
Modified Chitosan AdsorbentDyeIsothermsQmRef.
Modified Ball clay/Chitosan compositeMBL, F, R-P259.8 mg/g[30]
β-cyclodextrin/chitosan magnetic nanocompositeMBL, F2788 mg/g[31]
Chitosan/glutaraldehyde/3-amino-1,2,4 triazole,5-thiol resinBBR250L, F0.8 mmol/g[33]
Chitosan/SBA-15AR18L, F201.2 mg/g[34]
Chitosan grafted with poly(methyl methacrylate)RB19L1498 mg/g[35]
Chitosan modified bentoniteWASCH, L, F, T, D-R102 mg/g[36]
Chitosan/CTAB modified bentoniteWASCH, L, F, T, D-R175 mg/g[36]
Magnetic chitosan grafted with Reactive red 120LysozymeL116.9 mg/g[37]
Chitosan/Zeolite ABO16L, F305.8 mg/g[38]
Chitosan-modified palygorskiteRY3RSL, F71.38 mg/g[39]
Chitosan grafted with polypropylene imineRB5L, F, T6250 mg/g[40]
RR198L, F, T5855 mg/g[40]
Chitosan grafted with diethylenetriamineAO7L, F6.02 mmol/g[41]
AG25L, F4.37 mmol/g[41]
Chitosan-modified magnetic graphitized multi-walled carbon nanotubesCRL, F263.3 mg/g[42]
Chitosan/Graphite oxide compositeRB5L-F277 mg/g[46]
Magnetic chitosan/Graphite oxide nanocompositeRB5L-F391 mg/g[47]
Chitosan-Molecularly Imprinted PolymersRR3BSL, F35 mg/g[48]
L: Langmuir; F: Freundlich; H: Henry; T: Temkin; D-R: Dubinin-Radushkevich; L-F: Langmuir-Freundlich; R-P: Redlich-Peterson.

3. Modified Chitosans for Metals/Ions Adsorption

The number of research articles published in literature during these three years regarding the use of chitosan adsorbents for metal/ion removal from aqueous solutions is by far higher than those for dyes removal. A possible explanation is that metals or/and ions cover a wider region of pollutants than dyes which are more toxic. Another reason could be a particular adsorption mechanism dominant in the majority of chitosan-ions systems which is called chelation. Chelation refers to a fixed manner in which ions and molecules bind to metal ions. The International Union of Pure and Applied Chemistry (IUPAC) provides a detailed description of chelation [49]: it involves the creation or even the presence of two or more separate coordinate bonds between a polydentate (multiple bonded) ligand and a single central atom [49]. In the majority of cases, the ligands are organic-based compounds (namely chelants, chelators, chelating agents). Muzzarelli et al. have published many works describing the chelation of different ions with chitosan derivatives [50]. In the present work, the papers with metal/ion adsorption onto modified chitosan adsorbents will be described.
Arvand et al. prepared a modified with 3,4-dimethoxybenzaldehyde chitosan derivative (Chi/DMB) for the removal and determination of Cd(II) from waters [51]. The successful synthesis of the new material was confirmed with FTIR spectrum before and after modification. Two new bands were recorded in Chi/DMB; A band at 1655 cm−1 can be attributed to an imine bond (N=C) and another one at 1562 cm−1 is associated with an ethylenic bond (C=C). The characteristic band of free aldehyde groups (1720 cm−1) disappeared. After pH-experiments, an increase of metal uptake was observed as the pH increased from 1.0 to 9.0. However, cadmium started to precipitate from solution and therefore the increased capacity at values higher than 7 may be due to a combination of both adsorption and precipitation on the surface. So, the value selected was 6.5. After running the Langmuir isotherm model, Qm was found to be 217.4 mg/g.
The removal of U(VI) from wastewaters using chitosan-modified multiwalled carbon nanotubes (MWCNT-CS) was proposed by Chen et al. [52]. The maximum ion removal was at pH = 7. Using the Langmuir model, the maximum adsorption capacity was found to be 71 mg/g. Chen and Wang synthesized a xanthate-modified magnetic cross-linked chitosan (XMCS) for the removal of Co(II) [53]. The xanthate-modification was based on the treatment of cross-linked magnetic chitosan with NaOH solution and CS2. After stirring at room temperature (24 h) and washing with deionized water, the final derivative was dried at 70 °C. Langmuir and Freundlich isotherms calculated the Qm for the material (18.5 mg/g).
Chethan and Vishalakshi attempted the selective modification of chitosan by incorporating ethylene-1,2-diamine molecule in a regioselective manner using N-phthaloylchitosan and chloro-6-deoxy N-phthaloylchitosan as precursors [54]. The derivatives that resulted were ethylene-1,2-diamine-6-deoxy-N-phthaloylchitosan (PtCtsEn) and ethylene-1,2-diamine-6-deoxy-chitosan (CtsEn) and were prepared for Cu(II), Pb(II) and Zn(II) removal. The capacities calculated (Langmuir model) for CtsEn were 41.6, 31.8, and 20.0 mg/g, for Cu(II), Pb(II), and Zn(II), respectively, while for PtCtsEn they were 32.3, 28.6 and 28.6 mg/g, respectively. Another study published by Debnath et al. presented the removal results of Cr(VI) after adsorption onto magnetically modified graphene oxide-chitosan composite [55]. The graphene oxide was prepared based on Hummers method [56], and the optimum pH found after adsorption experiments was 3.0. Langmuir, Freundlich and Redlich-Peterson models were used for fitting (Qm ~75 mg/g, 25 °C).
Elwakeel et al. prepared a resin, which was a structure based on magnetic modified chitosan [57]. Chitosan was initially cross-linked with glutaraldehyde in magnetite presence and then chemically modified reacting with tetraethylenepentamine (TEPA). UO2(II) were removed presenting Qm = 1.8 mmol/g (after fitting to Freundlich, Langmuir, and Dubinin-Radushkevich equations) at pH 4 (25 °C). In this study, column experiments were also carried out varying parameters (flow rate, etc.). Eser et al. chemically modified the raw chitosan with histidine (HIS-ECH-CB) for increasing the Ni(II) uptake [58]. Qm was calculated with Langmuir (55.6 mg/g) and Freaundlich models. The cross-linking of material was done using epichlorohydrin, while the immobilization of histidine was performed after washing with Na2CO3 solution. The beads forms were placed in a recipient and 10% (w/v) histidine solution and added to a Na2CO3 solution. The mixture was stirred at 60 °C for 1 day and then the beads were washed until excess non-immobilized histidine was removed.
Gandhi et al. prepared a series of modified chitosan beads (CB) in order to remove Fe(III) from aqueous solutions [59]. However, the adsorption capacity of the modified forms of chitosan beads (protonated (PCB), carboxylated (CCB) and grafted CB (GCB)) was not high enough (7.042, 9.346, and 14.286 mg/g, respectively). On the other hand, a series of ions (Cu(II), Co(II), Zn(II), Hg(II), Pb(II)) were removed with another grafted chitosan derivative [60]. The modification reaction was based on the reaction of chitosan with 4,4′-diformyl-α-ω-diphenoxy-ethane. The maximum uptake was presented at pH = 5, and the adsorption capacities calculated were 12, 8, 12, 56, 50 mg/g for Cu(II), Co(II), Zn(II), Hg(II), Pb(II), respectively.
Li et al. formed an ethylenediamine modified yeast biomass after coating with magnetic chitosan (EYMC) [61]. Interesting morphological properties were exported after characterization (13.2 m2/g as the surface area), but the most interesting property was on the surface of the EYMC material. Numerous, small bumps existed on the surface, forming a large quantity of pores. These pores may significantly contribute to the transfer of Pb(II) ions to the surface of EYMC. After metal adsorption, the pores were adhered by Pb(II) [61]. The maximum uptake of Pb(II) was shown at pH = 4–6 and the Langmuir (both fitting with Freundlich) equation gave Qm = 121.6 mg/g. The authors propose the following adsorption interactions between lead and chitosan derivative [61]:
P b 2 + + R − OH + H 2 O → R − OPb − OH + 2 H 3 O + R − COOH + P b 2 + + H 2 O → ( R − COO ) 2 Pb + H 3 O + R − N H 2 + P b 2 + + H 2 O → − N H 2 ( PbOH ) + R − N H 3 + + PbC l 3 − → R − N H 3 + PbC l 3 −
Thiocarbohydrazide-modified chitosan (TCHECS) was synthesized for removal of a series of ions (As(V), Ni(II), Cu(II), Cd(II), Pb(II)) [62]. The main application for this study was the evaluation of anti-corrosion ability of TCHECS and not adsorption. For this reason, Qm was not calculated, but authors observed that the higher uptake was at pH = 9 with 55.6%–99.0% uptake. The same concept was kept in another study by the same research team and two new chitosan grafted materials were prepared [63] and tested just for the same ions (As(V), Ni(II), Cu(II), Cd(II), Pb(II)). Thiosemicarbazide (TSFCS) and thiocarbohydrazide (TCFCS) grafted chitosan were the adsorbents prepared, presenting 66.4%–99.9% and 71.5%–99.9% uptake for the two adsorbents, respectively.
Monier was targeted to the structural modification of chitosan, synthesizing chitosan-thioglyceraldehyde Schiff’s base cross-linked magnetic resin (CSTG) [64]. Mercury porosimetry data was used for the characterization of resin, and the average pore size was found to be 795 nm. BET analysis showed that the surface area was 70.5 m2/g. VSM plots indicated that the saturation of magnetization was 29.3 emu/g. This resin was used for the removal of three toxic metals (Hg(II), Cu(II, Zn(II)). The capacities of the resin for Hg(II), Cu(II, Zn(II) were estimated (Langmuir, Freundlich, Temkin equations) to be 98, 76, 52, mg/g, respectively. Another set of modified chitosan materials (chloroacetic grafted chitosan and glycine grafted chitosan) was produced after equivalent molar amounts of chitosan and glycine/chloroacetic acid in xylene solvent (130 °C for 3 h) [65] were obtained. The key factor of this procedure was the forced stop of this end reaction when the equivalent amount of water was obtained. Qm was found to be 59.1 (Co(II)), 175.12 (Cu(II)) mg/g for chloroacetic grafted chitosan and 82.9, 165.91 mg/g for glycine grafted chitosan.
Rabelo et al. used only cross-linking reactions for modifying chitosan [66]. The agents used were glutaraldehyde (chitosan-GLA) and epichlorohydrin (chitosan-ECH). The adsorption experiments were done for Cu(II) and Hg(II) removal. Langmuir, Freundlich, Langmuir-Freundlich, Henry, and Toth isotherms fitted the equilibrium results. Chitosan-GLA presented Qm equal to 2.8 and 3.3 mmol/g for Cu(II) and Hg(II) removal, respectively, while the values for chitosan-ECH were 2.3 and 3.5 mmol/g.
Gandhi and Meenakshi synthesized amino terminated hyperbranched dendritic polyamidoamine 1st generation (1ACB) chitosan beads after the grafting reaction onto the chitosan beads [67]. This modification was done in two stages: (i) Michael addition of methyl acrylate to amino groups on the surface and (ii) amidation of terminal ester groups by ethylene diamine. In this study, the modification reactions are more complex given the synthesis of both 2nd generation chitosan beads (2ACB) and 3rd generation (3ACB) ones. Those were prepared from 1ACB by repeating the above two processes. The authors suggest that for enhancing Cr(VI) adsorption, 3ACB should be further protonated and loaded with Zr(IV). Adsorption results for 3ACB gave Qm equal to 224.2 mg/g.
Repo et al. investigated the removal of Co(II) by EDTA-modified chitosan [68]. The material prepared has specific surface area of 0.71 m2/g and 1.8 × 10−3 cm3/g total pore volume (610 Å average pore size). This adsorbent tested for Co(II) removal and showed Qm equal to 1.35 mmol/g (Langmuir, Sips equations) Song et al. prepared a novel xanthate carboxymethyl grafted chitosan derivative for removal of Cu(II) and Ni(II) from aqueous solutions (Figure 6) [69]. The effect of pH was tested in the range of 2.0–7.0 and Qm was calculated using Langmuir and Freundlich models to be 174.2 mg/g and 128.4 mg/g for Cu(II) and Ni(II), respectively.
Marinedrugs 13 00312 g006 1024

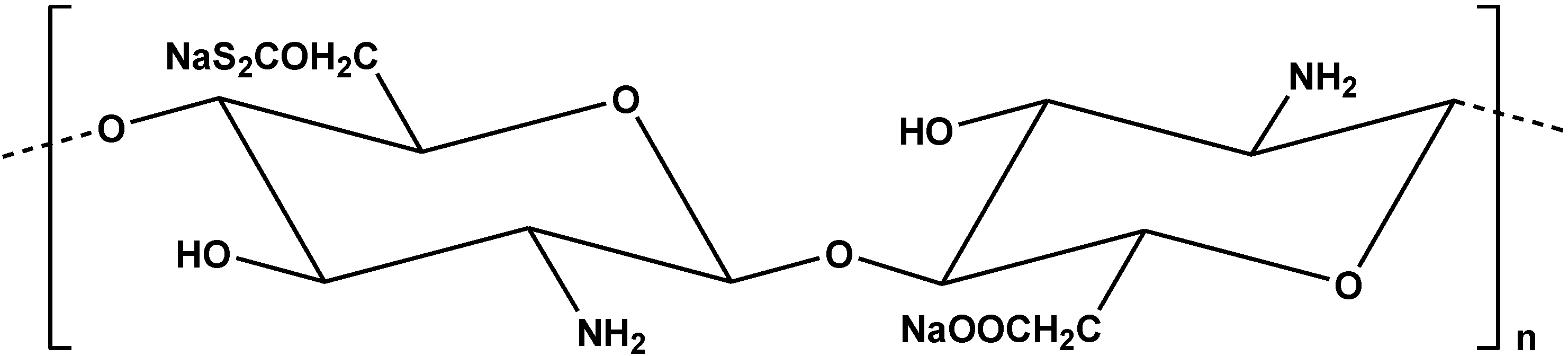

Figure 6. Structure of xanthate carboxymethyl grafted chitosan.
Figure 6. Structure of xanthate carboxymethyl grafted chitosan.
Marinedrugs 13 00312 g006
The grafting of n-butylacrylate onto chitosan was studied for use as adsorbent in Cr(VI) uptake [70]. The synthesis procedure was assisted with microwave. FTIR spectrum confirmed the successful preparation of grafted derivative, presenting a peak at 1727 cm−1 (ester ‒C=O group) [70]. For the adsorption experiments, many isotherm models were tested (Langmuir, Freundlich, Dubinin-Radushkevich, Temkin, Elovich and Redlich) and Qm was found 17.15 mg/g [70]. The authors illustrate a useful scheme for the main interactions (Figure 7).
Marinedrugs 13 00312 g007 1024

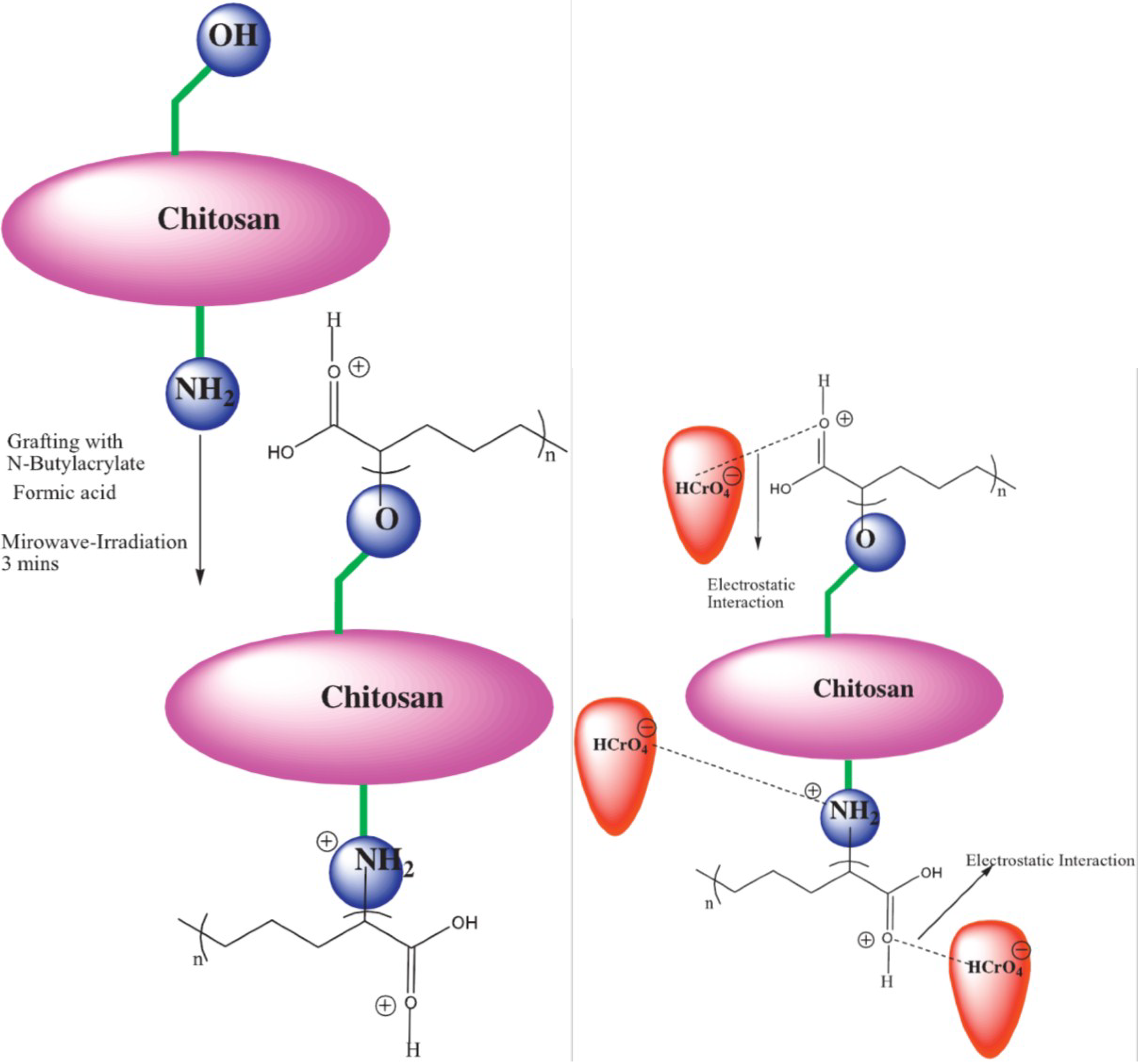

Figure 7. Interactions of chitosan, N-butylacrylate and chromium(VI). Reprinted with permission from [70], Copyright © 2014 Elsevier B.V.
Figure 7. Interactions of chitosan, N-butylacrylate and chromium(VI). Reprinted with permission from [70], Copyright © 2014 Elsevier B.V.
Marinedrugs 13 00312 g007
Suc and Ly achieved the preparation of chitosan flakes which were modified with citric acid and cross-linked with glutaraldehyde [71]. This material was applied to Pb(II) removal, finding that Qm was 101.7 mg/g (Langmuir, Freundlich, Temkin and Dubinin-Radushkevich models). The authors ran their adsorption experiments at pH = 5 in order to avoid precipitation of Pb(OH)2. Montmorillonite modified with chitosan (CTS-MMT) was another modification achieved by Wang et al. for the removal of only Co(II) [72]. 150 mg/g was the Qm calculated (Langmuir, Freundlich and Temkin equations). Moreover, triethylene-tetramine modified magnetic chitosan (TETA-MCS) was prepared for the removal of Th(IV) from aqueous solutions [73]. Similarly, Langmuir, Freundlich and Temkin models were run for calculation of the maximum adsorption capacity (133.3 mg/g at 25 °C). The same team prepared a similar modified derivative (diethylenetriamine-functionalized magnetic chitosan) for U(VI) removal (65.16 mg/g at 25 °C) [74]. In addition, Yang et al. modified magnetic chitosan using α-ketoglutaric acid (α-KA-Fe3O4/CS) for removal of Cd(II) from aqueous solution (Qm = 201.2 mg/g) [75]. Magnetic chitosan was also prepared by Kyzas and Deliyanni for Hg(II) removal [76]. The optimum pH value for adsorption was 5 and Qm (fitting with Langmuir and Freundlich model) was 152 mg/g. Furthermore, Kyzas et al. used two other modified chitosan adsorbents which were grafted with itaconic acid (CS-g-IA) and cross-linked either with glutaraldehyde (CS-g-IA(G)) or epichlorohydrin (CS-g-IA(E)) (Figure 8). These adsorbents were tested for Cd(II) or Pb(II) uptake. The authors demonstrated that Qm (Cd(II)) was 405 mg/g and 331 mg/g for CS-g-IA(G) and CS-g-IA(E), respectively, (Qm were equal to 124 and 92 mg/g before grafting, respectively) [77].
Marinedrugs 13 00312 g008 1024

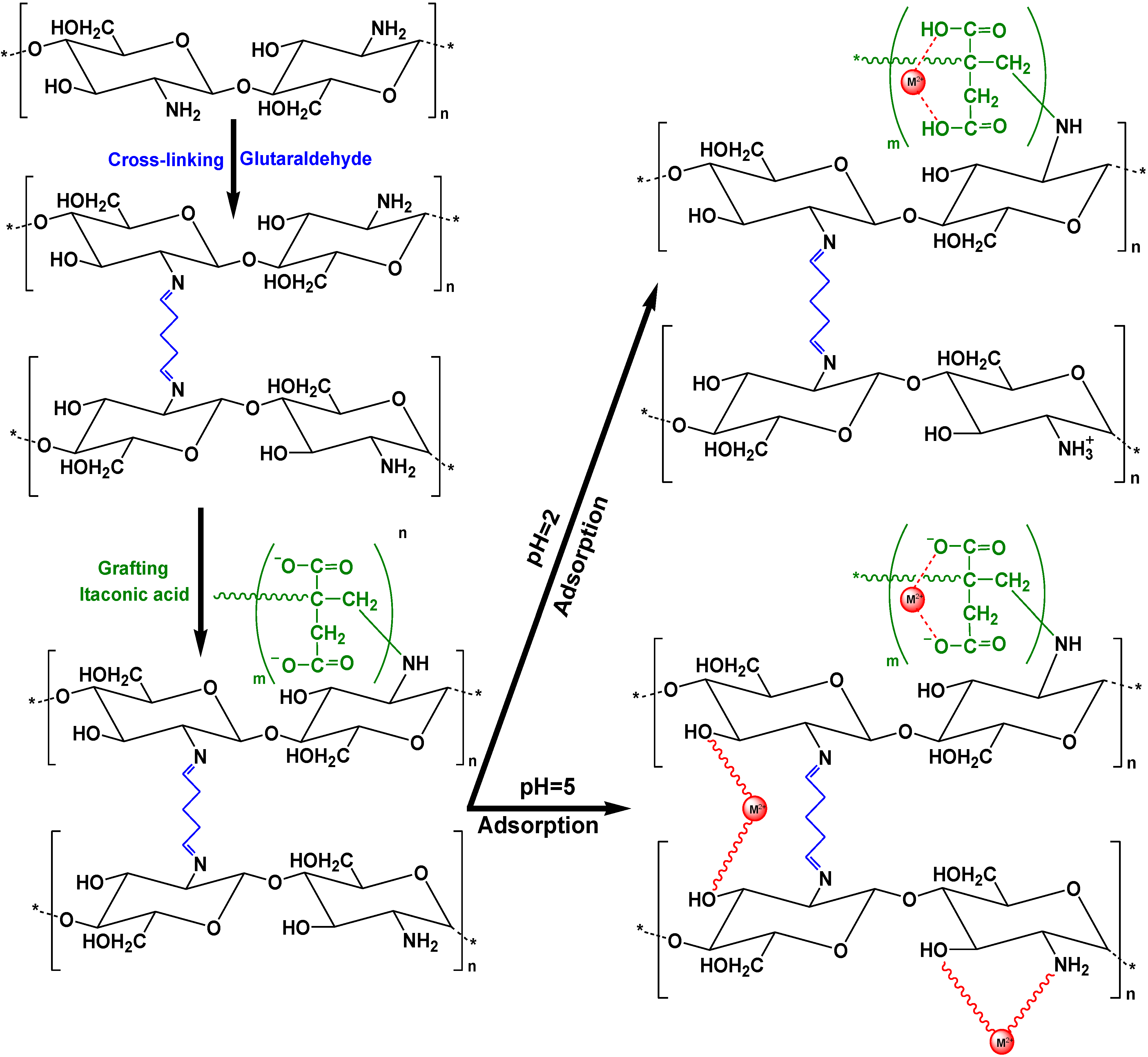

Figure 8. Cross-linked and grafted chitosan (CS) with itaconic acid (IA) and interactions between the material cross-linked with glutaraldehyde (CS-g-IA(G)) and metal ions. Reprinted with permission from [77], Copyright © 2014 American Chemical Society.
Figure 8. Cross-linked and grafted chitosan (CS) with itaconic acid (IA) and interactions between the material cross-linked with glutaraldehyde (CS-g-IA(G)) and metal ions. Reprinted with permission from [77], Copyright © 2014 American Chemical Society.
Marinedrugs 13 00312 g008
Table 2 summarizes the aforementioned modified chitosans and their respective adsorption applications to metals/ions.
Table
Table 2. Studies of the adsorption of metals/ions using modified chitosan adsorbents during 2012–2014.
Table 2. Studies of the adsorption of metals/ions using modified chitosan adsorbents during 2012–2014.
Modified Chitosan AdsorbentMetals/IonsIsothermsQmRef.
Chitosan grafted with with 3,4-dimethoxybenzaldehydeCd(II)L217.4 mg/g[51]
Chitosan modified multiwalled carbon nanotubesU(VI)L71 mg/g[52]
Xanthate-modified magnetic cross-linked chitosanCo(II)L, F18.5 mg/g[53]
Ethylene-1,2-diamine-6-deoxy-chitosanCu(II), Pb(II), Zn(II)L41.6, 31.8, 20.0 mg/g[54]
Ethylene-1,2-diamine-6-deoxy-N-phthaloylchitosanCu(II), Pb(II), Zn(II)L32.3, 28.6, 18.6 mg/g[54]
Magnetically modified graphene oxide-chitosan compositeCr(VI)L, F, R-P82 mg/g[55]
Magnetic cross-linked chitosan grafted with tetraethylenepentamineUO2(II)L, F, D-R486 mg/g[57]
Cross-linked chitosan modified with histidineNi(II)L, F55.6 mg/g[58]
Protonated chitosan beadsFe(III)L, F7.042 mg/g[59]
Carboxymethyl chitosan beadsFe(III)L, F9.346 mg/g[59]
Grafted chtiosan beadsFe(III)L, F, T14.286 mg/g[59]
Chitosan grafted with 4,4′-diformyl-α-ω-diphenoxy-ethaneCu(II), Co(II), Zn(II),L12, 8, 12 mg/g[60]
Chitosan grafted with 4,4′-diformyl-α-ω-diphenoxy-ethaneHg(II), Pb(II)L56, 50 mg/g[60]
Ethylenediamine-modified yeast biomass coated with magnetic chitosanPb(II)L, F121.26 mg/g[61]
Thiocarbohydrazide-modified chitosanAs(V), Ni(II), Cu(II)[62]
Cd(II), Pb(II)[62]
Thiosemicarbazide grafted chitosanAs(V), Ni(II), Cu(II)[63]
Cd(II), Pb(II)[63]
Thiocarbohydrazide grafted chitosanAs(V), Ni(II), Cu(II)[63]
Cd(II), Pb(II)[63]
Chitosan-thioglyceraldehyde Schiff’s base cross-linked magnetic resinHg(II), Cu(II, Zn(II)L, F, T98, 76, 52 mg/g[64]
Chloroacetic grafted chitosanCo(II), Cu(II)L59.1, 175.12 mg/g[65]
Glycine grafted chitosanCo(II), Cu(II)L82.9, 165.91 mg/g[65]
Chitosan cross-linked with glutaraldehydeCu(II), Hg(II)L, F, L-F, H177.8, 661.5 mg/g[66]
Chitosan cross-linked with epichlorohydrinCu(II), Hg(II)L, F, L-F, H146.1, 681.7 mg/g[66]
Amino terminated hyperbranched dendritic polyamidoamine 3rd generation chitosan beadsCr(VI)L, F, D-R224.2 mg/g[67]
EDTA-modified chitosanCo(II)L, S79.7 mg/g[68]
Chitosan grafted with n-butylacrylateCr(VI)L, F, D-R, T17.15 mg/g[70]
Xanthate carboxymethyl grafted chitosanCu(II), Ni(II)L, F174.2, 128.4 mg/g[69]
Cross-linked chitosan with citric acidPb(II)L, F, T, D-R101.7 mg/g[71]
Montmorillonite modified with chitosanCo(II)L, F, T150 mg/g[72]
Triethylene-tetramine modified magnetic chitosanTh(IV)L, F, T133.3 mg/g[73]
Diethylenetriamine-functionalized magnetic chitosanU(VI)L, F, S, D-R65.16 mg/g[74]
Magnetic chitosan grafted with α-ketoglutaric acidCd(II)L, F, T201.2 mg/g[75]
Magnetic chitosanHg(II)L, F155 mg/g[76]
Chitosan grafted with itaconic acidCd(II), Pb(II)L-F405, 334 mg/g[77]
L: Langmuir; F: Freundlich; H: Henry; T: Temkin; D-R: Dubinin-Radushkevich; L-F: Langmuir-Freundlich; R-P: Redlich-Peterson; S: Sips.

4. Modified Chitosans for Other Species Adsorption

Apart from the main categories of pollutants (dyes, metals/ions), some other species were recorded in the literature regarding chitosan-modified adsorbents during the last three years. It is important to note that despite the fact there are not many papers on the subject, the under-removal of pollutants is toxic and hazardous for human health and environment; therefore, this subject deserves special attention. Furthermore, PAHs (polycyclic aromatic hydrocarbons) and PCBs (polychlorinated biphenyls) are indeed a serious class of contaminants. However, there were no published studies found in recent literature (as extensively studied in the present review article) regarding the use of chitosan as adsorbent for this type of contaminants.
Poon et al. studied the effect of different molar ratios of glutaraldehyde (cross-linkers) on the adsorption capacity of chitosan modified derivatives produced [78]. Three copolymers were synthesized beginning with the same mass of chitosan (6 g), but differentiating the volume of cross-linker in the mixing solution (3.6, 6.3 and 9.0 mL of glutaraldehyde (GLA) solution 50% (w/v) with density 1.106 g/L). Therefore, the calculated GLA/NH2 mole ratios were estimated to be 0.67, 1.17 and 1.68, respectively (samples denoted as CG-1, CG-2, and CG-3, respectively). For the adsorption evaluation, p-Nitrophenol was used a model compound, but classical types of isotherms were not exported/given. Only for particular initial phenol concentrations at three fixed values of pH (4.6, 6.6 and 9.0) were the respective adsorption capacities estimated. For CG-1, CG-2, and CG-3, the capacities were calculated as 0.285, 0.327, 0.381 mmol/g (at pH = 4.6). The respective values at pH = 6.6 were 0.289, 0.378, 0.436 mmol/g, while at pH = 9.0 they were 0.306, 0.451, 0.572 mmol/g, respectively. The authors concluded that increasing the cross-linker ratio would result in an increase of the absorption capacity. However, the maximum value occurs at the ration GLA/NH2. This is contrary to what has been published in numerous studies [77,79,80,81]. Authors also implied that for higher GLA ratio beyond the optimum found above, the result would be because of surface changes and inaccessibility of the sorption sites [78].
Magnetic chitosan derivatives were prepared for the removal of pharmaceutical compounds (diclofenac (DCF), clofibric acid (CA), carbamazepine (CBZ)) from aqueous media [82]. The magnetic chitosan had high sorption affinity for DCF and CA, but for CBZ no sorption was observed. The adsorption capacities of CA and DCF in the single-component solutions were 191.2 and 57.5 mg/g, respectively (Langmuir, Freundlich equations).
Chlorophenols (phenol, 2-chlorophenol (2-CP), 4-chlorophenol (4-CP), 2,4-dichlorophenol (DCP) and 2,4,6-trichlorophenol (TCP)) were also removed with adsorption onto cross-linked chitosan functionalized with β-cyclodextrin [83]. Qm was calculated for phenol, 2-CP, 4-CP, DCP and TCP on CS-SA-CD and found to be 59.74, 70.52, 96.43, 315.46 and 375.94 mg/g, respectively.
Table 3 summarizes all the aforementioned modified chitosans and their respective adsorption application in other species.
Table
Table 3. Studies of the adsorption of other species using modified chitosan adsorbents during 2012–2014.
Table 3. Studies of the adsorption of other species using modified chitosan adsorbents during 2012–2014.
Modified Chitosan AdsorbentPollutantsIsothermsQmRef.
Chitosan cross-linked with glutaraldehydep-nitrophenol[78]
Magnetic chitosanDiclofenacL, F191.2 mg/g[82]
Clofibric acidL, F57.5mg/g[82]
CarbamazepineL, F-[82]
β-cyclodextrin/cross-linked chitosanPhenolL, F59.74 mg/g[83]
2-chlorophenolL, F70.52 mg/g[83]
4-chlorophenolL, F96.43 mg/g[83]
2,4-dichlorophenolL, F315.46 mg/g[83]
2,4,6-trichlorophenolL, F375.94 mg/g[83]
Chitosan grafted with sulfuric acidPramipexoleL-F337 mg/g[84]
Chitosan grafted with N-(2-carboxybenzyl)PramipexoleL-F307 mg/g[84]
Graphite oxide/Carboxyl-grafted chitosanDorzolamideL-F334 mg/g[85]
Carboxyl-grafted chitosanDorzolamideL-F229 mg/g[85]
L: Langmuir; F: Freundlich; L-F: Langmuir-Freundlich.
In our previous study, we synthesized two chitosan modified derivatives which were cross-linked with glutaraldehyde and grafted with sulfonate groups (CsSLF) or N-(2-carboxybenzyl) groups (CsNCB) [84]. A pharmaceutical compound (pramipexole) was tested for adsorption experiments. After running pH-effect experiments, the optimum pH value was 10. After fitting to the Langmuir-Freundlich equation, the Qm values were calculated as 337 and 307 mg/g at 25 °C for CsSLF and CsNCB, respectively. In this work, the most interesting aspect is the adsorption mechanism suggested for both materials. For example, in the case of CsSLF, the proposed mechanism is presented below (Figure 9).
Marinedrugs 13 00312 g009 1024

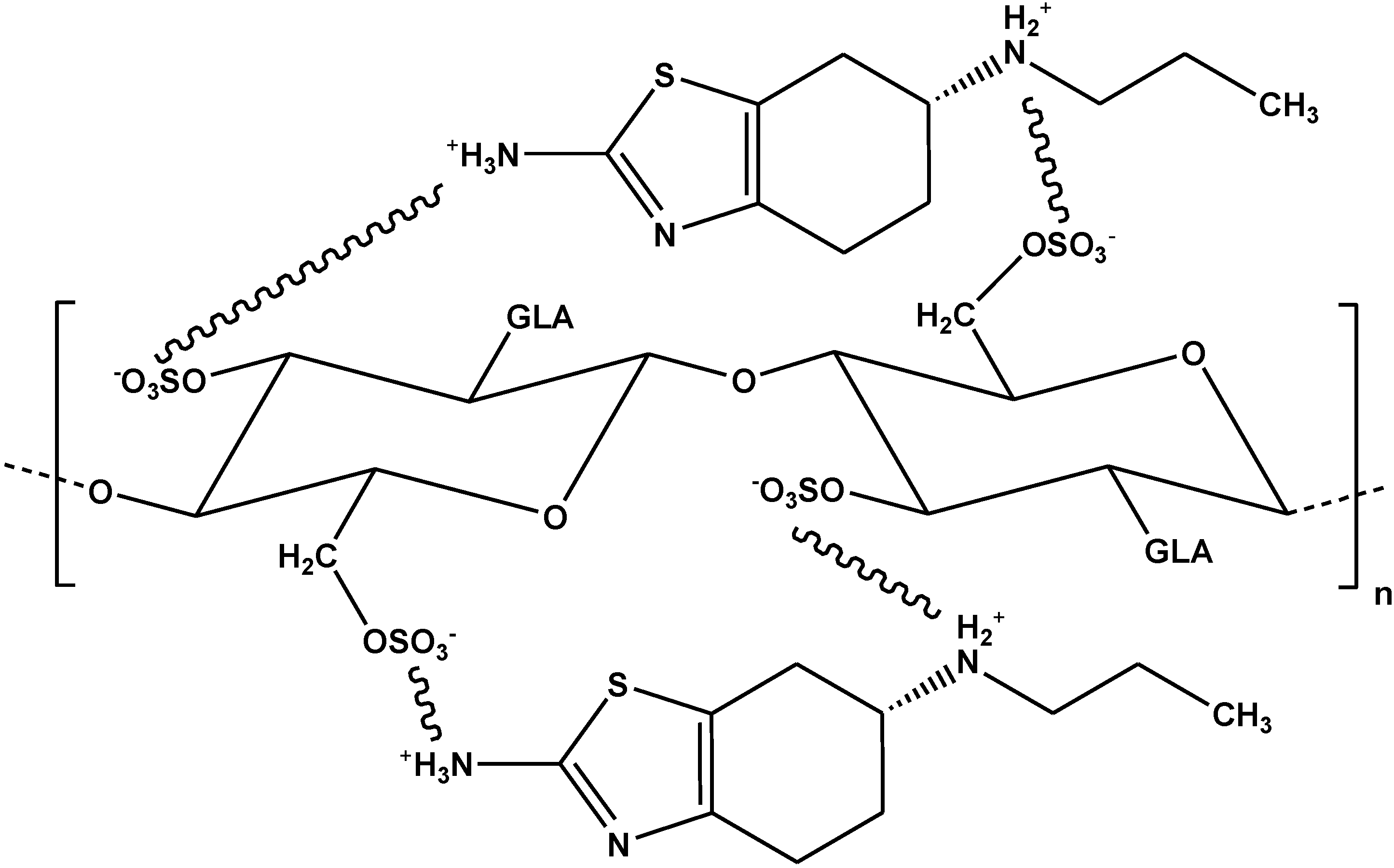

Figure 9. Interactions between pramipexole and CsSLF. Reprinted with permission from [84], Copyright © 2013 Elsevier.
Figure 9. Interactions between pramipexole and CsSLF. Reprinted with permission from [84], Copyright © 2013 Elsevier.
Marinedrugs 13 00312 g009
Marinedrugs 13 00312 g010a 1024Marinedrugs 13 00312 g010b 1024

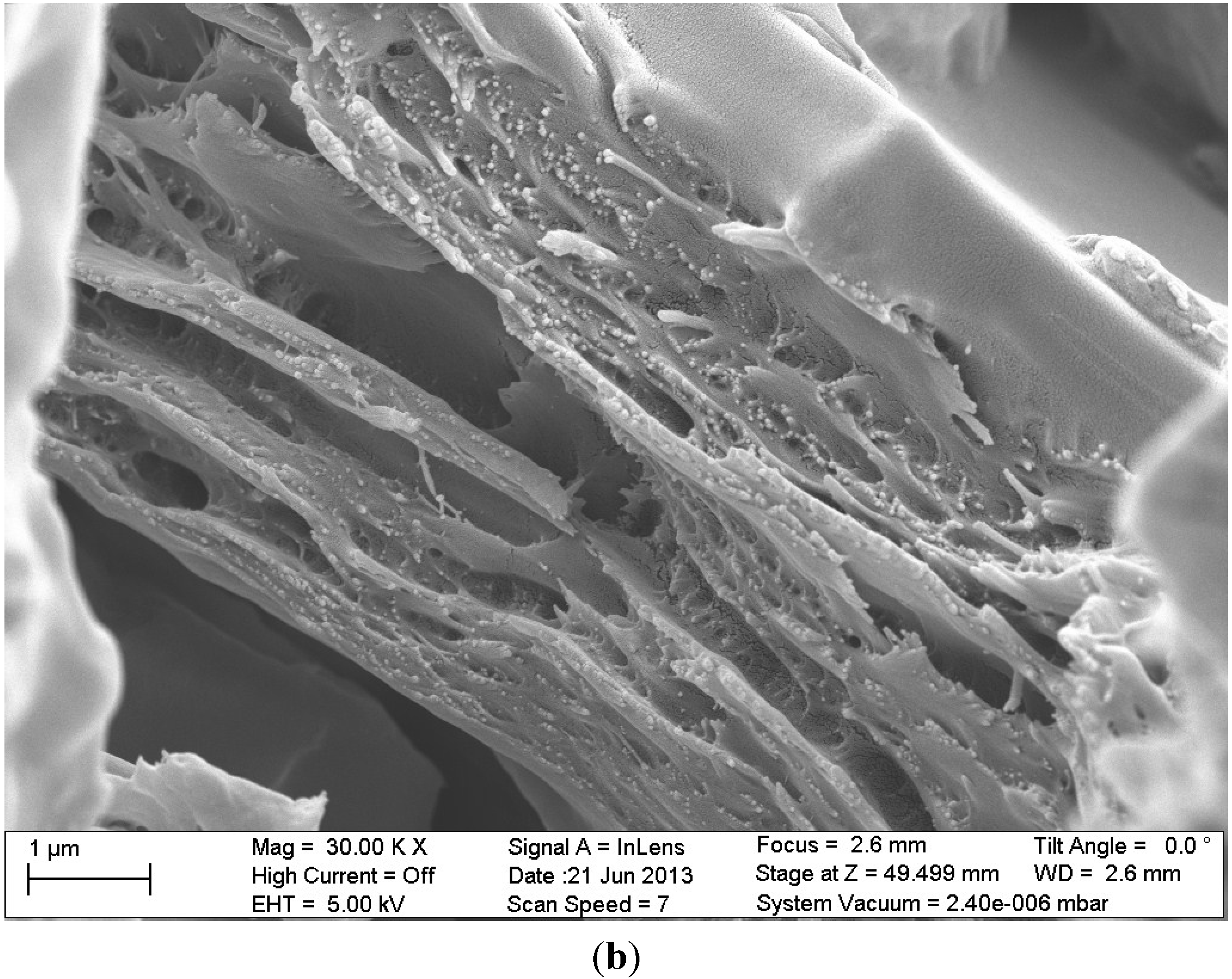

Figure 10. SEM images of the materials studied (a) chitosan cross-linked with glutaraldehyde and grafted with poly(acrylic acid) (CSA); (b) composite of cross-linked with glutaraldehyde chitosan which was grafted with poly(acrylic acid) and functionalized with graphite oxide (GO/CSA). Reprinted with permission from [85], Copyright © 2014 Elsevier.
Figure 10. SEM images of the materials studied (a) chitosan cross-linked with glutaraldehyde and grafted with poly(acrylic acid) (CSA); (b) composite of cross-linked with glutaraldehyde chitosan which was grafted with poly(acrylic acid) and functionalized with graphite oxide (GO/CSA). Reprinted with permission from [85], Copyright © 2014 Elsevier.
Marinedrugs 13 00312 g010aMarinedrugs 13 00312 g010b
Marinedrugs 13 00312 g011 1024

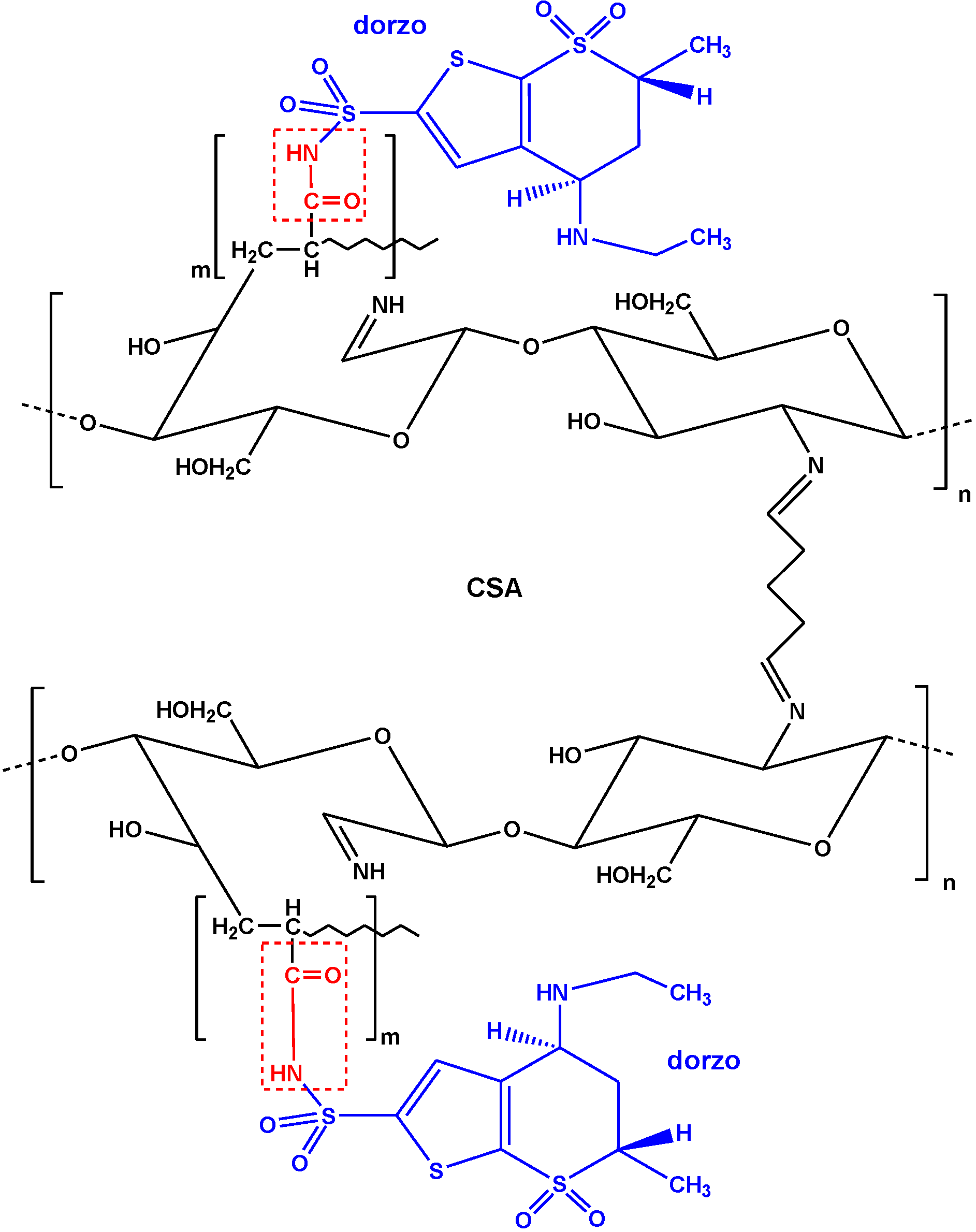

Figure 11. Interactions between CSA and dorzo. Reprinted with permission from [85], Copyright © 2014 Elsevier.
Figure 11. Interactions between CSA and dorzo. Reprinted with permission from [85], Copyright © 2014 Elsevier.
Marinedrugs 13 00312 g011
The same research team realized another modification in chitosan which was more complex. At first, chitosan was cross-linked with glutaraldehyde and grafted with poly(acrylic acid) to add extra carboxyl groups (denoted as CSA). Then, CSA was functionalized with graphite oxide to produce the final nanocomposite material (GO/CSA) [85]. The surface morphology of the prepared adsorbents is illustrated with SEM images in Figure 10. The latter was used as adsorbent material to remove a particular pharmaceutical compound (dorzolamide) that exists in wastewaters. The optimum pH value was 3. Qm was calculated with L-F fitting model; for the composite GO/CSA was 334 mg/g, while for the origin materials GO and CSA were 175 and 229 mg/g, respectively.
Similarly, after characterization, the authors proposed an adsorption mechanism between dorzolamide (abbreviated as dorzo) and modified chitosan (CSA) (Figure 11).

5. Critical Comparisons

In adsorption technology, it is widely known that two adsorbent materials (even for the same pollutant) cannot be compared without maintaining the same experimental conditions. Some of the basic parameters which strongly influence the whole procedure are (i) the pH solution; (ii) contact time; (iii) initial pollutant’s concentration; (iv) temperature; (v) agitation speed; (vi) volume of adsorbate; (viii) ionic strength of solution; (ix) adsorbent’s dosage, etc. It is clear that if any of the aforementioned conditions vary, the experiment will not be the same and consequently no comparison will be correct. Having the above in mind, the only comparisons that can be realized are those for adsorbent/adsorbate systems of the same study.
Therefore, it is not correct to say that modified ball clay/chitosan composite [30] is a better adsorbent than β-cyclodextrin/chitosan magnetic nanocomposite [31], because the experimental conditions were not the same. The first material presented Qm equal to 259.8 mg/g for MB adsorption, while the second presented a value of 2788 mg/g for the same dye. The same remark can be concluded for the removal of RB5 with adsorption onto chitosan grafted with polypropylene imine (Qm = 6250 mg/g) [40], chitosan/graphite oxide composite (Qm = 277 mg/g) [46] and magnetic chitosan/graphite oxide nanocomposite (Qm = 391 mg/g) [47]. For those experiments, the adsorption conditions are completely different and therefore an accurate comparison cannot be made.
A similar approach can be takn for the case of metals. As it is clearly shown in Table 2, one of the most studied metals is Cu(II). Many researchers investigated the removal of this metal after modification of chitosan. For example, ethylene-1,2-diamine-6-deoxy-chitosan (Qm = 41.6 mg/g) and ethylene-1,2-diamine-6-deoxy-N-phthaloylchitosan (Qm = 31.3 mg/g) were synthesized in the literature [54]. However, this synthesis was undertaken with the addition of N-phthaloyl groups. The first modified derivative possessed enhanced ability for binding metal ions due to the presence of a flexible ethylenediamine substituent with two nitrogen basic centers in addition to the single bond NH2 at C-2 position. On the other hand, the grafting of N-phthaloyl groups renders the material more hydrophobic compared to the former material. Another study employing Cu(II) removal reports the synthesis of chitosan grafted with 4,4′-diformyl-α-ω-diphenoxy-ethane [60], presenting very small adsorption capacity (Qm = 12 mg/g). It seems that the addition of 4,4′-diformyl-α-ω-diphenoxy-ethane via nucleophilic attack of the amino group of the chitosan on the carbonyl carbon of the aldehyde groups did not improve the adsorption ability of chitosan. Opposite observations were noticed after the adsorption tests on chloroacetic grafted chitosan and glycine grafted chitosan [65]. The grafting of chloroacetic acid on chitosan improved in higher percentages the adsorption capacity (Qm = 175.12 mg/g) than did the addition of glycine groups (Qm = 165.91 mg/g). The latter may be due to the structure of functional groups. Another study reported high capacities for modified derivatives which have been only cross-linked (either with glutaraldehyde (Qm = 177.8 mg/g) or epichlorohydrin (Qm = 150.4 mg/g)) and not grafted [66]. Obviously, the adsorption conditions were completely different and for this reason the materials prepared showed such high adsorption capacities.
Based on the above, when the grafting reaction of chitosan with various functional groups does not contain nitrogen carriers (for achieving a chelation reaction with metals), the adsorption capacity cannot be enhanced.

6. Concluding Remarks

Chitosan is a very promising adsorbent, which can be modified in many ways (grafting, cross-linking, functionalization for forming composites, etc.). The potential of chitosan is strong due to its origin product being chitin which can be found in abundance in marine media and especially in the exoskeleton of crustaceans, or cartilages of mollusks, cuticles of insects and cell walls of micro-organisms. However, one serious drawback of using chitosan as adsorbent is its swelling. For this reason, until now industrial use has been limited. However, some international companies purchase industrial grade chitosan for wastewater treatment (Qingdao Develop Chemistry Ltd in China, etc.). The recent modifications aim at strengthening the mechanical properties of chitosan in order for it to compete with activated carbon in commercial/industrial applications. A large volume of works has been published during the last three years, presenting results of chitosan-modified adsorbents for removal of various pollutants (dyes, metals/ions, others). It can be concluded that a limited number of works clearly presented novel modifications of the chitosan structure (finding new functional groups for grafting reactions or agents for cross-linking). The majority of works used already published modified materials and tested them for other/different types of pollutants. The latter may be due to the fact that the basic modifications have been completed and extensively published. Another possible reason may be the recent trend for publishing higher quantities of papers and not attempting to find some new modification. In any case, the potential of modified materials is still large and can be significantly developed in the future.

Acknowledgments

The support for this study was received from the State Scholarships Foundation (IKY) of Greek Ministry of Education and Religious Affairs (in the framework of the Hellenic Republic—Siemens Settlement Agreement) through the research program “IKY Fellowships of Excellence for Postgraduate Studies in Greece—Siemens Program” under the title “Advanced Molecularly Imprinted Polymers (MIPs) as materials for the selective binding and recovery of various high-added value environmental targets with application to industrial-scale adsorption columns”, which is gratefully appreciated.

Nomenclature of Dyes Reported in This Study

AG25
Acid green 25
AO7
Acid orange 7
AR18
Acid red 18
BBR250
Brilliant blue R250
BO16
Bezactive orange 16
CR
Congo red
MB
Methylene blue
RB19
Reactive blue 19
RB5
Reactive black 5
RR198
Reactive red 198
RR120
Reactive red 120
RR3BS
Remazol red 3BS
RY3RS
Reactive yellow 3RS
WASC
Weak acid scarlet

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Clark, G.L.; Smith, A.F. X-ray diffraction studies of chitin, chitosan, and derivatives. J. Phys. Chem. 1936, 40, 863–879. [Google Scholar] [CrossRef]
  2. Muzzarelli, R.A.A. Natural Chelating Polymers: Alginic Acid, Chitin, and Chitosan; Pergamon Press: Oxford, UK, 1973; Volume 55. [Google Scholar]
  3. Rinaudo, M. Chitin and chitosan: Properties and applications. Prog. Polym. Sci. 2006, 31, 603–632. [Google Scholar] [CrossRef]
  4. Lamb, G.F. The chemical constitution of chitin. Science 1916, 44, 866–868. [Google Scholar] [CrossRef] [PubMed]
  5. Irvine, J.C. LXXII.—A polarimetric method of identifying chitin. J. Chem. Soc. Trans. 1909, 95, 564–570. [Google Scholar] [CrossRef]
  6. Zhang, J.; Xia, W.; Liu, P.; Cheng, Q.; Tahirou, T.; Gu, W.; Li, B. Chitosan modification and pharmaceutical/biomedical applications. Mar. Drugs 2010, 8, 1962–1987. [Google Scholar] [CrossRef] [PubMed]
  7. Wen, Z.S.; Xu, Y.L.; Zou, X.T.; Xu, Z.R. Chitosan nanoparticles act as an adjuvant to promote both Th1 and Th2 immune responses induced by ovalbumin in mice. Mar. Drugs 2011, 9, 1038–1055. [Google Scholar] [CrossRef] [PubMed]
  8. Wen, Z.S.; Liu, L.J.; Qu, Y.L.; OuYang, X.K.; Yang, L.Y.; Xu, Z.R. Chitosan nanoparticles attenuate hydrogen peroxide-induced stress injuryin mouse macrophage raw264.7 cells. Mar. Drugs 2013, 11, 3582–3600. [Google Scholar] [CrossRef] [PubMed]
  9. Venkatesan, J.; Kim, S.K. Chitosan composites for bone tissue engineering—An overview. Mar. Drugs 2010, 8, 2252–2266. [Google Scholar] [CrossRef] [PubMed]
  10. Venkatesan, J.; Bhatnagar, I.; Kim, S.K. Chitosan-alginate biocomposite containing fucoidan for bone tissue engineering. Mar. Drugs 2014, 12, 300–316. [Google Scholar] [CrossRef] [PubMed]
  11. Vázquez, J.A.; Rodríguez-Amado, I.; Montemayor, M.I.; Fraguas, J.; del González, M.P.; Murado, M.A. Chondroitin sulfate, hyaluronic acid and chitin/chitosan production using marine waste sources: Characteristics, applications and eco-friendly processes: A review. Mar. Drugs 2013, 11, 747–774. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Tsai, Z.T.; Tsai, F.Y.; Yang, W.C.; Wang, J.F.; Liu, C.L.; Shen, C.R.; Yen, T.C. Preparation and characterization of ferrofluid stabilized with biocompatible chitosan and dextran sulfate hybrid biopolymer as a potential magnetic resonance imaging (MRI) T2 contrast agent. Mar. Drugs 2012, 10, 2403–2414. [Google Scholar] [CrossRef] [PubMed]
  13. Muzzarelli, R.A.A. Biomedical exploitation of chitin and chitosan via mechano-chemical disassembly, electrospinning, dissolution in imidazolium ionic liquids, and supercritical drying. Mar. Drugs 2011, 9, 1510–1533. [Google Scholar] [CrossRef] [PubMed]
  14. Li, B.; Shan, C.L.; Zhou, Q.; Fang, Y.; Wang, Y.L.; Xu, F.; Han, L.R.; Ibrahim, M.; Guo, L.B.; Xie, G.L.; et al. Synthesis, characterization, and antibacterial activity of cross-linked chitosan-glutaraldehyde. Mar. Drugs 2013, 11, 1534–1552. [Google Scholar] [CrossRef] [PubMed]
  15. Korkiatithaweechai, S.; Umsarika, P.; Praphairaksit, N.; Muangsin, N. Controlled release of diclofenac from matrix polymer of chitosan and oxidized konjac glucomannan. Mar. Drugs 2011, 9, 1649–1663. [Google Scholar] [CrossRef] [PubMed]
  16. Guo, L.; Liu, G.; Hong, R.Y.; Li, H.Z. Preparation and characterization of chitosan poly(acrylic acid) magnetic microspheres. Mar. Drugs 2010, 8, 2212–2222. [Google Scholar] [CrossRef] [PubMed]
  17. Cheng, M.; Gao, X.; Wang, Y.; Chen, H.; He, B.; Xu, H.; Li, Y.; Han, J.; Zhang, Z. Synthesis of glycyrrhetinic acid-modified chitosan 5-fluorouracil nanoparticles and its inhibition of liver cancer characteristics in vitro and in vivo. Mar. Drugs 2013, 11, 3517–3536. [Google Scholar] [CrossRef] [PubMed]
  18. Chen, J.K.; Yeh, C.H.; Wang, L.C.; Liou, T.H.; Shen, C.R.; Liu, C.L. Chitosan, the marine functional food, is a potent adsorbent of humic acid. Mar. Drugs 2011, 9, 2488–2498. [Google Scholar] [CrossRef] [PubMed]
  19. Muzzarelli, R.A.A.; Tubertini, O. Chitin and chitosan as chromatographic supports and adsorbents for collection of metal ions from organic and aqueous solutions and sea-water. Talanta 1969, 16, 1571–1577. [Google Scholar] [CrossRef] [PubMed]
  20. No, H.K.; Meyers, S.P. Application of chitosan for treatment of wastewaters. Rev. Environ. Contam. Toxicol. 2000, 163, 1–27. [Google Scholar] [PubMed]
  21. Varma, A.J.; Deshpande, S.V.; Kennedy, J.F. Metal complexation by chitosan and its derivatives: A review. Carbohyd. Polym. 2004, 55, 77–93. [Google Scholar] [CrossRef]
  22. Guibal, E.; van Vooren, M.; Dempsey, B.A.; Roussy, J. A review of the use of chitosan for the removal of particulate and dissolved contaminants. Sep. Sci. Technol. 2006, 41, 2487–2514. [Google Scholar] [CrossRef]
  23. Gerente, C.; Lee, V.K.C.; Le Cloirec, P.; McKay, G. Application of chitosan for the removal of metals from wastewaters by adsorption—Mechanisms and models review. Crit. Rev. Environ. Sci. Technol. 2007, 37, 41–127. [Google Scholar] [CrossRef]
  24. Crini, G.; Badot, P.M. Application of chitosan, a natural aminopolysaccharide, for dye removal from aqueous solutions by adsorption processes using batch studies: A review of recent literature. Prog. Polym. Sci. 2008, 33, 399–447. [Google Scholar] [CrossRef]
  25. Bhatnagar, A.; Sillanpää, M. Applications of chitin- and chitosan-derivatives for the detoxification of water and wastewater—A short review. Adv. Colloid Interf. Sci. 2009, 152, 26–38. [Google Scholar] [CrossRef]
  26. Miretzky, P.; Cirelli, A.F. Hg(II) removal from water by chitosan and chitosan derivatives: A review. J. Hazard. Mater. 2009, 167, 10–23. [Google Scholar] [CrossRef] [PubMed]
  27. Wu, F.C.; Tseng, R.L.; Juang, R.S. A review and experimental verification of using chitosan and its derivatives as adsorbents for selected heavy metals. J. Environ. Manag. 2010, 91, 798–806. [Google Scholar] [CrossRef]
  28. Wan Ngah, W.S.; Teong, L.C.; Hanafiah, M.A.K.M. Adsorption of dyes and heavy metal ions by chitosan composites: A review. Carbohyd. Polym. 2011, 83, 1446–1456. [Google Scholar]
  29. Vakili, M.; Rafatullah, M.; Salamatinia, B.; Abdullah, A.Z.; Ibrahim, M.H.; Tan, K.B.; Gholami, Z.; Amouzgar, P. Application of chitosan and its derivatives as adsorbents for dye removal from water and wastewater: A review. Carbohyd. Polym. 2014, 113, 115–130. [Google Scholar] [CrossRef]
  30. Auta, M.; Hameed, B.H. Chitosan-clay composite as highly effective and low-cost adsorbent for batch and fixed-bed adsorption of methylene blue. Chem. Eng. J. 2014, 237, 352–361. [Google Scholar] [CrossRef]
  31. Fan, L.; Zhang, Y.; Luo, C.; Lu, F.; Qiu, H.; Sun, M. Synthesis and characterization of magnetic β-cyclodextrin-chitosan nanoparticles as nano-adsorbents for removal of methyl blue. Int. J. Biol. Macromol. 2012, 50, 444–450. [Google Scholar] [CrossRef] [PubMed]
  32. Binello, A.; Cravotto, G.; Nano, G.M.; Spagliardi, P. Synthesis of chitosan-cyclodextrin adducts and evaluation of their bitter-masking properties. Flavour Frag. J. 2004, 19, 394–400. [Google Scholar] [CrossRef]
  33. Elwakeel, K.Z.; Abd El-Ghaffar, M.A.; El-kousy, S.M.; El-Shorbagy, H.G. Synthesis of new ammonium chitosan derivatives and their application for dye removal from aqueous media. Chem. Eng. J. 2012, 203, 458–468. [Google Scholar] [CrossRef]
  34. Gao, Q.; Zhu, H.; Luo, W.J.; Wang, S.; Zhou, C.G. Preparation, characterization, and adsorption evaluation of chitosan-functionalized mesoporous composites. Microporous Mesoporous Mater. 2014, 193, 15–26. [Google Scholar] [CrossRef]
  35. Jiang, X.; Sun, Y.; Liu, L.; Wang, S.; Tian, X. Adsorption of c.I. Reactive blue 19 from aqueous solutions by porous particles of the grafted chitosan. Chem. Eng. J. 2014, 235, 151–157. [Google Scholar] [CrossRef]
  36. Guo, J.; Chen, S.; Liu, L.; Li, B.; Yang, P.; Zhang, L.; Feng, Y. Adsorption of dye from wastewater using chitosan-ctab modified bentonites. J. Colloid Interface Sci. 2012, 382, 61–66. [Google Scholar] [CrossRef] [PubMed]
  37. Li, Z.; Cao, M.; Zhang, W.; Liu, L.; Wang, J.; Ge, W.; Yuan, Y.; Yue, T.; Li, R.; Yu, W.W. Affinity adsorption of lysozyme with reactive red 120 modified magnetic chitosan microspheres. Food Chem. 2014, 145, 749–755. [Google Scholar] [CrossRef] [PubMed]
  38. Nešić, A.R.; Veličković, S.J.; Antonović, D.G. Modification of chitosan by zeolite a and adsorption of bezactive orange 16 from aqueous solution. Compos. B: Eng. 2013, 53, 145–151. [Google Scholar] [CrossRef]
  39. Peng, Y.; Chen, D.; Ji, J.; Kong, Y.; Wan, H.; Yao, C. Chitosan-modified palygorskite: Preparation, characterization and reactive dye removal. Appl. Clay Sci. 2013, 74, 81–86. [Google Scholar] [CrossRef]
  40. Sadeghi-Kiakhani, M.; Arami, M.; Gharanjig, K. Dye removal from colored-textile wastewater using chitosan-PPI dendrimer hybrid as a biopolymer: Optimization, kinetic, and isotherm studies. J. Appl. Polym. Sci. 2013, 127, 2607–2619. [Google Scholar] [CrossRef]
  41. Yan, Y.; Xiang, B.; Li, Y.; Jia, Q. Preparation and adsorption properties of diethylenetriamine-modified chitosan beads for acid dyes. J. Appl. Polym. Sci. 2013, 130, 4090–4098. [Google Scholar]
  42. Zhu, H.; Fu, Y.; Jiang, R.; Yao, J.; Liu, L.; Chen, Y.; Xiao, L.; Zeng, G. Preparation, characterization and adsorption properties of chitosan modified magnetic graphitized multi-walled carbon nanotubes for highly effective removal of a carcinogenic dye from aqueous solution. Appl. Surf. Sci. 2013, 285, 865–873. [Google Scholar] [CrossRef]
  43. Chatterjee, S.; Chatterjee, B.P.; Guha, A.K. Adsorptive removal of congo red, a carcinogenic textile dye by chitosan hydrobeads: Binding mechanism, equilibrium and kinetics. Colloid Surf. A 2007, 299, 146–152. [Google Scholar] [CrossRef]
  44. Wang, L.; Wang, A. Adsorption properties of congo red from aqueous solution onto N,O-carboxymethyl-chitosan. Bioresour. Technol. 2008, 99, 1403–1408. [Google Scholar] [CrossRef] [PubMed]
  45. Wang, L.; Wang, A. Adsorption behaviors of congo red on the N,O-carboxymethyl-chitosan/montmorillonite nanocomposite. Chem. Eng. J. 2008, 143, 43–50. [Google Scholar] [CrossRef]
  46. Travlou, N.A.; Kyzas, G.Z.; Lazaridis, N.K.; Deliyanni, E.A. Graphite oxide/chitosan composite for reactive dye removal. Chem. Eng. J. 2013, 217, 256–265. [Google Scholar] [CrossRef]
  47. Travlou, N.A.; Kyzas, G.Z.; Lazaridis, N.K.; Deliyanni, E.A. Functionalization of graphite oxide with magnetic chitosan for the preparation of a nanocomposite dye adsorbent. Langmuir 2013, 29, 1657–1668. [Google Scholar] [CrossRef] [PubMed]
  48. Kyzas, G.Z.; Lazaridis, N.K.; Bikiaris, D.N. Optimization of chitosan and β-cyclodextrin molecularly imprinted polymer synthesis for dye adsorption. Carbohyd. Polym. 2013, 91, 198–208. [Google Scholar] [CrossRef]
  49. IUPAC. Available online: http://goldbook.iupac.org/C01012.html (accessed on 5 September 2014).
  50. Muzzarelli, R.A.A. Available online: http://www.chitin.it/chelating-capacity-of-chitin-and-chitosan.html (accessed on 5 September 2014).
  51. Arvand, M.; Pakseresht, M.A. Cadmium adsorption on modified chitosan-coated bentonite: Batch experimental studies. J. Chem. Technol. Biot. 2013, 88, 572–578. [Google Scholar] [CrossRef]
  52. Chen, J.H.; Lu, D.Q.; Chen, B.; Ouyang, P.K. Removal of U(VI) from aqueous solutions by using MWCNTs and chitosan modified MWCNTs. J. Radioanal. Nucl. Chem. 2013, 295, 2233–2241. [Google Scholar] [CrossRef]
  53. Chen, Y.; Wang, J. The characteristics and mechanism of Co(II) removal from aqueous solution by a novel xanthate-modified magnetic chitosan. Nucl. Eng. Des. 2012, 242, 452–457. [Google Scholar] [CrossRef]
  54. Chethan, P.D.; Vishalakshi, B. Synthesis of ethylenediamine modified chitosan and evaluation for removal of divalent metal ions. Carbohyd. Polym. 2013, 97, 530–536. [Google Scholar] [CrossRef]
  55. Debnath, S.; Maity, A.; Pillay, K. Magnetic chitosan-go nanocomposite: Synthesis, characterization and batch adsorber design for Cr(VI) removal. J. Environ. Chem. Eng. 2014, 2, 963–973. [Google Scholar] [CrossRef]
  56. Hummers, W.S., Jr.; Offeman, R.E. Preparation of graphitic oxide. J. Am. Chem. Soc. 1958, 80, 1339. [Google Scholar] [CrossRef]
  57. Elwakeel, K.Z.; Atia, A.A.; Guibal, E. Fast removal of uranium from aqueous solutions using tetraethylenepentamine modified magnetic chitosan resin. Bioresour. Technol. 2014, 160, 107–114. [Google Scholar] [CrossRef] [PubMed]
  58. Eser, A.; Nüket Tirtom, V.; Aydemir, T.; Becerik, S.; Dinçer, A. Removal of nickel(II) ions by histidine modified chitosan beads. Chem. Eng. J. 2012, 210, 590–596. [Google Scholar] [CrossRef]
  59. Gandhi, M.R.; Kousalya, G.N.; Meenakshi, S. Selective sorption of Fe(III) using modified forms of chitosan beads. J. Appl. Polym. Sci. 2012, 124, 1858–1865. [Google Scholar] [CrossRef]
  60. Kandile, N.G.; Nasr, A.S. New hydrogels based on modified chitosan as metal biosorbent agents. Int. J. Biol. Macromol. 2014, 64, 328–333. [Google Scholar] [CrossRef] [PubMed]
  61. Li, T.T.; Liu, Y.G.; Peng, Q.Q.; Hu, X.J.; Liao, T.; Wang, H.; Lu, M. Removal of lead(II) from aqueous solution with ethylenediamine-modified yeast biomass coated with magnetic chitosan microparticles: Kinetic and equilibrium modeling. Chem. Eng. J. 2013, 214, 189–197. [Google Scholar] [CrossRef]
  62. Li, M.L.; Li, R.H.; Xu, J.; Han, X.; Yao, T.Y.; Wang, J. Thiocarbohydrazide-modified chitosan as anticorrosion and metal ion adsorbent. J. Appl. Polym. Sci. 2014, 131, 8437–8443. [Google Scholar]
  63. Li, M.; Xu, J.; Li, R.; Wang, D.; Li, T.; Yuan, M.; Wang, J. Simple preparation of aminothiourea-modified chitosan as corrosion inhibitor and heavy metal ion adsorbent. J. Colloid Interface Sci. 2014, 417, 131–136. [Google Scholar] [CrossRef] [PubMed]
  64. Monier, M. Adsorption of Hg2+, Cu2+ and Zn2+ ions from aqueous solution using formaldehyde cross-linked modified chitosan-thioglyceraldehyde schiff's base. Int. J. Biol. Macromol. 2012, 50, 773–781. [Google Scholar] [CrossRef] [PubMed]
  65. Negm, N.A.; El Sheikh, R.; El-Farargy, A.F.; Hefni, H.H.H.; Bekhit, M. Treatment of industrial wastewater containing copper and cobalt ions using modified chitosan. J. Ind. Eng. Chem. 2014. [Google Scholar] [CrossRef]
  66. Rabelo, R.; Vieira, R.; Luna, F.; Guibal, E.; Beppu, M. Adsorption of copper(II) and mercury(II) ions onto chemically-modified chitosan membranes: Equilibrium and kinetic properties. Adsorpt. Sci. Technol. 2012, 30, 1–21. [Google Scholar] [CrossRef]
  67. Rajiv Gandhi, M.; Meenakshi, S. Preparation of amino terminated polyamidoamine functionalized chitosan beads and its Cr(VI) uptake studies. Carbohyd. Polym. 2013, 91, 631–637. [Google Scholar]
  68. Repo, E.; Koivula, R.; Harjula, R.; Sillanpää, M. Effect of edta and some other interfering species on the adsorption of Co(II) by edta-modified chitosan. Desalination 2013, 321, 93–102. [Google Scholar] [CrossRef]
  69. Song, Q.; Wang, C.; Zhang, Z.; Gao, J. Adsorption of Cu(II) and Ni(II) using a novel xanthated carboxymethyl chitosan. Sep. Sci. Technol. 2014, 49, 1235–1243. [Google Scholar] [CrossRef]
  70. Santhana Krishna Kumar, A.; Uday Kumar, C.; Rajesh, V.; Rajesh, N. Microwave assisted preparation of n-butylacrylate grafted chitosan and its application for Cr(VI) adsorption. Int. J. Biol. Macromol. 2014, 66, 135–143. [Google Scholar]
  71. Suc, N.V.; Ly, H.T.Y. Lead (II) removal from aqueous solution by chitosan flake modified with citric acid via crosslinking with glutaraldehyde. J. Chem. Technol. Biot. 2013, 88, 1641–1649. [Google Scholar] [CrossRef]
  72. Wang, H.; Tang, H.; Liu, Z.; Zhang, X.; Hao, Z.; Liu, Z. Removal of cobalt(II) ion from aqueous solution by chitosan–montmorillonite. J. Environ. Sci. 2014, 26, 1879–1884. [Google Scholar] [CrossRef]
  73. Xu, J.; Zhou, L.; Jia, Y.; Liu, Z.; Adesina, A.A. Adsorption of thorium (IV) ions from aqueous solution by magnetic chitosan resins modified with triethylene-tetramine. J. Radioanal. Nucl. Chem. 2014. [Google Scholar] [CrossRef]
  74. Xu, J.; Chen, M.; Zhang, C.; Yi, Z. Adsorption of uranium(VI) from aqueous solution by diethylenetriamine-functionalized magnetic chitosan. J. Radioanal. Nucl. Chem. 2013, 298, 1375–1383. [Google Scholar] [CrossRef]
  75. Yang, G.; Tang, L.; Lei, X.; Zeng, G.; Cai, Y.; Wei, X.; Zhou, Y.; Li, S.; Fang, Y.; Zhang, Y. Cd(II) removal from aqueous solution by adsorption on α-ketoglutaric acid-modified magnetic chitosan. Appl. Surf. Sci. 2014, 292, 710–716. [Google Scholar] [CrossRef]
  76. Kyzas, G.Z.; Deliyanni, E.A. Mercury(II) removal with modified magnetic chitosan adsorbents. Molecules 2013, 18, 6193–6214. [Google Scholar] [CrossRef] [PubMed]
  77. Kyzas, G.Z.; Siafaka, P.I.; Lambropoulou, D.A.; Lazaridis, N.K.; Bikiaris, D.N. Poly(itaconic acid)-grafted chitosan adsorbents with different cross-linking for Pb(II) and Cd(II) uptake. Langmuir 2014, 40, 120–131. [Google Scholar] [CrossRef]
  78. Poon, L.; Wilson, L.D.; Headley, J.V. Chitosan-glutaraldehyde copolymers and their sorption properties. Carbohyd. Polym. 2014, 109, 92–101. [Google Scholar] [CrossRef]
  79. Kyzas, G.Z.; Bikiaris, D.N.; Lazaridis, N.K. Low-swelling chitosan derivatives as biosorbents for basic dyes. Langmuir 2008, 24, 4791–4799. [Google Scholar] [CrossRef] [PubMed]
  80. Kyzas, G.Z.; Lazaridis, N.K. Reactive and basic dyes removal by sorption onto chitosan derivatives. J. Colloid Interface Sci. 2009, 331, 32–39. [Google Scholar] [CrossRef] [PubMed]
  81. Lazaridis, N.K.; Kyzas, G.Z.; Vassiliou, A.A.; Bikiaris, D.N. Chitosan derivatives as biosorbents for basic dyes. Langmuir 2007, 23, 7634–7643. [Google Scholar] [CrossRef] [PubMed]
  82. Zhang, Y.; Shen, Z.; Dai, C.; Zhou, X. Removal of selected pharmaceuticals from aqueous solution using magnetic chitosan: Sorption behavior and mechanism. Environ. Sci. Pollut. Res. 2014, 21, 12780–12789. [Google Scholar] [CrossRef]
  83. Zhou, L.C.; Meng, X.G.; Fu, J.W.; Yang, Y.C.; Yang, P.; Mi, C. Highly efficient adsorption of chlorophenols onto chemically modified chitosan. Appl. Surf. Sci. 2014, 292, 735–741. [Google Scholar] [CrossRef]
  84. Kyzas, G.Z.; Kostoglou, M.; Lazaridis, N.K.; Lambropoulou, D.A.; Bikiaris, D.N. Environmental friendly technology for the removal of pharmaceutical contaminants from wastewaters using modified chitosan adsorbents. Chem. Eng. J. 2013, 222, 248–258. [Google Scholar] [CrossRef]
  85. Kyzas, G.Z.; Bikiaris, D.N.; Seredych, M.; Bandosz, T.J.; Deliyanni, E.A. Removal of dorzolamide from biomedical wastewaters with adsorption onto graphite oxide/poly(acrylic acid) grafted chitosan nanocomposite. Bioresour. Technol. 2014, 152, 399–406. [Google Scholar] [CrossRef] [PubMed]

Share and Cite

MDPI and ACS Style

Kyzas, G.Z.; Bikiaris, D.N. Recent Modifications of Chitosan for Adsorption Applications: A Critical and Systematic Review. Mar. Drugs 2015, 13, 312-337. https://doi.org/10.3390/md13010312

AMA Style

Kyzas GZ, Bikiaris DN. Recent Modifications of Chitosan for Adsorption Applications: A Critical and Systematic Review. Marine Drugs. 2015; 13(1):312-337. https://doi.org/10.3390/md13010312

Chicago/Turabian Style

Kyzas, George Z., and Dimitrios N. Bikiaris. 2015. "Recent Modifications of Chitosan for Adsorption Applications: A Critical and Systematic Review" Marine Drugs 13, no. 1: 312-337. https://doi.org/10.3390/md13010312

APA Style

Kyzas, G. Z., & Bikiaris, D. N. (2015). Recent Modifications of Chitosan for Adsorption Applications: A Critical and Systematic Review. Marine Drugs, 13(1), 312-337. https://doi.org/10.3390/md13010312

Article Metrics

Back to TopTop
