Communication

Design, Synthesis, In Vitro, and In Silico Studies of New N5-Substituted-pyrazolo[3,4-d]pyrimidinone Derivatives as Anticancer CDK2 Inhibitors

1
Department of Pharmaceutical Organic Chemistry, Faculty of Pharmacy, Al-Azhar University, Cairo 11884, Egypt
2
Department of Medicinal Chemistry, Faculty of Pharmacy, Mansoura University, Mansoura 35516, Egypt
3
Pharmaceutical Chemistry Department, College of Pharmacy, The Islamic University, Najaf 54001, Iraq
4
Nanoscience Program, University of Science and Technology, Zewail City of Science and Technology, October Gardens, 6th of October, Giza 12578, Egypt
5
Microbiology and Immunology Department, Faculty of Pharmacy, Helwan University, Cairo 19448, Egypt
6
Department of Biology, Faculty of Science, University College of Taymaa, University of Tabuk, Tabuk 71491, Saudi Arabia
7
Chemical and Biological Integrative Research Center, Korea Institute of Science and Technology (KIST), Seoul 02792, Republic of Korea
8
Division of Bio-Medical Science & Technology, University of Science and Technology, Daejeon 34113, Republic of Korea
9
Department of Pharmaceutical Chemistry, Faculty of Pharmacy, Egyptian Russian University, Badr City 11829, Egypt
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Pharmaceuticals 2023, 16(11), 1593; https://doi.org/10.3390/ph16111593
Submission received: 5 October 2023 / Revised: 8 November 2023 / Accepted: 9 November 2023 / Published: 11 November 2023
(This article belongs to the Special Issue Novel Anti-proliferative Agents 2024)

Abstract

:
CDK2 is a key player in cell cycle processes. It has a crucial role in the progression of various cancers. Hepatocellular carcinoma (HCC) and colorectal cancer (CRC) are two common cancers that affect humans worldwide. The available therapeutic options suffer from many drawbacks including high toxicity and decreased specificity. Therefore, there is a need for more effective and safer therapeutic agents. A series of new pyrazolo[3,4-d]pyrimidine analogs was designed, synthesized, and evaluated as anticancer agents against the CRC and HCC cells, HCT116, and HepG2, respectively. Pyrazolo[3,4-d]pyrimidinone derivatives bearing N5-2-(4-halophenyl) acetamide substituents were identified as the most potent amongst evaluated compounds. Further evaluation of CDK2 kinase inhibition of two potential cytotoxic compounds 4a and 4b confirmed their CDK2 inhibitory activity. Compound 4a was more potent than the reference roscovitine regarding the CDK2 inhibitory activity (IC50 values: 0.21 and 0.25 µM, respectively). In silico molecular docking provided insights into the molecular interactions of compounds 4a and 4b with important amino acids within the ATP-binding site of CDK2 (Ile10, Leu83, and Leu134). Overall, compounds 4a and 4b were identified as interesting CDK2 inhibitors eliciting antiproliferative activity against the CRC and HCC cells, HCT116 and HepG2, respectively, for future further investigations and development.

1. Introduction

Cancer is a leading cause of morbidity and mortality in addition to being a significant barrier to increasing life expectancy worldwide. According to the cancer statistics update (GLOBOCAN 2020) reported by the International Agency for Research on Cancer (IARC), it is estimated that there were 19.3 million new cases of cancer and about 10 million deaths from cancer in 2020 globally [1]. In fact, cancer comprises diverse and heterogenous diseases with different incidence and morbidity rates. While CRC ranks third and liver cancer ranks sixth in regard to global incidence rates, colorectal cancer has the second highest morbidity, while liver cancer has the third highest [2,3,4,5]. In particular, liver cancer is one of the most commonly diagnosed cancers amongst the Egyptian population. Meanwhile, CRC shows an increasing incidence rate amongst the Arab world population [6].
HCC is the predominant form of liver cancer accounting for about 80–85% of liver cancer cases [2]. High recurrence rates and metastases are major hurdles that limit the successfulness of current treatment protocols [7]. Despite the advent of multi-target kinase inhibitors such as sorafenib, lenvatinib, regorafenib, and cabozantinib which increased survival rates of HCC patients, evolvement of resistance and development of metastases are often encountered issues [7,8]. Likewise, current CRC treatments are hampered by the development of metastatic CRC resulting in high mortality rates [9,10]. Moreover, all current chemotherapeutic medications for HCC and CRC suffer from various systemic toxicities, lower rates of successful treatment, and variable innate and acquired resistances in addition to unacceptable decreased tumor specificity. Consequently, HCC and CRC are major challenging health problems that raise urgent needs for the development of new effective treatments. The development of effective and affordable medicines is an important consideration. An effective but prohibitively expensive medicine would be inaccessible to vulnerable patients in poor populations. According to the World Bank census data of 2021, there are 3.4 billion and 700 million people in lower-middle-income and low-income countries, respectively. The cost of active pharmaceutical ingredients is amongst the major determinants of medicine prices and, consequently, affordability. Therefore, development of an economical synthesis method, including step economy and employing inexpensive substances, is important [11,12].
Cyclin dependent kinases (CDKs) belong to a family of serine/threonine kinases that requires a cyclin protein for their action. They have axial regulatory roles in cell progression, differentiation, and apoptosis [13,14,15]. CDKs were found overexpressed in several cancers including HCC and CRC [16,17,18]. Among the identified twenty-one CDKs, CDK2 is a key player in cell cycle progress [19,20]. Cell cycle deregulation associated with CDK2 overexpression is a hallmark of the development of cancerous cells [21]. Accordingly, developing CDK2 inhibitors might be a promising and attractive approach to achieve new anticancer therapeutic agents [22]. Various CDK2 inhibitors are reported and some are in clinical trials as potential anticancer agents such as flavopiridol, dinaciclib, roscovitine, and milciclib [23].
Cyclin-dependent kinase-2 (CDK2) requires, in addition to cyclin, the adenosine triphosphate (ATP) molecule to function. Knowing that ATP incorporates adenine which is a purine base, it might not be surprising that purine and purine isosteres serve as scaffolds to develop CDK2 inhibitors. Thus, roscovitine and olomoucine (Figure 1) were developed as purine based CDK2 inhibitors [24]. While roscovitine and olomoucine are 4,6-disubstituted purine derivatives, Bristol–Myers Squibb has developed 6-substituted-pyrazolo[3,4-d]pyrimidinones with a purine isostere scaffold, as CDK2 inhibitors [25]. Exploration of positional isomers is one of the most well-known drug design strategies and a powerful lead generation method that can yield new chemical entities of promising activity [26,27,28]. While 4,6-disubstituted purine derivatives and 6-substituted-pyrazolo[3,4-d]pyrimidinones as CDK2 inhibitors are reported, N5-substituted-pyrazolo[3,4-d]pyrimidinones, to the best of our knowledge, have not been explored as potential CDK2 inhibitors [29,30,31]. Considering these data and motivated by the positional isomerism strategy in generating new promising bioactive compounds, new derivatives of N5-substituted-pyrazolo[3,4-d]pyrimidinones were designed as antiproliferative CDK2 inhibitors against HCC and CRC. As shown in Figure 1, the compounds designed maintained the N1-aryl substituent existing in Bristol–Myers Squibb-developed compounds but introduced diverse N5-substituents at the pyrazolo[3,4-d]pyrimidinone scaffold while substituents at the 6-position were trimmed, leaving only the small methyl fragment at the 6-position. In the move towards a more efficient exploration of the chemical space around N5-substituents, diverse substituents were considered involving variable alkyl, acetyl esters, phenacyl or acetamide moieties with diverse substituents and/or stereoelectronic features. Herein, we report our interesting results of the designed compounds.

2. Results and Discussion

2.1. Chemistry

A concise synthesis of the targeted compounds was achieved in one single step starting from the reported 1,5-dihydro-4H-pyrazolo[3,4-d]pyrimidin-4-one derivative 1 [32]. As shown in Scheme 1, N5-alkylation using the appropriate halo derivative in the presence of a potassium carbonate/DMF system directly afforded the corresponding targeted compounds. Thus, heating a mixture of compound 1 with the appropriate 2-chloroacetate ester derivative in the presence of a potassium carbonate/DMF system afforded the desired derivative 2 at a 75% yield. Similarly, heating a mixture of compound 1 with the appropriate 2-bromoacertophenone derivative in the presence of a potassium carbonate/DMF system afforded the desired derivative 3 at 62–65% yields. Likewise, heating a mixture of compound 1 with the appropriate 2-chloroacetamide derivative in the presence of a potassium carbonate/DMF system afforded the desired derivative 4 at 60–70% yields.

2.2. In Vitro Antiproliferative Activity

Towards the evaluation of the activity of synthesized compounds against CRC and HCC, HCT116 cells (a CRC cell line) and HepG2 cells (an HCC cell line) were used, adopting the colorimetric MTT assay protocol, which is well-known in the literature [33,34]. To assess the results, the activity of the evaluated compounds was compared to the reference CDK2 inhibitor, roscovitine [35]. In addition, the most active compounds in this assay were further tested against the normal human fibroblast cell line (WI-38) in order to assess their cytotoxic effect on normal cells. The assay outcome is summarized in Table 1.
The reference standard roscovitine inhibited the growth of the employed CRC and HCC cells showing moderate IC50 values of 12.24 and 13.82 µM against HCT116 and HepG2 cells, respectively. Amongst the evaluated compounds, two N5-2-acetamide derivatives, 4a and 4b, showed interestingly superior activity to the reference roscovitine standard against both the HCT116 and HepG2 cells. Both compounds 4a and 4b were more active than roscovitine against HepG2 cells and HCT116 cells. Compound 4a was almost twenty-four- and eleven-fold more potent than roscovitine against HepG2 and HCT116, respectively (IC50 of 0.58 and 1.09 µM for compound 4a). Meanwhile, compound 4b was almost 5.3- and 3.6-fold more potent than roscovitine against HepG2 and HCT116, respectively (IC50 of 2.57 and 3.38 µM for compound 4b). Despite the N5-phenacyl derivative 3b showing moderate activity against HCT116 similar to roscovitine (IC50 of 10.75 µM versus 12.24 µM, respectively), it was similar to compounds 4a and 4b in maintaining the same activity trend of higher activity against HepG2 cells, showing nearly seven-fold higher potency relative to roscovitine. Interestingly, the N5-phenacyl derivative 3a and N5-2-acetamide derivative 4e maintained a similar activity trend where they were more active against HepG2 relative to HCT116. Thus, compounds 4e and 3a showed intermediate activities against HepG2 cells with determined IC50 values of 16.08 and 26.25 µM, respectively. On the contrary, N5-alkyl derivatives 2a and 2b and N5-2-acetamide derivatives 4c and 4d showed the opposite activity trend in comparison with compounds 3a, 3b, 4a, 4b, and 4e, as they were more active against HCT116 than HepG2.
Compounds 4a and 4b were presented as the most promising amongst the tested compounds. Accordingly, they were further subjected to an evaluation of their cytotoxic effects on normal human cells. With determined IC50 values of 58.61 and 48.49 which translate into 100–14 selectivity indices, the results suggest that both compounds show good activity and selectivity towards cancerous cells rather than non-cancerous cells.

2.3. Structure Activity Relationship

Analysis of the structure-activity relationship of the evaluated compounds highlighted some possible key points (Figure 2). First, incorporation of an aromatic moiety within the introduced N5-subtituent was essential for bioactivity while aliphatic N5-subtituents free from aromatic moieties such as acetate ester derivatives 2 were not optimal for activity. The increase in alkyl ester length enhanced anti-HCT116 activity but was detrimental to anti-HepG2 activity. Such aliphatic derivatives were more active against HCT116 cells. Switching the N5-subtitution pattern to an aromatic moiety-containing phenacyl derivative 3 resulted in reversing the activity pattern where these compounds were more active against HepG2 than HCT116. Particularly, the N5-(4-methylphenacyl) derivative 3b showed a potential IC50 of 1.90 µM against HepG2, which is seven-fold the potency of roscovitine. Increasing the distance of between the aromatic moiety and the N5-atom by one atom through the insertion of a nitrogen atom to convert phenacyl derivatives into N5-acetamide derivatives 4 resulted in mixed results depending on the aromatic moiety and the substitution pattern on it. When the aromatic moiety was a bicyclic unsubstituted 1-naphthyl moiety (compound 4e), the activity pattern was maintained but the potency was not high. Not only was this activity pattern maintained upon using the monocyclic 4-halophenyl as the aromatic moiety in N5-acetamide derivatives 4a and 4b, highly active compounds were also obtained. Specifically, incorporation of the more electronegative 4-fluoro substituent (compound 4a) afforded a more potent compound than the corresponding 4-chloro derivative (compound 4b). Replacing the electronegative 4-halosusbtituent by the electron-donating 3-methoxy substituent (compound 4c) resulted in lower activity and showed an activity trend opposite to compounds 4a and 4b in which compounds were more active against HCT116 than HepG2. Likewise, incorporation of the electron deficient pyridyl ring as the aromatic moiety showed the opposite activity trend in which compounds were more active against HCT116 than HepG2 but did not improve the activity. In summary, incorporation of the aromatic 4-susbituted-phenyl moiety in the N5-susbtituent resulted in activity enhancement affording the most active compounds.

2.4. CDK2 Inhibitory Activity

To confirm the inhibitory activity of the developed compounds on CDK2 as a mechanism of action involved in mediating cytotoxicity, the most effective cytotoxic compounds, 4a and 4b, were employed in in vitro enzymatic CDK2 inhibition assays [36]. The CDK2 inhibitor, roscovitine, was applied as the reference standard for comparison. As displayed in Table 2, the most potent cytotoxic compound tested, 4a, showed a potent inhibition of CDK2 with a measured submicromolar IC50 of 0.21 µM, which is slightly better than the roscovitine reference. Meanwhile, the less effective cytotoxic compound 4b elicited less potent inhibition of CDK2 with a determined IC50 value of 0.96 µM. Based on this outcome, it might be deduced that compounds 4a and 4b are potential CDK2 inhibitors and that their inhibition might be correlated with their observed antiproliferative activity.

2.5. In Silico Docking Study

In silico docking was addressed to predict the binding mode between the most potent compounds 4a and 4b and the CDK2 enzyme. Among the numerous available crystal structures of CDK2, the X-ray crystal structure of CDK2 complexed with the roscovitine, the reference used in the conducted assay of CDK2 inhibition, was recruited for the docking simulation. Structurally, CDK2 has a typical folded bilobal architecture with a smaller N-terminal domain primarily consisting of β-sheets, while the larger C-terminal domain consists of α-helices. Orthostatic purine-analog inhibitors bind into a narrow cleft between the two lobal domains. The published literature has revealed three important main amino acids (Ile10, Leu83, and Leu134) for the binding inhibitor ligand [37,38]. The docking protocol was validated via redocking of roscovitine with its binding pocket of the enzyme. The root mean square deviation (RMSD) was 1.2942, suggesting that the docking protocol is reliable (Figure 3).
Exploration of the binding mode of roscovitine with its binding pocket unveiled that it could form various interactions with different amino acid residues within the ATP binding region of the enzyme including the three important amino acids (Ile10, Leu83, and Leu134) (Figure 4A, Table 3). It was capable of establishing two hydrogen bonds with the Leu83 amino acid residue via the N-atom of its purine ring system and NH of the benzyl amino side chain. The lengths of these two hydrogen bonds were 2.82 and 3.38 Å, respectively (Figure 4A, Table 3). Also, two π–sigma interactions were observed between Leu134 and the purine ring. The phenyl ring of the benzyl amino side chain formed a π–cation interaction with Lys89. In addition, various hydrophobic C–-H, π–alkyl, and alkyl interactions were established with amino acid residues within the binding site (Ile10, Val18, Ala31, Phe80, and Glu81). Compound 4a was docked successfully into the ATP-binding site with a binding energy score of −7.0394 Kcal/mol (Figure 4B, Table 3), which was comparable to that of roscovitine which was −7.8236 Kcal/mol. It was able to establish a network of interactions including a halogen (fluorine) bond between its 4-fluoro substituent on the N-phenylacetamide moiety and Glu8. Moreover, the phenyl ring of the phenylacetamide side chain formed a π–anion interaction with Glu8. Furthermore, three π–sigma interactions were observed between Ile10 and Leu134, and the pyrazolo[3,4-d]pyrimidine ring. Additionally, various hydrophobic C–H, π–π stacked, π–alkyl, and alkyl interactions were established with amino acid residues within the binding site (Ile10, Val18, Ala31, Leu134, Ala144, Asp86, Lys33, Val64, Phe80, and Phe82). On the other hand, compound 4b was docked to CDK2 with an acceptable binding energy score of −7.0358 Kcal/mol. Again, this docking score was comparable to that of the reference molecule, roscovitine. Interestingly, 4b was able to establish the same interactions with the binding site as 4a except the halogen and π–anion bonding with Glu8 (Figure 4C, Table 3). These results agreed with the biological and biochemical assays where compounds 4a and 4b were expected to dock successfully into the ATP-binding site of CDK2 and were able to interact with the essential amino acid residues within the binding site. Compound 4a formed additional halogen and π–anion bonds with Glu8, illustrating that it might be beneficial to its binding process. This might be the reason why it possesses higher CDK2 inhibitory activity.

2.6. Predicted Physicochemical Properties and Toxicity Parameters

An oral bioavailability radar consisting of Lipinski’s rule of five and Veber’s rule was applied to obtain insights into the possible application of compounds 4a and 4b as oral anticancer agents [39,40]. Compliance of the tested molecules to these rules was investigated based on calculated molecular descriptors. Regarding the rules of Lipinski, violation of more than one parameter described in this rule indicates a high probability of oral bioavailability issues. In addition, Veber’s rule states that the calculated total polar surface area of a good oral drug should not exceed 140 and the number of rotatable bonds should not exceed 10. The OSIRIS software v2.16 was utilized for the calculation of the molecular parameters described in the tested rules. The calculated molecular descriptors of the investigated compounds suggested that both compounds would represent an acceptable orally administered molecule because no violations of the tested rules were anticipated (Table 4).
Moreover, OSIRIS was used to predict the in silico toxicity parameters of compounds 4a and 4b. Both compounds were predicted to possess no mutagenic, tumorigenic, or reproductive toxicities (Table 4). Collectively, the in silico predicted toxicity parameters suggested that the investigated compounds might be promising safe hits as anticancer agents.

3. Materials and Methods

3.1. Chemistry

Compounds were synthesized by adopting known synthetic procedures and were characterized as detailed in the Supplementary Information.

3.2. In Vitro Assay of Antiproliferative Activity

In vitro evaluation of growth inhibition assay was conducted according to the well-known MTT assay protocol [33,34] as detailed in the Supplementary Information.

3.3. In Vitro Assay of CDK2 Inhibition

In vitro evaluation of CDK2 inhibition was determined using a commercially available assay kit from BPS Bioscience Inc. (San Diego, CA, USA) as described in the Supplementary Information [41].

3.4. Statistical Analysis

Results are the mean of triplicate experiments. Significance was confirmed relative to control at p values ≤ 0.05 via one-way ANOVA.

3.5. In Silico Docking Study

The docking study was performed using the crystal structure of human CDK2 co-crystallized with roscovitine (PDB ID: 2A4L) [37] according to known standard protocols. Autodock was utilized and results were visualized utilizing the DS visualizer [42,43,44]. Ligands’ structures were sketched and prepared by energy minimization. The active site was identified as the site where the original co-crystallized inhibitor (roscovitine) existed. Validation of the docking protocol was performed via redocking of roscovitine with the crystal structure of the enzyme. The original conformation was reproduced and the RMSD value was 1.2942.

4. Conclusions

New pyrazolo[3,4-d]pyrimidine analogs were designed as CDK2 inhibitors aimed at obtaining new potent hits as anticancer molecules. The designed target compounds were synthesized and evaluated for their cytotoxic activity against two cell lines, viz., HCT116 and HepG2 cells, which are CRC and HCC cell lines, respectively. Compounds 4a and 4b exhibited superior activity relative to a reference standard against the tested cell lines. Exploration of their CDK2 inhibitory activities showed correlations with their observed antiproliferative potencies and confirmed them as CDK2 inhibitors. Compound 4a was identified as the most potent amongst the tested compounds (with IC50 value of 0.21 µM) showing superior antiproliferative activity and CDK2 inhibition in comparison with the reference standard, roscovitine (with IC50 value of 0.25 µM). Molecular docking provided insights supporting the observed in vitro results. Each of the compounds 4a and 4b successfully docked into the CDK2 ATP-binding site, establishing a network of interactions with essential amino acid residues within the active site. The 4-fluoro substituent in compound 4a resulted in additional hydrogen and halogen bonds explaining the higher potency of compound 4a. Together, these results introduce compounds 4a and 4b as interesting new hits endowed with potential CDK2 inhibition and antiproliferative activity against CRC and HCC cell lines, HCT116 and HepG2. These two compounds (4a and 4b) might serve as potential anticancer hits for further development and evaluation of their in vivo activity. Also, their possible route of administration should be investigated.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ph16111593/s1, Experimental procedures and NMR spectra.

Author Contributions

Conceptualization, K.M., M.A. and E.J.R.; methodology, S.M.E.-S. and A.H.H.; validation, A.H.B. and A.S.M.; formal analysis, K.M. and M.A.; investigation, W.A.Z., A.E.-M. and K.M.; resources, W.H.M.; data curation, A.A.A.; writing—original draft preparation, S.M.E.-S. and A.H.H.; writing—review and editing, E.J.R.; funding acquisition, E.J.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Research Council of Science & Technology (NST) grant by the Korea government (MSIT) (No. CAP23011-100), and KIST Institutional programs (2E32333) from the KIST.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article or Supplementary Material.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

HCCHepatocellular carcinoma
CRCColorectal cancer
IARCInternational Agency for Research on Cancer
CDK2Cyclin-dependent kinase-2
SDStandard deviation
IC50Half-maximal inhibitory concentration
RMSDRoot mean square deviation

References

  1. Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries. CA Cancer J. Clin. 2021, 71, 209. [Google Scholar] [CrossRef] [PubMed]
  2. Elnaggar, M.H.; Abushouk, A.I.; Hassan, A.H.E.; Lamloum, H.M.; Benmelouka, A.; Moatamed, S.A.; Abd-Elmegeed, H.; Attia, S.; Samir, A.; Amr, N.; et al. Nanomedicine as a putative approach for active targeting of hepatocellular carcinoma. Semin. Cancer Biol. 2021, 69, 91–99. [Google Scholar] [CrossRef]
  3. Xi, Y.; Xu, P. Global colorectal cancer burden in 2020 and projections to 2040. Transl. Oncol. 2021, 14, 101174. [Google Scholar] [CrossRef]
  4. Ferlay, J.; Colombet, M.; Soerjomataram, I.; Parkin, D.M.; Piñeros, M.; Znaor, A.; Bray, F. Cancer statistics for the year 2020: An overview. Int. J. Cancer 2021, 149, 778. [Google Scholar] [CrossRef]
  5. Li, C.; He, W.-Q. Comparison of primary liver cancer mortality estimates from World Health Organization, global burden disease and global cancer observatory. Liver Int. 2022, 42, 2299. [Google Scholar] [CrossRef]
  6. Makhlouf, N.A.; Abdel-Gawad, M.; Mahros, A.M.; Lashen, S.A.; Zaghloul, M.; Eliwa, A.; Elshemy, E.E.; Ali-Eldin, Z.; Abdeltawab, D.; El-Raey, F.; et al. Colorectal cancer in Arab world: A systematic review. World J. Gastrointest. Oncol. 2021, 13, 1791. [Google Scholar] [CrossRef] [PubMed]
  7. Man, S.; Luo, C.; Yan, M.; Zhao, G.; Ma, L.; Gao, W. Treatment for liver cancer: From sorafenib to natural products. Eur. J. Med. Chem. 2021, 224, 113690. [Google Scholar] [CrossRef]
  8. Zhu, X.-D.; Sun, H.-C. Emerging agents and regimens for hepatocellular carcinoma. J. Hematol. Oncol. 2019, 12, 110. [Google Scholar] [CrossRef] [PubMed]
  9. Arai, H.; Battaglin, F.; Wang, J.; Lo, J.H.; Soni, S.; Zhang, W.; Lenz, H.-J. Molecular insight of regorafenib treatment for colorectal cancer. Cancer Treat. Rev. 2019, 81, 101912. [Google Scholar] [CrossRef]
  10. Huang, X.-M.; Yang, Z.-J.; Xie, Q.; Zhang, Z.-K.; Zhang, H.; Ma, J.-Y. Natural products for treating colorectal cancer: A mechanistic review. Biomed. Pharmacother. 2019, 117, 109142. [Google Scholar] [CrossRef]
  11. Ocran Mattila, P.; Ahmad, R.; Hasan, S.S.; Babar, Z.-U.-D. Availability, Affordability, Access, and Pricing of Anti-cancer Medicines in Low- and Middle-Income Countries: A Systematic Review of Literature. Front. Public Health 2021, 9, 628744. [Google Scholar] [CrossRef] [PubMed]
  12. Kazibwe, J.; Tran, P.B.; Annerstedt, K.S. The household financial burden of non-communicable diseases in low- and middle-income countries: A systematic review. Health Res. Policy Syst. 2021, 19, 96. [Google Scholar] [CrossRef] [PubMed]
  13. Saqub, H.; Proetsch-Gugerbauer, H.; Bezrookove, V.; Nosrati, M.; Vaquero, E.M.; de Semir, D.; Ice, R.J.; McAllister, S.; Soroceanu, L.; Kashani-Sabet, M.; et al. Dinaciclib, a cyclin-dependent kinase inhibitor, suppresses cholangiocarcinoma growth by targeting CDK2/5/9. Sci. Rep. 2020, 10, 18489. [Google Scholar] [CrossRef] [PubMed]
  14. Malumbres, M. Cyclin-dependent kinases. Genome Biol. 2014, 15, 122. [Google Scholar] [CrossRef] [PubMed]
  15. Mandour, A.A.; Nassar, I.F.; Abdel Aal, M.T.; Shahin, M.A.E.; El-Sayed, W.A.; Hegazy, M.; Yehia, A.M.; Ismail, A.; Hagras, M.; Elkaeed, E.B.; et al. Synthesis, biological evaluation, and in silico studies of new CDK2 inhibitors based on pyrazolo[3,4-d]pyrimidine and pyrazolo[4,3-e][1,2,4]triazolo[1,5-c]pyrimidine scaffold with apoptotic activity. J. Enzyme Inhib. Med. Chem. 2022, 37, 1957. [Google Scholar] [CrossRef]
  16. Li, J.-Q.; Miki, H.; Ohmori, M.; Wu, F.; Funamoto, Y. Expression of cyclin E and cyclin-dependent kinase 2 correlates with metastasis and prognosis in colorectal carcinoma. Hum. Pathol. 2001, 32, 945. [Google Scholar] [CrossRef]
  17. Yang, A.-L.; Wu, Q.; Hu, Z.-D.; Wang, S.-P.; Tao, Y.-F.; Wang, A.-M.; Sun, Y.-X.; Li, X.-L.; Dai, L.; Zhang, J. A network pharmacology approach to investigate the anticancer mechanism of cinobufagin against hepatocellular carcinoma via downregulation of EGFR-CDK2 signaling. Toxicol. Appl. Pharmacol. 2021, 431, 115739. [Google Scholar] [CrossRef]
  18. Tadesse, S.; Anshabo, A.T.; Portman, N.; Lim, E.; Tilley, W.; Caldon, C.E.; Wang, S. Targeting CDK2 in cancer: Challenges and opportunities for therapy. Drug Discov. Today 2020, 25, 406. [Google Scholar] [CrossRef]
  19. van den Heuvel, S.; Harlow, E. Distinct Roles for Cyclin-Dependent Kinases in Cell Cycle Control. Science 1993, 262, 2050–2054. [Google Scholar] [CrossRef]
  20. Maddika, S.; Ande, S.R.; Wiechec, E.; Hansen, L.L.; Wesselborg, S.; Los, M. Akt-mediated phosphorylation of CDK2 regulates its dual role in cell cycle progression and apoptosis. J. Cell Sci. 2008, 121, 979–988. [Google Scholar] [CrossRef]
  21. Fagundes, R.; Teixeira, L.K. Cyclin E/CDK2: DNA Replication, Replication Stress and Genomic Instability. Front. Cell Dev. Biol. 2021, 9, 3266. [Google Scholar] [CrossRef] [PubMed]
  22. Nassar, I.F.; Abdel Aal, M.T.; El-Sayed, W.A.; E Shahin, A.M.; Elsakka, E.G.E.; Mokhtar, M.M.; Hegazy, M.; Hagras, M.; Mandour, A.A.; Ismail, N.S.M. Discovery of pyrazolo[3,4-d]pyrimidine and pyrazolo[4,3-e][1,2,4]triazolo[1,5-c]pyrimidine derivatives as novel CDK2 inhibitors: Synthesis, biological and molecular modeling investigations. RSC Adv. 2022, 12, 14865. [Google Scholar] [CrossRef] [PubMed]
  23. Łukasik, P.; Baranowska-Bosiacka, I.; Kulczycka, K.; Gutowska, I. Inhibitors of Cyclin-Dependent Kinases: Types and Their Mechanism of Action. Int. J. Mol. Sci. 2021, 22, 2806. [Google Scholar] [CrossRef] [PubMed]
  24. Alessi, F.; Quarta, S.; Savio, M.; Riva, F.; Rossi, L.; Stivala, L.A.; Scovassi, A.I.; Meijer, L.; Prosperi, E. The Cyclin-Dependent Kinase Inhibitors Olomoucine and Roscovitine Arrest Human Fibroblasts in G1 Phase by Specific Inhibition of CDK2 Kinase Activity. Exp. Cell Res. 1998, 245, 8. [Google Scholar] [CrossRef]
  25. Markwalder, J.A.; Arnone, M.R.; Benfield, P.A.; Boisclair, M.; Burton, C.R.; Chang, C.-H.; Cox, S.S.; Czerniak, P.M.; Dean, C.L.; Doleniak, D.; et al. Synthesis and Biological Evaluation of 1-Aryl-4,5-dihydro-1H-pyrazolo[3,4-d]pyrimidin-4-one Inhibitors of Cyclin-Dependent Kinases. J. Med. Chem. 2004, 47, 5894–5911. [Google Scholar] [CrossRef]
  26. Vannini, F.; Chattopadhyay, M.; Kodela, R.; Rao, P.P.N.; Kashfi, K. Positional isomerism markedly affects the growth inhibition of colon cancer cells by NOSH-aspirin: COX inhibition and modeling. Redox Biol. 2015, 6, 318–325. [Google Scholar] [CrossRef] [PubMed]
  27. Gómez-Santacana, X.; Dalton, J.A.R.; Rovira, X.; Pin, J.P.; Goudet, C.; Gorostiza, P.; Giraldo, J.; Llebaria, A. Positional isomers of bispyridine benzene derivatives induce efficacy changes on mGlu5 negative allosteric modulation. Eur. J. Med. Chem. 2017, 127, 567–576. [Google Scholar] [CrossRef]
  28. Hassan, A.H.E.; Kim, H.J.; Gee, M.S.; Park, J.-H.; Jeon, H.R.; Lee, C.J.; Choi, Y.; Moon, S.; Lee, D.; Lee, J.K.; et al. Positional scanning of natural product hispidol’s ring-B: Discovery of highly selective human monoamine oxidase-B inhibitor analogues downregulating neuroinflammation for management of neurodegenerative diseases. J. Enzyme Inhib. Med. Chem. 2022, 37, 768–780. [Google Scholar] [CrossRef]
  29. Schenone, S.; Radi, M.; Musumeci, F.; Brullo, C.; Botta, M. Biologically Driven Synthesis of Pyrazolo[3,4-d]pyrimidines As Protein Kinase Inhibitors: An Old Scaffold As a New Tool for Medicinal Chemistry and Chemical Biology Studies. Chem. Rev. 2014, 114, 7189–7238. [Google Scholar] [CrossRef]
  30. Ismail, N.S.M.; Ali, E.M.H.; Ibrahim, D.A.; Serya, R.A.T.; Abou El Ella, D.A. Pyrazolo[3,4-d]pyrimidine based scaffold derivatives targeting kinases as anticancer agents. Future J. Pharm. Sci. 2016, 2, 20–30. [Google Scholar] [CrossRef]
  31. Baillache, D.J.; Unciti-Broceta, A. Recent developments in anticancer kinase inhibitors based on the pyrazolo[3,4-d]pyrimidine scaffold. RSC Med. Chem. 2020, 11, 1112–1135. [Google Scholar] [CrossRef] [PubMed]
  32. Miyashita, A.; Iijima, C.; Higashino, T. Studies on pyrazolo [3, 4-d] pyrimidine derivatives. XVIII, Facile preparation of 1H-pyrazolo [3, 4-d] pyrimidin-4 [5H]-ones. Heterocycles 1990, 31, 1309–1314. [Google Scholar] [CrossRef]
  33. Kamiloglu, S.; Sari, G.; Ozdal, T.; Capanoglu, E. Guidelines for cell viability assays. Food Front. 2020, 1, 332–349. [Google Scholar] [CrossRef]
  34. Lee, H.-H.; Shin, J.-S.; Chung, K.-S.; Kim, J.-M.; Jung, S.-H.; Yoo, H.-S.; Hassan, A.H.E.; Lee, J.K.; Inn, K.-S.; Lee, S.; et al. 3ʹ,4ʹ-Dihydroxyflavone mitigates inflammatory responses by inhibiting LPS and TLR4/MD2 interaction. Phytomedicine 2023, 109, 154553. [Google Scholar] [CrossRef]
  35. El-Naggar, A.M.; El-Hashash, M.A.; Elkaeed, E.B. Eco-friendly sequential one-pot synthesis, molecular docking, and anticancer evaluation of arylidene-hydrazinyl-thiazole derivatives as CDK2 inhibitors. Bioorg. Chem. 2021, 108, 104615. [Google Scholar] [CrossRef]
  36. Asghar, U.; Witkiewicz, A.K.; Turner, N.C.; Knudsen, E.S. The history and future of targeting cyclin-dependent kinases in cancer therapy. Nat. Rev. Drug Discov. 2015, 14, 130–146. [Google Scholar] [CrossRef]
  37. De Azevedo, W.F.; Leclerc, S.; Meijer, L.; Havlicek, L.; Strnad, M.; Kim, S.-H. Inhibition of Cyclin-Dependent Kinases by Purine Analogues. Eur. J. Chem. 1997, 243, 518. [Google Scholar] [CrossRef] [PubMed]
  38. Li, Y.; Zhang, J.; Gao, W.; Zhang, L.; Pan, Y.; Zhang, S.; Wang, Y. Insights on Structural Characteristics and Ligand Binding Mechanisms of CDK2. Int. J. Mol. Sci. 2015, 16, 9314. [Google Scholar] [CrossRef]
  39. Lipinski, C.A. Lead- and drug-like compounds: The rule-of-five revolution. Drug Discov. Today Technol. 2004, 1, 337. [Google Scholar] [CrossRef]
  40. Veber, D.F.; Johnson, S.R.; Cheng, H.-Y.; Smith, B.R.; Ward, K.W.; Kopple, K.D. Molecular Properties That Influence the Oral Bioavailability of Drug Candidates. J. Med. Chem. 2002, 45, 2615. [Google Scholar] [CrossRef]
  41. Hennek, J.; Alves, J.; Yao, E.; Goueli, S.A.; Zegzouti, H. Bioluminescent kinase strips: A novel approach to targeted and flexible kinase inhibitor profiling. Anal. Biochem. 2016, 495, 9. [Google Scholar] [CrossRef] [PubMed]
  42. Hassan, A.H.E.; Mahmoud, K.; Phan, T.-N.; Shaldam, M.A.; Lee, C.H.; Kim, Y.J.; Cho, S.B.; Bayoumi, W.A.; El-Sayed, S.M.; Choi, Y.; et al. Bestatin analogs-4-quinolinone hybrids as antileishmanial hits: Design, repurposing rational, synthesis, in vitro and in silico studies. Eur. J. Med. Chem. 2023, 250, 115211. [Google Scholar] [CrossRef] [PubMed]
  43. Hassan, A.H.E.; El-Sayed, S.M.; Yamamoto, M.; Gohda, J.; Matsumoto, T.; Shirouzu, M.; Inoue, J.-I.; Kawaguchi, Y.; Mansour, R.M.A.; Anvari, A.; et al. In Silico and In Vitro Evaluation of Some Amidine Derivatives as Hit Compounds towards Development of Inhibitors against Coronavirus Diseases. Viruses 2023, 15, 1171. [Google Scholar] [CrossRef] [PubMed]
  44. Gulia, K.; Hassan, A.H.E.; Lenhard, J.R.; Farahat, A.A. Escaping ESKAPE resistance: In vitro and in silico studies of multifunctional carbamimidoyl-tethered indoles against antibiotic-resistant bacteria. R. Soc. Open Sci. 2023, 10, 230020. [Google Scholar] [CrossRef]

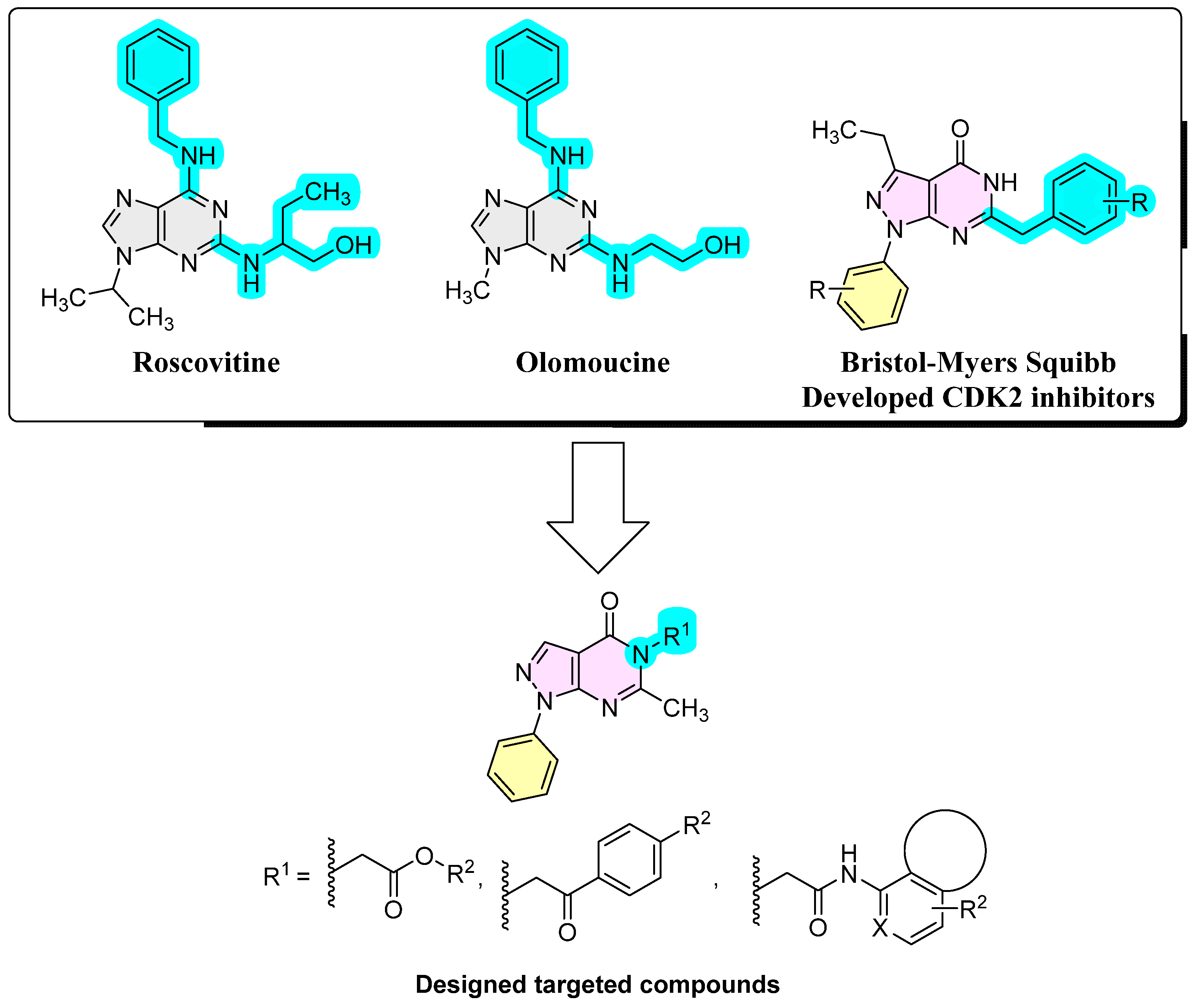

Figure 1. Literature known CDK2 inhibitors and the new designed target compounds.
Figure 1. Literature known CDK2 inhibitors and the new designed target compounds.
Pharmaceuticals 16 01593 g001

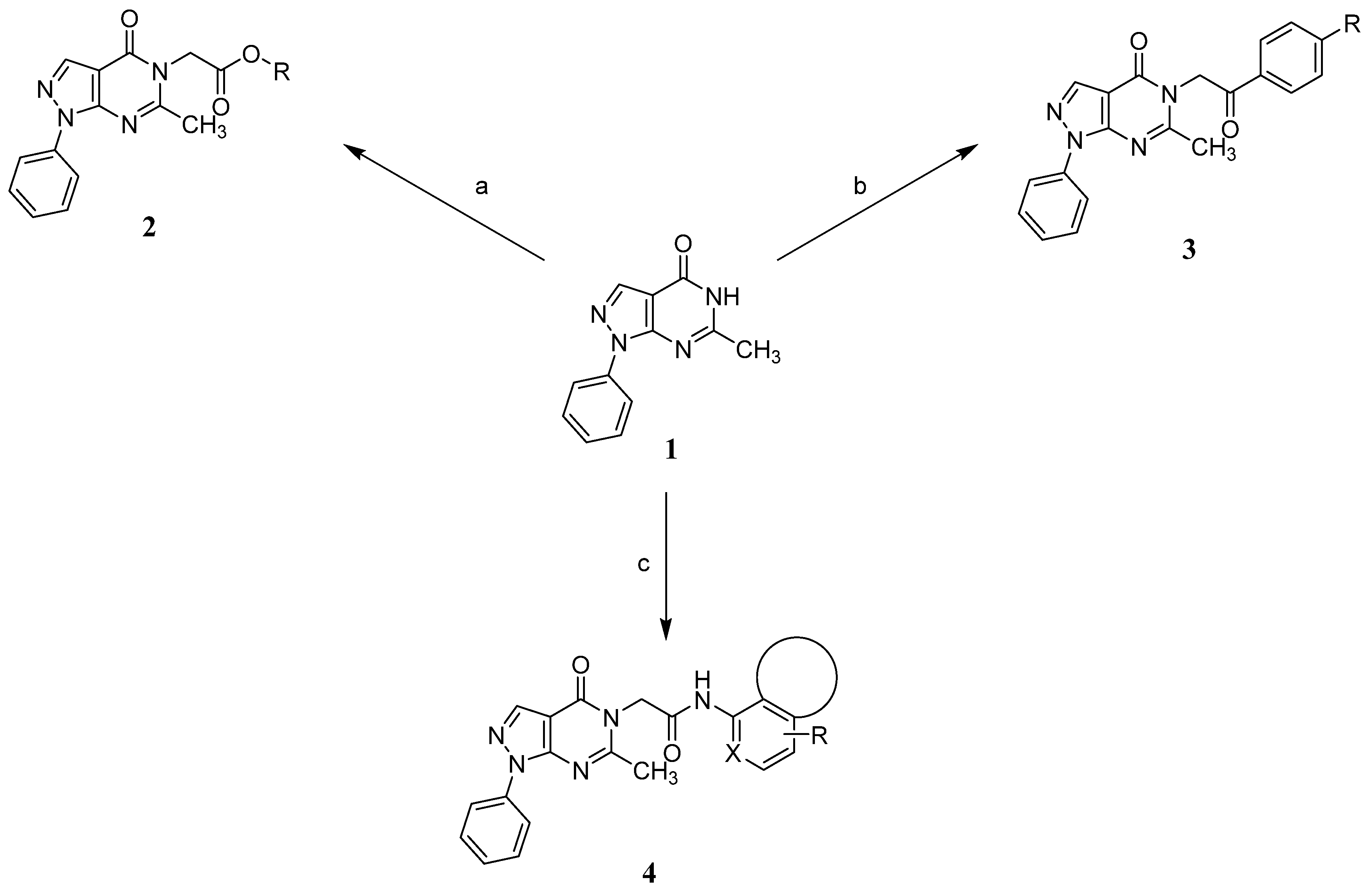

Scheme 1. Synthetic routes to access the desired compounds: (a) appropriate 2-chloroacetate ester derivative, K2CO3, DMF, 100 °C, 5–24 h, 75% yield; (b) appropriate 2-bromoacertophenone derivative, K2CO3, DMF, 100 °C, 5–24 h, 62–65% yield; and (c) appropriate 2-chloroacetamide derivative, K2CO3, DMF, 100 °C, 5–24 h, 60–70% yield.
Scheme 1. Synthetic routes to access the desired compounds: (a) appropriate 2-chloroacetate ester derivative, K2CO3, DMF, 100 °C, 5–24 h, 75% yield; (b) appropriate 2-bromoacertophenone derivative, K2CO3, DMF, 100 °C, 5–24 h, 62–65% yield; and (c) appropriate 2-chloroacetamide derivative, K2CO3, DMF, 100 °C, 5–24 h, 60–70% yield.
Pharmaceuticals 16 01593 sch001

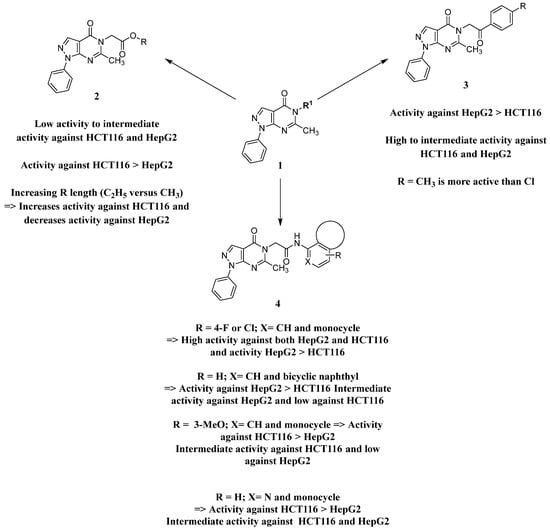

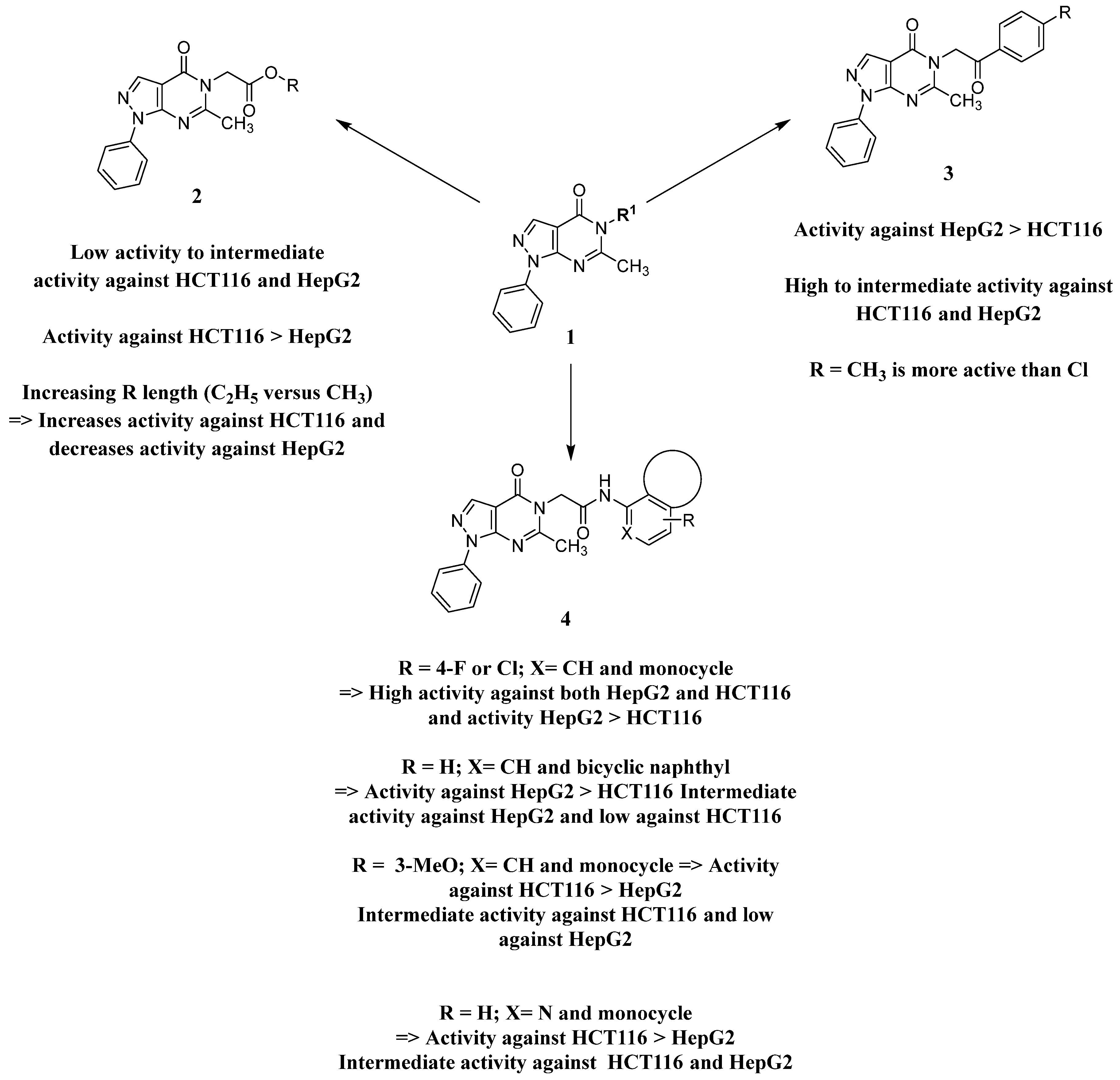

Figure 2. Structure–activity relationship analysis of N5-susbtituted derivatives.
Figure 2. Structure–activity relationship analysis of N5-susbtituted derivatives.
Pharmaceuticals 16 01593 g002

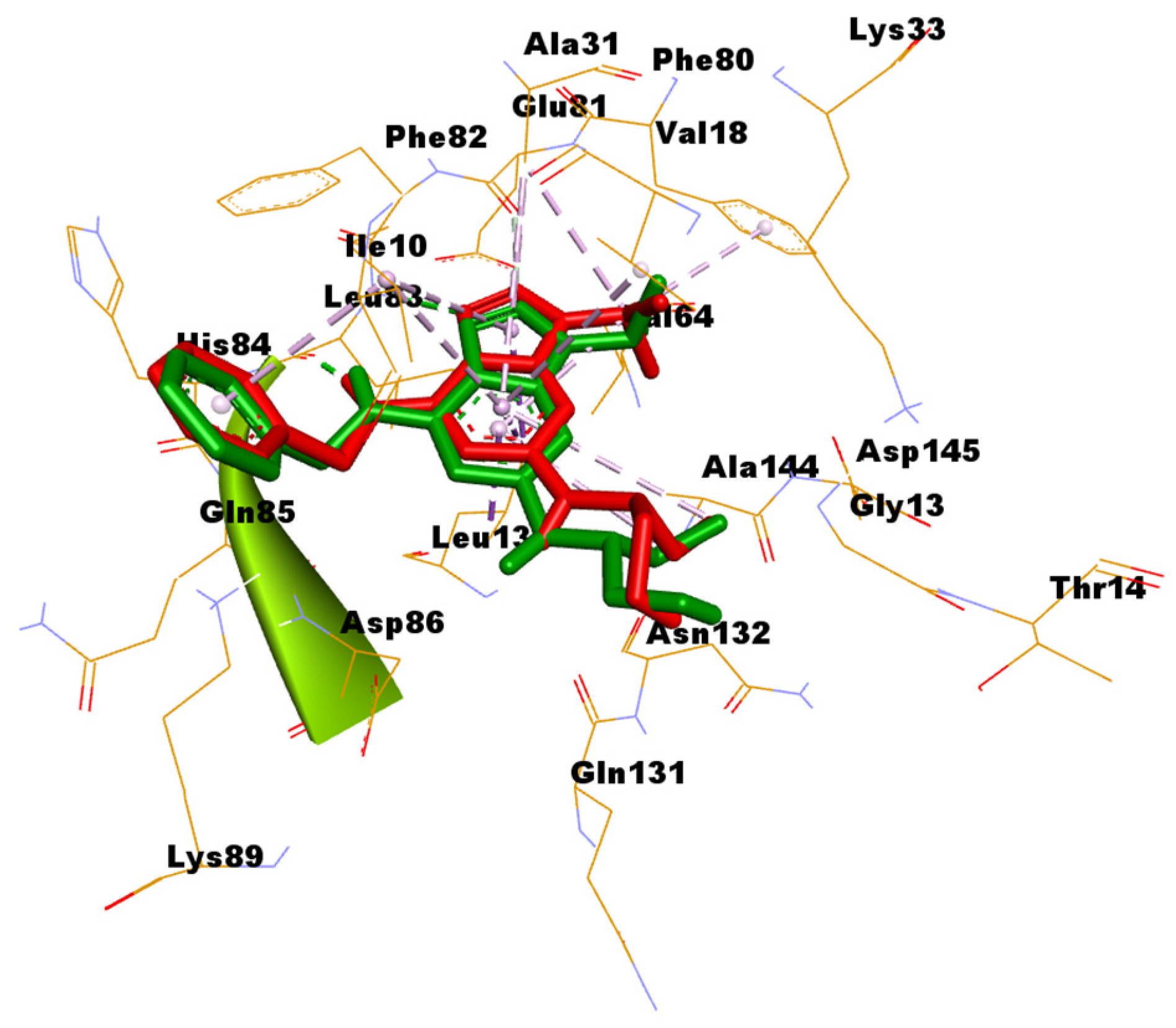

Figure 3. Superimposition of the original pose of roscovitine (green) and the redocked pose (red) into the substrate pocket of CDK2.
Figure 3. Superimposition of the original pose of roscovitine (green) and the redocked pose (red) into the substrate pocket of CDK2.
Pharmaceuticals 16 01593 g003

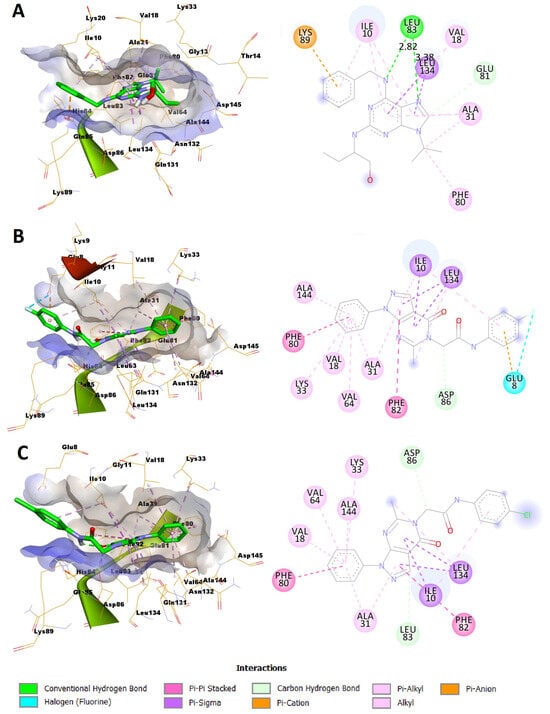

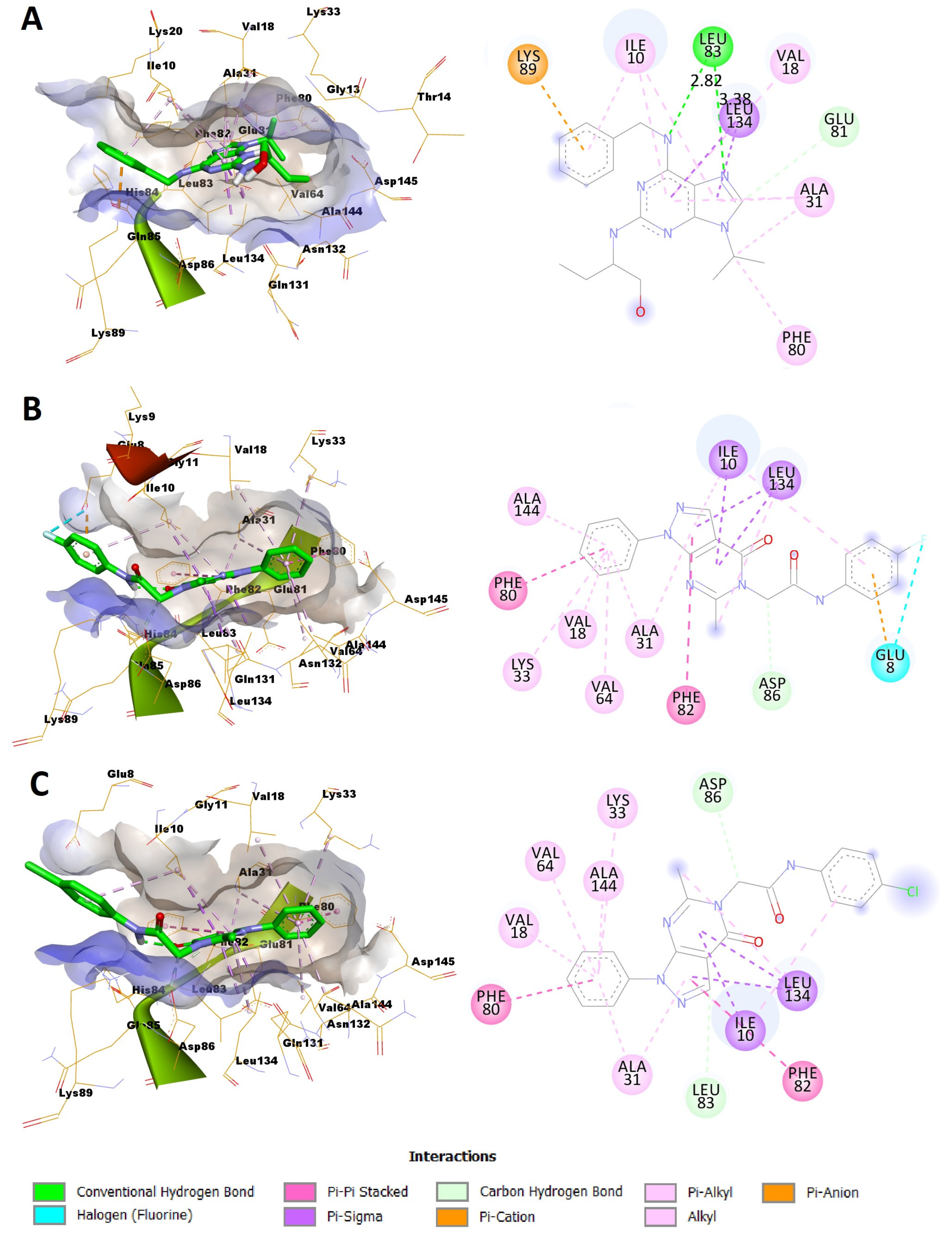

Figure 4. Predicted binding modes of the reference molecule roscovitine, and compounds 4a and 4b with CDK2: (A) predicted docking pose of roscovitine in the 3D (right) and 2D view (left) into the binding pocket of CDK2; (B) predicted docking pose of compound 4a in the 3D (right) and 2D view (left) into the substrate pocket of CDK2; (C) predicted docking pose of compound 4b in the 3D (right) and 2D view (left) into the substrate pocket of CDK2.
Figure 4. Predicted binding modes of the reference molecule roscovitine, and compounds 4a and 4b with CDK2: (A) predicted docking pose of roscovitine in the 3D (right) and 2D view (left) into the binding pocket of CDK2; (B) predicted docking pose of compound 4a in the 3D (right) and 2D view (left) into the substrate pocket of CDK2; (C) predicted docking pose of compound 4b in the 3D (right) and 2D view (left) into the substrate pocket of CDK2.
Pharmaceuticals 16 01593 g004
Table 1. IC50 values of synthesized compounds and standard references against HCT116, HepG2, and WI-38 cell lines.
Table 1. IC50 values of synthesized compounds and standard references against HCT116, HepG2, and WI-38 cell lines.
Pharmaceuticals 16 01593 i001
CompoundR1IC50 ± SD (µM) a
HCT116HepG2WI-38
2aPharmaceuticals 16 01593 i00219.40 ± 0.8632.89 ± 1.67NT b
2bPharmaceuticals 16 01593 i00310.91 ± 0.4858.00 ± 2.94NT b
3aPharmaceuticals 16 01593 i00435.85 ± 1.5926.25 ± 1.33NT b
3bPharmaceuticals 16 01593 i00510.75 ± 0.481.90 ± 0.10NT b
4aPharmaceuticals 16 01593 i0061.09 ± 0.050.58 ± 0.0358.61
4bPharmaceuticals 16 01593 i0073.38 ± 0.152.57 ± 0.1348.49
4cPharmaceuticals 16 01593 i00826.35 ± 1.1787.27 ± 4.42NT b
4dPharmaceuticals 16 01593 i00927.04 ± 1.2041.60 ± 2.11NT b
4ePharmaceuticals 16 01593 i01041.23 ± 1.8316.08 ± 0.81NT b
Roscovitine12.24 ± 1.1713.82 ± 1.1517.31
a IC50 values were calculated from triplicate experiments. b NT: compounds were not tested.
Table 2. Results of in vitro CDK2 inhibition assay of compounds 4a and 4b (IC50 values in µM).
Table 2. Results of in vitro CDK2 inhibition assay of compounds 4a and 4b (IC50 values in µM).
Pharmaceuticals 16 01593 i011
CompoundR1CDK2 Inhibition IC50 ± SD (µM) a
4aPharmaceuticals 16 01593 i0060.21 ± 0.01
4bPharmaceuticals 16 01593 i0070.96 ± 0.05
Roscovitine0.25 ± 0.01
a IC50 values were calculated from triplicate experiments.
Table 3. Calculated binding energy scores of compounds 4a and 4b and type of binding interactions of the target compounds (4a and 4b) with the crystal structure of CDK2.
Table 3. Calculated binding energy scores of compounds 4a and 4b and type of binding interactions of the target compounds (4a and 4b) with the crystal structure of CDK2.
Comp.Binding Energy Score aType of Binding Interactions
4a−7.0394
  • One halogen (fluorine) bond between its 4-fluoro substituent on the N-phenylacetamide moiety and Glu8.
  • One π–anion interaction between the phenyl ring of the phenylacetamide side chain and Glu8.
  • Three π–sigma interactions between Ile10 and Leu134, and the pyrazolo[3,4-d]pyrimidine ring.
  • Various hydrophobic C–H, π–π stacked, π–alkyl, and alkyl interactions with amino acid residues within the binding site (Ile10, Val18, Ala31, Leu134, Ala144, Asp86, Lys33, Val64, Phe80, and Phe82).
4b−7.0358
  • Three π–sigma interactions between Ile10 and Leu134, and the pyrazolo[3,4-d]pyrimidine ring.
  • Various hydrophobic C–H, π–π stacked, π–alkyl, and alkyl interactions with amino acid residues within the binding site (Ile10, Val18, Ala31, Leu134, Ala144, Asp86, Lys33, Val64, Phe80, and Phe82).
Roscovitine−7.8236
  • Two hydrogen bonds with the Leu83 amino acid residue via the N-atom of its purine ring system and NH of the benzyl amino side chain.
  • Two π–sigma interactions between Leu134 and the purine ring.
  • One π–cation interaction between the phenyl ring of the benzyl amino side chain and Lys89.
  • Various hydrophobic C–H, π–alkyl, and alkyl interactions with amino acid residues within the binding site (Ile10, Val18, Ala31, Phe80, and Glu81).
a Binding energy score in Kcal/mol.
Table 4. Calculated molecular descriptors and predicted toxicity parameters of compounds 4a and 4b.
Table 4. Calculated molecular descriptors and predicted toxicity parameters of compounds 4a and 4b.
Comp.Lipinski’s RuleVeber’s RulenVs gPredicted Toxicity Parameters
cLogP aM.Wt. bnHBA cnHBD dnRB eTPSA fMutagenicTumorigenicReproductive
4a1.4553377.37871479.590nonenonenone
4b1.9605393.83371479.590nonenonenone
a Calculated partition coefficient, b molecular weight, c number of hydrogen bond acceptors, d number of hydrogen bond donors, e number of rotatable bonds, f total polar surface area, g number of violations to the rules.
