Analysis of Doline Microtopography in Karst Mountainous Terrain Using UAV LiDAR: A Case Study of ‘Gulneomjae’ in Mungyeong City, South Korea

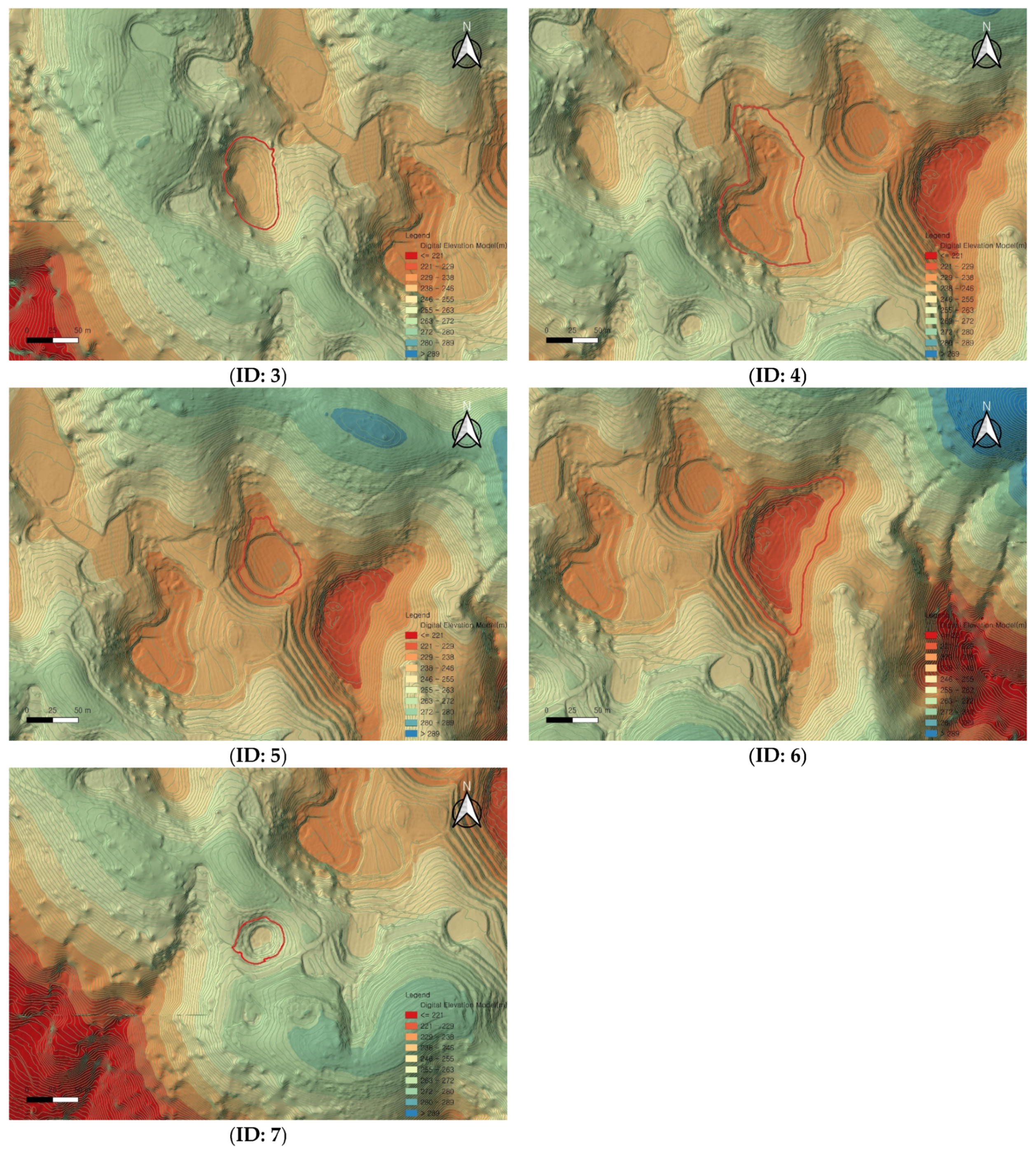

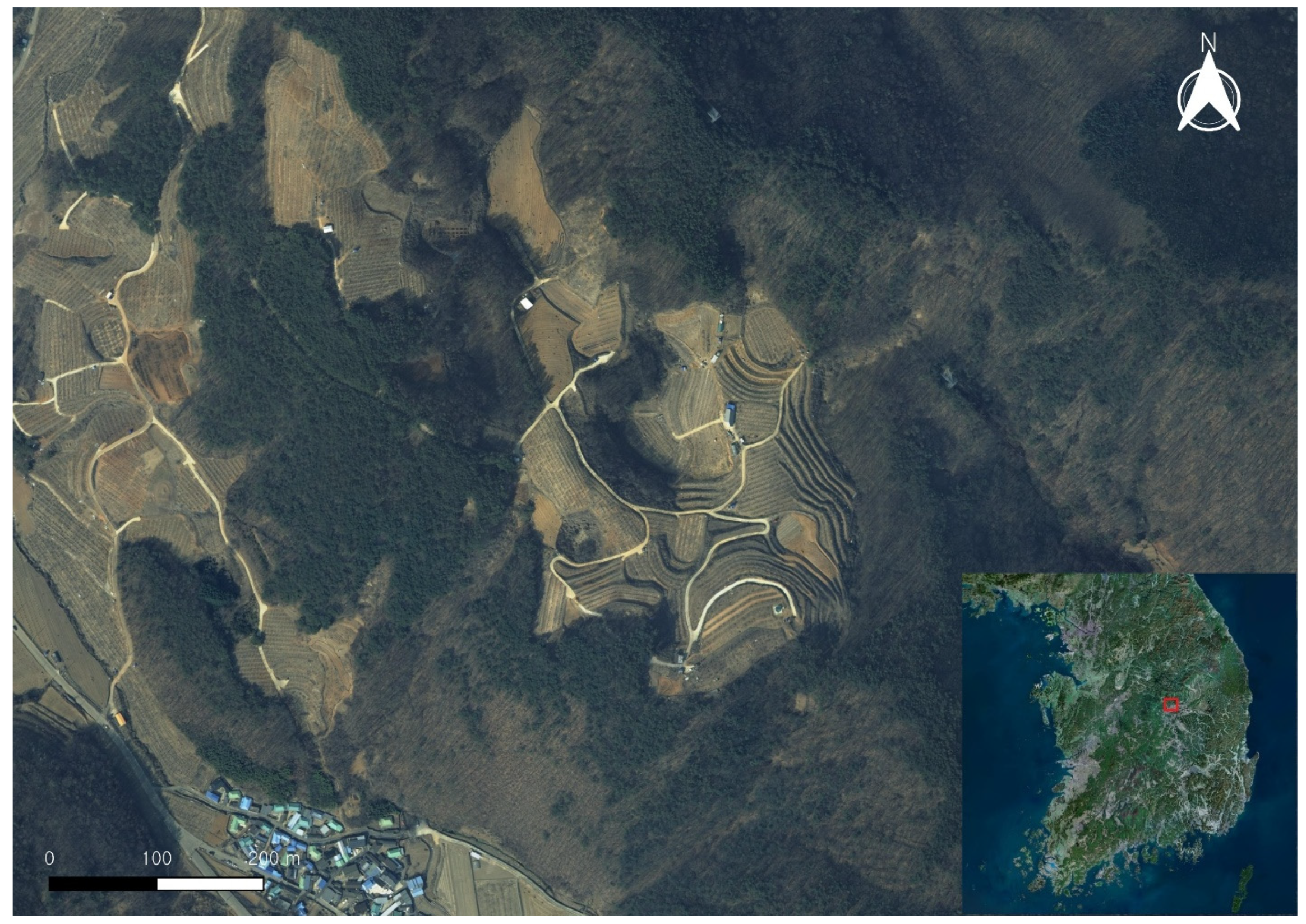

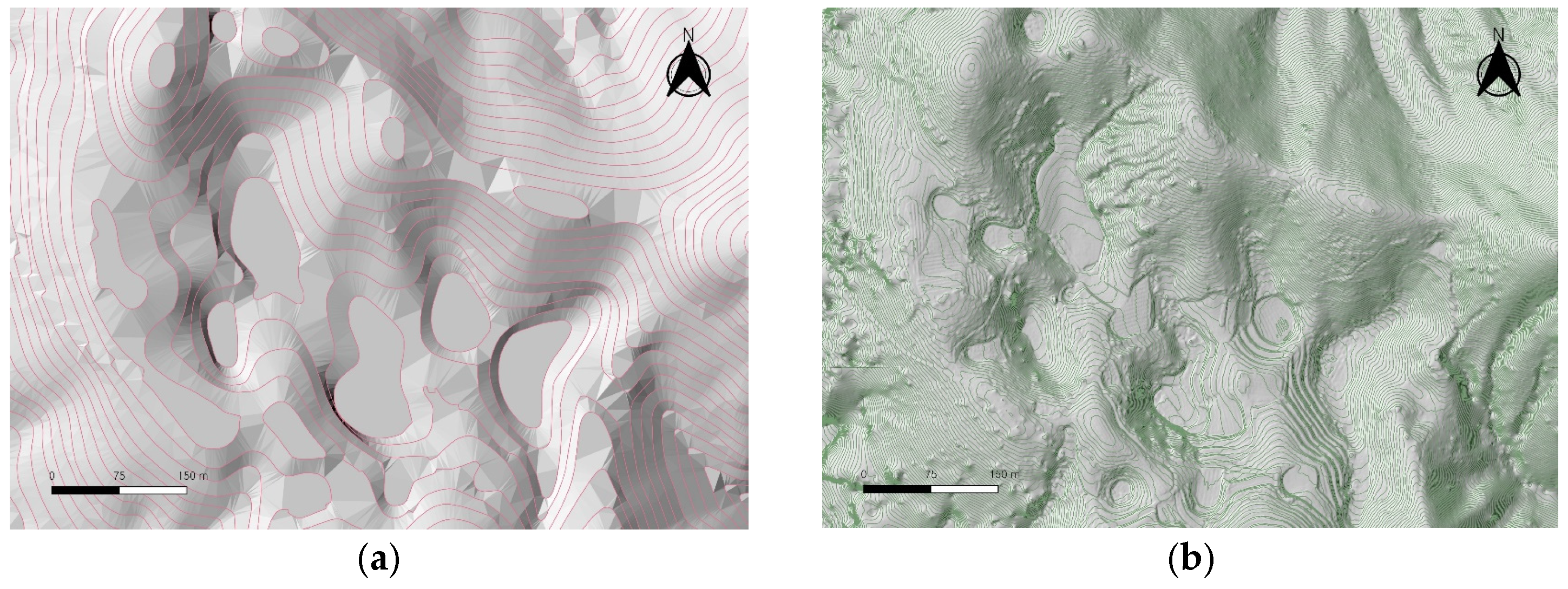

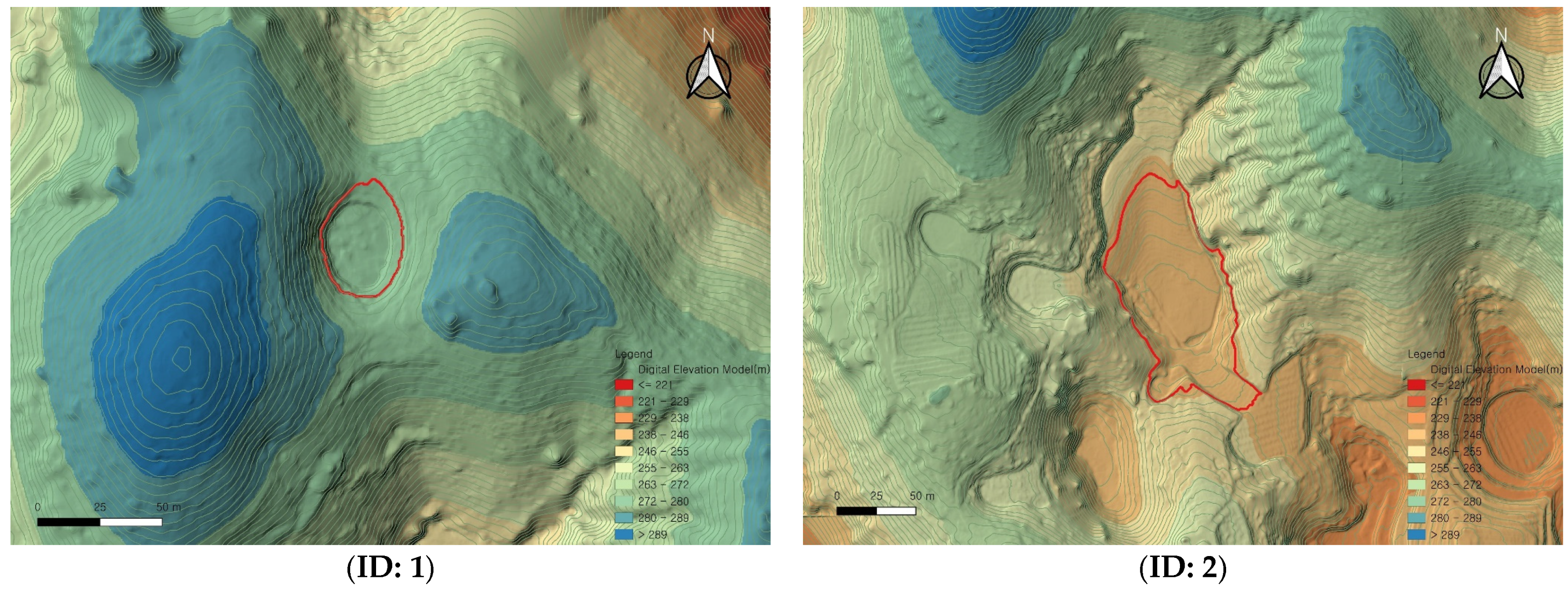

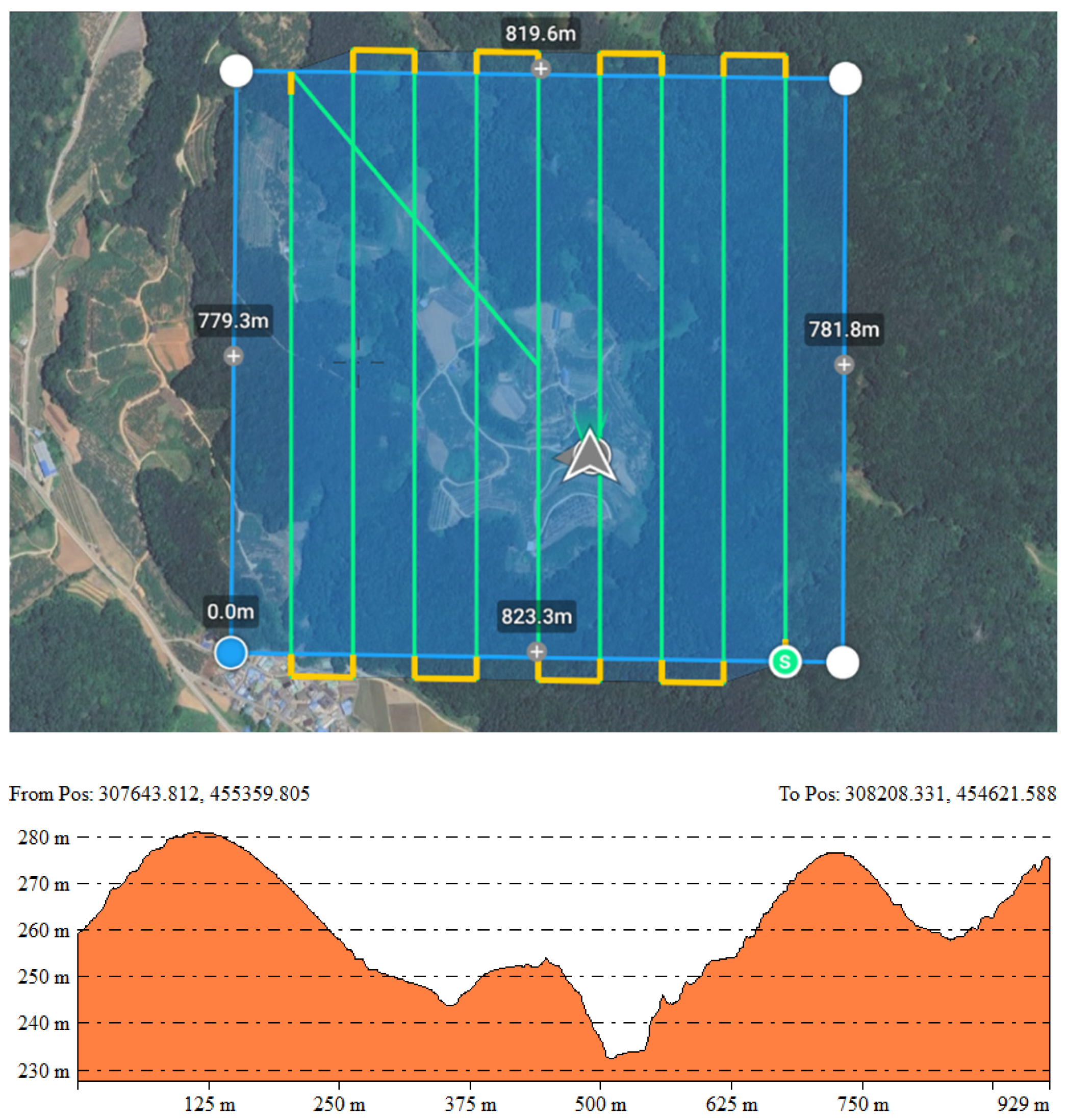

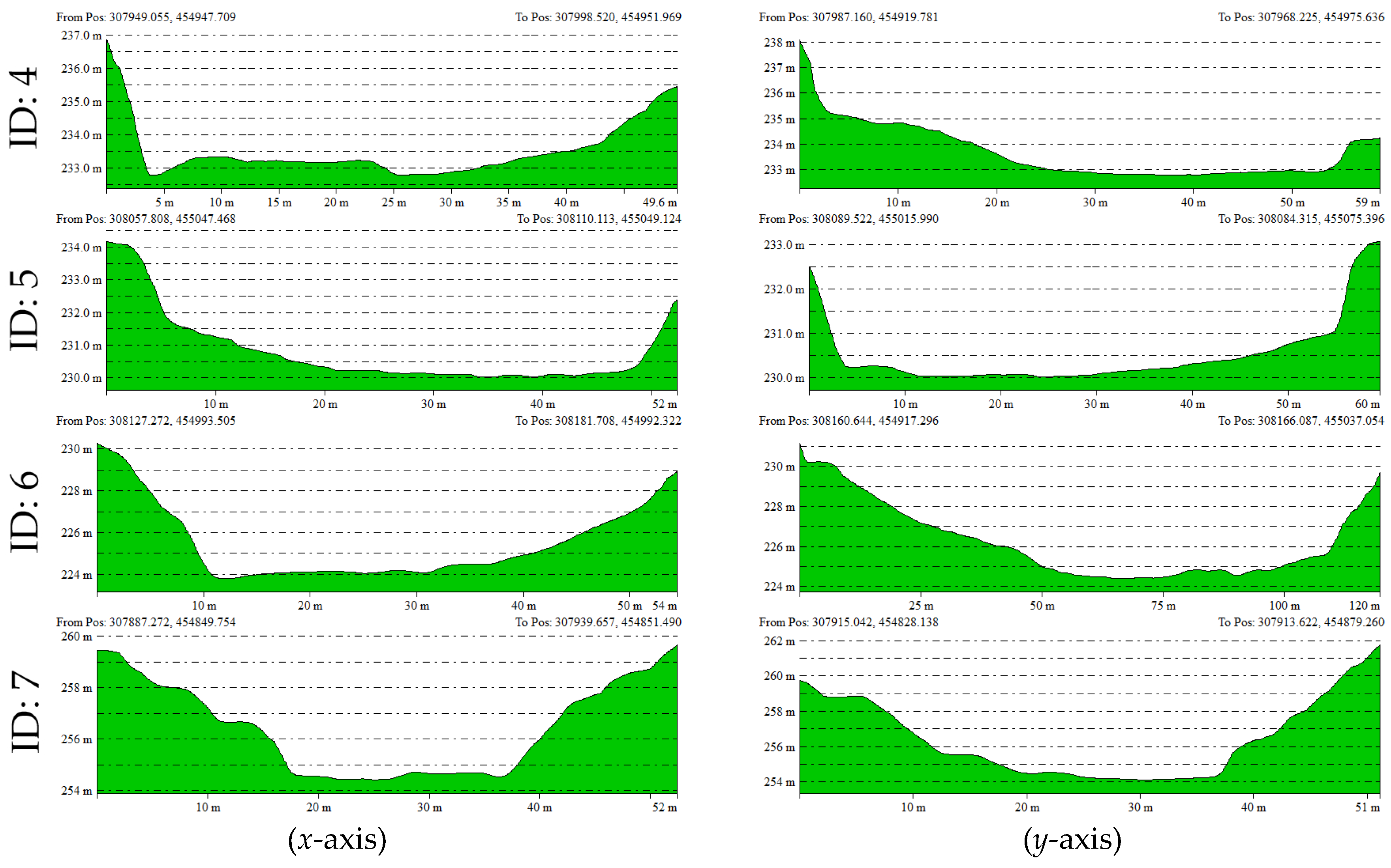

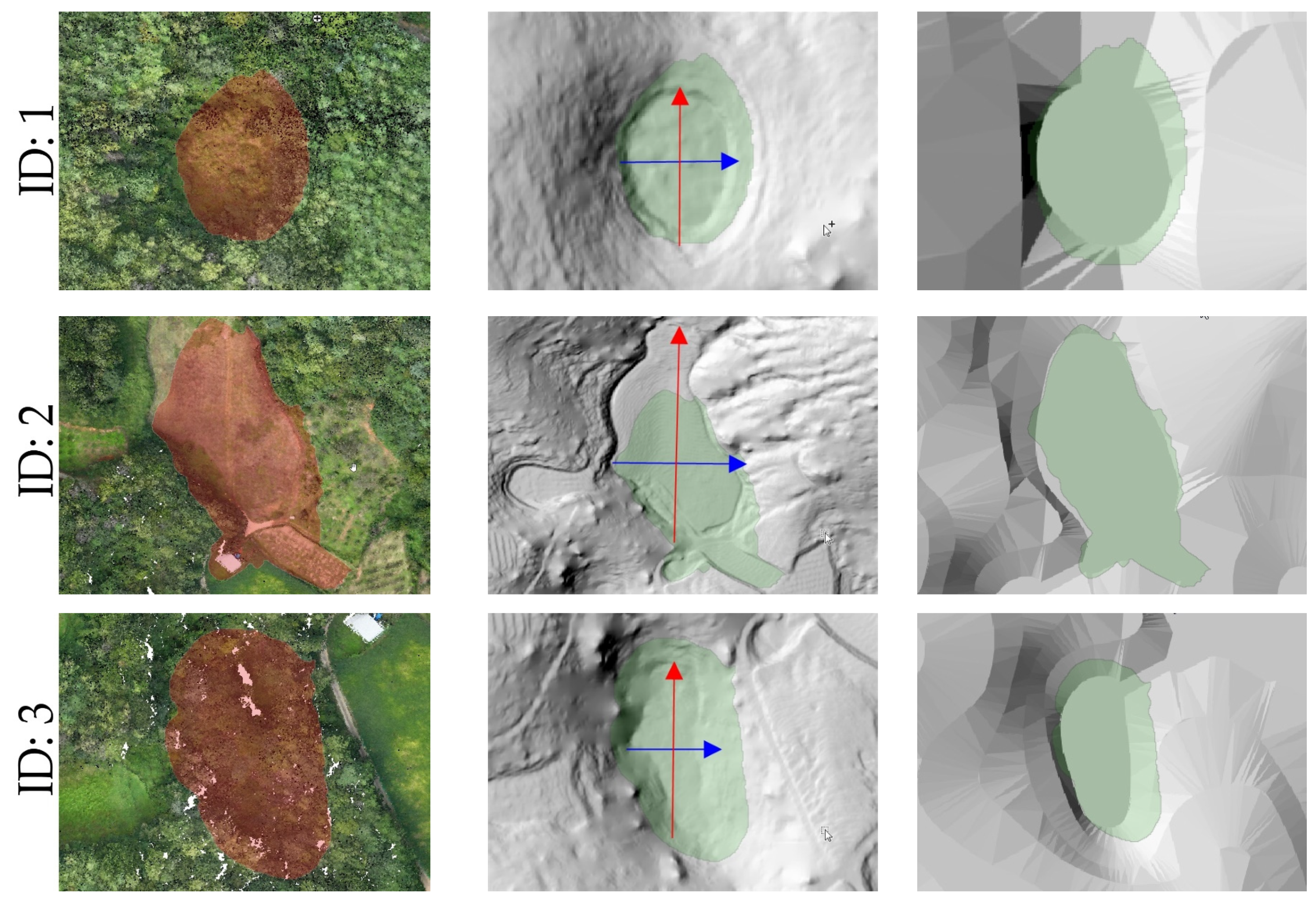

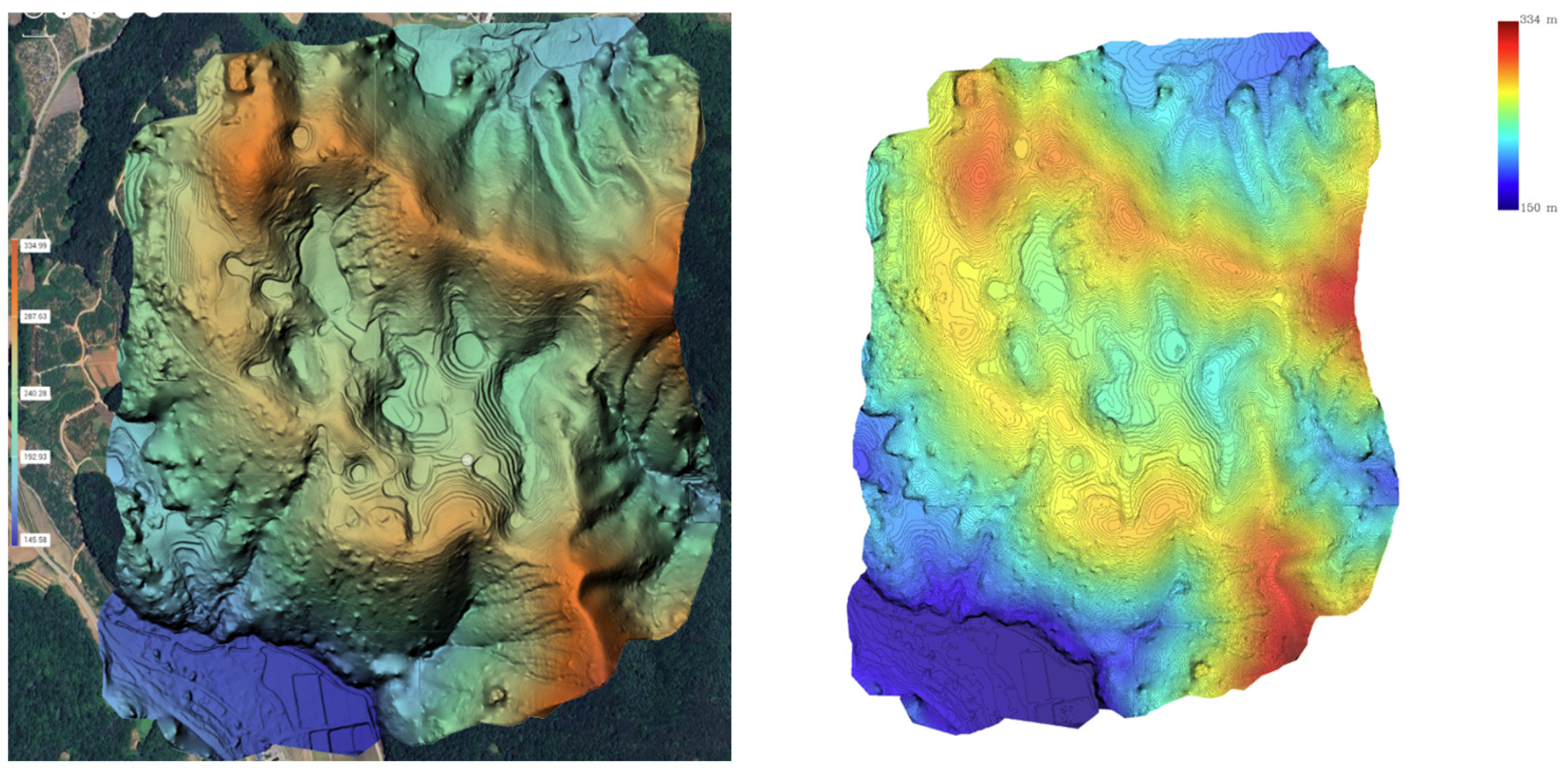

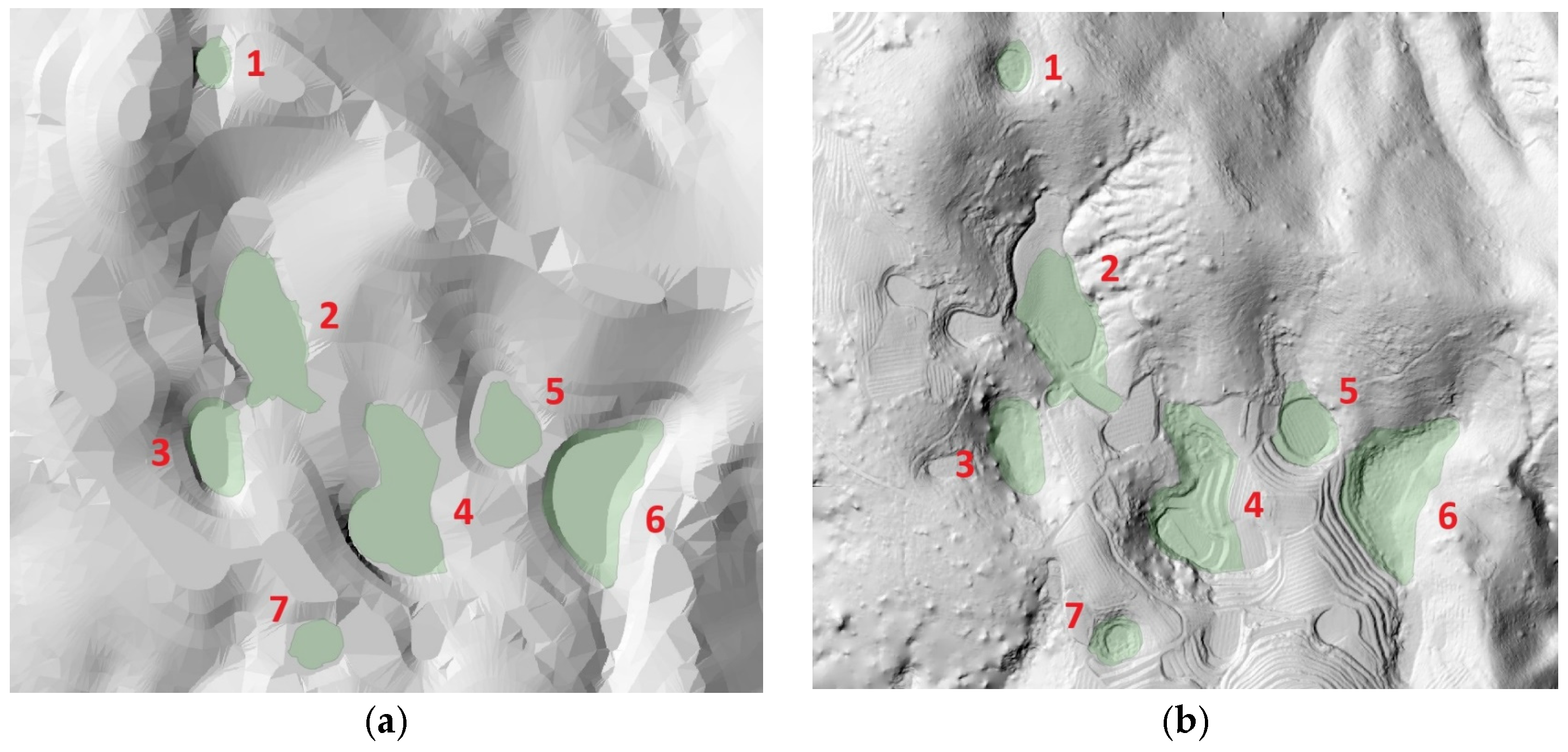

This study utilizes UAV-based LiDAR to analyze doline microtopography within a karst mountainous terrain. The study area, ‘Gulneomjae’ in Mungyeong City, South Korea, features steep slopes, limited accessibility, and abundant vegetation—conditions that traditionally hinder accurate topographic surveying. UAV LiDAR data were acquired using the DJI Matrice 300 RTK equipped with a Zenmuse L2 sensor, enabling high-density point cloud generation (98 points/m²). The point clouds were processed to remove non-ground points and generate a 0.25 m resolution DEM using TIN interpolation. A total of seven dolines were detected and delineated, and their morphometric characteristics—including area, perimeter, major and minor axes, and elevation—were analyzed. These results were compared with a 1:5000-scale DEM derived from the 2013 National Basic Map. Visual and numerical comparisons highlighted significant improvements in spatial resolution and feature delineation using UAV LiDAR. Although the 1:5000-scale DEM enables general doline detection, UAV LiDAR facilitates more precise boundary extraction and morphometric analysis. The study demonstrates the effectiveness of UAV LiDAR for detailed topographic mapping in complex karst terrains and offers a foundation for future automated classification and temporal change analysis.
