# Precise Position Estimation Using Smartphone Raw GNSS Data Based on Two-Step Optimization

## Abstract

**:**

## 1. Introduction

## 2. Related Researches

## 3. GSDC 2022 Overview

#### 3.1. Dataset

#### 3.2. Score Metric

#### 3.3. Baseline Position

## 4. Strategy

## 5. Preprocessing

#### 5.1. Initial State Estimation

- 1
- Convert to the east-north-up (ENU) coordinate system and detect large jumps in the altitude.
- 2
- Delete the epoch detected in Step 1 as an outlier.
- 3
- Interpolate the 3D position of missing epochs from the previous and next data.

#### 5.2. Selection of GNSS Observations

`MultipathIndicator`) in the smartphone log is turned on, the observations for that satellite are rejected. The following is a description of the process for each observation.

#### 5.2.1. Pseudorange Selection

#### 5.2.2. Doppler Selection

#### 5.2.3. Carrier Phase Selection

#### 5.2.4. Example of Observation Selection

## 6. Velocity-Estimation Step

#### 6.1. Doppler Factor

#### 6.2. Motion Factor

#### 6.3. Optimization

#### 6.4. Outlier Removal and Interpolation

## 7. Position-Estimation Step

#### 7.1. Velocity/Clock Drift Factor

#### 7.2. Pseudorange Factor

#### 7.3. TDCP Factor

#### 7.4. Optimization

## 8. Evaluation and Discussion

#### 8.1. Evaluation Using Training Data

#### 8.1.1. Evaluation of Positioning Accuracy

- 1
- Exclude runs for which the ground truth does not include altitude. Although the final score is determined by the horizontal positioning error, runs without ground truth for altitude were excluded. This is because we cannot compute position and velocity references in the ECEF coordinates.
- 2
- Exclude runs for which the carrier phase has not been obtained. The
`HardwareClockDiscontinue`flag in the log is only reported on Google Pixel 4, which includes some runs for which the carrier phase has not been obtained correctly. Because TDCP cannot be used in these cases, they were excluded from the evaluation. - 3
- During the competition, a participant pointed out that the ground truth for some runs was not sufficiently accurate. The competition host then made an announcement and published a list of the inaccurate ground truths. The runs containing these inaccurate ground truths were eliminated.

#### 8.1.2. Evaluation of Two-Step Optimization

#### 8.2. Evaluation Using Test Data

#### 8.3. Discussion

## 9. Conclusions

## Funding

## Institutional Review Board Statement

## Conflicts of Interest

## References

- Humphreys, T.E.; Murrian, M.; Van Diggelen, F.; Podshivalov, S.; Pesyna, K.M. On the feasibility of cm-accurate positioning via a smartphone’s antenna and GNSS chip. In Proceedings of the 2016 IEEE/ION Position, Location and Navigation Symposium (PLANS), Savannah, GA, USA, 11–14 April 2016; IEEE: Piscataway, NJ, USA, 2016; pp. 232–242. [Google Scholar]
- Pesyna, K.M.; Heath, R.W.; Humphreys, T.E. Centimeter positioning with a smartphone-quality GNSS antenna. In Proceedings of the 27th International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GNSS+ 2014), Tampa, FL, USA, 8–12 September 2014; pp. 1568–1577. [Google Scholar]
- Zhang, X.; Tao, X.; Zhu, F.; Shi, X.; Wang, F. Quality assessment of GNSS observations from an Android N smartphone and positioning performance analysis using time-differenced filtering approach. GPS Solut.
**2018**, 22, 70. [Google Scholar] [CrossRef] - Li, G.; Geng, J. Characteristics of raw multi-GNSS measurement error from Google Android smart devices. GPS Solut.
**2019**, 23, 90. [Google Scholar] [CrossRef] - Zhang, K.; Jiao, F.; Li, J. The assessment of GNSS measurements from android smartphones. In Proceedings of the China Satellite Navigation Conference, Harbin, China, 23–25 May 2018; Springer: Berlin/Heidelberg, Germany, 2018; pp. 147–157. [Google Scholar]
- Wu, Q.; Sun, M.; Zhou, C.; Zhang, P. Precise Point Positioning Using Dual-Frequency GNSS Observations on Smartphone. Sensors
**2019**, 19, 2189. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Chen, B.; Gao, C.; Liu, Y.; Sun, P. Real-time Precise Point Positioning with a Xiaomi MI 8 Android Smartphone. Sensors
**2019**, 19, 2835. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Dabove, P.; Di Pietra, V. Towards high accuracy GNSS real-time positioning with smartphones. Adv. Space Res.
**2019**, 63, 94–102. [Google Scholar] [CrossRef] - Dabove, P.; Di Pietra, V. Single-Baseline RTK Positioning Using Dual-Frequency GNSS Receivers Inside Smartphones. Sensors
**2019**, 19, 4302. [Google Scholar] [CrossRef] [Green Version] - Fu, G.M.; Khider, M.; van Diggelen, F. Android Raw GNSS Measurement Datasets for Precise Positioning. In Proceedings of the 33rd International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GNSS+ 2020), Virtual, 22–25 September 2020; pp. 1925–1937. [Google Scholar]
- Fu, G.M.; Khider, M.; van Diggelen, F. Google Smartphone Decimeter Challenge. 2021. Available online: https://www.kaggle.com/c/google-smartphone-decimeter-challenge/ (accessed on 15 December 2022).
- Fu, G.M.; Khider, M.; van Diggelen, F. Google Smartphone Decimeter Challenge 2022. Available online: https://www.kaggle.com/competitions/smartphone-decimeter-2022/ (accessed on 15 December 2022).
- Li, B.; Miao, W.; Chen, G.; Li, Z. Ambiguity resolution for smartphone GNSS precise positioning: Effect factors and performance. J. Geod.
**2022**, 96, 63. [Google Scholar] [CrossRef] - Sharma, H.; Bochkati, M.; Lichtenberger, C.; Pany, T.; Darugna, F.; Wübbena, J.B. Smartphone-Based GNSS Positioning—Today and Tomorrow. Available online: https://insidegnss.com/smartphone-based-gnss-positioning-today-and-tomorrow/ (accessed on 15 December 2022).
- Zeng, S.; Kuang, C.; Yu, W. Evaluation of Real-Time Kinematic Positioning and Deformation Monitoring Using Xiaomi Mi 8 Smartphone. Appl. Sci.
**2022**, 12, 435. [Google Scholar] [CrossRef] - Siddakatte, R.; Broumandan, A.; Lachapelle, G. Performance evaluation of smartphone GNSS measurements with different antenna configurations. In Proceedings of the International Navigation Conference, Lausanne, Switzerland, 9–12 May 2017. [Google Scholar]
- Wen, Q.; Geng, J.; Li, G.; Guo, J. Precise point positioning with ambiguity resolution using an external survey-grade antenna enhanced dual-frequency android GNSS data. Measurement
**2020**, 157, 107634. [Google Scholar] [CrossRef] - Wang, L.; Li, Z.; Wang, N.; Wang, Z. Real-time GNSS precise point positioning for low-cost smart devices. GPS Solut.
**2021**, 25, 69. [Google Scholar] [CrossRef] - Bochkati, M.; Sharma, H.; Lichtenberger, C.A.; Pany, T. Demonstration of Fused RTK (Fixed) + Inertial Positioning Using Android Smartphone Sensors Only. In Proceedings of the 2020 IEEE/ION Position, Location and Navigation Symposium (PLANS), Portland, OR, USA, 20–23 April 2020; pp. 1140–1154. [Google Scholar] [CrossRef]
- Kschischang, F.R.; Frey, B.J.; Loeliger, H.A. Factor graphs and the sum-product algorithm. IEEE Trans. Inf. Theory
**2001**, 47, 498–519. [Google Scholar] [CrossRef] [Green Version] - Sunderhauf, N.; Protzel, P. Switchable constraints for robust pose graph SLAM. In Proceedings of the IEEE International Conference on Intelligent Robots and Systems, Algarve, Portugal, 7–12 October 2012; pp. 1879–1884. [Google Scholar] [CrossRef]
- Sünderhauf, N.; Obst, M.; Wanielik, G.; Protzel, P. Multipath mitigation in GNSS-based localization using robust optimization. In Proceedings of the IEEE Intelligent Vehicles Symposium, Madrid, Spain, 3–7 June 2012; pp. 784–789. [Google Scholar] [CrossRef]
- Chen, D.; Gao, G.X. Probabilistic graphical fusion of LiDAR, GPS, and 3D building maps for urban UAV navigation. Navig. J. Inst. Navig.
**2019**, 66, 151–168. [Google Scholar] [CrossRef] [Green Version] - Li, W.; Cui, X.; Lu, M. A robust graph optimization realization of tightly coupled GNSS/INS integrated navigation system for urban vehicles. Tsinghua Sci. Technol.
**2018**, 23, 724–732. [Google Scholar] [CrossRef] - Watson, R.M.; Gross, J.N. Robust navigation in gnss degraded environment using graph optimization. In Proceedings of the 30th International Technical Meeting of the Satellite Division of the Institute of Navigation, ION GNSS 2017, Portland, OR, USA, 25–29 September 2017; Institute of Navigation: Manassas, VA, USA, 2017; Volume 5, pp. 2906–2918. [Google Scholar] [CrossRef] [Green Version]
- Wen, W.; Pfeifer, T.; Bai, X.; Hsu, L.T. Factor graph optimization for GNSS/INS integration: A comparison with the extended Kalman filter. Navigation
**2021**, 68, 315–331. [Google Scholar] [CrossRef] - Suzuki, T. GNSS Odometry: Precise Trajectory Estimation Based on Carrier Phase Cycle Slip Estimation. IEEE Robot. Autom. Lett.
**2022**, 7, 7319–7326. [Google Scholar] [CrossRef] - Bai, X.; Wen, W.; Hsu, L.T. Time-Correlated Window-Carrier-Phase-Aided GNSS Positioning Using Factor Graph Optimization for Urban Positioning. IEEE Trans. Aerosp. Electron. Syst.
**2022**, 58, 3370–3384. [Google Scholar] [CrossRef] - Jiang, Y.; Gao, Y.; Ding, W.; Gao, Y. GNSS precise positioning for smartphones based on the integration of factor graph optimization and solution separation. Measurement
**2022**, 203, 111924. [Google Scholar] [CrossRef] - Watson, R.M.; Gross, J.N. Evaluation of kinematic precise point positioning convergence with an incremental graph optimizer. In Proceedings of the 2018 IEEE/ION Position, Location and Navigation Symposium (PLANS), Monterey, CA, USA, 23–26 April 2018; IEEE: Piscataway, NJ, USA, 2018; pp. 589–596. [Google Scholar]
- Robusto, C.C. The cosine-haversine formula. Am. Math. Mon.
**1957**, 64, 38–40. [Google Scholar] [CrossRef] - Robustelli, U.; Paziewski, J.; Pugliano, G. Observation Quality Assessment and Performance of GNSS Standalone Positioning with Code Pseudoranges of Dual-Frequency Android Smartphones. Sensors
**2021**, 21, 2125. [Google Scholar] [CrossRef] - Suzuki, T. First place award winner of the smartphone decimeter challenge: Global optimization of position and velocity by factor graph optimization. In Proceedings of the 34th International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GNSS+ 2021), Tampa, FL, USA, 20–24 September 2021; pp. 2974–2985. [Google Scholar]
- Freda, P.; Angrisano, A.; Gaglione, S.; Troisi, S. Time-differenced carrier phases technique for precise GNSS velocity estimation. GPS Solut.
**2015**, 19, 335–341. [Google Scholar] [CrossRef] - Everett, T.; Taylor, T.; Lee, D.K.; Akos, D.M. Optimizing the Use of RTKLIB for Smartphone-Based GNSS Measurements. Sensors
**2022**, 22, 3825. [Google Scholar] [CrossRef] [PubMed] - Suzuki, T. Robust Vehicle Positioning in Multipath Environments Based on Graph Optimization. In Proceedings of the 34th International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GNSS+ 2021), Tampa, FL, USA, 20–24 September 2021; pp. 4223–4233. [Google Scholar]
- Dellaert, F. Factor Graphs and GTSAM: A Hands-on Introduction; Technical Reports; Georgia Institute of Technology: Atlanta, GA, USA, 2012. [Google Scholar]
- Takasu, T.; Yasuda, A. Development of the low-cost RTK-GPS receiver with an open source program package RTKLIB. In Proceedings of the International Symposium on GPS/GNSS, Jeju, Korea, 4–6 November 2009; pp. 4–6. [Google Scholar]
- Akima, H. A New Method of Interpolation and Smooth Curve Fitting Based on Local Procedures. J. ACM
**1970**, 17, 589–602. [Google Scholar] [CrossRef] - Sharma, H.; Bochkati, M.; Pany, T. Time-Synchronized GNSS/IMU Data Logging from Android Smartphone and its Influence on the Positioning Accuracy. In Proceedings of the 34th International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GNSS+ 2021), Tampa, FL, USA, 20–24 September 2021. [Google Scholar] [CrossRef]

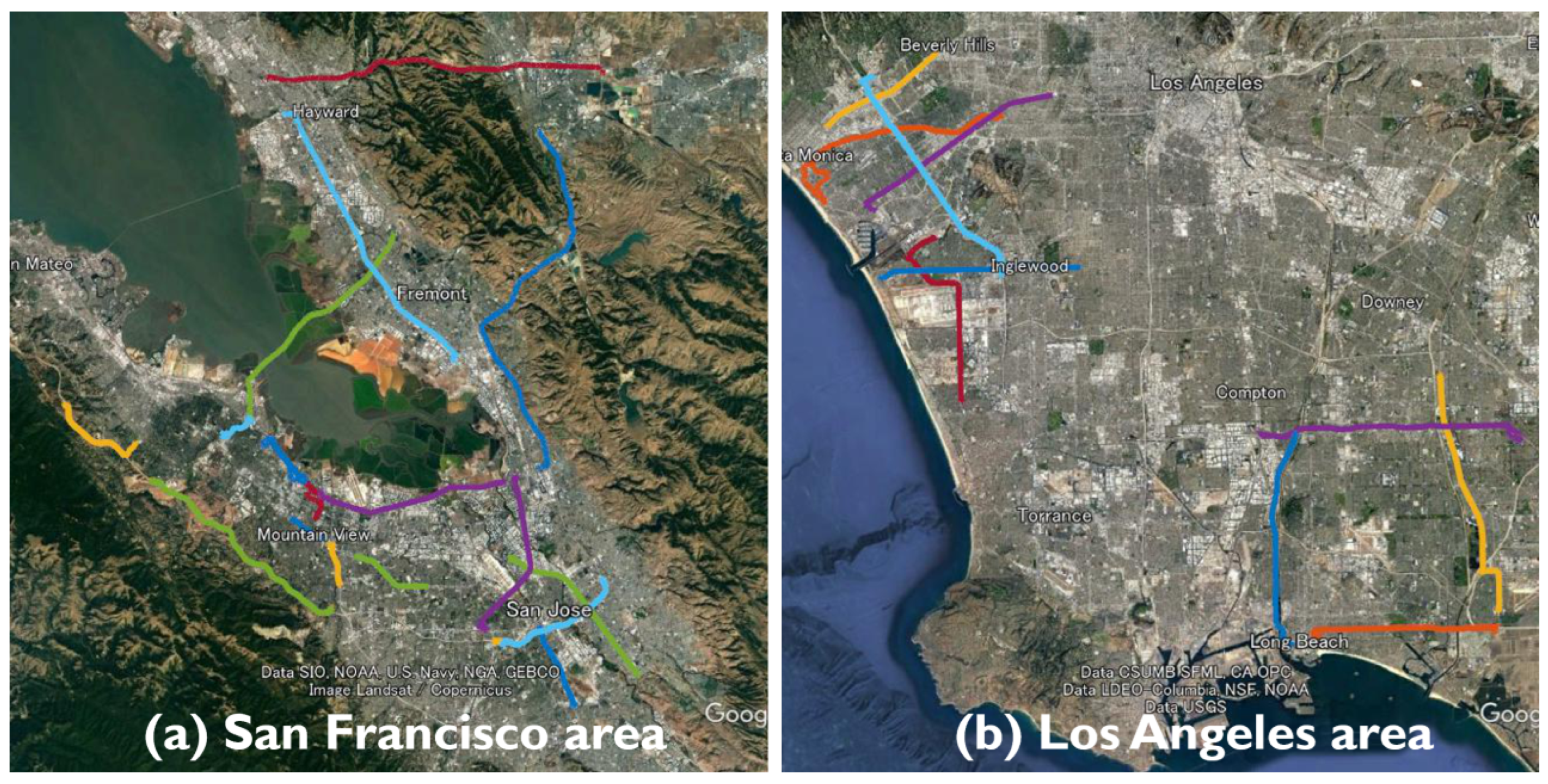

**Figure 1.**Driving trajectories included in test data provided at GSDC 2022. In total, 36 runs were provided and divided into two parts: one run in the San Francisco area and another in the Los Angeles area.

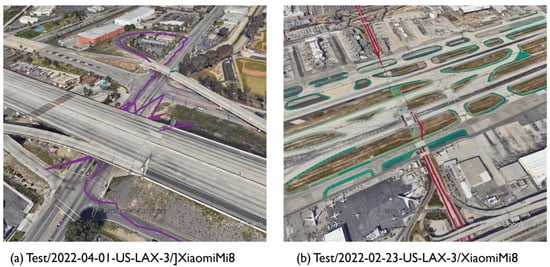

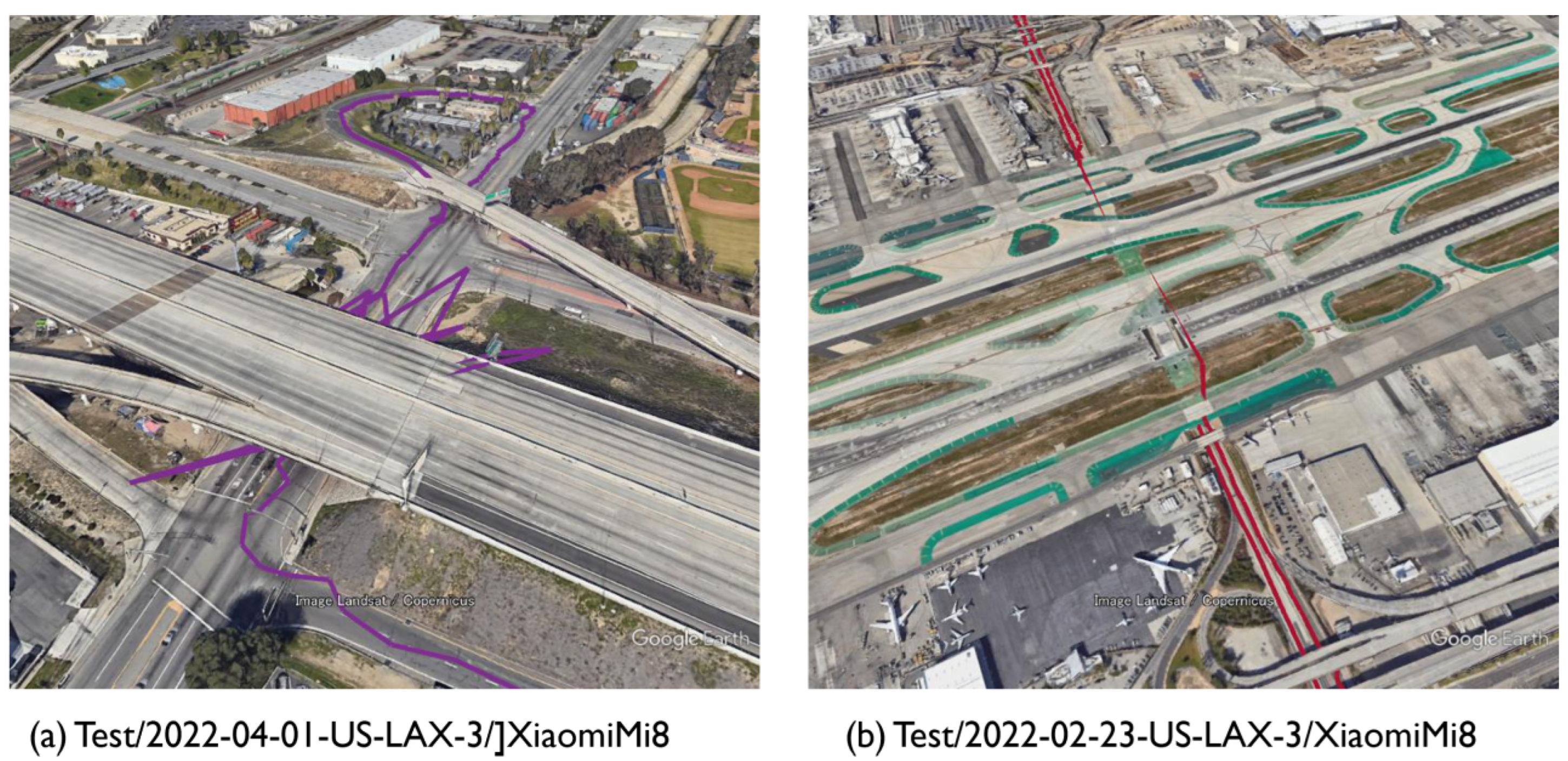

**Figure 2.**Los Angeles vehicle driving trajectory included in GSDC 2022. (

**a**) Stops under elevated tracks and (

**b**) runs through long tunnels where GNSS signals are completely blocked.

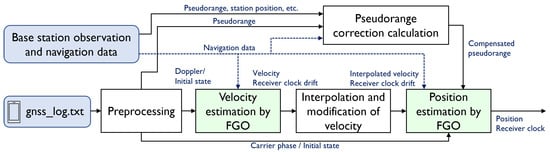

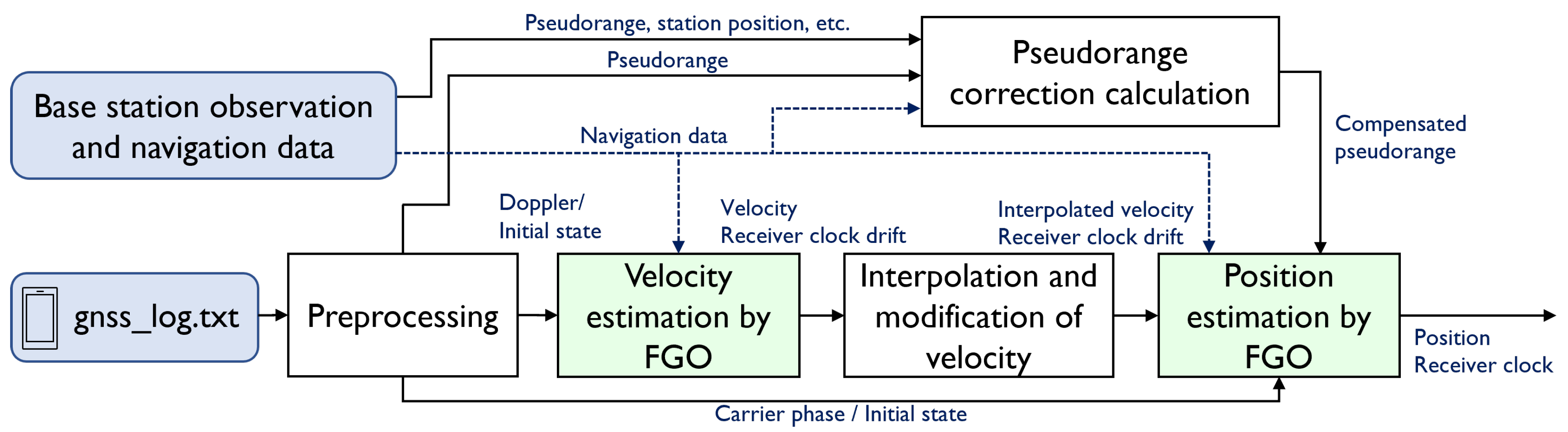

**Figure 3.**Flow of the proposed method comprising two optimization steps: velocity estimation and position estimation via factor graph optimization (FGO).

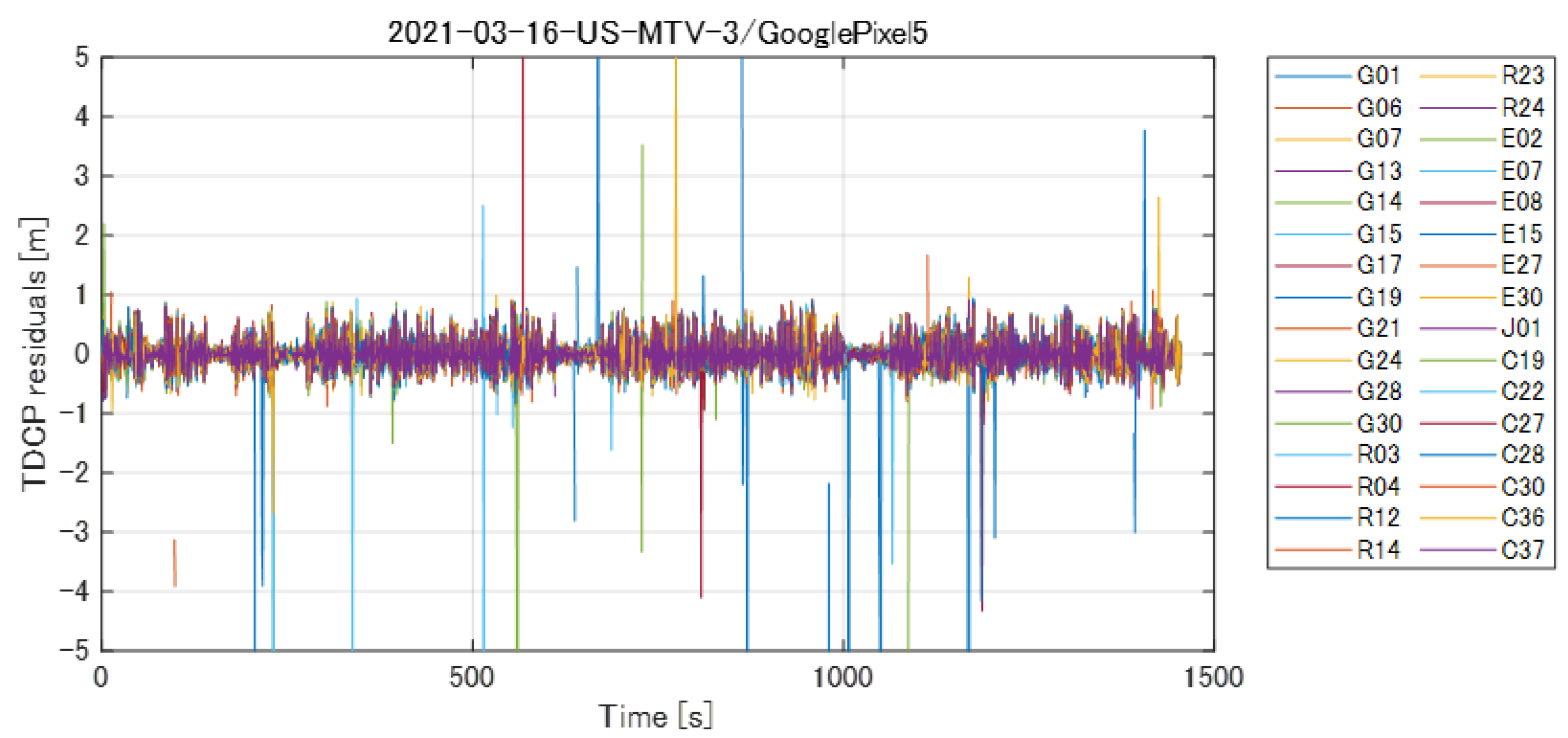

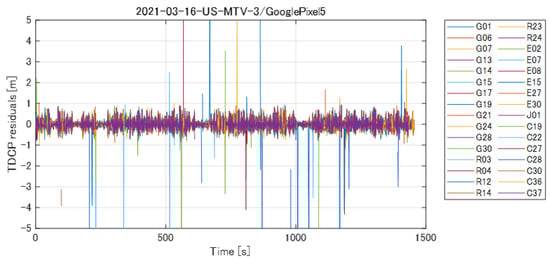

**Figure 4.**TDCP residual of L1 signals computed by Equation (4). The Doppler observation is used to detect and exclude cycle slips in the carrier-phase observation.

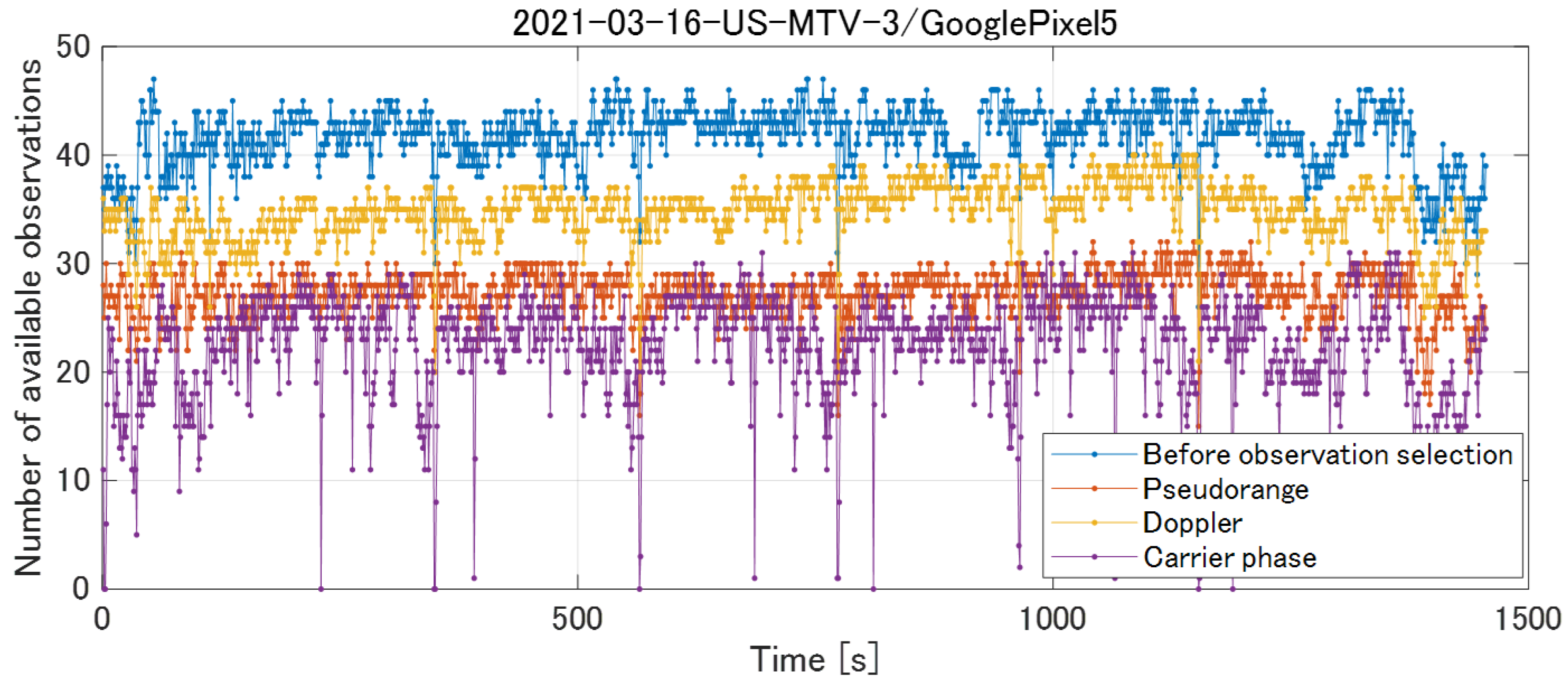

**Figure 5.**Selection of GNSS observations by preprocessing. Compared to the carrier phase, Doppler is highly available.

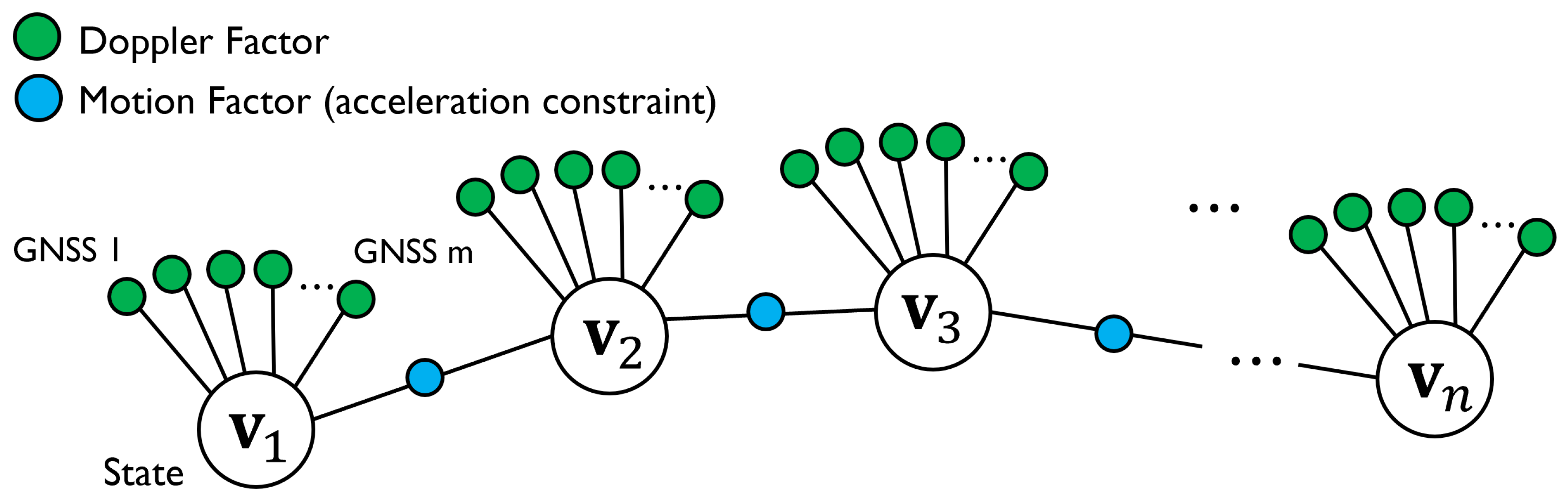

**Figure 6.**Graph structure of proposed method in velocity-estimation step. The Doppler and motion factors are adopted to estimate the velocity.

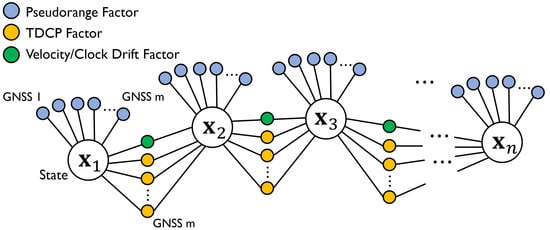

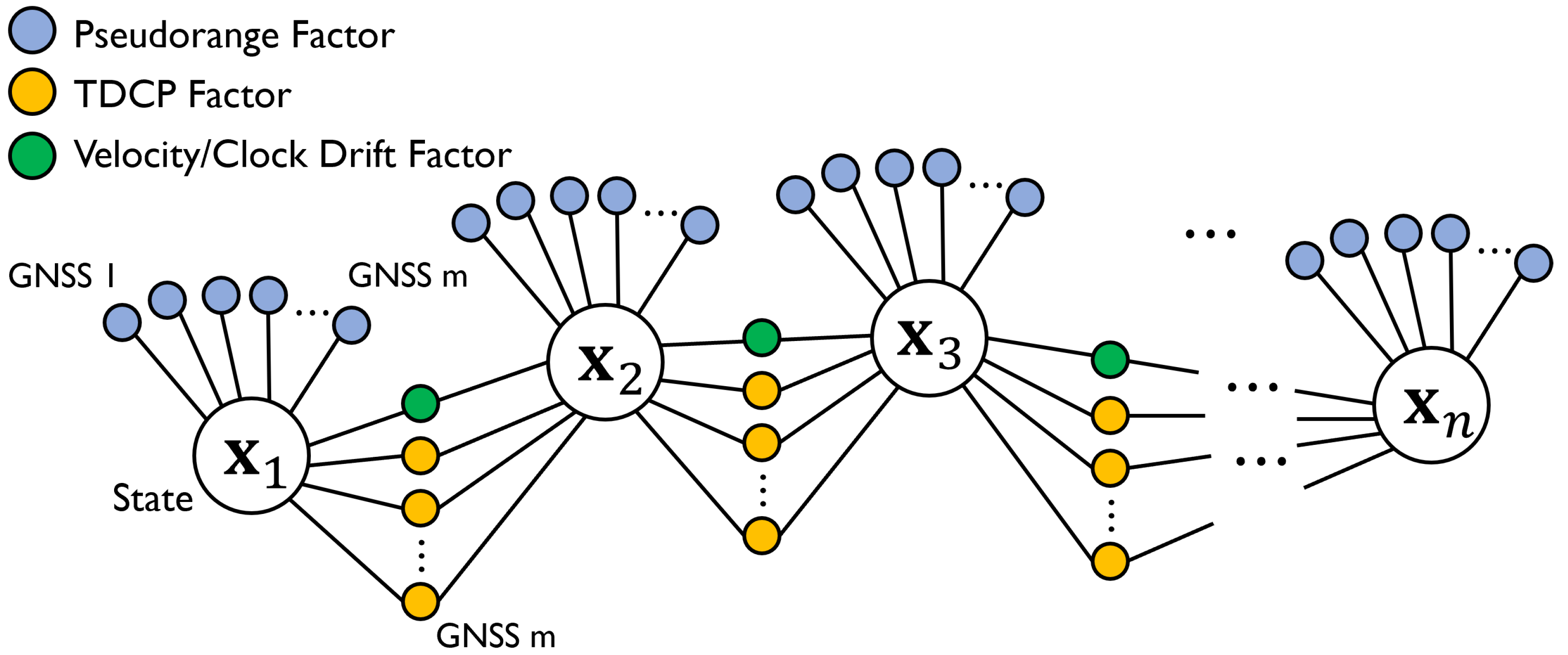

**Figure 7.**Graph structure of proposed method in position-estimation step. Pseudorange, TDCP, and velocity/clock drift factors were adopted.

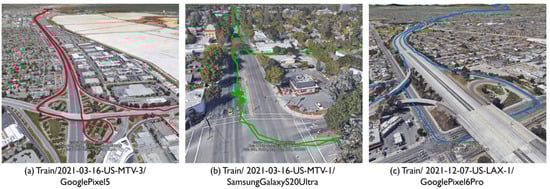

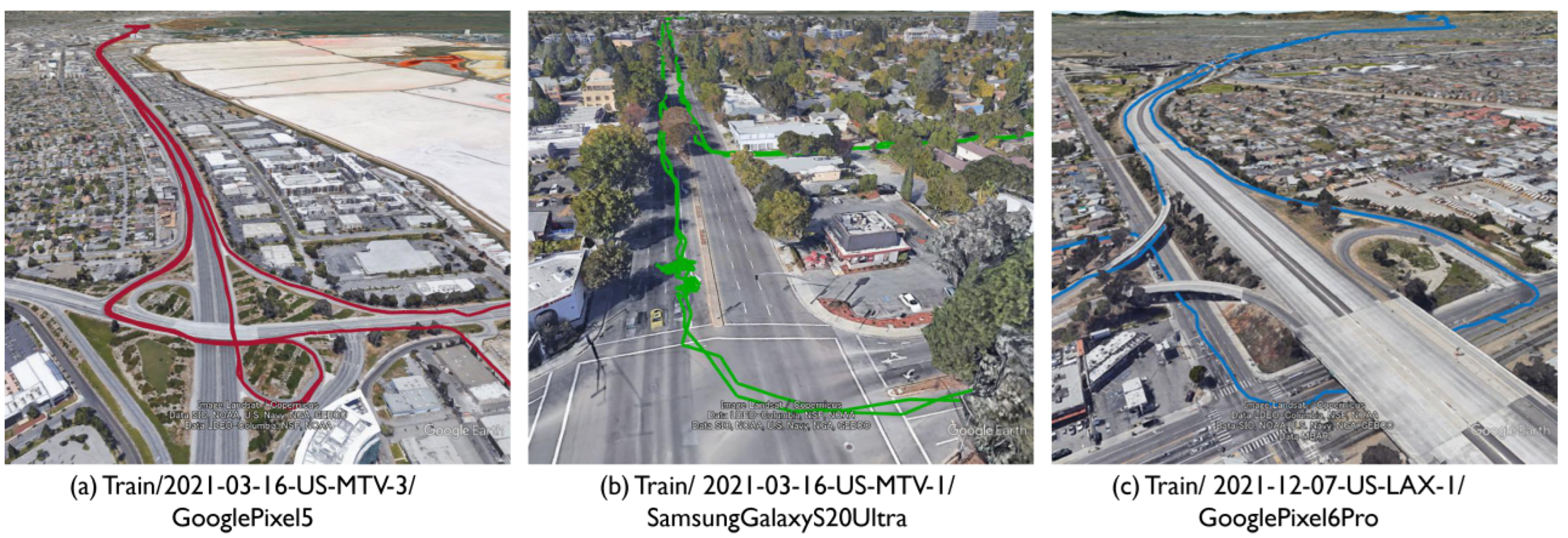

**Figure 8.**Driving trajectory of three vehicles extracted from the training dataset for evaluation (

**a**) highway environment, (

**b**) street driving, and (

**c**) driving with GNSS blockage for a long period of time.

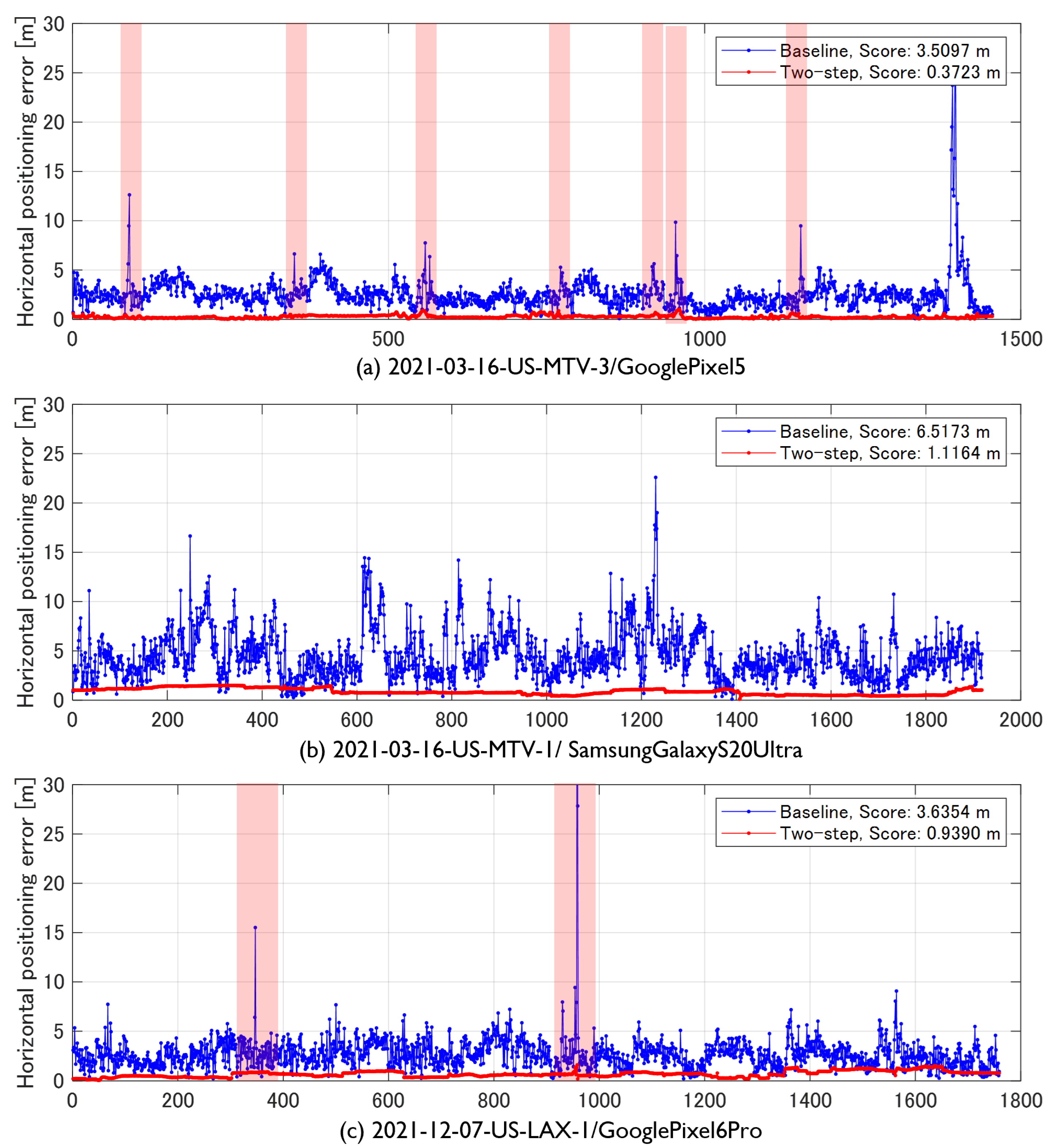

**Figure 9.**Comparison of horizontal positioning error between baseline (blue line) and proposed method (red line).

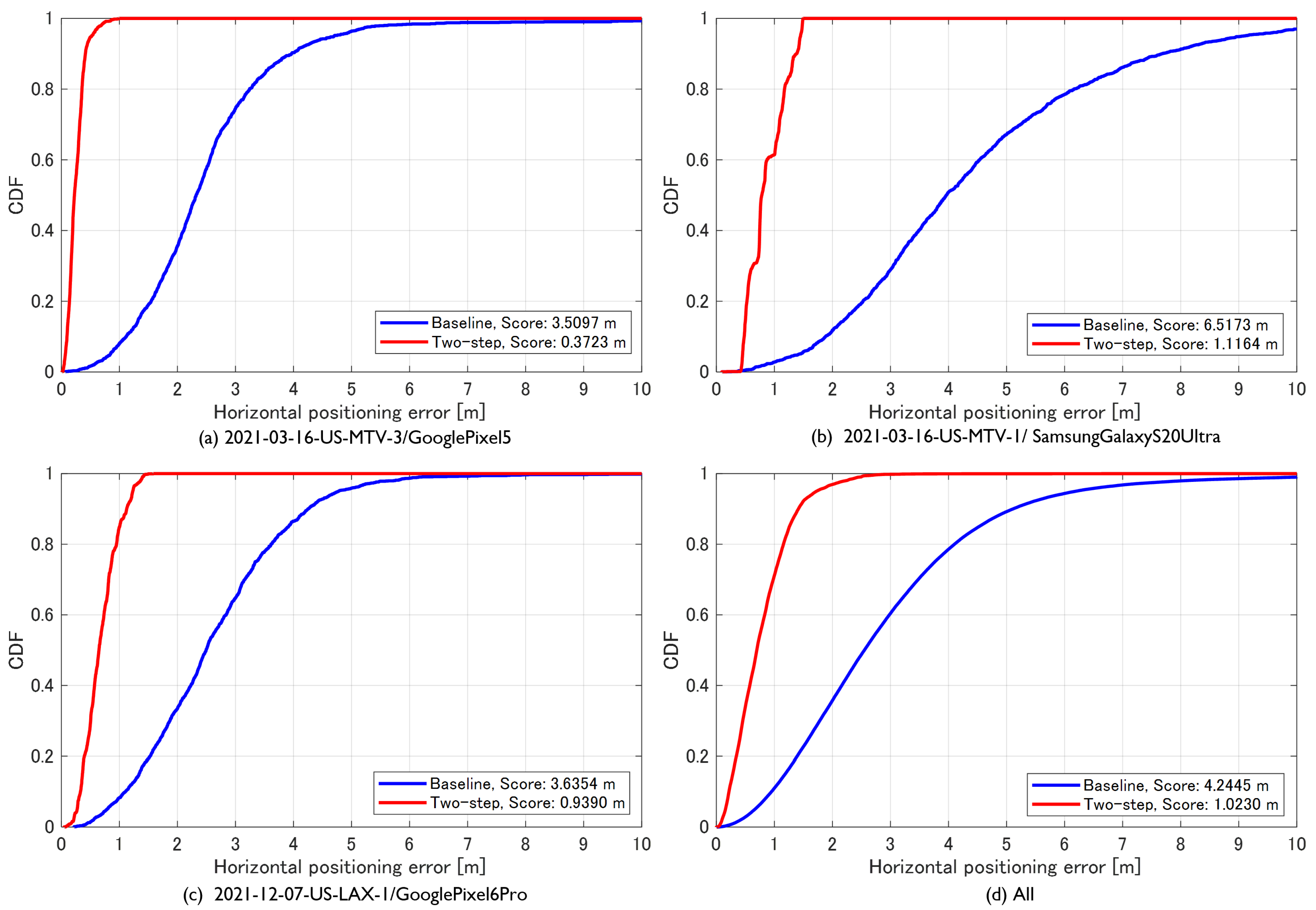

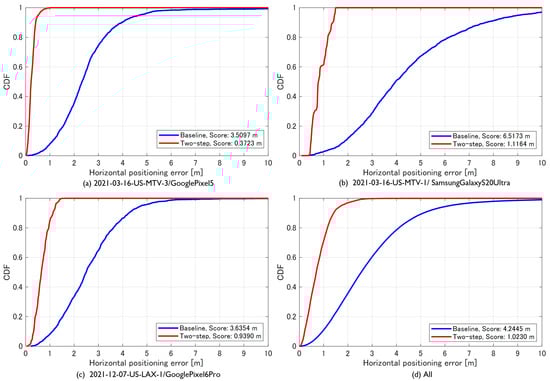

**Figure 10.**Comparison of horizontal cumulative distribution function (CDF) for each run and the entire evaluation dataset. The blue and red lines represent the baseline and proposed method, respectively.

Course Type | Highway | Street | All |
---|---|---|---|

Score (50%) m | 2.296 | 2.772 | 2.599 |

Score (95%) m | 4.943 | 6.431 | 5.890 |

Mean m | 3.620 | 4.602 | 4.245 |

Course Phone | 2021-03-16-US-MTV-3 GooglePixel5 | 2021-03-16-US-MTV-1 SamsungGalaxyS20Ultra | 2021-12-07-US-LAX-1 GooglePixel6Pro | All | ||||
---|---|---|---|---|---|---|---|---|

Baseline | Two-Step | Baseline | Two-Step | Baseline | Two-Step | Baseline | Two-Step | |

Score (50%) m | 2.322 | 0.225 | 3.963 | 0.782 | 2.494 | 0.648 | 2.599 | 0.749 |

Score (95%) m | 4.697 | 0.520 | 9.072 | 1.450 | 4.777 | 1.230 | 5.890 | 1.297 |

Mean m | 3.510 | 0.372 | 6.517 | 1.116 | 3.635 | 0.939 | 4.245 | 1.023 |

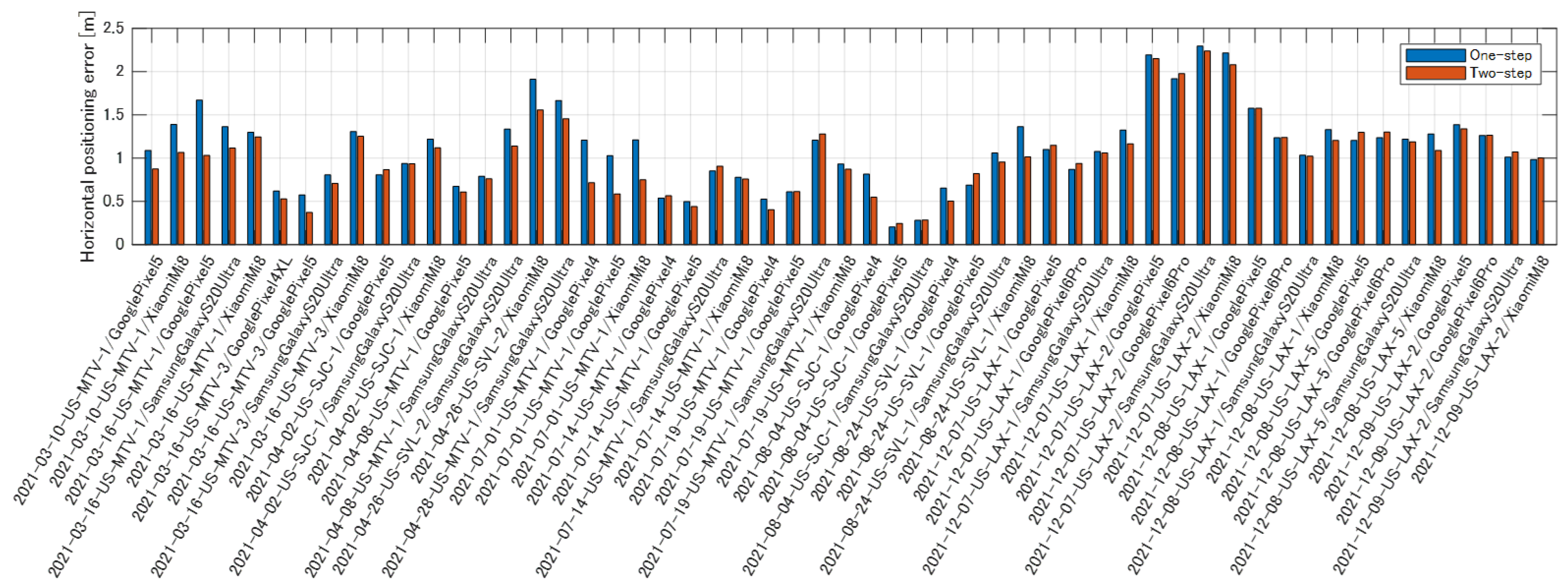

Course | All | |
---|---|---|

One-Step | Two-Step | |

Score (50%) m | 0.801 | 0.749 |

Score (95%) m | 1.442 | 1.297 |

Mean m | 1.122 | 1.023 |
