Tris-Copper Nanozyme as a Novel Laccase Mimic for the Detection and Degradation of Phenolic Compounds

by
Tong-Qing Chai
,
Jia-Li Wang
,
Guo-Ying Chen
,
Ling-Xiao Chen
and
Feng-Qing Yang
*
School of Chemistry and Chemical Engineering, Chongqing University, Chongqing 401331, China
*
Author to whom correspondence should be addressed.
Sensors 2023, 23(19), 8137; https://doi.org/10.3390/s23198137
Submission received: 4 September 2023 / Revised: 20 September 2023 / Accepted: 25 September 2023 / Published: 28 September 2023
(This article belongs to the Special Issue Colorimetric Sensors: Methods and Applications)
Browse Figures
Versions Notes

Abstract

:
Phenolic compounds are one of the main organic pollutants in the environment that can seriously affect ecosystems, even at very low concentrations. Due to the resistance of phenolic compounds to microorganisms, conventional biological treatment methods face challenges in effectively addressing this pollution problem. In this study, a novel laccase mimic (Tris-Cu nanozyme) is prepared using a simple and rapid synthesis strategy based on the coordination of copper ions and amino groups in Tris(hydroxymethyl)aminomethane (Tris). It is found that the Tris-Cu nanozyme exhibits good catalytic activity against a variety of phenolic compounds, the Km, Vmax and Kcat are determined to be 0.18 mM, 15.62 μM·min−1 and 1.57 × 107 min−1 using 2,4-dichlorophenol (2,4-DP) as the substrate, respectively. Then, based on the laccase-like activity of the Tris-Cu nanozyme, a novel colorimetric method for 2,4-DP (the limit of detection (LOD) = 2.4 μM, S/N = 3) detection in the range of 10–400 μM was established, and its accuracy was verified by analyzing tap and lake water samples. In addition, the Tris-Cu nanozyme shows excellent removal abilities for six phenolic compounds in experiments. The removal percentages for 2,4-DP, 2-chlorophenol (2-CP), phenol, resorcinol, 2,6-dimethoxyphenol (2,6-DOP), and bisphenol A (BPA) are 100%, 100%, 100%, 100%, 87%, and 81% at 1 h, respectively. In the simulated effluent, the Tris-Cu nanozyme maintains its efficient catalytic activity towards 2,4-DP, with a degradation percentage of 76.36% at 7 min and a reaction rate constant (k0) of 0.2304 min−1. Therefore, this metal–organic complex shows promise for applications in the monitoring and degrading of environmental pollutants.

Graphical Abstract

1. Introduction

With the development of industrialization, the environment has suffered varying degrees of damage, particularly in terms of water resource pollution [1]. Organic pollutants such as phenolic compounds are the main source of water and soil pollution [2]. Phenolic compounds are widely used in many industrial processes, such as in petrochemicals, dyeing, pesticides, and the pharmaceutical and paper industries; the presence of phenolics in industrial effluent makes surface water highly vulnerable to pollution [3,4]. They are a class of pollutants that is highly toxic to humans and animals, even at very low concentrations [5]. In addition, studies have found that elevated concentrations of bisphenol A (BPA) in the urine of adults are associated with obesity and coronary heart disease [6]. Therefore, phenolic compounds such as phenol and resorcinol are included in the list of carcinogens produced by the International Agency for Research on Cancer (IARC) of the World Health Organization. Typically, the concentration of phenolic compounds in wastewater can be as high as several thousand ppm, and the U.S. Environmental Protection Agency (EPA) has set a water purity standard of less than 0.1 ppm [7]. Therefore, it is crucial to detect and remove phenolic contaminants from wastewater before it is discharged. Currently, the conventional detection methods for phenolic compounds are high-performance liquid chromatography, capillary electrophoresis, ion mobility spectrometry, chemiluminescence, continuous flow analysis, flow injection analysis, electrochemistry, and colorimetric sensing [8,9]. These detection methods have excellent accuracy and sensitivity but are expensive and time-consuming and require complex instruments and well-trained technicians; in contrast, colorimetric detection has the advantages of simple operations, low costs, fast speeds, visualization abilities, and on-site detection, and it has great application prospects in environmental pollutant monitoring [10,11].
On the other hand, several techniques have been developed to remove organic pollutants from the wastewater, such as adsorption [12], coagulation [13], extraction [14], biological oxidation [15], photocatalysis [16], electrochemical oxidation [17], and chemical oxidation [8]. Compared to the other sewage treatment methods, chemical catalysis has attracted much attention because of its advantages of simple operations, low costs, and high removal efficiency. Therefore, the development of laccase mimetics, which are inexpensive, simple to prepare, stable, and exhibit highly catalytic activity, has become a research trend. Several metal-based nanomaterials have been found to exhibit laccase-like activity, such as platinum nanoparticles and manganese oxides [18]. Since the active center of natural laccase contains three types of copper ions, many copper-based nanomaterials with laccase-like activity have been reported, such as copper nucleotide/DNA coordination compounds, copper-amino acid/peptide/protein coordination compounds, and other copper-based nanomaterials. For example, Huang et al. synthesized a novel laccase mimicry (AMP-Cu nanozyme) based on the coordination of adenosine monophosphate and copper ions [19]. The study found that the simply prepared AMP-Cu nanozyme has better catalytic activity and robustness than natural laccase and can be recycled via centrifugation. In addition, based on the excellent catalytic performance of the AMP-Cu nanozyme, a colorimetric method was developed for the determination of phenolic compounds in fruit juices using 2,4-dichlorophenol as an example, with a linear range of 0.1–100 μM and a detection limit of 0.033 μM. Furthermore, the AMP-Cu nanozyme was used to remove phenol from the juice; the removal rate was about 65% after a five-hour reaction, which is much higher than that of natural laccase. Wang et al. prepared a novel amorphous imidazole-Cu nanozyme (I-Cu) with high laccase- and catecholase-like activity based on the coordination of Cu2+ and N in imidazole via water induction [20]. After 10 h of reaction, the oxidation efficiency of the I-Cu nanozyme for environmental phenolic pollutants (2,4-dichlorophenol) was 91.8%, which is higher than that of laccase (68.8%). However, although many reported laccase-like nanozymes have excellent catalytic activity for phenolic compounds, they still cannot meet the requirements of practical applications, due to factors such as the time-consuming degradation process, low removal efficiency, and lengthy material preparation processes. In addition, the ligands of the various currently reported copper ion complexes are mainly amino acids/peptides/proteins, nucleotides/DNA, and other compounds containing nitrogen heterocycles, such as imidazole, porphyrins, bipyridine, and benzophenone-alanine [18]. However, Tris, a compound with a simple structure and stable properties, has not been reported as a ligand for the preparation of laccase mimics.
In this study, a novel laccase mimic (Tris-Cu nanozyme) based on the coordination of copper ions and amino groups in Tris was prepared for the detection and degradation of phenolic compounds. Tris-Cu nanozyme was prepared rapidly and on a large scale by simply mixing Tris with copper ions, without the need for other organic solvents. Then, the morphology, chemical composition, and chemical valence of the metal elements of the nanozyme were investigated using conventional analytical methods, such as scanning electron microscopy (SEM), transmission electron microscopy (TEM), X-ray diffraction (XRD), Fourier-transform infrared (FT-IR), and X-ray photoelectron spectrometry (XPS). In contrast to natural laccase, the Tris-Cu nanozyme shows excellent catalytic stability within the pH range of 4–11, and NaCl has a significant promoting effect on its catalytic activity. The Tris-Cu nanozyme can catalyze the oxidation of ten phenolic compounds, such as 2,4-dichlorophenol (2,4-DP), phenol, and BPA, and has stronger catalytic activity and substrate affinity than natural laccase. Subsequently, a colorimetric sensing method with a good signal response over a wide detection range was constructed for the detection of phenolic compounds (2,4-DP) in tap and lake water samples. In addition, the Tris-Cu nanozyme shows high efficiency in the removal of six phenolic compounds in phenolic degradation experiments, including 2,4-DP, 2-chlorophenol (2-CP), phenol, resorcinol, 2,6-dimethoxyphenol (2,6-DOP), and BPA. The Tris-Cu nanozyme can quickly remove most of the 2,4-DP from the simulated sewage.

2. Materials and Methods

The materials and reagents, instrumentation, selective studies, 4-aminoantipyrine spectrophotometry method for the detection of phenolic compounds, preparation of simulated sewage, method for calculating the relative activity, and limit of detection (LOD) are provided in the Supplementary Materials.

2.1. Preparation of the Tris-Cu Nanozyme

The Tris-Cu nanozyme was prepared through a simple synthesis strategy. Frist, 1 mL of CuSO4·5H2O (0.2 M) aqueous solution and 1 mL of Tris (0.2 M) aqueous solution were mixed in centrifuge tubes, and the blue pellets were obtained after centrifugation at 4000 rpm for 2 min. Then, the precipitation was washed three times with pure water and centrifuged for 2 min each. Finally, 1 mL of the NaAc buffer (10 mM, pH 6.0) was added to resuspend the precipitate.

2.2. Evaluation the Catalytic Activity of the Tris-Cu Nanozyme and Laccase

In brief, 20 μL of the Tris-Cu nanozyme (11 mg/mL), 100 μL of the 4-AP (1.0 mM), and 100 μL of the 2,4-DP (1.0 mM) solutions were added to 280 μL of NaAc buffer (10 mM, pH 6.0), and they were then reacted at 70 °C for 10 min. Then, the reaction mixture was centrifuged at 4000 rpm for 2 min and the absorbance at 510 nm of the supernatant was recorded by a UV–Vis spectrometer. In addition, the catalytic activity of laccase (11 mg/mL, 100 μL) was investigated under the same conditions.
To study the reaction kinetics, Tris-Cu (20 μL) was added into different concentrations of 2,4-DP (0.005–0.6 mM) in the presence of 4-AP (0.2 mM), and the mixture was reacted under the optimal conditions (pH 6.0, 70 °C, 10 min). The apparent initial reaction velocity was measured. The kinetic parameters (Km and Vmax) were calculated via the Michaelis–Menten equation [19,20]. Furthermore, the Kcat of the Tris-Cu nanozyme was measured according to the method reported by Jiang et al. [21]:
K c a t = V m a x / [ E ]
[ E ] = ρ e / m s × N A
m s = ρ s × π d 3 × 10 − 21 / 6
where Kcat is the rate constant defining the maximum number of substrate molecules converted to product per unit of time, [E] is the molar concentration of the nanozyme, ρe is the mass concentration of the nanozyme (g/L), ms is the mass of a single nanozyme particle (g), NA is Avogadro’s constant (6.02 × 1023 mol−1), ρs is the density of the nanozyme (g/cm3), and d is the average diameter of a nanozyme particle (nm) obtained through the statistical analysis of more than 100 nanoparticles in a SEM image.
To measure the density of the nanozyme, 100 mg of the Tris-Cu nanozyme was compressed as a tablet 13.0 mm in diameter and 0.30 mm in height under 14 MPa for 2 min. Subsequently, the volume of the tablet was calculated to be 39.80 mm3 and the mass of the tablet was again measured as 98.0 mg. Therefore, the density of the Tris-Cu nanozymes was calculated to be 2.46 g/cm3.

2.3. Robustness of the Tris-Cu Nanozyme

To investigate the effect of salt on the stability of the Tris-Cu nanozyme and laccase, various concentrations of NaCl (0, 150, 300, and 500 mM) were added and incubated for 12 h. Afterwards, the changes in the catalytic activity of the Tris-Cu nanozyme and laccase were investigated under the optimal conditions. Furthermore, to study the effect of ethanol on the activity of the Tris-Cu nanozyme and laccase, various volumes of ethanol (volume fraction φ: 0%, 10%, 20%, 30%, and 40%) were added to the reaction solutions. Then, the changes in the activity of Tris-Cu nanozyme and laccase were studied under the optimal conditions. For the study of long-term storage stability, the Tris-Cu nanozyme and laccase in the NaAc buffer (10 mM, pH 6.0) were stored at 2 °C for 8 days, and the changes in their activity were studied under optimal conditions.

2.4. Catalytic Mechanism of the Tris-Cu Nanozyme

To study the role of reactive oxygen species (ROS) on the catalytic process of the Tris-Cu nanozyme, various concentrations (0, 5, 25, and 50 mM) of the superoxide anion radical scavenger 1,4-benzoquinone and the hydroxyl radical scavenger isopropanol (IPA) were added to the reaction mixture. Furthermore, O2 and N2 were introduced into the reaction system to investigate the catalytic mechanism of the Tris-Cu nanozyme. The activity of the Tris-Cu nanozyme was observed under the optimal conditions.

2.5. Detection of Phenolic Compounds in Water Samples

To facilitate quantitative detection, phenolic compounds were preliminarily identified using colorimetry analysis. Different concentrations of phenolic compounds (0.2, 0.4, and 0.8 mM) were oxidized in the presence of 4-AP (0.2 mM) by the Tris-Cu nanozyme under the optimal conditions (pH 6.0, 70 °C, 10 min) and their color changes were recorded. Moreover, to investigate the selectivity of the Tris-Cu nanozyme, Tris-Cu was used to catalyze analogues of phenols. In brief, in the presence of 4-AP (0.2 mM), the Tris-Cu nanozyme oxidizes phenol, methylbenzene, methylbenzene, benzyl alcohol, 4-nitrobenzaldehyde, 4-methoxybenzoic acid, and 4-aminobenzoic acid (0.2 mM) under optimal conditions (pH 6.0, 70 °C, 10 min). Then, the reaction mixture was centrifuged at 4000 rpm for 2 min and the absorbance of the supernatant at 510 nm was recorded using a UV–Vis spectrometer. The method used for the colorimetric detection of phenolic compounds (2,4-DP, for example) was constructed based on using the Tris-Cu nanozyme as a laccase mimic. In brief, various concentrations of 2,4-DP (10–400 μM) were oxidized in the presence of 4-AP (0.2 mM) by the Tris-Cu nanozyme and the mixture solution was reacted under the optimal conditions. Then, the relationship between the 2,4-DP concentration and the corresponding absorption intensity at 510 nm was investigated. To study the specificity and selectivity of the colorimetric sensors, the laccase-like activity of the Tris-Cu nanozyme was examined in the presence of different interfering substances (1 mg/mL), such as Na2SO4, NaNO2, CuNO3, ZnSO4, MgSO4, CoNO3, Na2CO3, NaHCO3, KIO3, CaCO3, glucose, fructose, and BSA. Furthermore, the developed colorimetric method was used to detect 2,4-DP in tap and lake water samples. In brief, different concentrations of 2,4-DP (0, 10, 100, and 400 μM) were added to both tap and lake water, followed by addition of the Tris-Cu nanozyme (20 μL), 4-AP (0.2 mM), and the NaAc buffer (10 mM, 6.0) into the solution. The total volume of the mixture was maintained at 500 μL. Finally, the content of 2,4-DP in the sample was detected using the developed method.

2.6. Degradation of Phenolic Compounds

To study the efficiency of the removal of phenolic compounds by the Tris-Cu nanozyme, the solutions of different phenolic compounds (2,4-DP, 2-CP, phenol, resorcinol, 2,6-DOP, BPA; 0.5 mM, 100 μL), 4-AP (1.0 mM, 100 μL), and Tris-Cu nanozyme (11 mg/mL, 20 μL) were added into the NaAc buffer (10 mM, pH 6.0, 280 μL). Then, the mixtures were reacted at 70 °C for 0–60 min and centrifuged at 4000 rpm for 2 min, and the absorbances at the maximum absorption wavelength (510 nm) of the supernatant were recorded by a UV–Vis spectrometer. Finally, the content of the residual phenolic compounds in the supernatant was detected using the 4-aminoantipyrine spectrophotometry method:
Removal   rate   ( % ) = ( c 0 − c r ) / c 0 × 100 %
where cr and c0 are the residual and initial concentrations of phenolic compounds, respectively. Afterwards, to investigate the potential of this method in practical applications, the removal of 2,4-DP (0.1 mM) from simulated sewage by the Tris-Cu nanozyme was investigated in the presence of 4-AP (0.2 mM). The reaction kinetics of 2,4-DP were observed via a first-order kinetic model, expressed as follows:
l n C 0 C t = k 1 t
where C0 is the initial concentration of 2,4-DP in the simulated sewage, Ct is the concentration of 2,4-DP at time t (min), and k1 is the observation of the first-order reaction rate constant (min−1).

3. Results and Discussion

3.1. Characterization of the Tris-Cu Nanomaterial

The morphology of the prepared Tris-Cu nanomaterial was observed via SEM and TEM. As shown in Figure 1A,B, Tris-Cu is constructed of cross-linked nanoparticles with a particle size mainly distributed around 82.84 nm. Figure 1C,D shows that there are many voids between the interlinked Tris-Cu nanoparticles, providing abundant binding sites for the substrate and reducing mass transfer resistance during catalysis. The elemental mapping images (Figure 1E) clearly show that the four elements of carbon, nitrogen, oxygen, and copper are uniformly distributed in the Tris-Cu nanoparticles, which indicates its successful synthesis.
XPS analysis was performed to further investigate the elemental composition and atomic valence state of the Tris-Cu nanoparticles (Figure 2A–D and Figure S1). The XPS survey spectra (Figure 2A) show the signals of Cu 2p, O 1s, N 1s, and C 1s, which are consistent with the elemental mapping images. The contents of copper, oxygen, nitrogen, and carbon are 14.98%, 45.17%, 4.54%, and 35.31%, respectively (Table S1). As shown in Figure S1A, the high-resolution spectra of C 1s attributed to the peaks of the C-C and C-O bonds are at 284.80 eV and 288.38 eV, respectively. Only one peak (531.38 eV) attributed to the O-C bond is in the O 1s resolution spectrum (Figure S1B). The high-resolution spectrum of N 1s (Figure 2B) shows two peaks at 399.48 eV and 401.58 eV, corresponding to the N-C and N-Cu bonds, respectively, which shows that the Tris-Cu nanoparticles are synthesized through coordination between the nitrogen atoms of Tris and coppers. In the fine XPS spectrum of Cu 2p (Figure 2C), the peaks at 937.28 eV (Cu 2p3/2) and 955.38 eV (Cu 2p1/2) are associated with Cu2+, and the peaks at 934.18 eV (Cu 2p3/2) and 953.98 eV (Cu 2p1/2) indicate the presence of Cu1+. To further investigate the valence state of the Tris-Cu nanoparticles, an Auger spectrum of Cu LMM was produced (Figure 2D). The three main peaks at 566.64 eV, 570.24 eV, and 573.83 eV are associated with Cu0, Cu2+, and Cu+, respectively. The contents of Cu0, Cu2+, and Cu+ were determined to be 25%, 46%, and 29% via the ratio of the integral corresponding peak area, respectively. The presence of Cu0 and Cu+ in the Tris-Cu nanomaterials may be due to the reduction of Cu2+ during synthesis [20]. Furthermore, as shown in Figure 2E, the crystal structure of the Tris-Cu nanoparticles is further studied through XRD characterization. Unlike Tris and CuSO4·5H2O, the diffraction peaks of Tris-Cu are wide and rounded, which demonstrates that the Tris-Cu nanozyme may be amorphous. To further investigate the chemical bonds in the Tris-Cu nanozyme, FT-IR analysis was performed (Figure 2F and Table S2). The peaks at 3201 cm−1, 2938 cm−1, and 1589 cm−1 correspond to the stretching vibrations of the aminos in Tris, and their disappearance in the spectrum of the Tris-Cu nanoparticles indicates that Cu ions are coordinated with the nitrogen atoms of amino groups. The stretching vibrations at 1110 cm−1 and 1157 cm−1 indicate the presence of C-N in Tris and Tris-Cu. The absorptions at 970 cm−1 and 1018 cm−1 are the stretching vibrations of C-O and the absorptions at 617 cm−1 and 630 cm−1 are the out-of-plane bending vibrations of C-O. In addition, the characteristic absorption peaks of SO42+ are not exhibited in Tris-Cu. These results prove that the Tris-Cu nanozyme is a new material synthesized through the coordination of Tris with copper ions.

3.2. Evaluation of the Activity of the Tris-Cu Nanozyme and Laccase

The laccase-like activity of the Tris-Cu nanozyme was evaluated based on the oxidation of 2,4-DP in the presence of 4-AP. Figure 3A shows that Tris-Cu has outstanding laccase-like activity compared to copper ions and natural laccase. To optimize the preparation conditions of the Tris-Cu nanozyme, the feeding ratio of Tris to copper ions and the concentration of copper ions during synthesis were investigated (Figure S2). We found that the laccase-like activity of the Tris-Cu nanozyme gradually increased with the increase in the Tris/Cu ratio until reaching 1:1. Moreover, with the increase in the copper ion concentration, the yield of the Tris-Cu nanozyme is increased. Therefore, to simply and quickly prepare a nanozyme with high catalytic activity, the Tris-Cu nanomaterial was prepared with the feeding ratio of 1 and copper ions of 100 mM. In addition, the effects of different buffer systems on the catalytic activity of Tris-Cu were compared (Figure S3), and the results show that the Tris-Cu nanozyme has the best catalytic activity in the NaAc buffer, which was selected for the subsequent experiments. According to the literature [22,23,24], pKa is 7.51 for HEPES, 7.21 for PBS, 7.0 for H2O, 6.15 for MES, and 4.76 for NaAc. At pH = 7, HEPES and PBS are positively charged, while MES and NaAc are negatively charged. The difference in catalytic activity may be because negatively charged NaAc is more conducive to the binding of the Tris-Cu nanozyme to phenolic compounds in this buffer, thereby improving the catalytic activity. As illustrated in Figure 3B–E, like natural laccase, the catalytic activity of the Tris-Cu nanozyme is affected by the pH, temperature, reaction time, and dosage of the nanozyme. The natural enzyme is completely inactive at pH values of 4 and 11, but the relative activity of the Tris-Cu nanozyme remains above 70%, indicating that the Tris-Cu nanozyme has better acid and alkali resistance. As shown in Figure S4, in order to further investigate the alkali resistance of the Tris-Cu nanozyme, the Zeta potential of the Tris-Cu nanozyme in the NaAc buffer at different pH values was investigated. The results show that the Zeta potential of the Tris-Cu nanozyme is stable between 18.18 mV and 20.64 mV in the pH range of 6–10. It is worth mentioning that even the Zeta potential of the Tris-Cu nanozyme changes significantly in an acidic or strongly alkaline environment, while the catalytic activity of Tris-Cu does not decrease significantly. This may be due to the harsh environment that disrupts the microstructure of the Tris-Cu nanozyme but has little effect on the structure of the catalytic center. This further demonstrates the stability of the catalytic activity of the Tris-Cu nanozyme. Furthermore, the catalytic activity of the Tris-Cu nanozyme and natural laccase shows the same trend with the increase in the temperature (20–80 °C): that is, it first increased with the increase in temperature and then decreased when the temperature reached 70 °C. However, the Tris-Cu nanozyme can retain above 96% of its maximum catalytic activity when the temperature reaches 80 °C. In addition, as shown in Figure 3D,E, the activity of Tris-Cu increases with increasing reaction time and higher dosage of nanozyme. Therefore, subsequent experiments were performed under optimal conditions: pH 6.0, 70 °C, 10 min, 20 μL of nanozyme (11 mg/mL), total volume of 500 μL.
To further study the laccase-like activity of the Tris-Cu nanozyme, the kinetic parameters (Km and Vmax) are calculated by catalyzing different concentrations of 2,4-DP in the presence of the Tris-Cu as the catalyst (Figure S5). The Km and Vmax of the Tris-Cu nanozyme are calculated to be 0.18 mM and 15.62 μM·min−1, respectively. The Km value is negatively correlated with the strength of the affinity between the enzyme and substrate, and a smaller Km represents a stronger affinity [25]. The results show that the affinity and catalytic activity of the Tris-Cu nanozyme in relation to the substrate are 2.3 times and 2.4 times higher than that of laccase, respectively (Table 1). Compared to other nanozymes, the catalytic activity and substrate affinity of the Tris-Cu nanozyme also have obvious advantages. In addition, the Kcat (1.57 × 107 min−1) and Kcat/Km (8.72 × 107 mM−1 min−1) of the Tris-Cu nanozyme are much higher than those of laccase and other nanozymes. The Kcat and Kcat/Km of the Tris-Cu nanozyme are 9.1 times and 22.7 times higher than that of copper fumarate (Cu FMA). This indicates that Tris-Cu nanoparticles have a higher turnover number and catalytic efficiency, and they have a higher number of active sites than laccase and other laccase mimics. This may be related to Tris-Cu’s cross-linked nanostructure; there are many voids between the interconnected Tris-Cu nanoparticles, which provide abundant binding sites for the substrate and reduce the resistance to mass transfer during catalysis.

3.3. Catalytic Stability and Reusability of the Tris-Cu Nanozyme

Reusability is one of the obvious advantages of laccase mimicries compared to natural laccase. Tris-Cu nanozyme can be recycled via centrifugation, which reduces the cost of practical applications. As shown in Figure 3F, reusability experiments show that the catalytic activity of the Tris-Cu nanozyme remains above 80% after repeated use (five times), while the activity remains above 63% after seven repeated uses. Therefore, the Tris-Cu nanozyme can be reused at least five times with good activity.
To study the practical applications of the Tris-Cu nanozyme, the effects of Cl ions and ethanol content on the catalytic activity of the Tris-Cu nanozyme and natural laccase are investigated, respectively. As shown in Figure 4A, Cl ions can promote the oxidation of the substrate by the Tris-Cu nanozyme, which is consistent with the findings reported in the literature [26,32,33,34]. The reason for this phenomenon is that Cl ions, as inhibitors of laccase, can bind to the type 2/3 (T2/T3) trinuclear copper site of laccase, resulting in the inactivation of laccase [35]. However, a high concentration of sodium chloride will reduce the solubility of the substrate in the system and promote the binding of the substrate to the nanozyme, thus greatly increasing the catalytic activity [19]. In addition, it is found that the catalytic activity of both the Tris-Cu nanozyme and laccase show a significant decrease with the increase in the ethanol concentration in the reaction system (Figure 4B). It is worth noting that, when the volume fraction of ethanol is 10%, the relative activity of the Tris-Cu nanozyme and laccase is 80.5% and 27.9%, respectively. When the volume fraction of ethanol is 20%, the relative activity of the Tris-Cu nanozyme and laccase is 56.8% and 14.4%, respectively. In addition, as illustrated in Figure 4C, the Tris-Cu nanozyme and laccase maintained approximately 91% and 75% of their relative activity, respectively, after being stored at 2 °C and pH 6.0 for eight days. These results indicate that the Tris-Cu nanozyme exhibits excellent robustness compared to natural laccase.

3.4. Mechanism Investigation

The reaction process of 2,4-DP catalyzed by the AP-Cu nanozyme was investigated (Figure 4D–F). The experimental result (Figure 4D) shows that the addition of the hydroxyl radical scavenger IPA has no effect on the catalytic activity of the Tris-Cu nanozyme, which indicates that •OH does not participate in the catalytic reaction. However, the activity of the Tris-Cu nanozyme is inhibited by the superoxide anion radical scavenger 1,4-benzoquinone, suggesting that superoxide anion radicals play an important role in this reaction. To further investigate the catalytic mechanism of the Tris-Cu, the changes in the absorbance of the reaction system (Tris-Cu nanozyme, 2,4-DP, and 4-AP) under N2 and O2 saturation conditions were monitored (Figure 4E). The results indicate that oxygen is required in the reaction process. The physiologically accessible Cu(I)/Cu(II)-coupled redox potential varies significantly depending on the ligand environment; for example, copper ion complexes have a wide reduction potential (from −1.5 V to +1.3 V, compared to standard hydrogen electrodes) during the single-electron oxidation of oxygen molecules [36]. It can be speculated that Cu(I)/Cu(II) in the Tris-Cu nanozyme is the catalytic center for the oxidation of phenolic compounds. In summary, the catalytic mechanism of the Tris-Cu nanozyme is proposed as follows. As shown in Figure 4F, first, the substrate (2,4-DP) is bound to the Tris-Cu nanozyme. Then, 2,4-DP is oxidized by Tris-Cu, loses electrons, and is coupled with the color developer 4-AP to form a rose-red oxidation product (Quinone-imine, QI). During this process, the electrons released from 2,4-DP are taken up by Cu(II) in Tris-Cu, and Cu(II) is converted to Cu(I). Then, O2 in the reaction system is combined with Cu(I) in Tris-Cu, Cu(I) is re-oxidized to Cu(II), and O2 is converted to water. Thus, the catalytic cycle of the nanozyme is realized. The catalytic cycle of the Tris-Cu nanozyme is like that of the reported laccase and copper-containing laccase mimics [20,27,28,37].

3.5. Quantitative Detection of Phenolic Compounds

Due to its broad substrate specificity, laccase can catalyze the oxidation of different phenolics. To test the substrate diversity of the Tris-Cu nanozyme and to perform the simple identification of phenolic compounds before quantitation, the catalytic activity of the Tris-Cu nanozyme on different phenolic compounds was studied and the color of the corresponding oxidation products was observed. As illustrated in Figure 5, Figure S6 and Figure 6A, the Tris-Cu nanozyme shows good catalytic activity against ten phenolic compounds, including 2,4-DP, phenol, catechol, resorcinol, hydroquinone, 2-CP, 4-nitrophenol (4-NP), BPA, 2-aminophenol (2-AP), and 2,6-DOP. We found that the colors of the oxidation products of different phenolic compounds were different, and the color gradually deepened with the increase in the concentrations (0.2, 0.4, and 0.8 mM) of the substrates. The possible reasons for the Tris-Cu nanozyme exhibiting different catalytic activities against different phenolic compounds are as follows. (1) The Tris-Cu nanozyme has different affinities for different phenolic compounds. (2) During the process of binding to the nanozyme catalytic center, the probability and difficulty of collisions between different phenolic compounds and the nanozyme catalytic center differ, due to the influence of steric hindrance and configuration. (3) Different substituents have different effects on the electron cloud of the benzene ring (the electron induction or conjugation effect) and then have different effects on the electron cloud density of the phenolic hydroxyl, which ultimately leads to the difference in the difficulty of the electron loss of the phenolic hydroxyl group during the oxidation process. In addition, the results shown in Figure S7 indicate that the Tris-Cu nanozyme has excellent selectivity for phenolic compounds. Therefore, based on the above results, the visual identification of phenolic compounds can be preliminarily realized.
Then, a colorimetric sensor was constructed for the rapid detection of 2,4-DP based on the efficient catalytic activity of the Tris-Cu nanozyme. As shown in Figure 6B,C, the color of the reaction system gradually deepens with the increase in the 2,4-DP concentration, which is also reflected in the absorbance of the reaction system. The 2,4-DP concentrations between 10 μM–100 μM and 100 μM–400 μM have good linear correlations with the absorbance at 510 nm, with the linear regression equations of A = 0.0056 [2,4-DP] + 0.1595 (R2 = 0.9993) and A = 0.003 [2,4-DP] + 0.4555 (R2 = 0.9927), respectively. The difference in the linear slopes of the two 2,4-DP concentration ranges may be due to the different reaction states of the nanozymes at high or low concentrations of 2,4-DP. The LOD is 2.40 μM. Compared with previously reported methods, this colorimetric method has the advantages of a wide detection range, simple operations, and good sensitivity (Table 2).
In addition, to evaluate the colorimetric method in practical applications, different interfering substances are added to the catalytic system to investigate their influence on the relative activity of the Tris-Cu nanozyme. The results show that the effect of the investigated interfering substances on the catalytic activity of the Tris-Cu nanozyme is negligible except for three metal ions, Cu2+, Zn2+, and Mg2+ (Figure 6D). However, since the concentrations of Cu2+, Zn2+, and Mg2+ used in the experiment are much higher than those present in the actual sample, their effect on the activity of the Tris-Cu nanozyme can be ignored. Subsequently, the established method was applied to the detection of 2,4-DP in tap and lake water samples. Different final concentrations of 2,4-DP (10 mM, 100 mM, and 200 mM) were spiked into three groups of tap and lake water samples, and the recovery and RSD values were determined. As shown in Table 3, the recovery and RSD of the established colorimetric method are satisfactory, which indicates that the Tris-Cu nanozyme has great potential in practical applications. However, since Cl ions can promote the catalytic activity of the Tris-Cu nanozyme, the linear regression equation needs to be reconstructed in the analysis of actual samples containing Cl ions, such as seawater.

3.6. Removal of Phenolic Contaminants by the Tris-Cu Nanozyme

To study the removal efficiency of the Tris-Cu nanozyme on phenolic compounds, 2,4-DP, 2-CP, phenol, resorcinol, 2,6-DOP, and BPA were selected as the study objects. As illustrated in Figure S8, the content of residual phenolic compounds in the sample was determined using the 4-aminoantipyrine spectrophotometry method. Figure 7 shows that the Tris-Cu nanozyme has higher removal efficiency for these six phenolic compounds than natural laccase. Among them, the removal efficiencies of the Tris-Cu nanozyme and natural laccase for these six phenolic compounds (2,4-DP, 2-CP, phenol, resorcinol, 2,6-DOP, and BPA) within one hour are 100%, 100%, 100%, 100%, 87%, and 81%, and 63%, 38%, 48%, 35%, 55%, and 55%, respectively. Compared with natural laccase, the Tris-Cu nanozyme shows a higher removal efficiency and reaction rate in phenolic compound degradation, which further proves the superior catalytic performance of the Tris-Cu nanozyme, as it has a stronger substrate affinity (Km), a higher catalytic activity (Vmax), and a higher turnover number (Kcat) than natural laccase. In addition, the prepared Tris-Cu nanozyme has outstanding advantages in the degradation of phenolic compounds compared to the other catalysts (Tables S3–S8). To further evaluate the application potential of the Tris-Cu nanozyme, 2,4-DP was selected as the target substrate for the degradation study in simulated sewage. As shown in Figure S9, the reaction kinetics of degradation of 2,4-DP by the Tris-Cu nanozyme were investigated; the calculated reaction rate constant (k0) is 0.2304 min−1 and the degradation efficiency of the Tris-Cu nanozyme to 2,4-DP (0.1 mM or 16.3 mg/L) reaches 76.36% at 7 min. Compared to other catalytic methods, the method for the degradation of 2,4-DP based on the highly efficient laccase-like activity of the Tris-Cu nanozymes has the advantages of a fast reaction rate and simple operations (Table S9). Since Cl ions can enhance the catalytic activity of the Tris-Cu nanozyme, it has application potential in degrading phenolic compounds in seawater.

4. Conclusions

A Tris-Cu nanozyme with efficient laccase-like activity is prepared for the first time via a simple and rapid synthesis method. Like natural laccase, the multivalent Cu ions in Tris-Cu play a key role in the catalytic process. The acid and alkali resistance, robustness, catalytic activity, and substrate affinity of the Tris-Cu nanozyme are obviously better than those of natural laccase, indicating its potential in practical applications. Based on the efficient catalytic activity of the Tris-Cu nanozyme, a colorimetric sensing method for the preliminary identification and detection of phenolic compounds was successfully constructed; it has the characteristics of a wide detection range, simple operations, fast speeds, and visual detection. Furthermore, tests in actual samples verify that the method exhibits good accuracy. In the degradation experiments with phenolic compounds, the Tris-Cu nanozyme has efficient removal efficiency and a faster reaction rate than natural laccase and some other nanozymes, which indicates that the Tris-Cu nanozyme has application value in environmental remediation. This study not only expands the methods used for the colorimetric detection and catalytic degradation of phenolic compounds but also has reference significance for the design and research of novel laccase mimics.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/s23198137/s1, Figure S1: XPS analysis of AP-Cu nanozyme: C1s (A); O 1s (B); Figure S2: Effect of different feeding ratios of Tris to copper ions (A) and the concentration of copper ion (B) on the activity of the Tris-Cu nanozyme; Figure S3: The laccase-like activity of the Tris-Cu nanozyme in different buffers; Figure S4: The Zeta potential of the Tris-Cu nanozyme in the NaAc buffer at different pH values; Figure S5: The relationship between the 2,4-DP concentration and the corresponding absorption intensity at 510 nm (A); Double-reciprocal plots: 2,4-DP, 0.04–0.2 mM; 4-AP, 0.2 mM (B); Figure S6: Catalytic activity of the Tris-Cu nanozyme for different phenolic compounds. (A, 2,4-DP; B, phenol; C, catechol; D, resorcinol; E, hydroquinone; F, 2-CP; G, 4-nitrophenol (4-NP); H, BPA; I, 2-aminophenol (2-AP); J, 2,6-DOP); Figure S7: Catalytic activity of the Tris-Cu nanozyme for different phenol analogues; Figure S8: Determination of phenolic compounds via 4-amino-antipyrine spectrophotometry. The liner relationship between the phenolic compound’s concentration and its corresponding absorption intensity at the maximum absorption wavelength. (A, 2,4-DP; B, 2-CP; C, phenol; D, resorcinol; E, 2,6-DOP; F, BPA; 0–100 μM); Figure S9: (A) Evolution of 2,4-DP concentration over time; (B) First-order kinetic plot for 2,4-DP degradation. (2,4-DP concentration = 0.1 mM); Table S1: Atomic ratios of various elements in Tris-Cu nanozymes (XPS); Table S2: Assigned details of the FT-IR spectra of Tris-Cu nanozymes, Tris and CuSO4·5H2O; Table S3: Comparison of the degradation efficiency of 2,4-dichlorophenol using different methods; Table S4: Comparison of the degradation efficiency of 2-chlorophenol using different methods; Table S5: Comparison of the degradation efficiency of phenol using different methods; Table S6: Comparison of the degradation efficiency of resorcinol using different methods; Table S7: Comparison of the degradation efficiency of 2,6-dimethoxyphenol using different methods; Table S8: Comparison of the degradation efficiency of bisphenol A using different methods; Table S9: Comparison of the degradation rate constant of 2,4-dichlorophenol using different methods. References [43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66] are cited in the supplementary materials.

Author Contributions

Conceptualization, T.-Q.C. and F.-Q.Y.; methodology, T.-Q.C., J.-L.W. and G.-Y.C.; software, T.-Q.C.; validation, T.-Q.C., L.-X.C. and J.-L.W.; formal analysis, T.-Q.C. and J.-L.W.; investigation, T.-Q.C.; resources, F.-Q.Y.; data curation, T.-Q.C.; writing—original draft preparation, T.-Q.C.; writing—review and editing, T.-Q.C. and F.-Q.Y.; visualization, T.-Q.C. and F.-Q.Y.; supervision, F.-Q.Y.; project administration, F.-Q.Y.; funding acquisition, F.-Q.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Key Research and Development Program of China (No. 2021YFC2103300).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article or Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, Z.; Oh, W.D.; Yap, P.S. Recent advances in the utilization of immobilized laccase for the degradation of phenolic compounds in aqueous solutions: A review. Chemosphere 2022, 307, 135824. [Google Scholar] [CrossRef]
  2. Singh, R.; Umapathi, A.; Patel, G.; Patra, C.; Malik, U.; Bhargava, S.K.; Daima, H.K. Nanozyme-based pollutant sensing and environmental treatment: Trends, challenges, and perspectives. Sci. Total Environ. 2022, 854, 158771. [Google Scholar] [CrossRef] [PubMed]
  3. Vosoughi, M.; Fatehifar, E.; Derafshi, S.; Rostamizadeh, M. High efficient treatment of the petrochemical phenolic effluent using spent catalyst: Experimental and optimization. J. Environ. Chem. Eng. 2017, 5, 2024–2031. [Google Scholar] [CrossRef]
  4. Bosso, L.; Cristinzio, G. A comprehensive overview of bacteria and fungi used for pentachlorophenol biodegradation. Rev. Environ. Sci. Bio-Technol. 2014, 13, 387–427. [Google Scholar] [CrossRef]
  5. Gao, P.; Feng, Y.; Zhang, Z.; Liu, J.; Ren, N. Comparison of competitive and synergetic adsorption of three phenolic compounds on river sediment. Environ. Pollut. 2011, 159, 2876–2881. [Google Scholar] [CrossRef]
  6. Trasande, L.; Attina, T.M.; Blustein, J. Association between urinary bisphenol A concentration and obesity prevalence in children and adolescents. JAMA J. Am. Med. Assoc. 2012, 308, 1113–1121. [Google Scholar] [CrossRef]
  7. Villegas, L.G.C.; Mashhadi, N.; Chen, M.; Mukherjee, D.; Taylor, K.E.; Biswas, N. A short review of techniques for phenol removal from wastewater. Curr. Pollut. Rep. 2016, 2, 157–167. [Google Scholar] [CrossRef]
  8. Koyappayil, A.; Kim, H.T.; Lee, M.H. ‘Laccase-like’ properties of coral-like silver citrate micro-structures for the degradation and determination of phenolic pollutants and adrenaline. J. Hazard. Mater. 2021, 412, 125211. [Google Scholar] [CrossRef]
  9. Alikord, M.; Mohammadi, A.; Kamankesh, M.; Shariatifar, N. Food safety and quality assessment: Comprehensive review and recent trends in the applications of ion mobility spectrometry (IMS). Crit. Rev. Food Sci. Nutr. 2022, 62, 4833–4866. [Google Scholar] [CrossRef]
  10. Huang, H.; Li, M.; Hao, M.; Yu, L.L.; Li, Y. A novel selective detection method for sulfide in food systems based on the GMP-Cu nanozyme with laccase activity. Talanta 2021, 235, 122775. [Google Scholar] [CrossRef]
  11. Davoodi-Rad, K.; Shokrollahi, A.; Shahdost-Fard, F.; Azadkish, K. Copper-guanosine nanorods (Cu-Guo NRs) as a laccase mimicking nanozyme for colorimetric detection of rutin. Biosensors 2023, 13, 374. [Google Scholar] [CrossRef]
  12. Yagmur, E.; Turkoglu, S.; Banford, A.; Aktas, Z. The relative performance of microwave regenerated activated carbons on the removal of phenolic pollutants. J. Clean. Prod. 2017, 149, 1109–1117. [Google Scholar] [CrossRef]
  13. Wang, Y.; Pan, T.; Yu, Y.F.; Wu, Y.; Pan, Y.H.; Yang, X. A novel peroxymonosulfate (PMS)-enhanced iron coagulation process for simultaneous removal of trace organic pollutants in water. Water Res. 2020, 185, 116136. [Google Scholar] [CrossRef]
  14. Sas, O.G.; Sanchez, P.B.; Gonzalez, B.; Dominguez, A. Removal of phenolic pollutants from wastewater streams using ionic liquids. Sep. Purif. Technol. 2020, 236, 116310. [Google Scholar] [CrossRef]
  15. Wu, P.; Zhang, Z.F.; Luo, Y.L.; Bai, Y.P.; Fan, J.H. Bioremediation of phenolic pollutants by algae-current status and challenges. Bioresour. Technol. 2022, 350, 126930. [Google Scholar] [CrossRef]
  16. Shen, Y.; Zhu, C.; Chen, B.L.; Chen, J.M.; Fang, Q.L.; Wang, J.; He, Z.Q.; Song, S. Novel photocatalytic performance of nanocage-like MIL-125-NH2 induced by adsorption of phenolic pollutants. Environ. Sci. Nano 2020, 7, 1525–1538. [Google Scholar] [CrossRef]
  17. Li, C.; Zhang, Y.Y.; Zeng, T.; Chen, X.Y.; Wang, W.Q.; Wan, Q.J.; Yang, N.J. Graphene nanoplatelet supported CeO2 nanocomposites towards electrocatalytic oxidation of multiple phenolic pollutants. Anal. Chim. Acta 2019, 1088, 45–53. [Google Scholar] [CrossRef] [PubMed]
  18. Lei, L.; Yang, X.; Song, Y.; Huang, H.; Li, Y. Current research progress on laccase-like nanomaterials. New J. Chem. 2022, 46, 3541–3550. [Google Scholar] [CrossRef]
  19. Huang, H.; Lei, L.; Bai, J.; Zhang, L.; Song, D.; Zhao, J.; Li, J.; Li, Y. Efficient elimination and detection of phenolic compounds in juice using laccase mimicking nanozymes. Chin. J. Chem. Eng. 2021, 29, 167–175. [Google Scholar] [CrossRef]
  20. Wang, J.; Huang, R.; Qi, W.; Su, R.; He, Z. Construction of biomimetic nanozyme with high laccase- and catecholase-like activity for oxidation and detection of phenolic compounds. J. Hazard. Mater. 2022, 429, 128404. [Google Scholar] [CrossRef]
  21. Jiang, B.; Duan, D.M.; Gao, L.Z.; Zhou, M.J.; Fan, K.L.; Tang, Y.; Xi, J.Q.; Bi, Y.H.; Tong, Z.; Gao, G.F.; et al. Standardized assays for determining the catalytic activity and kinetics of peroxidase-like nanozymes. Nat. Protoc. 2018, 13, 1506–1520. [Google Scholar] [CrossRef] [PubMed]
  22. Fuguet, E.; Reta, M.; Gibert, C.; Roses, M.; Bosch, E.; Rafols, C. Critical evaluation of buffering solutions for pKa determination by capillary electrophoresis. Electrophoresis 2008, 29, 2841–2851. [Google Scholar] [PubMed]
  23. Cugia, F.; Monduzzi, M.; Ninham, B.W.; Salis, A. Interplay of ion specificity, pH and buffers: Insights from electrophoretic mobility and pH measurements of lysozyme solutions. RSC Adv. 2013, 3, 5882–5888. [Google Scholar] [CrossRef]
  24. de Nogales, V.; Ruiz, R.; Roses, M.; Rafols, C.; Bosch, E. Background electrolytes in 50% methanol/water for the determination of acidity constants of basic drugs by capillary zone electrophoresis. J. Chromatogr. A 2006, 1123, 113–120. [Google Scholar] [CrossRef]
  25. Gao, F.; Xiong, Z.; Jia, Y.; Li, H.; Li, J. Cu-boosted one-pot nanoarchitectonics for synthesis of polydopamine membranes as reusable laccase mimic. J. Colloid Interface Sci. 2022, 628, 935–942. [Google Scholar] [CrossRef] [PubMed]
  26. Wang, J.; Huang, R.; Qi, W.; Su, R.; Binks, B.P.; He, Z. Construction of a bioinspired laccase-mimicking nanozyme for the degradation and detection of phenolic pollutants. Appl. Catal. B Environ. 2019, 254, 452–462. [Google Scholar] [CrossRef]
  27. Rashtbari, S.; Dehghan, G. Biodegradation of malachite green by a novel laccase-mimicking multicopper BSA-Cu complex: Performance optimization, intermediates identification and artificial neural network modeling. J. Hazard. Mater. 2021, 406, 124340. [Google Scholar] [CrossRef]
  28. Ying, M.; Yang, G.; Xu, Y.; Ye, H.; Lin, X.; Lu, Y.; Pan, H.; Bai, Y.; Du, M. Copper fumarate with high-bifunctional nanozyme activities at different pH values for glucose and epinephrine colorimetric detection in human serum. Analyst 2021, 147, 40–47. [Google Scholar] [CrossRef]
  29. Liang, S.; Wu, X.L.; Xiong, J.; Yuan, X.; Liu, S.L.; Zong, M.H.; Lou, W.Y. Multivalent Ce-MOFs as biomimetic laccase nanozyme for environmental remediation. Chem. Eng. J. 2022, 450, 138220. [Google Scholar] [CrossRef]
  30. Sha, M.; Rao, L.; Xu, W.; Qin, Y.; Su, R.; Wu, Y.; Fang, Q.; Wang, H.; Cui, X.; Zheng, L.; et al. Amino-ligand-coordinated dicopper active sites enable catechol oxidase-like activity for chiral recognition and catalysis. Nano Lett. 2023, 23, 701–709. [Google Scholar] [CrossRef]
  31. Wang, J.; Huang, R.; Qi, W.; Su, R.; He, Z. Preparation of amorphous MOF based biomimetic nanozyme with high laccase- and catecholase-like activity for the degradation and detection of phenolic compounds. Chem. Eng. J. 2022, 434, 134677. [Google Scholar] [CrossRef]
  32. Huang, S.; Tang, X.; Yu, L.; Hong, S.; Liu, J.; Xu, B.; Liu, R.; Guo, Y.; Xu, L. Colorimetric assay of phosphate using a multicopper laccase-like nanozyme. Microchim. Acta 2022, 189, 378. [Google Scholar] [CrossRef] [PubMed]
  33. Tian, S.; Zhang, C.; Yu, M.; Li, Y.; Fan, L.; Li, X. Buffer species-dependent catalytic activity of Cu-Adenine as a laccase mimic for constructing sensor array to identify multiple phenols. Anal. Chim. Acta 2022, 1204, 339725. [Google Scholar] [CrossRef] [PubMed]
  34. Tran, T.D.; Nguyen, P.T.; Le, T.N.; Kim, M.I. DNA-copper hybrid nanoflowers as efficient laccase mimics for colorimetric detection of phenolic compounds in paper microfluidic devices. Biosens. Bioelectron. 2021, 182, 113187. [Google Scholar] [CrossRef]
  35. Xu, F. Oxidation of phenols, anilines, and benzenethiols by fungal laccases: Correlation between activity and redox potentials as well as halide inhibition. Biochemistry 1996, 35, 7608–7614. [Google Scholar] [CrossRef]
  36. Kitajima, N.; Moro-oka, Y. Copper-Dioxygen Complexes. Inorganic and Bioinorganic Perspectives. Chem. Rev. 1994, 94, 737–757. [Google Scholar] [CrossRef]
  37. Fu, Z.; Guo, F.; Qiu, J.; Zhang, R.; Wang, M.; Wang, L. Extension of the alkyl chain length to adjust the properties of laccase-mimicking MOFs for phenolic detection and discrimination. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2022, 281, 121606. [Google Scholar] [CrossRef]
  38. Wu, H.; Ding, Z.; Peng, M.; Song, Q. Quantum dot induced phototransformation of 2,4-dichlorophenol, and its subsequent chemiluminescence reaction. Microchim. Acta 2012, 178, 203–210. [Google Scholar] [CrossRef]
  39. Sun, Y.; Wang, L.; Liu, H. Myoglobin functioning as cytochrome P450 for biosensing of 2,4-dichlorophenol. Anal. Methods 2012, 4, 3358–3363. [Google Scholar] [CrossRef]
  40. Liu, J.; Niu, J.; Yin, L.; Jiang, F. In situ encapsulation of laccase in nanofibers by electrospinning for development of enzyme biosensors for chlorophenol monitoring. Analyst 2011, 136, 4802–4808. [Google Scholar] [CrossRef]
  41. Yashas, S.R.; Sandeep, S.; Shivakumar, B.P.; Swamy, N.K. A matrix of perovskite micro-seeds and polypyrrole nanotubes tethered laccase/graphite biosensor for sensitive quantification of 2,4-dichlorophenol in wastewater. Anal. Methods 2019, 11, 4511–4519. [Google Scholar] [CrossRef]
  42. Cui, M. Development of a metal-organic framework for the sensitive determination of 2,4-dichlorophenol. Int. J. Electrochem. Sci. 2018, 13, 3420–3428. [Google Scholar] [CrossRef]
  43. Liu, S.; Huang, B.; Zheng, G.; Zhang, P.; Li, J.; Yang, B.; Chen, Y.P.; Liang, L. Nanocapsulation of horseradish peroxidase (HRP) enhances enzymatic performance in removing phenolic compounds. Int. J. Biol. Macromol. 2020, 150, 814–822. [Google Scholar] [CrossRef] [PubMed]
  44. Norabadi, E.; Jahantiq, A.; Kamani, H. Synthesis of Fe-TiO2@Fe3O4 magnetic nanoparticles as a recyclable sonocatalyst for the degradation of 2,4-dichlorophenol. Environ. Sci. Pollut. Res. 2023, 30, 3144–31460. [Google Scholar] [CrossRef] [PubMed]
  45. Wang, Z.; Miao, R.; He, L.; Guan, Q.; Shi, Y. Green synthesis of MIL-100(Fe) derivatives and revealing their structure-activity relationship for 2,4-dichlorophenol photodegradation. Chemosphere 2022, 291, 132950. [Google Scholar] [CrossRef]
  46. Stoilova, I.; Krastanov, A.; Stanchev, V.; Daniel, D.; Gerginova, M.; Alexieva, Z. Biodegradation of high amounts of phenol, catechol, 2,4-dichlorophenol and 2,6-dimethoxyphenol by Aspergillus awamori cells. Enzyme Microb. Technol. 2006, 39, 1036–1041. [Google Scholar] [CrossRef]
  47. Gu, A.; Wang, P.; Chen, K.; Djam Miensah, E.; Gong, C.; Jiao, Y.; Mao, P.; Chen, K.; Jiang, J.; Liu, Y.; et al. Core-shell bimetallic Fe-Co MOFs to activated peroxymonosulfate for efficient degradation of 2-chlorophenol. Sep. Purif. Technol. 2022, 298, 121461. [Google Scholar] [CrossRef]
  48. Zyoud, A.H.; Zorba, T.; Helal, M.; Zyoud, S.; Qamhiya, N.; Hajamohideen, A.R.; Zyoud, S.; Hilal, H.S. Direct sunlight-driven degradation of 2-chlorophenol catalyzed by kaolinite-supported ZnO. Int. J. Environ. Sci. Technol. 2019, 16, 6267–6276. [Google Scholar] [CrossRef]
  49. Barakat, M.A.; Anjum, M.; Kumar, R.; Alafif, Z.O.; Oves, M.; Ansari, M.O. Design of ternary Ni(OH)2/graphene oxide/TiO2 nanocomposite for enhanced photocatalytic degradation of organic, microbial contaminants, and aerobic digestion of dairy wastewater. J. Clean. Prod. 2020, 258, 120588. [Google Scholar] [CrossRef]
  50. Demissie, H.; An, G.; Jiao, R.; Ma, G.; Liu, L.; Sun, H.; Wang, D. Removal of phenolic contaminants from water by in situ coated surfactant on Keggin-aluminum nanocluster and biodegradation. Chemosphere 2021, 269, 128692. [Google Scholar] [CrossRef]
  51. Liang, J.; Xu, X.; Zhong, Q.; Xu, Z.; Zhao, L.; Qiu, H.; Cao, X. Roles of the mineral constituents in sludge-derived biochar in persulfate activation for phenol degradation. J. Hazard. Mater. 2020, 398, 122861. [Google Scholar] [CrossRef]
  52. Zhang, J.; Xie, M.; Zhao, H.; Zhang, L.R.; Wei, G.; Zhao, G. Preferential and efficient degradation of phenolic pollutants with cooperative hydrogen-bond interactions in photocatalytic process. Chemosphere 2021, 269, 129404. [Google Scholar] [CrossRef] [PubMed]
  53. Norouzi, M.; Fazeli, A.; Tavakoli, O. Phenol contaminated water treatment by photocatalytic degradation on electrospun Ag/TiO2 nanofibers: Optimization by the response surface method. J. Water Process. Eng. 2020, 37, 101489. [Google Scholar] [CrossRef]
  54. Rahmani, A.; Rahimzadeh, H.; Beirami, S. Photocatalytic degradation of phenolic compound (phenol, resorcinol and cresol) by titanium dioxide photocatalyst on ordered mesoporous carbon (CMK-3) support under UV irradiation. Desalination Water Treat. 2019, 144, 224–232. [Google Scholar] [CrossRef]
  55. Yap, K.L.; Ho, L.N.; Ong, S.A.; Guo, K.; Liew, Y.M.; Thor, S.H.; Tan, S.M.; Teoh, T.P. Comparative study of dihydroxybenzene isomers degradation and bioelectricity generation using CuO as cathodic catalyst in double chambered microbial fuel cell. J. Water Process. Eng. 2022, 49, 103114. [Google Scholar] [CrossRef]
  56. Grandes-Blanco, A.I.; Diaz-Godinez, G.; Tellez-Tellez, M.; Delgado-Macuil, R.J.; Rojas-Lopez, M.; Bibbins-Martinez, M.D. Ligninolytic activity patterns of pleurotus ostreatus obtained by submerged fermentation in presence of 2,6-dimethoxyphenol and remazol brilliant blue R dye. Prep. Biochem. Biotechnol. 2013, 43, 468–480. [Google Scholar] [CrossRef]
  57. Altin, I.; Ma, X.; Boffa, V.; Bacaksız, E.; Magnacca, G. Hydrothermal preparation of B–TiO2-graphene oxide ternary nanocomposite, characterization and photocatalytic degradation of bisphenol A under simulated solar irradiation. Mater. Sci. Semicond. Process. 2021, 123, 105591. [Google Scholar] [CrossRef]
  58. Liu, Y.C.; Liu, X.; Zhang, G.H.; Liu, W.; Wang, J.Q.; Wang, X.; Chen, C.L.; Wang, Y.; Xiang, Z. Performance and mechanism of a novel S-scheme heterojunction sonocatalyst CuS/BaWO4 for degradation of bisphenol A by ultrasonic activation. Environ. Res. 2023, 216, 114720. [Google Scholar] [CrossRef]
  59. Frankowski, R.; Platkiewicz, J.; Stanisz, E.; Grzeskowiak, T.; Zgola-Grzeskowiak, A. Biodegradation and photo-Fenton degradation of bisphenol A, bisphenol S and fluconazole in water. Environ. Pollut. 2021, 289, 117947. [Google Scholar] [CrossRef]
  60. Liu, Y.; Zhao, Y.; Wang, J. Activation of peroxydisulfate by a novel Cu0-Cu2O@CNTs composite for 2,4-dichlorophenol degradation. Sci. Total Environ. 2021, 754, 141883. [Google Scholar] [CrossRef]
  61. Lu, Q.; Yu, J.; Gao, J. Degradation of 2,4-dichlorophenol by using glow discharge electrolysis. J. Hazard. Mater. 2006, 136, 526–531. [Google Scholar] [CrossRef]
  62. Magro, C.; Mateus, E.P.; Paz-Garcia, J.M.; Ribeiro, A.B. Emerging organic contaminants in wastewater: Understanding electrochemical reactors for triclosan and its by-products degradation. Chemosphere 2020, 247, 125758. [Google Scholar] [CrossRef]
  63. Wu, S.; Liu, H.; Lin, Y.; Yang, C.; Lou, W.; Sun, J.; Du, C.; Zhang, D.; Nie, L.; Yin, K.; et al. Insights into mechanisms of UV/ferrate oxidation for degradation of phenolic pollutants: Role of superoxide radicals. Chemosphere 2020, 244, 125490. [Google Scholar] [CrossRef] [PubMed]
  64. Montenegro-Ayo, R.; Morales-Gomero, J.C.; Alarcon, H.; Corzo, A.; Westerhoff, P.; Garcia-Segura, S. Photoelectrocatalytic degradation of 2,4-dichlorophenol in a TiO2 nanotube-coated disc flow reactor. Chemosphere 2021, 268, 129320. [Google Scholar] [CrossRef] [PubMed]
  65. Ziagova, M.; Liakopoulou-Kyriakides, M. Kinetics of 2,4-dichlorophenol and 4-Cl-m-cresol degradation by Pseudomonas sp. cultures in the presence of glucose. Chemosphere 2007, 68, 921–927. [Google Scholar] [CrossRef] [PubMed]
  66. Ziagova, M.; Kyriakou, G.; Liakopoulou-Kyriakides, M. Co-metabolism of 2,4-dichlorophenol and 4-Cl-m-cresol in the presence of glucose as an easily assimilated carbon source by Staphylococcus xylosus. J. Hazard. Mater. 2009, 163, 383–390. [Google Scholar] [CrossRef] [PubMed]
Sensors 23 08137 g001
Figure 1. SEM images (A,B) and the particle size distribution (inset), TEM images (C,D), and EDS elemental mapping images (E) of the Tris-Cu nanozyme.
Figure 1. SEM images (A,B) and the particle size distribution (inset), TEM images (C,D), and EDS elemental mapping images (E) of the Tris-Cu nanozyme.
Sensors 23 08137 g001
Sensors 23 08137 g002

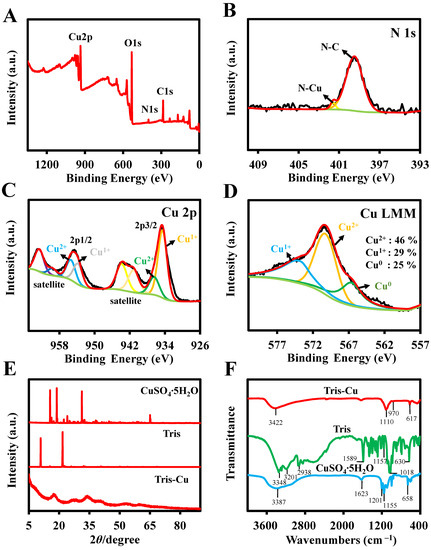

Figure 2. XPS analysis of the AP-Cu nanozyme: element survey (A); N 1s (B); Cu 2p (C); Cu LMM (D). (E) XRD patterns of CuSO4·5H2O, Tris, and Tris-Cu. (F) FT-IR spectra of Tris-Cu (red line), Tris (green line), and CuSO4·5H2O (blue line).
Figure 2. XPS analysis of the AP-Cu nanozyme: element survey (A); N 1s (B); Cu 2p (C); Cu LMM (D). (E) XRD patterns of CuSO4·5H2O, Tris, and Tris-Cu. (F) FT-IR spectra of Tris-Cu (red line), Tris (green line), and CuSO4·5H2O (blue line).
Sensors 23 08137 g002
Sensors 23 08137 g003
Figure 3. (A) UV–Vis absorption spectra of a mixture of the NaAc buffer (10 mM), CuSO4 (40 mM), Tris (40 mM), laccase (10 mg/mL, 200 U/g), and the Tris-Cu nanozyme (100 μL) added to 2,4-DP (0.2 mM) and 4-AP (0.2 mM). The relative activity of the Tris-Cu nanozyme and laccase varies according to the pH (B), temperature (C), time (D), and dosage of the Tris-Cu (E). Reusability of the Tris-Cu nanozyme (F) (conditions: Tris-Cu nanozyme 20 μL, 2,4-DP 0.2 mM, 4-AP 0.2 mM, pH 6.0, 70 °C, 10 min).
Figure 3. (A) UV–Vis absorption spectra of a mixture of the NaAc buffer (10 mM), CuSO4 (40 mM), Tris (40 mM), laccase (10 mg/mL, 200 U/g), and the Tris-Cu nanozyme (100 μL) added to 2,4-DP (0.2 mM) and 4-AP (0.2 mM). The relative activity of the Tris-Cu nanozyme and laccase varies according to the pH (B), temperature (C), time (D), and dosage of the Tris-Cu (E). Reusability of the Tris-Cu nanozyme (F) (conditions: Tris-Cu nanozyme 20 μL, 2,4-DP 0.2 mM, 4-AP 0.2 mM, pH 6.0, 70 °C, 10 min).
Sensors 23 08137 g003
Sensors 23 08137 g004

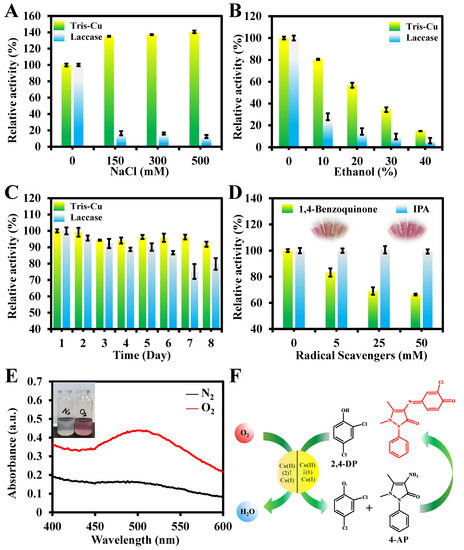

Figure 4. Effects of different concentrations of NaCl (A), ethanol (B), and storage times (C) on the catalytic activity of the Tris-Cu nanozyme and laccase. Effect of various concentrations of 1,4-benzoquinone and IPA on the catalytic performance of the Tris-Cu nanozyme (D). UV–Vis absorption spectra of the Tris-Cu-nanozyme-catalyzed laccase reaction under oxygen and nitrogen (100 mL/min) (E). Possible catalytic mechanism of the Tris-Cu nanozyme (F).
Figure 4. Effects of different concentrations of NaCl (A), ethanol (B), and storage times (C) on the catalytic activity of the Tris-Cu nanozyme and laccase. Effect of various concentrations of 1,4-benzoquinone and IPA on the catalytic performance of the Tris-Cu nanozyme (D). UV–Vis absorption spectra of the Tris-Cu-nanozyme-catalyzed laccase reaction under oxygen and nitrogen (100 mL/min) (E). Possible catalytic mechanism of the Tris-Cu nanozyme (F).
Sensors 23 08137 g004
Sensors 23 08137 g005
Figure 5. Different phenolic compounds were oxidized by the Tris-Cu nanozyme. (1) 2,4-dichlorophenol (2,4-DP), (2) phenol, (3) catechol, (4) resorcinol, (5) hydroquinone, (6) 2-chlorophenol (2-CP), (7) 4-nitrophenol (4-NP), (8) bisphenol A (BPA), (9) 2-aminophenol (2-AP), (10) 2,6-dimethoxyphenol (2,6-DOP); the concentrations of all phenolic compounds are 0.2 mM.
Figure 5. Different phenolic compounds were oxidized by the Tris-Cu nanozyme. (1) 2,4-dichlorophenol (2,4-DP), (2) phenol, (3) catechol, (4) resorcinol, (5) hydroquinone, (6) 2-chlorophenol (2-CP), (7) 4-nitrophenol (4-NP), (8) bisphenol A (BPA), (9) 2-aminophenol (2-AP), (10) 2,6-dimethoxyphenol (2,6-DOP); the concentrations of all phenolic compounds are 0.2 mM.
Sensors 23 08137 g005
Sensors 23 08137 g006

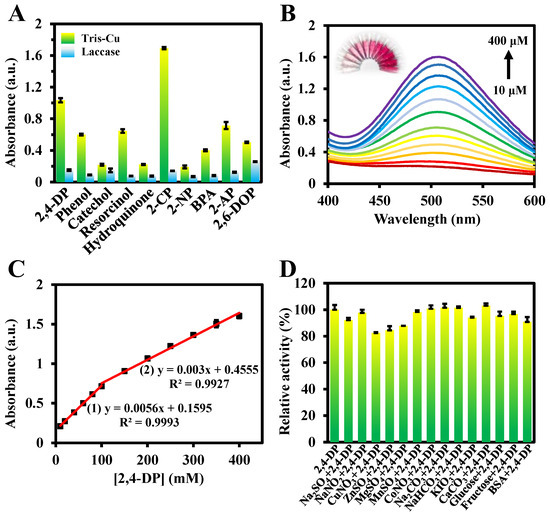

Figure 6. Catalytic performance of the Tris-Cu nanozyme and laccase on different phenolic compounds (0.2 mM) (A). UV–Vis spectra of the Tris-Cu solutions in the presence of 10–400 μM 2,4-DP in 10 mM NaAc (pH 6.0) and the corresponding solution photographs (B). The relationship between the 2,4-DP concentration and the corresponding absorption intensity at 510 nm (C). Effects of different interfering substances (1 mg/mL) on the laccase-like activity of the Tris-Cu nanozyme (D).
Figure 6. Catalytic performance of the Tris-Cu nanozyme and laccase on different phenolic compounds (0.2 mM) (A). UV–Vis spectra of the Tris-Cu solutions in the presence of 10–400 μM 2,4-DP in 10 mM NaAc (pH 6.0) and the corresponding solution photographs (B). The relationship between the 2,4-DP concentration and the corresponding absorption intensity at 510 nm (C). Effects of different interfering substances (1 mg/mL) on the laccase-like activity of the Tris-Cu nanozyme (D).
Sensors 23 08137 g006
Sensors 23 08137 g007

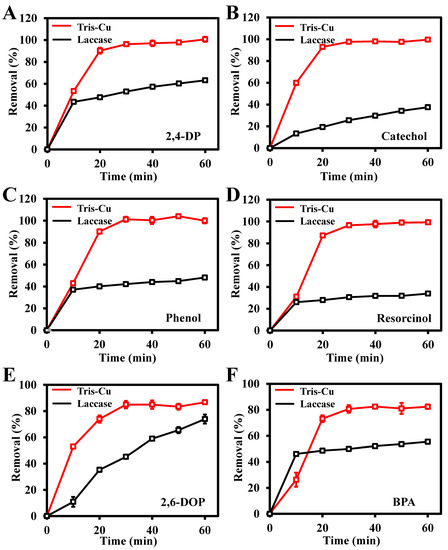

Figure 7. Removal efficiency of different phenolic compounds by the Tris-Cu nanozyme and laccase over time. 2,4-DP (A), catechol (B), phenol (C), resorcinol (D), 2,6-DOP (E), BPA (F); the concentrations of all phenolic compounds are 0.1 mM.
Figure 7. Removal efficiency of different phenolic compounds by the Tris-Cu nanozyme and laccase over time. 2,4-DP (A), catechol (B), phenol (C), resorcinol (D), 2,6-DOP (E), BPA (F); the concentrations of all phenolic compounds are 0.1 mM.
Sensors 23 08137 g007
Table 1. Kinetic parameters of 2,4-DP and 4-AP reactions catalyzed by Tris-Cu, laccase, and various laccase mimics.
Table 1. Kinetic parameters of 2,4-DP and 4-AP reactions catalyzed by Tris-Cu, laccase, and various laccase mimics.
Catalystsρe
(g L−1)		[E]
(mM)		Km
(mM)		Vmax
(μM min−1)		Kcat
(min−1)		Kcat/Km
(mM−1 min−1)		Ref.
Laccase0.101.55 × 10−30.416.414.1310.07[26]
CH-Cu0.103.83 × 10−70.427.321.91 × 1044.55 × 104
BSA-Cu-1.5 × 10−30.1154.002.6623.19[27]
Cu FMA5.001.98 × 10−90.453.431.73 × 1063.84 × 106[28]
Ce-MOF-8080.106.27 × 10−20.132.220.0350.27[29]
MOF-His-Cu0.06-2.2169.60.4140.19[30]
CA-Cu0.05-0.23211.220.15180.65[31]
Tris-Cu0.449.98 × 10−100.1815.621.57 × 1078.72 × 107This work
CH: cysteine (Cys)-histidine (His) dipeptide; BSA: bovine serum albumin; Cu FMA: copper fumarate; His: histidine; CA: cyanuric acid; Tris: Tris(hydroxymethyl)aminomethane.
Table 2. Comparison of different methods for the detection of 2,4-DP.
Table 2. Comparison of different methods for the detection of 2,4-DP.
MethodsMaterial SystemLinear Rang (μM)LOD (μM)Ref.
ChemiluminescenceCdTe quantum dot0.36–360.13[38]
ElectrochemicalMb-AG/GCE12.5–2082.06[39]
ElectrochemicalLaccase/PVA/F108/Au NPs/GCE1.0–25.02.70[40]
ElectrochemicalGr/PPyNT/SrCuO2/lac1–500.18[41]
ElectrochemicalCu-MOF4–1001.10[42]
UV–VisCu-MeIm nanozyme200–200034[37]
UV–VisCu-Adenine nanozyme1–1000.472[33]
UV–VisTris-Cu nanozyme10–4002.40This work
Mb: myoglobin; AG: agarose hydrogel; GCE: glassy carbon electrode; PVA: polyvinyl alcohol; F108: PEO–PPO–PEO; PPyNT: polypyrrole nanotube; lac: laccase; MeIm: 2-Methylimidazole.
Table 3. Detection of 2,4-DP in tap and lake water samples using the developed colorimetric method (n = 3).
Table 3. Detection of 2,4-DP in tap and lake water samples using the developed colorimetric method (n = 3).
Actual SamplesAdded (μM)Detected (μM)Recovery (%)RSD (%)
Tap waterSample 10——1.71
Sample 2109.95 ± 0.5199.464.99
Sample 3100104.43 ± 1.81104.431.73
Sample 4400427.89 ± 2.72106.970.64
LakeSample 10——1.02
Sample 2109.94 ± 0.4699.404.62
Sample 310096.9 ± 0.9196.900.94
Sample 4400409.44 ± 2.41102.360.59
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Chai, T.-Q.; Wang, J.-L.; Chen, G.-Y.; Chen, L.-X.; Yang, F.-Q. Tris-Copper Nanozyme as a Novel Laccase Mimic for the Detection and Degradation of Phenolic Compounds. Sensors 2023, 23, 8137. https://doi.org/10.3390/s23198137

AMA Style

Chai T-Q, Wang J-L, Chen G-Y, Chen L-X, Yang F-Q. Tris-Copper Nanozyme as a Novel Laccase Mimic for the Detection and Degradation of Phenolic Compounds. Sensors. 2023; 23(19):8137. https://doi.org/10.3390/s23198137

Chicago/Turabian Style

Chai, Tong-Qing, Jia-Li Wang, Guo-Ying Chen, Ling-Xiao Chen, and Feng-Qing Yang. 2023. "Tris-Copper Nanozyme as a Novel Laccase Mimic for the Detection and Degradation of Phenolic Compounds" Sensors 23, no. 19: 8137. https://doi.org/10.3390/s23198137

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
