# Wheel-Rail Contact-Induced Impact Vibration Analysis for Switch Rails Based on the VMD-SS Method

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

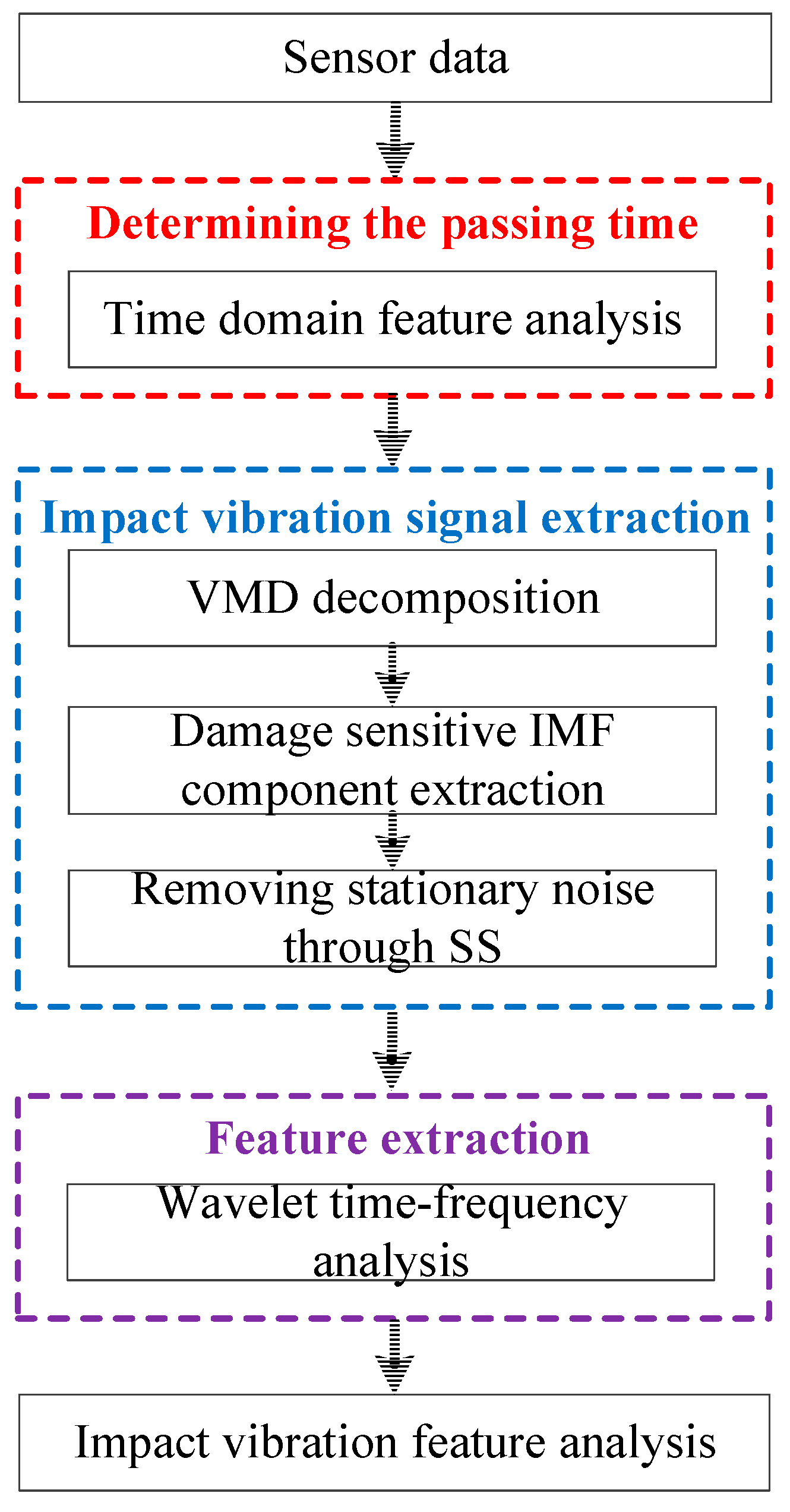

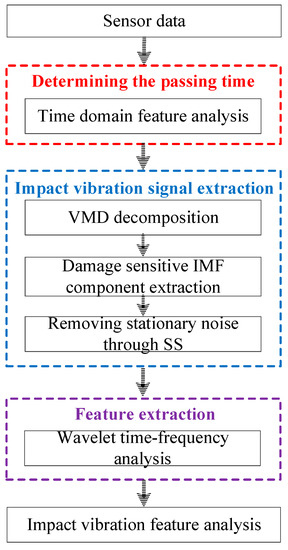

## 2. Extracting and Analyzing Methods for Impact Vibration Signals

#### 2.1. Impact Vibration Signal Extraction Method

#### 2.2. Feature Analysis of Impact Vibration

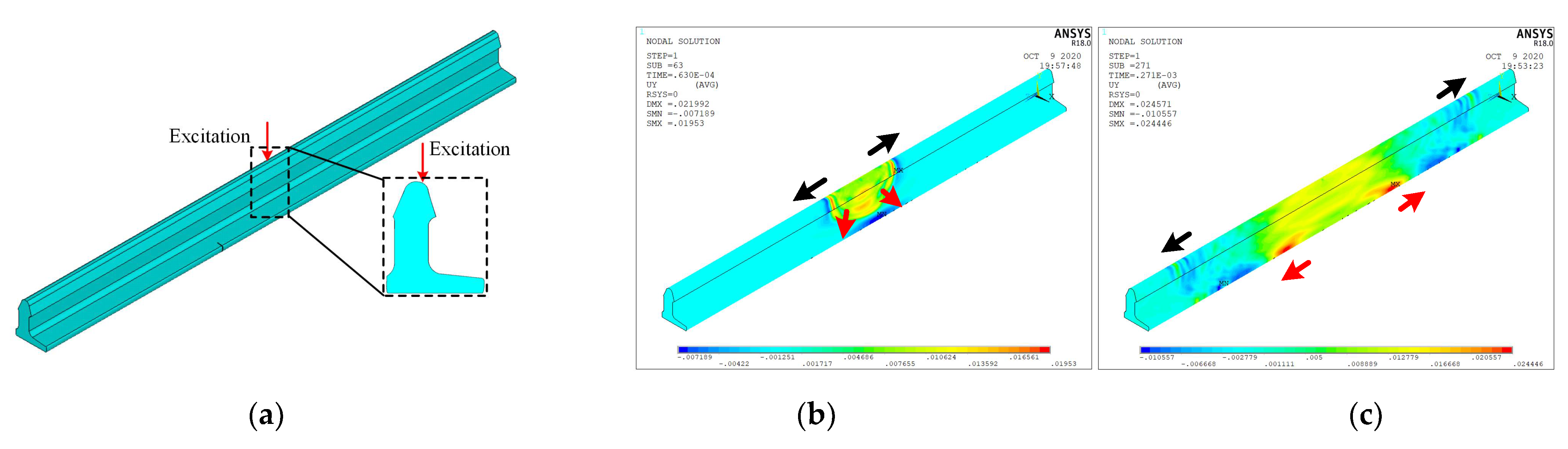

#### 2.3. Optimizing Sensor Arrangements

## 3. Experimental Study and Results

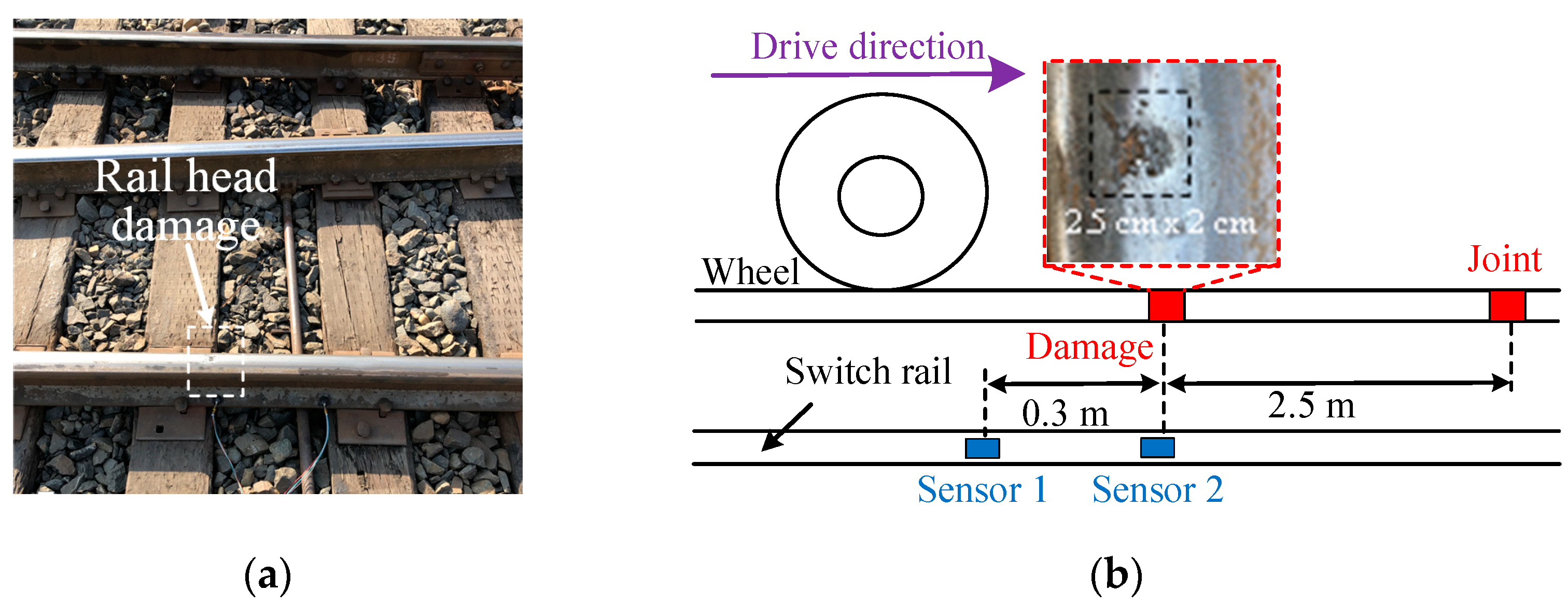

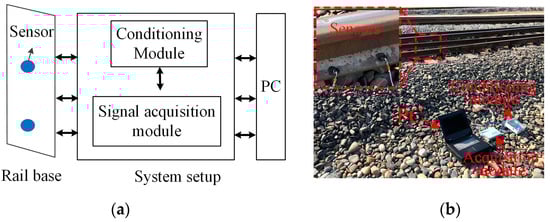

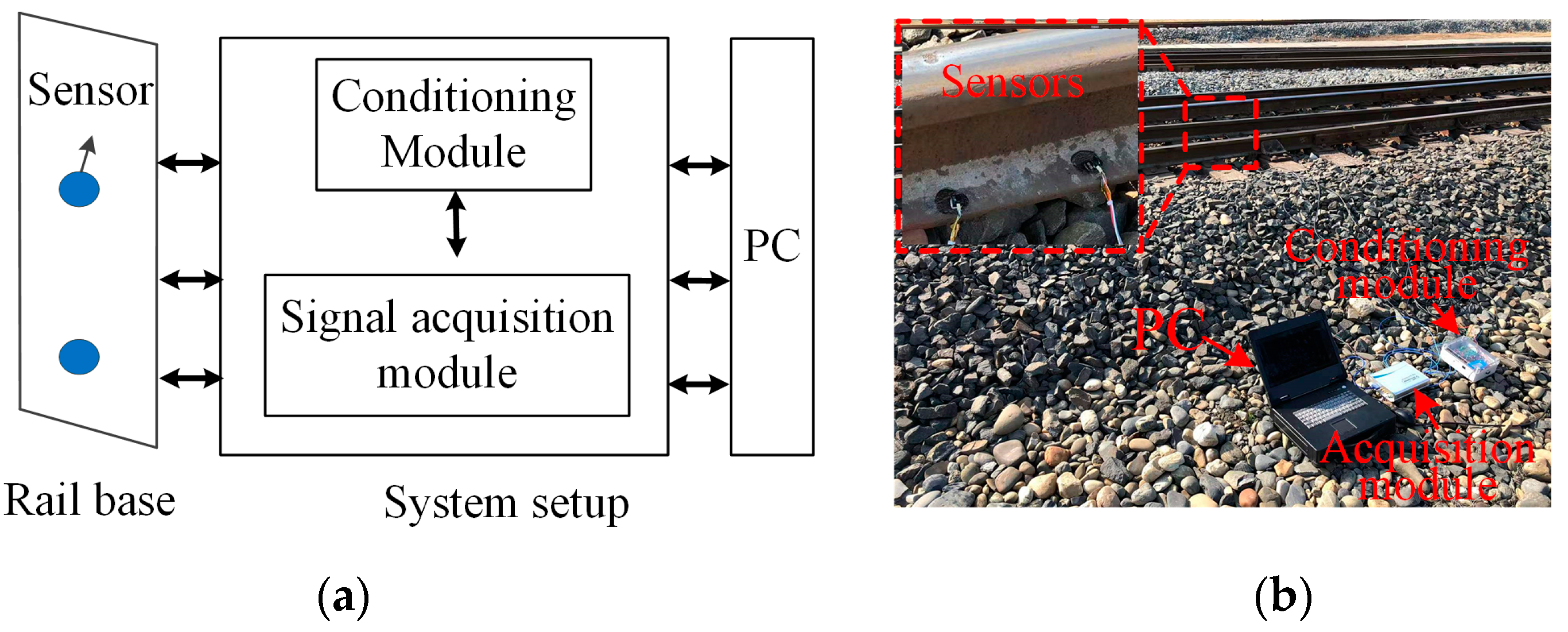

#### 3.1. Experiment Scheme and System

#### 3.2. Determining Passing Time and Correcting Velocity

_{1}–W

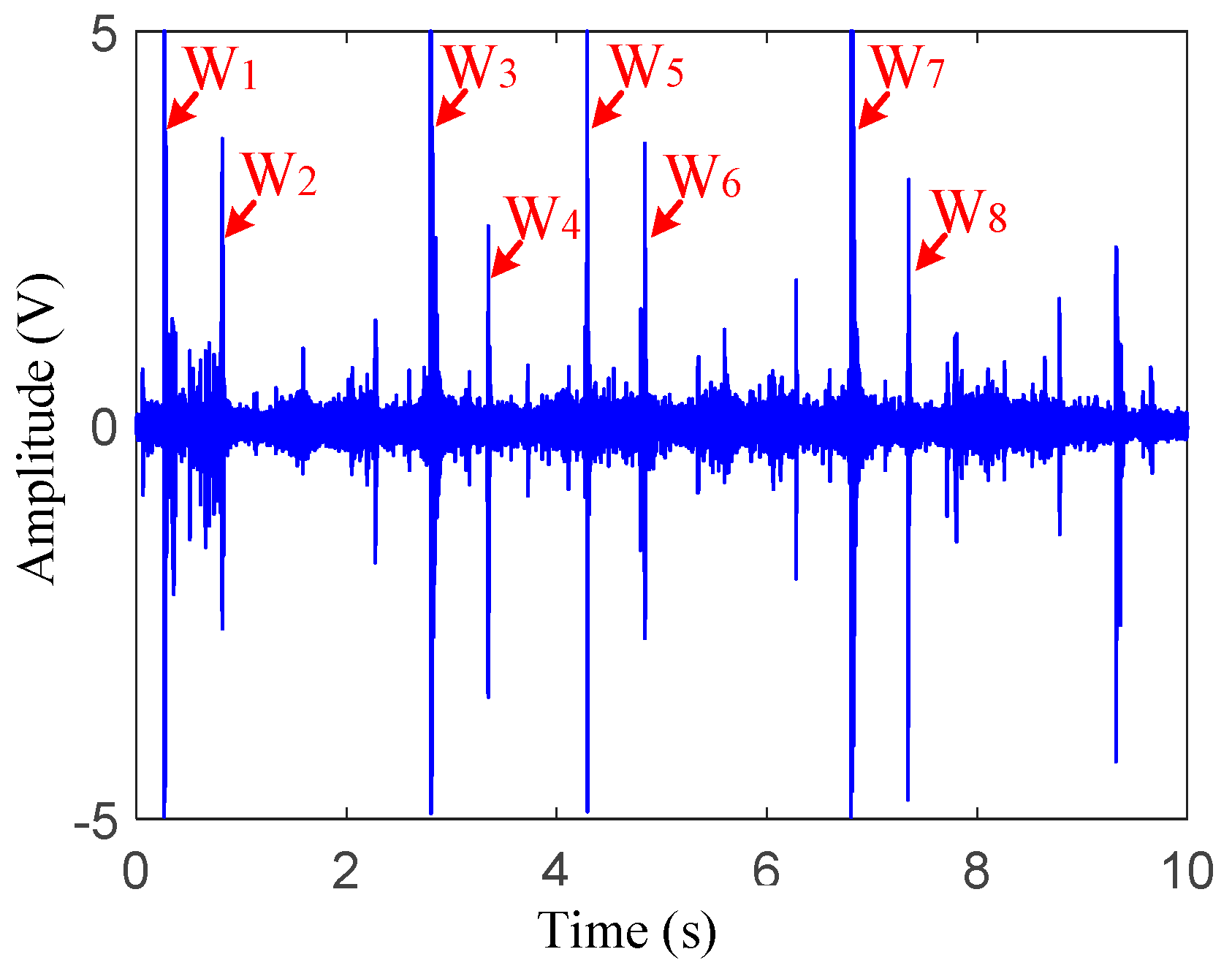

_{8}, respectively, could be observed from raw vibration signals. To determine the distances between each of the two adjacent pulses, the appearance time parameters of W

_{1}–W

_{8}were firstly extracted. Then, based on the preseted 16 km/h velocity, the distances between each two adjacent pulses can be calculated:

_{1}and W

_{2}: $v=2.6\text{}\mathrm{m}\xf70.5478\text{}\mathrm{s}\approx 4.75\text{}\mathrm{m}/\mathrm{s}=17.1\text{}\mathrm{km}/\mathrm{h}$. Then, the distances of ${d}_{{W}_{23}}$-${d}_{{W}_{78}}$ were recalculated and are illustrated in Table 2. Then, they were compared with the distances in Figure 3b. It can be observed from this table that the calculated distances were basically consistent with the actual distances with small errors, which verifies that the eight pulses were caused by the wheel–rail impacts when the vehicle passed the joint.

#### 3.3. Impact Vibration Extraction

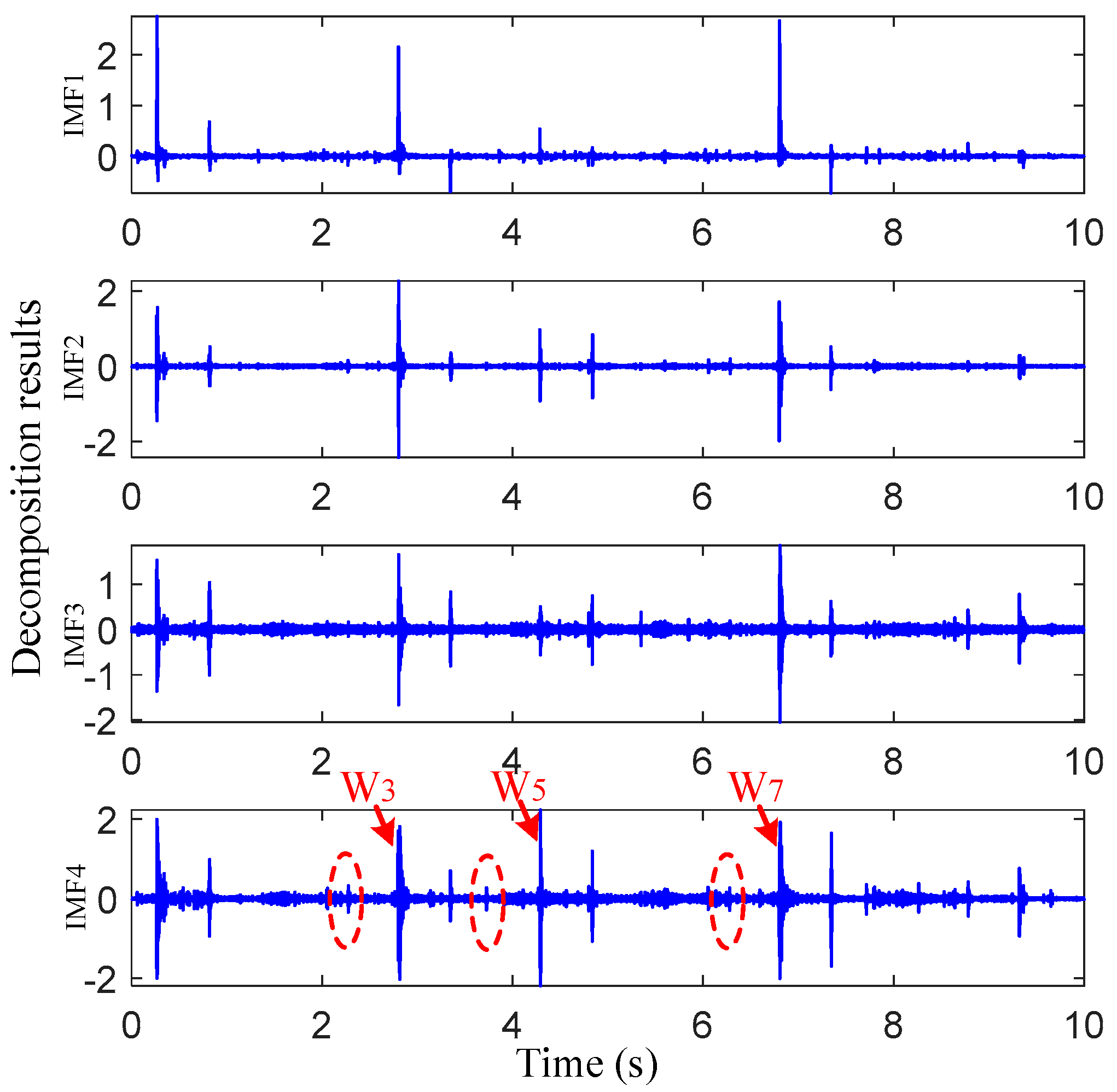

^{−6}and 2–5, respectively. The central frequencies of the different IMF component numbers were calculated and are shown in Table 3. As seen in this table, when the number was two and three, the central frequency difference between the two IMFs was large, which was due to the under decomposition; when the number was five, the center frequencies of IMF3 and IMF4 were close, which was due to the over decomposition. Therefore, the IMF component number was selected as four in this section.

_{3}, W

_{5}and W

_{7}in IMF4, which are marked with red dotted lines. The possible physical meaning is that the impact vibrations were generated at a certain distance from the left side of the joint before the third, fifth and seventh wheelsets passed the switch rail area. This is consistent with the fact that the target damage in Figure 4b was located on the left side of the joint. However, the amplitudes of the three candidate impulses were almost equivalent to those of the background noise. To further extract the candidate impact vibrations, the SS method was applied to denoise the IMF4 component in this section.

_{3}, I

_{5}and I

_{7}, respectively. Then, the distances between I

_{3}-W

_{3}, I

_{5}-W

_{5}and I

_{7}-W

_{7}were calculated with the corrected velocity of 17.1 km/h. The calculated results are shown in the fifth row of Table 4. It can be observed that the distance between the small impulses and the joint was basically consistent with the 2.5 m in Figure 4b. Therefore, we assume that the small impulses were caused by the damage-induced impact vibrations.

_{4}, W

_{6}and W

_{8}. One possible reason for these phenomena is that the distance between each two adjacent wheelsets in a bogie is close to 2.5 m. This leads to the damage-induced impact vibrations with small amplitudes being masked by the joint induced impact vibration with large amplitudes from W

_{3}, W

_{5}and W

_{7}. The other possible reason for these phenomena is the wheel–rail contact states. Under different velocities of the track inspection vehicle, it is impossible to ensure that all wheels have good contact states at the damage and to generate corresponding impact vibrations.

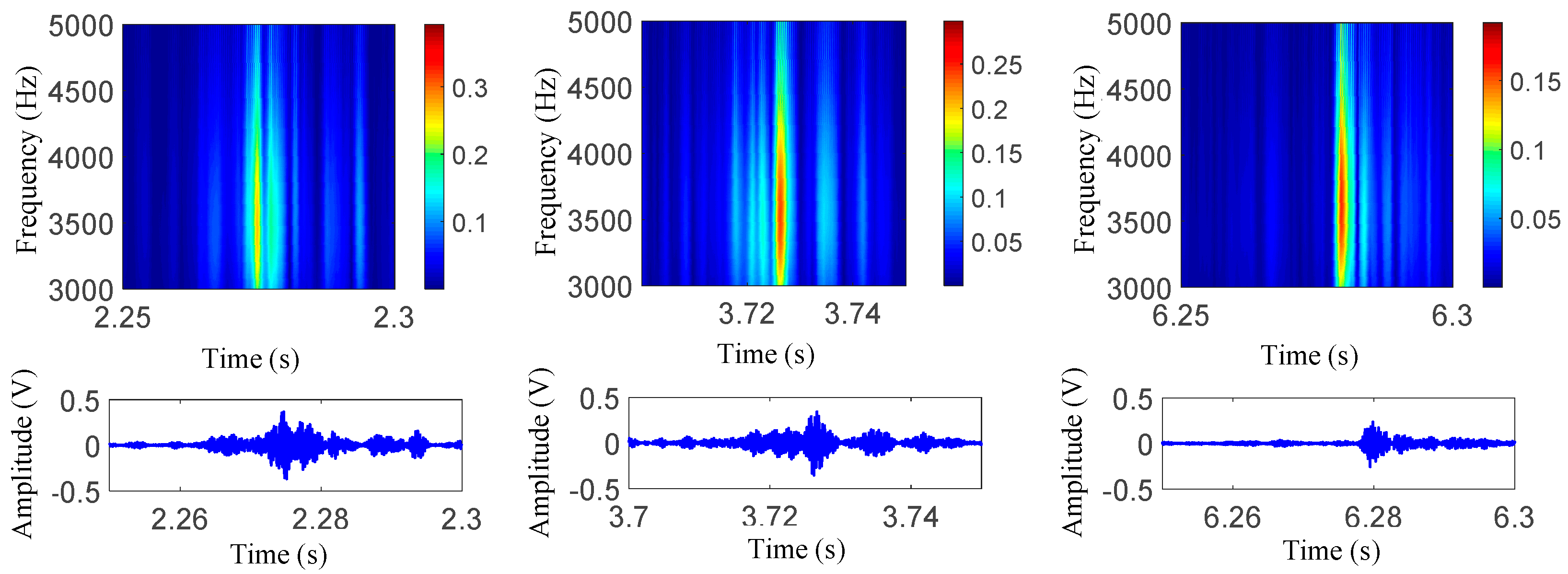

## 4. Influences of Damage Dimensions and Velocities

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Setshedi, I.I.; Loveday, P.W.; Long, C.S.; Wilke, D.N. Estimation of rail properties using semi-analytical finite element models and guided wave ultrasound measurements. Ultrasonics
**2019**, 96, 240–252. [Google Scholar] [CrossRef] - Najeh, T.; Lundberg, J.; Kerrouche, A. Deep-Learning and Vibration-Based System for Wear Size Estimation of Railway Switches and Crossings. Sensors
**2021**, 21, 5217. [Google Scholar] [CrossRef] [PubMed] - Pålsson, B.A.; Nielsen, J.C. Wheel–rail interaction and damage in switches and crossings. Veh. Syst. Dyn.
**2012**, 50, 43–58. [Google Scholar] [CrossRef] - Yang, Y.; Guo, X.; Sun, Y.; Ling, L.; Zhang, T.; Wang, K.; Zhai, W. Non-Hertzian contact analysis of heavy-haul locomotive wheel/rail dynamic interactions under changeable friction conditions. Veh. Syst. Dyn.
**2021**, 60, 2167–2189. [Google Scholar] [CrossRef] - Jing, L.; Wang, K.; Zhai, W. Impact vibration behavior of railway vehicles: A state-of-the-art overview. Acta Mech. Sin.
**2021**, 37, 1193–1221. [Google Scholar] [CrossRef] - Remennikov, A.; Kaewunruen, S. Experimental Investigation on Dynamic Railway Sleeper/Ballast Interaction. Exp. Mech.
**2006**, 46, 57–66. [Google Scholar] [CrossRef] - Hory, C.; Bouillaut, L.; Aknin, P. Time–frequency characterization of rail corrugation under a combined auto-regressive and matched filter scheme. Mech. Syst. Signal Process.
**2012**, 29, 174–186. [Google Scholar] [CrossRef] - Li, Y.; Hu, J.; Ma, B.; Liang, C. Development and verification of hydroelastic model experiment for the flow-induced vibration analysis of roller compacted concrete dam. J. Low Freq. Noise Vib. Act. Control
**2021**, 40, 1907–1926. [Google Scholar] [CrossRef] - Goyal, D.; Pabla, B.S. The Vibration Monitoring Methods and Signal Processing Techniques for Structural Health Monitoring: A Review. Arch. Comput. Methods Eng.
**2016**, 23, 585–594. [Google Scholar] [CrossRef] - Sánchez, R.-V.; Lucero, P.; Macancela, J.-C.; Rubio Alonso, H.; Cerrada, M.; Cabrera, D.; Castejón, C. Evaluation of Time and Frequency Condition Indicators from Vibration Signals for Crack Detection in Railway Axles. Appl. Sci.
**2020**, 10, 4367. [Google Scholar] [CrossRef] - Chen, Z.; Zhai, W.; Wang, K. Vibration feature evolution of locomotive with tooth root crack propagation of gear transmission system. Mech. Syst. Signal Process.
**2019**, 115, 29–44. [Google Scholar] [CrossRef] - Gao, X.; Feng, Q.; Wang, A.; Sheng, X.; Cheng, G. Testing research on frequency-dependent characteristics of dynamic stiffness and damping for high-speed railway fastener. Eng. Fail. Anal.
**2021**, 129, 105689. [Google Scholar] [CrossRef] - Roveri, N.; Carcaterra, A. Damage detection in structures under traveling loads by Hilbert–Huang transform. Mech. Syst. Signal Process.
**2012**, 28, 128–144. [Google Scholar] [CrossRef] - Cantero, D.; Basu, B. Railway infrastructure damage detection using wavelet transformed acceleration response of traversing vehicle. Struct. Control Health Monit.
**2015**, 22, 62–70. [Google Scholar] [CrossRef] - Men, T.; Li, Y.-F.; Ji, Y.; Zhang, X.; Liu, P. Health assessment of high-speed train wheels based on group-profile data. Reliab. Eng. Syst. Saf.
**2022**, 223, 108496. [Google Scholar] [CrossRef] - Mishra, S.; Sharan, P.; Saara, K. Real time implementation of fiber Bragg grating sensor in monitoring flat wheel detection for railways. Eng. Fail. Anal.
**2022**, 138, 106376. [Google Scholar] [CrossRef] - Du, X.; Wang, F. Modal parameter identification under non-stationary ambient excitation based on continuous time AR model. Sci. China Technol. Sci.
**2009**, 52, 3180–3187. [Google Scholar] [CrossRef] - Avci, O.; Abdeljaber, O.; Kiranyaz, S.; Hussein, M.; Gabbouj, M.; Inman, D.J. A review of vibration-based damage detection in civil structures: From traditional methods to Machine Learning and Deep Learning applications. Mech. Syst. Signal Process.
**2021**, 147, 107077. [Google Scholar] [CrossRef] - Hou, R.; Xia, Y. Review on the new development of vibration-based damage identification for civil engineering structures: 2010–2019. J. Sound Vib.
**2021**, 491, 115741. [Google Scholar] [CrossRef] - Li, Z.; He, Y.; Shi, J.; Zhao, Y. Prediction Method of Track Irregularity Based on EMD. In Resilience and Sustainable Transportation Systems; American Society of Civil Engineers: Reston, VA, USA, 2020; pp. 582–591. [Google Scholar] [CrossRef]
- Wang, K.; Hao, Q.; Zhang, X.; Tang, Z.; Wang, Y.; Shen, Y. Blind source extraction of acoustic emission signals for rail cracks based on ensemble empirical mode decomposition and constrained independent component analysis. Measurement
**2020**, 157, 107653. [Google Scholar] [CrossRef] - Du, Y.; Zhang, W.; Zhang, Y.; Gao, Z.; Wang, X. Fault diagnosis of rotating machines for rail vehicles based on local mean decomposition—energy moment—directed acyclic graph support vector machine. Adv. Mech. Eng.
**2016**, 8, 1687814016629345. [Google Scholar] [CrossRef] - Wei, Y.; Li, Y.; Xu, M.; Huang, W. A Review of Early Fault Diagnosis Approaches and Their Applications in Rotating Machinery. Entropy
**2019**, 21, 409. [Google Scholar] [CrossRef] [PubMed] - Zhang, Y.; Li, B.-K.; Li, J.; Xing, Z.-Y. Rail Corrugation Identification Method Based on Parameter optimization VMD and SPWVD. In Proceedings of the 16th International Conference on Networking, Sensing and Control (ICNSC), Banff, AB, Canada, 9–11 May 2019; pp. 110–115. [Google Scholar] [CrossRef]
- Chen, S.; Wang, K.; Chang, C.; Xie, B.; Zhai, W. A two-level adaptive chirp mode decomposition method for the railway wheel flat detection under variable-speed conditions. J. Sound Vib.
**2021**, 498, 115963. [Google Scholar] [CrossRef] - Iglesias-Martínez, M.E.; de Córdoba, P.F.; Antonino-Daviu, J.A.; Conejero, J.A. Detection of nonadjacent rotor faults in induction motors via spectral subtraction and autocorrelation of stray flux signals. IEEE Trans. Ind. Appl.
**2019**, 55, 4585–4594. [Google Scholar] [CrossRef] - Balaji, V.; Maheswaran, S.; Babu, M.R.; Kowsigan, M.; Prabhu, E.; Venkatachalam, K. Combining statistical models using modified spectral subtraction method for embedded system. Microprocess. Microsyst.
**2020**, 73, 102957. [Google Scholar] [CrossRef] - Li, H.; Liu, T.; Wu, X.; Chen, Q. An optimized VMD method and its applications in bearing fault diagnosis. Measurement
**2020**, 166, 108185. [Google Scholar] [CrossRef] - Aghazadeh, F.; Tahan, A.; Thomas, M. Tool condition monitoring using spectral subtraction and convolutional neural networks in milling process. Int. J. Adv. Manuf. Technol.
**2018**, 98, 3217–3227. [Google Scholar] [CrossRef] - Dron, J.; Bolaers, F. Improvement of the sensitivity of the scalar indicators (crest factor, kurtosis) using a de-noising method by spectral subtraction: Application to the detection of defects in ball bearings. J. Sound Vib.
**2004**, 270, 61–73. [Google Scholar] [CrossRef] - Hu, P.; Wang, H.; Tian, G.; Dong, Z.; Qiu, F.; Spencer, B.F. Wireless Localization of Spallings in Switch-Rails With Guided Waves Based on a Time–Frequency Method. IEEE Sens. J.
**2019**, 19, 11050–11062. [Google Scholar] [CrossRef] - Xu, L.; Zhai, W. Stochastic analysis model for vehicle-track coupled systems subject to earthquakes and track random irregularities. J. Sound Vib.
**2017**, 407, 209–225. [Google Scholar] [CrossRef] - Chang, C.; Ling, L.; Chen, S.; Zhai, W.; Wang, K.; Wang, G. Dynamic performance evaluation of an inspection wagon for urban railway tracks. Measurement
**2020**, 170, 108704. [Google Scholar] [CrossRef]

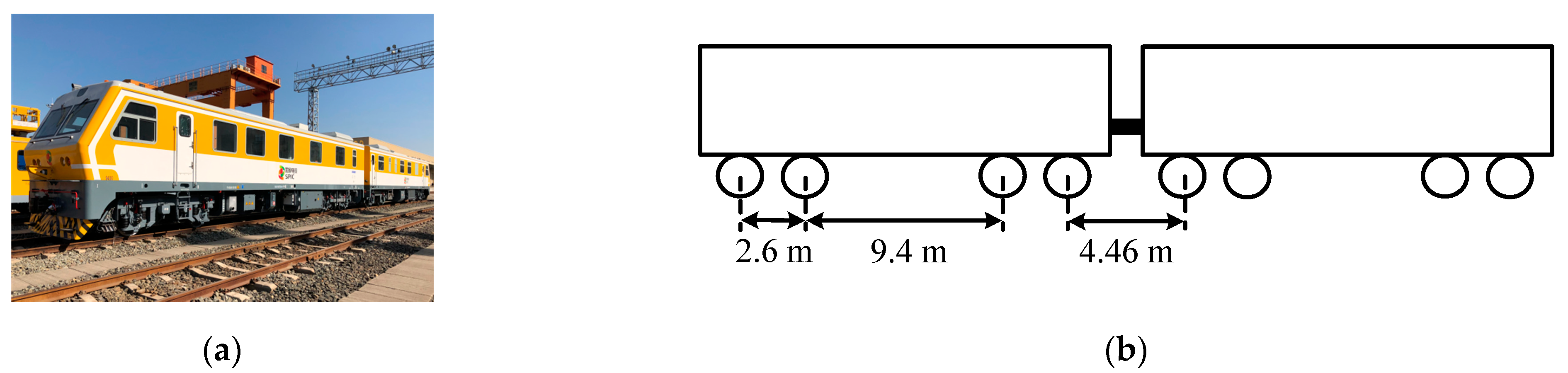

**Figure 3.**The track inspection car and wheelset distances: (

**a**) track inspection car; (

**b**) wheelset distance parameters of track inspection.

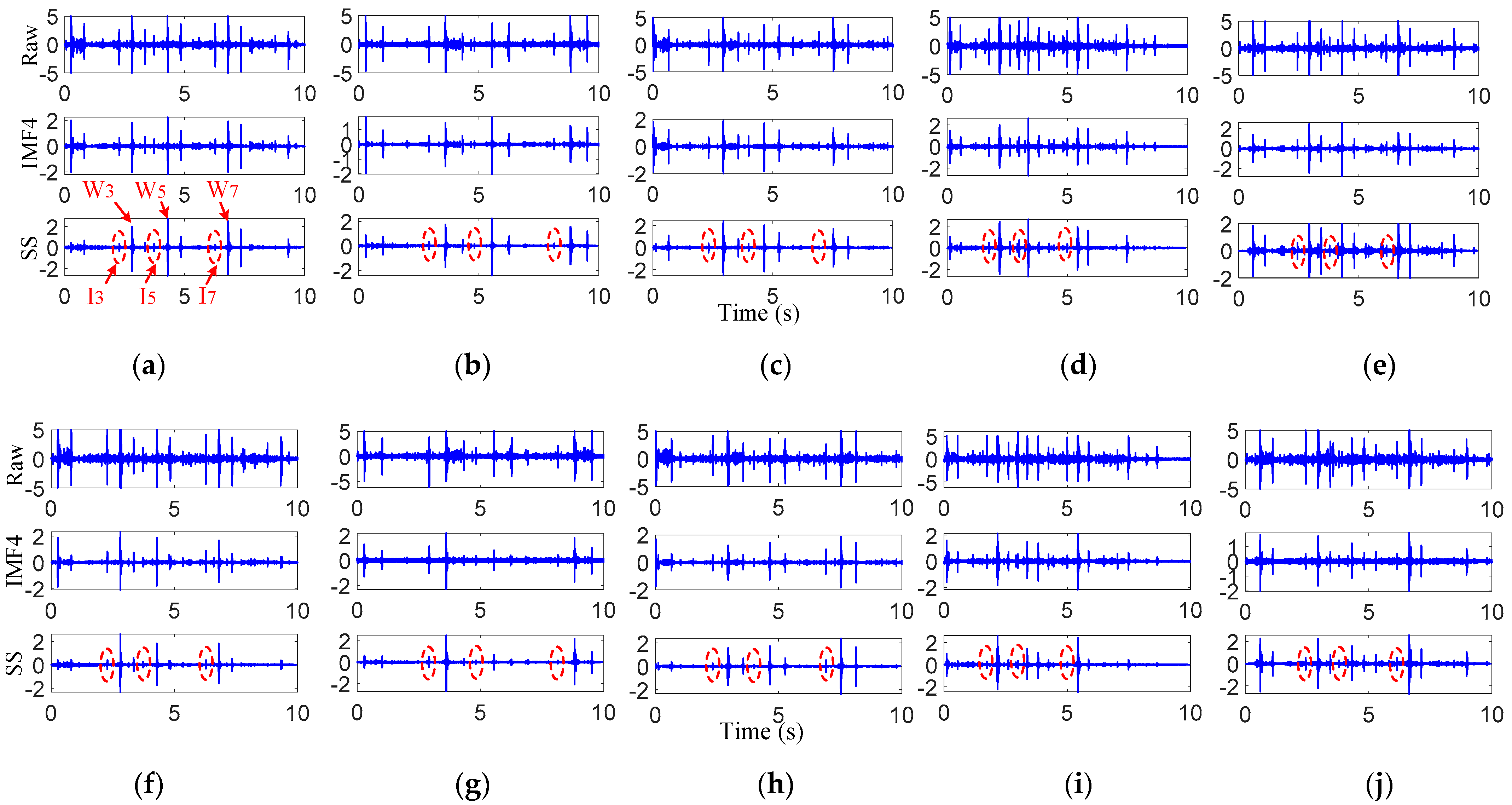

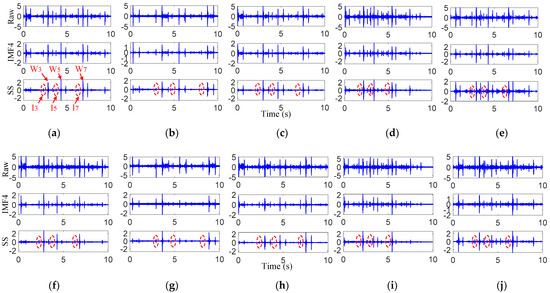

**Figure 8.**Sensor results of different velocity impact vibrations. Sensor 1: (

**a**) 16 km/h, (

**b**) 12 km/h, (

**c**) 14 km/h, (

**d**) 18 km/h, (

**e**) 20 km/h; Sensor 2: (

**f**) 16 km/h, (

**g**) 12 km/h, (

**h**) 14 km/h, (

**i**) 18 km/h, (

**j**) 20 km/h.

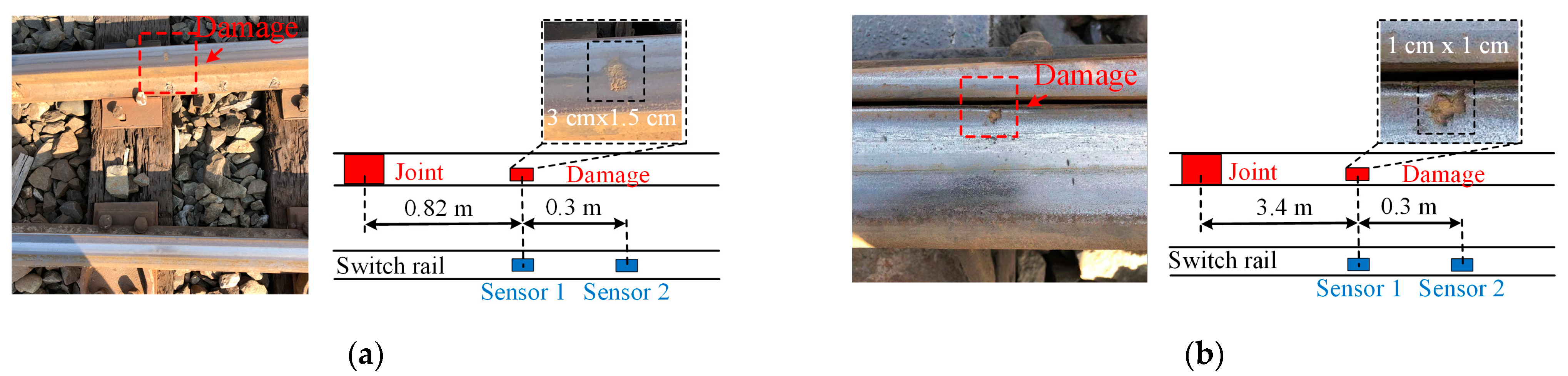

**Figure 9.**The other damage and location parameters: (

**a**) damage 1 and location; (

**b**) damage 2 and location.

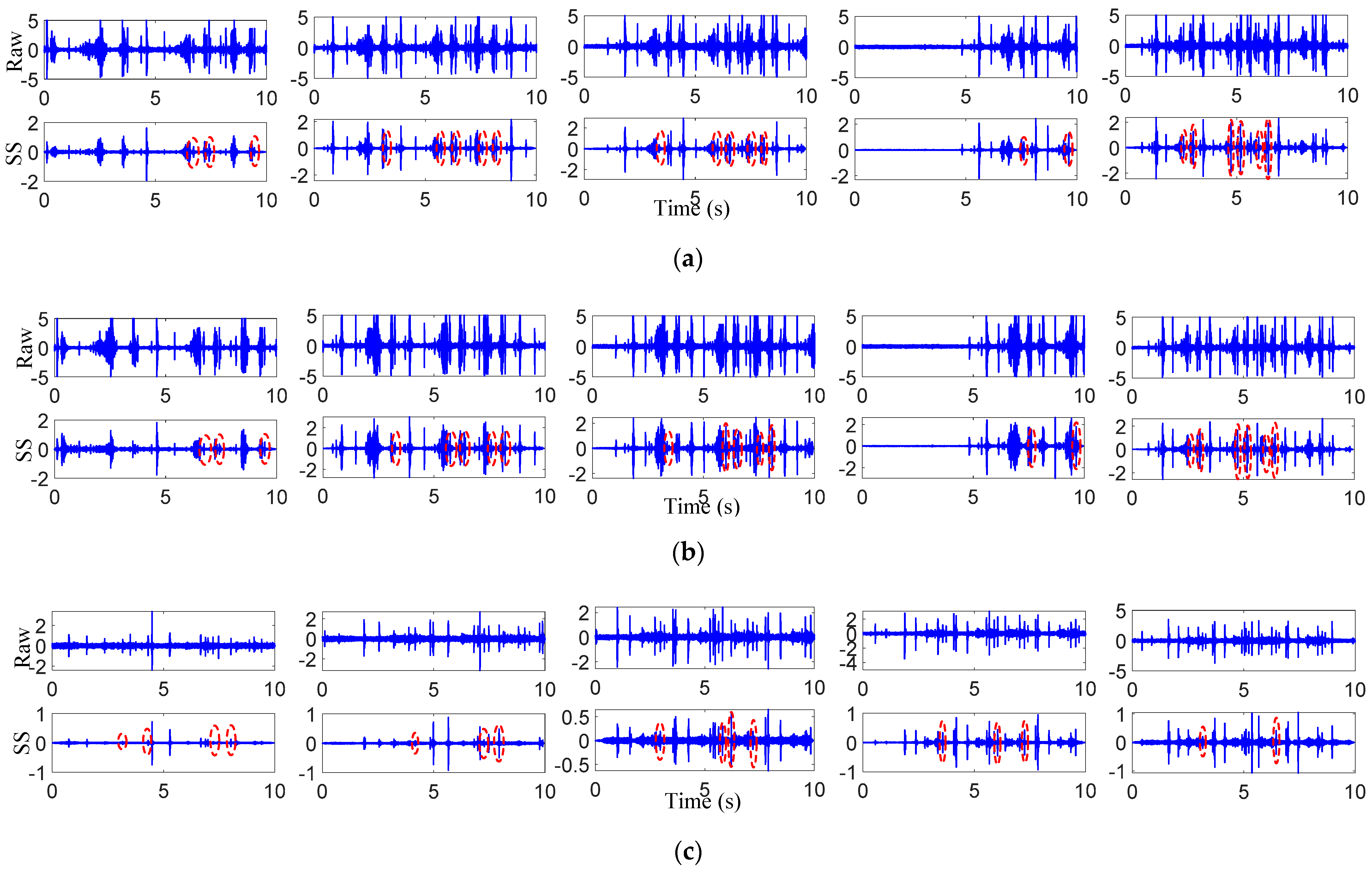

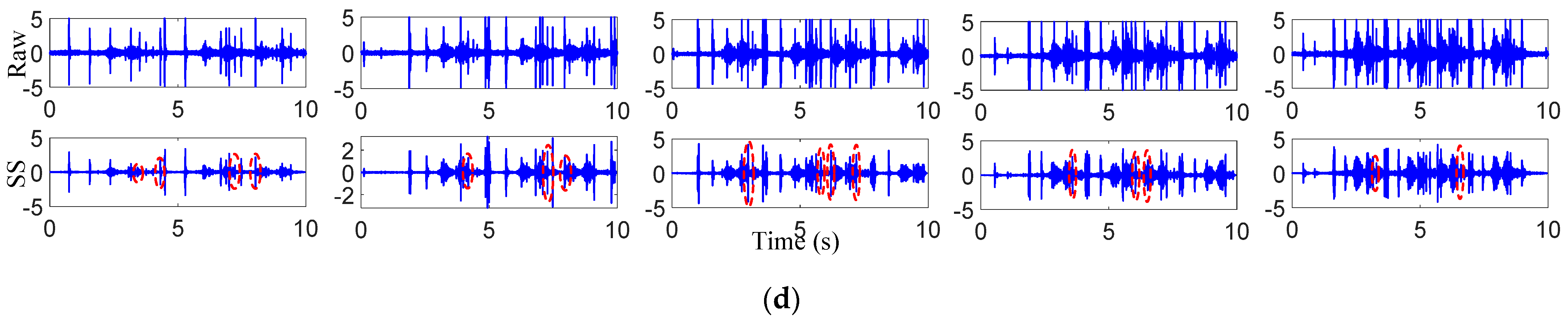

**Figure 10.**Extracted impact vibrations: (

**a**) results of sensor 1 from damage 1; (

**b**) results of sensor 2 from damage 1; (

**c**) results of sensor 1 from damage 2; (

**d**) results of sensor 2 from damage 2.

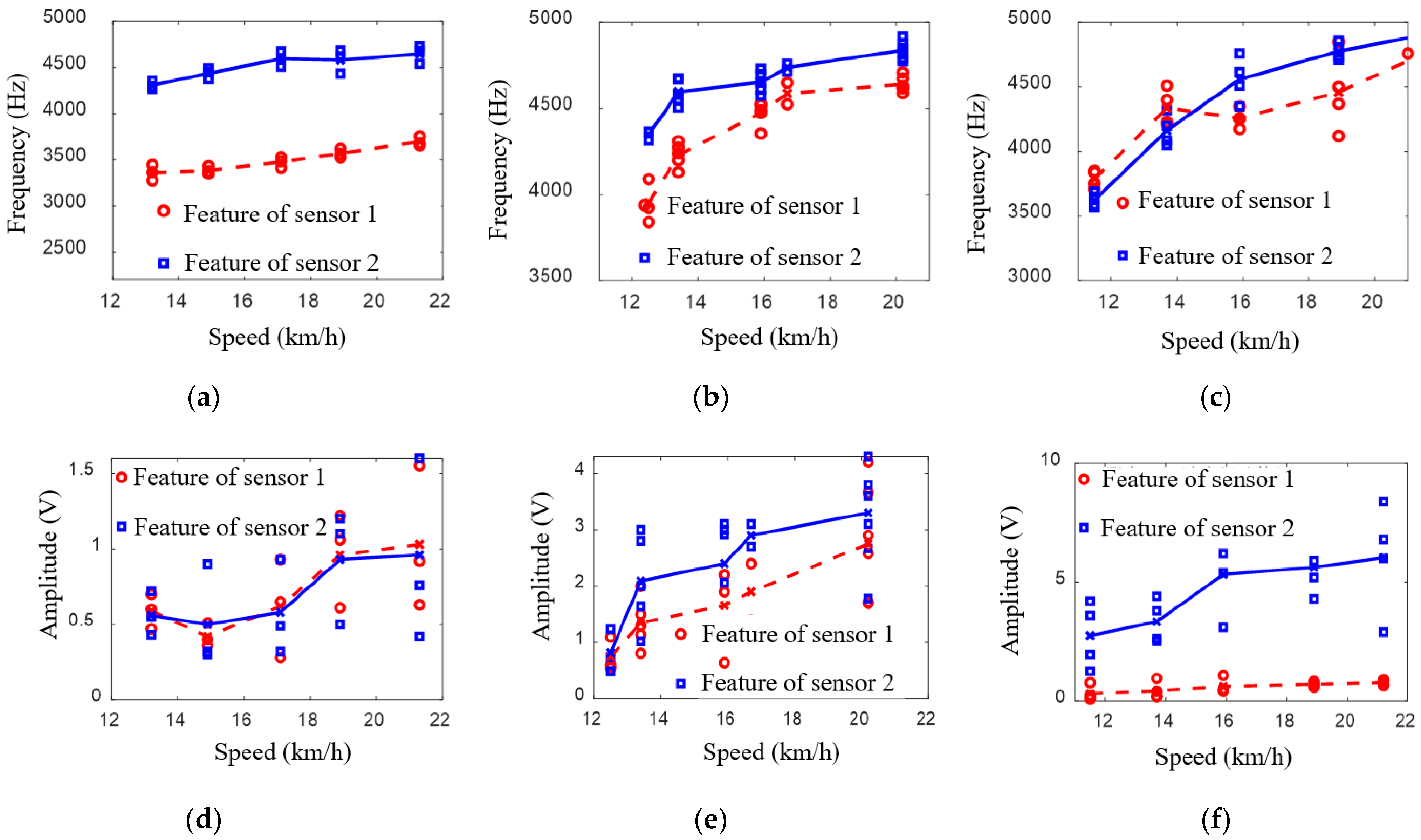

**Figure 12.**Frequency and amplitude features from different damage: (
