Article

In Vivo Multimodal Imaging of Stem Cells Using Nanohybrid Particles Incorporating Quantum Dots and Magnetic Nanoparticles

by
Shota Yamada
1,
Hiroshi Yukawa
2,3,4,5,6,*,
Kaori Yamada
2,
Yuki Murata
7,
Jun-ichiro Jo
7,
Masaya Yamamoto
8,
Ayae Sugawara-Narutaki
1,
Yasuhiko Tabata
7 and
Yoshinobu Baba
2,3,4,6
1
Department of Energy Engineering, Graduate School of Engineering, Nagoya University, Furo-cho, Chikusa-ku, Nagoya 464-8603, Japan
2
Institute of Nano-Life-Systems, Institutes of Innovation for Future Society, Nagoya University, Furo-cho, Chikusa-ku, Nagoya 464-8603, Japan
3
Department of Biomolecular Engineering, Graduate School of Engineering, Nagoya University, Furo-cho, Chikusa-ku, Nagoya 464-8603, Japan
4
Institute for Quantum Life Science, Quantum Life and Medical Science Directorate, National Institutes for Quantum Science and Technology, Anagawa 4-9-1, Inage-ku, Chiba 263-8555, Japan
5
B-3Frontier, Advanced Analytical and Diagnostic Imaging Center (AADIC)/Medical Engineering Unit (MEU), Institute for Advanced Research, Nagoya University, Tsurumai 65, Showa-ku, Nagoya 466-8550, Japan
6
Department of Medical-Engineering Collaboration Supported by SEI Group CSR Foundation, Nagoya University, Tsurumai 65, Showa-ku, Nagoya 466-8550, Japan
7
Department of Regeneration Science and Engineering, Institute for Frontier Life and Medical Sciences, Kyoto University, 53 Kawara-cho Shogoin, Sakyo-ku, Kyoto 606-8507, Japan
8
Department of Metallurgy, Materials Science and Materials Processing, Graduate School of Engineering, Tohoku University, Aoba-yama 02, Aoba-ku, Sendai 980-8579, Japan
*
Author to whom correspondence should be addressed.
Sensors 2022, 22(15), 5705; https://doi.org/10.3390/s22155705
Submission received: 19 July 2022 / Revised: 25 July 2022 / Accepted: 28 July 2022 / Published: 30 July 2022
(This article belongs to the Special Issue Micro/Nano-Devices for Biosensing: From Single Molecule Sensing to Device Applications)
Browse Figures
Review Reports Versions Notes

Abstract

The diagnosis of the dynamics, accumulation, and engraftment of transplanted stem cells in vivo is essential for ensuring the safety and the maximum therapeutic effect of regenerative medicine. However, in vivo imaging technologies for detecting transplanted stem cells are not sufficient at present. We developed nanohybrid particles composed of dendron-baring lipids having two unsaturated bonds (DLU2) molecules, quantum dots (QDs), and magnetic nanoparticles in order to diagnose the dynamics, accumulation, and engraftment of transplanted stem cells, and then addressed the labeling and in vivo fluorescence and magnetic resonance (MR) imaging of stem cells using the nanohybrid particles (DLU2-NPs). Five kinds of DLU2-NPs (DLU2-NPs-1-5) composed of different concentrations of DLU2 molecules, QDs525, QDs605, QDs705, and ATDM were prepared. Adipose tissue-derived stem cells (ASCs) were labeled with DLU2-NPs for 4 h incubation, no cytotoxicity or marked effect on the proliferation ability was observed in ASCs labeled with DLU2-NPs (640- or 320-fold diluted). ASCs labeled with DLU2-NPs (640-fold diluted) were transplanted subcutaneously onto the backs of mice, and the labeled ASCs could be imaged with good contrast using in vivo fluorescence and an MR imaging system. DLU2-NPs may be useful for in vivo multimodal imaging of transplanted stem cells.

1. Introduction

Stem cell transplantation therapy were known as very simple and low invasive medicine in regenerative medicine and could be utilized for treating many serious diseases such as heart, liver, and central nervous system (CNS) disorders. Indeed, stem cell transplantation therapy with somatic stem cells which can transplant with lower invasiveness, such as bone marrow stem cells (BMSCs) [1,2] and adipose tissue-derived stem cells (ASCs) [3,4], has been applied in clinical practice. It is known that the accumulation and engraftment of transplanted stem cells in affected tissues and organs strongly influences the therapeutic efficacy [5,6], and the inflammatory state of the affected tissues and organs is also considered to be similarly affected [7,8,9], but little is known on this subject.
Therefore, in vivo real-time imaging of the kinetics of transplanted stem cell behavior, accumulation, and engraftment is essential to ensure maximum therapeutic safety and efficacy of stem cell transplantation. Several methods have been used in clinical practice, such as X-ray computed tomography (CT) and magnetic resonance imaging (MRI); however, these methods struggle to detect transplanted stem cells with high sensitivity when these modalities are used alone. To overcome these issues, multimodal imaging combining fluorescence imaging (FI) and MRI that can detect the small numbers of transplanted stem cells has been developed and has drawn a great deal of attention [10,11,12].
Quantum dots (QDs) have several outstanding fluorescence properties to conventional organic labels such as a high luminance, resistance to photobleaching (long time labeling), wide range of excitation wavelength, and narrow fluorescence wavelength. In particular, QDs which are water-soluble and emit fluorescence in the near-infrared (NIR) region, have attracted attention for their diagnostic applications in the medical field as useful fluorescent probes [13,14,15,16,17,18,19,20]. We previously developed stem cell labeling technology using QDs and in vivo fluorescence imaging technology of transplanted stem cells labeled with QD [4,21,22,23,24].
Magnetic nanoparticles are known as contrast agents for MRI. Gadolinium (Gd) and superparamagnetic iron oxide (SPIO) nanoparticles are generally used as magnetic nanoparticles in order to increase the contrast of issues in typical imaging studies [25,26,27,28]. Various SPIO nanoparticles have been developed as contrast agents; ferucarbotran (Resovist), an anionic SPIO nanoparticle with a carboxydextran coating, has been successfully applied in the clinical setting as a liver contrast agent [29,30,31,32]. We observed the alkali-treated dextrancoated magnetic iron oxide nanoparticles (ATDM), which are a major component of ferucarbotran (Resovist), and have already applied magnetic nanoparticles to cell labeling and in vivo MRI techniques [33,34].
In this study, we developed nanohybrid particles (DLU2-NPs) composed of DLU2 molecules, three kinds of QDs, and magnetic nanoparticles (ATDM) and addressed the labeling and in vivo fluorescence and MR imaging of transplanted stem cells labeled with the DLU2-NPs.

2. Materials and Methods

2.1. Materials

QDs525, QDs605, QDs705, Hank’s balanced salt solution, phosphate-buffered saline (PBS), Dulbecco’s modified Eagle’s medium and full-length name of F12 (DMEM/F12), penicillin/streptomycin, and HEPES buffer were purchased from Life TechnologiesTM Japan (Tokyo, Japan). Type I collagenase was purchased from Koken Co., Ltd. (Tokyo, Japan). ATDM was purchased from Cosmo Bio® Japan (Tokyo, Japan). Fetal bovine serum (FBS) was purchased from Trace Scientific Ltd. (Melbourne, Australia). Cell Counting Kit-8 (CCK-8) was purchased from DOJINDO Laboratories (Kumamoto, Japan).

2.2. Animals

C57BL/6 mice were purchased from Japan SLC (Hamamatsu, Japan). The mice were kept in a controlled environment (12 h light/dark cycles at 21 °C) with free access to water and a standard chow diet before sacrifice. All conditions and handing of animals in this study were in accordance with the protocols approved by the Nagoya University Committee on Animal Use and Care.

2.3. Isolation and Culture of ASCs

The isolation and culture of ASCs have been reported previously [4]. Female C57BL/6 mice 7–14 months of age were killed by cervical dislocation; adipose tissue specimens in the inguinal groove were isolated and washed extensively with Hank’s balanced salt solution or PBS to remove the blood cells. The isolated adipose tissue specimens were cut finely and digested with 1 mL of 1 mg/mL type I collagenase (274 U/mg) at 37 °C in a shaking water bath for 45 min. The cells were filtrated using 250 µm nylon cell strainers and suspended in DMEM/F12 containing 20% FBS, and 100 U/mL of penicillin/streptomycin (culture medium). They were centrifuged at 1200 rpm for 5 min at room temperature and ASCs were obtained from the pellet. The cells were then washed three times by suspension and centrifugation in culture medium and then were incubated overnight in culture medium at 37 °C with 5% CO2. The primary cells were cultured for several days until they reached confluence and defined as passage “0”. The cells were used for the experiments between passages 2 and 5.

2.4. Preparation of DLU2-NPs

DLU2 was dissolved in chloroform/methanol (1/1, v/v) in a volumetric flask and the concentration of DLU2 was adjusted to 10 mg/mL. DLU2 solution was distilled away under nitrogen purging and dried by vacuum drying. The solutions of QDs525 (100 nM), QDs605 (100 nM), QDs705 (100 nM), and ATDM (500 µg/mL) were added to the lipid film composed of DLU2, and then 10 mM HEPES buffer was added. After sonication of the mixture for 30 min, DLU2-NPs (10 mg/mL of DLU2) were obtained.

2.5. Measurement of Particle Size and Zeta Potential of DLU2-NPs

DLU2-NPs were diluted 1:100 using PBS, and the particle size and zeta potential were measured by dynamic light scattering (DLS) using the Zetasizer Nano ZS (Malvern Instruments, Ltd., Herrenberg, Germany). These measurements were performed at 25 °C.

2.6. Confocal Microscopy Observation of Labeled ASCs

ASCs (1 × 105 cells) were seeded in 35 mm glass-bottom dishes with 200 µL of culture medium for 24 h and that was replaced with 200 µL of DLU2-NPs diluted 640-fold in medium. After incubation for 1 or 4 h, ASCs were washed twice with medium. The labeled ASCs were observed with a high-speed multi-photon confocal laser microscope (A1R MP+; Nikon Corporation, Tokyo, Japan).

2.7. Cytotoxicity of DLU2-NPs to ASCs

ASCs (1 × 104 cells) were seeded in 96-well plates (BD Biosciences) with 100 µL of culture medium that was then replaced with 100 µL of DLU2-NPs diluted 640-, 320-, 160-, 80-, or 40-fold in medium. After incubation for 4 h, ASCs were washed twice with medium. Viable cells were counted by using a CCK-8. CCK-8 reagent (10 µL) was added to each well, and the reaction was allowed to proceed for 1 h. The absorbance of the sample at 450 nm was measured against a background control using a microplate reader (PLARstar OPTIMA, BGM Labtech, Ortenberg, Germany).

2.8. Proliferation test of ASCs Labeled with DLU2-NPs

ASCs (2 × 103 cells) were seeded in 96-well plates and labeled with 100 µL of DLU2-NPs diluted 640- or 320-fold in medium in the same way. After incubation for 4 h, ASCs were washed twice with medium. Viable cells were counted using a CCK-8 in the same way.

2.9. In Vitro Fluorescence and MR Imaging of ASCs Labeled with DLU2-NPs

ASCs were cultured for several days until they reached confluence and then were replaced with 5 mL of DLU2-NPs diluted 640-, 320-, or 160-fold with medium. After incubation for 4 h, ASCs were washed twice with medium and collected in 1.5 mL centrifuge tubes. The fluorescence images of ASCs with DLU2-NPs in 1.5 mL centrifuge tubes were taken using the IVIS Lumina K Series III (PerkinElmer Inc, Waltham, MA, USA; excitation filter: 460–620 nm, emission filter: 520, 570, and 710 nm long-pass). In vitro MR images of ASCs with DLU2-NPs in 1.5 mL centrifuge tubes were taken using the MR VivoLVA (DS Pharma Biomedical Co., Ltd., Osaka, Japan). Regarding the spin echo, the images were obtained with repetition time (TR) = 500.0 ms and echo time (TE) = 9.0 ms, or TR = 2000.0 ms and TE = 69.0 ms and field of view = 60 × 60 mm.

2.10. In Vivo Fluorescence and MR Imaging of ASCs Labeled with DLU2-NPs

ASCs were cultured for several days until they reached confluence, and then were replaced with 5 mL of DLU2-NPs diluted 640- or 320-fold in medium. After incubation for 4 h, ASCs were washed twice. ASCs (3 × 106 cells) labeled with DLU2-NPs with 0.2 mL PBS were transplanted into the space of back subcutaneously of C57BL/6 mice. In vivo fluorescence imaging of ASCs labeled with DLU2-NPs images were taken using the IVIS Lumina K Series III (PerkinElmer Inc.; excitation filter: 500–620 nm, emission filter: 520, 620 and 710 nm long-pass). In vivo MRI were taken using the MR VivoLVA (DS Pharma Biomedical Co.). Regarding the spin echo, the images were obtained with repetition time (TR) = 500.0 ms and echo time (TE) = 9.0 ms, or TR = 2000.0 ms and TE = 69.0 ms and field of view = 60 × 60 mm.

2.11. Statistical Analyses

Numerical values are presented as the mean ± standard deviation (SD). Each experiment was repeated three times. Statistical significance was evaluated using an unpaired Student’s t-test for comparisons between the two groups; p-values < 0.05 were considered statistically significant. All statistical analyses were performed using the SPSS software package.

3. Results and Discussion

3.1. Properties of DLU2-NPs

The schematic diagram of DLU2-NPs composed of three kinds of QDs (QDs525, 605, 705), magnetic nanoparticles (ATDM), and DLU2 molecules is shown in Figure 1a. The chemical structural formula of the DLU2 molecule consisted of a cationic lipid composed of a polyamidoamine dendron and two alkyl chains was shown in Figure 1b.
The two alkyl chains in the DLU2 molecule are said to have a membrane fusion function, and the presence of an unsaturated bond further promotes membrane fusion. These effects are expected to promote the introduction of quantum dots and magnetic nanoparticles in liposomes into cells [23]. The tertiary amino groups of the polyamidoamine dendron have been reported to adsorb protons, thereby reducing the pH endosomes and accelerating the influx of H+ and Cl-, causing Cl- accumulation and permeation swelling/dissolution [35].
The concentrations of DLU2 molecules, QDs, and ATDM contained in DLU2-NPs are shown in Table 1. The distribution of the particle diameter and zeta potential of DLU2-NPs is shown in Figure 1c,d. The average particle diameter and zeta potential of DLU2-NPs were 135.7 nm and 28.7 mV, respectively.

3.2. ASCs labeling by DLU2-NPs

DLU2-NPs were transduced into ASCs for 4 h of incubation at 37 °C (Figure 2a). The morphology and fluorescence images of ASCs were obtained by confocal microscopy. The strong fluorescence derived from QDs525, QDs605, and QDs705 was detected at the same site in the cytoplasm of ASCs (Figure 2b–g). No abnormalities in the morphology of labeled ASCs were observed. These data suggest that ASCs can be labeled with DLU2-NPs by simple culture for 4 h without cytotoxicity.

3.3. Cytotoxicity of DLU2-NPs to ASCs and the Proliferation Rate of ASCs Labeled with DLU2-NPs

To examine the cytotoxicity of DLU2-NPs to ASCs, ASCs were transduced with various concentrations (640-, 320-, 160-, 80-, or 40-fold diluted solution) of DLU2-NPs for 4 h, and ASCs were incubated for 24 h. Significant cytotoxicity was observed in the ASCs labeled with 160-, 80-, and 40-fold-diluted solution of DLU2-NPs; however, no cytotoxicity was observed in the ASCs labeled with 640- and 320-fold- diluted solution of DLU2-NPs (Figure 3a).
The influence of the DLU2-NPs on the proliferation ability of ASCs was also examined at non-cytotoxic concentrations. The proliferation rates of ASCs labeled with DLU2-NPs in non-cytotoxic concentrations were confirmed to be almost equal to that of normal ASCs (Figure 3b). These data suggest that DLU2-NPs have no cytotoxicity and no effect on the proliferation ability of ASCs at 640- and 320-fold-diluted concentrations.

3.4. In Vitro Fluorescence and MR Imaging of ASCs Labeled with DLU2-NPs

To examine the detectable labeling concentration of DLU2-NPs, ASCs labeled with various concentrations of DLU2-NPs were collected in PBS and spun down. The pellets of ASCs in microtubes were then prepared for a fluorescence analysis (Figure 4a). All fluorescence derived from three kinds of QDs (525, 605 and 705) were detected even at 640-fold-diluted concentrations (Figure 4b–d). The ASC pellets were also then prepared for MR imaging in microtubes (Figure 4e). The MR signal of ASCs labeled with DLU2-NPs were detected on T2-weighted imaging even at 640-fold-diluted concentrations (Figure 4f,g). In addition, the MR signal (drawn by yellow dot line) of ASCs labeled with DLU2-NPs was evaluated (Figure 4h). These data suggest that ASCs labeled with DLU2-NPs could be detected with multicolor fluorescence and MR imaging.

3.5. In Vivo Fluorescence and MR Imaging of Transplanted ASCs Labeled with DLU2-NPs

ASCs (3 × 106 cells) labeled with DLU2-NPs were subcutaneously transplanted with PBS onto the back of mice (Figure 5a). All three kinds of QDs (QDs525, QDs605, and QDs705) were observed by in vivo fluorescence imaging system (IVIS Lumina K Series III) (Figure 5b–d). The fluorescence derived from QDs705 was detected with high efficiency, as the fluorescence in the near infrared (NIR) (700–900 nm) known as the biological window. In contrast, the MR signal of ATDM was observed using an in vivo MR imaging system (MR VivoLVA) shown in a yellow-dotted circle (Figure 5e–l). These data suggest that transplanted ASCs labeled with DLU2-NPs in mice could be detected with both fluorescence and MR imaging.

4. Conclusions

In summary, multifunctional nanoparticles (DLU2-NPs) were prepared and examined for their utility in stem cell labeling and in vivo imaging of transplanted stem cells. DLU2-NPs were able to be transduced into ASCs with high efficiency by simple incubation for 4 h. No cytotoxicity of ASCs labeled with DLU2-NPs was noted under certain concentrations of DLU2-NPs. In addition, no effect of DLU2-NPs on the proliferation ability of labeled ASCs was observed. The fluorescence and MR signal of ASCs labeled with DLU2-NPs was detected in vitro. Furthermore, in vivo fluorescence and MR multimodal imaging of transplanted ASCs labeled with DLU2-NPs was achieved using in vivo imaging systems. These data suggest that the development of new multimodal imaging technologies able to detect the dynamics of transplanted stem cells may be imminent.

Author Contributions

Conceptualization, S.Y. and H.Y.; methodology, H.Y.; validation, K.Y.; formal analysis, S.Y., H.Y., K.Y., Y.M. and J.-i.J.; investigation, S.Y., H.Y., K.Y., Y.M. and J.-i.J.; resources, H.Y., Y.T. and Y.B.; data curation, S.Y., H.Y., K.Y., Y.M. and J.-i.J.; writing—original draft preparation, S.Y., H.Y. and K.Y.; writing—review and editing, S.Y., A.S.-N. and H.Y.; visualization, S.Y., H.Y., K.Y., Y.M. and J.-i.J.; supervision, H.Y., J.-i.J., M.Y., A.S.-N., Y.T. and Y.B.; project administration, H.Y.; funding acquisition, H.Y. and Y.B. All authors have read and agreed to the published version of the manuscript.

Funding

This paper was mainly supported by JSPS-KAKENHI (21H05589, 21H04663, 22H03938), MEXT Quantum Leap Flagship Program (MEXT Q-LEAP, JPMXS0120330644), SEI group CSR foundation, and the China Scholarship Council (CSC) (Grant No. 201906920066). A part of this work was supported by the “Advanced Research Infrastructure for Materials and Nanotechnology in Japan (ARIM, Nagoya University)” of MEXT.

Institutional Review Board Statement

The animal study protocol was approved by the Nagoya University Committee on Animal Use and Care (protocol code: M220370-003, date of approval: 31 March 2022).

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available upon request to the corresponding author.

Acknowledgments

We appreciate the help of Yoshimi Kato (Nagoya University) in submitting this paper.

Conflicts of Interest

The authors declare that there are no conflict of interest related to this article.

References

  1. Stamm, C.; Westphal, B.; Kleine, H.-D.; Petzsch, M.; Kittner, C.; Klinge, H.; Schümichen, C.; Nienaber, C.A.; Freund, M.; Steinhoff, G.S. Autologous bone-marrow stem-cell transplantation for myocardial regeneration. Lancet 2003, 361, 45–46. [Google Scholar] [CrossRef]
  2. Theise, N.D.; Badve, S.; Saxena, R.; Henegariu, O.; Sell, S.; Crawford, J.M.; Krause, D.S. Derivation of hepatocytes from bone marrow cells in mice after radiation-induced myeloablation. Hepatology 2000, 31, 235–240. [Google Scholar] [CrossRef] [PubMed]
  3. Banas, A.; Teratani, T.; Yamamoto, Y.; Tokuhara, M.; Takeshita, F.; Osaki, M.; Kato, T.; Okochi, H.; Ochiya, T. Rapid hepatic fate specification of adipose-derived stem cells and their therapeutic potential for liver failure. J. Gastroenterol. Hepatol. 2009, 24, 70–77. [Google Scholar] [CrossRef] [PubMed]
  4. Yukawa, H.; Noguchi, H.; Oishi, K.; Takagi, S.; Hamaguchi, M.; Hamajima, N.; Hayashi, S. Cell transplantation of adipose tissue-derived stem cells in combination with heparin attenuated acute liver failure in mice. Cell Transplant. 2009, 18, 611–618. [Google Scholar] [CrossRef] [PubMed]
  5. Herrera, M.B.; Fonsato, V.; Bruno, S.; Grange, C.; Gilbo, N.; Romagnoli, R.; Tetta, C.; Camussi, G. Human liver stem cells improve liver injury in a model of fulminant liver failure. Hepatology 2013, 57, 311–319. [Google Scholar] [CrossRef] [PubMed]
  6. Ma, H.-C.; Shi, X.-L.; Ren, H.-Z.; Yuan, X.-W.; Ding, Y.-T. Targeted migration of mesenchymal stem cells modified with CXCR4 to acute failing liver improves liver regeneration. World J. Gastroenterol. 2014, 20, 14884–14894. [Google Scholar] [CrossRef] [PubMed]
  7. Yu, Y.; Bi, C.-S.; Wu, R.-X.; Yin, Y.; Zhang, X.-Y.; Lan, P.-H.; Chen, F.-M. Effects of short-term inflammatory and/or hypoxic pretreatments on periodontal ligament stem cells: In vitro and in vivo studies. Cell Tissue Res. 2016, 366, 311–328. [Google Scholar] [CrossRef] [PubMed]
  8. Rustad, K.C.; Gurtner, G.C. Mesenchymal stem cells home to sites of injury and inflammation. Adv. Wound Care (New Rochelle) 2012, 1, 147–152. [Google Scholar] [CrossRef] [PubMed]
  9. Giunti, D.; Parodi, B.; Usai, C.; Vergani, L.; Casazza, S.; Bruzzone, S.; Mancardi, G.; Uccelli, A. Mesenchymal stem cells shape microglia effector functions through the release of CX3CL1. Stem Cells 2012, 30, 2044–2053. [Google Scholar] [CrossRef]
  10. Key, J.; Leary, J.F. Nanoparticles for multimodal in vivo imaging in nanomedicine. Int. J. Nanomed. 2014, 9, 711–726. [Google Scholar]
  11. Hahn, M.A.; Singh, A.K.; Sharma, P.; Brown, S.C.; Moudgil, B.M. Nanoparticles as contrast agents for in-vivo bioimaging: Current status and future perspectives. Anal. Bioanal. Chem. 2011, 399, 3–27. [Google Scholar] [CrossRef] [PubMed]
  12. Cheon, J.; Lee, J.H. Synergistically integrated nanoparticles as multimodal probes for nanobiotechnology. Acc. Chem. Res. 2008, 41, 1630–1640. [Google Scholar] [CrossRef] [PubMed]
  13. Seleverstov, O.; Zabirnyk, O.; Zscharnack, M.; Bulavina, L.; Nowicki, M.; Heinrich, J.-M.; Yezhelyev, M.; Emmrich, F.; O’Regan, R.; Bader, A. Quantum dots for human mesenchymal stem cells labeling. A size-dependent autophagy activation. Nano Lett. 2006, 6, 2826–2832. [Google Scholar] [CrossRef] [PubMed]
  14. Zhang, T.; Stilwell, J.L.; Gerion, D.; Ding, L.; Elboudwarej, O.; Cooke, P.A.; Gray, J.W.; Alivisatos, A.P.; Che, F.F. Cellular effect of high doses of silica-coated quantum dot profiled with high throughput gene expression analysis and high content cellomics measurements. Nano Lett. 2006, 6, 800–808. [Google Scholar] [CrossRef] [PubMed]
  15. Zhang, Y.; He, J.; Wang, P.-N.; Chen, J.-Y.; Lu, Z.-J.; Lu, D.-R.; Guo, J.; Wang, C.-C.; Yang, W.-L. Time-dependent photoluminescence blue shift of the quantum dots in living cells: Effect of oxidation by singlet oxygen. J. Am. Chem. Soc. 2006, 128, 13396–13401. [Google Scholar] [CrossRef] [PubMed]
  16. Hsieh, S.-C.; Wang, F.F.; Lin, C.-F.; Chen, Y.-J.; Hung, S.-C.; Wang, Y.-J. The inhibition of osteogenesis with human bone marrow mesenchymal stem cells by CdSe/ZnS quantum dot labels. Biomaterials 2006, 27, 1656–1664. [Google Scholar] [CrossRef] [PubMed]
  17. Hoshino, A.; Hanaki, K.; Suzuki, K.; Yamamoto, K. Applications of T-lymphoma labeled with fluorescent quantum dots to cell tracing markers in mouse body. Biochem. Biophys. Res. Commun. 2004, 314, 46–53. [Google Scholar] [CrossRef] [PubMed]
  18. Jaiswal, J.K.; Mattoussi, H.; Mauro, J.M.; Simon, S.M. Long-term multiple color imaging of live cells using quantum dot bioconjugates. Nat. Biotechnol. 2003, 21, 47–51. [Google Scholar] [CrossRef] [PubMed]
  19. Michalet, X.; Pinaud, F.F.; Bentolila, L.A.; Tsay, J.M.; Doose, S.; Li, J.J.; Sundaresan, G.; Wu, A.M.; Gambhir, S.S.; Weiss, S. Quantum dots for live cells, in vivo imaging, and diagnostics. Science 2005, 307, 538–544. [Google Scholar] [CrossRef] [PubMed]
  20. Han, H.S.; Han, H.-S.; Niemeyer, E.; Huang, Y.; Kamoun, W.S.; Martin, J.D.; Bhaumik, J.; Chen, Y.; Roberge, S.; Cui, C.; et al. Quantum dot/antibody conjugates for in vivo cytometric imaging in mice. Proc. Natl. Acad. Sci. USA 2005, 112, 1350–1355. [Google Scholar] [CrossRef] [PubMed]
  21. Yukawa, H.; Kagami, Y.; Watanabe, M.; Oishi, K.; Miyamoto, Y.; Okamoto, Y.; Tokeshi, M.; Kaji, N.; Noguchi, H.; Ono, K.; et al. Quantum dots labeling using octa-arginine peptides for imaging of adipose tissue-derived stem cells. Biomaterials 2010, 31, 4094–4103. [Google Scholar] [CrossRef] [PubMed]
  22. Yukawa, H.; Suzuki, K.; Kano, Y.; Yamada, T.; Kaji, N.; Ishikawa, T.; Baba, Y. Induced pluripotent stem cell labeling using quantum dots. Cell Med. 2013, 6, 83–90. [Google Scholar] [CrossRef][Green Version]
  23. Yukawa, H.; Baba, Y. In vivo fluorescence imaging and the diagnosis of stem cells using quantum dots for regenerative medicine. Anal. Chem. 2017, 89, 2671–2681. [Google Scholar] [CrossRef] [PubMed]
  24. Yukawa, H.; Mizufune, S.; Mamori, C.; Kagami, Y.; Oishi, K.; Kaji, N.; Okamoto, Y.; Takeshi, M.; Noguchi, H.; Baba, Y.; et al. Quantum dots for labeling adipose tissue-derived stem cells. Cell Transplant. 2009, 18, 591–599. [Google Scholar] [CrossRef]
  25. Trekker, J.; Leten, C.; Struys, T.; Lazenka, V.V.; Argibay, B.; Micholt, L.; Lambrichts, I.; Roy, W.V.; Lagae, L.; Himmelreich, U. Sensitive in vivo cell detection using size-optimized superparamagnetic nanoparticles. Biomaterials 2014, 35, 1627–1635. [Google Scholar] [CrossRef] [PubMed]
  26. Srivastava, A.K.; Kadayakkara, D.K.; Bar-Shir, A.; Gilad, A.A.; McMahon, M.T.; Bulte, J.W.M. Advances in using MRI probes and sensors for in vivo cell tracking as applied to regenerative medicine. Dis. Models Mech. 2015, 8, 323–336. [Google Scholar] [CrossRef]
  27. Berman, S.M.C.; Walczak, P.; Bulte, J.W.M. Tracking stem cells using magnetic nanoparticles. Nanomed. Nanobiotechnol. 2011, 3, 343–355. [Google Scholar] [CrossRef] [PubMed]
  28. Bulte, J.W.M. In vivo MRI cell tracking: Clinical studies. AJR Am. J. Roentgenol. 2009, 193, 314–325. [Google Scholar] [CrossRef]
  29. Reimer, P.; Rummeny, E.J.; Daldrup, H.E.; Balzer, T.; Tombach, B.; Berns, T.; Peters, P.E. Clinical results with Resovist: A phase 2 clinical trial. Radiology 1995, 195, 489–496. [Google Scholar] [CrossRef] [PubMed]
  30. Saini, S.S.; Stark, D.D.; Hahn, P.F.; Bousquet, J.C.; Introcasso, J.; Wittenberg, J.; Brady, T.J.; Ferrucci, J.T., Jr. Ferrite particles: A superparamagnetic MR contrast agent for enhanced detection of liver carcinoma. Radiology 1987, 162, 217–222. [Google Scholar] [CrossRef]
  31. Ferrucci, J.T.; Stark, D.D. Iron oxide-enhanced MR imaging of the liver and spleen: Review of the first 5 years. AJR Am. J. Roentgenol. 1990, 155, 943–950. [Google Scholar] [CrossRef] [PubMed]
  32. Auer, V.J.; Bucher, J.; Schremmer-Danninger, E.; Paulmurugan, R.; Maechler, P.; Reiser, M.F.; Stangl, M.J.; Berger, F. Non-invasive imaging of ferucarbotran labeled INS-1E cells and rodent islets in vitro and in transplanted diabetic rats. Curr. Pharm. Biotechnol. 2011, 12, 488–496. [Google Scholar] [CrossRef] [PubMed]
  33. Miyamoto, Y.; Koshidaka, Y.; Noguchi, H.; Oishi, K.; Saito, H.; Yukawa, H.; Kaji, N.; Ikeya, T.; Suzuki, S.; Iwata, H.; et al. Observation of positively charged magnetic nanoparticles inside HepG2 spheroids using electron microscopy. Cell Med. 2013, 5, 89–96. [Google Scholar] [CrossRef] [PubMed]
  34. Ogihara, Y.; Yukawa, H.; Onoshima, D.; Baba, Y. Transduction function of a magnetic nanoparticle TMADM for stem-cell imaging with quantum dots. Anal. Sci. 2017, 33, 143–146. [Google Scholar] [CrossRef] [PubMed]
  35. Sonawane, N.D.; Szoka, F.C., Jr.; Verkman, A.S. Chloride accumulation and swelling in endosomes enhances DNA transfer by polyamine-DNA polyplexes. J. Biol. Chem. 2003, 278, 44826–44831. [Google Scholar] [CrossRef]
Sensors 22 05705 g001

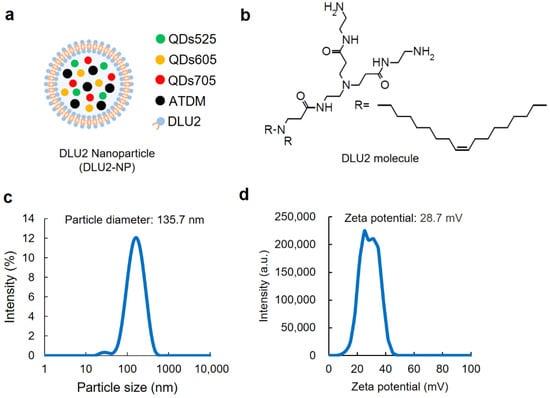

Figure 1. The properties of DLU2-NPs. A schematic diagram of DLU2-NPs (a) and DLU2 molecule (b). The particle diameter (c) and the zeta potential (d) of DLU2-NPs in PBS.

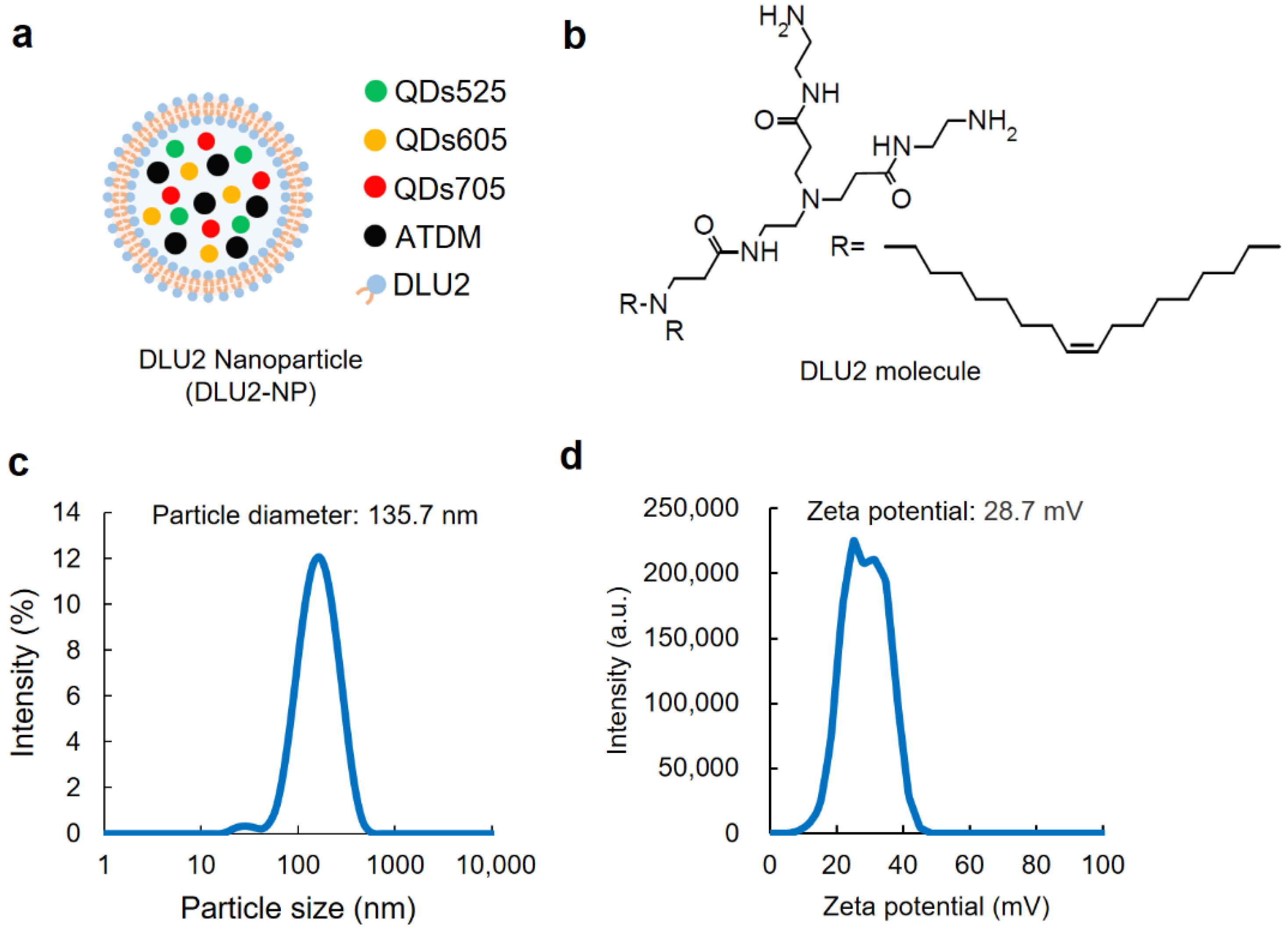

Figure 1. The properties of DLU2-NPs. A schematic diagram of DLU2-NPs (a) and DLU2 molecule (b). The particle diameter (c) and the zeta potential (d) of DLU2-NPs in PBS.
Sensors 22 05705 g001
Sensors 22 05705 g002

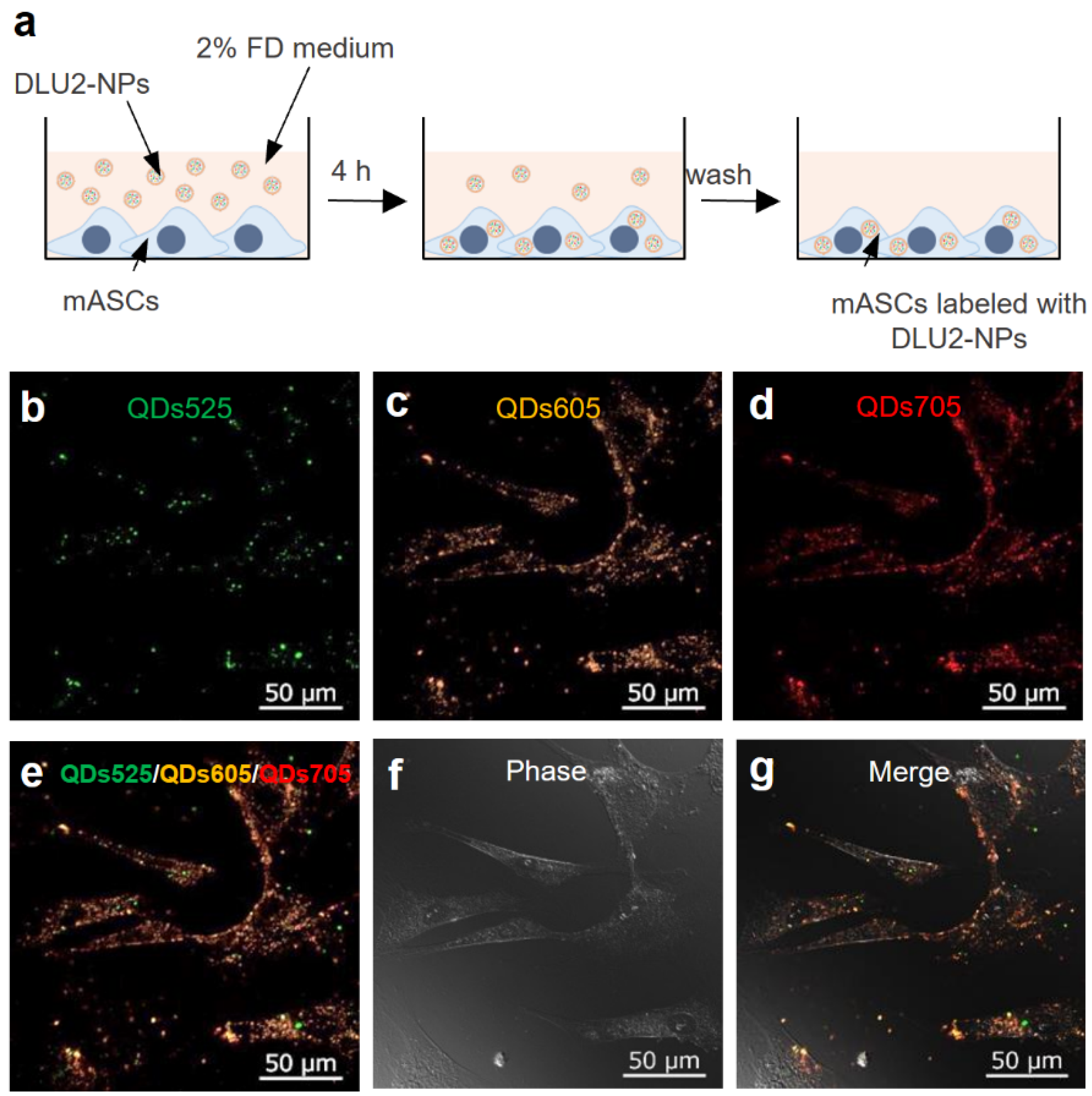

Figure 2. ASCs labeling by DLU2-NPs. A schematic diagram of ASCs labeling by DLU2-NPs (a). The confocal microscope images of ASCs labeled with DLU2-NPs (b–g).
Figure 2. ASCs labeling by DLU2-NPs. A schematic diagram of ASCs labeling by DLU2-NPs (a). The confocal microscope images of ASCs labeled with DLU2-NPs (b–g).
Sensors 22 05705 g002
Sensors 22 05705 g003

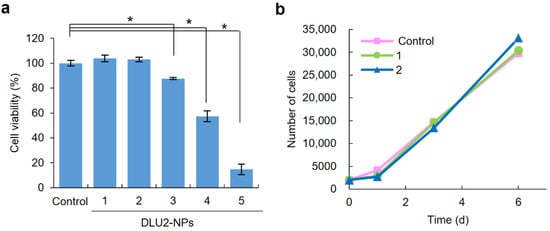

Figure 3. Cytotoxicity of DLU2-NPs to ASCs and the proliferation rate of ASCs labeled with DLU2-NPs. The cytotoxicity of DLU2-NPs (640-, 320-, 160-, 80-, 40-fold-diluted solution of DLU2-NPs) to ASCs (a), and the proliferation rate of ASCs labeled with DLU2-NPs (640-, 320-fold dilute solution of DLU2-NPs) (b). * p < 0.05.
Figure 3. Cytotoxicity of DLU2-NPs to ASCs and the proliferation rate of ASCs labeled with DLU2-NPs. The cytotoxicity of DLU2-NPs (640-, 320-, 160-, 80-, 40-fold-diluted solution of DLU2-NPs) to ASCs (a), and the proliferation rate of ASCs labeled with DLU2-NPs (640-, 320-fold dilute solution of DLU2-NPs) (b). * p < 0.05.
Sensors 22 05705 g003
Sensors 22 05705 g004
Figure 4. In vitro fluorescence and MR imaging of ASCs labeled with DLU2-NPs. In vitro fluorescence images of ASCs (3 × 106 cells) labeled with various concentrations of DLU2-NPs (640, 320, 160-dilute solution), excitation: 460–620 nm, emission: 520–710 nm (a–d). In vitro MR imaging of ASCs labeled with DLU2-NPs (e–h).
Figure 4. In vitro fluorescence and MR imaging of ASCs labeled with DLU2-NPs. In vitro fluorescence images of ASCs (3 × 106 cells) labeled with various concentrations of DLU2-NPs (640, 320, 160-dilute solution), excitation: 460–620 nm, emission: 520–710 nm (a–d). In vitro MR imaging of ASCs labeled with DLU2-NPs (e–h).
Sensors 22 05705 g004
Sensors 22 05705 g005
Figure 5. In vivo fluorescence and MR imaging of ASCs labeled with DLU2-NPs. In vivo fluorescence images of ASCs (3 × 106 cells) labeled with DLU2-NPs (320-dilute solution) after subcutaneous transplantation onto the back of a mouse, excitation: 500–620 nm, emission: 520–710 nm (a–d). In vivo MR images of labeled ASCs, the transversal images of non-labeled ASCs (e,f), labeled ASCs (g,h), the sagittal images (i,j,k,l), T1-weighted image (e,g,i,j), T2-weighted images (f,h,k,l). (j,l) are enlarged images of (i,k). Yellow arrows and dotted circles indicate the locations where ASCs were transplanted.
Figure 5. In vivo fluorescence and MR imaging of ASCs labeled with DLU2-NPs. In vivo fluorescence images of ASCs (3 × 106 cells) labeled with DLU2-NPs (320-dilute solution) after subcutaneous transplantation onto the back of a mouse, excitation: 500–620 nm, emission: 520–710 nm (a–d). In vivo MR images of labeled ASCs, the transversal images of non-labeled ASCs (e,f), labeled ASCs (g,h), the sagittal images (i,j,k,l), T1-weighted image (e,g,i,j), T2-weighted images (f,h,k,l). (j,l) are enlarged images of (i,k). Yellow arrows and dotted circles indicate the locations where ASCs were transplanted.
Sensors 22 05705 g005
Table 1. Information and dilution conditions of DLU2-NPs.
Table 1. Information and dilution conditions of DLU2-NPs.
Dilution
factor		Lipid
(mg/mL)		QDs525
(nM)		QDs605
(nM)		QDs705
(nM)		ATDM
(μg/mL)
Stock
Solution		 10100100100500
16400.0160.160.160.160.78
23200.0310.310.310.311.6
31600.0630.630.630.633.1
4800.131.31.31.36.3
5400.252.52.52.513
