Flexible Recruitments of Fundamental Muscle Synergies in the Trunk and Lower Limbs for Highly Variable Movements and Postures

1
Department of Life Sciences, Graduate School of Arts and Sciences, The University of Tokyo, 3-8-1 Komaba, Meguro, Tokyo 153-8902, Japan
2
Department of Physical Therapy, Tokyo University of Technology, Ota, Tokyo 144-8535, Japan
3
Japan Society for the Promotion of Science, 5-3-1 Kojimachi, Chiyoda, Tokyo 102-0083, Japan
*
Author to whom correspondence should be addressed.
Sensors 2021, 21(18), 6186; https://doi.org/10.3390/s21186186
Submission received: 21 July 2021 / Revised: 8 September 2021 / Accepted: 13 September 2021 / Published: 15 September 2021
(This article belongs to the Special Issue On the Applications of EMG Sensors and Signals)

Abstract

:
The extent to which muscle synergies represent the neural control of human behavior remains unknown. Here, we tested whether certain sets of muscle synergies that are fundamentally necessary across behaviors exist. We measured the electromyographic activities of 26 muscles, including bilateral trunk and lower limb muscles, during 24 locomotion, dynamic and static stability tasks, and we extracted the muscle synergies using non-negative matrix factorization. Our results show that 13 muscle synergies that may have unique functional roles accounted for almost all 24 tasks by combinations of single and/or merging of synergies. Therefore, our results may support the notion of the low dimensionality in motor outputs, in which the central nervous system flexibly recruits fundamental muscle synergies to execute diverse human behaviors. Further studies are required to validate the neural representation of the fundamental components of muscle synergies.

1. Introduction

To execute human movements, the central nervous system (CNS) must control many degrees of freedom from thousands of motor units within hundreds of skeletal muscles [1]. Several studies that applied factorization algorithms to complex muscle activity have identified limited sets of motor modules called muscle synergies [2]. Although the question of whether muscle synergies resulting from matrix factorization represent a neural origin or are merely a numerical artifact is still being debated [3,4], muscle synergy theory assumes that the CNS combines a few activation sets to build muscle activation commands, which simplify the control of movement [5]. Evidence of a limited set of muscle synergies has been found in various human motor behaviors, such as locomotion [6,7,8,9], reaching tasks [10,11], and sports activities [12,13,14].
It has been proposed that muscle synergies are shared across various motor tasks [5,10,15]. Shared synergies facilitate the robustness of the neuromuscular system, which is thought to be beneficial for stable postural control [15,16], development [17], and expert motor skills [18]. In contrast, studies have also discovered the existence of task-specific synergies to meet each biomechanical demand of the motor tasks [19,20]. An experimental study in frogs investigated muscle synergies during natural behaviors such as walking, jumping, and swimming, indicating that each motor behavior is the consequence of a combination of both synergies shared between behaviors and synergies specific to each or a few behaviors [21].
While the low dimensionality and robustness of muscle synergy models account for the advantages of redundant control of movement, the flexibility of combining muscle synergies to adapt to various mechanical demands is also considered necessary to achieve efficient movement execution [18,22,23]. A study found that during isometric force generation, six global muscle synergies extracted from pooled EMG datasets with various joint angles, directions, and force intensities were selectively recruited and changed during peak activation patterns depending on different conditions [22]. In this study, several forms of the merging of global synergies were identified, which may contribute to stabilizing force generation [22]. Furthermore, other studies found that all three muscle synergies for cycling can be well reconstructed by merging muscle synergies extracted from walking with the best reconstruction value found for higher speeds [23] and that specific merging patterns correlate with an increase in running efficiency, while other merging synergies correlate with decreased running efficiency [18]. Thus, the interpretation of the existing literature suggests that the CNS may flexibly select appropriate subsets of muscle synergies, either independently or merged, from a large set that is established to execute motor tasks [10,23,24]. Although a substantial number of in-born and learned human movements and postures share some common control variable of importance even if the tasks have some distinct biomechanical features [25], muscle synergies extracted from a diverse range of behaviors have not been comprehensively investigated.
The aim of the present study was to test the hypothesis that different subsets of muscle synergies are used in a variety of movement and postural tasks. To test this hypothesis, we first extracted muscle synergies from an EMG recording dataset made from 24 motor tasks based on the assumption that these muscle synergies represent the basic units for explaining 24 motor tasks that share common neuromechanical requirements such as supporting the body and maintaining balance statically, dynamically, and during locomotion [25,26]. We then examined whether combinations of these synergies explain each motor task.

2. Materials and Methods

2.1. Experimental Protocol

Ten healthy volunteers (aged 21–35 years, all men) participated in the study. Each participant provided written informed consent for participation in the study. The study was conducted in accordance with the Declaration of Helsinki and was approved by the local ethics committee of the University of Tokyo.
We focused on fundamental movement and postural tasks that serve as the building blocks for efficient and effective execution of a variety of daily-living activities and high-skilled performances, such as sports [25,27,28]. Specifically, we used tasks that required movements through space (locomotion) and controls against gravity (stability) in any plane [25]. Thus, all participants were asked to perform the 24 tasks described in Table 1.
Table S1 presents the details of each movement and postural task. The order of tasks was randomly assigned.

2.2. Data Collection

EMG activity was recorded from the following 26 muscles distributed across the trunk and lower limbs (13 bilateral muscles): tibialis anterior (TA), gastrocnemius medialis (MG), vastus medialis (VM), rectus femoris (RF), biceps femoris (long head, BF), gluteus maximus (GM), gluteus medius (Gmed), rectus abdominis (RA), oblique externus (OE), erector spinae at L2 (ESL2), erector spinae at Th9 (EST9), erector spinae at Th1 (EST1), and latissimus dorsi (LD). EMG activity was recorded using a wireless EMG system (Trigno Wireless System; DELSYS, Boston, MA, USA). The EMG signals were bandpass filtered (20–450 Hz), amplified (with a 300-gain preamplifier), and sampled at 1000 Hz. Three-dimensional ground reaction force (GRF) data were recorded at 1000 Hz from the force plates under each belt of the treadmill. GRF data were used to define each trial/stride data point in the walking and running tasks (i.e., the period between the initial right foot contact and the next right foot contact). We also used an electrical trigger to define each trial of the other tasks as the period between the start and end of the movement. The starting point was initiated with the verbal cue ‘go’ with the electrical trigger manually pressed once by the examiner. After participants completed the tasks and returned to a resting posture for about 1 s, the end of the movement was indicated by a 1-second verbal cue ‘end’ with the electrical trigger pressed twice.

2.3. EMG Processing

The low-pass cut-off frequency influences the smoothing of EMG patterns and thus impacts the number of extracted modules [29]. To adequately compare EMG envelopes (i.e., EMG patterns with the same smoothing) of movements performed for various tasks that had different features of dynamic activities, the low-pass cut-off frequency had to be adjusted for each task. Thus, an iterative adaptive algorithm was used to extract the optimal EMG envelopes [30]. This algorithm utilized information theory to find a sample-by-sample optimal root-mean-square window for envelope estimation [30]. The algorithm allowed the filter to adequately follow fast changes in EMG activity while maintaining optimal extraction when the EMG amplitude was changing slowly [30]. A previous study used this algorithm and successfully reconstructed muscle synergies during walking in individuals with and without transfemoral amputation [31]. The smoothed EMG envelopes were time-interpolated to generate 200 time points for each trial, except for the right and left single-leg stance tasks, where the period of 15 s was time-interpolated to generate 1400 timepoints.
We created the following two types of EMG matrices for each subject to examine the repertoire of fundamental muscle synergies that could explain all datasets and how these synergies are combined in each task. Similar to previous studies [10,22,32], we pooled the EMG matrices of all 24 tasks to create an “all-task” EMG matrix for each subject (i.e., the matrix was composed of the 26 muscles × the summation of time points of the 24 single-task EMG matrices) to extract fundamental muscle synergies across all tasks. We also created a “single-task” EMG matrix composed of the 26 muscles × 1400 timepoints (seven trials × 200 timepoints for each task other than the right and left single-leg stance tasks) for each of the 24 tasks to extract muscle synergies.

2.4. Muscle Synergy Analysis

In our analysis, we first identified the muscle synergies of each task for each subject using a factorization algorithm of single-task EMG matrices, and then synergies of all tasks were extracted from all-task EMG matrices using the same algorithm. We then proceeded to characterize representative muscle synergies of individual tasks and all tasks across all participants using a hierarchical clustering algorithm. Lastly, we analyzed the similarity between synergy cluster centroids of each individual task and single or merged synergies of the all-task matrix to investigate how muscle synergies utilized by all tasks contribute to the execution of each individual movement.
To explore muscle synergies, nonnegative matrix factorization (NMF) was used for each subject from the single-task EMG matrices and the all-task EMG matrix. NMF has previously been described as a linear decomposition technique [33,34] according to Equation (1):
M = W · C + e
where M (m × t matrix, where m is the number of muscles and t is the number of samples, i.e., the spatiotemporal profiles of muscle activity) is a linear combination of the following muscle weighting components: W (m × n matrix, where n is the number of muscle synergies) and C (n × t matrix, representing temporal pattern components). e is the residual error matrix. Each EMG vector in the matrix corresponding to each muscle activity was normalized to the maximum amplitude across all tasks so that all muscle scales ranged from 0 to 1. Prior to extracting muscle synergies, each muscle vector in the data matrix was standardized to have unit variance, thus ensuring that the activity in all muscles was equally weighted. However, after each synergy extraction, the unit variance scaling was removed from the data so that each muscle variable ranged from 0 to 1 for data inspection and interpretation [35]. To determine the number of muscle synergies, NMF was applied to extract each possible n from 1 to 26 from each dataset. The variance accounted for (VAF) by the reconstructed EMG (M) was calculated at each iteration to extract the optimal number of muscle synergies. VAF was defined as a 100 × square of the uncentered Pearson’s correlation coefficient [36,37]. To prevent the extracted synergies from assuming a suboptimal local minimum, each synergy extraction was repeated 100 times. Thus, the iteration with the highest VAF was maintained [8]. We defined the optimal number n as the number fulfilling the following two criteria: First, n was selected as the smallest number of modules that accounted for >90% of the VAF [36]. Second, n was the smallest number to which adding another module did not increase VAF by >5% [38].

2.5. Clustering the Modules across Participants

We identified the representative synergy vectors across participants using hierarchical clustering analysis (Ward’s method, Euclidian distance) of muscle synergies for each task and all tasks [8,39]. The optimal number of clusters was determined using the gap statistic [40]. Subsequently, the muscle synergies in each cluster were averaged across participants. To assess variability, we calculated the degree of similarity within each cluster to measure the consistency of each extracted cluster [10]. Here, we assessed similarity by averaging the values of all the pairwise scalar products (SPs) between the muscle synergies of each cluster.

2.6. Contributions of the Muscle Synergy of All Tasks to the Execution of Each Task

To explore whether the muscle synergy defined by the all-task matrix contributes to executing each task of movements and postures, the similarity between muscle synergies of single-task and all-task matrices was quantified by using the SP between these centroids of the synergy clusters (normalized to unit vectors). For every comparison, each of the synergy cluster centroids of all-task was matched to a synergy cluster centroid of each task by maximizing the total scalar product values. Synergy clusters that could not be matched with SP ≥ 0.75, were classified as unmatched [41].

2.7. Contributions of Merging Muscle Synergy of All Tasks towards Single-Task Execution

We also expected that all-task muscle synergies can be merged to execute each single task of movement and posture [40]. Thus, the merged synergies as a linear combination of the contributing synergies were modeled by the following formula [18,41]:
W k i = 0 N b D i W i ,   k = 1 , ,   n b
where Wk is the kth muscle synergy vector from each individual task, Wi is the ith muscle synergy vector derived from an all-task matrix, Nb is the number of synergies that contribute to the merging, and Di is a non-negative coefficient that scales the ith synergy in the merging. Di was obtained from a non-negative least-squares fit, implemented using MATLAB (function lsqnonneg). Wk and Wi were normalized as unit vectors. Following criteria from previous studies [18,41], the synergy merging was identified when Nb ≥ 2, Di ≥ 0.2 for all i, and the SP between i = 0 N b D i W i and Wk was ≥0.75.
To assess whether the synergies from each task can be explained as merging of synergies from all tasks, we first identified the synergy cluster centroids of single-task and synergies of the all-task (described above) and reconstructed each synergy cluster centroid of each individual task by merging every possible combination of the synergy cluster centroids of all tasks.

3. Results

3.1. Muscle Synergies Extracted from All-Task EMG Matrices

All of the muscle activity was accounted for by 10.6 ± 1.58 muscle synergies of all-task EMG matrices, and the mean VAF was 0.91 ± 0.001 in ten participants. Figure 1 presents 13 muscle synergies of an all-task matrix incorporating 24 trunk and lower limb movement tasks (W1 to W13), which were grouped by cluster analysis across participants, Table 2 presents the degree of similarity within each synergy cluster of all tasks, and Table 3 summarizes the characteristics of the muscle synergies.
Visual inspection revealed that muscle synergies W1 to W5 were largely composed of the right-side muscles, while muscle synergies W6 to W10 were mainly composed of the left-side muscles. Thus, we categorized W1 to W5 as muscle synergies with right-side dominant patterns and W6 to W10 as muscle synergies with left-side dominant patterns. The following pairs showed high similarity when the muscles in W6 to W10 were reordered so that muscles on the left side of W6 to W10 corresponded to the same muscles on the right side of W1 to W5: W1 and W6 (SP = 0.93), W2 and W7 (SP = 0.97), W3 and W8 (SP = 0.97), W4 and W9 (SP = 0.85), W5, and W10 (SP = 0.93). Others, such as W11, W12, and W13, were categorized as bilateral patterns.

3.2. Relationship between Muscle Synergies Extracted from All-Task EMG Matrices and Those Extracted from Single-Task Matrices

For each task, two to four synergy clusters were identified using cluster analysis. Variability in the number of muscle synergies and VAF in subjects, and the degree of similarity within each synergy cluster of each task are presented in Table S2. Table 4 presents the number of muscle synergies in each task, which were well explained (SP > 0.75) by independent and merged muscle synergies from the all-task EMG matrices.
Of note, all synergies of each task except the one for the left single-leg stance could be explained by either single or linear combination of multiple synergies from the all-task EMG matrices (SP > 0.75). The details of the contributions of muscle synergies of all tasks to each task execution are presented in Table S3.
Figure 2 and Figure 3 present examples of relationships between muscle synergies from the all-task EMG matrices and those from the single-task EMG matrices: locomotion tasks including walking, running, bilateral jump and sit-to-stand-to-sit (Figure 2), and stability tasks including left lunge, cat-and-dog, forward bend, and left rotation (Figure 3).
The relationships between muscle synergies from the all-task EMG matrices and those from the other single-task EMG matrices are shown in Figures S1 and S2.

4. Discussion

Several studies have investigated shared or merged muscle synergies across different tasks, such as walking and running [8,42], walking and cycling [23], various directions of reaching [10,11] and stepping and non-stepping postural controls [35]. Their results indicated that different human behaviors use the fundamental motor modules that reflect the functional control units as a neural constraint on motor outputs. However, the extent to which muscle synergies represent the control of diverse human behaviors has not been comprehensively investigated in previous studies. In our study, we extracted muscle synergies from a large set of EMG (26 muscles) activities across bilateral locations of the trunk and lower limbs during 24 locomotion and stability tasks that were fundamental for a variety of physical activities. We found that 13 clusters of fundamental muscle synergies accounted for almost all synergy clusters of each of the 24 tasks. When we compared the synergy clusters extracted from individual tasks across participants, we found a high similarity (SP > 0.75) of a single or multiple linear combinations from the 13 fundamental muscle synergy clusters extracted from all tasks across participants. Although the question of whether muscle synergies derived from factorization algorithms are of neural origin is still controversial, some recent empirical studies using methods such as probing into neuroanatomical substrates [43] and stimulating the CNS [44] have provide direct evidence that muscle synergies observed in motor behaviors may have cortical and subcortical neural underpinnings [45]. In the following sections, we discuss the possible neural mechanism underlying a diverse set of human behaviors based on the assumptions that muscle synergies represent motor modules to coordinate patterns utilized by the CNS [45].

4.1. Characteristics of Muscle Synergies across 24 Tasks

We applied cluster analysis to the muscle synergies from the all-task EMG matrix across participants and identified 13 synergy clusters. As shown in Table 2, we broadly categorized muscle synergies into three sets based on the major contributions of the muscles (i.e., right muscle patterns, left muscle patterns, and bilateral muscle patterns). In the right and left muscle patterns, W1 and W6 were dominated by muscles around the ankle and knee joints (i.e., TA, RF, and VM). W2 and W7 were mainly composed of muscles related to the knee and hip joints (i.e., RF, VM, Gmed, and GM), and W3 and W8 employed the ankle and hip joints (i.e., MG and Gmed). Furthermore, BF mainly contributed to W4 and W9. While all four pairs were predominantly composed of extensor muscles that can move and stabilize the body during locomotion and postural tasks, they may have a distinct functional feature because the different tasks require different combinations of muscle synergies (Table S2). In contrast, the pairs of W5 and W10, W11, W12, and W13 were composed of back muscles (i.e., ES, LD) and abdominal muscles (i.e., RAS and OE) either in unilateral or bilateral patterns (Table 2). Notably, they were widely observed across 24 tasks (Table S2) and may be used for bilateral trunk movements or stabilization of the body accompanied by W1 to W10 with relatively low levels of trunk muscle activities when the lower limbs are moving [46]. Although we still do not know how muscle synergies in our study arise and whether they reflect neural structure for motor outputs, 13 muscle synergies extracted from our study may form a repertoire of whole lower limb and trunk muscle activation patterns, which can be shaped by biomechanical interactions and constrain the environment through a lifetime [18,47].

4.2. Hypothetical Neural Mechanisms Underlying Muscle-Synergy Controlling Diverse Behavior

If we assume that the muscle synergy extracted from the whole-task EMG matrices in our data may have a unique set of networks in which each synergy provides functionally necessary compositions in muscle activities, then one can expect that any combinations of these synergies may provide stable and predictable motor outputs in a diverse range of human behaviors [47]. The strength of our finding is that it indicates that there is a set of fundamental muscle synergies with different combinations of these synergies in single and/or merging states to produce 24 locomotion and stability tasks. Here, we hypothesize the existence of neural mechanisms underlying the flexible recruitment of muscle synergies in various combinations to meet the mechanical demands for each movement and posture. Figure S3 presents the functional contributions of fundamental muscle synergies for walking and running tasks revealed by merging the coefficient of synergy vectors and temporal activations of each task. For example, in walking (a), the synergy cluster centroid of No. 1 was recruited during the early stance phase of the right leg. It has been suggested that W1 with the right ankle and knee stabilizers and W2 with the right knee and hip stabilizers are merged for impact deceleration and body support [48]. Likewise, the synergy cluster centroid of No. 2 was recruited during the late stance phase of the right leg, in which W3 with the right ankle extensor and hip stabilizer largely contributed to the progression of the body [48]. Although the lack of kinematic data that define the movement phase precluded assessment of functional contributions of fundamental muscle synergies for other tasks, we show that temporal activations of fundamental muscle synergies were well reconstructed in all tasks (Table S3).
Interestingly, we found that muscle synergies in 24 locomotion and stability tasks were predominantly reconstructed by merging various combinations of fundamental muscle synergies (Table 4). A study reported that muscle synergies of cycling can result from merging synergies of walking [23]. Another recent study showed the merging of original muscle synergies during running through running training [18]. It is suggested that merged synergies were the result of the co-recruitment of multiple muscle synergies by neural networks driving the muscle synergies represented as C in Equation (1) [45,47]. Based on previous studies, we speculate that the upstream driving layer (e.g., Ctask in Figure 4) may flexibly recruit the fundamental muscle synergies (e.g., W’ in Figure 4) located at different levels from the driving layers in the motor hierarchy to execute highly variable tasks (the schematic structure in Figure 4).
Our hypothesis is possibly equivalent to a generalized two-level CPG model for the control of locomotor muscle activity [49]. The model consists of two distinct neural network layers: (1) a pattern formation (PF) network layer that defines groups of synergistic and antagonistic motoneuron pools and (2) a rhythm generation layer that controls the activity of PF networks. However, it should be noted that the exact neural substrates encoding muscle synergies and their driving networks in humans remain largely unknown.
Since we propose that upstream driver C presents synchronous recruitments of the fundamental muscle synergies that have distinct functional roles in organizing muscle synergies for the 24 locomotion and stability tasks, it is possible that the CNS may also coordinate other simple or complex human behaviors using certain combinations of these synergies. Thus, muscle synergies during human behaviors found in previous extensive research may reflect layered structures composed of the fundamental muscle synergies extracted from our study. The advantage of these hypothetical mechanisms is that it prevents the sum of all muscle synergies from exceeding the number of relevant muscles utilized during diverse human behaviors, supporting the premise of compendium in coordinative patterns to execute several movements under different biomechanical conditions [5]. Further research is needed to investigate the muscle synergies identified by factorization algorithms coupled with CNS manipulations and/or neural recordings (e.g., CNS stimulations, spinalization, and electroencephalogram) to validate the neural representation of the fundamental muscle synergies observed in our study [45].

4.3. Clinical Implications

The results of this study may have several clinical implications. First, several studies have investigated muscle synergies in individuals with different characteristics, such as musculoskeletal and neurological disorders [50,51,52] as well as athletes [8,18,53]. Since we identified the fundamental muscle synergies that may underlie diverse human behaviors in healthy individuals, investigating the changes in muscle synergies such as the number of synergies as well as their compositions in a population of interest may facilitate the understanding of distinct features in motor controls that are associated with severity of symptoms [41,50] or that profile myriad skills and performance in athletes [27,28]. Second, previous studies reported that the inner structure of synergies in stroke patients was not necessarily altered, but that their recruitment patterns due to compromising descending signals were [41,54]. Since our study found that the flexible recruitments of fundamental muscle synergies play an important role in executing diverse motor tasks that related to daily activity livings in healthy individuals, it can be speculated that there is a significant relationship between altered recruitments of fundamental muscle synergies and poor motor function in stroke. Furthermore, if this is the case, it may provide a rationale for designing interventions targeting each fundamental muscle synergy with simple tasks before practicing complex tasks at the beginning of rehabilitation. Potential interventions include muscle synergy-based approaches using functional electrical stimulations to optimize the structure of fundamental synergies and temporal recruitments to improve motor performance in stroke [55,56,57,58]. Lastly, we found that different tasks with various biomechanical demands and constraints may largely share the same muscle synergies with different combinations of synergies to be merged. Thus, clinicians may choose to intensively train a particular task to transfer the effectiveness to other tasks [59], given that the transfer of motor learning effects among tasks will be high when muscle synergies involved in different motor tasks are shared [60].

4.4. Limitations

Our study had several limitations. First, it has been reported that the number of recording muscles may affect the amount and structure of muscle synergies [61]. Although EMG recordings in our study were relatively large (i.e., 26 EMG channels), we limited the recording of EMGs from only the major muscles in the trunk and lower limbs. Similarly, we were also limited to 24 fundamental tasks that involved only locomotion and postural tasks. As such, tasks that accompany coordination between the upper limbs, trunk, and lower limbs were not considered [5]. Thus, it is conceivable that some relevant muscle synergies may have been missed in our study. Second, because we used a larger set of EMG recordings and tasks, our time constraint during experiments precluded the measurement of kinematic data such as joint angles as well as velocities, and allowed for the variability of movements in each task, which may impact muscle synergy extractions. The lack of availability of kinematic data prevented the separation of the movement phase and we were thus unable to investigate the contributions of the fundamental muscle synergies for each phase of each task other than walking and running [47].Third, we extracted fundamental muscle synergies from pooled EMGs of all tasks similar to that performed in several studies [10,22,32], assuming the presence of minimum or basic units of muscle synergies that explain all the datasets [22]. It is possible that this method may overestimate data and may cause the over-fitting (i.e., 2-4 task-specific synergies are likely to be well reconstructed using any combination of 13 muscle synergies) [22,62]. Fourth, while the optimal number of healthy participants recruited in studies involving muscle synergies is unknown [63], it may be argued that ten participants in our study were not sufficient to describe data. Lastly, although we extract the fundamental muscle synergies using NMF that may present neural mechanisms for diverse human behaviors, whether the factorization-derived synergies reflect neural organization to coordinate human behaviors remains questionable [45]. This can be due to the possibility that extracted muscle synergies represent biomechanical constraints of tasks rather than neural constraints [3] and the nonlinearity in magnitude summations of the EMG or force vectors [64,65].

5. Conclusions

In this paper, we extracted a repertoire of fundamental muscle synergies from the EMGs applying a factorization algorithm during a variety of human behaviors that involve trunk and lower limb movements in healthy individuals. We found that the 13 fundamental muscle synergies in either the independent or merging state can account for almost all 24 behaviors, including locomotion and stability tasks. Our findings may support the notion that the CNS may flexibly recruit the fundamental muscle synergies to meet the various mechanical demands in a diverse range of human behaviors.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/s21186186/s1, Figure S1: Relationship between muscle synergies of all tasks and muscle synergies for other locomotion tasks; Figure S2: Relationship between muscle synergies of all tasks and muscle synergies for other stability tasks; Figure S3: Functional contributions of muscle synergies of all tasks (fundamental muscle synergies) for walking and running; Table S1: Full descriptions of movement and postural tasks; Table S2: Summary of results for the mean number of synergies, mean VAF of each task in the subjects, and the degree of similarity within each synergy cluster of each task across subjects; Table S3: Recruitment coefficients of 13 synergy clusters of all tasks for each task execution.

Author Contributions

Conceptualization and design of the work H.S., H.Y. and A.S.; data acquisition H.S., A.S. and T.K.; data analysis H.S. and H.Y.; data interpretation H.S., H.Y., A.S., T.K. and K.N.; writing—original draft preparation, H.S., H.Y., A.S., T.K. and K.N. All authors have read and agreed to the published version of the manuscript.

Funding

This project was supported by Grant-in-Aid (KAKENHI) from the Japan Society for the Promotion of Science (JSPS) for the Grand-in-Aid for Scientific Research (A) awarded to K.N. (#18H04082).

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the local ethics committee of the University of Tokyo (746).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Data will be available upon corresponding author request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bernstein, N.A. The Co-Ordination and Regulation of Movements; Pergamon Press: Oxford, UK, 1967. [Google Scholar]
  2. Bizzi, E.; Cheung, V.C.K.; d’Avella, A.; Saltiel, P.; Tresch, M. Combining modules for movement. Brain Res. Rev. 2008, 57, 125–133. [Google Scholar] [CrossRef] [Green Version]
  3. Tresch, M.C.; Jarc, A. The case for and against muscle synergies. Curr. Opin. Neurobiol. 2009, 19, 601–607. [Google Scholar] [CrossRef] [Green Version]
  4. Kutch, J.J.; Valero-Cuevas, F.J. Challenges and New Approaches to Proving the Existence of Muscle Synergies of Neural Origin. PLOS Comput. Biol. 2012, 8, e1002434. [Google Scholar] [CrossRef]
  5. Bizzi, E.; Cheung, V.C.K. The neural origin of muscle synergies. Front. Comput. Neurosci. 2013, 7, 2013. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Meyer, A.J.; Eskinazi, I.; Jackson, J.N.; Rao, A.V.; Patten, C.; Fregly, B.J. Muscle Synergies Facilitate Computational Prediction of {Subject-Specific} Walking Motions. Front. Bioeng. Biotechnol. 2016, 4, 77. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Cappellini, G.; Ivanenko, Y.P.; Poppele, R.E.; Lacquaniti, F. Motor Patterns in Human Walking and Running. J. Neurophysiol. 2006, 95, 3426–3437. [Google Scholar] [CrossRef] [Green Version]
  8. Yokoyama, H.; Ogawa, T.; Kawashima, N.; Shinya, M.; Nakazawa, K. Distinct sets of locomotor modules control the speed and modes of human locomotion. Sci. Rep. 2016, 6, 36275. [Google Scholar] [CrossRef]
  9. Ivanenko, Y.P.; Poppele, R.E.; Lacquaniti, F. Five basic muscle activation patterns account for muscle activity during human locomotion. J. Physiol. 2004, 556, 267–282. [Google Scholar] [CrossRef]
  10. Scano, A.; Dardari, L.; Molteni, F.; Giberti, H.; Tosatti, L.M.; d’Avella, A. A Comprehensive Spatial Mapping of Muscle Synergies in Highly Variable {Upper-Limb} Movements of Healthy Subjects. Front. Physiol. 2019, 10, 1231. [Google Scholar] [CrossRef]
  11. D’Avella, A.; Fernandez, L.; Portone, A.; Lacquaniti, F. Modulation of phasic and tonic muscle synergies with reaching direction and speed. J. Neurophysiol. 2008, 100, 1433–1454. [Google Scholar] [CrossRef] [PubMed]
  12. Shaharudin, S.; Agrawal, S. Muscle synergies during incremental rowing {VO2max} test of collegiate rowers and untrained subjects. J. Sports Med. Phys. Fit. 2016, 56, 980–989. [Google Scholar]
  13. Kristiansen, M.; Samani, A.; Madeleine, P.; Hansen, E.A. Muscle synergies during bench press are reliable across days. J. Electromyogr. Kinesiol. 2016, 30, 81–88. [Google Scholar] [CrossRef]
  14. Vaz, J.R.; Olstad, B.H.; Cabri, J.; Kjendlie, P.-L.; Pezarat-Correia, P.; Hug, F. Muscle coordination during breaststroke swimming: Comparison between elite swimmers and beginners. J. Sports Sci. 2016, 34, 1941–1948. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Nazifi, M.M.; Yoon, H.U.; Beschorner, K.; Hur, P. Shared and {Task-Specific} Muscle Synergies during Normal Walking and Slipping. Front. Hum. Neurosci. 2017, 11, 40. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Santuz, A.; Ekizos, A.; Eckardt, N.; Kibele, A.; Arampatzis, A. Challenging human locomotion: Stability and modular organisation in unsteady conditions. Sci. Rep. 2018, 8, 2740. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Yang, Q.; Logan, D.; Giszter, S.F. Motor primitives are determined in early development and are then robustly conserved into adulthood. Proc. Natl. Acad. Sci. USA 2019, 116, 12025–12034. [Google Scholar] [CrossRef] [Green Version]
  18. Cheung, V.C.K.; Cheung, B.M.F.; Zhang, J.H.; Chan, Z.Y.S.; Ha, S.C.W.; Chen, C.-Y.; Cheung, R.T.H. Plasticity of muscle synergies through fractionation and merging during development and training of human runners. Nat. Commun. 2020, 11, 4356. [Google Scholar] [CrossRef] [PubMed]
  19. Chvatal, S.A.; Ting, L.H. Common muscle synergies for balance and walking. Front. Comput. Neurosci. 2013, 7, 48. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Martino, G.; Ivanenko, Y.P.; d’Avella, A.; Serrao, M.; Ranavolo, A.; Draicchio, F.; Cappellini, G.; Casali, C.; Lacquaniti, F. Neuromuscular adjustments of gait associated with unstable conditions. J. Neurophysiol. 2015, 114, 2867–2882. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. D’Avella, A.; Bizzi, E. Shared and specific muscle synergies in natural motor behaviors. Proc. Natl. Acad. Sci. USA 2005, 102, 3076–3081. [Google Scholar] [CrossRef] [Green Version]
  22. Hagio, S.; Kouzaki, M. The flexible recruitment of muscle synergies depends on the required force-generating capability. J. Neurophysiol. 2014, 112, 316–327. [Google Scholar] [CrossRef] [Green Version]
  23. Barroso, F.O.; Torricelli, D.; Moreno, J.C.; Taylor, J.; Gomez-Soriano, J.; Bravo-Esteban, E.; Piazza, S.; Santos, C.; Pons, J.L. Shared muscle synergies in human walking and cycling. J. Neurophysiol. 2014, 112, 1984–1998. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Sartori, M.; Gizzi, L.; Lloyd, D.G.; Farina, D. A musculoskeletal model of human locomotion driven by a low dimensional set of impulsive excitation primitives. Front. Comput. Neurosci. 2013, 7, 79. [Google Scholar] [CrossRef] [Green Version]
  25. David, L.; Gallahue, O.; Goodway, J.C.; Jacqueline, D. Understanding Motor Development: Infants, Children, Adolescents, Adults; McGraw-Hill: New York, NY, USA, 2011. [Google Scholar]
  26. Huang, B.; Xiong, C.; Chen, W.; Liang, J.; Sun, B.-Y.; Gong, X. Common kinematic synergies of various human locomotor behaviours. R. Soc. Open Sci. 2021, 8, 210161. [Google Scholar] [CrossRef]
  27. Cook, G.; Burton, L.; Hoogenboom, B.J.; Voight, M. Functional movement screening: The use of fundamental movements as an assessment of function—Part 2. Int. J. Sports Phys. Ther. 2014, 9, 549–563. [Google Scholar] [PubMed]
  28. Cook, G.; Burton, L.; Hoogenboom, B.J.; Voight, M. Functional movement screening: The use of fundamental movements as an assessment of function—Part 1. Int. J. Sports Phys. Ther. 2014, 9, 396–409. [Google Scholar] [PubMed]
  29. Hug, F. Can muscle coordination be precisely studied by surface electromyography? J. Electromyogr. Kinesiol. 2011, 21, 1–12. [Google Scholar] [CrossRef]
  30. Ranaldi, S.; De Marchis, C.; Conforto, S. An automatic, adaptive, information-based algorithm for the extraction of the {sEMG} envelope. J. Electromyogr. Kinesiol. 2018, 42, 1–9. [Google Scholar] [CrossRef]
  31. De Marchis, C.; Ranaldi, S.; Serrao, M.; Ranavolo, A.; Draicchio, F.; Lacquaniti, F.; Conforto, S. Modular motor control of the sound limb in gait of people with trans-femoral amputation. J. Neuroeng. Rehabil. 2019, 16, 132. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Geng, Y.; Deng, H.; Samuel, O.W.; Cheung, V.; Xu, L.; Li, G. Modulation of muscle synergies for multiple forearm movements under variant force and arm position constraints. J. Neural Eng. 2020, 17, 026015. [Google Scholar] [CrossRef]
  33. Tresch, M.C.; Cheung, V.C.K.; d’Avella, A. Matrix factorization algorithms for the identification of muscle synergies: Evaluation on simulated and experimental data sets. J. Neurophysiol. 2006, 95, 2199–2212. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Lee, D.D.; Seung, H.S. Learning the parts of objects by non-negative matrix factorization. Nature 1999, 401, 788–791. [Google Scholar] [CrossRef] [PubMed]
  35. Chvatal, S.A.; Torres-Oviedo, G.; Safavynia, S.A.; Ting, L.H. Common muscle synergies for control of center of mass and force in nonstepping and stepping postural behaviors. J. Neurophysiol. 2011, 106, 999–1015. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Torres-Oviedo, G.; Macpherson, J.M.; Ting, L.H. Muscle synergy organization is robust across a variety of postural perturbations. J. Neurophysiol. 2006, 96, 1530–1546. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Zar, J.H. Biostatistical Analysis; Pearson Education: Karnataka, India, 1999. [Google Scholar]
  38. Frère, J.; Hug, F. Between-subject variability of muscle synergies during a complex motor skill. Front. Comput. Neurosci. 2012, 6, 99. [Google Scholar] [CrossRef] [Green Version]
  39. Delis, I.; Hilt, P.M.; Pozzo, T.; Panzeri, S.; Berret, B. Deciphering the functional role of spatial and temporal muscle synergies in whole-body movements. Sci. Rep. 2018, 8, 8391. [Google Scholar] [CrossRef]
  40. Tibshirani, R.; Walther, G.; Hastie, T. Estimating the number of clusters in a data set via the gap statistic. J. R. Stat. Soc. Ser. B Stat. Methodol. 2001, 63, 411–423. [Google Scholar] [CrossRef]
  41. Cheung, V.C.K.; Turolla, A.; Agostini, M.; Silvoni, S.; Bennis, C.; Kasi, P.; Paganoni, S.; Bonato, P.; Bizzi, E. Muscle synergy patterns as physiological markers of motor cortical damage. Proc. Natl. Acad. Sci. USA 2012, 109, 14652–14656. [Google Scholar] [CrossRef] [Green Version]
  42. Hagio, S.; Fukuda, M.; Kouzaki, M. Identification of muscle synergies associated with gait transition in humans. Front. Hum. Neurosci. 2015, 9, 48. [Google Scholar] [CrossRef] [Green Version]
  43. Takei, T.; Confais, J.; Tomatsu, S.; Oya, T.; Seki, K. Neural basis for hand muscle synergies in the primate spinal cord. Proc. Natl. Acad. Sci. USA 2017, 114, 8643–8648. [Google Scholar] [CrossRef] [Green Version]
  44. Overduin, S.A.; d’Avella, A.; Carmena, J.M.; Bizzi, E. Microstimulation Activates a Handful of Muscle Synergies. Neuron 2012, 76, 1071–1077. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Cheung, V.C.K.; Seki, K. Approaches to Revealing the Neural Basis of Muscle Synergies: A Review and A Critique. J. Neurophysiol. 2021, 125, 1580–1597. [Google Scholar] [CrossRef]
  46. Hodges, P.W.; Richardson, C.A. Contraction of the Abdominal Muscles Associated With Movement of the Lower Limb. Phys. Ther. 1997, 77, 132–142. [Google Scholar] [CrossRef]
  47. Ting, L.H.; Chiel, H.J.; Trumbower, R.D.; Allen, J.L.; McKay, J.L.; Hackney, M.E.; Kesar, T.M. Neuromechanical principles underlying movement modularity and their implications for rehabilitation. Neuron 2015, 86, 38–54. [Google Scholar] [CrossRef] [Green Version]
  48. Jacquelin Perry, J.M.B. Gait Analysis: Normal and Pathological Function, 2nd ed.; SLACK Incorporated: West Deptford, NJ, USA, 2010; ISBN 9781617114304. [Google Scholar]
  49. McCrea, D.A.; Rybak, I.A. Organization of mammalian locomotor rhythm and pattern generation. Brain Res. Rev. 2008, 57, 134–146. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Liew, B.X.W.; Del Vecchio, A.; Falla, D. The influence of musculoskeletal pain disorders on muscle synergies—A systematic review. PLoS ONE 2018, 13, e0206885. [Google Scholar] [CrossRef]
  51. Bekius, A.; Bach, M.M.; van der Krogt, M.M.; de Vries, R.; Buizer, A.I.; Dominici, N. Muscle Synergies During Walking in Children With Cerebral Palsy: A Systematic Review. Front. Physiol. 2020, 11, 632. [Google Scholar] [CrossRef] [PubMed]
  52. Van Criekinge, T.; Vermeulen, J.; Wagemans, K.; Schröder, J.; Embrechts, E.; Truijen, S.; Hallemans, A.; Saeys, W. Lower limb muscle synergies during walking after stroke: A systematic review. Disabil. Rehabil. 2020, 42, 2836–2845. [Google Scholar] [CrossRef] [PubMed]
  53. Taborri, J.; Agostini, V.; Artemiadis, P.K.; Ghislieri, M.; Jacobs, D.A.; Roh, J.; Rossi, S. Feasibility of muscle synergy outcomes in clinics, robotics, and sports: A systematic review. Appl. Bionics Biomech. 2018, 2018, 3934698. [Google Scholar] [CrossRef]
  54. Irastorza-Landa, N.; García-Cossio, E.; Sarasola-Sanz, A.; Brötz, D.; Birbaumer, N.; Ramos-Murguialday, A. Functional synergy recruitment index as a reliable biomarker of motor function and recovery in chronic stroke patients. J. Neural Eng. 2021, 18, 046061. [Google Scholar] [CrossRef] [PubMed]
  55. Bao, S.-C.; Leung, W.-C.; Cheung, V.C.K.; Zhou, P.; Tong, K.-Y. Pathway-specific modulatory effects of neuromuscular electrical stimulation during pedaling in chronic stroke survivors. J. NeuroEng. Rehabil. 2019, 16, 1–15. [Google Scholar] [CrossRef]
  56. Niu, C.M.; Bao, Y.; Zhuang, C.; Li, S.; Wang, T.; Cui, L.; Xie, Q.; Lan, N. Synergy-Based FES for Post-Stroke Rehabilitation of Upper-Limb Motor Functions. IEEE Trans. Neural Syst. Rehabil. Eng. 2019, 27, 256–264. [Google Scholar] [CrossRef]
  57. Ambrosini, E.; Parati, M.; Peri, E.; De Marchis, C.; Nava, C.; Pedrocchi, A.; Ferriero, G.; Ferrante, S. Changes in leg cycling muscle synergies after training augmented by functional electrical stimulation in subacute stroke survivors: A pilot study. J. Neuroeng. Rehabil. 2020, 17, 35. [Google Scholar] [CrossRef] [Green Version]
  58. Niu, C.; Bao, Y.; Zhuang, C.; Li, S.; Wang, T.; Zhang, X.; Ma, Y.; Xuan, Z.; Gu, L.; Lan, N.; et al. Effectiveness of short-term training with a synergy-based FES paradigm on motor function recovery post-stroke. Ann. Phys. Rehabil. Med. 2018, 61, e33. [Google Scholar] [CrossRef]
  59. Kantak, S.S.; Zahedi, N.; McGrath, R. Complex Skill Training Transfers to Improved Performance and Control of Simpler Tasks After Stroke. Phys. Ther. 2017, 97, 718–728. [Google Scholar] [CrossRef]
  60. De Marchis, C.; Di Somma, J.; Zych, M.; Conforto, S.; Severini, G. Consistent visuomotor adaptations and generalizations can be achieved through different rotations of robust motor modules. Sci. Rep. 2018, 8, 12657. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Steele, K.M.; Tresch, M.C.; Perreault, E.J. The number and choice of muscles impact the results of muscle synergy analyses. Front. Comput. Neurosci. 2013, 7, 105. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Cheung, V.C.K.; d’Avella, A.; Bizzi, E. Adjustments of motor pattern for load compensation via modulated activations of muscle synergies during natural behaviors. J. Neurophysiol. 2009, 101, 1235–1257. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Turpin, N.A.; Uriac, S.; Dalleau, G. How to improve the muscle synergy analysis methodology? Eur. J. Appl. Physiol. 2021, 121, 1009–1025. [Google Scholar] [CrossRef] [PubMed]
  64. Lemay, M.A.; Galagan, J.E.; Hogan, N.; Bizzi, E. Modulation and vectorial summation of the spinalized frog’s hindlimb end-point force produced by intraspinal electrical stimulation of the cord. IEEE Trans. Neural Syst. Rehabil. Eng. 2001, 9, 12–23. [Google Scholar] [CrossRef] [PubMed]
  65. Yaron, A.; Kowalski, D.; Yaguchi, H.; Takei, T.; Seki, K. Forelimb force direction and magnitude independently controlled by spinal modules in the macaque. Proc. Natl. Acad. Sci. USA 2020, 117, 27655–27666. [Google Scholar] [CrossRef] [PubMed]

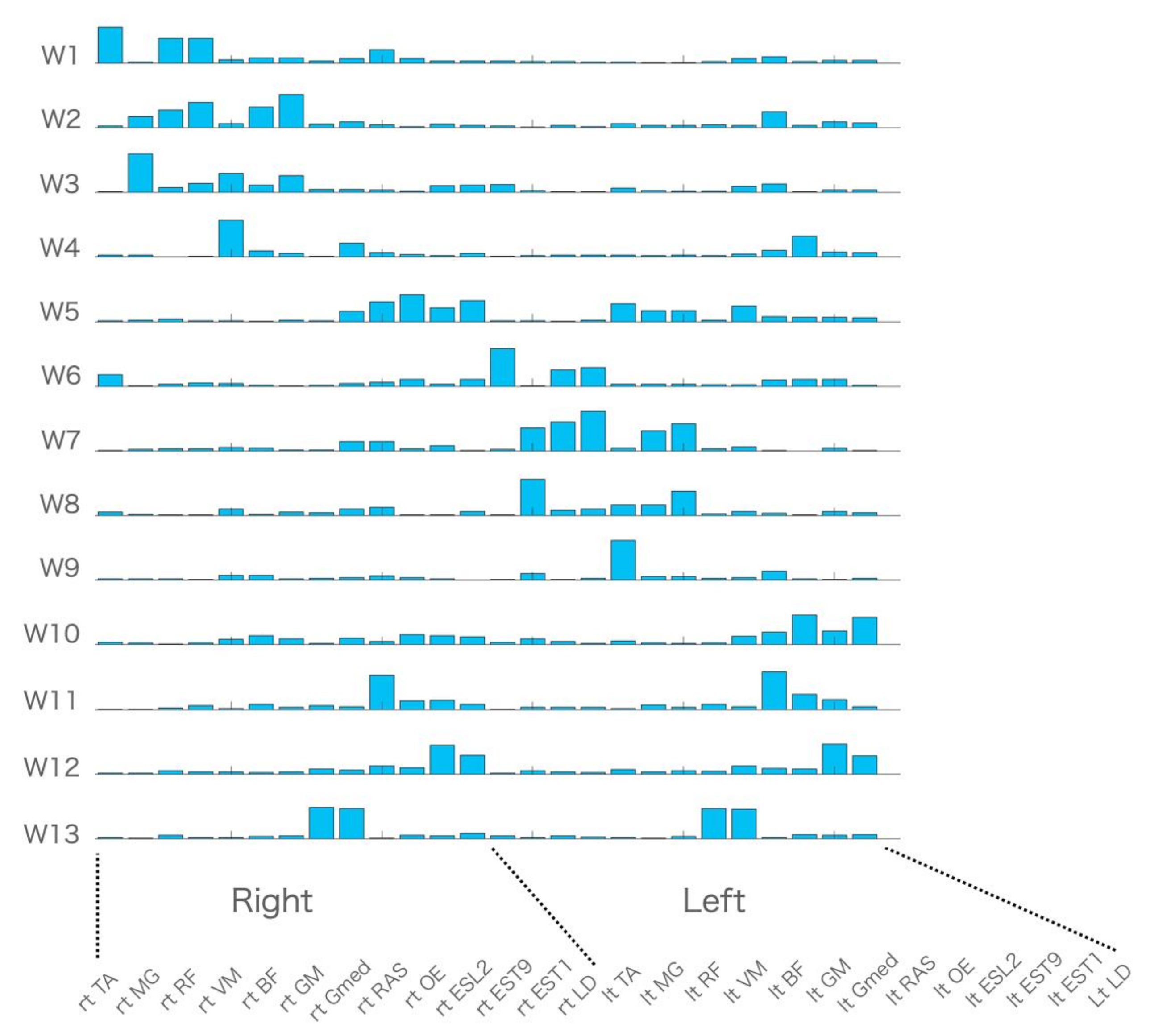

Figure 1. Muscle synergies of all tasks. Centroids of the hierarchical clustering performed on the muscle synergies of all tasks across ten participants.
Figure 1. Muscle synergies of all tasks. Centroids of the hierarchical clustering performed on the muscle synergies of all tasks across ten participants.
Sensors 21 06186 g001

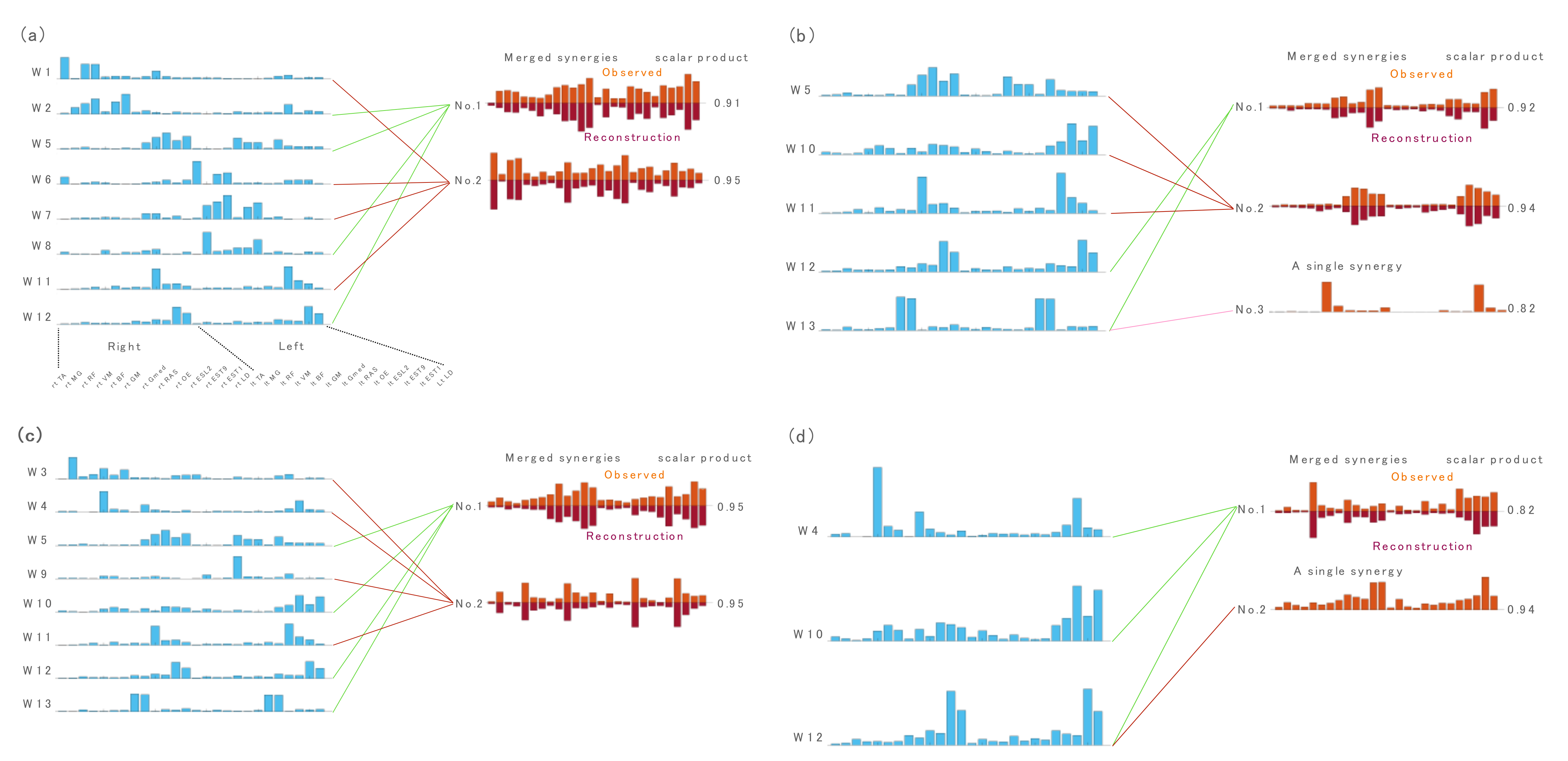

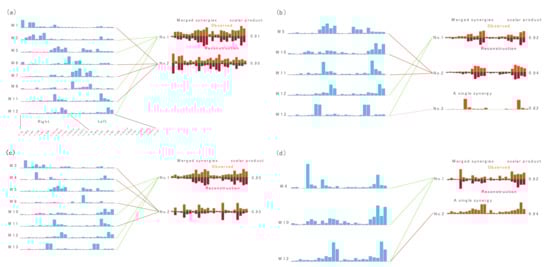

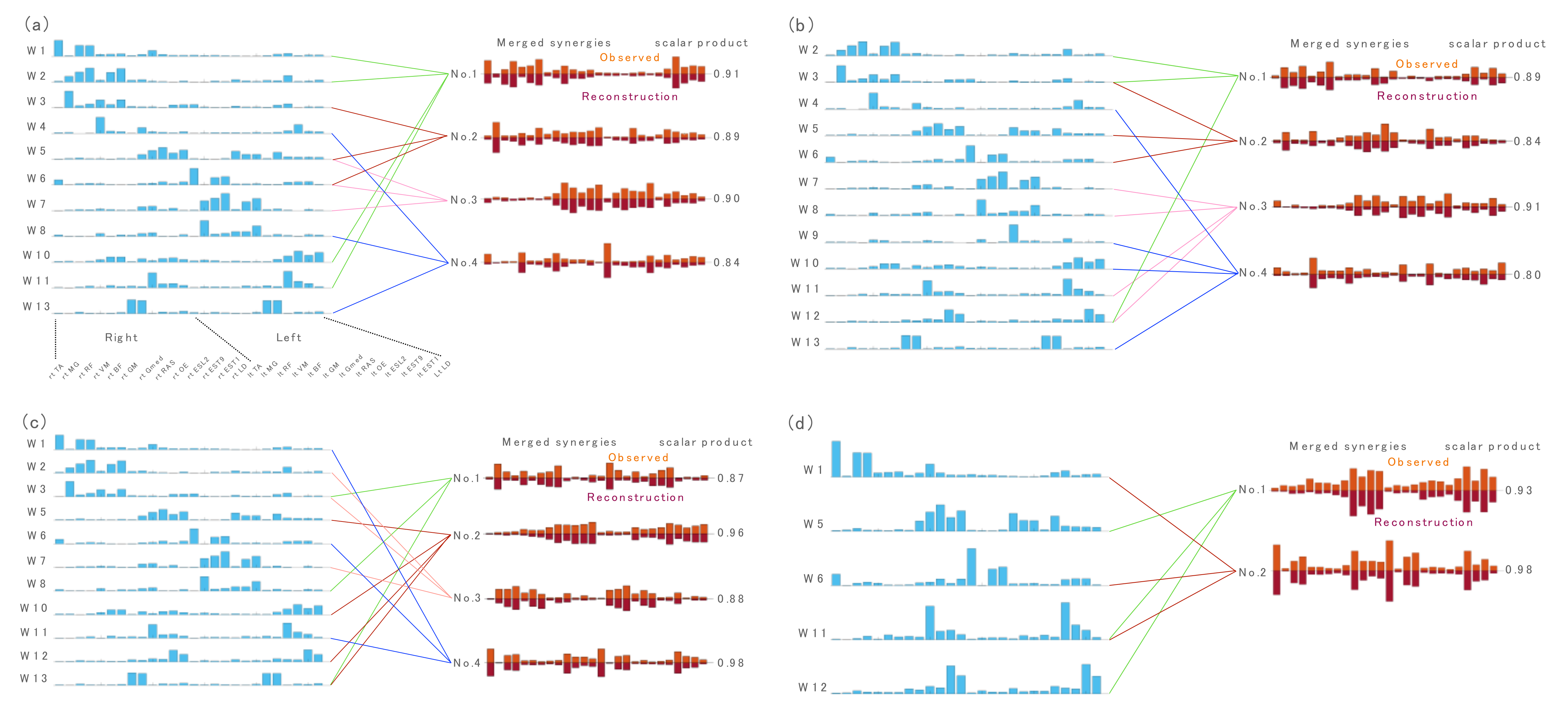

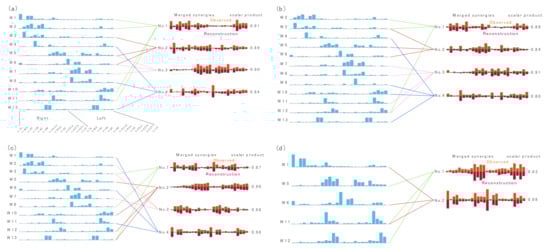

Figure 2. The relationship between muscle synergies of all tasks and muscle synergies of locomotion tasks including (a) walk, (b) run, (c) bilateral jump and (d) sit-to-stand-to-sit. The figures show the synergy cluster centroids of these tasks that could be explained by either a single or linearly combined multiple synergy cluster centroids of all tasks (synergies in blue) matched by maximizing scalar product > 0.75. Observed muscle synergies extracted from the single-task EMG (orange) and their reconstructions by merging their respective W1-combinations (dark orange) are further presented.
Figure 2. The relationship between muscle synergies of all tasks and muscle synergies of locomotion tasks including (a) walk, (b) run, (c) bilateral jump and (d) sit-to-stand-to-sit. The figures show the synergy cluster centroids of these tasks that could be explained by either a single or linearly combined multiple synergy cluster centroids of all tasks (synergies in blue) matched by maximizing scalar product > 0.75. Observed muscle synergies extracted from the single-task EMG (orange) and their reconstructions by merging their respective W1-combinations (dark orange) are further presented.
Sensors 21 06186 g002
Figure 3. The relationship between muscle synergies of all tasks and muscle synergies of stability tasks including (a) left lunge, (b) cat-and-dog, (c) forward bend and (d) left rotation. The figures show the synergy cluster centroids of these task that could be explained by either a single or linearly combined multiple synergy cluster centroids of all tasks (synergies in blue) matched by maximizing scalar product > 0.75. Observed muscle synergies extracted from the single-task EMG (orange) and their reconstructions by merging their respective W1-combinations (dark orange) were further presented.
Figure 3. The relationship between muscle synergies of all tasks and muscle synergies of stability tasks including (a) left lunge, (b) cat-and-dog, (c) forward bend and (d) left rotation. The figures show the synergy cluster centroids of these task that could be explained by either a single or linearly combined multiple synergy cluster centroids of all tasks (synergies in blue) matched by maximizing scalar product > 0.75. Observed muscle synergies extracted from the single-task EMG (orange) and their reconstructions by merging their respective W1-combinations (dark orange) were further presented.
Sensors 21 06186 g003

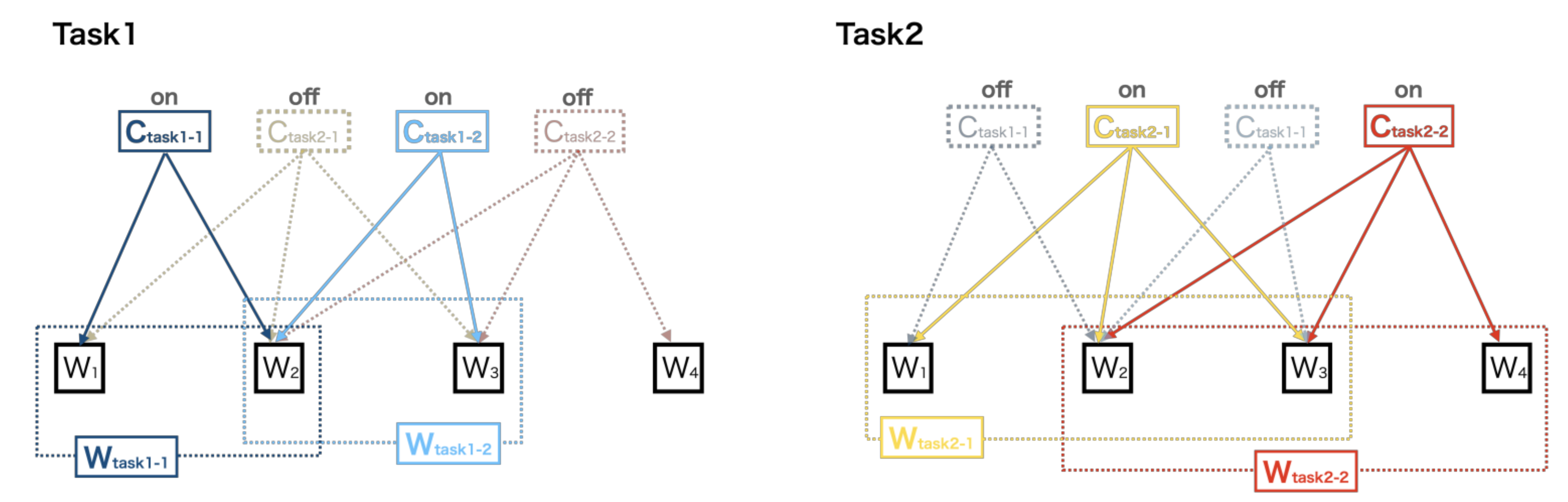

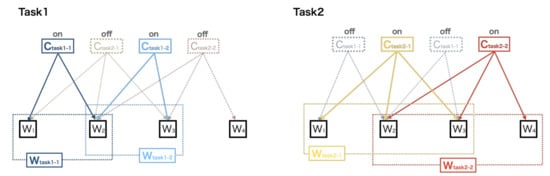

Figure 4. A hypothetical neural mechanism of merged fundamental muscle synergies with its temporal patterns in a diverse range of human behaviors. This model shows that the CNS flexibly recruits multiple synergies for different tasks. For example, Ctask1-1 with W1 and W2 and Ctask1-2 with W2 and W3 turn on while Ctask2-1 and Ctask2-2 turn off to execute task 1. Similarly, Ctask2-1 with W1, W2, and W3 and Ctask2-2 with W2, W3, and W4 turn on, ceasing to be active in Ctask1-1 and Ctask1-2 for task 2.

Figure 4. A hypothetical neural mechanism of merged fundamental muscle synergies with its temporal patterns in a diverse range of human behaviors. This model shows that the CNS flexibly recruits multiple synergies for different tasks. For example, Ctask1-1 with W1 and W2 and Ctask1-2 with W2 and W3 turn on while Ctask2-1 and Ctask2-2 turn off to execute task 1. Similarly, Ctask2-1 with W1, W2, and W3 and Ctask2-2 with W2, W3, and W4 turn on, ceasing to be active in Ctask1-1 and Ctask1-2 for task 2.
Sensors 21 06186 g004
Table 1. Movement and postural tasks.
Table 1. Movement and postural tasks.
Locomotion1Walk (1.5 m/s)
2Run (2.7 m/s)
3Bilateral jump
4Rt single leg jump
5Lt single leg jump
6Sit to stand to sit
StabilityStatic Postures7Rt single leg stance
8Lt single leg stance
Dynamic Postures9Deep squat
10Rt single leg squat
11Lt single leg squat
12Rt lunge
13Lt lunge
14Rocking backward
15Rocking forward
16Rt cross extension
17Lt cross extension
18Cat-and-dog
Axial19Forward bend
20Rt side bend
21Lt side bend
22Backward bend
23Rt rotation
24Lt rotation
Shown are the order of 24 locomotion and stability tasks. Stability tasks are divided into three subcategories: static postures, dynamic postures and axial. Rt: right; Lt: left.
Table 2. The results for the degree of similarity within each synergy cluster of all tasks.
Table 2. The results for the degree of similarity within each synergy cluster of all tasks.
Similarity
(Normalized)
The Number of Samples
W10.77 (±0.13)8
W20.70 (±0.18)8
W30.74 (±0.12)8
W40.76 (±0.14)7
W50.62 (±0.16)13
W60.77 (±0.12)10
W70.81 (±0.08)6
W80.74 (±0.13)7
W90.84 (±0.08)4
W100.58 (±0.17)8
W110.86 (±0.08)5
W120.68 (±0.15)11
W130.82 (±0.17)11
Table 3. Characteristics of muscle synergy clusters of all tasks.
Table 3. Characteristics of muscle synergy clusters of all tasks.
Unilateral PatternsMajor MusclesMinor Muscles
Right
Patterns
Left
Patterns
W1W6ispTA, ispRF, ispVM(ispESL2, ispEST9, ispEST1, conTA, conESL2, conEST9, conLD)
W2W7ispVM, ispRF, ispGM, ispGmed(ispMG, ispOE, conBF, conOE, conESL2)
W3W8ispMG, ispGmed(ispRF, ispVM, ispBF, ispGM, ispEST1, ispLD, conTA, conBF, contOE, conESL2)
W4W9ispBF(ispMG, ispGM, ispOE, ispESL2, conESL2, conEST9)
W5W10ispEST9, ispLD(ispOE, ispESL2, ispEST1, conBF, conGM, conGmed, conOE, conESL2, conEST9, conEST1, conLD)
Bilateral patterns
M11bilESL2(bilEST9, bilEST1)
M12bilEST1(bilLD)
M13bilRAS, bilOE
The following pairs showed high similarity when the muscles in W6 to W10 were reordered so that muscles on the left side of W6 to W10 corresponded to the same muscles on the right side of W1 to W5: W1 and W6 (SP = 0.93), W2 and W7 (SP = 0.97), W3 and W8 (SP = 0.97), W4 and W9 (SP = 0.85), W5, and W10 (SP = 0.93). We categorized W1 to W5 as muscle synergies with right-side dominant patterns and W6 to W10 as muscle synergies with left-side dominant patterns. W11, W12, and W13 were categorized as bilateral patterns. Muscles that account for >0.5 of activation levels are classified as major muscles and between 0.1 to 0.5 were as minor muscles. isp: ipsilateral, con: contralateral, bil: bilateral.
Table 4. The relationship between synergy clusters of each task and synergy clusters of all tasks.
Table 4. The relationship between synergy clusters of each task and synergy clusters of all tasks.
Movement and Postural Tasks WalkRunBilJP
SLS
RtSJPLt SJPSTSRt SLSLt SLSDSRt SSLt SSRt LGLt LGRBRFRt CELt CECDFBRt SBLt SBBBRt RTLt RT
Number of total synergy clusters444332222222222223222222
Number of synergy clusters that are well matched by a single synergy cluster of all tasks000000000000011101000111
Number of synergy clusters that are well matched by merging synergy clusters of all tasks444332212222211122222111
Number of synergy clusters that are unmatched by synergies of all tasks000000010000000000000000
The number of synergy clusters for each task and the number of a single or merged synergy cluster centroids of all tasks that were well matched (scalar product > 0.75) or unmatched to a synergy cluster centroid of each task. Bil: bilateral; Rt: right; Lt left; JP: jump; SJP: single leg jump; STS: sit-to-stand-to-sit; SLS: single leg stance; DS: deep squat; SS: single leg squat; LG: lunge; RB: rocking backward; RF: rocking forward; CE: cross extension; CD: cat-and-dog; FB; forward bend; SB: side bend; BB: backward bend; RT: rotation.
