Article

Calibration of Electrochemical Sensors for Nitrogen Dioxide Gas Detection Using Unmanned Aerial Vehicles

1
Laboratory of Geo-Information Sciences and Remote Sensing at Wageningen University & Research (WUR), Droevendaalsesteeg 3, 6708 PB Wageningen, The Netherlands
2
Wageningen Food Safety Research, Akkermaalsbos 2, 6708 WB Wageningen, The Netherlands
3
Information Technology Group, Wageningen University, Hollandseweg 1, 6706 KN Wageningen, The Netherlands
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(24), 7332; https://doi.org/10.3390/s20247332
Received: 17 November 2020 / Revised: 16 December 2020 / Accepted: 17 December 2020 / Published: 20 December 2020
(This article belongs to the Special Issue Emerging Robots and Sensing Technologies in Geosciences)
For years, urban air quality networks have been set up by private organizations and governments to monitor toxic gases like NO2. However, these networks can be very expensive to maintain, so their distribution is usually widely spaced, leaving gaps in the spatial resolution of the resulting air quality data. Recently, electrochemical sensors and their integration with unmanned aerial vehicles (UAVs) have attempted to fill these gaps through various experiments, none of which have considered the influence of a UAV when calibrating the sensors. Accordingly, this research attempts to improve the reliability of NO2 measurements detected from electrochemical sensors while on board an UAV by introducing rotor speed as part of the calibration model. This is done using a DJI Matrice 100 quadcopter and Alphasense sensors, which are calibrated using regression calculations in different environments. This produces a predictive r-squared up to 0.97. The sensors are then calibrated with rotor speed as an additional variable while on board the UAV and flown in a series of flights to evaluate the performance of the model, which produces a predictive r-squared up to 0.80. This methodological approach can be used to obtain more reliable NO2 measurements in future outdoor experiments that include electrochemical sensor integration with UAV’s. View Full-Text
Keywords: air quality monitoring network; calibration; electrochemical sensor; nitrogen dioxide; spatial resolution; UAV; unmanned aerial vehicle air quality monitoring network; calibration; electrochemical sensor; nitrogen dioxide; spatial resolution; UAV; unmanned aerial vehicle
Show Figures

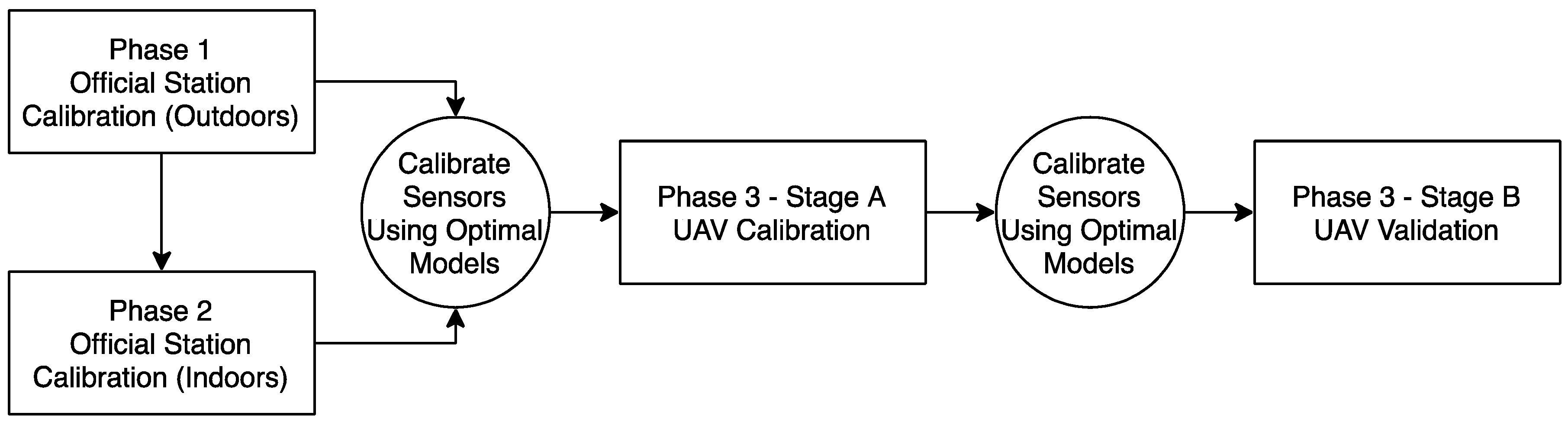

Figure 1
