# Modeling Seasonal Variations in Vertical GPS Coordinate Time Series Using Independent Component Analysis and Varying Coefficient Regression

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methods

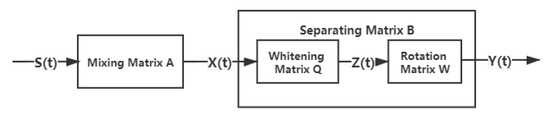

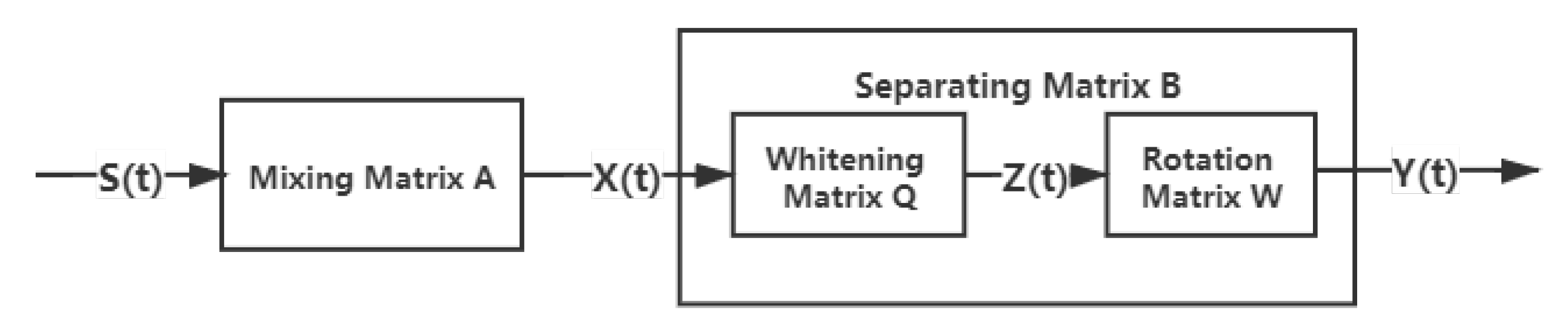

#### 2.1. Spatiotemporal Model Using ICA and VC Regression

- (1)
- Centralize and whiten the observed data, obtain the whitened data $\mathit{Z}$;
- (2)
- Choose an initial weight vector of unit norm (random) $\mathit{w}$;
- (3)
- Update ${\mathit{w}}^{+}$ by ${\mathit{w}}^{+}=\mathrm{E}\left[\mathit{Z}\mathrm{g}\left({\mathit{w}}^{T}\mathit{z}\right)\right]-\mathrm{E}\left[{\mathrm{g}}^{\prime}\left({\mathit{w}}^{T}\mathit{Z}\right)\right]\mathit{w}$, where $\mathrm{g}(\xb7)$ is a nonlinear function, such as ${\mathrm{g}}_{1}\left(y\right)=\mathrm{tan}\mathrm{h}\left({a}_{1}y\right)$, ${\mathrm{g}}_{2}\left(y\right)=y\mathrm{exp}\left(-{y}^{2}/2\right)$ and ${\mathrm{g}}_{3}\left(y\right)={y}^{3}$;
- (4)
- Normalize $\mathit{w}$ by $\mathit{w}={\mathit{w}}^{+}/\Vert {\mathit{w}}^{+}\Vert $;
- (5)
- Go back to step “3” if not converged.

#### 2.2. Varying Coefficient Regression Method

**is**called the pseudo-hat matrix.

## 3. Case Study

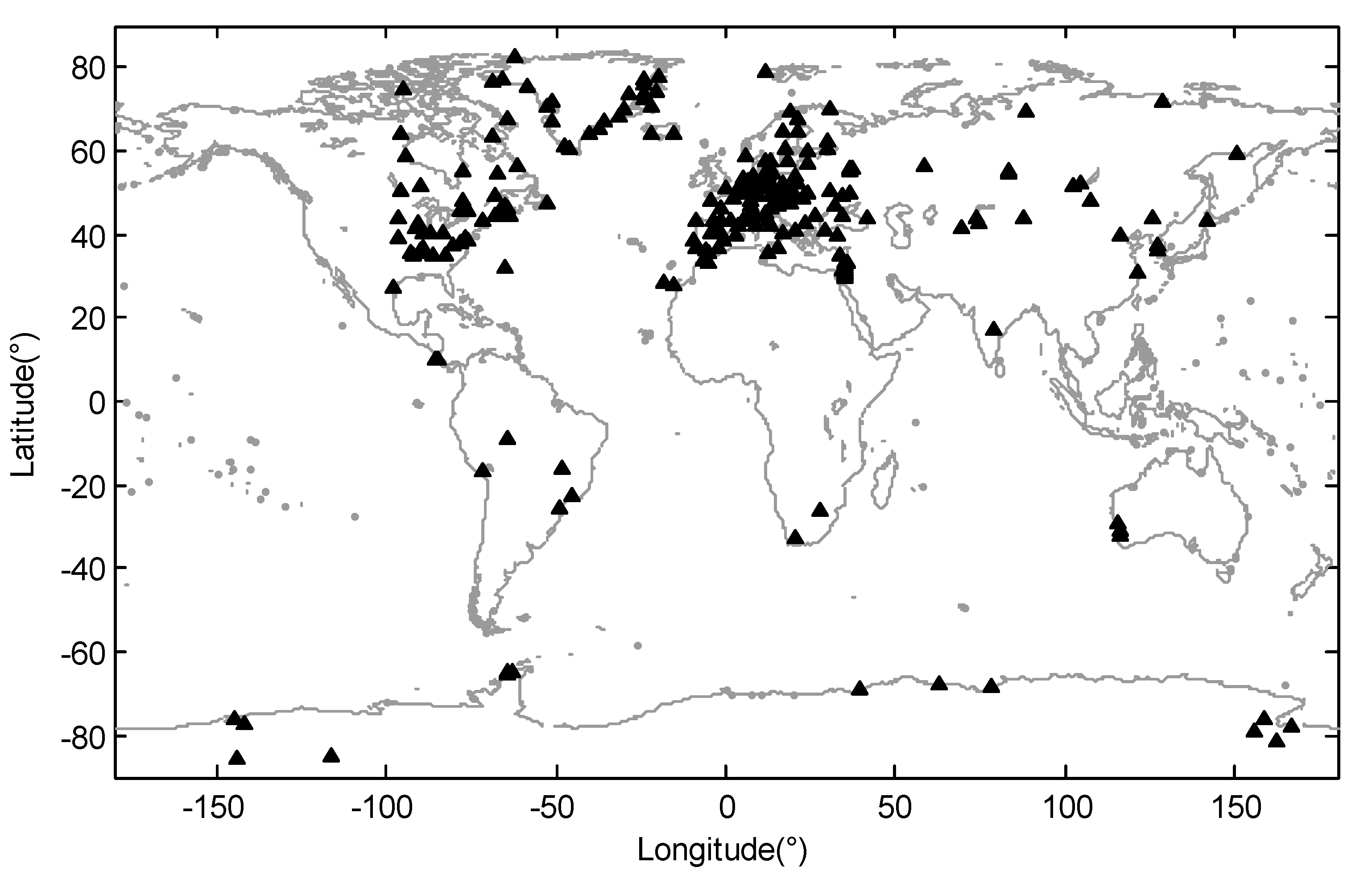

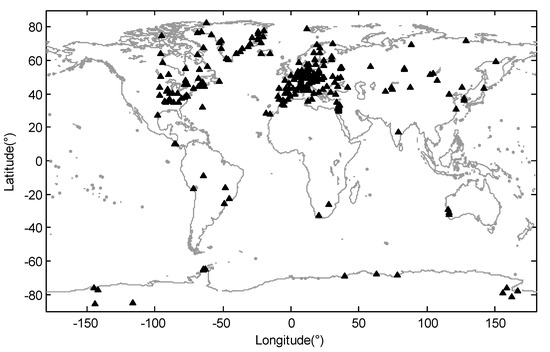

#### 3.1. GPS Data

#### 3.2. Spatiotemporal Analysis Using ICA

#### 3.3. Modeling Common Seasonal Signals

#### 3.4. Spatiotemporal Modeling and Discussion

## 4. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Dong, D.; Fang, P.; Bock, Y.; Cheng, M.K.; Miyazaki, S.I. Anatomy of apparent seasonal variations from GPS-derived site position time series. J. Geophys. Res.
**2002**, 107, 2075. [Google Scholar] [CrossRef] [Green Version] - Vandam, T.M.; Blewitt, G.; Heflin, M.B. Atmospheric pressure loading effects on Global Positioning System coordinate determinations. J. Geophys. Res. Solid Earth
**1994**, 99, 23939–23950. [Google Scholar] [CrossRef] - van Dam, T.; Altamimi, Z.; Collilieux, X.; Ray, J. Topographically induced height errors in predicted atmospheric loading effects. J. Geophys. Res. Solid Earth
**2010**, 115, B07415. [Google Scholar] [CrossRef] - Fu, Y.; Argus, D.F.; Freymueller, J.T.; Heflin, M.B. Horizontal motion in elastic response to seasonal loading of rain water in the Amazon Basin and monsoon water in Southeast Asia observed by GPS and inferred from GRACE. Geophys. Res. Lett.
**2013**, 40, 6048–6053. [Google Scholar] [CrossRef] - Chanard, K.; Avouac, J.P.; Ramillien, G.; Genrich, J. Modeling deformation induced by seasonal variations of continental water in the Himalaya region: Sensitivity to Earth elastic structure. J. Geophys. Res. Solid Earth
**2014**, 119, 5097–5113. [Google Scholar] [CrossRef] [Green Version] - Rateb, A.; Hermas, E. The 2018 Long Rainy Season in Kenya: Hydrological Changes and Correlated Land Subsidence. Remote Sens.
**2020**, 12, 1930. [Google Scholar] [CrossRef] - van Dam, T.; Collilieux, X.; Wuite, J.; Altamimi, Z.; Ray, J. Nontidal ocean loading: Amplitudes and potential effects in GPS height time series. J. Geod.
**2012**, 86, 1043–1057. [Google Scholar] [CrossRef] [Green Version] - Memin, A.; Boy, J.P.; Santamaria-Gomez, A. Correcting GPS measurements for non-tidal loading. GPS Solutions
**2020**, 24, 45. [Google Scholar] [CrossRef] - Jiang, W.; Li, Z.; van Dam, T.; Ding, W. Comparative analysis of different environmental loading methods and their impacts on the GPS height time series. J. Geod.
**2013**, 87, 687–703. [Google Scholar] [CrossRef] - Jiang, W.; Deng, L.; Li, Z.; Zhou, X.; Liu, H. Effects on noise properties of GPS time series caused by higher-order ionospheric corrections. Adv. Space Res.
**2014**, 53, 1035–1046. [Google Scholar] [CrossRef] - He, X.; Montillet, J.P.; Fernandes, R.; Bos, M.; Yu, K.; Hua, X.; Jiang, W. Review of current GPS methodologies for producing accurate time series and their error sources. J. Geodyn.
**2017**, 106, 12–29. [Google Scholar] [CrossRef] - Yan, H.; Chen, W.; Zhu, Y.; Zhang, W.; Zhong, M. Contributions of thermal expansion of monuments and nearby bedrock to observed GPS height changes. Geophys. Res. Lett.
**2009**, 36, L13301. [Google Scholar] [CrossRef] [Green Version] - Santamaría-Gómez, A.; Memin, A. Geodetic secular velocity errors due to interannual surface loading deformation. Geophys. J. Int.
**2015**, 202, 763–767. [Google Scholar] [CrossRef] [Green Version] - Bogusz, J.; Klos, A. On the significance of periodic signals in noise analysis of GPS station coordinates time series. GPS Solutions
**2016**, 20, 655–664. [Google Scholar] [CrossRef] [Green Version] - Liu, B.; King, M.; Dai, W. Common mode error in Antarctic GPS coordinate time-series on its effect on bedrock-uplift estimates. Geophys. J. Int.
**2018**, 214, 1652–1664. [Google Scholar] [CrossRef] - Ray, J.; Altamimi, Z.; Collilieux, X.; van Dam, T. Anomalous harmonics in the spectra of GPS position estimates. GPS Solutions
**2008**, 12, 55–64. [Google Scholar] [CrossRef] - Farrell, W.E. Deformation of the Earth by surface loads. Rev. Geophys.
**1972**, 10, 761–797. [Google Scholar] [CrossRef] - Petrov, L. REFAG 2014; Springer International Publishing: Cham, Switzerland, 2014; pp. 79–83. [Google Scholar]
- Li, C.; Huang, S.; Chen, Q.; Dam, T.V.; Fok, H.S.; Zhao, Q.; Wu, W.; Wang, X. Quantitative Evaluation of Environmental Loading Induced Displacement Products for Correcting GNSS Time Series in CMONOC. Remote Sens.
**2020**, 12, 594. [Google Scholar] [CrossRef] [Green Version] - Nikolaidis, R. Observation of Geodetic and Seismic Deformation with the Global Positioning System. Ph.D. Thesis, University of California, San Diego, CA, USA, 2002. [Google Scholar]
- Mao, A.; Harrison, C.G.; Dixon, T.H. Noise in GPS coordinate time series. J. Geophys. Res. Solid Earth
**1999**, 104, 2797–2816. [Google Scholar] [CrossRef] [Green Version] - Williams, S.D.; Bock, Y.; Fang, P.; Jamason, P.; Nikolaidis, R.M.; Prawirodirdjo, L.; Miller, M.; Johnson, D.J. Error analysis of continuous GPS position time series. J. Geophys. Res. Solid Earth
**2004**, 109, B03412. [Google Scholar] [CrossRef] [Green Version] - Serpelloni, E.; Faccenna, C.; Spada, G.; Dong, D.; Williams, S.D. Vertical GPS ground motion rates in the Euro-Mediterranean region: New evidence of velocity gradients at different spatial scales along the Nubia-Eurasia plate boundary. J. Geophys. Res. Solid Earth
**2013**, 118, 6003–6024. [Google Scholar] [CrossRef] [Green Version] - Chen, Q.; van Dam, T.; Sneeuw, N.; Collilieux, X.; Weigelt, M.; Rebischung, P. Singular spectrum analysis for modeling seasonal signals from GPS time series. J. Geodyn.
**2013**, 72, 25–35. [Google Scholar] [CrossRef] - Freymueller, J.T. Seasonal Position Variations and Regional Reference Frame Realization. In Proceedings of the Geodetic Reference Frames: IAG Symposium, Munich, Germany, 9–14 October 2006; pp. 191–196. [Google Scholar]
- Davis, J.L.; Wernicke, B.P.; Tamisiea, M.E. On seasonal signals in geodetic time series. J. Geophys. Res. Solid Earth
**2012**, 117, B01403. [Google Scholar] [CrossRef] [Green Version] - Davis, J.L.; Wernicke, B.P.; Bisnath, S.; Niemi, N.A.; Elosegui, P. Subcontinental-scale crustal velocity changes along the Pacific-North America plate boundary. Nature
**2006**, 441, 1131–1134. [Google Scholar] [CrossRef] [PubMed] - Pan, Y.; Shen, W.B.; Ding, H.; Hwang, C.; Li, J.; Zhang, T. The Quasi-Biennial Vertical Oscillations at Global GPS Stations: Identification by Ensemble Empirical Mode Decomposition. Sensors
**2015**, 15, 26096–26114. [Google Scholar] [CrossRef] - Tesmer, V.; Steigenberger, P.; van Dam, T.; Mayer-Gürr, T. Vertical deformations from homogeneously processed GRACE and global GPS long-term series. J. Geod.
**2011**, 85, 291–310. [Google Scholar] [CrossRef] - Gruszczynska, M.; Rosat, S.; Klos, A.; Gruszczynski, M.; Bogusz, J. Multichannel Singular Spectrum Analysis in the Estimates of Common Environmental Effects Affecting GPS Observations. Pure Appl. Geophys.
**2018**, 175, 1805–1822. [Google Scholar] [CrossRef] [Green Version] - Ming, F.; Yang, Y.; Zeng, A.; Zhao, B. Spatiotemporal filtering for regional GPS network in China using independent component analysis. J. Geod.
**2017**, 91, 419–440. [Google Scholar] [CrossRef] - Liu, B.; Dai, W.; Peng, W.; Meng, X. Spatiotemporal analysis of GPS time series in vertical direction using independent component analysis. Earth Planets Space
**2015**, 67, 189. [Google Scholar] [CrossRef] [Green Version] - Liu, B.; Dai, W.; Liu, N. Extracting seasonal deformations of the Nepal Himalaya region from vertical GPS position time series using Independent Component Analysis. Adv. Space Res.
**2017**, 60, 2910–2917. [Google Scholar] [CrossRef] - Yan, J.; Dong, D.; Bürgmann, R.; Materna, K.; Tan, W.; Peng, Y.; Chen, J. Separation of Sources of Seasonal Uplift in China Using Independent Component Analysis of GNSS Time Series. J. Geophys. Res. Solid Earth
**2019**, 124, 11951–11971. [Google Scholar] [CrossRef] - Gualandi, A.; Avouac, J.P.; Galetzka, J.; Genrich, J.F.; Blewitt, G.; Adhikari, L.B.; Koirala, B.P.; Gupta, R.; Upreti, B.N.; Pratt-Sitaula, B.; et al. Pre- and post-seismic deformation related to the 2015, Mw7.8 Gorkha earthquake, Nepal. Tectonophysics
**2017**, 714, 90–106. [Google Scholar] [CrossRef] - Riddell, A.R.; King, M.A.; Watson, C.S. Present-Day Vertical Land Motion of Australia From GPS Observations and Geophysical Models. J. Geophys. Res. Solid Earth
**2020**, 125, e2019JB018034. [Google Scholar] [CrossRef] [Green Version] - Li, W.; Jiang, W.; Li, Z.; Chen, H.; Chen, Q.; Wang, J.; Zhu, G. Extracting Common Mode Errors of Regional GNSS Position Time Series in the Presence of Missing Data by Variational Bayesian Principal Component Analysis. Sensors
**2020**, 20, 2298. [Google Scholar] [CrossRef] [Green Version] - Comon, P. Independent component analysis, A new concept? Signal Process.
**1994**, 36, 287–314. [Google Scholar] [CrossRef] - Hyvarinen, A. Fast and robust fixed-point algorithms for independent component analysis. IEEE Trans. Neural Networks
**1999**, 10, 626–634. [Google Scholar] [CrossRef] [Green Version] - Hyvärinen, A.; Oja, E. Independent component analysis: Algorithms and applications. Neural Networks
**2000**, 13, 411–430. [Google Scholar] [CrossRef] [Green Version] - Fan, J.; Zhang, W. Statistical Estimation in Varying Coeficient Models. Ann. Stat.
**1999**, 27, 1491–1518. [Google Scholar] - Fan, J.; Zhang, W. Simultaneous Confidence Bands and Hypothesis Testing in Varying-coefficient Models. Scand. J. Stat.
**2000**, 27, 715–731. [Google Scholar] [CrossRef] - Gazeaux, J.; Williams, S.; King, M.; Bos, M.; Dach, R.; Deo, M.; Moore, A.W.; Ostini, L.; Petrie, E.; Roggero, M.; et al. Detecting offsets in GPS time series: First results from the detection of offsets in GPS experiment. J. Geophys. Res. Solid Earth
**2013**, 118, 2397–2407. [Google Scholar] [CrossRef] [Green Version] - Liu, N.; Dai, W.; Santerre, R.; Kuang, C. A MATLAB-based Kriged Kalman Filter software for interpolating missing data in GNSS coordinate time series. GPS Solutions
**2018**, 22, 25. [Google Scholar] [CrossRef] - Bevis, M.; Harig, C.; Khan, S.A.; Brown, A.; Simons, F.J.; Willis, M.; Fettweis, X.; van den Broeke, M.R.; Madsen, F.B.; Kendrick, E.; et al. Accelerating changes in ice mass within Greenland, and the ice sheet’s sensitivity to atmospheric forcing. Proc. Natl. Acad. Sci. USA
**2019**, 116, 1934–1939. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Zhang, B.; Liu, L.; Khan, S.A.; van Dam, T.; Bjørk, A.A.; Peings, Y.; Zhang, E.; Bevis, M.; Yao, Y.; Noël, B. Geodetic and model data reveal different spatio-temporal patterns of transient mass changes over Greenland from 2007 to 2017. Earth Planet. Sci. Lett.
**2019**, 515, 154–163. [Google Scholar] [CrossRef]

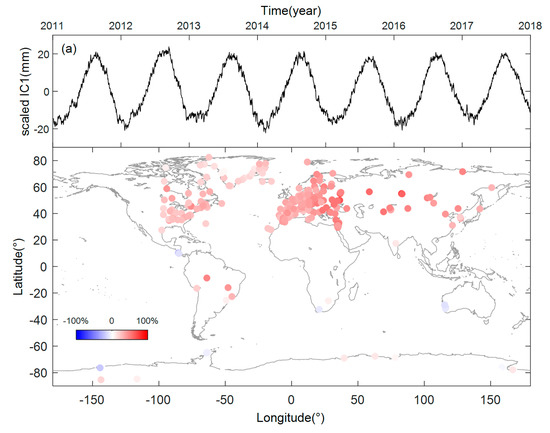

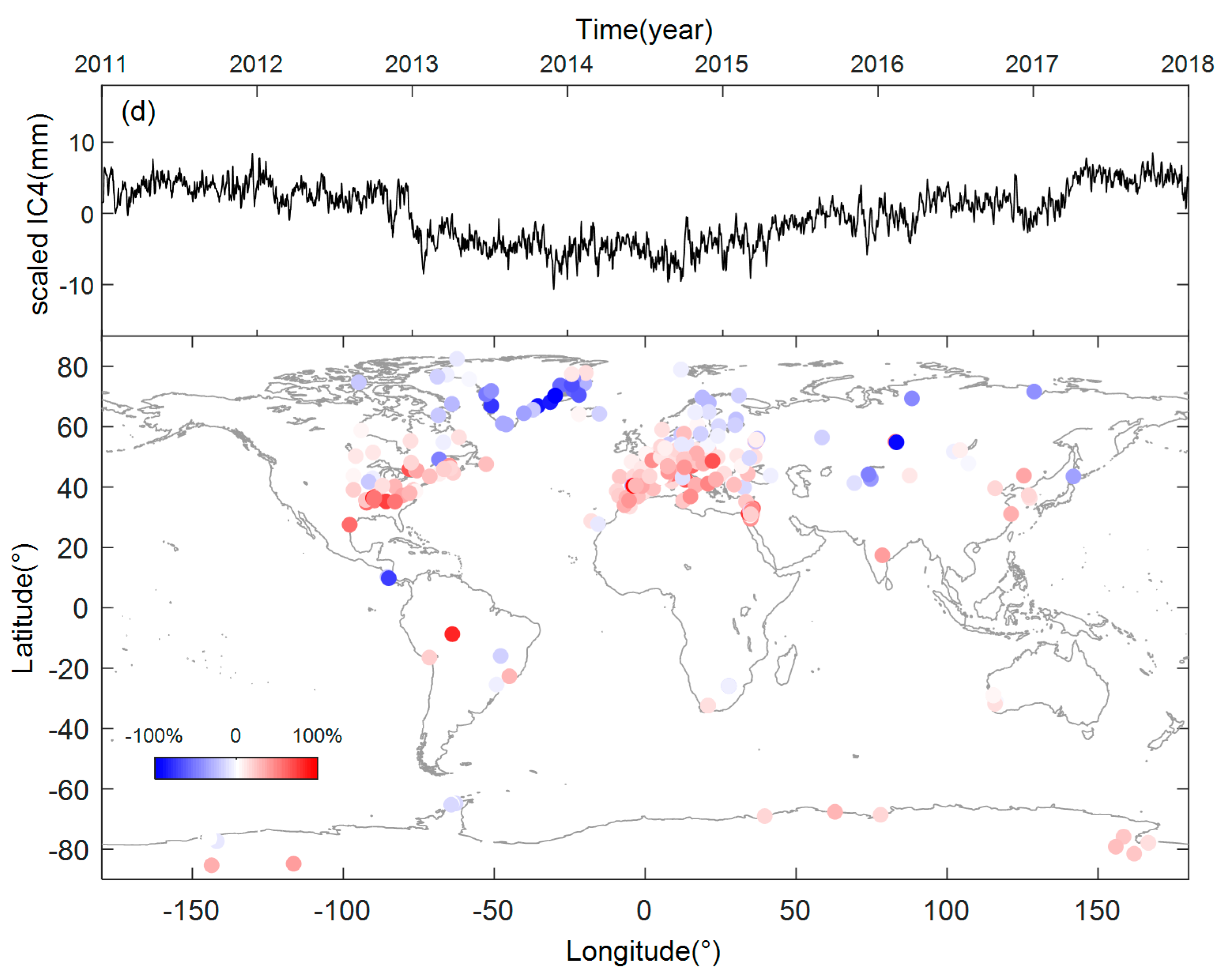

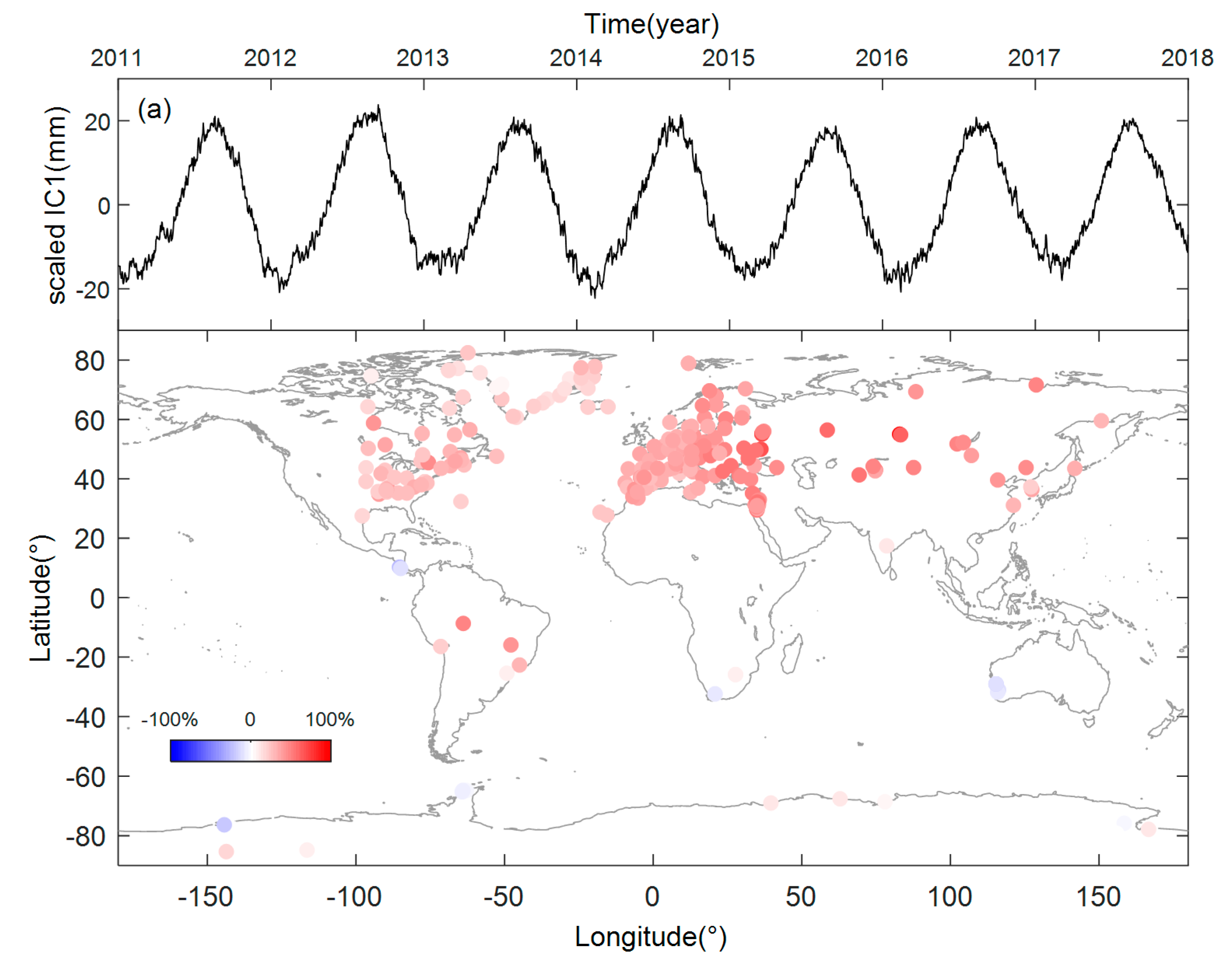

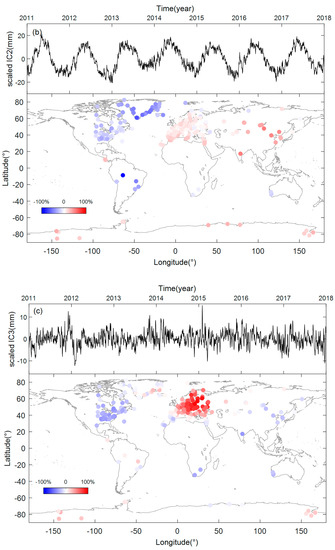

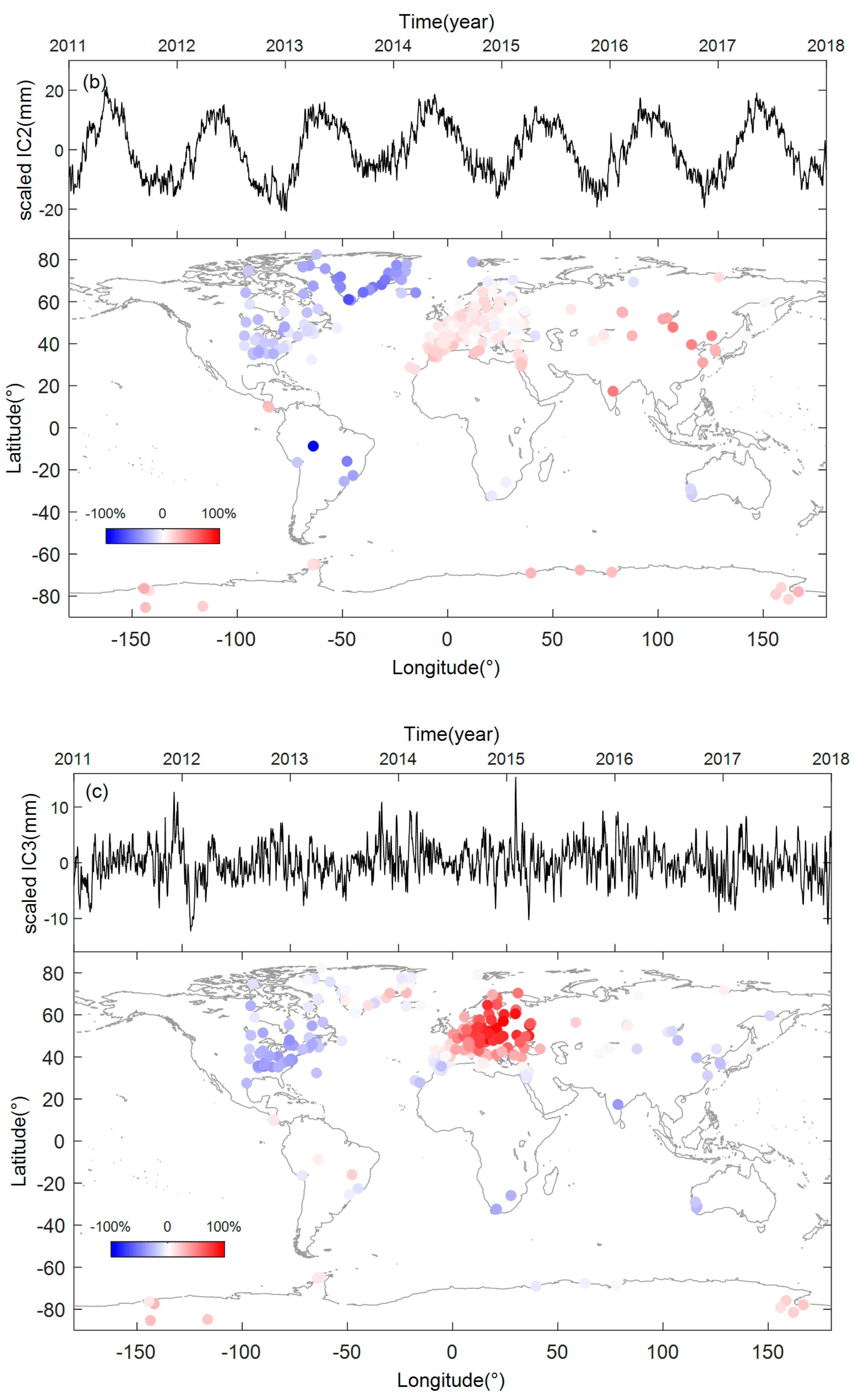

**Figure 3.**Top 4 Scaled independent components (ICs) and the spatial responses (SRs). (

**a**) scaled IC1 and SR1. (

**b**) scaled IC2 and SR2. (

**c**) scaled IC3 and SR3. (

**d**) scaled IC4 and SR4.

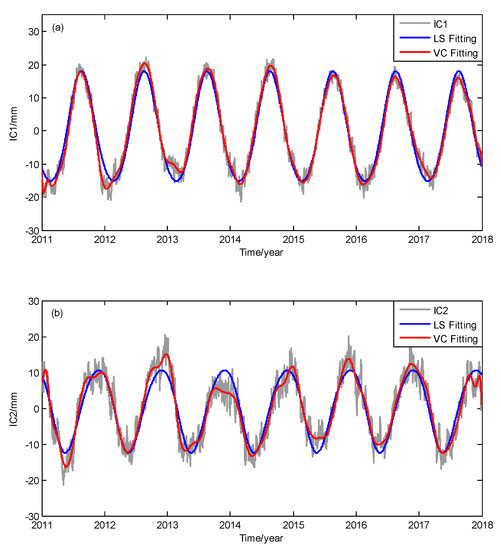

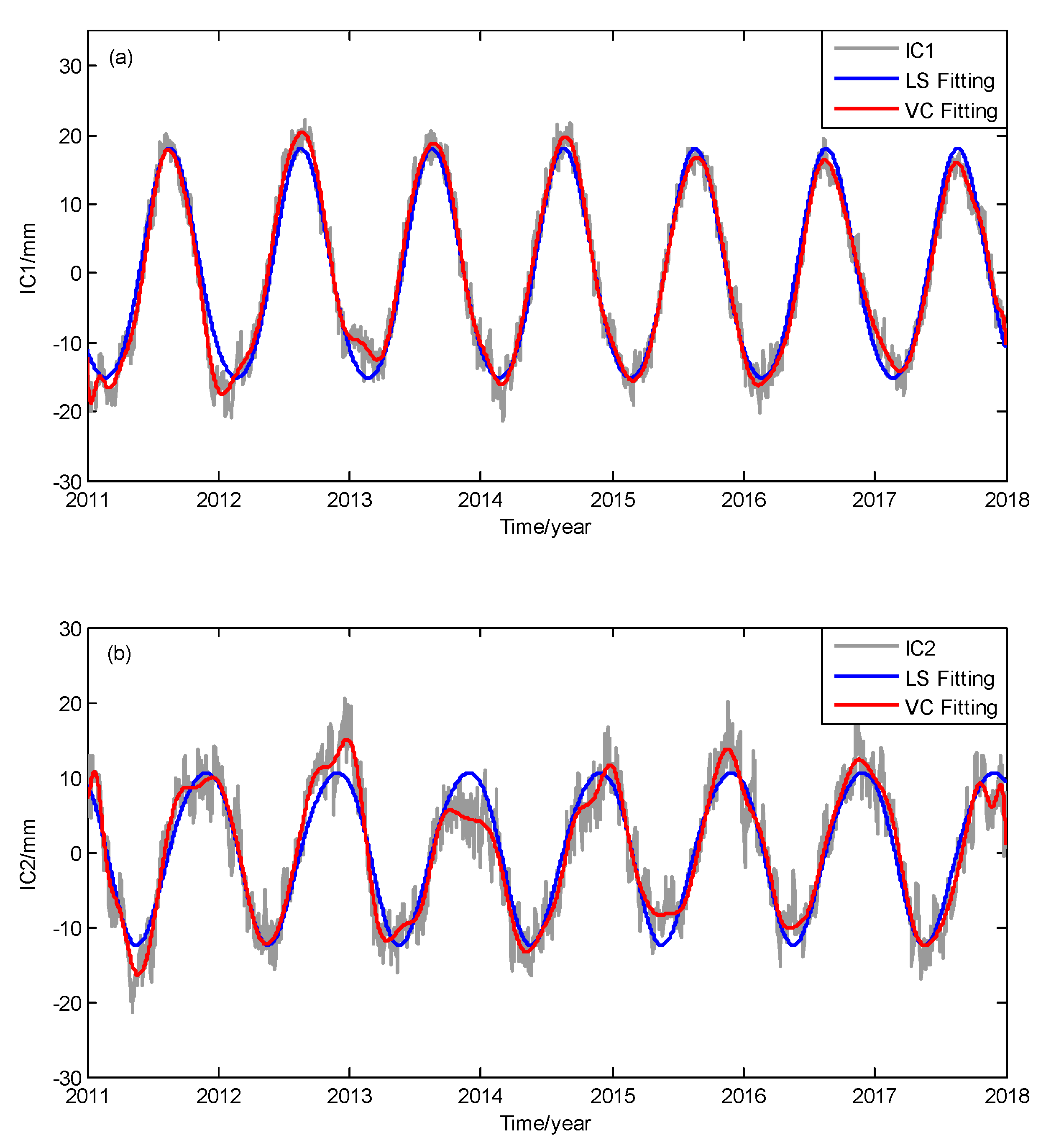

**Figure 4.**Fitting results of (

**a**) IC1 and (

**b**) IC2 using least squares (LS) regression and varying coefficient (VC) regression.

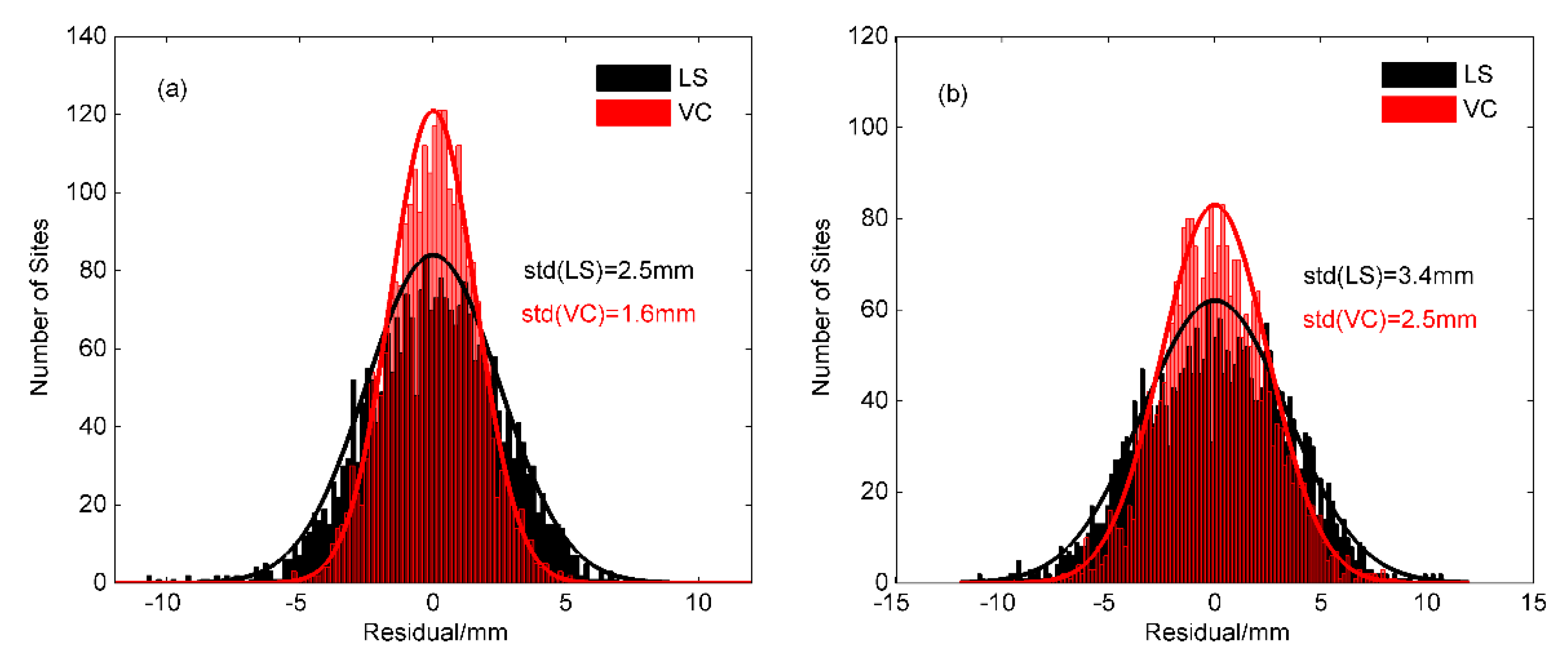

**Figure 5.**Histogram of Residual in the fitting model of least squares regression (LS) and varying coefficient regression (VC) for (

**a**) IC1 and (

**b**) IC2, the std of residual are marked.

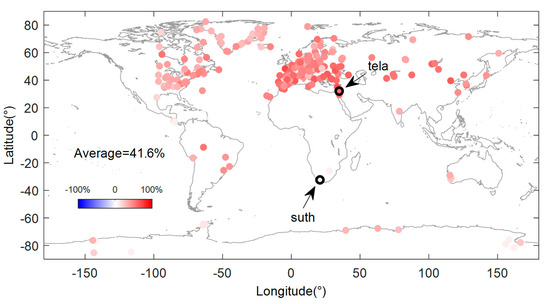

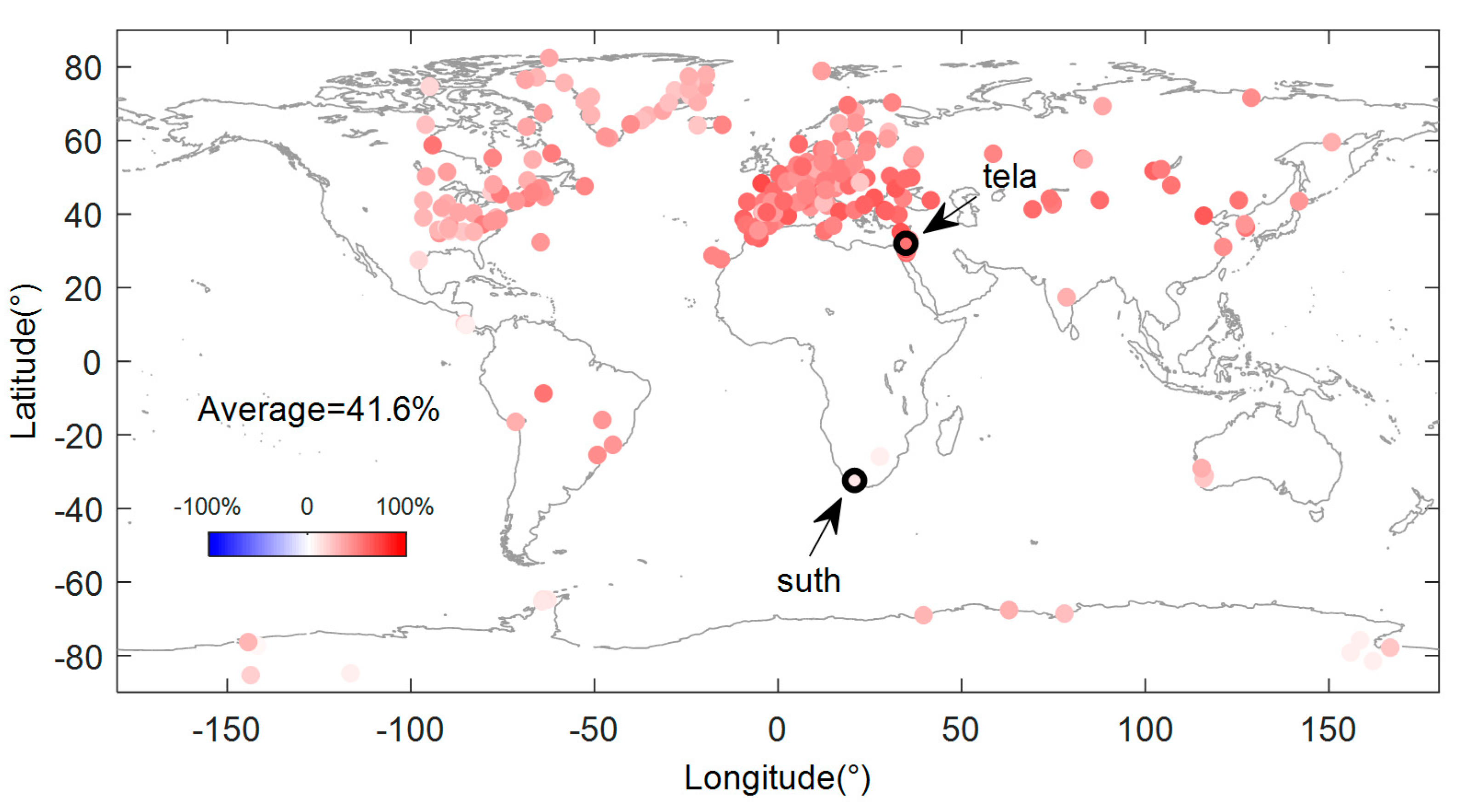

**Figure 6.**The root mean square (RMS) reduction in coordinate time series after the model correction for each site, the sites “tela” and “suth” are marked.

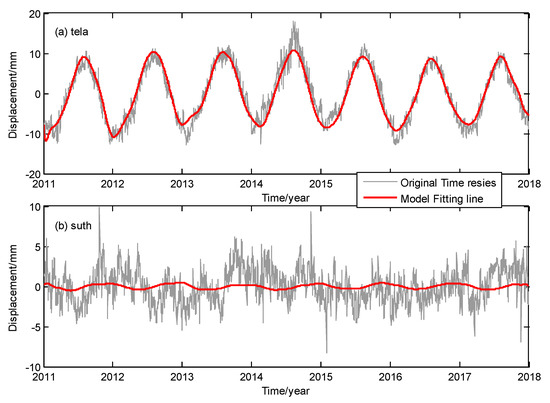

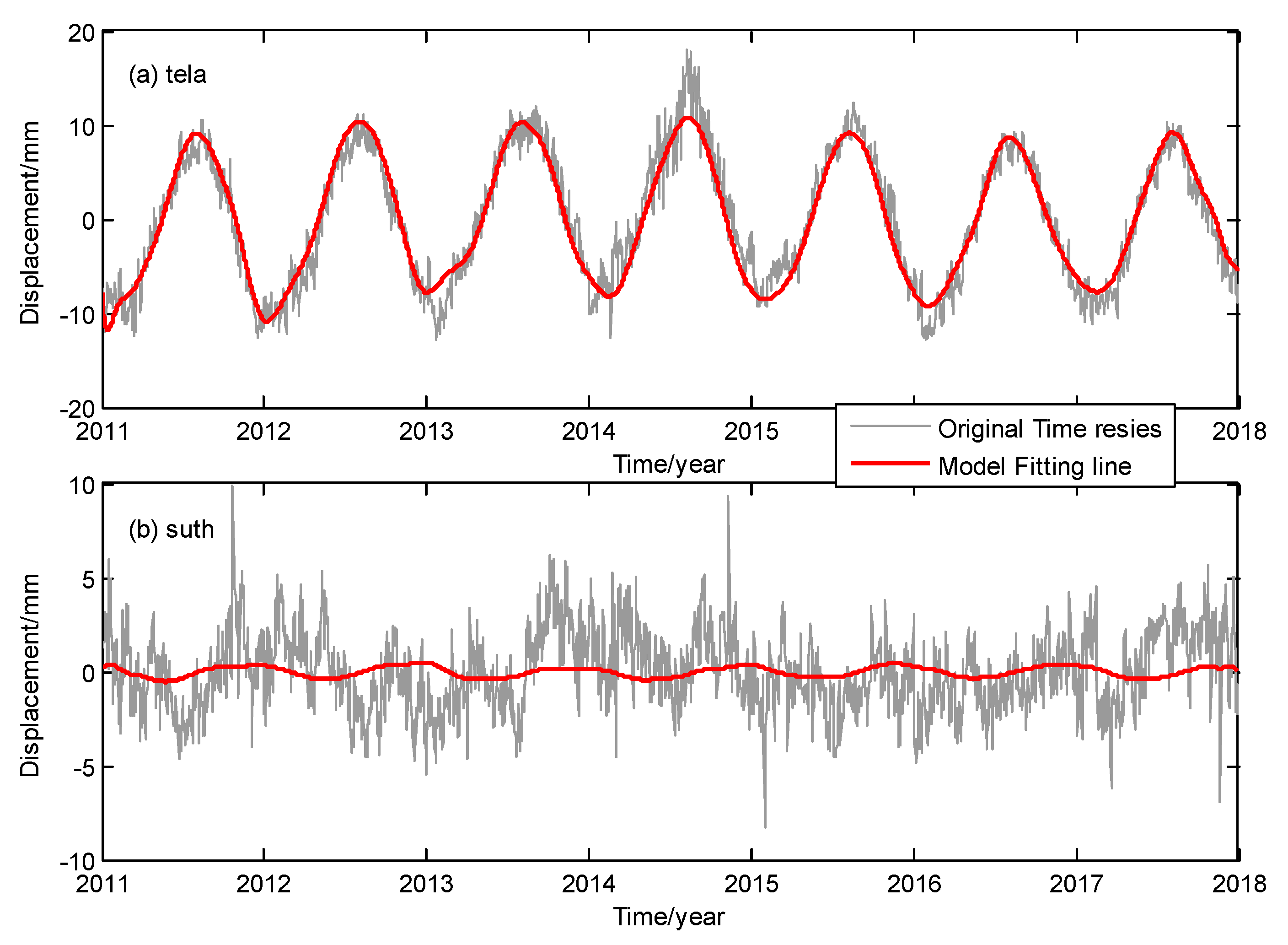

**Figure 7.**Vertical coordinate time series and the fitting lines of spatiotemporal model for sites (

**a**) “tela” and (

**b**) “suth”.

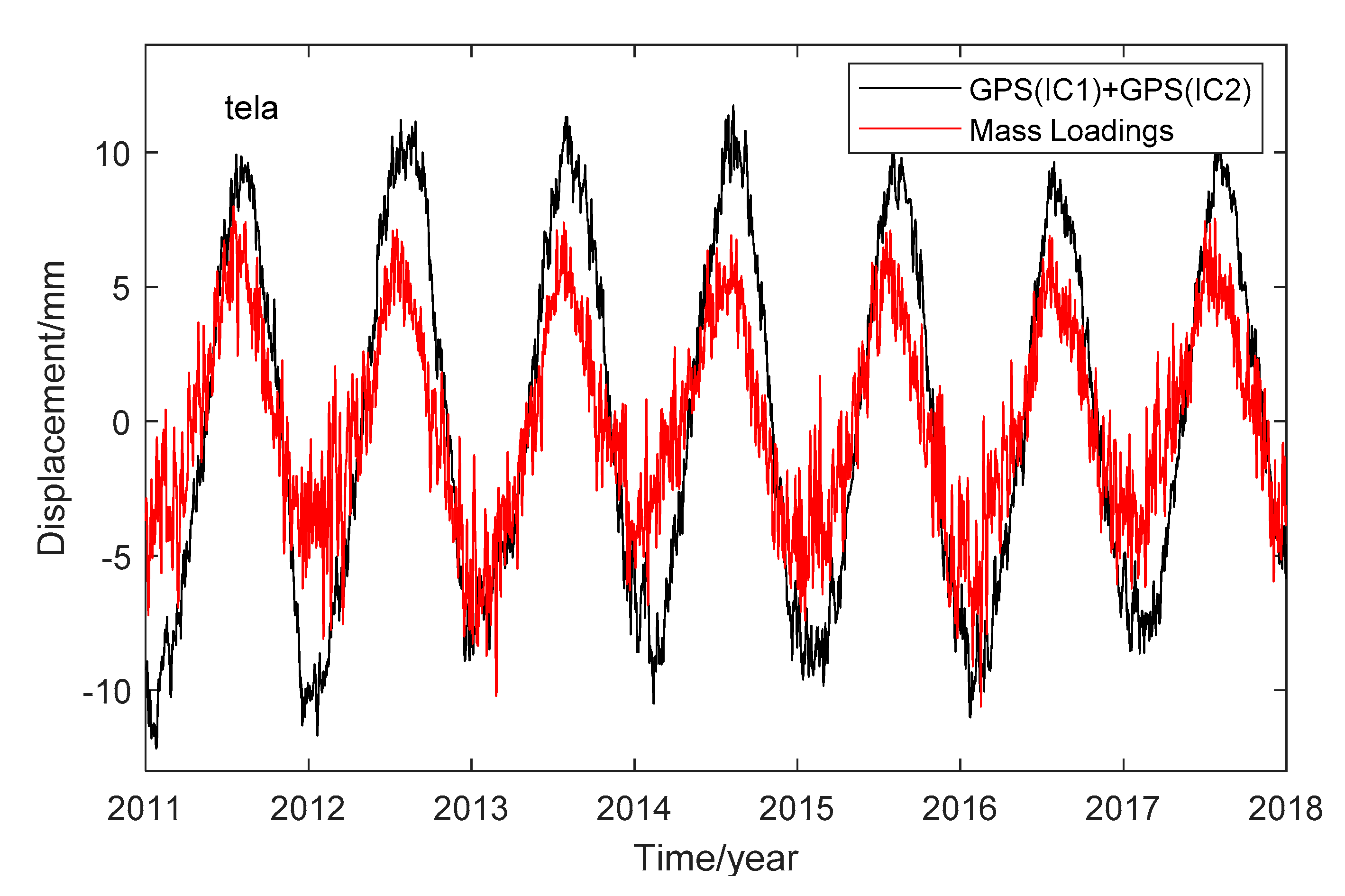

**Figure 8.**Comparison between ICs derived displacements (GPS(ICs)) and mass loading displacements at site “tela”.
