# Designing an Image Encryption Scheme Based on Compressive Sensing and Non-Uniform Quantization for Wireless Visual Sensor Networks

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Preliminary Knowledge and Designed OLM

#### 2.1. Compressive Sensing

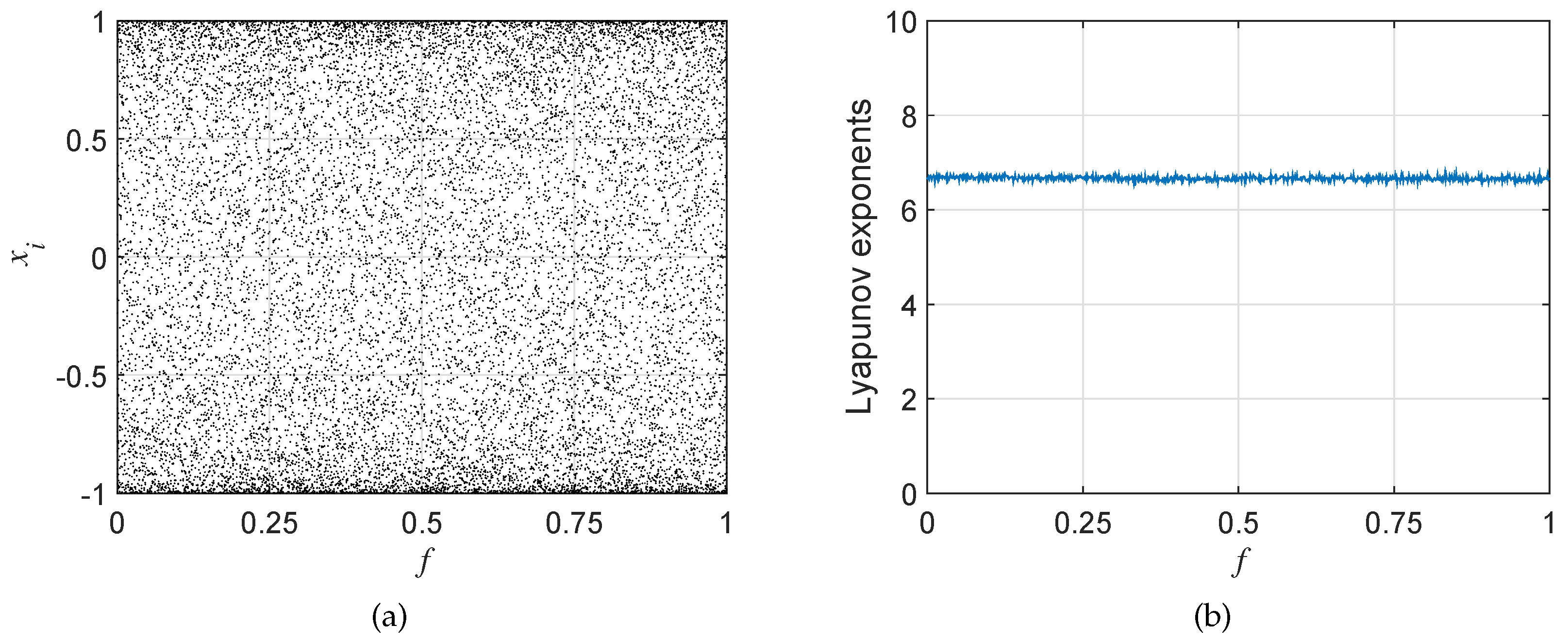

#### 2.2. Proposed OLM

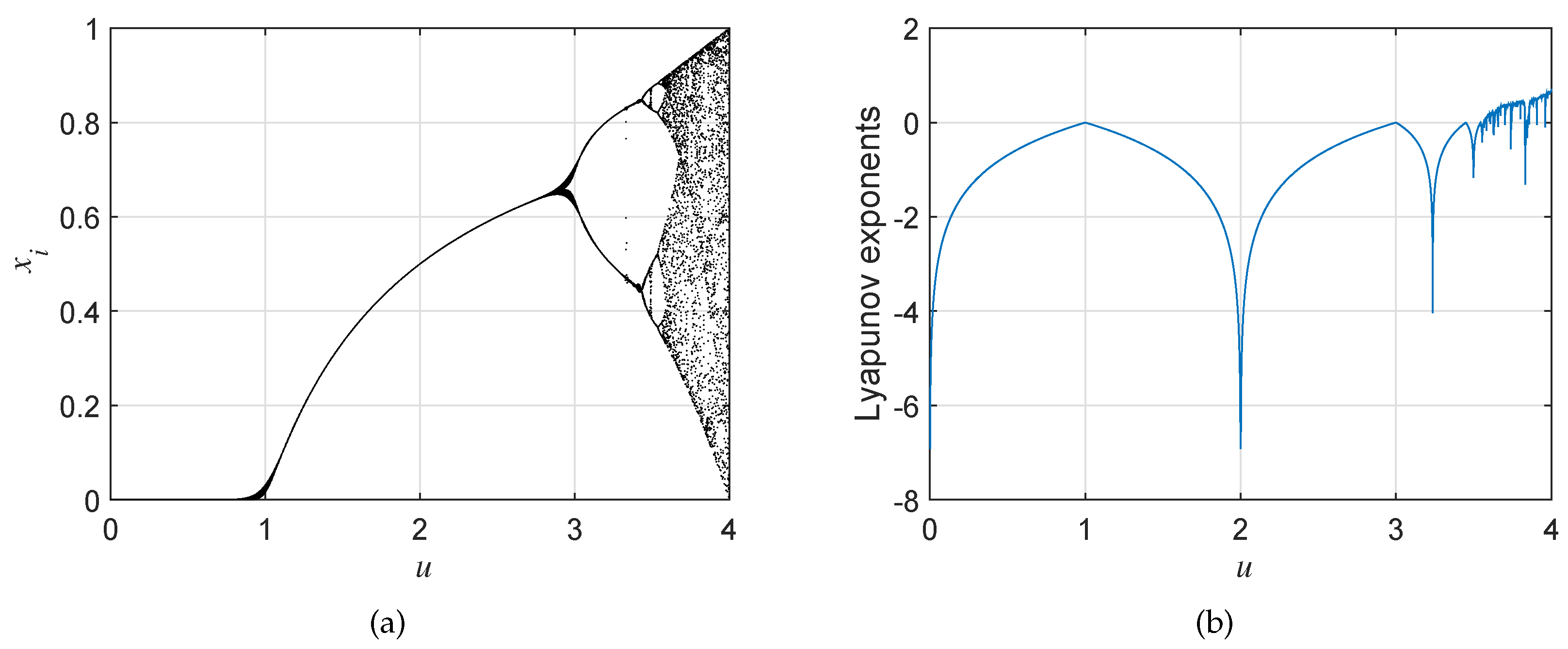

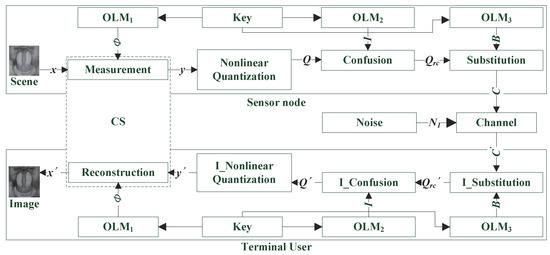

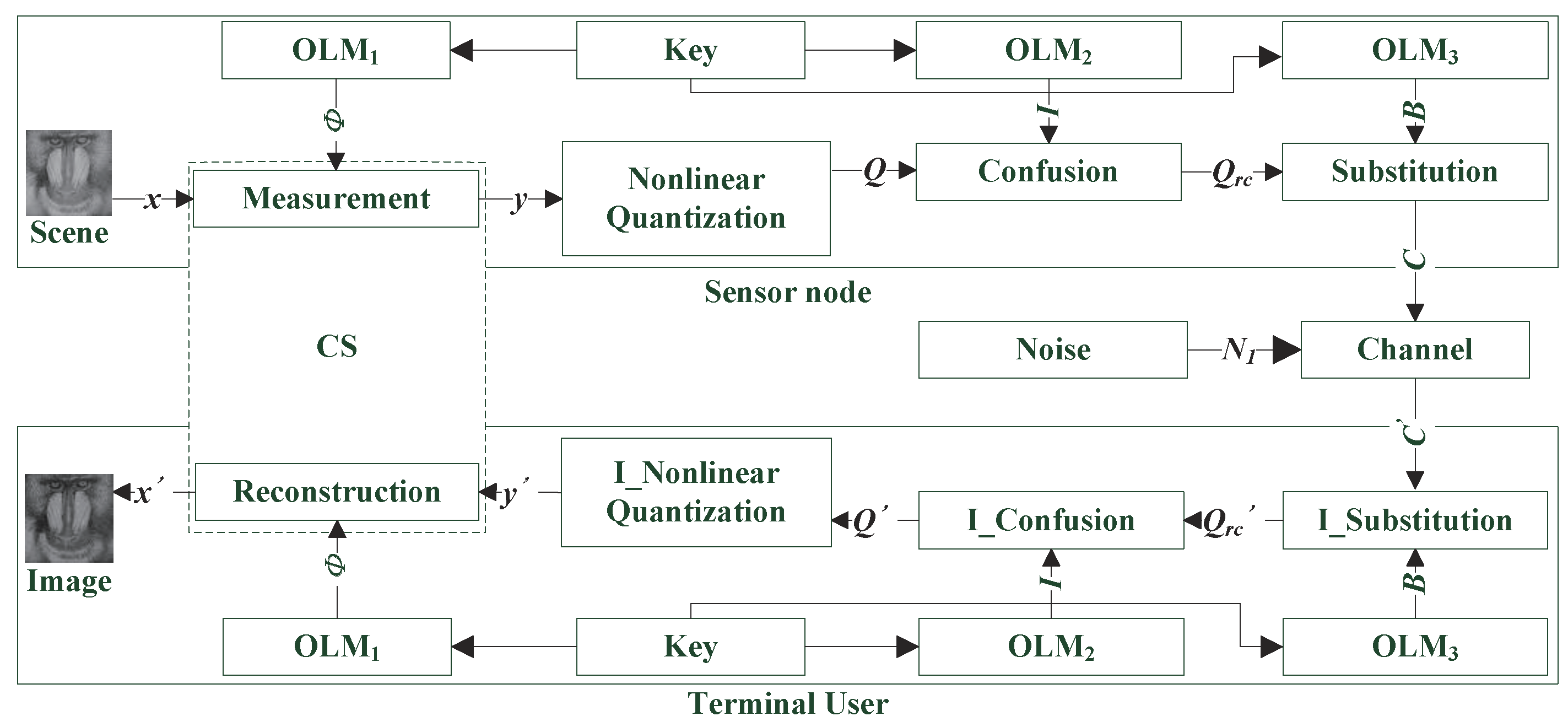

## 3. The Proposed Cryptosystem

- Measurement:In the proposed scheme, the scene at a sensor node was directly measured by a single pixel camera whose micro-mirror array was controlled by a measurement matrix. Generally speaking, in order to satisfy RIP, most measurement matrices are the Gaussian random matrix and the Bernoulli random matrix. In WVSN with security requirements, the measurement matrix is usually generated by a secret key that should be transmitted; hence, a random matrix is no longer suitable. In 2012, Chen et al. [32] proved that matrices constructed by chaotic sequences perform better. More importantly, this kind of matrix could be generated by few parameters, which helps to shrink the size of the key conspicuously. Furthermore, the Toeplitz-structured chaotic measurement matrix has been verified to be capable of satisfying RIP with high probability [33]. To further shorten the length of the chaotic sequence required, a cyclic-structured chaotic matrix:$$\mathit{C}=\left(\begin{array}{cccc}{t}_{n}& {t}_{n-1}& \cdots & {t}_{1}\\ {t}_{1}& {t}_{n}& \cdots & {t}_{2}\\ \vdots & \vdots & \ddots & \vdots \\ {t}_{m-1}& {t}_{m-2}& \cdots & {t}_{m}\end{array}\right)$$

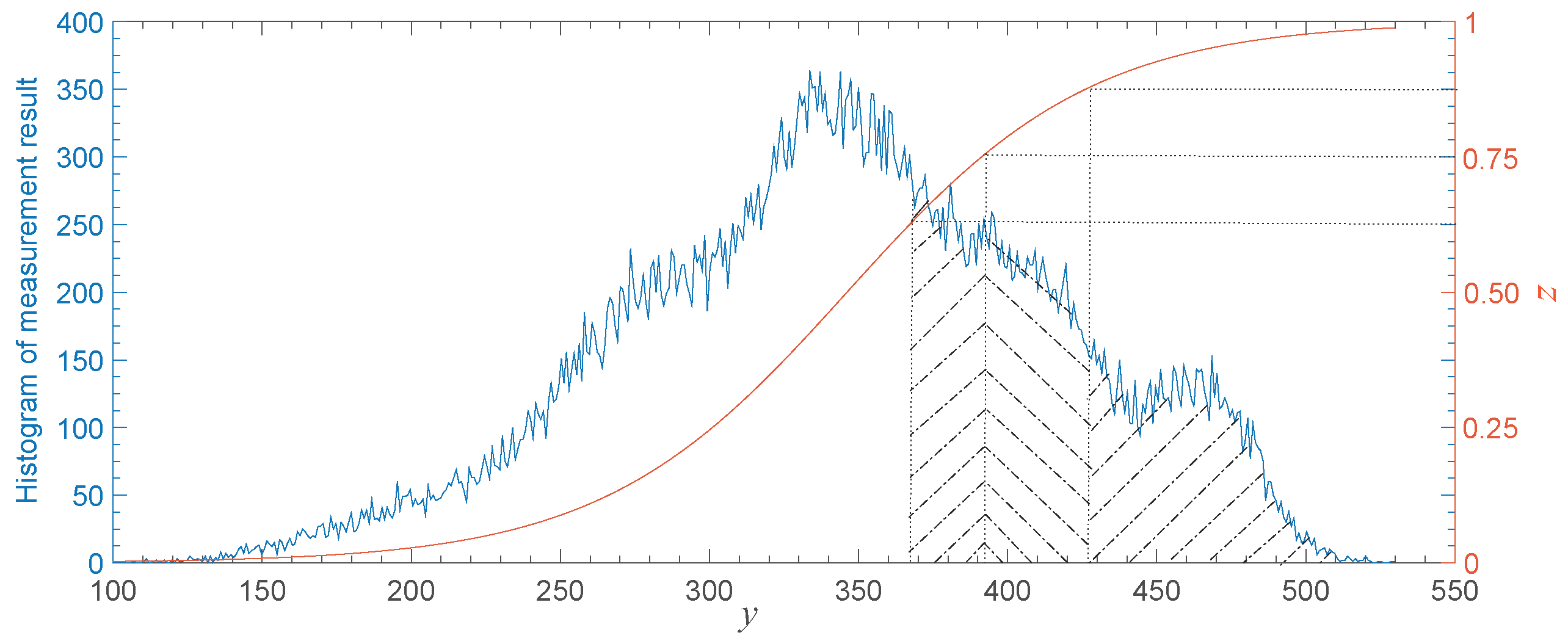

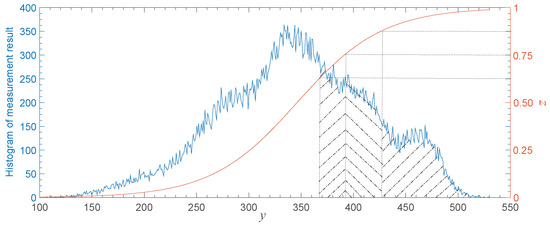

- Quantization:The quantization process could be divided into two parts: the parameter-variable non-linear transform and the conventional UQ. First, the measurement result $\mathit{y}$ was transformed by a non-linear function:$$\mathit{z}=\frac{1}{1+{e}^{-a(\mathit{y}-oset)}},$$$$a={\displaystyle \frac{ln(1/0.05-1)}{2\delta}}$$
- Confusion and substitution:After that, the process of confusion and substitution [34,35] was appended to increase the security of quantized data. In the confusion process, OLM${}_{2}$ was firstly applied to iterate t times to obtain a chaotic sequence, whose length was the same as $\mathit{Q}$’s. Then, we sorted this sequence by the values to acquire an index sequence $\mathit{I}$ ranging from 1–t. Afterwards, we reordered the elements in $\mathit{Q}$ by sequence $\mathit{I}$ to get confused sequence ${\mathit{Q}}_{\mathit{rc}}$. In the substitution step, the CBC structure was avoided to enhance the anti-interference performance of the proposed system. Chaotic sequence $\mathit{B}$ was utilized to conceal the information by:$$C\left(i\right)={Q}_{rc}\left(i\right)\oplus B\left(i\right),\phantom{\rule{4pt}{0ex}}\phantom{\rule{4pt}{0ex}}i\in \{1,2,...,t\},$$

## 4. Simulation and Analysis

#### 4.1. Security Performance

#### 4.1.1. Ability of Resisting CPA

#### 4.1.2. Key Space and Key Sensitivity

#### 4.1.3. Statistical Histogram

#### 4.1.4. Correlation Coefficients

#### 4.1.5. Differential Analysis

#### 4.1.6. Randomness Analysis

#### 4.1.7. Efficiency Analysis

#### 4.1.8. Information Entropy

#### 4.2. Anti-Jamming Performance

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Abbreviations

WVSN | Wireless visual sensor networks |

CS | Compressive sensing |

CPA | Chosen-plaintext attack |

NQ | Non-uniform quantization |

CR | Compression ratio |

LM | Logistic map |

OLM | Optimized logistic map |

CCA | Chosen-ciphertext attack |

CBC | Cipher block chaining |

UQ | Uniform quantization |

RIP | Restricted isometry property |

OMP | Orthogonal matching pursuit |

ROMP | Regularized orthogonal matching pursuit |

CCD | Charge coupled device |

UINT8 | Unsigned integers in eight bits |

DCT | Discrete cosine transformation |

XOR | Exclusive or |

NPCR | The number of pixels change rate |

UACI | The unified average changing intensity |

PSNR | Peak signal-to-noise ratio |

AWGN | Additive white Gaussian noise |

## References

- Phamila, A.V.Y.; Amutha, R. Energy-efficient low bit rate image compression in wavelet domain for wireless image sensor networks. Electron. Lett.
**2015**, 51, 824–826. [Google Scholar] [CrossRef] - Candès, E.J.; Romberg, J.; Tao, T. Robust uncertainty principles: Exact signal reconstruction from highly incomplete frequency information. IEEE Trans. Inf. Theory
**2006**, 52, 489–509. [Google Scholar] [CrossRef] - Chen, Y.S.; Tsou, Y.T. Compressive Sensing-Based Adaptive Top-k Query over Compression Domain in Wireless Sensor Networks. In Proceedings of the IEEE Wireless Communications and Networking Conference, San Francisco, CA, USA, 19–22 March 2017; pp. 1–6. [Google Scholar]
- Li, C.; Lin, D.; Lü, J. Cryptanalyzing an Image-Scrambling Encryption Algorithm of Pixel Bits. IEEE Multimedia
**2017**, 24, 64–71. [Google Scholar] [CrossRef] [Green Version] - Wang, X.; Wang, Y.; Wang, S.; Zhang, Y.; Wu, X. A novel pseudo-random coupled LP spatiotemporal chaos and its application in image encryption. Chin. Phys. B
**2018**, 27, 110502. [Google Scholar] [CrossRef] - Shen, Q.; Liu, W. A Novel Digital Image Encryption Algorithm Based on Orbit Variation of Phase Diagram. Int. J. Bifurc. Chaos
**2017**, 27, 1750204. [Google Scholar] [CrossRef] - Zhang, Y.; Xu, B.; Zhou, N. A novel image compression–encryption hybrid algorithm based on the analysis sparse representation. Opt. Commun.
**2017**, 392, 223–233. [Google Scholar] [CrossRef] - George, S.N.; Pattathil, D.P. A novel approach for secure compressive sensing of images using multiple chaotic maps. J. Opt.
**2014**, 43, 1–17. [Google Scholar] [CrossRef] - Huang, X.; Ye, G.; Chai, H.; Xie, O. Compression and encryption for remote sensing image using chaotic system. Secur. Commun. Netw.
**2015**, 8, 3659–3666. [Google Scholar] [CrossRef] [Green Version] - Zhang, Y.; Zhou, J.; Chen, F.; Zhang, L.Y.; Wong, K.W.; He, X.; Xiao, D. Embedding cryptographic features in compressive sensing. Neurocomputing
**2016**, 205, 472–480. [Google Scholar] [CrossRef] - Zhang, L.Y.; Wong, K.W.; Zhang, Y.; Zhou, J. Bi-level protected compressive sampling. IEEE T. Multimedia
**2016**, 18, 1720–1732. [Google Scholar] [CrossRef] - Safi, H.W.; Maghari, A.Y. Image encryption using double chaotic logistic map. In Proceedings of the 2017 International Conference on Promising Electronic Technologies, Deir El-Balah, Palestine, 16–17 October 2017; pp. 66–70. [Google Scholar]
- Bing, L.; Die, F. An image encryption algorithm of scrambling binary sequences by improved logistic mapping. In Proceedings of the 2017 IEEE 17th International Conference on Communication Technology, Chengdu, China, 27–30 October 2017; pp. 1747–1751. [Google Scholar]
- Liu, J.; Yang, D.; Zhou, H.; Chen, S. A new image encryption algorithm based on improved logistic map and block-mod algorithm. In Proceedings of the 2017 IEEE 2nd Advanced Information Technology, Electronic and Automation Control Conference, Chongqing, China, 25–26 March 2017; pp. 2314–2319. [Google Scholar]
- Han, C. An image encryption algorithm based on modified logistic chaotic map. Optik
**2019**, 181, 779–785. [Google Scholar] [CrossRef] - Zhou, N.; Zhang, A.; Zheng, F.; Gong, L. Novel image compression–encryption hybrid algorithm based on key-controlled measurement matrix in compressive sensing. Opt. Laser Technol.
**2014**, 62, 152–160. [Google Scholar] [CrossRef] - Abutaha, M.; Assad, S.E.; Farajallah, M.; Queudet, A.; Deforge, O. Chaos-based cryptosystems using dependent diffusion: An overview. In Proceedings of the International Conference for Internet Technology and Secured Transactions, London, UK, 14–16 December 2015; pp. 44–49. [Google Scholar]
- Zhang, Y.; Tang, Y. A plaintext-related image encryption algorithm based on chaos. Multimed. Tools Appl.
**2018**, 77, 6647–6669. [Google Scholar] [CrossRef] - Murillo-Escobar, M.A.; Cruz-Hernández, C.; Abundiz-Pérez, F.; López-Gutiérrez, R.M.; Del Campo, O.A. A RGB image encryption algorithm based on total plain image characteristics and chaos. Signal Proc.
**2015**, 109, 119–131. [Google Scholar] [CrossRef] - Xiao, D.; Wang, L.; Xiang, T.; Wang, Y. Multi-focus image fusion and robust encryption algorithm based on compressive sensing. Opt. Laser Technol.
**2017**, 91, 212–225. [Google Scholar] [CrossRef] - Chen, L.; Ma, B.; Zhao, X.; Wang, S. Differential cryptanalysis of a novel image encryption algorithm based on chaos and Line map. Nonlinear Dyn.
**2017**, 87, 1797–1807. [Google Scholar] [CrossRef] - Zhu, C.; Xu, S.; Hu, Y.; Sun, K. Breaking a novel image encryption scheme based on Brownian motion and PWLCM chaotic system. Nonlinear Dyn.
**2015**, 79, 1511–1518. [Google Scholar] [CrossRef] - Wu, Y.; Liu, W.; Shen, Q. Joint optimal placement, routing, and energy allocation in wireless sensor networks with a shared energy harvesting module. Int. J. Distrib. Sens. Netw.
**2017**, 13. [Google Scholar] [CrossRef] - Wu, Y.; Liu, W.; Li, K. Power allocation and relay selection for energy efficient cooperation in wireless sensor networks with energy harvesting. EURASIP J. Wirel. Comm.
**2017**, 1, 26. [Google Scholar] [CrossRef] - Masoum, A.; Meratnia, N.; Havinga, P. Coalition Formation Based Compressive Sensing in Wireless Sensor Networks. Sensors
**2018**, 18, 824–826. [Google Scholar] [CrossRef] - Wu, T.; Ruland, C. Compression-Oriented quantization improvement of compressive sensing based imaging. In Proceedings of the International Conference on Telecommunications and Signal Processing, Barcelona, Spain, 5–7 July 2017; pp. 604–609. [Google Scholar]
- Zhang, Y.; Zhang, L.Y.; Zhou, J.; Liu, L.; Chen, F.; He, X. A Review of Compressive Sensing in Information Security Field. IEEE Access
**2016**, 4, 2507–2519. [Google Scholar] [CrossRef] - Candès, E.J.; Romberg, J.K.; Tao, T. Stable signal recovery from incomplete and inaccurate measurements. Commun. Pure Appl. Math.
**2006**, 59, 1207–1223. [Google Scholar] [CrossRef] [Green Version] - Donoho, D.L. Compressed sensing. IEEE Trans. Inf. Theory
**2006**, 52, 1289–1306. [Google Scholar] [CrossRef] - Candès, E.J. The restricted isometry property and its implications for compressed sensingLa propriété d’isométrie restreinte et ses conséquences pour le compressed sensing. Comptes Rendus Math.
**2008**, 346, 589–592. [Google Scholar] [CrossRef] - Clemente, P.; Durán, V.; Tajahuerce, E.; Andrés, P.; Climent, V.; Lancis, J. Compressive holography with a single-pixel detector. Opt. Lett.
**2013**, 38, 2524–2527. [Google Scholar] [CrossRef] [PubMed] - Chen, G.; Zhang, D.; Chen, Q.; Zhou, D. The characteristic of different chaotic sequences for Compressive Sensing. In Proceedings of the International Congress on Image and Signal Processing, Chongqing, China, 16–18 October 2012; pp. 1475–1479. [Google Scholar]
- Yu, L.; Barbot, J.P.; Zheng, G.; Sun, H. Toeplitz-structured chaotic sensing matrix for compressive sensing. In Proceedings of the International Symposium on Communication Systems, Networks & Digital Signal Processing, Newcastle upon Tyne, UK, 21–23 July 2010; pp. 229–233. [Google Scholar]
- Khan, J.; Ahmad, J.; Hwang, S.O. An efficient image encryption scheme based on: Henon map, skew tent map and S-Box. In Proceedings of the International Conference on Modeling, Simulation, and Applied Optimization, Istanbul, Turkey, 27–29 May 2015; pp. 1–6. [Google Scholar]
- Chen, Z.; Li, H.; Dong, E.; Du, Y. A Hyper-Chaos Based Image Encryption Algorithm. In Proceedings of the International Conference on Intelligent Human-Machine Systems and Cybernetics, Nanjing, Jiangsu, China, 26–28 August 2010; pp. 188–191. [Google Scholar]
- Solak, E.; Çokal, C.; Yildiz, O.T.; Biyikoğlu, T. Cryptanalysis of Fridrich’s chaotic image encryption. Int. J. Bifurc. Chaos
**2010**, 20, 1405–1413. [Google Scholar] [CrossRef] - Barker, E.; Roginsky, A. Transitions: Recommendation for Transitioning the Use of Cryptographic Algorithms and Key Lengths. In Computer Security; Gallagher, P., Ed.; National Institute of Standards and Technology: Gaithersburg, MD, USA, 2011; pp. 17–18. [Google Scholar]
- Hua, Z.; Zhou, Y. Image encryption using 2D Logistic-adjusted-Sine map. Inf. Sci.
**2016**, 339, 237–253. [Google Scholar] [CrossRef] - Liao, X.; Lai, S.; Zhou, Q. A novel image encryption algorithm based on self-adaptive wave transmission. Signal Proc.
**2010**, 90, 2714–2722. [Google Scholar] [CrossRef] - Wu, Y.; Yang, G.; Jin, H.; Noonan, J.P. Image encryption using the two-dimensional logistic chaotic map. J. Electron. Imaging
**2012**, 21, 013014. [Google Scholar] [CrossRef] - Zhou, Y.; Bao, L.; Chen, C.L.P. Image encryption using a new parametric switching chaotic system. Signal Proc.
**2013**, 93, 3039–3052. [Google Scholar] [CrossRef] - Wu, Y.; Noonan, J.P.; Agaian, S. NPCR and UACI randomness tests for image encryption. J. Sel. Area Telecomm.
**2011**, 1, 31–38. [Google Scholar] [CrossRef] - Zheng, Q.; Wang, X.; Khan, M.K.; Zhang, W.; Gupta, B.B.; Guo, W. A lightweight authenticated encryption scheme based on chaotic scml for railway cloud service. IEEE Access
**2017**, 6, 711–722. [Google Scholar] [CrossRef] - Garcia-Bosque, M.; Sánchez-Azqueta, C.; Celma, S. Secure communication system based on a logistic map and a linear feedback shift register. In Proceedings of the 2016 IEEE International Symposium on Circuits and Systems, Montreal, QC, Canada, 22–25 May 2016; pp. 1170–1173. [Google Scholar]
- Abundiz-Pérez, F.; Cruz-Hernández, C.; Murillo-Escobar, M.A.; López-Gutiérrez, R.M.; Arellano-Delgado, A. A fingerprint image encryption scheme based on hyperchaotic Rössler map. Math. Probl. Eng.
**2016**, 1, 1–15. [Google Scholar] [CrossRef] - Bhatnagar, G.; Wu, Q.J. Chaos-based security solution for fingerprint data during communication and transmissio. IEEE T. Instrum. Meas.
**2012**, 61, 876–887. [Google Scholar] [CrossRef] - Stoyanov, B.; Kordov, K. Image encryption using Chebyshev map and rotation equation. Entropy
**2015**, 17, 2117–2139. [Google Scholar] [CrossRef]

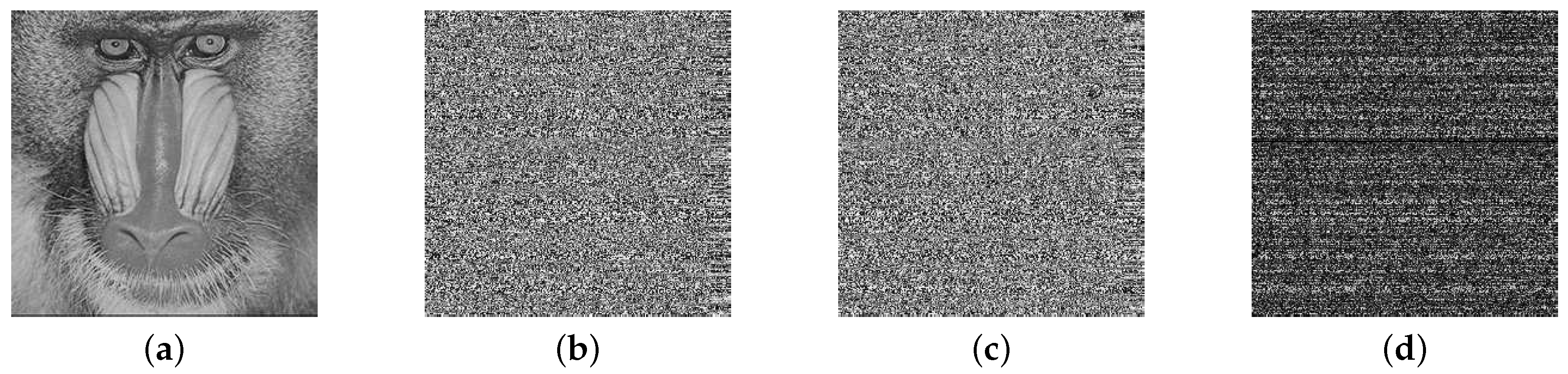

**Figure 5.**Key sensitivity in the encryption part. (

**a**) Plain image of a baboon; (

**b**) cipher image by the correct secret key; (

**c**) cipher image by the changed secret key; (

**d**) information variation between two cipher images.

**Figure 6.**Key sensitivity in the decryption part. (

**a**) Plain image of a baboon; (

**b**) decrypted image with correct secret key; (

**c**) decrypted image with wrong secret key; (

**d**) difference between two decrypted images.

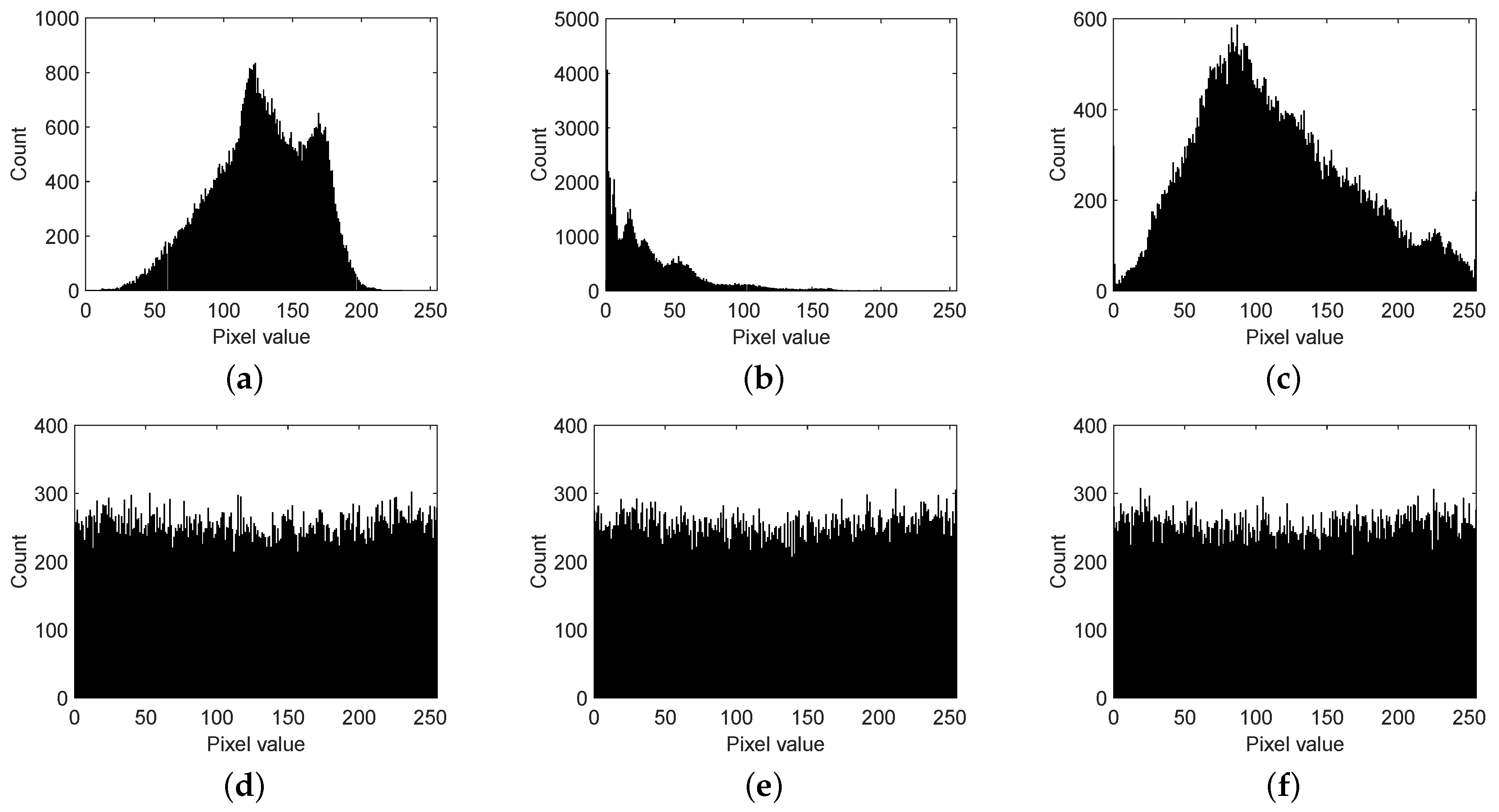

**Figure 7.**(

**a**) Histogram of a plain image of a baboon. (

**b**) Histogram of a plain image of a couple. (

**c**) Histogram of a plain image of a bridge. (

**d**) Histogram of a cipher image of a baboon. (

**e**) Histogram of a cipher image of a couple. (

**f**) Histogram of a cipher image of a bridge.

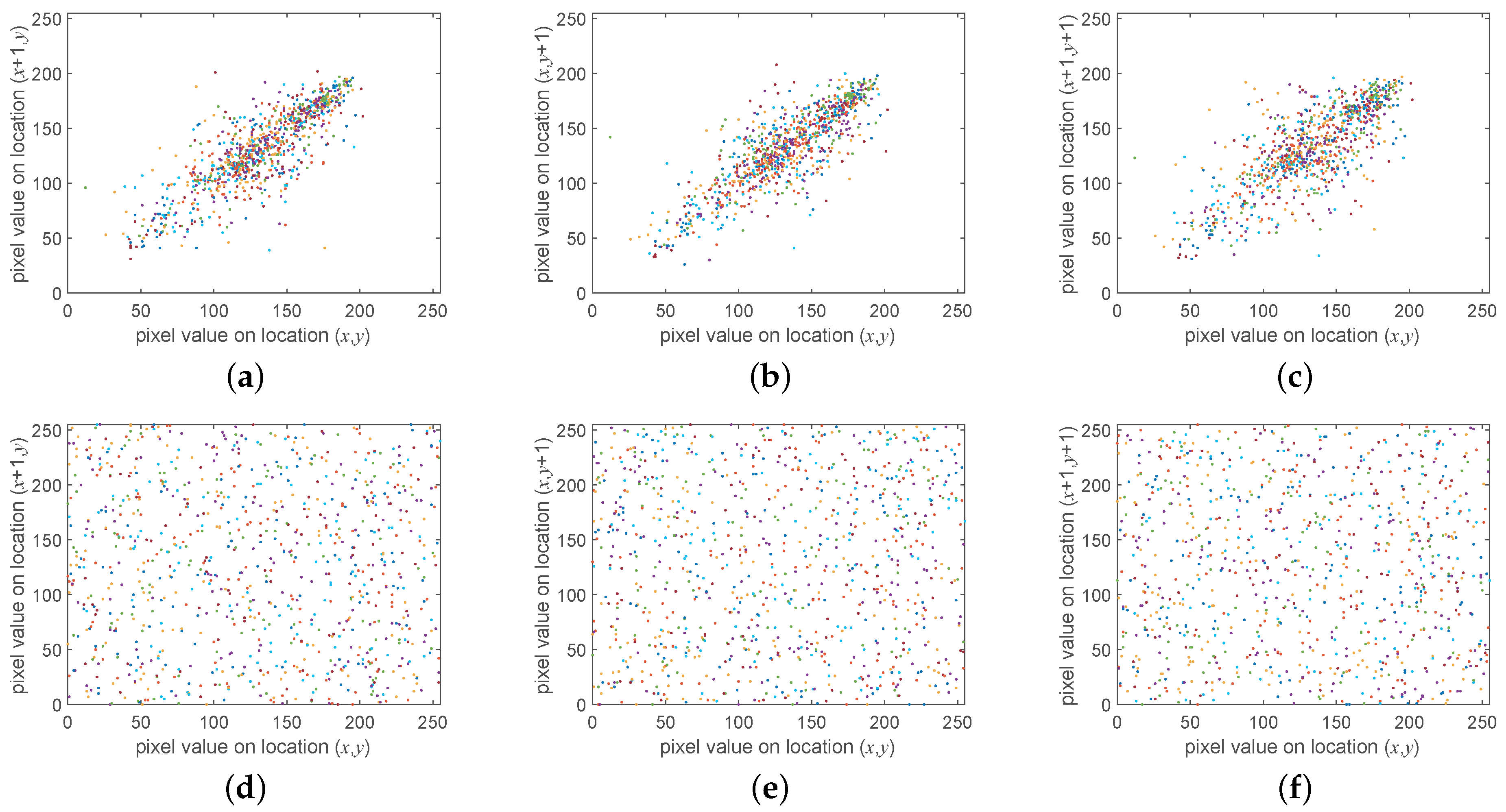

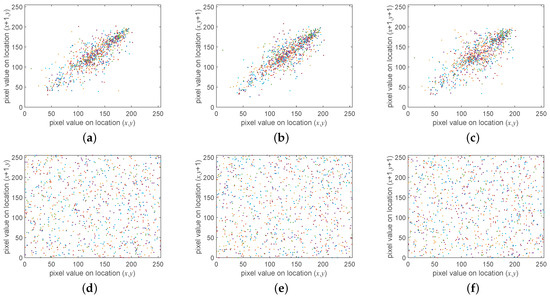

**Figure 8.**Correlation of adjacent pixel pairs for the baboon image. (

**a**) Plain image by horizontal direction; (

**b**) plain image by vertical direction; (

**c**) plain image by diagonal direction; (

**d**) cipher image by horizontal direction; (

**e**) cipher image by vertical direction; (

**f**) cipher image by diagonal direction.

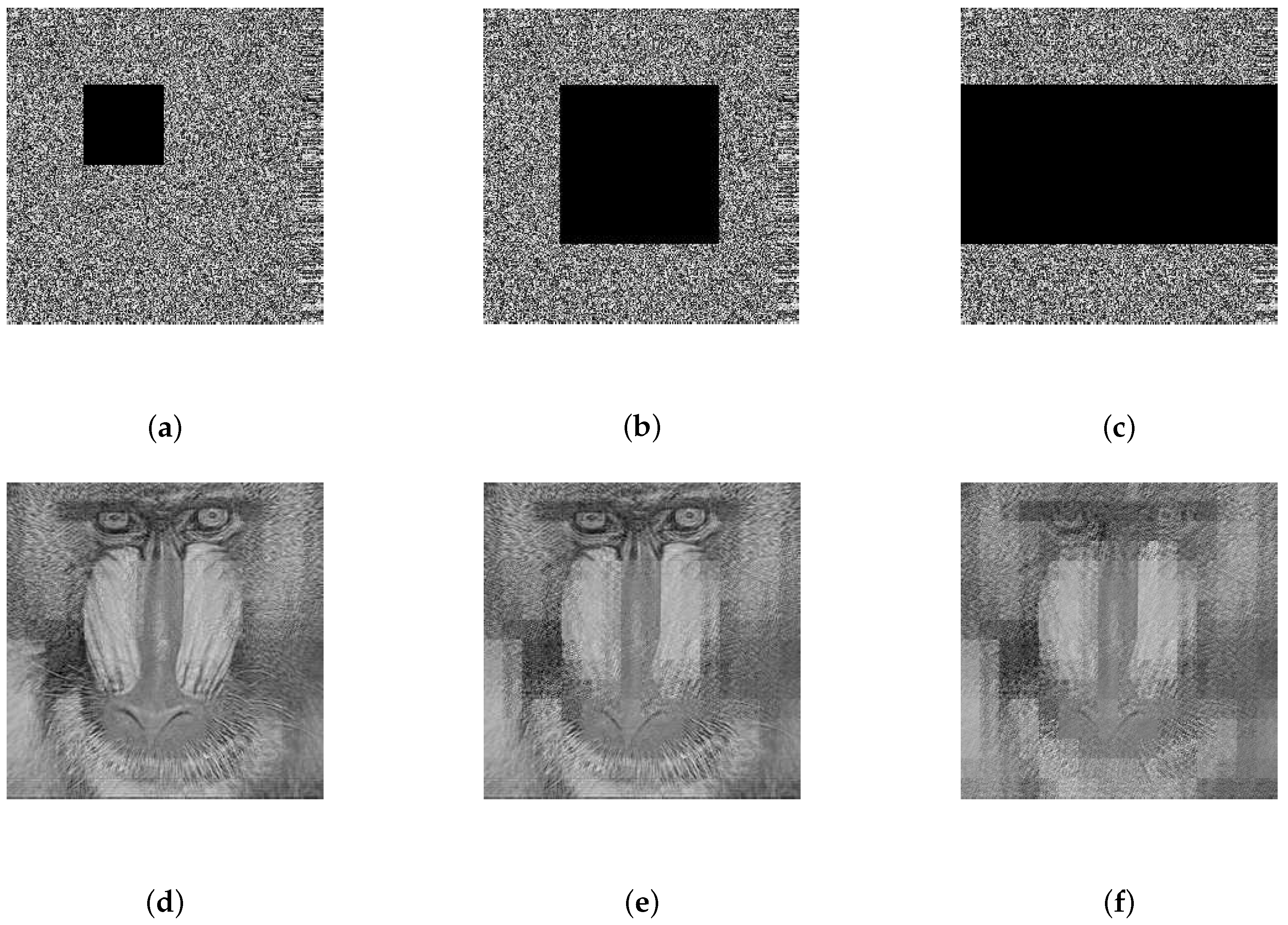

**Figure 9.**The cipher image of a baboon transmitted in the channel containing data loss of (

**a**) $6.25\%$, (

**b**) $25\%$, or (

**c**) $50\%$ and the corresponding decrypted image of the baboon containing data loss of (

**d**) $6.25\%$, (

**e**) $25\%$, or (

**f**) $50\%$.

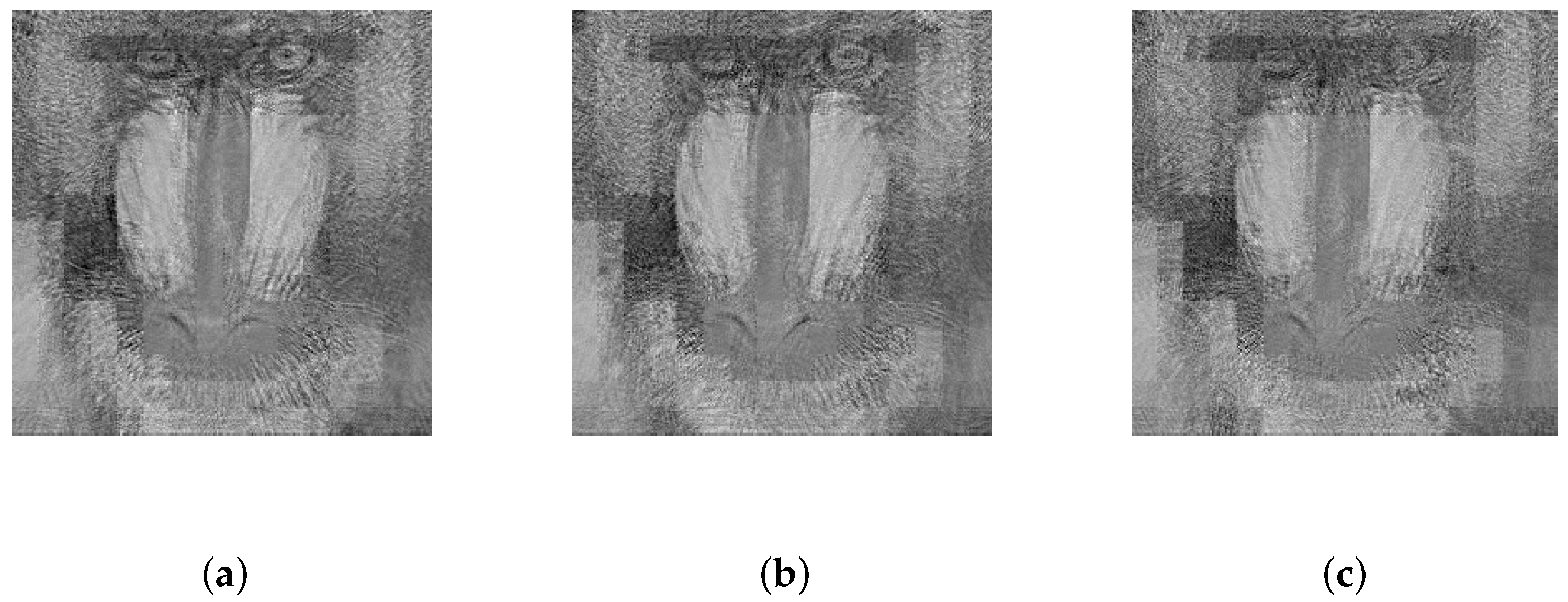

**Figure 10.**The decrypted image of a baboon transmitted by the channel containing AWGN with zero-mean and a standard deviation of (

**a**) 40, (

**b**) 60, or (

**c**) 80.

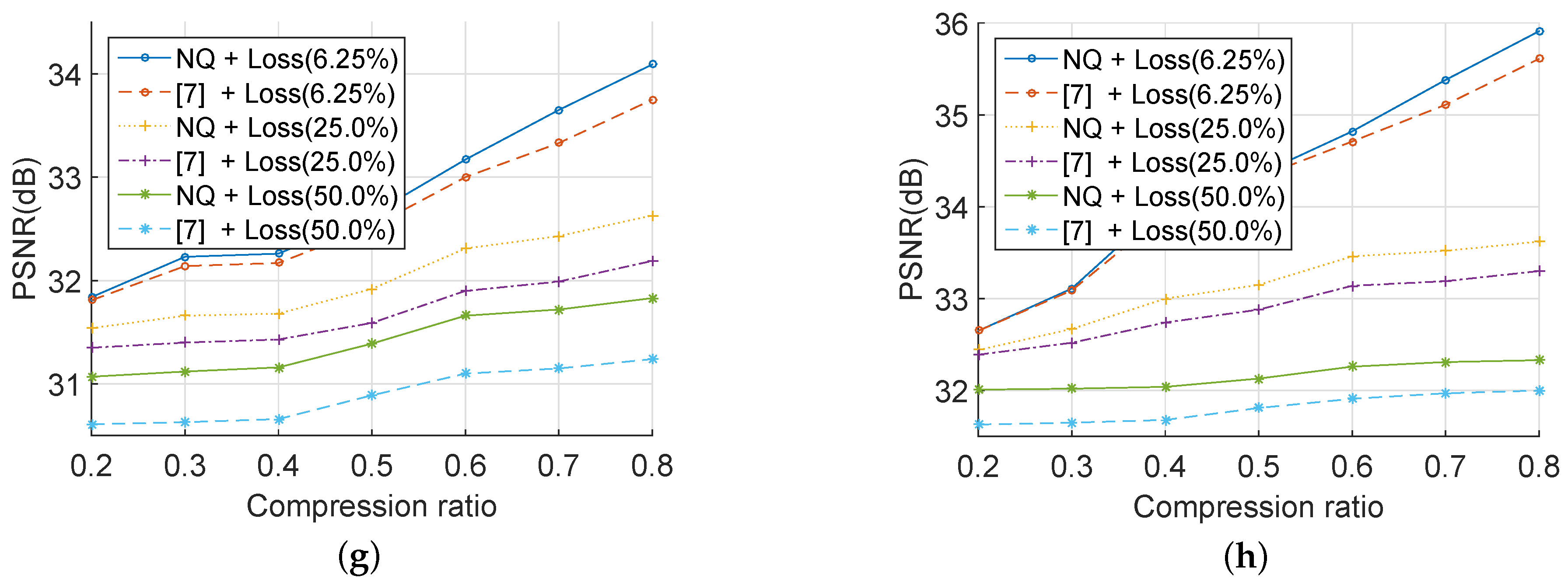

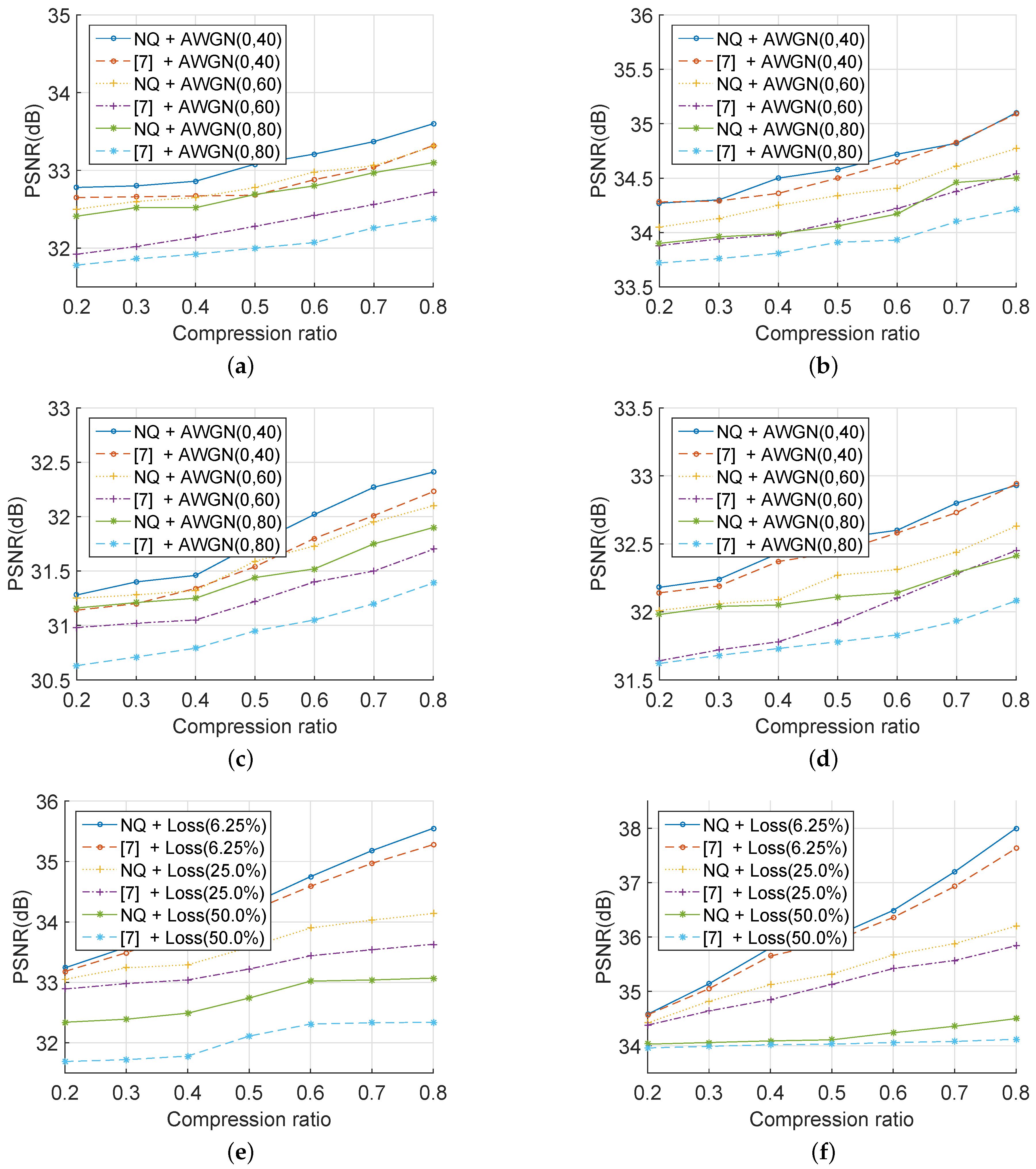

**Figure 11.**PSNR of decrypted images by the proposed scheme or [7] in different situations. AWGN with zero-mean and with a standard deviation of 40, 60, or 80 in the channel for the images: (

**a**) baboon, (

**b**) couple, (

**c**) bridge, and (

**d**) Lena; the data loss is $1/16$, $1/4$, or $1/2$ in the channel for: (

**e**) baboon, (

**f**) couple, (

**g**) bridge, and (

**h**) Lena.

Vertical | Horizontal | Diagonal | |
---|---|---|---|

Baboon/Cipher Baboon | 0.7596/0.0013 | 0.8190/0.0006 | 0.7056/0.0042 |

Couple/Cipher Couple | 0.9559/0.0057 | 0.9359/0.0075 | 0.9056/0.0043 |

Bridge/Cipher Bridge | 0.8861/0.0073 | 0.9079/0.0129 | 0.8416/0.0072 |

Lena/Cipher Lena | 0.9705/0.0089 | 0.9426/0.0125 | 0.9178/0.0006 |

Pepper/Cipher Pepper | 0.9603/0.0024 | 0.9540/0.0309 | 0.9217/0.0059 |

Sailboat/Cipher Sailboat | 0.9319/0.0050 | 0.9368/0.0353 | 0.8952/0.0025 |

Average of Plane/Cipher | 0.9107/0.0050 | 0.9160/0.0166 | 0.8646/0.0041 |

**Table 2.**Correlation coefficients of adjacent pixel pairs in the encrypted Lena image for different cryptosystems.

Vertical | Horizontal | Diagonal | |
---|---|---|---|

Proposed scheme | 0.0089 | 0.0125 | 0.0006 |

[38] | 0.0006 | 0.0013 | 0.0019 |

[39] | 0.0190 | 0.0127 | 0.0012 |

[40] | 0.0015 | 0.0002 | 0.0040 |

[41] | 0.0054 | 0.0045 | 0.0031 |

NPCR (%) | UACI (%) | |
---|---|---|

Baboon | 98.25 | 19.51 |

Couple | 99.22 | 31.95 |

Bridge | 98.93 | 23.34 |

Lena | 98.84 | 24.03 |

Pepper | 98.83 | 23.23 |

Sailboat | 99.50 | 33.31 |

Average | 98.93 | 25.90 |

Test Name | p-Value | Conclusion | |
---|---|---|---|

Approximate Entropy | 0.643855 | Pass | |

Block Frequency | 0.559242 | Pass | |

Cumulative Sums (Forward) | 0.889834 | Pass | |

Cumulative Sums (Reverse) | 0.867819 | Pass | |

FFT | 0.229310 | Pass | |

Frequency | 0.977662 | Pass | |

Linear Complexity | 0.625158 | Pass | |

Longest Runs of Ones | 0.997956 | Pass | |

Nonperiodic Templates | 0.983870 | Pass | |

Overlapping Template of All Ones | 0.430142 | Pass | |

Random Excursions | $x=-4$ | 0.418539 | Pass |

$x=-3$ | 0.317595 | Pass | |

$x=-2$ | 0.722055 | Pass | |

$x=-1$ | 0.107461 | Pass | |

$x=1$ | 0.285961 | Pass | |

$x=2$ | 0.840700 | Pass | |

$x=3$ | 0.291290 | Pass | |

$x=4$ | 0.167648 | Pass | |

Random Excursions Variant | $x=-9$ | 0.430201 | Pass |

$x=-8$ | 0.320963 | Pass | |

$x=-7$ | 0.189480 | Pass | |

$x=-6$ | 0.138033 | Pass | |

$x=-5$ | 0.121120 | Pass | |

$x=-4$ | 0.183213 | Pass | |

$x=-3$ | 0.456083 | Pass | |

$x=-2$ | 0.709549 | Pass | |

$x=-1$ | 0.333201 | Pass | |

$x=1$ | 0.258912 | Pass | |

$x=2$ | 0.232093 | Pass | |

$x=3$ | 0.145987 | Pass | |

$x=4$ | 0.131251 | Pass | |

$x=5$ | 0.149733 | Pass | |

$x=6$ | 0.165778 | Pass | |

$x=7$ | 0.469584 | Pass | |

$x=8$ | 0.514143 | Pass | |

$x=9$ | 0.449499 | Pass | |

Rank | 0.549642 | Pass | |

Runs | 0.730847 | Pass | |

Serial | p-value${}_{1}$ | 0.785632 | Pass |

p-value${}_{2}$ | 0.711362 | Pass | |

Universal Statistic | 0.863189 | Pass |

Encryption (s) | Decryption (s) | |
---|---|---|

Baboon | 0.17 | 1.5 |

Couple | 0.16 | 1.5 |

Bridge | 0.17 | 1.5 |

Lena | 0.17 | 1.6 |

Mean | 0.17 | 1.5 |

Plain Image | Cipher Image | |
---|---|---|

Baboon | 7.1352 | 7.9966 |

Couple | 6.3990 | 7.9967 |

Bridge | 7.7282 | 7.9966 |

Lena | 7.4962 | 7.9959 |

Mean | 7.1897 | 7.9965 |
