Deep PPG: Large-Scale Heart Rate Estimation with Convolutional Neural Networks

1
Robert Bosch GmbH, Robert-Bosch-Campus 1, 71272 Renningen, Germany
2
Bosch Sensortec GmbH, Gerhard-Kindler-Straße 9, 72770 Reutlingen, Germany
3
Ubiquitous Computing, University of Siegen, Hölderlinstr. 3, 57076 Siegen, Germany
*
Author to whom correspondence should be addressed.
Sensors 2019, 19(14), 3079; https://doi.org/10.3390/s19143079
Received: 23 May 2019 / Revised: 28 June 2019 / Accepted: 10 July 2019 / Published: 12 July 2019
(This article belongs to the Section Intelligent Sensors)
  |
PDF [1882 KB, uploaded 12 July 2019]
  |

Abstract

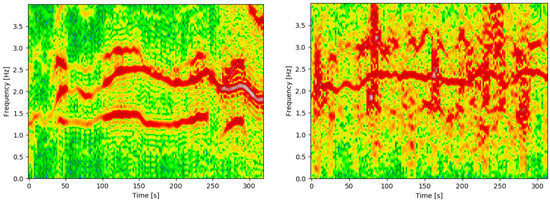

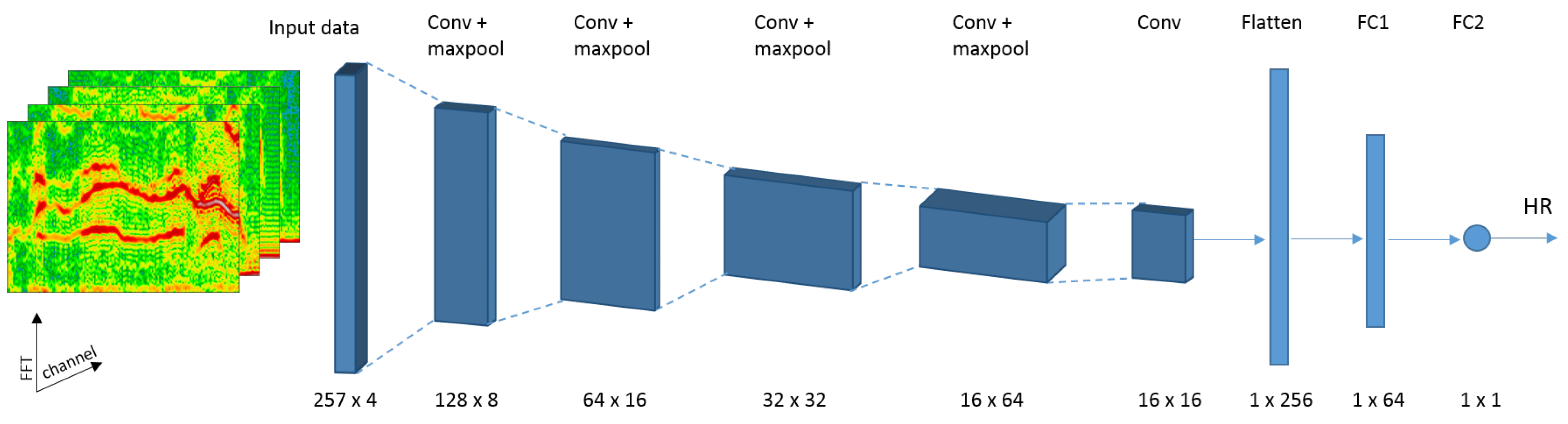

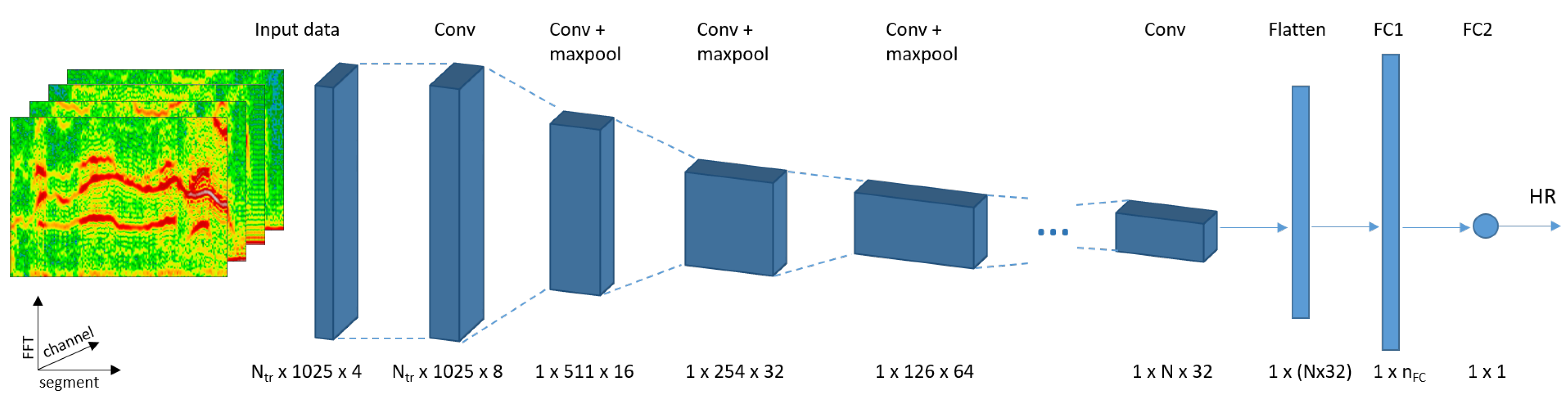

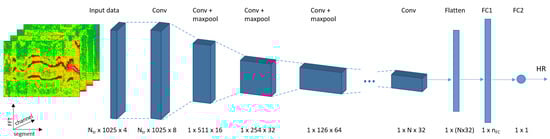

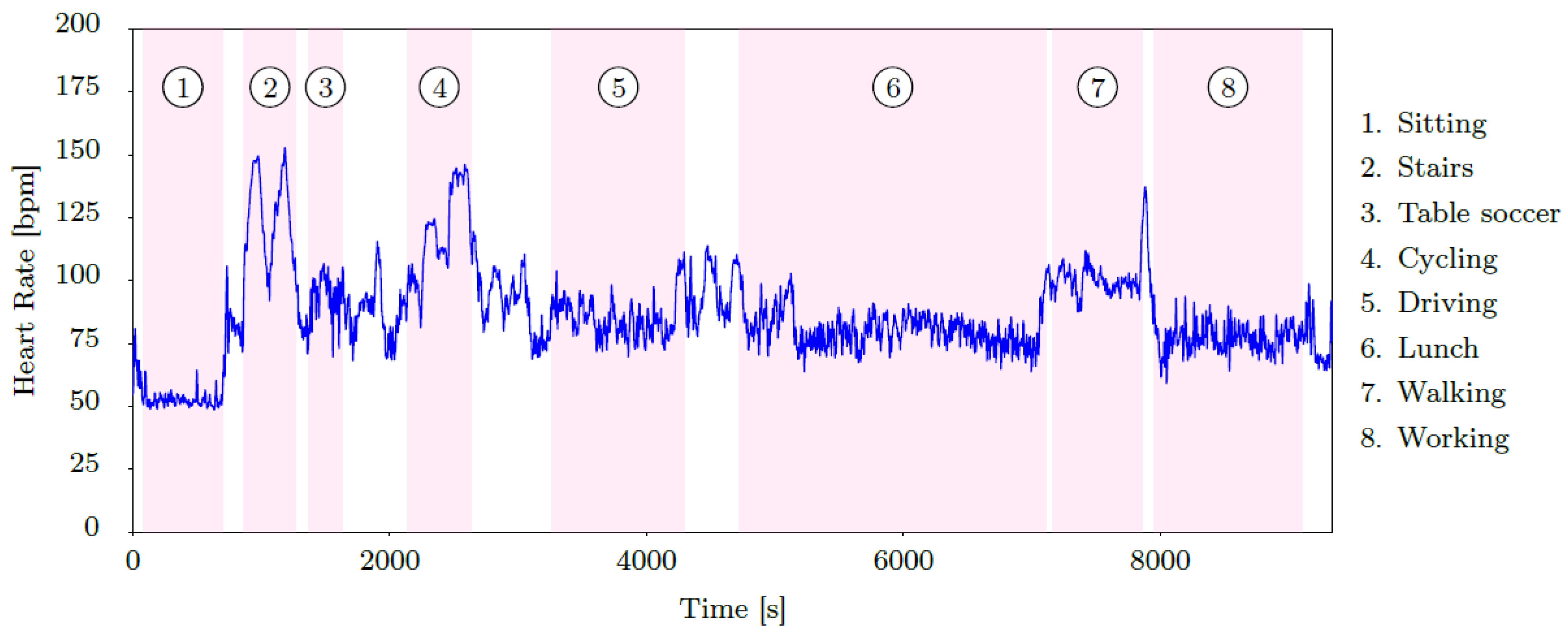

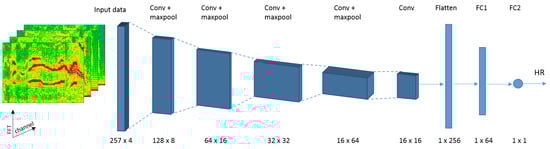

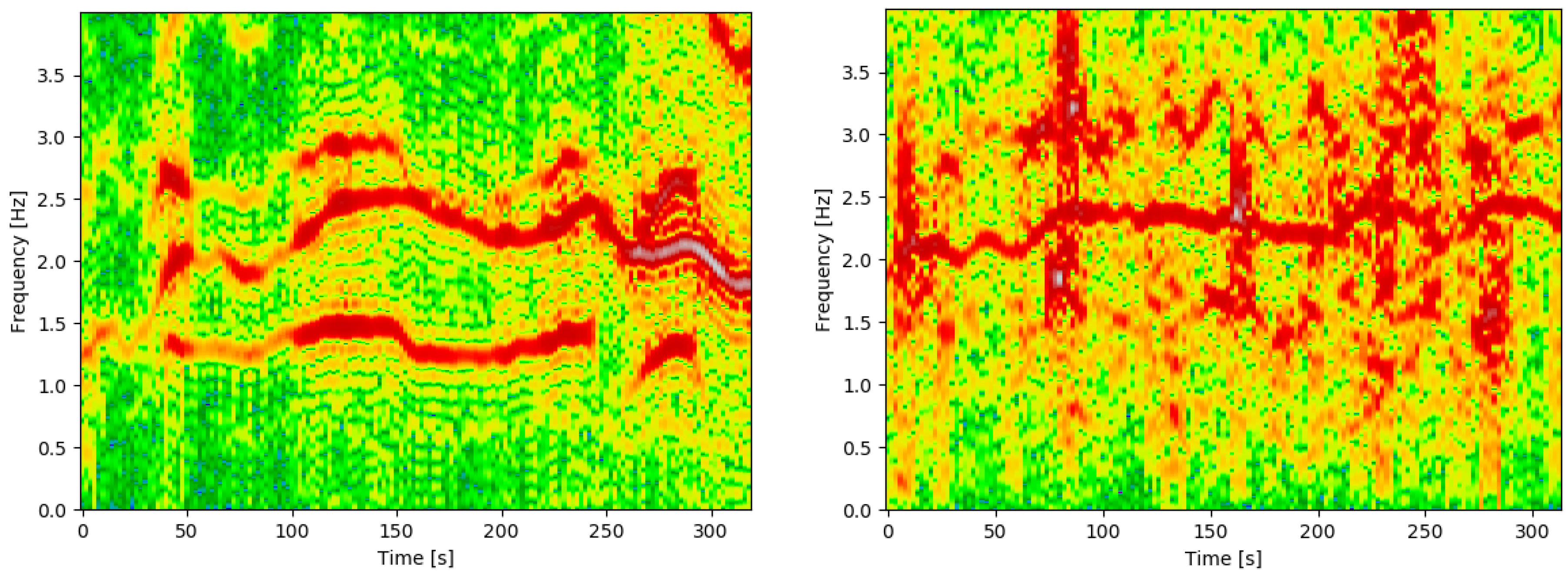

Photoplethysmography (PPG)-based continuous heart rate monitoring is essential in a number of domains, e.g., for healthcare or fitness applications. Recently, methods based on time-frequency spectra emerged to address the challenges of motion artefact compensation. However, existing approaches are highly parametrised and optimised for specific scenarios of small, public datasets. We address this fragmentation by contributing research into the robustness and generalisation capabilities of PPG-based heart rate estimation approaches. First, we introduce a novel large-scale dataset (called PPG-DaLiA), including a wide range of activities performed under close to real-life conditions. Second, we extend a state-of-the-art algorithm, significantly improving its performance on several datasets. Third, we introduce deep learning to this domain, and investigate various convolutional neural network architectures. Our end-to-end learning approach takes the time-frequency spectra of synchronised PPG- and accelerometer-signals as input, and provides the estimated heart rate as output. Finally, we compare the novel deep learning approach to classical methods, performing evaluation on four public datasets. We show that on large datasets the deep learning model significantly outperforms other methods: The mean absolute error could be reduced by 31 % on the new dataset PPG-DaLiA, and by 21 % on the dataset WESAD. View Full-Text
Keywords: heart rate; PPG; dataset; time-frequency spectrum; deep learning; CNN; evaluation methods heart rate; PPG; dataset; time-frequency spectrum; deep learning; CNN; evaluation methods
Figures

Figure 1
