Home Energy Management System Incorporating Heat Pump Using Real Measured Data^{ †}

^{1}

^{2}

^{3}

^{*}

^{†}

## Abstract

**:**

_{2}emissions. This paper presents a program for a HEMS using a Particle Swarm Optimisation (PSO) algorithm. A HP is used as the load and the aim of the optimisation program is to minimise the operational cost, i.e., the cost of electricity, while maintaining end-user comfort levels. This paper also details an indoor thermal model for temperature update in the heat pump control program. Real measured data from the UK Government’s Renewable Heat Premium Payment (RHPP) scheme was utilised to generate characteristic curves and equations that can represent the data. This paper compares different PSO variants with standard PSO and the unscheduled case calculated from the data for five winter days in 2019. Among all chosen algorithms, the Crossover Subswarm PSO (CSPSO) achieved an average saving of 25.61% compared with the cost calculated from the measured data with a short search time of 1576 ms for each subswarm. It is clear from this work that there is significant scope to reduce the cost of operating a HP while maintaining end user comfort levels.

## 1. Introduction

_{2}emission reduction [21]. There are two parts of this work. In the first part, the operation of the Combined Heat and Power CHP, Photovoltaic and storage system were optimised under changing electricity price. The second part investigated how to perform optimal load management in the proposed residential energy hub model. In order to achieve this, the modelling of a HP water heater was considered. The results also indicated that CO

_{2}signal is able to encourage end users to shift or reduce loads during peak hours and reduce the electricity cost and carbon emissions.

## 2. Materials and Methods

#### 2.1. Heat Pump Overview

_{2}emissions [4]. The CO

_{2}emissions when the HP is operating depend on the COP of the HP and the CO

_{2}emissions of electricity generation type from the utility company, i.e., where more renewable energy technologies are used for electricity generation, there are less CO

_{2}emissions. The CO

_{2}emissions of HPs are lower compared to other heating technology systems due to its high COP and can be further reduced under high renewable energy mix. A long term goal was set in the Paris Climate Change Conference 2015 for reduction of coal-fired power plants [25], which will decrease the CO

_{2}emissions for electricity generation and in turn reduce the CO

_{2}emissions during HP operation. Approximately 800,000 electrically driven HPs have been sold in the EU per year from 2010 to 2015 resulting in a total number of 7.5 million installed HPs [26]. By utilising a vapour compression cycle, the heat is taken from low-temperature sources like air, ground, lakes or sea water and released in residential houses by the HP at a higher temperature for space heating and/or hot water usage. It is indicated by Chua et al. [27] that with the development of HP technology, has resulted in an increase in the COP. Additionally, it is indicated by the simulated results of a German renewable energy system that the HP significantly reduced the CO

_{2}emissions compared to other energy sources [28,29]. Cockroft and Kelly investigated the potential of CO

_{2}emission reduction of air source HPs in a simulation for the UK in a 2050 scenario [30]. They concluded that comparing with stirling engine micro-Combined Heat and Power devices (CHP), Internal Combustion Engine (ICE) micro-CHP devices and fuel cells, the potential of CO

_{2}emission reduction of air source HPs is the greatest compared to using a condensing boiler and grid electricity.

#### 2.2. Particle Swarm Optimisation Overview

^{th}particle of N particles in the swarm and j represents the j

^{th}dimension of the D dimensional search space. t is the current number of iterations. v and x are the velocity and position of the particle respectively. p

_{ij}is the personal best position of a particle. p

_{gi}is the global best position of the swarm. r

_{1}and r

_{2}are two random functions in the range from zero to one. It can be seen from Equations (1) and (2) that the new position of a particle is determined by the velocity of the particle, which is affected by three terms. The first term is the current velocity of the particle which is weighted by inertia weight, w, it represents the habit of movement of a particle and shows the trend for a particle to maintain its velocity in the previous iteration. The second term is the cognition part, which is weighted by the cognitive acceleration coefficient, c

_{1}. This term represents the memory of searches in previous iterations of a particle and indicates the trend for a particle to move towards its personal-best position. The third term weighted by the social acceleration coefficient, c

_{2}, is the social part, which represents the collaboration among the particles, and indicates the trend for a particle to move towards the global best position of the swarm. The inertial weight, w, can be used to control the global search capability. High values of w increase global search capability and low values increase local search capability. Usually, c

_{1}is set equal to c

_{2}to ensure the same influence of personal and global experience, so that a better solution can be obtained [23].

#### 2.3. Overview of Particle Swarm Optimisation Variants

#### 2.3.1. Crossover Subswarm PSO (CSPSO)

#### 2.3.2. Quantum Particle Swarm Optimisation (QPSO)

_{ij}and p

_{gi}are the personal best value of the particle and global best value of the swarm respectively. r

_{1}and r

_{2}are two random numbers that are uniformly distributed between zero and one. The local attractor, p, of the particle, i, stochastically exist in a hyper-rectangle with p

_{ij}and p

_{gi}being two ends of its diagonal. Len is the characteristic length of Delta potential well and can be calculated using Equation (4). Delta potential well is one of the paradigm potential field model in quantum mechanics [39]:

_{1}and r

_{2}are two random numbers that are uniformly distributed between zero and one. The algorithm of QPSO can be described as below:

- (1)
- Randomly initialise the particle swarm.
- (2)
- Determine the initial personal optimal and global optimal solution.
- (3)
- For each dimension of each particle calculate p and Len.
- (4)
- Update the position of each particle in the swarm.
- (5)
- Update personal optimal and global optimal solution.
- (6)
- Before the preset number of iterations is reached, repeat from step 3 to 5.

#### 2.3.3. Quantum Particle Swarm Optimisation Procedure with Lévy Flights (QPSOL)

_{i}is the particle position. λ

_{i}is a random number with Lévy distribution and β is the constriction coefficient that changes the step size of the flight.

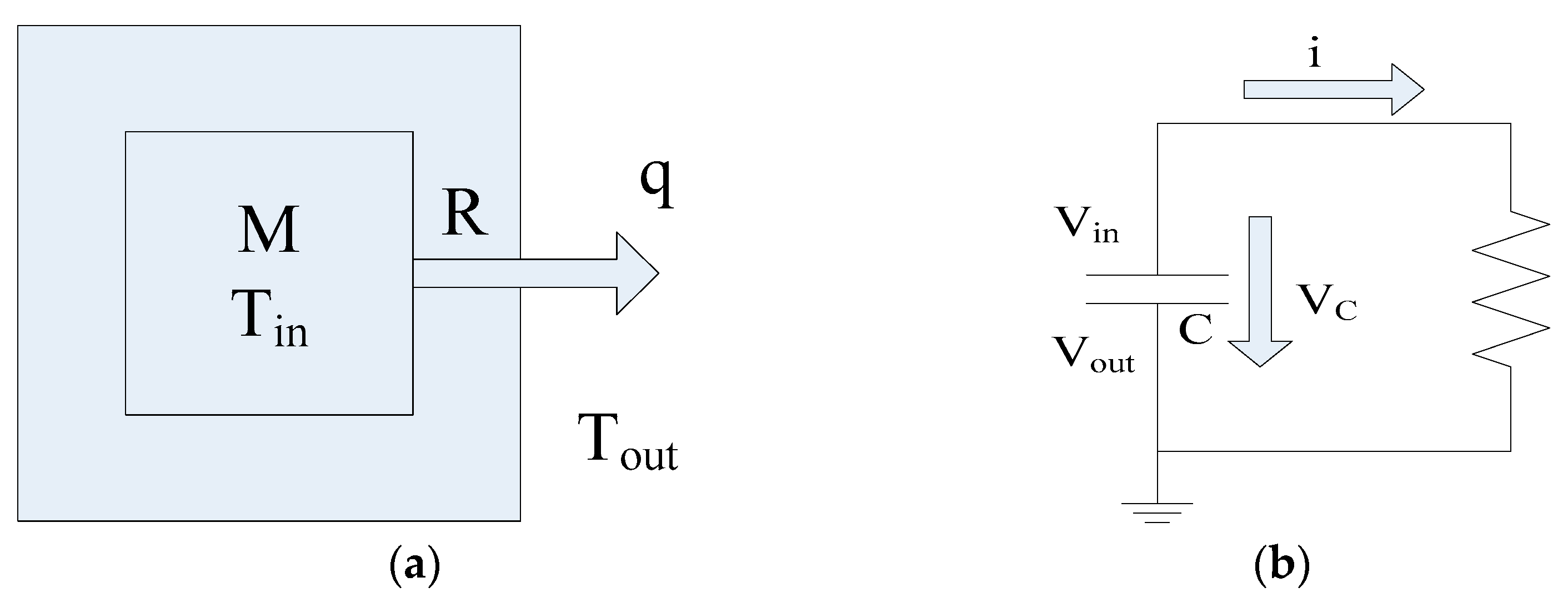

#### 2.4. Derivation of Indoor Thermal Model

_{out}is set constant and the indoor temperature T

_{in}is uniform throughout the house. The indoor thermal model and its electrical equivalent model are given diagrammatically in Figure 1.

_{in}(°C), to the low temperature outdoor environment with low temperature, T

_{out}(°C). The rate of heat flow is q (kW).

_{in}and V

_{out}are the voltages (volt) above and below the capacitor. The discharging current is i (amp). The elapsed time is t (s).

_{in}is a function of time t:

#### 2.5. Measured Heat Pump Performance Data

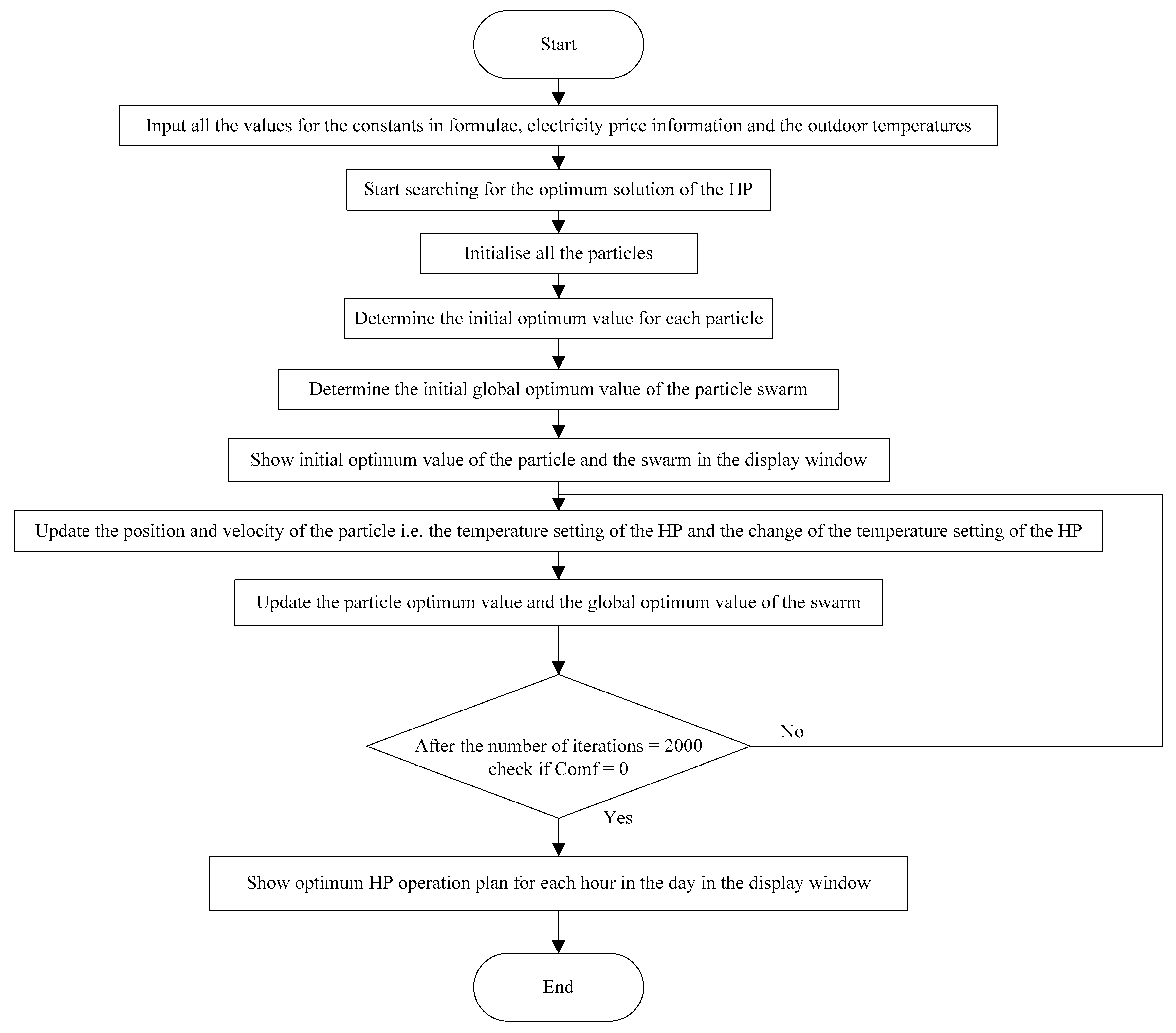

#### 2.6. Program Description

^{2}. The typical U values for the walls, ceiling and windows are used to conduct calculations to UK standards. The result of overall thermal conductivity is 0.27 kW/°C. To validate the correctness of this value, simulations were conducted on the temperature update model i.e., Equation (10) using outdoor temperatures and the heat pump hourly heat output data for the chosen HP for a month between 3-1-2019 to 3-2-2019. A temperature of 18 °C is recommended by the 2016 Cold Weather Plan for England as day and night minimum temperature for those 65 and older or anyone with pre-existing medical conditions [56]. For houses insulated to typical UK levels, the on/off set-point for the heating system is usually between 19 to 23 °C [57]. Thus, the initial temperature at midnight is assumed to be 19 °C. When A is 0.27 kW/°C, among all indoor temperature data generated, most data are within the typical range of 19 to 23 °C [57]. Additionally, 2% of the data are above 23 °C but below 23.5 °C. No data are below 19 °C. Thus, all data generated are above the 18 °C which has been defined as the minimum temperature [56]. Therefore, this A value is considered suitable for a UK housing condition. The indoor temperatures on the chosen dates were then generated using the temperature update model assuming the initial temperature at midnight is 19 °C.

_{hp}. The final objective function is constructed as shown in Equation (13):

## 3. Results and Discussion

#### 3.1. The Results of the Standard Particle Swarm Optimisation

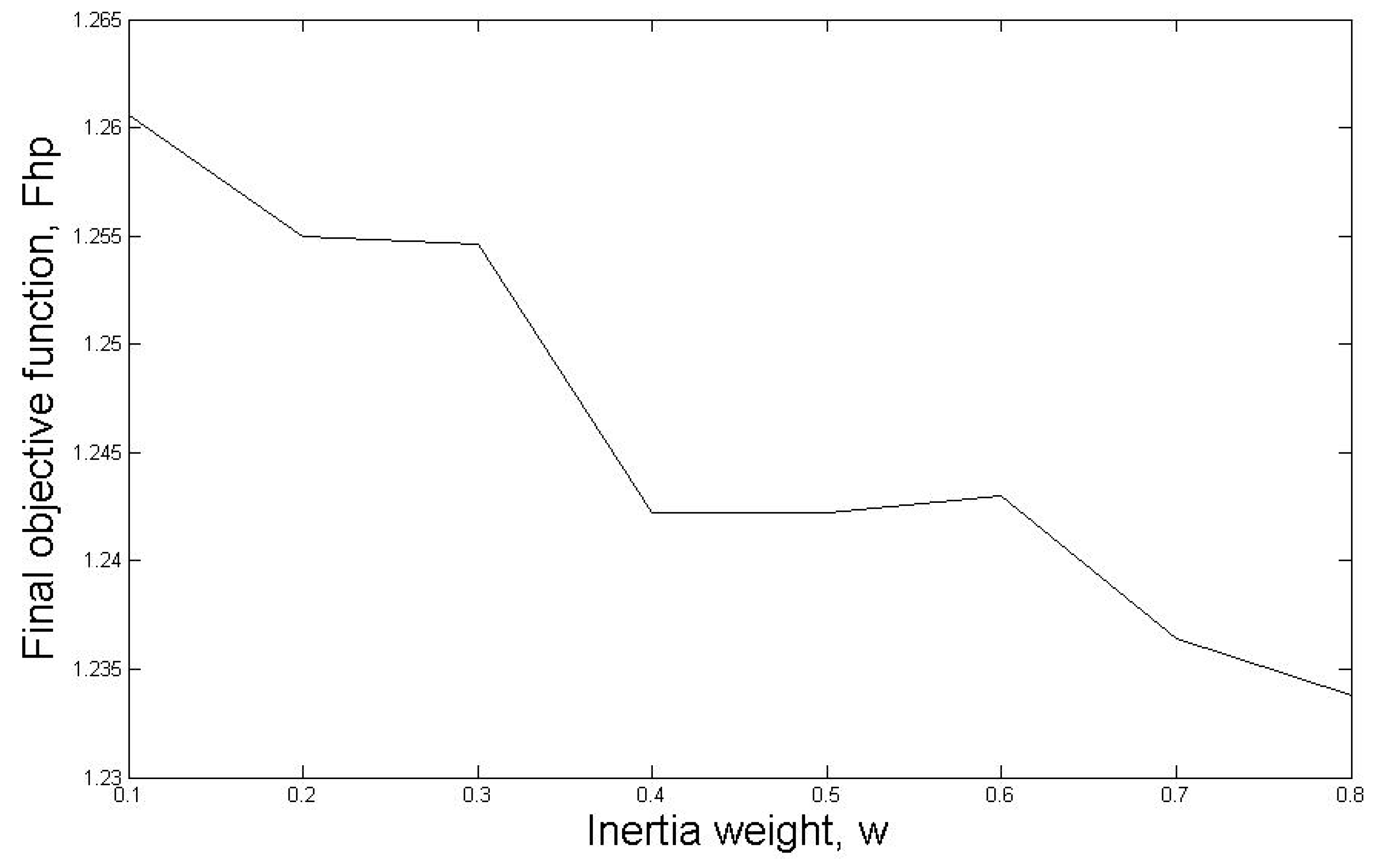

_{hp}, is shown in Figure 5.

_{hp}, gradually decreases from 1.261 when inertia weight w = 0.1 to the lowest value of 1.233 when inertia weight w = 0.8. When inertia weight w = 0.8, the total electricity cost after optimisation using standard PSO is compared with the actual electricity cost in the data. For the chosen data, the total electricity consumption for the HP during the 24 h on 3-2-2019 is €3.13. When inertia weight w = 0.8, the total electricity cost is €2.47. The saving is €0.66, which is 21.09% cost reduction compared with the actual cost in the data. The average search time of standard PSO is 1089 ms.

#### 3.2. The Results of the Crossover Subswarm PSO

_{hp}, which occurred when the number of subswarms is 50 and crossover rate, CR, is 0.3. Crossover is applied when personal best values haven’t changed for 10 iterations. 50 particles are used in each subswarm. The total electricity cost for the day is €2.28 which is €0.85 or 27.16% saving compared with the €3.13 cost in the data. The average search time of CSPSO for each subswarm is 1576 ms.

#### 3.3. The Results of the QPSO and QPSOL

_{hp}, when the total electricity cost is €2.25 and parameter $g$ is set to 0.9. The number of particles in each subswarm is 30. The number of subswarms is 50. Although the optimisation result of improved QPSO is slightly better than CSPSO, the search time of improved QPSO for each subswarm is 6400 ms, which is about four times CSPSO.

_{hp}, when the total electricity cost is €2.25. Index of stability, α, is 1.4 and constriction coefficient, β, is 0.6. The number of particles in each subswarm is 30. The number of subswarms is 60. Although the optimisation result of improved QPSOL is slightly better than CSPSO, the search time of improved QPSOL for each subswarm is 18252 ms, which is about 11 times CSPSO.

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Manic, M.; Amarasinghe, K.; Rodriguez-Andina, J.J.; Rieger, C. Intelligent buildings of the future. IEEE Ind. Electron. Mag.
**2016**, 10, 32–49. [Google Scholar] [CrossRef] - Zhang, Y. Research on Scheduling Algorithm for Home Energy Management System in Smart Grid; Shenyang Institute of Automation Chinese Academy of Sciences: Shenyang, China, 2015. [Google Scholar]
- Mostafa, H.A.; Shatshat, R.E.; Salama, M.M.A. A review on energy management systems. In Proceedings of the 2014 IEEE PES T&D Conference and Exposition, Chicago, IL, USA, 14–17 April 2014; pp. 1–5. [Google Scholar]
- Fischer, D.; Madani, H. On heat pumps in smart grids: A review. Renew. Sustain. Energy Rev.
**2017**, 70, 342–357. [Google Scholar] [CrossRef] [Green Version] - Liao, J.T.; Yang, H.T. Novel electron drifting algorithm based BESS scheduling in home energy management system. In Proceedings of the IECON 2016—42nd Annual Conference of the IEEE Industrial Electronics Society, Florence, Italy, 23–26 October 2016. [Google Scholar]
- Mangiatordi, F.; Pallotti, E.; Del Vecchio, P.; Leccese, F. Power consumption scheduling for residential buildings. In Proceedings of the 2012 11th International Conference on Environment and Electrical Engineering, Venice, Italy, 18–25 May 2012. [Google Scholar]
- Gudi, N.; Wang, L.; Devabhaktuni, V.; Depuru, S.S.S.R. A demand-side management simulation platform incorporating optimal management of distributed renewable resources. In Proceedings of the 2011 IEEE/PES Power Systems Conference and Exposition, Phoenix, AZ, USA, 20–23 March 2011. [Google Scholar]
- Shah, S.; Khalid, R.; Zafar, A.; Hussain, S.M.; Rahim, H.; Javaid, N. An optimized priority enabled energy management system for smart homes. In Proceedings of the 2017 IEEE 31st International Conference on Advanced Information Networking and Applications (AINA), Taipei, Taiwan, 27–29 March 2017. [Google Scholar]
- Nawaz, F.; Ahmad, G.; Javed, K.; Khan, I.; Khan, W. An optimal Home Energy Management System based on Time of Use Pricing Scheme in Smart Grid. Int. J. Sci. Eng. Res.
**2017**, 8, 882–894. [Google Scholar] - Rahim, S.; Javaid, N.; Ahmad, A.; Khan, S.A.; Khan, Z.A.; Alrajeh, N.; Qasim, U. Exploiting heuristic algorithms to efficiently utilize energy management controllers with renewable energy sources. Energy Build.
**2016**, 129, 452–470. [Google Scholar] [CrossRef] - Zhou, Y.; Chen, Y.; Xu, G. Distributed Energy Resources with Home Energy Management in Smart Grid. In Proceedings of the 2014 IEEE 23rd International Symposium on Industrial Electronics (ISIE), Istanbul, Turkey, 1–4 June 2014. [Google Scholar]
- Javaid, N.; Naseem, M.; Rasheed, M.B.; Mahmood, D.; Khan, S.A.; Alrajeh, N.; Iqbal, Z. A new heuristically optimized Home Energy Management controller for smart grid. Sustain. Cities Soc.
**2017**, 34, 211–227. [Google Scholar] [CrossRef] - Pedrasa, M.; Spooner, E.D.; MacGill, I.F. Improved energy services provision through the intelligent control of distributed energy resources. In Proceedings of the 2009 IEEE Bucharest PowerTech, Bucharest, Romania, 28 June–2 July 2009. [Google Scholar]
- Gudi, N.; Wang, L.; Devabhaktuni, V. A demand side management based simulation platform incorporating heuristic optimization for management of household appliances. Int. J. Electr. Power Energy Syst.
**2012**, 43, 185–193. [Google Scholar] [CrossRef] - De Angelis, F.; Boaro, M.; Fuselli, D.; Squartini, S.; Piazza, F.; Wei, Q. Optimal home energy management under dynamic electrical and thermal constraints. IEEE Trans. Ind. Inform.
**2013**, 9, 1518–1527. [Google Scholar] [CrossRef] - Anvari-moghaddam, A.; Monsef, H.; Rahimi-kian, A. Optimal Smart Home Energy Management Considering Energy Saving and a Comfortable Lifestyle. IEEE Trans. Smart Grid
**2015**, 6, 324–332. [Google Scholar] [CrossRef] - Asare-Bediako, B.; Kling, W.L.; Ribeiro, P.F. Multi-agent system architecture for smart home energy management and optimization. In Proceedings of the IEEE PES ISGT Europe 2013, Lyngby, Denmark, 6–9 October 2013. [Google Scholar]
- Asare-Bediako, B.; Ribeiro, P.F.; Kling, W.L. Integrated energy optimization with smart home energy management systems. In Proceedings of the 2012 3rd IEEE PES Innovative Smart Grid Technologies Europe (ISGT Europe), Berlin, Germany, 14–17 October 2012. [Google Scholar]
- Zhao, C.; Dong, S.; Li, F.; Song, Y. Optimal home energy management system with mixed types of loads. CSEE J. Power Energy Syst.
**2015**, 1, 29–37. [Google Scholar] [CrossRef] - Yoon, J.H.; Baldick, R.; Novoselac, A. Dynamic demand response controller based on real-time retail price for residential buildings. IEEE Trans. Smart Grid
**2014**, 5, 121–129. [Google Scholar] [CrossRef] - Setlhaolo, D.; Sichilalu, S.; Zhang, J. Residential load management in an energy hub with heat pump water heater. Appl. Energy
**2017**, 208, 551–560. [Google Scholar] [CrossRef] - Beaudin, M.; Zareipour, H. Home energy management systems: A review of modelling and complexity. Renew. Sustain. Energy Rev.
**2015**, 45, 318–335. [Google Scholar] [CrossRef] - Cao, Z.; O’Rourke, F.; Lyons, W.; Han, X. Home energy management system incorporating heat pump. In Proceedings of the 12th International Conference on Sensing Technology 2018, Limerick, Ireland, 4–6 December 2018. [Google Scholar]
- Cao, Z.; O’Rourke, F.; Lyons, W.; Han, X. Comparison of Particle Swarm Optimisation (PSO) algorithm variants in Home Energy Management Systems (HEMS) using real measured data. In Proceedings of the 32nd International Conference on Efficiency, Cost, Optimization, Simulation and Environmental Impact of Energy Systems, Wroclaw, Poland, 23–28 June 2019. Stage of Publication (Accepted). [Google Scholar]
- Available online: https://unfccc.int/resource/docs/2015/cop21/eng/l09.pdf (accessed on 3 June 2019).
- Thomas, N.; Pascal, W. European Heat Pump Market and Statistics Report 2015; The European Heat Pump Association AISBL (EHPA): Brussels, Belgium, 2015. [Google Scholar]
- Chua, K.J.; Chou, S.K.; Yang, W.M. Advances in heat pump systems: A review. Appl. Energy
**2010**, 87, 3611–3624. [Google Scholar] [CrossRef] - Henning, H.M.; Palzer, A. Energiesystem Deutschland 2050; Fraunhofer: Munich, Germany, 2013; pp. 1–46. [Google Scholar]
- Palzer, A.; Henning, H.M. A comprehensive model for the German electricity and heat sector in a future energy system with a dominant contribution from renewable energy technologies—Part II: Results. Renew. Sustain. Energy Rev.
**2014**, 30, 1019–1034. [Google Scholar] [CrossRef] - Cockroft, J.; Kelly, N. A comparative assessment of future heat and power sources for the UK domestic sector. Energy Convers. Manag.
**2006**, 47, 2349–2360. [Google Scholar] [CrossRef] - Kennedy, J.; Eberhart, R. Particle Swarm Optimization. In Proceedings of the ICNN’95—International Conference on Neural Networks, Perth, Australia, 27 November–1 December 1995; pp. 1942–1948. [Google Scholar]
- Kennedy, J.; Eberhart, R. Swarm Intelligence, 1st ed.; Elsevier Inc.: Amsterdam, The Netherlands, 2001. [Google Scholar]
- Shi, X.H.; Liang, Y.C.; Lee, H.P.; Lu, C.; Wang, L.M. An improved GA and a novel PSO-GA-based hybrid algorithm. Inf. Process. Lett.
**2005**, 93, 255–261. [Google Scholar] [CrossRef] - Chatterjeea, A.; Siarry, P. Nonlinear inertia weight variation for dynamic adaptation in particle swarm optimization. Comput. Oper. Res.
**2006**, 33, 859–871. [Google Scholar] [CrossRef] - Pan, Q.K.; Tasgetiren, M.F.; Liang, Y.C. A discrete particle swarm optimization algorithm for the no-wait flowshop scheduling problem. Comput. Oper. Res.
**2008**, 35, 2807–2839. [Google Scholar] [CrossRef] - Shi, Y.; Eberhart, R. A modified particle swarm optimizer. In Proceedings of the 1998 IEEE International Conference on Evolutionary Computation (IEEE World Congress on Computational Intelligence, Anchorage), Anchorage, AK, USA, 4–9 May 1998; pp. 69–73. [Google Scholar]
- Park, J.B.; Jeong, Y.W.; Shin, J.R.; Lee, K.Y. An Improved Particle Swarm Optimization for Nonconvex Economic Dispatch Problems. IEEE Trans. Power Syst.
**2010**, 25, 156–166. [Google Scholar] [CrossRef] - Pedrasa, M.A.; Spooner, T.D.; MacGill, I. Scheduling of Demand Side Resources Using Binary Particle Swarm Optimization. IEEE Trans. Power Syst.
**2009**, 24, 1173–1181. [Google Scholar] [CrossRef] - Sun, J.; Feng, B.; Xu, W. Particle swarm optimization with particles having quantum behavior. In Proceedings of the 2004 Congress on Evolutionary Computation, Portland, OR, USA, 19–23 June 2004. [Google Scholar]
- Grasso, E.; Borean, C. QPSOL: Quantum Particle Swarm Optimization with Levy’s Flight. In Proceedings of the 9th International Multi-Conference on Computing in the Global Information Technology, Seville, Spain, 22–26 June 2014. [Google Scholar]
- Yang, X. Nature-Inspired Metaheuristic Algorithms. Nature-Inspired Metaheuristic Algorithms, 2nd ed.; Luniver Press: Frome, UK, 2010. [Google Scholar]
- Yang, X. Review of Metaheuristics and Generalized Evolutionary Walk Algorithm. Int. J. Bio-Inspired Comput.
**2011**, 3, 77–84. [Google Scholar] [CrossRef] - Chechkin, A.V.; Metzler, R.; Klafter, J.; Gonchar, V.Y. Introduction to the Theory of Lévy Flights. In Anomalous Transport: Foundations and Applications; Klages, R., Radons, G., Sokolov, I.M., Eds.; Wiley-VCH (Weinheim): Hoboken, NJ, USA, 2008; pp. 129–162. [Google Scholar]
- Cheever, E. Thermal Systems 2015. Available online: http://lpsa.swarthmore.edu/Systems/Thermal/SysThermalAll.html (accessed on 20 March 2018).
- Constantopoulos, P.; Schweppe, F.C.; Larson, R.C. ESTIA: A Real-Time Consumer Control Scheme for Space Conditioning Usage under Spot Electricity Pricing. Comput. Oper. Res.
**1991**, 18, 751–765. [Google Scholar] [CrossRef] - Lowe, R. Renewable Heat Premium Payment Scheme: Heat Pump Monitoring: Cleaned Data, 2013–2015. UK Data Service. 2019. Available online: https://beta.ukdataservice.ac.uk/datacatalogue/studies/study?id=8151&type=Data%20catalogue#!/access (accessed on 28 February 2019).
- Saha, S.; Moorthi, S.; Wu, X.; Wang, J.; Nadiga, S.; Tripp, P.; Behringer, D.; Hou, Y.; Chuang, H.; Iredell, M.; et al. NCEP Climate Forecast System Version 2 (CFSv2) Selected Hourly Time-Series Products. Research Data Archive at the National Center for Atmospheric Research, Computational and Information Systems Laboratory. Available online: https://rda.ucar.edu/data sets/ds094.1/ (accessed on 25 May 2019).
- Anna, A.S.; Bass, R. A New Two-Degree-of-Freedom Space Heating Model for Demand Response. In Proceedings of the 3rd International Conference on Smart Grids and Green IT Systems—SMARTGREENS 2014, Barcelona, Spain, 3–4 April 2014. [Google Scholar]
- Bettanini, E.; Gastaldello, A.; Schibuola, L. Simplified models to simulate part load performances of air conditioning equipments. In Proceedings of the 8th International IBPSA Conference, Eindhoven, The Netherlands, 11–14 August 2003. [Google Scholar]
- Andric, I.; Darakdjian, Q.; Ferrão, P.; Fournier, J.; Le Corre, O.; Lacarrière, B. The Impact of Global Warming on District Heating Demand the Case of St FéLix. In Proceedings of the 14th International Symposium on District Heating & Cooling, Stockholm, Sweden, 7–9 September 2014. [Google Scholar]
- Nord Pool. Day Ahead Auction Prices for the UK. 2019. Available online: https://www.nordpoolgroup.com/Market-data1/GB/Auction-prices/UK/Hourly/?view=table (accessed on 25 May 2019).
- AECOM. Investigation into Overheating in Homes: Literature Review; Department for Communities and Local Government: London, UK, 2012.
- Renaldi, R.; Kiprakis, A.; Friedrich, D. An optimisation framework for thermal energy storage integration in a residential heat pump heating system. Appl. Energy
**2017**, 186, 520–529. [Google Scholar] [CrossRef] [Green Version] - Navarro-Espinosa, A.; Good, N.; Zhang, L.; Mancarella, P.; Ochoa, L.F. EHP in low voltage networks: Understanding the effects of heat emitters and room temperatures. In Proceedings of the 2015 IEEE Eindhoven PowerTech, Eindhoven, The Netherlands, 29 June–2 July 2015. [Google Scholar]
- Black, J.W. Integrating Demand into the U.S. Electric Power System: Technical, Economic, and Regulatory Frameworks for Responsive Load. Ph.D. Thesis, Massachusetts Institute of Technology, Cambridge, MA, USA, 2005. [Google Scholar]
- Public Health England. The Cold Weather Plan for England Protecting Health and Reducing Harm from Cold Weather; Public Health England: London, UK, 2018.
- Hong, J.; Kelly, N.J.; Richardson, I.; Thomson, M. Assessing heat pumps as flexible load. Proc. Inst. Mech. Eng. Part A J. Power Energy
**2013**, 22, 30–42. [Google Scholar] [CrossRef]

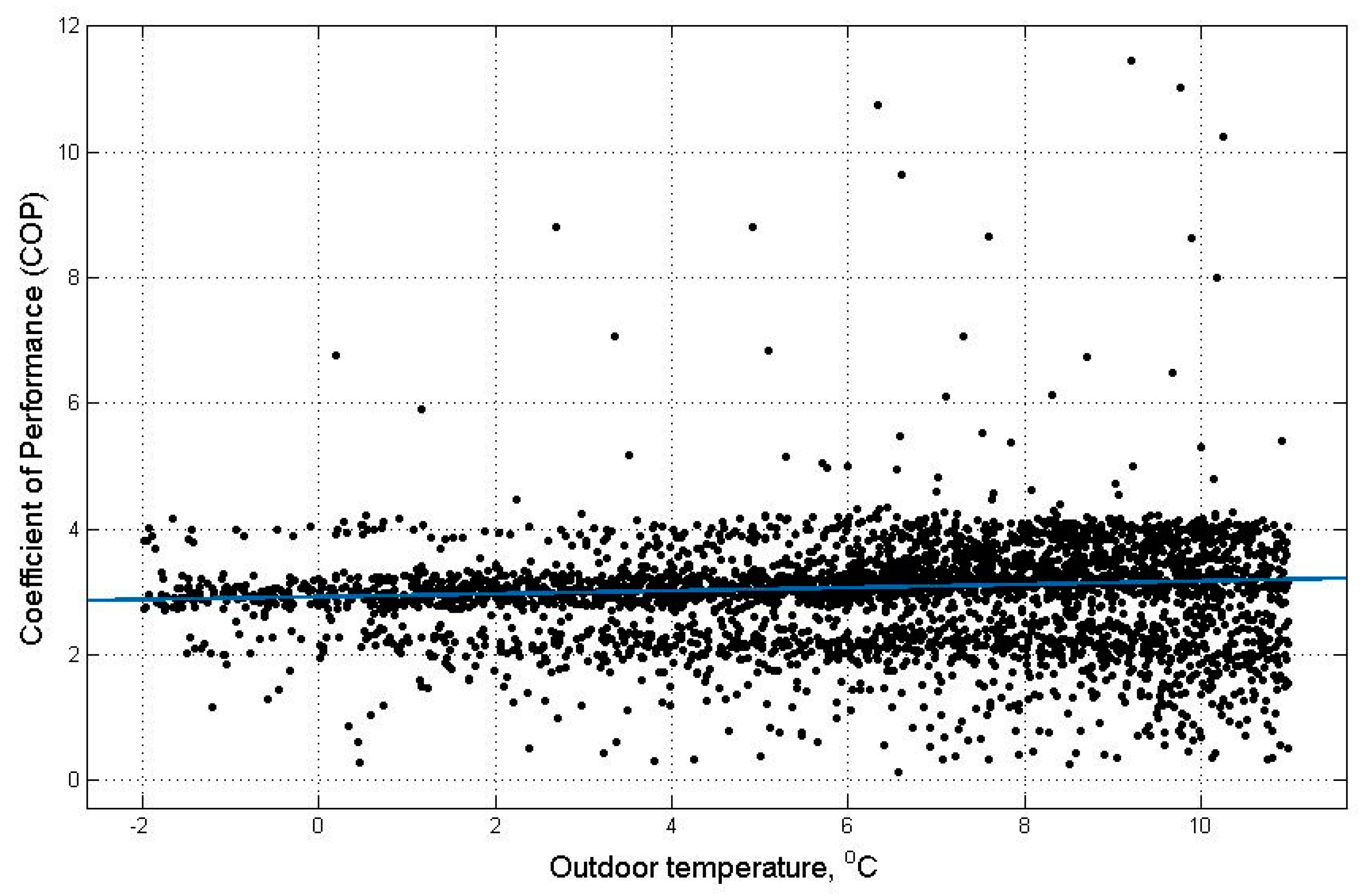

**Figure 2.**Coefficient of Performance (COP) versus outdoor temperature for a heat pump operating over a one-year period.

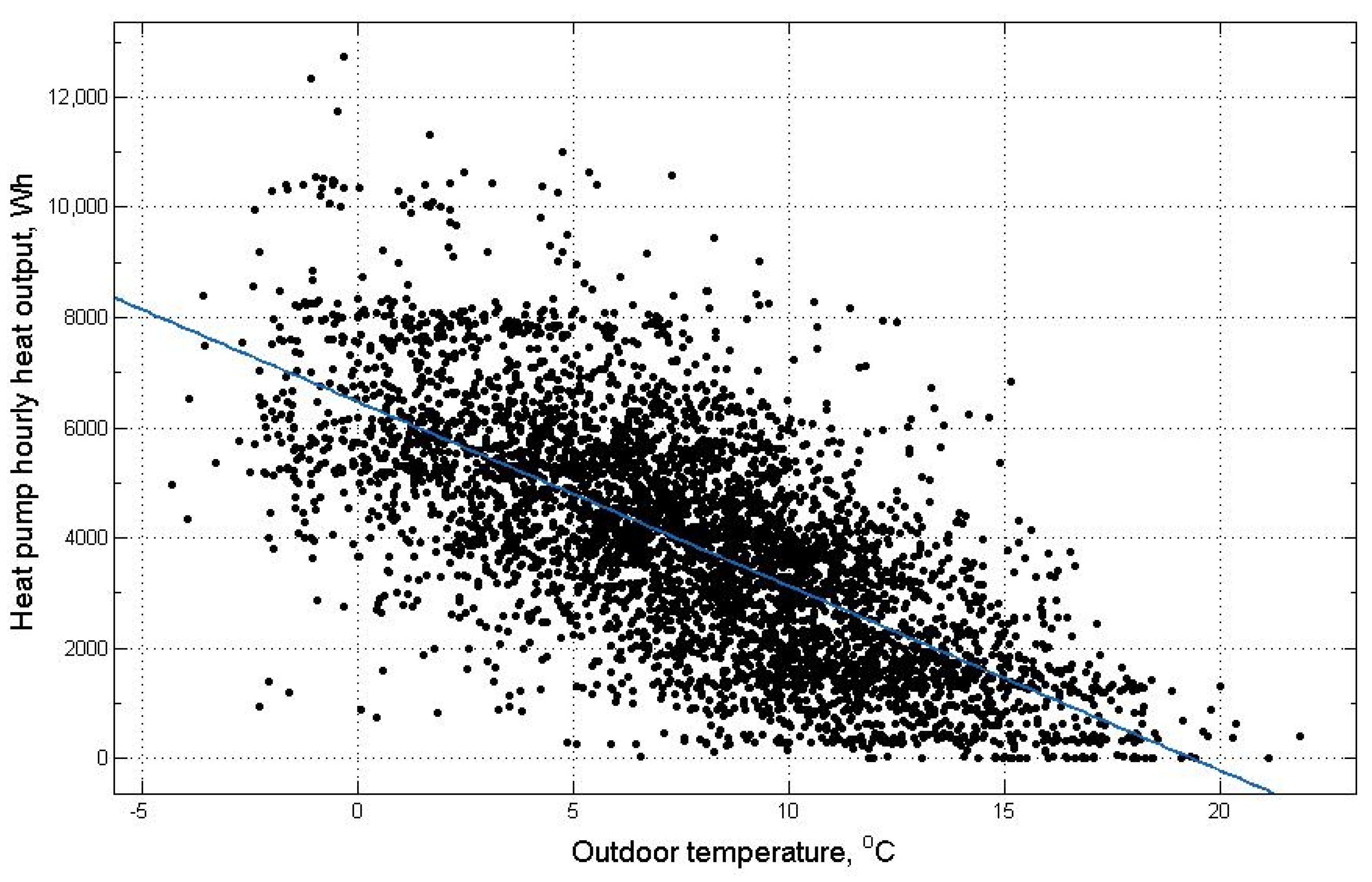

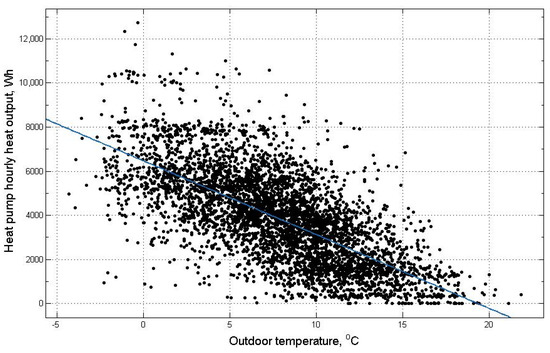

**Figure 3.**Heat pump hourly heat output versus outdoor temperature for a heat pump operating over a one-year period.

Data | 3rd Feb. | 31st Jan. | 23rd Jan. | 20th Jan. | 18th Jan. | Average |
---|---|---|---|---|---|---|

Optimised electricity cost (€) | 2.47 | 3.01 | 3.56 | 3.01 | 2.79 | |

Electricity cost in data (€) | 3.13 | 3.81 | 4.53 | 3.82 | 3.52 | |

Percentage of cost reduction (%) | 21.09 | 21.00 | 21.41 | 21.20 | 20.74 | 21.09 |

Data | 3rd Feb. | 31st Jan. | 23rd Jan. | 20th Jan. | 18th Jan. | Average |
---|---|---|---|---|---|---|

Optimised electricity cost (€) | 2.28 | 2.85 | 3.37 | 2.85 | 2.65 | |

Electricity cost in data (€) | 3.13 | 3.81 | 4.53 | 3.82 | 3.52 | |

Percentage of cost reduction (%) | 27.16 | 25.20 | 25.61 | 25.39 | 24.72 | 25.61 |

Data | 3rd Feb. | 31st Jan. | 23rd Jan. | 20th Jan. | 18th Jan. | Average |
---|---|---|---|---|---|---|

Optimised electricity cost (€) | 2.25 | 2.81 | 3.31 | 2.77 | 2.64 | |

Electricity cost in data (€) | 3.13 | 3.81 | 4.53 | 3.82 | 3.52 | |

Percentage of cost reduction (%) | 28.12 | 26.25 | 26.93 | 27.49 | 25.00 | 26.76 |

Data | 3rd Feb. | 31st Jan. | 23rd Jan. | 20th Jan. | 18th Jan. | Average |
---|---|---|---|---|---|---|

Optimised electricity cost (€) | 2.25 | 2.8 | 3.32 | 2.77 | 2.61 | |

Electricity cost in data (€) | 3.13 | 3.81 | 4.53 | 3.82 | 3.52 | |

Percentage of cost reduction (%) | 28.12 | 26.51 | 26.71 | 27.49 | 25.85 | 26.93 |

Standard PSO | CSPSO | Improved QPSO | Improved QPSOL | |
---|---|---|---|---|

Average percentage of cost reduction (%) | 21.09 | 25.61 | 26.76 | 26.93 |

Search time (ms) | 1089 | 1576 | 6400 | 18252 |
