Open AccessArticle

Compact Multilayer Yagi-Uda Based Antenna for IoT/5G Sensors

Universidade de Aveiro, Campus Universitário de Santiago, 3810-135 Aveiro, Portugal
Instituto de Telecomunicações, Campus Universitário de Santiago, 3810-135 Aveiro, Portugal
Author to whom correspondence should be addressed.
Sensors 2018, 18(9), 2914;
Received: 27 July 2018 / Revised: 28 August 2018 / Accepted: 30 August 2018 / Published: 2 September 2018
(This article belongs to the Special Issue Antenna Technologies for Microwave Sensors)
PDF [5262 KB, uploaded 2 September 2018]

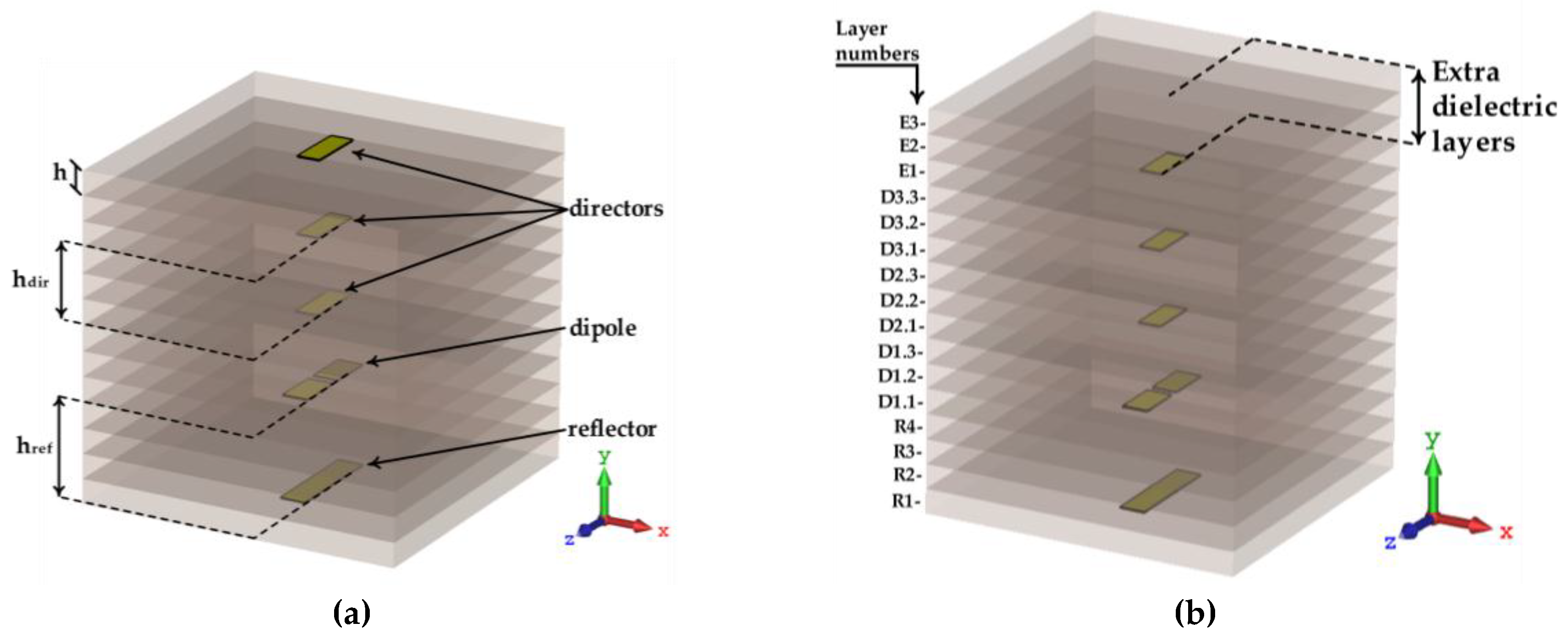

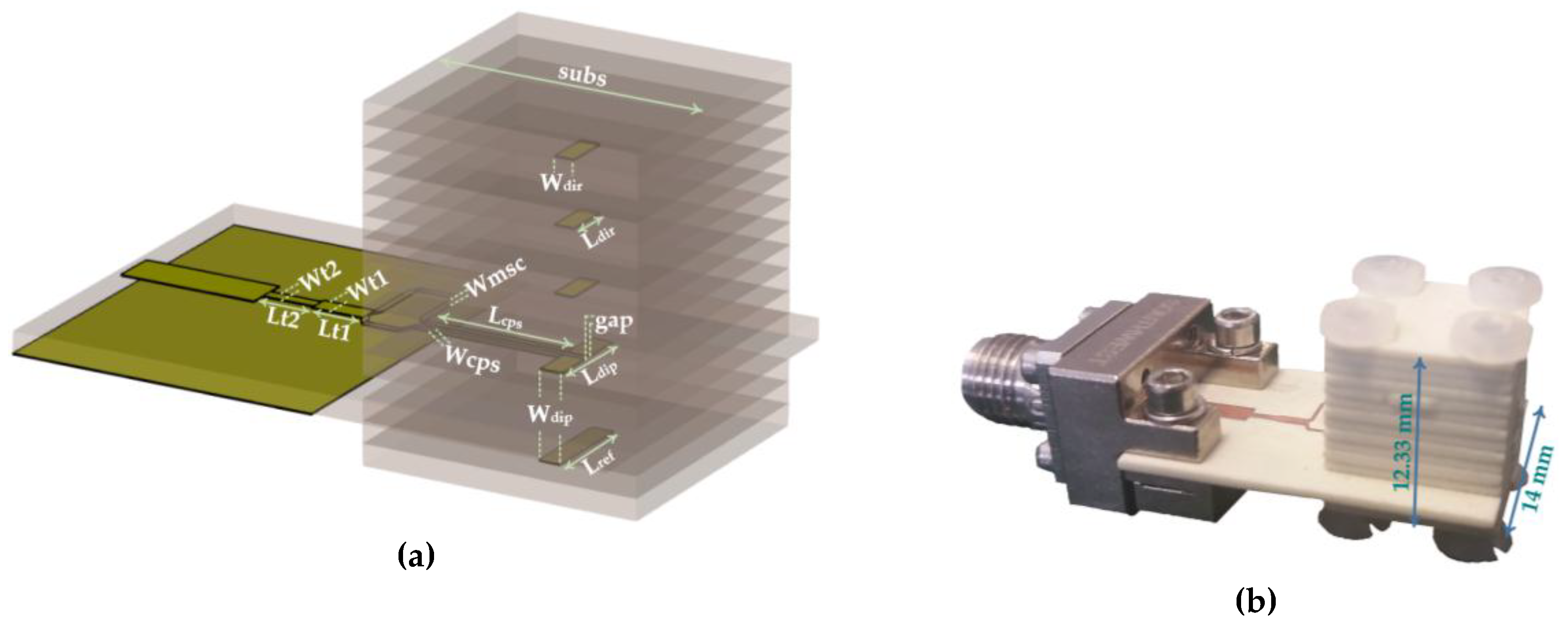

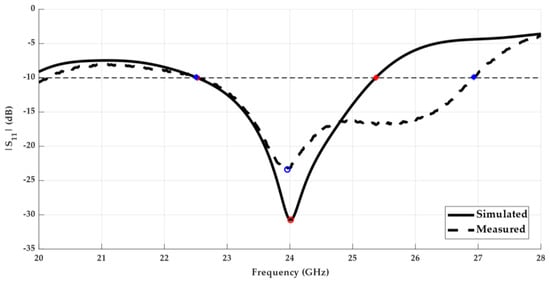

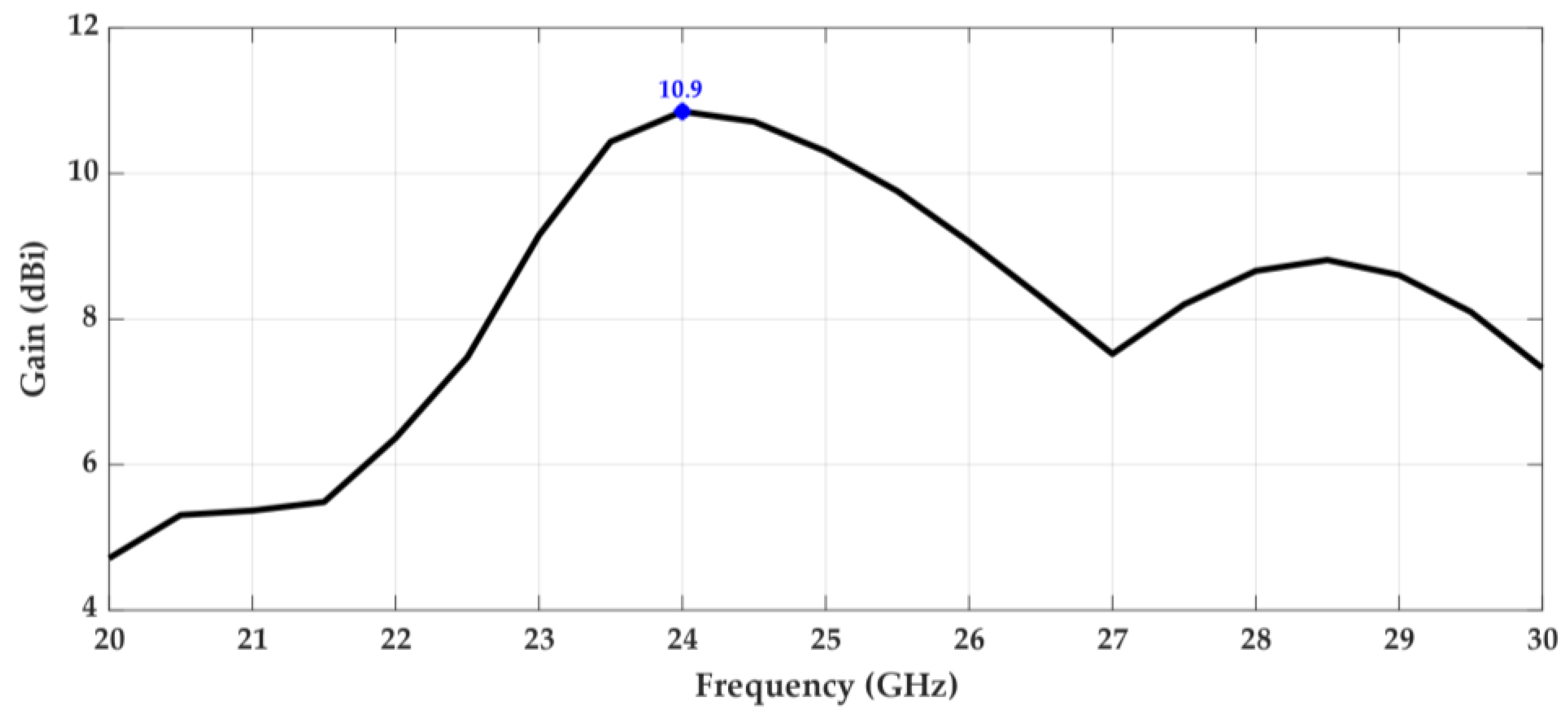

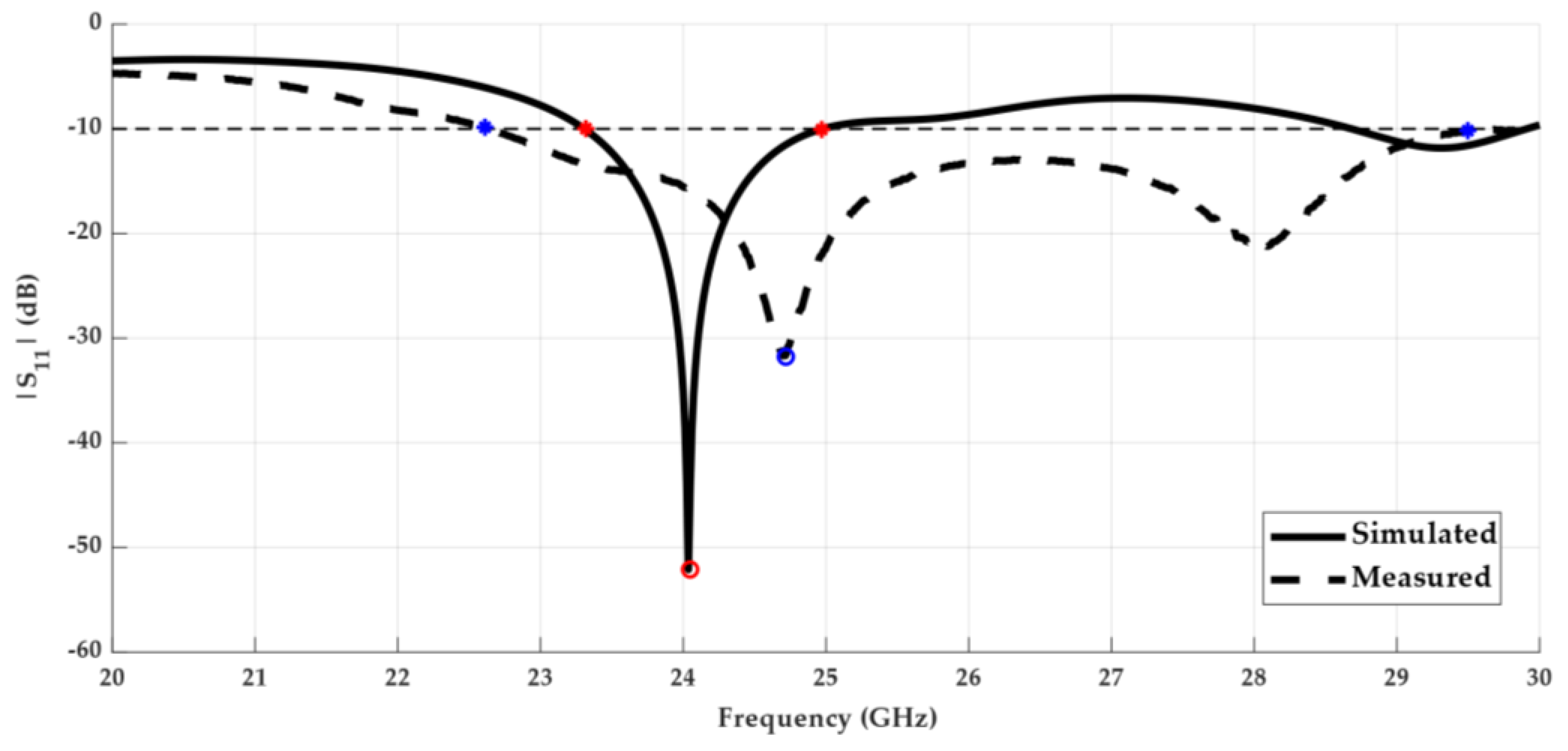

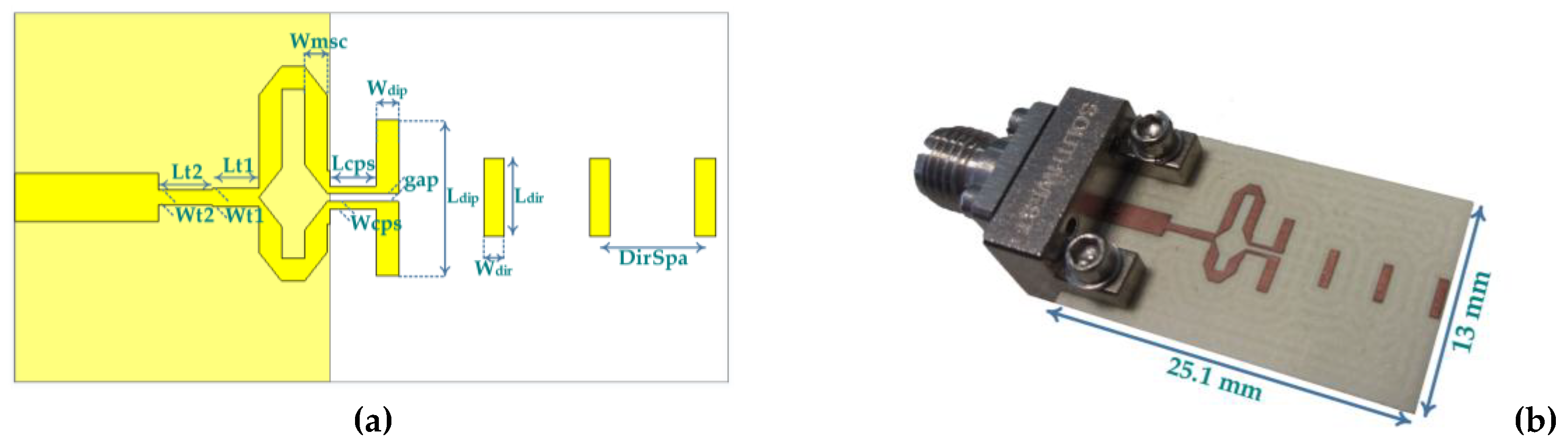

To increase the capacity and performance of communication systems, the new generation of mobile communications (5G) will use frequency bands in the mmWave region, where new challenges arise. These challenges can be partially overcome by using higher gain antennas, Multiple-Input Multiple-Output (MIMO), or beamforming techniques. Yagi-Uda antennas combine high gain with low cost and reduced size, and might result in compact and efficient antennas to be used in Internet of Thins (IoT) sensors. The design of a compact multilayer Yagi for IoT sensors is presented, operating at 24 GHz, and a comparative analysis with a planar printed version is shown. The stacked prototype reveals an improvement of the antenna’s main properties, achieving 10.9 dBi, 2 dBi more than the planar structure. In addition, the multilayer antenna shows larger bandwidth than the planar; 6.9 GHz compared with 4.42 GHz. The analysis conducted acknowledges the huge potential of these stacked structures for IoT applications, as an alternative to planar implementations. View Full-Text
Keywords: Yagi-Uda; multilayered antenna; millimeter-waves; IoT Yagi-Uda; multilayered antenna; millimeter-waves; IoT

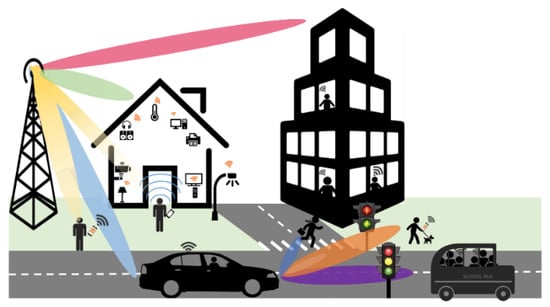

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Ramos, A.; Varum, T.; Matos, J.N. Compact Multilayer Yagi-Uda Based Antenna for IoT/5G Sensors. Sensors 2018, 18, 2914.
