Open AccessArticle
Sensors 2018, 18(8), 2551; https://doi.org/10.3390/s18082551

Fabrication Technology and Characteristics Research of a Monolithically-Integrated 2D Magnetic Field Sensor Based on Silicon Magnetic Sensitive Transistors

School of Electronics Engineering, Heilongjiang University, Harbin 150080, China
*
Author to whom correspondence should be addressed.
Received: 9 June 2018 / Revised: 21 July 2018 / Accepted: 26 July 2018 / Published: 4 August 2018
(This article belongs to the Special Issue Sensors for MEMS and Microsystems)
Full-Text   |   PDF [3372 KB, uploaded 13 August 2018]   |

Abstract

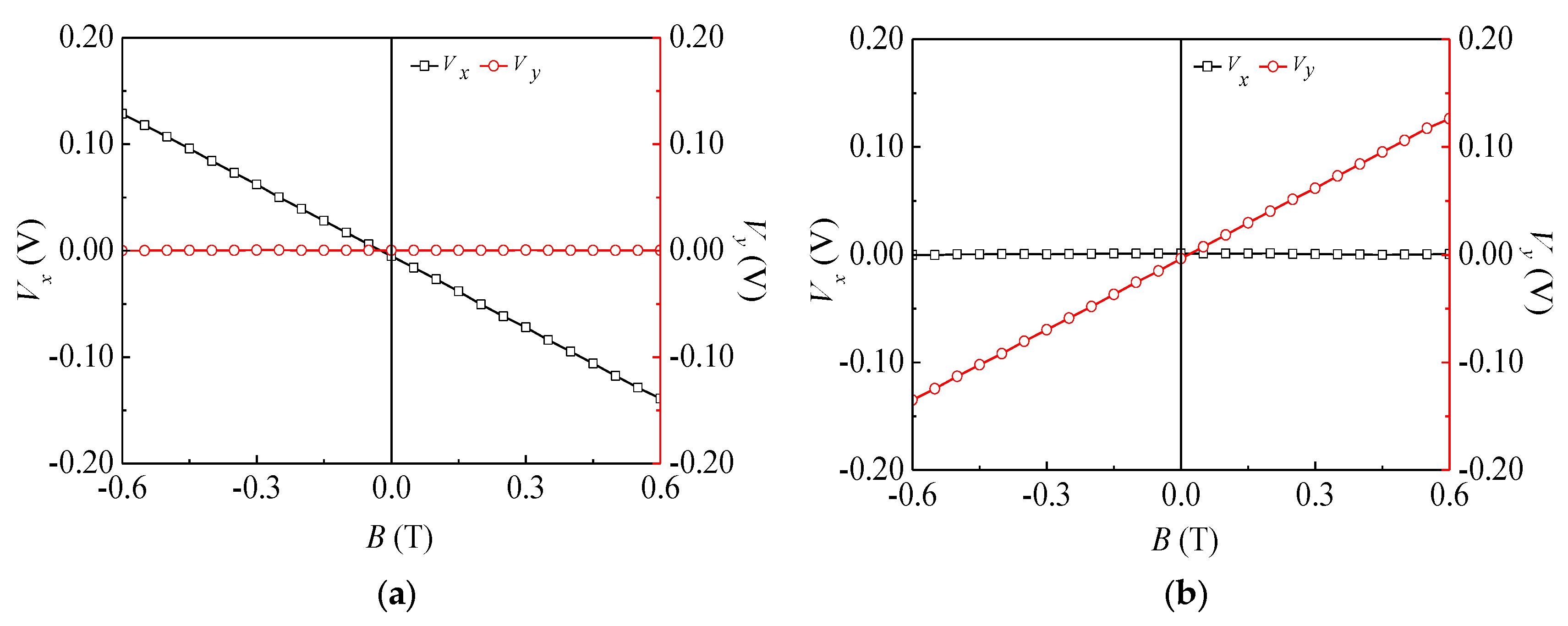

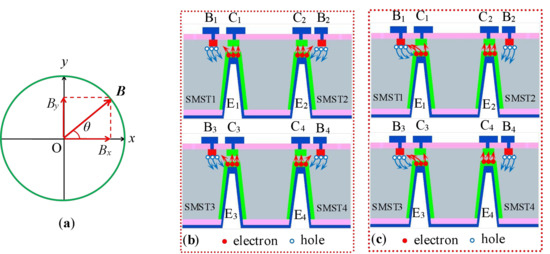

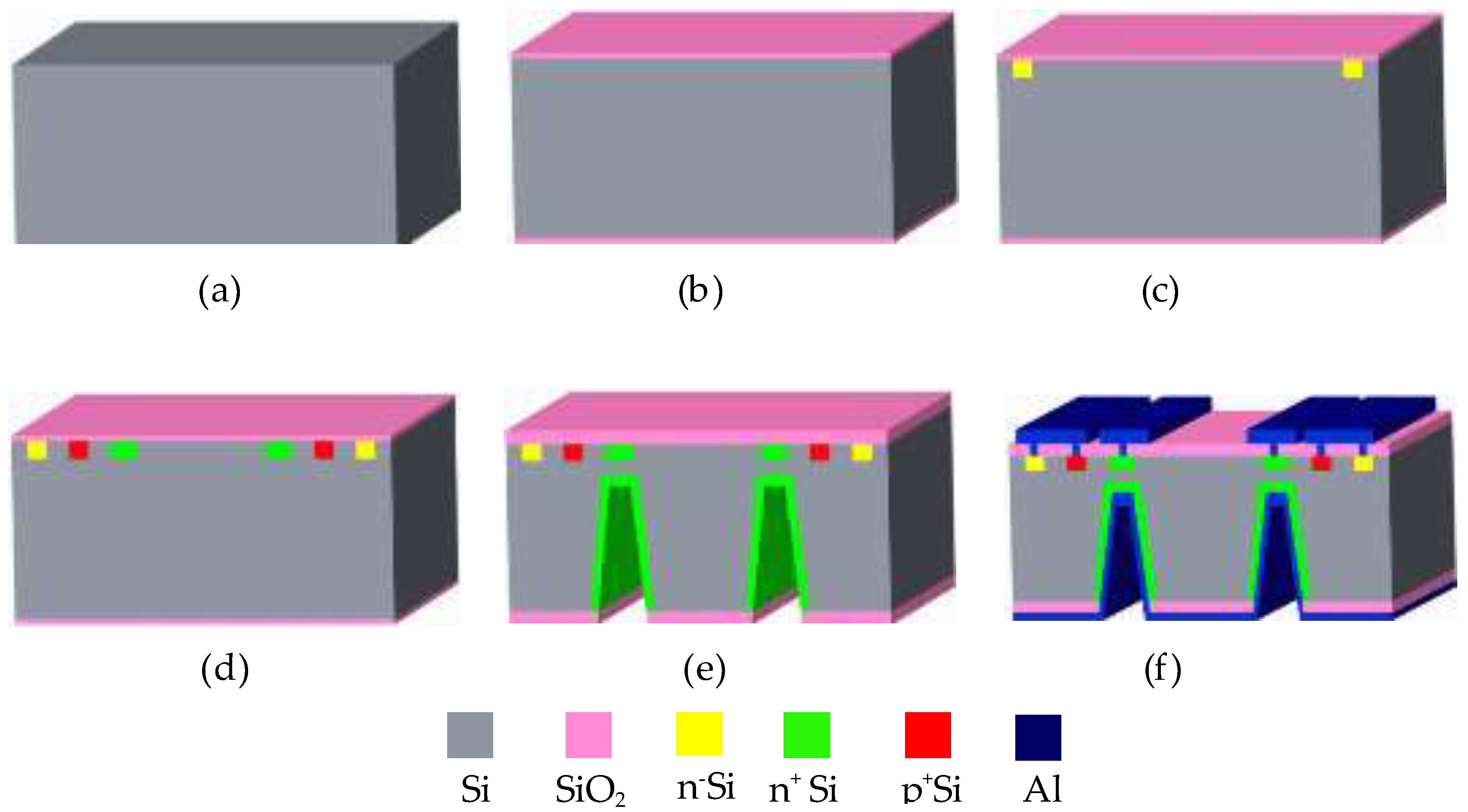

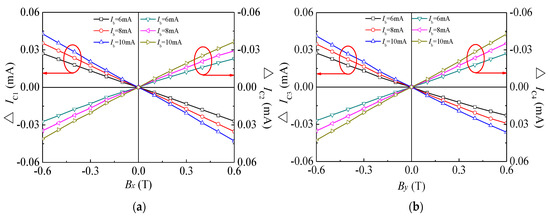

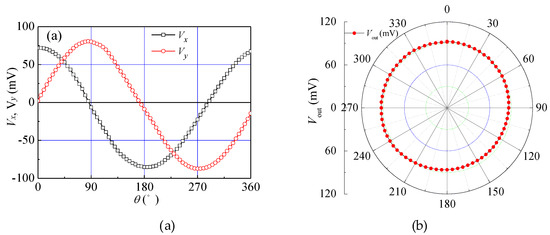

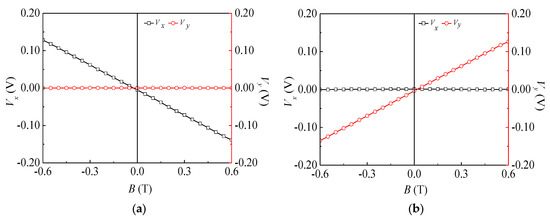

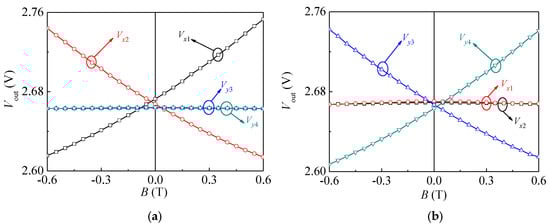

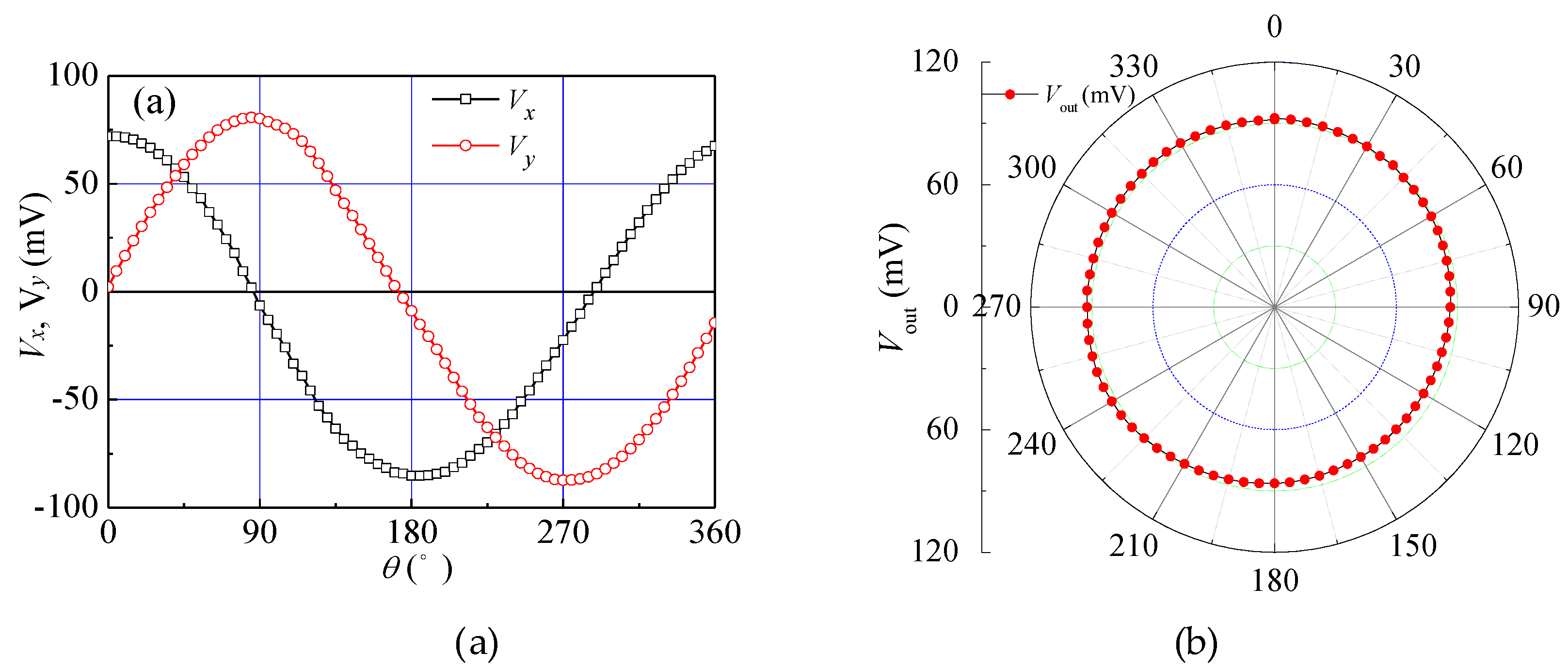

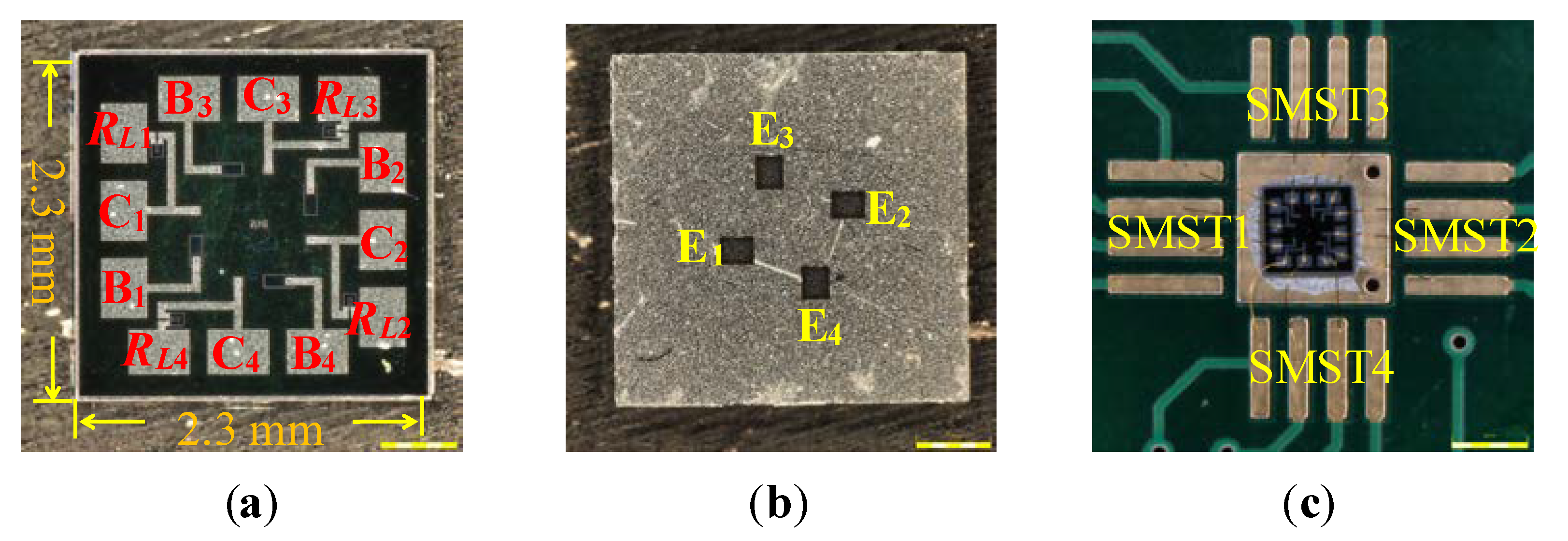

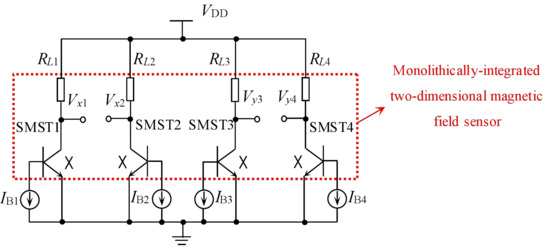

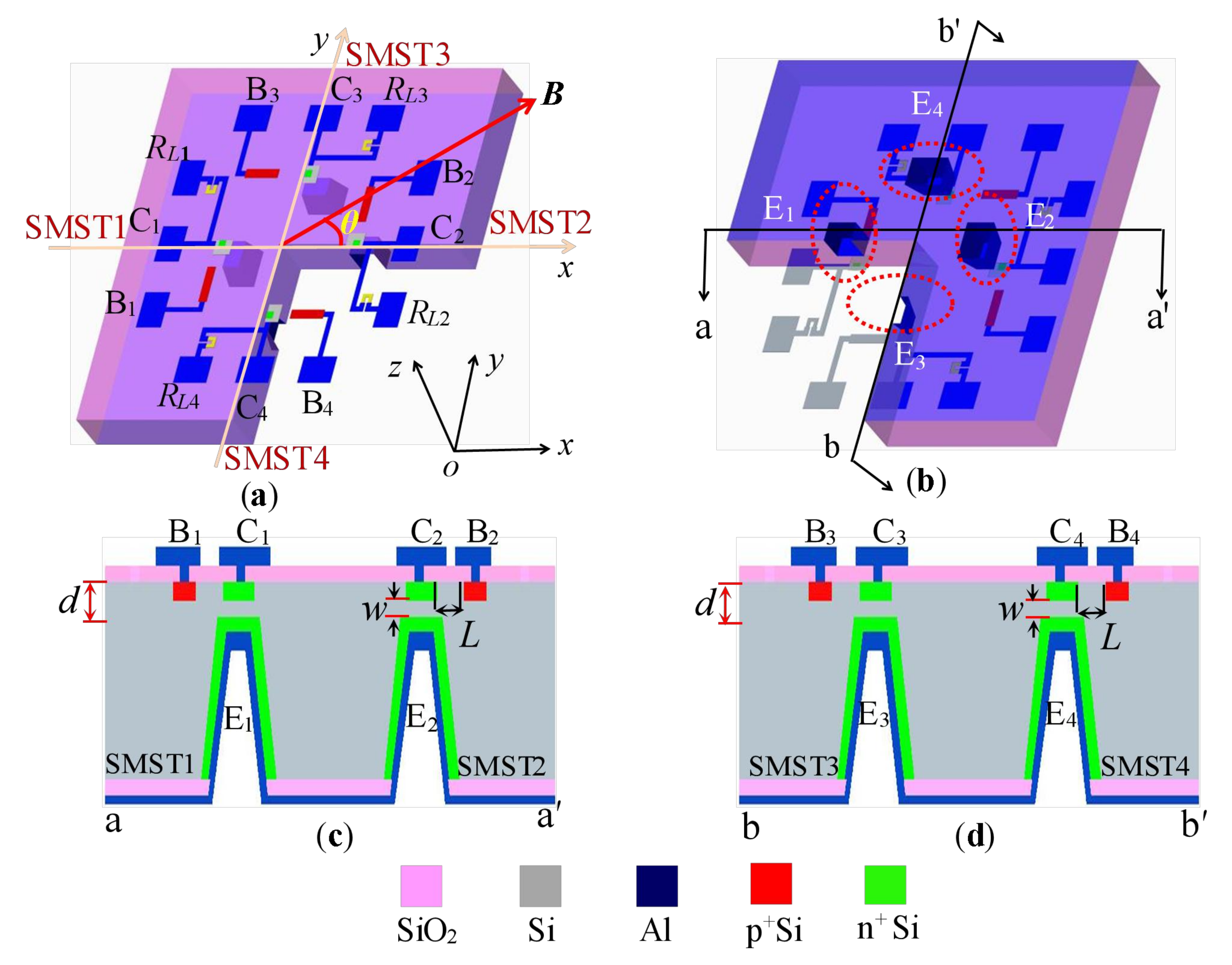

A monolithically-integrated two-dimensional (2D) magnetic field sensor consisting of two difference structures (DSІ and DSII) is proposed in this paper. The DSІ and DSII are composed of four silicon magnetic sensitive transistors (SMST1, SMST2, SMST3 and SMST4) and four collector load resistors (RL1, RL2, RL3 and RL4). Based on the magnetic sensitive principle of SMST, the integrated difference structure can detect magnetic fields’ component (Bx and By) along the x-axis and y-axis, respectively. By adopting micro-electromechanical systems (MEMS) and packaging technology, the chips were fabricated on a p-type <100> orientation silicon wafer with high resistivity and were packaged on printed circuit boards (PCBs). At room temperature, when the VCE = 5.0 V and IB = 8.0 mA, the magnetic sensitivities (Sxx and Syy) along the x-axis and the y-axis were 223 mV/T and 218 mV/T, respectively. The results show that the proposed sensor can not only detect the 2D magnetic field vector (B) in the xy plane, but also that Sxx and Syy exhibit good uniformity. View Full-Text
Keywords: two-dimensional magnetic field sensor; silicon magnetic sensitive transistor; monolithic integration; difference structure; MEMS technology two-dimensional magnetic field sensor; silicon magnetic sensitive transistor; monolithic integration; difference structure; MEMS technology
Figures

Figure 1
