Triple Flat-Type Inductive-Based Oil Palm Fruit Maturity Sensor

1
Faculty of Engineering, Universiti Putra Malaysia, Serdang, Selangor 43400, Malaysia
2
Institute of Advance Technology (ITMA), Universiti Putra Malaysia, Serdang, Selangor 43400, Malaysia
3
Faculty of Engineering, Shinshu University, Wakasato 4-17-1, Nagano 380-8553, Japan
*
Authors to whom correspondence should be addressed.
Sensors 2018, 18(8), 2496; https://doi.org/10.3390/s18082496
Received: 24 April 2018 / Revised: 4 June 2018 / Accepted: 12 June 2018 / Published: 1 August 2018
(This article belongs to the Section Physical Sensors)
  |
PDF [3811 KB, uploaded 1 August 2018]
  |

Abstract

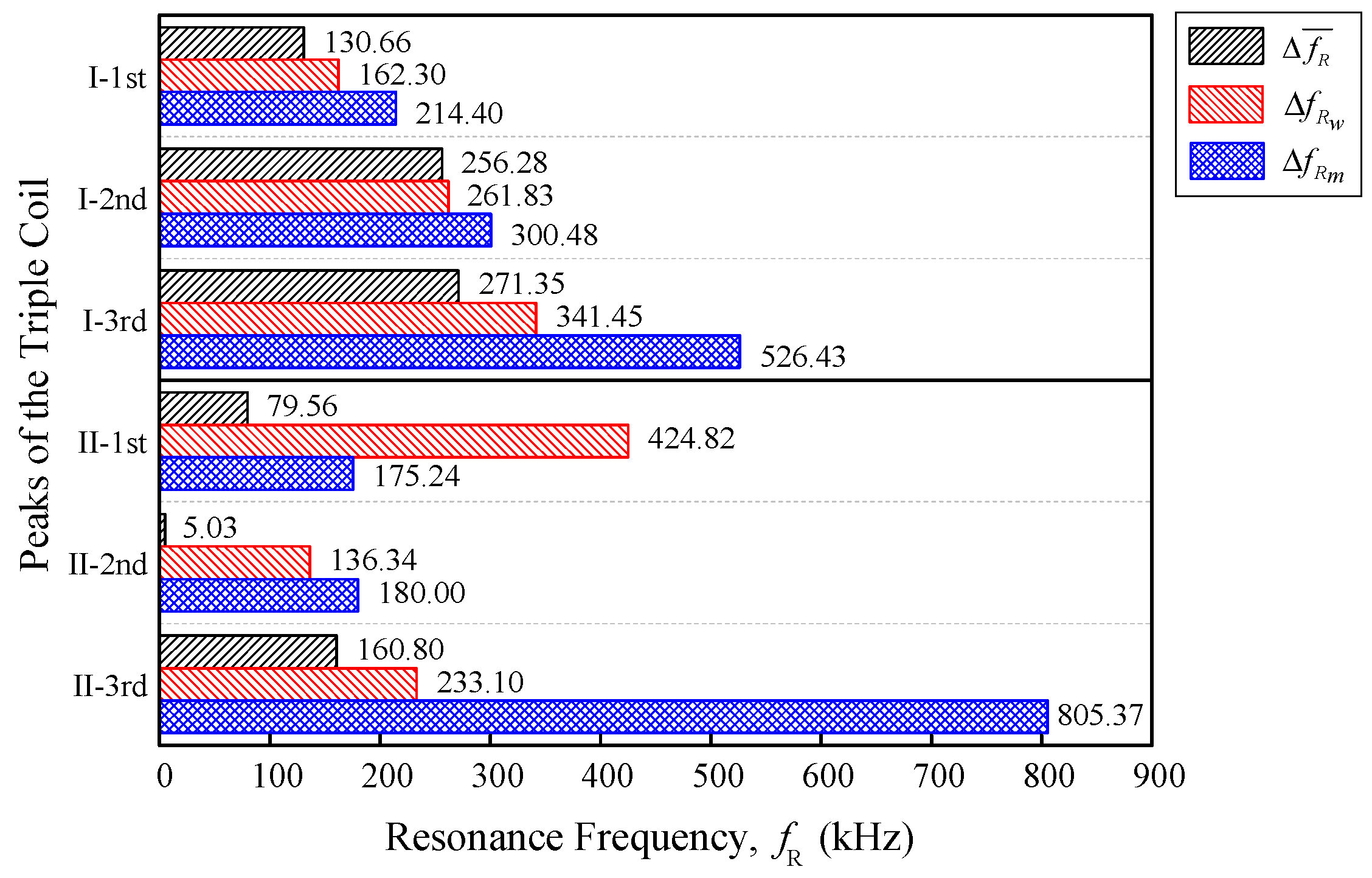

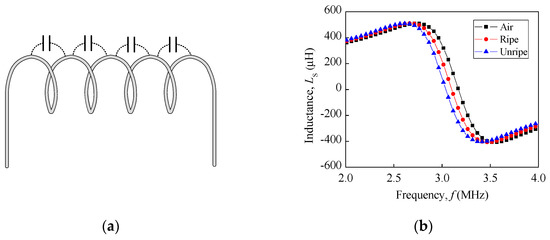

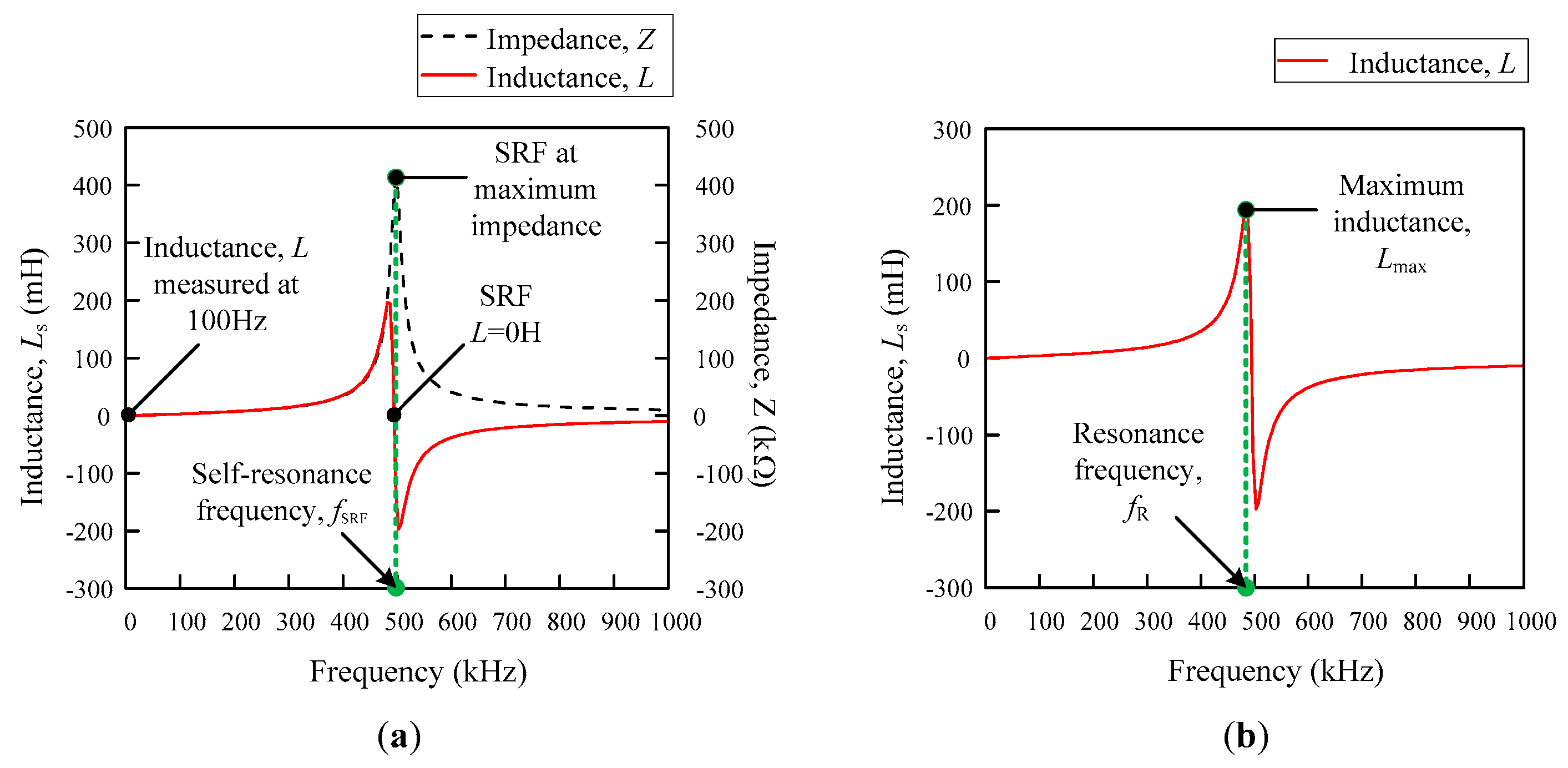

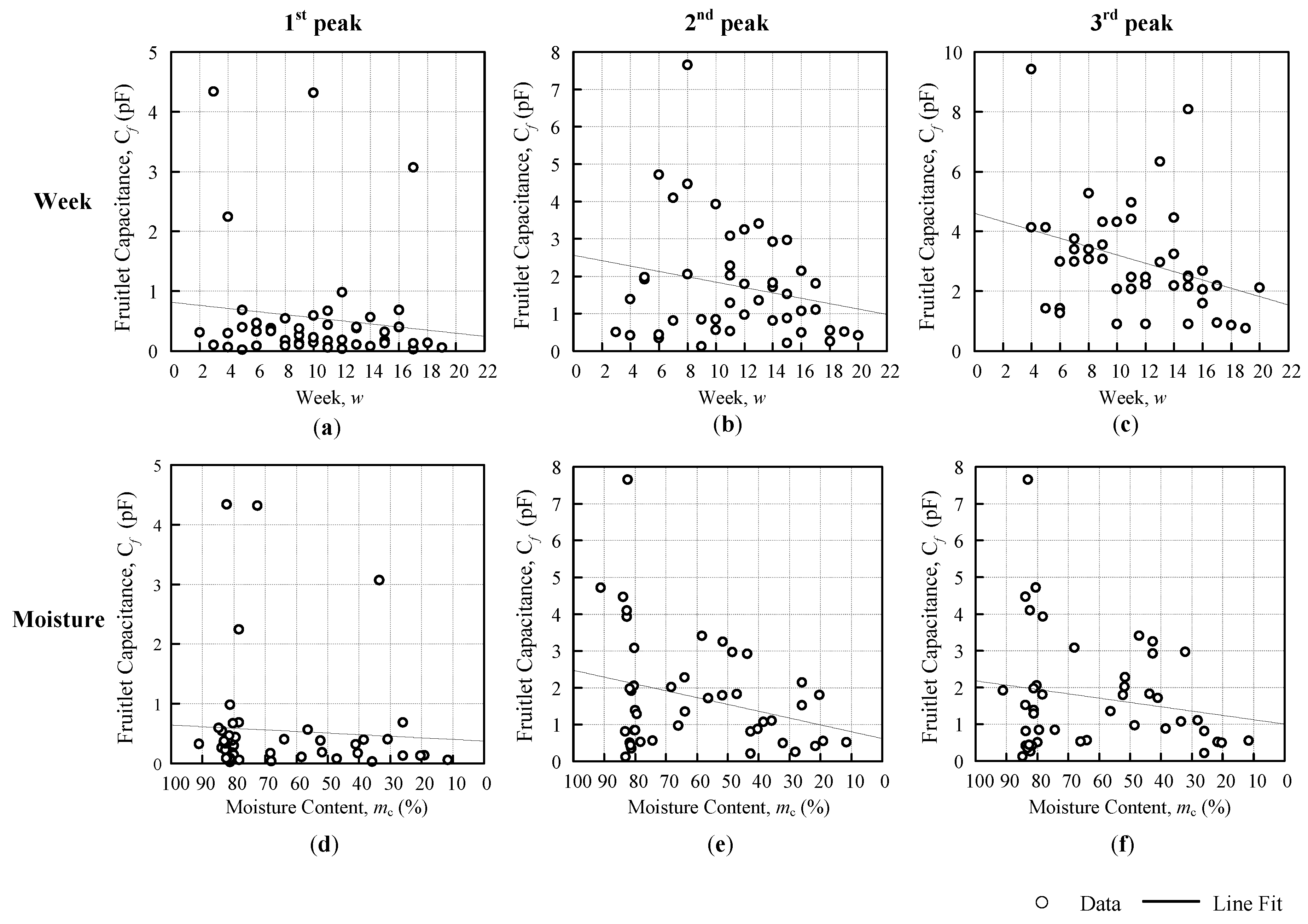

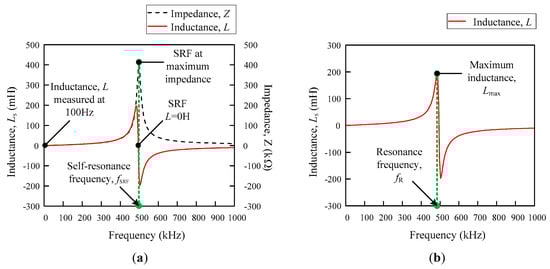

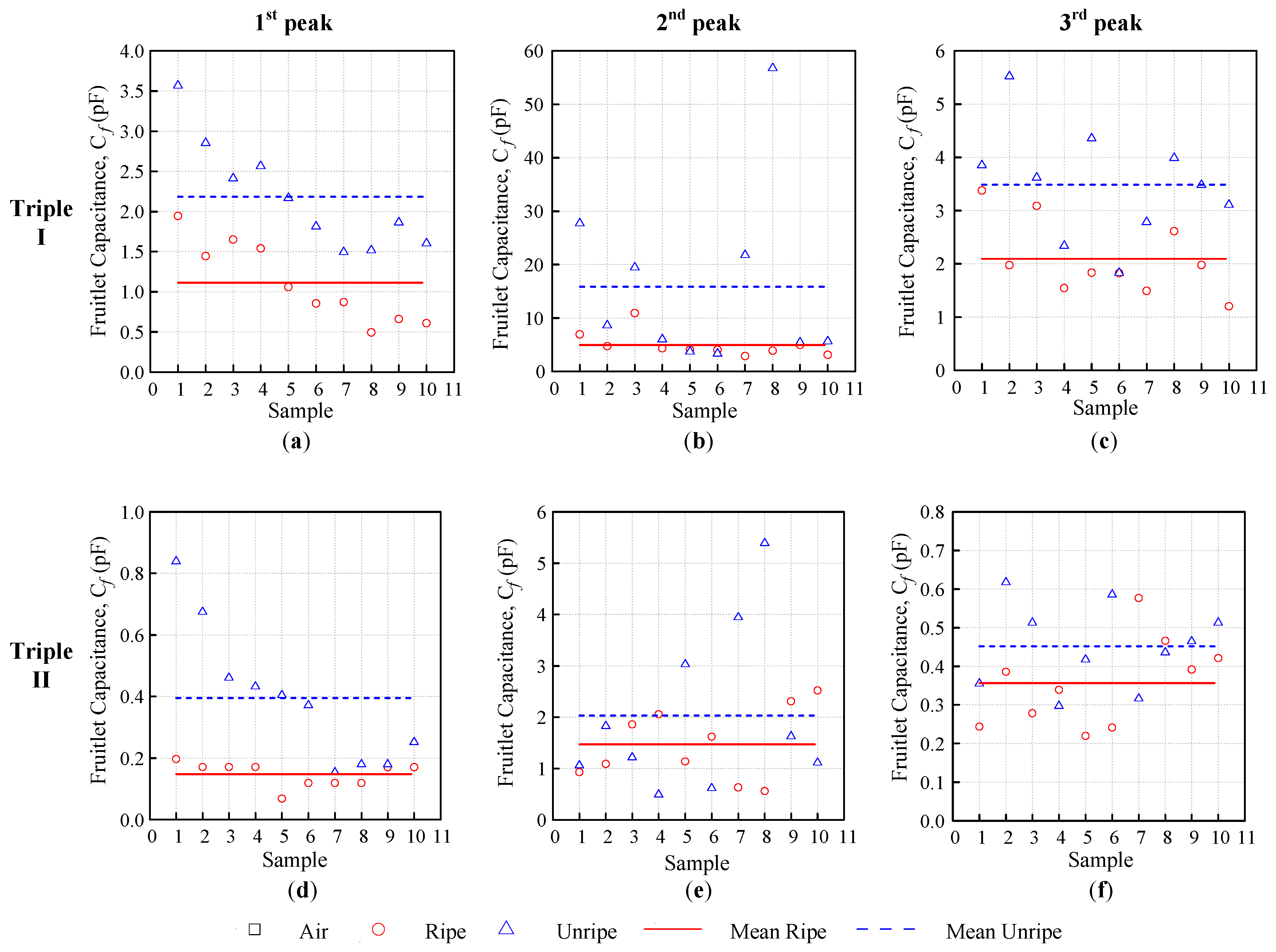

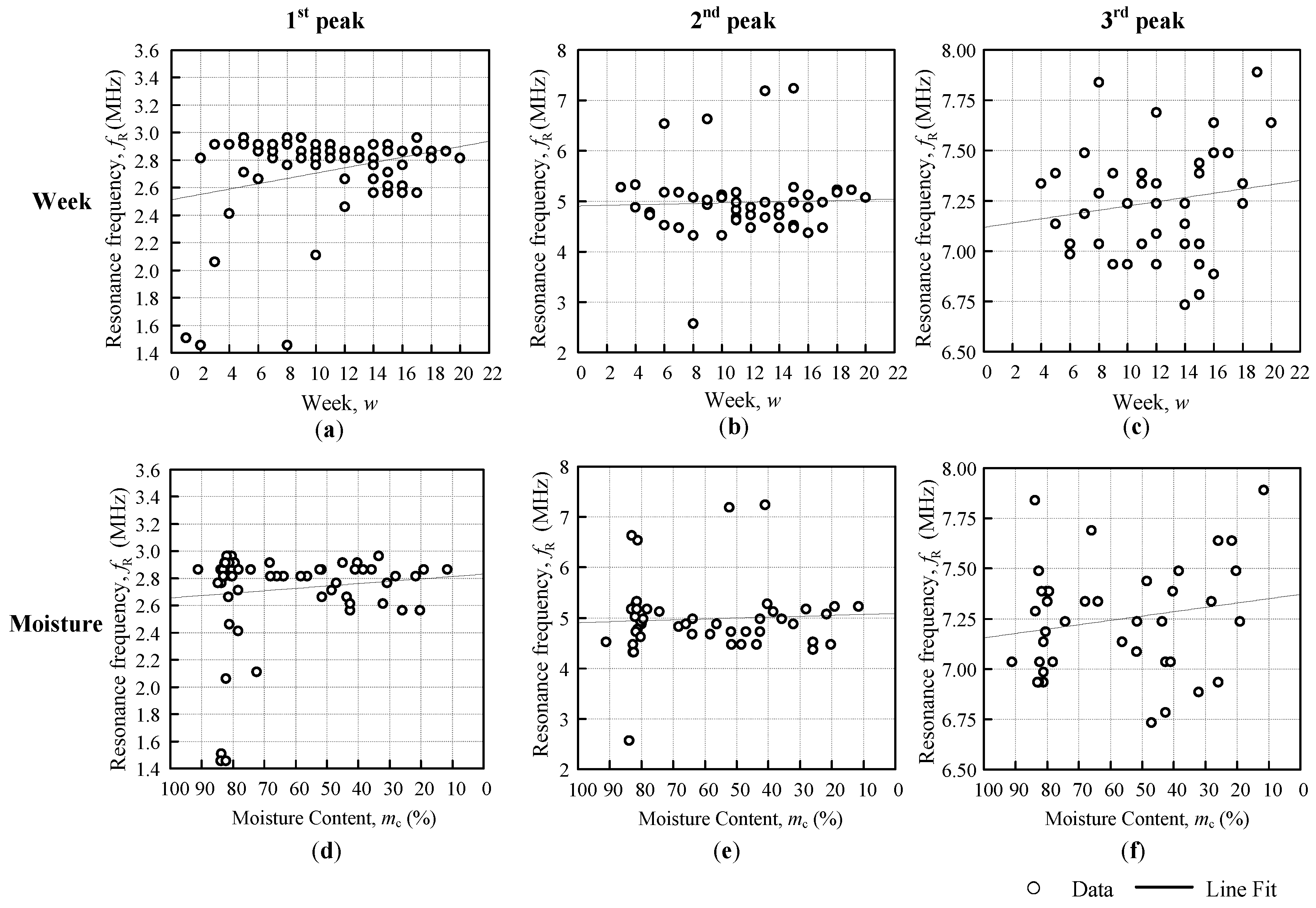

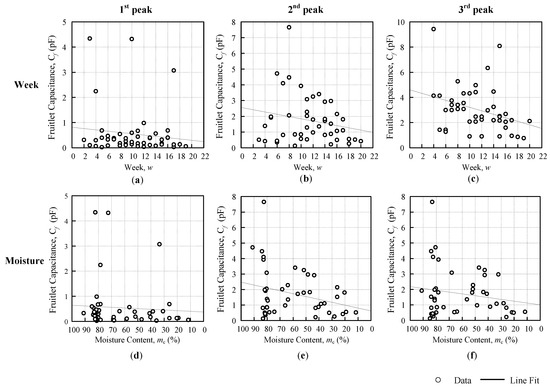

This paper aims to study a triple flat-type air coil inductive sensor that can identify two maturity stages of oil palm fruits, ripe and unripe, based on the resonance frequency and fruitlet capacitance changes. There are two types of triple structure that have been tested, namely Triple I and II. Triple I is a triple series coil with a fixed number of turns (n = 200) with different length, and Triple II is a coil with fixed length (l = 5 mm) and a different number of turns. The peak comparison between Triple I and II is using the coefficient of variation cv, which is defined as the ratio of the standard deviation to the mean to express the precision and repeatability of data. As the fruit ripens, the resonance frequency peaks from an inductance–frequency curve and shifts closer to the peak curve of the air, and the fruitlet capacitance decreases. The coefficient of the variation of the inductive oil palm fruit sensor shows that Triple I is smaller and more consistent in comparison with Triple II, for both resonance frequency and fruitlet capacitance. The development of this sensor proves the capability of an inductive element such as a coil, to be used as a sensor so as to determine the ripeness of the oil palm fresh fruit bunch sample. View Full-Text
Keywords: inductive concept; air coil; resonance frequency; oil palm; maturity classification; moisture content inductive concept; air coil; resonance frequency; oil palm; maturity classification; moisture content
