Open AccessArticle
Sensors 2018, 18(11), 3717; https://doi.org/10.3390/s18113717

Urban Land Use and Land Cover Classification Using Novel Deep Learning Models Based on High Spatial Resolution Satellite Imagery

1
Laboratory Cultivation Base of Environment Process and Digital Simulation, Capital Normal University, Beijing 100048, China
2
EarthSTAR Inc., Beijing 100101, China
3
Beijing Laboratory of Water Resource Security, Capital Normal University, Beijing 100048, China
4
Beijing Advanced Innovation Center for Imaging Technology, Capital Normal University, Beijing 100048, China
*
Authors to whom correspondence should be addressed.
Received: 30 August 2018 / Revised: 26 October 2018 / Accepted: 27 October 2018 / Published: 1 November 2018
(This article belongs to the Special Issue Advances in Remote Sensing of Land-Cover and Land-Use Changes)
Full-Text   |   PDF [25484 KB, uploaded 1 November 2018]   |

Abstract

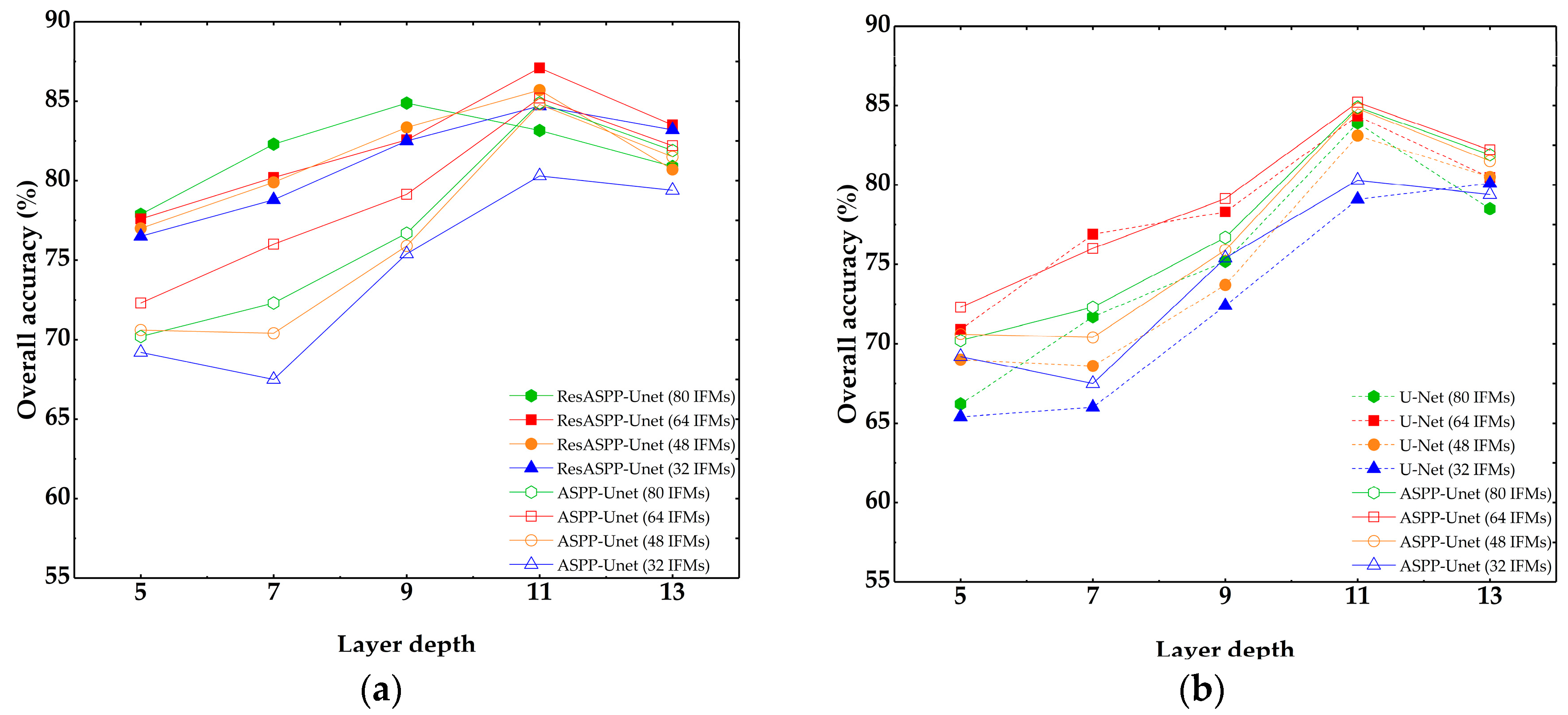

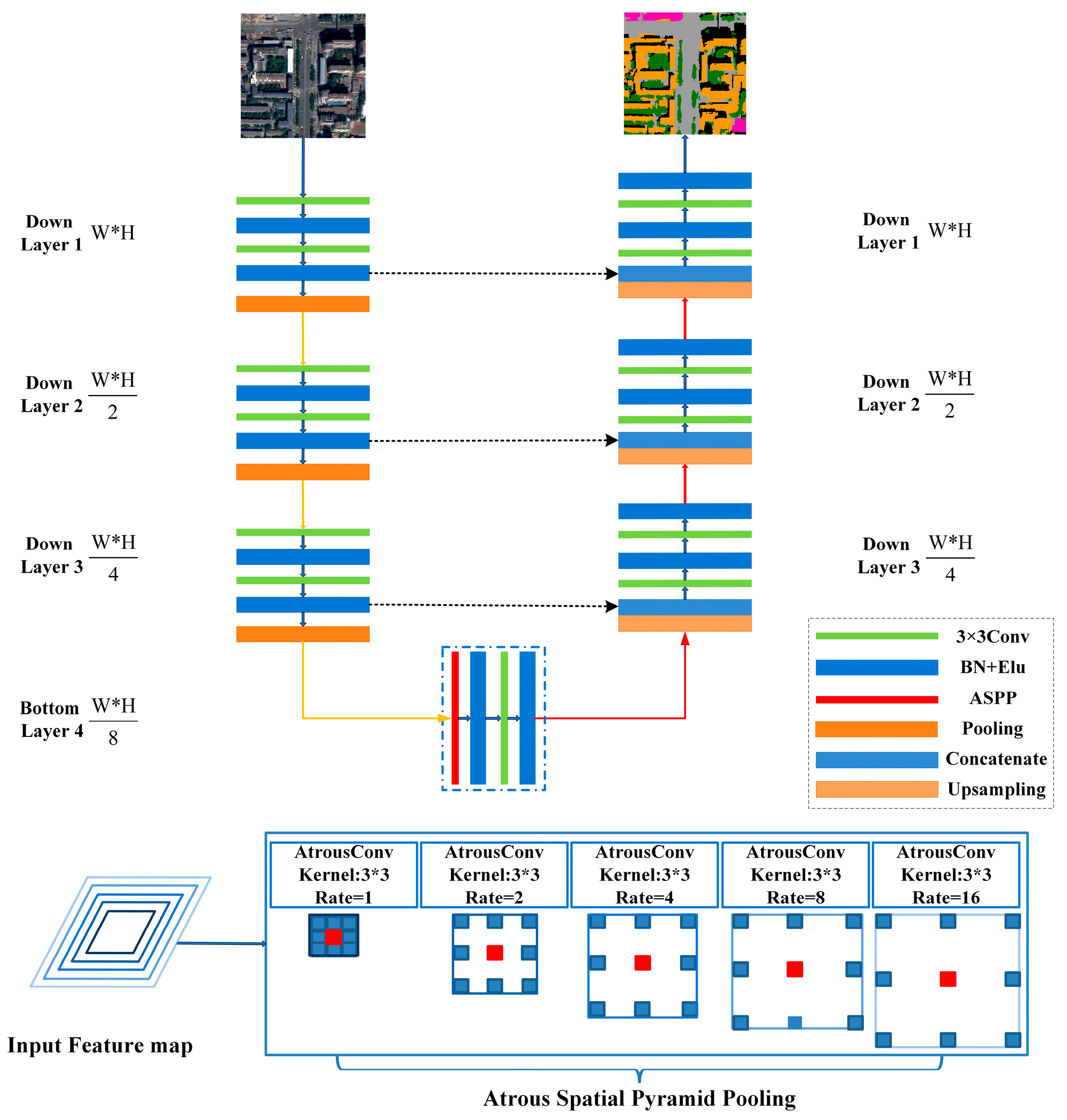

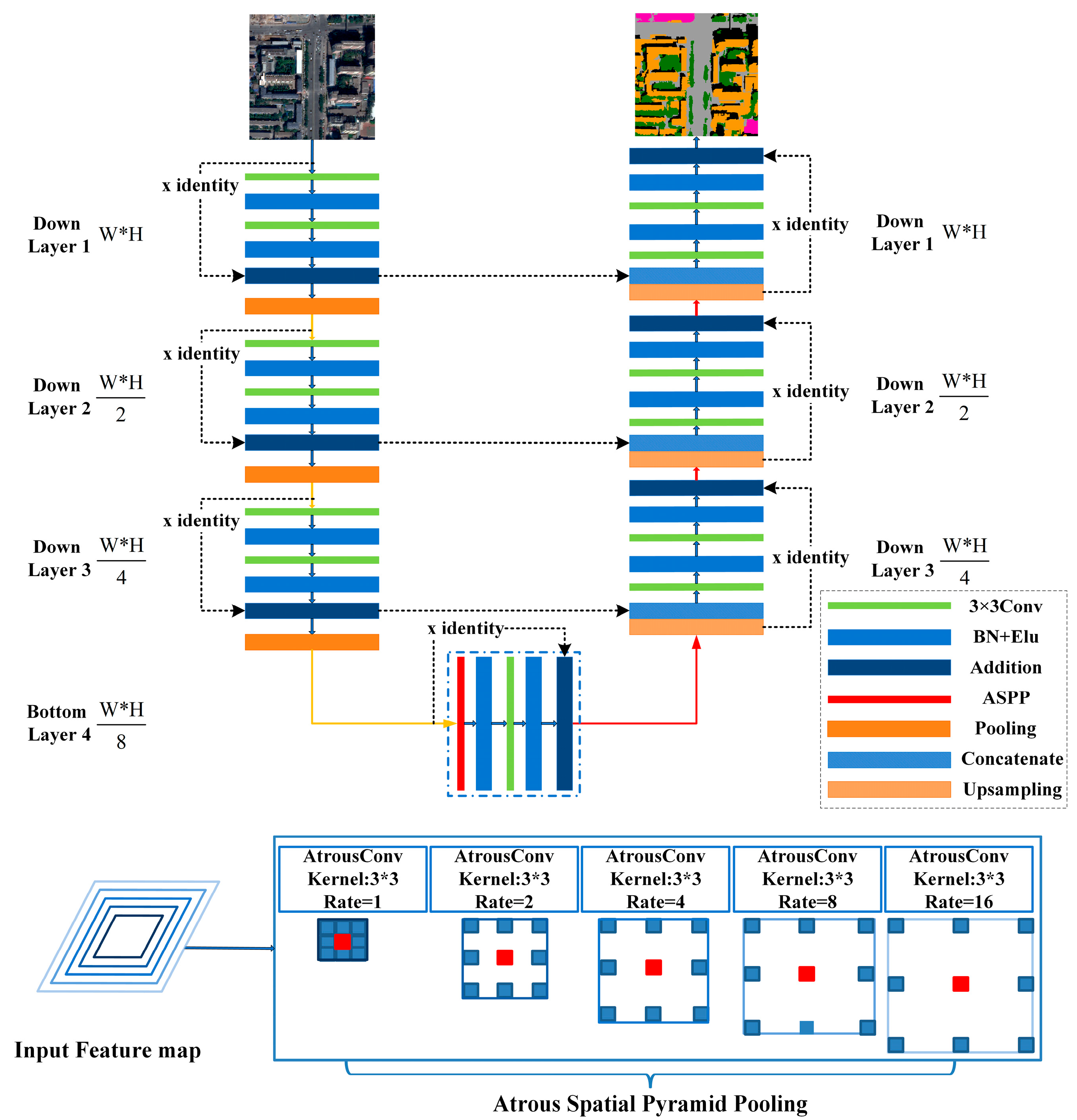

Urban land cover and land use mapping plays an important role in urban planning and management. In this paper, novel multi-scale deep learning models, namely ASPP-Unet and ResASPP-Unet are proposed for urban land cover classification based on very high resolution (VHR) satellite imagery. The proposed ASPP-Unet model consists of a contracting path which extracts the high-level features, and an expansive path, which up-samples the features to create a high-resolution output. The atrous spatial pyramid pooling (ASPP) technique is utilized in the bottom layer in order to incorporate multi-scale deep features into a discriminative feature. The ResASPP-Unet model further improves the architecture by replacing each layer with residual unit. The models were trained and tested based on WorldView-2 (WV2) and WorldView-3 (WV3) imageries over the city of Beijing. Model parameters including layer depth and the number of initial feature maps (IFMs) as well as the input image bands were evaluated in terms of their impact on the model performances. It is shown that the ResASPP-Unet model with 11 layers and 64 IFMs based on 8-band WV2 imagery produced the highest classification accuracy (87.1% for WV2 imagery and 84.0% for WV3 imagery). The ASPP-Unet model with the same parameter setting produced slightly lower accuracy, with overall accuracy of 85.2% for WV2 imagery and 83.2% for WV3 imagery. Overall, the proposed models outperformed the state-of-the-art models, e.g., U-Net, convolutional neural network (CNN) and Support Vector Machine (SVM) model over both WV2 and WV3 images, and yielded robust and efficient urban land cover classification results. View Full-Text
Keywords: urban land cover classification; high spatial resolution satellite imagery; deep learning; U-Net; CNN urban land cover classification; high spatial resolution satellite imagery; deep learning; U-Net; CNN
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
