Sensors 2017, 17(5), 1169;

Fully-Polymeric pH Sensor Realized by Means of a Single-Step Soft Embossing Technique

Department of Precision and Microsystems Engineering (PME), Delft University of Technology, 2628 CD Delft, The Netherlands
Micronit Microtechnologies B.V., 7521 PV Enschede, The Netherlands
Author to whom correspondence should be addressed.
Academic Editor: W. Rudolf Seitz
Received: 31 March 2017 / Revised: 24 April 2017 / Accepted: 17 May 2017 / Published: 20 May 2017
(This article belongs to the Section Chemical Sensors)
Full-Text   |   PDF [2167 KB, uploaded 20 May 2017]   |

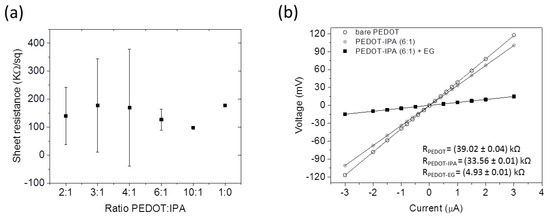

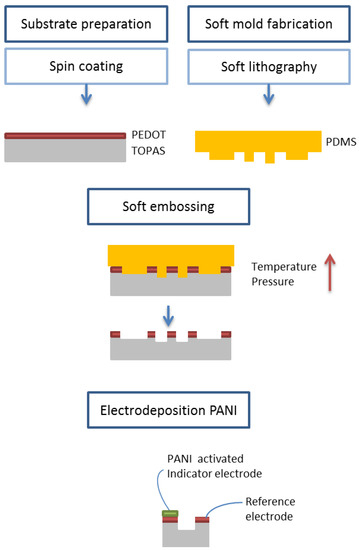

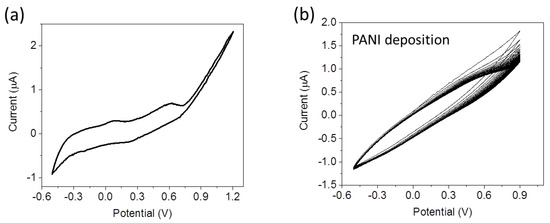

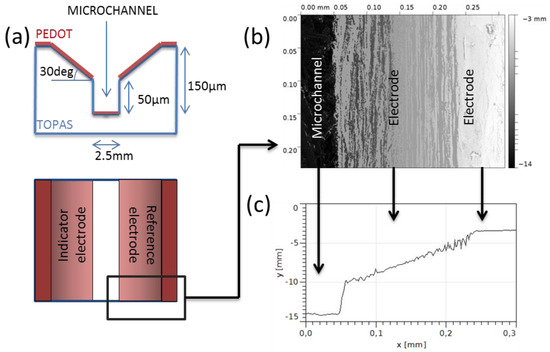

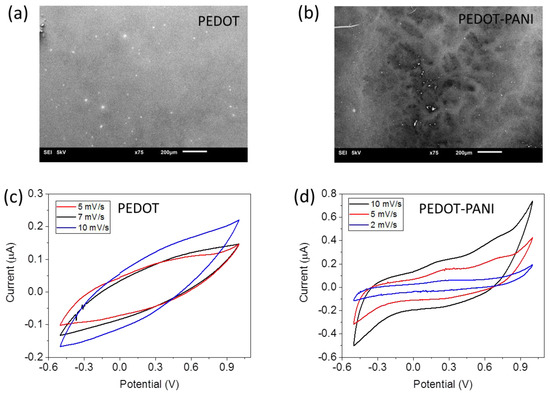

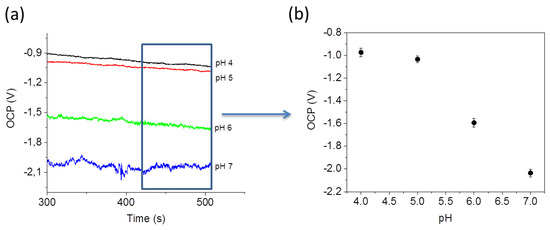

We present here an electrochemical sensor microsystem for the monitoring of pH. The all-polymeric device is comprised of a cyclic olefin copolymer substrate, a 200 nm-thin patterned layer of conductive polymer (PEDOT), and a 70 nm electropolymerized layer of a pH sensitive conductive polymer (polyaniline). The patterning of the fluidic (microfluidic channels) and conductive (wiring and electrodes) functional elements was achieved with a single soft PDMS mold via a single embossing step process. A post-processing treatment with ethylene glycol assured the functional enhancement of the electrodes, as demonstrated via an electrical and electrochemical characterization. A surface modification of the electrodes was carried out, based on voltammetric electropolymerization, to obtain a thin layer of polyaniline. The mechanism for pH sensing is based on the redox reactions of the polyaniline layer caused by protonation. The sensing performance of the microsystem was finally validated by monitoring its potentiometric response upon exposure to a relevant range of pH. View Full-Text
Keywords: PEDOT; organic electrode; soft embossing; pH sensing PEDOT; organic electrode; soft embossing; pH sensing

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
