# An Efficient and QoS Supported Multichannel MAC Protocol for Vehicular Ad Hoc Networks

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

- (1)
- The EQM-MAC protocol uses less time to deliver safety messages and allocates more time to make time slot reservations and channel coordination for SCHs. Therefore, nodes have more opportunities to perform SCH reservation to deliver different service classes packets, and the number of successful reservations can be greatly increased.
- (2)
- The non-safety messages can be simultaneously transmitted on SCHs during the whole SI. Therefore, the saturation throughput and the utilization of SCHs can be further increased.
- (3)
- EQM-MAC protocol can offer sufficient QoS in terms of throughput and delay for non-safety messages through adjusting the minimum CW according to the vehicle density.

## 2. Related Works

## 3. Efficient and QoS Supported Multichannel MAC Protocol

#### 3.1. SCH Selection and Access Reservation Scheme

#### 3.2. Analysis of Differentiated Minimum Contention Window

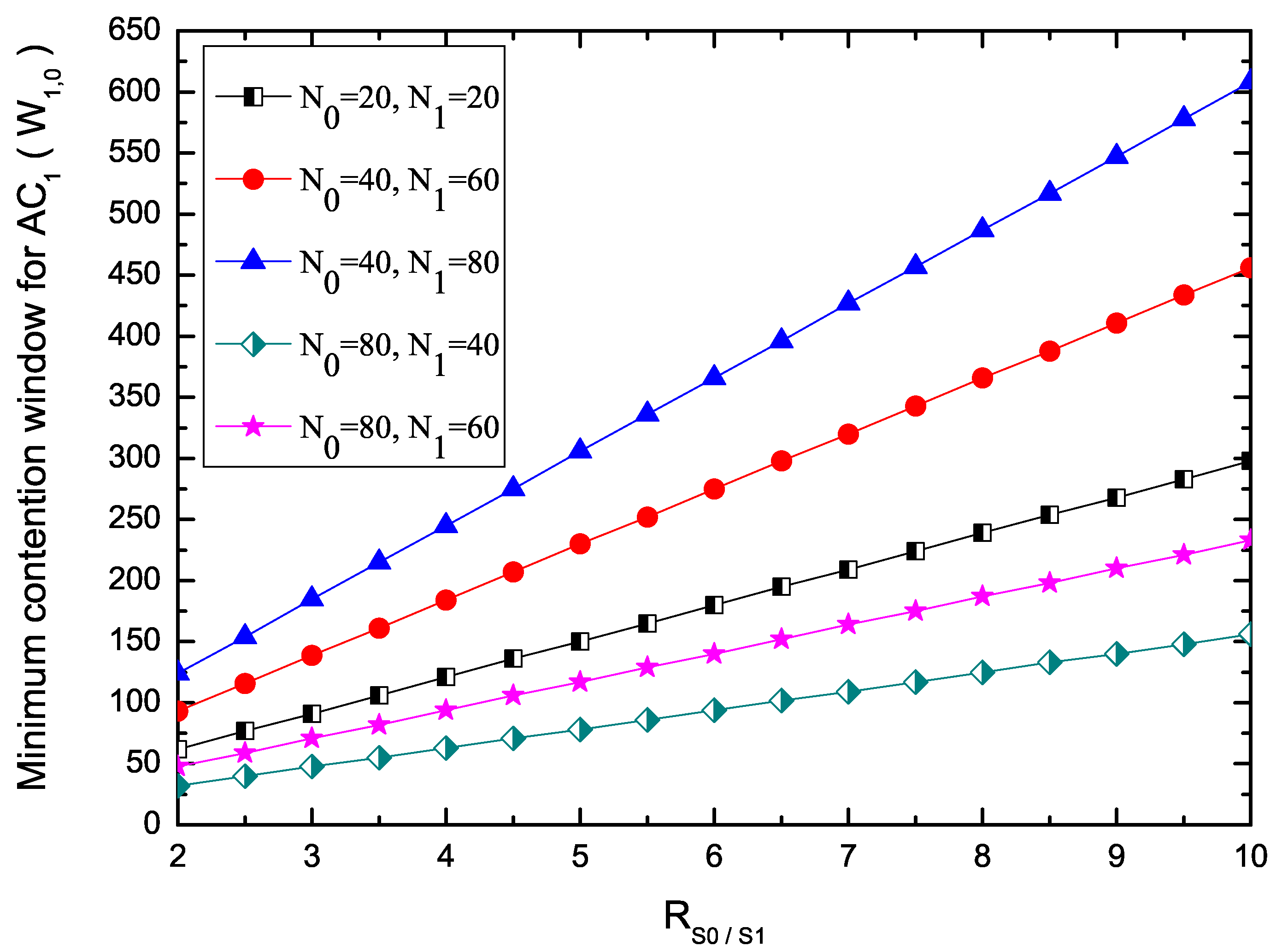

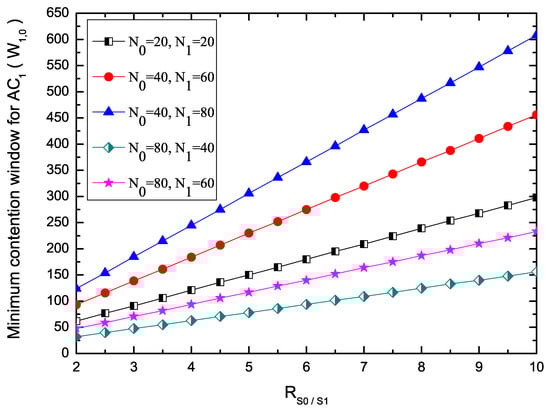

**Assumption**

**1**(Poisson distribution of vehicles on load).

**Assumption**

**2**(Uniform distribution of vehicle speed).

**Assumption**

**3**(Ideal channel conditions).

**Assumption**

**4**(Ideal channel conditions).

**Assumption**

**5**(Only one access category in one node).

**Theorem**

**1.**

**Proof.**

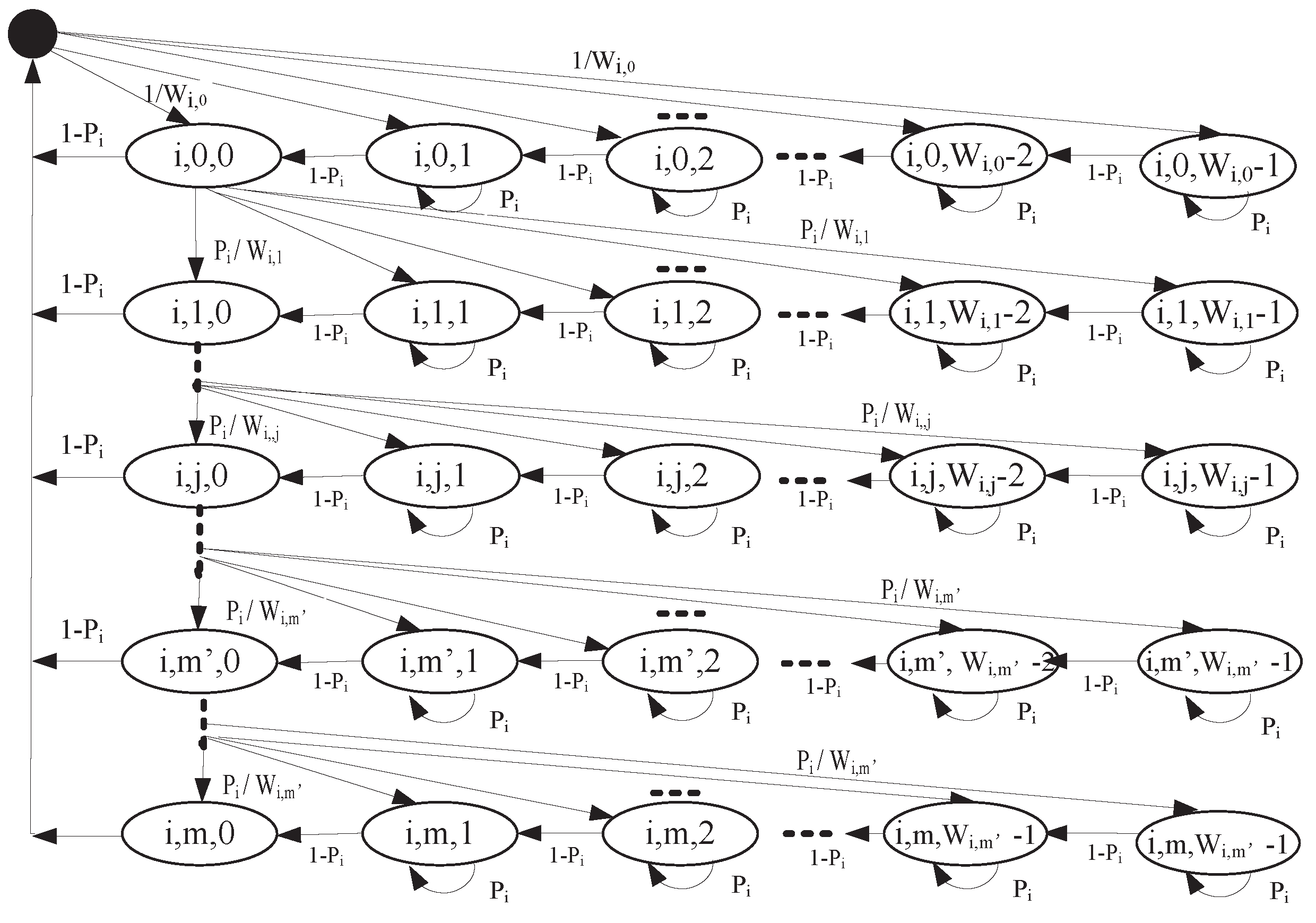

- (1)
- When the channel is busy, the backoff timer is frozen;
- (2)
- When the channel is free, the backoff timer will subtract one;
- (3)
- Within ${m}^{\prime}$ backoff stage, collision makes backoff stage increase and CW double. Otherwise, collision makes CW remain ${2}^{{m}^{,}}{W}_{i,0}$;
- (4)
- When a WSA/RFS packet is successfully transmitted or reaches its maximum retransmission number m, the backoff timer is reset.

## 4. Performance Analysis

#### 4.1. Throughput Analysis

- (1)
- Let ${T}_{SI}$ and M denote the length of a SI and the number of lanes in each direction, respectively.The RSU estimates the number of newly entering vehicles, ${n}_{new}$, during a SI by [22]$${n}_{new}=2M\xb7{V}_{avg}\xb7\beta \xb7{T}_{SI}$$$${T}_{VII}={L}_{total}\xb7{T}_{rrts}+{m}^{\u2033}\xb7{T}_{cp}$$
- (2)

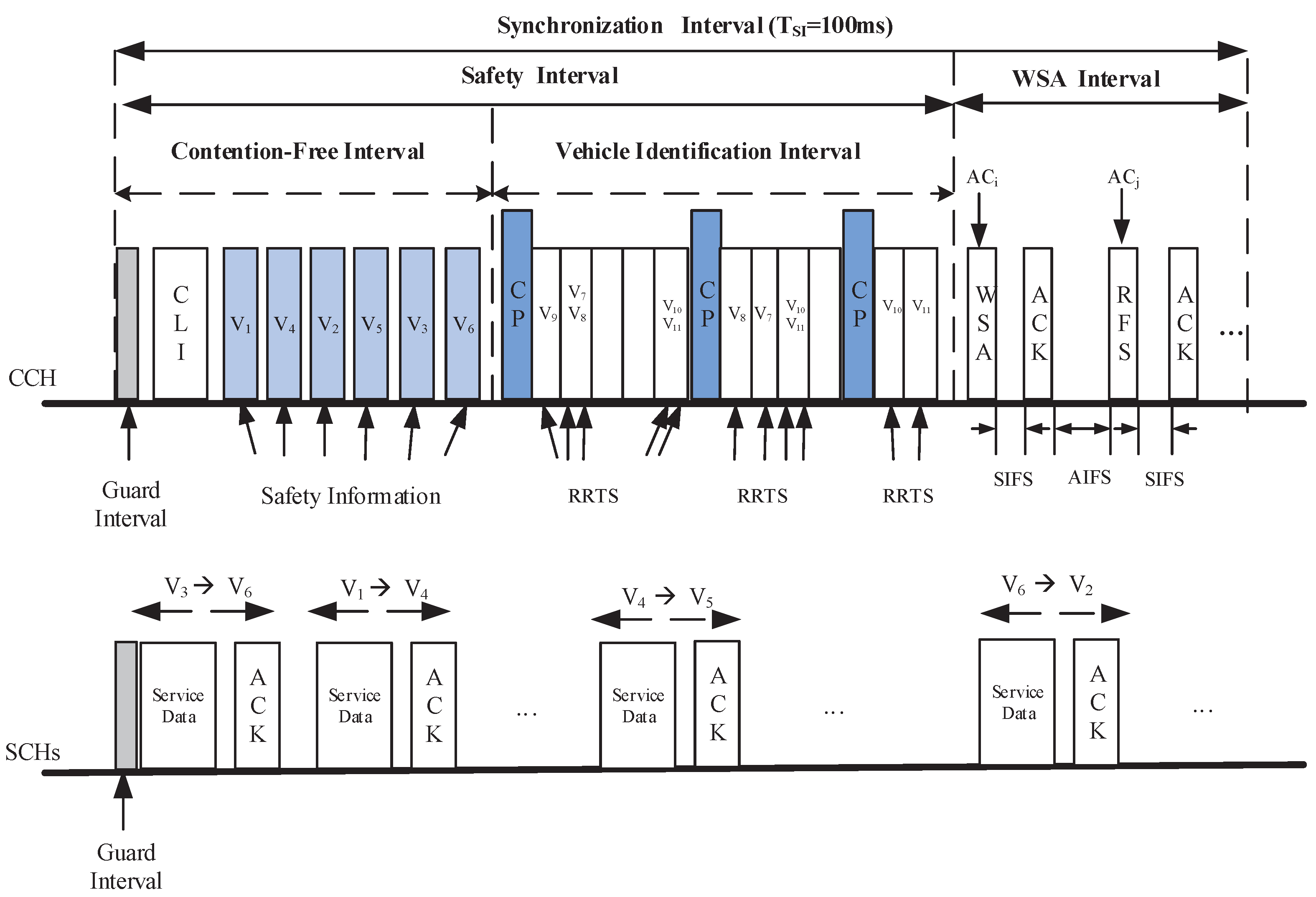

- Let ${T}_{SaSlot}$ denote the duration for transmitting a safety-related message. According to Figure 1, we have$${T}_{SI}={T}_{CFI}+{T}_{VII}+{T}_{WI}$$$${T}_{CFI}=N\xb7{T}_{SaSlot}+2{T}_{CLI}.$$$$\begin{array}{cc}\hfill {T}_{CLI}=& \frac{2\u2308{log}_{2}{N}_{max}\u2309{N}_{max}}{{R}_{d}}\hfill \\ \hfill \phantom{\rule{1.em}{0ex}}& +\frac{\left(\u2308{log}_{2}{N}_{AC}\u2309+\u2308{log}_{2}C{W}_{max}\u2309\right){N}_{AC}}{{R}_{d}}\hfill \\ \hfill \phantom{\rule{1.em}{0ex}}& +\frac{\u2308{log}_{2}{T}_{CFI}\u2309+\u2308{log}_{2}{T}_{VII}\u2309+\u2308{log}_{2}{T}_{WI}\u2309}{{R}_{d}}\hfill \\ \hfill =& \frac{\left[2\times 8\times 200+(2+10)\times 4+3\times 8\right]bits}{6Mbps}\hfill \\ \hfill =& 0.55\phantom{\rule{3.33333pt}{0ex}}\mathrm{ms}\hfill \end{array}$$
- (3)
- Let ${N}_{sch}$ represent the number of available SCHs in the VANETs.
- (4)
- Let ${G}_{cch}$ denote the total number of successful SCHs reservation on CCH during the WSA interval. Let ${G}_{sch}$ be the number of non-safety packets transmitted over all ${N}_{sch}$ SCHs during the whole SI. We have$${G}_{cch}=\frac{{T}_{WI}}{E\left[{T}_{reser}\right]}.$$$${G}_{sch}=\frac{{N}_{sch}\xb7{T}_{SI}}{{T}_{data}}$$$${T}_{data}=DIFS+{T}_{h}+{T}_{da}+SIFS+{T}_{ack}+2\delta $$

#### 4.2. Delay Analysis

## 5. Performance Evaluation

- The IEEE 1609.4 protocol [10]: This is the default multichannel protocol with fixed CCH interval (50 ms) and SCH interval (50 ms). All nodes use the CSMA/CA mechanism to perform channel access for the transmissions of safety-related and WSA messages on the CCH, and switch to the specific SCH to disseminate non-safety messages during the SCHI.
- The multichannel TDMA MAC protocol specifically for VANETs scenario (VeMAC) [17]: VeMAC protocol is considered to be the very beginning in research of TDMA MAC for V2V communication. Each node has two transceivers: Transceiver 1 is always tuned to CCH to transmit safety messages and make SCH reservations while transceiver 2 can be tuned to any SCH to transmit non-safety messages. The VeMAC protocol works in a distributed way, and thus each node requires to exchange additional information to obtain a time slot for transmitting safety-related messages [17]. According to the protocol, the length of a VeMAC (packet) is about 650 bytes (${N}_{max}=200$), and the duration for transmitting this packet is thus about 0.9 ms given ${R}_{d}$ = 6 Mbps [17]. In the following analysis, the length of each frame defined in VeMAC protocol is 200. For facilitation of the analysis, each node always makes a successful SCH reservation in a frame, and service provider can only transmit one service packet for a successful SCH reservation in a frame.
- The Coordinated multichannel MAC (C-MAC) protocol [16]: With the coordination of the RSU, C-MAC protocol provides contention-free broadcasting for safety-related messages, and thus lowers the collision probabilities for transmissions of safety-related messages. Through optimizing the SCH interval, the maximal saturation throughput of SCHs is obtained.
- The QoS supported Variable CCH Interval (Q-VCI) MAC protocol [5]: The Q-VCI protocol can support the QoS delivery in a multi-rate multichannel VANETs environments by adjusting the minimum CW for different service classes at each node. In addition, the Q-VCI protocol adaptively tunes the CCHI to ensure the transmissions of safety-related messages and to maximize the throughput of SCHs according to the traffic conditions. We set $\alpha $, data rate for two SCHs and data rate for the other SCHs, respectively, be 3, 6 Mbps and 9 Mbps in the Q-VCI MAC protocol.

#### 5.1. Simulation Scenario

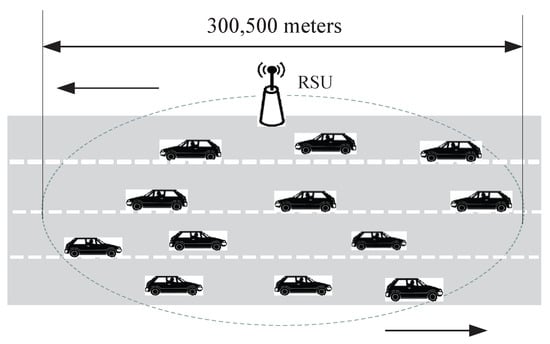

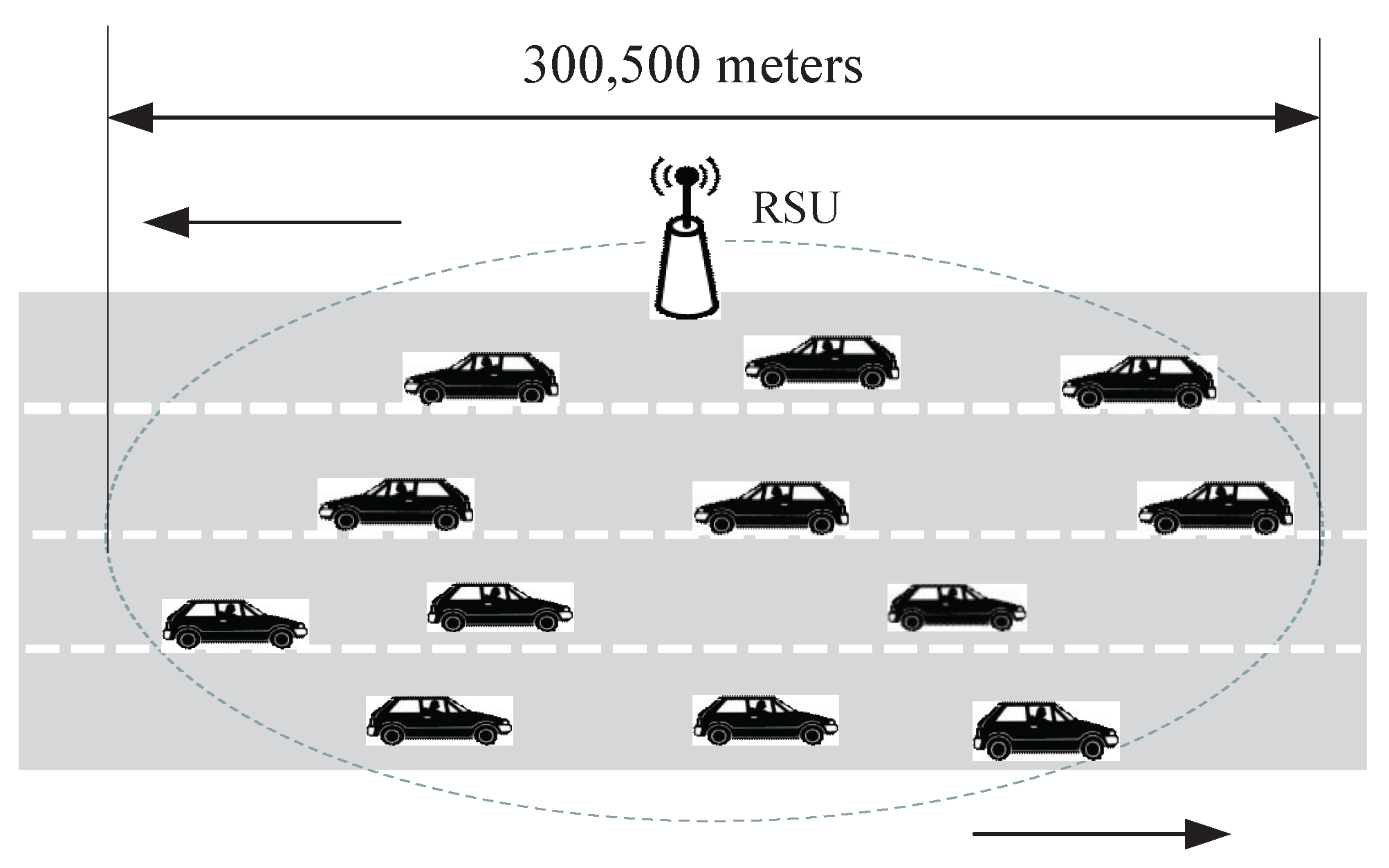

#### 5.2. Simulation Results

## 6. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Karagiannis, G.; Altintas, O.; Ekici, E.; Heijenk, G.; Jarupan, B.; Lin, K.; Weil, T. Vehicular Networking: A Survey and Tutorial on Requirements, Architectures, Challenges, Standards and Solutions. IEEE Commun. Surv. Tutor.
**2011**, 13, 584–616. [Google Scholar] [CrossRef] - Hadded, M.; Muhlethaler, P.; Laouiti, A.; Zagrouba, R.; Saidane, L.A. TDMA-Based MAC Protocols for Vehicular Ad Hoc Networks: A Survey, Qualitative Analysis, and Open Research Issues. IEEE Commun. Surv. Tutor.
**2015**, 17, 2461–2492. [Google Scholar] [CrossRef] - Zheng, K.; Zheng, Q.; Chatzimisios, P.; Xiang, W.; Zhou, Y. Heterogeneous Vehicular Networking: A Survey on Architecture, Challenges, and Solutions. IEEE Commun. Surv. Tutor.
**2015**, 17, 2377–2396. [Google Scholar] [CrossRef] - Amadeo, M.; Campolo, C.; Molinaro, A. Enhancing IEEE 802.11p/WAVE to provide infotainment applications in VANETs. Ad Hoc Netw.
**2012**, 10, 253–269. [Google Scholar] [CrossRef] - Wang, Q.; Leng, S.; Zhang, Y.; Fu, H. A QoS Supported Multi-Channel MAC for Vehicular Ad Hoc Networks. In Proceedings of the 2011 IEEE 73rd Vehicular Technology Conference (VTC Spring), Yokohama, Japan, 15–18 May 2011; pp. 1–5. [Google Scholar]
- Bradai, A.; Ahmed, T. ReViV: Selective rebroadcast mechanism for video streaming over VANET. In Proceedings of the 79th IEEE Vehicular Technology Conference (VTC Spring), Seoul, Korea, 18–21 May 2014; pp. 1–6. [Google Scholar]
- Rene, S.; Exposito, E.; Gineste, M.; Alins, J.; Esparza, O. Multipath TCP Architecture for Infotainment Multimedia Applications in Vehicular Networks. In Proceedings of the 81st IEEE Vehicular Technology Conference (VTC Spring), Glasgow, UK, 11–14 May 2015; pp. 1–5. [Google Scholar]
- Su, H.; Zhang, X. Clustering-based multichannel MAC protocols for QoS provisionings over vehicular ad hoc networks. IEEE Trans. Veh. Technol.
**2007**, 56, 3309–3323. [Google Scholar] - IEEE. IEEE Standard for Information Technology—Local and Metropolitan Area Networks—Specific Requirements—Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications Amendment 6: Wireless Access in Vehicular Environments; IEEE Std. 802.11p-2010 (Amendment to IEEE Std 802.11-2007 as Amended by IEEE Std 802.11k-2008, IEEE Std. 802.11r-2008, IEEE Std 802.11y-2008, IEEE Std. 802.11n-2009, and IEEE Std 802.11w-2009); IEEE: New York, NY, USA, 2010; pp. 1–51. [Google Scholar]
- IEEE Standard for Wireless Access in Vehicular Environments (WAVE)–Multi-Channel Operation; IEEE Std. IEEE Standard for Wireless Access in Vehicular Environments (WAVE)–Multi-Channel Operation; IEEE Std. 1609.4-2010 (Revision of IEEE Std. 1609.4-2006); IEEE: New York, NY, USA, 2011; pp. 1–89. [Google Scholar]
- IEEE. IEEE Standard for Information technology–Local and Metropolitan Area Networks–Specific Requirements–Part 11: Wireless LAN Medium AccessControl (MAC) and Physical Layer (PHY) Specifications—Amendment 8: Medium Access Control (MAC) Quality of Service Enhancements; IEEE Std. 802.11e-2005 (Amendment to IEEE Std. 802.11, 1999 Edition (Reaff 2003); IEEE: New York, NY, USA, 2005; pp. 1–212. [Google Scholar]
- Mo, J.; So, H.S.W.; Walrand, J. Comparison of Multichannel MAC Protocols. IEEE Trans. Mob. Comput.
**2008**, 7, 50–65. [Google Scholar] - Hafeez, K.A.; Anpalagan, A.; Zhao, L. Optimizing the Control Channel Interval of the DSRC for Vehicular Safety Applications. IEEE Trans. Veh. Technol.
**2016**, 65, 3377–3388. [Google Scholar] [CrossRef] - Almotairi, K.H.; Shen, X. A Distributed Multi-Channel MAC Protocol for Ad Hoc Wireless Networks. IEEE Trans. Mob. Comput.
**2015**, 14, 1–13. [Google Scholar] [CrossRef] - Wang, Q.; Leng, S.; Fu, H.; Zhang, Y. An IEEE 802.11p-Based Multichannel MAC Scheme with Channel Coordination for Vehicular Ad Hoc Networks. IEEE Trans. Intell. Transp. Syst.
**2012**, 13, 449–458. [Google Scholar] [CrossRef] - Kim, Y.; Lee, M.; Lee, T.J. Coordinated Multichannel MAC Protocol for Vehicular Ad Hoc Networks. IEEE Trans. Veh. Technol.
**2016**, 65, 6508–6517. [Google Scholar] [CrossRef] - Omar, H.A.; Zhuang, W.; Li, L. VeMAC: A TDMA-Based MAC Protocol for Reliable Broadcast in VANETs. IEEE Trans. Mob. Comput.
**2013**, 12, 1724–1736. [Google Scholar] [CrossRef] - Song, C.; Tan, G.; Yu, C.; Ding, N.; Zhang, F. APDM: An adaptive multi-priority distributed multichannel MAC protocol for vehicular ad hoc networks in unsaturated conditions. Comput. Commun.
**2017**, 104, 119–133. [Google Scholar] [CrossRef] - Song, C.; Tan, G.; Ding, N.; Bu, J.; Zhang, F.; Liu, M. Application oriented cross-layer multi-channel MAC protocol for VANET. J. Commun.
**2016**, 37, 95–105. [Google Scholar] - Han, C.; Dianati, M.; Tafazolli, R.; Liu, X.; Shen, X. A Novel Distributed Asynchronous Multichannel MAC Scheme for Large-Scale Vehicular Ad Hoc Networks. IEEE Trans. Veh. Technol.
**2012**, 61, 3125–3138. [Google Scholar] [CrossRef] - Campolo, C.; Molinaro, A. Multichannel communications in vehicular ad hoc networks: A survey. IEEE Commun. Mag.
**2013**, 51, 158–169. [Google Scholar] [CrossRef] - Song, C.; Tan, G. A Coordinated Reliable and Efficient Multichannel MAC Protocol for Vehicular Ad Hoc Networks. Comput. Commun.
**2017**. (submitted). [Google Scholar] [CrossRef] - Luan, T.H.; Ling, X.; Shen, X.S. Provisioning QoS controlled media access in vehicular to infrastructure communications. Ad Hoc Netw.
**2012**, 10, 231–242. [Google Scholar] [CrossRef] - Alcaraz, J.J.; Vales-Alonso, J.; Garcia-Haro, J. Control-based scheduling with QoS support for vehicle to infrastructure communications. IEEE Wirel. Commun.
**2009**, 16, 32–39. [Google Scholar] [CrossRef] - Cheng, N.; Lu, N.; Wang, P.; Wang, X.; Liu, F. A QoS-provision multi-channel MAC in RSU-assisted vehicular networks (poster). In Proceedings of the IEEE Vehicular Networking Conference (VNC), Amsterdam, The Netherlands, 14–16 November 2011; pp. 193–197. [Google Scholar]
- Cha, J.R.; Kim, J.H. Novel Anti-collision Algorithms for Fast Object Identification in RFID System. In Proceedings of the 11th International Conference on Parallel and Distributed Systems (ICPADS’05), Fukuoka, Japan, 20–22 July 2005; Volume 2, pp. 63–67. [Google Scholar]
- Borgonovo, F.; Capone, A.; Cesana, M.; Fratta, L. ADHOC MAC: New MAC architecture for ad hoc networks providing efficient and reliable point-to-point and broadcast services. Wirel. Netw.
**2004**, 10, 359–366. [Google Scholar] [CrossRef] - Luo, T.; Motani, M.; Srinivasan, V. Cooperative Asynchronous Multichannel MAC: Design, Analysis, and Implementation. IEEE Trans. Mob. Comput.
**2009**, 8, 338–352. [Google Scholar] [CrossRef] - Bai, F.; Krishnamachari, B. Spatio-temporal variations of vehicle traffic in VANETs: Facts and implications. In Proceedings of the ACM International Workshop on Vehicular Internetworking, Beijing, China, 25 September 2009; pp. 43–52. [Google Scholar]
- Yao, Y.; Rao, L.; Liu, X. Performance and reliability analysis of IEEE 802.11 p safety communication in a highway environment. IEEE Trans. Veh. Technol.
**2013**, 62, 4198–4212. [Google Scholar] [CrossRef] - Xiao, Y. Performance analysis of priority schemes for IEEE 802.11 and IEEE 802.11e wireless LANs. IEEE Trans. Wirel. Commun.
**2005**, 4, 1506–1515. [Google Scholar] [CrossRef] - Bianchi, G. Performance analysis of the IEEE 802.11 distributed coordination function. IEEE J. Sel. Areas Commun.
**2000**, 18, 535–547. [Google Scholar] [CrossRef] - Sakurai, T.; Vu, H.L. MAC Access Delay of IEEE 802.11 DCF. IEEE Trans. Wirel. Commun.
**2007**, 6, 1702–1710. [Google Scholar] [CrossRef] - Tinnirello, I.; Bianchi, G. Rethinking the IEEE 802.11e EDCA Performance Modeling Methodology. IEEE/ACM Trans. Netw.
**2010**, 18, 540–553. [Google Scholar] [CrossRef] - NS3. Available online: https://www.nsnam.org/releases/ (accessed on 9 October 2017).

**Figure 5.**Saturation throughput on SCHs. (

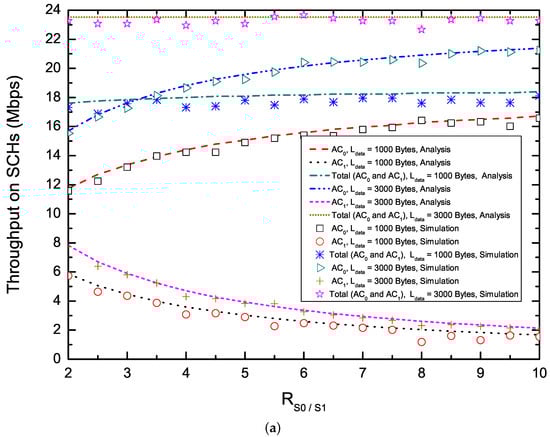

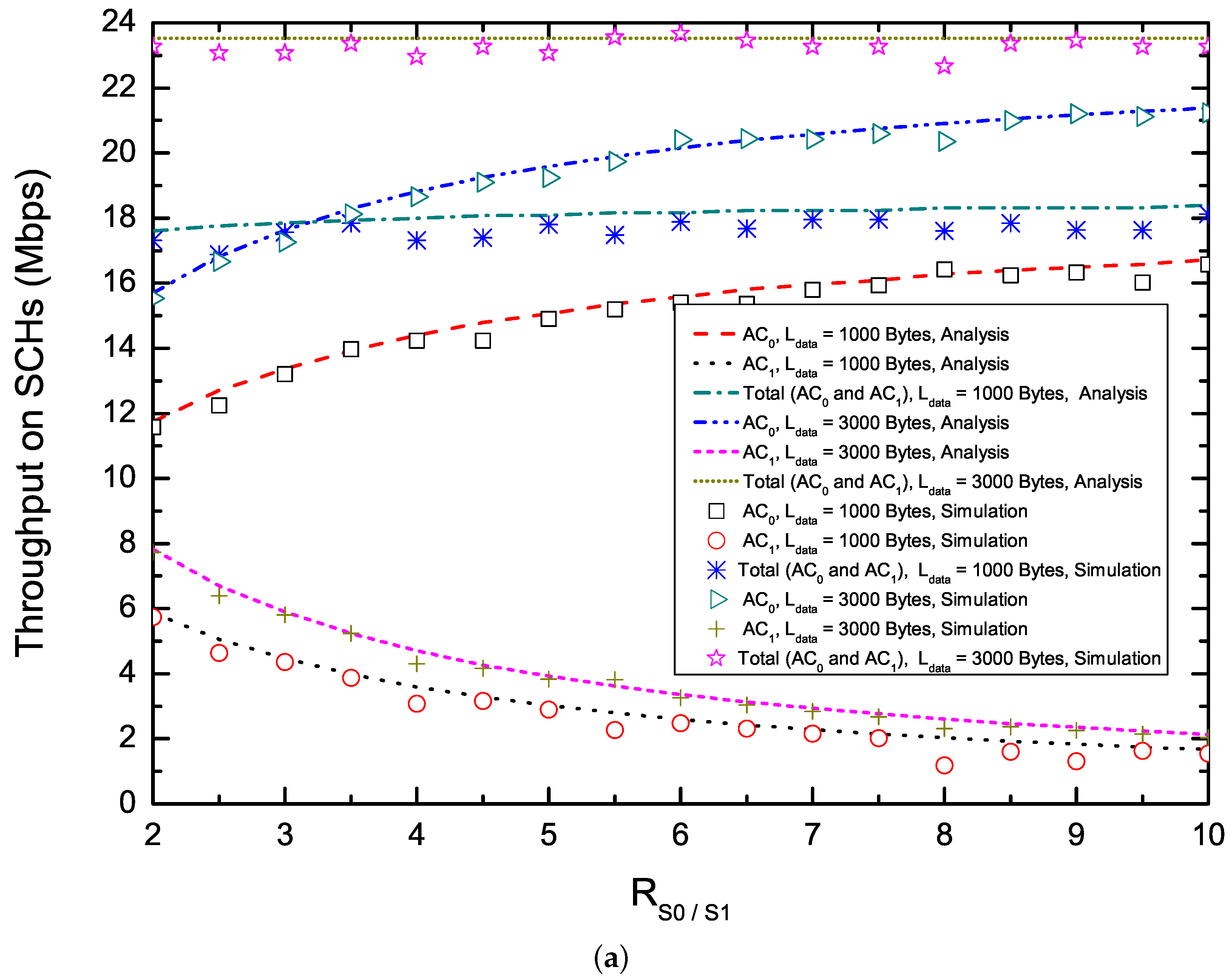

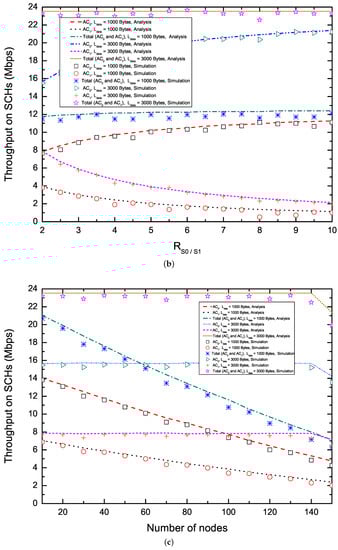

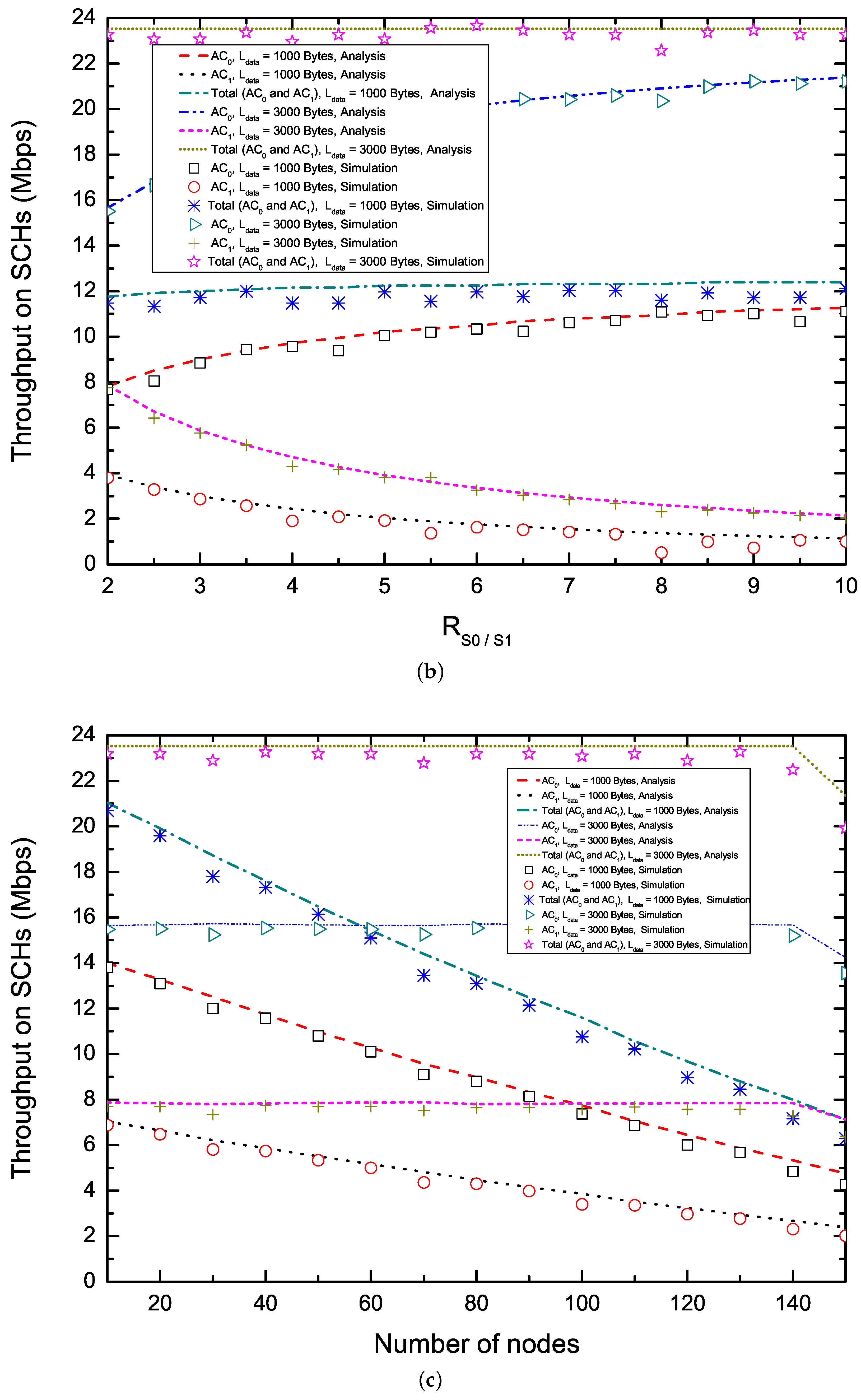

**a**) Saturation throughput versus ${R}_{{S}_{0}/{S}_{1}}$ (${N}_{0}$ = 20, ${N}_{1}$ = 20);(

**b**) Saturation throughput versus ${R}_{{S}_{0}/{S}_{1}}$ (${N}_{0}$ = 40, ${N}_{1}$ = 60); (

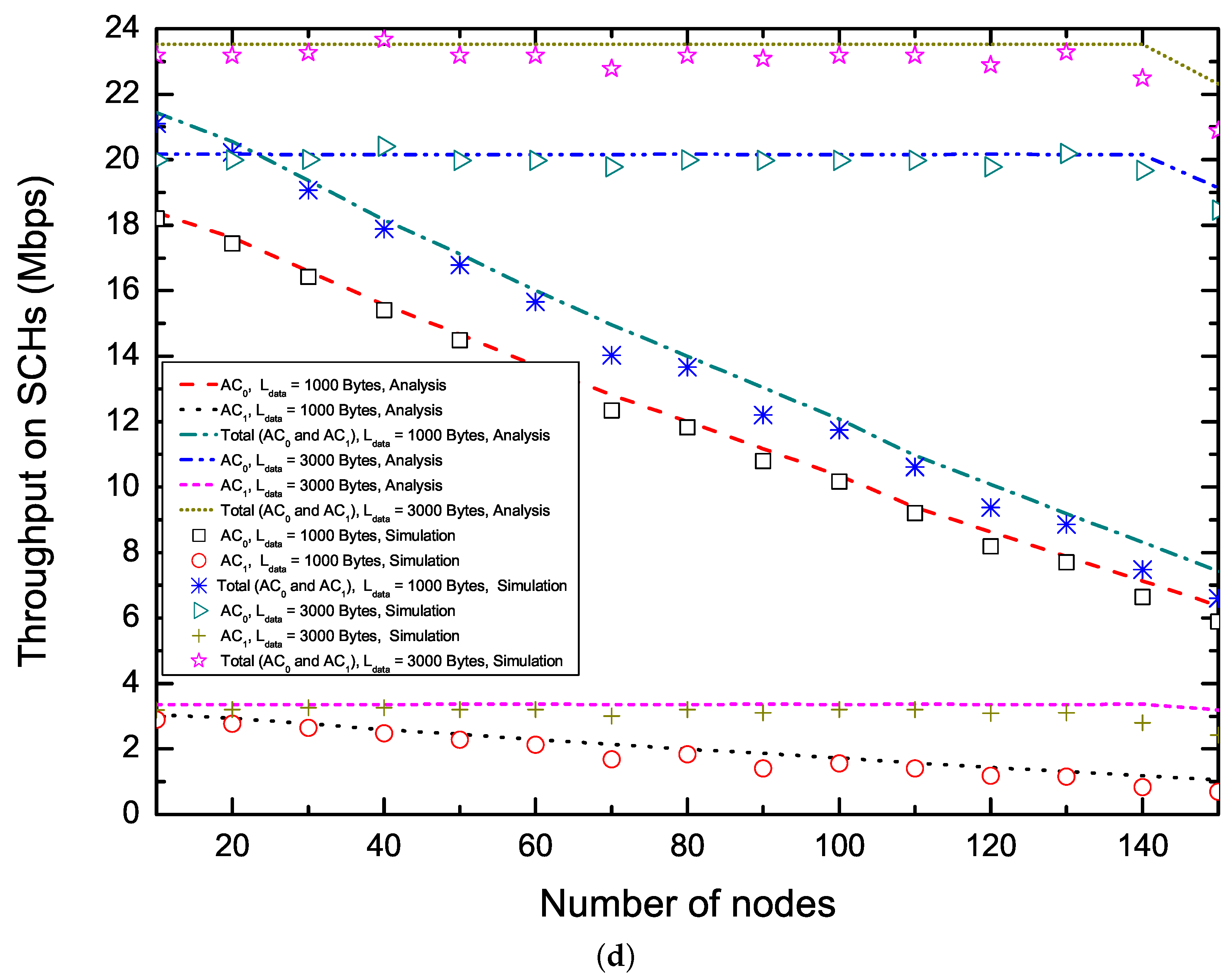

**c**) Saturation throughput versus the number of nodes (${N}_{0}$ = ${N}_{1}$, ${R}_{{S}_{0}/{S}_{1}}$ = 2); (

**d**) Saturation throughput versus the number of nodes (${N}_{0}$ = ${N}_{1}$, ${R}_{{S}_{0}/{S}_{1}}$ = 6.)

**Figure 6.**Non-safety packet delay. (

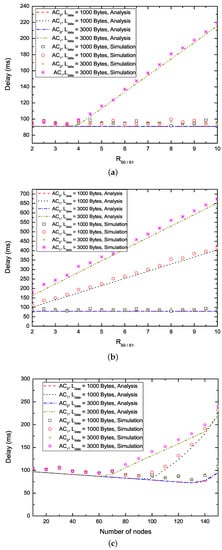

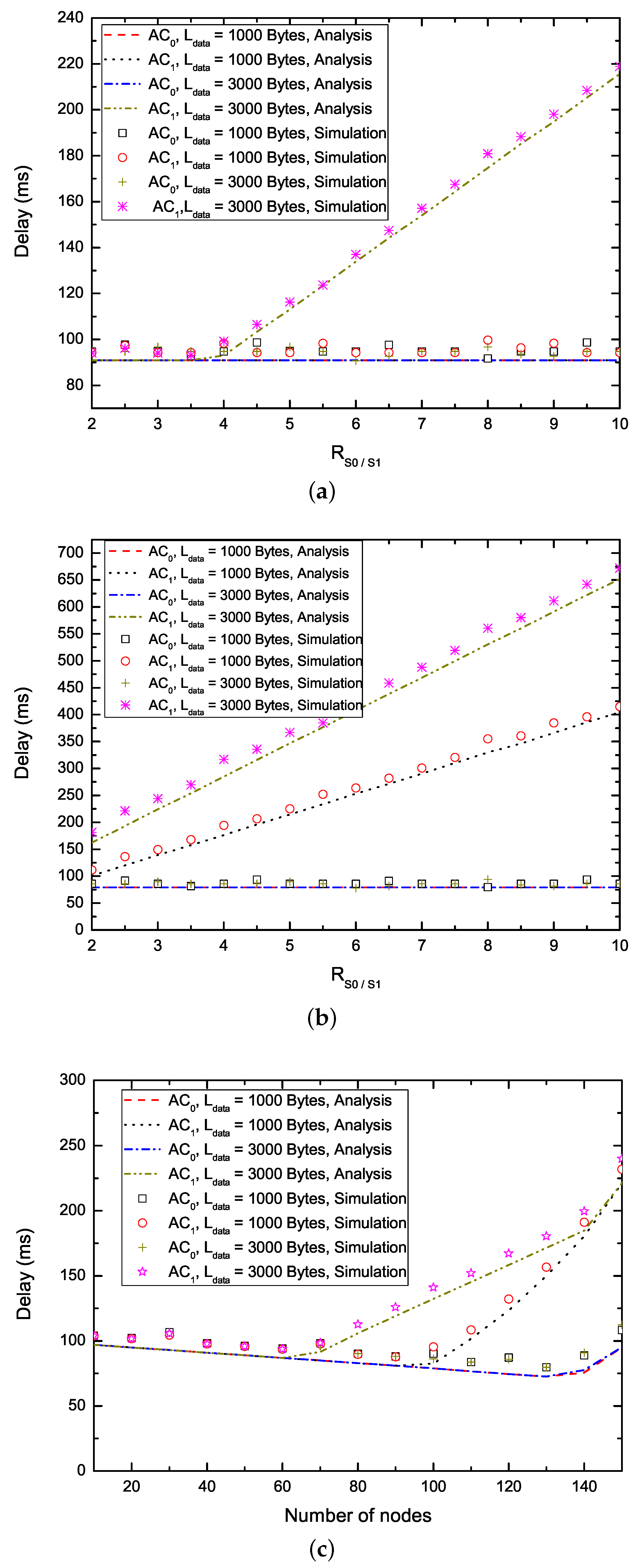

**a**) Delay versus ${R}_{{S}_{0}/{S}_{1}}$ (${N}_{0}$ = 20, ${N}_{1}$ = 20); (

**b**) Delay versus ${R}_{{S}_{0}/{S}_{1}}$ (${N}_{0}$ = 40, ${N}_{1}$ = 60); (

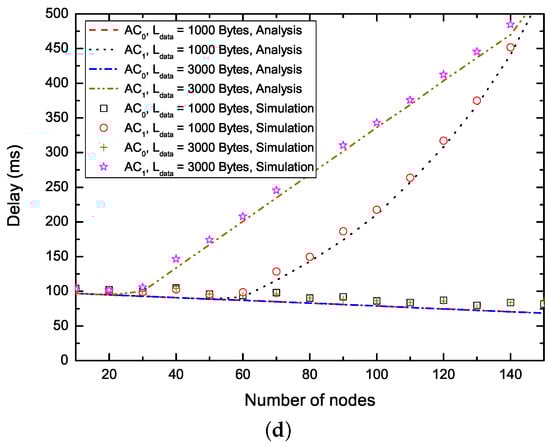

**c**) Delay versus the number of nodes (${N}_{0}$ = ${N}_{1}$, ${R}_{{S}_{0}/{S}_{1}}$ = 2); (

**d**) Delay versus the number of nodes (${N}_{0}$ = ${N}_{1}$, ${R}_{{S}_{0}/{S}_{1}}$ = 6.)

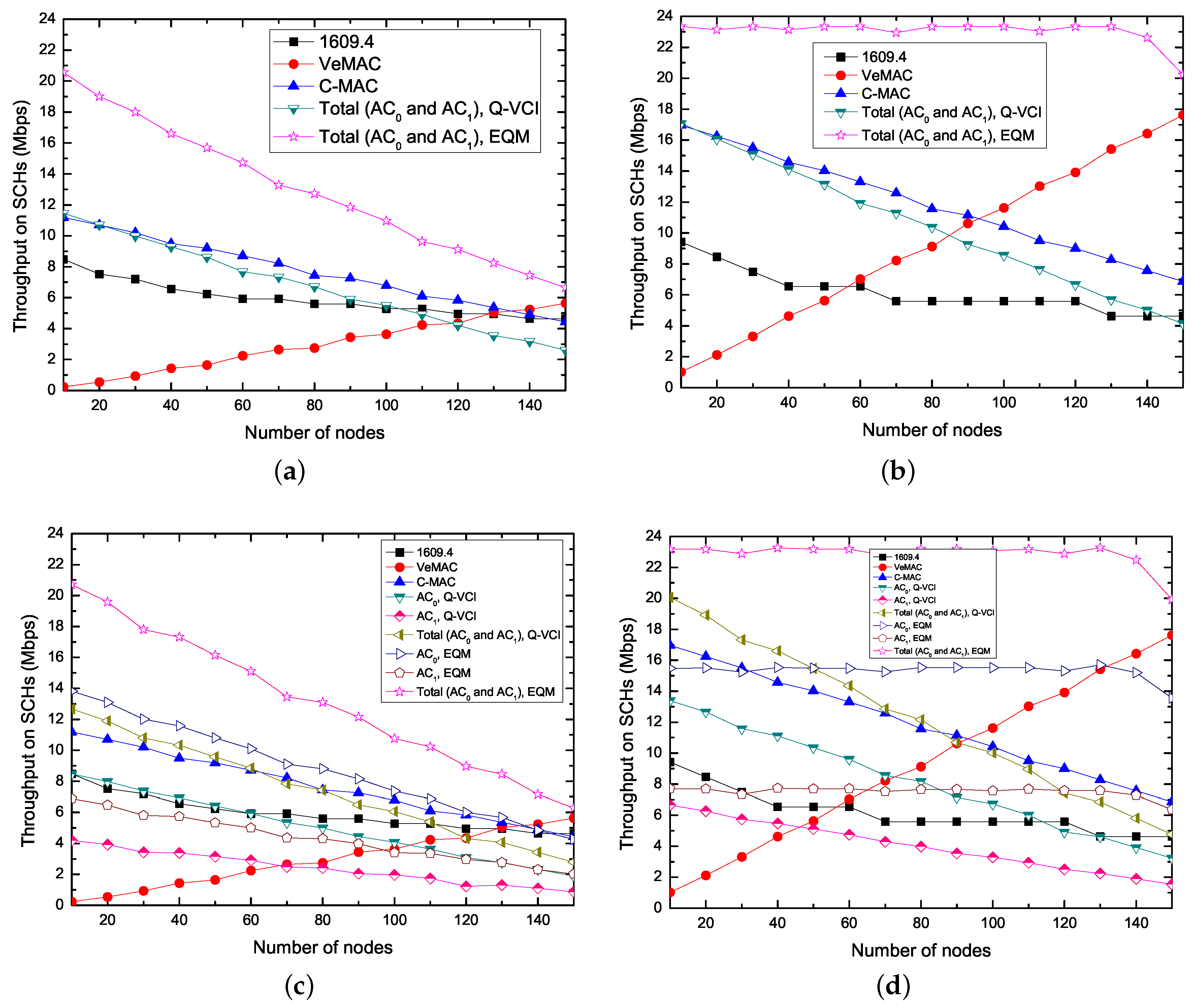

**Figure 7.**Saturation throughput on SCHs versus the number of nodes for kinds of protocols (${N}_{0}$ = ${N}_{1}$). (

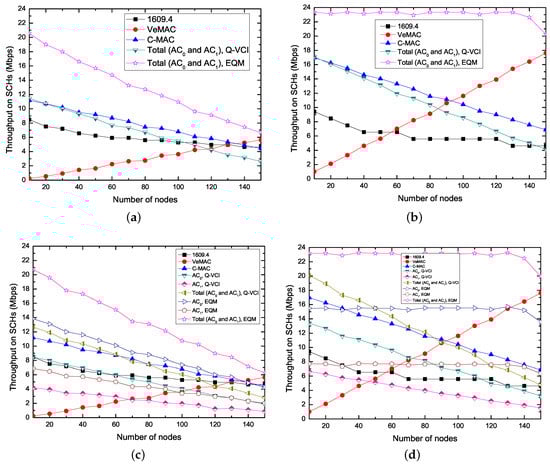

**a**) ${R}_{{S}_{0}/{S}_{1}}$ = 1, ${L}_{data}$ = 1000 bytes; (

**b**) ${R}_{{S}_{0}/{S}_{1}}$ = 1, ${L}_{data}$ = 3000 bytes; (

**c**) ${R}_{{S}_{0}/{S}_{1}}$ = 2, ${L}_{data}$ = 1000 bytes; (

**d**) ${R}_{{S}_{0}/{S}_{1}}$ = 2, ${L}_{data}$ = 3000 bytes; (

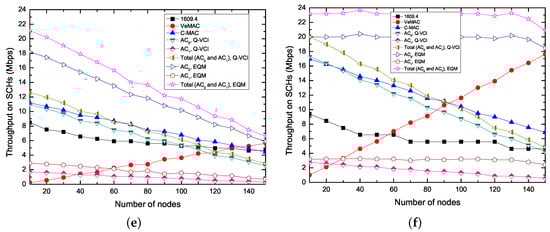

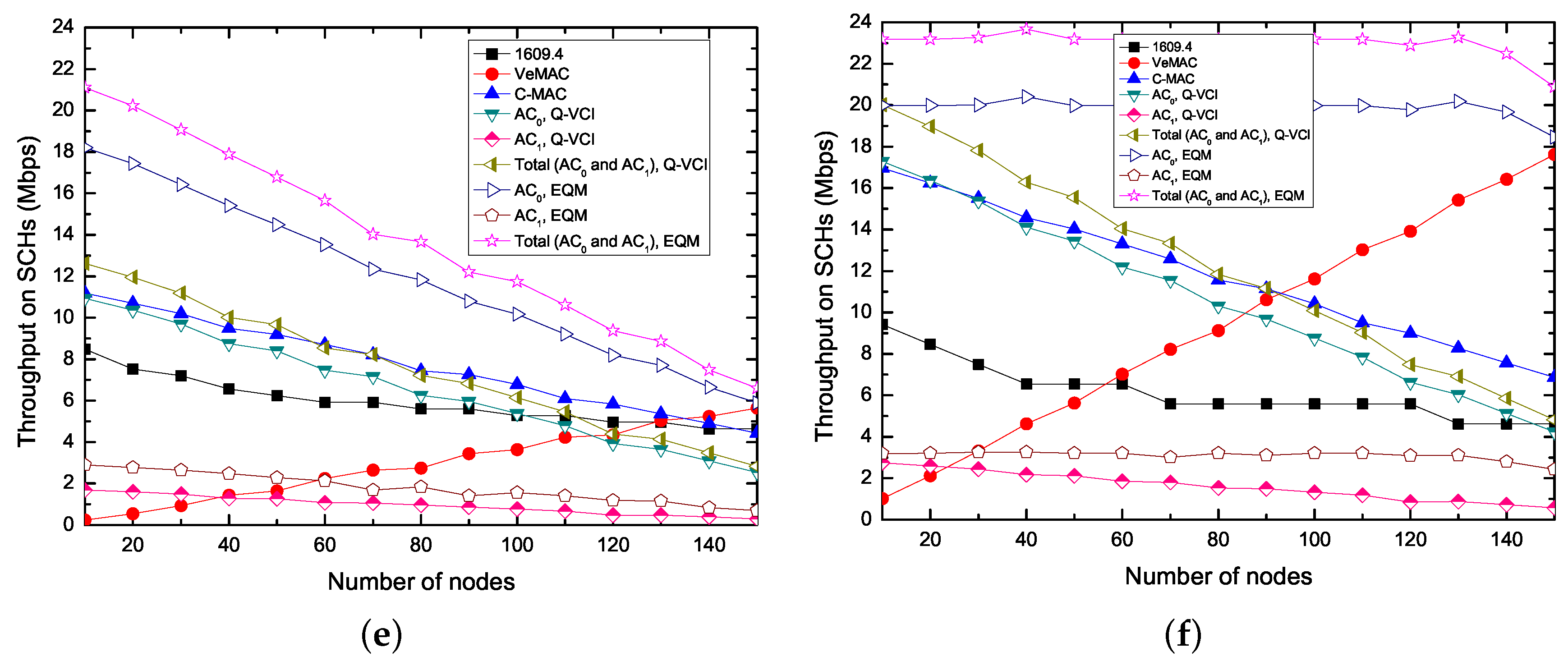

**e**) ${R}_{{S}_{0}/{S}_{1}}$ = 6, ${L}_{data}$ = 1000 bytes; (

**f**) ${R}_{{S}_{0}/{S}_{1}}$ = 6, ${L}_{data}$ = 3000 bytes.

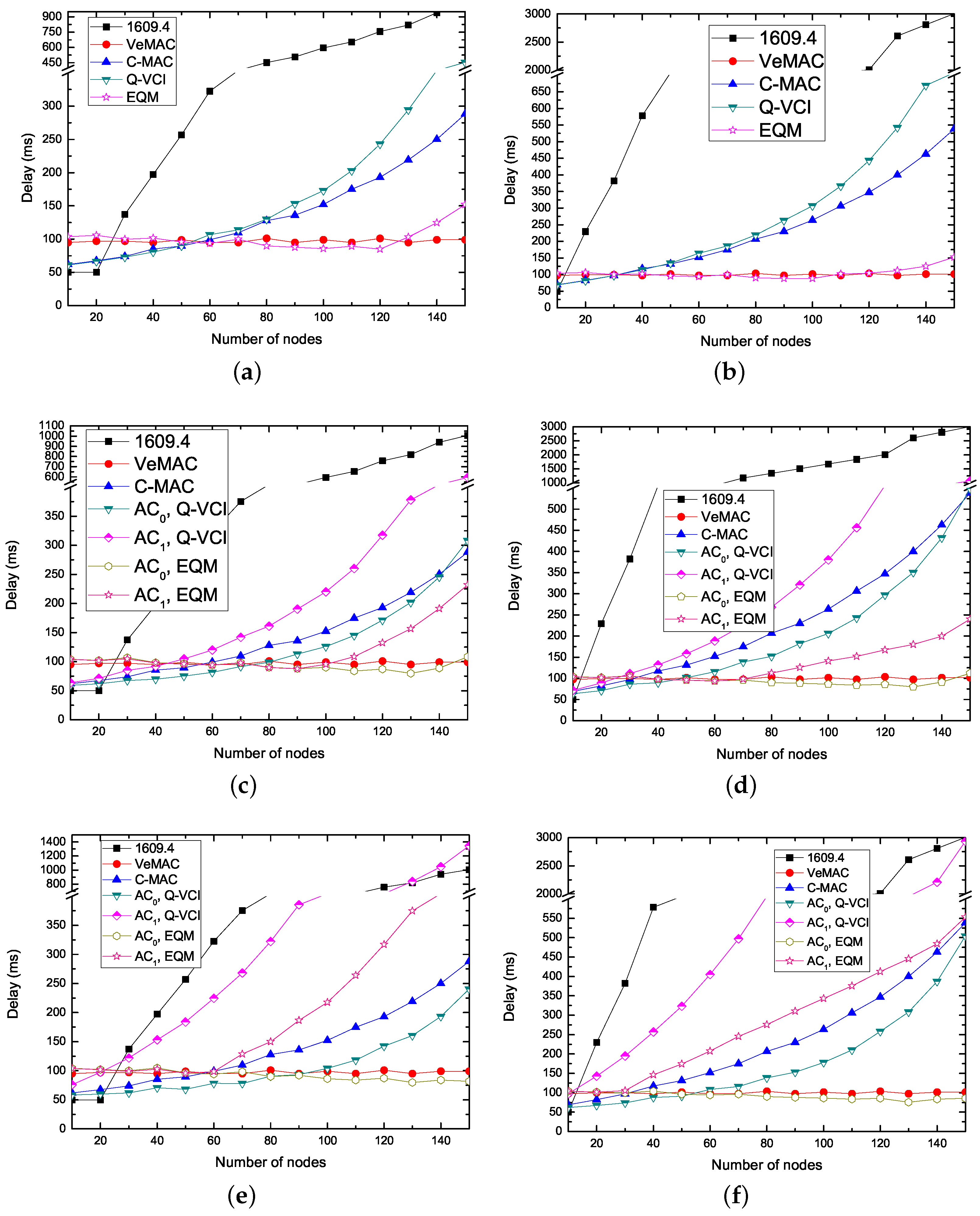

**Figure 8.**Non-safety packet delay versus the number of nodes for kinds of protocols (${N}_{0}$ = ${N}_{1}$). (

**a**) ${R}_{{S}_{0}/{S}_{1}}$ = 1, ${L}_{data}$ = 1000 bytes; (

**b**) ${R}_{{S}_{0}/{S}_{1}}$ = 1, ${L}_{data}$ = 3000 bytes; (

**c**) ${R}_{{S}_{0}/{S}_{1}}$ = 2, ${L}_{data}$ = 1000 bytes; (

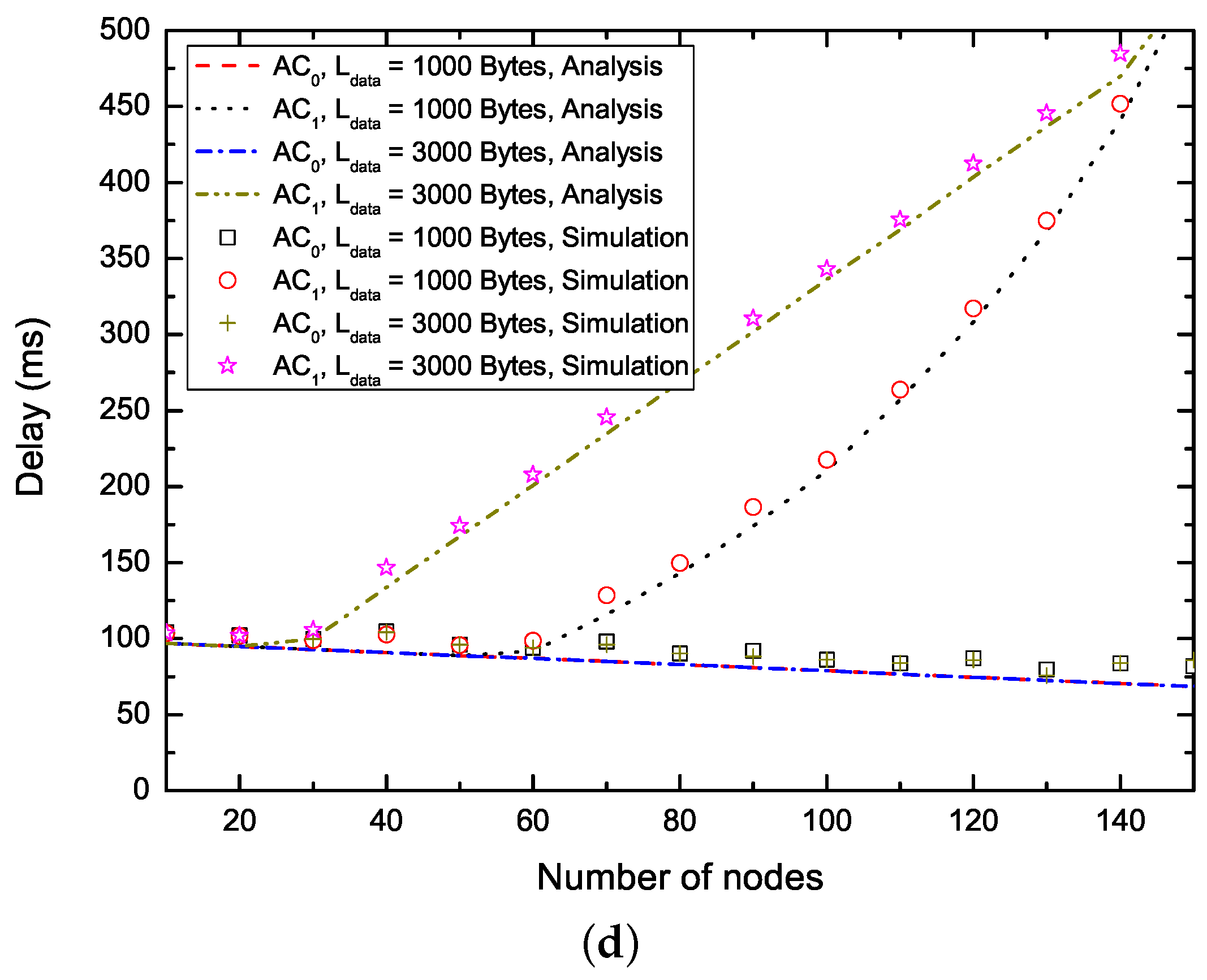

**d**) ${R}_{{S}_{0}/{S}_{1}}$ = 2, ${L}_{data}$ = 3000 bytes; (

**e**) ${R}_{{S}_{0}/{S}_{1}}$ = 6, ${L}_{data}$ = 1000 bytes; (

**f**) ${R}_{{S}_{0}/{S}_{1}}$ = 6, ${L}_{data}$ = 3000 bytes.

Notation | Definition |
---|---|

SI | Synchronization Interval |

CFI | Contention-Free Interval |

VII | Vehicle Identification Interval |

CLI | Coordination and Length Information |

CP | Coordination Packet |

RRTS | Reservation Request To Send |

RFS | Request For Service |

ACK/NACK | Acknowledgement / Non-acknowledgement |

SUL | SCH Usage List |

AC | Access Category |

N | The total number of nodes |

${N}_{i}$ | The number of nodes delivering non-safety packets with $A{C}_{i}$ |

$\beta $ | The vehicle density on the highway (vehicles/m) |

R | The RSU coverage |

$P(j,l)$ | The probability that j vehicles exist within length l of the highway |

${n}_{new}$ | The number of newly entering vehicles during an SI |

M | The number of lanes in each direction |

${P}_{i}$ | The collision probability that a node delivering a WSA/RFS packet with $A{C}_{i}$ collides with other nodes when access the channel |

${\tau}_{i}$ | The stationary probability that a node sends WSA/RFS packets belonging to $A{C}_{i}$ in a random time slot |

${P}_{i,suc}$ | The probability that a node transmits WSA/RFS packets belonging to $A{C}_{i}$ to make a successful reservation |

${P}_{suc}$ | The probability that a successful transmission of WSA/RFS packets occurs in a time slot |

${P}_{idle}$ | The probability that the channel is idle |

${P}_{col}$ | The probability that the channel collision occurs |

Z | The time interval between two consecutive free time slots before a reservation is successfully made |

${T}_{suc}$ | The duration of a successful reservation |

${T}_{col}$ | The duration for a transmission collision when the node is performing a reservation |

${T}_{wsa}/{T}_{rfs}$ | The duration for transmitting a WSA/RFS packet |

${T}_{ack}$ | The duration for transmitting an ACK packet |

$\delta $ | The duration of the propagation delay |

${T}_{reser}$ | The duration from the time instant when a WSA/RFS becomes the head of the MAC queue to the time instant when a reservation is successful made or dropped due to reaching the maximum retransmission number |

${T}_{SI}$ | The duration of an SI |

${T}_{CFI}$ | The duration of CFI |

${T}_{VII}$ | The duration of VII |

${T}_{WI}$ | The duration of WSA interval |

${T}_{rrts}$ | The duration of transmitting a RRTS packet |

${T}_{cp}$ | The duration of transmitting a CP |

${T}_{data}$ | The duration of a non-safety packet transmission on the SCH |

${T}_{h}$ | The cost of MAC-layer header and physical-layer header |

${T}_{da}$ | The duration of transmitting the payload of a non-safety packet |

$AIFS$ | The arbitration inter frame space |

$AIFSN$ | The AIFS number |

$SIFS$ | The duration of an Short Inter Frame Space (SIFS) |

$DIFS$ | The duration of a DIFS |

$\sigma $ | The duration of an idle time slot |

${m}^{\prime}$ | The maximum times that the CW can be doubled |

m | The maximum number of retransmissions |

${W}_{i,0}$ | The minimum CW size of $A{C}_{i}$ |

${W}_{i,j}$ | The CW size of $A{C}_{i}$ in the jth stage |

${b}_{i,j,k}$ | The stationary distribution of k state in jth stage for $A{C}_{i}$ |

${N}_{sch}$ | The number of available SCHs in VANETs |

${G}_{cch}$ | The total number of successful SCH reservations on CCH |

${G}_{sch}$ | The number of non-safety packets transmitted over all ${N}_{sch}$ SCHs during the whole SI |

${L}_{wsa}/{L}_{rfs}$ | The payload of a WSA/RFS packet |

${L}_{ack}$ | The payload of an ACK packet |

${L}_{data}$ | The payload of a non-safety packet |

${S}_{sch}$ | The total throughput obtained on ${N}_{sch}$ SCHs |

${S}_{i}$ | The throughput obtained on ${N}_{sch}$ SCHs of nodes delivering non-safety packets with $A{C}_{i}$ ($i=0,1,2,3$) |

${R}_{{S}_{0}/{S}_{1}}$ | The predefined throughput ratio of non-safety packets with $A{C}_{0}$ to $A{C}_{1}$ |

${\zeta}_{i}$ | The average number of successful transmissions belonging to $A{C}_{i}$ ($i=0,1,2,3$) on the SCHs of each node |

${n}_{i,suc}$ | The number of successful transmissions belonging to $A{C}_{i}$ (${}_{i}=0,1,2,3$) on the SCHs |

${T}_{i,delay}$ | The total transmission delay of non-safety packets belonging to $A{C}_{i}$ (${}_{i}=0,1,2,3$) |

${R}_{d}$ | The transmission data rate on both CCH and SCHs |

${N}_{max}$ | The maximum number of nodes exists in an RSU converge |

${N}_{masch}$ | The maximum number of SCHs in vehicular environments |

${N}_{AC}$ | The number of different ACs in vehicular networks |

$C{W}_{max}$ | The maximum CW size in vehicular networks |

${m}^{\u2033}$ | The number of rounds that a node has to be experienced before it is identified by RSU |

SCH | Available Slots |
---|---|

1 | 2, 7, 8 |

2 | 2, 4, 6 |

3 | 1, 3 |

4 | 1, 5 |

Parameters | Values |
---|---|

Number of SCHs (${N}_{sch}$) | 4 |

Number of CCH | 1 |

Date rate for each channel (${R}_{d}$) | 6 Mbps |

RSU coverage (R) | 300 m, 500 m |

Number of lanes (M) | 2-lane in each direction |

Channel bandwidth | 10 MHz |

Channel model | Rayleigh fading |

Pathloss exponent | 4 |

Noise power | −100 dBm |

Transmission power | 23 dBm |

Average of vehicle density ($\beta $) | 0.02 to 0.3 vehicles/m |

Vehicle velocity ($[{V}_{min},{V}_{max}]$) | [60, 100], [80, 120] km/h |

${W}_{0,0}$ | 32 |

${W}_{1,0}$ | 32∼1024 |

${m}^{\prime}$ | 5 |

m | 10 |

MAC header | 256 bits |

PHY header | 192 bits |

The payload of a WSA/RFS packet (${L}_{wsa}/{L}_{rfs}$) | 216 bits + PHY header |

The payload of an ACK packet (${L}_{ack}$) | 128 bits + PHY header |

AIFSN for $A{C}_{0}$ ($AIFSN\left[0\right]$) | 6 |

AIFSN for $A{C}_{1}$ ($AIFSN\left[1\right]$) | 9 |

The duration of an SIFS ($SIFS$) | 32 $\mathsf{\mu}$s |

The duration of an DIFS ($DIFS$) | 58 $\mathsf{\mu}$s |

a slot time ($\sigma $) | 13 $\mathsf{\mu}$s |

The propagation delay ($\delta $) | 1 $\mathsf{\mu}$s |

The duration of transmission an RRTS packet (${T}_{rrts}$) | 60 $\mathsf{\mu}$s |

The duration of transmission a Coordination Packet (${T}_{cp}$) | 100 $\mathsf{\mu}$s |

The duration of transmission a safety-related packet ${T}_{SaSlot}$ | 0.4 ms |

Sending frequency of safety messages | 10 Hz |

The payload of a non-safety packet (${L}_{data}$) | 1000, 3000 bytes |

Safety packet size | 200 bytes |
