Synthesis of 3,3´-[methylenebis(3,1-phenylenenitrilo)]bis[1,3-dihydro]-2H-indol-2-one as a novel bis-Schiff base

A. A. Jarrahpour; D. Khalili

doi:10.3390/M437

and

Department of Chemistry, College of Science, Shiraz University, Shiraz 71454, Iran

^*

Author to whom correspondence should be addressed.

Molbank2005, 2005(4), M437;https://doi.org/10.3390/M437

Version Notes

Order Reprints

Keywords:

isatin; bis- Schiff base; 3; 3´-diaminodiphenylmethane

Isatin (1H-indole-2,3-dione) was first obtained by Erdman and Laurent in 1841 as a product from the oxidation of indigo by nitric and chromic acids [1]. The synthetic versatility of isatin has led to the extensive use of this compound in organic synthesis. In nature, isatin is found in plants of the genus Isatis [2], in Calanthe discolor LINDL [3]. Isatin is the biologically active chemical produced by an Altermones sp. Strain inhabiting the surface of embryos of the cardiean shrimp Palaemon macrodectylus, which protect them from the pathogenic fungus Lagenidium callinectes [4]. Schiff bases of isatin were reported to possess anti-HIV [5,6,7], anticonvulsant [8], antibacterial [9,10,11], antiprotozoal [12,13], antifungal [14,15,16], antiviral [17,18,19] and antihelminthic [20,21] activities. The Schiff bases of isatin have also been used as a ligand for complexation of metals such as copper (ІІ) [22]. Based on these facts, we decided to synthesize a new isatin bis-Schiff base as potential biological and complexometric agents. Its biological activities and analytical works are under study.

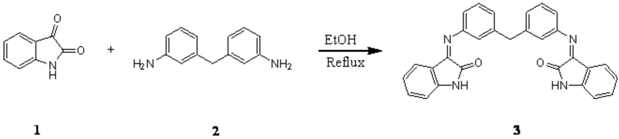

Isatin 1 (2.00 g, 13.6 mmol) and 3,3´-diaminodiphenylmethane 2 (1.35 g, 6.8 mmol) were dissolved in 35 mL of warm ethanol containing 0.45 mL of acetic acid. The reaction mixture was refluxed for 17h and set aside. The resultant solidwas filtered and washed with ethanol. Pure Schiff base 3 was obtained upon recrystallization from ethanol (2.40 g, 77.3%).

Melting point: >260°C

IR(KBr, cm^-1): 1652 (C=N); 1726.2 (C=O); 3168.8 (N-H).

¹H-NMR (250MHz, DMSO-d₆): δ= 10.96 (1H, s, N-H); 7.43-6.29 (16H, m, ArH); 4.07 (2H, s, CH₂).

¹³C-NMR (62.9 MHz, DMSO-d₆): δ= 72.54; 115.63; 116.39; 119.11; 120.04; 121.65; 122.25; 124.28; 126.41; 127.20; 130.18; 130.35; 134.66; 139.19; 147.51; 151.73; 155.53; 159.76; 168.29.

MS(m/z, %): 457 (17.40); 456 (34.40); 327 (12.40); 312 (31.40); 299 (14.20); 284 (23.40); 44 (100.00).

Supplementary materials

Supplementary File 1Supplementary File 2Supplementary File 3

Acknowledgment

The authors are grateful to Shiraz University Research Council for financial support (Grant No.83-GR-SC-31 and 84-GR-SC-23 ).

References

Dasilva, J. F. M.; Garden, S. J.; Pinto, A. C. J. Braz. Chem. Soc. 2001, 12(3), 273.
Guo, Y.; Chen, F. Zhongcaoyao 1986, 17, 8, (CA 104:213068f).
Yoshikawa, M.; Murakami, T.; Kishi, A.; Sakurama, T.; Matsuda, H.; Nomura, M.; Matsuda, H.; Kubo, M. Chem. Pharm. Bull. 1998, 46, 886. [PubMed]
Gil-Turners, M. S.; Hay, M. E.; Fenical, W. Science 1989, 116.
Pandeya, S. N.; Yogeeswari, P.; Sriram, D.; De Clercq, E.; Pannecouque, C.; Witvrouw, M. Chemotherapy 1999, 45, 192–196. [PubMed]
Pandeya, S. N.; Sriram, D.; Nath, G.; De Clercq, E. Eur. J. Med. Chem. 2000, 35, 249–255. [PubMed]
Pandeya, S. N.; Sriram, D.; Nath, G.; De Clercq, E. Arzneimittel Forschun./Drug Res. 2000, 50, 55–59.
Sridhar, S. K.; Pandeya, S. N.; Stables, J. P.; Armes, S. K. Eur. J. Pharm. Sci. 2002, 16, 129. [PubMed]
Pandeya, S. N.; Sriram, D. Acta Pharm. Turc. 1998, 40, 33.
Sarangapani, M.; Reddy, V. M. Indian J. Pharm. Sci. 1994, 56, 174.
Varma, R. S.; Nobles, W. L. J. J. Pharm. Sci. 1975, 64, 881. [PubMed]
Imam, S. A.; Varma, R. S. Experientia 1975, 31, 1287. [PubMed]
Varma, R. S.; Khan, I. A. Polish J. Pharmacol. Pharm. 1977, 29, 549.
Pandeya, S. N.; Sriram, D.; Nath, G.; De Clercq, E. Indian J. Pharm. Sci. 1999, 61, 358.
Pandeya, S. N.; Sriram, D.; Nath, G.; De Clercq, E. Sci.Pharm. 1999, 67, 103.
Pandeya, S. N.; Sriram, D.; Nath, G.; De Clercq, E. Pharm. Acta Helv. 1999, 74, 11. [PubMed]
Varma, R. S.; Nobles, W. L. J. Med. Chem. 1967, 10, 972. [PubMed]
Singh, S. P.; Shukla, S. K.; Awasthi, L. P. Curr. Sci. 1983, 52, 766.
Logan, J. C.; Fox, M. P.; Morgan, J. M.; Makohon, A. M.; Pfau, C. J. J. Gen. Virol. 1975, 28, 271. [PubMed]
Sarciron, S. E.; Audin, P.; Delebre, I.; Gabrion, C.; Petavy, A. F.; Paris, J. J. Pharm. Sci. 1993, 82, 605. [PubMed]
Et-savi, E. A.; Mostafa, T. B.; Mostafa, B. B. J. Egypt. Soc. Parasitol. 1998, 28, 481.
Cerchiaro, G.; Micke, G. A.; Tavares, M. F. M.; Ferreira, A. M. D. C. J. Mol. Catal. A: Chem 2004, 221, 29.

Sample Availability: Available from MDPI.
