A Strategy Potentially Suitable for Combined Preimplantation Genetic Testing of Aneuploidy and Monogenic Disease That Permits Direct Detection of Pathogenic Variants Including Repeat Expansions and Gene Deletions †

by
Vivienne J. Tan
1,*,‡,
Ying Liang
1,2,‡,
Arnold S. Tan
1,
Simin Wong
3,
Nur Asherah
1,
Pengyian Chua
1,
Caroline G. Lee
4,5,6,
Mahesh A. Choolani
7,8,
Truong Dang
9 and
Samuel S. Chong
1,3,7,10,*
1
Department of Paediatrics, Yong Loo Lin School of Medicine, National University of Singapore, NUHS Tower Block, Level 12, 1E Kent Ridge Road, Singapore 119228, Singapore
2
Reproductive Medical Center, Shijiazhuang Obstetrics and Gynaecology Hospital, The Fourth Hospital of Shijiazhuang, Shijiazhuang 050011, China
3
Preimplantation Genetic Diagnosis Centre, Department of Obstetrics and Gynaecology, National University Hospital, Singapore 119074, Singapore
4
Department of Biochemistry, Yong Loo Lin School of Medicine, National University of Singapore, Singapore 117596, Singapore
5
Cellular and Molecular Research, National Cancer Centre Singapore, Singapore 168583, Singapore
6
Duke-NUS Medical School, Singapore 169857, Singapore
7
Department of Obstetrics and Gynaecology, Yong Loo Lin School of Medicine, National University of Singapore, Singapore 119228, Singapore
8
Department of Obstetrics and Gynaecology, National University Hospital, Singapore 119074, Singapore
9
Department of Anatomy, Vietnam Military Medical University, Hanoi 10000, Vietnam
10
Molecular Diagnosis Centre, Department of Laboratory Medicine, National University Hospital, Singapore 119074, Singapore
*
Authors to whom correspondence should be addressed.
†
Oral presentation: 13th Congress of the Asia Pacific Initiative on Reproduction (ASPIRE 2024), 23–26 May 2024; Poster presentation: European Society of Human Genetics Hybrid Conference (ESHG 2024), 1–4 June 2024.
‡
These authors contributed equally to this work.
Int. J. Mol. Sci. 2025, 26(10), 4532; https://doi.org/10.3390/ijms26104532
Submission received: 7 February 2025 / Revised: 2 May 2025 / Accepted: 3 May 2025 / Published: 9 May 2025
(This article belongs to the Special Issue Genetic Testing in Molecular Pathology and Diagnosis)
Browse Figures
Versions Notes

Abstract

Combined preimplantation genetic testing of aneuploidy (PGT-A) and monogenic disease (PGT-M) can be achieved through PCR-based whole genome amplification (WGA) and next-generation sequencing (NGS). However, pathogenic variant detection is usually achieved indirectly through single nucleotide polymorphism haplotyping, as direct detection of pathogenic variants is not always possible. We evaluated whether isothermal WGA was suitable for combined PGT-A and PGT-M that also permitted direct detection of repeat expansions and large deletions, in addition to indirect linkage analysis using microsatellite markers. Five-cell replicates from selected cell lines were subjected to isothermal or PCR-based WGA, followed by NGS-based PGT-A and direct and indirect PGT-M of Huntington’s disease and spinal muscular atrophy. Both WGA methods accurately detected aneuploidy and large (10 Mb) segmental imbalances. However, isothermal WGA produced higher genotyping accuracy compared with PCR-based WGA for all analysed microsatellite markers (93.5% vs. 75.6%), as well as at the HTT CAG repeat locus (100% vs. 7.7%) and the SMN1/2 locus (100% vs. 71.8%). These results demonstrate that isothermal WGA is potentially ideal for combined PGT-A and PGT-M that permits both direct and indirect detection of pathogenic variants including repeat expansions and gene deletions.

1. Introduction

Preimplantation genetic testing (PGT) has evolved greatly since the first reported case more than 30 years ago [1]. Ever since, different variations of PGT have been developed, including PGT for monogenic disorders (PGT-M), aneuploidy (PGT-A), and chromosomal segmental imbalances or structural rearrangements (PGT-SR) [2,3]. Despite being successful in preventing an affected offspring, live birth rate of PGT-M had been low due to high aneuploidy rates in in vitro fertilised (IVF) embryos [4]. To overcome this, various groups performed aneuploidy screening with PGT-M and observed improvement of live birth rates [5,6,7]. Thus, PGT-M with PGT-A, also known as combined PGT, has been proposed to allow unaffected euploid embryos to be prioritised for transfer [3].
Over the past decade, various strategies have been developed for combined PGT. Generally, 1–2 blastomere(s) or 5–10 trophectoderm cells biopsied from either Day 3 or Day 5 embryos will first be subjected to whole genome amplification (WGA) to generate sufficient DNA for downstream analysis. Next, combined PGT can be conducted on the WGA DNA on a single platform using either SNP microarrays (such as karyomapping and haploseek) [8,9,10] or next-generation sequencing (NGS) (such as OnePGT, MARSALA and SHaploseek) [11,12,13,14]. In both platforms, linked SNP markers and copy number variations are evaluated simultaneously. Unfortunately, such workflows are not able to detect large mutations like repeat expansion disorders directly. Importantly, these platforms have high start-up and instrumentation cost, thus small- to medium-scale satellite laboratories with limited financial resources are unable to access the technology in-house and offer them to patients. To overcome the high instrumentation cost, combined PGT workflows using lower-cost benchtop sequencers were explored [15,16]. In this process, aliquots of pre-amplified or fully amplified WGA DNA were subjected to targeted amplification of selected SNPs and the mutation sites before combining with the remaining WGA DNA for low-pass sequencing. These lower-cost solutions can be adopted more easily, but like the high-cost solutions, are not universal and are unable to detect mutations such as repeat expansion disorders directly as well, since the repeat expansions are usually larger than the read length of the NGS platforms used.
Alternatively, combined PGT could be conducted on two different platforms, where PGT-M can be offered using targeted PCR and capillary electrophoresis while PGT-A can be offered using ultra-low coverage sequencing. Generally, different WGA methods are used for each PGT application. Multiple displacement amplification (MDA)-based WGA method is preferentially used in PGT-M applications due to having lower amplification failure (AF) and allele dropout (ADO) rates in subsequent PCR amplification steps [17], while PCR-based WGA method is preferred for copy number variation analysis due to its reproducibility and more uniform genome representation [17,18]. Unfortunately, this typically results in the need to have two different biopsy samples from the same embryo when both mutation and aneuploidy detection are desired [19]. While dual-biopsy is technically feasible, it is not ideal, as dual-biopsied embryos have lower clinical pregnancy and live birth rates [20]. Thus, it is of interest to identify a strategy to conduct both PGT-A and PGT-M on a single biopsy sample, even when different platforms are used.
In 2021, Liu and colleagues performed MDA on whole embryos and showed that the amplified products were promising for copy number variation analysis [21]. Simultaneously, Liao and colleagues used multiple annealing and looping-based amplification cycles (MALBAC), a PCR-based WGA method, for microsatellite marker analysis [22]. Interestingly, Pardo and colleagues performed PGT-A using PCR-based WGA from the Ion ReproSeqTM PGS kit and conducted linkage-based PGT-M on the same WGA product [23]. Another study suggested that both MDA and MALBAC WGA can be used for PGT-A by NGS and PGT-M by linkage analysis [13]. With these studies, we hypothesised that a single WGA method can be used for combined PGT from a single sample, even when conducted on separate lower-cost platforms. Here, we aimed to achieve a combined PGT workflow that performs aneuploidy detection together with direct and linkage-based detection of monogenic disorders, including repeat expansion disorders. Using five-cell samples from background-known cell lines to mimic trophectoderm biopsy samples, this study explores the suitability of two WGA methods (isothermal MDA and PCR-based MALBAC) for performing PGT-A using the Ion ReproSeqTM PGS commercial kit. The same WGA amplified samples were also tested for performing PGT-M of the trinucleotide repeat expansion disorder Huntington’s disease (HD) and spinal muscular atrophy (SMA), using targeted PCR and capillary electrophoresis. Ultimately, the successful selection of a suitable WGA method for combined PGT from a single sample would allow combined PGT to be performed on virtually any monogenic disorder, including repeat expansions, and to be adopted easily even in a regular laboratory using lower-cost platforms.

2. Results

2.1. Both Isothermal MDA and PCR-Based MALBAC Are Suitable for Aneuploidy and Microdeletion Detection Using Ion ReproSeqTM PGS

The commercial Ion ReproSeqTM PGS kit is designed for whole-chromosomal aneuploidy and segmental imbalance detection from isolated single- or multi-cells and can detect deletions and duplications of sizes as small as 7 Mb (according to manufacturer). To test REPLI-gTM Single Cell (SC) MDA and ChromSwiftTM MALBAC for compatibility with Ion ReproSeqTM PGS for PGT-A, both WGA were performed separately on three five-cell replicates of a trisomy 13 cell line and three microdeletion (2.8 Mb, 5 Mb and 10 Mb) cell lines. REPLI-gTM SC MDA and ChromSwiftTM MALBAC WGA products were diluted down to 250 pg before being used as input for Ion SingleSeqTM WGA in the Ion ReproSeqTM PGS workflow. Generally, trisomy 13 and microdeletions of 5 Mb and 10 Mb in size were accurately detected using Ion ReproSeqTM PGS after REPLI-gTM SC MDA and ChromSwiftTM MALBAC WGA (Figure 1A–D). The results were comparable with those obtained following the original protocol starting from single cells. For the 2.8 Mb microdeletion cell line that is way beyond the detection limit of the Ion ReproSeqTM PGS kit, expectedly the segmental imbalance was not detected in all three sample types.
To assess the reproducibility of the results and the limits of detection, the experiment was conducted on seven additional five-cell replicates from the microdeletion cell lines (total n = 10). Figure 1E shows the detection accuracy of whole-chromosomal aneuploidy and segmental imbalances in single cells, REPLI-gTM SC MDA and ChromSwiftTM MALBAC WGA products after Ion ReproSeqTM PGS. Overall, the trisomy 13 and the 10 Mb microdeletion were accurately detected in all replicates (100%). Detection accuracy then decreased with decreasing segmental imbalance size. While it is expected that the 5 Mb microdeletion was detected at a low rate (56.25%) in single cell samples, it was interesting to observe that REPLI-gTM SC MDA- and ChromSwiftTM MALBAC-amplified samples had higher detection rate of 90% and 100% respectively when used as input for Ion ReproSeqTM PGS. Expectedly, the 2.8 Mb microdeletion was consistently missed in all three sample types. For all sample types, several samples with additional aberrations were observed. In the whole-genome amplified samples, the observation of additional aberrations could be due to presence of small clonal subpopulations that have gained additional chromosomal aberrations [24,25]. This is supported by the fact that only a few five-cell derived WGA samples showed additional aberrations and the aberrations are mosaic levels, hardly near full-copy deletion or duplication levels, indicating that only a few of the isolated cells may contain the aberration and is not present in all five cells that were isolated (Figures S1–S4; Table S1).

2.2. Isothermal MDA Is More Suitable for Microsatellite Marker Genotyping than PCR-Based MALBAC

To evaluate the suitability of isothermal MDA and PCR-based MALBAC WGA for microsatellite analysis in linkage-based PGT-M, three replicates of REPLI-gTM SC MDA and ChromSwiftTM MALBAC WGA products from ten cell lines were subjected to both HD and SMA microsatellite panel PCR. Both HD and SMA microsatellite panel PCR were performed on genomic DNA (10 ng), 2 μL of REPLI-gTM SC MDA WGA product and 2 μL of ChromSwiftTM MALBAC WGA product. The WGA products were assessed for genotyping ability with reference to genomic DNA results of the respective cell lines. Representative electropherograms of the HD case–parent trios are shown in Figure 2. Microsatellite panel PCR from REPLI-gTM SC MDA WGA product generated electropherograms that closely mimic the results generated from genomic DNA. Generally, genotyping electropherograms derived from genomic DNA and REPLI-gTM SC MDA WGA products were easier and more similar. The tallest peak of each cluster is called as the genotype, and heterozygous alleles were called if there were two distinct clusters present for the marker examined, or when the two alleles have similarly tall peaks observed. On the other hand, electropherograms derived from ChromSwiftTM MALBAC WGA products have severe stutter peak patterns and spurious alleles (arrowheads), AF and ADO of individual markers, leading to erroneous genotype calls. Similar results were observed for the SMA case–parent trios as well (Figure 3). Due to the different peak patterns, genotyping of ChromSwiftTM MALBAC WGA product does not follow the same rules that were used when genotyping electropherograms derived from genomic DNA and REPLI-gTM SC MDA WGA products. Instead of looking for the tallest peak of each cluster, the last tall peak of each cluster was called as the genotype, with reference to the expected microsatellite allele sizes obtained from genomic DNA.
To evaluate the accuracy of the microsatellite PCR results, AF and ADO rates of genomic DNA and REPLI-gTM SC MDA WGA product were compared (Table 1, Tables S2–S5). Genomic DNA produced results with no AF and no ADO. REPLI-gTM SC MDA WGA produced results that are comparable with that obtained from genomic DNA, where amplification success rate was 99.87%. The ADO rates of all markers were 10% and under, which is within the expected ADO rate for samples amplified by REPLI-gTM SC MDA WGA [26]. Genotyping accuracy was high at 98.57% and marginally dropped to 93.47% when not referring to allele sizing results obtained from genomic DNA. ChromSwiftTM MALBAC-amplified samples had a much higher AF rate, where a total of seven markers had amplification failure and AF rate for three markers (HD3377975FAM, D4S412FAM and SMA6873FAM) were as high as 43.33%, 36.67% and 33.33% respectively. Overall amplification success rate was lower at 93.97% and genotyping accuracy of ChromSwiftTM MALBAC-amplified samples was lower at 94.24%, dropping to 75.60% when genomic DNA reference was not available. More importantly, it was almost impossible to accurately genotype ChromSwiftTM MALBAC-amplified samples, especially if the parental alleles sizes were close to each other.

2.3. Isothermal MDA Provides More Reproducible Results than PCR-Based MALBAC for Pathogenic Variant Analysis

To evaluate the suitability of REPLI-gTM SC MDA and ChromSwiftTM MALBAC WGA products for direct mutation detection, HTT CAG TP-PCR and SMN1/2 triplex minisequencing were conducted on the respective case–parent trio samples using genomic DNA (10 ng) and three replicates of each WGA product (2 μL). The HTT TP-PCR results from REPLI-gTM SC MDA and ChromSwiftTM MALBAC product are shown for three five-cell samples for each member of the trio (Figure 4). HTT TP-PCR from REPLI-gTM SC MDA product of five-cell samples successfully detected both alleles in all samples, with peak patterns closely resembling those from genomic DNA. TP-PCR from ChromSwiftTM MALBAC product resulted in failed or poor HTT CAG repeat amplification, dropout of the normal or expanded allele, or incorrect allele sizing. An additional 10 replicates of five-cell samples subjected to ChromSwiftTM MALBAC WGA also produced unsatisfactory results (Figure S5). In a total of 39 five-cell samples amplified by ChromSwiftTM MALBAC WGA (thirteen five-cell replicates from each cell line of a Huntington’s disease case–parent trio), the HTT CAG repeat failed to amplify in 26 samples (66.7%), while ADO was observed in another 10 samples (25.6%). Only 3 of the 39 samples (7.7%) successfully amplified both alleles of the HTT CAG repeat.
Conversely, SMN1/2 minisequencing results from REPLI-gTM SC MDA and ChromSwiftTM MALBAC product were more comparable. Figure 5 shows comparison between the 10 ng gDNA sample and three five-cell replicates of REPLI-gTM SC MDA and ChromSwiftTM MALBAC for each member of the trio. A 2 μL aliquot of each WGA product was subjected to triplex-PCR and SNaPshotTM minisequencing of exon 7, intron 7 and exon 8 of SMN1 and SMN2. As expected, SMN1 amplicons were absent in all REPLI-gTM SC MDA- and ChromSwiftTM MALBAC-amplified five-cell samples of the affected son (arrows), consistent with his homozygous SMN1 deletion. Results and peak patterns derived from REPLI-gTM SC MDA-amplified five-cell samples closely resembled those derived from genomic DNA. In contrast, results derived from ChromSwiftTM MALBAC-amplified five-cell samples showed more inconsistent peak height patterns, as well as failed amplification of SMN1 or SMN2 amplicons in some samples (arrowheads). An additional 10 replicates of five-cell samples subjected to ChromSwiftTM MALBAC WGA confirmed these observations (Figure S6). In total, ChromSwiftTM MALBAC WGA was performed on 39 five-cell samples (13 five-cell replicates from each cell line of a spinal muscular atrophy case–parent trio). SMN1 was not detected in all 13 samples of the affected son, consistent with homozygous deletion of his SMN1 exons 7 and 8. However, amplification failure of SMN2 of the intron 7 amplicon was detected in two samples. Amplification failure of SMN1 and/or SMN2 from exon and/or intron 7 amplicons was also observed in 9 of 26 carrier samples. Overall, accurate genotyping was only achieved in 28 out of 39 samples (71.8%).

3. Discussion

Interest in performing PGT-A for PGT-M couples has gained traction over the last two decades. Together with technological advancements, combined PGT has been offered on microarray and NGS platforms, typically using linked SNP markers for indirect mutation detection for PGT-M and relative copy number analysis for PGT-A. While the cost of sequencing has reduced markedly, the access to combined PGT is still limited for small PGT laboratories due to high equipment cost. Additionally, while direct mutation detection for PGT-M has been achieved through targeted amplicon sequencing, such strategies are generally limited to small mutations. Direct detection of larger mutations such as repeat expansion disorders are rarely achieved, unless performed using repeat-spanning TP-PCR and capillary electrophoresis. Typically, isothermal MDA is used for PGT-M while PCR-based WGA are preferably used for copy number variation analysis in PGT-A. Here, we evaluated both MDA-based REPLI-gTM SC MDA and PCR-based ChromSwiftTM MALBAC for compatibility for chromosomal imbalance detection using the Ion ReproSeqTM PGS commercial kit, and direct and indirect mutation detection via targeted PCR and capillary electrophoresis.
In this study, we observed that although REPLI-gTM SC MDA was known to have poorer uniformity and genome representation than PCR-based ChromSwiftTM MALBAC, both WGA methods allowed for accurate detection of aneuploidy and segmental imbalances down to a size of 10 Mb. This is concordant with the study done by Liu and colleagues where five-cell aliquots were used as input for MDA and MALBAC WGA for copy number variation detection performed using low-coverage sequencing [13]. Importantly, we achieved accurate aneuploidy and segmental imbalance detection using a lower-cost benchtop sequencer and at ~10x lower sequencing coverage. To our knowledge, this is the first report that performed ultra-low coverage sequencing using the Ion ReproSeqTM PGS commercial kit on REPLI-gTM SC MDA and ChromSwiftTM products. For segmental imbalance of 5 Mb in size, we observed better detection rate in five-cell whole-genome amplified samples from both REPLI-gTM SC MDA and ChromSwiftTM MALBAC (90% and 100%), as compared to Ion SingleSeqTM from single cells (56.25%). This observation could either be due to better representation of the genome when starting from higher cell numbers or better sensitivity from WGA products. Further experiments are needed to confirm this.
Next, even though ChromSwiftTM MALBAC had been reported to amplify microsatellite markers successfully [22], we observed that PCR-based ChromSwiftTM MALBAC did not perform well for indirect detection of HTT CAG repeat expansion and SMN1 deletion using microsatellite markers due to severe stutter peak patterns and high AF and ADO rates. Similar to our study, Chow and colleagues also observed poor results when PCR-based SurePlex WGA product was used as input for downstream microsatellite marker PCR [27]. This is likely because PCR-based WGA products are prone to stutter peak formation upon PCR amplification. The stutter peak patterns are further exacerbated if the amplicons consist of small dinucleotide repeats, as they are more prone to PCR instability than longer tetra- and pentanucleotide repeats. In our study, the two PGT panels tested mostly contain dinucleotide repeats, thus most markers had severe stutter peak patterns. The only tetranucleotide repeat that was included in the HD panel was the only microsatellite that did not exhibit severe stuttering phenomenon. Liao and colleagues, on the other hand, mainly interrogated tetra- and pentanucleotide repeats in their multiplex PCR [22]. Hence, their group observed clearer allele differentiation and haplotyping despite performing PCR on PCR-amplified MALBAC products as well. Unfortunately, tetra- and pentanucleotide repeats are rarer in the genome, and are hard to find within 1 Mb of a gene target of interest, as in the case required for linkage analysis in PGT. This is shown by Zhao and colleagues, where microsatellite markers within 1 Mb upstream and downstream of the HD and SMA loci that can be designed for multiplex PCR and capillary electrophoresis were typically dinucleotide repeats [28,29]. Additionally, other genetic loci interrogated by the same group also showed that microsatellites that can be designed for linkage analysis mostly contain dinucleotide repeats [30,31,32,33].
Lastly, it was unfortunate that HTT TP-PCR was unsuccessful on ChromSwiftTM MALBAC WGA product, even though the product sizes for the expected alleles (<250 bp) were much smaller than the WGA product size (average of 1 kb). It was also to our surprise that the TP-PCR results were inconsistent, where successful TP-PCR amplification was observed in a few samples out of a large number of replicates but are not seen in most samples. Fortunately, SMN triplex PCR and minisequencing were generally successful, but AF was observed in 11/39 (28.2%) of the ChromSwiftTM MALBAC replicates. Taken together, we conclude that ChromSwiftTM MALBAC does not consistently amplify the genome the same way each time, causing it to be unsuitable for direct PGT-M.
Overall, we have demonstrated a viable strategy potentially suitable for combined PGT using a single sample after isothermal MDA WGA that can be performed by a regular laboratory using existing low-cost PGT-A and PGT-M solutions. This workflow will be useful for laboratories that perform internal PGT-A analysis using ultra-low coverage sequencing on small bench-top sequencers and direct and indirect PGT-M using targeted PCR and capillary electrophoresis. We also demonstrated that this strategy can be used on repeat expansion disorders as well, which is rarely achieved by other strategies. As our strategy involves workflows and platforms that are usually available in a small PGT laboratory, we believe that the strategy is immediately translatable to the clinical setting upon internal validation using actual trophectoderm biopsy samples.
For this study, one limitation is that we only reported REPLI-gTM SC MDA and ChromSwiftTM MALBAC kits’ compatibility with the Ion ReproSeqTM PGS workflow using a single set amount of 250 pg of WGA product as input. We, however, believe that other MDA and PCR-based WGA kits are theoretically able to be used as input as well. Additionally, we noted that when ChromSwiftTM MALBAC amplified samples were used, a lower input amount (100 pg) would yield poorer results and inconsistent calls in microdeletion cell line replicates. Thus, for laboratories that would like to test different WGA products as alternative input for Ion ReproSeqTM PGS, it is recommended to start with 250 pg WGA product as input. The lower boundary of the input amount will need to be assessed subsequently for reproducibility and accuracy of results. Furthermore, our study used single-cell samples that underwent Ion ReproSeqTM PGS as a platform control for chromosomal imbalance detection. We observed that multiple cells, combined with WGA, can allow for better detection of smaller aberrations. To verify whether the combinatorial approach truly allows for better detection capability, five-cell replicates of samples with microdeletions around 5 Mb in size can be subjected to Ion ReproSeqTM PGS for further testing. Lastly, our strategy has limited capability to detect segmental imbalances that are smaller than 5 Mb. We are currently unable to confidently detect segmental imbalances under this limit without conducting whole genome sequencing at a higher depth. While we acknowledge this limitation, several commercial PGT-A kits only claim the capability to detect segmental imbalances of sizes 7 Mb (Ion ReproSeqTM PGS) to 10 Mb (Illumina VeriSeq PGS). Additionally, we note that segmental imbalances smaller than 5 Mb were observed to exist in less than 5% of analysed embryos [34,35], and it has been proposed by Zhang and colleagues [35] that there is no compelling need to offer PGT-A with higher sensitivity than 5 Mb. However, if a family that opts for combined PGT has a known segmental imbalance that is smaller than 5 Mb, combined PGT could be offered using deeper sequencing on NGS platforms, such as the ChromSwiftTM KaryoSeqTM workflow [36].

4. Materials and Methods

4.1. Biological Samples and Whole Genome Amplification

Cell lines of a case–parent trio from a HD family (GM04776, GM04820, GM04738), a case–parent trio from a SMA family (GM03813, GM03814, GM03815), and four unrelated individuals with aneuploidy (GM02948—trisomy 13) or microdeletions (GM17942—2.8 Mb, GM09133—5 Mb, GM50194—10 Mb) were purchased from Coriell Cell Repositories (CCR, Camden, NJ, USA) (Table S6), and cultured according to protocols from CCR. Fibroblasts were treated with 0.05% trypsin before cell isolation and processing. Genomic DNA was extracted using either QIAsymphony DNA Midi Kit (Qiagen, Hilden, Germany) or QIAamp Blood DNA Mini Kit (Qiagen) according to manufacturer’s protocol. Single-cell and five-cell samples were isolated as per described previously [30]. Single-cell samples were prepared as controls of the Ion ReproSeqTM PGS (Thermo Fisher Scientific, Waltham, MA, USA) workflow. Five-cell samples were chosen as input for whole genome amplification to mimic blastocyst biopsy in actual PGT cases where 3–5 cells are isolated usually, and due to improved reproducibility and accuracy as compared to single cells [13]. Isothermal MDA-based REPLI-gTM Single Cell (SC) (Qiagen) and MALBAC-based ChromSwiftTM (Yikon, Suzhou, China) WGA were each performed on three to thirteen five-cell replicates of each cell line, according to manufacturer’s protocol. This study was approved by the Institutional Review Board of the National University of Singapore (N-19-100 and NUS-IRB-2021-530).

4.2. Copy Number Variation Analysis

Trisomy 13 and three microdeletion cell lines were analysed for copy number variation detection. Six to sixteen single cells and a 250 pg aliquot of each WGA sample were used as a starting template for Ion ReproSeqTM PGS (Thermo Fisher Scientific). Ion ReproSeqTM PGS was performed according to manufacturer’s protocol. Templating and flow cell loading were conducted using Ion ChefTM (Thermo Fisher Scientific) and sequencing was conducted using Ion GeneStudioTM S5 (Thermo Fisher Scientific). Copy number variation analysis was performed using Ion ReporterTM (Thermo Fisher Scientific) PGS w.1.0 analysis workflow, version 5.14, with customised parameters (transition penalty = −2 and tile size = 2 Mb).

4.3. Multiplex Microsatellite PCR and Capillary Electrophoresis

Microsatellite panel PCR for linkage-based PGT-M of HD and SMA were performed on 10 ng genomic DNA and 2 μL of WGA amplified DNA based on previously described protocols [28,29], with modifications.
For HD tridecaplex PCR, three primers were redesigned, one primer of each pair was 5′-tailed with one of two bacteriophage M13 sequences (M13-1 and M13-2; full primer sequences available upon request) and reaction volumes were increased to 50 μL instead [31]. Thermal cycling conditions were performed according to published protocol and for 30 cycles [28]. A 2 μL aliquot of PCR product was used as template in a second 20 μL extension labelling reaction containing 1 X Multiplex PCR Master Mix (Qiagen), and 0.2 μM each of 6-Fam-labeled M13-1 and Hex-labelled M13-2 primers. Thermal cycling conditions were similar to the first-round PCR reaction except that annealing was conducted at 60 °C and 8 cycles were performed instead. SMA tridecaplex PCR was performed according to previously described, except that the first-round PCR was conducted in a 50 μL reaction and 2 μL of WGA product was used instead.
To visualise the amplified products, 1 μL of PCR or extension labelling product was mixed with 9 μL of Hi-Di™ formamide (Applied BiosystemsTM, Waltham, MA, USA) and 0.2 μL GeneScanTM 500 ROX™ dye size standard (Applied BiosystemsTM) and denatured at 95 °C for 5 min before cooling to 4 °C. Mixtures were resolved in a SeqStudioTM Genetic Analyzer (Applied BiosystemsTM) using an all-in-one SeqStudioTM cartridge containing POP-1 polymer (Applied BiosystemsTM). Samples were electrokinetically injected at 1.2 kV for 7 s. GeneScanTM analysis was performed using GeneMapperTM 6.0 software (Applied BiosystemsTM).

4.4. Huntington Triplet-Primed PCR (TP-PCR) and SMN1 Deletion Analysis

Huntington HTT CAG repeat size analysis was performed using TP-PCR on the HD case–parent trio samples according to previously described, except 10 ng genomic DNA or 2 μL WGA product was included in a 50 μL reaction instead [37]. Visualisation of amplified products was performed as per multiplex microsatellite PCR. SMN1 deletion analysis (SNaPshotTM minisequencing) was performed on the SMA case–parent trio samples according to previously described as well, except 10 ng genomic DNA or 2 μL WGA product was included in a 50 μL reaction for the triplex PCR instead and SeqStudioTM Genetic Analyser (Applied BiosystemsTM) was used with the SeqStudioTM SNaPshotTM analysis module [29].

5. Conclusions

We have developed an optimised preimplantation genetic testing strategy that employs REPLI-gTM SC, an MDA-based whole genome amplification kit, that potentially enables direct and indirect PGT-M of trinucleotide repeat expansions and deletion mutations, as well as PGT-A to detect chromosomal aneuploidy using existing test platforms. Clinical application of this strategy is possible upon validation on actual trophectoderm biopsy samples.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms26104532/s1.

Author Contributions

Conceptualization, C.G.L., M.A.C., T.D. and S.S.C.; Data curation, V.J.T., Y.L., A.S.T., N.A. and P.C.; Formal analysis, V.J.T., Y.L., S.W. and N.A.; Funding acquisition, S.S.C.; Investigation, V.J.T., Y.L., S.W. and N.A.; Methodology, V.J.T., Y.L., T.D. and S.S.C.; Project administration, A.S.T.; Resources, Y.L., A.S.T. and S.S.C.; Supervision, C.G.L., M.A.C. and S.S.C.; Validation, V.J.T., N.A. and P.C.; Visualization, V.J.T., Y.L., S.W., N.A. and S.S.C.; Writing—original draft, V.J.T.; Writing—review and editing, V.J.T., Y.L., A.S.T., S.W., N.A., P.C., C.G.L., M.A.C., T.D. and S.S.C. All authors have read and agreed to the published version of the manuscript.

Funding

This project is funded by Ministry of Health (MOH-000644-01).

Institutional Review Board Statement

This study was approved by the Institutional Review Board of the National University of Singapore (N-19-100 and NUS-IRB-2021-530).

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare that they have no competing interests.

Abbreviations

PGTPreimplantation genetic testing
PGT-MPreimplantation genetic testing for monogenic disorders
PGT-APreimplantation genetic testing for aneuploidy
WGAWhole genome amplification
NGSNext-generation sequencing
MbMega (1,000,000) bases
MDAMultiple displacement amplification
MALBACMultiple annealing and looping-based amplification cycles
PCRPolymerase chain reaction
TP-PCRTriplet-primed polymerase chain reaction
ADOAllele dropout
DNADeoxyribonucleic acid
PGT-SRPreimplantation genetic testing for structural rearrangements
IVFIn vitro fertilised/fertilisation
AFAmplification failure
SNPSingle nucleotide polymorphism
HDHuntington’s disease
SMASpinal muscular atrophy
CCRCoriell cell repositories
pgPicogram
ngNanogram

References

  1. Handyside, A.H.; Kontogianni, E.H.; Hardy, K.; Winston, R.M. Pregnancies from biopsied human preimplantation embryos sexed by Y-specific DNA amplification. Nature 1990, 344, 768–770. [Google Scholar] [CrossRef] [PubMed]
  2. Zegers-Hochschild, F.; Adamson, G.D.; Dyer, S.; Racowsky, C.; De Mouzon, J.; Sokol, R.; Rienzi, L.; Sunde, A.; Schmidt, L.; Cooke, I.D.; et al. The international glossary on infertility and fertility care, 2017. Fertil. Steril. 2017, 32, 1786–1801. [Google Scholar]
  3. ESHRE PGT-M Working Group; Carvalho, F.; Moutou, C.; Dimitriadou, E.; Dreesen, J.; Giménez, C.; Goossens, V.; Kakourou, G.; Vermeulen, N.; Zuccarello, D.; et al. ESHRE PGT Consortium good practice recommendations for the detection of monogenic disorders†. Hum. Reprod. Open 2020, 2020, hoaa018. [Google Scholar] [CrossRef]
  4. Vanneste, E.; Voet, T.; Le Caignec, C.; Ampe, M.; Konings, P.; Melotte, C.; Debrock, S.; Amyere, M.; Vikkula, M.; Schuit, F.; et al. Chromosome instability is common in human cleavage-stage embryos. Nat. Med. 2009, 15, 577. [Google Scholar] [CrossRef] [PubMed]
  5. Hou, W.; Xu, Y.; Li, R.; Song, J.; Wang, J.; Zeng, Y.; Pan, J.; Zhou, C.; Xu, Y. Role of aneuploidy screening in preimplantation genetic testing for monogenic diseases in young women. Fertil. Steril. 2019, 111, 928–935. [Google Scholar] [CrossRef]
  6. Goldman, K.N.; Nazem, T.; Berkeley, A.; Palter, S.; Grifo, J.A. Preimplantation genetic diagnosis (PGD) for monogenic disorders: The value of concurrent aneuploidy screening. J. Genet. Couns. 2016, 25, 1327–1337. [Google Scholar] [CrossRef]
  7. Xiao, M.; Shi, H.; Rao, J.; Xi, Y.; Zhang, S.; Wu, J.; Zhu, S.; Zhou, J.; Xu, H.; Lei, C.; et al. Combined preimplantation genetic testing for genetic kidney disease: Genetic risk identification, assisted reproductive cycle, and pregnancy outcome analysis. Front. Med. 2022, 9, 936578. [Google Scholar] [CrossRef]
  8. Handyside, A.H.; Harton, G.L.; Mariani, B.; Thornhill, A.R.; Affara, N.; Shaw, M.-A.; Griffin, D.K. Karyomapping: A universal method for genome wide analysis of genetic disease based on mapping crossovers between parental haplotypes. J. Med. Genet. 2009, 47, 651–658. [Google Scholar] [CrossRef] [PubMed]
  9. Backenroth, D.; Zahdeh, F.; Kling, Y.; Peretz, A.; Rosen, T.; Kort, D.; Zeligson, S.; Dror, T.; Kirshberg, S.; Burak, E.; et al. Haploseek: A 24-hour all-in-one method for preimplantation genetic diagnosis (PGD) of monogenic disease and aneuploidy. Genet. Med. 2019, 21, 1390–1399. [Google Scholar] [CrossRef]
  10. Treff, N.R.; Zimmerman, R.; Bechor, E.; Hsu, J.; Rana, B.; Jensen, J.; Li, J.; Samoilenko, A.; Mowrey, W.; Van Alstine, J.; et al. Validation of concurrent preimplantation genetic testing for polygenic and monogenic disorders, structural rearrangements, and whole and segmental chromosome aneuploidy with a single universal platform. Eur. J. Med. Genet. 2019, 62, 103647. [Google Scholar] [CrossRef]
  11. Masset, H.; Esteki, M.Z.; Dimitriadou, E.; Dreesen, J.; Debrock, S.; Derhaag, J.; Derks, K.; Destouni, A.; Drüsedau, M.; Meekels, J.; et al. Multi-centre evaluation of a comprehensive preimplantation genetic test through haplotyping-by-sequencing. Hum. Reprod. 2019, 34, 1608–1619. [Google Scholar] [CrossRef] [PubMed]
  12. Yan, L.; Huang, L.; Xu, L.; Huang, J.; Ma, F.; Zhu, X.; Tang, Y.; Liu, M.; Lian, Y.; Liu, P.; et al. Live births after simultaneous avoidance of monogenic diseases and chromosome abnormality by next-generation sequencing with linkage analyses. Proc. Natl. Acad. Sci. USA 2015, 112, 15964–15969. [Google Scholar] [CrossRef]
  13. Liu, W.; Zhang, H.; Hu, D.; Lu, S.; Sun, X. The performance of MALBAC and MDA methods in the identification of concurrent mutations and aneuploidy screening to diagnose beta-thalassaemia disorders at the single- and multiple-cell levels. J. Clin. Lab. Anal. 2018, 32, e22267. [Google Scholar] [CrossRef]
  14. Backenroth, D.; Altarescu, G.; Zahdeh, F.; Mann, T.; Murik, O.; Renbaum, P.; Segel, R.; Zeligson, S.; Hakam-Spector, E.; Carmi, S.; et al. SHaploseek is a sequencing-only, high-resolution method for comprehensive preimplantation genetic testing. Sci. Rep. 2023, 13, 1–11. [Google Scholar] [CrossRef]
  15. Mai, A.D.; Harton, G.L.; Quang, V.N.; Van, H.N.; Thi, N.H.; Thuy, N.P.; Le Thi, T.H.; Minh, D.N.; Quoc, Q.T. Development and clinical application of a preimplantation genetic testing for monogenic disease (PGT-M) for beta thalassemia in Vietnam. J. Assist. Reprod. Genet. 2020, 38, 365–374. [Google Scholar] [CrossRef]
  16. Chen, D.; Shen, X.; Wu, C.; Xu, Y.; Ding, C.; Zhang, G.; Xu, Y.; Zhou, C. Eleven healthy live births: A result of simultaneous preimplantation genetic testing of α- and β-double thalassemia and aneuploidy screening. J. Assist. Reprod. Genet. 2020, 37, 549–557. [Google Scholar] [CrossRef] [PubMed]
  17. He, F.; Zhou, W.; Cai, R.; Yan, T.; Xu, X. Systematic assessment of the performance of whole-genome amplification for SNP/CNV detection and β-thalassemia genotyping. J. Hum. Genet. 2018, 63, 407–416. [Google Scholar] [CrossRef]
  18. Li, N.; Wang, L.; Wang, H.; Ma, M.; Wang, X.; Li, Y.; Zhang, W.; Zhang, J.; Cram, D.S.; Yao, Y. The performance of whole genome amplification methods and next-generation sequencing for pre-implantation genetic diagnosis of chromosomal abnormalities. J. Genet. Genom. 2015, 42, 151–159. [Google Scholar] [CrossRef] [PubMed]
  19. Satirapod, C.; Sukprasert, M.; Panthan, B.; Charoenyingwattana, A.; Chitayanan, P.; Chantratita, W.; Choktanasiri, W.; Trachoo, O.; Hongeng, S. Clinical utility of combined preimplantation genetic testing methods in couples at risk of passing on beta thalassemia/hemoglobin E disease: A retrospective review from a single center. PLoS ONE 2019, 14, e0225457. [Google Scholar] [CrossRef]
  20. Theodorou, E.; Chronopoulou, E.; Ozturk, O.; Brunetti, X.; Serhal, P.; Ben-Nagi, J. Impact of double trophectoderm biopsy on reproductive outcomes following single euploid blastocyst transfer. Eur. J. Obstet. Gynecol. Reprod. Biol. 2024, 298, 35–40. [Google Scholar] [CrossRef]
  21. Liu, S.; Wang, H.; Leigh, D.; Cram, D.S.; Wang, L.; Yao, Y. Third-generation sequencing: Any future opportunities for PGT? J. Assist. Reprod. Genet. 2021, 38, 357–364. [Google Scholar] [CrossRef] [PubMed]
  22. Liao, F.; Liu, Q.; Xiao, C.; Yi, S.; Huang, D. Assessment of multiple annealing and looping-based amplification cycle-based whole-genome amplification for short tandem repeat genotyping of low copy number-DNA. Genet. Test. Mol. Biomark. 2022, 26, 191–197. [Google Scholar] [CrossRef]
  23. Mir Pardo, P.; Martínez-Conejero, J.A.; Martín, J.; Simón, C.; Cervero, A. Combined preimplantation genetic testing for autosomal dominant polycystic kidney disease: Consequences for embryos available for transfer. Genes 2020, 11, 692. [Google Scholar] [CrossRef]
  24. Borgonovo, T.; Solarewicz, M.M.; Vaz, I.M.; Daga, D.; Rebelatto, C.L.K.; Senegaglia, A.C.; Ribeiro, E.; Cavalli, I.J.; Brofman, P.S. Emergence of clonal chromosomal alterations during the mesenchymal stromal cell cultivation. Mol. Cytogenet. 2015, 8, 94. [Google Scholar] [CrossRef]
  25. Nikitina, V.; Astrelina, T.; Nugis, V.; Ostashkin, A.; Karaseva, T.; Dobrovolskaya, E.; Usupzhanova, D.; Suchkova, Y.; Lomonosova, E.; Rodin, S.; et al. Clonal chromosomal and genomic instability during human multipotent mesenchymal stromal cells long-term culture. PLoS ONE 2018, 13, e0192445. [Google Scholar] [CrossRef]
  26. Harton, G.L.; De Rycke, M.; Fiorentino, F.; Moutou, C.; SenGupta, S.; Traeger-Synodinos, J.; Harper, J.C. ESHRE PGD consortium best practice guidelines for amplification-based PGD. Hum. Reprod. 2011, 26, 33–40. [Google Scholar] [CrossRef]
  27. Chow, J.F.; Yeung, W.S.; Lee, V.C.; Lau, E.Y.; Ng, E.H. Validation of two whole genome amplification methods for PGD on monogenetic diseases and aneuploidy screening. Reprod. Biomed. Online 2018, 36, e21–e22. [Google Scholar] [CrossRef]
  28. Zhao, M.; Chen, M.; Lee, C.G.; Chong, S.S. Identification of novel microsatellite markers <1 Mb from the HTT CAG repeat and development of a single-tube tridecaplex PCR panel of highly polymorphic markers for preimplantation genetic diagnosis of Huntington disease. Clin. Chem. 2016, 62, 1096–1105. [Google Scholar] [PubMed]
  29. Zhao, M.; Lian, M.; Cheah, F.S.; Tan, A.S.; Agarwal, A.; Chong, S.S. Identification of novel microsatellite markers flanking the SMN1 and SMN2 duplicated region and inclusion into a single-tube tridecaplex panel for haplotype-based preimplantation genetic testing of spinal muscular atrophy. Front. Genet. 2019, 10, 1105. [Google Scholar] [CrossRef]
  30. Chen, M.; Tan, A.S.; Cheah, F.S.; Saw, E.E.; Chong, S.S. Identification of novel microsatellite markers <1 Mb from the HBB gene and development of a single-tube pentadecaplex PCR panel of highly polymorphic markers for preimplantation genetic diagnosis of beta-thalassemia. Electrophoresis 2015, 36, 2914–2924. [Google Scholar]
  31. Zhao, M.; Chen, M.; Tan, A.S.C.; Cheah, F.S.H.; Mathew, J.; Wong, P.C.; Chong, S.S. Single-tube tetradecaplex panel of highly polymorphic microsatellite markers <1 Mb from F8 for simplified preimplantation genetic diagnosis of hemophilia A. J. Thromb. Haemost. 2017, 15, 1473–1483. [Google Scholar] [CrossRef] [PubMed]
  32. Chen, M.; Zhao, M.; Lee, C.G.; Chong, S.S. Identification of microsatellite markers <1 Mb from the FMR1 CGG repeat and development of a single-tube tetradecaplex PCR panel of highly polymorphic markers for preimplantation genetic diagnosis of fragile X syndrome. Genet. Med. 2016, 18, 869–875. [Google Scholar]
  33. Lian, M.; Zhao, M.; Lee, C.G.; Chong, S.S. Single-tube dodecaplex PCR panel of polymorphic microsatellite markers closely linked to the DMPK CTG repeat for preimplantation genetic diagnosis of myotonic dystrophy type 1. Clin. Chem. 2017, 63, 1127–1140. [Google Scholar] [CrossRef]
  34. Xie, P.; Liu, P.; Zhang, S.; Cheng, D.; Chen, D.; Tan, Y.Q.; Hu, L.; Qiu, Y.; Zhou, S.; Ou-Yang, Q.; et al. Segmental aneuploidies with 1 Mb resolution in human preimplantation blastocysts. Genet. Med. 2022, 24, 2285–2295. [Google Scholar] [CrossRef] [PubMed]
  35. Zhang, J.; Qin, M.; Ma, M.; Li, H.; Wang, N.; Zhu, X.; Yan, L.; Qiao, J.; Yan, Z. Assessing the necessity of screening ≤5 Mb segmental aneuploidy in routine PGT for aneuploidies. Reprod. Biomed. Online 2024, 49, 103991. [Google Scholar] [CrossRef] [PubMed]
  36. Li, S.; Chang, C.; Bai, H.; Qian, W.; Zou, Y.; Wu, D.; Hu, W.; Chen, Y.; Li, T.; Lu, S.; et al. A Novel and comprehensive whole-genome sequencing–based preimplantation genetic testing approach for different genetic conditions. J. Mol. Diagn. 2025, 27, 395–404. [Google Scholar] [CrossRef]
  37. Zhao, M.; Lee, C.G.; Law, H.Y.; Chong, S.S. Enhanced detection and sizing of the HTT CAG repeat expansion in Huntington disease using an improved triplet-primed PCR assay. Neurodegener. Dis. 2016, 16, 348–351. [Google Scholar] [CrossRef]
Ijms 26 04532 g001

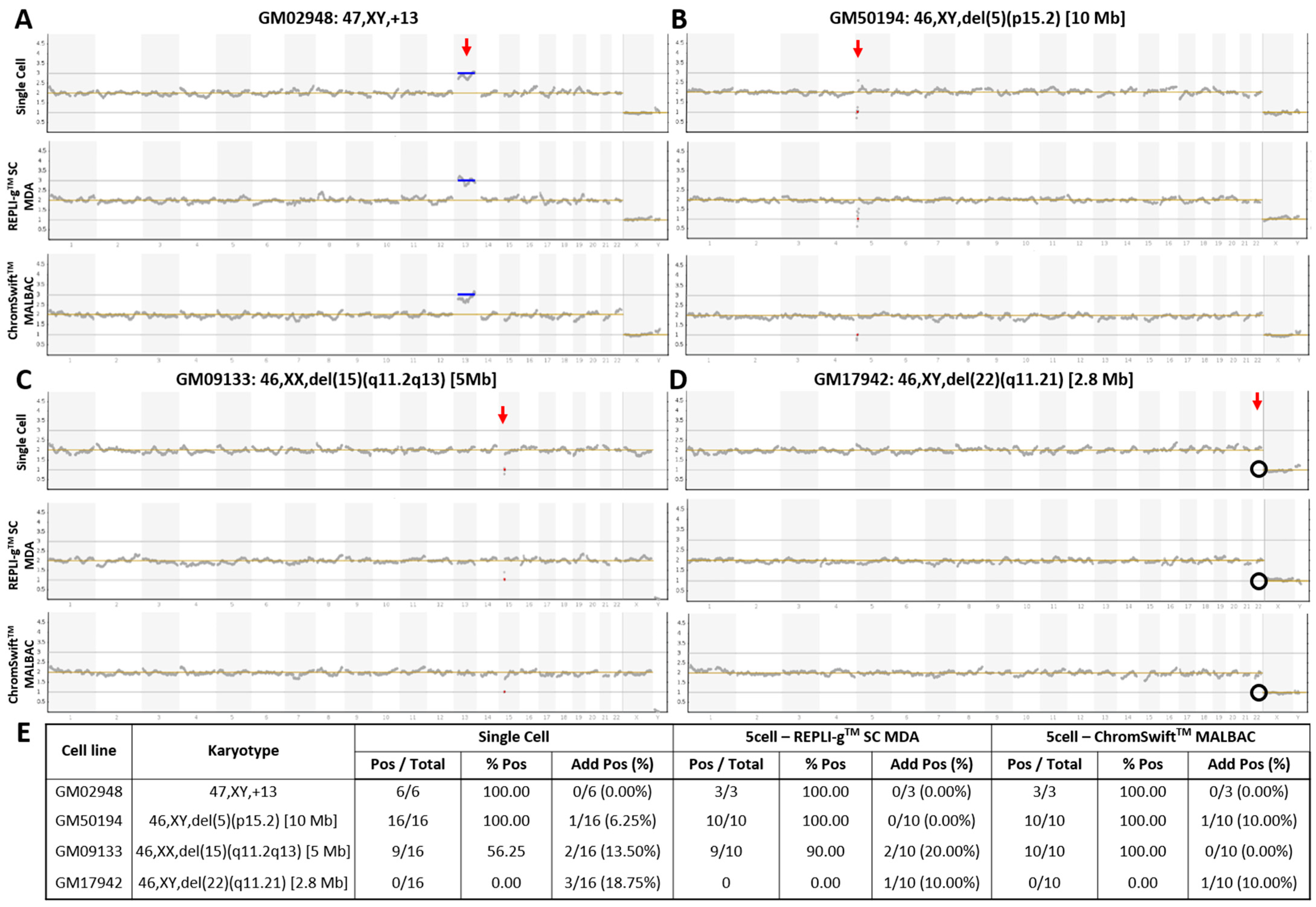

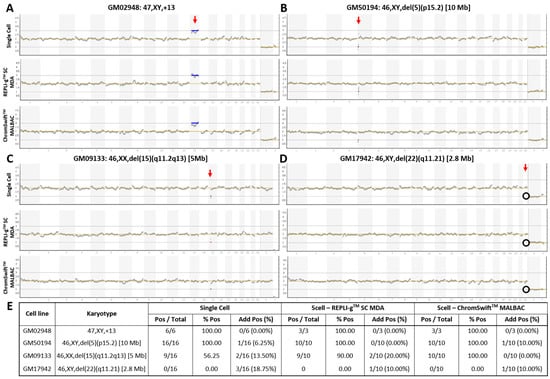

Figure 1. Copy number variation plots of karyotype-known cell lines with whole-chromosome and segmental imbalances. Samples of (A) trisomy 13, and cell lines with (B) 10 Mb, (C) 5 Mb, and (D) 2.8 Mb microdeletions underwent Ion ReproSeqTM PGS using starting template of either a single cell, 250 pg of whole genome amplified product from five cells using the REPLI-gTM SC MDA kit, or 250 pg of whole genome amplified product from five cells using the ChromSwiftTM MALBAC kit. Red vertical arrow indicates affected chromosome. Blue horizontal line indicates duplication and red horizontal line indicates deletion. Black circle indicates absence of expected deletion. (E) Table showing aneuploidy and segmental imbalance detection accuracy by Ion ReproSeqTM PGS using single cells, REPLI-gTM SC MDA and ChromSwiftTM MALBAC WGA products as starting materials. Pos—Positive, aberration(s) present; % Pos—Percentage of positive calls/detection accuracy, frequency of detection of expected aberration(s); Add Pos (%)—Samples with additional aberrations detected and its percentage.
Figure 1. Copy number variation plots of karyotype-known cell lines with whole-chromosome and segmental imbalances. Samples of (A) trisomy 13, and cell lines with (B) 10 Mb, (C) 5 Mb, and (D) 2.8 Mb microdeletions underwent Ion ReproSeqTM PGS using starting template of either a single cell, 250 pg of whole genome amplified product from five cells using the REPLI-gTM SC MDA kit, or 250 pg of whole genome amplified product from five cells using the ChromSwiftTM MALBAC kit. Red vertical arrow indicates affected chromosome. Blue horizontal line indicates duplication and red horizontal line indicates deletion. Black circle indicates absence of expected deletion. (E) Table showing aneuploidy and segmental imbalance detection accuracy by Ion ReproSeqTM PGS using single cells, REPLI-gTM SC MDA and ChromSwiftTM MALBAC WGA products as starting materials. Pos—Positive, aberration(s) present; % Pos—Percentage of positive calls/detection accuracy, frequency of detection of expected aberration(s); Add Pos (%)—Samples with additional aberrations detected and its percentage.
Ijms 26 04532 g001
Ijms 26 04532 g002

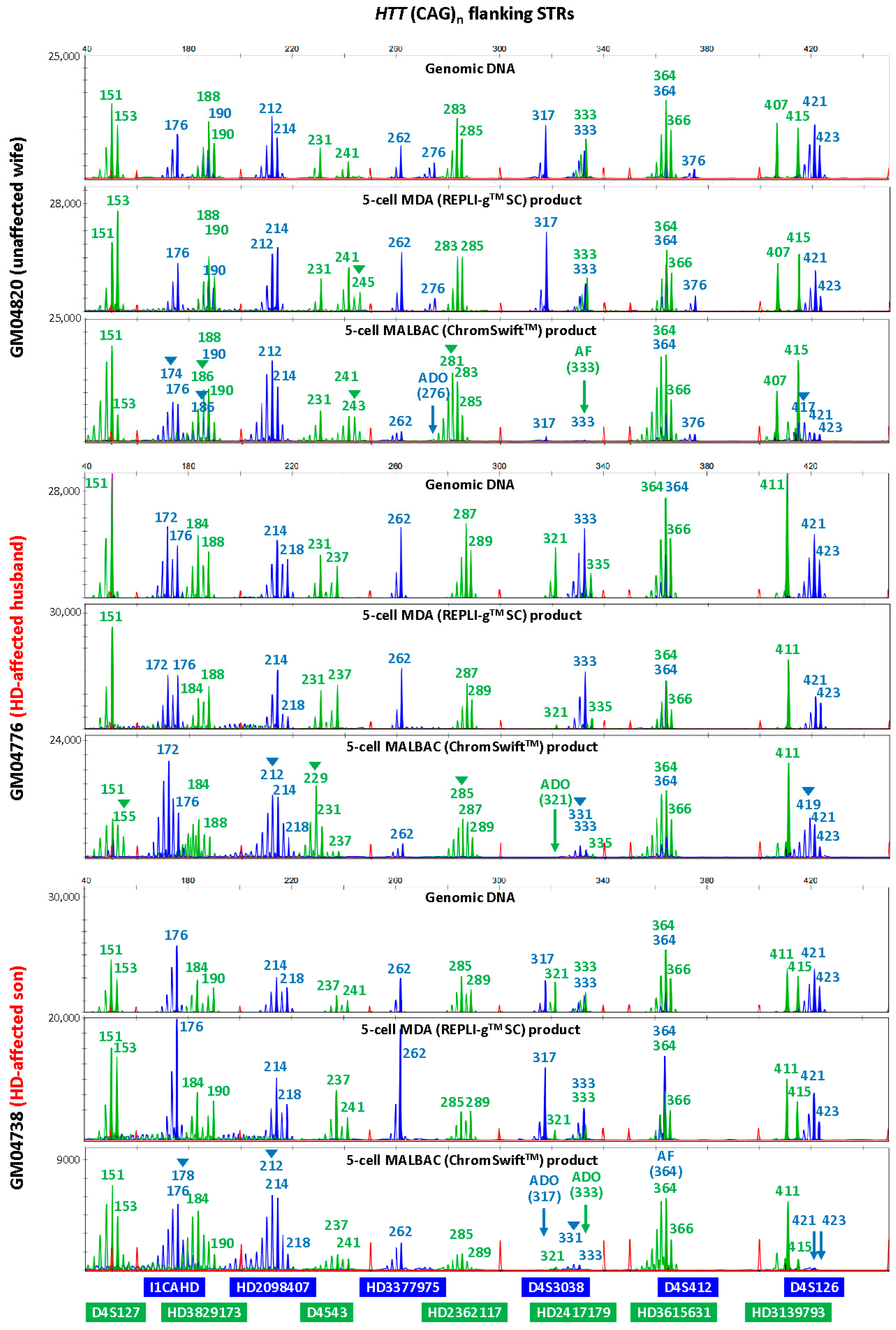

Figure 2. Multiplex-PCR electropherograms of microsatellites flanking the HTT CAG repeat in a Huntington’s disease (HD) case–parent trio (unaffected wife, affected husband and affected son). Multiplex PCR was performed on genomic DNA (10 ng), WGA product (2 μL) from REPLI-gTM SC MDA of five cells, and WGA product (2 μL) from ChromSwiftTM MALBAC of five cells. AF—amplification failure; ADO—allele dropout; arrowheads—incorrect or spurious alleles.
Figure 2. Multiplex-PCR electropherograms of microsatellites flanking the HTT CAG repeat in a Huntington’s disease (HD) case–parent trio (unaffected wife, affected husband and affected son). Multiplex PCR was performed on genomic DNA (10 ng), WGA product (2 μL) from REPLI-gTM SC MDA of five cells, and WGA product (2 μL) from ChromSwiftTM MALBAC of five cells. AF—amplification failure; ADO—allele dropout; arrowheads—incorrect or spurious alleles.
Ijms 26 04532 g002
Ijms 26 04532 g003

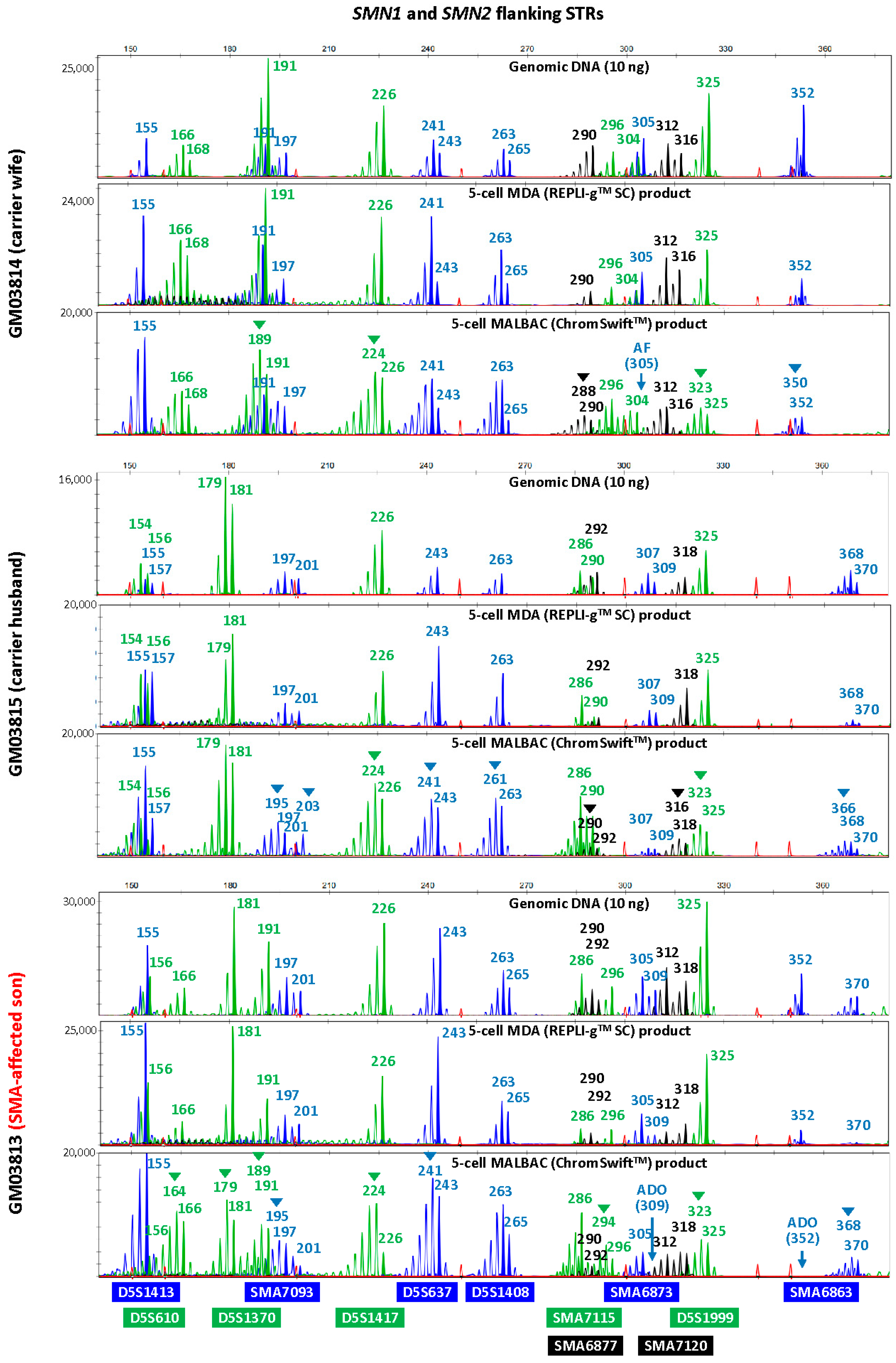

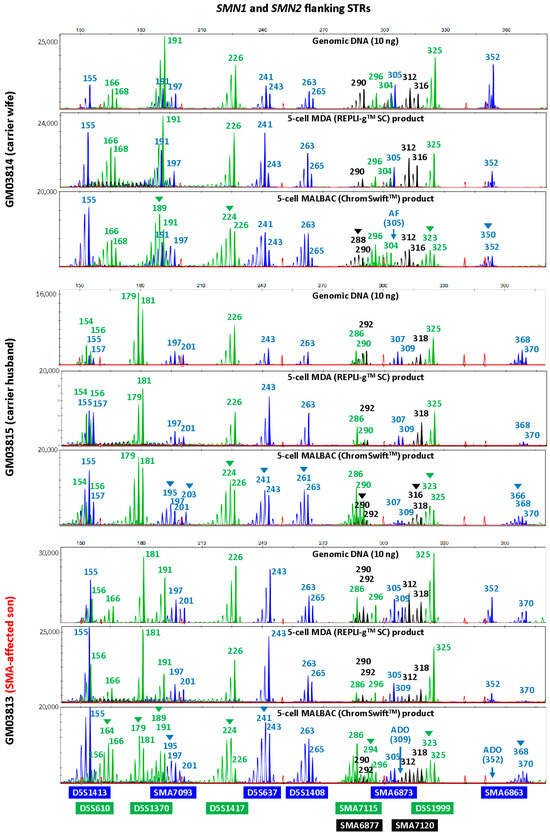

Figure 3. Multiplex-PCR electropherograms of STRs flanking the SMN1 and SMN2 genes in a spinal muscular atrophy (SMA) case–parent trio (carrier wife, carrier husband and affected son). Multiplex PCR was performed on genomic DNA (10 ng), WGA product (2 μL) from REPLI-gTM SC MDA of five cells, and WGA product (2 μL) from ChromSwiftTM MALBAC of five cells. Triplicate five-cell samples were used for each WGA method, but only one five-cell sample’s results are shown. MDA-amplified template resulted in lesser amplification failure (AF) and allele dropout (ADO) of individual markers, and fewer stutter peaks and incorrect or spurious alleles (arrowheads) leading to erroneous genotype calls, as compared to MALBAC-amplified template.
Figure 3. Multiplex-PCR electropherograms of STRs flanking the SMN1 and SMN2 genes in a spinal muscular atrophy (SMA) case–parent trio (carrier wife, carrier husband and affected son). Multiplex PCR was performed on genomic DNA (10 ng), WGA product (2 μL) from REPLI-gTM SC MDA of five cells, and WGA product (2 μL) from ChromSwiftTM MALBAC of five cells. Triplicate five-cell samples were used for each WGA method, but only one five-cell sample’s results are shown. MDA-amplified template resulted in lesser amplification failure (AF) and allele dropout (ADO) of individual markers, and fewer stutter peaks and incorrect or spurious alleles (arrowheads) leading to erroneous genotype calls, as compared to MALBAC-amplified template.
Ijms 26 04532 g003
Ijms 26 04532 g004

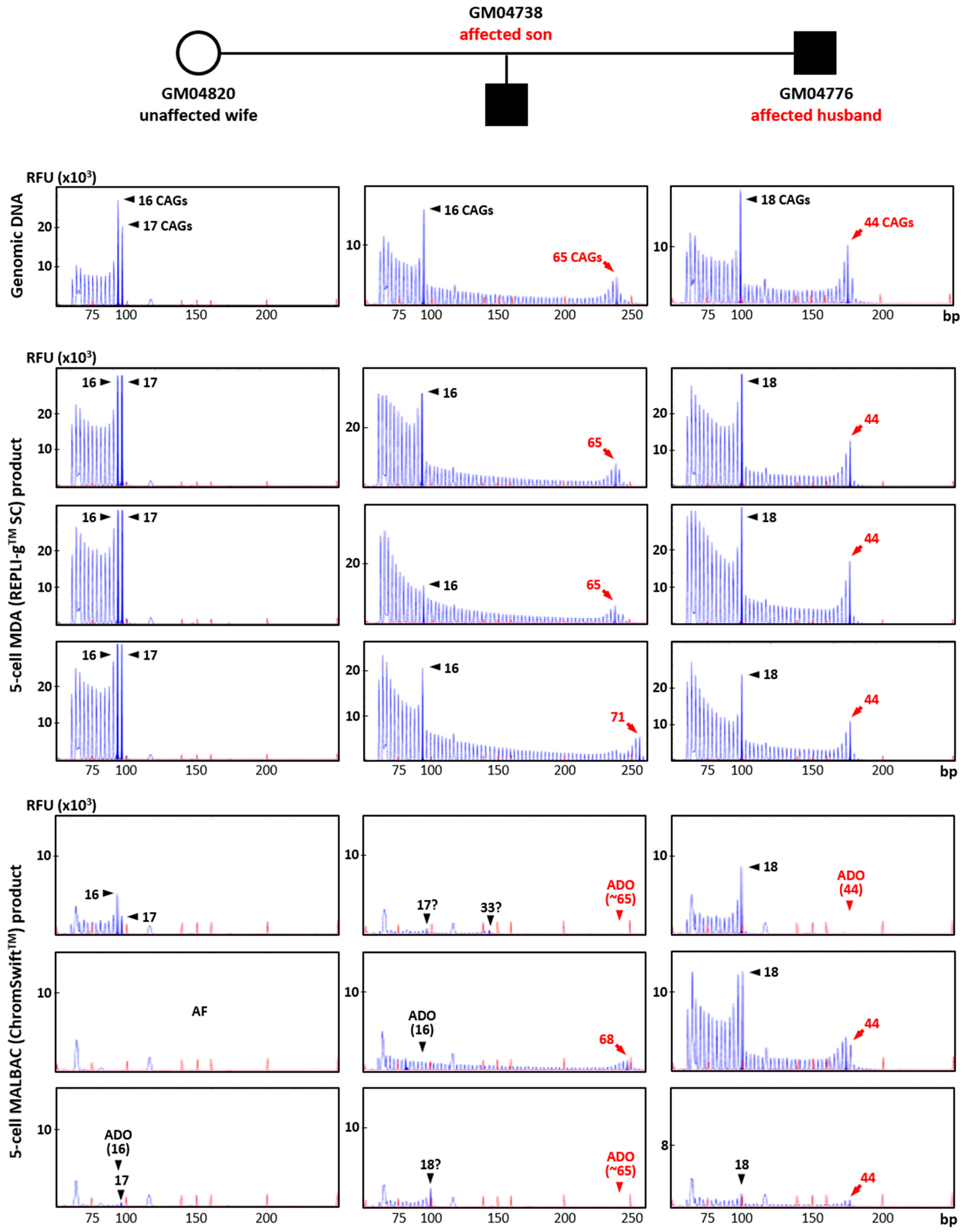

Figure 4. Triplet-primed PCR of the HTT CAG repeat in a Huntington’s disease case–parent trio (unaffected wife, affected husband and affected son). TP-PCR was performed on genomic DNA (10 ng), MDA (REPLI-gTM SC) product (2 μL) from five-cell samples, and MALBAC (ChromSwiftTM) product (2 μL) from five-cell samples. Results from MDA and MALBAC product are shown for three five-cell samples for each member of the trio. AF—amplification failure; ADO—allele dropout.
Figure 4. Triplet-primed PCR of the HTT CAG repeat in a Huntington’s disease case–parent trio (unaffected wife, affected husband and affected son). TP-PCR was performed on genomic DNA (10 ng), MDA (REPLI-gTM SC) product (2 μL) from five-cell samples, and MALBAC (ChromSwiftTM) product (2 μL) from five-cell samples. Results from MDA and MALBAC product are shown for three five-cell samples for each member of the trio. AF—amplification failure; ADO—allele dropout.
Ijms 26 04532 g004
Ijms 26 04532 g005

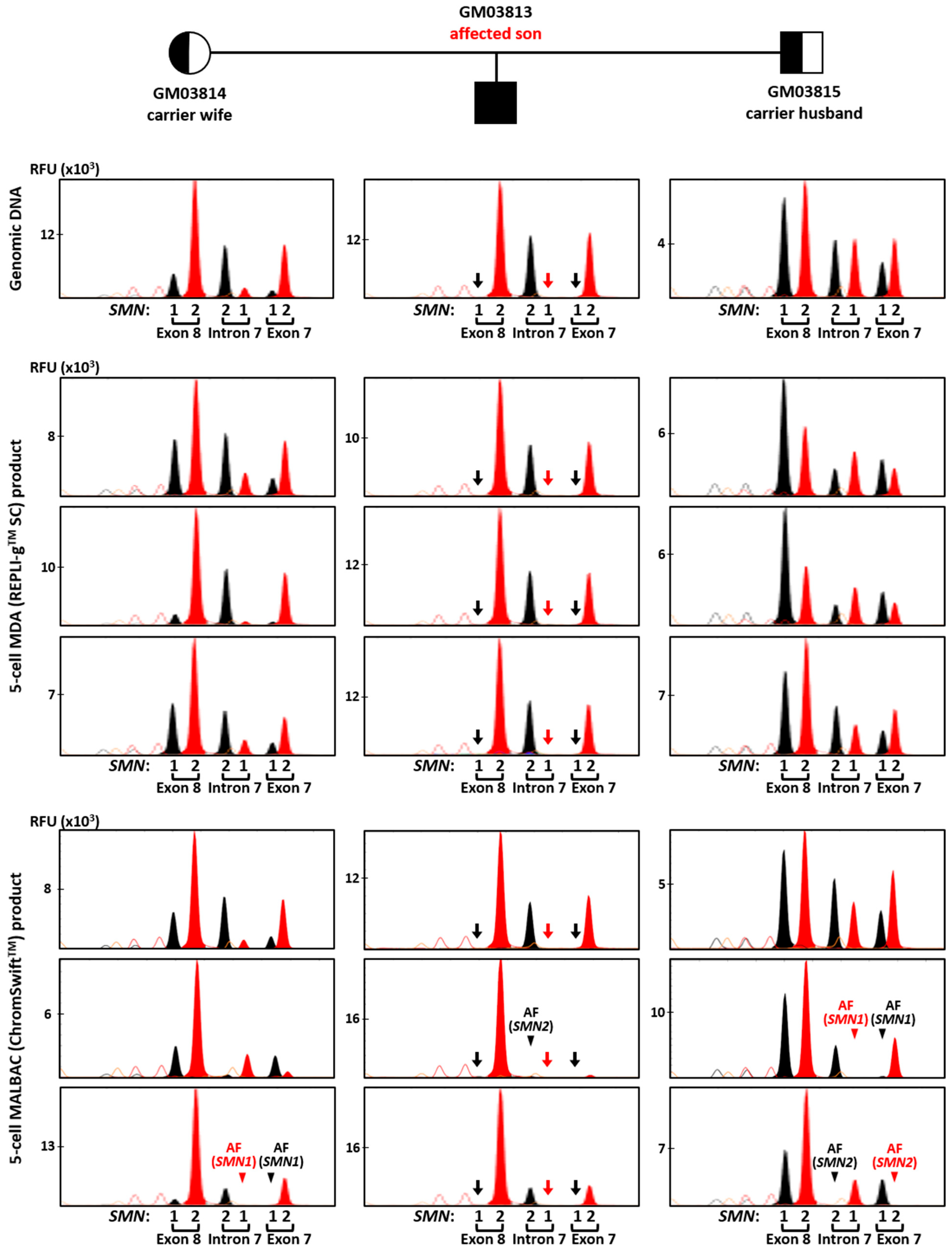

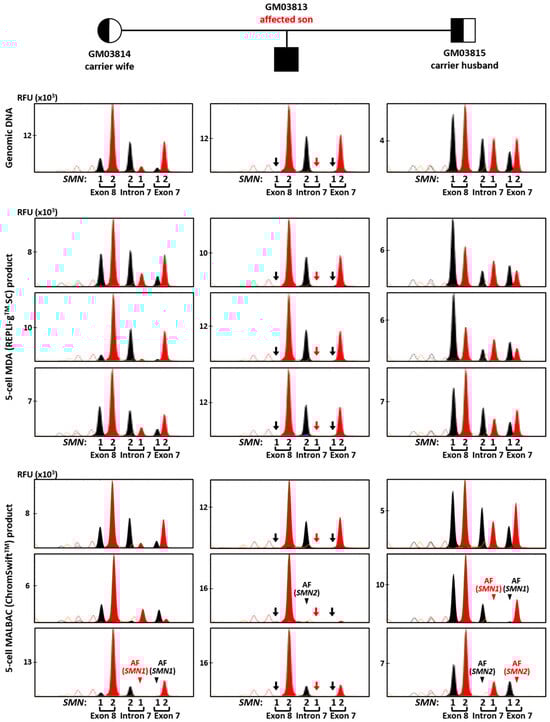

Figure 5. Triplex-PCR and SNaPshotTM minisequencing of exon 7, intron 7 and exon 8 of SMN1 and SMN2 in a spinal muscular atrophy case–parent trio (carrier wife, carrier husband and affected son). Assay was performed on genomic DNA (10 ng), MDA (REPLI-gTM SC) product (2 μL) from five-cell samples, and MALBAC (ChromSwiftTM) product (2 μL) from five-cell samples. SMN1 amplicons were absent in all MDA- and MALBAC-amplified five-cell samples of the affected son (arrows), consistent with his homozygous SMN1 deletion. AF—amplification failure (arrowheads). Red and black arrows indicate absence of T and C nucleotide peaks, respectively, due to SMN1 gene deletion. Red and black arrowheads indicate absence of expected T and C nucleotide peaks, respectively, resulting from SMN1 or SMN2 amplification failure.
Figure 5. Triplex-PCR and SNaPshotTM minisequencing of exon 7, intron 7 and exon 8 of SMN1 and SMN2 in a spinal muscular atrophy case–parent trio (carrier wife, carrier husband and affected son). Assay was performed on genomic DNA (10 ng), MDA (REPLI-gTM SC) product (2 μL) from five-cell samples, and MALBAC (ChromSwiftTM) product (2 μL) from five-cell samples. SMN1 amplicons were absent in all MDA- and MALBAC-amplified five-cell samples of the affected son (arrows), consistent with his homozygous SMN1 deletion. AF—amplification failure (arrowheads). Red and black arrows indicate absence of T and C nucleotide peaks, respectively, due to SMN1 gene deletion. Red and black arrowheads indicate absence of expected T and C nucleotide peaks, respectively, resulting from SMN1 or SMN2 amplification failure.
Ijms 26 04532 g005
Table 1. Comparison of amplification failure and allele dropout rate of microsatellite markers flanking HTT and SMN1/2 genes after amplification from gDNA, REPLI-gTM SC MDA and ChromSwiftTM MALBAC WGA product.
Table 1. Comparison of amplification failure and allele dropout rate of microsatellite markers flanking HTT and SMN1/2 genes after amplification from gDNA, REPLI-gTM SC MDA and ChromSwiftTM MALBAC WGA product.
Genomic DNA (10 ng)2 µL of WGA Product from a 5-Cell REPLI-gTM SC MDA Reaction2 µL of WGA Product from a 5-Cell ChromSwiftTM MALBAC Reaction
AFADOAFADOAFADO
HTT (CAG)n and flanking STR markersD4S3038FAM (AC)n0/10 (0%)0/7 (0%)0/30 (0%)1/21 (2.38%)6/30 (20%)8/17 (23.53%)
HD2098407FAM (GA)n0/10 (0%)0/9 (0%)0/30 (0%)0/27 (0%)0/30 (0%)0/27 (0%)
D4S43HEX (AC)n0/10 (0%)0/8 (0%)1/30 (3.33%)0/23 (0%)0/30 (0%)0/24 (0%)
HD2362117HEX (CA)n0/10 (0%)0/7 (0%)0/30 (0%)1/21 (2.38%)0/30 (0%)0/21 (0%)
HD2417179HEX (AC)n0/10 (0%)0/9 (0%)0/30 (0%)3/27 (5.56%)3/30 (10%)13/25 (26%)
D4S127HEX (GT)n0/10 (0%)0/7 (0%)0/30 (0%)0/21 (0%)0/30 (0%)0/21 (0%)
D4S126FAM (TG)n0/10 (0%)0/10 (0%)0/30 (0%)1/30 (1.67%)3/30 (10%)1/27 (1.85%)
HTT (CAG)n
I1CAHDFAM (AC)n0/10 (0%)0/9 (0%)0/30 (0%)3/27 (5.56%)0/30 (0%)4/27 (7.41%)
HD3139793HEX (TTCC)n0/10 (0%)0/6 (0%)0/30 (0%)1/18 (2.78%)0/30 (0%)0/18 (0%)
HD3377975FAM (AC)n0/10 (0%)0/7 (0%)0/30 (0%)1/21 (2.38%)13/30 (43.33%)5/10 (25%)
D4S412FAM (TG)n0/10 (0%)0/8 (0%)0/30 (0%)1/24 (2.08%)11/30 (36.67%)2/16 (6.25%)
HD3615631HEX (AC)n0/10 (0%)0/7 (0%)0/30 (0%)0/21 (0%)0/30 (0%)0/21 (0%)
HD3829173HEX (GT)n0/10 (0%)0/10 (0%)0/30 (0%)0/30 (0%)0/30 (0%)0/30 (0%)
STR markers flanking SMN1 and SMN2D5S1417HEX (TG)n0/10 (0%)0/6 (0%)0/30 (0%)0/18 (0%)0/30 (0%)0/18 (0%)
D5S1413FAM (GT)n0/10 (0%)0/6 (0%)0/30 (0%)0/18 (0%)0/30 (0%)0/18 (0%)
SMA6863FAM (GA)n0/10 (0%)0/8 (0%)0/30 (0%)2/24 (4.17%)1/30 (3.33%)3/24 (6.25%)
SMA6873FAM (AC)n0/10 (0%)0/6 (0%)0/30 (0%)1/18 (2.78%)10/30 (33.33%)2/12 (8.33%)
D5S1370HEX (TG)n0/10 (0%)0/8 (0%)0/30 (0%)1/24 (2.08%)0/30 (0%)0/24 (0%)
SMA6877NED (TG)n0/10 (0%)0/5 (0%)0/30 (0%)0/15 (0%)0/30 (0%)2/15 (6.67%)
SMN2/SMN1
D5S1408FAM (AC)n0/10 (0%)0/7 (0%)0/30 (0%)0/21 (0%)0/30 (0%)0/21 (0%)
SMA7093FAM (TG)n0/10 (0%)0/7 (0%)0/30 (0%)2/21 (4.76%)0/30 (0%)1/21 (2.38%)
D5S610HEX (TG)n0/10 (0%)0/8 (0%)0/30 (0%)0/24 (0%)0/30 (0%)1/24 (2.08%)
SMA7115HEX (AG)n0/10 (0%)0/9 (0%)0/30 (0%)3/27 (5.56%)0/30 (0%)0/27 (0%)
SMA7120NED (AC)n0/10 (0%)0/8 (0%)0/30 (0%)0/24 (0%)0/30 (0%)0/24 (0%)
D5S1999HEX (GA)n0/10 (0%)0/5 (0%)0/30 (0%)0/15 (0%)0/30 (0%)0/15 (0%)
D5S637FAM (CACT)n0/10 (0%)0/6 (0%)0/30 (0%)0/18 (0%)0/30 (0%)0/18 (0%)
AF, amplification failure; ADO, allele dropout.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Tan, V.J.; Liang, Y.; Tan, A.S.; Wong, S.; Asherah, N.; Chua, P.; Lee, C.G.; Choolani, M.A.; Dang, T.; Chong, S.S. A Strategy Potentially Suitable for Combined Preimplantation Genetic Testing of Aneuploidy and Monogenic Disease That Permits Direct Detection of Pathogenic Variants Including Repeat Expansions and Gene Deletions. Int. J. Mol. Sci. 2025, 26, 4532. https://doi.org/10.3390/ijms26104532

AMA Style

Tan VJ, Liang Y, Tan AS, Wong S, Asherah N, Chua P, Lee CG, Choolani MA, Dang T, Chong SS. A Strategy Potentially Suitable for Combined Preimplantation Genetic Testing of Aneuploidy and Monogenic Disease That Permits Direct Detection of Pathogenic Variants Including Repeat Expansions and Gene Deletions. International Journal of Molecular Sciences. 2025; 26(10):4532. https://doi.org/10.3390/ijms26104532

Chicago/Turabian Style

Tan, Vivienne J., Ying Liang, Arnold S. Tan, Simin Wong, Nur Asherah, Pengyian Chua, Caroline G. Lee, Mahesh A. Choolani, Truong Dang, and Samuel S. Chong. 2025. "A Strategy Potentially Suitable for Combined Preimplantation Genetic Testing of Aneuploidy and Monogenic Disease That Permits Direct Detection of Pathogenic Variants Including Repeat Expansions and Gene Deletions" International Journal of Molecular Sciences 26, no. 10: 4532. https://doi.org/10.3390/ijms26104532

APA Style

Tan, V. J., Liang, Y., Tan, A. S., Wong, S., Asherah, N., Chua, P., Lee, C. G., Choolani, M. A., Dang, T., & Chong, S. S. (2025). A Strategy Potentially Suitable for Combined Preimplantation Genetic Testing of Aneuploidy and Monogenic Disease That Permits Direct Detection of Pathogenic Variants Including Repeat Expansions and Gene Deletions. International Journal of Molecular Sciences, 26(10), 4532. https://doi.org/10.3390/ijms26104532

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
