Gradient Chitosan Hydrogels Modified with Graphene Derivatives and Hydroxyapatite: Physiochemical Properties and Initial Cytocompatibility Evaluation
Abstract
:1. Introduction
2. Results and Discussion

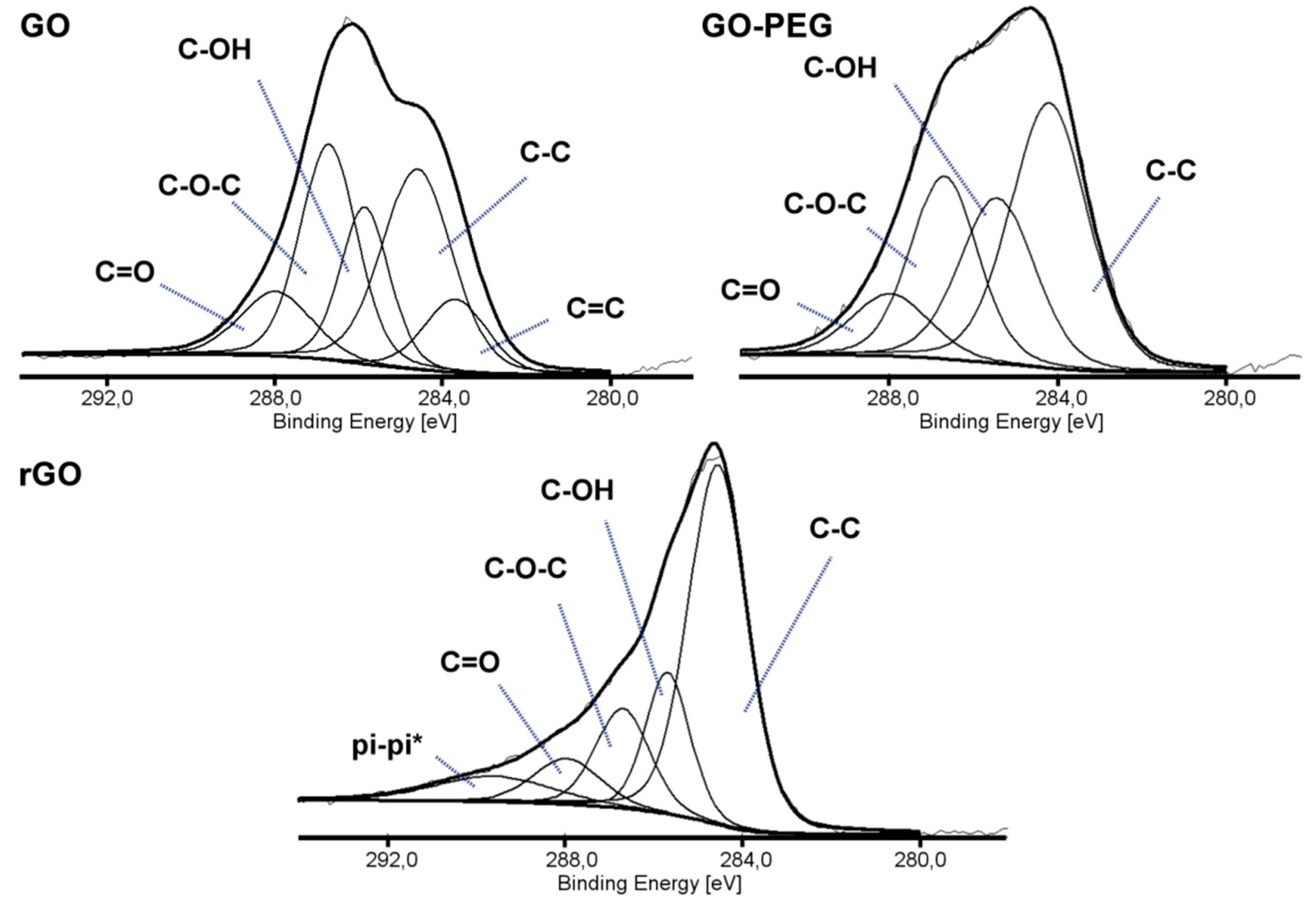

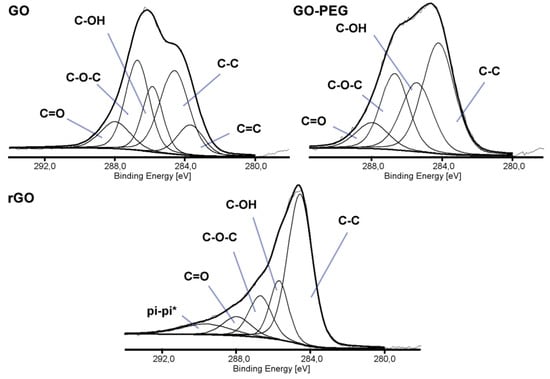

2.1. Characterization of the Graphene Materials

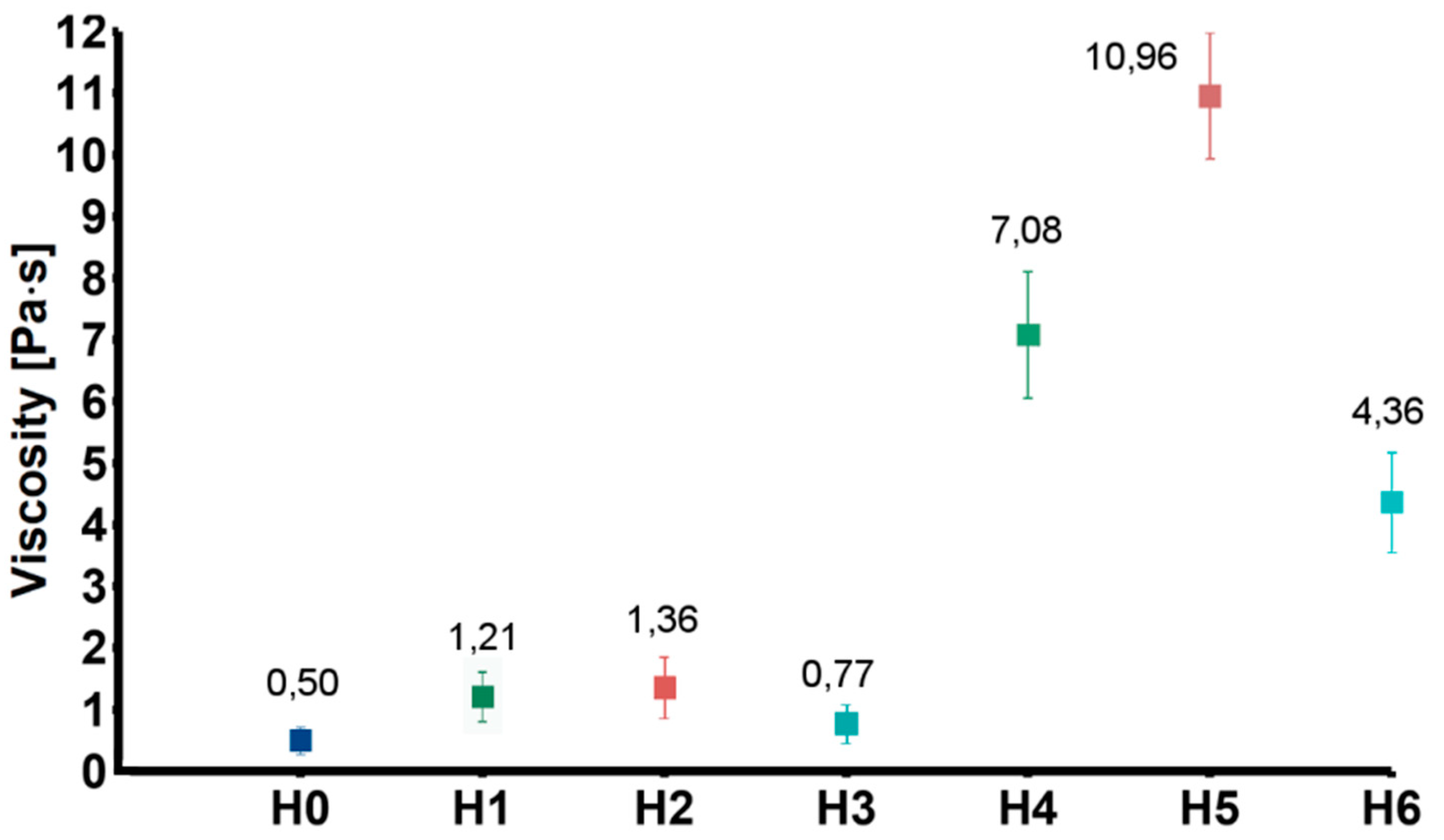

2.2. Rheological Characterization of Hydrogels

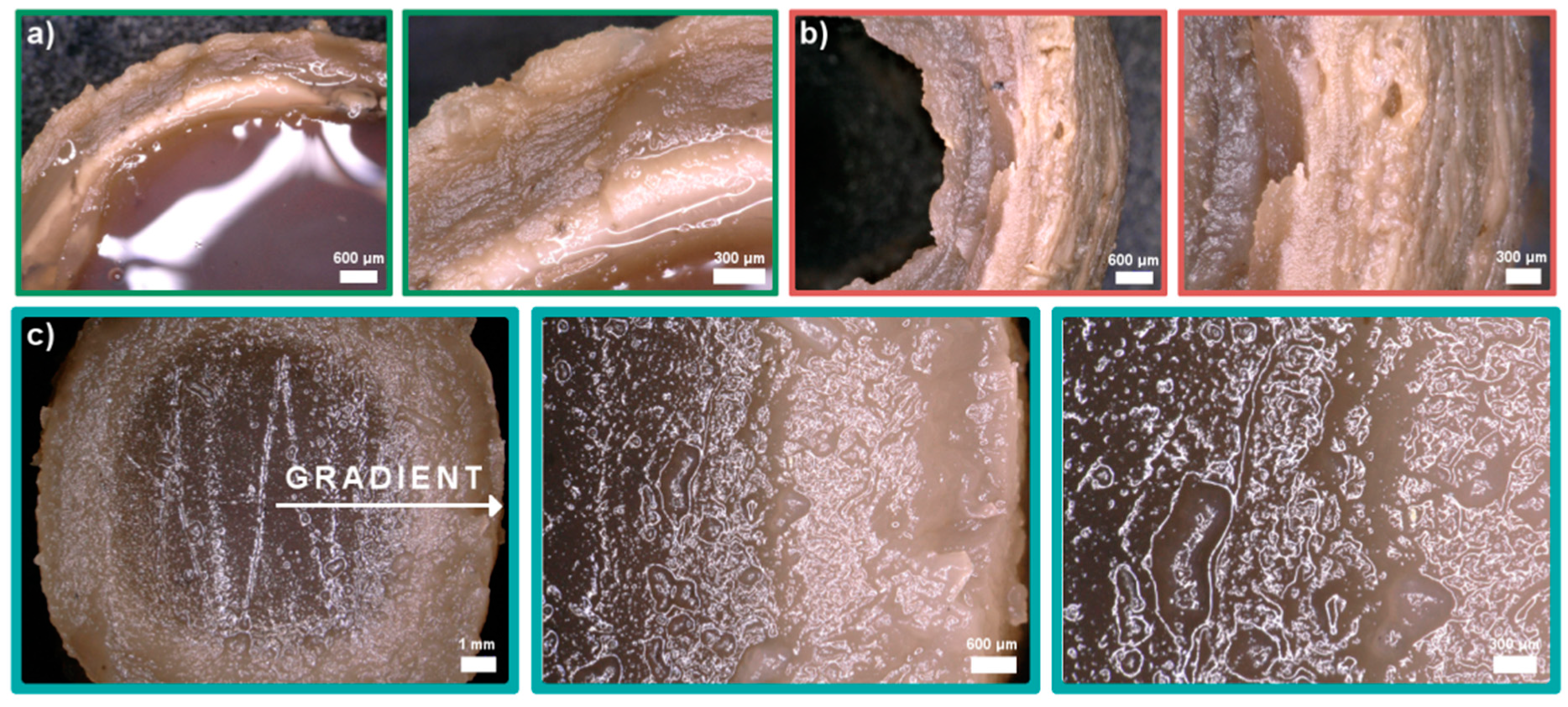

2.3. Microstructure

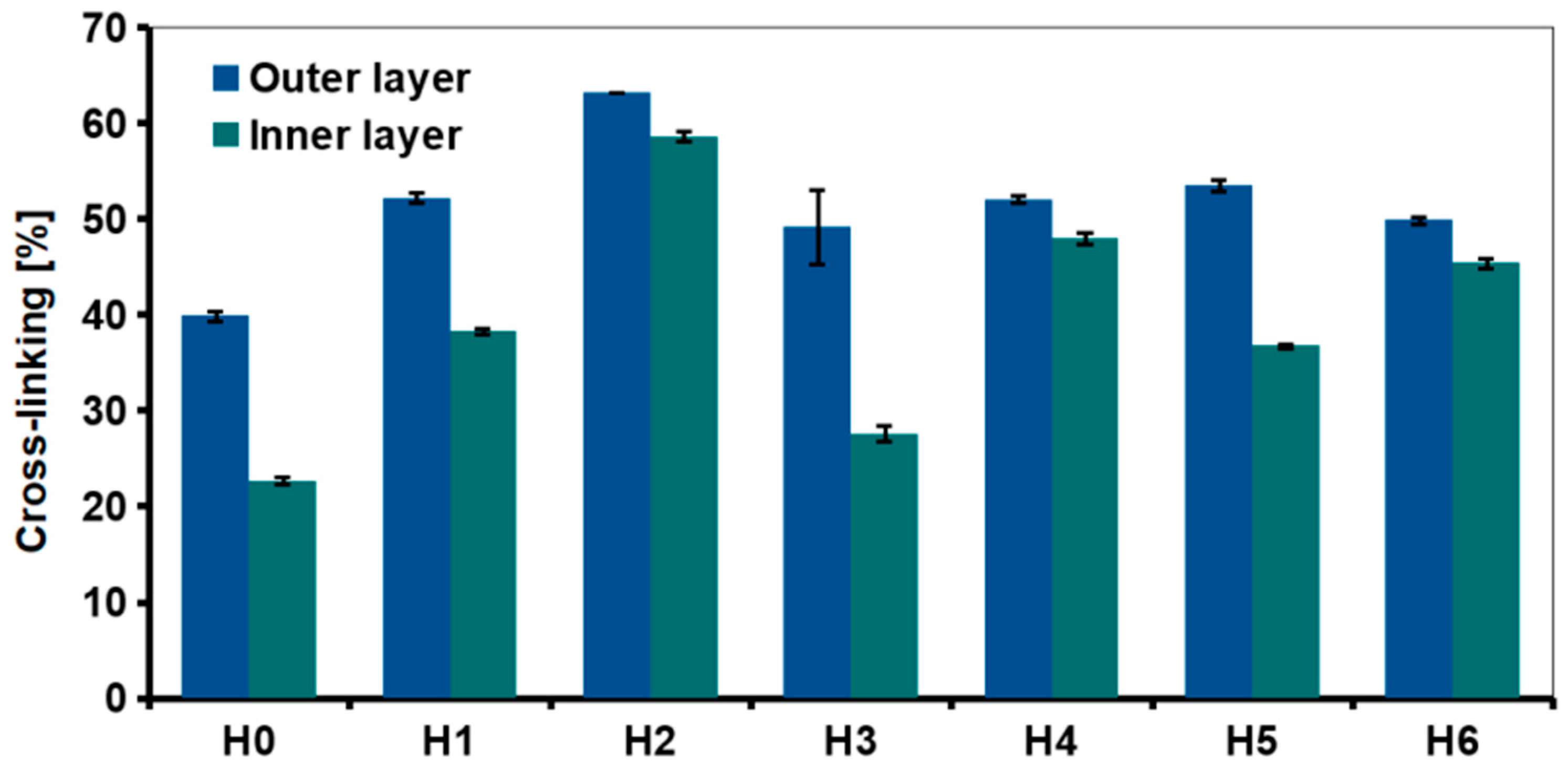

2.4. Cross-Linking Degree

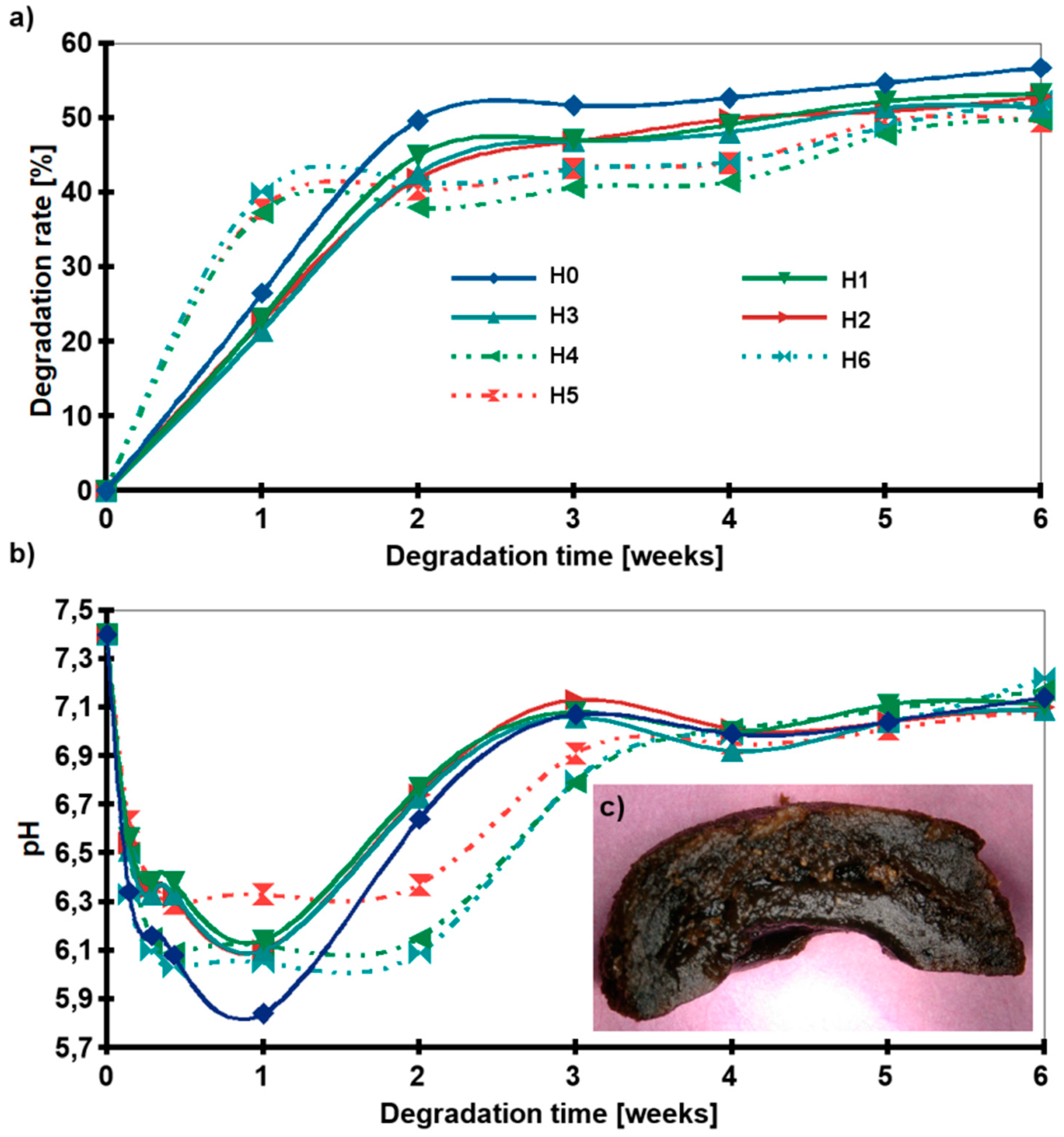

2.5. Chemical Stability

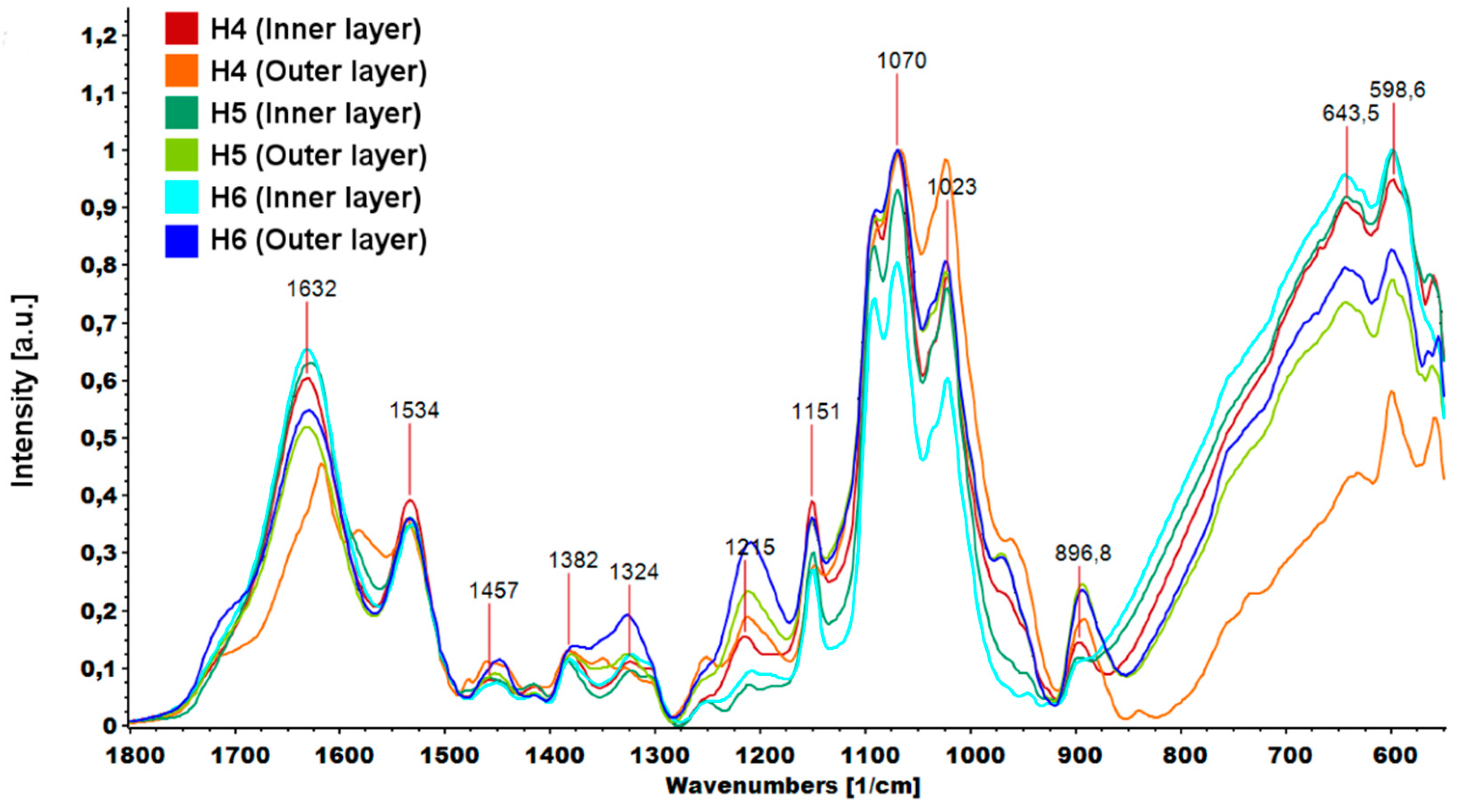

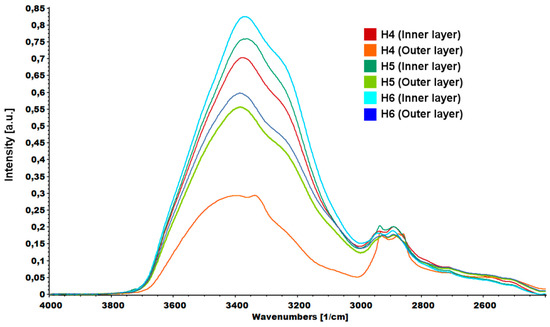

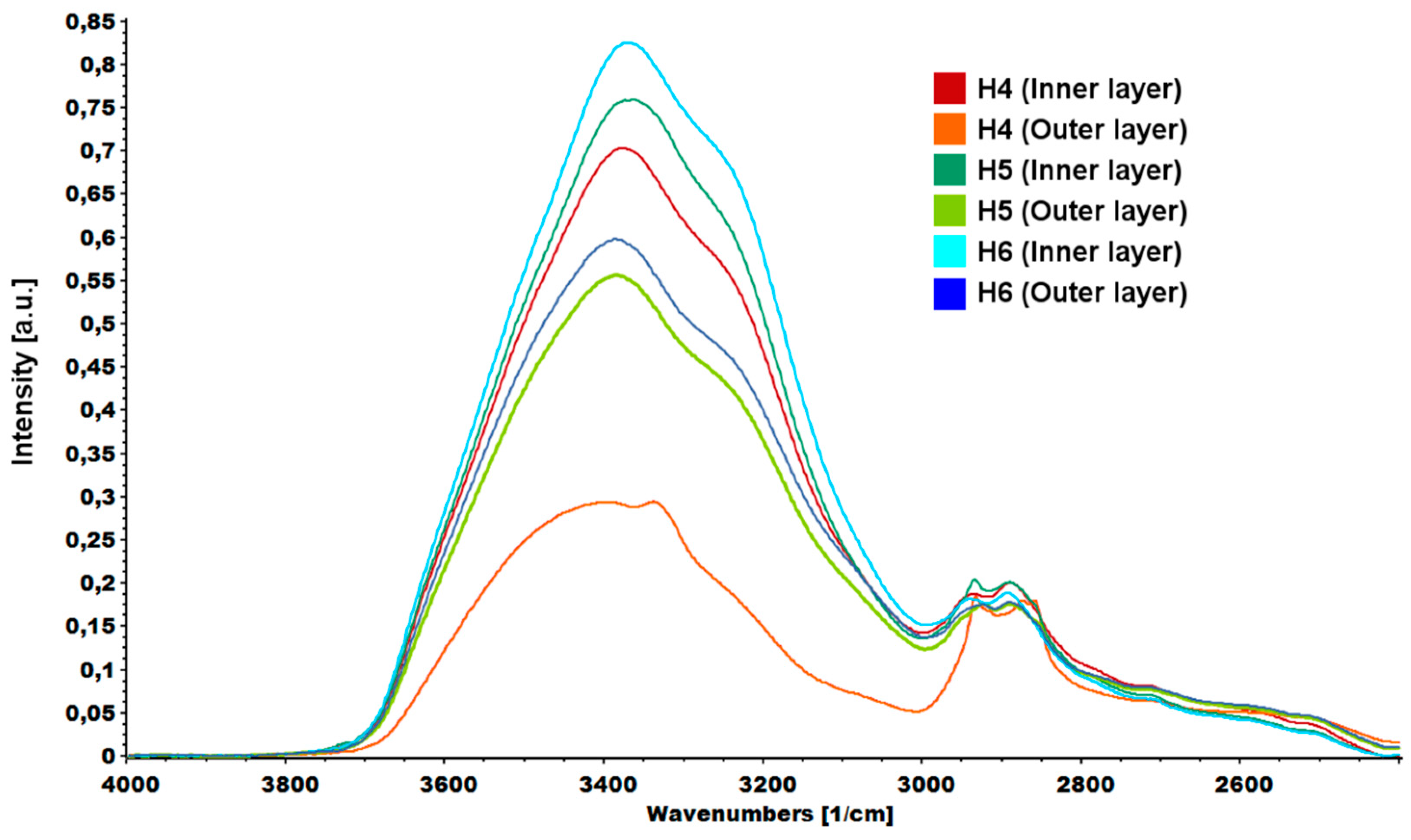

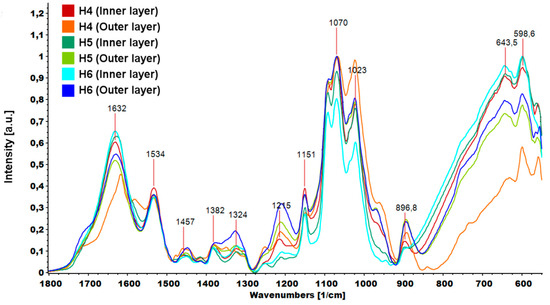

2.6. Structural Analysis

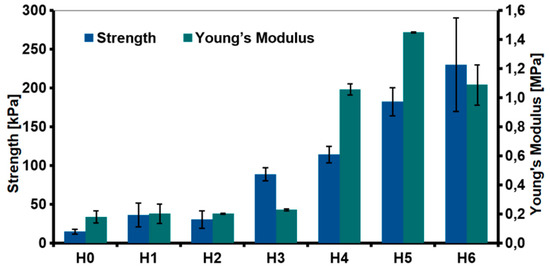

2.7. Mechanical Properties
2.8. In Vitro Bioactivity
2.9. Cytocompatibility
2.9.1. The Influence of Liquid Extracts of Chitosan on hUC-MSCs Morphology

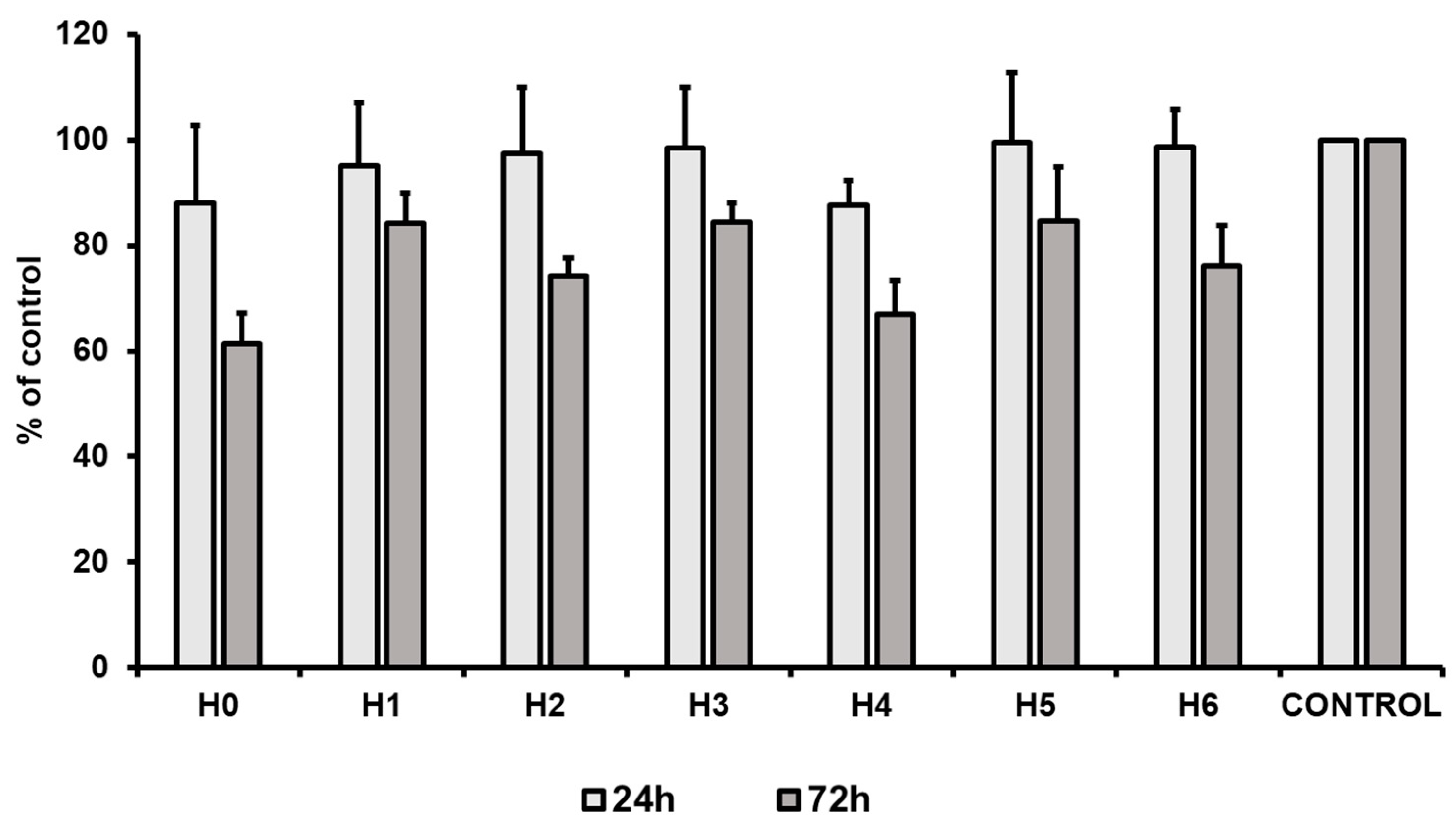

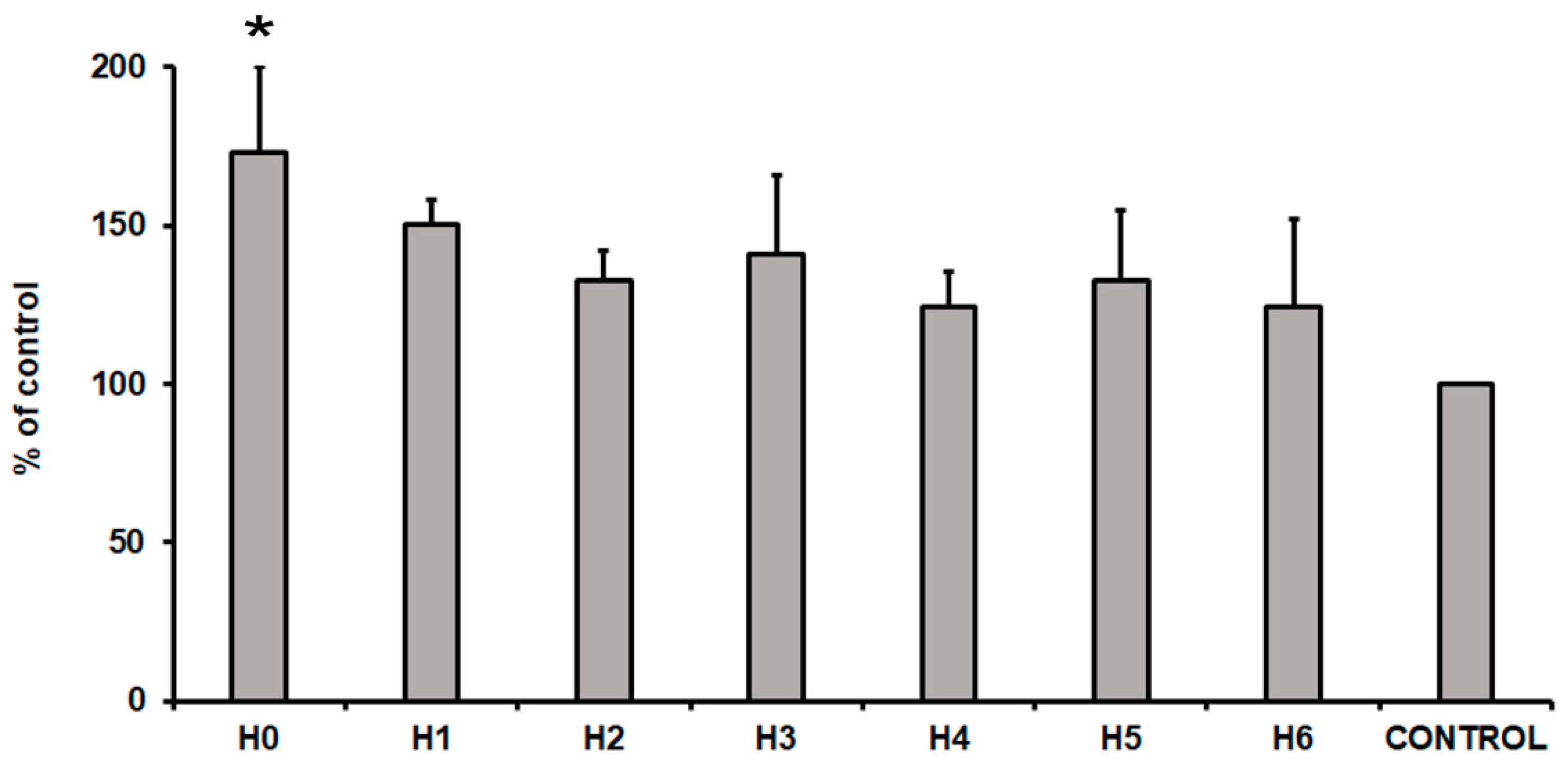

2.9.2. The Impact of Liquid Extracts of Chitosan on hUC-MSCs Cytotoxicity

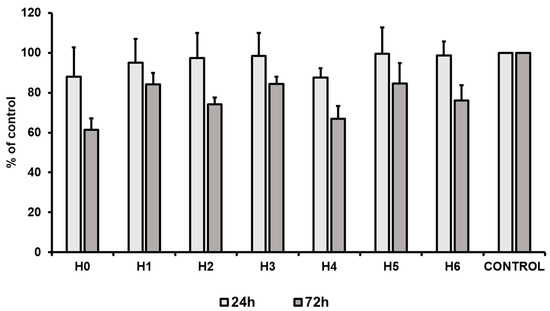

2.9.3. The Influence of Liquid Extracts of Chitosan on hUC-MSCs Proliferation
3. Materials and Methods
3.1. Materials
3.2. Synthesis of Graphene Oxide (GO), Reduced Graphene Oxide (rGO) and Poly(Ethylene Glycol) Grafted Graphene Oxide (GO-PEG)
3.3. Preparation of Chitosan Hydrogels Modified with GO, rGO and GO-PEG
3.4. Characterization
3.4.1. X-Ray Photoelectron Spectroscopy (XPS)

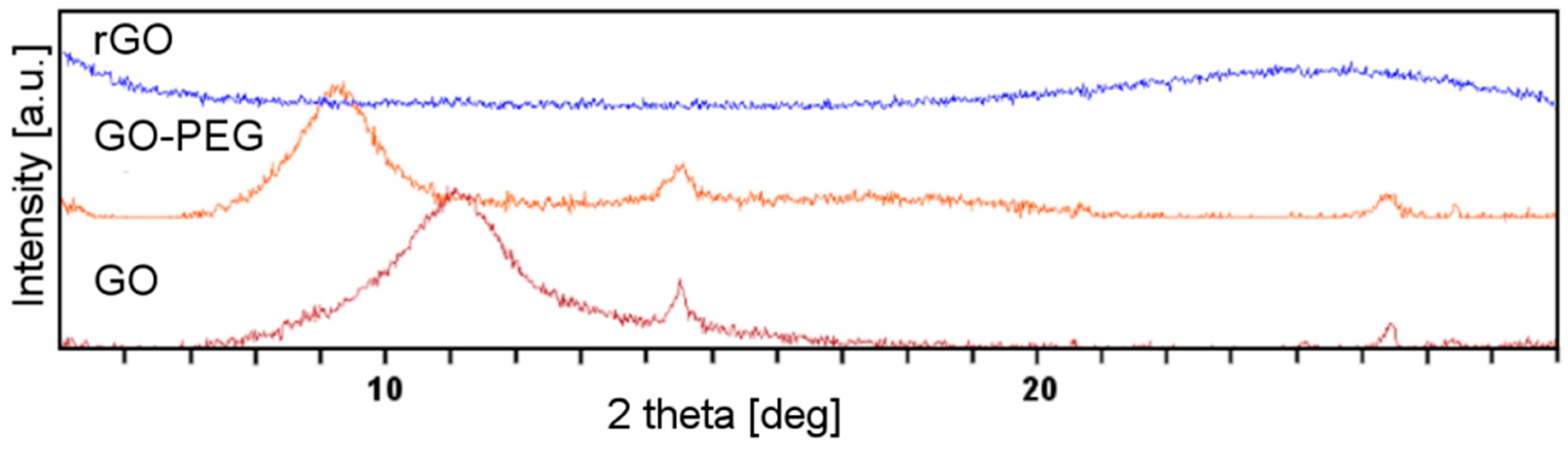

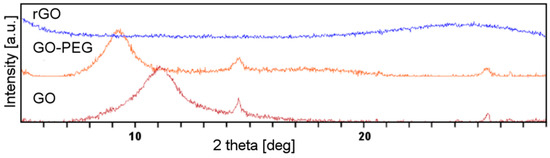

3.4.2. X-Ray Diffractometry (XRD)
3.4.3. Attenuated Total Reflection Infrared Spectroscopy (ATR-FTIR)
3.4.4. Microstructural Analysis
3.4.5. Rheology
3.4.6. Determination of Cross-Linking Degree
3.4.7. Mechanical Properties
3.4.8. In Vitro Chemical Stability
3.4.9. Bioactivity Test
3.4.10. Cytocompatibility
Isolation and Culture of hUC-MSCs
Preparation of Liquid Extracts of Chitosan
Cytotoxicity Test
Proliferation Test
4. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
Abbreviations
CS | chitosan |
GO | graphene oxide |
rGO | reduced graphene oxide |
GO-PEG | poly(ethylene glycol) grafted graphene oxide |
HAp | hydroxyapatite |
PBS | phosphate buffered saline |
SBF | simulated body fluid |
hUC-MSCs | human umbilical cord Wharton’s jelly mesenchymal stem cells |
TPP | sodium tripolyphosphate |
References
- Rinaudo, M. Chitin and chitosan: Properties and applications. Prog. Polym. Sci. 2016, 31, 603–632. [Google Scholar] [CrossRef]
- Younes, I.; Rinaudo, M. Chitin and Chitosan Preparation from Marine Sources. Structure, Properties and Applications. Mar. Drugs 2015, 13, 1133–1174. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Elieh-Ali-Komi, D.; Hamblin, M.R. Chitin and Chitosan: Production and Application of Versatile Biomedical Nanomaterials. Int. J. Adv. Res. 2016, 4, 411–427. [Google Scholar]
- Domalik-Pyzik, P.; Chłopek, J.; Pielichowska, K. Chitosan-Based Hydrogels: Preparation, Properties, and Applications; Springer Science and Business Media LLC: Berlin/Heidelberg, Germany, 2019; pp. 1665–1693. [Google Scholar] [CrossRef]
- Alvarenga, E.S.; De Oliveira, C.P.; Bellato, C.R. An approach to understanding the deacetylation degree of chitosan. Carbohydr. Polym. 2010, 80, 1155–1160. [Google Scholar] [CrossRef]
- Wang, Q.Z.; Chen, X.G.; Liu, N.; Wang, S.X.; Liu, C.; Meng, X.H.; Liu, C.G. Protonation constants of chitosan with different molecular weight and degree of deacetylation. Carbohydr. Polym. 2006, 65, 194–201. [Google Scholar] [CrossRef]
- Diekjürgen, D.; Grainger, D.W. Polysaccharide matrices used in 3D in vitro cell culture systems, Biomaterials. Biomaterials 2017, 141, 96–115. [Google Scholar] [CrossRef]
- Croisier, F.; Jérôme, C. Chitosan-based biomaterials for tissue engineering. Eur. Polym. J. 2013, 49, 780–792. [Google Scholar] [CrossRef] [Green Version]
- Grolik, M.; Szczubiałka, K.; Wowra, B.; Dobrowolski, D.; Orzechowska-Wylęgała, B.; Wylęgała, E.; Nowakowska, M. Hydrogel membranes based on genipin-cross-linked chitosan blends for corneal epithelium tissue engineering. J. Mater. Sci. Mater. Electron. 2012, 23, 1991–2000. [Google Scholar] [CrossRef] [Green Version]
- Kamiński, K.; Szczubiałka, K.; Zazakowny, K.; Lach, R.; Nowakowska, M. Chitosan Derivatives as Novel Potential Heparin Reversal Agents. J. Med. Chem. 2010, 53, 4141–4147. [Google Scholar] [CrossRef]
- Thibault, M.-H.; Comeau, C.; Vienneau, G.; Robichaud, J.; Brown, D.; Bruening, R.; Martin, L.J.; Djaoued, Y. Assessing the potential of boronic acid/chitosan/bioglass composite materials for tissue engineering applications. Mater. Sci. Eng. C 2020, 110, 110674. [Google Scholar] [CrossRef]
- Ślósarczyk, A.; Czechowska, J.; Cichoń, E.; Zima, A. New Hybrid Bioactive Composites for Bone Substitution. Processes 2020, 8, 335. [Google Scholar] [CrossRef] [Green Version]
- Raza, Z.A.; Khalil, S.; Ayub, A.; Banat, I.M. Recent developments in chitosan encapsulation of various active ingredients for multifunctional applications. Carbohydr. Res. 2020, 492. [Google Scholar] [CrossRef]
- Almeida, A.; Araújo, M.; Novoa-Carballal, R.; Andrade, F.; Gonçalves, H.; Reis, R.L.; Lúcio, M.; Schwartz, S.; Sarmento, B. Novel amphiphilic chitosan micelles as carriers for hydrophobic anticancer drugs. Mater. Sci. Eng. C 2020, 112, 110920. [Google Scholar] [CrossRef]
- Milewska, A.; Chi, Y.; Szczepanski, A.; Barreto-Duran, E.; Liu, K.; Liu, D.; Guo, X.; Ge, Y.; Li, J.; Cui, L.; et al. HTCC as a highly effective polymeric inhibitor of SARS-CoV-2 and MERS-CoV. BioRxiv 2020. [Google Scholar] [CrossRef] [Green Version]
- Xu, Y.; Yuan, S.; Han, J.; Lin, H.; Zhang, X. Design and fabrication of a chitosan hydrogel with gradient structures via a step-by-step cross-linking process. Carbohydr. Polym. 2017, 176, 195–202. [Google Scholar] [CrossRef]
- Kosowska, K.; Domalik-Pyzik, P.; Chłopek, J. Graphene oxide and green-synthesized reduced graphene oxide in chitosan-based nanocomposites. Eng. Biomater. 2017, 20, 11–16. [Google Scholar]
- Kosowska, K.; Domalik-Pyzik, P.; Nocuń, M.; Chłopek, J. Chitosan and graphene oxide/reduced graphene oxide hybrid nanocomposites—Evaluation of physicochemical properties. Mater. Chem. Phys. 2018, 216, 28–36. [Google Scholar] [CrossRef]
- Kosowska, K.; Domalik-Pyzik, P.; Krok-Borkowicz, M.; Chłopek, J. Synthesis and characterization of chitosan/reduced graphene oxide hybrid composites. Materials 2019, 12, 2077. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Kosowska, K.; Domalik-Pyzik, P.; Krok-Borkowicz, M.; Chłopek, J. Polylactide/Hydroxyapatite Nonwovens Incorporated into Chitosan/Graphene Materials Hydrogels to Form Novel Hierarchical Scaffolds. Int. J. Mol. Sci. 2020, 21, 2330. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Geim, A.K.; Novoselov, K.S. The rise of graphene. Nat. Mater. 2007, 6, 183–191. [Google Scholar] [CrossRef]
- Bianco, A.; Cheng, H.-M.; Enoki, T.; Gogotsi, Y.; Hurt, R.H.; Koratkar, N.; Kyotani, T.; Monthioux, M.; Park, C.R.; Tascón, J.M.; et al. All in the graphene family—A recommended nomenclature for two-dimensional carbon materials. Carbon 2013, 65, 1–6. [Google Scholar] [CrossRef]
- Shin, S.R.; Li, Y.-C.; Jang, H.L.; Khoshakhlagh, P.; Akbari, M.; Nasajpour, A.; Zhang, Y.S.; Tamayol, A.; Khademhosseini, A. Graphene-based materials for tissue engineering. Adv. Drug Deliv. Rev. 2016, 105, 255–274. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Zhu, Y.; Murali, S.; Cai, W.; Li, X.; Suk, J.W.; Potts, J.R.; Ruoff, R.S. Graphene and Graphene Oxide: Synthesis, Properties, and Applications. Adv. Mater. 2010, 22, 3906–3924. [Google Scholar] [CrossRef]
- Jagiełło, J.; Sekuła-Stryjewska, M.; Noga, S.; Adamczyk, E.; Dźwigońska, M.; Kurcz, M.; Kurp, K.; Winkowska, M.; Karnas, E.; Boruczkowski, D.; et al. Impact of Graphene-Based Surfaces on the Basic Biological Properties of Human Umbilical Cord Mesenchymal Stem Cells: Implications for Ex Vivo Cell Expansion Aimed at Tissue Repair. Int. J. Mol. Sci. 2019, 20, 4561. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Al-Gaashani, R.; Najjar, A.; Zakaria, Y.; Mansour, S.; Atieh, M. XPS and structural studies of high quality graphene oxide and reduced graphene oxide prepared by different chemical oxidation methods. Ceram. Int. 2019, 45, 14439–14448. [Google Scholar] [CrossRef]
- Wang, Y.; Shi, Z.; Yin, J. Facile Synthesis of Soluble Graphene via a Green Reduction of Graphene Oxide in Tea Solution and Its Biocomposites. ACS Appl. Mater. Interfaces 2011, 3, 1127–1133. [Google Scholar] [CrossRef]
- Zhang, C.; Wang, L.; Zhai, T.; Wang, X.; Dan, Y.; Turng, L.-S. The surface grafting of graphene oxide with poly(ethylene glycol) as a reinforcement for poly(lactic acid) nanocomposite scaffolds for potential tissue engineering applications. J. Mech. Behav. Biomed. Mater. 2016, 53, 403–413. [Google Scholar] [CrossRef]
- Nie, J.; Wang, Z.; Zhang, K.; Hu, Q. Biomimetic multi-layered hollow chitosan–tripolyphosphate rod with excellent mechanical performance. RSC Adv. 2015, 5, 37346–37352. [Google Scholar] [CrossRef]
- An, X.; Kang, Y.; Li, G. The interaction between chitosan and tannic acid calculated based on the density functional theory. Chem. Phys. 2019, 520, 100–107. [Google Scholar] [CrossRef]
- A Loutfy, S.; Alam El-Din, H.M.; Elberry, M.H.; Allam, N.G.; Hasanin, M.T.M.; Abdellah, A.M. Synthesis, characterization and cytotoxic evaluation of chitosan nanoparticles: In vitro liver cancer model. Adv. Nat. Sci. Nanosci. Nanotechnol. 2016, 7. [Google Scholar] [CrossRef]
- Furtado, G.T.F.D.S.; Fideles, T.B.; Cruz, R.D.C.A.L.; Souza, J.W.D.L.; Barbero, M.A.R.; Fook, M.V.L. Chitosan/NaF Particles Prepared Via Ionotropic Gelation: Evaluation of Particles Size and Morphology. Mater. Res. 2018, 21. [Google Scholar] [CrossRef]
- Çıplak, Z.; Yıldız, N.; Çalimli, A. Investigation of graphene/Ag nanocomposites synthesis parameters for two different synthesis methods. Fuller. Nanotub. Carbon Nanostructures 2015, 23, 361–370. [Google Scholar] [CrossRef]
- Dorozhkin, S. Dissolution mechanism of calcium apatites in acids: A review of literature. World J. Methodol. 2012, 2, 1–17. [Google Scholar] [CrossRef] [PubMed]
- Pistone, A.; Celesti, C.; Piperopoulos, E.; Ashok, D.; Cembran, A.; Tricoli, A.; Nisbet, D.R.; Iannazzo, D. Engineering of Chitosan-Hydroxyapatite-Magnetite Hierarchical Scaffolds for Guided Bone Growth. Materials 2019, 12, 2321. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Yılmaz, P.; Öztürk Er, E.; Bakırdere, S.; Ulgen, K.O.; Özbek, B.; Ÿlgen, K.; Ÿzbek, B. Application of supercritical gel drying method on fabrication of mechanically improved and biologically safe three-component scaffold composed of graphene oxide/chitosan/hydroxyapatite and characterization studies. J. Mater. Res. Technol. 2019, 8, 5201–5216. [Google Scholar] [CrossRef]
- Marcano, D.C.; Kosynkin, D.V.; Berlin, J.M.; Sinitskii, A.; Sun, Z.; Slesarev, A.; Alemany, L.B.; Lu, W.; Tour, J.M. Improved Synthesis of Graphene Oxide. ACS Nano 2010, 4, 4806–4814. [Google Scholar] [CrossRef]
- Mezzetta, A.; Guazzelli, L.; Chiappe, C. Access to cross-linked chitosans by exploiting CO 2 and the double solvent-catalytic effect of ionic liquids. Green Chem. 2017, 19, 1235–1239. [Google Scholar] [CrossRef]
- Bohner, M.; Lemaître, J. Can bioactivity be tested in vitro with SBF solution? Biomaterials 2009, 30, 2175–2179. [Google Scholar] [CrossRef] [Green Version]

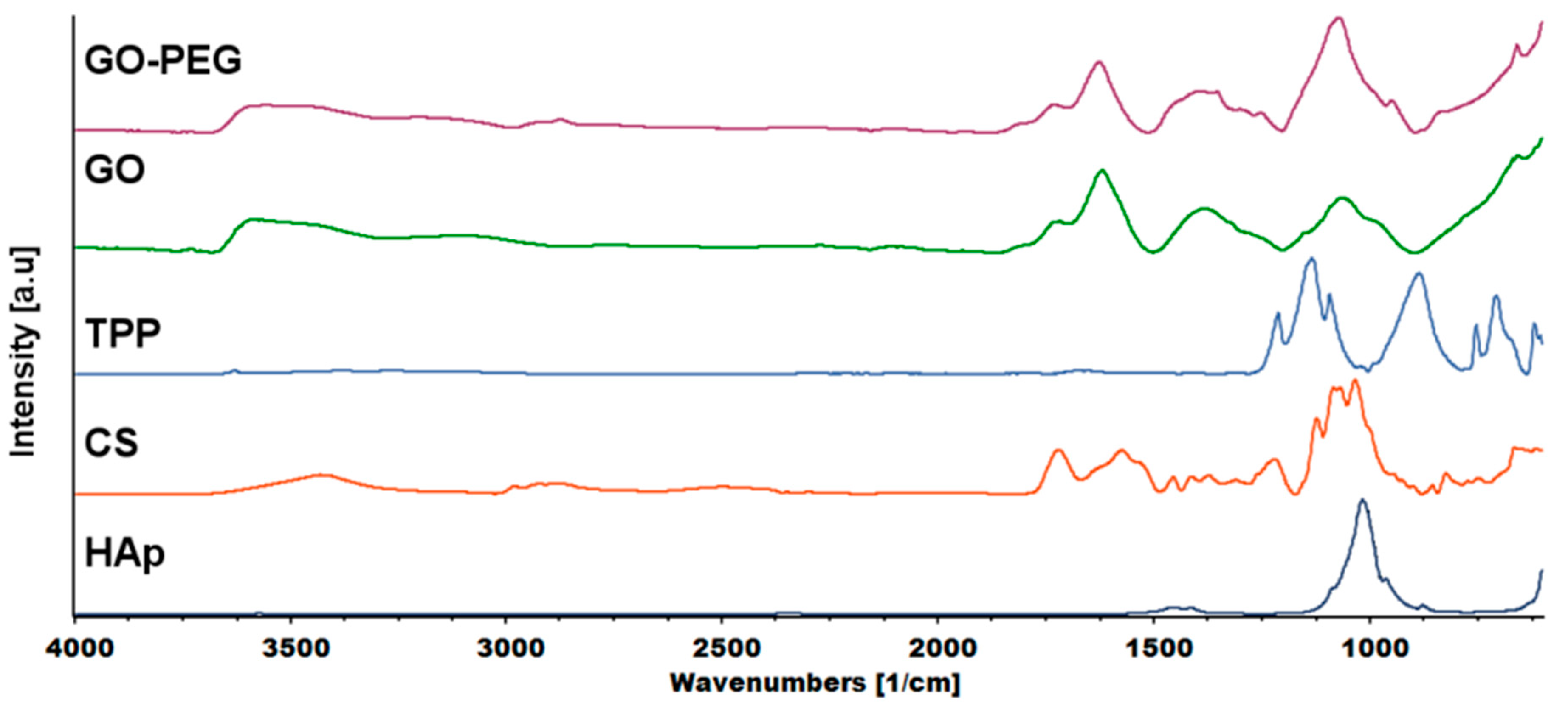

Material | Wavenumber (cm−1) | Assignment |
---|---|---|
Chitosan | ≈3400 | N-H and O-H stretching |
≈2800 | C-H symmetric and asymmetric stretching | |
1719 | C=O stretching in amide I (residual N-acetyl groups) | |
1576 | N-H bending in primary amine | |
1450 | CH2 bending | |
1414 | CH3 symmetrical deformations in amide groups | |
1371 | N-H bending in amide II | |
1219 | OH bending | |
1120 | C-O-C bridge-asymmetric stretching | |
1080 | C-O stretching | |
1070 | ||
1027 | ||
855 | CH bending out of the plane of the ring | |
TPP | 1212 | P=O stretching |
1136 | O-P=O symmetric and asymmetric stretching | |
1090 | PO3 symmetric and asymmetric stretching | |
884 | P-O-P bridge asymmetric stretching | |
HAp | 1015 | P-O asymmetric stretching in PO4 |
TAc | 1702 | C=O stretching |
1443 | -C-Caromatic- stretching | |
1177 | C-O stretching | |
753 | C-C distortion in benzene ring | |
GO | ≈3400 | O-H stretching |
1725 | Carboxyl C=O stretching | |
1626 | C=C skeletal vibrations | |
1391 | C-OH deformation | |
1073 | C-O stretching | |
Hydrogels | ≈3400 | N-H stretching overlapped with O-H stretching |
1632 | N-H bending | |
1534 | N-O-P stretching |
Sample | GO | GO-PEG | rGO | HAp |
---|---|---|---|---|
H0 (ref. CS only) | – | – | – | – |
H1 | 0.5% | – | – | – |
H2 | – | 0.5% | – | – |
H3 | – | – | 0.5% | – |
H4 | 0.5% | – | – | 10% |
H5 | – | 0.5% | – | 10% |
H6 | – | – | 0.5% | 10% |
Attempt | 1st Bath | Time | 2nd Bath | Time |
---|---|---|---|---|
1 | 5% TPP | 2 h | 10% NaOH | 10 min |
2 | 5% TPP | 4 h | 10% NaOH | 10 min |
3 | 5% NaCl + 0.5% TPP | 24 h | – | – |
© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
