Hotspots in Plasmodium and RBC Receptor-Ligand Interactions: Key Pieces for Inhibiting Malarial Parasite Invasion

Abstract

Protein-protein interactions (IPP) play an essential role in practically all biological processes, including those related to microorganism invasion of their host cells. It has been found that a broad repertoire of receptor-ligand interactions takes place in the binding interphase with host cells in malaria, these being vital interactions for successful parasite invasion. Several trials have been conducted for elucidating the molecular interface of interactions between some Plasmodium falciparum and Plasmodium vivax antigens with receptors on erythrocytes and/or reticulocytes. Structural information concerning these complexes is available; however, deeper analysis is required for correlating structural, functional (binding, invasion, and inhibition), and polymorphism data for elucidating new interaction hotspots to which malaria control methods can be directed. This review describes and discusses recent structural and functional details regarding three relevant interactions during erythrocyte invasion: Duffy-binding protein 1 (DBP1)–Duffy antigen receptor for chemokines (DARC); reticulocyte-binding protein homolog 5 (PfRh5)-basigin, and erythrocyte binding antigen 175 (EBA175)-glycophorin A (GPA).

1. Introduction

Malaria is a disease caused by parasites from the phylum Apicomplexa and Plasmodium genus; they are characterized by two types of unique structures within the parasite: the apicoplast (a non-photosynthetic plastid) and the apical complex. The apical complex structure contains two specialized organelles called the rhoptries and the micronemes harboring high protein content needed for carrying out efficient host cell invasion [1].

The five human malaria parasites’ life-cycle is extremely complex and involves two asexual life stages within a human host and a sexual stage within a female Anopheles mosquito. The parasite undergoes a series of synchronized morphological, transcriptional, and protein expression changes (i.e., different proteins are expressed depending on the parasite form), thereby enabling efficient invasion (of two different target cells) and escaping the human immune system [2,3]. Once the first parasite form (called a sporozoite) enters a human host, it reaches the hepatic cells by gliding motility and by cell traversal mechanisms where it uses different proteins to bind receptors on human hepatic cells, thus gaining access to them. The sporozoites divide and become differentiated there to produce hundreds of merozoites, thereby starting the invasion of human erythrocytes (blood or intra-erythrocyte phase) (Figure 1A). The parasites develop repeated cycles of replication, exit, and re-invasion of new erythrocytes during this phase, involving the parasite passing from ring to trophozoite and then to schizont form (Figure 1A). This intra-erythrocyte stage takes 48–72 hours, depending on the Plasmodium species, and gives rise to the disease’s clinical manifestations [4,5]. A small percentage of parasites transform into gametocytes during this stage and are taken up during a blood meal by another feeding Anopheles mosquito (Figure 1).

In contrast to viral and intracellular bacteria invasion, Plasmodium actively invades erythrocytes without having to depend on host cells’ capture routes [6]. Information regarding this process has been obtained from studies on Plasmodium knowlesi and Plasmodium falciparum and has been conceptually divided into four phases (Figure 1B) [7,8,9,10,11,12,13,14]. The first involves initial contact through weak and transitory interactions associated with waves of erythrocyte membrane deformation mediated by merozoite surface proteins’ (MSPs) interaction with erythrocyte surface [15,16]. Erythrocytes become more deformed after binding and, in the second phase, the parasite reorients its apical pole to come into direct contact with the host cell membrane. This is called reorientation and, in P. falciparum, is mediated by the actin-myosin motor and by the early release of erythrocyte-binding antigens (EBAs) from the micronemes and reticulocyte-binding protein homologs (Rhs) from the rhoptries, binding with high affinity to a wide range of host cell receptors [17,18]. Such reorientation results in the formation of a strong pre-tight junction in which the reticulocyte-binding protein homolog 5 (Rh5) protein (only found in P. falciparum and P. reichenowi) becomes translocated to erythrocyte membrane, forming a protein complex with other parasite antigens, to bind to the basigin receptor (CD147) on erythrocytes [19], thereby triggering the release of rhoptry neck (RON) proteins [16]. Such release marks the start of the third phase enabling RON transfer within erythrocyte membranes to initiate tight junction (TJ) formation characterized by a ring-like structure which starts from the parasite’s apical pole and moves progressively towards its posterior end as it enters host cells inside the parasitophorous vacuole (PV) [20]. It has been found that this is mediated by RON protein translocation towards host cell cytosol in Toxoplasma gondii and P. falciparum. RON2 becomes inserted into the cell membrane to act as a receptor for apical membrane antigen 1 (AMA1) protein and this interaction provides a strong anchoring point, enabling successful parasite invasion [21,22]. The fourth phase involves parasite access to host cells where it becomes housed within a PV to begin infection and replication (Figure 1B and Table S1).

As well as the wide repertoire of receptor-ligand interactions taking place, it is worth highlighting macromolecular complex formation between parasite proteins in P. falciparum and in Plasmodium vivax (supported by less evidence in the latter) which could promote interaction with receptors on merozoites (Figure 1B) [23,24,25]. In P. falciparum, the MSP-1-mediated interaction platform has been one of the most widely characterized complexes; it is capable of interacting with MSP6 and MSP7 proteins, the high molecular weight rhoptry protein 3 (RhopH3), rhoptry associated protein 1 (RAP1), RAP2, MSP1DBL1, MSP1DBL2 and a co-ligand complex with MSP9 [23,24]. MSP1 fragments interact with glycophorin A, band 3, and yet-to-be-identified erythrocyte membrane-associated receptors [26,27]. In addition, PfRh5 forms a complex with protective cysteine-rich antigen (CyRPA) and Rh5-interacting protein anchored to parasite surface by the P113 protein via a glycosylphosphatidylinositol (GPI) lipid anchor to interact with the basigin receptor. The TJ is a macromolecular complex consisting of rhoptry neck proteins (RON2-RON4-RON5) and AMA-1 (Figure 1B).

Understanding the molecular mechanisms involved in merozoite binding to and invasion of erythrocytes has been one of the main approaches in basic malaria research aimed at developing drugs and vaccines against this parasitosis [7,8]. Spectroscopic techniques such as nuclear magnetic resonance (NMR), nuclear X-ray crystallography, hydrogen-deuterium exchange mass spectrometry (HDX-MS) and mutational mapping linked to physical techniques such as surface plasmon resonance (SPR) and isothermal titration calorimetry (ITC) have provided detailed information regarding the molecular structure and interaction regions of some key proteins involved in erythrocyte invasion [28,29,30,31,32]. Critical interaction regions between parasite ligands and host cell receptors have been defined from the structures of two of the most important Plasmodium species worldwide: P. falciparum and P. vivax. This has also enabled identifying functional and non-functional epitopes from ligand-neutralizing and/or inhibitory antibody (Ab) complexes [29,30,32,33]. Combining both approaches (receptor-ligand and antigen-antibody) highlights small ligand regions which are critical for parasite invasion, i.e., hotspots; these can be used for the rational design of future vaccines components or treatment against malaria infection.

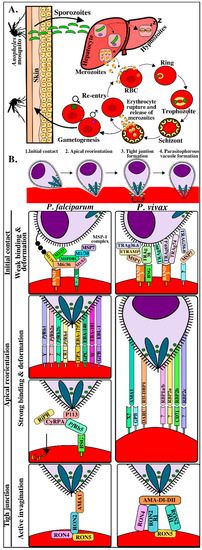

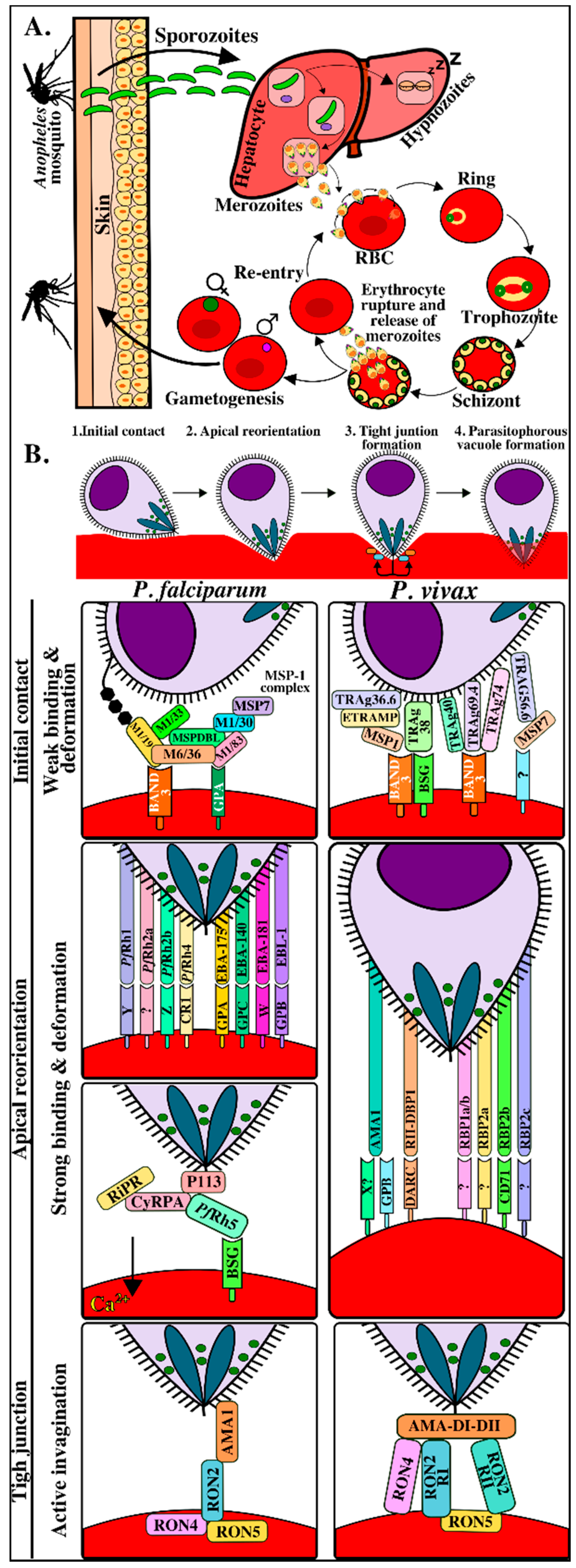

Figure 1. Plasmodium life cycle and erythrocyte invasion interactions. (A). The Plasmodium life-cycle has two phases in its hosts: the asexual phase in humans (vertebrates) and the sexual phase in Anopheles mosquitos (invertebrate). Female Anopheles mosquitos’ bites transmit the parasite in its sporozoite form into host dermis [19]. The inoculated sporozoites migrate through the bloodstream until reaching, invading, and developing within the hepatocytes. Some sporozoites may remain in a latent state within the hepatocytes (hypnozoites) during Plasmodium vivax invasion while others become transformed into a new parasite form called merozoite [34]. Once merozoites are released into circulation, they invade new red blood cells (RBC) and some become gametocytes which can be ingested by other mosquitos during a new bite. The parasite begins its sexual cycle in a mosquito to give rise to new sporozoites that will be transmitted to humans thereby starting the asexual cycle again in a vertebrate host. (B). Molecular events during Plasmodium merozoite invasion of RBC. Initial contact with target cells, merozoite apical pole reorientation to ensure direct contact with host cell membrane and establishing specific high-affinity interactions, tight junction formation acting as an anchor, and creating the parasitophorous vacuole, following parasite gliding motility towards target cells where they replicate, producing 30–50 new merozoites and subsequently following their cycle to invade other RBC [7,35]. M1/19, M1/30, M1/33, M1/83: merozoite surface protein 1–19 kDa, 30 kDa, 33 kDa and 83 kDa fragments, respectively; M6/36: merozoite surface protein 6–36 kDa fragment; MSPDBL: merozoite surface protein Duffy binding-like; MSP7: merozoite surface protein 7; ETRAMP: early transcribed membrane protein; TRAg36.6, TRAg38, TRAg40, TRAg69.4 and TRAg74: Plasmodium tryptophan-rich proteins 36.6, -38, -40, -69.4 or -74; BSG: basigin; ?: yet-unknown receptor; Rh1, Rh2a, Rh2b, Rh4 and Rh5: reticulocyte-binding protein homologues -1, -2, 2a, -2b, -4 and -5; EBA175: erythrocyte binding antigen 175; EBA140: erythrocyte binding antigen 140; EBA181: erythrocyte binding antigen 181; EBL: erythrocyte binding ligand; Y/Z/W: unidentified receptors; CR1: complement receptor 1, GPYA: glycophorin A; GYPB: glycophorin B; GYPC: glycophorin C; Ripr: PfRh5-interacting protein, CyRPA: cysteine-rich protective antigen; AMA1: apical membrane antigen-1, DARC: Duffy antigen receptor for chemokines, RII-DBP1: Duffy binding protein 1 - region II; RBP1a/b: reticulocyte-binding protein 1a/b; RBP2a: reticulocyte-binding protein 2a; RBP2c: reticulocyte-binding protein 2c; CD71: transferrin receptor 1; RON2: rhoptry neck protein 2; RON4: rhoptry neck protein 4; RON5: rhoptry neck protein 5; AMA1 DI-II: apical membrane antigen-1 domain I-II; RON2 RI: rhoptry neck protein 2 - region I; RON2 RII: rhoptry neck protein 2 - region II.

Figure 1. Plasmodium life cycle and erythrocyte invasion interactions. (A). The Plasmodium life-cycle has two phases in its hosts: the asexual phase in humans (vertebrates) and the sexual phase in Anopheles mosquitos (invertebrate). Female Anopheles mosquitos’ bites transmit the parasite in its sporozoite form into host dermis [19]. The inoculated sporozoites migrate through the bloodstream until reaching, invading, and developing within the hepatocytes. Some sporozoites may remain in a latent state within the hepatocytes (hypnozoites) during Plasmodium vivax invasion while others become transformed into a new parasite form called merozoite [34]. Once merozoites are released into circulation, they invade new red blood cells (RBC) and some become gametocytes which can be ingested by other mosquitos during a new bite. The parasite begins its sexual cycle in a mosquito to give rise to new sporozoites that will be transmitted to humans thereby starting the asexual cycle again in a vertebrate host. (B). Molecular events during Plasmodium merozoite invasion of RBC. Initial contact with target cells, merozoite apical pole reorientation to ensure direct contact with host cell membrane and establishing specific high-affinity interactions, tight junction formation acting as an anchor, and creating the parasitophorous vacuole, following parasite gliding motility towards target cells where they replicate, producing 30–50 new merozoites and subsequently following their cycle to invade other RBC [7,35]. M1/19, M1/30, M1/33, M1/83: merozoite surface protein 1–19 kDa, 30 kDa, 33 kDa and 83 kDa fragments, respectively; M6/36: merozoite surface protein 6–36 kDa fragment; MSPDBL: merozoite surface protein Duffy binding-like; MSP7: merozoite surface protein 7; ETRAMP: early transcribed membrane protein; TRAg36.6, TRAg38, TRAg40, TRAg69.4 and TRAg74: Plasmodium tryptophan-rich proteins 36.6, -38, -40, -69.4 or -74; BSG: basigin; ?: yet-unknown receptor; Rh1, Rh2a, Rh2b, Rh4 and Rh5: reticulocyte-binding protein homologues -1, -2, 2a, -2b, -4 and -5; EBA175: erythrocyte binding antigen 175; EBA140: erythrocyte binding antigen 140; EBA181: erythrocyte binding antigen 181; EBL: erythrocyte binding ligand; Y/Z/W: unidentified receptors; CR1: complement receptor 1, GPYA: glycophorin A; GYPB: glycophorin B; GYPC: glycophorin C; Ripr: PfRh5-interacting protein, CyRPA: cysteine-rich protective antigen; AMA1: apical membrane antigen-1, DARC: Duffy antigen receptor for chemokines, RII-DBP1: Duffy binding protein 1 - region II; RBP1a/b: reticulocyte-binding protein 1a/b; RBP2a: reticulocyte-binding protein 2a; RBP2c: reticulocyte-binding protein 2c; CD71: transferrin receptor 1; RON2: rhoptry neck protein 2; RON4: rhoptry neck protein 4; RON5: rhoptry neck protein 5; AMA1 DI-II: apical membrane antigen-1 domain I-II; RON2 RI: rhoptry neck protein 2 - region I; RON2 RII: rhoptry neck protein 2 - region II.

2. Plasmodium vivax and Its Main Receptor-Ligand Interaction

P. vivax is the second most important malaria-causing species worldwide after P. falciparum [36]. This parasite species has tropism for stage I-III reticulocytes expressing two surface receptors during the blood stage: Duffy antigen receptor for chemokines (DARC) and transferrin receptor 1 (TfR-1 or CD71) [37,38]. DARC was the first receptor identified for P. vivax invasion via its specific interaction with Duffy-binding protein 1 (DBP1) [39]. Although there are discrepancies regarding whether DARC-DBP1 interaction is completely required for invasion (mainly due to reports showing that Duffy-negative individuals have been diagnosed with P. vivax infection throughout Africa) [40], such interaction has undoubtedly been the most and best studied in P. vivax.

DBP1 is a protein member of the erythrocyte binding-like (EBL) superfamily found in species such as P. falciparum and P. knowlesi [41]. The members of this family contain one or two Duffy binding-like (DBL) cysteine-rich (region II) extracellular domains, a second extracellular cysteine-rich domain (region VI), a transmembrane domain and a short cytoplasmatic domain (Figure 2A). Initial studies have led to conclude that the amino acid (aa) sequence from residue 198 to 522 (called RII) is responsible for the specific interaction with DARC [42,43]. RII-DBP1 becomes gradually coupled to DARC to create a stable heterotetramer consisting of two DBP molecules and two DARC molecules [29,44].

It is clear that RII-DBP1 can induce a natural human immune response (meaning that DBP1 is recognized by a host’s immune system during natural infection) and that the heterotetramer’s interaction interface is a neutralizing Ab response target [28,29,45]. This complex has high polymorphism (one of the main immune response evasion mechanisms), several having been found in RII-DBP1. Analyzing this region’s genetic diversity in P. vivax field isolates from geographically remote areas, such as Papua New Guinea, South Korea, Colombia, Brazil, and Thailand, has confirmed high RII-DBP1 polymorphism, but highly conserved cysteine residues [46,47,48]. Such analysis has revealed that RII-DBP1 has around 127 polymorphic sites, resulting in 193 haplotypes [49] having a ten-fold higher substitution rate than the rest of the molecule (i.e., such regions tend to fix more nucleotide changes than other regions) [50,51]. Interestingly, aa substitutions at D³⁸⁴G, K³⁸⁶(N/Q), N⁴¹⁷K, L⁴²⁴I, W⁴³⁷R, and I⁵⁰³K were found in Papua New Guinean and Colombian isolates, showing that many similar alleles are widely distributed among P. vivax from different geographical areas [46,52]. Although it has been suggested that polymorphisms in RII-DBP1 do not significantly alter host-parasite binding, some of them alter immune recognition of DBP1 [53]. Consequently, the polymorphic nature of DBP1, particularly RII-DBP1, represents a serious problem negating this antigen’s use as an essential molecule in a vaccine against P. vivax. Functional analysis of reticulocyte binding, together with identifying epitopes eliciting broadly neutralizing Abs (bnAbs), correlated at a structural level, has exposed some other regions (analyzed below in this review) which could become alternate hotspots contributing towards the rational design of DBP-based vaccines and therapies. This would overcome the inconvenience of having a ten-fold higher substitution rate, bearing in mind that DBP1 is the most clinically representative and advanced P. vivax blood-stage antigen.

RII-DBP1 is an elongated boomerang-shaped molecule having an antiparallel β-hairpin turn close to the N-terminus. This region consists of three subdomains stabilized by intra-subdomain disulfide bridges. Subdomain 1 (SD1) consists of residues ²¹¹N–L²⁵³ and has two intra-subdomain disulfide bridges: ²¹⁷C–C²⁴⁶ and ²³⁰C–C²³⁷. Subdomain 2 (SD2) consists of residues ²⁷¹Y–E³⁸⁶ and has an intra-subdomain disulfide bridge (³⁰⁰C–C³⁷⁷) while subdomain 3 (SD3) consists of residues ³⁸⁷P–S⁵⁰⁸ and has three disulfide bridges: ⁴¹⁵C–C⁴³², ⁴²⁷C–C⁵⁰⁷ and ⁴³⁶C–C⁵⁰⁵ [29] (Figure 2A and Figure 3). NMR, X-ray crystallography and ITC have determined that the RII-DBP1 region for binding to DARC consists of residues 256-426 covering the whole of SD2 and has all the dimerization components required for engaging a putative sulfotyrosine (⁴¹Tyr) on DARC, ²⁷³K and ³⁵⁶Q being critical residues in the DARC-binding pocket [44,54]. ²⁷⁰L-K²⁸⁹, ³⁵⁶Q-K³⁶⁷, and ²⁶¹F-T²⁶⁶ have been defined as critical RII-DBP1 residues directly contacting the DARC receptor (Figure 2B and Figure 3A–C) [41]. Such information provides this interaction’s molecular components and mechanistic role, thus expanding biological knowledge regarding receptor-ligand interactions in P. vivax.

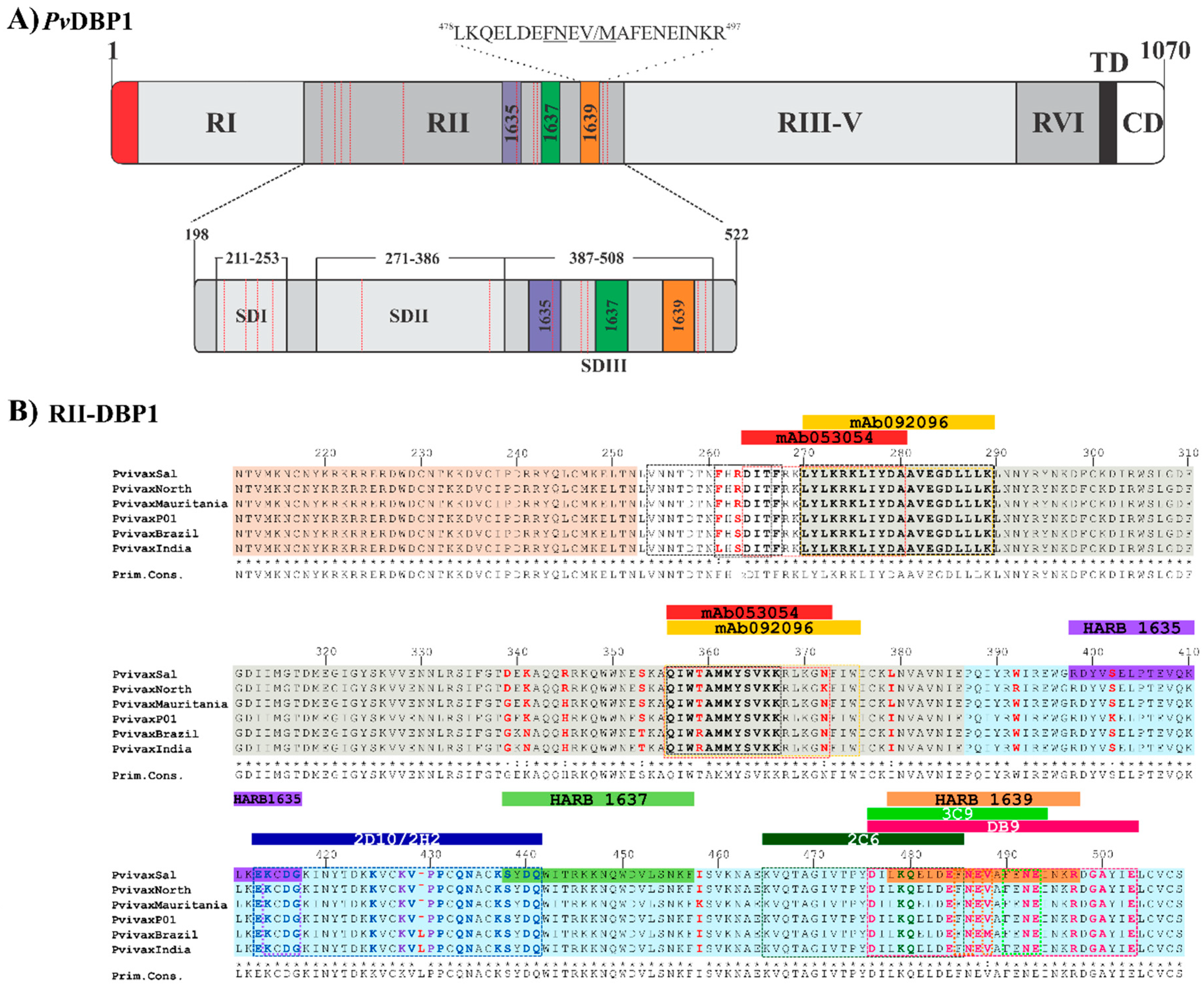

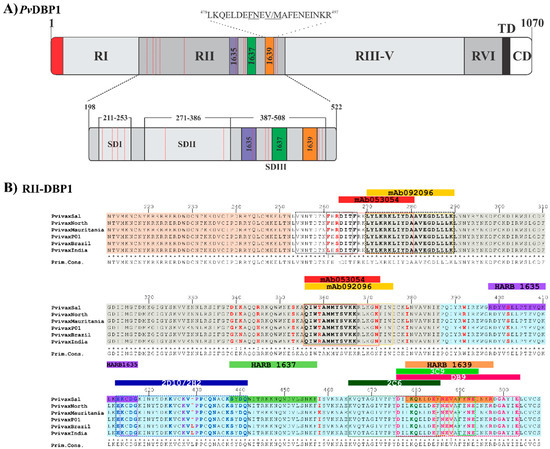

Figure 2. DBP1 representation. (A) Schematic representation of DBP1 primary structure showing each region’s length and representing the three HARBPs located in SD3. HARBP 1639 aa sequence is shown. The highlighted residues are critical binding residues. The red dotted lines indicate the location of the Cys involved in disulfide bridges. RI (region I), RII (region 2), RIII-V (region 3 to region 5), RVI (region 6), TM (transmembrane domain), CD (cytoplasmic domain) [42,43]. (B) Alignment of RII-DBP1 from the main P. vivax strains having different geographical locations. RII-DBP1 subdomains: S1 ²¹¹N-L²⁵³ (pink), S2 ²⁷¹Y-E³⁸⁶ (gray), ³⁸⁷S3-P-S⁵⁰⁸ (cyan). DBP1 residues involved in binding to DARC: RII-DBP1 ²⁶¹F – T²⁶⁶, ²⁷⁰L – K²⁸⁹, and ³⁵⁶Q – K³⁶⁷ (The primary DARC binding interface) and ²⁵⁴V-F²⁶⁷ (secondary DARC binding interface) (black box) highlighting the critical contact residues [29,44]. Amino acid composition variations are highlighted in red. mAb 053054: ²⁶⁴D-A²⁸¹, ³⁵⁶Q-N³⁷² (red box) and 092,096 epitopes: ²⁴⁹E, ²⁷⁰L-K²⁸⁹ and ³⁵⁶Q-W³⁷⁵ (yellow box) overlapping in SD2 [28]. mAb 2D10 and 2H2 epitopes (blue box), highlighting critical contact residues (2D10-blue and 2H2-dark purple) [50]. mAb 2C6 epitope: ²⁶⁵K – F⁴⁸⁶ (dark green box), highlighting critical contact residues. mAb DB9 epitope: ⁴⁷⁶D – E⁵⁰³ (magenta box), highlighting critical contact residues [33]. mAb 3C9 epitope: ⁴⁷⁶D – E⁴⁹³ (green box), highlighting critical contact residues [55] HARBPs 1635: ³⁹⁸R – G⁴¹⁷ (purple), 1637: ⁴³⁸S – F⁴⁵⁷ (light green) and 1639: ⁴⁷⁸L –R⁴⁹⁷ (apricot) located in neutralizing epitopes’ SD3 region [56]. HARB 1639 critical binding residues matching mAb 3C9 are highlighted (arrows). HARBPs: high activity reticulocyte binding peptides. mAbs: monoclonal antibodies. Cys: cysteine.

Figure 2. DBP1 representation. (A) Schematic representation of DBP1 primary structure showing each region’s length and representing the three HARBPs located in SD3. HARBP 1639 aa sequence is shown. The highlighted residues are critical binding residues. The red dotted lines indicate the location of the Cys involved in disulfide bridges. RI (region I), RII (region 2), RIII-V (region 3 to region 5), RVI (region 6), TM (transmembrane domain), CD (cytoplasmic domain) [42,43]. (B) Alignment of RII-DBP1 from the main P. vivax strains having different geographical locations. RII-DBP1 subdomains: S1 ²¹¹N-L²⁵³ (pink), S2 ²⁷¹Y-E³⁸⁶ (gray), ³⁸⁷S3-P-S⁵⁰⁸ (cyan). DBP1 residues involved in binding to DARC: RII-DBP1 ²⁶¹F – T²⁶⁶, ²⁷⁰L – K²⁸⁹, and ³⁵⁶Q – K³⁶⁷ (The primary DARC binding interface) and ²⁵⁴V-F²⁶⁷ (secondary DARC binding interface) (black box) highlighting the critical contact residues [29,44]. Amino acid composition variations are highlighted in red. mAb 053054: ²⁶⁴D-A²⁸¹, ³⁵⁶Q-N³⁷² (red box) and 092,096 epitopes: ²⁴⁹E, ²⁷⁰L-K²⁸⁹ and ³⁵⁶Q-W³⁷⁵ (yellow box) overlapping in SD2 [28]. mAb 2D10 and 2H2 epitopes (blue box), highlighting critical contact residues (2D10-blue and 2H2-dark purple) [50]. mAb 2C6 epitope: ²⁶⁵K – F⁴⁸⁶ (dark green box), highlighting critical contact residues. mAb DB9 epitope: ⁴⁷⁶D – E⁵⁰³ (magenta box), highlighting critical contact residues [33]. mAb 3C9 epitope: ⁴⁷⁶D – E⁴⁹³ (green box), highlighting critical contact residues [55] HARBPs 1635: ³⁹⁸R – G⁴¹⁷ (purple), 1637: ⁴³⁸S – F⁴⁵⁷ (light green) and 1639: ⁴⁷⁸L –R⁴⁹⁷ (apricot) located in neutralizing epitopes’ SD3 region [56]. HARB 1639 critical binding residues matching mAb 3C9 are highlighted (arrows). HARBPs: high activity reticulocyte binding peptides. mAbs: monoclonal antibodies. Cys: cysteine.

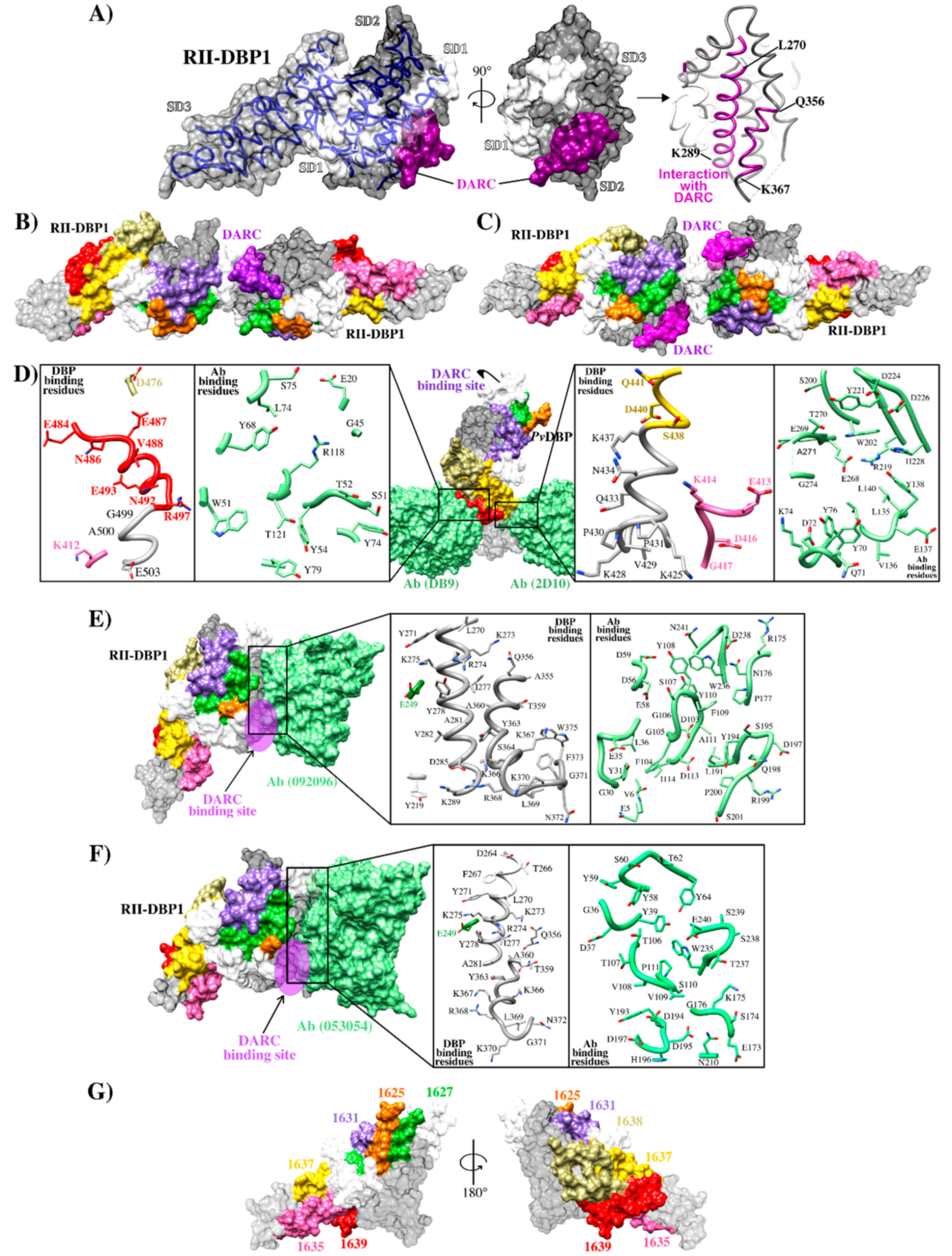

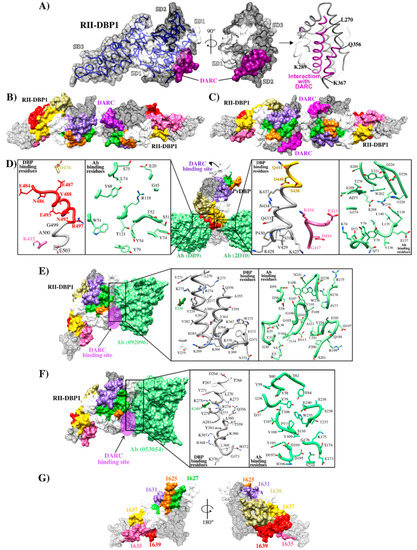

Figure 3. RII-DBP1 structure and its interaction with DARC (A) RII-DBP1, showing its three subdomains (SD1, SD2 and SD3) and the DARC binding region [42,43]; (B) RII-DBP1 two-ligand heterotrimer structure and a monomer from the DARC receptor; (C) RII-DBP1:DARC heterotetramer structure reconstructed from PDB 3RRC, 4NUU, 4NUV, 5F3J, 6OAN, 6OAO and 6R2S [28,29,33,44,57];.(D) RII-DBP1 contact points with mAb DB9-2D10, zooming in on interacting residues highlighting HARBPs: 1635 (pink), 1637 (yellow), and 1639 (red) (PDB 6R2S and 5F3J) [33,57]; (E) DBP1/DARC points of contact with mAb 053054, zooming in on interacting residues (PBD 6OAN) [28]; (F) DBP1-DARC contact points with mAb 092096, zooming in on interacting residues (PDB6OAO) [28]; (G) RII-DBP1 including HARBPs 1625 (orange), 1627 (green), 1631 (blue), 1635 (pink), 1637 (yellow) and 1639 (red) [56].

Figure 3. RII-DBP1 structure and its interaction with DARC (A) RII-DBP1, showing its three subdomains (SD1, SD2 and SD3) and the DARC binding region [42,43]; (B) RII-DBP1 two-ligand heterotrimer structure and a monomer from the DARC receptor; (C) RII-DBP1:DARC heterotetramer structure reconstructed from PDB 3RRC, 4NUU, 4NUV, 5F3J, 6OAN, 6OAO and 6R2S [28,29,33,44,57];.(D) RII-DBP1 contact points with mAb DB9-2D10, zooming in on interacting residues highlighting HARBPs: 1635 (pink), 1637 (yellow), and 1639 (red) (PDB 6R2S and 5F3J) [33,57]; (E) DBP1/DARC points of contact with mAb 053054, zooming in on interacting residues (PBD 6OAN) [28]; (F) DBP1-DARC contact points with mAb 092096, zooming in on interacting residues (PDB6OAO) [28]; (G) RII-DBP1 including HARBPs 1625 (orange), 1627 (green), 1631 (blue), 1635 (pink), 1637 (yellow) and 1639 (red) [56].

Biophysical studies have shown that a non-sulfated DARC construct functionally binds to and is capable of inducing RII-DBP1 dimerization [44], suggesting that regions outside of the sulfotyrosine residues play an important role in binding interaction. Interestingly, it has been identified that DBP1 SD2 is characterized by having mainly polymorphic residues grouped around DARC dimerization and binding interphase in modeled RII-DBP1 structure [58]. It has been observed that nucleotide diversity within RII-DBP1 was universally highest in a region matching a previously identified inhibitory epitope (termed the DEK epitope) when examining nucleotide diversity patterns regarding individual geographical locations [50]. SD3, located at the opposite end of SD1-SD2, had very low nucleotide diversity in all populations [58]. Attention must thus be paid to regions having low substitution rates which could reduce strain specificity. Researchers have thus focused their efforts on producing Abs blocking receptor-ligand interactions or elucidating the structural bases defining the neutralization mechanisms of naturally acquired Abs or those induced by vaccination [50,57].

Ntumngia et al., produced monoclonal Abs (mAb) targeting the RII-DBP1 region capable of blocking RII-DBP1 binding to human erythrocytes [50]. Such Abs called 3C9, 2D10, 2H2 and 2C6 targeted a region located in SD3 (Figure 2B and Figure 3D) [50,55]. Ab 2D10 specifically recognized a conformational epitope between residues 413–417 and 425–441. Studies involving small-angle X-ray scattering (SAXS), HDX-MS, and ELISA ascertained that Ab 2H2 shared overlapping binding regions on DBP1 with Ab 2D10 (Figure 2B and Figure 3D). Ab 2C6 recognized an epitope located between residues 465–485. Interestingly, the epitopes recognized by these mAbs occurred in a highly conserved region [57]. Although these Abs were not directly targeting DBP1-DARC interaction interface, it has been suggested that their mechanism of action would be steric hindrance preventing RII-DBP1 approaching erythrocyte surface [33].

Studies orientated towards mapping specific DBP1 reticulocyte binding regions have found that seven conserved and semi-conserved peptides obtained by solid-phase peptide synthesis and identified by serial numbering (called high activity reticulocyte binding peptides - HARBPs) specifically interacted with reticulocyte surface [56]. Interestingly, several of them were located in regions different to those involved in DBP1 dimerization and DARC binding, suggesting that other DBP1 regions mediate interaction with reticulocytes and that they could be considered when designing vaccines against species. Three HARBPs, 1635 (semi-conserved) (aa 398–417), 1637 (conserved) (aa 438–457), and 1639 (semi-conserved) (aa 478–497) (Figure 3G), formed part of the regions recognizing binding-neutralizing Abs 2D10, 3C9, 2H2, and 2C6. HARBPs 1635 and 1639 inhibited recombinant protein RII-DBP1 binding to human reticulocytes, showing that the Abs’ inhibition mechanism could be due more to receptor-ligand blocking than steric hindrance. Replacing each aa in HARBP 1639 by glycine showed that residues ⁴⁸⁵F, ⁴⁸⁶N (conserved amongst strains), and ⁴⁸⁸V were critical to reticulocyte binding and coincided with critical Ab 3C9 contact residues and partially with Ab 2C6 contact region (Figure 2B and Figure 3D). Studies regarding enzyme treatment of human erythrocytes and peptide-receptor cross-linking have ascertained have HARBP 1639 interacted with a chymotrypsin treatment-resistant receptor of around 40 kDa that did not coincide with the DARC binding profile (sensitive to chymotrypsin treatment) [56].

Recent studies have emphasized the theory that P. vivax could have alternative invasion routes due to their ability to invade DARC-negative erythrocytes [59,60]. However, it has still not been elucidated whether using alternative routes could be mediated by other parasite proteins or DBP1. Genomic analysis has reported that DBP1 duplication has occurred more frequently in patients from Madagascar (DARC-negative) compared to other regions, suggesting increased DBP1 production as a compensatory mechanism for binding to other receptors on the membrane [61]. Although such statements are controversial, analyzing DBP1 erythrocyte binding regions that did not coincide with DARC binding regions and Abs blocking such binding have revealed other DBP1 regions involved in adhesion.

Reviewing P. vivax vaccine candidate development has shown that RII-DBP1-based vaccines have progressed through Phase I clinical trials (

Table 1. Plasmodium vivax blood stage malaria vaccine candidates.

Vaccine Candidate	Development Phase	Antigen	Formulation	Ref
PvDBPII-DEKnull	Pre-clinical	DBP1	Rec. protein- adjuvant	[66]
PvMSP119	Pre-clinical	PvMSP1	Rec. protein-Montanide ISA720	[67,68]
ChAd63-PvAMA1/MVA-PvAMA1	Pre-clinical	PvAMA1	Prime boost, viral vectors	[69]
PvAMA1	Pre-clinical	PvAMA1	Rec. protein-adjuvant	[70]
ChAd63-PvDBPII/MVA-PvDBPII	Clinical Phase Ia	DBP1	Prime boost, viral vectors	[63]
PvDBPII/GLA-SE	Clinical Phase Ia	DBP1	Rec. protein-GLA-SE	[62]
PvDBPII/Matrix M1	Clinical Phase I/IIa	DBP1	Rec. protein-adjuvant	N.A.

Rec. protein: Recombinant protein; N.A.: Not available.

). Abs against RII-DBP1 were obtained in some cases which were maintained for more than 100 days following the three immunization doses and had pronounced DBP1-DARC binding inhibiting capability [62,63]. It has been reported that vaccination with this antigen has induced a strain-transcending Ab response and blocked receptor binding by different DBP1 allele variants [62]. DBP1 antigenicity studies have shown that high, naturally-acquired Ab titers can block RII-DBP1-DARC interaction in vitro and are associated with a reduced risk P. vivax infection [64,65]. Although Ab induced by a natural immune response and vaccination might differ, detailed analysis of epitopes recognized by Abs induced by both mechanisms which can block DBP1-DARC interaction (sometimes with different DBP1 allele variants) could reveal hotspots on which future intervention points should be focused. This information, combined with receptor-ligand interaction studies, represents an essential complement for highlighting interesting regions in P. vivax ligands.

In line with this idea, human-derived neutralizing mAbs produced by sorting individual RII-DBP1 specific B-cells from a Cambodian patient with naturally acquired immunity has revealed that mAbs 053.054 and 092.096 could prevent binding between RII-DBP1 and the N-terminus of DARC receptor and neutralize P. vivax invasion ex vivo [28]. Structural and HDX epitope-mapping data has demonstrated that the 053.054 epitope spans residues ²⁴⁹E, ²⁶⁴D, ²⁸¹A, and ³⁵⁶Q, ³⁷²N of helices in SD2 [28]. These are key residues in the DARC binding interface where ²⁶⁴D is directly in contact with DARC and ³⁵⁶Q forms part of the DARC sulfotyrosine binding pocket [29,44]. The epitope recognized by mAb 053.054 overlapped the epitope for 092.096, consisting of ²¹⁹Y, ²⁴⁹E, ²⁷⁰L–K²⁸⁹, and ³⁵⁶Q–W³⁷⁵ (Figure 3E,F).

Cloning studies of a panel of Abs from volunteers immunized with RII-DBP1 revealed markedly strain-dependent differences in anti-RII-DBP1 mAb potency. Only one of the ten mAbs evaluated (DB9) inhibited invasion by 65–90% in ten of the eleven P. vivax isolates [33]. This Ab induced powerful inhibition of P. knowlesi transgenic growth in inhibition assays and inhibited the binding of all five RII-DBP1 variant alleles to DARC. The DB9 epitope was contained in SD3 (Figure 2B), which is one of the domain’s most conserved regions; however, this sequence was distant from the DBP1-DARC contact and dimerization site and recognized residues ⁴⁷⁷D, ⁴⁸⁵E, ⁴⁸⁷N, ⁴⁸⁸E, ⁴⁸⁹V, ⁴⁹³N, ⁴⁹⁴E, ⁴⁹⁸R, ⁴⁹⁹G, ⁵⁰⁰A, and ⁵⁰⁴E (Figure 3D). It overlapped the whole HARPB 1639 sequence and the epitopes recognized by mAb 3C9 and 2C6 [50,56]. This hotspot (located in SD3 between residues 476–500) is a promising target considering that it contains regions specifically interacting with reticulocytes, mAbs targeting it can highly inhibit parasite entry to and interaction with reticulocytes, and has fewer polymorphic changes than SD2 [28,33,56,58]. It has been reported that Abs targeting epitopes in this subdomain can inhibit erythrocyte binding by different RII-DBP1 allele variants [55].

3. Plasmodium falciparum: A Thousand and One Invasion Routes

P. falciparum is the most important malaria-producing species worldwide and has been the most widely studied of the five species infecting humans [71]. Transcriptional studies have shown that around 50–60 genes encoding proteins that might mediate erythrocyte invasion are over-expressed in schizonts compared to other parasite forms, such as rings and trophozoites [3]. Research groups have thus focused their efforts on identifying, characterizing, and functionally evaluating P. falciparum antigens located on this species’ membrane and apical organelles and their participation in establishing interactions with receptors on erythrocyte membrane [71,72,73]. It has thus been established that initial interactions between the parasite and erythrocytes are mediated by the MSP-1 protein complex [7,23]. Such interaction leads to strong erythrocyte deformation and merozoite reorientation mediated by different invasion routes in which EBA and Rh family ligands participate. Depending on receptor availability, P. falciparum will express a combination of EBAs or Rhs for interacting with target cells; the interaction between EBA-175-glycophorin A (GPA) is however the preferential P. falciparum invasion route (Figure 1) [19,74,75]. This is followed by ternary complex formation between PfRh5 and CyRPA and Ripr interacting with the BSG receptor on erythrocytes, thereby initiating the rhoptry release stage and pre-TJ formation facilitating RON2 complex (RON2, 4 and 5) insertion into erythrocyte surface [25,76,77]. The RON2 complex thus acts as AMA1 receptor giving rise to the TJ formation which slides as the parasite accesses host cells. Structural evidence is crucial for finding the key intervention points in such complex and coordinated invasions.

Previous studies have shown that the structural elucidation of internal P. falciparum therapeutic targets could also open up another focus for exploration. For example, studies combining the search for P. falciparum 20S proteasome-specific inhibitors with high-resolution structural determination of the 20S proteasome by cryo-EM has provided valuable information that can be used to assist in designing improved proteasome inhibitors to be developed as next-generation antimalarial drugs [78]. Taking such interesting results into account regarding the advance of new antimalarial drugs, adopting the same strategy with ligands and receptors involved in the different steps of erythrocyte invasion could highlight new regions of vaccine interest. Although each step is essential, elucidating the structural relationships/interactions between PfRh5-BSG and EBA-175-GPA has aroused great functional interest.

3.1. The Essential Interaction: PfRh5-Basigin

P. falciparum reticulocyte-binding protein homolog 5 (PfRh5) is a prominent blood-stage antigen which is solely expressed in the subgenus Laverania and is an exceptional member of the Rh family as it is the only PfRh gene where attempts at knock-out have not been successful [79]. It has a low molecular weight, lacks transmembrane domains and Abs targeting this protein can neutralize a wide range of laboratory strains adapted in culture and P. falciparum clinical isolates [79]. Such a characteristic, added to limited genetic polymorphism concerning multiple P. falciparum laboratory strains and geographic isolates regarding other candidates has led to a significant amount of research on this protein in the field of antimalarial vaccines [80,81,82]. Although few studies have involved using clinical isolates, previous Pfrh5 genetic diversity studies using isolates from Nigeria and Mali have coincided by confirming that Pfrh5 was highly conserved in a setting where other vaccine antigens had extensive polymorphism [83,84]

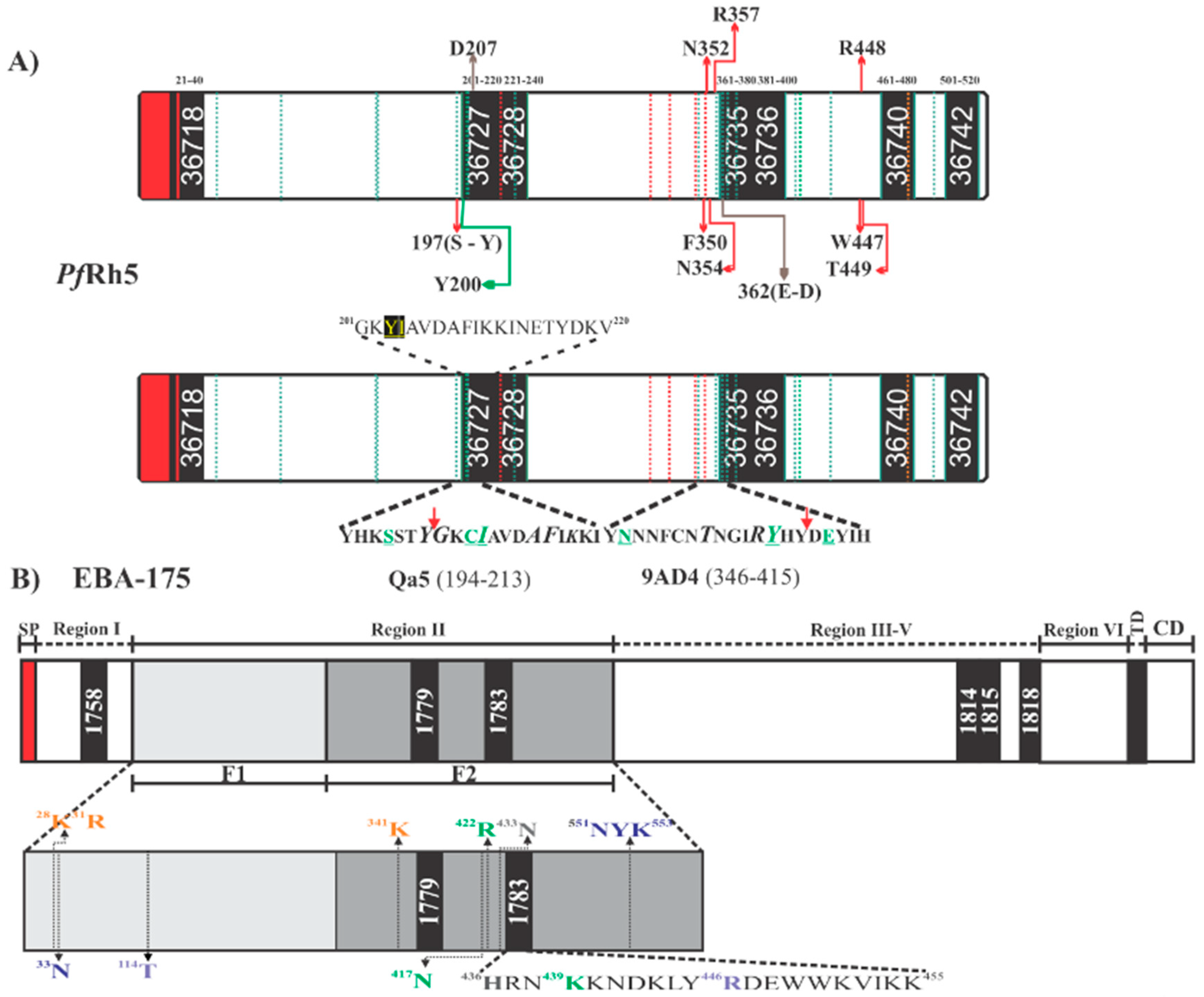

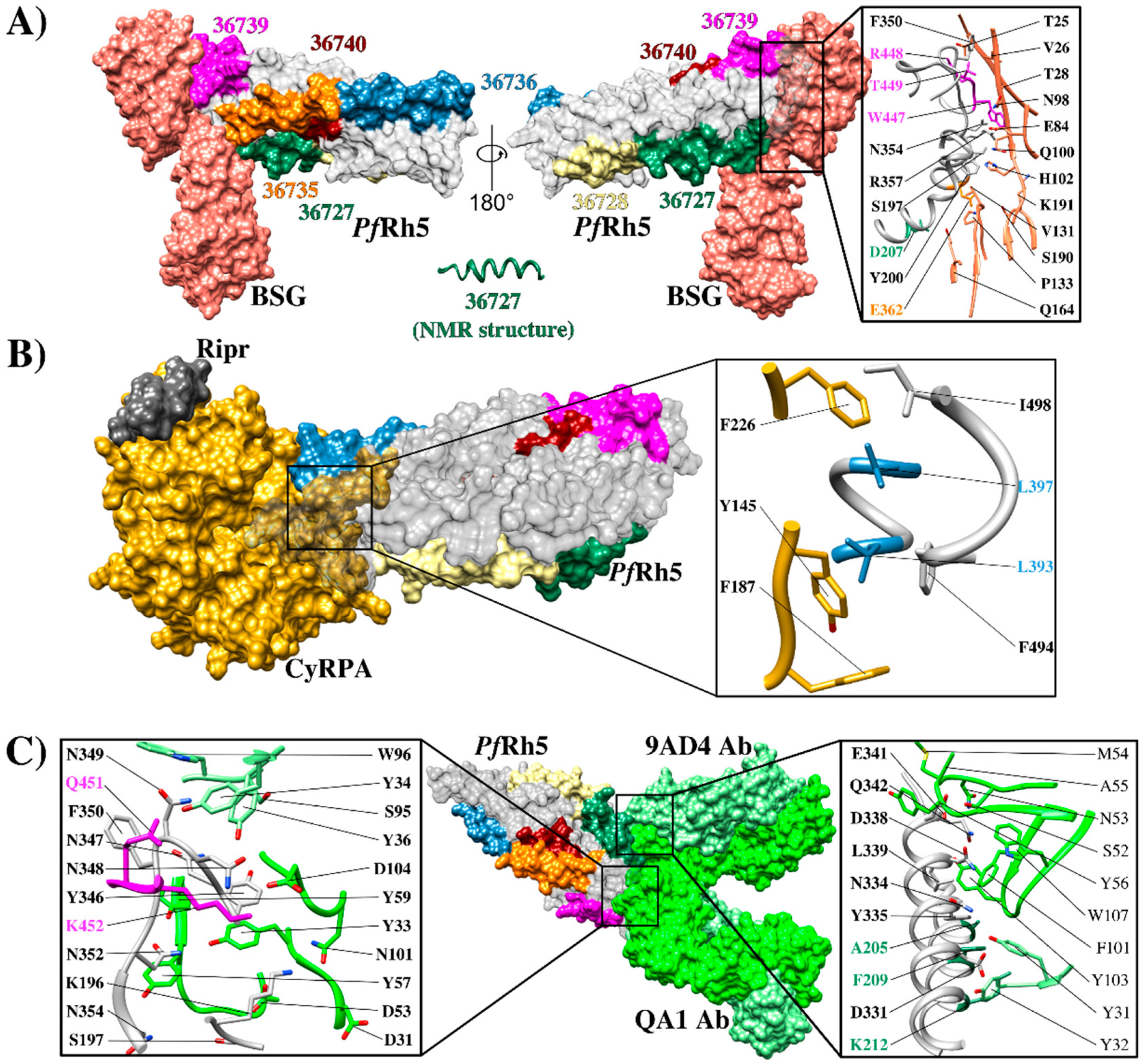

Crystallographic studies have shown that PfRh5 (residues 140–526 lacking 248–296) (Figure 4A) has a flat rigid structure constituted by two domains, each mainly formed by three helices. The N-terminal domain starts with a short β-sheet, followed by a short α-helix and two large α-helices connected by a truncated loop, while the C-terminal domain is formed by three large α-helices covering the domain’s whole length. There are five cysteines (Cys) throughout its structure; the loop joining the structure’s two domains is stabilized by a disulfide bond (³⁴⁵C-C³⁵¹), while another disulfide bond (²²⁴C-C³¹⁷) joins the second and third helices in the N-terminal domain, leaving a non-bonded Cys (³²⁹C) (Figure 5A) [74].

PfRh5 is located in rhoptry necks and is released on merozoite surface to interact (via its N-terminus) with the P113 protein (GPI-anchored to the parasite surface); PfRh5 interacts also with the soluble Cyrpa protein through its C-terminus, and Cyrpa interacts also with RipR [76,85]. This PfRh5-mediated protein complex binds to BSG on erythrocyte membrane (Figure 5A) [74,79,86]. BSG is a glycoprotein belonging to the immunoglobulin superfamily. It has two extracellular immunoglobulin domains, a transmembrane region consisting of 23 highly conserved aa, a cytoplasmatic region, and three N-glycosylations [19,87]. These glycosylations do not affect PfRh5 binding, indicating that this protein’s binding site is only located in the BSG protein core.

BSG and PfRh5 binding studies have managed to define the hotspots extending between residue ¹⁹⁷S and ⁴⁴⁹T in PfRh5 and various contact sites with the amino-terminal domain, C-terminal, and the residue linker ¹⁰²H in BSG (Figure 4A). This receptor binds to the tip of PfRh5, having a 1,350 Ų contact area where PfRh5 residues ³⁵⁰F and ⁴⁴⁷W stabilize the interaction by packing into hydrophobic pockets on BSG. Interestingly, most SNPs identified in Rh5 have been distributed throughout the protein’s structure; however, they have not affected BSG contact residues [74]. By contrast, some single nucleotide polymorphisms (SNPs) have been associated with an increase in some strains’ ability to invade Aotus erythrocytes. Some of them (²⁰⁴I, ³⁴⁷N, ³⁵⁸Y, and ³⁶²E) are in or close to the BSG binding site and may affect host tropism [88].

Along with structural evidence, fine mapping of PfRh5 erythrocyte hotspots has led to ascertaining that seven 20 residue-long peptides (called high activity binding peptides - HABPs) specifically interact and have a sub-micromolar affinity with erythrocyte surface. Such HABPs have been located throughout PfRh5: 36718 (²¹N-T⁴⁰), 36727 (²⁰¹G-V²²⁰), 36728 (²²¹K-H²⁴⁰), 36735 (³⁶¹D-L³⁸⁰), 36736 (³⁸¹S-K⁴⁰⁰), 36740 (⁴⁶¹D-Y⁴⁸⁰) and 36742 (⁵⁰¹L-K⁵²⁰) (Figure 4A,B) (33). Some HABP 36727 and 36735 residues overlapped previously reported BSG-PfRh5 contact residues (Figure 4A and Figure 5A), i.e., HABP 36727 residue ²⁰⁷D and HABP 36735 ³⁶²E/D (Figure 4A and Figure 5A). HABP 36727, having the polymorphic Cys in position 203 replaced by tyrosine, was the only HABP capable of inhibiting invasion by two P. falciparum strains (50–80%) [89].

Developing anti-PfRh5 mAbs for exploring this protein’s importance during invasion (Figure 5C) and its interaction with BSG have led to inconsistent results, i.e., mAbs’ ability to block the PfRh5-BSG interaction has not correlated with their ability to neutralize and inhibit parasite invasion in some cases. For example, mAb 9AD4 could not inhibit PfRh5 interaction with its receptor but it was able to neutralize parasite entry to erythrocytes by 70% (3D7 and FVO strains) [32,74]. Mapping epitopes for mAb 9AD4 showed that this mAb recognized the peptide located between residues ³⁴⁶YNNNFCNTNGIRYHYDEYIH³⁶⁴, partially overlapping HABP 36735 (Figure 4A). However, structural analysis has shown that this mAb also contacts PfRh5 helices 2 and 3 where residues ²⁰⁵A, ²⁰⁹F, and ²¹²K are located [19], which form part of HABP 36727; this HABP displayed marked ability to block invasion [88]. Despite not having found a relationship between interaction blocking and functional blocking, it is evident that the region in semi-conserved HABP 36727 (²⁰³C/Y) is a hotspot regarding intervention against P. falciparum. Interestingly, it has been found that a single change in this HABP’s aa (position ²⁰⁴K/I) has modified the peptide’s 3D structure, thereby resulting in a loss of specific binding to human RBC and its inhibition ability, while binding to Aotus RBC has remained unmodified [74,89].

It has been found that mAbs QA1 (38% parasite neutralization), QA5 (63%), and 6BF10 (30%), produced in mice by immunizing with PfRh5, were capable of blocking BSG interaction [32]. mAb QA1 recognized a conformational epitope directly overlapping the BSG N-terminal domain binding site (Figure 5C) [30,32]. Despite this, inhibition percentages were relatively low compared to those for mAb 9AD4. QA5 inhibitory Ab recognized a linear epitope between residues ¹⁹⁴YHKSSTYGKCIAVDAFIKKI²¹³ overlapping HABP 36727 (underlined), leading to the conclusion that regions or Abs targeting HABP 36727 amino-terminal region are essential for parasite entry regardless of their strong interaction or lack of interaction with BSG (Figure 4A).

Interestingly, Alanine et al., [30] identified two highly neutralizing mAbs (R5.016 and R5.004) against different P. falciparum strains, from a panel of mAbs against PfRh5, isolated from the phase I clinical trial of a PfRh5-based vaccine [63]. However, although both Abs having EC₅₀ values comparable to the most potent anti-merozoite mouse-derived mAbs described to date [32], only Ab R5.004 was able to block basigin interaction. mAb R5.016 (the most potent antibody) could not block interaction with PfRh5-basigin, PfRh5-Cyrpa, or PfRh5-P113. HDX-MS confirmed that R5.004 competes for binding with QA1 and R5.016 with 9AD4. It has been seen that mAb R5.004 has bound PfRh5 towards the tip of the kite-like structure, contacting helix 4 N-terminus and each of the three loops joining the converging helices at this PfRh5 vertex. mAb R5.016 has a binding site in PfRh5 helix 2 N-terminal domain, suggesting that while simultaneous binding is possible, R5.004 binds to a specific epitope having some overlap with that of QA1 and that R5.016 proximity to the BSG binding site could form a steric hindrance mechanism, similar to that speculated for Ab 9AD4 [30].

Growth inhibition tests (GIA) have shown mAb R5.011’s synergistic effect which, despite not having individually neutralizing properties, can boost functional Abs targeting PfRh5 invasion complex antigens and other targets, such as PfRh4 and PfAMA1, suggesting a new strategy for designing anti-P. falciparum vaccines [30]. However, such results require deeper analysis to enable understanding of the molecular mechanism’s inhibition ability.

It should be considered that PfRh5’s functional role does not just limit its interaction with BSG; biochemical studies have found that PfRh5 is tethered to parasite surface by direct interaction via its amino-terminal extreme (a linear sequence of 19 aa (⁹K-K²⁷) with membrane-anchored protein P113 [85]. PfRh5 also forms a ternary complex with PfRh5-interacting protein (PfRipr) and cysteine-rich protective antigen (CyRPA) (Figure 5B) [25,76,90,91]. Cryogenic electron microscopy (CryoEM) and biochemical binding studies have found that PfRh5 is positioned parallel to erythrocyte membrane and that the complex becomes disassembled after binding to BSG and CyRPA (binding to both Rh5 and Ripr). CyRPA becomes excluded from the membrane, while PfRh5 and Ripr become inserted into it [76], thereby enabling successful merozoite invasion and pore formation on RBC membrane facilitating Ca²⁺ entry to erythroid cells (28). Abs targeting this ternary complex inhibit merozoite invasion, thereby confirming its importance during invasion [90].

It has been found that CyRPA has a monomer 6-bladed β-propeller structure, having four intra-sheet disulfide bonds and one inter-sheet disulfide bond and interacts with Ripr by N-terminal six-stranded β-sheets and PfRh5 by C-terminal four- and five-stranded β-sheets [76,92,93]. mAb binding to CyRPA is important for characterizing the interaction with PfRh5. mAb 8A7 has been found to bind to the first and second β-sheets of CyRPA [92] and mAb C12 to the second and third β-sheets [93]. These two block PfRh5-CyRPA binding but do not overlap the binding epitopes, suggesting that they act by steric hindrance. However, it has been shown that Abs produced during a clinical trial of a PfRh5-based vaccine blocking PfRh5-Cyrpa interaction were unable to block merozoite entry to erythrocytes [30]. Although this does not rule out the importance of Abs targeting Cyrpa, it does emphasize PfRh5 protein relevance in this protein complex since Abs targeting PfRh5-basigin contact sites and having greater relevance than those targeting HABP 36727 and its neighboring regions, were able to inhibit invasion by up to 70%.

3.2. The Main Route: EBA-175-Glycophorin A

EBA-175 protein has been the best-characterized member of the EBL family [12]. It is a transmembrane type 1 protein located in merozoite apical pole micronemes [94] and consists of ~1,505 residues, having a 175 kDa molecular weight. The structure is distributed according to that shared by EBL family members, having a signal sequence followed by six regions (RI–RVI). RII and RVI have highly conserved Cys regions. RII has two DBL domains including the receptor-binding domain and is divided into regions F1 and F2. These six regions are followed by a transmembrane region keeping it anchored to merozoite membrane and a small cytoplasmatic tail (Figure 4B). EBA-175 binds to the host receptor glycophorin A (GPA) (Figure 4B and Figure 6B) [95,96] which is resistant to enzyme treatment with chymotrypsin and susceptible to neuraminidase (cleaves sialic acid ligated to glycophorin’s oligosaccharide α-chains) [97,98,99,100]. The EBA-175-GPA interaction has a well-defined role in anchoring the parasite during erythrocyte invasion moving from merozoite apical end to their posterior end. EBA-175 becomes shed from the parasite surface into the surrounding media during the last steps of invasion [96,101]. EBA-175 alters RBC membrane rigidity and triggers cell signaling to facilitate invasion [94,102].

GPA was the first P. falciparum receptor identified in RBC. It is the transmembrane protein expressed with the greatest abundance on the RBC membrane (1 × 10⁶ copies per cell) [32]. It consists of 150 aa (72 in the extracellular domain, followed by 23 in the transmembrane domain, and 36 in the intracellular domain) and has N-glucoside chain in the ²⁶N residue [97]. EBA-175 binding to GPA is mediated by Cys-rich RII formed by DBL domains F1 (residues 8–282) and F2 (residues 297–603) (Figure 4B) [95,96]. EBA-175’s F2 domain has received major attention as the region has been shown to bind erythrocytes independently of F1 by contributing to two-third of the residues forming EBA-175 dimer channels [95]. Abs against PfEBA F2 can effectively alter merozoite erythrocyte binding affinity. The RII structure having glycan α-2,3-sialyllactose has been co-crystallized for identifying the EBA-175/GPA interaction site. This glycan contains Neu5Ac(α2,3)-Gal which is required for ligand binding [95], thereby enabling EBA-175 RII recombinant protein to be resolved in a homodimer in which two RII molecules are arranged anti-parallel and interact in a handshake-like manner (Figure 6A). The homodimer center contains two channels; most residues forming the channel’s surface belong to the dimer’s two F2 domains. The dimer’s interface contains six glycan-binding sites, four located inside the channel, and two exposed in a cavity on the external surface. All six glycans contact residues from both RII monomers (Figure 6B–D), indicating that EBA-175 dimerization is biologically important for receptor binding and RBC invasion [95,97,100].

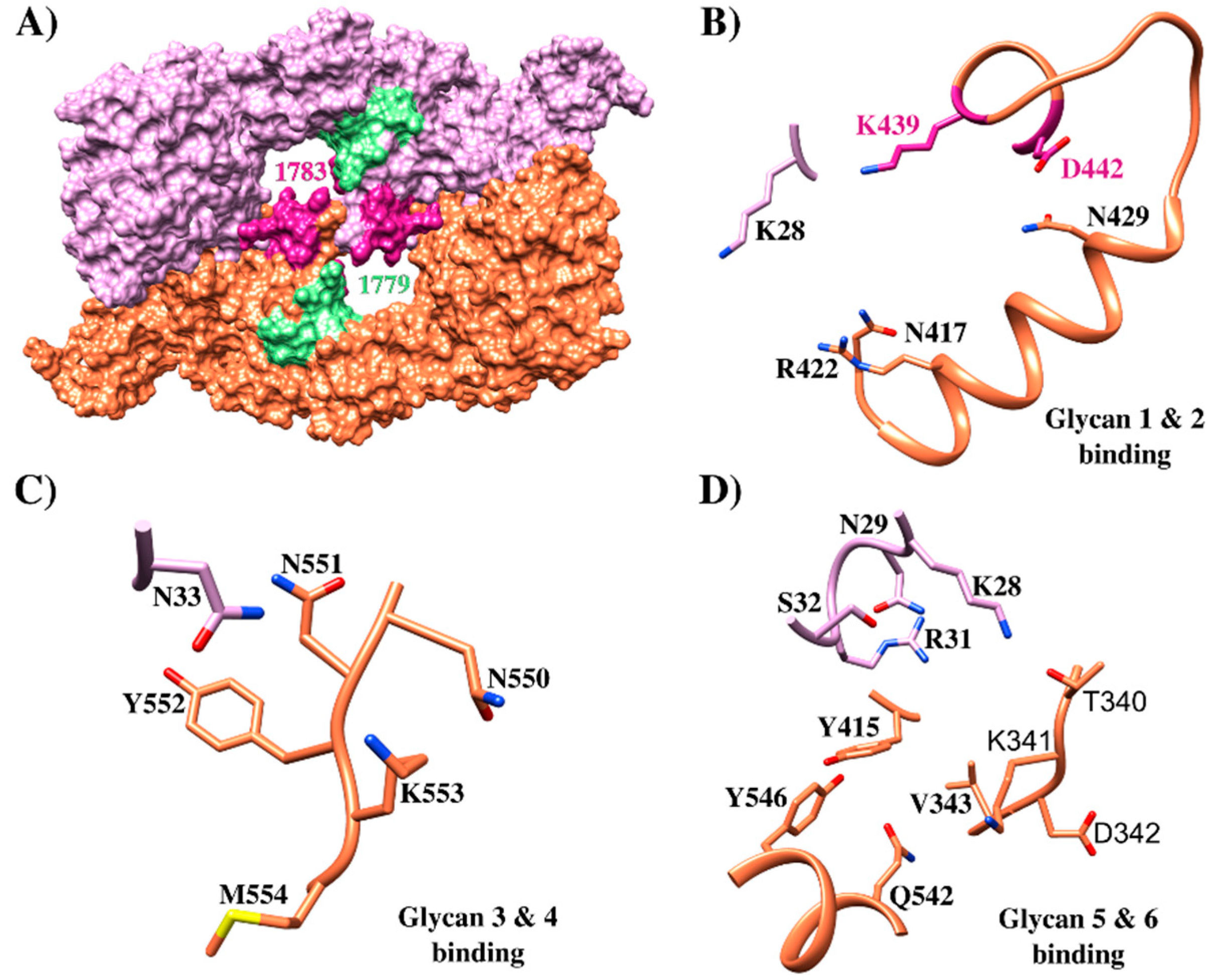

Mutagenesis studies have evaluated residues involved in dimer interactions and glycan-binding. When residue ⁴⁴⁶R (forming a direct salt bridge as well as a water-mediated interaction between monomers) was mutated, EBA175 binding to erythrocyte became reduced. Moreover, steric disruption of interactions with ¹¹⁴T (forming van der Waals interactions with ³³⁸L and ³⁴⁰T side chains) by mutation to phenylalanine (T¹¹⁴F) led to reduced binding efficiency. ⁴¹⁷N, ⁴²²R, and ⁴³⁹K mutation led to reduced binding (i.e., residues involved in interaction with glycans 1 and 2) while ³³N, ⁵⁵¹N, ⁵⁵²Y, and ⁵⁵³K mutation (involved in interaction with glycans 3 and 4) reduced binding to different extents. ²⁸K, ³¹R, and ³⁴¹K (interacting with glycans 5 and 6) also resulted in varying degrees of reduced binding (Figure 6) [95]. The GPA regions contacting EBA-175 involve sialic acids in the GPA mucin domain, preferentially Neu5Ac(α2-)Gal(Neu5Ac(α-2,6)Gal) on O-linked tetrasaccharides encoded by exon 3. The triple glycan mutant, missing three glycans otherwise attached to ⁶⁶Ser, ⁶⁹Ser, and ⁷²Thr, did not bind to EBA-175 RII at all, showing that the three GPA polypeptide fragment glycans encoded by exon 3 are critical for EBA-175 high-avidity binding to GPA on erythrocytes [98,100,103]. Conversely, other studies including flow cytometry and ELISA analysis have provided evidence that the EBA-175 ligand may also bind to desialylated GPA by engaging a region III and IV 21 aa fragment (aa 1076–1096) [104,105]. Peptides comprising aa 1085–1096 contain the erythrocyte binding site and have strongly inhibited parasite invasion [105]. It has been hypothesized that EBA-175 takes part in the second step of two-step erythrocyte binding to explain the presence of other regions [97]. Moreover, RII binding to GPA and Neu5Ac(2–3)Gal showed similar affinity, whereas the full-length EBA-175 ectodomain bound GPA with two-fold higher affinity than glycan alone [31]. These results argued that other EBA-175 extracellular regions outside RII also are involved in interactions with target cells.

However, it should also be considered that RII is highly polymorphic, strong evidence has been advanced for it being under immune selection, thus maintaining genetic diversity in parasite populations [106]. Analyzing genetic variation for identifying the type of selection to which the eba-175 gene is submitted in three African populations has shown excess intermediate frequency polymorphisms consistent with a hypothesis of balancing selection [107]. Structural analysis, combined with modified calculation of Tajima’s D test, has shown that a large part of the F1 domain appears to be under balancing selection, as is a surface loop in the F2 domain (residues ⁴³²S - N⁴⁴²). The region with the highest calculated spatiality (Tajima’s D test values) was contained within the RII F1 domain, predominantly consisting of residues ²⁶⁶E-D²⁸⁹, ³¹⁴P-Q³²², and ³⁸²L-L⁴⁰⁰ [108]. It has been well established that the gene encoding EBA-175 has a highly divergent dimorphic segment of sequences in region III. The first was detected in the FCR3 strain, called the F loop (342 bp insertion), and the second was identified in the CAMP strain, called the C loop (423 bp insertion) [109]. F/C segment relevance is not well known but parts of them have been shown to vary amongst natural parasite populations in Africa [110,111]. This might explain the lack of association with protective immunity in cohort studies which would depend on the allele type used for detecting Ab responses, posing a major hurdle to its consideration as an effective vaccine candidate. EBA-175 RIII–V-specific Abs have also been associated with protection from symptomatic malaria [112]. Moreover, a previous study has shown that immunization with recombinant RIII–V induces Abs potently inhibiting merozoite invasion [105]. Testing Abs raised against two EBA-175 RIII-V dimorphic alleles indicated that dimorphic region III contributed little to vaccine-induced immunity and conserved RIV-V contained inhibitory Abs’ predominant epitopes [105].

Six HABPs distributed throughout the whole of EBA-175 were identified when it was synthesized in sequential 20 non-overlapping aa peptides (Figure 4B). Peptide 1758 (⁸⁰K-N⁹⁹) was located in RI for which no binding activity has been reported before, peptides 1779 (³⁵⁶N-I³⁷⁵) and 1783 (⁴³⁶H-K⁴⁵⁵) were located in RII (sub-region denoted as 5’Cys F2) previously reported as being a binding region and 1815 (¹²²⁰Y-H¹²³⁹) and 1818 (¹²⁸⁰N-L¹²⁹⁹) were located in RIV (Figure 4B and Figure 5A). In-depth analysis showed that ⁴³⁶H enabled dimerization with a contralateral ⁴³⁵V (both residues contained in HABP 1783) in an inverted EBA-175 molecule, forming a handshake-like structure. Residues ⁴³⁹K and ⁴⁴²D bound glycophorin A glycan 5 Neu5Ac1 via H-bonds. HABP 1783 ⁴⁵⁰W has also induced fold stabilization at this site in the same RII and contained critical residue ⁴⁴⁶R establishing a salt bridge with ³⁰D, thereby dramatically reducing RBC binding when ⁴⁴⁶R is mutated (Figure 4B and Figure 6) [95,113,114].

Similarly, HABP 1779 has been localized close to glycan 5 and 6 binding sites in the F1 region (Figure 6D) but did not interact directly with them [99,100], HABP 1815 (Y¹²²⁰-H¹²³⁹) has been seen to contain a conserved sequence in all EBL molecules in RV, whereas HABP 1818 RV residues R¹²⁵⁸ and F¹²⁶⁵ bound to mediate EBA-175 traffic from merozoite micronemes to their membrane [114,115]. HABP 1818 has been located close to rhomboid protease 4 cleavage site enabling EBA-175 release during invasion for parasitophorous vacuole (PV) formation [114]. All small pieces of peptides covering the whole protein take part in relevant functions during invasion, such as binding, traffic, and cleavage site.

It has been shown that anti-EBA-175 RII Abs have potently blocked native EBA-175 binding to erythrocytes and even inhibited P. falciparum strain invasion of erythrocytes by pathways that do not require sialic acid for invasion in vitro [116,117] EBA-175 RII function has been evaluated by creating panels of mAbs derived from animal models. mAbs R215, R217, and R256 are specific and compete for the F2 RII domain, potently blocking EBA-175 binding to RBCs and merozoite invasion of RBC. However, mAb R217 had 100-fold lower IC₅₀ than R218 against parasites in culture. Structure determination has revealed that this mAb targeted a conformational epitope containing residues 475–485 and 561–567 overlapping the dimer interface and glycan-binding residues. mAb R216 has recognized F2 to a reduced extent but could not effectively block EBA-175 binding to RBC; mAb R218 has recognized the F1 domain, managing to inhibit parasite growth in a less efficient manner than F2-specific Abs [118].

All these known results for EBA-175 highlight the correlation between the interaction interface involving HABP 1783 and neutralizing epitopes. However, such analysis must be enriched with Abs produced upon immunization with other EBA-175 regions having limited polymorphism, such as the conserved RIV-V region where predominant inhibitory Ab epitopes have been reported [105]. It cannot be ruled out that regions outside RII could be strongly involved in RBC interaction [119]. Studies involving synthetic peptides have shown that three of them located in regions IV and V (Figure 4B) interact strongly with RBC.

4. Conclusions

P. falciparum and P. vivax have multiple, complex RBC invasion routes mediated by specific receptor-ligand interactions. Elucidating and combining functional studies with structural ones enables contributing to the development of prophylactic and/or therapeutic measures helping to mitigate malaria, a disease posing a drastic worldwide public health problem. The proteins analyzed in this review impose great challenges for studying them in-depth due to their complexity concerning their high polymorphism (DBP1 and EBA175) or participation in molecular complex formation (PfRh5). Analyzing these important proteins has revealed hotspots (small regions) which might be converted into important intervention points, i.e., DBP1 HARPB 1639 located in SD3, PfRh5 HABP 36727 located in a different site than that for contact with its main BSG receptor and HABP 1783 located in the EBA-175’s F2 region, directly contacting GPA. However, it should be stressed regarding EBA-175 that the search should also be directed towards other regions, such as IV and V (having functional evidence of binding), for resolving the high level of polymorphism detected in region II.
