The Gas-Phase Formation Mechanism of Dibenzofuran (DBF), Dibenzothiophene (DBT), and Carbazole (CA) from Benzofuran (BF), Benzothiophene (BT), and Indole (IN) with Cyclopentadienyl Radical

by
Xuan Li
1,†,
Yixiang Gao
1,†,
Chenpeng Zuo
1,2,
Siyuan Zheng
1,
Fei Xu
1,2,*,
Yanhui Sun
3 and
Qingzhu Zhang
1
1
Environment Research Institute, Shandong University, Qingdao 266237, China
2
Shenzhen Research Institute, Shandong University, Shenzhen 518057, China
3
College of Environment and Safety Engineering, Qingdao University of Science & Technology, Qingdao 266042, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this article.
Int. J. Mol. Sci. 2019, 20(21), 5420; https://doi.org/10.3390/ijms20215420
Submission received: 11 August 2019 / Revised: 28 October 2019 / Accepted: 28 October 2019 / Published: 31 October 2019
(This article belongs to the Section Materials Science)
Browse Figures
Versions Notes

Abstract

:
Benzofuran (BF), benzothiophene (BT), indole (IN), dibenzofuran (DBF), dibenzothiophene (DBT), and carbazole (CA) are typical heterocyclic aromatic compounds (NSO-HETs), which can coexist with polycyclic aromatic hydrocarbons (PAHs) in combustion and pyrolysis conditions. In this work, quantum chemical calculations were carried out to investigate the formation of DBF, DBT, and CA from the reactions of BF, BT, and IN with a cyclopentadienyl radical (CPDyl) by using the hybrid density functional theory (DFT) at the MPWB1K/6-311+G(3df,2p)//MPWB1K/6-31+G(d,p) level. The rate constants of crucial elementary steps were deduced over 600−1200 K, using canonical variational transition state theory with a small-curvature tunneling contribution (CVT/SCT). This paper showed that the production of DBF, DBT, and CA from the reactions of BF, BT, and IN with CPDyl involved six elementary steps: the addition reaction, ring closure, the first H shift, C–C cleavage, the second H shift, and elimination of CH3 or H. The cleavage of the C–C bond was regarded as the rate-determining step for each pathway due to the extremely high barrier. The 1-methyl substituted products were more easily formed than the 4-methyl substituted products. The main products were DBF and 1-methyl-DBF, DBT and 1-methyl-DBT, and CA and 1-methyl-CA for reactions of BF, BT, and IN with CPDyl, respectively. The ranking of DBF, DBT, and CA formation potential was as follows: DBT and methyl-DBT formation > DBF and methyl-DBF formation > CA, and methyl-CA formation. Comparison with the reaction of naphthalene with CPDyl indicated that the reactions of CPDyl attacking a benzene ring and a furan/thiophene/pyrrole ring could be inferred to be comparable under high temperature conditions.

Graphical Abstract

1. Introduction

Polycyclic aromatic compounds (PACs), including polycyclic aromatic hydrocarbons (PAHs) and heterocyclic aromatic compounds (NSO-HETs), have become a considerable threat to the environment and human health because of their acute toxicity, mutagenicity, photoinduced toxicity, and carcinogenic potential [1,2]. The emissions of PAHs are often associated with releases of NSO-HETs, which have been reported to comprise up to 10% and 40% of the total PAH emissions in tar-oil or coal tar and its water-soluble fraction, respectively [3,4,5,6].
Benzofuran (BF), benzothiophene (BT), indole (IN), dibenzofuran (DBF), dibenzothiophene (DBT), and carbazole (CA) are typical NSO-HETs, which are composed of a benzene ring and a furan/thiophene/pyrrole ring. Furan/thiophene/pyrrole rings are five-membered ring in which the heteroatoms have at least one pair of non-binding valence shell electrons. BF, BT, and IN (benzo-NSO-HETs) include one benzene ring and one heterocyclic five-membered ring; DBF, DBT, and CA (dibenzo-NSO-HETs) consist of two benzene rings fused together on either side of a furan/thiophene/pyrrole ring, respectively. They have been found to be toxic and mutagenic [7]. DBF has been used as an insecticide, a component in heat-transfer oils, and a carrier for dyeing and printing textiles [8,9]. DBT is an important intermediate in the production of cosmetics and pharmaceuticals, and a model compound in the hydrodesulfurization reaction for diesel oil. CA has been widely used in insecticides, explosives, dyes, reagents, lubricants, and detergents [10,11,12], and in the pharmaceutical industry to treat encephalopathy, cardiopathy, hepatopathy, and arteriosclerosis [10,13]. Dibenzo-NSO-HETs are widely found in creosote, coal tar, and crude oils, as well as in some high temperature processes of waste incineration, tobacco smoke, aluminum manufacturing, forest fire, rubber, petroleum, fossil fuel, and coal and wood combustion [7,14,15,16,17,18], and always coexist with other aromatic compounds, such as PAHs and benzo-NSO-HETs [15,19,20,21,22,23,24,25]. Wikstrom reported that a high concentration of DBF was measured in artificial municipal solid waste fuel, and that the concentration of DBF (19,800 ng/nm3) was 100–1000 times and 10–100 times higher than that of PCDFs before and after the convector section, respectively [26]. DBF (190−210 ng/g), DBT (190 ng/g), and CA (1.5–1.6 ng/g) were detected by Ishikawa in nine types of industrial wastes and their pyrolytic decomposition products [19]. Gu reported that the concentration of DBT was 50−100 times higher than that of DBT in coal pyrolysis, where the highest concentration was found at 500−600 °C [27]. Methyl-DBF, methyl-DBT, and methyl-CA can be widely detected along with DBF, DBT, and CA in sediment, ground water, oil fuel, and other thermal process [1,28,29,30,31,32,33]. For example, DBT and 18 alkyl homologs were detected in coastal sediments in Qatar, and the concentration of alkylated DBT was 10−50 times than that of DBT [29]. Three isomers of methyl-DBT (1-methyl-DBT, 2 or 3-metyl-DBT, and 4-methyl-DBT), were identified by Rebbert in crude oil, in which 4-methyl-DBT was the obtained with the highest precision at a concentration of 33.9 µg/g [28].
Recently, several studies have revealed a considerably stronger relationship of dibenzo-NSO-HET and benzo-NSO-HET mass concentrations or isomer distributions in thermal processes. For example, Dartiguelongue found that DBT thermal cracking led to the formation of BT, phenyl-DBT, and other sulfur-containing molecules under isothermal pyrolysis conditions (375−500 °C) [27]. Sobkowiak reported a linear correlation between fuel phenol concentration with IN and CA in fuel-improved thermal oxidation under 1000 °C [21]. The formation enthalpies of 4-methylbenzofuran + naphthalene → dibenzofuran + toluene and 4-methylbenzofuran + anthracene → dibenzofuran + 1-methylnaphthalene were calculated at G3(MP2)//B3LYP to be −22.5 and −21.1 Kj/mol by Freitas at the fusion and combustion temperatures, respectively [22]. The cyclopentadienyl radical (C5H5, CPDyl) is among the most abundant radicals formed during the combustion and pyrolysis of many hydrocarbons [34,35,36,37,38]. Winkler studied the gas-phase pyrolysis of heterocyclic compounds in the flow pyrolysis and annulation reactions of some sulfur heterocycles, and found that DBF was produced from the reaction of BF with C4H2 above 850 °C [22]. Xing focused on the release behavior of thiophenic sulfur compounds during coal pyrolysis, and obtained levels of benzothiophene and dibenzothiophene during pyrolysis at temperatures ranging from 200 °C to 1300 °C, with the peak values reached at 800 °C. The amount of benzothiophene and dibenzothiophene released was much higher at a rapid pyrolysis rate than at a medium heating rate [22].
The CPDyl radical can be produced in high-temperature conditions by pyrolysis or unimolecular decomposition reactions of cyclopentadiene (C5H6) → C5H5 + H, phenoxy radical (C6H5O) → C5H5 + CO and acetylene (C2H2) + propargyl radical (C3H3) → C5H5. The experimental rate constants of C5H6 → C5H5 + H and C6H5O → C5H5 + CO are 2.3 × 101 s−1 and 2.5 × 103 s−1, respectively [19,34,35,36,39,40,41,42,43,44]. Among many potential precursors for aromatic growth, CPDyl is considered to be important in the formation and growth of PAHs, because it is neutral, ambidentally reactive at different sites, and has the ability of self-recombination [19,34,35,36,39,40,41,42,43,44]. Our recent studies proposed a detailed PAH growth mechanism from the reaction of naphthalene with CPDyl, followed by conversion of five-membered rings to six-membered rings, and found that the formation potential of bend products was larger than that of linear products [45]. Considering the structure and property similarities of dibenzo-NSO-HETs and benzo-NSO-HETs, and the coexistence of dibenzo-NSO-HETs and benzo-NSO-HETs with PAHs, the formation pathways of dibenzo-NSO-HETs from benzo-NSO-HETs with CPDyl were inferred to be similar to the growth mechanisms of PAH with CPDyl, where the five-membered ring of CPDyl can convert to a benzene ring followed by the addition reaction to benzo-NSO-HETs. As far as we know, there is no information available on dibenzo-NSO-HET formation mechanisms from benzo-NSO-HETs with the CPDyl radical.
Due to the high toxicity of dibenzo-NSO-HETs and the lack of efficient detection methods for intermediate radicals, the detailed formation mechanism of dibenzo-NSO-HETs from benzo-NSO-HETs with CPDyl has not been completely elucidated. Quantum chemical calculations can be widely used to predict favorable reaction pathways and elucidate the yield of the products, and theoretical modeling allows direct contact with the highly toxic compounds to be avoided. In this study, we present an overall density functional theory (DFT) study of dibenzofuran (DBF), dibenzothiophene (DBT), and carbazole (CA) formation mechanisms from the reactions of benzofuran (BF), benzothiophene (BT), and indole (IN) with CPDyl, respectively. All possible formation pathways involved in dibenzo-NSO-HET formation from benzo-NSO-HETs with the CPDyl radical were studied. Some energetically preferred routes were proposed to parallel the formation possibility of different dibenzo-NSO-HET products and explain experimental observations. Secondly, rate constants for the elementary reactions were evaluated over a wide temperature range of 600−1200 K. The absence of the kinetic parameters prevent further improvement and optimization of the NSO-HETs formation models. The third aim was to compare the effect of the O, S, and N atom substitution pattern of benzo-NSO-HETs on the isomer patterns and formation potential of dibenzo-NSO-HETs.

2. Results

For convenience of interpretation, the C atoms of benzofuran (BF), benzothiophene (BT), indole (IN), dibenzofuran (DBF), dibenzothiophene (DBT), and carbazole (CA) were labeled, as presented in Figure 1.
It is crucial to clarify the reliability and accuracy of the theoretical calculations. The geometric parameters and the vibrational frequencies of BF, BT, IN, DBF, DBT, and CA were calculated at the MPWB95/6-31+G(d,p) level and compared with the experimental values in Tables S3–S5 of Supporting Information. The results at the MPWB95/6-31+G(d,p) level were in accordance with the experimental data, and the average relative error remained within 3.3% for the geometrical parameters [46,47,48,49,50], and less than 5.7% for the vibrational frequencies of BF, BT, IN, DBF, DBT, and CA [51,52,53,54]. To verify the reliability of the energies, we calculated the reaction heats for benzofuran (C8H6O) + cyclopentadiene (C5H6) → dibenzofuran (C12H8O) + CH4, benzothiophene (C8H6S) + cyclopentadiene (C5H6) → dibenzothiophene (C12H8S) + CH4, and indole (C8H7N) + cyclopentadiene (C5H6) → carbazole (C12H9N) + CH4 at the MPWB1K/6-311+G(3df,2p)//MPWB1K/6-31+G(d,p) level. The calculated values of −41.5 kcal/mol, −39.7 kcal/mol, and −40.1 kcal/mol at 298 K showed good consistency with the corresponding experimental values of −43.0 kcal/mol, −39.8 kcal/mol, and −38.3 kcal/mol obtained from the measured standard formation heats(∆Hf,0) of BF, BT, IN, DBF, DBT, CA, and CPDyl [55,56,57,58,59,60,61,62]. From these results, we inferred that accuracy can be expected for the species in this study.

2.1. Reaction of Benzofuran, Benzothiophene, and Indole with Cyclopentadienyl

Figure 2, Figure 3 and Figure 4 schematically illustrate the proposed reaction pathways for dibenzofuran (DBF), dibenzothiophene (DBT), and carbazole (CA) formation mechanisms from the reactions of benzofuran (BF), benzothiophene (BT), and indole (IN) with the cyclopentadienyl radical (CPDyl), respectively. The activation barriers ΔE (in kcal/mol) and reaction heats ΔH (in kcal/mol) were calculated at the MPWB1K/6-311+G(3df,2p)//MPWB1K/6-31+G(d,p) level. The activation barrier ΔE is the relative energy of the transition state with respect to the total energy of the separated reactants. The reaction heats ΔH is the relative energy of total energy of the products with respect to the total energy of reactants. Positive values of ΔH indicate endothermic reactions, and negative values indicate exothermic reactions. The relative activation barriers ΔEr (in kcal/mol) and relative reaction heats ΔHr (in kcal/mol) for all the elementary reactions in Figure 2, Figure 3 and Figure 4 at the MPWB1K/6-311+G(3df,2p)//MPWB1K/6-31+G(d,p) level are shown in Table S2 of the Supporting Information. The relative activation barrier ΔEr is the relative energy of the transition state with respect to the total energy of the BF/BT/IN and CPDyl. The relative reaction heat ΔHr is the relative energy of the total energy of the products with respect to the total energy of the BF/BT/IN and CPDyl. Four possible pathways (denoted as pathways 1−4 in Figure 2, pathways 5−8 in Figure 3, and pathways 9−12 in Figure 4) are postulated in each figure, resulting in three oxygen heterocycle dibenzo-NSO-HET congeners (DBF, 1-methyl-DBF, and 4-methyl-DBF) in Figure 2, three sulfur heterocycle dibenzo-NSO-HET congeners (DBT, 1-methyl-DBT, and 4-methyl-DBT) in Figure 3, and three nitrogen heterocycle dibenzo-NSO-HET congeners (CA, 1-methyl-CA, and 4-methyl-CA) in Figure 4.
The CPDyl radical has an unpaired electron, while the benzo-NSO-HET molecule has C=C conjugated π bonds. Thus, the reaction of benzo-NSO-HETs with the CPDyl radical can proceed through an addition reaction. The C atoms in benzo-NSO-HETs can be divided into three groups: C2 and C3 belong to the five-membered ring; C4 and C9 are inside the “bend” of the benzo-NSO-HET molecules; C5, C6, C7, and C8 belong to the six-membered benzene ring. Among them, CPDyl additions to C4 and C9 are sterically hindered, and additions to C5, C6, C7, and C8 could not form the dioxin-like dibenzo-NSO-HETs. Our previous work studied the formation and growth mechanism of PAHs from the reactions of naphthalene with CPDyl, and found that the potential barriers of the CPDyl addition to aromatic benzene ring are 16.3 and 18.4 kcal/mol: close to the 11.8–16.5 kcal/mol of the CPDyl addition to the five-membered furan/thiophene/pyrrole rings, except the energetically unfavored 20.5 kcal/mol of BF. This indicates that CPDyl addition to the six-membered ring (C5–C8) and five-membered ring (C2–C3) is energetically competitive. However, only CPDyl additions to C2 and C3 of benzo-NSO-HETs can form dibenzo-NSO-HET products. Thus, in this study, CPDyl additions to C2 and C3 of the furan ring of BF (resulting in IM1 and IM2), CPDyl additions to C2 and C3 of the thiophene ring of BT (resulting in IM12 and IM13), and CPDyl additions to C2 and C3 of the pyrrole ring of IN (resulting in IM23 and IM24) are discussed in detail in Figure 2, Figure 3, and Figure 4, respectively. In Figure 1, calculations show that the C2 and C3 additions via TS1 and TS2 have high activation barriers of 15.8 kcal/mol and 20.5 kcal/mol, respectively, indicating that CPDyl addition to C2 of BF is energetically preferred compared to addition to C3 of BF. Similarly, CPDyl addition to C2 of BT can occur via 15.9 kcal/mol, which is lower than the addition to C3 of BT. However, CPDyl addition to C2 of IN has a much higher activation barrier (15.7 kcal/mol) than CPDyl addition to C3 (11.8 kcal/mol) of IN, which means that CPDyl addition to C3 can take place much more readily than to C2 in CA formation from IN with CPDyl. After the addition reactions, IM1/IM2, IM12/IM13, and IM23 /IM24 undergo the ring close step to form the same intermediates, IM3, IM14, and IM25, respectively, which means that the first two steps of the different pathways in each figure are identical. The structures with the geometrical parameters of transition states and intermediates involved in this study are shown Figures S1–S3 of the Supporting Information, and the cartesian coordinates for transition states and intermediates are displayed in Tables S7 and S8 of the Supporting Information.
In Figure 2, Figure 3 and Figure 4, each pathway is comprised of six elementary steps: (1) the addition reaction; (2) ring closure; (3) the first H shift; (4) C–C cleavage; (5) the second H shift, and (6) unimolecular elimination of CH3 or H. All of the H-shift steps are strongly exothermic, while the other steps are endothermic. The C–C cleavage steps and the first H-shift steps need to overcome high activation barriers exceeding 40 kcal/mol. At high-temperature conditions in combustion and thermal processes, these activation barriers are easily overcome. For each pathway, the C–C cleavages are the rate-determining steps owing to their high activation barriers (47.2 kcal/mol and 50.7 kcal/mol in Figure 2, 44.6 kcal/mol and 45.5 kcal/mol in Figure 3, and 46.5 kcal/mol and 47.8 kcal/mol in Figure 4). The structures, along with the geometrical parameters for the first/second H-shift transition states in the DBF formation routes from BF with CPDyl are shown in Figure 5. In Figure 2 and Figure 5, pathways 1−2 can occur from via the same first H-shift step, where the H atom bonded to the C-ortho bend C (C11) transfers to the bridge C of DF (the first C11–H shift); pathways 3−4 can occur via the same first H-shift step, where the H atom bonded to the O-ortho bend C (C11) transfers to the bridge C of DF (the first C10–H shift). Similarly, pathways 5−6 in Figure 3 and pathways 9–10 in Figure 4 arise from the first C11–H shift, whereas pathways 7−8 in Figure 3 and pathways 11−12 in Figure 4 arise from the first C10–H shift. In Figure 2, pathways 1–2 can occur via the same intermediate IM6, and the distinctions of pathways 1–2 lie in the final two elementary steps, the second H shift and the elimination of CH3/H. Similarly, pathways 3–4 have the same intermediate IM7, with the last two steps being difference. In pathways 1 and 3, the second H-shift steps are identical, where the H atom bonded to the same carbon atom (with –CH2) transfers to –CH2 (the second same C–H shift), resulting in the elimination of CH3 in the last step. Thus, the main products of pathways 1 and 3 are DBF without methyl substitution. However, in pathways 2 and 4, the second H-shift steps were similar, where the H atom bonded to the ortho carbon atom (inside the bend) transfers to –CH2 (the second ortho C–H shift), resulting in the elimination of H and retaining the methyl in the last step. Thus, the main products of pathway 2 and 4 are methyl-DBF, i.e., 1-methyl-DBF and 4-methyl-DBF. From Figure 5, the second H shift in pathways 1 and 3 can occur via a four-member ring transition state, while the second H shift in pathways 2 and 4 can occur via a three-member ring transition state.

2.2. Rate Constant Calculations

It is difficult to measure the rate constants of the elementary reactions by experimental methods in the formation of dibenzo-NSO-HETs, especially the reactions involving the radicals and intermediates due to the short lifetime and lack of efficient detection schemes for these activated species. Direct dynamics calculations, that is, the calculation of rate constants or other dynamic information directly from electronic structure calculations can be used as a substitution. The kinetic parameters of dibenzo-NSO-HETs formation routes from benzo-NSO-HETs with CPDyl can be used in the NSO-HET compound formation kinetic model to predict the potential emissions and harm to the environment. In this section, the rate constants of the elementary reactions for the formation of dibenzo-NSO-HETs from benzo-NSO-HETs with CPDyl were calculated using canonical variational transition state theory (CVT) with small-curvature tunneling (SCT) contribution over 600–1200 K by means of the POLYRATE 9.7 program [63,64,65,66,67]. The calculated rate constants are shown in Table S6 of the Supporting Information for every 100 K in 600–1200 K.
Due to the absence of available experimental values, it was difficult to make a direct comparison of the calculated CVT/SCT rate constants with the experimental values for all the elementary reactions. In order to clarify the reliability of the kinetics calculation in this study, we compared the CVT/SCT rate constants with the rate constant values available in the literature for the reaction of C6H5O → C5H5 + CO. The rate constants measured in previous experiments were in excellent agreement with our CVT/SCT values. For example, at 1200 K, the CVT/SCT rate constant measured by Lin was 2.5 × 103 s−1 [68], which agreed well with the value of 2.6 × 103 s−1 found in this study. The rate constants of the rate-determining steps in Figure 2, Figure 3 and Figure 4 were calculated with the help of transition state theory (TST) by using Gibbs thermal corrections at high temperatures in combination with the Eyring equation [45,69]. In general, the TST rate constants were slightly larger than the CVT/SCT values. For example, at 1000 K, the TST rate constants were 2.2 × 103 s−1, 8.0 × 103 s−1, and 2.8 × 103 s−1 of the rate-determining steps for DBF, DBT, and CA formation, respectively, while the CVT/SCT values were 8.1 × 102 s−1, 6.6 × 103 s−1, and 1.2 × 103 s−1 for DBF, DBT, and CA formation, respectively. The CVT/SCT method was also successfully used in polychlorinated dibenzofuran (PCDFs) and polychlorinated dibenzo-p-dioxin (PCDDs) formation from CPs, and polychlorinated dibenzothiophene (PCDTs) and polychlorinated thianthrene (PCTAs) formation from CTPs in our previous studies [45,69]. We hope our CVT/SCT calculations can provide the same excellent estimation accuracy for the crucial elementary reactions involved in the formation of dibenzo-NSO-HETs.
To improve the applicability, the rate constants were fitted, and Arrhenius formulas are given in Table 1 for the DBF formation routes from the reaction of BF with CPDyl, Table 2 for the DBT formation routes from the reaction of BT with CPDyl and Table 3 for the CA formation routes from the reaction of IN with CPDyl. The pre-exponential factor, the activation energy, and the rate constants can be obtained from these Arrhenius formulas.

3. Discussion

3.1. Reactions of Benzofuran, Benzothiophene, and Indole with Cyclopentadienyl

As presented in Figure 2, pathways 1−2 from the first C11–H shift step shared an identical rate-determining reaction (C–C cleavage), and pathways 3−4 from the first C10–H shift step also shared the same rate-determining reactions (C–C cleavage). The activation barrier of the rate-determining step of pathways 1−2 involved in the reaction of BF with CPDyl radical processed amounted to 47.2 kcal/mol, which was generally lower than that of the rate-determining step (50.7 kcal/mol) in pathways 3−4. Therefore, pathways 1−2, forming DBF and 1-methyl-DBF, were enthalpically preferable over pathways 3−4, forming DBF and 4-methyl-DBF, in Figure 2. Thus, 1-methyl-DBF was much easier to generate than 4-methyl-DBF. Similar conclusions were obtained in the reactions of BT with CPDyl in Figure 3 and of IN with CPDyl in Figure 4. The C–C cleavage in pathways 5−6, resulting in the formation of DBT and 1-methyl-DBT, had a relatively lower activation barrier (44.6 kcal/mol) than that in pathways 7−8, resulting in the formation of DBT and 4-methyl-DBT, which indicated that pathways 5−6 are more labile than pathways 7−8 in the reaction of DBT with CPDyl. Analogously, pathways 9−10, forming CA and 1-methyl-CA, were overwhelmingly superior to pathways 11 and 12, forming CA and 4-methyl-CA, in the reaction of In with CPDyl in Figure 4, and the activation barriers of the C–C cleavage step were 46.5 and 47.8 kcal/mol in pathways 9−10 and pathways 11−12, respectively. Therefore, 1-methyl-DBT and 1-methyl-CA were more easily formed than 4-methyl-DBT and 4-methyl-CA, respectively.
Comparing pathway 1 and pathway 2, the activation barrier of the second ortho C–H shift in pathway 2 (28.4 kcal/mol) was lower than that of the second same C–H shift in pathway 1 (28.7 kcal/mol). In addition, the elimination of H step in pathway 2 required a lower activation barrier of (22.3 kcal/mol) to be overcome than that of elimination of CH3 in pathway 1(24.9 kcal/mol). Thus, pathway 2, resulting in 1-methyl-DBF formation, was overwhelmingly superior to pathway, 1 resulting in the DBF formation. For pathways 3–4, the second same C–H shift step involved in the pathway 3 (activation barrier 26.3 kcal/mol, reaction heat −40.2 kcal/mol) had a relatively lower barrier and was much more exothermic compared to the second ortho C–H shift step involved in pathway 4 (activation barrier 26.9 kcal/mol, reaction heat −26.9 kcal/mol). However, the unimolecular elimination of CH3 involved in pathway 3 (activation barrier 25.9 kcal/mol, reaction heat 15.9 kcal/mol) had a relatively higher barrier and was much more endoergic than the unimolecular elimination of H involved in pathway 4 (activation barrier 19.2 kcal/mol, reaction heat 9.7 kcal/mol). Thus, pathway 3 and pathway 4 were competitive, which means that both DBF and 4-methyl-DBF can be formed competitively. Above all, although 1-methyl-DBF formation was preferred over DBF formation from the view of energetic values, 1-methyl-DBF formation had one less formation route than DBF formation. Thus, 1-methyl-DBF and DBF were inferred to be produced competitively, and to be more liable to form than 4-methyl-DBF. Further direct experimental observation will be needed to verify the yields of DBF, 1-methyl-DBF, and 4-methyl-DBF. Analogously, pathway 6 was favored over pathway 5 in Figure 3; pathway 7 and pathway 8 were competitive in Figure 3; pathway 10 was favored over pathway 9 in Figure 4; and pathway 11 and pathway 12 were competitive in Figure 4. Therefore, the main products of DBT formation from the reaction of BT with CPDyl are DBT and 1-methyl-DBT, and the main products of CA formation from the reaction of IN with CPDyl are carbazole and 1-methyl-CA.
Comparison of DBF and methyl-DBF formation from BF with CPDyl, DBT and methyl-DBT formation from BT with CPDyl, and CA and methyl-CA formation from IN with CPDyl, as denoted in Figure 2, Figure 3 and Figure 4, clearly showed that the effect of the O, S, and N atom heterocycle of the benzo-NSO-HETs had a significant influence on dibenzo-NSO-HET formation. For the pathways from the first C11–H shift in Figure 2, Figure 3 and Figure 4, the activation barriers of the rate-determining step of O heterocycle pathways, S heterocycle pathways, and N heterocycle pathways were 47.2 kcal/mol, 44.6 kcal/mol, and 46.5 kcal/mol, respectively. In addition, for the pathways from the first C10–H shift in Figure 2, Figure 3 and Figure 4, the activation barriers of the rate-determining steps of O heterocycle pathways, S heterocycle pathways, and N heterocycle pathways were 50.7 kcal/mol, 45.5 kcal/mol, and 47.8 kcal/mol, respectively. Thus, the ranking of the dibenzo-NSO-HET formation potential is as follows: sulfureted heterocycle compounds > nitrided heterocycle compounds > oxygenated heterocycle compounds, i.e., DBT and methyl-DBT formation > DBF and methyl-DBF formation > CA and methyl-CA formation. It is also interesting to compare the reaction pathways denoted in Figure 2, Figure 3 and Figure 4 with our previous research on naphthalene with CPDyl [45]. The activation barriers of the rate-determining steps for phenanthrene and methyl-phenanthrene formation from the reaction of naphthalene with CPDyl were 42.0–43.2 kcal/mol, i.e., lower than those of dibenzo-NSO-HET formation from benzo-NSO-HETs with CPDyl (44.6–50.7 kcal/mol). However, the activation barriers of the rate-determining steps for anthracene and methyl-anthracene formation (52.9 kcal/mol) were higher than those of dibenzo-NSO-HET formation from benzo-NSO-HETs with CPDyl. This may imply that the reactions of CPDyl attacking benzene rings are enthalpically competitive with reactions of CPDyl added onto furan/thiophene/pyrrole rings under pyrolysis or combustion conditions.

3.2. Rate Constant Calculations

To confirm the possible routes of dibenzo-NSO-HET formation from benzo-NSO-HETs with CPDyl, it is important to compare the CVT/SCT rate constants of the rate-determining step in each pathway. At a given temperature, the calculated CVT/SCT rate constants for the rate-determining steps in pathways 1–2, pathways 5–6, and pathways 9–10 were larger than those of pathways 3–4, pathways 7–8, and pathways 11–12, respectively. For example, at 800 K, the calculated CVT/SCT rate constant was 1.6 s−1 for the rate-determining step in the pathways 1–2, whereas the value was 3.6 × 10 −1 s−1 for the rate-determining step in pathways 3–4 for the formation of DBF and methyl-DBF from BF with CPD. At 1000 K, the calculated CVT/SCT rate constant was 6.6 × 103 s−1 for the rate-determining step in pathways 5–6, whereas the value was 4.7 × 103 s−1 for the rate-determining step in pathways 7–8 for the formation of DBT and methyl-DBT from BT with CPDyl. Similarly, at 1200 K, the calculated CVT/SCT rate constant in pathways 9–10 was 7.4 × 104 s−1, which was larger than that in pathways 11–12 (4.0 × 104 s−1) for the formation of CA and methyl-CA from IN with CPDyl. All these comparisons agree well with the conclusions outlined above.
For the formation of dibenzo-NSO-HET from the reactions of benzo-NSO-HETs with the CPDyl, pathways 1, 5, and 9 were favored over pathways 2, 6, and 10, respectively; pathways 3, 7, and 11 were competitive with pathways 4, 8, and 12, respectively. This conclusion was also supported by comparing the CVT/SCT rate constants of the last two steps of these pathways. For example, for the formation of DBT and methyl-DBT in pathway 5–6, the calculated CVT/SCT rate constants was 1.1 × 106 s−1 for the reaction IM17 → IM19 via TS25 at 1000 K, which was smaller than the value 1.8 × 107 s−1 for the IM17 → IM20 via TS27 at 1000 K; the calculated CVT/SCT rate constant was 7.4 × 107 s−1 for the reaction IM19 → dibenzothiophene + CH3 via TS26 at 1000 K, which was also smaller than the value 9.1 × 107 s−1 for the IM20 → 1-methyl-dibenzothiophene + H via TS28 at 1000 K. This reconfirms the finding of the thermodynamic analysis: that pathway 6 resulting in 1-methyl-DBT was energetically favored over pathway 5 resulting in the DBT. For the formation of DBT and 4-methyl-DBT in pathway 7–8 at 800 K, the calculated CVT/SCT rate constant of IM18 → IM21 via TS29 was 3.3 × 105 s−1, which was larger than the value 1.6 × 104 s−1 for IM18 → IM22 via TS31; the value of IM21 → dibenzothiophene + CH3 via TS30 was 2.6 × 106 s−1, which was smaller than the value 2.8 × 107 s−1 of IM22 → 4-methyl-dibenzothiophene + H via TS32. This reconfirmed the thermodynamic analysis that both DBT and 4-methyl-DBT can be formed competitively.
For the pathways from the first C11–H shift or from the first C10–H shift in Figure 2, Figure 3 and Figure 4, the CVT/SCT rate constants for the rate-determining step of O heterocycle pathways, S heterocycle pathways, and N heterocycle pathways were ranked as S heterocycle pathways > N heterocycle pathways > O heterocycle pathways over the whole studied temperature range. For example, at 1000 K, for the pathways from the first C11–H shift of reactions of BF, BT, and IN with CPD, the CVT/SCT rate constants for the rate-determining step were 8.1 × 102 s−1, 6.6 × 103 s−1, and 1.2 × 103 s−1 for the reactions of BF, BT, and IN with CPDyl, respectively; the value was 9.7 × 101 s−1, 4.7 × 103 s−1, and 6.0 × 102 s−1 for the pathways from the first C11–H shift of reactions of BF, BT, and IN with CPDyl, respectively. This was consistent with the thermodynamic analysis: the ranking of the dibenzo-NSO-HET formation potential was sulfureted heterocycle compounds > nitrided heterocycle compounds > oxygenated heterocycle compounds.

4. Materials and Methods

4.1. Density Functional Theory

All the quantum chemical calculations on the structure, frequency, and energy of related substances such as reactants, products, intermediates, and transition state were performed using the Gaussian 09 program [70]. The geometry optimizations were conducted using the hybrid meta functional MPWB1K, which gives uniformly excellent performance for thermochemistry, thermochemical kinetics, hydrogen bonding, and weak interactions, with the standard 6-31+G(d,p) basis set [71]. The vibrational frequencies were also computed at the same level to determine the natures of the stationary points. Moreover, the intrinsic reaction coordinate (IRC) was calculated at the MPWB1K/6-31+G(d,p) level to verify that the transition state connected to the right minima along the reaction path [72]. In order to acquire more reliable energy information, a more flexible basis set, 6-311+G(3df,2p), was employed to determine the single point energies. All energies quoted and discussed in this paper include zero-point energy correction (ZPE).

4.2. Kinetic Calculation

To obtain the rate constants and activation energies, kinetic calculations were carried out the using POLYRATE 9.7 program [63]. The canonical variational transition state (CVT) theory with a small-curvature tunneling (SCT) contribution [64,66,67] was applied to evaluate the theoretical rate constants for the elementary steps included in the reactions of BF, BT, and IN with CPDyl. The rate constants for each reaction were calculated over a wide temperature range (600–1200 K), which covered the possible DBF, DBT, and CA formation temperatures under pyrolysis or combustion conditions. To calculate the rate constants, 40 nonstationary points near the transition state along the MEP (20 points on the reactant side and 20 points on the product side) were selected for frequency calculations at the MPWB1K/6-31+G(d,p) level. The SSTEP, a variable keyword in the POLYRATE 9.7 program that specifies the step size along the mass-scaled MEP, was confirmed as 0.05. The SRANGE, which is required to specify the limits on the reaction coordinates, was selected as −1.5 to 1.5. Parameters such as energy data, force constant matrices, hessian matrices, stationary point coordinates, and unstationary points were obtained from the Gaussian 09 program output files and were input into the POLYRATE 9.7 input files automatically by our self-compiled program.

5. Conclusions

In this study, the mechanisms of the homogeneous gas-phase formation of dibenzo-NSO-heterocycles (dibenzo-NSO-HETs), namely dibenzofuran (DBF), dibenzothiophene (DBT), and carbazole (CA), from benzo-NSO-heterocycles (benzo-NSO-HETs), namely benzofuran (BF), benzothiophene (BT), and indole (IN), with the cyclopentadienyl radical (CPDyl) were investigated theoretically using DFT electronic structure theory at the MPWB1K/6-311+G(3df,2p)//MPWB1K/6-31+G(d,p) level. Kinetic calculations were performed and the rate constants were calculated over the temperature range of 600−1200 K using canonical variational transition state (CVT) theory with the small-curvature tunneling (SCT) contribution. The rate temperature formulas were fitted. Several energetically preferred routes for dibenzo-NSO-HET formation were proposed. The obtained rate constant can support more detailed input parameters for the NSO-HETs control and prediction models. The effects of O, S, and N atoms on the formation potential for dibenzo-NSO-HET formation were sorted. Four specific conclusions were drawn.
(1) The dibenzo-NSO-HETs growth mechanism involves six elementary steps: the addition reaction, ring closure, the first H shift, C–C cleavage, the second H shift, and elimination of CH3 or H. Due to its having the highest activation barrier and being strongly endothermic, the cleavage of the C–C bond step was regarded as the rate-determining step for each pathway.
(2) For given dibenzo-NSO-HET formation, pathways from an initial C11–H shift step were preferred over pathways from an initial C10–H shift step. The formation of C1-methylated products was favored over that of C4-methylated products. DBF and 1-methyl-DBF, DBT and 1-methyl-DBT, and CA and 1-methyl-CA were the main products of reactions of BF, BT, and IN with CPDyl, respectively.
(3) The ranking of the dibenzo-NSO-HET formation potential from benzo-NSO-HETs with CPDyl was as follows: sulfureted heterocycle compounds > nitrided heterocycle compounds > oxygenated heterocycle compounds. The reactions of CPDyl attacking the benzene and furan/thiophene/pyrrole rings were inferred to be comparable under pyrolysis or combustion conditions.

Supplementary Materials

The following are available online at https://www.mdpi.com/1422-0067/20/21/5420/s1.

Author Contributions

X.L., Y.G. and F.X. designed and performed the mechanism calculations, then wrote the manuscript; X.L., Y.G., C.Z. and S.Z. performed the kinetic calculation. X.L., Y.G., Y.S. and Q.Z. all analyzed the data in the manuscript.

Funding

This work was supported by NSFC (National Natural Science Foundation of China, project Nos.91644214,21677089, 21876102), Shenzhen Science and Technology Research and Development Funds (project Nos. JCYJ20160510165106371), FRFSDU (The Fundamental Research Funds of Shandong University, project Nos. 2016WLJH51, 2017JC033), the China Postdoctoral Science Foundation funded project (project Nos. 2017M612277, 2017T100493), SKLECRA (The open foundation of state key laboratory of environmental criteria and risk assessment, Chinese research academy of environmental sciences No. 2016OFP09). The authors thank Donald G. Truhlar for providing the POLYRATE 9.7 program.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

DBFdibenzofuran
DBTdibenzothiophene
CAcarbazole
BFbenzofuran
BTbenzothiophene
INindole
NSO-HETsnitrogen, sulfur, or oxygen heterocycles
PACspolycyclic aromatic compounds
PAHspolycyclic aromatic hydrocarbons
DFTdensity functional theory
CVTcanonical variational transition state
SCTsmall-curvature tunneling
CPDylcyclopentadienyl radical
ZPEzero-point energy
IRCintrinsic reaction coordinate

References

  1. Johansen, S.S.; Hansen, A.B.; Mosbæk, H.; Arvin, E. Identification of heteroaromatic and other organic compounds in ground water at creosote-contaminated sites in Denmark. Groundwater Monit. Remediat. 1997, 17, 106–115. [Google Scholar] [CrossRef]
  2. Gichner, T. IARC monographs on the evaluation of carcinogenic risks to humans. Wood Dust and Formaldehyde. Biol. Plant. 1995, 37, 500. [Google Scholar] [CrossRef]
  3. Bleeker, E.A.J.; Wiegman, S.; Voogt, P.D.; Kraak, M.; Admiraal, W. Toxicity of azaarenes. Rev. Environ. Contam. Toxicol. 2002, 173, 39–83. [Google Scholar] [PubMed]
  4. Meyer, S.; Steinhart, H. Effects of heterocyclic PAHs (N, S, O) on the biodegradation of typical tar oil pahs in a soil/compost mixture. Chemosphere 2000, 40, 359–367. [Google Scholar] [CrossRef]
  5. Lopes, T.J.; Furlong, E.T. Occurrence and potential adverse effects of semivolatile organic compounds in streambed sediment, united states, 1992–1995. Environ. Toxicol. Chem. 2001, 20, 727–737. [Google Scholar]
  6. Dyreborg, S.; Arvin, E.; Broholm, K. Biodegradation of NSO-compounds under different redox-conditions. J. Contam. Hydrol. 1997, 25, 177–197. [Google Scholar] [CrossRef]
  7. Zhu, X.; Ni, J.; Lai, P. Advanced treatment of biologically pretreated coking wastewater by electrochemical oxidation using boron-doped diamond electrodes. Water Res. 2009, 43, 4347–4355. [Google Scholar] [CrossRef]
  8. Anonymous. Dibenzofuran. In Dangerous Properties of Industrial Materials Report; Van Nostrand Reinhold: New York, NY, USA, 1995; Volume 15, pp. 45–58. [Google Scholar]
  9. Elvers, B.; Hawkins, S.; Ravenscroft, M.; Rounsaville, J.F.; Schulz, G. Ullmann’s Encyclopedia of Industrial Chemistry, 5th ed.; VCH Publishers: New York, NY, USA, 1989; Volume 12, pp. 130–133. [Google Scholar]
  10. Roy, J.; Jana, A.K.; Mal, D. Recent trends in the synthesis of carbazoles: An update. Tetrahedron 2012, 68, 6099–6121. [Google Scholar] [CrossRef]
  11. Nojiri, H.; Omori, T. Carbazole metabolism by Pseudomonads. In Pseudomonas; Ramos, J.L., Filloux, A., Eds.; Springer: New York, NY, USA, 2007; Volume 5, pp. 107–145. [Google Scholar]
  12. Collin, G.; Hoke, H. Carbazole. In Ullman’s Encyclopedia of Industrial Chemistry, 5th ed.; Elvers, B., Hawkins, S., Schultz, G., Eds.; Wiley-VCH: New York, NY, USA, 1986. [Google Scholar]
  13. Seto, H. New 3-Hydroxy-4-Aminocarbazole Compounds. JP Patent 03227971, 1991. [Google Scholar]
  14. Lim, B.R.; Hu, H.Y.; Fujie, K. Biological degradation and chemical oxidation characteristics of coke-oven wastewater. Water Air Soil Pollut. 2003, 146, 23–33. [Google Scholar] [CrossRef]
  15. Zhang, M.; Tay, J.H.; Qian, Y.; Gu, X.S. Coke plant wastewater treatment by fixed biofilm system for COD and NH3–N removal. Water Res. 1998, 32, 519–527. [Google Scholar] [CrossRef]
  16. Smith, J.H.; Mabey, W.R.; Bahonos, N.; Holt, B.R.; Lee, S.S.; Chou, T.W.; Venberger, D.C.; Mill, T. Environmental Pathways of Selected Chemicals in Freshwater Systems: Part II Laboratory Studies; Interagency Energy–Environment Research and Development Program Report; EPA-600/7-78-074; US Environmental Protection Agency: Athens, GA, USA, 1978.
  17. Jacobs, B.W.; Billings, C.E. Characterization and temperature dependence of PAH emissions from a simulated rubber combustion operation. Am. Ind. Hyg. Assoc. J. 1985, 46, 547–554. [Google Scholar] [CrossRef] [PubMed]
  18. Perreira, W.E.; Rostard, C.E.; Updegraft, D.L.; Bennett, J.M. Fate and movement of azaarenes and their anaerobic biotransformation products in an aquifer contaminated by wood-treatment chemicals. Environ. Toxicol. Chem. 1987, 6, 163–176. [Google Scholar] [CrossRef]
  19. Ishikawa, S.; Sakazaki, Y.; Eguchi, Y.; Suetomi, R.; Nakamura, E. Identification of chemical substances in industrial wastes and their pyrolytic decomposition products. Chemosphere 2005, 59, 1343–1353. [Google Scholar] [CrossRef]
  20. Dartiguelongue, C.; Behar, F.; Budzinski, H.; Scacchi, G.; Marquaire, P.M. Thermal stability of dibenzothiophene in closed system pyrolysis: Experimental study and kinetic modelling. Org. Geochem. 2006, 37, 98–116. [Google Scholar] [CrossRef]
  21. Sobkowiak, M.; Griffith, J.M.; Wang, B.; Beaver, B. Insight into the mechanisms of middle distillate fuel oxidative degradation. Part 1: On the role of phenol, indole, and carbazole derivatives in the thermal oxidative stability of Fischer-Tropsch/petroleum jet fuel blends. Energy Fuel 2009, 23, 2041–2046. [Google Scholar] [CrossRef]
  22. Freitas, V.L.; Gomes, J.R.; DaSilva, M.D.R. Dibenzofuran and methyldibenzofuran derivatives: Assessment of thermochemical data. Struct. Chem. 2013, 24, 1923–1933. [Google Scholar] [CrossRef]
  23. Gu, Y.; Yperman, J.; Reggers, G.; Carleer, R.; Vandewijngaarden, J. Characterisation of volatile organic sulphur compounds release during coal pyrolysis in inert, hydrogen and CO2 atmosphere. Fuel 2016, 184, 304–313. [Google Scholar] [CrossRef]
  24. Wikström, E.; Marklund, S. Secondary formation of chlorinated dibenzo-p-dioxins, dibenzofurans, biphenyls, benzenes, and phenols during MSW combustion. Environ. Sci. Technol. 2000, 34, 604–609. [Google Scholar] [CrossRef]
  25. Melius, C.F.; Colvin, M.E.; Marinov, N.M.; Pitz, W.J.; Senkan, S.M. Reaction mechanisms in aromatic hydrocarbon formation involving the C5H5 cyclopentadienyl. Symp. Combust. 1996, 26, 685–692. [Google Scholar] [CrossRef]
  26. Rebbert, R.E.; Chesler, S.N.; Guenther, F.R.; Parris, R.M. Liquid chromatography-gas chromatography procedure to determine the concentration of dibenzothiophene in a crude oil matrix. J. Chromatogr. A 1984, 284, 211–217. [Google Scholar] [CrossRef]
  27. Soliman, Y.S.; Al Ansari, E.M.S.; Wade, T.L. Concentration, composition and sources of PAHs in the coastal sediments of the exclusive economic zone (EEZ) of Qatar, Arabian Gulf. Mar. Pollut. Bull. 2014, 85, 542–548. [Google Scholar] [CrossRef] [PubMed]
  28. Gieg, L.M.; Otter, A.; Fedorak, P.M. Carbazole degradation by Pseudomonas sp. LD2: Metabolic characteristics and the identification of some metabolites. Environ. Sci. Technol. 1996, 30, 575–585. [Google Scholar] [CrossRef]
  29. Blum, P.; Sagner, A.; Tiehm, A.; Martus, P.; Wendel, T.; Grathwohl, P. Importance of heterocylic aromatic compounds in monitored natural attenuation for coal tar contaminated aquifers: A review. J. Contam. Hydrol. 2011, 126, 181–194. [Google Scholar] [CrossRef] [PubMed]
  30. Calkins, W.H. Investigation of organic sulfur-containing structures in coal by flash pyrolysis experiments. Energy Fuel 1987, 1, 59–64. [Google Scholar] [CrossRef]
  31. Asif, M.; Alexander, R.; Fazeelat, T.; Pierce, K. Geosynthesis of dibenzothiophene and alkyl dibenzothiophenes in crude oils and sediments by carbon catalysis. Org. Geochem. 2009, 40, 895–901. [Google Scholar] [CrossRef]
  32. Richter, H.; Howard, J.B. Formation of polycyclic aromatic hydrocarbons and their growth to soot–a review of chemical reaction pathways. Prog. Energy Combust. 2000, 26, 565–608. [Google Scholar] [CrossRef]
  33. Lindstedt, P.; Maurice, L.; Meyer, M. Thermodynamic and kinetic issues in the formation and oxidation of aromatic species. Faraday Discuss. 2001, 119, 409–432. [Google Scholar] [CrossRef]
  34. Hansen, N.; Klippenstein, S.J.; Miller, J.A.; Wang, J.; Cool, T.A.; Law, M.E.; Westmoreland, P.R.; Kasper, T.; Kohse–Hoinghaus, K. Identification of C5Hx isomers in fuel-rich flames by photoionization mass spectrometry and electronic structure calculations. J. Phys. Chem. 2006, 110, 4376–4388. [Google Scholar] [CrossRef]
  35. Winkler, J.K.; Karow, W.; Rademacher, P. Gas phase pyrolysis of heterocyclic compounds, part 4: Flow pyrolysis and annulation reactions of some oxygen heterocycles: Furan, benzo[b]furan and dibenzofuran. A product oriented study. J. Anal. Appl. Pyrol. 2001, 57, 133–144. [Google Scholar] [CrossRef]
  36. Freitas, V.L.S.; Gomes, J.R.B.; da Silva, M.D.M.C.R. Revisiting dibenzothiophene thermochemical data: Experimental and computational studies. J. Chem. Thermodyn. 2009, 41, 1199–1205. [Google Scholar] [CrossRef]
  37. Burcat, A.; Dvinyaninov, M. Detailed kinetics of cyclopentadiene decomposition studied in a shock tube. Int. J. Chem. Kinet. 1997, 29, 505–514. [Google Scholar] [CrossRef]
  38. Lin, C.Y.; Lin, M.C. Thermal decomposition of methyl phenyl ether in shock waves: The kinetics of phenoxy radical reactions. J. Phys. Chem. 1986, 90, 425–431. [Google Scholar] [CrossRef]
  39. Lamprecht, A.; Atakan, B.; Kohse–Hoinghaus, K. Fuel-rich flame chemistry in low-pressure cyclopentene flames. Proc. Combust. Inst. 2000, 28, 1817–1824. [Google Scholar] [CrossRef]
  40. Lu, M.M.; Mulholland, J.A. Aromatic hydrocarbon growth from indene. Chemosphere 2001, 42, 625–633. [Google Scholar] [CrossRef]
  41. Manion, J.A.; Louw, R. Rates, products, and mechanisms in the gas–phase hydrogenolysis of phenol between 922 and 1175 K. J. Phys. Chem. 1989, 93, 3563–3574. [Google Scholar] [CrossRef]
  42. Mulholland, J.A.; Lu, M.; Kim, D.H. Pyrolytic growth of polycyclic aromatic hydrocarbons by cyclopentadienyl moieties. Proc. Combust. Inst. 2000, 28, 2593–2599. [Google Scholar] [CrossRef]
  43. Ikeda, E.; Tranter, R.S.; Kiefer, J.H.; Kern, R.D.; Singh, H.J.; Zhang, Q. The pyrolysis of methylcyclopentadiene: Isomerization and formation of aromatics. Proc. Combust. Inst. 2000, 28, 1725–1732. [Google Scholar] [CrossRef]
  44. Butler, R.G.; Glassman, I. Cyclopentadiene combustion in a plug flow reactor near 1150 K. Proc. Combust. Inst. 2009, 32, 395–402. [Google Scholar] [CrossRef]
  45. Xu, F.; Shi, X.; Zhang, Q.; Wang, W. Mechanism for the growth of polycyclic aromatic hydrocarbons from the reactions of naphthalene with cyclopentadienyl and indenyl. Chemosphere 2016, 162, 345–354. [Google Scholar] [CrossRef]
  46. Maris, A.; Giuliano, B.M.; Melandri, S.; Ottaviani, P.; Caminati, W.; Favero, L.B.; Velino, B. Structure, dipole moment and large amplitude motions of 1-benzofuran. Phys. Chem. Chem. Phys. 2005, 7, 3317–3322. [Google Scholar] [CrossRef]
  47. El–Azhary, A.A. A DFT study of the geometries and vibrational spectra of indene and some of its heterocyclic analogues, benzofuran, benzoxazole, bensothiophene, benzothiazole, indole and indazole. Spectrochim. Acta A 1999, 55, 2437–2446. [Google Scholar] [CrossRef]
  48. Banerjee, A. The crystal and molecular structure of dibenzofuran. Acta Crystallogr. B 1973, 139, 415–423. [Google Scholar] [CrossRef]
  49. Schaffrin, R.M.; Trotter, J. Structure of dibenzothiophen. J. Chem. Soc. A Inorg. Phys. Theor. 1970, 1561–1565. [Google Scholar] [CrossRef]
  50. Lee, S.Y.; Boo, B.H. Molecular structures and vibrational spectra of pyrrole and carbazole by density functional theory and conventional, ab initio calculations. J. Phys. Chem. 1996, 100, 15073–15078. [Google Scholar] [CrossRef]
  51. Collier, W.B.; Klots, T.D. Heteroatom derivatives of indene. part 1. vibrational frequencies and a refined scaled overlay of the am1 force field of indole, benzofuran benzothiophene, benzoxazole and benzothiazole. Spectrochim. Acta A 1995, 51, 1255–1272. [Google Scholar] [CrossRef]
  52. Ljubic, I.; Sabljic, A. Theoretical study of structure, vibrational frequencies, and electronic spectra of dibenzofuran and its polychlorinated derivatives. J. Phys. Chem. A 2007, 111, 1339–1350. [Google Scholar] [CrossRef]
  53. Lee, S.Y. Density functional theory calculation of molecular structure and vibrational spectra of dibenzothiophene in the ground and the lowest triplet state. J. Phys. Chem. A 2001, 105, 8093–8097. [Google Scholar] [CrossRef]
  54. Bree, A.; Zwarich, R. Vibrational assignment of carbazole from infrared, raman, and fluorescence spectra. J. Chem. Phys. 1968, 49, 3344–3355. [Google Scholar] [CrossRef]
  55. Steele, W.V.; Chirico, R.D. Thermodynamics and the hydrodeoxygenation of 2,3-Benzofuran. In Cooperative Agreement No. FC22-83FE60149 (NIPEP-457); IIT Research Institute, NIPEP: Bartlesville, OK, USA, 1990; pp. 1–75. [Google Scholar]
  56. Sabbah, R. Thermodynamique de substances soufrees. I. Etude thermochimique du benzo-2,3 thiophene et du dibenzothiophene. Bull. Soc. Chim. France 1979, 9, 434–437. [Google Scholar]
  57. Das, A.; Frenkel, M.; Gadalla, N.A.M.; Kudchadker, S.; Marsh, K.N.; Rodgers, A.S. Thermodynamic and thermophysical properties of organic nitrogen compounds. part II. 1- and 2-butanamine, 2-methyl-1-propanamine, 2-methyl-2-propanamine, pyrrole, 1-,2-, and 3-methylpyrrole, pyridine, 2-,3-, and 4-methylpyridine, pyrrolidine, piperidine, indole, quinoline, isoquinoline, acridine, carbazole, phenanthridine, 1- and 2-naphthalenamine, and 9-methylcarbazole. J. Phys. Chem. Ref. Data 1993, 22, 659. [Google Scholar]
  58. Sabbah, R. Thermodynamic study of fluorene and dibenzofuran. Bull. Soc. Chim. France 1991, 128, 350. [Google Scholar]
  59. Chirico, R.D.; Knipmeyer, S.E.; Nguyen, A.; Steele, W.V. The thermodynamic properties of dibenzothiophene. J. Chem. Thermodyn. 1991, 23, 431–450. [Google Scholar] [CrossRef]
  60. Sabbah, R.; Antipine, I. Thermodynamic study on four polycycles. Relationship between their energy values and their structure. Bull. Soc. Chim. France 1987, 124, 392–400. [Google Scholar]
  61. Roth, W.R.; Adamczak, O.; Breuckmann, R.; Lennartz, H.W.; Boese, R. Die Berechnung von Resonanzenergien; das MM2ERW-Kraftfeld. Eur. J. Inorg. Chem. 1991, 124, 2499–2521. [Google Scholar] [CrossRef]
  62. Manion, J.A. Evaluated Enthalpies of Formation of the Stable Closed Shell C1 and C2 Chlorinated Hydrocarbons. J. Phys. Chem. Ref. Data 2002, 31, 123–172. [Google Scholar] [CrossRef] [Green Version]
  63. Corchado, J.C.; Chuang, Y.Y.; Fast, P.L.; Hu, W.; Liu, Y.; Lynch, G.; Nguyen, K.; Jackels, C.; Fernandez–Ramos, A.; Ellingson, B. POLYRATE, Version 9.7; University of Minnesota: Minneapolis, MN, USA, 2007. [Google Scholar]
  64. Baldridge, K.K.; Gordon, M.S.; Steckler, R.; Truhlar, D.G. Ab initio reaction paths and direct dynamics calculations. J. Phys. Chem. 1989, 93, 5107–5119. [Google Scholar] [CrossRef]
  65. Fernandez-Ramos, A.; Ellingson, B.A.; Garret, B.C.; Truhlar, D.G. Variational transition state theory with multidimensional tunneling. Rev. Comput. Chem. 2007, 23, 125. [Google Scholar]
  66. Garrett, B.C.; Truhlar, D.G. Generalized transition state theory. Classical mechanical theory and applications to collinear reactions of hydrogen molecules. J. Phys. Chem. 1979, 83, 1052–1079. [Google Scholar] [CrossRef]
  67. Gonzalez–Lafont, A.; Truong, T.N.; Truhlar, D.G. Interpolated variational transition-state theory: Practical methods for estimating variational transition-state properties and tunneling contributions to chemical reaction rates from electronic structure calculations. J. Chem. Phys. 1991, 95, 8875–8894. [Google Scholar] [CrossRef]
  68. Conors, K.A. Chemical Kinetics—The Study of Reaction Rate in Solution; Wiley: New York, NY, USA, 1990; p. 200. [Google Scholar]
  69. Xu, F.; Yu, W.; Zhou, Q.; Gao, R.; Sun, X.; Zhang, Q.; Wang, W. Mechanism and direct kinetic study of the polychlorinated dibenzo-p-dioxin and dibenzofuran formations from the radical/radical cross-condensation of 2,4-dichlorophenoxy with 2-chlorophenoxy and 2,4,6-trichlorophenoxy. Environ. Sci. Technol. 2010, 45, 643–650. [Google Scholar] [CrossRef]
  70. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Zakrzewski, V.G.; Montgomery, J.A.; Stratmann, R.E.; Burant, J.C.; et al. Gaussian 09, Revision A. 02; Gaussian, Inc.: Wallingford, CT, USA, 2015. [Google Scholar]
  71. Zhao, Y.; Truhlar, D.G. Hybrid meta density functional theory methods for therochemistry, thermochemical kinetics, and noncovalent interactions: The MPW1B95 and MPWB1K models and comparative assessments for hydrogen bonding and van der Waals interactions. J. Phys. Chem. A 2004, 108, 6908–6918. [Google Scholar] [CrossRef]
  72. Fukui, K. The path of chemical reactions–The IRC approach. Acc. Chem. Res. 1981, 14, 363–368. [Google Scholar] [CrossRef]
Ijms 20 05420 g001 550

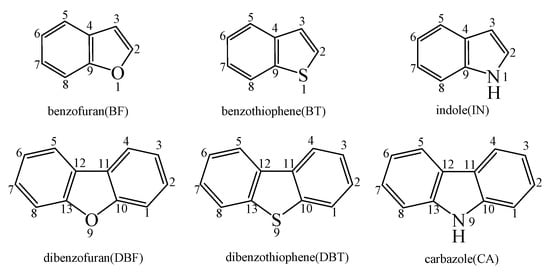

Figure 1. The structures of benzofuran (BF), benzothiophene (BT), indole (IN), dibenzofuran (DBF), dibenzothiophene (DBT), and carbazole (CA) with labeled C atoms.
Figure 1. The structures of benzofuran (BF), benzothiophene (BT), indole (IN), dibenzofuran (DBF), dibenzothiophene (DBT), and carbazole (CA) with labeled C atoms.
Ijms 20 05420 g001
Ijms 20 05420 g002 550

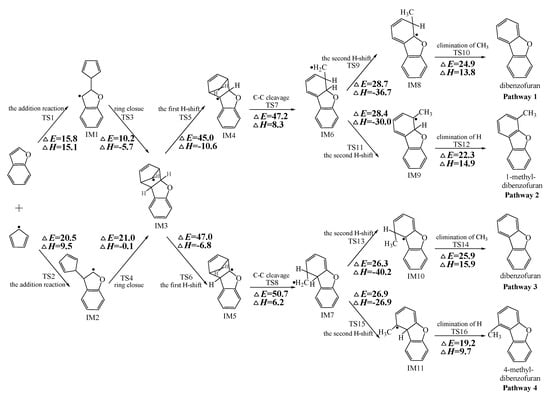

Figure 2. Dibenzofuran (DBF) formation routes presented with the activation barriers ΔE (in kcal/mol) and reaction heats ΔH (in kcal/mol) in the reaction of benzofuran (BF) with cyclopentadienyl radical (CPDyl). ΔH has been calculated at 0 K.
Figure 2. Dibenzofuran (DBF) formation routes presented with the activation barriers ΔE (in kcal/mol) and reaction heats ΔH (in kcal/mol) in the reaction of benzofuran (BF) with cyclopentadienyl radical (CPDyl). ΔH has been calculated at 0 K.
Ijms 20 05420 g002
Ijms 20 05420 g003 550

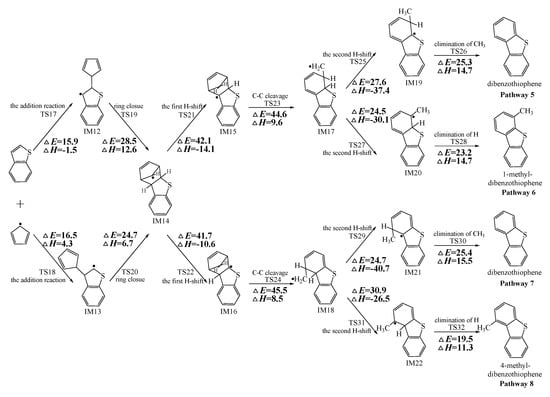

Figure 3. Dibenzothiophene (DBT) formation routes embedded with the activation barriers ΔE (in kcal/mol) and reaction heats ΔH (in kcal/mol) in the reaction of benzothiophene (BT) with cyclopentadienyl radical (CPDyl). ΔH has been calculated at 0 K.
Figure 3. Dibenzothiophene (DBT) formation routes embedded with the activation barriers ΔE (in kcal/mol) and reaction heats ΔH (in kcal/mol) in the reaction of benzothiophene (BT) with cyclopentadienyl radical (CPDyl). ΔH has been calculated at 0 K.
Ijms 20 05420 g003
Ijms 20 05420 g004 550

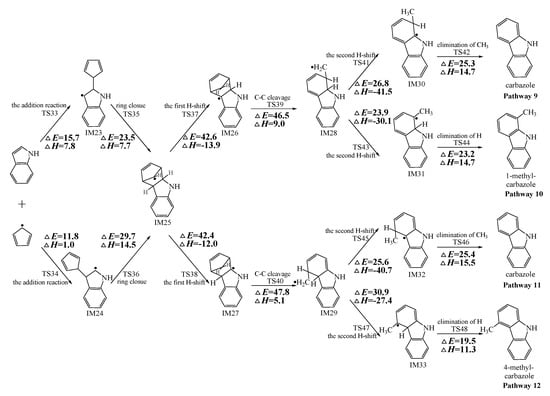

Figure 4. Carbazole (CA) formation routes embedded with the activation barriers ΔE (in kcal/mol) and reaction heats ΔH (in kcal/mol) in the reaction of indole (IN) with cyclopentadienyl radical (CPDyl). ΔH has been calculated at 0 K.
Figure 4. Carbazole (CA) formation routes embedded with the activation barriers ΔE (in kcal/mol) and reaction heats ΔH (in kcal/mol) in the reaction of indole (IN) with cyclopentadienyl radical (CPDyl). ΔH has been calculated at 0 K.
Ijms 20 05420 g004
Ijms 20 05420 g005 550

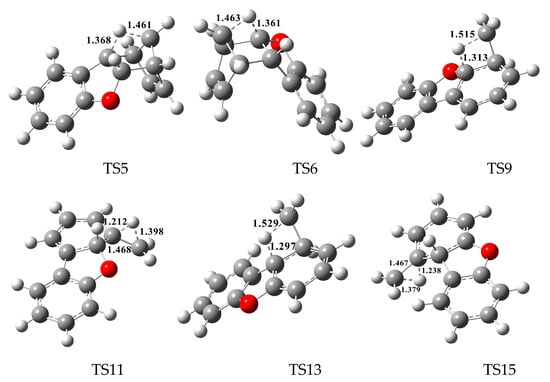

Figure 5. The structures and the geometrical parameters for the first/second H-shift transition states in the dibenzofuran (DBF) formation routes from the reaction of benzofuran (BF) with cyclopentadienyl radical (CPDyl). Distances are in angstroms.
Figure 5. The structures and the geometrical parameters for the first/second H-shift transition states in the dibenzofuran (DBF) formation routes from the reaction of benzofuran (BF) with cyclopentadienyl radical (CPDyl). Distances are in angstroms.
Ijms 20 05420 g005
Table
Table 1. Arrhenius formulas for dibenzofuran (DBF) formation routes from the reaction of benzofuran (BF) with cyclopentadienyl radical (CPDyl) over the temperature range of 600−1200 K (units are s−1 and cm3 molecule−1 s−1 for unimolecular and bimolecular reactions, respectively).
Table 1. Arrhenius formulas for dibenzofuran (DBF) formation routes from the reaction of benzofuran (BF) with cyclopentadienyl radical (CPDyl) over the temperature range of 600−1200 K (units are s−1 and cm3 molecule−1 s−1 for unimolecular and bimolecular reactions, respectively).
ReactionsArrhenius Formulas
benzofuran + cyclopentadieny → IM1 via TS1k(T) = (10.0 × 10−25) exp (−12066.6/T)
benzofuran + cyclopentadieny → IM1 via TS2k(T) = (1.2 × 10−25) exp (−13171.4/T)
IM1 → IM3 via TS3k(T) = (3.0 × 1011) exp (−5026.9/T)
IM2 → IM3 via TS4k(T) = (2.6 × 1013) exp (−10547.3/T)
IM3 → IM4 via TS5k(T) = (9.2 × 1012) exp (−23362.2/T)
IM3 → IM5 via TS6k(T) = (1.0 × 1013) exp (−23976.6/T)
IM4 → IM6 via TS7k(T) = (4.9 × 1013) exp (−24826.0/T)
IM5 → IM7 via TS8k(T) = (5.1 × 1011) exp (−22376.3/T)
IM6 → IM8 via TS9k(T) = (7.0 × 1012) exp (−15749.0/T)
IM8 → dibenzofuran + CH3 via TS10k(T) = (5.2 × 1013) exp (−12901.2/T)
IM6 → IM9 via TS11k(T) = (8.4 × 1012) exp (−15584.3/T)
IM9 → 4-methyl-dibenzofuran + H via TS12k(T) = (1.6 × 1013) exp (−11575.9/T)
IM7 → IM10 via TS13k(T) = (2.7 × 1012) exp (−13593.4/T)
IM10 → dibenzofuran + CH3 via TS14k(T) = (6.8 × 1013) exp (−13629.3/T)
IM7 → IM11 via TS15k(T) = (7.8 × 1012) exp (−13970.9/T)
IM11 → 2-methyl-dibenzofuran + H via TS16k(T) = (2.5 × 1013) exp (−10298.0/T)
Table
Table 2. Arrhenius formulas for dibenzothiophene (DBT) formation routes from the reaction of benzothiophene (BT) with cyclopentadienyl radical (CPDyl) over the temperature range of 600−1200 K (units are s−1 and cm3 molecule−1 s−1 for unimolecular and bimolecular reactions, respectively).
Table 2. Arrhenius formulas for dibenzothiophene (DBT) formation routes from the reaction of benzothiophene (BT) with cyclopentadienyl radical (CPDyl) over the temperature range of 600−1200 K (units are s−1 and cm3 molecule−1 s−1 for unimolecular and bimolecular reactions, respectively).
ReactionsArrhenius Formulas
benzothiophene + cyclopentadieny → IM12 via TS17k(T) = (3.0 × 10−25) exp (−10457.6/T)
benzothiophene + cyclopentadieny → IM13 via TS18k(T) = (2.1 × 10−24) exp (−10618.3/T)
IM12 → IM14 via TS19k(T) = (3.3 × 1011) exp (−14334.0/T)
IM13 → IM14 via TS20k(T) = (2.6 × 1011) exp (−12339.6/T)
IM14 → IM15 via TS21k(T) = (1.7 × 1013) exp (−21731.2/T)
IM14 → IM16 via TS22k(T) = (1.5 × 1013) exp (−21514.7/T)
IM15 → IM17 via TS23k(T) = (9.8 × 1013) exp (−23422.3/T)
IM16 → IM18 via TS24k(T) = (1.2 × 1014) exp (−23936.3/T)
IM17 → IM19 via TS25k(T) = (1.8 × 1012) exp (−14289.8/T)
IM19 → dibenzothiophene + CH3 via TS26k(T) = (5.2 × 1013) exp (−13461.3/T)
IM17 → IM20 via TS27k(T) = (5.8 × 1012) exp (−12699.8/T)
IM20 → 4-methyl-dibenzothiophene + H via TS28k(T) = (2.5× 1013) exp (−12510.8/T)
IM18 → IM21 via TS29k(T) = (2.8 × 1013) exp (−12756.2/T)
IM21 → dibenzothiophene + CH3 via TS30k(T) = (8.9 × 1013) exp (−13857.5/T)
IM18 → IM22 via TS31k(T) = (6.8 × 1012) exp (−15889.8/T)
IM22 → 2-methyl-dibenzothiophene + H via TS32k(T) = (1.7 × 1013) exp (−10615.2/T)
Table
Table 3. Arrhenius formulas for carbazole (CA) formation routes from the reaction of indole (IN) with cyclopentadienyl radical (CPDyl) over the temperature range of 600−1200 K (units are s−1 and cm3 molecule−1 s−1 for unimolecular and bimolecular reactions, respectively).
Table 3. Arrhenius formulas for carbazole (CA) formation routes from the reaction of indole (IN) with cyclopentadienyl radical (CPDyl) over the temperature range of 600−1200 K (units are s−1 and cm3 molecule−1 s−1 for unimolecular and bimolecular reactions, respectively).
ReactionsArrhenius Formulas
indole + cyclopentadieny → IM23 via TS33k(T) = (1.1 × 10−24) exp (−11654.9/T)
indole + cyclopentadieny → IM24 via TS34k(T) = (1.8 × 10−24) exp (−8209.2/T)
IM23 → IM25 via TS35k(T) = (5.8 × 1010) exp (−11877.8/T)
IM24 → IM25 via TS36k(T) = (2.0 × 1011) exp (−14906.8/T)
IM25 → IM26 via TS37k(T) = (1.6 × 1013) exp (−22274.5/T)
IM25 → IM27 via TS38k(T) = (1.5 × 1013) exp (−21960.5/T)
IM26 → IM28 via TS39k(T) = (4.3 × 1013) exp (−24215.9/T)
IM27 → IM29 via TS40k(T) = (4.5 × 1013) exp (−25026.4/T)
IM28 → IM30 via TS41k(T) = (6.2 × 1010) exp (−10484.5/T)
IM30 → carbazole + CH3 via TS42k(T) = (8.1 × 1013) exp (−13792.3/T)
IM28 → IM31 via TS43k(T) = (3.7 × 1012) exp (−11906.8/T)
IM31 → 4-methyl-carbazole + H via TS44k(T) = (2.3 × 1013) exp (−10279.5/T)
IM29 → IM32 via TS45k(T) = (2.0 × 1012) exp (−13357.4/T)
IM32 → carbazole + CH3 via TS46k(T) = (7.6 × 1013) exp (−13643.4/T)
IM29 → IM33 via TS47k(T) = (6.4 × 1012) exp (−15841.1/T)
IM33 → 2-methyl-carbazole + H via TS48k(T) = (2.7 × 1013) exp (−10075.0/T)

Share and Cite

MDPI and ACS Style

Li, X.; Gao, Y.; Zuo, C.; Zheng, S.; Xu, F.; Sun, Y.; Zhang, Q. The Gas-Phase Formation Mechanism of Dibenzofuran (DBF), Dibenzothiophene (DBT), and Carbazole (CA) from Benzofuran (BF), Benzothiophene (BT), and Indole (IN) with Cyclopentadienyl Radical. Int. J. Mol. Sci. 2019, 20, 5420. https://doi.org/10.3390/ijms20215420

AMA Style

Li X, Gao Y, Zuo C, Zheng S, Xu F, Sun Y, Zhang Q. The Gas-Phase Formation Mechanism of Dibenzofuran (DBF), Dibenzothiophene (DBT), and Carbazole (CA) from Benzofuran (BF), Benzothiophene (BT), and Indole (IN) with Cyclopentadienyl Radical. International Journal of Molecular Sciences. 2019; 20(21):5420. https://doi.org/10.3390/ijms20215420

Chicago/Turabian Style

Li, Xuan, Yixiang Gao, Chenpeng Zuo, Siyuan Zheng, Fei Xu, Yanhui Sun, and Qingzhu Zhang. 2019. "The Gas-Phase Formation Mechanism of Dibenzofuran (DBF), Dibenzothiophene (DBT), and Carbazole (CA) from Benzofuran (BF), Benzothiophene (BT), and Indole (IN) with Cyclopentadienyl Radical" International Journal of Molecular Sciences 20, no. 21: 5420. https://doi.org/10.3390/ijms20215420

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
