Probing the Interaction of Diester Internal Donors (ID) with AlEt3 on Ziegler-Natta Surfaces: A Comparison Between Binary (MgCl2/ID) and Ternary (MgCl2/ID/TiCl4) Formulations

by
Felicia Daniela Cannavacciuolo
,
Giuseppe Antinucci
*,
Roberta Cipullo
* and
Vincenzo Busico
Department of Chemical Sciences, Federico II University of Naples, via Cinthia, 80126 Napoli, Italy
*
Authors to whom correspondence should be addressed.
Molecules 2025, 30(10), 2176; https://doi.org/10.3390/molecules30102176
Submission received: 24 April 2025 / Revised: 9 May 2025 / Accepted: 13 May 2025 / Published: 15 May 2025
(This article belongs to the Special Issue Research on Heterogeneous Catalysis—2nd Edition)
Browse Figures
Versions Notes

Abstract

Organic electron donors are essential components of Ziegler-Natta (ZN) catalysts to produce isotactic polypropylene. In particular, aromatic or aliphatic diesters are widely used as ‘Internal Donors’ (ID) in MgCl2/ID/TiCl4 precatalyst formulations. Diesters are reactive with AlEt3 (by far the most common ZN precatalyst activator) and are partly removed from the solid phase in the early stages of the polymerization process; this is detrimental for catalyst functioning, and a surrogate donor (‘External Donor’ (ED), usually an alkoxysilane) is added to the system to restore performance. Recent studies, however, demonstrated that even in cases where most of the diester is extracted by AlEt3, the active sites retain a ‘memory’ of it in several aspects of the catalytic behavior (such as, e.g., the average productivity and the polydispersity index of the polymer produced). Considering that the residual diester is always in molar excess with respect to the active Ti, one may speculate that long-lasting interactions between the latter and diester molecules can occur. In turn, this should imply that the reactivity of AlEt3 is different with binary MgCl2/ID or ternary MgCl2/ID/TiCl4 mixtures. In this work, the latter hypothesis was explored for a library of diester IDs with large structural diversity. In line with the anticipation, the fractional amount of ID extracted by AlEt3 was generally lower for ternary mixtures, although to an extent exquisitely dependent on diester structure.

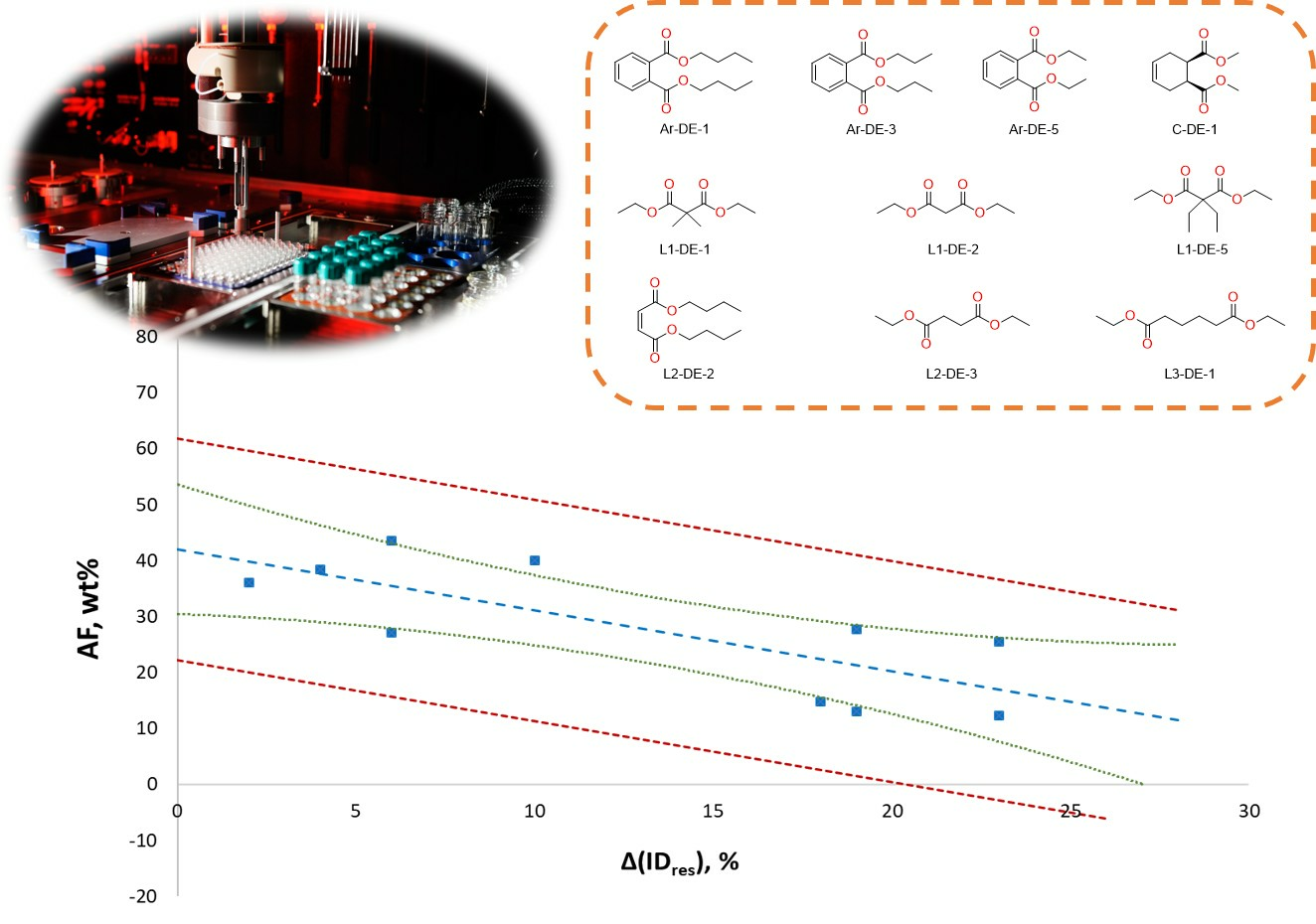

Graphical Abstract

1. Introduction

Ti-based Ziegler Natta (ZN) catalysts continue to dominate the industrial production of isotactic polypropylene (iPP) [1,2,3]. They consist of a solid precatalyst of composition MgCl2/Internal Donor (ID)/TiCl4, and a soluble AlR3/External Donor (ED) cocatalyst [1,2,3,4,5]. Catalyst performance, and most notably stereoselectivity, depends crucially on the nature of the ID/ED pair [6,7,8,9,10,11]. IDs that react with AlEt3, such as aromatic monoesters (e.g., benzoates), aromatic diesters (e.g., phthalates), and aliphatic diesters (e.g., succinates), are extracted from the solid catalyst in the early stages of the polymerization, although to variable extents [6,10,12,13]. In the case of monoesters, the process is extensive and associated with a dramatic loss of catalyst stereoselectivity, which must be restored by adding a proper ED (typically, another aromatic monoester [1,3,12,13]). With diester IDs, a qualitatively similar, albeit less extreme, picture has been reported, and alkoxysilanes are the most common EDs [7,8,10]. Some other IDs, instead, are unreactive with AlEt3 (like, e.g., 1,3-dimethoxypropanes), and adding an ED is not mandatory, although it can be beneficial for overall catalyst performance [5,10,14].
This scenario has been partly questioned by a recent comprehensive investigation of ZN catalysts making use of integrated High Throughput Experimentation (HTE) and Artificial Intelligence (AI) tools and methodologies [15]. In particular, the results indicated that diester IDs in the chemisorbed state are much less reactive with AlEt3 than monoester homologs [12,16,17,18], and that the residual ID, which is always in molar excess with respect to the active Ti [19,20,21,22] even in cases where a majority is extracted, leaves a durable imprint in the catalytic species. As a matter of fact, important catalyst properties, such as average productivity and polydispersity index of the produced iPP, are pre-determined by the ID and almost insensitive to the subsequently added ED. This points to a long-lasting association between diester molecules and active Ti.
Searching for some evidence of said association, in the present work we investigated comparatively the interaction of binary MgCl2/ID and ternary MgCl2/ID/TiCl4 mixtures with AlEt3. A library of diester IDs with large structural diversity was utilized. The full precatalysts were borrowed from the study of ref. [15], whereas MgCl2/ID mixtures were prepared by planetary ball milling. In the following sections, we report and discuss the experimental details and results of this study, including the implementation of a milling protocol ensuring the integrity of the ID molecules on the surface of the intensively activated MgCl2 particles.

2. Results and Discussion

A set of 10 diesters featuring variously substituted linear and cyclic aliphatic as well as aromatic structures (Figure 1) was selected for this work from a wider library of 22 diesters investigated in ref. [15] (for convenience, the ester identification codes in Figure 1 are the same used in the latter reference). Dibutylphthalate (Ar-DE-1) was chosen as a benchmark, due to its overwhelming importance in the iPP industry.
As noted above, the ternary MgCl2/ID/TiCl4 mixtures (full precatalysts) were already available from previous works [15,23]. The binary MgCl2/ID mixtures, instead, were purposely prepared by means of planetary ball milling [15,24]. This physical activation method is extremely efficient; indeed, it can be used to prepare metastable phases with nanosized particles [25,26,27]. For the present study, it has two important advantages: (a) it can be operated under a highly controlled inert atmosphere, thus hindering activated dry MgCl2 from water reuptake; and (b) it is much faster than chemical activation methods aimed at particle morphology control [1,3,28,29,30]; this is extremely important for catalyst application but unnecessary here. The main downside is the risk of diester thermal and/or mechanical degradation due to the high milling energy. Therefore, prior to systematic mixture preparations, four different grinding protocols were tested on the MgCl2/Ar-DE-1 system, namely a ‘dry’ (D) or a ‘wet’ (W) method, each applied in ‘harsh’ (h) or ‘mild’ (m) mode: the W method entailed the addition of an inert liquid diluent (dry heptane) into the jar to better dissipate the milling energy; the h and m application modes of each method, in turn, differed for the duration of the grinding intervals (20 min and 11 min, respectively) and of the pauses for reversing the direction of jar rotation (15 s and 240 s, respectively). For more details on hardware and protocols, see Section 3. All binary mixtures were characterized by means of powder X-ray diffraction (XRD) to estimate the average size of the MgCl2 coherence domains, and 1H NMR spectroscopy (after dissolution in methanol-d4) to measure the amount of strongly bound diester and the possible presence of a degraded diester fraction.
Figure 2 reports the powder XRD profiles of representative MgCl2/Ar-DE-1 mixtures prepared with the D and W grinding method.
MgCl2 has a polymorphic crystal structure [31,32,33]. The common leitmotif of all modifications is the vertical stacking of structural layers, each consisting of two planes of close-packed Cl atoms with Mg atoms occupying all octahedral cavities in between. In the stable α modification, the succession of the Cl planes is (ABC)n, and the unit cell is hexagonal with axes a = 0.364 nm and c = 1.767 nm [31,32,33]. The δ form, instead, features rotational faults and irregular stacking of the Cl–Mg–Cl layers, resulting in nanosized crystallites characterized by lattice disorder [32,34,35,36]. Based on the XRD profiles, W-milled samples are in the α-form, whereas the very broad peaks of D-milled samples are indicative of the δ-MgCl2 form [34,35,36,37,38,39]. The average size of the coherence domains along the a-axis (<La>) and the c-axis (<Lc>) of the unit cell, i.e., perpendicularly and parallel to the basal planes of the structural layers, was calculated for all samples by applying the semi-empirical method of Allegra and Giunchi (using a customized Scherrer’s formula) [36]. The domains turned out to be very small (2–6 nm) in D-milled samples (1 and 2 of Table 1), and about 10-fold larger in W-milled ones (3 and 4 of Table 1). For both grinding methods, the choice of application mode turned out to be virtually inconsequential, especially with reference to <La>.
The results of the 1H NMR characterization of the samples are reported in the last two columns of Table 1; representative spectra are also shown in Figure 3. Notably, the weight amount of strongly bound diester (that is, residual to hot washing with heptane) was very similar for all four samples, notwithstanding the large differences in size of the XRD coherence domains. Considering that diester chemisorption occurs on the lateral terminations of the MgCl2 crystallites [40,41,42,43], our educated guess is that such terminations had similar average dimensions in all four samples, and that the much smaller coherence domains in D-milled ones should be ascribed primarily to the lattice disorder. Consistent with this assumption, the molar fraction of strongly bound diester is compatible with an average lateral dimension of the crystallites close to <La> in the W-milled samples 3 and 4.
Importantly, the 1H NMR spectra of D-milled samples clearly indicated the presence of a non-negligible fraction of degraded diester (extra signals of aromatic protons in the range of δ = 7.3–7.6 ppm downfield of TMS, Figure 3-bottom [44]).
In view of the results just illustrated for the MgCl2/Ar-DE-1 mixtures, we decided to adopt the mW grinding protocol for preparing all binary MgCl2/ID mixtures for the present study. Table 2 lists the compositions of all binary MgCl2/ID and ternary MgCl2/ID/TiCl4 mixtures included in this study; in the latter, it is worthy to note that Ti and ID amounts were not far from equimolar.
Using a robotic reaction platform fully contained inside a glovebox (see Section 3 for details), all mixtures were suspended in a decane solution of AlEt3 ([Al]/[ID] = 25) at 80 °C under magnetic stirring; after 30 min, the solids were recovered by decantation, washed with two aliquots of heptane at 50 °C and one aliquot of pentane at 25 °C, and dried at 50 °C in a vacuum. Afterwards, the solids were dissolved in methanol-d4 and the residual ID content was measured by 1H NMR. The results are reported in Table 3.
In line with the hypothesis that prompted this work, the results in Table 3 indicate that the relative amount of diester ID residual to AlEt3 exposure in decane suspension was generally and appreciably lower in binary MgCl2/ID than in ternary MgCl2/ID/TiCl4 mixtures. The excess ID found in the latter (Δ(IDres)) was strongly dependent on the diester identity, ranging from about 20% for phthalates (namely, Ar-DE-1, Ar-DE-3, and Ar-DE-5) down to about 5% only for linear diesters lacking sterically demanding substituents (such as L1-DE-2, L2-DE-2, and L3-DE-1).
The relationship between Δ(IDres) and ID structure is all but trivial. An especially intriguing example is C-DE-1, with the lowest Δ(IDres) value (2%) in the set, notwithstanding a certain similarity in molecular shape with phthalates (but with an aliphatic nature and the presence of two chiral centers). Many different effects can contribute to this relation, because the steric and electronic features of the individual IDs likely impact on all processes in competition, including (but possibly not limited to) the chemisorption onto MgCl2, the formation of Lewis acid-base adducts with AlEt3, the subsequent reduction of the ester functionalities by AlEt3, and—last but not least—the postulated and still ill-defined association with the TiCln (n = 4 or 3) surface adducts. The very observation of a measurable Δ(IDres) (Table 3) confirms the hypothesis of such an association, which might consist in an adjacent positioning of the two moieties on the catalyst surface or even a direct bonding interaction; the latter, however, would require a nonepitaxial nature of (part of) the TiCln adsorbates [45].
Intriguingly, a correlation plot between Δ(IDres) and the stereoselectivity of catalyst systems based on the ternary mixtures of Table 2 and Table 3 in combination with AlEt3, expressed in terms of the amorphous fraction (AF)—measured by analytical Crystallization Elution Fractionation (aCEF) [10,46,47,48]—of the produced iPP samples [15], highlighted an appreciable, albeit somewhat loose (R2~0.6), inverse correlation (Figure 4). In particular, catalyst systems modified with the three phthalates of Figure 1, with the highest values of Δ(IDres) in the investigated diester ID set, yielded iPP samples with AF values < 15 wt% even in the absence of an ED. We trace the higher stereoselectivity of ED-containing catalyst systems to the ‘lateral pressure’ exerted by the overall donor pool at high surface coverage, freezing the conformational motions of the donor molecules in the proximity of the catalytic pocket, and therefore enhancing their enantiodiscriminating ability due to the so-called ‘growing chain orientation mechanism of stereocontrol’ [49,50].

3. Materials and Methods

All manipulations of air-sensitive compounds were conducted under argon or nitrogen using Schlenk techniques and/or MBraun LabMaster 130 gloveboxes (Oberschleißheim, Germany). Hydrocarbon diluents (decane, heptane, and pentane HPLC-grade; Romil, Cambridgeshire, UK) were purified in an MBraun SPS-5 system by sequential passage through a fixed-bed column of A4 molecular sieves and a fixed-bed column of activated Cu catalyst (BASF, Ludwigshafen, Germany), so as to remove H2O and O2 to levels below 1 ppmv. AlEt3 was purchased from Chemtura Europe (Frauenfeld, Switzerland) and used as received. All diesters were purchased from TCI and used as received. Anhydrous MgCl2 was prepared according to protocols reported elsewhere [24].
Binary MgCl2/ID mixtures were prepared by means of a Retsch PM-100 planetary ball mill (Retsch GmbH, Haan, Germany), equipped with an airtight and chemically inert ceramic jar made with ZrO2 stabilized with Y [24]. Two different grinding methods, namely ‘Dry’ (D) or ‘Wet’ (W), each applied in a ‘harsh’ (h) or a ‘mild’ (m) mode, were tested. The W grinding method entails the presence of a diluent, namely anhydrous heptane. The two protocols had identical effective grinding time (6 h) and jar rotation velocity (650 rpm). In the h (m) application mode, grinding periods of 20 (11) min alternated with pauses of 15 (240) s for reversing the direction of jar rotation.
Operating inside a glovebox, aliquots of anhydrous MgCl2, diester ID (8.0 mol% with respect to Mg), and diluent (heptane) when appropriate, were loaded into the jar together with ≈87 g of grinding ceramic balls (3 mm diameter). The jar was then transferred to the mill. At the end of the milling process, the samples were collected in a glovebox. To separate any non-chemisorbed ID fraction, the recovered samples were washed twice with heptane aliquots at 50 °C and once with a pentane aliquot at 25 °C under magnetic stirring (600 rpm). Finally, the samples were dried at 50 °C under vacuum overnight.
All binary mixtures were characterized by powder X-ray diffraction (XRD) to identify the MgCl2 phase and measure the size of the coherence domains following a procedure described by Giunchi and Allegra [36]. XRD profiles were recorded using a Philips PW 1830 diffractometer (Philips, Eindhoven, The Netherland) equipped with a custom-made airtight cell with PVC windows, able to maintain a static atmosphere with negligible O2 and moisture contamination for at least 8 h. The cell was loaded in a glovebox and transferred to the diffractometer, where the diffraction was collected using Ni-filtered Cu Kα radiation (30 mA, 35 kV) with a step scanning procedure (2θ range between 5.0° and 70.0°, 0.10° step, 20 s counting time per step).
The amount of diester ID in each mixture was measured by means of quantitative 1H NMR spectroscopy, using a Bruker Avance DRX 400 spectrometer (Bruker Corporation, Eindhoven, The Netherland) operating at 400 MHz [10,51,52] with a 5 mm probe. The samples were dissolved in methanol-d4 (≈20 mg/mL), containing acetonitrile (1.0 μL) as an internal standard. The acquisition parameters were as follows: 90° pulse, 10 ppm spectral width, 60 s acquisition time, and 10 s relaxation delay. The resonance assignment was performed based on the 1H NMR spectra of the neat diester molecules recorded under the same conditions.
Full MgCl2/ID/TiCl4 precatalysts (ternary mixtures) were prepared in a previous collaborative investigation at the Japan Advance Institute of Science and Technology (JAIST). The full details of the synthesis and characterization have already been reported in Refs. [15,23,53].
Studies of ID extraction following exposure to AlEt3 in hydrocarbon suspension were carried out in a Freeslate Extended Core Module (XCM) robotic platform using established protocols [10,15,52]. In a typical experiment, an array of (up to 24) 8.0 mL glass vials, pretreated for at least 12 h at 200 °C under vacuum, were fitted with Parylene-coated magnetic mini stir-bars and placed into a 6 × 4 rack, which was then positioned in a deck bay. In each vial, a 25 ± 1 mg aliquot of MgCl2/ID or MgCl2/ID/TiCl4 mixture was suspended in dry decane (3.3 mL), and then 25 equivalents of AlEt3 (269–285 μmol) were added. The vials were capped, and the systems were allowed to react for 30 min at 80 °C under magnetic stirring (800 rpm). Then, stirring was stopped, and a cold quench (−30 °C) was performed by manually transferring the vials into a cold metal plate. At this point, the solid phase and the liquid phase of each vial were separated by centrifugation. The rack was placed in another deck bay, the vials were uncapped, and the supernatants were aspirated robotically (3.6 mL per vial). The solid phases, in turn, were robotically hot-washed twice with heptane and once with pentane, and finally were dried in a centrifugal evaporator for 10 h at 50 °C.

4. Conclusions

In the present work, we investigated how a variety of diester Internal Donors (ID), chemisorbed on activated MgCl2 in binary MgCl2/ID and ternary MgCl2/ID/TiCl4 mixtures, interacted with AlEt3 in hydrocarbon suspension under conditions mimicking the polymerization environment. The aim was to find experimental evidence of a lower reactivity of the diesters in ternary mixtures, suggesting a physical or chemical interaction with the TiCln surface species (n = 4 or 3) that durably imprints the catalytic behavior of the latter. The results did provide such evidence, although to an extent which is highly dependent on individual diester molecular structures (higher for phthalates, lower for aliphatic diesters lacking sterically demanding substituents). Overall, the picture emerging from this study suggests that the role of diester IDs in MgCl2-supported ZN catalysis to produce isotactic polypropylene has been somewhat underestimated, and that a major revision of the currently accepted models of catalytic species is likely justified.

Author Contributions

Conceptualization, G.A., R.C. and V.B.; formal analysis, F.D.C., G.A. and R.C.; investigation, F.D.C.; data curation, G.A., F.D.C. and R.C.; writing—original draft preparation, G.A., R.C. and V.B.; writing—review and editing, F.D.C., G.A., R.C. and V.B.; visualization, F.D.C. and G.A.; supervision, V.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article. Further inquiries can be directed at the corresponding authors.

Acknowledgments

The authors acknowledge Toshiaki Taniike, Patchanee Chammingkwan and Mostafa Khoshsefat for the synthesis of the precatalysts.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Cecchin, G.; Morini, G.; Piemontesi, F.; Seidel, A. Ziegler-Natta Catalysts. In Kirk-Othmer Encyclopedia of Chemical Technology; Wiley-Interscience: Hoboken, NJ, USA, 2007; Volume 26. [Google Scholar]
  2. Antinucci, G.; Cipullo, R.; Busico, V. Imagine Polypropylene. Nat. Catal. 2023, 6, 456–457. [Google Scholar] [CrossRef]
  3. Pasquini, N. Polypropylene Handbook, 2nd ed.; Hanser Publishers: Munich, Germany, 2005. [Google Scholar]
  4. Soga, K.; Shiono, T. Ziegler-Natta Catalysts for Olefin Polymerizations. Prog. Polym. Sci. 1997, 22, 1503–1546. [Google Scholar] [CrossRef]
  5. Albizzati, E.; Giannini, U.; Morini, G.; Galimberti, M.; Barino, L.; Scordamaglia, R. Recent Advances in Propylene Polymerization with MgCl2 Supported Catalysts. Macromol. Symp. 1995, 89, 73–89. [Google Scholar] [CrossRef]
  6. Noristi, L.; Barbè, P.C.; Baruzzi, G. Effect of the Internal/External Donor Pair in High-Yield Catalysts for Propylene Polymerization, 1. Catalyst-Cocatalyst Interactions. Die Makromol. Chem. 1991, 192, 1115–1127. [Google Scholar] [CrossRef]
  7. Morini, G.; Albizzati, E.; Balbontin, G.; Mingozzi, I.; Sacchi, M.C.; Forlini, F.; Tritto, I. Microstructure Distribution of Polypropylenes Obtained in the Presence of Traditional Phthalate/Silane and Novel Diether Donors: A Tool for Understanding the Role of Electron Donors in MgCl2-Supported Ziegler-Natta Catalysts. Macromolecules 1996, 29, 5770–5776. [Google Scholar] [CrossRef]
  8. Wondimagegn, T.; Ziegler, T. The Role of External Alkoxysilane Donors on Stereoselectivity and Molecular Weight in MgCl2-Supported Ziegler–Natta Propylene Polymerization: A Density Functional Theory Study. J. Phys. Chem. C 2012, 116, 1027–1033. [Google Scholar] [CrossRef]
  9. Taniike, T.; Terano, M. The Use of Donors to Increase the Isotacticity of Polypropylene. In Polyolefins: 50 Years after Ziegler and Natta, I.; Kaminsky, W., Ed.; Springer: Berlin/Heidelberg, Germany, 2013; pp. 81–97. [Google Scholar]
  10. Vittoria, A.; Meppelder, A.; Friederichs, N.; Busico, V.; Cipullo, R. Demystifying Ziegler–Natta Catalysts: The Origin of Stereoselectivity. ACS Catal. 2017, 7, 4509–4518. [Google Scholar] [CrossRef]
  11. Correa, A.; Piemontesi, F.; Morini, G.; Cavallo, L. Key Elements in the Structure and Function Relationship of the MgCl2/TiCl4/Lewis Base Ziegler-Natta Catalytic System. Macromolecules 2007, 40, 9181–9189. [Google Scholar] [CrossRef]
  12. Busico, V.; Corradini, P.; De Martino, L.; Proto, A.; Savino, V.; Albizzati, E. Polymerization of Propene in the Presence of MgCl2-Supported Ziegler-Natta Catalysts, 1. The Role of Ethyl Benzoate as “Internal” and “External” Base. Die Makromol. Chem. 1985, 186, 1279–1288. [Google Scholar] [CrossRef]
  13. Sacchi, M.C.; Tritto, I.; Shan, C.; Mendichi, R.; Noristi, L. Role of the Pair of Internal and External Donors in MgCl2-Supported Ziegler-Natta Catalysts. Macromolecules 1991, 24, 6823–6826. [Google Scholar] [CrossRef]
  14. Scordamaglia, R.; Barino, L. Theoretical Predictive Evaluation of New Donor Classes in Ziegler-Natta Heterogeneous Catalysis for Propene Isospecific Polymerization. Macromol. Theory Simul. 1998, 7, 399–405. [Google Scholar] [CrossRef]
  15. Cannavacciuolo, F.D.; Falivene, L.; Zhang, Z.; Takasao, G.; De Canditiis, D.; Khoshsefat, M.; Chammingkwan, P.; Antinucci, G.; Taniike, T.; Cipullo, R.; et al. Data Driven Modeling of Ziegler–Natta Polypropylene Catalysts: Revisiting the Role of the Internal Donor. ACS Catal. 2025, 15, 5770–5780. [Google Scholar] [CrossRef]
  16. Zaccaria, F.; Vittoria, A.; Correa, A.; Ehm, C.; Budzelaar Peter, H.M.; Busico, V.; Cipullo, R. Internal Donors in Ziegler–Natta Systems: Is Reduction by AlR3 a Requirement for Donor Clean-Up? ChemCatChem 2018, 10, 984–988. [Google Scholar] [CrossRef]
  17. Langer, A.W.; Burkhardt, T.J.; Steger, J.J. Supported Catalysts for Polypropylene: Aluminum Alkyl-Ester Chemistry. In Coordination Polymerization; Price, C.C., Vandenberg, E.J., Eds.; Springer: Boston, MA, USA, 1983; pp. 225–248. [Google Scholar]
  18. Chien, J.C.W.; Wu, J.-C. Magnesium-Chloride-Supported High-Mileage Catalysts for Olefin Polymerization. II. Reactions between Aluminum Alkyl and Promoters. J. Polym. Sci. Polym. Chem. Ed. 1982, 20, 2445–2460. [Google Scholar] [CrossRef]
  19. Yu, Y.; Busico, V.; Budzelaar, P.H.M.; Vittoria, A.; Cipullo, R. Of Poisons and Antidotes in Polypropylene Catalysis. Angew. Chem. Int. Ed. 2016, 55, 8590–8594. [Google Scholar] [CrossRef]
  20. Terano, M.; Kataoka, T.; Keii, T. Stopped Flow Polymerization of Propene with Typical MgCl2-Supported High-Yield Catalysts. J. Mol. Catal. 1989, 56, 203–210. [Google Scholar] [CrossRef]
  21. Taniike, T.; Sano, S.; Ikeya, M.; Thang, V.Q.; Terano, M. Development of a Large-Scale Stopped-Flow System for Heterogeneous Olefin Polymerization Kinetics. Macromol. React. Eng. 2012, 6, 275–279. [Google Scholar] [CrossRef]
  22. Thakur, A.; Wada, T.; Chammingkwan, P.; Terano, M.; Taniike, T. Development of Large-Scale Stopped-Flow Technique and Its Application in Elucidation of Initial Ziegler-Natta Olefin Polymerization Kinetics. Polymers 2019, 11, 1012. [Google Scholar] [CrossRef]
  23. Taniike, T.; Cannavacciuolo, F.D.; Khoshsefat, M.; De Canditiis, D.; Antinucci, G.; Chammingkwan, P.; Cipullo, R.; Busico, V. End-to-End High-Throughput Approach for Data-Driven Internal Donor Development in Heterogeneous Ziegler-Natta Propylene Polymerization. ACS Catal. 2024, 14, 7589–7599. [Google Scholar] [CrossRef]
  24. Yakimov, A.; Xu, J.; Searles, K.; Liao, W.C.; Antinucci, G.; Friederichs, N.; Busico, V.; Copéret, C. DNP-SENS Formulation Protocols to Study Surface Sites in Ziegler-Natta Catalyst MgCl2 Supports Modified with Internal Donors. J. Phys. Chem. C 2021, 125, 15994–16003. [Google Scholar] [CrossRef]
  25. James, S.L.; Adams, C.J.; Bolm, C.; Braga, D.; Collier, P.; Friščić, T.; Grepioni, F.; Harris, K.D.M.; Hyett, G.; Jones, W.; et al. Mechanochemistry: Opportunities for New and Cleaner Synthesis. Chem. Soc. Rev. 2012, 41, 413–447. [Google Scholar] [CrossRef]
  26. Do, J.-L.; Friščić, T. Mechanochemistry: A Force of Synthesis. ACS Cent. Sci. 2017, 3, 13–19. [Google Scholar] [CrossRef]
  27. Gaffet, E.; Louison, C.; Harmelin, M.; Faudot, F. Metastable Phase Transformations Induced by Ball-Milling in the Cu-W System. Mater. Sci. Eng. A 1991, 134, 1380–1384. [Google Scholar] [CrossRef]
  28. Mori, H.; Sawada, M.; Higuchi, T.; Hasebe, K.; Otsuka, N.; Terano, M. Direct Observation of MgCl2-Supported Ziegler Catalysts by High Resolution Transmission Electron Microscopy. Macromol. Rapid Commun. 1999, 20, 245–250. [Google Scholar] [CrossRef]
  29. McKenna, T.F.L.; Di Martino, A.; Weickert, G.; Soares, J.B.P. Particle Growth During the Polymerisation of Olefins on Supported Catalysts, 1—Nascent Polymer Structures. Macromol. React. Eng. 2010, 4, 40–64. [Google Scholar] [CrossRef]
  30. Andoni, A.; Chadwick, J.C.; Niemantsverdriet, H.J.W.; Thune, P.C. A Flat Model Approach to Ziegler-Natta Catalysts for Propylene Polymerization and a Preparation Method of Well-Defined Crystallites of MgCl2-Supported Catalysts. Macromol. Symp. 2007, 260, 140–146. [Google Scholar] [CrossRef]
  31. Partin, D.E.; O’Keeffe, M. The Structures and Crystal Chemistry of Magnesium Chloride and Cadmium Chloride. J. Solid State Chem. 1991, 95, 176–183. [Google Scholar] [CrossRef]
  32. Malizia, F.; Fait, A.; Cruciani, G. Crystal Structures of Ziegler–Natta Catalyst Supports. Chem. A Eur. J. 2011, 17, 13892–13897. [Google Scholar] [CrossRef]
  33. Zannetti, R.; Marega, C.; Marigo, A.; Martorana, A. Layer Lattices in Ziegler–Natta Catalysts. J. Polym. Sci. Part B Polym. Phys. 1988, 26, 2399. [Google Scholar] [CrossRef]
  34. Wada, T.; Takasao, G.; Piovano, A.; D’Amore, M.; Thakur, A.; Chammingkwan, P.; Bruzzese, P.C.; Terano, M.; Civalleri, B.; Bordiga, S.; et al. Revisiting the Identity of δ-MgCl2: Part, I. Structural Disorder Studied by Synchrotron X-Ray Total Scattering. J. Catal. 2020, 385, 76–86. [Google Scholar] [CrossRef]
  35. Piovano, A.; D’Amore, M.; Wada, T.; Cleto Bruzzese, P.; Takasao, G.; Thakur, A.; Chammingkwan, P.; Terano, M.; Civalleri, B.; Bordiga, S.; et al. Revisiting the Identity of δ-MgCl2: Part II. Morphology and Exposed Surfaces Studied by Vibrational Spectroscopies and DFT Calculation. J. Catal. 2020, 387, 1–11. [Google Scholar] [CrossRef]
  36. Giunchi, G.; Allegra, G. Structural Disorder in Microcrystalline MgCl2. J. Appl. Crystallogr. 1983, 17, 172–178. [Google Scholar] [CrossRef]
  37. D’Amore, M.; Thushara, K.S.; Piovano, A.; Causà, M.; Bordiga, S.; Groppo, E. Surface Investigation and Morphological Analysis of Structurally Disordered MgCl2 and MgCl2/TiCl4 Ziegler–Natta Catalysts. ACS Catal. 2016, 6, 5786–5796. [Google Scholar] [CrossRef]
  38. Wada, T.; Thakur, A.; Chammingkwan, P.; Terano, M.; Taniike, T.; Piovano, A.; Groppo, E. Structural Disorder of Mechanically Activated δ-MgCl2 Studied by Synchrotron X-Ray Total Scattering and Vibrational Spectroscopy. Catalysts 2020, 10, 1089. [Google Scholar] [CrossRef]
  39. Wada, T.; Takasao, G.; Terano, M.; Chammingkwan, P.; Taniike, T. Structure Determination of the δ-MgCl2 Support in Ziegler-Natta Catalysts. J. Japan Pet. Inst. 2022, 65, 88–96. [Google Scholar] [CrossRef]
  40. Correa, A.; Talarico, G.; Cavallo, L. Regiochemistry of Propene Insertion with Group 4 Polymerization Catalysts from a Theoretical Perspective. J. Organomet. Chem. 2007, 692, 4519–4527. [Google Scholar] [CrossRef]
  41. Capone, F.; Rongo, L.; D’Amore, M.; Budzelaar, P.H.M.; Busico, V. Periodic Hybrid DFT Approach (Including Dispersion) to MgCl2-Supported Ziegler–Natta Catalysts. 2. Model Electron Donor Adsorption on MgCl2 Crystal Surfaces. J. Phys. Chem. C 2013, 117, 24345–24353. [Google Scholar] [CrossRef]
  42. Kuklin, M.S.; Bazhenov, A.S.; Denifl, P.; Leinonen, T.; Linnolahti, M.; Pakkanen, T.A. Stabilization of Magnesium Dichloride Surface Defects by Mono- and Bidentate Donors. Surf. Sci. 2015, 635, 5–10. [Google Scholar] [CrossRef]
  43. da Silveira, J.M.; Chikuma, H.; Takasao, G.; Wada, T.; Chammingkwan, P.; Taniike, T. Deciphering the Role of Internal Donors in Shaping Heterogeneous Ziegler–Natta Catalysts Based on Nonempirical Structural Determination. ACS Catal. 2024, 14, 2300–2312. [Google Scholar] [CrossRef]
  44. Suryanarayana, C. Mechanical Alloying and Milling. Prog. Mater. Sci. 2001, 46, 1–184. [Google Scholar] [CrossRef]
  45. Antinucci, G.; Cannavacciuolo, F.D.; Ehm, C.; Budzelaar, P.H.M.; Cipullo, R.; Busico, V. MgCl2-Supported Ziegler-Natta Catalysts for Propene Polymerization: Before Activation. Macromolecules 2024, 57, 5712–5719. [Google Scholar] [CrossRef]
  46. Monrabal, B.; Romero, L.; Mayo, N.; Sancho-Tello, J. Advances in Crystallization Elution Fractionation. Macromol. Symp. 2009, 282, 14–24. [Google Scholar] [CrossRef]
  47. Monrabal, B.; Romero, L. Separation of Polypropylene Polymers by Crystallization and Adsorption Techniques. Macromol. Chem. Phys. 2014, 215, 1818–1828. [Google Scholar] [CrossRef]
  48. Antinucci, G.; Pucciarelli, A.; Vittoria, A.; Zaccaria, F.; Urciuoli, G.; Ehm, C.; Cannavacciuolo, F.D.; Cipullo, R.; Busico, V. Fast Analytics of High-Impact Polypropylene (HIPP). ACS Appl. Polym. Mater. 2023, 5, 3894–3897. [Google Scholar] [CrossRef]
  49. Corradini, P.; Barone, V.; Fusco, R.; Guerra, G. Analysis of Models for the Ziegler-Natta Stereospecific Polymerization on the Basis of Non-Bonded Interactions at the Catalytic Site—I. The Cossee Model. Eur. Polym. J. 1979, 15, 1133–1141. [Google Scholar] [CrossRef]
  50. Corradini, P.; Guerra, G.; Fusco, R.; Barone, V. Analysis of Models for the Ziegler-Natta Stereospecific Polymerization on the Basis of Non-Bonded Interactions at the Catalytic Site—II: Edges, Steps and Reliefs on the Surface of Layered Modifications of TiCl3. Eur. Polym. J. 1980, 16, 835–842. [Google Scholar] [CrossRef]
  51. Antinucci, G.; Vittoria, A.; Cipullo, R.; Busico, V. Regioirregular Monomeric Units in Ziegler–Natta Polypropylene: A Sensitive Probe of the Catalytic Sites. Macromolecules 2020, 53, 3789–3795. [Google Scholar] [CrossRef]
  52. Vittoria, A.; Antinucci, G.; Zaccaria, F.; Cipullo, R.; Busico, V. Monitoring the Kinetics of Internal Donor Clean-up from Ziegler–Natta Catalytic Surfaces: An Integrated Experimental and Computational Study. J. Phys. Chem. C 2020, 124, 14245–14252. [Google Scholar] [CrossRef]
  53. Chammingkwan, P.; Khoshsefat, M.; Terano, M.; Taniike, T. Parallel Catalyst Synthesis Protocol for Accelerating Heterogeneous Olefin Polymerization Research. Polymers 2023, 15, 4729. [Google Scholar] [CrossRef]
Molecules 30 02176 g001

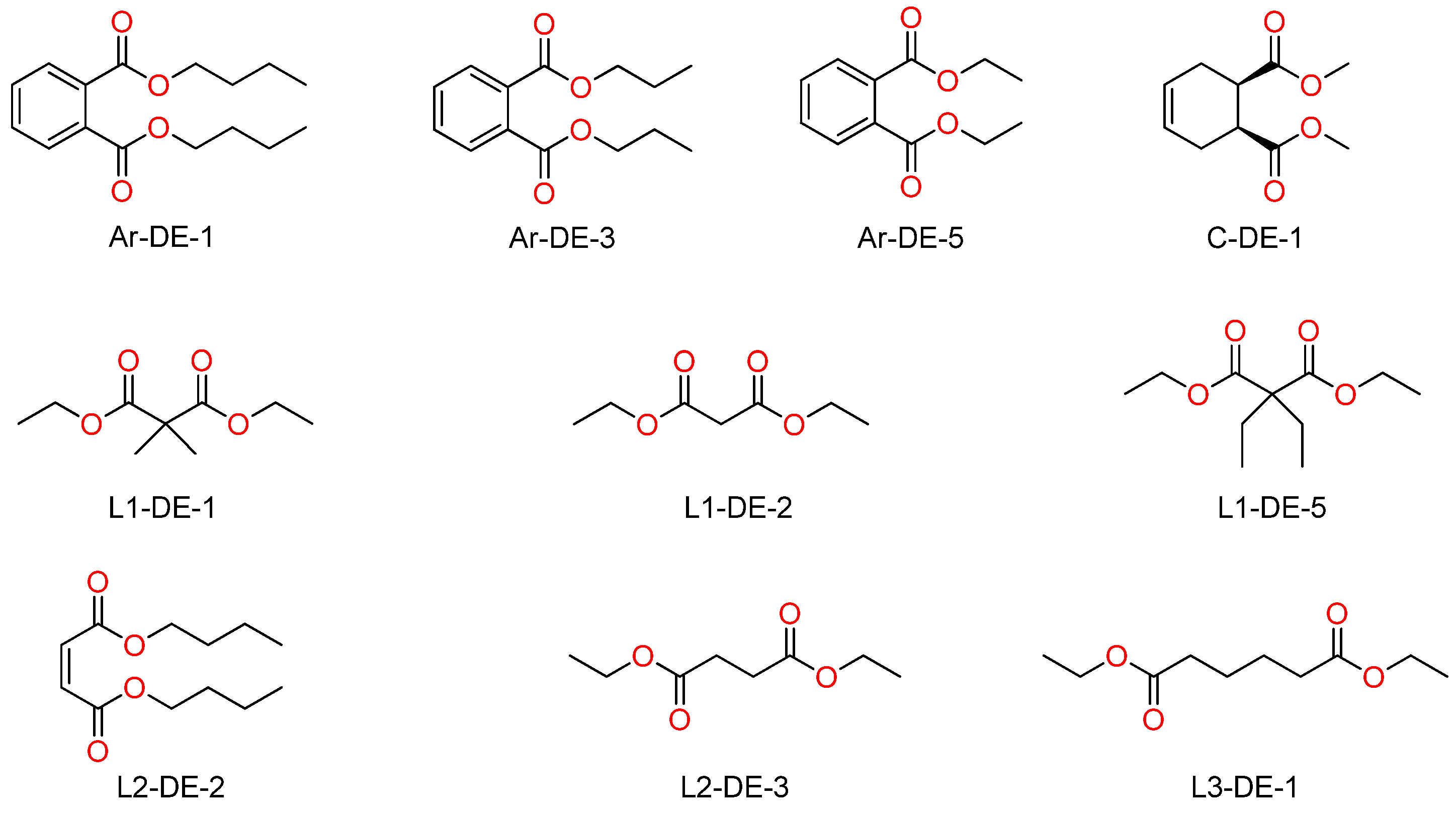

Figure 1. Structures and identification codes of the screened IDs.
Figure 1. Structures and identification codes of the screened IDs.
Molecules 30 02176 g001
Molecules 30 02176 g002

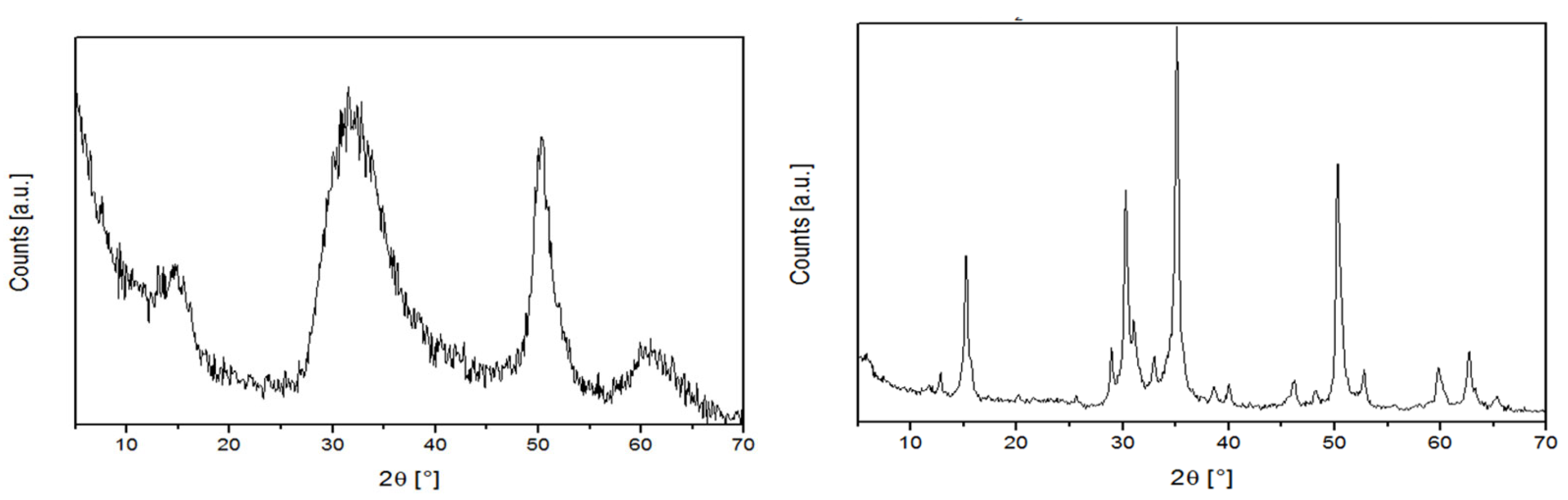

Figure 2. Powder XRD profiles (Cu Kα radiation) of MgCl2/Ar-DE-1 mixtures prepared by D (left) and W (right) planetary co-milling. For details see text.
Figure 2. Powder XRD profiles (Cu Kα radiation) of MgCl2/Ar-DE-1 mixtures prepared by D (left) and W (right) planetary co-milling. For details see text.
Molecules 30 02176 g002
Molecules 30 02176 g003

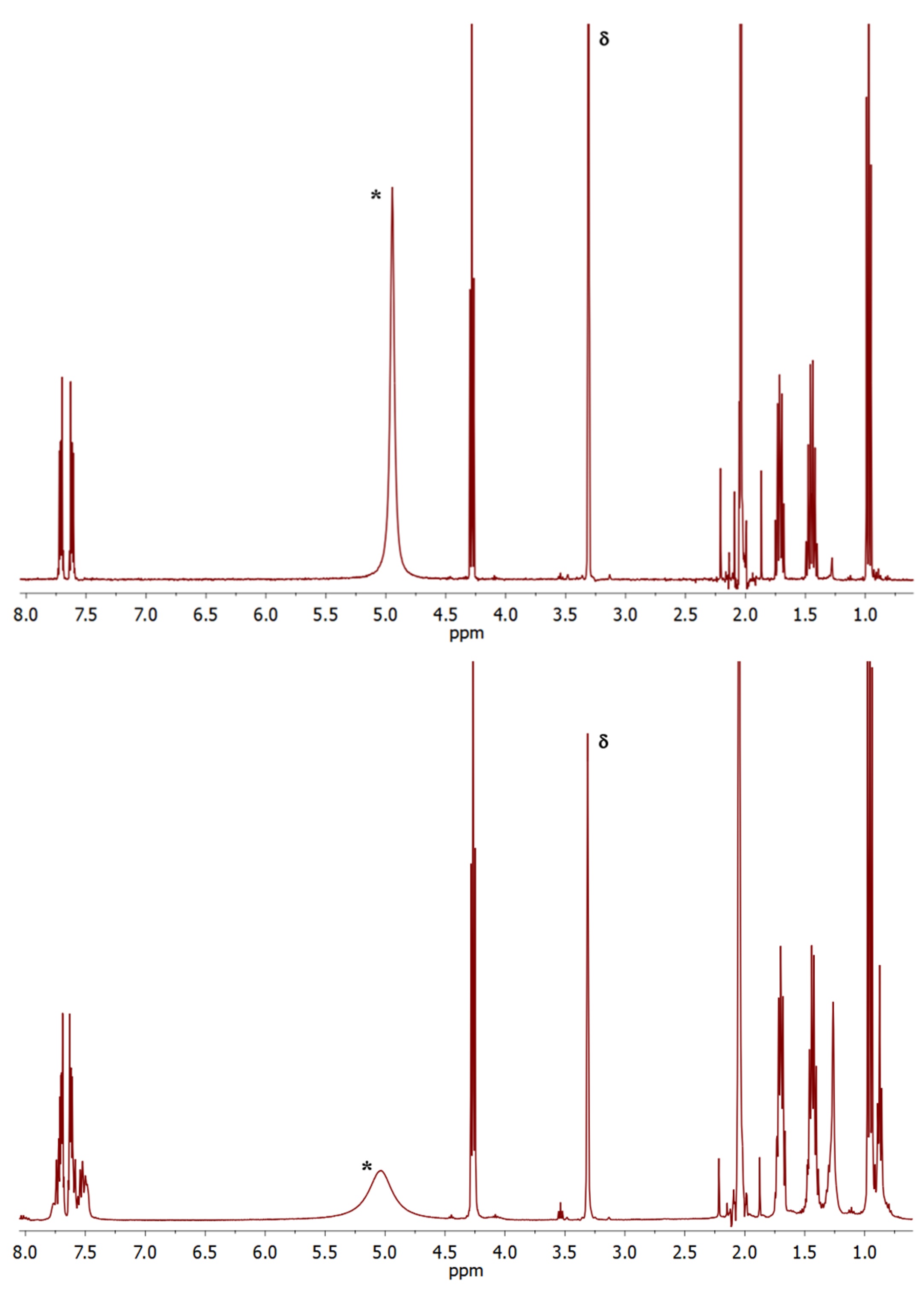

Figure 3. 1H NMR spectra of Sample 1 (top) and Sample 4 (bottom) in Table 1. (*) = water; (δ) = non-deuterated methanol.
Figure 3. 1H NMR spectra of Sample 1 (top) and Sample 4 (bottom) in Table 1. (*) = water; (δ) = non-deuterated methanol.
Molecules 30 02176 g003
Molecules 30 02176 g004

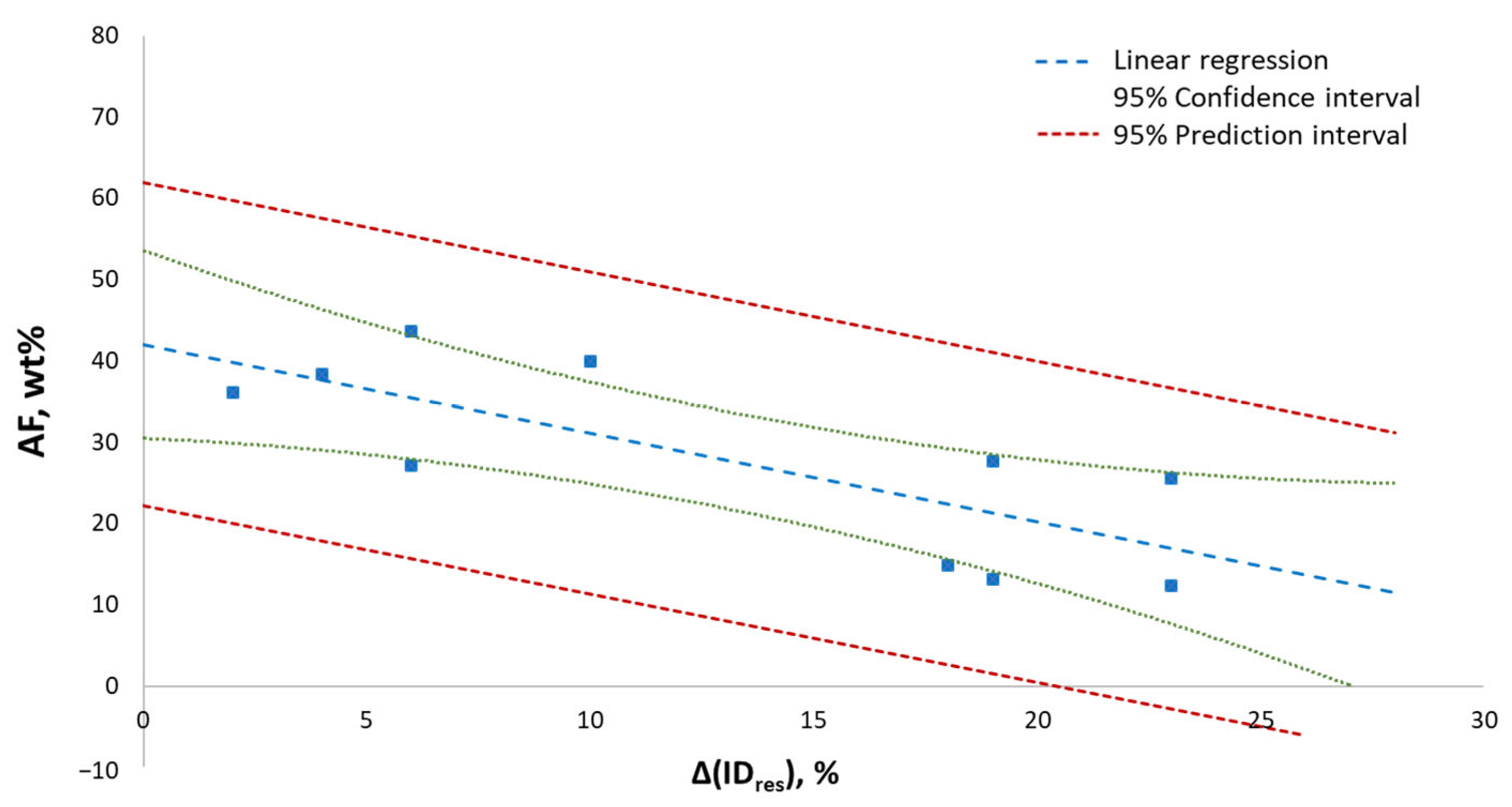

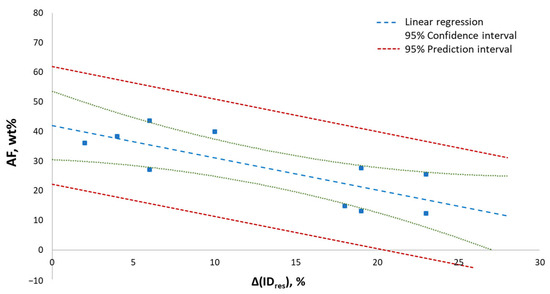

Figure 4. Correlation plot between Δ(IDres) and the stereoselectivity of catalyst systems based on the ternary mixtures of Table 2 and Table 3 in combination with AlEt3, expressed in terms of AF (see text). R2 = 0.60.
Figure 4. Correlation plot between Δ(IDres) and the stereoselectivity of catalyst systems based on the ternary mixtures of Table 2 and Table 3 in combination with AlEt3, expressed in terms of AF (see text). R2 = 0.60.
Molecules 30 02176 g004
Table 1. Main results of the powder XRD and 1H NMR characterization of MgCl2/Ar-DE-1 mixtures prepared using various milling protocols. For details see text.
Table 1. Main results of the powder XRD and 1H NMR characterization of MgCl2/Ar-DE-1 mixtures prepared using various milling protocols. For details see text.
SampleGrinding Protocol<Lc> (nm)<La> (nm)nAr-DE-1,total
(% wrt Mg)		nAr-DE-1,degraded
(% wrt Mg)
1Harsh-Dry (hD)3.05.25.91.8
2Mild-Dry (mD)2.45.66.00.8
3Harsh-Wet (hW)32.126.35.6Not detected
4Mild-Wet (mW)51.030.35.7Not detected
Table 2. Composition of the investigated binary MgCl2/ID and ternary MgCl2/ID/TiCl4 mixtures.
Table 2. Composition of the investigated binary MgCl2/ID and ternary MgCl2/ID/TiCl4 mixtures.
MgCl2/IDMgCl2/ID/TiCl4
IDID
(wt%)		nID
(% wrt Mg)		Ti
(wt%)		nTi
(% wrt Mg)		ID
(wt%)		nID
(% wrt Mg)		n(ID)/n(Ti)
Ar-DE-112.55.72.25.913.96.41.1
Ar-DE-311.86.01.74.512.46.31.4
Ar-DE-513.07.51.84.813.67.81.6
C-DE-19.86.52.46.48.25.30.8
L1-DE-17.24.92.05.39.66.51.2
L1-DE-210.17.82.46.412.610.01.6
L1-DE-59.25.52.77.210.26.00.8
L2-DE-28.96.02.15.615.910.81.9
L2-DE-39.16.82.56.77.65.60.8
L3-DE-111.77.91.84.813.59.21.9
Table 3. Relative amounts of residual ID in binary MgCl2/ID and ternary MgCl2/ID/TiCl4 mixtures after treatment with AlEt3 (30 min in decane suspension at 80 °C; see text).
Table 3. Relative amounts of residual ID in binary MgCl2/ID and ternary MgCl2/ID/TiCl4 mixtures after treatment with AlEt3 (30 min in decane suspension at 80 °C; see text).
IDIDres/binary
(%)		IDres/ternary
(%)		Δ(IDres) (a)
(%)		AF (b)
(wt%)
Ar-DE-159781913.1
Ar-DE-372901814.8
Ar-DE-565882312.3
C-DE-16870236.1
L1-DE-162811927.7
L1-DE-27680438.4
L1-DE-567902325.5
L2-DE-25460643.6
L2-DE-364741040.0
L3-DE-15965627.1
(a) Difference between the residual ID amounts of ternary MgCl2/ID/TiCl4 and binary MgCl2/ID mixtures; (b) amorphous fraction (AF) of the iPP produced in the presence of each ternary mixture (full precatalyst) in combination with AlEt3 (data from ref. [15]).
